Search Results (4)

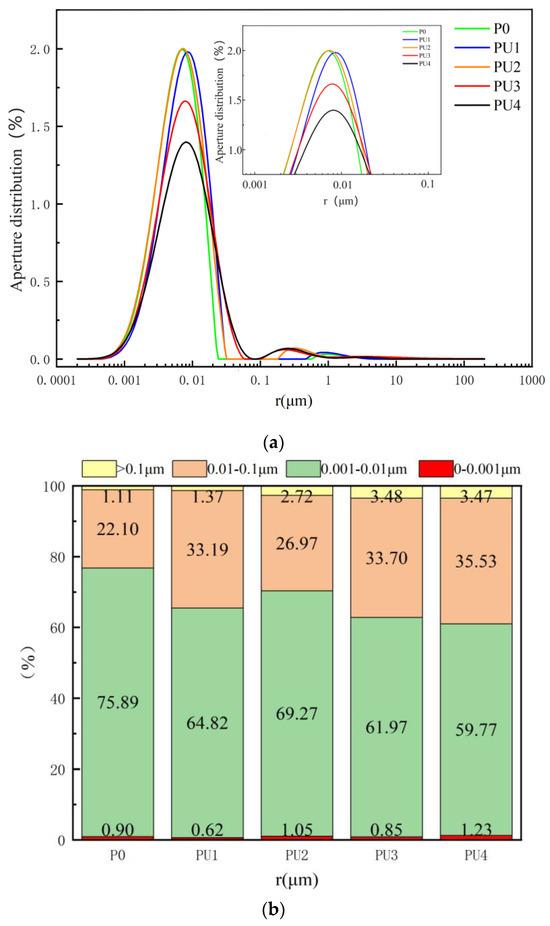

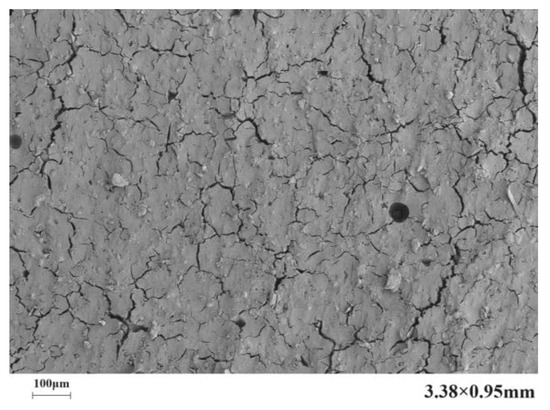

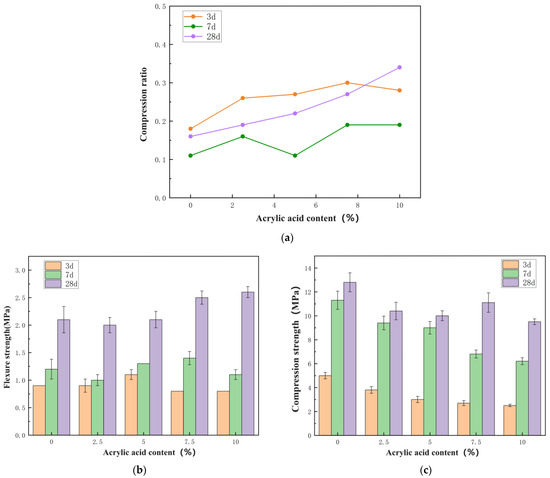

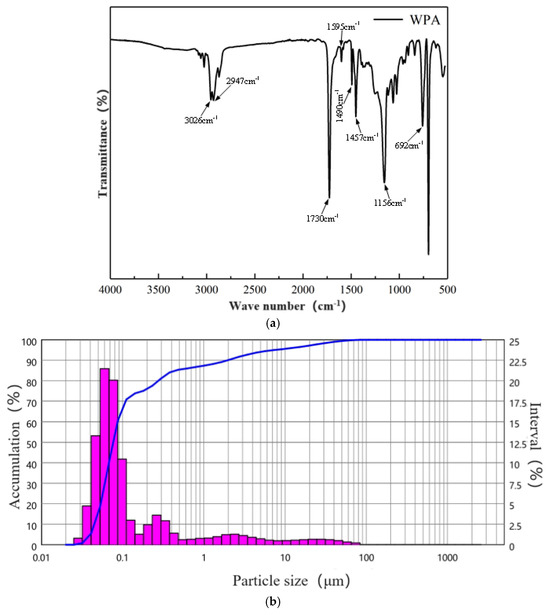

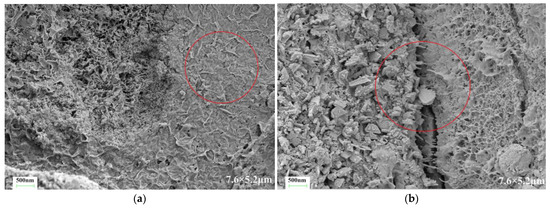

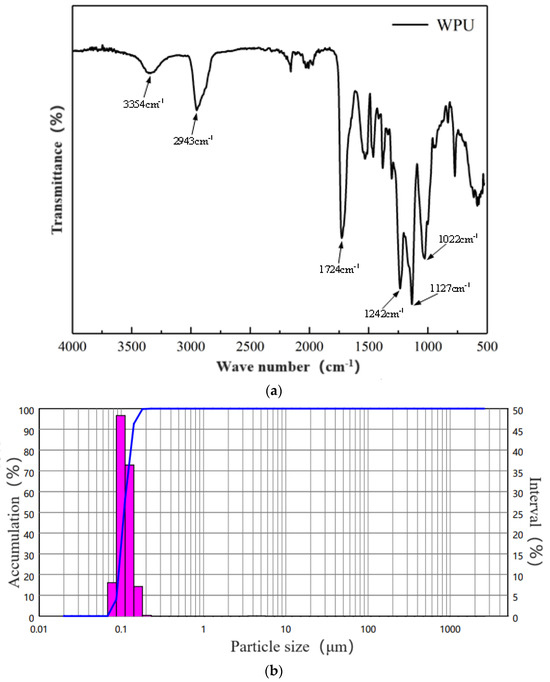

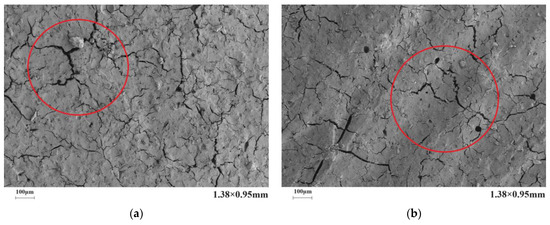

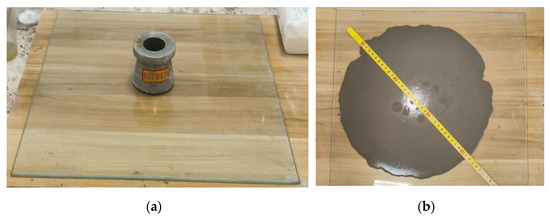

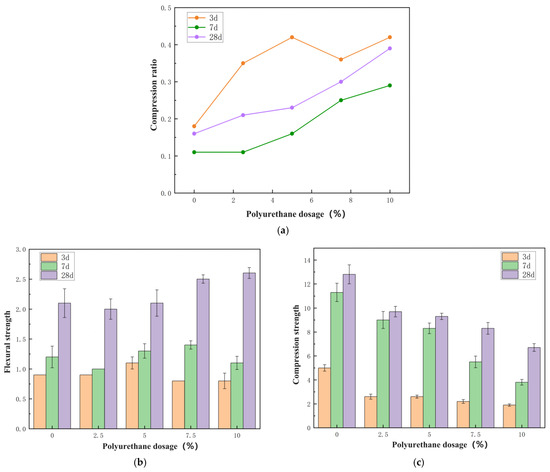

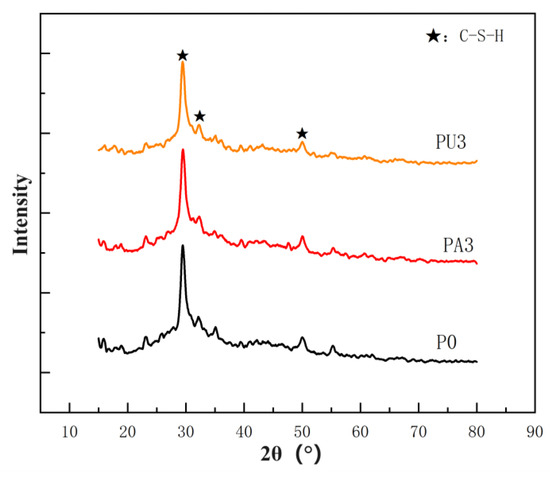

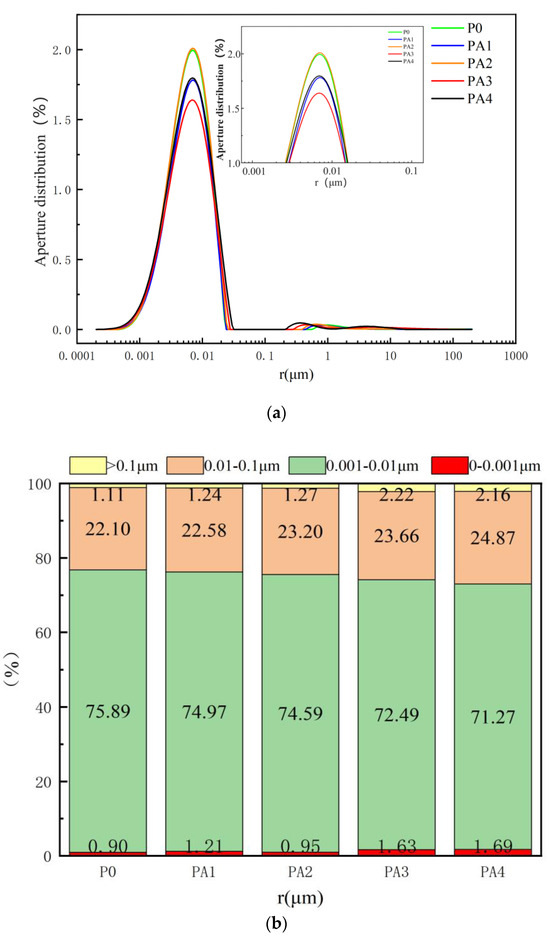

The corrosion resistance of cement–water-glass dual-liquid slurry is poor. Improving its material properties is necessary. In this study, we examined the influence of water-based lotions on the fluidity, gelling time, and mechanical properties of a cement–water-glass dual-liquid slurry based on the mix proportion of the dual-liquid slurry commonly used in construction. The mixture ratio of a C-S (cement–water-glass slurry) dual-liquid slurry was adjusted by introducing a waterborne polyurethane lotion and a waterborne acrylic lotion to modify the traditional C-S dual-liquid slurry material. When acrylic acid is used as a modifying polymer at a dosage of 7.5%, the flowability and gelation time of the dual-liquid slurry are excellent, the compressive strength of the stone body decreases slightly, the flexural strength is improved to a certain extent, and the stone body’s crack resistance during water loss is also enhanced. Moreover, the porosity of the stone body is low. Full article

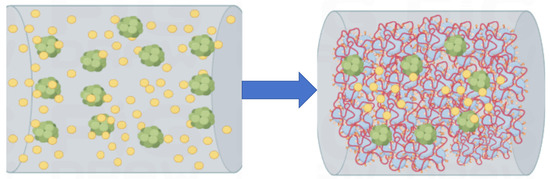

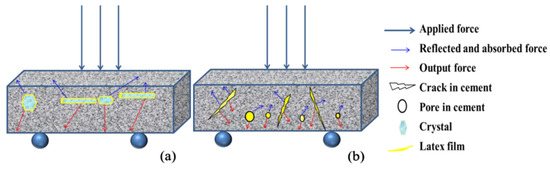

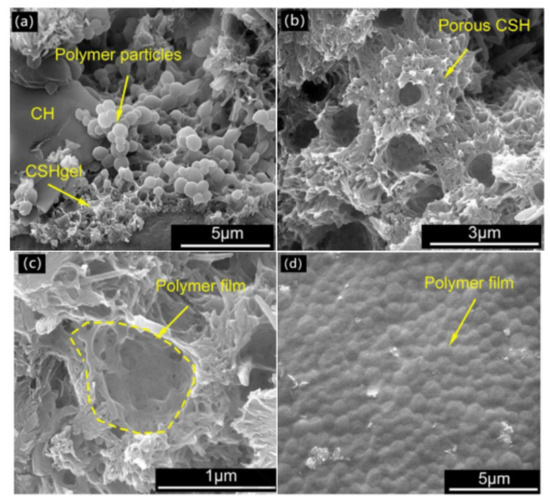

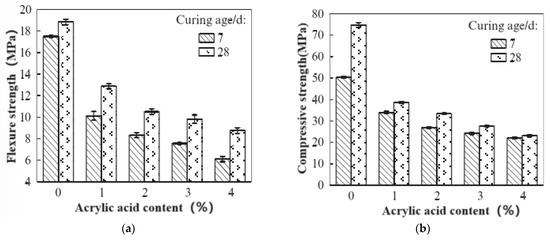

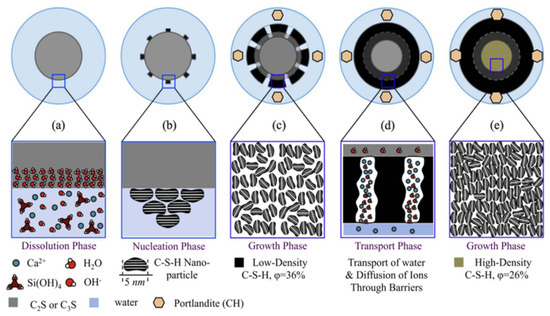

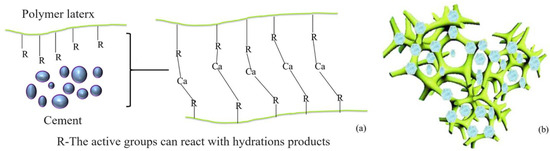

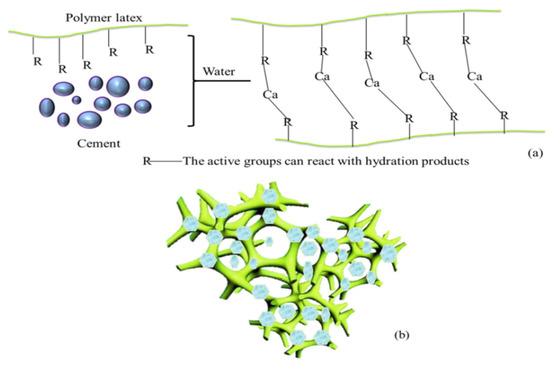

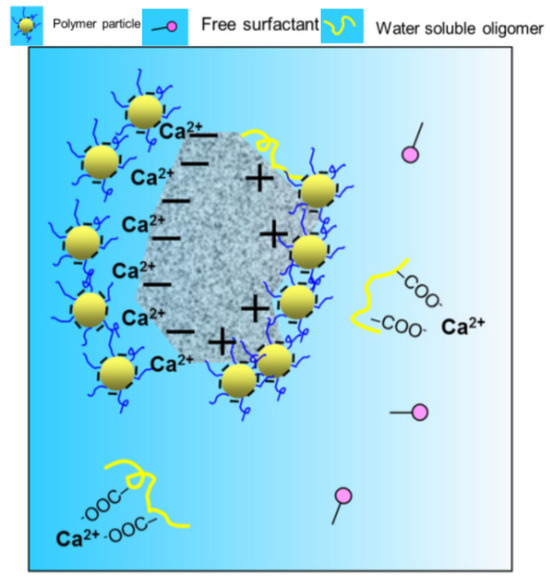

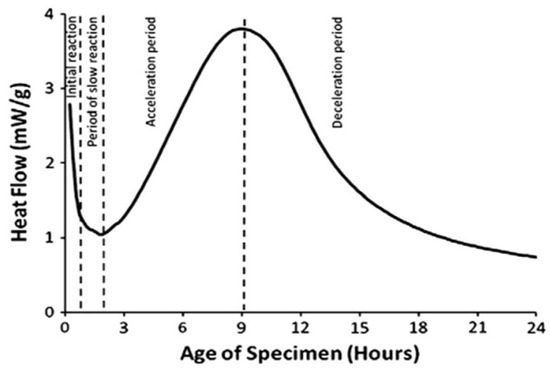

Polymer-modified cement-based materials have been widely used in building materials. Polymers play a crucial role in improving the performance of cement-based materials. At the same time, different polymers are added according to specific special requirements to meet the needs of the industry. Therefore, this paper reviewed the research on the performance and mechanism of acrylic lotion in modifying cement-based materials. Firstly, the role of acrylate lotion in the improvement of the volume stability, mechanical properties, and durability of cement-based materials was discussed to explore the advantages and disadvantages further, optimize the application of polymer in cement-based materials according to the performance improvement, and amplify the advantages of polymer modification. Secondly, the physicochemical mechanism of acrylate-lotion-modified cement-based materials was discussed, and the products and reactants of acrylate lotion in the reaction process of cement-based materials, as well as the interaction mechanism of acrylic lotion and cement hydrates, were clarified. Cement hydration is a crucial step in exploring the mechanism of polymer-modified cement-based materials. Due to the acrylate lotion filled on the cement surface and the physical and chemical interaction between them, the cement hydration is delayed, resulting in the cement retarding phenomenon. This paper describes its mechanism. Finally, the improvement effect of acrylate lotion on the performance of cement-based materials was reviewed, the research methods of mechanism research on acrylate-lotion-modified cement-based materials were evaluated, and suggestions for future research methods were provided. Full article

In order to study the synergistic effect of polymer and conductive functional materials on the properties of cement-based materials, polymer conductive cement-based materials were prepared by mixing four polymer lotions of silicon–acrylate emulsion (SG), phenylacrylic emulsion (SR), waterborne epoxy resin emulsion (SH), and acrylic emulsion (SX) with carbon fiber (CF) and carbon black (CB), two conductive functional materials, in a certain proportion. The effects of the different polymer–cement ratios (P/C) of the four polymers on the physical, mechanical, and electrical properties of conductive cement-based materials were studied. The results illustrated that SH improved the fluidity of cement paste, and the four polymers all had a delaying effect, which led to the hardening of the specimens and the extension of the demoulding specimens to varying degrees. SH and SR can increase the ratio of flexural strength to compressive strength (F/C) in cement paste and improve the toughness of materials, and the maximum value is reached when the P/C is 0.15. Except for SX, the other three polymer lotions can reduce the resistivity of cement paste, which is beneficial to the improvement of conductivity. The improvement sequence is SH > SR > SG. Among them, both SH group and SR group achieved the lowest electrical resistivity at the P/C of 0.15. The four kinds of polymer lotion can significantly reduce the water absorption of the specimen and promote the waterproof performance. The improvement effect: SH > SR > SG > SX. Among them, both the SH group and SR group achieved the minimum water absorption at the P/C of 0.15. Full article

Polymer-modified cement-based materials have been widely used in the construction field. Acrylate lotion significantly improves durability, toughness, and bending resistance, especially durability, because the porosity of cement-based materials is reduced, preventing the entry of harmful ions and water. When acrylate lotion was at 20%, the resistance of cement-based materials to chloride ion penetration increased by 40%. At the same time, the fracture toughness of cement-based materials modified with acrylate lotion and carbon nanotubes increased by 10–15%. The flexural strength of cement-based materials modified by acrylate lotion and fiber increased by 29%. Additives such as TiO₂ have a unique impact on the modification of cement-based materials, which has attracted the interest of researchers. This paper reviewed the performance of acrylate lotion-modified cement-based materials and the application of acrylate lotion in the field, which systematically increased the durability, mechanical properties, and waterproof properties of cement-based materials when acrylate lotion was modified, acrylate lotion was modified with nanomaterials, acrylate lotion was modified with other polymers, acrylate lotion was modified with fiber, and when acrylate lotion was modified with other additives. The shortcomings of acrylate lotion modification with different materials were reviewed and evaluated, and the comprehensive performance of cement-based materials modified by acrylate lotion was expected to achieve maximum strength improvement under the synergistic effect of various modifications. Full article
