Recently, two-dimensional (2D) materials have been widely studied by researchers due to their exceptional 2D structure and excellent optical characteristics. As one of the typically-layered 2D transition metal dichalcogenide (TMD) semiconductors from group IVB with a bandgap value of 0.9–1.2 eV (bulk to monolayer), the characteristics of zirconium diselenide (ZrSe
2) have already been extensively investigated in many fields. However, the nonlinear absorption properties of ZrSe
2 in ultra-fast lasers have not been previously demonstrated. In this work, we measured various parameters in order to investigate the characteristics of the nonlinear saturable absorption of ZrSe
2. A ZrSe

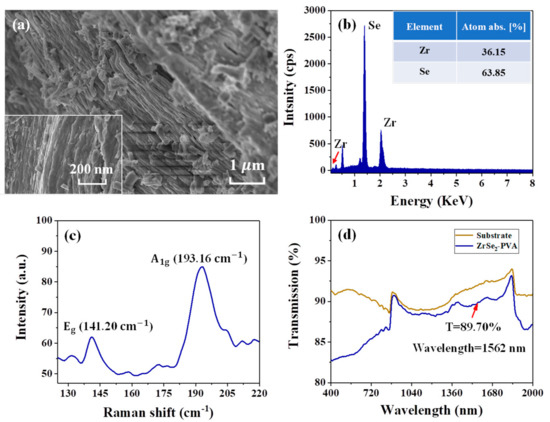

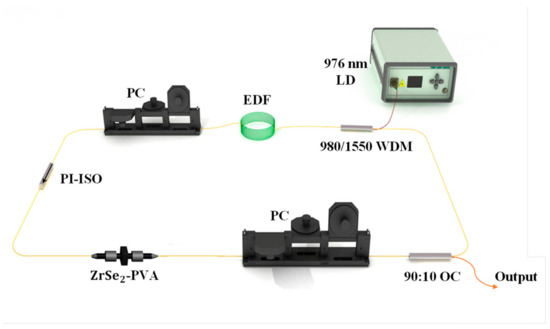

2–polyvinyl alcohol (PVA) film was successfully prepared, which was employed as a saturable absorber (SA) to demonstrate, for the first time, an erbium (Er)-doped passive mode-locking fiber laser with a ring cavity. The saturation intensity of the ZrSe

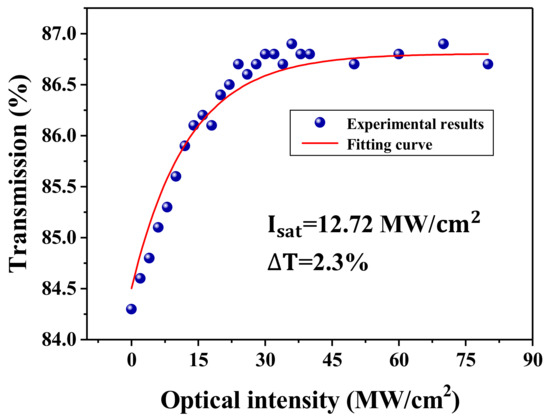

2–PVA film-type SA is 12.72 MW/cm

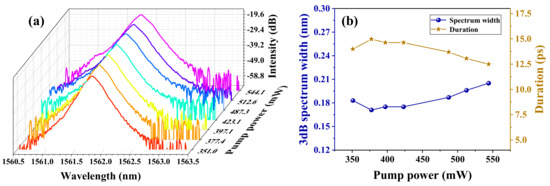

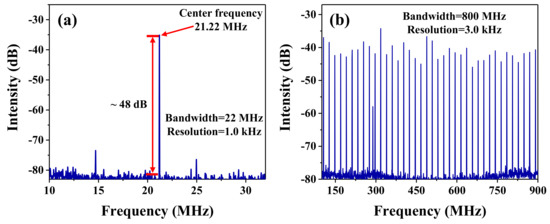

2, while its modulation depth is 2.3%. The stable soliton state with a maximum output power of 11.37 mW and a narrowest monopulse duration of 12.5 ps at a repetition frequency of 21.22 MHz was detected. The experimental results conclusively proved that ZrSe
2, with its suitable bandgap value and excellent nonlinear absorption properties, as well as its high damage threshold, should have extensive potential applications within the field of ultra-fast pulse lasers.
