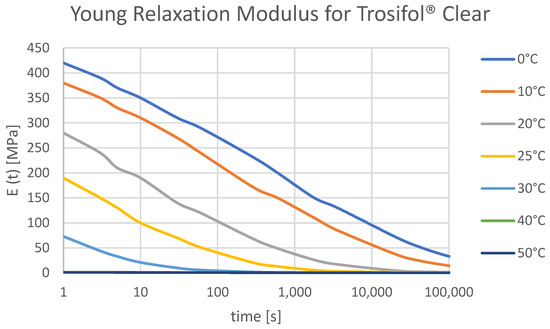

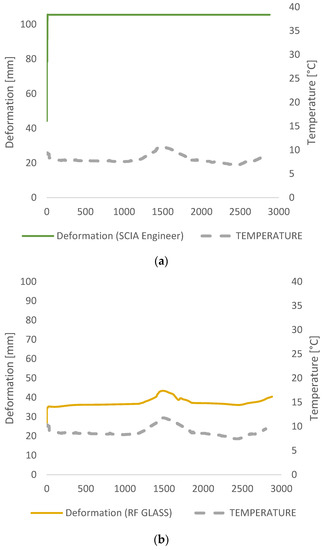

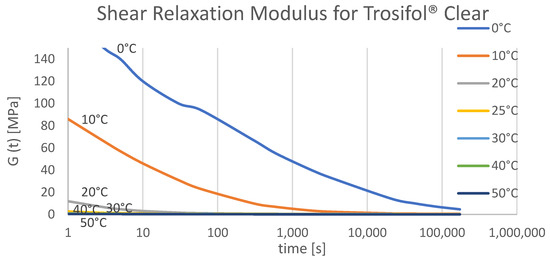

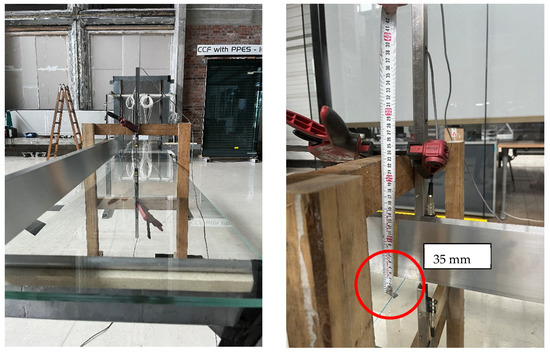

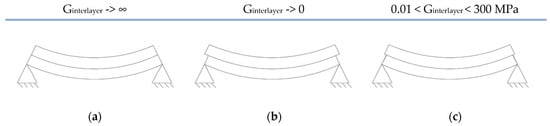

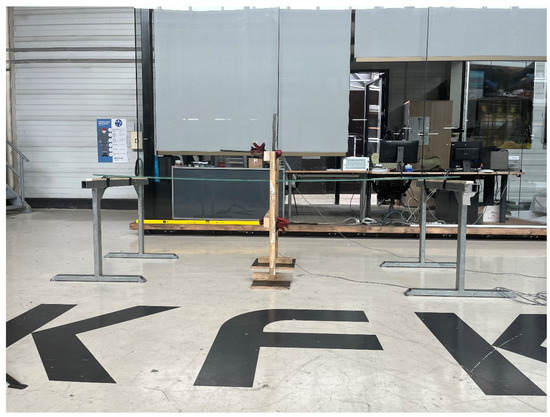

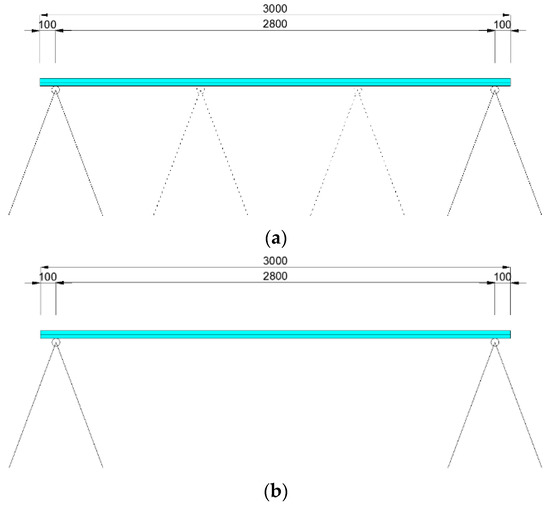

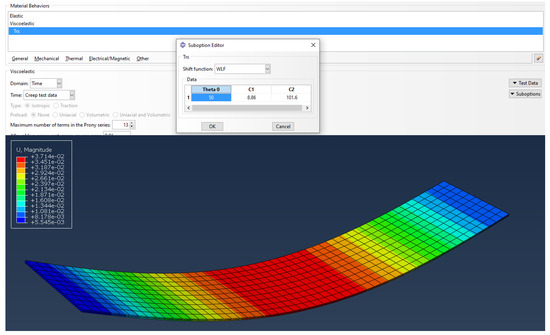

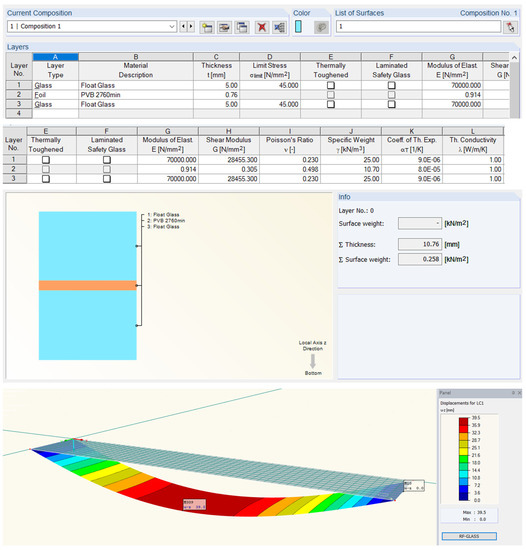

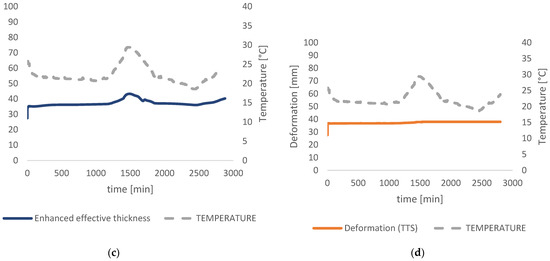

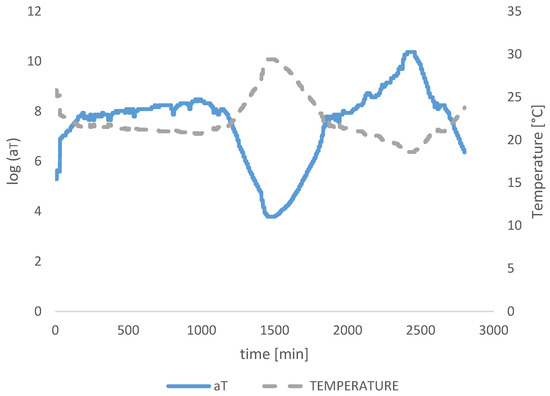

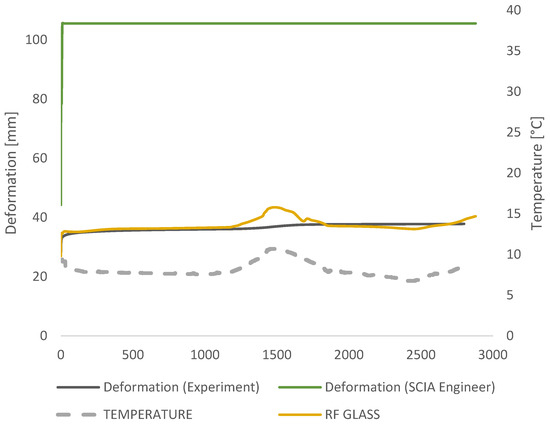

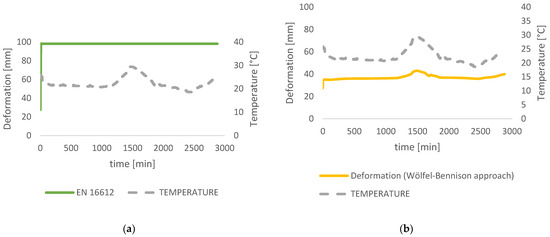

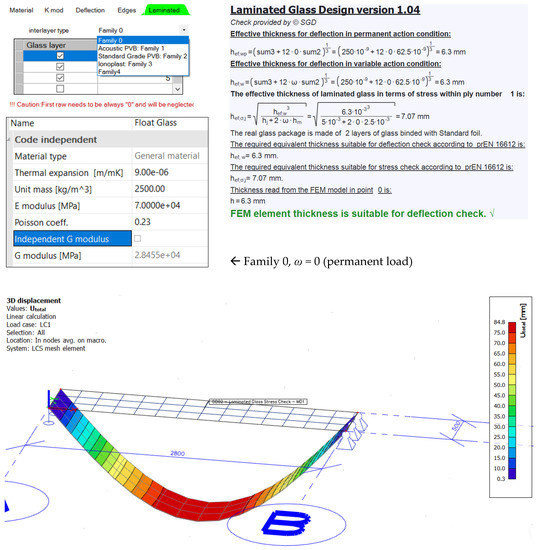

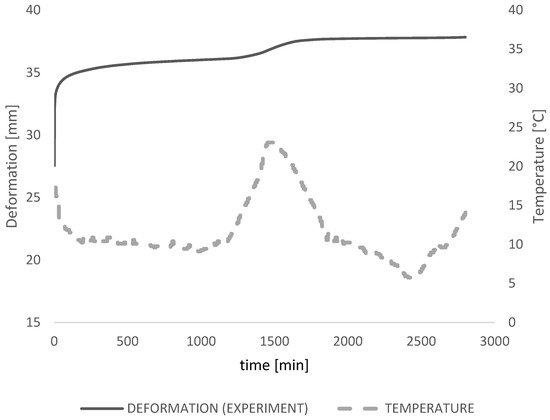

Most used laminated glass is composed of float glass plies bonded together with a viscoelastic Polyvinyl Butyral (PVB) interlayer. The shear stiffness of the polymeric interlayer is the key factor in the behavior of laminated glass. Structural engineers in the past were designing laminated glass regardless of the shear coupling of the plies. This approach with a high level of reliability led to expensive laminated glass structures due to insufficient knowledge of foil properties. Most of the current standards suggest methods that consider the shear coupling of the plies. This paper presents the experimental data from a static loading test performed on a laminated glass panel exposed to changing temperatures. The deformations were observed for 48 h. The measured results were compared with the known analytical design approaches and in addition with the finite element modeling (FEM) analysis in the available software for laminated glass design. A simplified design approach that simulates foil behavior in dependence on load duration and temperature change was adopted in this study. Design approaches that use effective thickness calculations are used with the Young and shear relaxation modulus provided by the foil producer. The imprecision of the Eurocode standards for glass design, and the propensity to change the approach to the calculation by introducing more precise parameters were expounded. The results when combining the time-temperature superposition (TTS) and the Wölfel–Bennison approach were found to be in very good agreement with the FEM analysis of 3D solid elements in Abaqus and measured data. Full article
