Sign in to use this feature.

Years

Between: -

Subjects

remove_circle_outline
remove_circle_outline

Journals

Article Types

Countries / Regions

Search Results (2)

Search Parameters:
Keywords = CrMoVNi steel

Order results
Result details
Results per page
Select all
Export citation of selected articles as:
14 pages, 9412 KiB
Article
Microstructural Evolution of High-Entropy Intermetallic Compounds during Detonation Spraying
by Ahmad Ostovari Moghaddam, Mikhail Sudarikov, Nataliya Shaburova, Marina Polyakova, Marina Samodurova and Evgeny Trofimov
Metals 2024, 14(1), 50; https://doi.org/10.3390/met14010050 - 30 Dec 2023
Cited by 2 | Viewed by 1505
Abstract
This study aims at investigating the feasibility of depositing quality coatings from various high-entropy intermetallic compounds (HEICs) using detonation spraying (DS). Four different HEIC coatings, namely (NbTaVCrTi)Al3, (NbTaVNiFe)Al3, (NbTaVZrHf)Al3, and (FeNiCoCrMn)(MoCr), were prepared by DS on low [...] Read more.
This study aims at investigating the feasibility of depositing quality coatings from various high-entropy intermetallic compounds (HEICs) using detonation spraying (DS). Four different HEIC coatings, namely (NbTaVCrTi)Al3, (NbTaVNiFe)Al3, (NbTaVZrHf)Al3, and (FeNiCoCrMn)(MoCr), were prepared by DS on low alloy steel substrates. The HEIC powders were first prepared by arc melting followed by ball milling and then used as reinforcement particles to deposit HEIC coatings. Elemental segregation was observed for all the as-cast samples. Powders with average particle sizes of about ~25 µm for (NbTaVCrTi)Al3, ~22 µm for (NbTaVNiFe)Al3, ~34 µm for (NbTaVZrHf)Al3, and ~18 µm for (FeNiCoCrMn)(MoCr) were obtained. (NbTaVCrTi)Al3, (NbTaVNiFe)Al3, and (NbTaVZrHf)Al3 HEICs exhibited a nearly single D022 (TaAl3 type) structure, while (FeNiCoCrMn)(MoCr) exhibited a single D8b (FeCr type) structure. Dense coatings consisted of a lamellar microstructure and sound bonding with the substrate, and low porosity was obtained for all the samples. Crystal structures of the HEIC samples were highly retained during DS, whereas all the samples underwent some degree of oxidation. Microhardness values of 745 HV for (NbTaVCrTi)Al3, 753 HV for (NbTaVNiFe)Al3, and 862 HV for (NbTaVZrHf)Al3 were obtained, which are significantly higher than the microhardness of the substrate (~140 HV). Among all the samples, (FeNiCoCrMn)(MoCr) exhibited the highest microhardness values of about 1047 HV. Full article
Show Figures

Figure 1

17 pages, 12342 KiB
Article
Influence of Various Heat Treatments on Hardness and Impact Strength of Uddeholm Balder: Cr-Mo-V-Ni Novel Steel Used for Engine Construction
by Paweł Mazuro, Julia Pieńkowska and Ewa Rostek
Materials 2021, 14(17), 4943; https://doi.org/10.3390/ma14174943 - 30 Aug 2021
Cited by 3 | Viewed by 2425
Abstract
The construction of an engine requires optimized geometry and superb material properties in various environments. Tensile and yield strength are not the only parameters essential to consider. Hardness, impact toughness, and ductile-brittle transition temperature (DBTT) are also crucial. In this paper, Balder, Chromium-Molybdenum-Vanadium-Nickel [...] Read more.

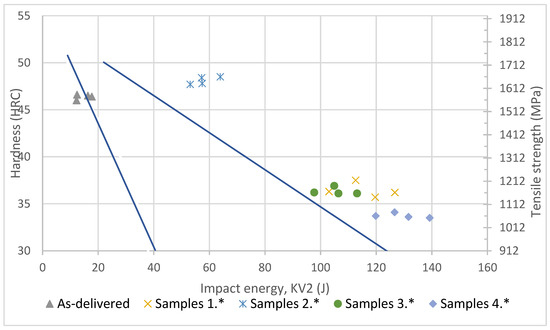

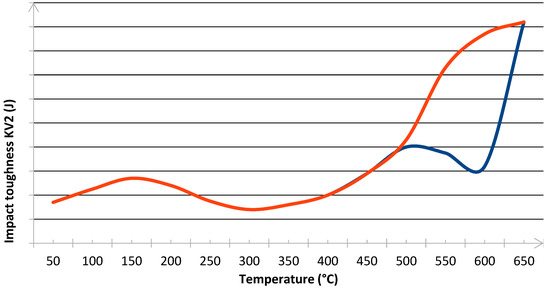

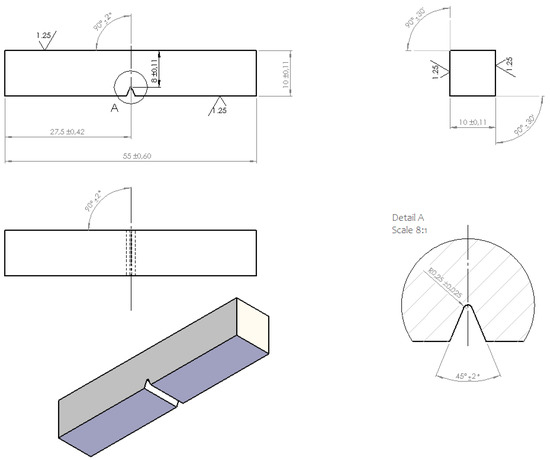

The construction of an engine requires optimized geometry and superb material properties in various environments. Tensile and yield strength are not the only parameters essential to consider. Hardness, impact toughness, and ductile-brittle transition temperature (DBTT) are also crucial. In this paper, Balder, Chromium-Molybdenum-Vanadium-Nickel steel with low impact toughness attested is considered. It contains both high Nickel and high Vanadium content, a rare combination among iron-based alloys. This study aims at proving that conventional heat treatment can improve its impact toughness while maintaining hardness level, exceeding its to-date performance. Steel’s exact elemental composition was checked, and material samples’ hardness and impact toughness were measured. Four heat treatments were proposed, then hardness and impact toughness were measured again. It was established that impact toughness over three times higher than marketed (57.3 J against 17 J) can be achieved with simultaneous 2 HRC points (from 46.4 HRC to 48.4 HRC) rise in hardness. Achieved parameters place examined alloy at the high-ranking position among similar steels. Occurrence of temper embrittlement was avoided. Notably, the ductile-brittle transition was not observed in any sample. Full article
(This article belongs to the Section Metals and Alloys)
Show Figures

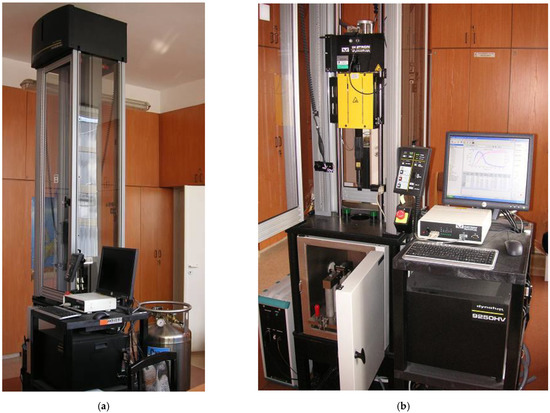

Figure 1

Back to TopTop
