Laser Ablation-Inductively Coupled Plasma-Mass Spectrometry (LA-ICP-MS) Mapping of Element Distribution in Leaves of Wheat Colonized by Intact Arbuscular Mycorrhiza Extraradical Mycelium ^†

Abstract

In acidic soils with Mn toxicity, the development of an intact arbuscular mycorrhiza extraradical mycelium (ERM) by stress-adapted native plants can promote increased growth and protection against metal toxicity, in subsequent crops. In a recent study, the growth of Ornithopus compressus (ORN) in acidic soil doubled shoot weight, increased P contents and decreased shoot Mn in successive wheat crops. The biochemical mechanisms involved in this beneficial effect may include the subcellular redistribution of nutrients and of excess Mn. In the present work, shoot Ca, Fe, Mg, Mn, P, K, Si, Na and Zn were mapped through Laser Ablation-Inductively Coupled Plasma Mass Spectrometry (LA-ICP-MS), in wheat grown for 3 weeks in undisturbed soil, where ORN previously developed an extensive ERM network. Element mapping allowed for the detection of higher levels of Fe, Mg, Mn, P, K, Na and Zn in the interveinal sections of wheat leaves while Ca and Si showed higher levels in vascular zones of the adaxial side. This preliminary work is part of an ongoing project which aims at identifying biochemical mechanisms responsible for the protective properties of an early AM colonization of crops, by ERM previously developed in association with native plants under Mn toxicity. Future research will determine the subcellular redistribution of these elements and excess Mn.

1. Introduction

Arbuscular mycorrhizal fungi (AMF) are obligate biotrophic soil microorganisms of the phylum Glomeromycota that establish mutualistic relationships with about 80% of terrestrial plants [1]. Benefits to plant hosts include (a) improved access to water and nutrients, such as phosphorus (P), nitrogen (N) and other elements, (b) higher protection against abiotic and biotic stresses and (c) improvement of soil structure [2]. In acidic soils that generally promote an increase in levels of bioavailable manganese (Mn), AMF can both buffer metal toxicity and increase plant growth, allowing hosts to thrive in inhospitable soils. Stress adapted microbiota can be used to improve growth and productivity of agricultural species in acidic soils, by growing local native plants and using the intact extraradical mycelium (ERM) they develop in the soil as main inoculum source for the subsequent crop [3]. This sustainable agricultural practice can lead to an almost 3-fold decrease in Mn levels and a 1.5-fold increase in plant growth [4,5]. In the Montado ecosystem, in the south-east of Portugal, acidic soils, commonly Cambisols and Arenosols, can promote Mn toxicity, being considered one of the main constraints to plant production [6]. In wheat, the previous growth of native Ornithopus compressus (ORN) showed noteworthy beneficial effects granted by the earlier and faster colonization by its associated intact AMF extraradical mycelium [5]. The presence of ERM was important for the AMF diversity that subsequently colonized wheat [7]. The use of this AMF inoculum source was seen to promote the transcription of genes related to cellular division and growth in wheat, but also to manage the transcription of genes that code for metal transporters responsible for translocation and distribution of Mn in the plant [8]. In the present work, Mn and other plant nutrients and elements were quantified and mapped in the leaves of wheat grown in undisturbed acidic soil where stress adapted AMF were developed by the previous growth of ORN. Element abundance heat maps were obtained by laser ablation-inductively coupled plasma-mass spectrometry (LA-ICP-MS). The present preliminary work was performed as part of an ongoing larger project which aims at identifying the beneficial effects of the early AM colonization, by ERM previously developed in association with native plants, on the element transport dynamics of wheat under Mn toxicity in acidic soil.

2. Material and Methods

2.1. Experimental Setup and Plant Material

Plants were grown on acidic soil collected from the top 20 cm of a granitic Cambisol reported to induce Mn toxicity symptoms in wheat [9,10], which was chemically [11] and biologically characterized [7]. The experimental setup followed was previously reported [5]. Briefly, 8 L pots filled with acidic Cambisol were used to grow ORN, a strongly mycotrophic endemic plant. After seven weeks, plants were eliminated leaving the soil undisturbed (intact ERM). After seven days, ten wheat (Triticum aestivum L. cv. Ardila) seedlings were planted and after 21 days of growth, shoots were excised and immediately frozen intact in liquid nitrogen and stored at −80 °C until analysis.

2.2. Wheat Shoot Element Mapping

Wheat leaf anatomical distribution of Ca, Fe, Mg, Mn, P, K, Si, Na and Zn was determined by a Laser Ablation LSX-213 G2+ system, CETAC technologies, connected to an Agilent 8800 Triple Quadrupole ICP-MS [11]. Intact frozen sections of leaves of wheat grown in undisturbed soil, from previously grown ORN, were mounted and fixed on a glass microscope slide with carbon tape, with abaxial or adaxial sides facing upwards. Laser ablation was performed, immediately, in 2 mm length transversal sections of the whole leaf width. Determination of multi-elemental distribution was performed by line scan with 30 µm diameter size, 60% laser energy, 20 Hz laser shot frequency, 110 µm/s scan speed and 1 L/min of helium (He) carrier gas flow. Conversion of obtained counts per second (cps) to images was performed using iQuant2 software, developed by Institute of Technology of Tokyo (Tokyo, Japan) and University of Kyoto.

2.3. Wheat Shoot Element Quantification

Element levels were quantified in wheat shoot tissues after acid digestion, as described in [12]. The concentrations of Ca, Fe, Mg, Mn, P, K, Si, Na and Zn were determined in 2% HNO₃ aqueous solutions of the fully digested shoot tissue with an Agilent 8800 Triple Quadrupole ICP-MS, according to [11]. The triple quadrupole mass spectrometer collision/reaction cell was set to “no-gas mode” for the quantification of Mg, Mn, Na and K, “O₂ mode” for the quantification of P and Si, “NH₃ mode” for the quantification of Ca, Fe and “He mode” for the quantification of Zn. Results were presented as average and standard error of 4 replicates.

3. Results

In mature wheat, the leaf lamina is composed of a well-marked midrib, enclosing the major vascular bundle. This central vein divides the lamina into two sections containing parallel veins with smaller vascular bundles, in strips alternating with the interveinal portions composed of mesophyll tissue. In the adaxial side, the tissue covering the main vascular bundle is ridged while the abaxial side is flatter. Strips of abundant stomata are disposed along the lamina (examples in [13,14]). Element mapping allowed for the identification of macro and micronutrients in transversal sections of the abaxial and adaxial sides of wheat leaves, following their distribution and abundance in heat maps.

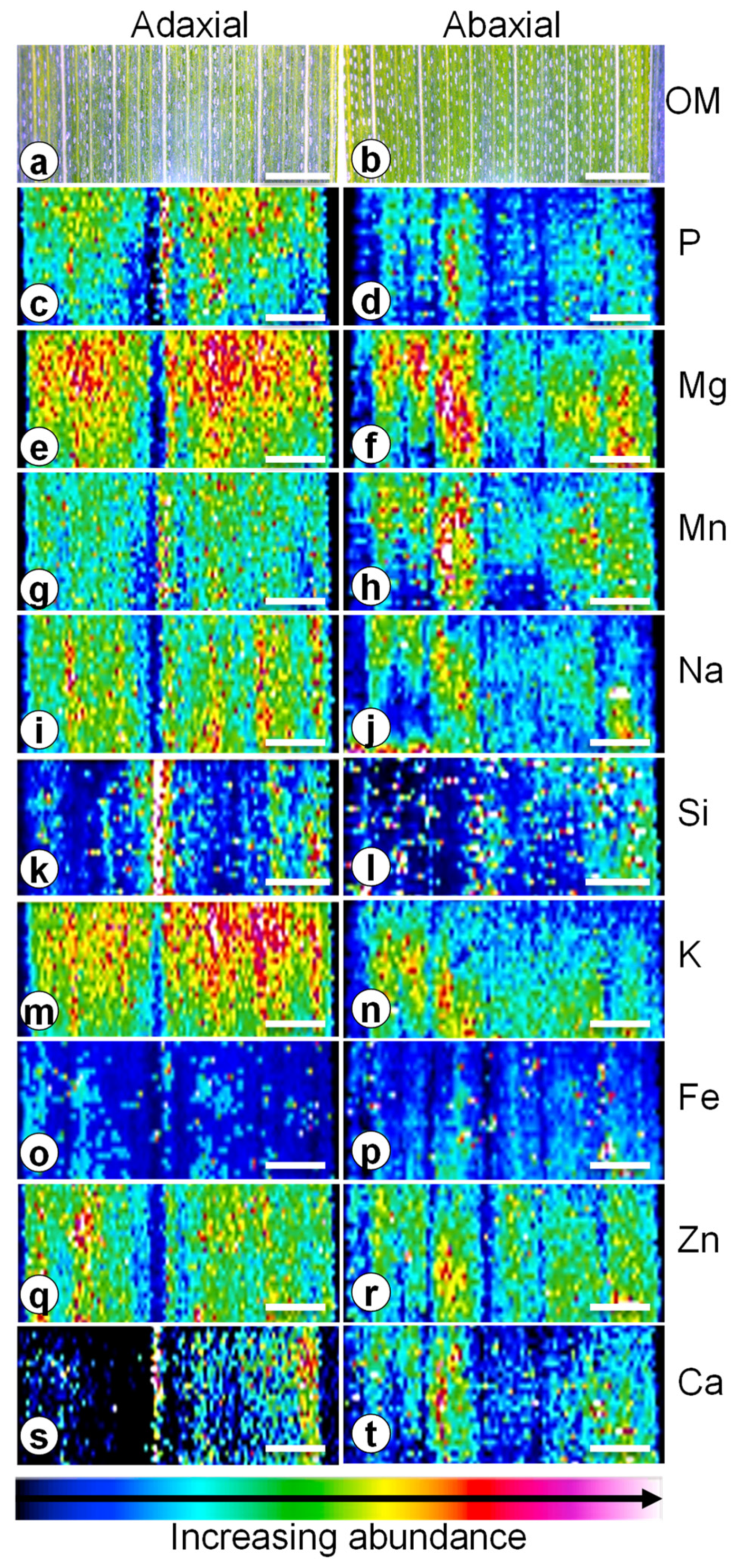

The distribution of Fe, Mg, Mn, P, K, Na and Zn was higher and more homogenous in the interveinal sections of wheat leaves, while parallel veins showed lower levels of these elements (Figure 1c–j or Figure 1m–r).

The ridged midrib in the adaxial side appeared to show lower levels of these elements which made the remaining tissue show a higher response (warmer colours). In the abaxial side, differences were not so marked, but a clear difference could still be seen between the interveinal zones and veins. Whole tissue element analysis quantified 136 ± 14 mg/kg for Fe, 1707 ± 115 mg/kg for Mg, 61 ± 6 mg/kg for Mn, well below the 100 to 200 mg/kg threshold considered toxic for most cereals [5,15], 2280 ± 55 mg/kg for P, 31,652 ± 938 mg/kg for K, 169 ± 38 mg/kg for Na and 80 ± 7 mg/kg for Zn (

Table 1. Concentration of Ca, Fe, Mg, Mn, P, K, Si, Na and Zn (mg/kg shoot dry weight) in shoots of wheat grown for 21 days in acidic soil containing intact extraradical mycelium of arbuscular mycorrhiza associated to Ornithopus compressus L.

Element	mg/kg Shoot Dry Weight
P	2280 ± 55
Mg	1707 ± 115
Mn	61 ± 6
Na	169 ± 38
Si	1132 ± 148
K	31,652 ± 938
Fe	136 ± 14
Zn	80 ± 7
Ca	2253 ± 129

).

Silicon and Ca showed a different pattern in the adaxial side, and heat maps displayed a higher abundance of these elements in the midrib in comparison to the interveinal zones, which can indicate a higher translocation of these elements. In the abaxial side, their distribution pattern closely resembles that of the other elements (Figure 1k,l,s,t). Additionally, Si in high proportions appeared in punctuated areas on both sides, which may be attributed to areas with trichomes. Shoot tissue concentrations for Ca and Si were 2253 ± 129 and 1132 ± 148 mg/kg, respectively (Table 1).
