A Survey of Security Architectures for Edge Computing-Based IoT
Abstract
:1. Introduction
- We provide an overview and definition of edge computing and its relationship/difference with/from other similar computing models, such as fog computing, cloud computing, cloudlets, and MEC.
- We present attacks and threats of EC-based IoT. Then, we discuss the possible solutions and countermeasures at different network layers and for different security and privacy issues.
- We propose a secure edge computing-based architecture for IoT infrastructure through many research achievements concerning edge computing in IoT and define an application of edge computing in IoT for the architecture.
2. Edge Computing and Related Computing Paradigms
2.1. Cloud Computing
2.2. Mobile Computing
2.3. Mobile Cloud Computing
2.4. Edge Computing
- Improve system performance: the most important advantage of edge computing in IoT is achieving ms-level of data processing. Edge computing reduces the overall delay of the system and the demand for communication bandwidth and improves the overall performance of the system.
- Protect data security and privacy: cloud platform service providers offer a comprehensive system of centralized data security protection solutions to their customers. However, once centralized stored data becomes leaked, it will lead to serious consequences. In contrast, edge computing allows deploying the most appropriate security solutions in the local vicinity, and most of the computation can be performed on the edge of the network, so less data need to be transferred. Therefore, it reduces the risk of data leakage during the transmission and the amount of stored data in the cloud platform; thus, security and privacy risks will be decreased. IoT devices collect a large amount of data that can contain some sensitive information (e.g., global positioning system (GPS) data, streams from cameras/microphones). An application might need this information to run complex analytics in the cloud; it is important to preserve the privacy of sensitive context once the data leaves where it was generated. Using edge computing, the sensitive data can be preprocessed onsite and passed through a first layer of anonymization, and then the privacy complaint data can be sent to the cloud for further analysis.
- Reduce latency: latency in edge computing has been reduced compared with MCC and cloud computing because of the proximity to users. However, if the local computation unit is not powerful enough, the latency in edge computing can be worse than in MCC and cloud computing.
- Reduce operational costs: transferring data directly to the cloud platform requires substantial operational costs for data transmission, good bandwidth, and delay characteristics. In contrast, edge computing can reduce data uploading volume; therefore, data transmission volume, bandwidth consumption, and latency will be reduced, consequently reducing operational costs.
- High service availability: availability of services is also superior in edge computing; there is no waiting time for a centralized platform to provide the services, and there is no limitation of resources, such as in traditional mobile computing. In contrast to MACC (see Section 2.4.2), edge computing contains small data centers, while MACC basically does not require a data center. Therefore, the availability of services is higher in edge computing. In addition, edge computing can form peer-to-peer and cloud computing hybrid models, so it benefits from broader computing capabilities than does MACC [44].
- Be robust to connectivity issues: when part of the computations can be run directly on the edge, applications will not be disrupted by limited or intermittent network connectivity. This is especially beneficial when applications are running on remote locations with poor network coverage. It can also reduce expensive costs related to connectivity technologies, such as cellular technologies.
2.4.1. Cloudlet Computing
2.4.2. Mobile Ad Hoc Cloud Computing
2.4.3. Fog Computing
2.4.4. Multi-Access Edge Computing
2.4.5. Mist Computing
3. Security and Privacy Attacks and Threats in EC-Based IoT
- Node replication: this occurs when adversaries inject a new malicious node into an existing set of nodes by replicating one node’s ID number. Then, attackers will be able to corrupt, steal, or misdirect data packets arriving at the malicious replica. The required access to extract cryptographic shared keys can be obtained by attackers causing severe damage to the system. Moreover, by implementing node revocation protocols, legitimate EC nodes can be revoked by node replicas [33,92]. This attack is considered an active attack [94,95,96].
- If attackers gain illegitimate access to integrated circuits (ICs), they can appear as hardware trojan. Attackers will be able to control the circuit and access data or even software running on these ICs. There are two types of Trojans: (1) internally activated Trojans, which can be activated by satisfying a particular condition inside the Ics; and (2) externally activated Trojans, which can be activated using sensors or antennas that interact with the outside world [33,92].
- Attackers can also camouflage by injecting a fake EC node into the network or attack an authorized node to be able to hide at the edge level. This counterfeit/modified EC node will work as a normal EC node to receive, share, process, store, redirect, or transmit data packets [33,92]. In addition, this node is able to operate in a passive mode and only analyses the traffic. This attack is considered a passive attack [94,96,97].
- Attackers gain unauthorized access and control of the network, taking advantage of corrupted or malicious EC nodes, then inject misleading data packets or can block the delivery of legitimate data packets [92,98,99,100]. This attack can be launched using three different attack methods: (1) insertion, in which the attacker inserts malicious packets (that seem legitimate) in network communication; (2) manipulation, in which the attacker captures packets, then change them; or (3) replication (or replay), in which the previously exchanged packets between two nodes have been captured and replayed by the attacker.
4. Security and Privacy Countermeasures and Solutions in EC-Based IoT

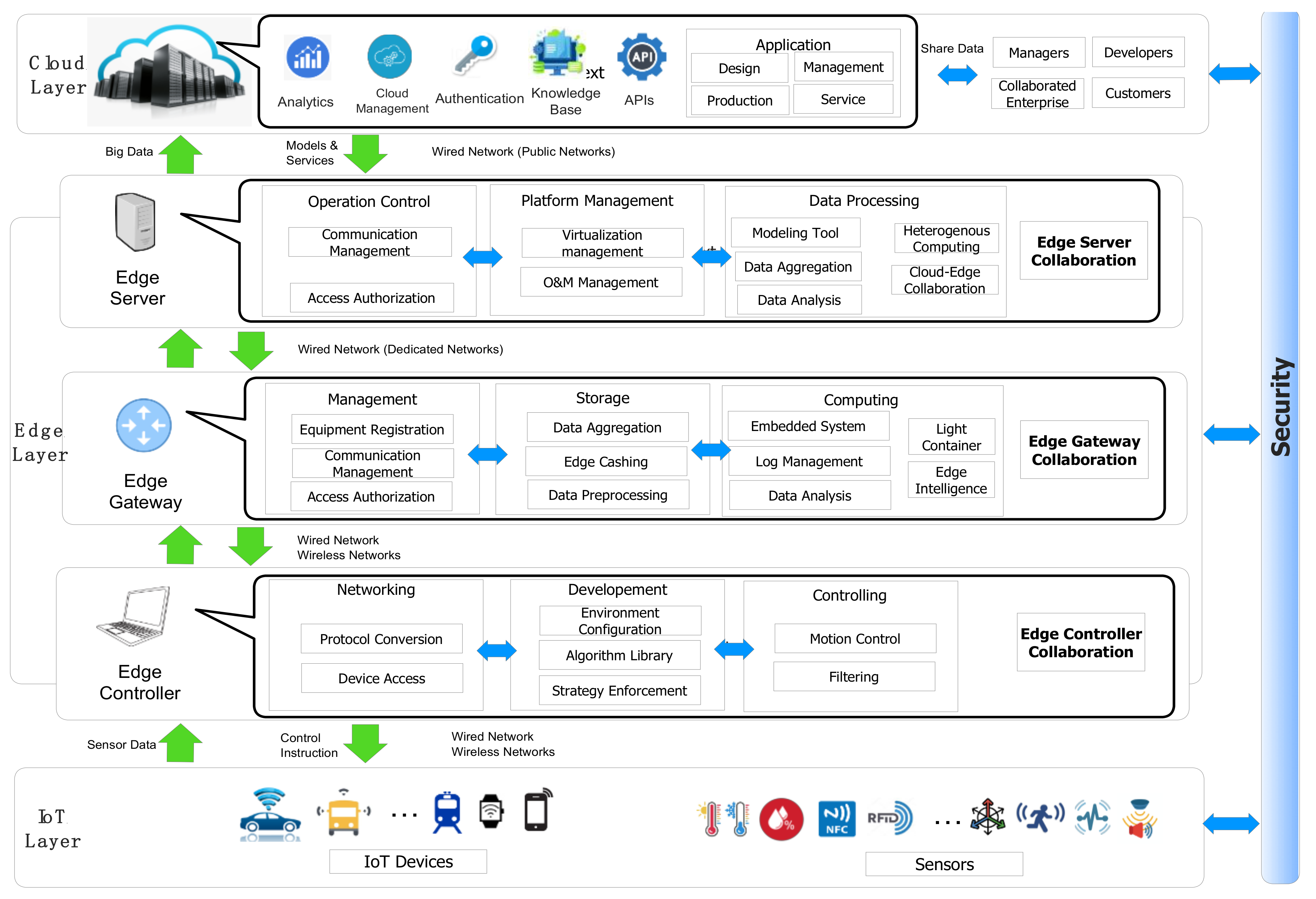

5. Architecture of Edge Computing-Based IoT
- Edge controller layer: this layer collects data from the IoT layer using some edge controllers, performs preliminary threshold judging or data filtering, and transfers control flow from the edge layer or cloud layer to the IoT layer.
- b.
- Edge gateway layer: this layer mostly contains edge gateways. It collects the data from the edge controller layer using wired networks (such as fieldbus, industrial ethernet, industrial optical fiber, etc.) or wireless networks (such as Wi-Fi, Bluetooth, RFID, NB-IoT, LoRa, 5G, etc.), caches the collected data and provides heterogeneous computing. In addition, edge gateways in this layer transfer control flow from the upper layers (edge server layer or cloud layer) to the edge controller layer and manage the equipment in the edge gateway layer or edge controller layer.
- c.
- Edge server layer: the edge server layer has powerful edge servers. This layer performs more complex and critical data processing and based on the data collected from the edge gateway layer by dedicated networks, it creates directional decision instruction. The edge servers in the edge server layer should also have business application management and platform management functions.
- Analytics: case-based reasoning, machine learning algorithms, and artificial intelligence techniques give greater flexibility in data analysis and visualization capabilities that are required by different business units and operating teams; massive analytics that need more resources and time can be performed at the cloud layer.
- Cloud management: using a storage and administration service, physical or virtual segregation of the stored data according to the tenant, or enabling to track the use of the service by the tenant is possible. Moreover, several tenants can use the service. This is a perfect feature even in private cloud management services. The tenants can be different departments or working groups of a public or private organization.
- Authentication: this can be performed using authorization or a distributed transaction, according to [35].
- Knowledge base: virtual organization of agents and support decision systems based on sensor data can develop a social machine [24]. Cloud-based orchestration, which enables the provisioning, monitoring, and updating of connected technological resources, can complement this component.
- APIs: cloud services can be called through a set of applications (with standard methods, e.g., HTTP, RESTful, XML, or SOAP calls [25]). Using these applications, services can become available via a standard web browser or other HTTP client applications.

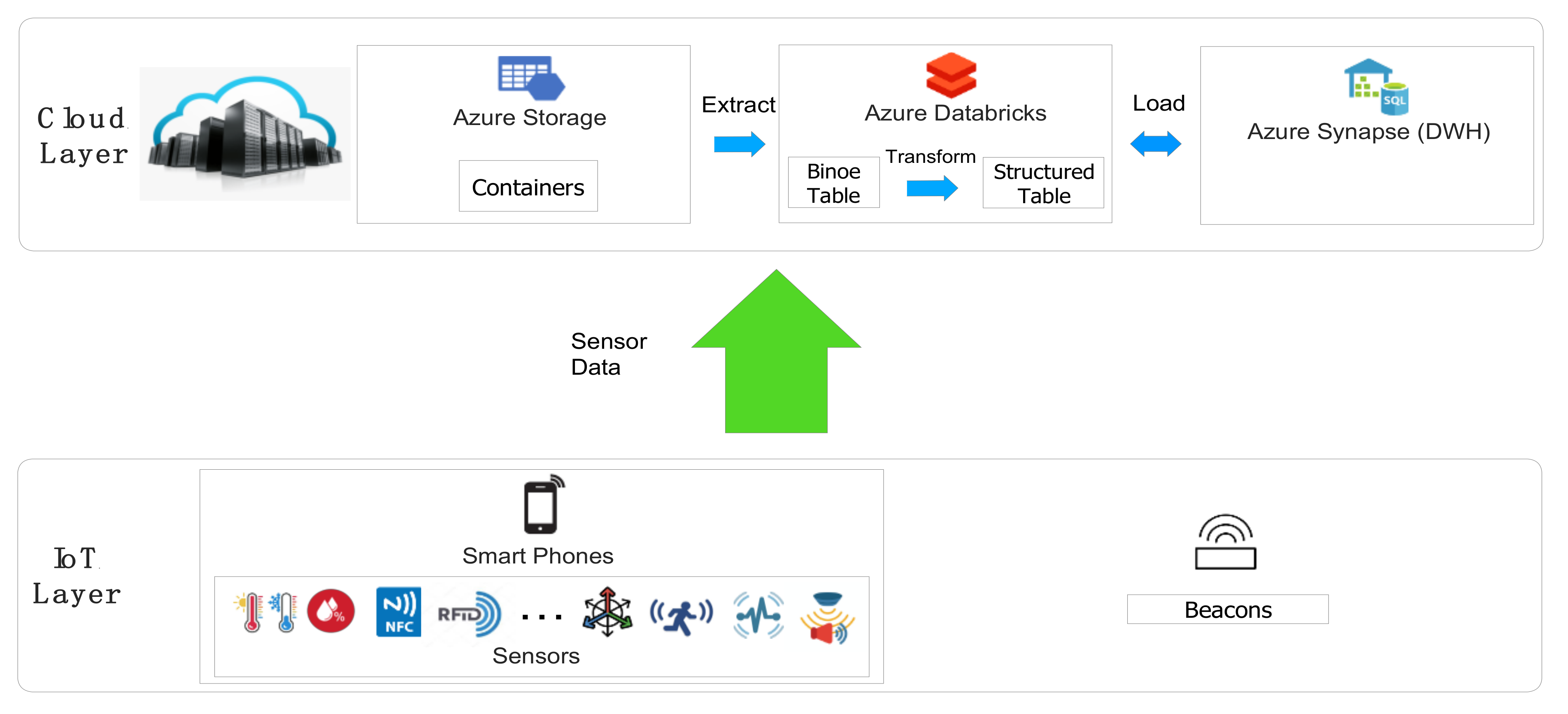

6. Application of Proposed Architecture
6.1. Major Security Threats and Attacks
7. Discussion
7.1. Major Security Threats and Attacks
8. Challenges of EC-Based IoT
9. Conclusions
