Molecular Surveillance of Methicillin-Susceptible Staphylococcus aureus (MSSA) Isolated over a One-Year Period from a Malaysian Teaching Hospital

Abstract

Introduction We report the results of a molecular surveillance study carried out on methicillin-susceptible Staphylococcus aureus (MSSA) isolated in a one-year duration from Hospital Canselor Tuanku Muhriz (HCTM), a tertiary hospital located in Kuala Lumpur, Malaysia. Methods The first strain isolated from each MSSA infection in HCTM during the year 2009 was included into the study. Antimicrobial susceptibility testing and agr group typing were carried out for all strains; virulence gene (cna, seh, TSST-1 and PVL) typing results of the strains were obtained from a previous study. Pulsed-field gel electrophoresis (PFGE) was done on selected strains from the orthopedic ward. Relationship(s) between different typing methods used in the study was investigated, where a p value of < 0.05 indicated significant association between typing methods. Results A total of 880 MSSA strains were included into the study. The strains were generally susceptible to most antibiotics, with most of them carrying cna and agr-I (51.6%, n = 454; 39.8%, n = 350, respectively). A total of 17 PFGE pulsotypes were identified using an 80% similarity cut-off value, where the main pulsotype (pulsotype E) consisted of 24 isolates (23.5%). agr-III strains were found to be usually positive for both cna and seh (p < 0.05). In addition, some PFGE pulsotypes were also characteristic of certain virulence genes or agr groups. Conclusions We did not identify a dominant MSSA clone circulating in HCTM in 2009. Nevertheless, results from this molecular surveillance will provide good baseline data for the hospital’s second S. aureus surveillance planned for the year 2020.

Introduction

Staphylococcus aureus is a major nosocomial pathogen whose pathological importance makes it a longstanding subject of epidemiological investigation. Epidemiological studies on S. aureus are usually performed for methicillin-resistant S. aureus (MRSA) as they are mostly multidrug-resistant with limited therapeutic options [1]. On the other hand, less emphasis has been placed on methicillin-susceptible S. aureus (MSSA), even though they have a higher hospital prevalence than MRSA [2]. MSSA has also been reported to harbor various virulence genes, where it has been observed that these bacteria might carry more virulence genes compared to MRSA [3].

Molecular surveillance of Malaysian MRSA strains have been initiated in the past decade, however, studies that report on Malaysian MSSA genotyping remain few [4,5,6]. Hospital Canselor Tuanku Muhriz (HCTM) is a 1000-bed teaching hospital located in Kuala Lumpur, Malaysia. In 2009, the hospital initiated a molecular surveillance study on S. aureus isolated from the hospital in a one-year duration. Results from the MRSA surveillance have been described and published [7]. In this report, we report results of the molecular surveillance carried out on MSSA isolated from HCTM in the same year.

Methods

Study setting and bacterial strains

In 2009, MSSA infections from all wards of HCTM were identified and recorded by the hospital’s Department of Laboratory and Diagnostic Services. The first isolate from each infection was then segregated, colony-purified and established as a strain to be used in this study. The strains were stocked from time of isolation in Brain Heart Infusion broth with 40% glycerol at −70°C. Experiments on the strains were performed in 2010, after all MSSA strains had been collected for the surveillance.

Antimicrobial resistance testing

Antibiotic resistance profiles of the collected strains were determined by disk diffusion method on Mueller-Hinton agar according to the recommendations of Clinical Laboratory Standards Institute (CLSI) [8]. Antimicrobial agents tested were ciprofloxacin (5 µg), erythromycin (15 µg), fusidic acid (10 µg), gentamicin (10 µg), cefoxitin (10 µg) and penicillin (10 units) (Thermo Fisher Scientific Inc., Massachusetts, USA).

Chromosomal DNA isolation for virulence gene and agr typing

Chromosomal DNA of each MSSA strain was extracted using DNeasy Blood & Tissue Kit (Qiagen Inc., California, USA) according to the manufacturer’s instruction. Extracted DNA samples were stored at −20°C.

Virulence gene typing

A modified multiplex-PCR protocol was used to determine the presence of four virulence genes (cna, seh, PVL and TSST-1) in our collection of MSSA strains. Primer sequences for the tested genes are shown in

Table 1. List of primer sequences used for virulence genes and agr typing in this study.

Name	Primer sequence	Product size (bp)	Reference
cna-F	5’ ACACCAGACGGTGCAACAATTA 3’	815	[9]
cna-R	5’ AGCAATACCGTTTGCATCTGTTA 3’
seh-F	5’ ATTCACATCATATGCGAAAGCAG 3’	555	[9]
seh-R	5’ ATGTCGAATGAGTAATCTCTAG 3’
pvl-F	5’ ATGTCTGGACATGATCCAA 3’	970	[9]
pvl-R	5’ AACTATCTCTGCCATATGGT 3’
tsst1-F	5’ TGATATGTGGATCCGTCAT 3’	387	[9]
tsst1-R	5’ AAACACAGATGGCAGCAT 3’
agr1-F	5’ ATGCACATGGTGCACATGC 3’	441	[10]
agr1-R	5’ GTCACAAGTACTATAAGCTGCGAT 3’
agr2-F	5’ ATGCACATGGTGCACATGC 3’	575	[10]
agr2-R	5’ TATTACTAATTGAAAAGTGGCCATAGC 3’
agr3-F	5’ ATGCACATGGTGCACATGC 3’	323	[10]
agr3-R	5’ GTAATGTAATAGCTTGTATAATAATACCCA G 3’
agr4-F	5’ ATGCACATGGTGCACATGC 3’	659	[10]
agr4-R	5’ CGATAATGCCGTAATACCCG 3’

; cycling conditions were carried out as described previously [9]. Results for the typing have been published [9], in this current surveillance study, results from the typing were used for association analysis between typing methods.

Characterization of agr

The agr genotype of each MSSA strain was determined using a multiplex PCR protocol, using primers listed in Table 1 [10]. Clinical strains MSSA 180, MSSA 188, MSSA 130 and MSSA 25 were used as controls for agr-I, agr-II, agr-III and agr-IV respectively; all agr sequences of these strains have been confirmed by sequencing. Cycling conditions were as follows: one cycle of pre-denaturation for 4 min at 94 °C; 30 cycles of 94 °C for 2 min (denaturation), 58 °C for 1 min (annealing) and 72 °C for 2 min (extension); and a final extension at 72 °C for 5 min. PCR products were analyzed by gel electrophoresis with a 1.5% agarose gel (Sigma-Aldrich, St. Louis, USA).

Pulsed-field gel electrophoresis (PFGE) typing

PFGE typing by SmaI macrorestriction for a subset of 120 strains isolated from the orthopedic ward was performed according to methods described previously [11]. Samples were chosen from the orthopedic ward, as the ward had the highest number of MSSA infections in 2009. Briefly, agarose plugs containing chromosomal DNA of tested strains were prepared and restricted by SmaI prior separation by PFGE with a CHEF-DR III system (Bio-Rad Laboratories, Inc., California, USA). Settings for the PFGE were as follows: initial switch time, 5 seconds; final switch time, 40 seconds; included angle, 120°; voltage, 6 V/cm or 200 V for a total running time of 22 hours. Fingerprinting II software (version 1.0; Bio-Rad Laboratories, Inc.) was used to analyze the banding patterns. Similarity index was determined for the strains using the Dice coefficient with a 0.5% band tolerance. A cut-off value of 80% genetic similarity was chosen for discrimination between distinct clusters of strains. Genetic relatedness of strains was determined according to the criteria established [12].

Association between molecular typing

Association between virulence gene, agr and PFGE typing for the tested strains were determined using Statistical Package for the Social Sciences (SPSS) (version 15.0; IBM, Inc., Chicago, Illinois, USA). Variables were analyzed using Fisher’s exact test, where a p value of <0.05 was considered statistically significant.

Results

From January to December 2009, a total of 880 MSSA-related infections from various wards of HCTM were reported. Antimicrobial susceptibility testing showed that most strains retained their susceptibilities to the antibiotics tested (ciprofloxacin, 91.8%; erythromycin, 88.9%; fusidic acid, 85.8%; gentamicin, 97.1%; cefoxitin, 100%). The only antibiotic to which they were usually resistant was penicillin (79.1% of the isolates).

For molecular typing, 51.6% (n = 454) of the MSSA strains in our study harbored cna, 21.8% (n = 192) carried seh, while the prevalence for PVL and TSST-1 was 10.23% (n = 90) and 6.82% (n = 60), respectively. Almost half of the strains (41.1%, n = 362) were not carrying any of the tested virulence genes.

Table 2. Virulence gene profile of MSSA strains in this study.

Virulence gene profile	Number of strains (n)	Percentage (%)
cna	202	23.0
cna + seh	167	19.0
cna + PVL	38	4.3
cna + PVL + TSST-1	1	0.1
cna + seh + PVL	23	2.6
cna + seh + TSST-1	2	0.2
cna + TSST-1	21	2.4
PVL	28	3.2
TSST-1	36	4.1
No virulence gene	362	41.1
Total	880	100.0

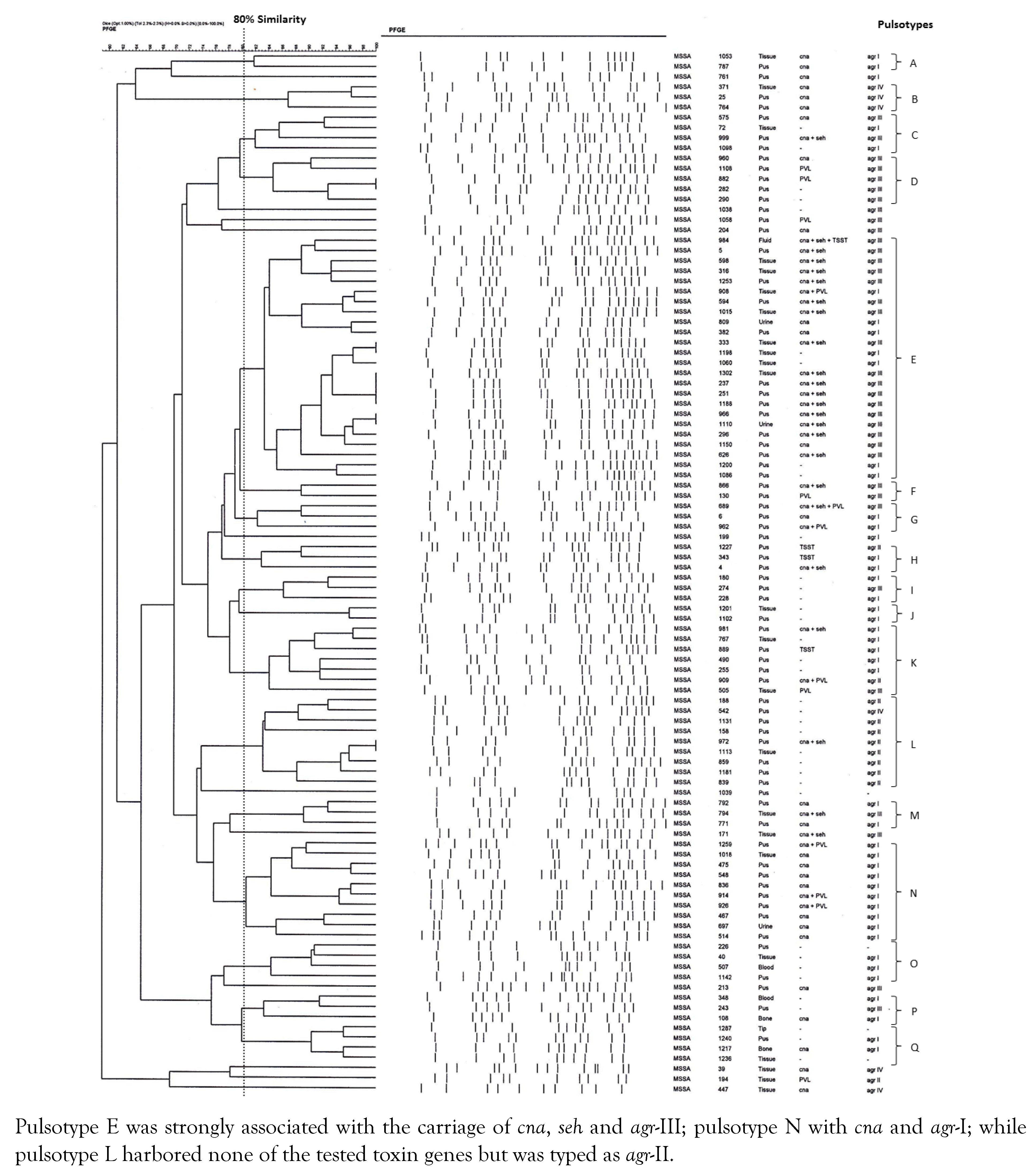

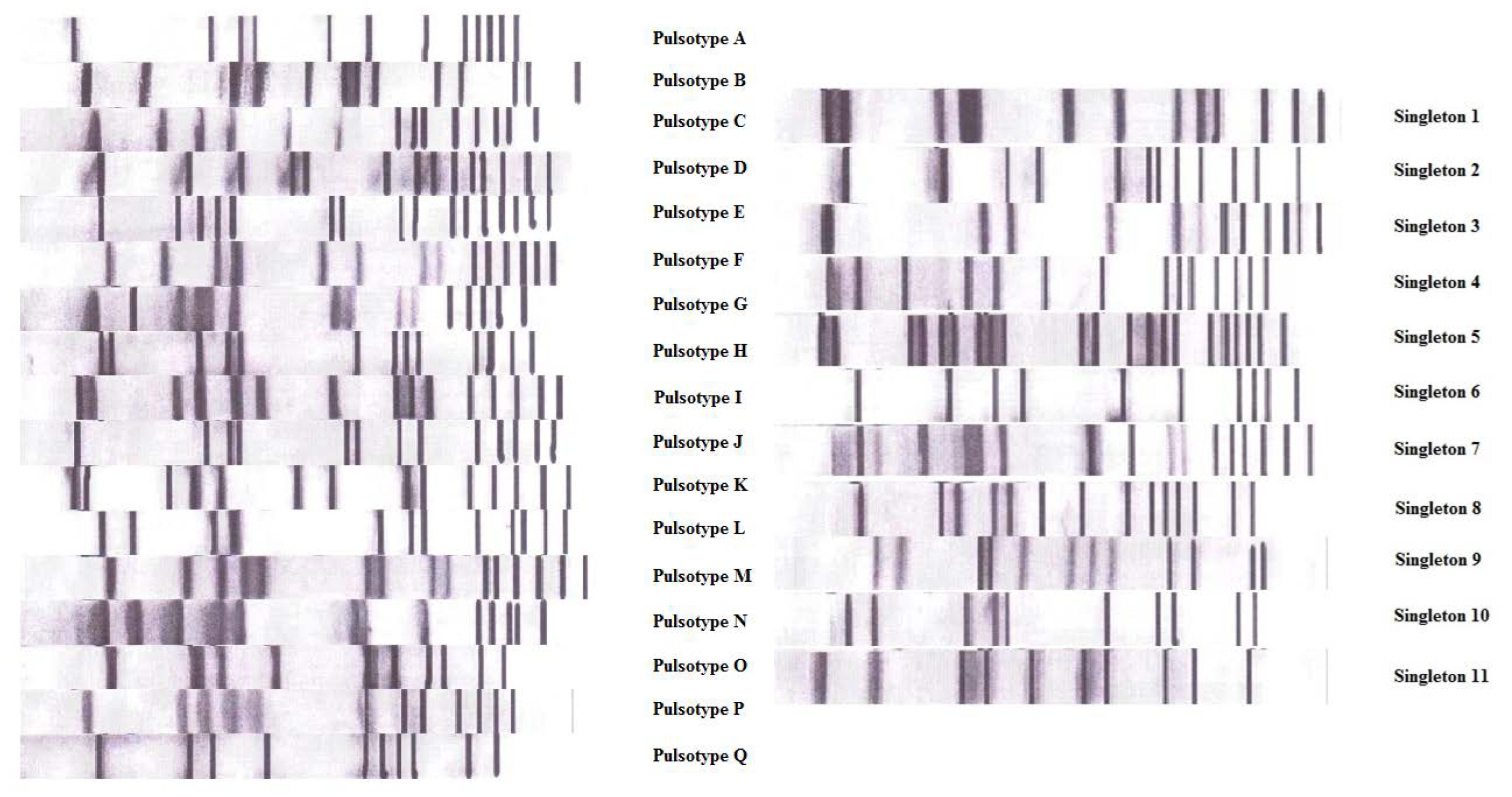

shows virulence gene profile of the tested strains. Meanwhile, for our agr typing experiments, 39.8% (n = 350), 12.7% (n = 112), 28.0% (n = 246) and 4.3% (n = 39) of our strains were detected as agr-I, -II, -III or - IV, respectively. The remaining 133 (15.1%) strains were not agr-typeable. Meanwhile, PFGE pulsotype analysis of selected strains identified 17 pulsotypes (A-Q) and 11 singletons, when an 80% of cut-off value in similarity was employed (Figure 1). The majority (23.5%, n = 24) of these strains were designated as pulsotype E.

We proceeded to investigate if any association could be found between the 3 molecular typing methods (virulence gene, agr and PFGE). Interestingly, we noticed that most of the agr-III strains were also positive for both cna and seh (p < 0.05). In addition, certain PFGE pulsotypes were strongly associated with a particular agr group or virulence gene cluster: pulsotype E with the carriage of cna, seh and agr-III; pulsotype N with cna and agr-I; and pulsotype L which harbored none of the tested virulence genes, but was determined as agr-II (Figure 2).

Discussion

Molecular surveillance is not new in public health; it has been performed for pathogens such as Mycobacterium tuberculosis and the human immunodeficiency viruses [13,14]. In the recent decade, many hospitals have also initiated molecular surveillance for important nosocomial pathogens [15,16]. This study was part of a Staphylococcus aureus molecular surveillance initiated by HCTM in 2009. The total number of S. aureus infections in 2009 for the hospital was 1,198, where 73.5% (n = 880) were MSSA infections, and 13.5% (n = 318) were MRSA. Although most MRSAs (86.8%) isolated during this surveillance were multidrug-resistant, with resistance towards ciprofloxacin, erythromycin and gentamicin, MSSAs isolated from our hospital in 2009 were mostly (more than 80%) susceptible to tested antibiotics; cefoxitin remains the treatment of choice for MSSA infections in HCTM [7].

Various methods have been established for S. aureus molecular typing and surveillance. These methods include SCCmec typing (for MRSA only), virulence gene characterization, agr typing, pulsed-field gel electrophoresis typing (PFGE) and multilocus sequence typing (MLST) [17]. In our study, virulence genes (cna, seh, TSST-1 and PVL), agr and PFGE genotyping were carried out for the strains. We found cna to be the most prevalent virulence gene carried by HCTM MSSA in 2009; interestingly, the same observation was also found in our MRSAs isolated in the same study duration (MRSA, 94.0%, n = 299; MSSA, 51.6%, n = 454) [7]. The gene is a virulence factor which codes for collagen adhesion; this protein is important for the attachment of S. aureus to cells or extracellular matrices [18]. MSSA strains isolated from Hospital Kuala Lumpur (HKL), the largest hospital in the capital, also appeared to harbor a similar prevalence of cna (52.3%, n = 140) [4]. Nonetheless, the gene was not detected in a study on both clinical and community MSSA strains isolated from another university hospital (University Malaya Medical Centre, UMMC) located at the border of Kuala Lumpur, in the same year [5]. Remarkably, the prevalence of seh, TSST-1 and PVL in MSSAs isolated from HCTM, HKL and UMMC were only below or approximately 10% difference from one hospital to another. Similarly, agr distribution for HCTM MSSAs was similar to HKL and UMMC, with a majority of the strains being typed as agr-I, followed by agr-III. Comparatively, HCTM MRSAs were dominantly agr-I (94.4%, n = 237) [7].

Even though there seemed to be little differences between MSSA strains isolated from hospitals in Kuala Lumpur based on their virulence and agr genotypes, genetic diversity of our MSSA strains was revealed via PFGE typing. PFGE has been used as the gold standard for bacteria typing; the platform was and is still widely being used in many reference laboratories for pathogen characterization and epidemiological surveillance [19]. In contrast to nosocomial MRSA where the dissemination of a single major PFGE clone in many hospital settings has been commonly observed [7,20,21,22,23], PFGE typing of nosocomial MSSA has mostly revealed very diverse results, with the occurrence of many sporadic clones in the same setting within fixed duration of the studies [4,24]. For our study, even though PFGE typing was only conducted for strains isolated from the orthopedic ward, as many as 17 pulsotypes were identified, compared to only 5 common MRSA pulsotypes identified in all HCTM medical, surgical and intensive care units combined [7,25]. Incidentally, these 5 MRSA pulsotypes were also identified to be circulating in the orthopedic ward in 2009 (unpublished data).

Noting the difference in MSSA genomic diversity presented via different genotyping methods, we attempted to investigate if associations between the typing methods of virulence genes, agr and PFGE for MSSA could be found. While we identified some significant associations between certain PFGE pulsotypes with a particular agr group or virulence gene cluster, as this is the first MSSA surveillance study in HCTM, it remains to be observed if these pulsotypes will still be prevalent in our follow up surveillance in 2020, and if there has been successful dissemination of these pulsotypes in our hospital.

Conclusions

In conclusion, we presented the results of the first MSSA molecular surveillance for our hospital which was carried out in 2009. No dominant MSSA clone was identified. The strains were found to be genetically diverse via PFGE typing; a majority of them harbored the cna gene and were agr-I. Associations between specific groups of agr, virulence genes and PFGE pulsotypes could be made for these MSSAs. The next molecular surveillance for HCTM MSSA is being planned for 2020; comparison of results from these two surveillance studies will reveal, if any, changes in molecular genotypes of MSSA circulating in our hospital.
