Article

Transcriptional Profiling of a Patient-Matched Cohort of Glioblastoma (IDH-Wildtype) for Therapeutic Target and Repurposing Drug Identification

1
Patrick G. Johnson Centre for Cancer Research, Queen’s University Belfast, Belfast BT9 7AE, UK
2
Department of Neurosurgery, Royal Victoria Hospital, Belfast Health and Social Care Trust, Belfast BT12 6BA, UK
3
Regional Service for Neuropathology, Institute of Pathology, Royal Victoria Hospital, Belfast Health and Social Care Trust, Belfast BT12 6BA, UK
4
Integrated Pathology Unit, Division of Molecular Pathology, The Institute of Cancer Research, Sutton SM2 5NG, UK
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Biomedicines 2023, 11(4), 1219; https://doi.org/10.3390/biomedicines11041219
Submission received: 30 March 2023 / Revised: 11 April 2023 / Accepted: 13 April 2023 / Published: 19 April 2023
(This article belongs to the Special Issue Drug Resistance and Novel Targets for Cancer Therapy)

Abstract

:
Glioblastoma (GBM) is the most prevalent and aggressive adult brain tumor. Despite multi-modal therapies, GBM recurs, and patients have poor survival (~14 months). Resistance to therapy may originate from a subpopulation of tumor cells identified as glioma-stem cells (GSC), and new treatments are urgently needed to target these. The biology underpinning GBM recurrence was investigated using whole transcriptome profiling of patient-matched initial and recurrent GBM (recGBM). Differential expression analysis identified 147 significant probes. In total, 24 genes were validated using expression data from four public cohorts and the literature. Functional analyses revealed that transcriptional changes to recGBM were dominated by angiogenesis and immune-related processes. The role of MHC class II proteins in antigen presentation and the differentiation, proliferation, and infiltration of immune cells was enriched. These results suggest recGBM would benefit from immunotherapies. The altered gene signature was further analyzed in a connectivity mapping analysis with QUADrATiC software to identify FDA-approved repurposing drugs. Top-ranking target compounds that may be effective against GSC and GBM recurrence were rosiglitazone, nizatidine, pantoprazole, and tolmetin. Our translational bioinformatics pipeline provides an approach to identify target compounds for repurposing that may add clinical benefit in addition to standard therapies against resistant cancers such as GBM.

1. Introduction

Glioblastoma, IDH-wildtype (GBM), is the most aggressive malignant Grade IV brain tumor occurring in adulthood [1]. GBM were formerly designated as either IDH-wildtype or IDH-mutant; however, the latter subtype has since been re-classified by the World Health Organization (WHO) as Grade IV astrocytoma IDH-mutant [2]. GBM are highly heterogeneous tumors, both histologically and clinically. Outcomes for patients remain poor, with a median overall survival of ∼14 months [3] and a 5-year survival rate of only 5% [4]. GBM are characteristically infiltrative with invasive edges that preclude complete surgical resection. Despite radical resection followed by the current standard-of-care delivered as fractionated radiation and concurrent temozolomide (TMZ) therapy (“Stupp protocol”), local relapse is inevitable [5]. Resistance to chemoradiotherapy is thought to be due to several factors, including the presence of GBM stem-like cells (GSC), which may be key in mediating tumor relapse [6,7]. Indeed, this tumor sub-population possesses enhanced invasiveness, DNA repair, and drug-efflux pumps that mediate evasion and resistance to current surgical, chemo, and radiation therapies, driving tumor relapse [8]. The conversion of non-GSC to GSC in tumors may be induced by microenvironment conditions such as hypoxia [9] and drugs such as TMZ [10].
Longitudinal profiling of GBM can provide insight into gliomagenesis, intratumoral heterogeneity, tumor evolution, as well as therapy resistance mechanisms [11,12,13,14]. Relatively few longitudinal studies have been carried out for recurrent GBM (recGBM) because tumors are often necrotic and ~70% are inoperable [15]. Therapeutic options for recGBM are currently dictated by the test results of molecular markers assessed from the initial precursor brain tumor that provide the integrated final diagnosis based on contemporaneous WHO classification guidelines [2]. Molecular alterations assessed in brain tumors include IDH1/2 mutations, Histone H3F3A mutation, MGMT promoter methylation, TERT promoter methylation, EGFR amplification, ATRX retention or loss, and 1p/19q chromosomal co-deletion, for example. Increasing evidence shows that this provides an inaccurate representation of the key biological mechanisms active in recGBM. Thus, it is essential to observe transcriptional changes occurring between initial and recurrent tumors to understand the changing biology to enable clinicians to better direct treatment strategies. To this end, several studies have assessed longitudinal transcription profiles of progressing GBM [16,17,18]. This has revealed multiple mechanisms of therapeutic resistance to the standard treatment protocol for initial tumors by studying expression changes between matched initial and recurrent tumors [16]. Another study, which used spatial sampling, revealed all three cellular phenotypes (neuronal, mesenchymal, proliferative) were present in recurrent IDH-wildtype gliomas, highlighting the transcriptional variability of GSC that contribute to therapy resistance [17]. Targeted therapies are urgently required for GBM, and several natural products and their chemical derivatives are being tested as therapeutic strategies in GSC [19]. Drug repurposing may offer an alternative strategy for identifying new GBM-targeted therapies that are already approved for clinical use.
Gene expression connectivity mapping is a method used to identify potential therapeutic compounds for drug repurposing [20]. The method involves a systematic approach to identify functional connections between gene expression signatures associated with biological phenotypes (e.g., physiological processes and diseases) with the mechanisms of action of bioactive compounds or drugs contained within the Library of Integrated Network-based Cellular Signatures (LINCS). Our group developed a novel standalone connectivity mapping software called QUADrATiC (QUB Accelerated Drug and Transcriptomic Connectivity) [21]. This software uses a statistical ranking algorithm to identify connections between a query gene list and a database of reference profiles. Profiles have been obtained by applying a variety of perturbagens or treatments to a range of cell lines and quantifying the resulting transcriptional changes. QUADrATiC uses, as its reference, a subset of the LINCS dataset, which is limited to those small-molecule compounds which have FDA approval and allows this to be analyzed to produce a list of statistically significant connections to a query gene list.
This study characterizes the transcriptional changes occurring between initial and recurrent GBM IDH-wildtype using patient-matched samples and a whole transcriptome approach. A differential gene expression analysis of the cohort returned a list of recurrence-specific genes. These were validated using evidence from the literature and four public expression datasets [4,16,22,23]. Functional analyses revealed that angiogenesis and immune-related processes were potentially up-regulated in recGBM tumors. The gene signature was further analyzed in the in silico drug screen software, QUADrATiC [21]. FDA-approved drugs that could potentially reverse or target the transcriptional signaling associated with the recGBM phenotype were identified. These novel candidate compounds may add clinical benefit in combination with the current standard therapy to prevent GBM recurrence.

2. Materials and Methods

2.1. Sample Collection and Molecular Profiling of GBM IDH-Wildtype Tumors

A cohort of 25 GBM patients was identified, and informed consent (ORECNI 10/NIR01/13) was obtained by the neurosurgeon (T.F.) prior to surgical resection. Samples were collected during surgery at the Royal Victoria Hospital, Belfast. Tumors were formalin-fixed paraffin-embedded and prepared as hematoxylin and eosin-stained slides. Histological diagnosis was confirmed by the neuropathologist (E.G.H.). Samples were archived at the Northern Ireland Biobank (NI Biobank; Project Ref NIB16-0218), which is a Human Tissue Authority Licensed Research Tissue Bank with generic ethical approval from The Office of Research Ethics Committees Northern Ireland (ORECNI REF 21/NI/0019) to confer ethical approval for projects (subject to application). A total of 15 patients were eligible to be included in the study based on the following criteria: (1) the patient initially presented with primary GBM, which subsequently recurred after undergoing a course of Stupp protocol; (2) tissue samples from both tumors (initial, recurrent) were retained in the NI Biobank; (3) tumors were immunostained (with primary antibodies to ATRX, IDH1 (R132) and MIB1) and molecularly profiled at the Molecular Neuropathology Laboratory, University College London. All information was interpreted to provide an integrated final diagnosis for tumors based on contemporaneous WHO classification guidelines [2,24].

2.2. RNA Extraction, Microarray Profiling, and Data Quality Control

Samples were provided by NI Biobank. In brief, total RNA was extracted from macrodissected tissue and amplified using the GeneChip WT Pico Reagent Kit (Thermo Fisher Scientific, Wilmington, NC, USA). The biotinylated sense-stranded DNA was hybridized to the ClariomTM D Human array (Thermo Fisher Scientific, Wilmington, NC, USA) and profiled. Transcriptome Analysis Console (TAC; Thermo Fisher Scientific) software was used to conduct quality control (QC) assessments and data summarization prior to further analysis (see Supplementary Materials for details).

2.3. Provisional Comparisons of Initial and Recurrent GBM

Transcriptional profiles of initial and recurrent tumors were compared using several methods. A principle component analysis (PCA) was carried out using TAC software. Tumor purity was assessed using a data subset with the ESTIMATE R package [25] and statistically compared between groups using a t-test in SPSS (IBM). Transcriptional subtyping was carried out on all samples using the ssGSEA classification method [23]. Results for Proneural, Mesenchymal, and Classic subtypes were compared between initial and recurrent samples (see Supplementary Materials for more details).

2.4. Differential Gene Expression Analysis between Initial and Recurrent GBM

A differential gene expression analysis was implemented to compare initial and recurrent GBM using the Bayes correction method and a repeated-measure ANOVA with TAC software. This method pushes gene-wise residual variances towards a global trend, thereby improving statistical power, which is optimal for small sample sizes. In addition, this method automatically adjusts for multiple testing by assuming that 1% of the probes or genes are expected to be differentially expressed (see Manual). Results were filtered using p-value (<0.05) and expression fold change (<−2 or >2) threshold cut-offs. Differentially expressed probes or genes (DEGs) were visualized as a volcano plot and categorized into different functional groups.
The expression patterns of DEGs were further examined in initial and recurrent GBM using semi-supervised hierarchical clustering analyzed with TAC software. Euclidean distance was applied to measure the distance between objects, and the complete linkage method was used to measure the distance between clusters. Heatmaps were visualized for all DEGs and for only those which mapped to known annotations in the Ingenuity knowledge base from IPA Software (IPA®, QIAGEN Redwood City, USA).
To validate DEGs, expression patterns for the genes were compared between initial and recurrent GBM in four public cohorts. This included the Chinese Glioma Genome Atlas (CGGA), which according to the clinical data, its patients had similarly been treated with radiotherapy (77.5%) and chemotherapy (81%) [22]. Expression data available for DEGs were compared between initial (n = 85) and recurrent (n = 75) GBM IDH-wildtype from CGGA using a paired t-test in R. In addition, expression data available for DEGs were further compared between patient-matched initial and recurrent GBM from the Wang et al. study [23]. This included datasets from Kwon et al. (N = 15) [16], TCGA-GBM (N = 13) [4] and HF-MDA (Henry Ford Hospital—processed at MD Anderson; N = 9) [23]. Statistical comparisons were implemented with a paired t-test using the RecuR web portal (http://recur.bioinfo.cnio.es/ (accessed on 1 October 2022)). For each comparison, a threshold cut-off of p-value < 0.05 was applied to determine the statistical significance of the test.
Further validation of DEGs was sought through the scientific literature using a PubMed search. For each gene name, the search terms ‘glioblastoma’ and ‘GBM’ were included both with and without the additional prefix term ‘recurrent’. Results in scientific articles were examined to determine the directionality of expression of the DEGs in recGBM and the methodology used for data collection.

2.5. Functional Enrichment Analyses

2.5.1. Gene Ontology Enrichment Analysis of the DEGs

DEGs were analyzed in a Gene Ontology (GO) enrichment analysis with Panther software using a web portal (http://geneontology.org/, accessed on 1 October 2022) [26]. All probes that were expressed in samples (N = 14,893) were exported from TAC software and used as a background set for the analysis. The DEG list was uploaded, and genes that were uniquely mapped were used for the GO analysis. Genes that are over- or under-represented in gene lists from GO terms are identified by comparing the background frequency to the sample frequency using a Fisher’s exact test. The background frequency is the number of genes annotated to a GO term in the entire background set, while sample frequency is the number of genes annotated to that GO term in the input list of DEGs. The statistical test result p-value is then the probability or chance of seeing at least x number of genes out of the total n genes in the list annotated to a particular GO term, given the proportion of genes in the whole genome that are annotated to that GO term. GO terms are then categorized based on their function as either biological process, molecular function, or cellular component. Results were corrected for multiple testing using FDR and adjusted p-values. The top ten results from each category and the number of genes enriched in that pathway were plotted using the ggplot2 package in R.

2.5.2. Canonical Pathway Analysis

DEGs were analyzed in a canonical pathway analysis using IPA software. The DEG list generated in TAC software was uploaded as a new dataset, and mapped identifiers were used in a core analysis with default settings for significance (−log(p-value) > 2). Pathways with a z-score of greater or less than ±1.5 were plotted to reveal predicted activation or inhibition in the recGBM group. Results identify relevant relationships, pathways, mechanisms, and functions given a differentially expressed gene list and their corresponding p-values and expression fold change.

2.6. Upstream Regulator Effects

Upstream regulator analysis was carried out with IPA software. This identifies any gene or small molecule which has been shown experimentally to affect gene expression as a potential upstream regulator. The regulator effects feature was used to explore the recGBM phenotype. The relationships between upstream regulators and downstream functions and diseases were plotted to identify drug targets. For each process, the significance (p-value) and directionality (z-score) between groups were visualized as a hierarchical heatmap. The size of each heatmap square was determined by the −log(p-value), and based on the z-score, orange and blue indicated processes activated in the recurrent and initial groups, respectively.

2.7. Gene Expression Connectivity Mapping

The gene signature of up-(53) and down-regulated DEGs (46) were investigated for identifying repurposing FDA-approved therapeutics using QUADrATiC software [21]. Using the gene signature, target compounds that would reverse the recurrent phenotype (i.e., negative connections) were identified. Results for all significant negative connections and those for brain cells and brain stem/progenitor cell types (i.e., NEU, NPC) were tabulated. NEU cells are normal terminally differentiated neuronal cells derived from iPS (induced pluripotent stem)-derived neural progenitor cells (NPC). Results were visualized as normalized contribution fraction (NCF) heatmaps, which indicate which genes are responsible for the identified connections.

3. Results

3.1. Samples, Data Quality Control, and Provisional Comparisons of Initial and recGBM

In brief, samples from eleven patients (eight male, three female) with an average age of 49 years of age at first diagnosis were analyzed. Molecular profiling confirmed all tumors were IDH1/2-wildtype, while four had MGMT promoter methylation as either low (5–10%; patients 6,11) or intermediate (10–25%; patients 7,10). Seven patient-matched pairs and four additional unmatched samples (n = 18) passed QC (Table 1). Initial and recurrent samples formed two groups in the PCA, indicating distinct transcriptional profiles (Figure S1). Stroma and immune scores were slightly higher in recurrent, but tumor purity was equivalent (p-value = 0.778; Table S1). Four of the seven patient-matched paired samples (57%) switched transcriptional subtypes after disease progression, while three remained the same, revealing no bias. RecGBM tumors were classified as mesenchymal (n = 3), proneural (n = 2), and classical (n = 3; Table S2; see Supplementary Materials). Further analysis was performed to compare transcriptional profiles of the patient-matched initial and recurrent GBM (n = 7).

3.2. Differential Gene Expression Analysis between Initial and recGBM

Following filtering, 147 probes were identified as being differentially expressed (Table S3). Probes composed of coding (n = 14; 9.5%), non-coding (n = 54; 36.7%), small RNA (n = 8; 5.4%), precursor micro-RNA (n = 4; 2.7%), multiple complex (n = 46; 31.2%), and unassigned transcripts (n = 21; 14.2%). In total, 60 (40.8%) and 87 (59.2%) transcripts were up- and down-regulated, respectively, in recGBM (Figure S2). A greater proportion of the down-regulated transcripts were non-coding genes (49.4%) and small RNAs (9.2%), compared to up-regulated transcripts, which were mostly multiple complex genes (51.6%) and no small RNAs. Only 103 probes had gene symbols, and 30 of these were predicted ‘genes’ identified by ACEVIEW, but not described by GENCODE. A further eight probes lacked annotation and descriptions (e.g., RP11-318C24.1, AC007881.4, AL772161.2). Many of the remaining probes were related to unannotated tRNAs and some small RNAs etc. Thus, only 65 of the differentially expressed probes related to annotated functional genes. The top ten most significant DEGs were ZEB1, RMST, GZMK, VSIG4, RPL30P7, HLA-DQA1, CPNE8, PER3, HLA-DRA, and CLEC7A. According to expression (fold change), the most up-regulated DEGs included HBB (8.95), HBA1 (8.63), and HBA2 (7.22), and down-regulated ones included CXCL8 (−4.84), NAMPTP3 (−4.08), and VSIG4 (−3.51). Initial and recurrent GBM stratified into distinct groups confirming that their transcriptional profiles differed significantly (Figure 1).
Expression data in four public cohorts were tested to validate DEGs. In total, 22 genes were found to also be differentially expressed between initial and recGBM in at least one other dataset (p-value < 0.05; Table S4). DEGs that were observed to be up-regulated in the Belfast and another cohort included FPR3, SDC2, FCGR2B, GPNMB, CTSZ, AHR, HLA-DRA, CXCL12, LYZ, MEF2A, EIF1, RPL30, and EIF4A2. DEGs that were observed to be down-regulated in the Belfast and another cohort included BCAN, CNOT2, ABCG2, and GZMK. Thus, the majority of genes (n = 17) showed the same directional regulation of expression as the Belfast cohort, with the exception of five genes (SPOCK1, PTPRC, SCG3, CLEC7A, and DMXL2).
The literature search revealed that 23 DEGs had known connections to GBM. Additional search results on the expression of these genes in recGBM returned studies for seven genes, which provided validation for a further two genes (EGFR, CXCL8), giving a total of 24 validated DEGs (Table S5). Patterns of expression for the five DEGs (HLA-DRA, CXCL12, EGFR, BCAN, and GPNMB) that were up-regulated in this study were corroborated. In contrast, the two genes, SPOCK1 and CXCL8, significantly down-regulated in this study were previously reported to be up-regulated in recGBM (Table S5).

3.3. Functional Enrichment Analyses of the DEGs

3.3.1. Gene Ontology Analysis

In total, 180 significant GO terms for biological processes (N = 126), molecular function (N = 7), and cellular components (N = 47) were identified for the DEGs (Table S6). The top pathways had between two and seven DEGs overrepresented per pathway (Figure 2). Although this number of DEGs may seem low, it actually represented a 20 to >100 fold enrichment per pathway based on the background frequency of its genes expressed in the cohort (see Methods). Amongst the top results, ten GO terms related to the major histocompatibility complex (MHC). Specifically, DEGs were overrepresented in the MHC class II and protein complexes (GO:0042613; GO:0042611), including binding and receptor activity (GO:0023026; GO:0023023; GO:0032395) contributing to the biological process of antigen processing and the presentation of endogenous peptide antigen (GO:0002491). Furthermore, DEGS were overrepresented in myeloid dendritic cell antigen processing and presentation (GO:0002469) as well as the positive regulation of both memory (GO:0043382) and CD4+, CD25+, alpha-beta regulatory T-cell differentiation (GO:0032831; GO:0032829). Thus, DEGs reflect the transcriptional changes to recGBM related to the immune response.

3.3.2. Canonical Pathway Analysis

A total of 36 canonical pathways were significantly altered between initial and recGBM (Figure S3). The top three pathways were B-cell development, antigen presentation pathway, and allograft rejection signaling, implying significant changes in immune signaling. Pathways activated (orange) or inhibited (blue) in recGBM are presented in Figure 3. Eight pathways (z-score), all relating to the immune response, were activated in recGBM. These included NFAT in the regulation of immune response (2.449), iCOS-iCOSL signaling in T-helper cells (2.0), Th1 pathway (2.0), calcium-induces T lymphocyte apoptosis (2.0), dendritic cell maturation (2.0), neuroinflammation signaling (1.633), systemic lupus erythematosus in T cell signaling (2.236), and PKCθ signaling in T lymphocytes (2.0). Inhibited pathways in recGBM included PD-1, PD-L1 cancer immunotherapy (−2.0), and MSP-RON signaling in macrophages pathway (−2.236).

3.4. Upstream Regulator Effects

A total of 1279 upstream regulators were enriched in recGBM, linking them to activation or inhibition of gene expression. Among them, the genes (z-score), RAD21 (2.0), PML (2.162), and EIF4E (2.236) were activated, and fluticasone propionate a corticosteroid that reduces inflammation (−2.315) was inhibited in recGBM (Figure 4). RAD21 was the most significant, and its activation downregulates CXCL12, HLA-DRB1, and HLA-DQA1 and up-regulates ZEB1 resulting in the activation of the hematopoiesis of mononuclear leukocytes (Figure S4). Biological processes most significantly differentiating initial and recGBM in order were organismal injury and abnormalities (e.g., tumor growth), hematological system development and function (e.g., antigen, T-lymphocytes, mononuclear leucocytes), inflammatory response, and cancer and immune cell trafficking (see Figure S5; Supplementary Materials).

3.5. Gene Expression Connectivity Mapping

The DEGs reflecting the transcriptional changes to recGBM were used in a connectivity mapping analysis to identify FDA-approved repurposing drugs that could potentially reverse the recGBM phenotype. In total, 114 significant negative connections, consisting of 98 unique compounds across 25 cell lines, were identified (Table S7). Overall, rosiglitazone was identified as the top and the fifth highest-ranking target compound identified from all cell lines (Figure 5). Amongst the other top five target compounds identified from all cell lines were escitalopram, rifampicin, and medroxyprogesterone. According to NCF, DEGs most affected by the identified drugs, in order, were HLA-DQA1, GPNMB, CXCL9, LYZ, HBB, and CLEC7A (Figure 6). Target compounds identified for the neuronally derived cell lines specifically, in order of significance, were nizatidine, pantoprazole, tolmetin, gemfibrozil, bicalutamide, progesterone, clomifene, hydroxychloroquine, dinoprostone, and levocabastine (Table 2). Dinoprostone was effective against ten different NPC cell lines, while hydroxychloroquine and gemfibrozil were both effective against six different NEU cell lines.

4. Discussion

There is a lack of treatment options for GBM once the standard of care (Stupp protocol) has been delivered to patients. Radiotherapy has limitations as a salvage therapy due to radiation toxicity and the potential selection of chemo-resistant tumor cell populations. More studies are revealing that recGBM tumors are both molecularly and transcriptionally distinct compared to the initial tumor following cytotoxic treatments. This necessitates the development of other therapeutic strategies that might be new to the tumor, and gathering transcriptional data from recGBM is crucial for this. In this study, initial and recGBM IDH-wildtype tumors were profiled using a whole transcriptome approach that included >540,000 transcripts and splice variants. From an initial cohort of 25 patients, data from only 11 patients (seven patient-matched pairs and four additional unmatched samples) was collected. Similar to other studies, this was technically challenging to achieve, as sample drop-out was high, impacting the sample size and statistical power of the study. Nevertheless, differential gene expression analysis of the patient-matched pairs revealed 147 differentially expressed probes. In total, 24 DEGs were validated using public cohorts and the literature. Up-regulated DEGs in recGBM were involved in angiogenesis (SDC2, CXCL12), immune-related processes (HLA-DRA, FPR3, FCGR2B, AHR, LYZ), tumorigenesis (CTSZ/Cathepsin Z) and metastasis (GPNMB), neuronal differentiation (MEF2A), and RNA binding (EIF1, RPL30, EIF4A2). Down-regulated DEGs in recGBM were involved in cell proliferation (EGFR) and possibly brain tumor cell growth (BCAN), deadenylation of mRNA, which is linked to neurodevelopmental disorders (CNOT2), multi-drug resistance (ABCG2), and immune-related processes (GZMK).
Angiogenesis genes, SDC2 and CXCL12, were up-regulated in the recGBM group. SDC2 is highly expressed in glioma microvasculature regulating angiogenesis [27]. For CXCL12, GBM potentially switches to a CXCR4-CXCL12 angiogenic pathway from the well-known VEGF-HIF1a pathway [28]. RecGBM are frequently treated with bevacizumab, an anti-angiogenic drug that targets the VEGF-VEGFR axis with the aim of disrupting tumor angiogenesis; however, survival benefits with this monotherapy are negligible [29]. Immune-related genes, HLA-DRA, FPR3, FCGR2B, AHR, and LYZ, were also up-regulated in the recGBM group, with the exception of GZMK, which was down-regulated. In humans, MHC class II proteins are termed human leukocyte antigen (HLA) molecules, encoded by HLA-DR, HLA-DP, and HLA-DQ genes. HLA-DR expression is associated with tumor grade and prognosis in glioma [30,31]. Similarly, high expression of FPR3 is associated with grade and IDH status in glioma [32]. A further study found that a gene signature of FPR3, along with two other genes, was prognostic for GBM [33]. FCGR2B was also prognostic for GBM singly and as part of an immune-related gene signature [34]. GBM patients with higher FCGR2B expression had shorter survival and were resistant to TMZ-nitrosoureas combination therapies [35]. AHR expression was also found to be associated with tumor grade and poor prognosis. High expression of AHR drives the expression of CD39 in tumor-associated macrophages promoting CD8+ T-cell dysfunction [36]. In GBM, differential expression of LYZ and PIK3AP1 alters the immune and tumor microenvironment leading to worse prognoses [37]. GZMK (Granzyme K) is a cytotoxic granule that promotes tumor death. Treatment of recGBM with neoadjuvant PD-1 checkpoint blockade improves survival outcomes by increasing anti-tumor T-cell responses, including GZMK; however, this is curtailed by additional T-cell checkpoints and other immunosuppressive pathways by the myeloid populations [38]. A better understanding of these processes could improve therapies. Other up-regulated DEGs were also involved in tumorigenesis (CTSZ/Cathepsin Z), metastasis (GPNMB), neuronal differentiation (MEF2A), and RNA binding (EIF1, RPL30, EIF4A2).
Down-regulated DEGs in recGBM included genes involved in cell proliferation (EGFR), possibly brain tumor cell growth (BCAN), deadenylation of mRNA, which is linked to neurodevelopmental disorders (CNOT2), and multi-drug resistance (ABCG2). The receptor tyrosine kinase EGFR is frequently amplified (∼57%) or mutated (∼11%) in primary GBM [4]. Overexpression of EGFR is often lower (44%) at GBM recurrence [39], corroborating our findings. EGFR inhibitors have yet to show clinical benefit against GBM; however, combinatorial therapies targeting both the EGFR and STAT3 signaling pathways may have better therapeutic potential [40]. Single-cell transcriptomic profiling of dissociated GBM and peri-tumoral tissues observed neural stem cells in both, which included an EGFR+ BCAN+ cell cluster, which may influence GBM recurrence [41]. ABCG2 functions to efflux neurotoxic substances from the brain parenchyma to the bloodstream and may play a major role in multi-drug resistance [42]. Whilst ABCG2 was significantly downregulated in recGBM, its expression is still very high compared to normal brain tissue, which could hinder therapy effectiveness [43].
Functional analyses revealed GO terms relating to an ‘MHC class II protein complex’ and ‘antigen processing and presentation’ as enriched in recGBM. MHC class II genes encode antigen-presenting peptides, which are key in initiating immune response [44]. These peptides are usually found on B-cells, macrophages, and dendritic cells. Down-regulation of MHC class II molecules has been associated with tumor cell invasion and immune evasion in glioma [45,46]. The enrichment of these genes in recGBM may indicate a change in the biological processes adopted by the tumor in response to therapy. Similarly, pathway analysis returned B-cell development, antigen presentation pathway, and allograft rejection signaling as the top three, further corroborating the observation of activated immune signaling in recGBM. The ‘Role of NFAT in the regulation of the immune response’ was the most significantly activated pathway. NFATs are calcium-dependent transcription factors that are required to be activated with the Fos-Jun complex for a productive immune response. High NFAT2 expression was associated with recGBM, the mesenchymal subtype, and poor survival, supporting our findings [47]. Inhibitors of the calcineurin-NFAT pathway suppressed proto-oncogenic pathways (hypoxia, glycolysis, PI3K/AKT/mTOR signaling axis) in vivo in GBM and, consequently, are being considered for therapies [48]. Additionally, two pathways inhibited in recGBM were ‘PD-1, PD-L1 cancer immunotherapy’ and ‘SP-RON signaling in the macrophages pathway’.
RAD21 was identified as a potential upstream regulator of CXCL12, HLA-DQA1, HLA-DRB1, and ZEB1 expression in recGBM. This may result in the downstream activation of ‘hematopoiesis of mononuclear leukocytes’, i.e., the formation of blood cells including both lymphocytes (B-cells, T-cells, NK cells) and monocytes (macrophages, dendritic cells). RAD21 encodes a double-strand break repair protein; however, it also has roles as an upstream regulator. For example, the lncRNA, MIR4697HG, plays a role in gliomagenesis and progression [49]. Perhaps RAD21 may be involved in the infiltration of antigen-presenting immune cells in recGBM. Several studies have been completed on the effects of immune cells, including mononuclear leukocytes, on GBM. Macrophages, originating in bone marrow, accumulate centrally in GBM tumors creating an immunosuppressive environment [50]. Assessment of the immune infiltration of GBM transcriptional subtypes found that the mesenchymal subtype had the highest microglia, macrophage, and lymphocyte infiltration, which could make it more susceptible to immunotherapy [51]. Results of the disease and function analysis highlighted the quantity of CD4+ T lymphocytes, differentiation of T lymphocytes and mononuclear leukocytes, and the proliferation of lymphocytes as potentially being increased in recGBM. This suggested a high infiltration of immune cells in recGBM while also highlighting increased inflammatory responses in the initial tumors. Inflammation, a natural immune response to infection, may be involved in gliomagenesis [52]. Therapies generating an injury response could be effective against GSCs that carry hallmarks of inflammation and may be responsible for gliomas via a neural wound response pathway [53]. In summary, increased activation of immune-related pathways was observed in recGBM. It should be noted that our GBM cohort was relatively young, with an average age of 49, and that these patients were “healthy” enough to be eligible for a second surgery. Thus, our results relate to a small and select patient cohort with a “resectable” recurrent tumor. It is not clear whether results might be transferrable to a “non-resectable” diffuse cohort. Nevertheless, our study suggests that recGBM may benefit from immunotherapy. To date, immunotherapies have not had significant clinical benefits for GBM patients. A lack of HLA-presented epitopes has been suggested as a limiting factor in the immunogenicity of GBM [54]. Our findings potentially suggest that HLA-DQA1 could be targeted intratumorally in recGBM as part of CAR-T cell therapy, which might prove successful against these solid tumors [55].
These transcriptional changes to recGBM were utilized in a gene expression connectivity mapping analysis to identify FDA-approved compounds that could potentially be re-purposed in recGBM. The top-ranking compound across all cell lines was rosiglitazone, a synthetic agonist of the PPARγ nuclear hormone receptor [56]. It is also a member of the thiazolidinedione family of compounds (TZDs) that are synthetic ligands of the nuclear-receptor-peroxisome-proliferator-activated receptor gamma (PPARγ). PPARγ forms a heterodimer with retinoid-X-receptor for efficient ligand binding, after which the receptor-ligand complex binds DNA and induces signal trans-activation, regulating a spectrum of processes including glucose homeostasis, inflammation, and fatty acid metabolism [57]. Preliminary evidence from in vitro experiments by this group suggests that rosiglitazone in combination with radiation is effective against GBM cell proliferation [Al Rashid et al. in prep. unpublished results]. Compounds specifically identified for neuronal cell lines included nizatidine, pantoprazole, and tolmetin. Importantly, a compound structurally and pharmacologically related to the nonsteroidal anti-inflammatory drug tolmetin, ketorolac, and it is r-enantiomer, has been shown to inhibit small Rho GTPases (Rac1, Cdc42) and to reduce GBM infiltration in vitro [58]. A review of repurposing drugs to treat GBM only lists rosiglitazone, escitalopram, and hydroxychloroquine from the drugs we identified, and from those, only escitalopram has been tested in Phase II/II clinical trial (NCT02623231) [59]. All the other drugs we identified are novel suggestions for GBM and remain untested. High-content profiling of drugs is underway using a phenotypic approach on well-characterized GBM patient-derived cell lines by combining the Cell Painting assay with machine learning to classify drug mechanism of action [60]. Following successful in vivo and in vitro testing, the candidate compounds could be evaluated in future pre-clinical trials in combination with standard therapies, such as TMZ and bevacizumab, to target GBM and specifically the resistant GSC sub-populations in the initial tumor to prevent recurrence. Our translational bioinformatics pipeline provides an approach that could identify novel targets for cancer therapy. Finally, results from our whole transcriptome approach indicated that alterations in small non-coding RNAs, such as tRNAs, might have a role in disease progression in GBM IDH-wildtype. In other cancers, tRNAs are involved in apoptosis and tumorigenesis and have been successfully used as diagnostic biomarkers see [61]. Future work to characterize the non-coding portion of the transcriptome, including tRNAs, may prove useful to reveal additional mechanisms of disease regulation that could open new avenues for therapeutic interventions.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biomedicines11041219/s1. Figure S1: PCA plots generated for (A) all 18 GBM tumor samples profiled and (B) patient-matched initial and recurrent GBM samples only. Initial and recurrent tumors are labeled red and blue, respectively. Samples that did not pass the labeling control thresholds are labeled with a cube shape. One sample failed labeling QC (P11_I); however, as it did not appear as an outlier, it was maintained in the study; Figure S2: Results of the differential gene expression analysis between patient-matched initial and recurrent GBM. A: A volcano plot indicating the spread of up-regulated (red) and down-regulated DEGs were identified. B: Functional categories (%) assigned to each set of up-regulated and down-regulated DEGs; Figure S3: Results of the canonical pathways identified from the DEGs. A total of 36 canonical pathways were significantly altered between initial and recurrent tumors. Pathways activated (orange) or inhibited (blue) in the recurrent group are represented by bars with a positive or negative z-score, respectively. The ratio of the number of molecules present in the DEG list divided by the total number of molecules in the pathway is indicated in the line graph. Pathways having no activity pattern available (grey) meant that a z-score could not be calculated; Figure S4: Regulator effects analysis for RAD21 revealed that its activation downregulates CXCL12, HLA-DRB1, HLA-DQA1 and up-regulates ZEB1 resulting in the activation of the hematopoiesis of mononuclear leukocytes; Figure S5: Hierarchical heatmap representing the biological processes most significantly differentiating the initial and recurrent groups based on the DEGs. Processes are sized according to their log(p-value) and colored according to z-score. Activation (orange) and inhibition (blue) in the recurrent group are represented by positive and negative z-scores of 1.5, respectively; Table S1: Comparison of the tumor composition results from ESTIMATE. Tumor purity did not significantly differ between initial (Mean = 0.7631 ± 0.0318 Stdev.) and recurrent (Mean = 0.7568 ± 0.0294 Stdev) samples (p-value = 0.778, F = 0.082, t = 0.437, df = 16); Table S2: Results of the transcriptional subtype assignment for all the initial and recurrent GBM IDH-wildtype samples. p-values were generated for each gene signature based on 1000 permutations of the gene set provided. For each sample, the lowest p-value was used to determine its subtype; Table S3: A list of the probes or genes that were identified as being differentially expressed between patient-matched initial and recurrent GBM IDH-wildtype; Table S4: Validation of the expression patterns of DEGs in other GBM cohorts. Results of the statistical comparison of expression of DEGs between initial and recurrent GBM in the four independent cohorts: CGGA (N = 75/85); Kwon et al. (N = 15); TCGA-GBM (N = 13); HF-MDA (N = 9). Trends for up (UP), down (DN), or opposite (O) gene expression regulation are indicated in comparison to the Belfast cohort, which is also listed. A column indicating whether the gene is validated in at least another cohort and showing the same expression trend is provided, and the test result is shaded. NS = Non-significant test result; NA = Not applicable because gene not available in the cohort for testing; Y = Yes; N = No; Table S5: Validation of the expression patterns of DEGs from the literature. Overview of the DEGs for which expression was reported for both initial and recurrent GBM in the literature; Table S6: Results of the GO analysis of DEGs related to Biological Process, Molecular Function, and Cellular Component; Table S7: Significant negative connections to target compounds that could reverse the recurrent GBM IDH-wildtype phenotype identified for all cell lines by QUADrATiC software. References [28,39,62,63,64,65,66] are cited in the Supplementary Files.

Author Contributions

T.F., D.G.M. and K.M.P. conceived and designed the study. T.F. obtained patient consent and tumor biopsies. E.G.H. reviewed H & E slides prior to macrodissection. J.P.S. performed RNA extraction and microarray profiling. J.W. collated clinical information. A.C.R. and C.E.M. performed bioinformatics analyses, interpreted findings and drafted the manuscript. M.S.-T. was responsible for supervision, funding acquisition (CRUK), writing original & approving final draft. V.J.S. was responsible for data curation and approving final draft. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Brainwaves Northern Ireland (Registered Charity Number: NIC103464). AC Roddy was supported by a Cancer Research UK studentship (C11512/A20877) and VJ Spence was supported by a studentship from Brainwaves Northern Ireland and the Robin Menary Foundation.

Institutional Review Board Statement

Samples were archived at the Northern Ireland Biobank (NI Biobank;Project Ref NIB16-0218), which is a Human Tissue Authority Licensed Research Tissue Bank with generic ethical approval from The Office of Research Ethics Committees Northern Ireland (ORECNI REF 21/NI/0019) to confer ethical approval for projects (subject to application).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study (ORECNI 10/NIR01/13) by the neurosurgeon (T.F.) prior to surgical resection, which took place at Royal Victoria Hospital, Belfast.

Data Availability Statement

The data is published in the Gene Expression Omnibus database under the data series accession number (GSE212067).

Acknowledgments

We thank the patients and their families for their generous donations to biomedical research. The samples used in this research were received from the Northern Ireland Biobank which has received funds from HSC Research and Development Division of the Public Health Agency in Northern Ireland. The authors thank Dr. Philip Dunne for assistance with establishing the ClariomTM D Human Assay at PGJCCR, which was used for the data collection.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Ostrom, Q.T.; Cioffi, G.; Waite, K.; Kruchko, C.; Barnholtz-Sloan, J.S. CBTRUS statistical report: Primary brain and other central nervous system tumors diagnosed in the United States in 2014–2018. Neuro-Oncol. 2021, 23 (Suppl. S3), iii1–iii105. [Google Scholar] [CrossRef] [PubMed]
  2. Louis, D.N.; Perry, A.; Wesseling, P.; Brat, D.J.; Cree, I.A.; Figarella-Branger, D.; Hawkins, C.; Ng, H.K.; Pfister, S.M.; Reifenberger, G.; et al. The 2021 WHO classification of tumors of the central nervous system: A summary. Neuro-Oncol. 2021, 23, 1231–1251. [Google Scholar] [CrossRef] [PubMed]
  3. Hegi, M.E.; Diserens, A.C.; Gorlia, T.; Hamou, M.F.; de Tribolet, N.; Weller, M.; Kros, J.M.; Hainfellner, J.A.; Mason, W.; Mariani, L.; et al. MGMT gene silencing and benefit from temozolomide in glioblastoma. N. Engl. J. Med. 2005, 352, 997–1003. [Google Scholar] [CrossRef] [PubMed]
  4. Brennan, C.W.; Verhaak, R.G.; McKenna, A.; Campos, B.; Noushmehr, H.; Salama, S.R.; Zheng, S.; Chakravarty, D.; Sanborn, J.Z.; Berman, S.H.; et al. The somatic genomic landscape of glioblastoma. Cell 2013, 155, 462–477. [Google Scholar] [CrossRef]
  5. Stupp, R.; Mason, W.P.; van den Bent, M.J.; Weller, M.; Fisher, B.; Taphoorn, M.J.; Belanger, K.; Brandes, A.A.; Marosi, C.; Bogdahn, U.; et al. Radiotherapy plus concomitant and adjuvant temozolomide for glioblastoma. N. Engl. J. Med. 2005, 352, 987–996. [Google Scholar] [CrossRef]
  6. Bao, S.; Wu, Q.; McLendon, R.E.; Hao, Y.; Shi, Q.; Hjelmeland, A.B.; Dewhirst, M.W.; Bigner, D.D.; Rich, J.N. Glioma stem cells promote radioresistance by preferential activation of the DNA damage response. Nature 2006, 444, 756–760. [Google Scholar] [CrossRef]
  7. Lee, J.; Kotliarova, S.; Kotliarov, Y.; Li, A.; Su, Q.; Donin, N.M.; Pastorino, S.; Purow, B.W.; Christopher, N.; Zhang, W.; et al. Tumor stem cells derived from glioblastomas cultured in bFGF and EGF more closely mirror the phenotype and genotype of primary tumors than do serum-cultured cell lines. Cancer Cell 2006, 9, 391–403. [Google Scholar] [CrossRef]
  8. Liebelt, B.D.; Shingu, T.; Zhou, X.; Ren, J.; Shin, S.A.; Hu, J. Glioma stem cells: Signaling, microenvironment, and therapy. Stem Cells Int. 2016, 2016, 7849890. [Google Scholar] [CrossRef]
  9. Li, Z.; Bao, S.; Wu, Q.; Wang, H.; Eyler, C.; Sathornsumetee, S.; Shi, Q.; Cao, Y.; Lathia, J.; McLendon, R.E.; et al. Hypoxia-inducible factors regulate tumorigenic capacity of glioma stem cells. Cancer Cell 2009, 15, 501–513. [Google Scholar] [CrossRef]
  10. Auffinger, B.; Tobias, A.L.; Han, Y.; Lee, G.; Guo, D.; Dey, M.; Lesniak, M.S.; Ahmed, A.U. Conversion of differentiated cancer cells into cancer stem-like cells in a glioblastoma model after primary chemotherapy. Cell Death Differ. 2014, 21, 1119–1131. [Google Scholar] [CrossRef]
  11. Kim, J.; Lee, I.H.; Cho, H.J.; Park, C.K.; Jung, Y.S.; Kim, Y.; Nam, S.H.; Kim, B.S.; Johnson, M.D.; Kong, D.S.; et al. Spatiotemporal evolution of the primary glioblastoma genome. Cancer Cell 2015, 28, 318–328. [Google Scholar] [CrossRef] [PubMed]
  12. Marucci, G.; Fabbri, P.V.; Morandi, L.; de Biase, D.; di Oto, E.; Tallini, G.; Sturiale, C.; Franceschi, E.; Frezza, G.P.; Foschini, M.P. Pathological spectrum in recurrences of glioblastoma multiforme. Pathologica 2015, 107, 1–8. [Google Scholar]
  13. Kim, H.; Zheng, S.; Amini, S.S.; Virk, S.M.; Mikkelsen, T.; Brat, D.J.; Grimsby, J.; Sougnez, C.; Muller, F.; Hu, J.; et al. Whole-genome and multisector exome sequencing of primary and post-treatment glioblastoma reveals patterns of tumor evolution. Genome Res. 2015, 25, 316–327. [Google Scholar] [CrossRef] [PubMed]
  14. Sottoriva, A.; Spiteri, I.; Piccirillo, S.G.; Touloumis, A.; Collins, V.P.; Marioni, J.C.; Curtis, C.; Watts, C.; Tavaré, S. Intratumor heterogeneity in human glioblastoma reflects cancer evolutionary dynamics. Proc. Natl. Acad. Sci. USA 2013, 110, 4009–4014. [Google Scholar] [CrossRef] [PubMed]
  15. Gallego, O. Nonsurgical treatment of recurrent glioblastoma. Curr. Oncol. 2015, 22, 273–281. [Google Scholar] [CrossRef]
  16. Kwon, S.M.; Kang, S.H.; Park, C.K.; Jung, S.; Park, E.S.; Lee, J.S.; Kim, S.H.; Woo, H.G. Recurrent glioblastomas reveal molecular subtypes associated with mechanistic implications of drug-resistance. PLoS ONE 2015, 10, e0140528. [Google Scholar] [CrossRef]
  17. Kim, E.L.; Sorokin, M.; Kantelhardt, S.R.; Kalasauskas, D.; Sprang, B.; Fauss, J.; Ringel, F.; Garazha, A.; Albert, E.; Gaifullin, N.; et al. Intratumoral heterogeneity and longitudinal changes in gene expression predict differential drug sensitivity in newly diagnosed and recurrent glioblastoma. Cancers 2020, 12, 520. [Google Scholar] [CrossRef]
  18. Varn, F.S.; Johnson, K.C.; Martinek, J.; Huse, J.T.; Nasrallah, M.P.; Wesseling, P.; Cooper, L.A.; Malta, T.M.; Wade, T.E.; Sabedot, T.S.; et al. Glioma progression is shaped by genetic evolution and microenvironment interactions. Cell 2022, 185, 2184–2199. [Google Scholar] [CrossRef]
  19. Alves, A.L.V.; Gomes, I.N.; Carloni, A.C.; Rosa, M.N.; da Silva, L.S.; Evangelista, A.F.; Reis, R.M.; Silva, V.A.O. Role of glioblastoma stem cells in cancer therapeutic resistance: A perspective on antineoplastic agents from natural sources and chemical derivatives. Stem Cell Res. Ther. 2021, 12, 206. [Google Scholar] [CrossRef]
  20. Lamb, J.; Crawford, E.D.; Peck, D.; Modell, J.W.; Blat, I.C.; Wrobel, M.J.; Lerner, J.; Brunet, J.P.; Subramanian, A.; Ross, K.N.; et al. The Connectivity Map: Using gene-expression signatures to connect small molecules, genes, and disease. Science 2006, 313, 1929–1935. [Google Scholar] [CrossRef]
  21. O’Reilly, P.G.; Wen, Q.; Bankhead, P.; Dunne, P.D.; McArt, D.G.; McPherson, S.; Hamilton, P.W.; Mills, K.I.; Zhang, S.D. QUADrATiC: Scalable gene expression connectivity mapping for repurposing FDA-approved therapeutics. BMC Bioinform. 2016, 17, 198. [Google Scholar] [CrossRef]
  22. Zhao, Z.; Zhang, K.N.; Wang, Q.; Li, G.; Zeng, F.; Zhang, Y.; Wu, F.; Chai, R.; Wang, Z.; Zhang, C.; et al. Chinese Glioma Genome Atlas (CGGA): A comprehensive resource with functional genomic data from Chinese glioma patients. Genom. Proteom. Bioinform. 2021, 19, 1–12. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, Q.; Hu, B.; Hu, X.; Kim, H.; Squatrito, M.; Scarpace, L.; DeCarvalho, A.C.; Lyu, S.; Li, P.; Li, Y.; et al. Tumor evolution of glioma-intrinsic gene expression subtypes associates with immunological changes in the microenvironment. Cancer Cell 2017, 32, 42–56. [Google Scholar] [CrossRef] [PubMed]
  24. WHO Classification of Tumours Editorial Board. World Health Organization Classification of Tumours of the Central Nervous System, 5th ed.; International Agency for Research on Cancer: Lyon, France, 2021. [Google Scholar]
  25. Yoshihara, K.; Shahmoradgoli, M.; Martínez, E.; Vegesna, R.; Kim, H.; Torres-Garcia, W.; Treviño, V.; Shen, H.; Laird, P.W.; Levine, D.A.; et al. Inferring tumour purity and stromal and immune cell admixture from expression data. Nat. Commun. 2013, 4, 2612. [Google Scholar] [CrossRef] [PubMed]
  26. Mi, H.; Muruganujan, A.; Ebert, D.; Huang, X.; Thomas, P.D. PANTHER version 14: More genomes, a new PANTHER GO-slim and improvements in enrichment analysis tools. Nucleic Acids Res. 2019, 47, D419–D426. [Google Scholar] [CrossRef]
  27. Fears, C.Y.; Gladson, C.L.; Woods, A. Syndecan-2 is expressed in the microvasculature of gliomas and regulates angiogenic processes in microvascular endothelial cells. J. Biol. Chem. 2006, 281, 14533–14536. [Google Scholar] [CrossRef] [PubMed]
  28. Tabouret, E.; Tchoghandjian, A.; Denicolai, E.; Delfino, C.; Metellus, P.; Graillon, T.; Boucard, C.; Nanni, I.; Padovani, L.; Ouafik, L.H.; et al. Recurrence of glioblastoma after radio-chemotherapy is associated with an angiogenic switch to the CXCL12-CXCR4 pathway. Oncotarget 2015, 6, 11664. [Google Scholar] [CrossRef]
  29. Wick, W.; Gorlia, T.; Bendszus, M.; Taphoorn, M.; Sahm, F.; Harting, I.; Brandes, A.A.; Taal, W.; Domont, J.; Idbaih, A.; et al. Lomustine and bevacizumab in progressive glioblastoma. N. Engl. J. Med. 2017, 377, 1954–1963. [Google Scholar] [CrossRef]
  30. Diao, J.; Xia, T.; Zhao, H.; Liu, J.; Li, B.; Zhang, Z. Overexpression of HLA-DR is associated with prognosis of glioma patients. Int. J. Clin. Exp. Pathol. 2015, 8, 5485. [Google Scholar]
  31. Fan, X.; Liang, J.; Wu, Z.; Shan, X.; Qiao, H.; Jiang, T. Expression of HLA-DR genes in gliomas: Correlation with clinicopathological features and prognosis. Chin. Neurosurg. J. 2017, 3, 154–162. [Google Scholar] [CrossRef]
  32. Tan, Y.Q.; Li, Y.T.; Yan, T.F.; Xu, Y.; Liu, B.H.; Yang, J.A.; Yang, X.; Chen, Q.X.; Zhang, H.B. Six immune associated genes construct prognostic model evaluate low-grade glioma. Front. Immunol. 2020, 11, 606164. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, W.; Zhang, L.; Wang, Z.; Yang, F.; Wang, H.; Liang, T.; Wu, F.; Lan, Q.; Wang, J.; Zhao, J. A three-gene signature for prognosis in patients with MGMT promoter-methylated glioblastoma. Oncotarget 2016, 7, 69991. [Google Scholar] [CrossRef] [PubMed]
  34. Cheng, W.; Ren, X.; Zhang, C.; Cai, J.; Liu, Y.; Han, S.; Wu, A. Bioinformatic profiling identifies an immune-related risk signature for glioblastoma. Neurology 2016, 86, 2226–2234. [Google Scholar] [CrossRef]
  35. Menyhárt, O.; Fekete, J.T.; Győrffy, B. Gene expression-based biomarkers designating glioblastomas resistant to multiple treatment strategies. Carcinogenesis 2021, 42, 804–813. [Google Scholar] [CrossRef]
  36. Takenaka, M.C.; Gabriely, G.; Rothhammer, V.; Mascanfroni, I.D.; Wheeler, M.A.; Chao, C.C.; Gutiérrez-Vázquez, C.; Kenison, J.; Tjon, E.C.; Barroso, A.; et al. Control of tumor-associated macrophages and T cells in glioblastoma via AHR and CD39. Nat. Neurosci. 2019, 22, 729–740. [Google Scholar] [CrossRef]
  37. Peng, Q.; Li, R.; Li, Y.; Xu, X.; Ni, W.; Lin, H.; Ning, L. Prediction of a competing endogenous RNA co-expression network as a prognostic marker in glioblastoma. J. Cell. Mol. Med. 2020, 24, 13346–13355. [Google Scholar] [CrossRef] [PubMed]
  38. Lee, A.H.; Sun, L.; Mochizuki, A.Y.; Reynoso, J.G.; Orpilla, J.; Chow, F.; Kienzler, J.C.; Everson, R.G.; Nathanson, D.A.; Bensinger, S.J.; et al. Neoadjuvant PD-1 blockade induces T cell and cDC1 activation but fails to overcome the immunosuppressive tumor associated macrophages in recurrent glioblastoma. Nat. Commun. 2021, 12, 6938. [Google Scholar] [CrossRef]
  39. Cioca, A.; Olteanu, E.G.; Gisca, M.D.; Morosanu, C.O.; Marin, I.; Florian, I.S. Expression of EGFR in paired new and recurrent glioblastomas. Asian Pac. J. Cancer Prev. 2016, 17, 4205–4208. [Google Scholar]
  40. Jensen, K.V.; Hao, X.; Aman, A.; Luchman, H.A.; Weiss, S. EGFR blockade in GBM brain tumor stem cells synergizes with JAK2/STAT3 pathway inhibition to abrogate compensatory mechanisms in vitro and in vivo. Neuro-Oncol. Adv. 2020, 2, vdaa020. [Google Scholar] [CrossRef]
  41. Dai, X.; Ye, L.; Cheng, H. Interaction between microglial cells and neural stem cells influences the relapse of glioblastoma. Brain Tumor Res. Treat. 2022, 10, S265. [Google Scholar]
  42. Dréan, A.; Goldwirt, L.; Verreault, M.; Canney, M.; Schmitt, C.; Guehennec, J.; Delattre, J.Y.; Carpentier, A.; Idbaih, A. Blood-brain barrier, cytotoxic chemotherapies and glioblastoma. Expert Rev. Neurother. 2016, 16, 1285–1300. [Google Scholar] [CrossRef]
  43. Roy, L.O.; Lemelin, M.; Blanchette, M.; Poirier, M.B.; Aldakhil, S.; Fortin, D. Expression of ABCB1, ABCC1 and 3 and ABCG2 in glioblastoma and their relevance in relation to clinical survival surrogates. J. Neuro-Oncol. 2022, 160, 601–609. [Google Scholar] [CrossRef]
  44. Ting, J.P.Y.; Trowsdale, J. Genetic control of MHC class II expression. Cell 2002, 109, S21–S33. [Google Scholar] [CrossRef]
  45. Zagzag, D.; Salnikow, K.; Chiriboga, L.; Yee, H.; Lan, L.; Ali, M.A.; Garcia, R.; Demaria, S.; Newcomb, E.W. Downregulation of major histocompatibility complex antigens in invading glioma cells: Stealth invasion of the brain. Lab. Investig. 2005, 85, 328–341. [Google Scholar] [CrossRef]
  46. Qian, J.; Luo, F.; Yang, J.; Liu, J.; Liu, R.; Wang, L.; Wang, C.; Deng, Y.; Lu, Z.; Wang, Y.; et al. TLR2 Promotes Glioma Immune Evasion by Downregulating MHC Class II Molecules in Microglia. Cancer Immunol. Res. 2018, 6, 1220–1233. [Google Scholar] [CrossRef] [PubMed]
  47. Song, Y.; Jiang, Y.; Tao, D.; Wang, Z.; Wang, R.; Wang, M.; Han, S. NFAT2-HDAC1 signaling contributes to the malignant phenotype of glioblastoma. Neuro-Oncol. 2020, 22, 46–57. [Google Scholar] [CrossRef] [PubMed]
  48. Liu, Z.; Li, H.; He, L.; Xiang, Y.; Tian, C.; Li, C.; Tan, P.; Jing, J.; Tian, Y.; Du, L.; et al. Discovery of small-molecule inhibitors of the HSP90-calcineurin-NFAT pathway against glioblastoma. Cell Chem. Biol. 2019, 26, 352–365. [Google Scholar] [CrossRef] [PubMed]
  49. Mao, Y.; Shen, G.; Su, Z.; Du, J.; Xu, F.; Yu, Y. RAD21 inhibited transcription of tumor suppressor MIR4697HG and led to glioma tumorigenesis. Biomed. Pharmacother. 2020, 123, 109759. [Google Scholar] [CrossRef] [PubMed]
  50. Pinton, L.; Masetto, E.; Vettore, M.; Solito, S.; Magri, S.; D’andolfi, M.; del Bianco, P.; Lollo, G.; Benoit, J.P.; Okada, H.; et al. The immune suppressive microenvironment of human gliomas depends on the accumulation of bone marrow-derived macrophages in the center of the lesion. J. Immunother. Cancer 2019, 7, 58. [Google Scholar] [CrossRef]
  51. Martinez-Lage, M.; Lynch, T.M.; Bi, Y.; Cocito, C.; Way, G.P.; Pal, S.; Haller, J.; Yan, R.E.; Ziober, A.; Nguyen, A.; et al. Immune landscapes associated with different glioblastoma molecular subtypes. Acta Neuropathol. Commun. 2019, 7, 203. [Google Scholar] [CrossRef]
  52. Ha, E.T.; Antonios, J.P.; Soto, H.; Prins, R.M.; Yang, I.; Kasahara, N.; Liau, L.M.; Kruse, C.A. Chronic inflammation drives glioma growth: Cellular and molecular factors responsible for an immunosuppressive microenvironment. Neuroimmunol. Neuroinflammation 2014, 1, 66–76. [Google Scholar]
  53. Richards, L.M.; Whitley, O.K.; MacLeod, G.; Cavalli, F.M.; Coutinho, F.J.; Jaramillo, J.E.; Svergun, N.; Riverin, M.; Croucher, D.C.; Kushida, M.; et al. Gradient of developmental and injury response transcriptional states defines functional vulnerabilities underpinning glioblastoma heterogeneity. Nat. Cancer 2021, 2, 157–173. [Google Scholar] [CrossRef]
  54. Baratta, M.G. Glioblastoma is ‘hot’ for personalized vaccines. Nat. Rev. Cancer 2019, 19, 129. [Google Scholar] [CrossRef]
  55. Agliardi, G.; Liuzzi, A.R.; Hotblack, A.; de Feo, D.; Núñez, N.; Stowe, C.L.; Friebel, E.; Nannini, F.; Rindlisbacher, L.; Roberts, T.A.; et al. Intratumoral IL-12 delivery empowers CAR-T cell immunotherapy in a pre-clinical model of glioblastoma. Nat. Commun. 2021, 12, 444. [Google Scholar] [CrossRef] [PubMed]
  56. Edvardsson, U.; Bergström, M.; Alexandersson, M.; Bamberg, K.; Ljung, B.; Dahllöf, B. Rosiglitazone (BRL49653), a PPARγ-selective agonist, causes peroxisome proliferator-like liver effects in obese mice. J. Lipid Res. 1999, 40, 1177–1184. [Google Scholar] [CrossRef] [PubMed]
  57. Ahmadian, M.; Suh, J.M.; Hah, N.; Liddle, C.; Atkins, A.R.; Downes, M.; Evans, R.M. PPARγ signaling and metabolism: The good, the bad and the future. Nat. Med. 2013, 19, 557–566. [Google Scholar] [CrossRef] [PubMed]
  58. Xu, J.; Simonelli, F.; Li, X.; Spinello, A.; Laporte, S.; Torre, V.; Magistrato, A. Molecular Mechanisms of the Blockage of Glioblastoma Motility. J. Chem. Inf. Model. 2021, 61, 2967–2980. [Google Scholar] [CrossRef]
  59. Yadavalli, S.; Yenugonda, V.M.; Kesari, S. Repurposed drugs in treating glioblastoma multiforme: Clinical trials update. Cancer J. 2019, 25, 139–146. [Google Scholar] [CrossRef]
  60. Hughes, R.E.; Elliott, R.J.; Dawson, J.C.; Carragher, N.O. High-content phenotypic and pathway profiling to advance drug discovery in diseases of unmet need. Cell Chem. Biol. 2021, 28, 338–355. [Google Scholar] [CrossRef]
  61. Li, D.; Zhang, Z.; Xia, C.; Niu, C.; Zhou, W. Non-Coding RNAs in glioma microenvironment and angiogenesis. Front. Mol. Neurosci. 2021, 14, 763610. [Google Scholar] [CrossRef]
  62. Mohme, M.; Schliffke, S.; Maire, C.L.; Rünger, A.; Glau, L.; Mende, K.C.; Matschke, J.; Gehbauer, C.; Akyüz, N.; Zapf, S.; et al. Immunophenotyping of Newly Diagnosed and Recurrent Glioblastoma Defines Distinct Immune Exhaustion Profiles in Peripheral and Tumor-infiltrating Lymphocytes Immunophenotyping of T Cells in GBM. Clin. Cancer Res. 2018, 24, 4187–4200. [Google Scholar] [CrossRef] [PubMed]
  63. Hutóczki, G.; Bognár, L.; Tóth, J.; Scholtz, B.; Zahuczky, G.; Hanzély, Z.; Csősz, É.; Reményi-Puskár, J.; Kalló, G.; Hortobágyi, T.; et al. Effect of concomitant radiochemotherapy on invasion potential of glioblastoma. Pathol. Oncol. Res. 2016, 22, 155–160. [Google Scholar] [CrossRef] [PubMed]
  64. Hudson, A.L.; Parker, N.R.; Khong, P.; Parkinson, J.F.; Dwight, T.; Ikin, R.J.; Zhu, Y.; Chen, J.; Wheeler, H.R.; Howell, V.M. Glioblastoma recurrence correlates with increased APE1 and polarization toward an immuno-suppressive microenvironment. Front. Oncol. 2018, 8, 314. [Google Scholar] [CrossRef] [PubMed]
  65. Yu, F.; Li, G.; Gao, J.; Sun, Y.; Liu, P.; Gao, H.; Li, P.; Lei, T.; Chen, Y.; Cheng, Y.; et al. SPOCK1 is upregulated in recurrent glioblastoma and contributes to metastasis and Temozolomide resistance. Cell Prolif. 2016, 49, 195–206. [Google Scholar] [CrossRef] [PubMed]
  66. Hasan, T.; Caragher, S.P.; Shireman, J.M.; Park, C.H.; Atashi, F.; Baisiwala, S.; Lee, G.; Guo, D.; Wang, J.Y.; Dey, M.; et al. Interleukin-8/CXCR2 signaling regulates therapy-induced plasticity and enhances tumorigenicity in glioblastoma. Cell Death Dis. 2019, 10, 292. [Google Scholar] [CrossRef] [PubMed]

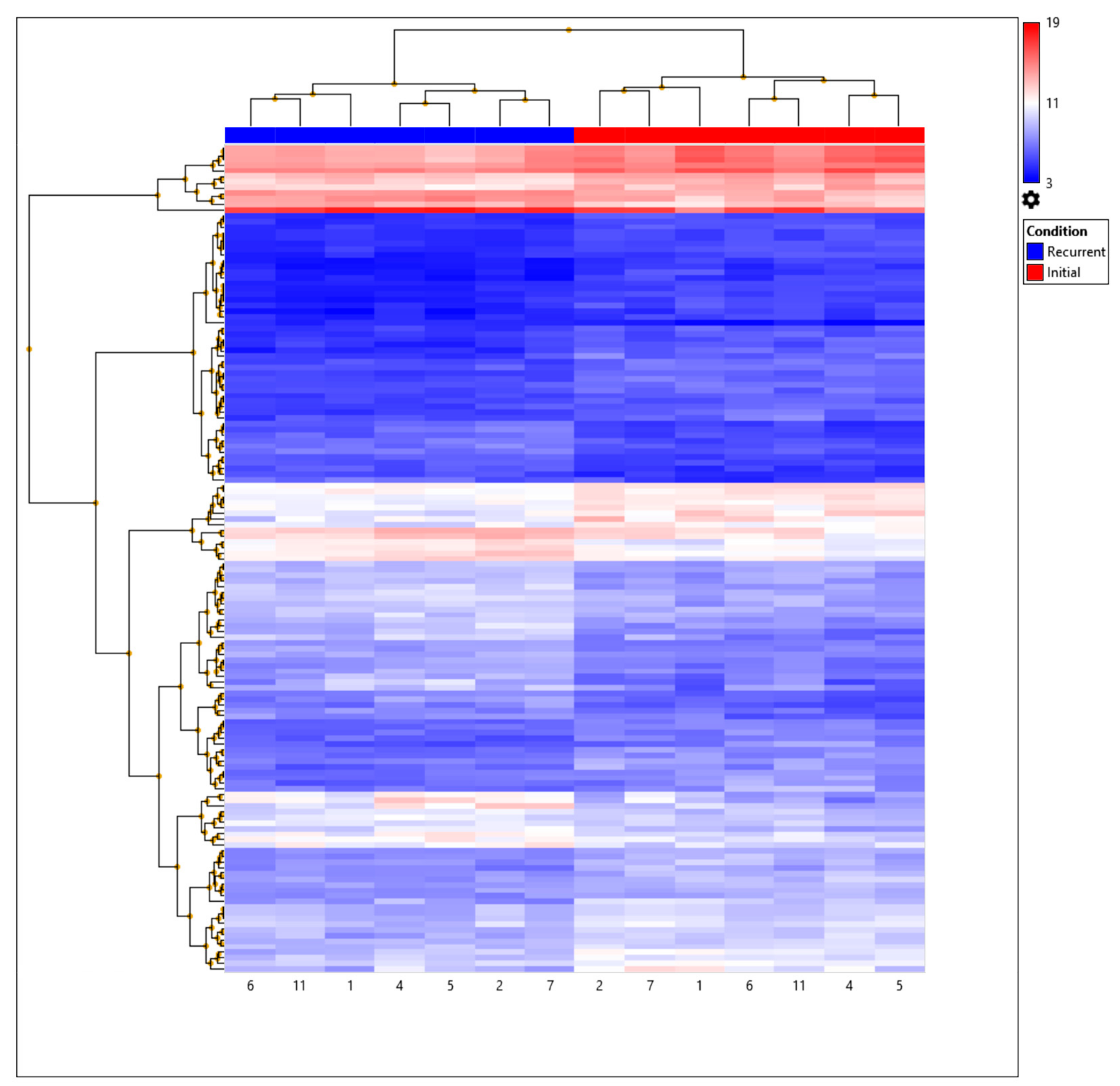

Figure 1. Hierarchical clustering of GBM IDH-wildtype samples based on the expression of the 147 differentially expressed probes or genes (DEGs). Expression (Log2) is displayed on a scale from high (red) to low (blue) values. Patient sample IDs of initial (red) and recurrent (blue) are displayed at the bottom of the heatmap.
Figure 1. Hierarchical clustering of GBM IDH-wildtype samples based on the expression of the 147 differentially expressed probes or genes (DEGs). Expression (Log2) is displayed on a scale from high (red) to low (blue) values. Patient sample IDs of initial (red) and recurrent (blue) are displayed at the bottom of the heatmap.
Biomedicines 11 01219 g001

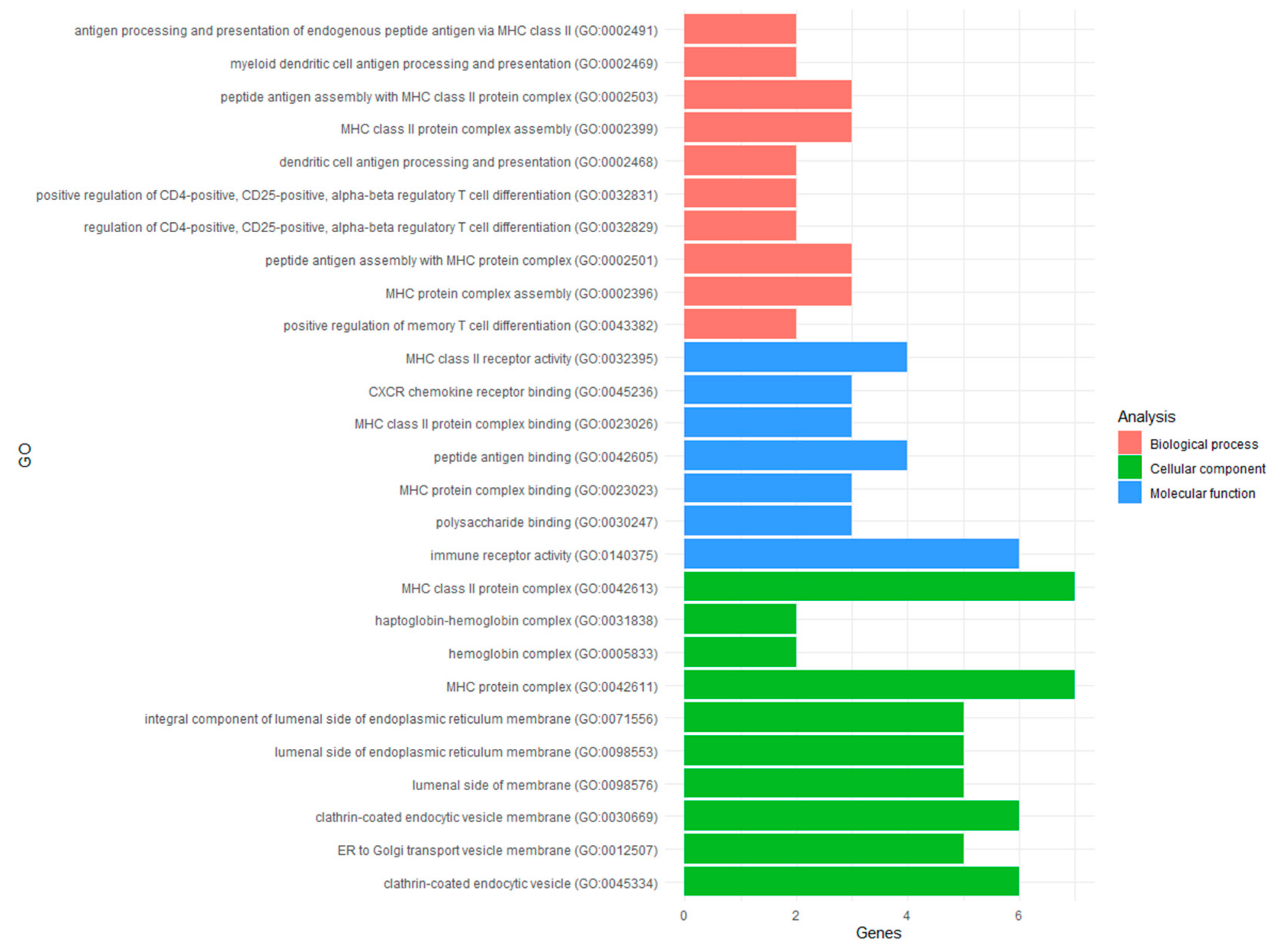

Figure 2. Results of the functional enrichment analyses of the DEGs identified in recGBM. Top ten GO terms for biological processes (red), molecular function (blue), and cellular components (green) are presented, including the number of genes overrepresented for each pathway.
Figure 2. Results of the functional enrichment analyses of the DEGs identified in recGBM. Top ten GO terms for biological processes (red), molecular function (blue), and cellular components (green) are presented, including the number of genes overrepresented for each pathway.
Biomedicines 11 01219 g002

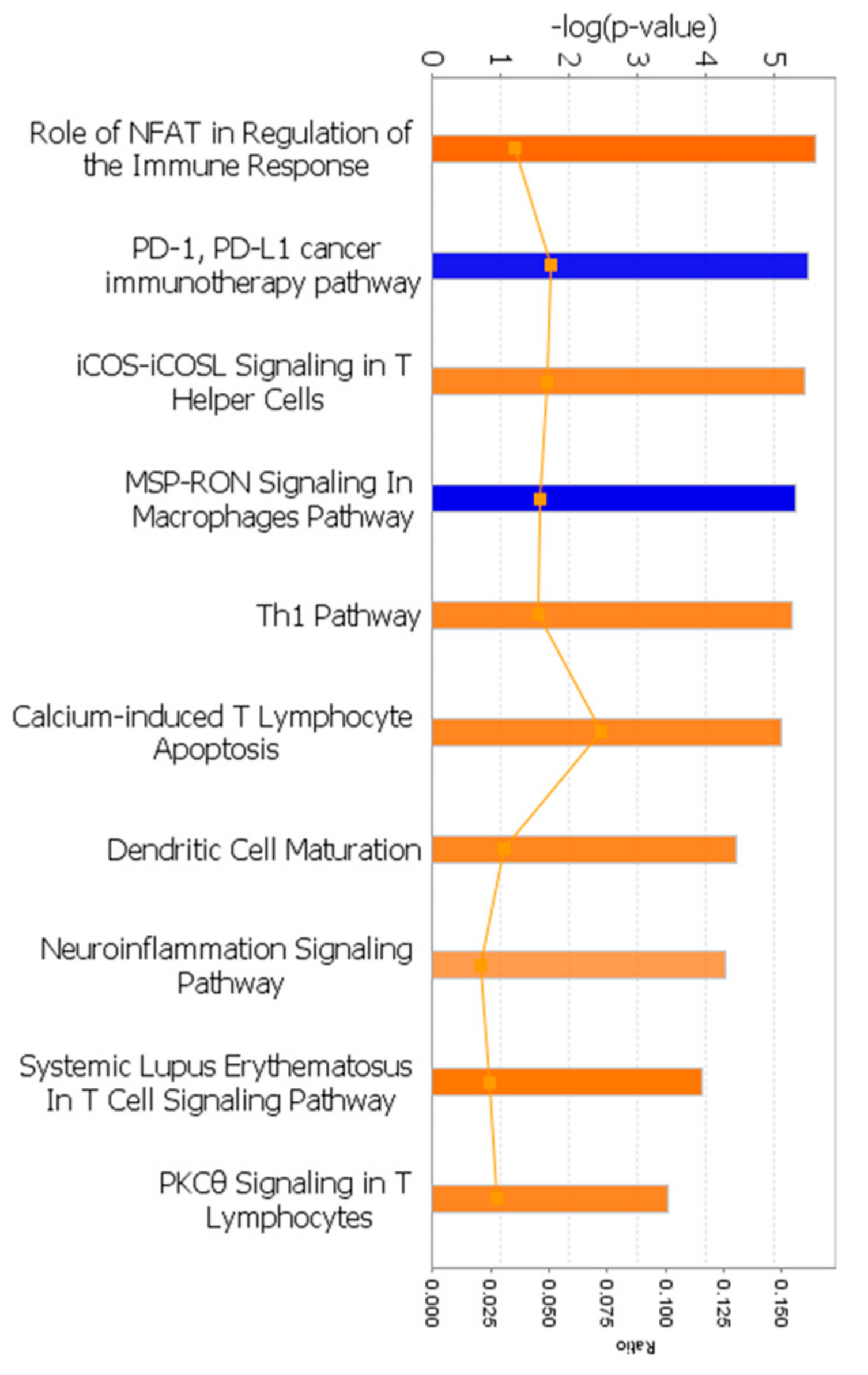

Figure 3. Canonical pathways activated (orange) or inhibited (blue) in the recGBM group. Each bar represents the pathway’s p-value on a negative logarithmic scale, such that the taller bars are more significant than the shorter bars. The ratio of the number of molecules present in the DEG list divided by the total number of molecules in the pathway is represented by the line graph (orange).
Figure 3. Canonical pathways activated (orange) or inhibited (blue) in the recGBM group. Each bar represents the pathway’s p-value on a negative logarithmic scale, such that the taller bars are more significant than the shorter bars. The ratio of the number of molecules present in the DEG list divided by the total number of molecules in the pathway is represented by the line graph (orange).
Biomedicines 11 01219 g003

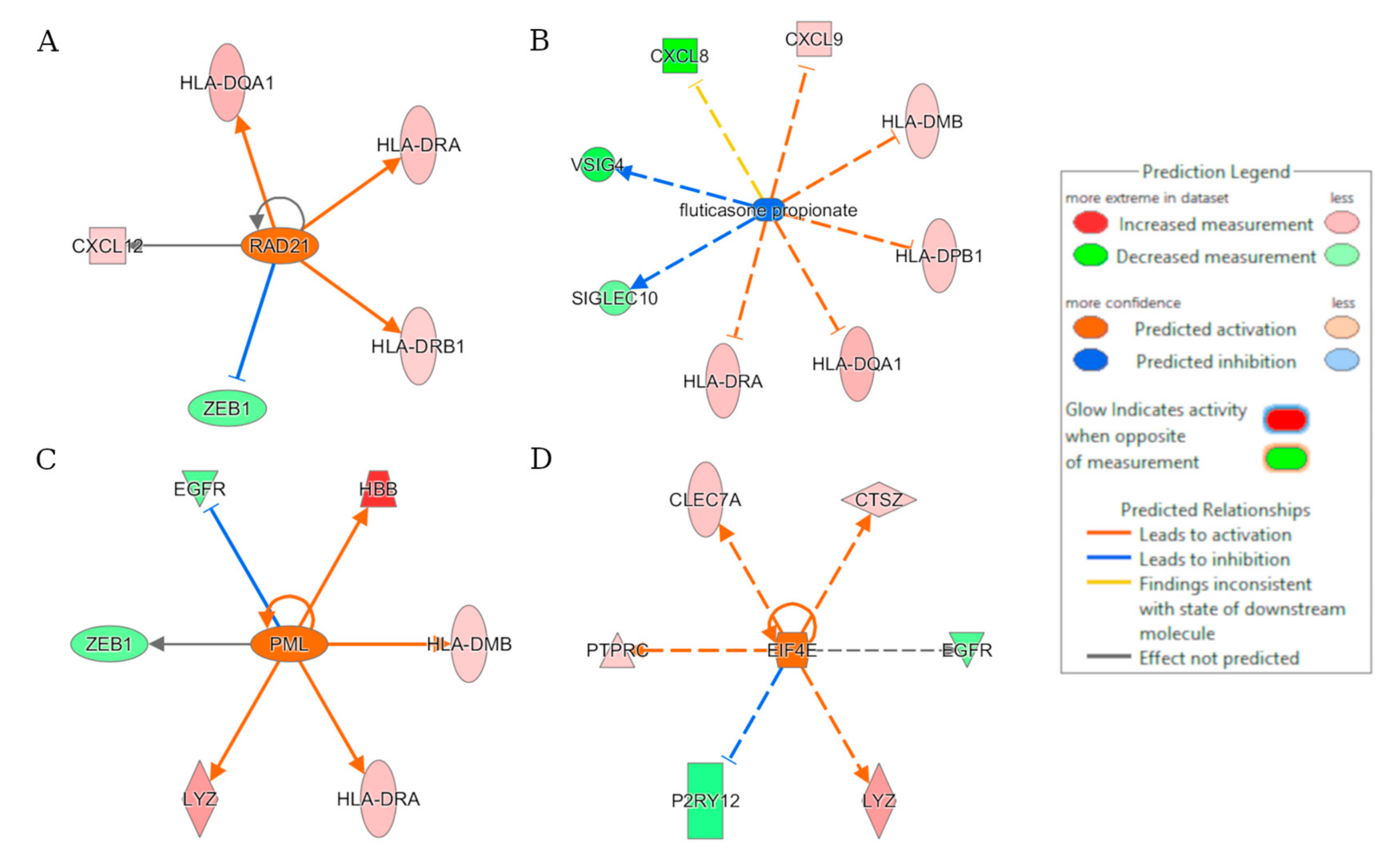

Figure 4. Results of the regulator effects analysis based on the DEGs. Predicted upstream regulators of the recGBM IDH-wildtype phenotype included (A) RAD21; (B) fluticasone propionate; (C) PML; and (D) EIF4E.
Figure 4. Results of the regulator effects analysis based on the DEGs. Predicted upstream regulators of the recGBM IDH-wildtype phenotype included (A) RAD21; (B) fluticasone propionate; (C) PML; and (D) EIF4E.
Biomedicines 11 01219 g004

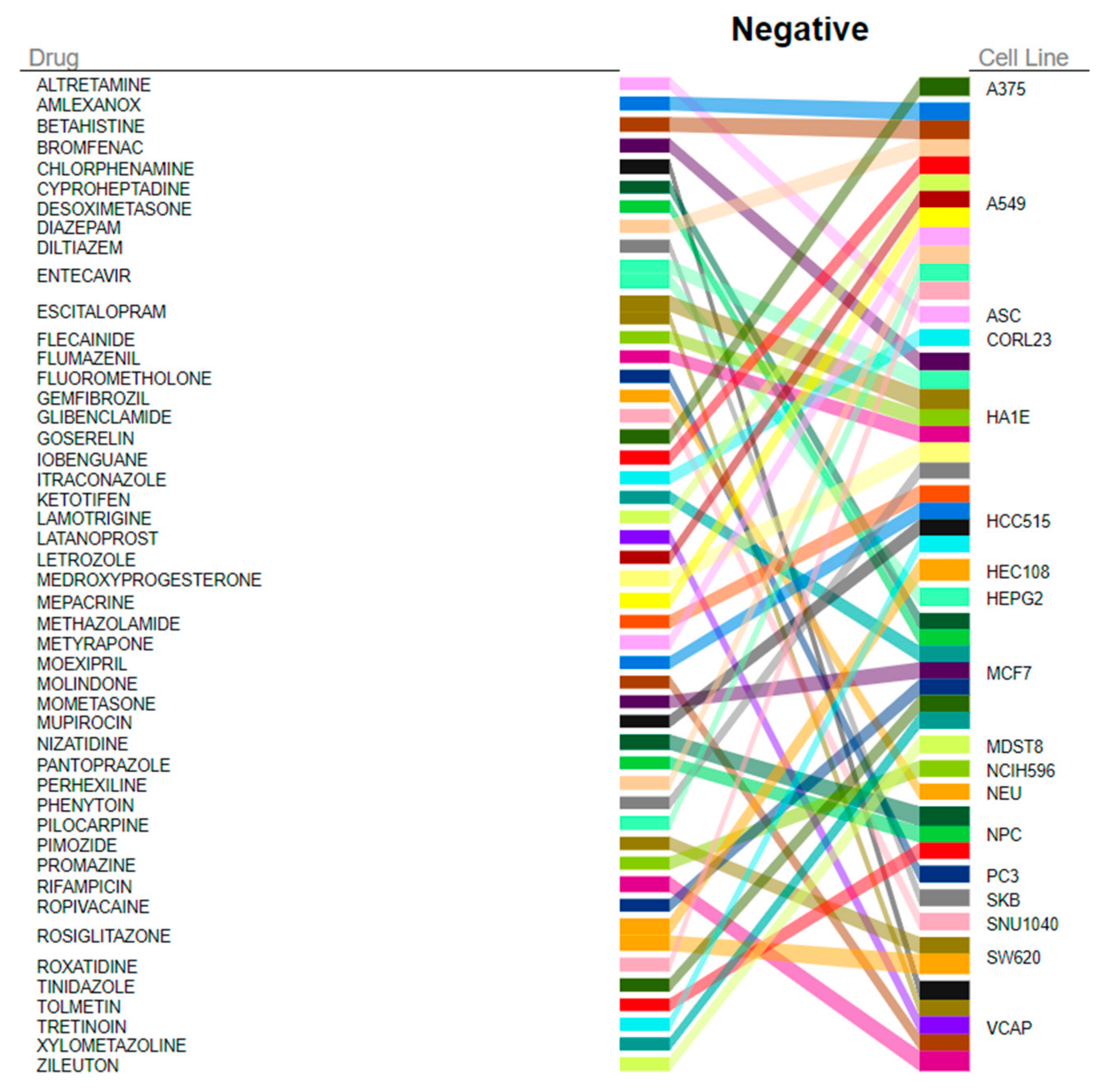

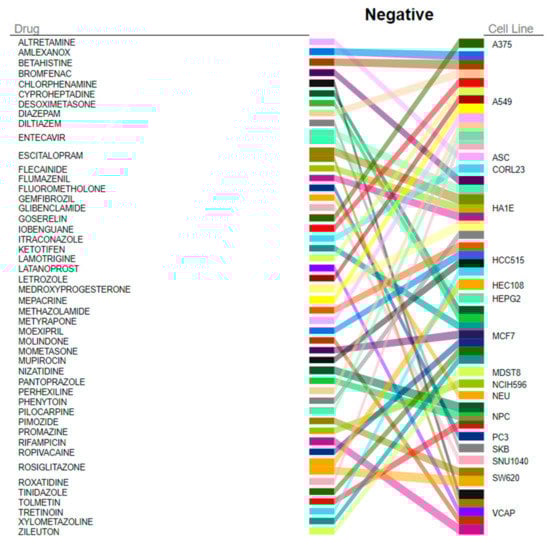

Figure 5. The top 30 FDA-approved target compounds identified from all cell lines by QUADrATiC software that could potentially reverse the recGBM phenotype.
Figure 5. The top 30 FDA-approved target compounds identified from all cell lines by QUADrATiC software that could potentially reverse the recGBM phenotype.
Biomedicines 11 01219 g005

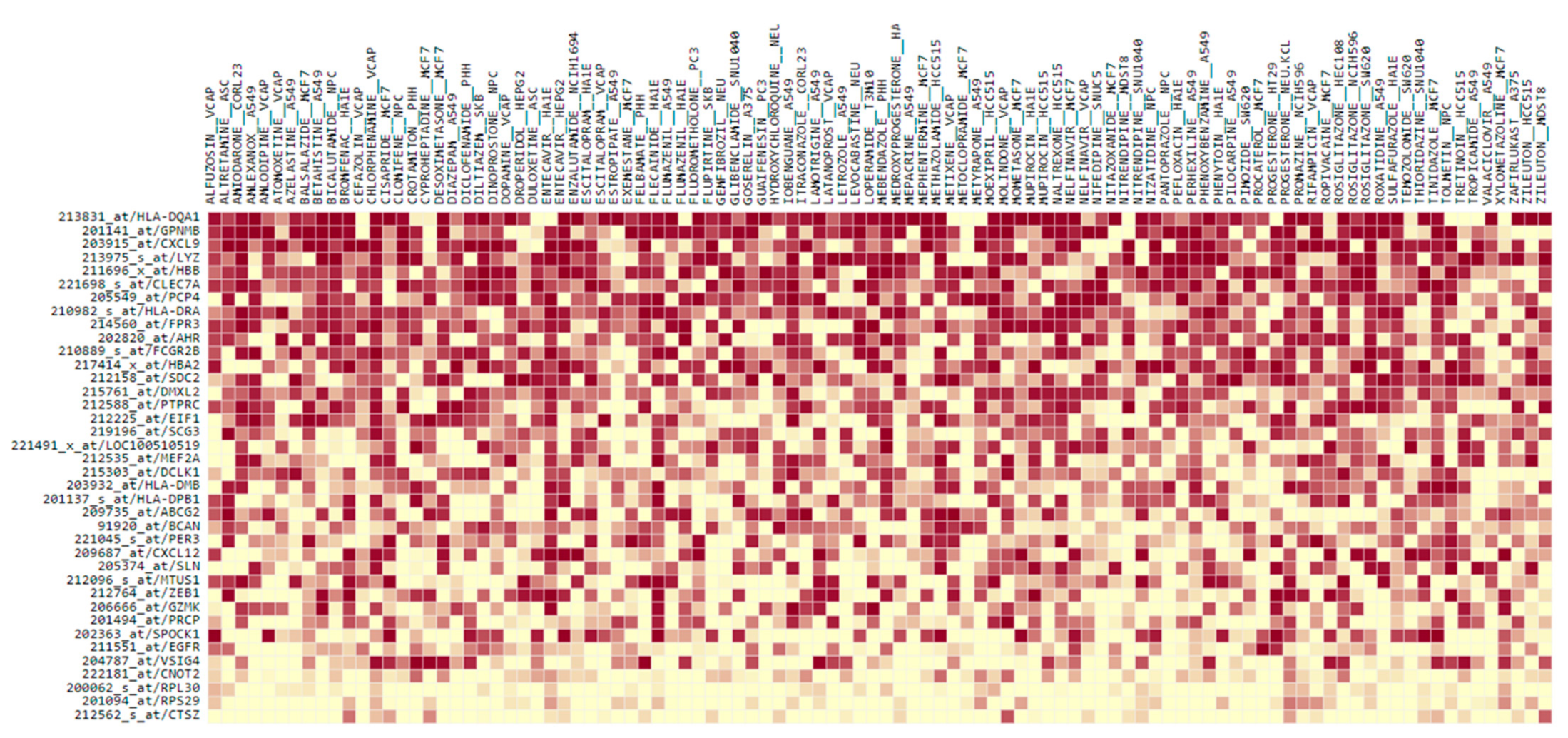

Figure 6. The normalized contribution fraction heatmap for the top 100 significant negative connections to target compounds identified for all cell lines identified by QUADrATiC software. Probes/genes have been sorted according to which DEGs in the signature are most affected by that drug. The DEG’s relative contribution is evident by their shading, which is on a scale from 1 (red) to −1.0149 (yellow).
Figure 6. The normalized contribution fraction heatmap for the top 100 significant negative connections to target compounds identified for all cell lines identified by QUADrATiC software. Probes/genes have been sorted according to which DEGs in the signature are most affected by that drug. The DEG’s relative contribution is evident by their shading, which is on a scale from 1 (red) to −1.0149 (yellow).
Biomedicines 11 01219 g006
Table 1. A summary of relevant clinical, treatment, molecular profiling, and diagnosis data for the GBM IDH-wildtype patients assessed. Time to relapse and overall survival are measured in days. The data file accession numbers for the initial and recurrent tumors are provided. TI = Technical Issue, TU = Technically unsatisfactory; * Isolated 19Q loss of heterozygosity, IHC = Immunohistochemistry, AMP/No AMP = Amplification.
Table 1. A summary of relevant clinical, treatment, molecular profiling, and diagnosis data for the GBM IDH-wildtype patients assessed. Time to relapse and overall survival are measured in days. The data file accession numbers for the initial and recurrent tumors are provided. TI = Technical Issue, TU = Technically unsatisfactory; * Isolated 19Q loss of heterozygosity, IHC = Immunohistochemistry, AMP/No AMP = Amplification.
Patient IdentifierP1P2P3P4P5P6P7P8P9P10P11
InitialP1_IP2_IP4_IP5_IP6_IP7_IP8_IP11_I
RecurrentP1_RP2_RP3_RP4_RP5_RP6_RP7_RP9_RP10_RP11_R
SexFFMMMMMFMMM
Age at diagnosis5655355433644555366145
Time to relapse462266312511336541658348395343427
Overall survival757454449764493588987651751665556
CCRT (weeks)66666666666
TMZ (cycles)65663026466
IDH1 (R132H) IHCNEGATIVENEGATIVENEGATIVENEGATIVENEGATIVENEGATIVENEGATIVENEGATIVENEGATIVENEGATIVENOT PERFORMED
ATRX IHCNEGATIVE (TI)RETAINEDNEGATIVE (TI)RETAINEDNEGATIVE (TI)RETAINEDNEGATIVE (TI)RETAINEDNEGATIVE (TI)RETAINEDRETAINED
TERTFAILEDNOT REPORTEDC250T MUTATIONFAILEDFAILEDNOT REPORTEDFAILEDFAILEDFAILEDC228T MUTATIONNOT PERFORMED
Histone H3F3ANO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNOT PERFORMED
IDH1/2 SeqNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATIONNO MUTATION
1p/19q co-deletionRETAINEDRETAINEDRETAINEDRETAINED *RETAINEDRETAINEDRETAINED *RETAINED *RETAINEDRETAINEDRETAINED
EGFRNO AMPNO AMPNO AMPAMPLIFICATIONNO AMPAMPLIFICATIONNO AMPAMPLIFICATIONAMPLIFICATIONNO AMPAMP AND VIII MUTATION
MGMT promoterNO/INSIGNIFICANTNO/INSIGNIFICANTNO/INSIGNIFICANTNO/INSIGNIFICANTNO/INSIGNIFICANTLOW 5–10%INTERMEDIATE 10–25%NO/INSIGNIFICANTNO/INSIGNIFICANTINTERMEDIATE 10–25%LOW 5–10%
DiagnosisGBM, IDH-WTGBM, IDH-WTGBM, IDH-WTGBM, IDH-WTGBM, IDH-WTGBM, IDH-WTGBM, IDH-WTGBM, IDH-WTGBM, IDH-WTGBM, IDH-WTGBM, IDH-WT
Initial GEO AccessionGSM6508723GSM6508725GSM6508728GSM6508730GSM6508732GSM6508734GSM6508736GSM6508739
Recurrent GEO AccessionGSM6508724GSM6508726GSM6508727GSM6508729GSM6508731GSM6508733GSM6508735GSM6508737GSM6508738GSM6508740
Table 2. Significant negative connections to target compounds for neuronal cell lines identified by QUADrATiC software that could potentially reverse the recGBM phenotype.
Table 2. Significant negative connections to target compounds for neuronal cell lines identified by QUADrATiC software that could potentially reverse the recGBM phenotype.
FDA-Approved DrugDescriptionNo. of ProfilesZ-ScoreConnection
Score
p-ValueCell Line *
nizatidineHistamine H2-receptor antagonists4−5.376−0.2788.19 × 10−8NPC
pantoprazoleProton pump inhibitor4−4.458−0.2347.37 × 10−6NPC
tolmetinNonsteroidal anti-inflammatory drug3−4.440−0.3019.66 × 10−6NPC
bicalutamideAnti-androgen drug4−4.250−0.2541.99 × 10−5NPC
clomifeneEffective inhibitor of mutant IDH14−4.076−0.2404.87 × 10−5NPC
dinoprostoneNaturally occurring prostaglandin10−3.948−0.1457.40 × 10−5NPC
levocabastineH1 receptor antagonist2−3.929−0.2937.51 × 10−5NEU
hydroxychloroquineRegulates the immune system6−4.060−0.1894.98 × 10−5NEU
progesteroneEndogenous steroid hormone5−4.189−0.2282.80 × 10−5NEU.KCL
gemfibrozilLipid-lowering drug6−4.390−0.1931.01 × 10−5NEU
* NPC: cells differentiated from induced pluripotent stem cells but not terminally differentiated. NEU: cells terminally differentiated to be neurons. NEU.KCL: cells terminally differentiated to be neurons and exposed to potassium chloride solution to activate neurons.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Roddy, A.C.; McInerney, C.E.; Flannery, T.; Healy, E.G.; Stewart, J.P.; Spence, V.J.; Walsh, J.; Salto-Tellez, M.; McArt, D.G.; Prise, K.M. Transcriptional Profiling of a Patient-Matched Cohort of Glioblastoma (IDH-Wildtype) for Therapeutic Target and Repurposing Drug Identification. Biomedicines 2023, 11, 1219. https://doi.org/10.3390/biomedicines11041219

AMA Style

Roddy AC, McInerney CE, Flannery T, Healy EG, Stewart JP, Spence VJ, Walsh J, Salto-Tellez M, McArt DG, Prise KM. Transcriptional Profiling of a Patient-Matched Cohort of Glioblastoma (IDH-Wildtype) for Therapeutic Target and Repurposing Drug Identification. Biomedicines. 2023; 11(4):1219. https://doi.org/10.3390/biomedicines11041219

Chicago/Turabian Style

Roddy, Aideen C., Caitríona E. McInerney, Tom Flannery, Estelle G. Healy, James P. Stewart, Veronica J. Spence, Jamie Walsh, Manuel Salto-Tellez, Darragh G. McArt, and Kevin M. Prise. 2023. "Transcriptional Profiling of a Patient-Matched Cohort of Glioblastoma (IDH-Wildtype) for Therapeutic Target and Repurposing Drug Identification" Biomedicines 11, no. 4: 1219. https://doi.org/10.3390/biomedicines11041219

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
