Statistical Issues in Serial Killer Nurse Cases

Abstract

We study statistical aspects of the case of the British nurse Ben Geen, convicted of 2 counts of murder and 15 of grievous bodily harm following events at Horton General Hospital (in the town of Banbury, Oxfordshire, UK) during December 2013–February 2014. We draw attention to parallels with the cases of nurses Lucia de Berk (the Netherlands) and Daniela Poggiali (Italy), in both of which an initial conviction for multiple murders of patients was overturned after the reopening of the case. We pay most attention to the investigative processes by which data, and not just statistical data, is generated; namely, the identification of past cases in which the nurse under suspicion might have been involved. We argue that the investigation and prosecution of such cases are vulnerable to many cognitive biases and errors of reasoning about uncertainty, exacerbated by the fact that fact-finders have to determine not only whether a particular person was guilty of certain crimes, but whether any crimes were committed by anybody at all. The paper includes some new statistical findings on the Ben Geen case and suggests further avenues for investigation. The experiences recounted here have contributed to the writing of the handbook Healthcare Serial Killer or Coincidence? Statistical Issues in Investigation of Suspected Medical Misconduct, Royal Statistical Society, London, 2022.

1. Introduction

Serial murder by health care professionals is, fortunately, very rare. The investigation and prosecution of suspected cases are very complex. Fact-finders must not just determine who was the perpetrator of a string of crimes—they must also determine whether any crimes occurred at all. Clusters of unusual events in a health care context can arise for numerous reasons, which can initially be completely unsuspected. They can become associated with the presence of a particular nurse for wholly innocent reasons, as a number of well-documented cases prove. The medical evidence of wrongdoing might be ambiguous or on its own, inconclusive. Statistical evidence is often brought to bear, sometimes through explicit probability calculations; but in other cases, the raw numbers appear to speak for themselves, and professional statisticians are not involved (or worse still, they are ignored). High weight is given to psychological evaluations and character judgments of colleagues at the workplace, and to striking but possibly ambiguous “smoking gun” events. The legal community, as well as the public, have little understanding of statistics and probability. Such cases are of course extremely shocking and attract great media attention. The public will often draw their own conclusions on the basis of a sinister interpretation of one or two odd events.

The lead author of this paper (Richard Gill) has now been professionally involved in three such cases: the cases of the Dutch nurse Lucia de Berk, the British nurse Ben Geen, and the Italian nurse Daniela Poggiali. The case of Lucia de Berk is very well known and a number of scholarly publications have been devoted to it. The highly complex case is well summarized on English language Wikipedia, https://en.wikipedia.org/wiki/Lucia_de_Berk (accessed on 1 August 2022), and we will give further information about the case, including literature references, later in the paper. That case started with Lucia’s arrest in 2001 and finished with her acquittal at a retrial in 2010. Ben Geen was arrested in 2004, and within a few years, he was sentenced with life imprisonment. Attempts have been made by his lawyers to have the case reopened by the CCRC, but so far without success. The consensus on English language Wikipedia is that he is guilty, https://en.wikipedia.org/wiki/Benjamin_Geen (accessed on 1 August 2022).The reader who was previously unaware of the case is recommended to start by looking at what is largely the prosecution’s view presented on Wikipedia. Daniela Poggiali likewise was arrested in 2014. She spent a number of years in prison but was acquitted in 2021 at the Italian court of cassation. The first scholarly publication on the case is (Dotto et al. 2022). Knowing the Italian justice system, this might not be the last word on the case, as far as legal history is concerned.

The purpose of this paper is to draw attention to the statistical issues in the Ben Geen case, establishing parallels between it and the case of Lucia de Berk, and pointing out avenues for further investigation. The same parallels can be drawn with the case of Daniela Poggiali. We believe the Ben Geen case deserves serious scholarly attention, and therefore “kick off” with analysis of statistical aspects of his case (“statistical” in a broad sense), which is where the authors’ expertise lies. The medical side of the case is crucial and deserves further attention too. We plan to survey that part of the case in a subsequent publication. Lead author Richard Gill is at present personally convinced that Ben Geen is innocent, not only because of the evidence presented in this paper but also thanks to familiarity with the medical and psychological evidence, as well as personal contacts with various main players in Ben Geen’s trials. In Gill’s opinion, the medical evidence is highly ambiguous, and the jury (like the media) was swayed by the psychological and circumstantial evidence presented in the case, which provided the prosecution with a psychologically compelling story (both simple and shocking) which however did not do justice to the facts.

Gill is also a co-author of an upcoming publication of the Royal Statistical Society (RSS) entitled Healthcare Serial Killer or Coincidence? Statistical Issues in Investigation of Suspected Medical Misconduct, Green et al. (2022). That work is a booklet or small handbook explaining statistical issues and giving advice to all parties involved in criminal investigation and prosecution of this kind of case: hospital authorities, medical specialists, nursing experts, police investigators, prosecutors, defence lawyers, statistical and medical expert witnesses, journalists, and last but not least, the public. It was commissioned by the Statistics and the Law section of the RSS and has been peer-reviewed in that section1. Under “statistical issues” we do not only mean technical matters concerning the correctness or interpretation of formal statistical methods, but also the dangers of biased data gathering, and the danger of cognitive biases in reasoning about evidence. These issues are equally relevant in what is called common law jurisdictions where investigation and adjudication is based on adversarial principles, and in what is called civil law jurisdictions where an inquisitorial system is employed. The “fact finder” is often a jury of ordinary citizens in the former case, and a judge or board of judges in the latter case. However, in the case of adversarial systems, a judge often plays a major role in determining what evidence may be brought to the attention of the jury, and may advise how that evidence should be interpreted by the jury. This RSS booklet provides the necessary background material on the general legal and statistical issues covered in more detail in this paper.

The paper is organized as follows. After the present Section 1 “Introduction” comes Section 2 “Materials and Methods”, very briefly describing data sources and data sets and statistical (and other) software which will be used when looking at the two specific cases of Lucia de Berk and of Ben Geen. In Section 3, we briefly look at the statistical issues in the case of Lucia de Berk. The next two sections consist of a general overview of the Ben Geen case (Section 4), and then a presentation of some new statistical findings (Section 5), which we think deserve further investigation and which might be useful in future attempts to reopen the case.

Section 6 discusses the literature of criminology and forensic psychology on health care serial killers. The key issues of evidence interpretation discussed in this section are then modeled using Bayesian networks in Section 7. In Section 8 we discuss confirmation bias from the point of view of cognitive psychology, as well as referencing the medical statistical and epidemiological literature on statistical biases in observational studies, and tactics for avoiding or mitigating them. In Section 9, we draw some final conclusions and make recommendations for further research.

2. Materials and Methods

The materials of this study are data sets provided to the authors by the defence lawyers of Lucia de Berk and Ben Geen. In the former case, they were originally submitted to police investigators by the hospitals where de Berk had worked. In the latter case, they were obtained through FOI requests made by Geen’s lawyers to numerous hospitals. All data files may be obtained from the corresponding author Richard Gill. Statistical analyses are carried out using the open source general purpose free statistical system R, and the Bayesian network software for risk analysis and decision making AgenaRisk. The data files and programming scripts that generate the statistical graphics presented in the paper can be found in the GitHub repository https://github.com/gill1109/bengeen (accessed on 1 August 2022) or directly from the corresponding author. He can also provide extensive files on the medical evidence on the 18 patients whom Geen was accused of harming.

3. The Case of Lucia de Berk

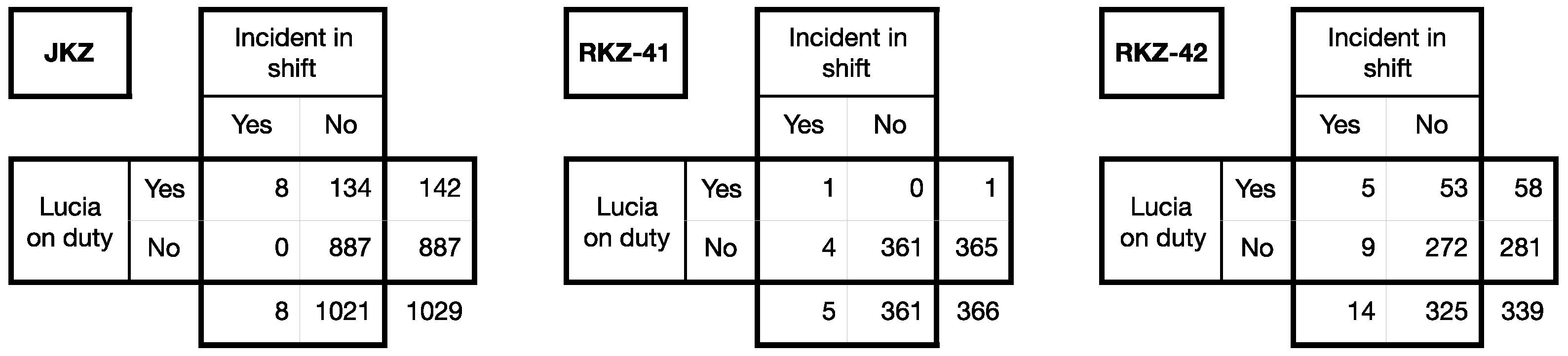

The case of the Dutch nurse formerly known as “Lucia de B.” starts with three $2\times 2$ tables, see Figure 1.

Between November 2020 and September 2021 (when police investigations started) on a medium care ward at the Juliana Children’s Hospital (“JKZ”) in the Hague, there were in total 1029 ($3\times 343$) 8-h shifts (3 shifts a day, 7 days a week). In 8 of them, an “incident” occurred. All 8, took place during the shifts of a nurse Lucia de B. Several years earlier, at another hospital, the Red Cross Hospital (“RKZ”), during the same four months in two intensive care wards (Wards 41 and 42; the data from ward 42 misses 9 days at the beginning and end of the 4 month period) there were 5 and 14 incidents respectively. Lucia was only on duty once in RKZ-41 but on just that one occasion she netted one of the 5 incidents. She mainly worked on Ward 42, where she netted disproportionately many of the 14 incidents (she had one-third of the incidents in only one-sixth of the shifts).

The data can also be found in a recent paper (Gill et al. 2018). These particular numbers were statistically analyzed and interpreted for the court in 2002 by law psychologist Henk Elffers, who had been contacted in 2001 by police investigators at the beginning of what became a ten-year saga. He later kindly made his reports to the court, (Elffers 2002a, 2002b), available for scientific research (English translations prepared by Gill). Elffers deduced that the chance that an innocent nurse could have experienced as many incidents in her shifts in all three wards as Lucia did, under the assumptions that incidents and shifts were independent of one another, and the data from the three wards was also independent of one another, was 1 in 342 million.

Elffers’ probability of 1 in 342 million was widely reported in the media. It had an enormous impact on everyone who heard it, convincing seasoned and skeptical journalists, who till then had not found the evidence very convincing at all, of Lucia’s guilt. Elffers had actually made an elementary methodological error, multiplying three p-values and interpreting the result as another p-value, an error which only became evident several years later, after his reports had been made public. The defence had recruited two philosophically inclined mathematicians to give counter-evidence, but, apparently equally ignorant of standard statistical methodology, they were unable to calculate any p-value at all, and argued that it was principally impossible to come up with any particular probability. Elffers could, and he could convince the judges that they understood his analysis. Had the experts for the defence applied a simple textbook analysis (Fisher’s method of combining independent p-values) they would have come up with a p-value of 1 in a thousand, even while accepting the data and accepting Elffers’ mathematical assumptions.

Accepting the data for the moment, does one need a statistician to interpret it to the board of judges of a criminal court where Lucia is being tried for serial murder? The data do also speak for themselves. This was the opinion of the judges at Lucia’s appeal in 2004: they wrote at the beginning of the motivation of their final verdict “a statistical calculation of probability plays no part at all in our [guilty] verdict”. Lucia was convicted by them “solely on the grounds of irrefutable and scientific medical evidence”. In fact, their more than 100 page published justification shows that they, and many medical experts too, were already convinced because of the raw statistics that Lucia’s presence at so many incidents could not be chance; her mere presence was explicitly the reason that several medical experts classified certain incidents as inexplicable and hence suspicious. Toxicological evidence concerning one death was then sufficient, by a so-called chain argument (which was in fact an informal Bayesian argument), to turn other deaths and resuscitations into “scientifically irrefutably proven” murders and murder attempts.

The judges considered Lucia to have been a particularly refined murderer since she continued to assert her innocence, and had been so cunning as to leave no evidence at all of how she had killed many of the patients of whose murder she was found guilty by the court.

Do the data speak the truth, the whole truth, and nothing but the truth? No. Lucia’s life sentence for ten murders of children and old people got reversed. At the retrial in 2010, the judges, in their spoken summary, congratulated all the nurses including Lucia on their devotion and their professional efforts to save the lives of their patients, lives which (as the judges now announced) had been unnecessarily shortened through medical errors. The errors were caused by misdiagnosis, chaotic management, and ignorance of the content of transferred patients’ medical dossiers. They were committed by hospital specialists and hospital managers, as is abundantly clear from the medical evidence given at the re-trial.

The key to Lucia’s exoneration was the invalidation of the toxicological argument concerning the “trigger-case”. We now know that a coincidence of several triggers set off a witch-hunt, followed (as was already noted by observers at the time) by what seemed like a witch-trial. A nurse who stood out from the crowd with a striking appearance, a strong personality, and a colourful (dark?) past was a natural scapegoat for the mistakes being made in a failing hospital department.

We now also know that the original Lucia case numbers (Figure 1) were wrong. Events have been misclassified. Some have been opportunistically shifted from one shift to an adjacent shift. Quite a few have been omitted—they weren’t “unexplained”, so they weren’t included as “incidents”. Several real incidents (i.e., “incidents” according to the law) have been suppressed. They should have been reported to the health inspectorate, but this wasn’t done. For instance, one incident was actually a case of euthanasia deliberately performed by the medical doctors of a child with severe birth defects, which, illegally, was not reported as such to the inspectorate. One incident initially attributed to Lucia was later found to have taken place during her vacation: it was re-classified as a non-incident.

As Elffers wrote in his second report: these numbers didn’t arise by chance. He stated that, of course, this did not prove that she was a murderer. He explicitly offered the court three more alternatives: Lucia was maybe just a bad nurse; maybe she had harder shifts than her colleagues; maybe she was set up by someone else. In their summing up, the board of judges explicitly showed why they discounted the first two of the three alternatives. They paid no attention to the third, and the defence had not raised that possibility either.

The data from JKZ was actually compiled in a great hurry by persons who were already convinced they were dealing with a serial killer and embarrassed that they didn’t catch her earlier. Lucia was in fact set up, in the sense that the hospital’s clinical director (the head pediatrician) was already suspicious of her and was waiting for a final event to clinch the case she had been building up; she had already compiled the dossiers of selected earlier events.

Why, and how, did Lucia get a re-trial? Answer: she was very lucky. There was an almost-inside whistleblower. The sister-in-law Metta de Noo of JKZ’s chief pediatrician Arda Derksen-Lubsen was a medical doctor, knew her sister-in-law very well, and moreover, Metta’s son and daughter, studying medicine in Leiden, lived with their uncle and aunt in the Hague. Even so, it took a couple of years for the penny to drop that there was a lot wrong with the medical evidence being used in the case. Metta de Noo recruited her brother, philosopher of science Prof. Ton Derksen. Together the brother-sister pair wrote a book devastatingly analyzing the court’s arguments, gained media attention and a strong popular following, especially in the academic world. They prepared and submitted an application to the CEAS, the then Netherlands equivalent of the British CCRC.

There were more lucky breaks. Lucia had first experienced some definite bad luck (though nothing like the 1 in 342 million which hit the newspapers) but later, new coincidences put some of the best medical and legal minds in the Netherlands in key positions along the tortuous route to a re-trial.

On the way, it was important to explain both to the public and to legal authorities what had been wrong with the original statistical analysis, since its results had been so widely disseminated and had had so much impact. Gill gave evidence to a judicial review committee investigating the possibility to ask the supreme court of the Netherlands to have the case reopened. The fact of the matter is, popular unrest about an unsafe conviction seems to be necessary before authorities will act on it. In the social media sphere, the scientific community was activated and could well understand that the legal systems had not been able to properly interpret scientific evidence whether from statistics or from toxicology. The CEAS had indeed been set up because of some recent miscarriages of justice caused in part by misinterpretation of scientific evidence. The international reputation of the Netherlands’ legal system was at stake, as well as the Dutch people’s trust in their system. Whether or not key persons believed that Lucia was innocent or guilty was irrelevant: they did understand that justice had to be seen to be done and that the case was complex and controversial and needed to be handled with the utmost care.

4. The Case of Ben Geen

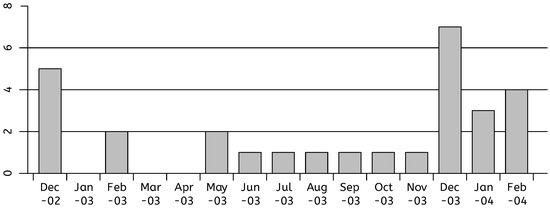

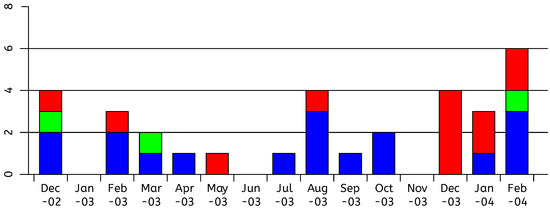

The data presented in Figure 2 played a role in getting the young English nurse Ben Geen a life sentence for two counts of murder and 15 of grievous bodily harm (a 16th count of grievous bodily harm was not considered proven), in the three consecutive months of December 2003, January 2004, and February 2004. We will describe the case from the point of view of the defence, and focus on statistical issues, though of course an enormous amount of medical evidence was deployed by the prosecution too. However, perhaps the most crucial piece of evidence (one could call it: the smoking gun) was a striking incident involving a syringe, for which defence and prosecution had completely different interpretations.

There are many similarities between the investigation that led to Geen’s conviction and the erroneous investigation that led to Lucia’s wrongful conviction. Ben Geen was a striking figure, and the hospital he worked at was in serious difficulties, leading to overworked staff and chaotic administration. Some odd events made hospital authorities suspicious of him. A very rapid and intensive search was made for evidence that might implicate him in various events in the emergency ward where he worked, resulting in a huge dossier that was passed to the police. A background factor in the case could well have been the so-called “Shipman effect”. The Ben Geen case occurred shortly after the Shipman Enquiry, which blamed health-care administrators for not earlier noticing serial killer doctor Harold Shipman. Some speak of “Shipman hysteria”.

Learning from mistakes is good, but a new danger then arises that by learning the wrong lessons from one kind of mistake, one might increase the chance of making the opposite mistake. If the rate of false convictions goes down but nothing else changes, the rate of false acquittals will go up. The more easily a healthcare system goes into alarm mode because of suspicion that it harbours a healthcare serial killer, the more often innocent healthcare professionals will trigger an alarm.

The key data-set in Figure 2 was presented as evidence to the court by Michelle Brock, head nurse of the Accidents and Emergency department where Ben Geen worked, at Horton General Hospital. This is a small hospital in the provincial market town of Banbury in North Oxfordshire. Together with a dossier of perhaps 30 incidents all from December 2003 onwards, it had initially been compiled in great haste before the case was reported to the police. Michelle and some colleagues based their work on patient records and nurse attendance records at the hospital, looking only at what happened during Ben’s shifts. Their investigation appears to have been triggered and guided by recent memory and gossip. Ben, who was a trainee nurse, had won a higher qualification at the beginning of December, allowing him to work under less supervision than before. The final trigger for their investigation had been two sudden and surprising collapses of patients who had just entered Accident & Emergency (A&E, also often referred to as ED: Emergency Department) on Thursday 5 February. Ben had reported sick on Friday, and had a free weekend after that. He was arrested on Monday evening, 9 February 2004, when he came into work to do a night shift. That is only one-third of the way into the last bar of the bar chart. The bar chart was also known to the medical experts who were consulted on the 18 individual cases. There seems no doubt that it had an impact on everyone involved in the trial, including journalists covering the trial.

We catch a glimpse from the chart of the fact thatmany elderly people and people with existing serious health problems get brought to emergency care during the winter with acute problems involving the heart and lungs (a hot summer is also a danger period). A common diagnosis is a cardio-respiratory arrest (the heart has stopped working and consequently the lungs too), much less common is “pure” respiratory arrest (the lungs have stopped working); fairly common is hypoglycemia: a fall in blood glucose level. It causes fainting; breathing stops or is much suppressed. It can be caused by too much insulin or other glucose-lowering diabetes tablets, delaying or missing a meal, not eating enough carbohydrates, unplanned physical activity, more strenuous exercise than usual, drinking alcohol—the risk of hypoglycemia increases, the more alcohol you drink. In the bar chart, nurse Brock has combined the three “standard” categories cardio-respiratory, respiratory, and hypoglycaemic arrest; but the correct category is hard to guess when a patient presents (arrives at the hospital). Past medical history, and future medical events will give clues as to what was actually going on. In an emergency situation, past medical history may be unknown.

Hospital nurses and authorities had been worried by the behaviour of the young male trainee nurse Ben Geen already before December 2003. His father was in the army, his mother was a nurse. He had been in the territorial army medical corps, and his ambition was to be qualified and then transferred as a combat medic to a military field hospital in Iraq. He was energetic and very “present”, keen to get action and experience. He made some other nurses nervous. They were calling him “Ben Allitt” behind his back, not a kind nick-name, since Bev Allitt is the very well-known name of a pre-Shipman famous English convicted serial killer nurse.

In December 2003 the number of patients reaching an overstressed emergency ward in a small underfunded provincial hospital, threatened by closure, probably understaffed, probably lacking resident consultants in critical specialisms, were bigger than ever. There were two “surprising” events when patients who were initially thought to be in fairly good shape suddenly, and at the time unexplainably, worsened. Ben was usually around when anything happened simply because he was usually around: he was working double shifts in order to gain more and more experience as fast as possible, and also often filled in for absent colleagues.

On Thursday 5 February 2004, at the end of an exceptionally hectic day, a chronic alcoholic diabetic presented himself in the hospital (referred to ED by his doctor), on account of severe gastric pain and vomiting, and suffering fainting fits. Ben took a blood sample. The patient suddenly worsened and later had little idea what else Ben did to him. Ben certainly inserted a canula (a tube that can be inserted into the body, for the delivery or removal of fluid or for the gathering of samples) and the patient was transferred to the Critical Care department, CC. The real problem for Ben came later: Ben went home with, unknown to himself (he said), a used plastic needle-less syringe containing some muscle relaxant in his nurse’s smock. Such a syringe is used to administer necessary medications, including a muscle relaxant, through the canula prior to inserting breathing and feeding tubes into patients on the way to Critical Care. Ben stayed home sick on Friday and then had the weekend free. His girlfriend, another nurse, doing the washing, told him off for this (she said) and told him to take it back as soon as possible. So, on Monday evening—with the syringe in his coat pocket—he was met by policemen as he entered the hospital. In some panic (he said) he stupidly further emptied the remaining contents of the syringe into his pocket. The Prosecution claimed that Ben tried to harm patients by injecting them with this stuff so that he could then play the hero, helping to resuscitate them—the so-called “Munchhausen by proxy” syndrome.

Ben and his girlfriend gave conflicting reports of the colour of the fluid in the syringe. In fact, the medication in question changes colour when exposed to air, from transparent to bright yellow. The prosecution argued that the discrepancy showed that Ben also often used the same syringe to harm patients and that the worn markings on the syringe confirmed that it was his common weapon. The defence discovered that the markings rapidly wear off if a syringe is kept for a short while in a damp pocket.

At his trial, the Crown secured the services of a famous and experienced expert (a highly distinguished professor of Anaesthesiology), who found a number of the events highly suspicious; another confidently swore that never in his long experience had he met with an unexplained respiratory arrest.

Experts would agree with this claim because they strongly believe that all respiratory arrests are “explainable”. The problem is that different experts often give different explanations. Whether a collapse is diagnosed as cardio-respiratory, respiratory or hypoglycaemic can be pretty arbitrary. Perhaps only weeks later (if the patient recovers and more has been learned of their state of health and underlying conditions) might it be possible to give a more confident diagnosis of the cause of events in the past.

When either heart or lungs get into difficulty, the other organ rapidly gets into difficulties too. Hypoglycaemic arrest (critically low blood glucose levels) always involves breathing problems (you faint when not enough oxygen is reaching your brain) and can trigger further deterioration of heart and lung function. Reduced oxygen levels affect the brain, heart, and lungs. Muscles burn oxygen, the brain burns oxygen. All arrests are explainable, but the categories which are ticked on forms in the patient’s dossier and in the hospital’s administrative records may differ and may be revised in the light of later events. The categories which tend to be chosen by nurses, doctors, and administrators may depend on who is doing it, and may show trends and jumps as time goes by. Just one occurrence of an unusual diagnosis alerts people to its existence, and they start seeing it every day: the well-known Baader-Meinhof phenomenon, also known as the Frequency Illusion.

At the time each had actually occurred, each of the 18 cases in the criminal charges against Ben had been considered “normal”. The last two had surprised some people (certainly not all), but because of earlier suspicion and gossip, they triggered an emergency weekend-long internal hospital investigation, in which more than 30 dossiers of patients who had in recent months gone through Emergency while Ben was on duty were combed through, resulting in a dossier of 18 cases to hand over to the police on Monday. In fact, the team had access to 4000 patient medical records but were not interested in what happened when Ben was not there. Expert witnesses for the defence later described how explainable each of the 18 was, although they were honest enough to admit that some cases were too complex to come to any clear conclusion. The prosecution had more expensive and more court-experienced experts than the defence. The prosecution experts were of course specifically hired to point out anomalies in each of the selected 18 cases and tended to be rather confident of their diagnoses. Prosecution experts are “instructed” by the prosecution, and defence experts are “instructed” by the defence. Experts will report what documents they were given to study, and on which their “opinion” is based, but prosecution experts also tend to receive a lot of further verbal information (much of it hypothetical) about the case from police or prosecutors. That certainly happened in this case.

Ben must have used a myriad of different techniques to cause all these unexplained medical emergencies and in many cases, the expert witnesses called by the Crown in fact had conflicting ideas of what he might have done; but they agreed that he “must have done something”. All of the 18 patients were very sick, and what happened to each was what you may well have expected to happen in view of their existing severe and often complex conditions. But sometimes developments are fast, you do not “see them coming”, and so a sudden worsening takes some nurses or some doctors by surprise. People, including Ben himself, did notice Ben often being there when such events took place. He had said, and said it in court again, that he thought he had been jinxed.

Ben’s unemotional and careful account of what he could recall that he had seen and done in each case (he had received military interrogation training), the impression he gave that he thought he knew the law better than the lawyers, an eminent professor’s categorical statement that he had never seen an unexplained respiratory collapse in all his career, and the smoking gun which was the syringe, together clinched the matter for the jury. The judge, in his summing up, made it very clear what verdict he expected from the jury, who had sat through the presentation of interminable complex medical evidence (in 18 cases).

Interestingly, the judge also instructed the jury to consider each of the 18 cases entirely on their own merits. This would seem to be quite a meaningless injunction. One can only guess at the thinking of the jury, but if the members of the jury were convinced by the incident with the syringe that Ben was deliberately harming patients and lying about his activities, then they would clearly tend to think that each case about which suspicions could be raised was likely indeed another case where Ben was intent on harming a patient; and the number of such cases could only have strengthened their conclusion. The prosecution argued that there had been an unlikely large number of particular and suspicious kinds of events during Ben’s shifts. Ben himself admitted that the number was strange. Whether it really was excessive is still not known, since we do not have data on his working hours, we do not have times of all the events, and we know next to nothing about events that occurred when he was not on duty. We do have plenty of evidence that the classification of events was highly biased, and this bias was initiated in the hospital, as we will see.

The defence employed two expert witnesses who each delivered a comprehensive report on the problem of deducing the reality of an observed pattern from medical events in an observational setting (medical statistician Jane Hutton, and clinical physiologist David Denison; their reports can be obtained from Gill). They were both definitive that a “pattern” could not be established without statistical analysis and that it would require further information, and in particular, requires blinding of medical experts, who should evaluate whether or not events were suspicious without knowing whether or not Geen was present. The judge did not allow this evidence to be presented in person by Hutton or Denison in the court and told the jury that it consisted merely of common sense. The pattern was evident: 18 cases when Geen was present, and each should be judged on its own merits. No statistical evidence was ever considered beyond the raw numbers presented by nurse Brock and the opinion of a notable anaesthesiologist that “unexplained respiratory arrest is exceedingly rare”. In particular, no information was presented on Geen’s working hours, and no comparison was made of the rate of certain events inside and outside of his shifts.

Blood and urine samples from the trigger case showed traces of a muscle relaxant as well as plenty of sedatives, but unfortunately, some of the samples were not dated and there was not even information on when they were taken nor by whom. Sedatives and muscle relaxants had moreover been prescribed so should have been present anyway. The traces of muscle relaxant were of the same kind as was in the syringe. The consultant anaesthesiologist who had attended to the trigger patient in intensive care said that she had asked (another nurse, later) for a different one. Ben said that he was not told to administer muscle relaxants, so, of course, had not done so. Hospital records were woefully incomplete. Since the earlier cases were not at the time thought to be suspicious, samples of blood and urine had not been taken or had long ago been thrown away.

The annual pattern we see in that data is typical of many similar hospitals all over Britain, although (for reasons explained above) there are no data whatsoever about unexplained respiratory arrests. The data stored in a hospital database are administrative data. Every event has been put into a pre-existing category with an explanation because it is not possible to enter it into the database otherwise. The data in the database determines the fees of the medical consultants (the medical specialists) and the funding of the hospital. The data are not collected for scientific research or forensic investigation.

The three standard categories relevant to this case are cardio-respiratory arrest, respiratory arrest, and hypoglycaemic arrest. We already presented the data supplied to the court by Ben’s head nurse, combining those three categories. Much later, Horton General hospital provided us with the data as presently archived in official hospital records, see Figure 3.

Critically, the data were now different, and also (while the categories are still separate), we have data from many more years. The total numbers of relevant cases in December 2002 and in December 2003 (previously 5 and an incredible 7 respectively) are now equal—both an unremarkable 4. The split between categories in the two periods of winter months is markedly different. In winter 2002–2003 it is normal, spread out over all three, but mostly cardio-respiratory. In winter 2003–2004, 8 out of the 13 cases are categorized as respiratory. The total number of cases in January, in both winters, is less than in adjacent months, which is normal.

Normal case-mix (for the three categories of interest), both in this hospital and in all others (we have similar data from about 40 other hospitals all over England, for the thirteen-year period 2000–2012), is a mix mainly of cardio-respiratory, with respiratory and hypoglycaemic normally each at roughly a fifth of the level of cardio-respiratory. Respiratory and hypoglycaemic are both three times less common than cardio-respiratory, but neither can be called rare.

There are also data in the official public inquiry after Ben’s conviction, held to find out why he was not caught earlier and to prevent such a tragedy from ever occurring again. The inquiry stated: “The number in December 2003 was six and this was only one more than in December 2002”. Two different numbers, yet again! The inquiry suggested that the large numbers of incidents while Ben was carrying out his attacks might have been expected anyway, due to the winter season, thereby masking incidents caused by Ben. It did heavily criticize the Emergency department for poor record keeping when updating patient medical notes and very poor registration of patient drug administrations.

5. New Findings in the Ben Geen Case

We will now present some summary statistics based on data obtained from Ben Geen’s hospital which had been available for several years but never looked at before. Instructed by Geen’s defence team, Gill was asked to answer certain questions about the “normal situation” in hospitals like HGH, using data that had been obtained from numerous FOI requests to hospitals all over the country. He did his best to answer exactly those questions, see Gill (2014), and tried to maintain his scientific objectivity by not learning about other aspects of the case, and therefore only later took a close look at the data from HGH.

This means that Gill actually fell into a similar trap as Elffers had in the case of Lucia de B.: he tried to answer the question that had been put to him, without learning enough about the context in order to judge whether it was a meaningful question. In the Lucia case, Elffers just trusted that the hospital data had been compiled in a responsible manner. In the case of Daniela Poggiali (Dotto et al. 2022), a breakthrough was made when statisticians took a look at statistical aspects of the evaluation of toxicological evidence, following up on a hint from one of the medical experts for the defence. These cases are multidisciplinary; good multidisciplinary scientific research requires communication between all parties. The legal context has a tendency for communication of information to be highly restricted.

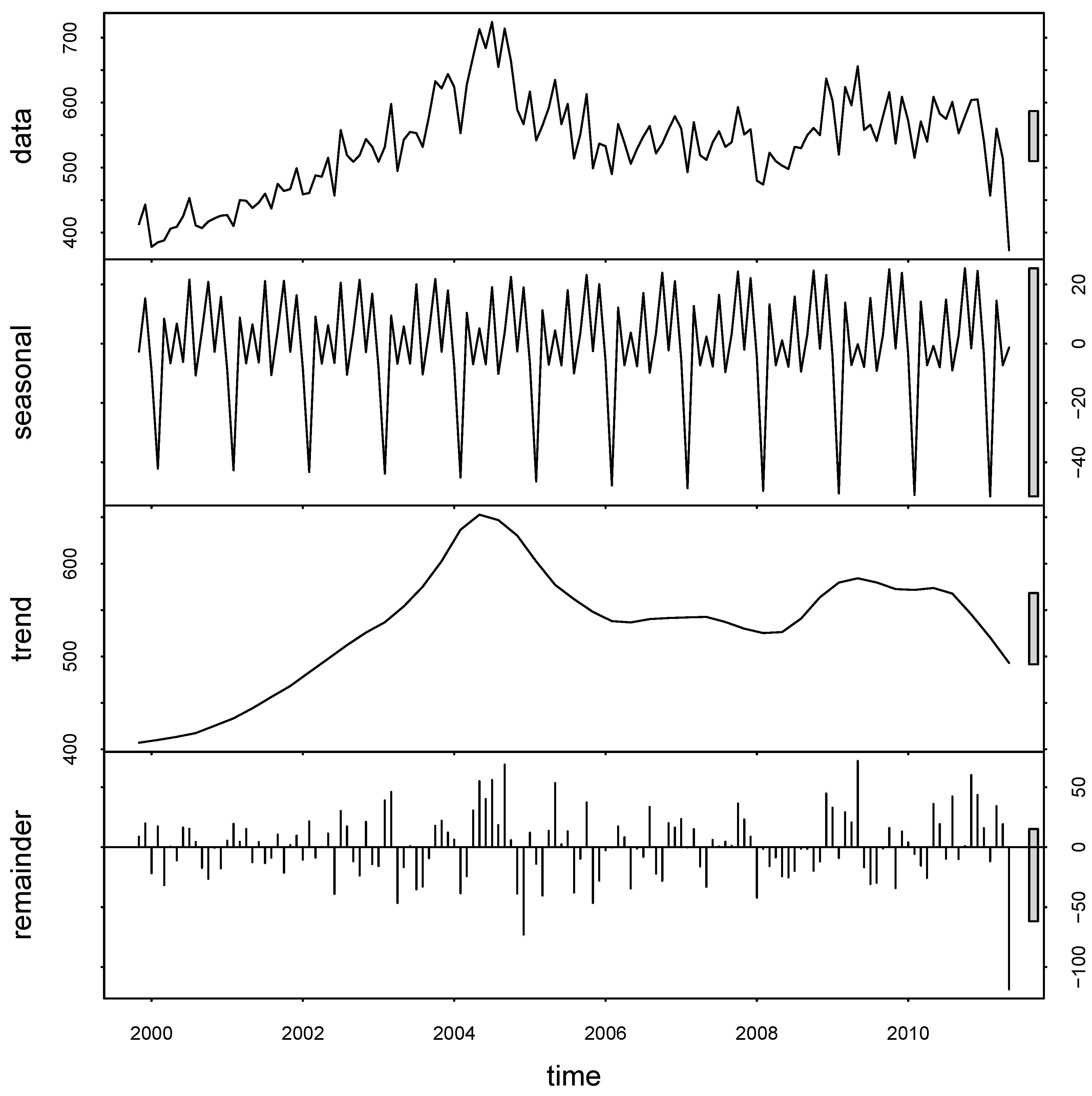

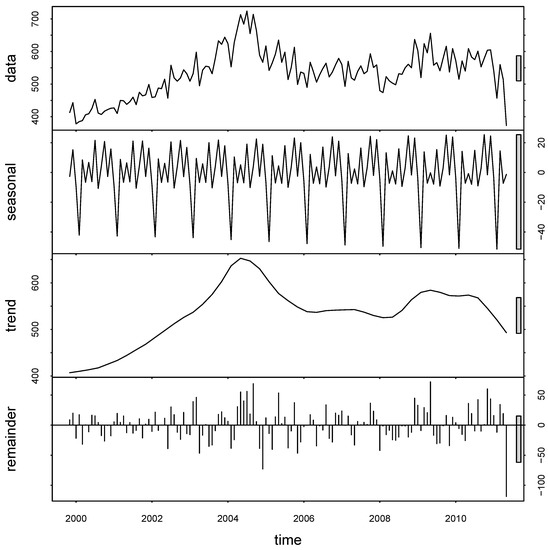

Let’s take a look at the monthly total number of admissions in the emergency room of Ben’s hospital over a thirteen-year period roughly centered on the critical end of 2003–beginning of 2004; see Figure 4. We have given this time series to the go-to algorithm in the R package which, in an iterative procedure using a moving window of length 21 months, draws us a slowly evolving seasonal effect, a fairly smooth trend, and what is left over. This is pure data analysis, no explicit modeling assumptions are being made, we are just applying a standard time-series algorithm called STL (LoESS) to let the data speak for itself using the algorithm’s default settings for monthly time-series data. STL stands for “Seasonal and Trend decomposition using LoESS (locally estimated scatterplot smoothing)”. What do we see? Up to summer 2004, it is getting continuously busier and busier. The number of patients being treated in Emergency almost doubles from about 400 per month to about 800 per month. One may wonder if the number of nurses in ED also doubled during this period—it’s highly doubtful. The “too small” HGH was struggling to fight off closure threats, and the staff was working harder and harder to keep it open. Then, the number collapses. Possibly due to the situation which arose after Ben’s arrest and trial, potential patients tended to go elsewhere, if they had the choice; but more likely, the policy of local health authorities was dramatically changed, too. Twenty five miles away is the very big teaching hospital Oxford Radcliffe, and in fact, Banbury’s Horton General is part of the Radcliffe NHS trust group of hospitals (nowadays called the Oxford University Hospitals NHS Foundation Trust). For whatever reason, the number subsides to 500–600 per month. As mentioned before, there is a sudden dip in the very last month, but that is meaningless: the last month was not quite over when the data was submitted. The analysis should be redone without that observation (but when we do that, nothing substantial changes).

The seasonal effect shows a strong annual spike downwards in the total numbers of admissions to ED. It’s the Januaries! It is well known that in the Northern hemisphere, everywhere where there really is a “winter”, people simply stay home, and in particular, don’t go to the hospital if they can help it, in January. There are, in particular fewer car accidents than in any other month, because fewer people are out on the roads. The elderly avoid slippery paths by staying at home. Apart from that, we don’t see any patterns. Accidents happen, and medical emergencies happen, at a pretty constant rate during the year. Correcting months for their varying numbers of days (remember February) makes no discernible difference.

What is clear is that the number of people coming to that hospital was steadily increasing in the years before Ben’s troubles. What about the numbers of nurses, beds, and consultants? We plainly see the amplitude of the monthly deviations from what you would expect based on smooth annual trend and smooth seasonal average, increasing with the overall scale. The bigger the overall expected number, the bigger the random variation. This means in particular that at the time which interests us most (winter 2003–2004) the random variation is largest!

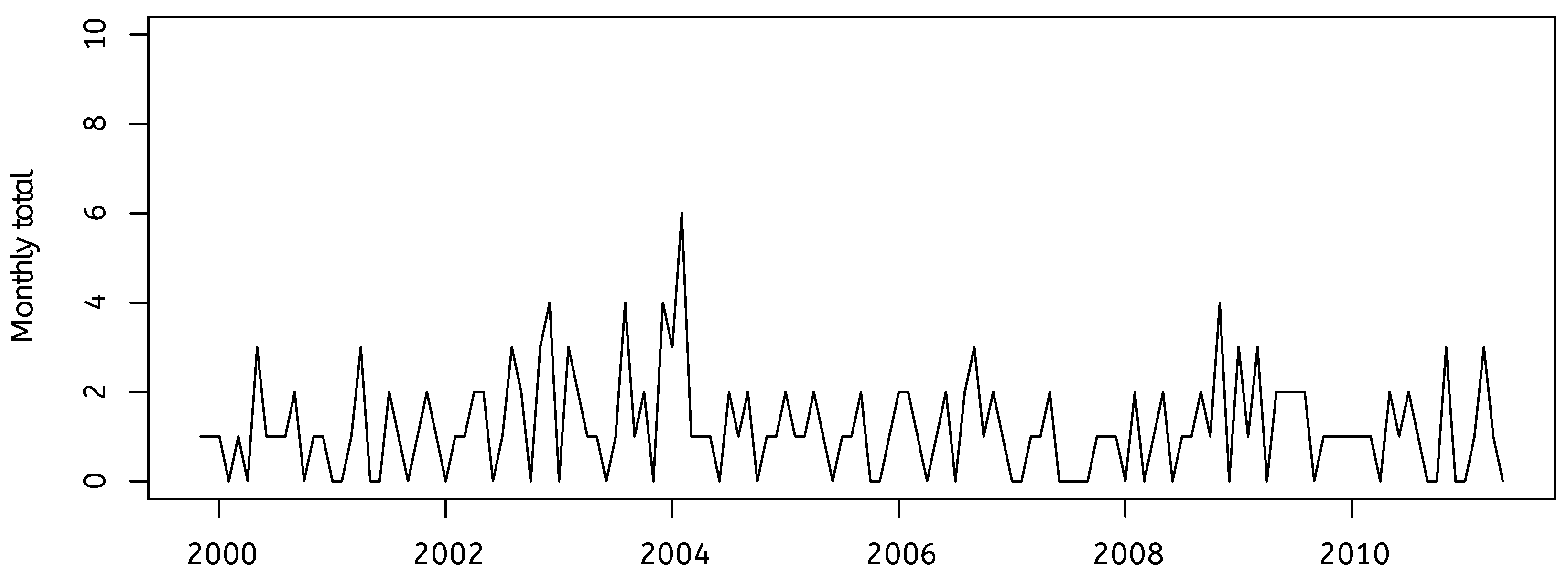

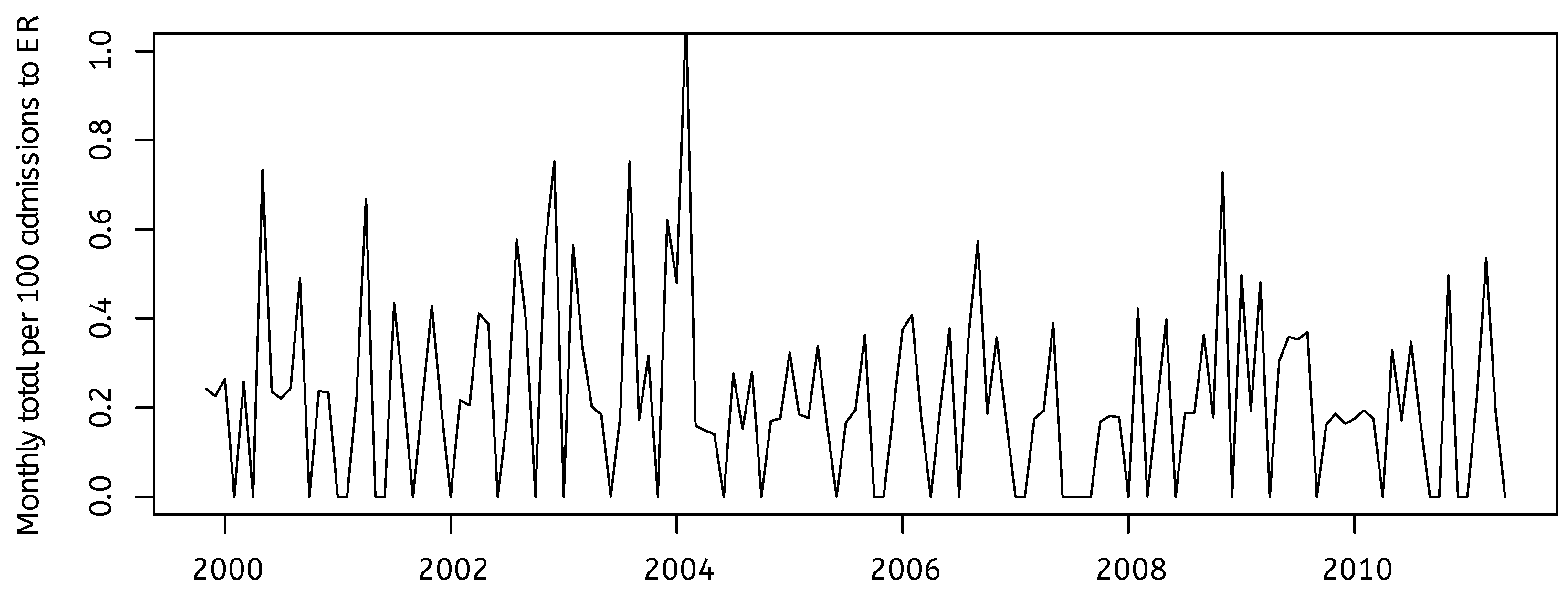

Let’s look (Figure 5) at the total numbers of transfers to Critical Care (i.e., the patient is no longer waiting in the corridors for someone to make a decision, but is actually put in a hospital bed in an intensive care ward) from Emergency. We have the numbers with the interesting diagnoses of cardio-respiratory, respiratory, and hypoglycaemic arrest, but we don’t know if the “arrest” had been diagnosed before the patient was brought to the hospital, or if it only occurred while the patient was waiting at Emergency. Very sick patients who have to wait a long time in Emergency before anyone can do anything with them are likely to suddenly get a lot worse while they are waiting.

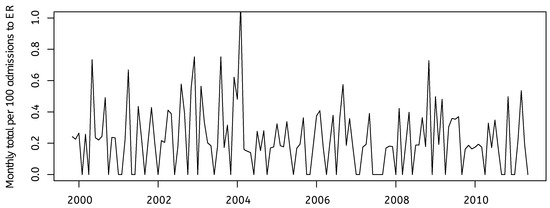

What do we see? Just what we would expect, given the total number of admissions that we just studied. A slow increase, then a collapse to a stable, lower number. Take a look at what happens if we normalize the numbers by looking at monthly totals per 100 admissions to ED, (Figure 6). The picture is much the same, but the differences over time are smaller. December 2003 and January 2004 are quite typical, but February 2004 is noticeably high. But Ben is mostly absent in February 2004! The next big spike is in November 2008. Both of those spikes coincide with local peak levels of the monthly numbers of admissions to Emergency.

In our opinion, the only thing that is very unusual in those months December 2003–February 2004 is that events are apparently being classified as respiratory arrest instead of as cardio-respiratory or hypoglycaemic. Why does the number of cardio-respiratory arrests fall so suddenly in those three months? Do we really believe that there were no cardio-respiratory arrests at all in December 2004? When were those numbers “fixed” in the official records: day by day as patients were admitted? Or retrospectively after Ben’s case started, on 5 February 2004?

The prosecution case would be that the respiratory arrests were “extra” events that occurred in ED through Ben’s deliberate actions; the patients in question perhaps came to ED because of an earlier cardio-respiratory arrest. Against this is the fact that no one ever saw Ben doing anything at all which he shouldn’t have been doing. One has to go into the medical evidence. There are original hospital records that are sketchy and difficult but not impossible for a layperson to interpret. The medical experts for the prosecution are in no agreement at all as to what caused what collapse, except that they are willing to see something strange about each one, and willing to argue that Ben could have been to blame. The defence experts have sound reasons to reject many of the hypothetical stories of the prosecution. Together, the expert opinions presented by both prosecution and defence witnesses do allow an educated non-medical specialist to form their own opinion (after all, the experts are writing in order to communicate to lawyers and to jurors).

The extensive dossiers concerning the 18 selected patients were debated at length during the trial. The jury decided that Ben had deliberately harmed 17 patients, and in two cases, that this caused their subsequent deaths.

6. Insights from Forensic Psychology and Criminology

There is major literature on the topic of “Health Care Serial Killers” (HCSKs) in the fields of criminology and forensic psychology. See especially (Yardley and Wilson 2014). In those fields, one studies the characteristics of the kinds of persons who commit those crimes. More precisely, of those who are convicted for those crimes. Their material is necessarily mainly the evidence supplied by the winning party: the judges’ summing up or advice to jurors, media reports of the prosecution’s summary of the prosecution case. This means that scientists in these fields generally study past cases which led to convictions. Different authors use different formal definitions of “serial killer”. Ben Geen was only convicted for two murders but he allegedly harmed many more, and he is always included in the catalogs. Daniela Poggiali in Italy was convicted (and later, acquitted) of only two murders, but suspected of a great many more. Until her acquittal, she also appeared on the lists.

If past cases are restricted to, say the last five decades in Western nations, the list of such cases are pretty small—perhaps 20 to 30. The list of “certified” HCSKs presented in various publications included for a while the case of Lucia de Berk. Some of the pieces of evidence which led to her conviction contributed to, and still stand in, the current list of “HCSK red flags”: warning signs, which managers in health care should keep note of, and which are used as evidence against new suspects in new cases when scientific evidence is given by psychologists or profilers. For instance, “thought by their colleagues to be a weird person” is one of the red flags. Another is, “fascination with death”. Lucia had a couple of Stephen King novels at home. “Steals medications from the hospital”. Lucia had some empty syringes at home which she had taken home for her daughter to use at primary school in a “show and tell” presentation of what her Mum’s day job was.

Most catalogs include Daniela Poggiali, Ben Geen, and Colin Norris. The latter is another British nurse and it seems that his case will soon be reopened due to new scientific insight into hypoglycaemic arrest (the CCRC has already advised reopening). He was arrested at around the same time as Ben Geen, similarly at the peak of unrest concerning the then-recent Shipman case.

Due to the Lucia de B. case, the “red flag” of “increased incidence of deaths when the nurse is on duty” has been labeled as an unreliable indicator.

It is interesting to look at the “modus operandi” of alleged HCSKs who were convicted without powerful witness evidence of dangerous and illegal behavior. One of the “weapons” of choice appears to be Potassium Chloride poisoning. The substance is readily available in hospitals, though sometimes not sufficiently under lock and key. Put some into the IV drip of a patient close to death and they will die very rapidly of heart failure. Yet, a day or two later, a post-mortem toxicological investigation will not be able to determine that that is what that patient died of. If the drip has been used by many nurses and its contents changed from time to time, it will be impossible to establish that it was ever tampered with. It seems to us no coincidence that many dubious cases revolve around K${}^{+}$Cl${}^{-}$ poisoning. One might say it is a red flag for a false accusation and for prosecutions that succeeded though the accused was innocent.

Despite doubts as to the validity of these catalogs of serial killer nurses, these publications are extremely valuable. It is agreed that these cases are incredibly rare. The incidence is, very roughly, 1 in 2 million per nurse per year, see (Forrest 1995), in which paper one finds a rough 1 in 1 million for nurses and doctors together; both about equally frequent in the catalog compiled in that paper. Compare this with the 1 or 2 thousand annual deaths in Dutch hospitals by admitted medical errors. We will now have a look at how such information might impact reasoning through a simple Bayesian analysis of a hugely simplified case.

7. Bayesian Analysis of a Stylized Case

Convincing Bayesian analyses of these cases are conspicuously absent from the academic literature. The landmark paper (Fienberg and Kaye 1991) announced that Part 2 would be devoted to the Bayesian approach, but Part 2 never materialized. A comprehensive 2016 review of the use of Bayes in the law (Fenton et al. 2016) described the impediments against its success but also the small number of cases where it has been used in court proceedings.

The Dutch econometrician Aart de Vos published a rather nice Bayesian analysis of the case of Lucia de Berk in a Dutch language legal monthly journal. An English translation prepared by Gill can be found at https://gill1109.com/2021/05/24/condemned-by-statisticians/ (accessed on 1 August 2022). It should be noted that his analysis uses some “guessed” numbers concerning the analysis earlier mentioned by Elffers (which at the time was not public). In view of the now known errors in the data supplied to the courts by the hospitals, his analysis would now come out even more favorable to the defence hypothesis.

What is clear, is that extraordinary claims require extraordinarily strong evidence to support them. For a Bayesian, the prior probability that an otherwise not particularly special nurse has been carrying out deliberate murders of numerous patients in recent years must be very small indeed. Hence, in order to overcome that prior expectation, we must have very strong evidence indeed. What about the evidence of a stunningly small p-value in some studies comparing the death rate when a particular nurse is present with the death rate when they are not present?

It is crucial that such statistical evidence has been generated in a professional way, and this requires intensive collaboration between experienced statistical and medical experts. First of all, discussions in a multi-disciplinary team are needed to agree on definitions, criteria, and a list of questions to be asked. Good statistical methods must be used to obtain data and assess its quality. Assumptions needed for any statistical methodology, whether frequentist or Bayesian, must be stated explicitly, and if possible evaluated. Any statistician involved must have a deep understanding of the context. To give an example: times of death reported on death certificates are in actual fact usually the times that a certified medical doctor ascertained that a patient had already died. In a hospital, these times are often the times of the hand-over between shifts. A nurse who clocks in early and clocks out late can appear to be present at many more deaths than other nurses, cf. the Poggiali case (Dotto et al. 2022).

The absence of hard evidence for actual malevolent activities of the nurse in question is evidence of the absence of such activities. It is easy to illustrate this with a simple Bayes net model. A nice tutorial introduction for legal scholars is (Ibs 2016). Alternatively, in the Appendix A to this paper, we analyze the model “by hand”. It is so simple that all the calculations can be done with pen and paper, or on a spreadsheet, or with the help of any basic computer language, from first principles.

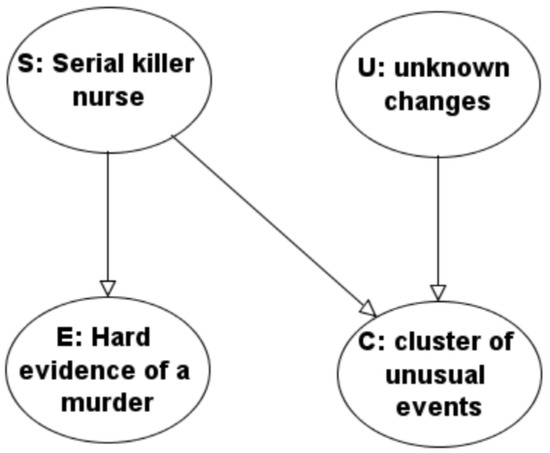

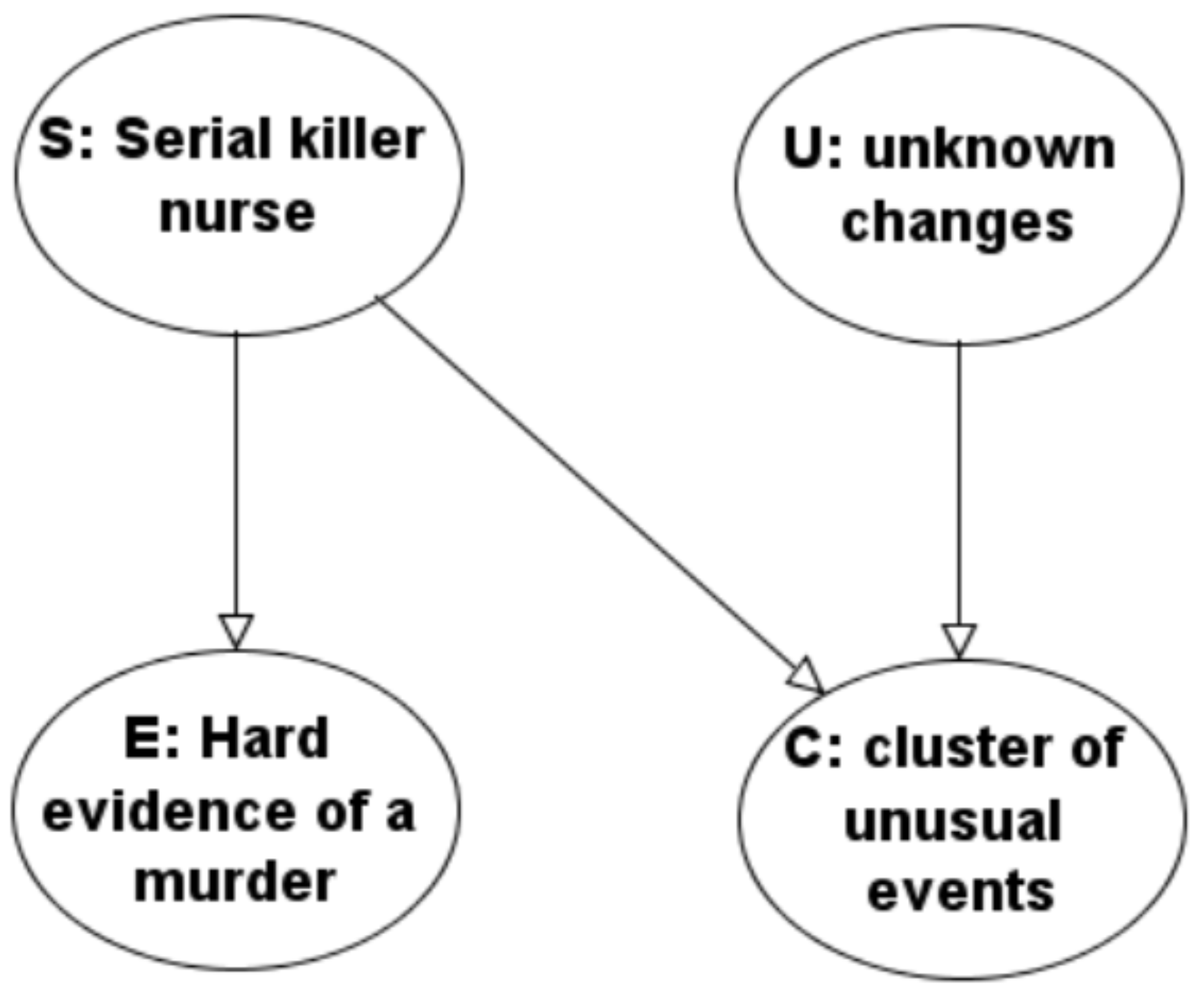

Here is our graphical model (Bayes net) of a stylized and simplified serial killer nurse case.

Our model is built around the Bayes net (DAG—directed acyclic graph) of just four nodes shown in Figure 7. The four nodes will represent binary random variables, taking the values “yes” and “no”. The arrows between some of them represent a possible direct causal influence. It is always possible to order the nodes of a DAG, such that all arrows point forwards. One of such orderings in our model is ($S,U,C,E$). Having ordered the nodes so that all arrows point forward, the model says that the conditional probability distribution of each variable given the values of all its predecessors (predecessors according to that ordering) only depends on the values of the predecessors which are directly linked to it. Thus our model says that one could simulate realizations of this 4-tuple as follows: first of all, select an outcome for S according to the marginal distribution of this random variable. Next, since there is no arrow from S to U, draw an outcome for U according to its marginal distribution. Next, since there are arrows from both S and U to C, draw an outcome for C according to its conditional distribution given the values of both these variables. Finally, draw an outcome for E according to its conditional distribution given just the outcome of S. The complete model, therefore, consists of the graph together with the sets of conditional probability distributions of each variable conditional on all possible sets of values of the variables assumed to directly influence it, so-called CPTs (Conditional Probability Tables). In the case of S and U, these are actually tables of marginal probabilities.

The previous description is equivalent to another, which perhaps appeals more to classical ideas of causality. Imagine deterministic mechanisms according to which the outcome of each variable is a completely deterministic function of the variables which are supposed to directly influence it, together with a further random disturbance or latent variable. All the latent variables are supposed to be statistically independent of one another, and their probability distributions can be anything. Simulate realizations of $(S,U,C,E)$ by first simulating an outcome of each random disturbance, four of them in our example. Next, pick one of the nodes which have no arrows pointing to it. Its outcome is therefore a function just of its own disturbance variable. After that, again and again, pick a node such that the outcomes of all nodes directly pointing at it have already been fixed. The outcome of the corresponding variable is a function of those outcomes together with the outcome of its own (independent, local) disturbance.

Our graph has two root nodes, denoted by S for serial killer and U for unknown changes. Examples of unknown changes could be changes in hospital policies and practice, such as changes in protocols determining the transfer of patients from one section to another, introduction of new medical apparatus, changing milk formula for babies, changing suppliers of medications. The environment can also change: there may be new and not yet noticed viral, bacterial, or fungal contamination somewhere in the hospital; the patient population may be changing for all kinds of reasons quite outside of the hospital, such as changes in the accessibility of alternative health care providers. All kinds of things are of course changing all the time; the variable U stands for changes that could cause an increase in the rate of bad patient outcomes of some kind. S and U are assumed to be statistically independent. Each can trigger a surprising cluster of cases associated with a particular nurse, either because they (he or she) truly are a serial killer, or coincidentally because they are often on duty at unfortunate times of day, or have longer shifts than other nurses, and because they attract attention by odd behavior. Suppose that the prior probability of S = “yes” is ${10}^{-6}$ and the prior probability of U =“yes” is ${10}^{-2}$.

The outcomes of these two variables are assumed to have a direct probabilistic influence on the nodes linked directly to them (known as their graph children). These are C standing for a cluster of unusual and unhappy events appearing to involve our nurse, and E standing for strong and direct evidence of the murder of one particular patient by the nurse of interest. This means, evidence which on its own would lead to conviction of the nurse for the murder of that patient. We allow that the probability of a cluster of events given whether a serial killer is active and given whether there have been other unknown changes in the hospital may depend on the status of both graph parents U and S. However, the conditional probability of finding (if one looks for it) direct evidence of one (or more) actual murders by the nurse in question depends only on S, whether or not a serial killer nurse is active. It doesn’t depend on whether or not unknown changes to hospital procedures took place, U.

This means that a total of six conditional probabilities of outcomes of graph children given the outcomes of their graph parents need to be written down to specify how the root nodes influence the occurrence or not of a cluster of events and the finding (if it is looked for) of direct evidence of one or more particular murders by our suspect. Four for C and two for E.

The most important conditional probabilities concerning the cluster of events C are the probability of C = “no” conditional on S = “yes” and U = “no”, which we take to equal ${10}^{-3}$, the probability of C = “yes” conditional on S = “no” and U = “yes”, which we take to equal ${10}^{-2}$, and the probability of C = “yes” conditional on S = “no” and U = “no” which we will take to be ${10}^{-5}$. The first of these says that a serial killer almost certainly triggers a cluster of cases. Unknown factors have some chance of triggering the observation of a cluster of cases, but the chance is small. If there are no unknown changes in the hospital and no serial killer the chance of a cluster is very small. The remaining entry of the Conditional Probability Table for node C given its parents S and U will be taken as follows: the probability of C = “no” conditional on S = “yes” and U = “yes” will be taken to be ${10}^{-4}$. Since the conditioning eventuality is almost impossible, (even relative to all the other unlikely events under consideration), this value is pretty irrelevant to later computations.

Regarding the node E, its only graph parent is S. We take the probability that E = “no” conditional on S = “yes” to be ${10}^{-2}$ while the probability that E = “yes” conditional on S = “no” will be ${10}^{-3}$. Thus a serial killer is rather likely to generate or leave some hard evidence themselves through evidence concerning one patient. On the other hand, a non-serial killer nurse is not often caught red-handed killing one patient: the prior probability of a single murder by a health care professional is quite low (though not so low as the probability of serial murder).

The graph structure says that knowing also U would not change the probabilities of different values of E.

Either by hand or by using standard software for computations with graphical models, we can now perform numerous probability calculations. Below we show the results obtained when the graphical model, including the conditional probability tables we just specified, have been entered into the software program AgenaRisk. Exactly the same results are obtained with other popular tools such as GeNIe or Hugin, and in the statistical programming language R.

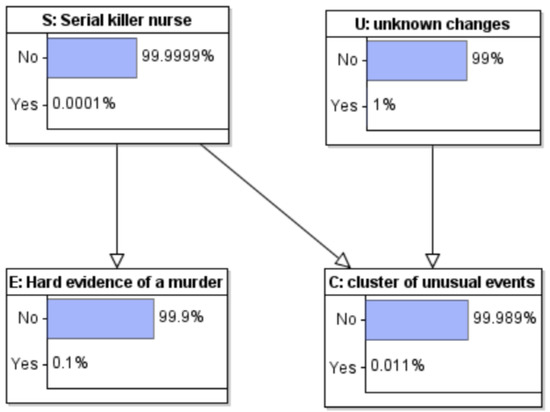

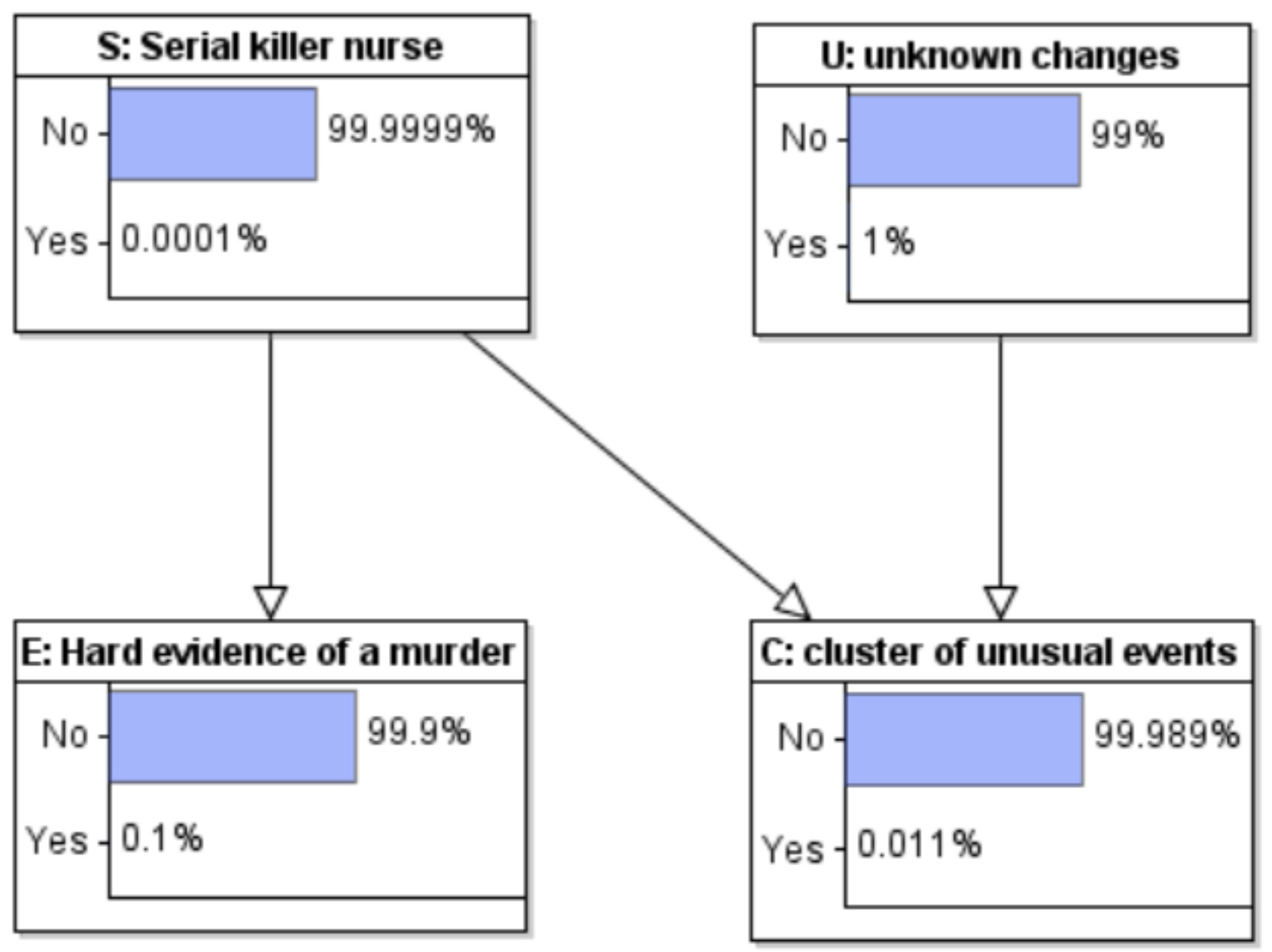

We can first compute the implied prior marginal probabilities of a cluster of cases and of evidence implicating a particular nurse in murdering one particular patient, see Figure 8.

Both are rather small. There is a 0.011% chance of an unexplained cluster of events and a 0.1% chance of incriminating evidence concerning one patient and the nurse. Conditional on neither, the prior marginal probabilities for both S and U are of course unchanged.

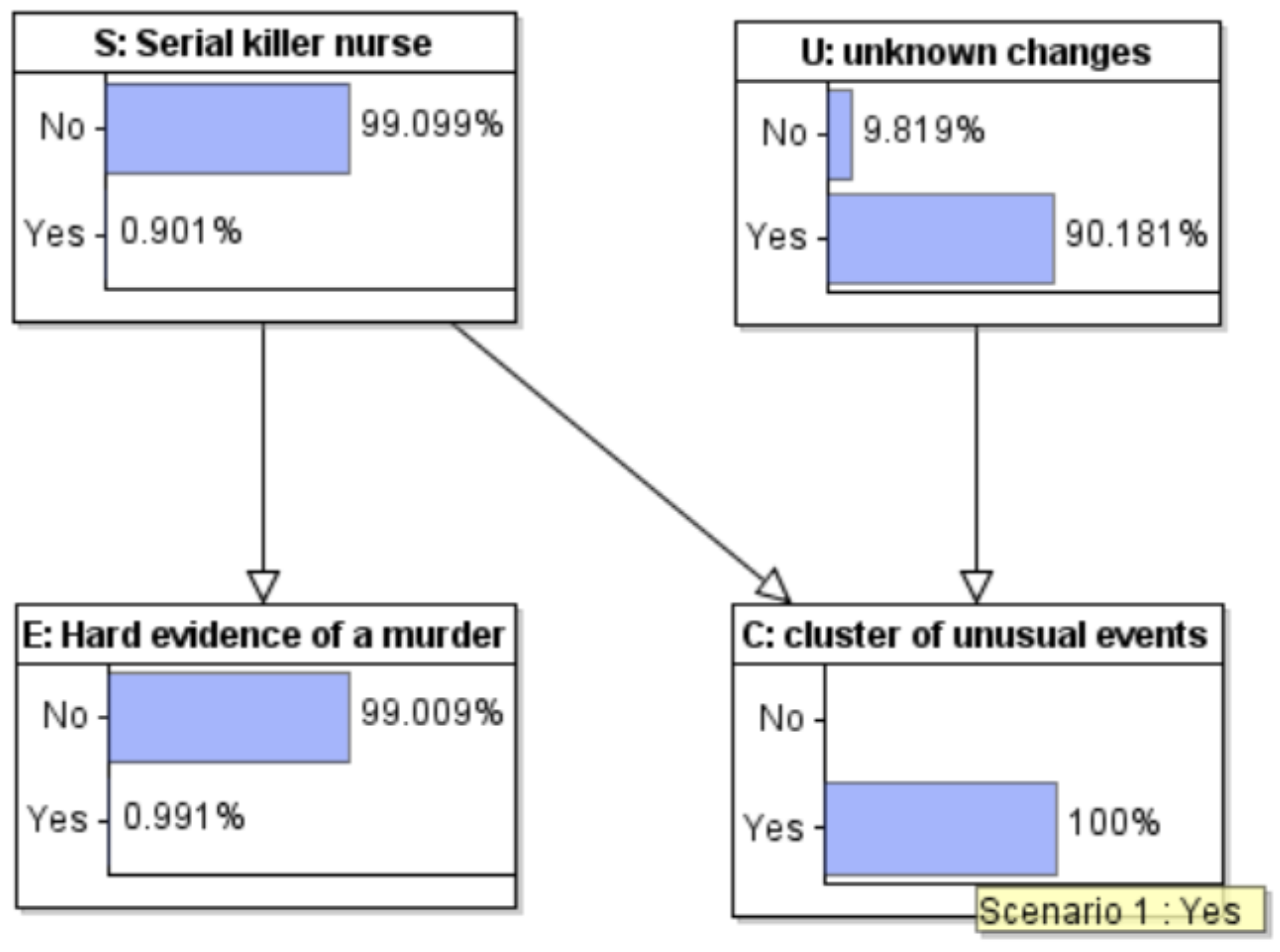

When we observe first (and so far, only) the cluster of unusual events (Figure 9) the posterior probability of U increases to over 90%, while the probability of S increases to just 0.9%. In other words, before we have looked for patient level evidence of murder, by far the most likely explanation for the cluster of unusual events is unknown changes.

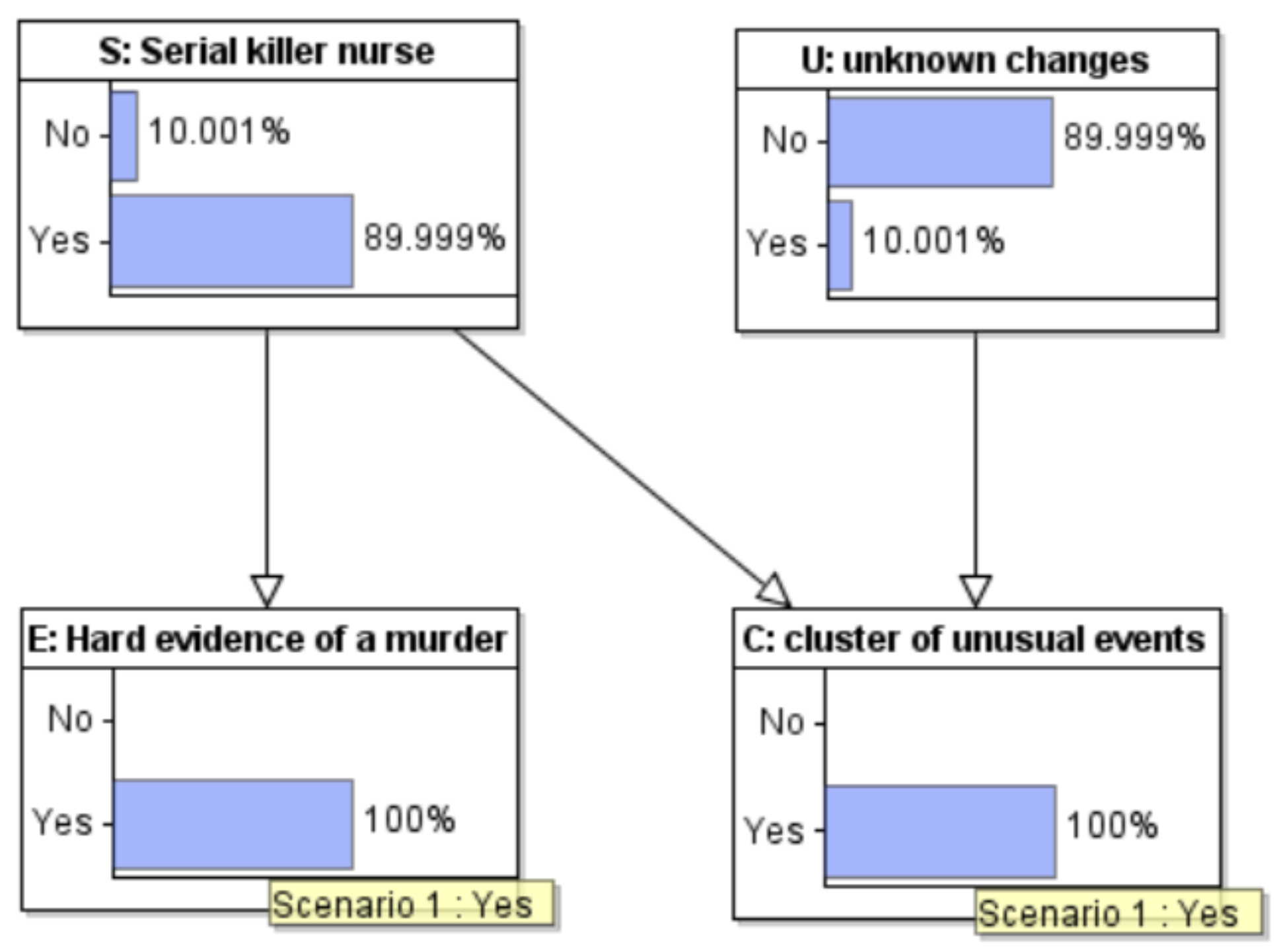

When both the cluster of events and incriminating single patient evidence are observed (Figure 10), the probability that the nurse is a serial killer increases to just under 90% (while the probability of unknown changes drops to 10%). With these prior probabilities, even given the strongest evidence possible for just one patient, there is still doubt that the nurse was a serial killer.

In the Lucia de Berk case, the judges actually followed a sequential form of this reasoning (though entirely verbal). There was not just one patient for which hard evidence appeared to show that Lucia had caused it harm. There was a sequence of three, in each case, the “hard” evidence was less hard, but each one tipped the scales further. After the judges had concluded that Lucia was responsible for three deaths they took it that she was also responsible for many more in the cluster under investigation. The problem was not the argumentation, but the evidence. The hard medical evidence was not hard at all. On careful inspection and further toxicological measurements, it collapsed. Moreover, the “medical” argument that subsequent events were “suspicious” was merely, in several cases, explicitly (in the words of a medical expert witness) “because Lucia was present at so many incidents”.

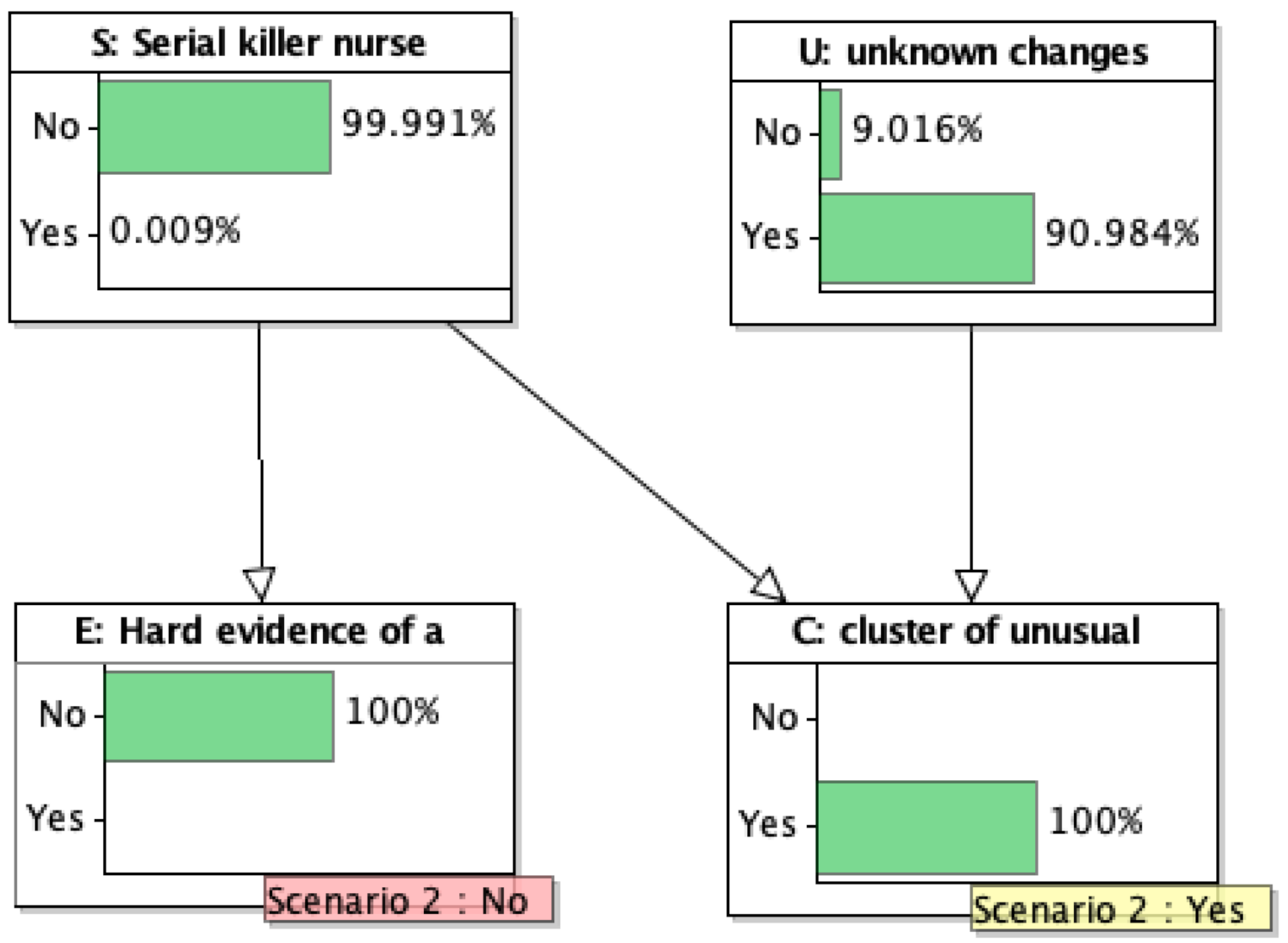

On the other hand, suppose we observe a cluster of events but then fail to find strong evidence that the nurse hurt any one particular patient: now the posterior probability that an unknown unknown caused the “coincidence” is about 90%; the probability that there was a serial killer is close to 0, see Figure 11.

This example is meant to be illustrative. It is not a serious model for any specific case. In real cases, the interaction between observation of a surprising cluster of events and investigation of specific cases occurs in many progressive stages, not just in one step. The value of the present model is that it could in principle be extended in order to model more features of any actual case. The example does show that the absence of evidence can provide very strong evidence of absence. It all depends on the relative sizes of many very small probabilities. We do not find our choices of those probabilities broadly unrealistic. Their relative orders of magnitude determine the qualitative conclusions. If anything, some of the crucial numbers are unfavorable to our fictive nurse: the base rate for serial murder by nurses is arguably twice as small as the number which we took. Past cases show that the incidence of “unknown unknowns” is not infinitesimal. Recently in the UK, a striking cluster of events at one children’s hospital was found to be linked to a change in the supplier of baby formula milk. This was discovered by an external statistician working for an official inquiry; hospital authorities had not thought of it before and not suggested it as a possible cause.

In the Lucia case, it was later discovered that a rise in deaths and other incidents in a medium care ward was probably linked to a change in hospital policy concerning the transfer from intensive care to medium care of infants suffering from essentially incurable birth defects. The policy was supposed to allow fewer babies to die in the hospital and more at home, however, it seems to have backfired. The policy was only known to a few top managers, and once they had committed the whole hospital to accusations of serial murder by a particular nurse, it was not going to be rapidly revealed. No defence lawyer could ever guess it, no investigative journalist would uncover it.

Each specific case will have many more details and complicating factors. The important point is that in a not negligible proportion of cases, there is almost no hard evidence against the accused. The case has been brought against them after a very long investigation, partly or entirely performed by doctors and managers at the hospital where the events happened—not by independent forensic investigators—and often hinges on some of the “red flag” items were mentioned in the previous section. Gossip of colleagues; some history of the nurse having once sought psychotherapy; unusual personal character, perhaps connected to a traumatic childhood; some past minor transgressions.

The reader who is unhappy with our choices of parameters in this model is invited to perform their own sensitivity analyses, and to build their own intuition, by playing with the parameters of our model. We have built an online app: https://nurse.staging.agenarisk.app/ (accessed on 1 August 2022). It requires a password, please contact the corresponding author. The basic network can naturally be run using any of the standard special software packages for Bayes nets and causal modeling (GeNIe, Hugin, AgenaRisk), but it can also be run in the general purpose statistical computer language R. The model is so simple that everything can also be done by a spreadsheet or by a simple computer program written in any general-purpose computer language. We provide code in R both for direct calculations and using R’s facilities for graphical models in Appendix A.

8. Confirmational Bias and Other Biases

The investigation in the Ben Geen case appears to have suffered from confirmation bias, one of the most well-documented cognitive biases in psychology. Confirmation bias can also be thought of as a blanket term for numerous specific kinds of statistical bias which can easily afflict carelessly planned or executed empirical research of an observational nature. A criminal investigation is an observational study, in that one studies past events in order to identify the causes behind them. Contrast this with an experimental study in which one intervenes in some phenomenon and observes what are the consequences in the future of an intervention now.

We emphasize that we have absolutely no doubt that in the Ben Geen case, the hospital’s own investigative team and later police investigators were all acting with the best of possible intentions. The same is true in the cases of Lucia de Berk and Daniela Poggiali. That is exactly the danger of confirmation bias: it is so easy to be totally unaware that an investigation is suffering from that bias. It is so common, that “standard procedures” might easily reinforce it.

Because of its prevalence, researchers in medicine and epidemiology have studied and identified many varieties of bias that can easily occur in observational studies. Moreover, they have identified research procedures that minimize or in other ways account for possible bias. Nowadays, evidence based science demands that the evaluation of new treatments for diseases, which also entails determining whether or not they have adverse effects on some or many patients, is based on the gold standard of a randomized controlled clinical trial. (It has also become very clear that very large samples are needed in order to gain useful evidence as to whether treatments are beneficial or harmful, especially when this might depend on various patient characteristics: too small samples, and misunderstanding of p-values, are parts of the famous replication crisis afflicting especially the social sciences and the medical sciences).

In medicine there is a deep understanding of the problem of confounding factors, and particularly of hidden confounders: previously unanticipated factors which alter the chances of good or bad effects of a particular treatment. A landmark paper in the field is (Sackett 1979): the author catalogs and names 35 different biases which can occur in observational studies. Prof. Jane Hutton’s expert evidence in the Ben Geen case (discounted as mere common sense by the judge) was based on the immense knowledge built among those involved in medical research inspired by Sackett’s paper. It was supported by the identical recommendations of a medical expert, clinical physiologist Prof. David Denison; his evidence was also discounted by the judge.

The main messages from the medical field are the need for controls and the desirability of blinded evaluation of whether any identified case was a “treatment” or a “control” case. Definitions (in this case, of the three kinds of adverse events; and on what counts as the presence or absence of a nurse) need to be unambiguous, defined in advance, and applied to all patients in the time period under study. What medical consequences befell each patient must be determined without knowledge of which nurses were involved in their care.

In a serial killer nurse case, where the nurse’s presence is supposed to have caused bad outcomes for patients in their care, the controls would be the cases in which similar bad outcomes occur though the nurse who is under suspicion was not present. In the Ben Geen case, it is clear that many collapses of patients occurred during Ben’s absence, but we do not even know exactly how many, nor how they were classified. The argument that there was an excess of normally rare respiratory arrests when he was present is arguably based on hearsay. The lack of normally common cardio-respiratory events against a background of overall normal total numbers is clear evidence that the alleged “striking cluster” was a striking cluster only in the imagination.

In psychology, confirmation bias is broadly defined as the subconsciously selective gathering and weighting of evidence to support a specific hypothesis and the failure to gather or recognize evidence that might count against that hypothesis (Nickerson 1998). The bias has been shown to operate in many investigative and forensic contexts (Dror and Charlton 2006; Kassen et al. 2013). Summarizing a large body of empirical research, (Lagnado 2021) identifies three stages where confirmation bias can derail investigations—in the search, evaluation and communication of evidence—with possible snowball effects when these stages interact (Dror et al 2017; Scherr et al. 2013). The investigations in both Geen and de Berk show confirmatory biases at all three phases. For example, the investigative team in the Ben Geen case only examined the patient records on Geen’s shifts, but not on shifts where he wasn’t present. Without the comparison, the diagnostic value of the evidence against Geen cannot be fairly assessed (as expert witnesses Jane Hutton and David Denison stated for the defence —yet they were disallowed by the judge to present this argument in court to the jury!). Moreover, ambiguous or previously non-suspicious cases were re-interpreted to fit with the hypothesis of Geen’s guilt, and alternative innocent explanations were neglected. Finally, the evidence was communicated in a biased way, suppressing details of the investigative process such that fact-finders at later stages, e.g., judge and jury, were unaware that the evidence was selectively distorted.

These biases are particularly dangerous when a case involves complex medical and statistical evidence, which many investigators and fact-finders will not fully understand, and thus the potential for misinterpretation is magnified. They are also exacerbated by people’s predilection to use stories to explain complex evidence (Pennington and Hastie 1986, 1992). These stories typically focus on the actions of a central protagonist, and a compelling story often overshadows a mass of complex and equivocal evidence (Lagnado 2021).

So far, attempts to have the case of Ben Geen reconsidered by the CCRC have proved unsuccessful. On the one hand, the story of the syringe grabs the public imagination. In our opinion, a cunning health care serial killer does not walk into the hospital with a half-full syringe of deadly poison in their pocket. Ben’s story of why he emptied it, and his girlfriend’s corroboration of why he went back to the hospital with it anyway, ring true to us. This piece of evidence seems to us to be rather weak. The volume of medical evidence is large but it seems to us ambiguous and inconclusive. There is no hard medical evidence that any one of those medical incidents were unnatural, despite an intensive and biased search for such evidence. The jury was instructed to carry out an impossible assignment, namely to decide each case on its own merits. Yet they had heard the prosecution’s argument that there was a highly unlikely cluster of unusual cases and that Ben was present every time; this “story” was supported by some of the medical experts for the prosecution. Ben himself thought that the number of incidents on his shifts was disturbing. But how could he have known what would have been a normal number? He had worked at the hospital for a while in the past but this was his first winter there, with, moreover, less supervision and more responsibilities, and much longer working hours.

By now, a number of authoritative statisticians have argued that the conviction is unsafe due to the flaws in the hospital investigation. According to British lawyer Wendy Hesketh, who has studied several similar cases as well as this one (Hesketh 2012)

The hospital’s illegal and unqualified investigation team was only looking for evidence to secure a conviction (Confirmation Bias) while discarding or ignoring evidence that proved Ben’s innocence. The hospital’s Serious Untoward Investigation Team initiated by Chief Nurse Brock in her capacity of Executive Lead for Governance consisted of several medical, nursing, and medical records staff who were all untrained in forensic investigative techniques, crime scene preservation and the taking of witness statements. The team carried out an unlawful and flawed investigation, the material from which was later presented to medical experts appointed by the prosecution as legitimate. The opinion of these medical experts was based on flawed evidence, which had been given to those experts without their knowledge of how that evidence had been obtained. Expert opinion given on the basis of ignorance of improperly obtained evidence invalidates that medical expert evidence. The judge and jury were not aware at the trial that the evidence had been unlawfully obtained, nor of the risks to justice associated with it.

In fact, Hesketh wrote in the abstract of that paper “A protocol for liaison between the police and the medical profession in dealing with a crime committed by health professionals was implemented after being proposed in this journal [the Police Journal] in 2003. However, rather than using their diverse skills to scrupulously investigate allegations of medico-crime, the police and health professionals presume the accused is guilty and work together to prove this, disregarding any evidence to the contrary, thereby undermining the right to a fair trial. Whereas both were criticized in the past for failing to protect patients, they are likely to receive future criticism for contributing to serious miscarriages of justice”.

9. Conclusions

The case of Ben Geen bears remarkable similarities with the cases of Lucia de Berk and Daniela Poggiali (Dotto et al. 2022). However, whereas the conviction of de Berk was overturned after review and reopening, and that of Poggiali was overturned after cassation and reopening, all attempts to reopen the case against Geen have so far proven unsuccessful.

The main purpose of the present paper has been to document new statistical evidence in the Ben Geen case. There is more that can be done: we need to obtain staffing numbers, both of nurses and of medical specialists, at Horton General over the months and years around winter 2003–2004, in order to find out if Geen’s claims that the pressure on the staff in the Accident and Emergency department was getting intolerable, have any support. We know that he was criticized for expressing such feelings to his superiors. It would also be useful to find out what exactly were his working hours during the three months in which he was accused of being on a killing spree. Unfortunately, this data is no longer obtainable from the hospital. Whether or not Geen, his family, or his lawyers have it, is not known to us at present.

Was the rate of those patient collapses during his shifts really surprisingly large? We have some monthly totals and we know which particular patients were allegedly harmed by him (and when), so we also know the number of “arrests” outside his shifts. The hospital investigation team allegedly investigated around 30 incidents occurring during his shifts, but only brought about half of them to the attention of the police. One of those cases failed to convince the jury. (The patient concerned had actually collapsed in the ambulance on the way to the hospital. This tells us that the hospital’s compilation of likely cases was not terribly accurate).

The total number of collapses of patients in A&E waiting for further attention, during those months, was also close to 30. This means that 10 or more collapses causing a transfer to critical care occurred while Ben was absent. If he worked a great deal of overtime, it could well be that the rate of these events was hardly different when he was on duty than when he was off duty, especially if he had a tendency to be on duty at the busiest times of the day. He was eager to obtain as much experience as possible. We certainly know that the total number was actually typical for the time of year and that it was the busiest time in the hospital A&E department that it had been for five or more years, at the busiest time of year.

We think it is high time to systematically study the pattern of medical events in this case and build a Bayes net model incorporating statistical evidence, medical evidence, and the evidence of the syringe. We hope some readers of this paper will be inspired to independently study the case.

For a systematic and comprehensive survey of lessons for the future which should be learned from these and many other cases, worldwide, we refer to the soon to be published booklet (Green et al. 2022). The opening words of that document are worth reproducing here.

Justice systems are sometimes called upon to evaluate cases in which health care professionals are suspected of killing their patients illegally. These cases are difficult to evaluate because they involve at least two levels of uncertainty. Commonly in a murder case, it is clear that a homicide has occurred, and investigators must resolve uncertainty about who is responsible. In the cases we examine here there is also uncertainty about whether homicide has occurred. Investigators need to consider whether the deaths that prompted the investigation could plausibly have occurred for reasons other than homicide, in addition to considering whether, if homicide was indeed the cause, the person under suspicion is responsible. In this report, the RSS provides advice and guidance on the investigation and evaluation of such cases. This report was prompted by concerns about the statistical challenges such cases pose for the legal system. The cases often turn, in part, on statistical evidence that is difficult for lay people and even legal professionals to evaluate. Furthermore, the statistical evidence may be distorted by biases, hidden or apparent, in the investigative process that render it misleading. In this report, the RSS provides advice and guidance on how to conduct investigations in such cases, with a particular focus on minimizing the kinds of biases that could distort statistical evidence arising from the investigation. This report also provides guidance on how to recognize and take account of such biases when evaluating statistical evidence and more broadly on how to understand the strengths and limitations of such evidence and give it proper weight. This report is designed specifically to help all professionals involved in investigating such cases and those who evaluate such cases in the legal system, including expert witnesses. It will also be of interest to scholars and legal professionals who are interested in the role of statistics in evidentiary proof, and more generally to anyone interested in improving criminal investigations.
