JLPEA 2012, 2(4), 211-241; doi:10.3390/jlpea2040211

Article
A Multi-Channel Low-Power System-on-Chip for in Vivo Recording and Wireless Transmission of Neural Spikes
Andrea Bonfanti 1,*, Maria Ceravolo 1,, Guido Zambra 1,, Riccardo Gusmeroli 1, Gytis Baranauskas 2, Gian Nicola Angotzi 2, Alessandro Vato 2, Emma Maggiolini 2, Marianna Semprini 2, Alessandro Sottocornola Spinelli 1 and Andrea Leonardo Lacaita 1
1
Dipartimento di Elettronica e Informazione, Politecnico di Milano, Via Golgi 40, Milano 20133, Italy
2
Italian Institute of Technology (IIT), Department of Robotic, Brain and Cognitive Science, Genova 16163, Italy
Present address: STMicroelectronics, Via Tolomeo, Cornaredo 20010, Italy.
*
Author to whom correspondence should be addressed; Email: bonfanti@elet.polimi.it; Tel.: +39-02-2399-6146; Fax: +39-02-2367-604.
Received: 11 June 2012; in revised form: 6 September 2012 / Accepted: 21 September 2012 /
Published: 28 September 2012

Abstract

: This paper reports a multi-channel neural spike recording system-on-chip with digital data compression and wireless telemetry. The circuit consists of 16 amplifiers, an analog time-division multiplexer, a single 8 bit analog-to-digital converter, a digital signal compression unit and a wireless transmitter. Although only 16 amplifiers are integrated in our current die version, the whole system is designed to work with 64, demonstrating the feasibility of a digital processing and narrowband wireless transmission of 64 neural recording channels. Compression of the raw data is achieved by detecting the action potentials (APs) and storing 20 samples for each spike waveform. This compression method retains sufficiently high data quality to allow for single neuron identification (spike sorting). The 400 MHz transmitter employs a Manchester-Coded Frequency Shift Keying (MC-FSK) modulator with low modulation index. In this way, a 1.25 Mbit/s data rate is delivered within a limited band of about 3 MHz. The chip is realized in a 0.35 µm AMS CMOS process featuring a 3 V power supply with an area of 3.1 × 2.7 mm2 . The achieved transmission range is over 10 m with an overall power consumption for 64 channels of 17.2 mW. This figure translates into a power budget of 269 µW per channel, in line with published results but allowing a larger transmission distance and more efficient bandwidth occupation of the wireless link. The integrated circuit was mounted on a small and light board to be used during neuroscience experiments with freely-behaving rats. Powered by 2 AAA batteries, the system can continuously work for more than 100 hours allowing for long-lasting neural spike recordings.
Keywords:
neural recording; action potential; low-noise amplifier; wireless transmitter; bio-telemetry; FSK; Manchester-encoding

1. Introduction

There is a growing need for wireless implantable neural recording systems that can simultaneously acquire neural signals from a large number of channels. Recording from hundreds of neurons may allow neurophysiologists to study brain function in freely-behaving animals, and in future will provide the signals necessary to control neural prosthetic devices [1]. Compared to wired systems, wireless neural recording devices provide a number of benefits: reduction of motion artifacts and freedom of animal movements in neuroscience experiments, as well as reduced infection risks and higher patient mobility in neuroprosthetic applications. However, these systems entail severe technical challenges, such as the robustness of the wireless link and the need of a large data transmission band, coupled to low-power dissipation and small size in case of brain-implantable devices. The main issue is related to the huge amount of data associated with a large number of recording channels: in a 64 channel system featuring a 20 kHz sampling frequency (the neural signal band extends to about 7–10 kHz) with 8 bit resolution, the required data rate of the wireless link is 10.24 Mbit/s. Achieving such a high bit rate is not straightforward either in fully implantable devices where power consumption is limited to about 10 mW to avoid tissue necrosis [2] and in battery-powered systems for maintaining a reasonable battery life. Hence, most integrated circuits (ICs) reported in the literature that simultaneously support neural recording and wireless telemetry must trade-off power consumption against the amount of data to be wirelessly sent.

Data compression was adopted to solve this problem in earlier systems. For example, since in a typical extracellular electrode trace most of the useful information is contained in spikes (or action potentials, APs), Harrison et al. [3] enable only the transmission of the spike occurrence information, achieving a low bit rate of 330 kbit/s for 100 channels. However, since the examination of the raw traces may improve the selection of the spike detection threshold, the system reported in [4] allows to collect raw data from 2 out of 64 channels present in the system, while only spike occurrence times are sent for the remaining 62 channels via a 2 Mbit/s wireless link. On the other hand, spike waveforms are used in neuroprosthetic applications to assign spikes to specific neurons improving the prediction of an intended movement [5]. Hence, during the last four years, wireless systems capable of sending all raw data have been reported. In [6], Chae et al. describe a 128 channel system able to transmit all raw data using an impulse-radio ultra-wide band (IR-UWB) transmitter with up to 90 Mbit/s rate. In such system, problems may arise from skull and skin absorption at high frequencies (signal spectrum is in the 3.5–4.5 GHz range) and from pulse distortion and the need of an external broadband antenna. As a matter of fact, no in vivo tests are reported for this kind of system. In [7], Ghovanloo et al. report a system that transmits raw data from 32 channels, encoded in a pulse-width modulated (PWM) signal via a 640 kS/s frequency-shift keying (FSK) wireless link. In this system, the transmitted information relies on the time width of each symbol, making this transmission prone to the noise of the wireless link and of the receiver. Moreover, the system in [7] requires a relatively large bandwidth (38 MHz), which means higher probability of RF interferences, and does not meet the band requirements of any medical communication standard.

We propose here a solution that is intermediate to the two extremes described above. The idea was to employ a data compression algorithm in order to:

  • preserve the information needed for single neuron identification;

  • reduce the throughput and thus the power consumption, since the power needed to the antenna is directly proportional to the bit rate [8];

  • keep the bandwidth limited to few MHz, thus reducing the probability of RF interference and verifying the possibility to make in the future the system compliant to Medical Implanted and Communication Service (MICS) or Industrial Scientific and Medical (ISM) bands, in the 402–405 MHz and 902–928 MHz frequency range, respectively.

In particular, having reduced the data rate, it was possible to extend the transmission distance well beyond the 1 m value reported in the above-mentioned works to make possible realistic in vivo experiments with a small penalty in terms of power consumption. The proposed integrated circuit, already presented in [9], has been included in a complete system, made of a transmission and a receiving unit, that is in use in a neuroscience laboratory on freely-behaving animals in place of commercial wired systems to avoid tethering effects and to provide electrical isolation. In this paper we describes in detail the architecture and circuit design choices, the electrical performance of the IC and the in vivo tests on small-laboratory animals.

The paper is organized as follows. Section 2 describes the overall system made of a signal conditioning and transmitting unit and a receiver built with off-the-shelf components. Section 3 discusses in detail the implementation of the system-on-chip (SoC) building blocks and validates the data compression algorithm by means of ad-hoc simulations, while Section 4 shows the electrical characterization of the integrated circuit and reports the results of in vivo tests on freely-behaving laboratory animals. Finally, a comparison of the implemented SoC with the state-of-the-art is presented in Section 5.

2. System Architecture

The system consists of a wireless recording unit, a receiver built with off-the-shelf modules to maximize its sensitivity plus a remote host complete of a graphical user interface (GUI) to allow neural signal visualization during in vivo experiments.

Jlpea 02 00211 g001 1024

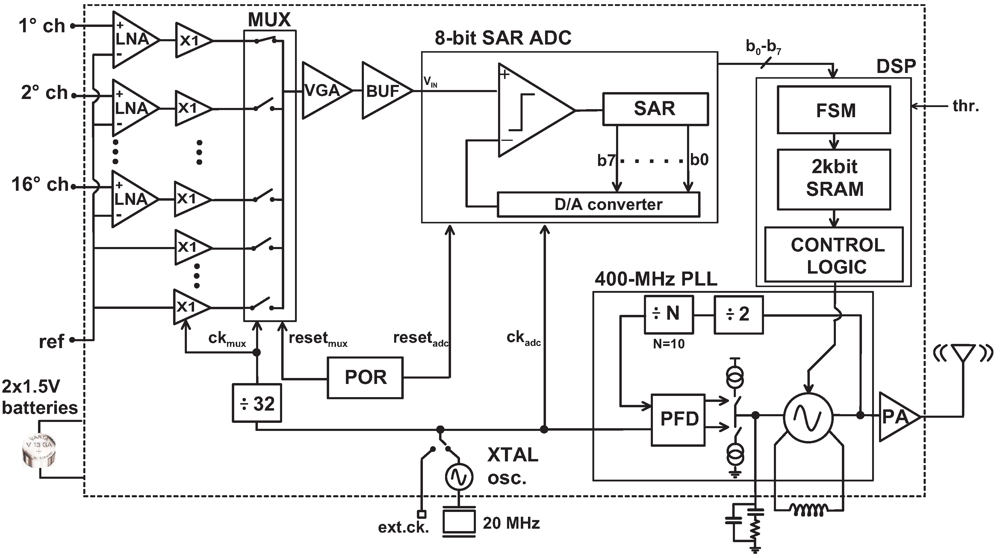

Figure 1. Block diagram of the wireless neural recording IC.

Click here to enlarge figure

Figure 1. Block diagram of the wireless neural recording IC.
Jlpea 02 00211 g001 1024

2.1. Wireless Recording Unit

Figure 1 shows the block diagram of the IC which acts as recording and transmitting module. The circuit consists of 16 low-noise amplifiers (LNAs), which perform low-power and low-noise amplification of neural signals. The amplifier outputs are sampled by a time-division multiplexer (TDM) at 20 kS/s onto one data lead before being further amplified by a variable-gain amplifier (VGA) and converted by an 8 bit successive approximation register (SAR) analog to digital converter (ADC). The digital data are then processed by a logic block, performing data compression, assembly and Manchester encoding of the bit stream. Finally, the digital signal is sent to a 400 MHz binary FSK wireless transmitter based on direct modulation of a Voltage Controlled Oscillator (VCO), enabling a 1.25 Mbit/s data rate. A crystal Clapp oscillator employing an external 20 MHz quartz and a power-on/reset (POR) circuit complete the system, providing a clean 20 MHz frequency clock and a synchronization signal at the start-up. It is worth pointing out that, to reduce silicon area and costs, only 16 amplifiers have been integrated. The remaining 48 channels have been added by connecting a voltage reference to the multiplexer input. In this way all the stages following the amplifier array are designed to process signals from a 64 channel front-end, thus making it possible to reliably assess the actual performance of a complete 64 channel system.

2.2. Receiver and Graphical User Interface

The receiver (see Figure 2) consists of a quadrature zero-IF down-converter (MAX3580) using an LNA with a noise figure of 4.7 dB at 400 MHz, RF and baseband tunable filters and automatic gain control circuits. The quadrature signals are converted by a dual channel, 20 MSps, 10 bit ADC (AD9201) and fed to a Xilinx FPGA module (OpalKelly, XEM3005), which performs frequency demodulation and Manchester decoding and sends the received data to a PC via a USB link. In addition, a Graphical User Interface (GUI) based on Labview/C software was implemented to allow data saving and on-line elaboration.

Jlpea 02 00211 g002 1024

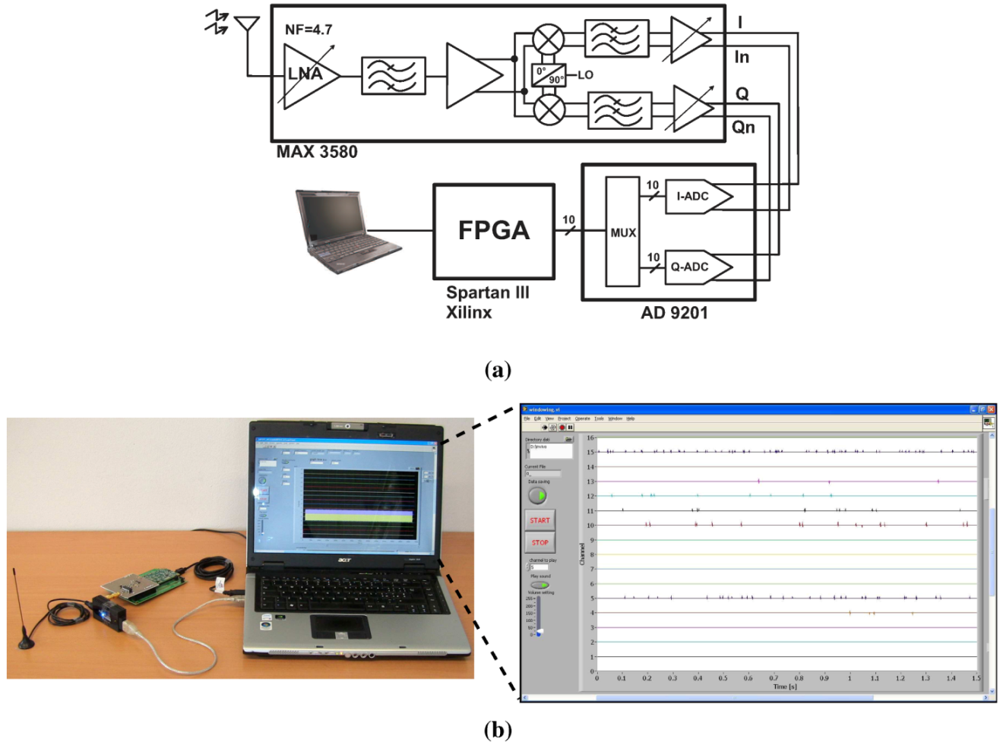

Figure 2. Block diagram of the receiver (a) and photo of the remote receiver with the detail of the graphical user interface (b).

Click here to enlarge figure

Figure 2. Block diagram of the receiver (a) and photo of the remote receiver with the detail of the graphical user interface (b).
Jlpea 02 00211 g002 1024

3. Circuit Design

3.1. Analog Front-End

Amplification and filtering of the input signal are performed by a three-stage circuit shown in Figure 3. The first stage is an AC-coupled high-pass filter, using two MOS-bipolar pseudo-resistors as feedback elements [10], which enables the synthesis of high-value resistances without using large-area components. The mid-band amplifier gain is given by Jlpea 02 00211 i030, set to –67 by taking Jlpea 02 00211 i032 pF and C2 = 150 fF. The high-pass pole frequency is placed below 10 Hz to reject the offset and the slow voltage drift of the electrode. A tunable GM -C high-pass filter with a cut-off frequency fHP of about 300 Hz is introduced after the first stage. It is designed to reject the low-frequency signals, such as Local Field Potentials (LFPs) in the Jlpea 02 00211 i039 Hz frequency range that can prevent a correct detection of the neural spikes or even saturate the amplifier, and cuts off the input-referred Jlpea 02 00211 i040 noise due to the pseudo-resistors of the first amplification stage. After the selective high-pass filter, a second non-inverting gain stage is added to provide further signal amplification and to define the high frequency cut-off, fLP. The stage is a single-ended capacitive-coupled voltage amplifier with a gain Jlpea 02 00211 i042, achieved by using Jlpea 02 00211 i043 pF and Jlpea 02 00211 i044 fF. A capacitive-coupled structure was preferred to a purely resistive feedback amplifier to minimize the current drawn by the OTA output stage. The DC voltage at the amplifier input is determined by the pseudo-resistor elements in the feedback path, while the low-pass cut-off frequency is set by the gain-bandwidth product of the operational amplifier (GBWP2 ) to about Jlpea 02 00211 i046 kHz. Note that at very low frequencies this non-inverting stage has a unity gain in order not to amplify the offset of the operational amplifier.

Jlpea 02 00211 g003 1024

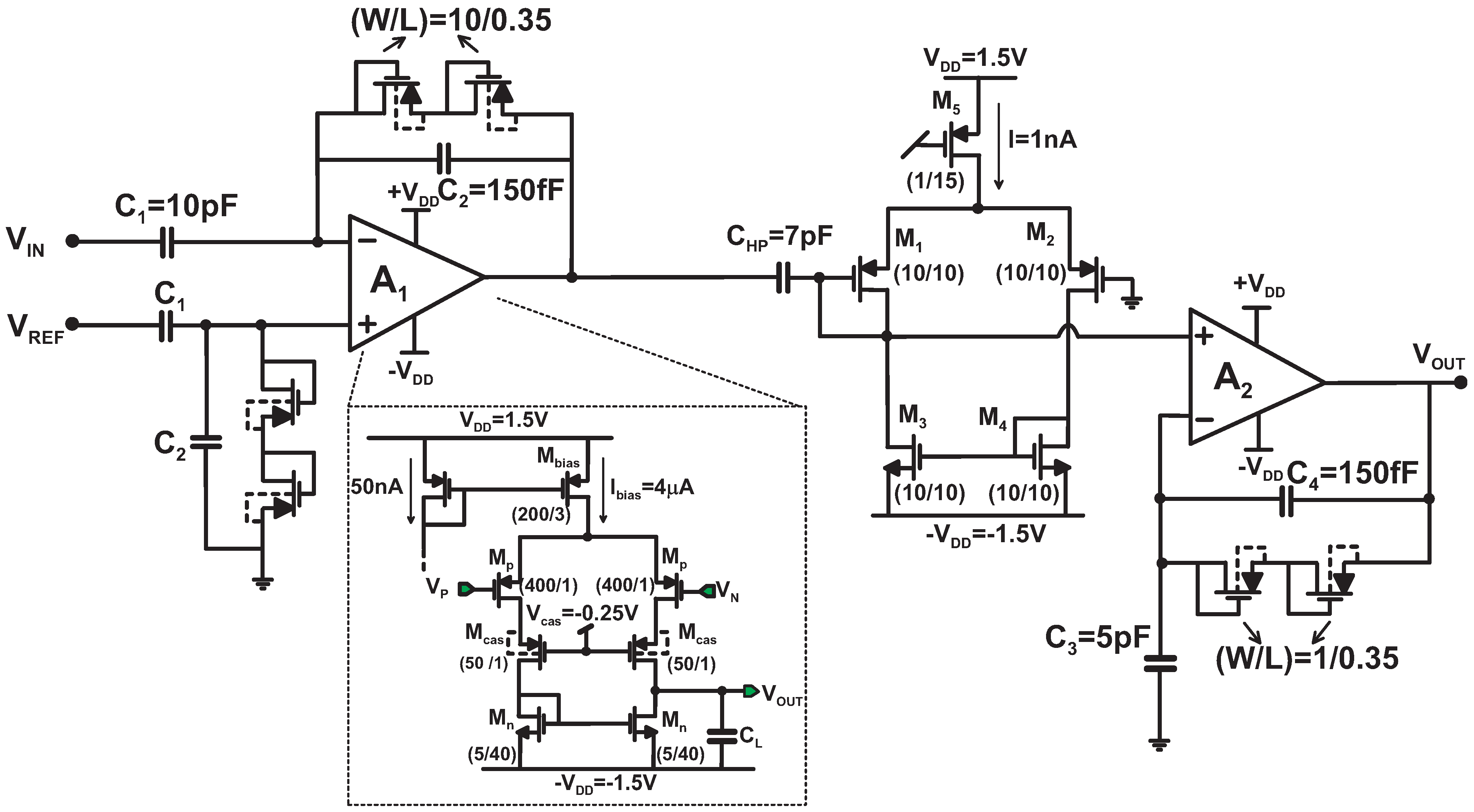

Figure 3. Schematic of the low-noise band-pass neural pre-amplifier.

Click here to enlarge figure

Figure 3. Schematic of the low-noise band-pass neural pre-amplifier.
Jlpea 02 00211 g003 1024

3.1.1. Noise Analysis and First Stage Sizing

In order to minimize the amplifier array power consumption while maintaining the input-referred noise specifications, a rigorous noise analysis of the preamplifier and filter has to be carried out following the approach adopted in [10]. The noise performance of the whole LNA depends on the design of the first-stage OTA, whose input noise power density is mainly determined by a compromise between its thermal and flicker noise. To explain this point, let us denote as Cp the input parasitic capacitance to ground of each input terminals of the first-stage OTA [11]. If we neglect the noise contribution due to the two pseudo-resistors (this term will be addressed in a next step), we can write the input-referred noise of the overall amplifier as:

Jlpea 02 00211 i049
where Jlpea 02 00211 i050 is the input-referred voltage noise of the first-stage OTA. Equation (1) highlights that Cp, which is mainly determined by the input transistor dimensions, cannot be increased too much without compromising the overall input-referred noise. On the other hand, it is well known that large-area input transistors are required to minimize the OTA flicker noise. Therefore, to achieve the best overall performance these two contradictory requirements have to be balanced. Furthermore, according to Equation (1), the first stage gain, G1, can be increased maximizing C1. Its value is limited by the electrode impedance, whose capacitive component is in the 160–320 pF range. The choice of C1 = 10 pF, C2 = 150 fF, thus Jlpea 02 00211 i055, results in an upper limit of 0.5 pF for the parasitic capacitance Cp. which guarantees sufficient margin to keep under control the 1/f noise at a cost of a marginal 10% increase in the overall amplifier noise with respect to the ideal OTA [see Equation (1)]. In such a design, Jlpea 02 00211 i059 and Jlpea 02 00211 i050 are almost the same; therefore, both terms will be denoted with the same symbol, Jlpea 02 00211 i059.

Table Table 1. Transistor operating points.

Click here to display table

Table 1. Transistor operating points.
Transistor Jlpea 02 00211 i060 [mV]ICgm [μA/V]ro [M Jlpea 02 00211 i064]
Mp 1100.07552.35.1
Mn 490517.76108
Mcas 240.3643.78.2

To minimize the noise, the first OTA stage has been designed as a simple telescopic cascode amplifier (see Figure 3). This well-known configuration guarantees excellent noise performance thanks to its few transistors, while cascoding and proper transistor sizing ensure enough gain. Straightforward analysis relates the input-referred noise power spectral density to the noise sources of the transistors, leading to:

Jlpea 02 00211 i068
The result has been derived by taking into account that the transistors Mbias and Mcas do not significantly contribute to the overall noise. To minimize the noise, the condition Jlpea 02 00211 i070 must be fulfilled, i.e., Jlpea 02 00211 i071. Under this assumption the total noise power density results:
Jlpea 02 00211 i072
with Jlpea 02 00211 i073 equal to 2/3 for transistors working in strong inversion or Jlpea 02 00211 i075 in weak-inversion ( Jlpea 02 00211 i076) [12]. In order to minimize the thermal noise without increasing the current consumption, the Mp transistors have to work in the weak inversion region, where the transconductance is maximum. Its value can be estimated from the EKV model [13], valid in all regions of inversion:
Jlpea 02 00211 i077
UT and IC being the thermal voltage and the inversion coefficient [12], respectively. The latter parameter is defined as:
Jlpea 02 00211 i080
and is much less than 1 in weak-inversion or subthreshold region. >From Equation (4), the overall-amplifier input-referred thermal noise power spectral density results:
Jlpea 02 00211 i081
with Ibias being the bias current of the telescopic cascode amplifier. Assuming a first-order roll-off of the frequency response, the noise bandwidth is Jlpea 02 00211 i083 kHz Jlpea 02 00211 i084 kHz. For an upper limit of 3 μVrms for the thermal noise contribution in this noise band, a minimal Ibias value of about 3 μA is required; to be conservative, we set Ibias = 4 μA .

With regard to the flicker noise, its contribution can be reduced by increasing the PMOS transistor area ( Jlpea 02 00211 i088). Considering that for the adopted technology Jlpea 02 00211 i089 V2F and Jlpea 02 00211 i091 5 fF/μm2 and setting a noise corner frequency lower than 100 Hz, the input PMOS transistors were sized with Jlpea 02 00211 i093m2. This sizing results into a stray OTA input capacitance Cp of approximately 500 fF, which does not excessively impair the equivalent input noise. Moreover, in order to fulfill the requirement Jlpea 02 00211 i071, the settings Jlpea 02 00211 i095m and Jlpea 02 00211 i096m were applied, thus forcing these devices to work in the strong inversion region (see Table 1). For this choice of the transistor lengths, cascoding of the input differential pair is needed to not to degrade the output resistance and, thus, to not to lower the amplifier gain. The introduction of Mcas guarantees an output resistance Jlpea 02 00211 i097 and an amplifier gain Jlpea 02 00211 i098 dB.

In summary, by careful transistor sizing, the noise within the amplifier band may be reduced to the sole thermal noise. Since in a generic amplifier a trade-off exists between noise and current consumption, its efficiency may be evaluated referring to the noise efficiency factor (NEF ), which is a parameter commonly adopted in literature, proposed in [14] and defined as:

Jlpea 02 00211 i100
where Jlpea 02 00211 i101 is the input-referred rms noise, Itot is the total supply current and BW is the bandwidth of the amplifier. In this limit, the minimum NEF achievable with a simple differential stage can be estimated from Equations (6) and (7) leading to a value of Jlpea 02 00211 i104 [15]. However, in our design the contribution to the thermal noise of the current mirror transistors cannot be completely neglected. In fact, even if Mp transistors work in weak-inversion and Mn FETs are biased in strong inversion region, the transconductance ratio is only about 7 (see Table 1). Considering the general expression of the transconductance given by Equation (4) and the total input-referred thermal noise given by the first two terms of Equation (2), the theoretical NEF for this preamplifier becomes:
Jlpea 02 00211 i105
where Jlpea 02 00211 i106, Jlpea 02 00211 i076 and ICn is the inversion coefficient of current mirror transistors. In reality, the NEF of the proposed amplifier is slightly larger compared to this theoretical limit for three main reasons:
  • The transconductance of the input transistors is slightly lower than Jlpea 02 00211 i108 since their inversion coefficient is larger than zero. For the present design, the input transistor IC is 1.075 (see Table 1), and consequently the rms input noise and the NEF increase by a factor of 1.034.

  • The input-referred noise of the overall amplifier is larger by a factor Jlpea 02 00211 i111 than the one of the first operational amplifier, as stated by Equation (1). Taking into account that the parasitic input capacitance is approximately 0.5 pF, mainly due to the OTA input transistors, this factor is equal to 1.065. A further contribution derives from the strays associated with the input capacitor plates that was drastically reduced by connecting the capacitor bottom plate (which has the largest parasitism) to the amplifier input and by connecting the top plate to the OTA terminal. In this way, a parasitic capacitance larger than 1.5 pF was avoided.

  • The current drawn by the second amplifying stage contributes to the total current in Equation (7) but does not lower the input-referred thermal noise. Therefore, the NEF increases by a factor of Jlpea 02 00211 i114, where I1 and I2 are the currents drawn by the first and the second operational amplifier respectively.

These three factors increase the estimated NEF of the overall amplifier to about 2.45.

Finally, note that the adoption of a telescopic cascode amplifier, known to have a small output dynamic, is not a limiting factor for the input signal amplitude. In fact, the positive voltage swing is Jlpea 02 00211 i118mV Jlpea 02 00211 i119 while the negative swing is about 1 V Jlpea 02 00211 i120, thus assuring a maximum amplitude for the input signal of about 7 mV.

3.1.2. Second Amplifying Stage

A second gain stage is needed to increase the amplitude level of the input signal before multiplexing. Since this stage requires a relative large output swing, a two-stages OTA can be employed. Provided that the first stage has enough gain, the impact of this second amplifier on the input-referred noise is negligible, and its power dissipation can be reduced without affecting the noise performance. In fact, the noise of the second op-amp is dominated by the input transistors, designed to operate in weak-inversion region. If we limit the contribution to the equivalent input noise added by the second stage OTA to less than 0.3 Jlpea 02 00211 i121 (i.e., 1/10 of the dominant contribution), a minimum current of 100 nA is needed in the input differential pair of the second op-amp. To be conservative, we set the bias current to 200 nA in the first stage, while a current of 100 nA is drawn by the second stage.

Finally, nonlinear distortion may be of some concern in the second stage. Distortion arises from the non-linear high-resistance pseudo-resistors placed in the feedback path, which is driven by a large output voltage swing. For this reason the subthreshold MOS transistors were sized to have resistance values an order of magnitude higher than those in the first stage. This choice makes the signal current flowing through them always several orders of magnitudes lower than the signal through the capacitors, limiting the measured Total Harmonic Distortion (THD) generated by the stage below 5% even if the pseudo-resistors were modulated by a 1.5 V peak-to-peak 1 kHz sinusoid.

3.1.3. High-Pass Filter Design and Optimization

Let us now consider the noise due to the MOS-bipolar pseudo-resistors that was neglected in Equation (2). It was experimentally verified that the noise spectral density of the pseudo-resistors complies with the usual equation:

Jlpea 02 00211 i125
where R is the small signal incremental resistance. This noise contribution to the OTA input-referred noise power spectral density follows a Jlpea 02 00211 i040 law and is given by:
Jlpea 02 00211 i127
where f1 is the cut-off frequency of the high-pass filter set by the first amplifier stage. The factor of 2 in Equation (10) accounts for the two pseudo-resistors, one in the feedback path and one connected to the positive input terminal of the operational amplifier. For simplicity, let us now neglect the presence of the selective high-pass filter following the first stage. By integrating Equation (10) from f1 to the low-pass cut-off frequency of the overall amplifier, fLP, we get:
Jlpea 02 00211 i129
which is independent of the cut-off frequency f1. From Equation (11) the contribution of the pseudo-resistors to the OTA input-referred noise is about 2.79 μVrms. This value is not negligible and explains why it is not convenient to implement the selective high-pass filter (i.e., the 300 Hz cut-off frequency high-pass filter) in the first stage, as this solution would degrade the noise performance. The GM -C high-pass filter is instead able to cut off most of the noise from the pseudo-resistors of the first stage, but a careful choice of the filter capacitor is needed to reduce its noise contribution. We will discuss this point in detail. Let us now suppose that f1 Jlpea 02 00211 i131 fHP, where fHP is the cut-off frequency of the GM -C high-pass filter. For frequency above f1, the input-referred power spectral density due to both the pseudo-resistors of the first stage and to the GM -C filter can be written as:
Jlpea 02 00211 i132
where Jlpea 02 00211 i133 is the output current noise of the high-pass filter. For simplicity, let us assume that the current noise generated by the GM cell ( Jlpea 02 00211 i134) can be written as Jlpea 02 00211 i135. Equation (12) becomes:
Jlpea 02 00211 i136
By integrating Equation (13) over the amplifier band, i.e., from fHP to fLP, we obtain:
Jlpea 02 00211 i137

The result suggests to reduce the first term by minimizing the Jlpea 02 00211 i138 ratio while a large capacitor value CHP is needed to reduce the second term. In practice, the GM cell is a simple differential stage (see Figure 3) whose bias current can be externally tuned. Because a small bias current (I Jlpea 02 00211 i141 1 nA) is needed to synthesize a high value resistance, all the transistors work in weak-inversion region and their transconductance is Jlpea 02 00211 i142. The current noise of this configuration is therefore:

Jlpea 02 00211 i143
The current noise of the GM cell is therefore a factor of Jlpea 02 00211 i144 larger than that of a resistor RHP and this factor has to be added in the second term of Equation (14).

In summary, in order to keep the input-referred noise due to the first stage pseudo-resistors and to the GM cell in the amplifier band lower than 1 μVrms, f1 has to be at least a factor of 10 smaller than fHP and CHP must be greater than 2 pF. The two pseudo-resistors in the first stage of the circuit in Figure 3 were designed to have Jlpea 02 00211 i147 Hz (with Jlpea 02 00211 i148 Hz) and Jlpea 02 00211 i149 pF.

3.1.4. Line Buffer and Multiplexer

A circular shift register, controlled by a 625 kHz clock (ckmux in Figure 1), sequentially enables each amplifier to access the common data lead; each pass gate switches on both the rising and the falling edge of the multiplexer clock, avoiding clock transitions in the middle of the sampling window. As in this topology each amplifier has to drive a long routing line connecting all the pass-gate outputs, a class-AB buffer is needed to boost the line. To save power, each buffer is switched off when the corresponding amplifier is not selected and turned on when the previous amplifier is selected (i.e., one clock edge before). In this way, at any time, only two buffers are powered, draining about 25 μA each from the supply. Further amplification is provided before sampling by a variable-gain amplifier (VGA) added to the amplification chain at the multiplexer output. The gain can be digitally varied between 1 to 8 by means of two auxiliary control bits.

3.2. Analog to Digital Converter

The multiplexed and amplified signal is then converted into a digital form by an 8 bit SAR ADC (see Figure 1). This topology is well-suited for low power and small-area applications since it requires a minimal amount of analog circuitry. To save area, analog multiplexing of input signals, requiring only one AD converter, was employed even though it resulted in a small power penalty with respect to the use of one converter per each amplifier and digital multiplexing of data [16].

The number of the converter bits was chosen taking into account the following considerations:

  • The maximum amplitude for an extra cellular action potential is ~ 1 mV [17] while the minimum signal is about 10 μV, the latter being determined by the typical input noise due to neural background activity and electrode impedance [18]. Therefore, the ratio between the Full Scale Range (FSR) and the ADC least significant bit, i.e., the dynamic range of the converter, should be better than 1 mV/10 μV Jlpea 02 00211 i154 100 . This results in a converter resolution larger than 6.35 bit.

  • The ADC quantization noise has to be kept much lower than the minimum detectable signal, i.e., the rms input noise. This requirements translates into:

    Jlpea 02 00211 i156
    where G is the amplifier gain and n is the number of converter bits. The worst-case condition occurs for the minimum gain of the amplification chain, which is set by the ratio between the FSR and the maximum amplitude of the input signal, Amax :
    Jlpea 02 00211 i160
    In the present design we set Gmin Jlpea 02 00211 i141 2000 and thus:
    Jlpea 02 00211 i163

In practice, taking into account that the effective number of bit (ENOB) is always lower than the nominal figure, the use of an 8 bit ADC will provide a safe margin for the design. A higher resolution is useless and harmful since it would increase the ADC power consumption.

The ADC consists of three main parts: the capacitor array, the comparator and the logic block performing the successive-approximation algorithm. The capacitor array, which acts as sampling capacitance during the sampling interval and as charge-sharing DAC during the conversion period, has been implemented as a binary array. The value of the unit capacitance, CLSB, was chosen considering two requirements:

  • The noise in the sampling phase has to be significantly smaller than the quantization noise. Thus, the total capacitance of the array, CTOT, must satisfy the condition:

    Jlpea 02 00211 i166
    which clearly is not a limit factor, resulting in CTOT much larger than about 1 fF.

  • The LSB capacitance has to be sufficiently accurate and it has to fulfill the following requirement [19]:

    Jlpea 02 00211 i167
    where Jlpea 02 00211 i168m and Ac are the Pelgrom mismatch parameter and the least significant bit (LSB ) capacitor area, respectively. Jlpea 02 00211 i169From Equation (20) Ac has to be larger than (4.5 μm)2, which implies Jlpea 02 00211 i173 fF, considering a specific capacitance of 1 fF/μm2.

Taking into account also the effect of parasitic capacitance that can degrade the achievable accuracy, Jlpea 02 00211 i174 fF was employed as unit capacitor, resulting in a total capacitance of Jlpea 02 00211 i175 pF.

The comparator was implemented as a classical two-stage topology, as depicted in Figure 4. A 20 dB gain preamplifier is followed by a PMOS latch stage and a couple of inverters are connected at the latch outputs to regenerate the signals. The two-stage architecture was preferred to a dynamic latch in order to avoid kickback noise and metastability [20,21].

The successive approximation logic has been implemented as a synchronous full-custom logic. The A/D converter works with a clock frequency of 20 MHz, providing 1.25 MS/s, i.e., about 64 channels Jlpea 02 00211 i176 kS/s per channel. Hence, a conversion period lasts 16 clock cycles (see Figure 5): The sampling phase lasts 7 clock periods to relax the specs of the input signal buffer, while every bit decision takes one clock period, starting from the most significant bit (MSB ). The last clock cycle is reserved for the end-of-count (EOC) operations. The current consumption of input buffer and A/D converter are 250 and 410 μA, respectively.

Jlpea 02 00211 g004 1024

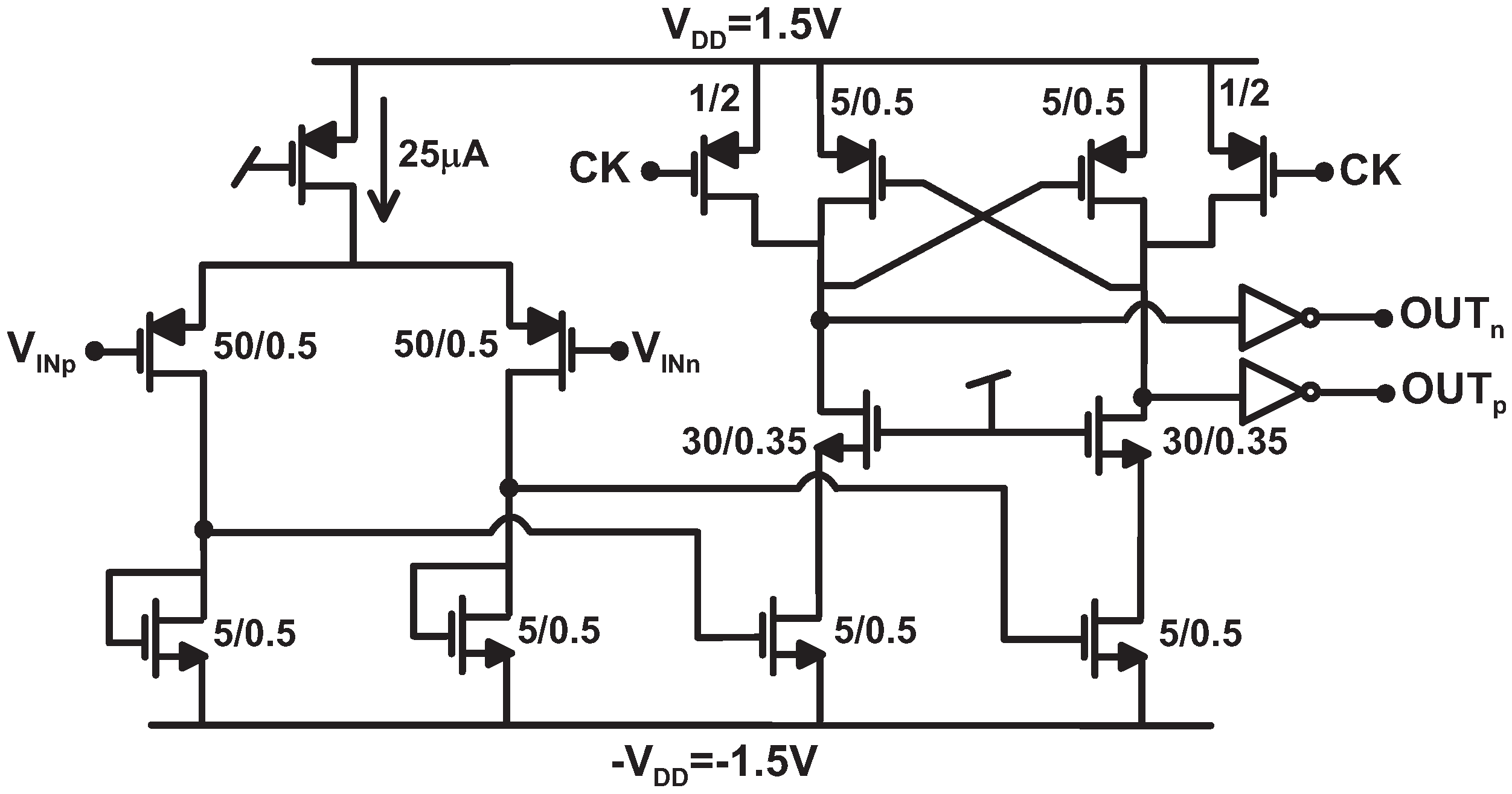

Figure 4. Schematic of the two-stage comparator. A preamplifier is followed by a cascoded semi-latch to avoid kickback noise and metastability.

Click here to enlarge figure

Figure 4. Schematic of the two-stage comparator. A preamplifier is followed by a cascoded semi-latch to avoid kickback noise and metastability.
Jlpea 02 00211 g004 1024
Jlpea 02 00211 g005 1024

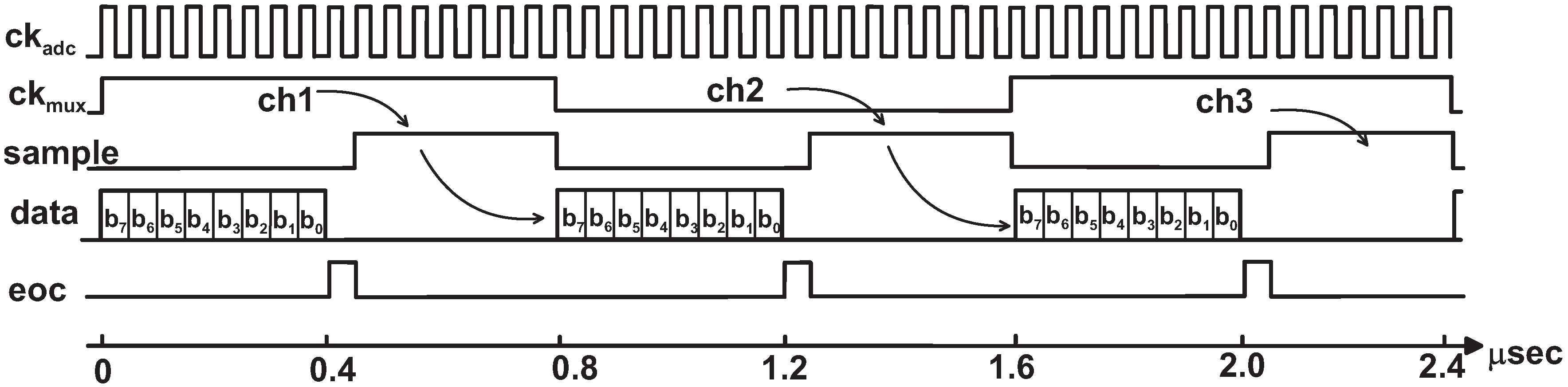

Figure 5. Time diagram of conditioning circuit and ADC.

Click here to enlarge figure

Figure 5. Time diagram of conditioning circuit and ADC.
Jlpea 02 00211 g005 1024

3.3. Digital Signal Processing

The implemented data reduction system takes advantage of the low duty cycle of the neural activity to eliminate transmission of useless signal containing only noise. Spike duration and firing rates are typically lower than 1 ms and 100 Hz [22], respectively. A finite-state machine (FSM in Figure 6) compares each incoming digital sample with a user-programmable digital threshold, i.e., an 8 bit word stored in the embedded SRAM. When the threshold is crossed, 20 samples of the signal from the same channel are recorded, covering a 1 ms time frame (see Figure 7). This strategy was chosen taking into account that a clear identification of APs requires the detection of three features, namely the amplitude of the peak and the trough and the time interval between them [22], which can be extracted with enough resolution by using 20 samples, even for the fastest spikes. The threshold can be set by the user before the recording starts, choosing among four predefined digital words: “x1000000 ”, “x0100000 ”, “x0010000 ” and “x0001000 ” (corresponding to 1/2, 1/4, 1/8 and 1/16 of half the ADC full scale range). Since the spike can have a first peak either positive or negative and the baseline is at the middle of the ADC range, the threshold is either positive and negative for each sample. For example, considering the first threshold, the FSM is triggered if the incoming sample is larger than “11000000 ” or lower than “01000000 ”. If the gain of the amplification chain is set to the maximum value (83 dB Jlpea 02 00211 i141 14000 ), these four thresholds correspond to an input-referred amplitude of ± 54 μV, ± 27 μV, ± 13 μV and ± 7 μV.

Jlpea 02 00211 g006 1024

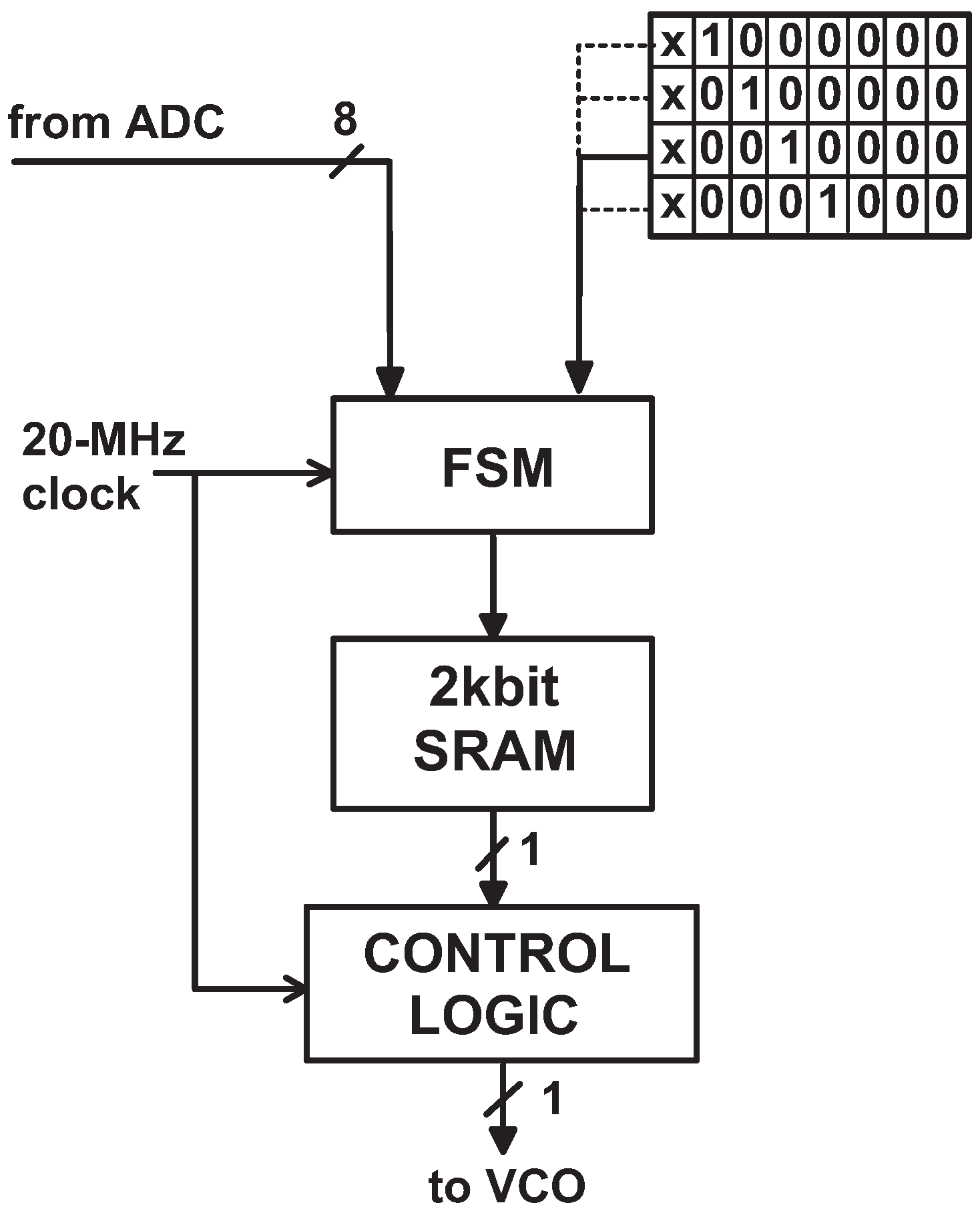

Figure 6. Block diagram of Digital Signal Processing.

Click here to enlarge figure

Figure 6. Block diagram of Digital Signal Processing.
Jlpea 02 00211 g006 1024
Jlpea 02 00211 g007 1024

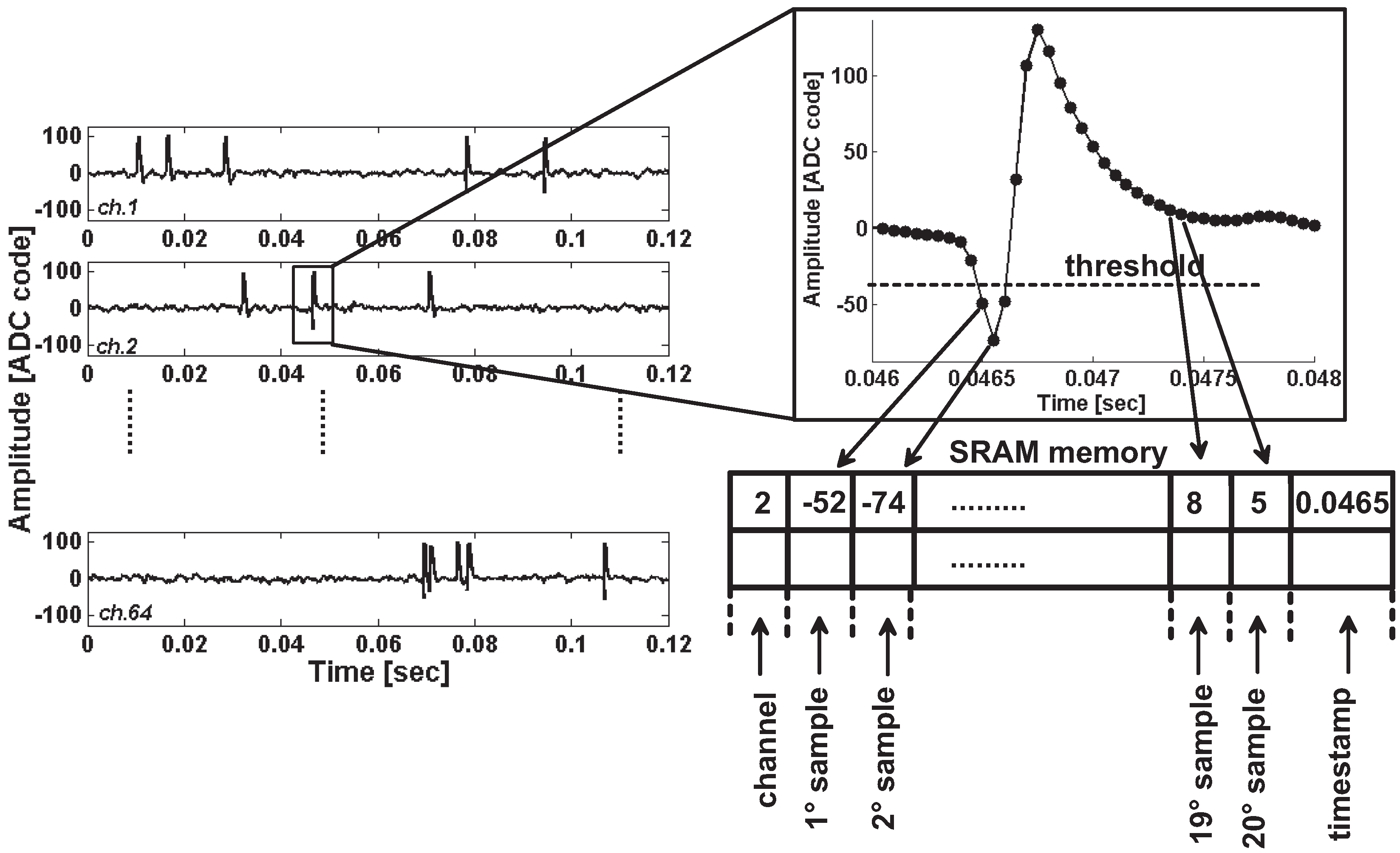

Figure 7. Data compression algorithm: when a spike is detected, 20 digital samples are stored in the embedded memory, together with channel address and timing stamp information.

Click here to enlarge figure

Figure 7. Data compression algorithm: when a spike is detected, 20 digital samples are stored in the embedded memory, together with channel address and timing stamp information.
Jlpea 02 00211 g007 1024

The recorded samples are stored in a 2 kbit embedded memory (SRAM in Figure 6) together with the channel address and the timing stamp, both with a 8 bit resolution. Each spike is then compressed in 22 bytes. The SRAM is continuously read at 1 Mbit/s rate by the control logic block, which adds service bits for synchronization at the receiver and then performs Manchester encoding of the bit stream. The final data rate reaching the transmitter is 1.25 Mbit/s. The memory read speed was determined by taking into account two aspects:

  • the lower the read speed, the higher the compression factor is; 1 Mbit/s read speed results in a compression factor of 10 (from 10.24 Mbit/s, corresponding to 64 channels sampled at 20 kHz per channel and 8 bit per sample, to 1.25 Mbit/s data rate) and allows saving a considerable amount of power and bandwidth at the transmitter side;

  • considering the worst-case scenario of 64 channels firing at 100 spike/s and 20 samples per spike with an 8 bit resolution, the average data throughput is about 1 Mbit/s.

The memory was sized to reduce missed spikes when burst activity is present. Monte-Carlo simulations were performed considering that the neural firing rate follows a Poisson statistics. Figure 8 shows the missing spike percentage as a function of the average firing rate for each of the 64 channels and for different memory sizes. Opting for 1 Mbit/s read speed and 2 kbit RAM size, the missing spike percentage is less than 0.1% for 64 channels firing at 50 spikes/s and less than 10% for all channels firing at 100 spikes/s. With these choices, the memory is able to store spikes that occur in the same 1 ms frame in 11 consecutive channels before missing a spike. Each AP is transmitted, once completely stored, in 176 μs and thus the worst-case latency time (time difference between the detection and the transmission of an AP) is about 2.9 ms, which is not an issue both in neuroscience experiments and in future prosthetic applications [23].

Jlpea 02 00211 g008 1024

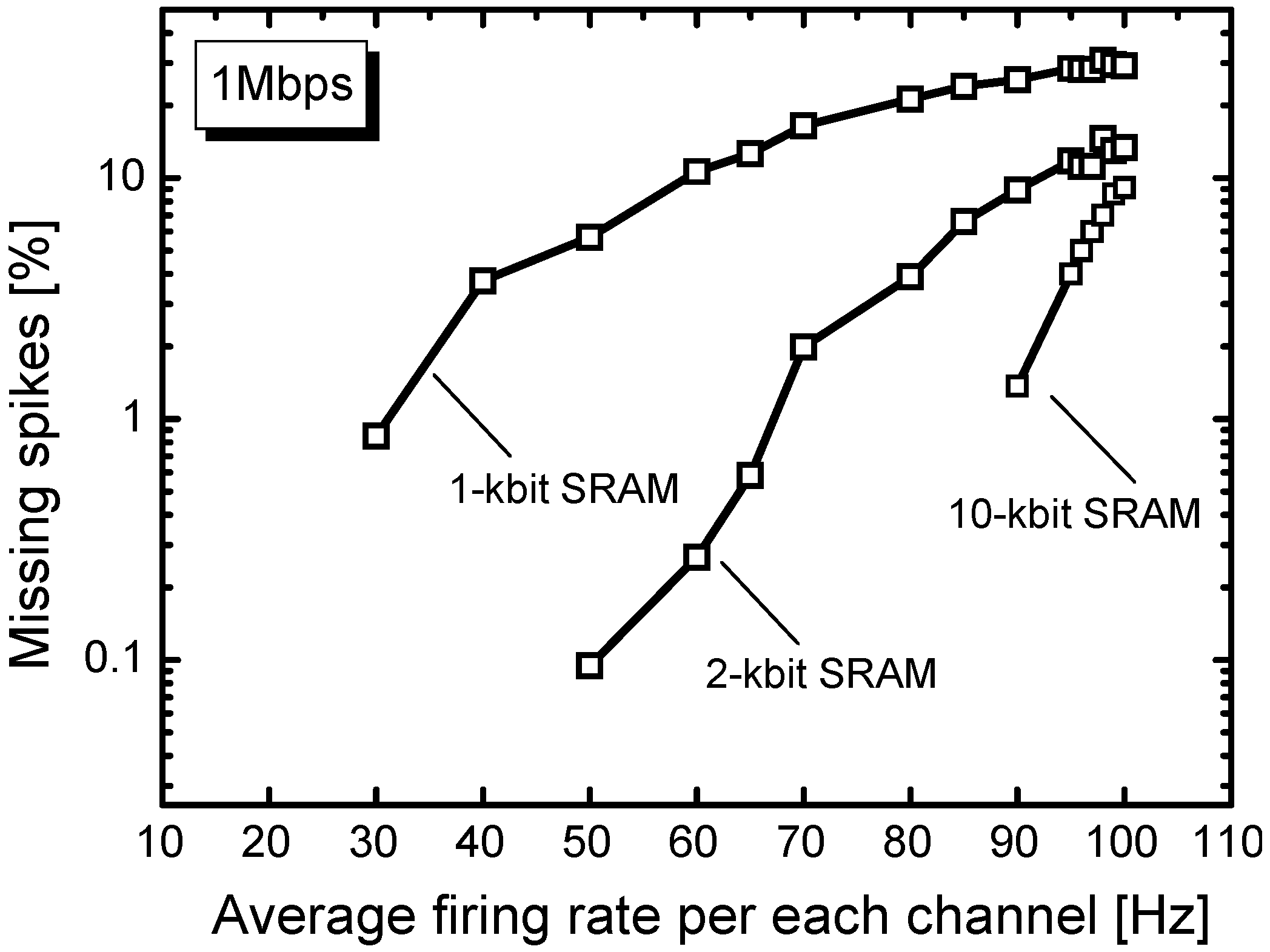

Figure 8. Missing spike percentage as a function of the average firing rate per channel for different memory sizes and for a read speed of 1 Mbit/s.

Click here to enlarge figure

Figure 8. Missing spike percentage as a function of the average firing rate per channel for different memory sizes and for a read speed of 1 Mbit/s.
Jlpea 02 00211 g008 1024

The validity of the data-reduction algorithm was tested by running a custom clustering software that employed fuzzy c-means spike sorter [24,25] on a data set from a public source [26] with spike waveforms hardly distinguishable one from each other (see Figure 9). The ratio between the peak-to-peak spike amplitude and the rms noise was approximately 10 . Clustering based on Principal Component Analysis (PCA) was performed on original data containing spikes from three different neurons and on the same data but reduced according to the above windowing strategy. Figure 9 shows that clustering on the reduced data set leads to clear separation of the three spike families, with identification errors reported in Table 2. Two types of error occur in a PCA-based clustering: type I errors occur when APs from two different neurons are grouped together (false positives), whilst type II errors occur when not all APs generated by one neuron are grouped together (false negatives). When applied to the original dataset, the PCA-based identification procedure leads to type I/type II mean error rates of 4.1%–5.2%, respectively. The reduced data sets showed 4.6%–5.3% values, thus demonstrating that the reduction strategy preserves the quality needed for effective neuron identification. These results are not surprising considering that, as stated in [22], more than 80% of neural spike information is carried by three analog features of the AP waveform, namely the peak and the through amplitudes and the time between them. The results of spike sorting using these analog features [27] and performed on the same trace are also reported in Table 2. Note that the compression method employed in this work always outperforms the clustering obtained using only these three features. Finally, it is worth nothing that the current consumption of the overall digital signal processing is limited to about 400 μA, most of which consumed by the finite-state machine.

Jlpea 02 00211 g009 1024

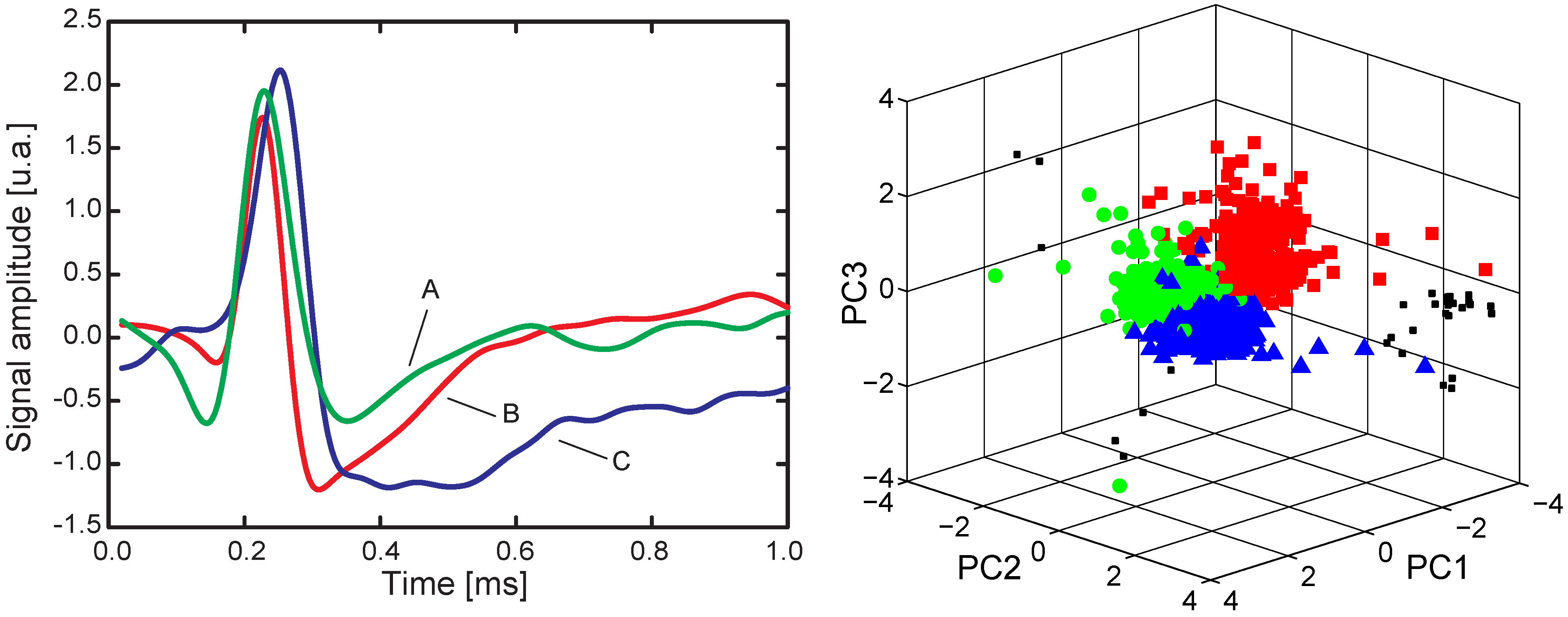

Figure 9. Waveforms of neural spikes and PCA-based clustering results employing the proposed windowing strategy, i.e., processing 20 samples after the threshold crossing.

Click here to enlarge figure

Figure 9. Waveforms of neural spikes and PCA-based clustering results employing the proposed windowing strategy, i.e., processing 20 samples after the threshold crossing.
Jlpea 02 00211 g009 1024
Table Table 2. Sorting results.

Click here to display table

Table 2. Sorting results.
AP classOriginalReducedPeak-trough-width
Error typeIIIIIIIII
A (379)4.1%6.9%3.1%2.9%23%22%
B (389)2.1%3.3%3.7%6.9%12%18%
C (401)6.2%5.5%6.9%6.0%17%30%

3.4. Manchester-Coded FSK Modulator

The 1.25 Mbit/s bit stream is transmitted using a Manchester-coded binary Frequency Shift Keying (MC-2FSK) modulation at a carrier frequency of 400 MHz. The transmitter (see Figure 10) consists of a voltage-controlled oscillator (VCO) directly modulated by the digital data, inserted in a Phased-Locked Loop (PLL). Since the modulator is a power-hungry system, the design of the whole PLL, and in particular of the high-frequency oscillator, has to be carried out with great care.

Jlpea 02 00211 g010 1024

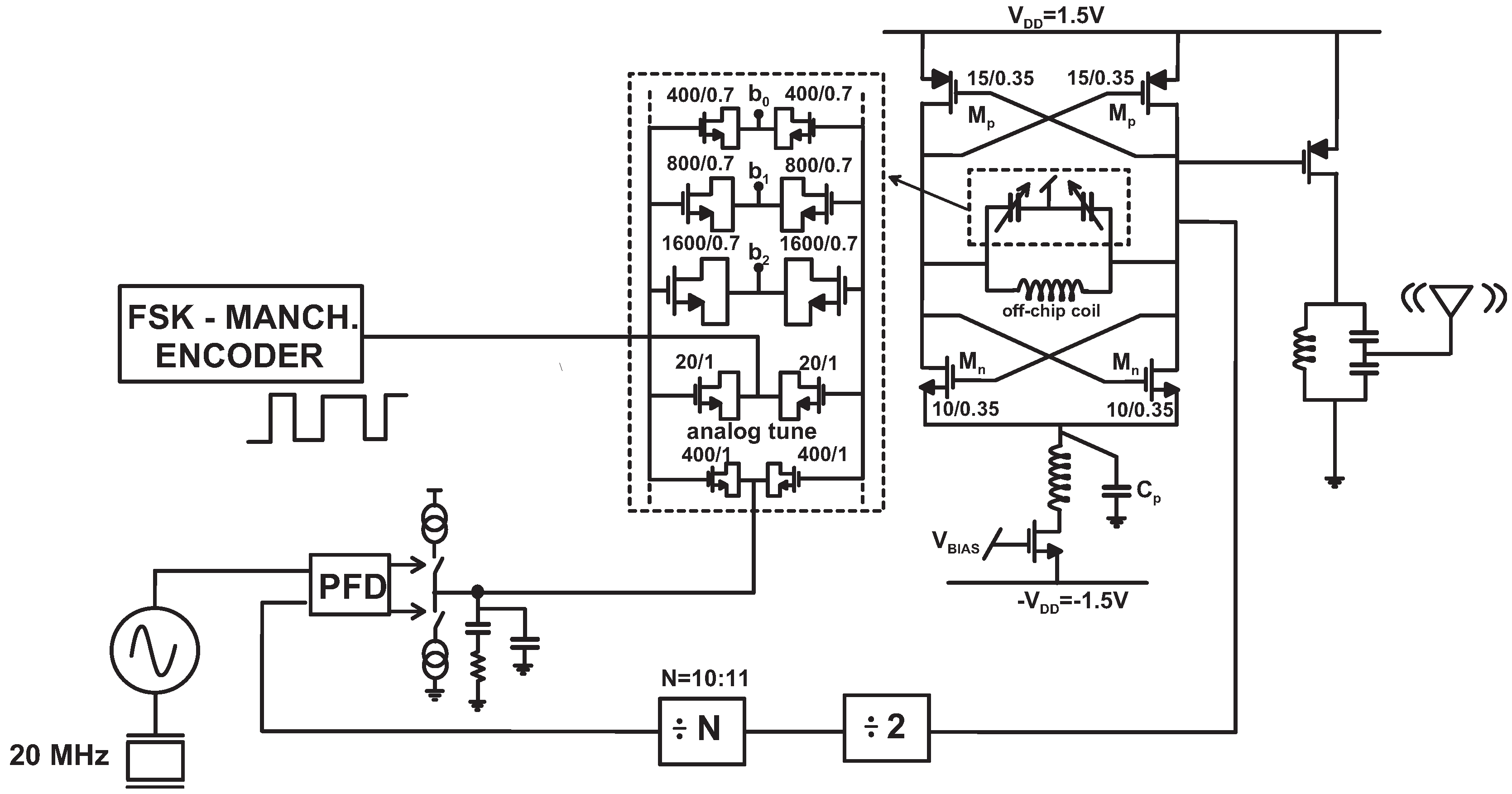

Figure 10. Schematic of the Phased-Locked Loop adopted as frequency synthesizer and modulator. The Manchester-coded data stream directly modulates the VCO. The Power Amplifier adopts an external resonant filter to efficiently deliver power to the antenna allowing long transmission range.

Click here to enlarge figure

Figure 10. Schematic of the Phased-Locked Loop adopted as frequency synthesizer and modulator. The Manchester-coded data stream directly modulates the VCO. The Power Amplifier adopts an external resonant filter to efficiently deliver power to the antenna allowing long transmission range.
Jlpea 02 00211 g010 1024

The oscillator has a current-biased topology with double cross-coupled pair transconductor. This oscillator architecture allows to minimize the current consumption for a given phase noise with respect to the topology featuring a single differential pair transconductor [28]. In order to accurately set the PLL output frequency at the desired value of 400 MHz and to compensate for process, temperature and power-supply variations, the oscillator has to span over ±10% of its central frequency, i.e., a band of about ±40 MHz. This means that the capacitance has to be varied as:

Jlpea 02 00211 i210
f0 is the central oscillation frequency (400 MHz), Jlpea 02 00211 i212 the covered band of 80 MHz and C the tank capacitor. To make the oscillation frequency insensitive to the parasitic capacitance of the active devices, routing, pads and package pins (the inductor is off-chip), the tank capacitance has to be set in the pF range. Thus, we designed the oscillator with C tunable from 6 pF to 11 pF, determining an inductance value of about 20 nH. The tank capacitance is implemented by three digitally-controlled binary-weighted NMOS inversion-mode varactors that perform coarse tuning of the oscillation frequency and an analog NMOS inversion-mode varactor for fine-tuning of the frequency, enabling to close the loop of the PLL. Another small NMOS varactor is also adopted for frequency modulation.

Once the tank parameters have been determined, the current IBIAS of the tail generator and the (W/L) ratio of the pair transistors have to be chosen taking into account the following considerations:

  • The small-signal loop gain or excess gain [29] of the oscillator (gmRTANK, where gm is the small-signal transconductance of the double differential-pair and RTANK is the tank equivalent parallel resistance) has to be larger than 1 in order to assure the oscillation start-up. Since the common-mode output voltage of the oscillator is set to the half of the power supply to maximize the oscillation swing, i.e., Jlpea 02 00211 i219 V, we have:

    Jlpea 02 00211 i220
    corresponding to a current larger than Jlpea 02 00211 i221 μA. Note that in Equation (22) it was assumed that the overall transconductance gm of the double differential-pair is equal to the single MOS transconductance and that NMOS and PMOS transistors have the same overdrive voltage, Vov = Jlpea 02 00211 i060 = Jlpea 02 00211 i223 V Jlpea 02 00211 i141 0.8 V.

  • The differential oscillation amplitude, A0, has to be sufficiently large ( Jlpea 02 00211 i226 1.5 V) to drive the subsequent stages, i.e., the frequency dividers and the power amplify. Since

    Jlpea 02 00211 i227
    where Q is the tank quality factor [30], the current IBIAS is minimized adopting an inductor with the maximum quality factor. We opted for an off-chip inductor of 21 nH featuring a Q of about 70 at 400 MHz. This choice results in a current larger than 320 μA to achieve the desired voltage amplitude.

  • The VCO phase noise, which mainly determines the phase noise of the whole synthesizer at a frequency offset larger than the PLL loop bandwidth, has to be sufficiently lower in order not to worsen the Signal-to-Noise-Ratio (SNR ) of the modulated signal. This can be evaluated as Single-Sideband to Carrier Ratio, i.e., as the ratio of the power in a 1 Hz bandwidth at an offset Jlpea 02 00211 i232 from the fundamental angular frequency Jlpea 02 00211 i233 and the power of the carrier, giving [31]:

    Jlpea 02 00211 i234
    where F is the noise factor of the transconductor ( Jlpea 02 00211 i236). From behavioral simulations, the phase noise at 1 MHz offset from the carrier has to be lower than –120 dBc/Hz to not to degrade the frequency modulated signal.

  • A resonant filter (at twice the oscillation frequency) connected to the source of the NMOS differential pair transistors (see Figure 10 and Figure 11) can be added to reduce flicker noise up-conversion into phase noise, which can severely limit the VCO performance [29].

For Jlpea 02 00211 i238 μA, C in the 6–11 pF range and Jlpea 02 00211 i239, the excess gain is approximately 2 and the oscillation amplitude is larger than 2 V, preventing the tail current generator to enter the ohmic region and avoiding a phase noise degradation. Moreover, these choices ensure that the phase noise is not an issue being better than 1–50 dBc/Hz at 1 MHz frequency offset.

The VCO is followed by a cascade of a divide-by-2 dynamic logic prescaler and a static modulo-10 CMOS counter, which further divides the frequency by 10 . The PLL reference is the same 20 MHz master clock, allowing the loop to set the oscillation frequency at 20 times the reference clock, i.e., 400 MHz. The PLL also includes a phase-frequency detector with a charge-pump driving an RC -C off-chip filter (see Figure 10), which sets the loop bandwidth to 50 kHz. Excluding the VCO, the power consumption is mainly due to the high-frequency prescaler, which draws more than 200 μA. The current consumption of the whole synthesizer is about 700 μA.

The synthesizer frequency is modulated in an open-loop mode by the data at 1.25 MHz, i.e., at 1.25 Mbit/s rate with Manchester encoding. Thus, the loop is open for the frequency modulation since the PLL bandwidth is significantly lower than the bit-rate. This prevents the PLL to filter out the induced frequency modulation. The only purpose of the loop is to fix the central oscillation frequency in order to avoid frequency drift due to temperature and power supply variations. To limit the occupied bandwidth, a frequency deviation of about ±400 kHz was adopted. Considering a modulation frequency of 1.25 MHz, this value corresponds to a modulation index of 0.64. The bandwidth of the transmitted signal is determined by the Carson rule [32]:

Jlpea 02 00211 i244
where Jlpea 02 00211 i245 and fm are the peak frequency deviation (400 kHz) and the frequency modulation (1.25 MHz), respectively.

3.5. Power Amplifier

The transmitter is completed by a class-AB power amplifier (PA) that drives a 50- Jlpea 02 00211 i064 antenna via an off-chip resonant filter. The PA consists of an open-drain PMOS transistor directly connected to the oscillator output, sized in order to draw about 3.5 mA. Thus, the power delivered to the antenna is about 0 dBm considering a reasonable efficiency of 10%. The output power, and thus the power consumption of the PA, were set after estimating the sensitivity of the receiver, which depends on the modulation type, the signal bandwidth and the noise factor of the receiver itself. The receiver input noise in the signal bandwidth of 3 MHz is:

Jlpea 02 00211 i249
where F is the noise factor of the receiver, which was assumed to be equal to 10 dB in the above equation. For a low modulation index Manchester-encoded modulation, the SNR required at the receiver input to ensure a bit error rate (BER ) lower than Jlpea 02 00211 i251 is Jlpea 02 00211 i252 dB [33]. Thus the input power needed at the receiver is:
Jlpea 02 00211 i253
Once the receiver sensitivity has been computed, it is possible to set the PA power to achieve a desired transmission range. Taking into account the Friis transmission equation, the ratio of power available at the input of the receiving antenna, PR, to the output power of the transmitting antenna, PT, is:
Jlpea 02 00211 i256
where GT and GR are the gains with respect to an isotropic radiator of the transmitting and receiving antennas, respectively, Jlpea 02 00211 i259 is the wavelength, and d is the distance between the antennas. While the receiver antenna is a dipole antenna and its gain can be estimated to be 0 dB, the transmitter antenna is a whip antenna with a gain that can be as low as –20 dB. Note that Equation (28) represents the power at the receiver antenna that is supposed to be matched with the receiver. Thus, the receiver input power is 3 dB lower. Thus, considering Equation (28) and setting the maximum transmission distance to 10 m, the power needed at the transmitter antenna is 11 dBm, where a 3 dB factor accounting for the matching between the receiver antenna and the receiver itself is considered. Finally, to have a safety margin, a PA featuring a 0 dBm output power was designed.

4. Experimental Results

4.1. Electrical Characterization

Jlpea 02 00211 g011 1024

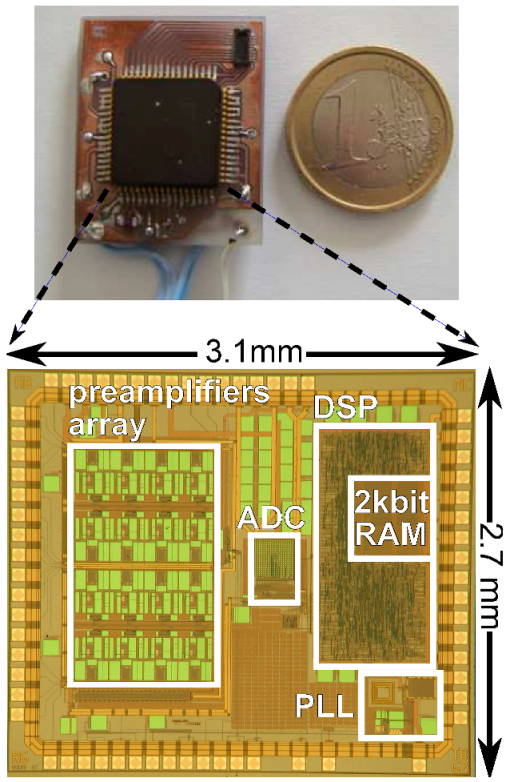

Figure 11. Photo of the board adopted during the neuroscience experiments with rats and microphoto of the die.

Click here to enlarge figure

Figure 11. Photo of the board adopted during the neuroscience experiments with rats and microphoto of the die.
Jlpea 02 00211 g011 1024

The chip was fabricated in AMS 0.35 μm, 3 V 4M2P CMOS process and occupies a total area of Jlpea 02 00211 i263mm2, pads included (see Figure 11). The preamplifier has a mid-band gain of about 65 dB, a high frequency cut-off of 10.5 kHz and a low-frequency cut-off tunable from 1 Hz to 1 kHz (see Figure 12). The input-referred noise, for Jlpea 02 00211 i148 Hz, is 3.05 μV, while the current consumption is 4 μA for the first stage, 0.001 μA and 0.3 μA for the Jlpea 02 00211 i270 high-pass filter and the second amplifying stage respectively, resulting in an overall NEF of 2.5. The input-referred power spectral density is shown in Figure 13 for different values of the GM -C filter high-pass corner frequency. The plateau of –152 dBV2 /Hz corresponds to an input-referred noise of about (25 nV)2 /Hz, close to the expected value. Note that, for Jlpea 02 00211 i148 Hz, the Jlpea 02 00211 i040 input-referred noise is mainly due to the GM -C high-pass filter, as predicted by Equation (14). The common-mode rejection ratio (CMRR ) and the power supply rejection ratio (PSRR ) of the overall pre-amplifier are higher than 65 dB and 50 dB, respectively, while the cross-talk between adjacent channels due to the analog multiplexing is lower than –40 dB.

Jlpea 02 00211 g012 1024

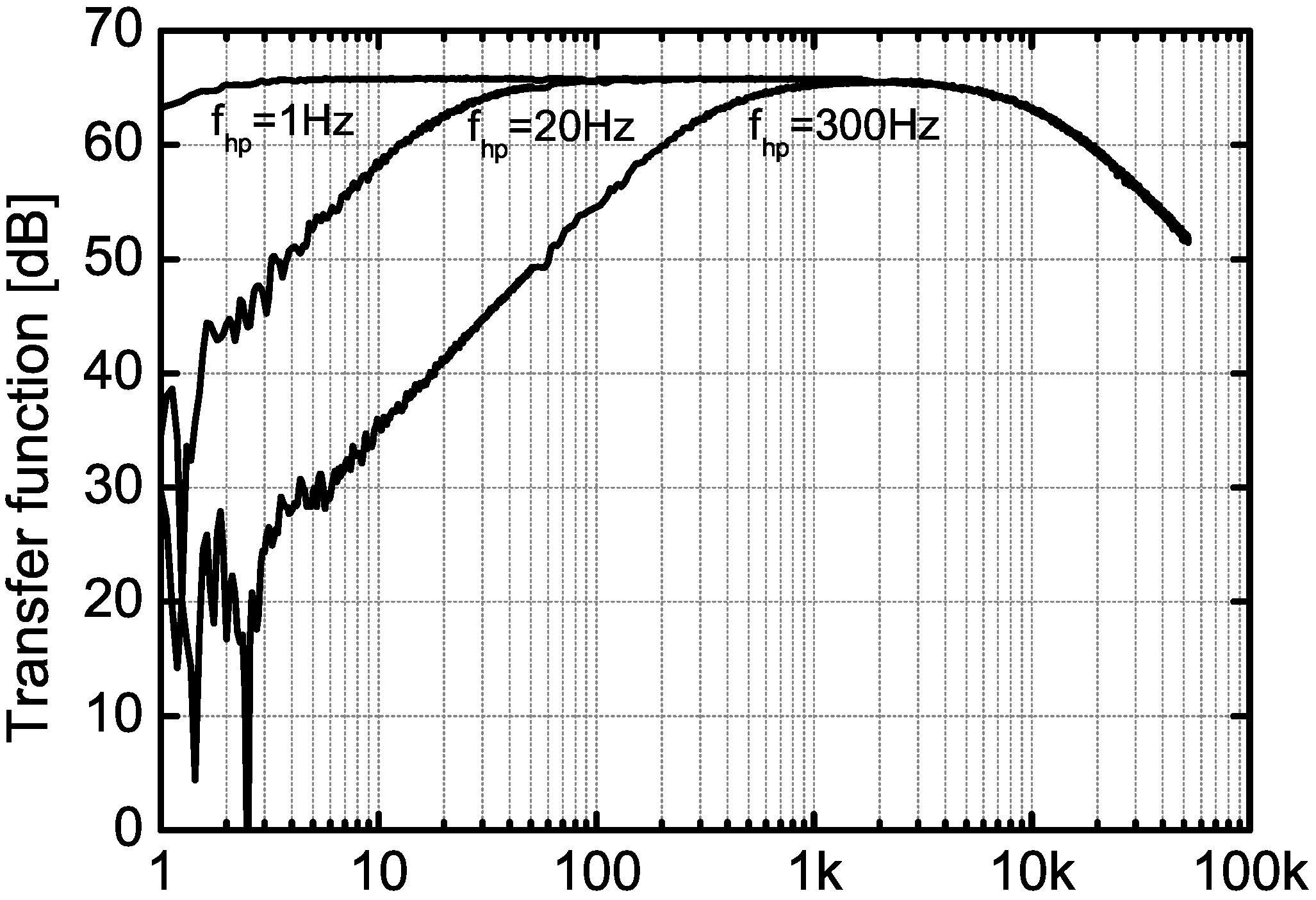

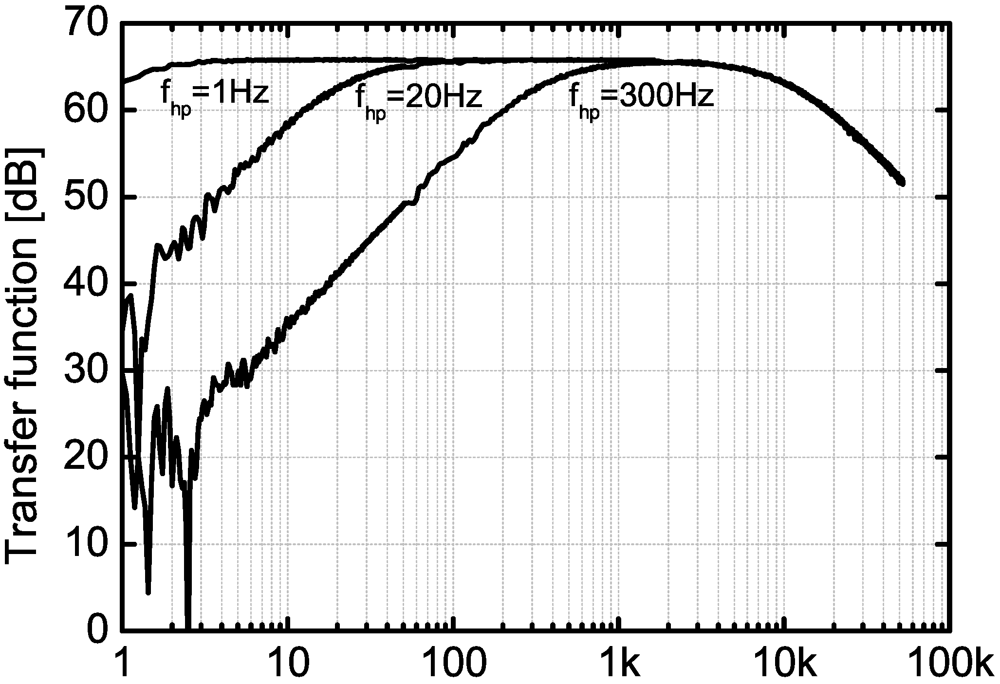

Figure 12. Measured transfer function for different high-pass corner frequencies set by the GM -C filter.

Click here to enlarge figure

Figure 12. Measured transfer function for different high-pass corner frequencies set by the GM -C filter.
Jlpea 02 00211 g012 1024
Jlpea 02 00211 g013 1024

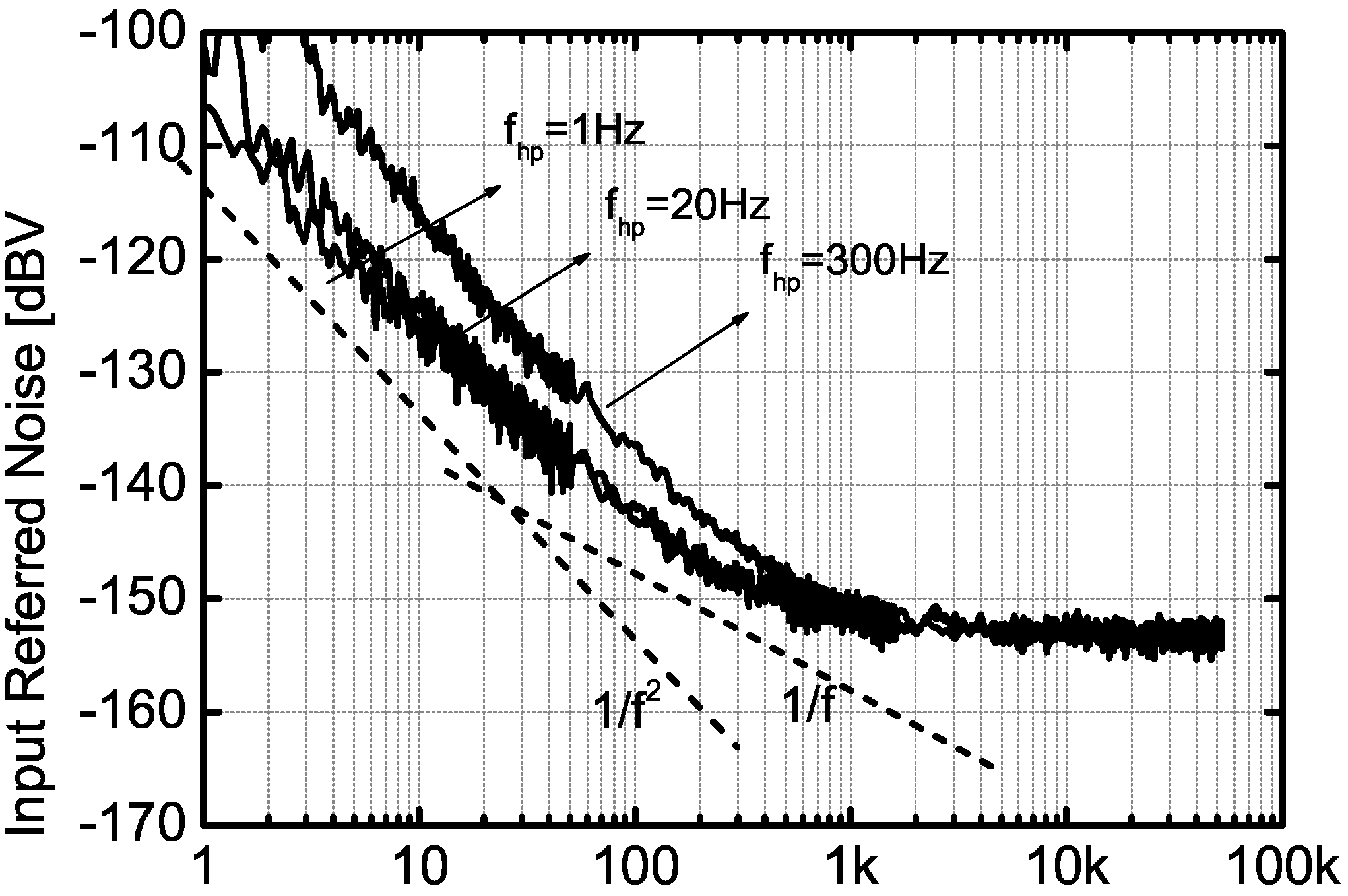

Figure 13. Measured input-referred noise for different high pass-corner frequency.

Click here to enlarge figure

Figure 13. Measured input-referred noise for different high pass-corner frequency.
Jlpea 02 00211 g013 1024

With regard to the AD converter, Figure 14 shows the results of static measurements. The converter features a DNL less than 0.45 LSB and an INL less than 1 LSB. Figure 15 shows the output spectrum of the ADC for a full-scale sine wave at 1 kHz frequency as input signal. The signal to noise plus distortion ratio (SNDR) is close to 45 dB, and the number of effective bit (ENOB) is thus about 7.2.

Jlpea 02 00211 g014 1024

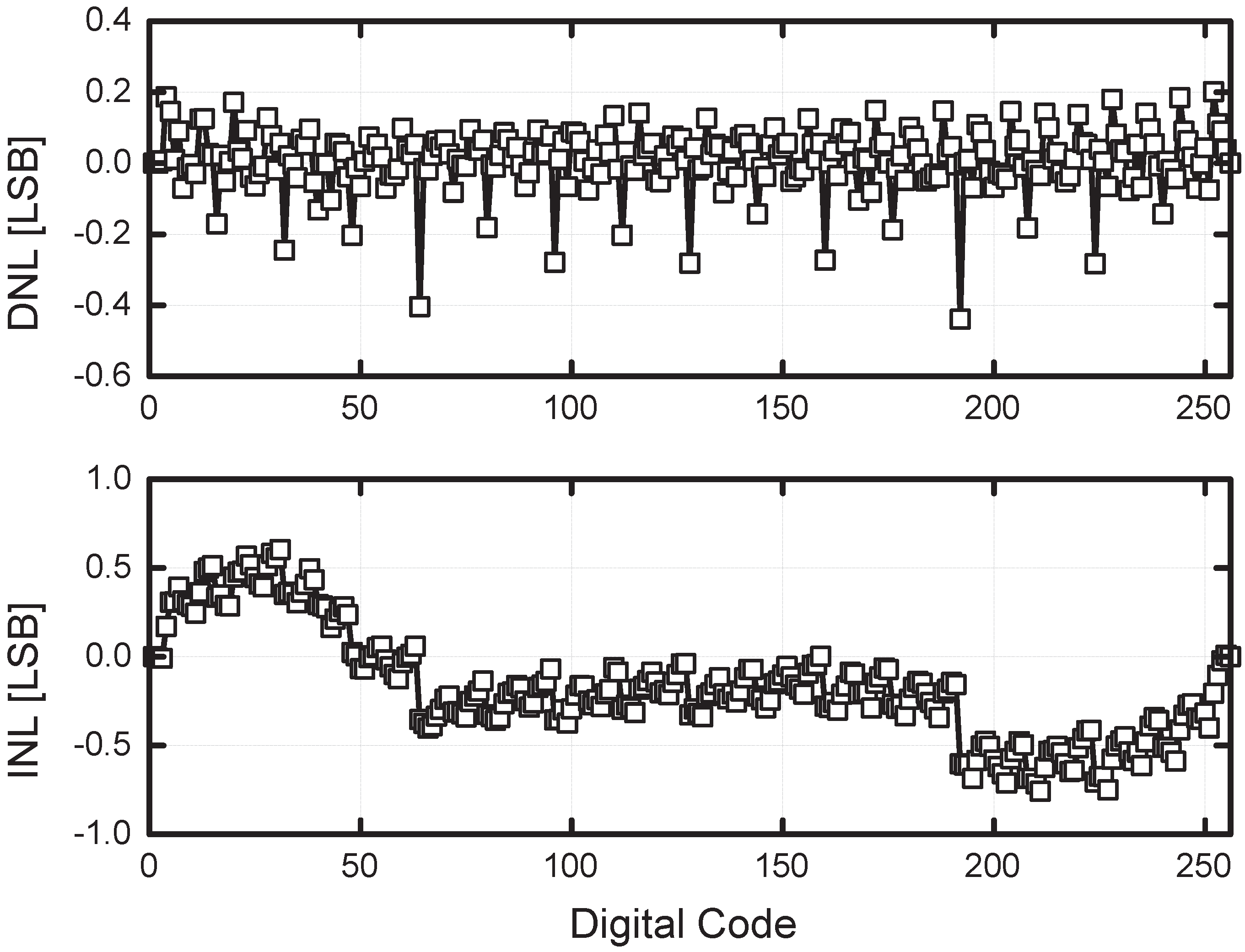

Figure 14. Measured DNL and INL of the integrated AD converter.

Click here to enlarge figure

Figure 14. Measured DNL and INL of the integrated AD converter.
Jlpea 02 00211 g014 1024
Jlpea 02 00211 g015 1024

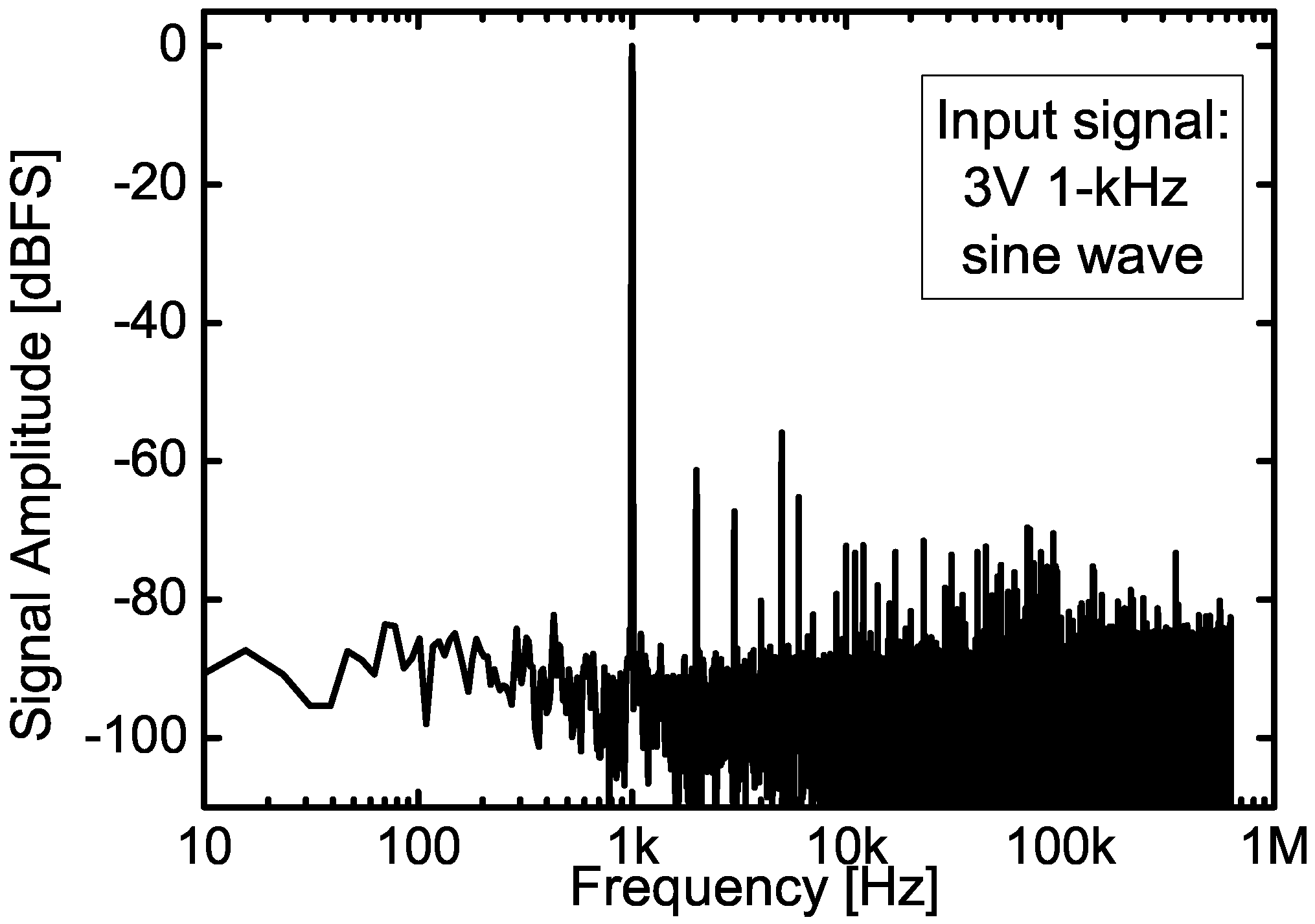

Figure 15. Spectrum of the ADC output for a 3 V sine wave at 1 kHz frequency as input signal.

Click here to enlarge figure

Figure 15. Spectrum of the ADC output for a 3 V sine wave at 1 kHz frequency as input signal.
Jlpea 02 00211 g015 1024

Considering the modulator, the frequency range covered by the VCO spans from 310 to 460 MHz (see Figure 16), allowing to lock the PLL loop to a frequency of 400 MHz frequency even with a large spread of tank component values and for sizable variations in power supply and temperature. When no data modulation is performed, the modulator phase noise (see Figure 17) is less than –123 dBc/Hz at 1 MHz offset from the carrier. The phase noise spectrum has a typical low-pass shape, with 50 kHz cut-off frequency, since it is completely dominated by the charge-pump noise [34], while the VCO phase noise is much lower. The rms integral frequency noise of the modulator in the 10 Hz to 10 kHz band is less than 3 kHz (see the residual frequency FM in Figure 17), whereas the output spectrum of the synthesizer when acting as frequency modulator is depicted in Figure 18: more than 98% of the signal power is included in a 3 MHz band.

Jlpea 02 00211 g016 1024

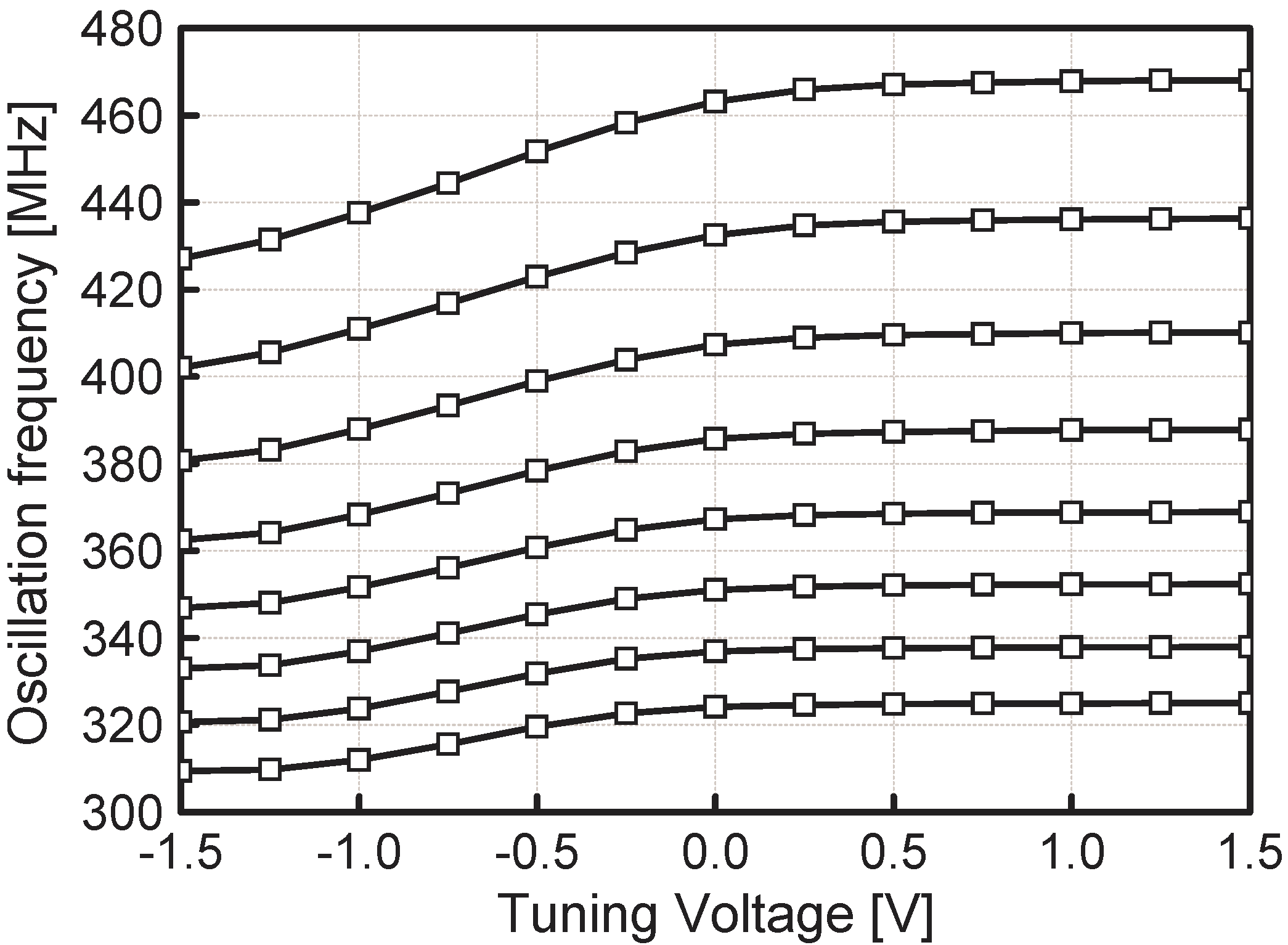

Figure 16. Oscillation frequency varying the analog tuning voltage and for different coarse tuning bit configuration.

Click here to enlarge figure

Figure 16. Oscillation frequency varying the analog tuning voltage and for different coarse tuning bit configuration.
Jlpea 02 00211 g016 1024
Jlpea 02 00211 g017 1024

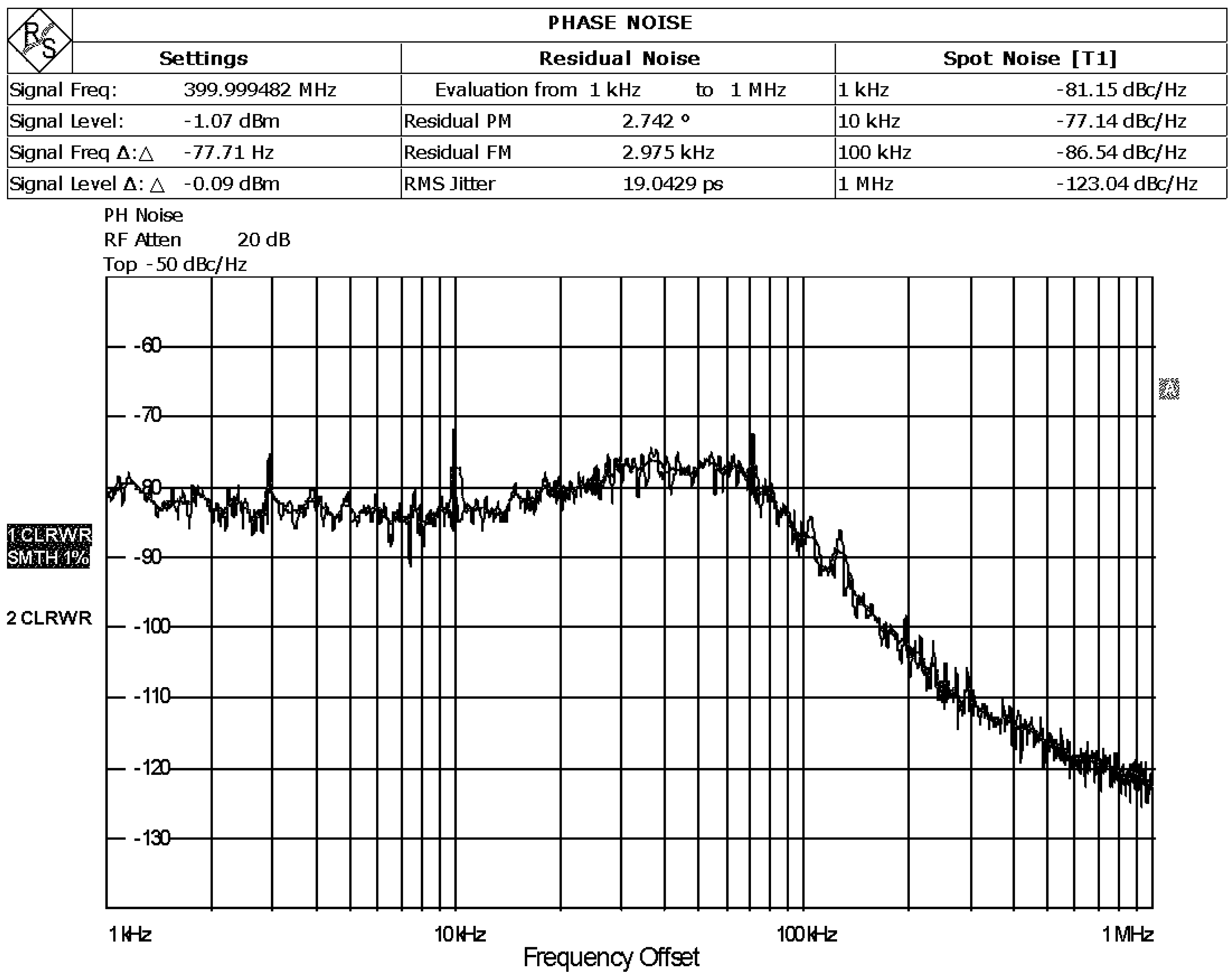

Figure 17. Measured phase noise of the phased-locked loop when the modulation is off.

Click here to enlarge figure

Figure 17. Measured phase noise of the phased-locked loop when the modulation is off.
Jlpea 02 00211 g017 1024
Jlpea 02 00211 g018 1024

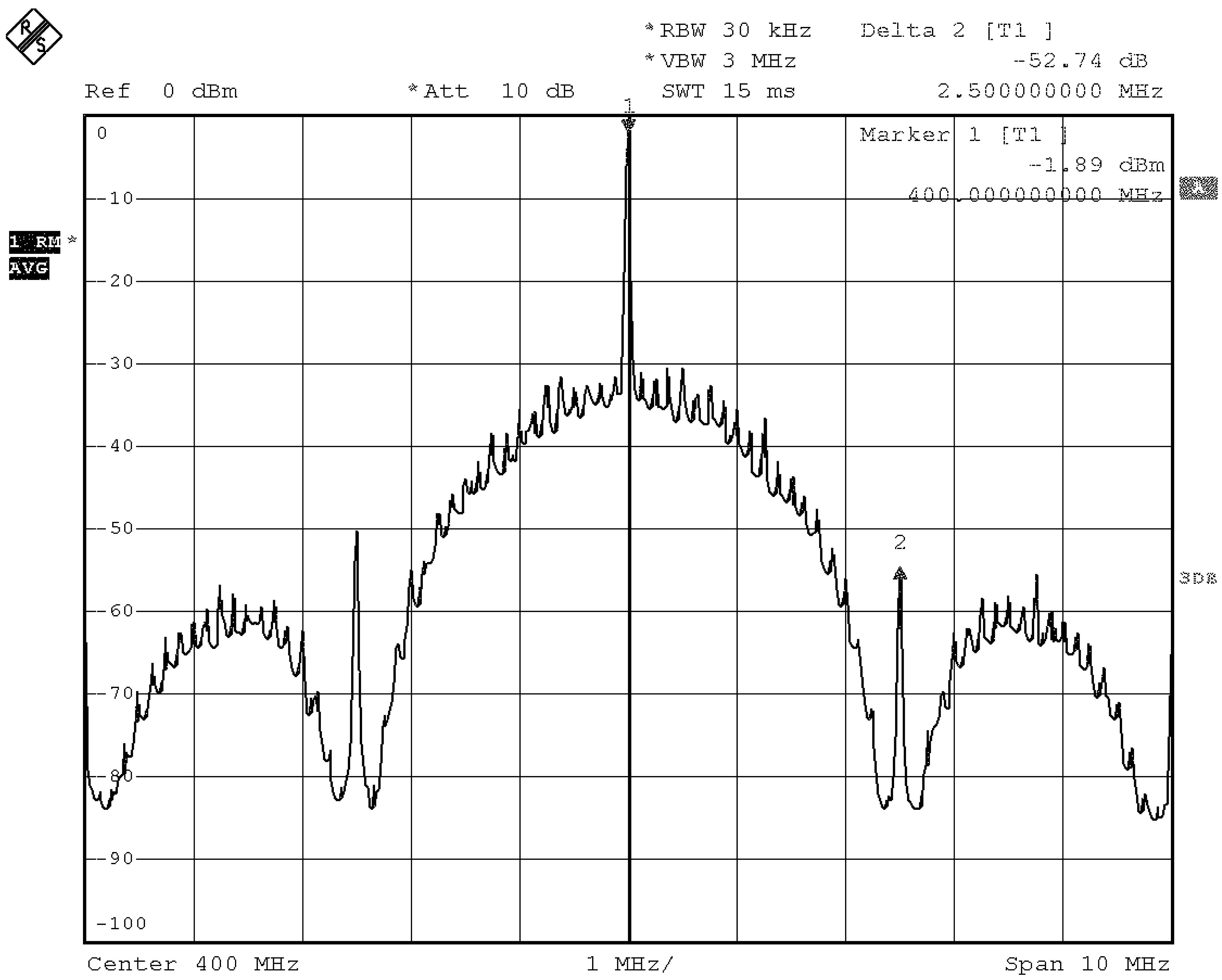

Figure 18. Spectrum of the modulated signal.

Click here to enlarge figure

Figure 18. Spectrum of the modulated signal.
Jlpea 02 00211 g018 1024

For a Jlpea 02 00211 i285 whip antenna at the transmitter and a dipole antenna at the receiver side, the received power in a free space is shown in Figure 19. The sensitivity of the receiver has been measured to be –74 dBm for a BER of Jlpea 02 00211 i251, close to the estimated theoretical value predicted by Equation (27) of –79 dBm, allowing a transmission range larger than 30 m. The system has also been successfully tested for a 10 m distance between transmitter and receiver in a hostile environment as a neuroscience laboratory, giving a PA efficiency of about 7% while delivering a –2 dBm at a 50- Jlpea 02 00211 i064 output load. Disabling the PA, the tank inductor may act as transmitting antenna; in such measurements about –70 dBm was received by a loop antenna placed at approximately 5 cm from the tank inductor.

The overall performance of the implemented system is provided in Table 3. The power consumption of the presented circuit has been computed by projecting the performance to a complete 64 channel system. To this end, the additional budget needed for the missing 48 amplifiers has been added to the actual power consumption (16.6 mW) leading to 17.2 mW (6.7 mW with the PA turned off). The estimate is fair since all the other circuit blocks work with the same data rate of a full 64 channel system.

Jlpea 02 00211 g019 1024

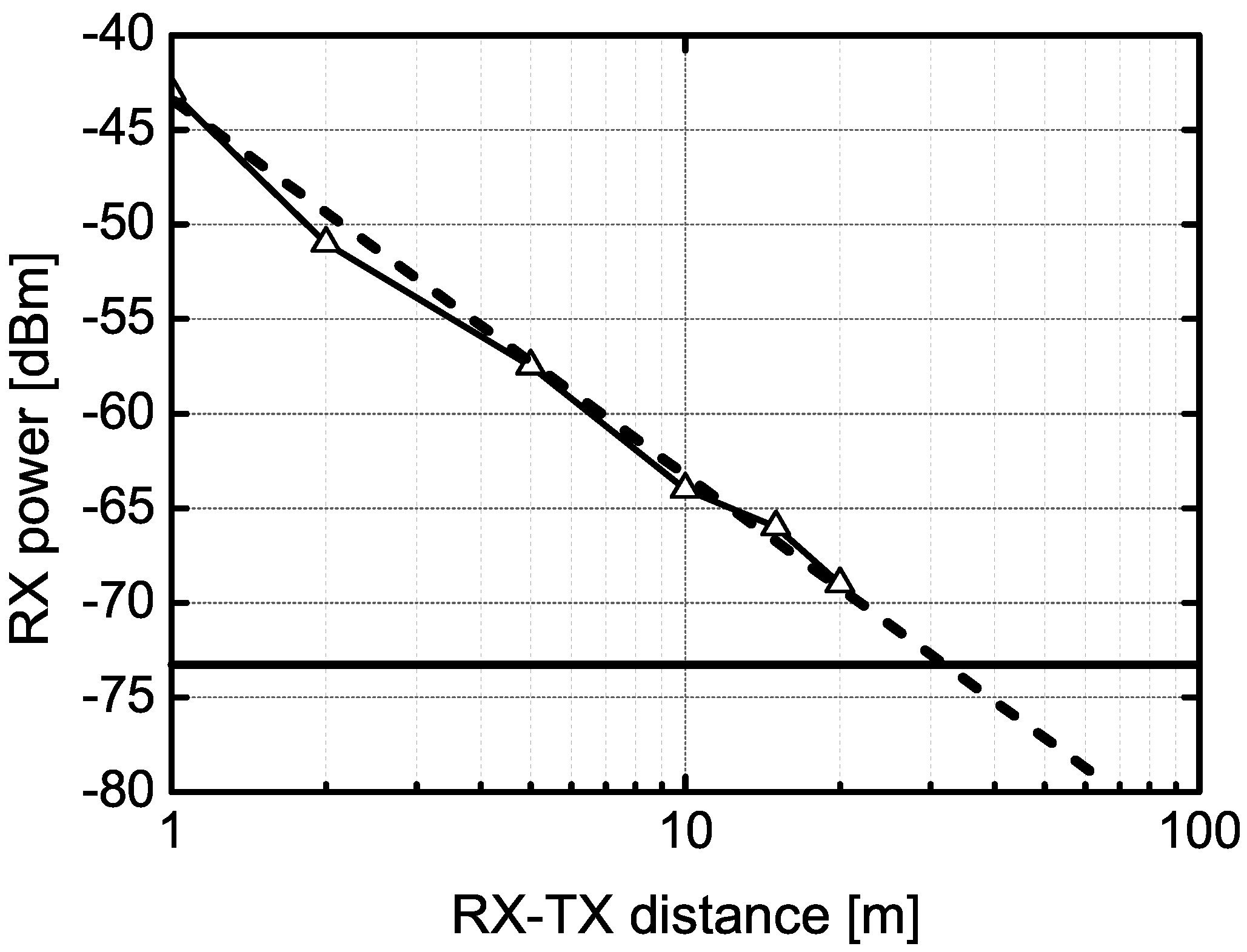

Figure 19. Received power as a function of the distance between transmitter and receiver antenna in free-space. A dipole antenna was adopted at the receiver side.

Click here to enlarge figure

Figure 19. Received power as a function of the distance between transmitter and receiver antenna in free-space. A dipole antenna was adopted at the receiver side.
Jlpea 02 00211 g019 1024
Table Table 3. Performance summary.

Click here to display table

Table 3. Performance summary.
Technology0.35 μm AMS
Supply Voltage3 V
Number of channels64 (16 available)
Pre-amplifier gain65 dB
Pre-amplifier bandHP tunable-10.5 kHz
Input-Referred Noise Jlpea 02 00211 i296 Jlpea 02 00211 i297
ADC DNL-INL Jlpea 02 00211 i298 LSB; Jlpea 02 00211 i299 LSB
ADC ENOB7.2
Transmission frequency400 MHz
Bit-rate1.25 Mbit/s
Current Consumption
20-MHz crystal oscillator90 μA
Pre-amplifiers Jlpea 02 00211 i301 A
Line buffers Jlpea 02 00211 i302 A
VGA50 μA
ADC buffer250 μA
ADC410 μA
DSP+2 kbit RAM400 μA
Modulator (PLL)700 μA
Power amplifier3.5 mA
Total power consumption6.7 mW (17.2 mW with PA enabled)

4.2. In Vivo Experiments

Figure 20 shows the system mounted on a rat for in vivo signal acquisition. It consists of two parts, a wireless neural recording headstage and a backpack. To limit disturbances collected from the environment, a small board ( Jlpea 02 00211 i307 cm2 and 4.5 g of weight) is directly connected to a 16 channel microelectrode array (Tucker-Davis), with an impedance in the 20–60 k Jlpea 02 00211 i064 range at 1 kHz, implanted into the somatosensory cortex of an adult rat. The board includes the packaged chip and 10 external small surface-mount components (0805 or 0603 footprint): the VCO inductor, the power-amplifier resonant filter components (2 capacitors and 1 inductor), the 20 MHz quartz, the PLL loop-filter (1 resistor and 2 capacitors) and 2 decoupling capacitors between power supplies. The antenna is a quarter-wavelength whip antenna: it consists of a piece of wire about 17 cm long, easily placed along the back of the rat. The backpack has a weight of 40 g and includes two AAA batteries with 1000 mA/h capacity that may allow neural activity recordings for more than 100 hours. The two batteries are connected via three 10 cm long wires to the headstage. At the beginning of the in vivo experiment, the quality of the signals from the implanted electrodes was analyzed using a commercial acquisition system by recording the raw signals and noise from the same 16 electrode channels. The recorded traces featured a noise of about 10 μVrms on all channels. The threshold of the digital peak processor was set to “x1000000 ” and the gain of the overall amplifying chain to the maximum value (83 dB) since the peak-to-peak spike amplitude was always lower than 100 μV. Thus, the digital threshold corresponds to an input-referred amplitude of about ±30 μV, i.e., ±3 times the rms noise. The high-pass cut-off frequency of the front-end amplifiers was set to about 300 Hz to properly reject the low-frequency signals and the power-line noise, enabling correct spike detection. The receiver dipole antenna has been placed at two meters from the rat while neural activity was recorded. Figure 21 shows a single trace recorded during the experiment and two spike waveforms extracted from the data stream, while in Figure 22 a large number of spikes recorded on the same channel are shown aligned in time.

Jlpea 02 00211 g020 1024
Figure 20. Arrangement for in vivo measurements. Note the headstage, the battery backpack and the whip antenna placed along the back of the animal.

Click here to enlarge figure

Figure 20. Arrangement for in vivo measurements. Note the headstage, the battery backpack and the whip antenna placed along the back of the animal.
Jlpea 02 00211 g020 1024
Jlpea 02 00211 g021 1024

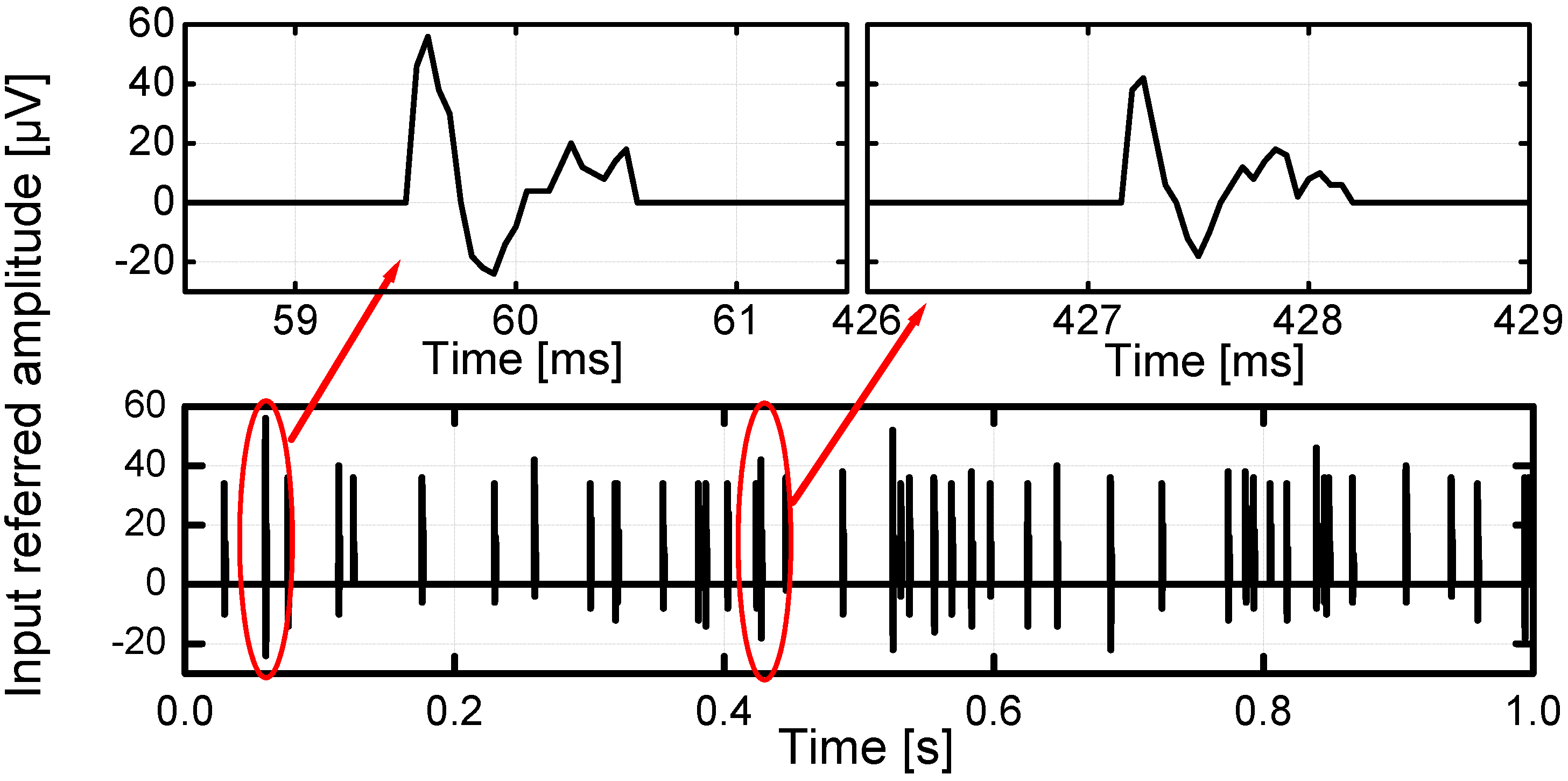

Figure 21. Example of a reconstructed trace registered in an in vivo experiment.

Click here to enlarge figure

Figure 21. Example of a reconstructed trace registered in an in vivo experiment.
Jlpea 02 00211 g021 1024
Jlpea 02 00211 g022 1024

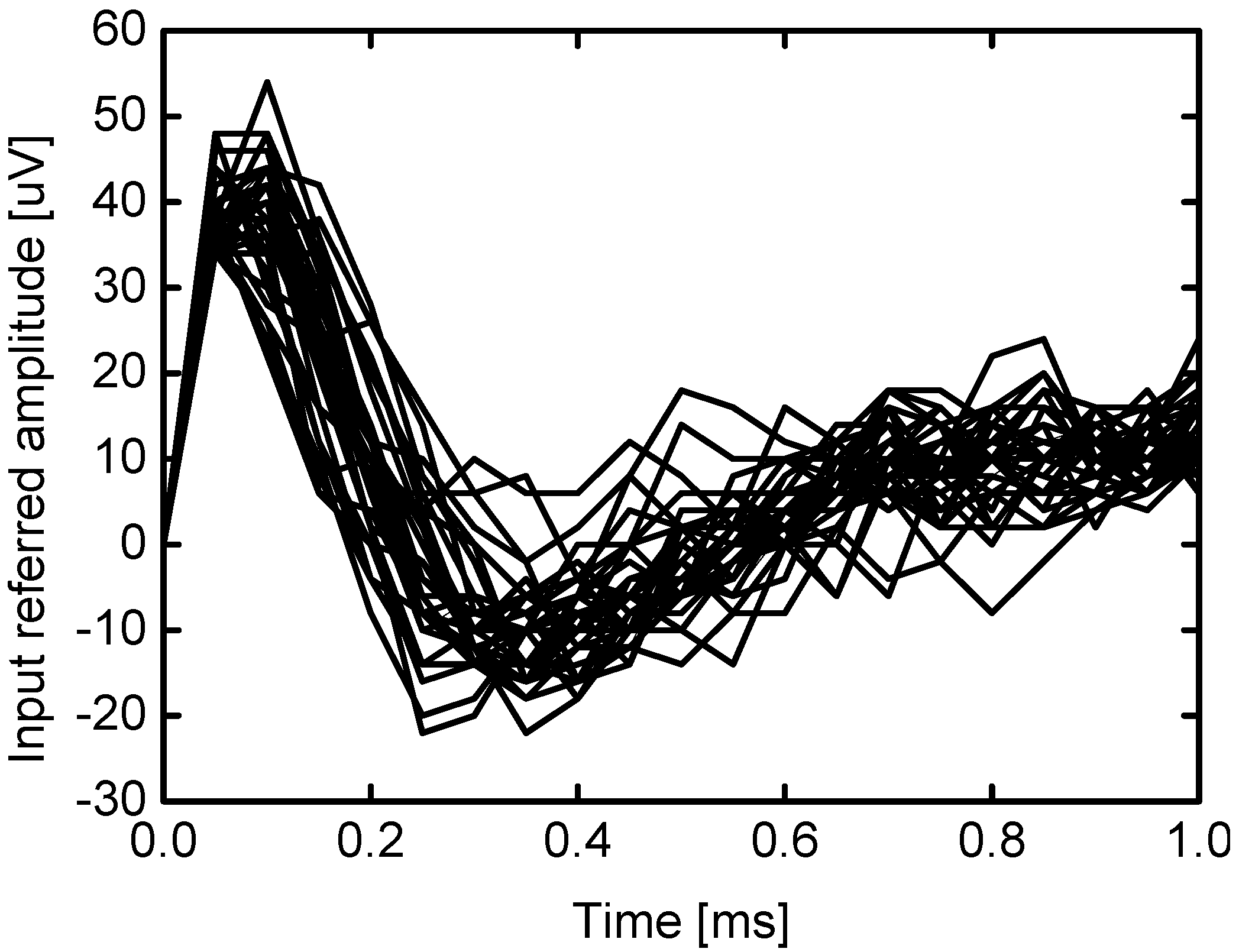

Figure 22. Action potentials registered on a same channel and aligned in time.

Click here to enlarge figure

Figure 22. Action potentials registered on a same channel and aligned in time.
Jlpea 02 00211 g022 1024

5. Discussion and Conclusions

Table 4 compares the implemented system to other wireless neural recording ICs with respect to the three most important features, i.e., the transmitted data type (raw data, spike detection or spike waveform), the transmission range and the power consumption per channel. For a fair comparison, since state-of-the-art wireless neural recording systems feature a transmission range always lower than 1 m, the proposed circuit can be thought sized to get a similar transmission range. Since the power needed at the antenna is inversely proportional to the square of the transmission distance, the PA power consumption could be scaled down by a factor of 900, i.e., (30 m/1 m)2. In this case the equivalent power consumption of the whole system reduces to about 6.7 mW, corresponding to less than 105 μW per channel.

Table Table 4. Comparison of wireless neural recording ICs.

Click here to display table

Table 4. Comparison of wireless neural recording ICs.
Parameter[3][6][7][35]This work
Technology0.5 μm0.35 μm0.5 μm0.13 μm0.35 μm
Power sourceinductive linkbatterybatteryNAbattery
Number of channels1001283264 64 (16 avail.)
Overall gain60 dB57–60 dB 68–78 dB54–60 dB65–83 dB
Input noise5.1 μV4.9 μV 9.3 μV6.5 μV3.05 μV
TX frequency433 MHz4 GHz 915 MHz915 MHz400 MHz
Modulation2FSKIR-UWB 2FSK (PWM)FSK-OOK2MC-FSK
Data typespike detectionraw data raw dataraw dataAP waveform
Data rate330 kbit/s90 Mbit/s 640 kbaud/s1.5 Mbit/s1.25 Mbit/s
Bandwidth0.8 MHz1 GHz 38 MHz3 MHz3 MHz
TX range13 cm Jlpea 02 00211 i3261 m 1m1 m30 m
Power per channel135 μW/ch47 μW/ch 220 μW/ch80 μW/ch269 μW/ch

By comparing our system with the one described in [3], working in the same frequency range, the proposed system features a lower power consumption per channel. Also the data quality is greatly improved since spike detection is replaced by waveform detection, making possible single spike identification over a large microelectrode array. Compared with the IC in [7], our system shows an improvement of a factor larger than 2 in terms of power consumption per channel. It is true that the data rate does not allow all raw data acquisition as in [7], but our design optimizes information transfer and is potentially compliant with the narrowband spectral limitations in the Medical Implant Communication Service (MICS ) band range (402–405 MHz). In the future, this system could also be designed to work in the Industrial Scientific and Medical (ISM ) band (902–928 MHz).

The system in [6] is better in term of power per channel but, relying on an UWB transmitter, it can suffer from interference. Moreover, this system has never been tested in in vivo experiments and no information on the adopted antenna or on the power delivered by the PA is given. Regarding the system presented in [35], its power consumption per channel (80 μW/ch) was evaluated considering the minimum transmitter power, assuming that it allows a 1 m transmission distance. However, the data rate is limited to 1.5 Mbit/s, translating into data acquisition at a sampling rate Jlpea 02 00211 i327 3 kS/s from all 64 channels. Higher sampling rates are possible only for a limited number of channels: assuming that 20 kS/s is the minimum sampling rate to acquire good quality neural signals, the maximum number of channels that can be recorded and transmitted simultaneously is only 9.

In conclusion, thanks to the implemented compression algorithm that allows to preserve the information needed for single neuron identification while limiting the data throughput and the bandwidth, we achieved a good balance between power consumption and quality of transmitted data and transmission range. In addition, the power consumption per channel was lowered by a careful sizing of each individual circuit block.

Acknowledgment

The authors would like to thank L. Fadiga (IIT, Genova) for useful discussions and A. Oleynjk (Universita’ di Ferrara) for providing us the clustering software.

References and Notes

  1. Olsson, R.H.; Buhl, D.L.; Sirota, A.M.; Buzsaki, G.; Wise, K.D. Brain-machine interfaces: Past, present and future. Trends Neurosci. 2006, 29, 536–546. [Google Scholar] [CrossRef]
  2. Seese, T.; Harasaki, H.; Saidel, G.; Davies, C. Characterization of tissue morphology, angiogenesi, and temperature in the adaptive response of muscle tissue to chronic heating. Labs Invest. 1998, 78, 1553–1562. [Google Scholar]
  3. Harrison, R.R.; Watkins, P.T.; Lovejoy, R.O.; Kier, R.J.; Black, D.J.; Greger, B.; Solzbacher, F. A low-power integrated circuit for a wireless 100-electrode neural recording system. IEEE J. Solid State Circuits 2007, 1, 123–133. [Google Scholar]
  4. Sodagar, A.M.; Perlin, G.E.; Yao, Y.; Najafi, K.; Wise, K.D. An implantable 64-channel wireless microsystem for single-unit recording. IEEE J. Solid State Circuits 2009, 9, 2591–2604. [Google Scholar]
  5. Hochberg, L.R.; Serruya, M.D.; Friehs, G.M.; Mukand, J.A.; Saleh, M.; Caplan, A.H.; Branner, A.; Chen, D.; Penn, R.D.; Donoghue, J.P. Neuronal ensemble control of prosthetic devices by a human with tetraplegia. Nature 2006, 442, 164–171. [Google Scholar] [CrossRef]
  6. Chae, M.S.; Liu, W.; Yang, Z.; Chen, T.; Kim, J.; Sivaprakasam, M.; Yuce, M.A. 128-Channel 6 mW Wireless Neural Recording IC with On-the-Fly Spike Sorting and UWB Transmitter. In Proceedings of the IEEE International Solid-State Circuits Conference (ISSCC 2008)Digest of Technical Papers, San Francisco, CA, USA, 3–7 February 2008; pp. 146–148.
  7. Lee, S.B.; Lee, H.M.; Kiani, M.; Jow, U.M.; Ghovanloo, M. An inductively powered scalable 32-channel wireless neural recording system-on-a-chip for neuroscience applications. IEEE Trans. Biomed. Circuits Syst. 2010, 4, 360–371. [Google Scholar] [CrossRef]
  8. Liu, Y.-H.; Li, C.-H.; Lin, T.-H. A 200-pJ/b MUX-Based RF transmitter for implantable multichannel neural recording. IEEE Trans. Microw. Theory Tech. 2009, 57, 2533–2541. [Google Scholar] [CrossRef]
  9. Bonfanti, A.; Ceravolo, M.; Zambra, G.; Gusmeroli, R.; Borghi, T.; Spinelli, A.S.; Lacaita, A.L. A multi-channel low-power IC for neural spike recording with data compression and narrowband 400-MHz MC-FSK wireless transmission. In Proceedings of the 2010 European Solid-State Device Research Conference (ESSCIRC), Seville, Spain, 14–16 September 2010; pp. 330–333.
  10. Harrison, R.R.; Charles, C. An implantable 64-channel wireless microsystem for single-unit recording. IEEE J. Solid State Circuits 2003, 6, 958–965. [Google Scholar] [CrossRef]
  11. Cp is not drawn in Figure 3. It can be easily verified that these strays do not affect, in principle, the differential gain of the first stage. Only their mismatch causes a pole-zero doublet which, however, has no practical impact since it lays at very low frequency, below the band of interest.
  12. Vittoz, E.; Fellrath, J. CMOS analog integrated circuits based on weak inversion operations. IEEE J. Solid State Circuits 2003, 3, 224–231. [Google Scholar]
  13. Enz, C.C.; Krummenacher, F.; Vittoz, E.A. An analytical MOS transistor model valid in all region of operation and dedicated to low-voltage and low-current applications. Analog Integr. Circuits Signal Process. 1995, 8, 83–114. [Google Scholar] [CrossRef]
  14. Steyaert, M.S.J.; Sansen, W.M.C. A micropower low-noise monolithic instrumentation amplifier for medical purposes. IEEE J. Solid State Circuits 1987, 22, 1163–1168. [Google Scholar] [CrossRef]
  15. This limit can be overwhelmed adopting a current-reuse input stage that makes use of both NMOS and PMOS transistors [6,36]. However, in this case, the impact of flicker noise and of the input capacitance [see Equation (1)] may be detrimental.
  16. Chae, M.S.; Liu, W.; Sivaprakasam, M. Design Optimization for Integrated Neural Recording Systems. IEEE J. Solid State Circuits 2008, 49, 1931–1939. [Google Scholar]
  17. Mollazadeh, M.; Murari, K.; Cauwenberghs, G.; Thakor, N. From Spikes to EEG: Integrated Multichannel and Selective Acquisition of Neuropotentials. In Proceedings of the 30th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBS 2008), Vancouver, Canada, 20–25 August 2008; pp. 2741–2744.
  18. Joye, N.; Schmid, A.; Leblebici, Y. An electrical model of the cell-electrode interface for high-density microelectrode arrays. In Proceedings of the 30th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBS 2008), Vancouver, Canada, 20–25 August 2008; pp. 559–562.
  19. Agnes, A. Very low power Successive Approximation A/D Converter for Instrumentation Applications. Ph.D. Dissertation, Universitá di Pavia, Pavia, Italy, 2009. [Google Scholar]
  20. Razavi, B.; Wooley, B.A.; Leblebici, Y. Design techniques for high-speed, high-resolution comparators. IEEE J. Solid State Circuits 1992, 27, 1916–1926. [Google Scholar] [CrossRef]
  21. Figueiredo, P.M.; Vital, J.C. Kickback noise reduction techniques for CMOS latched comparators. IEEE Trans. Circuits Syst. II Express Briefs 2006, 53, 541–545. [Google Scholar] [CrossRef]
  22. Vibert, J.F.; Costa, J. Spike separation in multiunit records: a multivariate analysis of spike descriptive parameters. Electroenceophal. Clin. Neurophys. 1979, 47, 172–182. [Google Scholar] [CrossRef]
  23. Oweiss, K. A Systems Approach for Data Compression and Latency Reduction in Cortically Controlled Brain Machine Interfaces. IEEE Trans. Biomed. Eng. 2006, 53, 1364–1377. [Google Scholar] [CrossRef]
  24. Lewicki, M.S. A review of methods for spike sorting: The detection and classification of neural action potentials. Comput. Meth. Prog. Biomed. 1998, 9, 53–78. [Google Scholar]
  25. Zouridakis, G.; Tam, D.C. Identification of reliable spike templates in multi-unit extracellular recordings using fuzzy clustering. Comput. Meth. Prog. Biomed. 2000, 61, 91–98. [Google Scholar] [CrossRef]
  26. The public database is available at Professor Rodrigo Quiroga’s website, http://www2.le.ac.uk/departments/engineering/research/bioengineering/neuroengineering-lab/spike-sorting/ [37]. The file adopted to validate the compression algorithm is C-difficult1-noise01.mat.
  27. Bonfanti, A.; Borghi, T.; Gusmeroli, R.; Zambra, G.; Oliyink, A.; Fadiga, L.; Spinelli, A.S.; Baranauskas, G. A low-power integrated circuit for analog spike detection and sorting in neural prosthesis systems. In Proceedings of the IEEE Biomedical Circuits and Systems Conference (BioCAS 2008), Baltimore, MD, USA, 20–22 November 2008; pp. 257–260.
  28. Andreani, P.; Fard, A. More on the Jlpea 02 00211 i040 Phase Noise Performance of CMOS Differential-Pair LC-Tank Oscillators. IEEE J. Solid State Circuits 2006, 41, 2703–2712. [Google Scholar] [CrossRef]
  29. Bonfanti, A.; Pepe, F.; Samori, C.; Lacaita, A.L. Flicker noise up-conversion due to harmonic distortion in Van der Pol oscillators. IEEE Trans. Circuit Syst. I 2012, 59, 1418–1430. [Google Scholar] [CrossRef]
  30. The quality factor of the tank is approximately determined by the inductor loss at 400 MHz frequency, giving Jlpea 02 00211 i239.
  31. Samori, C.; Lacaita, A.L.; Villa, F.; Zappa, F. Spectrum folding and phase noise in LC tuned oscillators. IEEE Trans. Circuit Syst. I 1998, 45, 781–790. [Google Scholar]
  32. Carson, J.R. Notes on the theory of modulation. Proc. Inst. Radio Eng. 1922, 10, 57–64. [Google Scholar] [CrossRef]
  33. Tan, C.; Tjhung, T.; Singh, H. Performance of Narrow-Band Manchester Coded FSK with Discriminator Detection. IEEE Trans. Commun. 1983, 31, 659–667. [Google Scholar] [CrossRef]
  34. Lacaita, A.; Levantino, S.; Samori, C. Integrated Frequency Synthesizers for Wireless Systems; Cambridge University Press: Cambridge, UK, 2007. [Google Scholar]
  35. Abdhelhalim, K.; Genov, R. 915-MHz Wireless 64-Channel Neural Recording SoC with Programmable Mixed-Signal FIR Filters. In Proceedings of the 2011 European Solid-State Device Research Conference (ESSCIRC), Helsinki, Finland, 12–16 September 2011; pp. 223–226.
  36. Liew, W.-S.; Zou, X.; Lian, Y. A 0.5-V 1.13-μW/channel neural recording interface with digital multiplexing scheme. In Proceedings of the 2011 European Solid-State Device Research Conference (ESSCIRC), Helsinki, Finland, 12–16 September 2011; pp. 219–222.
  37. Martinez, J.; Pedreira, C.; Ison, M.J.; Quiroga, R.Q. Realistic simulation of extracellular recordings. J. Neurosci. Meth. 2009, 184, 285–293. [Google Scholar]
J. Low Power Electron. Appl. EISSN 2079-9268 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
