J. Low Power Electron. Appl. 2012, 2(3), 197-209; doi:10.3390/jlpea2030197

A Low-Power Single-Bit Continuous-Time ΔΣ Converter with 92.5 dB Dynamic Range for Biomedical Applications

Department of Electrical and Computer Engineering, Boise State University, Boise, ID 83725, USA
*
Author to whom correspondence should be addressed.
Received: 5 April 2012 / Revised: 6 July 2012 / Accepted: 9 July 2012 / Published: 26 July 2012
(This article belongs to the Special Issue Selected Papers from SubVt 2011 Conference)
View Full-Text   |   Download PDF [481 KB, uploaded 26 July 2012]   |

Abstract

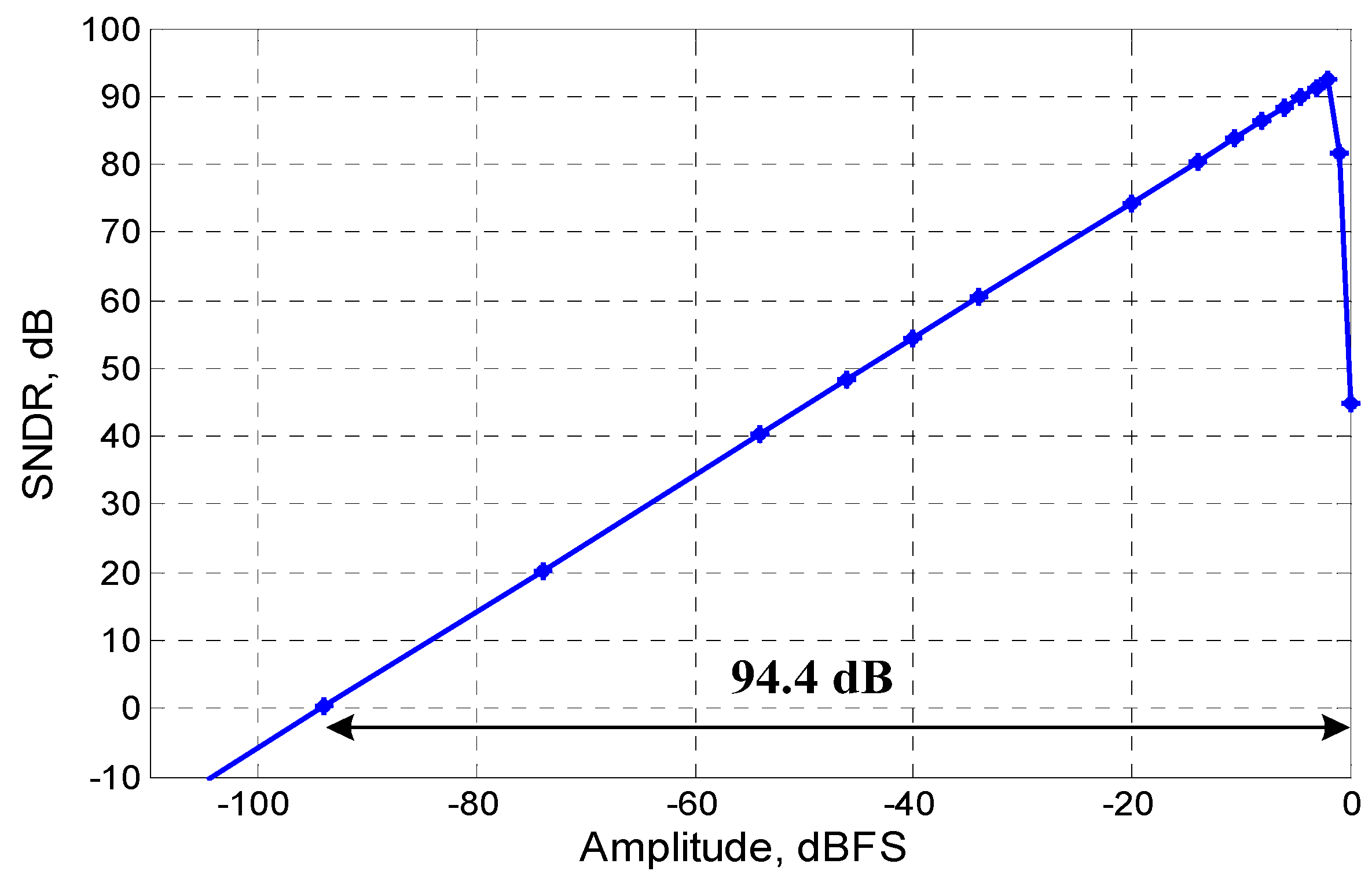

A third-order single-bit CT-ΔΣ modulator for generic biomedical applications is implemented in a 0.15 µm FDSOI CMOS process. The overall power efficiency is attained by employing a single-bit ΔΣ and a subthreshold FDSOI process. The loop-filter coefficients are determined using a systematic design centering approach by accounting for the integrator non-idealities. The single-bit CT-ΔΣ modulator consumes 110 µW power from a 1.5 V power supply when clocked at 6.144 MHz. The simulation results for the modulator exhibit a dynamic range of 94.4 dB and peak SNDR of 92.4 dB for 6 kHz signal bandwidth. The figure of merit (FoM) for the third-order, single-bit CT-ΔΣ modulator is 0.271 pJ/level. View Full-Text
Keywords: analog-to-digital converter (ADC); continuous-time delta-sigma; data converter; oversampling; delta-sigma modulation; low-pass filter; low-power design; low-voltage design analog-to-digital converter (ADC); continuous-time delta-sigma; data converter; oversampling; delta-sigma modulation; low-pass filter; low-power design; low-voltage design
Figures

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
