Open AccessArticle
Nanomaterials 2012, 2(2), 206-216;

Preparation and Characteristics of SiOx Coated Carbon Nanotubes with High Surface Area

Fuel Cell Research Center, Korea Institute of Energy Research, Daejeon 305-343, Korea
Advanced Energy Technology, University of Science & Technology, Daejeon 305-350, Korea
Author to whom correspondence should be addressed.
Received: 2 May 2012 / Revised: 8 June 2012 / Accepted: 11 June 2012 / Published: 18 June 2012
(This article belongs to the Special Issue New Developments in Nanomaterial Analysis)
View Full-Text   |   Download PDF [808 KB, uploaded 18 June 2012]   |


An easy method to synthesize SiOx coated carbon nanotubes (SiOx-CNT) through thermal decomposition of polycarbomethylsilane adsorbed on the surface of CNTs is reported. Physical properties of SiOx-CNT samples depending on various Si contents and synthesis conditions are examined by X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), nitrogen isotherm, scanning electron microscope (SEM), and transmission electron microscope (TEM). Morphology of the SiOx-CNT appears to be perfectly identical to that of the pristine CNT. It is confirmed that SiOx is formed in a thin layer of approximately 1 nm thickness over the surface of CNTs. The specific surface area is significantly increased by the coating, because thin layer of SiOx is highly porous. The surface properties such as porosity and thickness of SiOx layers are found to be controlled by SiOx contents and heat treatment conditions. The preparation method in this study is to provide useful nano-hybrid composite materials with multi-functional surface properties. View Full-Text
Keywords: carbon nanotubes; silicon oxide; hybrid materials; porosity carbon nanotubes; silicon oxide; hybrid materials; porosity

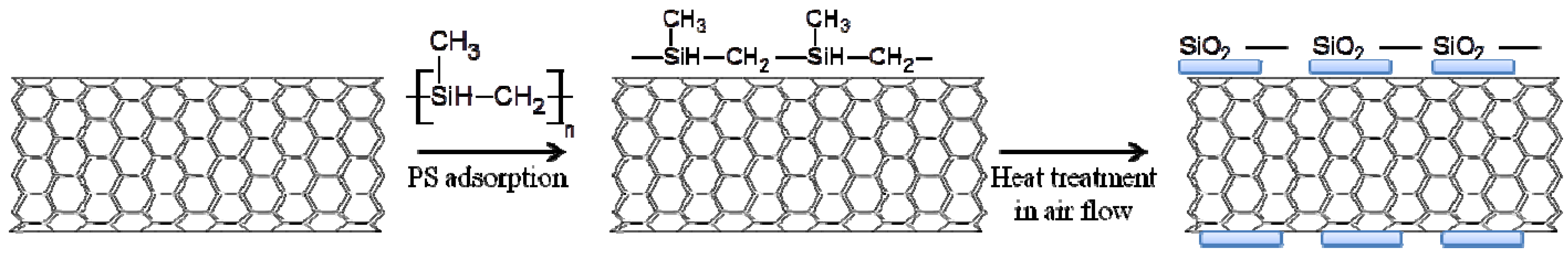

Figure 1

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Share & Cite This Article

MDPI and ACS Style

Kim, A.; Lim, S.; Peck, D.-H.; Kim, S.-K.; Lee, B.; Jung, D. Preparation and Characteristics of SiOx Coated Carbon Nanotubes with High Surface Area. Nanomaterials 2012, 2, 206-216.
