Abstract

:
The synthetic versatility and the potential application of metalloporphyrins (MP) in different fields have aroused researchers’ interest in studying these complexes, in an attempt to mimic biological systems such as cytochrome P-450. Over the last 40 years, synthetic MPs have been mainly used as catalysts for homogeneous or heterogeneous chemical reactions. To employ them in heterogeneous catalysis, chemists have prepared new MP-based solids by immobilizing MP onto rigid inorganic supports, a strategy that affords hybrid inorganic-organic materials. More recently, materials obtained by supramolecular assembly processes and containing MPs as building blocks have been applied in a variety of areas, like gas storage, photonic devices, separation, molecular sensing, magnets, and heterogeneous catalysis, among others. These coordination polymers, known as metal-organic frameworks (MOFs), contain organic ligands or complexes connected by metal ions or clusters, which give rise to a 1-, 2- or 3-D network. These kinds of materials presents large surface areas, Brønsted or redox sites, and high porosity, all of which are desirable features in catalysts with potential use in heterogeneous phases. Building MOFs based on MP is a good way to obtain solid catalysts that offer the advantages of bioinspired systems and zeolitic materials. In this mini review, we will adopt a historical approach to present the most relevant MP-based MOFs applicable to catalytic reactions such as oxidation, reduction, insertion of functional groups, and exchange of organic functions.

Graphical Abstract

1. Metalloporphyrins as Bioinspired Systems

Since their discovery in the 1960s, several works have been conducted to isolate and characterize the enzymes belonging to the cytochrome P-450 family [1,2]. This superfamily is constituted by cysteinato-heme enzymes and exists in all forms of life; e.g., plants, bacteria, and mammals. P-450 enzymes play a key role in the oxidative transformation of endogeneous and exogeneous molecules [3]; their active site contains an iron(III) protoporphyrin-IX covalently linked to the protein by the sulfur atom of a proximal cysteine ligand (Figure 1) [3]. These enzymes are able to catalyze several reactions such as monooxygenation (mainly the hydroxylation of saturated carbon-hydrogen bonds, and epoxidation of unsaturated bonds), dehydrogenation, C=N bond cleavage, and oxidative deformylation; they display peroxidase and oxidase activity [4].

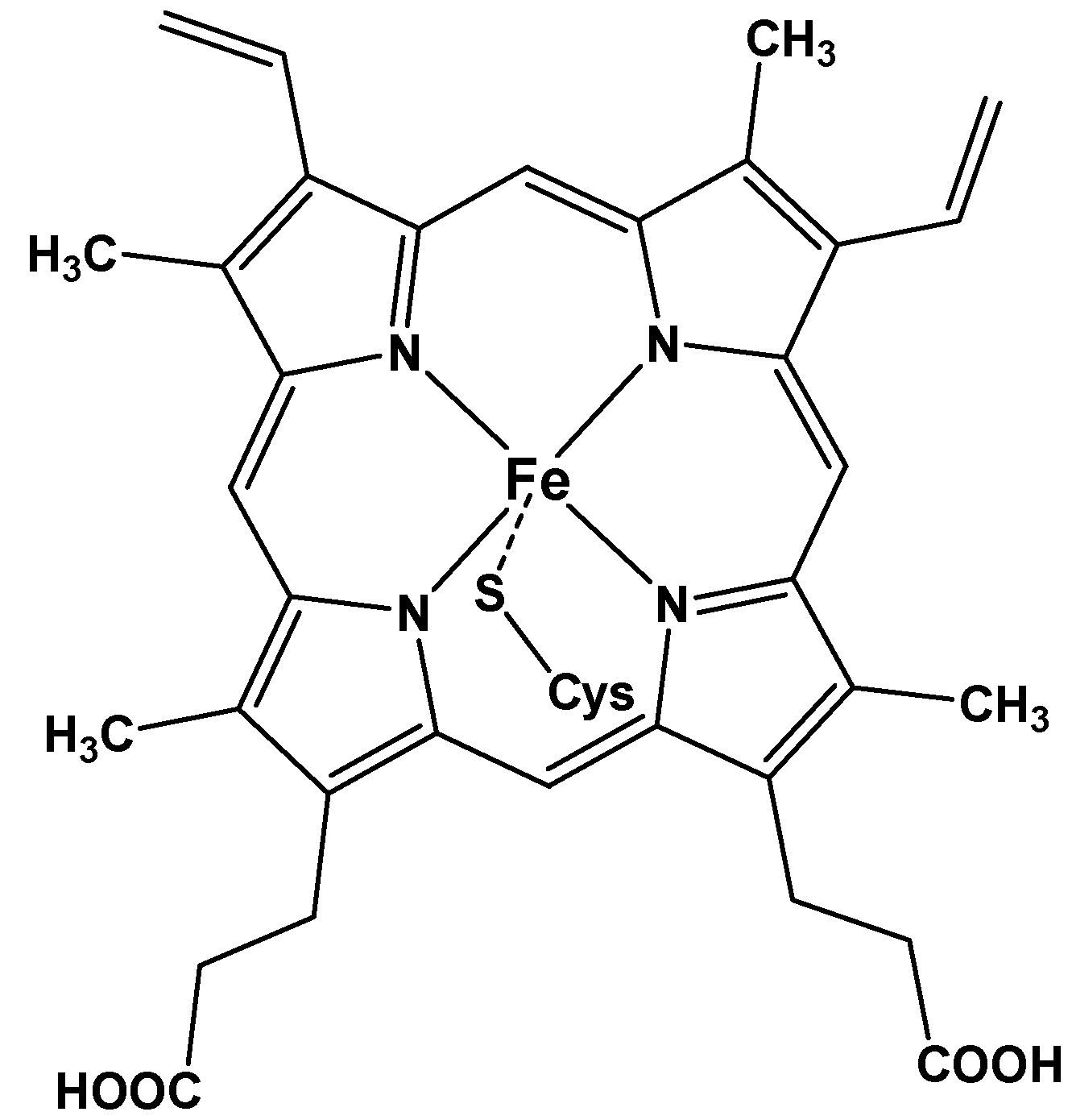

Figure 1. Schematic representation of the prosthetic group of the cysteinate-heme enzyme cytochrome P-450.
Figure 1. Schematic representation of the prosthetic group of the cysteinate-heme enzyme cytochrome P-450.
Molecules 18 07279 g001
Inspired by the reactivity of this biological system, chemists have concentrated efforts on designing routes to obtain new synthetic porphyrins and metalloporphyrins (MPs), aiming to mimic the catalytic activity of cytochrome P-450 [5,6]. Studies on the native enzyme and iron porphyrin model systems have helped scientists understand how cytochrome P-450 enzymes activate dioxygen and oxidize substrates [1,3].

1.1. Synthetic Porphyrins

Porphyrins are versatile compounds with potential use in different fields like medicine, catalysis, and electronics. The myriads of applications of these compounds stem from their singular physical and chemical characteristics, such as high stability, intense electronic absorption and emission, rigid planar geometry, and reactivity, among others. Over recent years, numerous processes for the synthesis of porphyrins have been developed.
Porphyrins are highly conjugated tetrapyrrolic macrocycles consisting of four pyrrole rings linked via methine bridges. Alternating single and double bonds confer stability to the porphyrinic ring through resonance structures. A large number of porphyrins with different structures and features can be isolated from Nature [7] or synthesized in the laboratory [8,9,10]. Porphyrins can be obtained via one of two general routes: (i) a reaction involving a pyrrole intermediate [11,12] or (ii) chemical modification of naturally-occurring or synthetic porphyrins [13]. Furthermore, diverse porphyrinic macrocycles can be achieved by electrophilic aromatic substitution (nitration [14], halogenations [15], sulfonation [16], formylation [17], and acylation [18]), nucleophilic addition [19], nucleophilic aromatic substitution [20], and cycloaddition reactions [21].
In the 1970s, Groves et al. [22] published the first paper on the use of a synthetic iron porphyrin as catalyst for the epoxidation of alkenes and hydroxylation of alkanes by iodosylbenzene. Since then, many authors have employed MPs with different metals to catalyze the oxidation of various organic substrates. New synthetic routes have also been designed, to improve the catalytic performance of these complexes.
In 1997, Dolphin and Traylor [8] proposed a classification for the many MPs used in catalysis on the basis of their structures. These authors designated the first synthetic MP that Groves [22] employed in cytochrome P-450 biomimetic catalysis, [Fe(TPP)]Cl, as a first-generation porphyrin [Figure 2(a)]. This complex affords modest catalytic results, because the fragile porphyrin structure is easily destroyed under the oxidizing conditions of the catalytic reaction.
Dolphin and Traylor [8] classified mesophenyl-substituted MP bearing electronegative and/or bulky groups as second-generation porphyrins [Figure 2(b)]. Such complexes afford fantastic catalytic results, mainly in the most difficult of all the oxidation reactions–alkane hydroxylation. Second-generation MPs perform better than first-generation catalysts because: (i) electron-withdrawing groups (EWG); e.g., halogen atoms make the catalytic intermediate species more electrophilic and therefore a more powerful oxidizing species; (ii) the bulky groups at the phenyl substituents avoid intermolecular interactions that can generate inactive catalytic species or promote the auto-oxidative destruction of MP in solution. Together, these two factors confer the second-generation porphyrins a more robust nature [8].

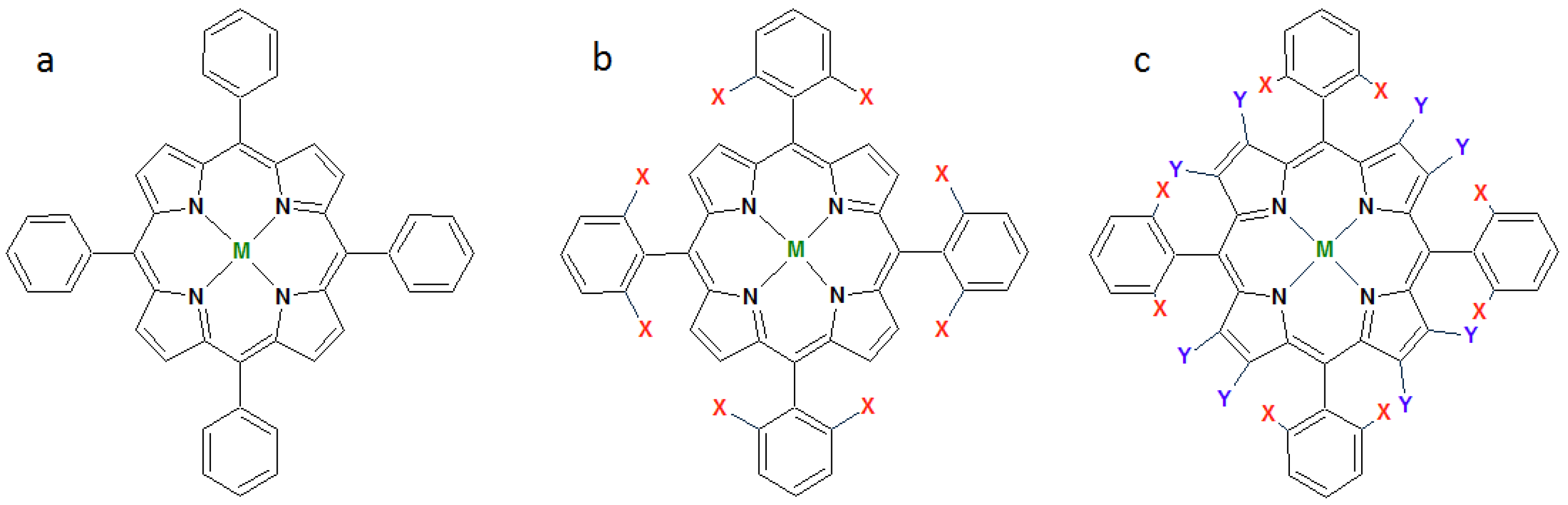

Figure 2. Metalloporphyrins of the (a) first, (b) second, and (c) third generation, where X represents an EWG or bulky group and Y is a halogen atom.
Figure 2. Metalloporphyrins of the (a) first, (b) second, and (c) third generation, where X represents an EWG or bulky group and Y is a halogen atom.
Molecules 18 07279 g002
The introduction of electronegative groups in the β-pyrrole positions of the ring of second-generation porphyrins give rise to porphyrin ligands of the third generation [Figure 2(c)]. At first, it was expected that the addition of extra EWG or bulky groups would render the macrocycle ring even more robust and resistant to oxidative self-destruction and increase the catalytic activity of MP, but most of the communications on third-generation MPs published in the past two decades have revealed that they do not furnish the same catalytic results as the second-generation counterparts [23,24,25,26,27,28,29,30,31]. In homogeneous catalysis, third-generation MP undergo inactivation for several reasons, consequently providing poor catalytic yields.

1.2. Metalloporphyrins as Catalysts for Oxidation Reactions in Homogenous Phase

The oxidation of alkenes to epoxides is an important process from an economic standpoint: epoxides are useful intermediates when producing high-value commercial polymers like polyurethane, polyamides, epoxy resins, and polyesters. Similarly, the oxidation of highly inert alkanes gives alcohols and ketones, which are essential to obtain the fibers Nylon 6 and Nylon 6.6. In industry, alkane oxidation is usually conducted under high pressure and temperature, which results in low yields of the main products, together with large amounts of byproducts [32,33].
Therefore, attempts have been made to obtain efficient and selective catalysts that can oxidize alkanes under mild conditions, with a view to industrial applications. MPs stand out among the molecules that have been investigated over the last 30 years: in particular, iron and manganese porphyrins selectively catalyze the oxidation of cyclohexane to the corresponding alcohol and/or ketone, under mild conditions. Indeed, MP catalysts do not generate any other byproducts, and alcohol is the main or even the sole product in most cases [26,32,34,35]. Furthermore, immobilizing the MP onto selected rigid and inert inorganic supports can tailor the selectivity of the resulting catalyst, depending on the structure of the matrix [36,37].
Years after cytochrome P-450 was reported to catalyze the monooxygenation of substrates by iodosylbenzene [1,38], Groves [6,22] showed that the first-generation [Fe(TPP)]Cl catalyzes the epoxidation of cis-stilbene and the hydroxylation of adamantane by PhIO. Hence, this author was able to (i) mimic the intermediate iron complexes participating in the catalytic cycle of cytochrome P-450, (ii) understand the chemistry of P-450, and (iii) mimic the P-450-dependent oxidation reactions [1].
To obtain efficient biomimetic systems, one has to consider such aspects as the choice of metal and porphyrin ligand. Among the many porphyrin systems developed to date, Fe, Mn, and Ru complexes furnish the best catalytic results regarding oxidation reactions. As for the porphyrinic macrocycle, the synthesis of three generations of porphyrin ligands has provided catalysts that are more resistant to oxidative degradation and that can efficiently oxidize substrates [1].
Choosing the oxidizing agent; i.e., the oxygen atom donor, is another important factor when it comes to the MP-catalyzed oxidation of hydrocarbons. Different compounds have been used as oxygen donors–iodosylarenes, hypochlorites, amine N-oxides, peracids, potassium monopersulfate, alkylhydroperoxides, and H2O2. Depending on the oxidant employed in the catalytic reaction, it might be necessary to use a co-catalyst. For example, when employing hydroperoxides as oxygen donor, a co-catalyst might be essential to facilitate the heterolytic cleavage of the O-O bond and to transfer one oxygen atom to the metal, to generate the active catalytic species [26,39,40].
Metalloporphyrins have also found application to selectively oxidize a wide variety of substrates in fine chemistry, degrade pollutants [41,42,43,44], and cleave DNA [45].
In homogeneous catalytic systems, the catalyst and all the other reactants remain in the same phase; they are expected to interact easily, which should improve the catalytic activity and culminate in highly efficient and selective reactions. However, several factors can limit homogeneous catalysis based on MPs, such as the MP ring structure, MP solubility in the reaction medium, and MP intermolecular interactions–the latter can deactivate the catalyst by self-destruction or form inactive species. Another difficulty inherent to homogeneous systems is MP recovery from the reaction medium after the reaction; in most cases, the precious catalyst is lost. To overcome these problems, one strategy is to synthesize MPs that are more stable and efficient, the so-called second-generation MPs. Another interesting approach to make MP more robust is to immobilize them onto inorganic or organic supports [46,47,48,49,50]. This immobilization offers an extra bonus: the catalyst can be recovered from the reaction medium and reused in many catalytic cycles, paving the way for the technological application of this family of catalysts.
In the 1980s, Nolte and Drenth [51] published the first study on the epoxidation of alkenes catalyzed by a manganese porphyrin bound to a polyisocyanide polymer in the presence of 4-methyl-pyridine, which is considered the pioneering work regarding the development of supported MPs. Two strategies help minimize the deactivating effects operating in homogeneous catalysis: (1) changing the phase of the catalytic complex through its heterogenization on an inert solid, or (2) processing the catalytic reaction mixtures to generate insoluble solids.
MP heterogenization can be accomplished via chemical or physical processes. Chemical processes generally involve formation of a chemical (electrostatic or covalent) bond between the support and the catalyst; physical processes include adsorption, intercalation, and encapsulation. Compared with physical interactions, an effective chemical interaction is expected to render a more robust and resistant solid catalyst; it should avoid catalyst leaching and allow it to be reused several times [52,53,54,55].
Zeolites [56,57,58], silicas, mineral clays, and lamellar compounds are examples of the interesting catalyst supports used [56,59,60,61,62,63].
Materials based on the active catalytic molecules only, such as coordination polymers (CP) and metal-organic frameworks (MOFs), are good ways to obtain solid heterogeneous catalysts and avoid the catalyst dilution typical of immobilized MP [64].
In this mini-review we will present a brief bibliography of the recent efforts put into the development of MOFs based on MPs as building blocks. We will outline some synthetic approaches used to prepare these MOFs; we will also revise their application in catalysis.

2. Advances in the Field of Coordination Polymers and Metal-Organic Frameworks

As discussed above, MP can catalyze some kinds of chemical reactions. Currently, there is an increasing need for robust and recyclable non-diluted solid systems that can function as catalysts in heterogeneous processes. Such systems can be achieved by using a new class of porphyrin-based materials, namely coordination polymers (CPs), to obtain MOFs having MPs as building blocks.
Let us first introduce some definitions that will help understand the classifications to be used further in this review. According to Corma et al., coordination polymers (CPs) “are solid materials formed by an extended network of metal ions (or clusters) coordinated to multidentate organic molecules” [64]. This definition does not differentiate between crystalline and amorphous materials, porous and nonporous structures, or robust and unstable solids. MOFs, on the other hand, can be defined as a subclass of CPs, “which are crystalline and porous compounds involving strong metal-ligand interactions.” [64,65].
In 1959, Kinoshita et al. [66] reported on the first MOF, bis(adiponitrile)copper(I) nitrate, but it certainly did not fit the above-mentioned definitions. From the end of the 1950s until the beginning of the 1990s, only a few works on this theme were published and they did not encourage researchers to work in the field. Only in the first half of the 1990s did Robson and Yaghi revive studies on CPs with several notable papers [67,68,69,70]. Finally, in 1999, Chui et al. [71] and Li et al. [72] described two of the most cited MOFs, HKUST-1 and MOF-5, respectively. While the former is built from dicopper(II) tetracarboxylate paddlewheel clusters [Figure 3(a)], the latter bears terephthalate anions coordinated to Zn4O clusters [Figure 3(b)].

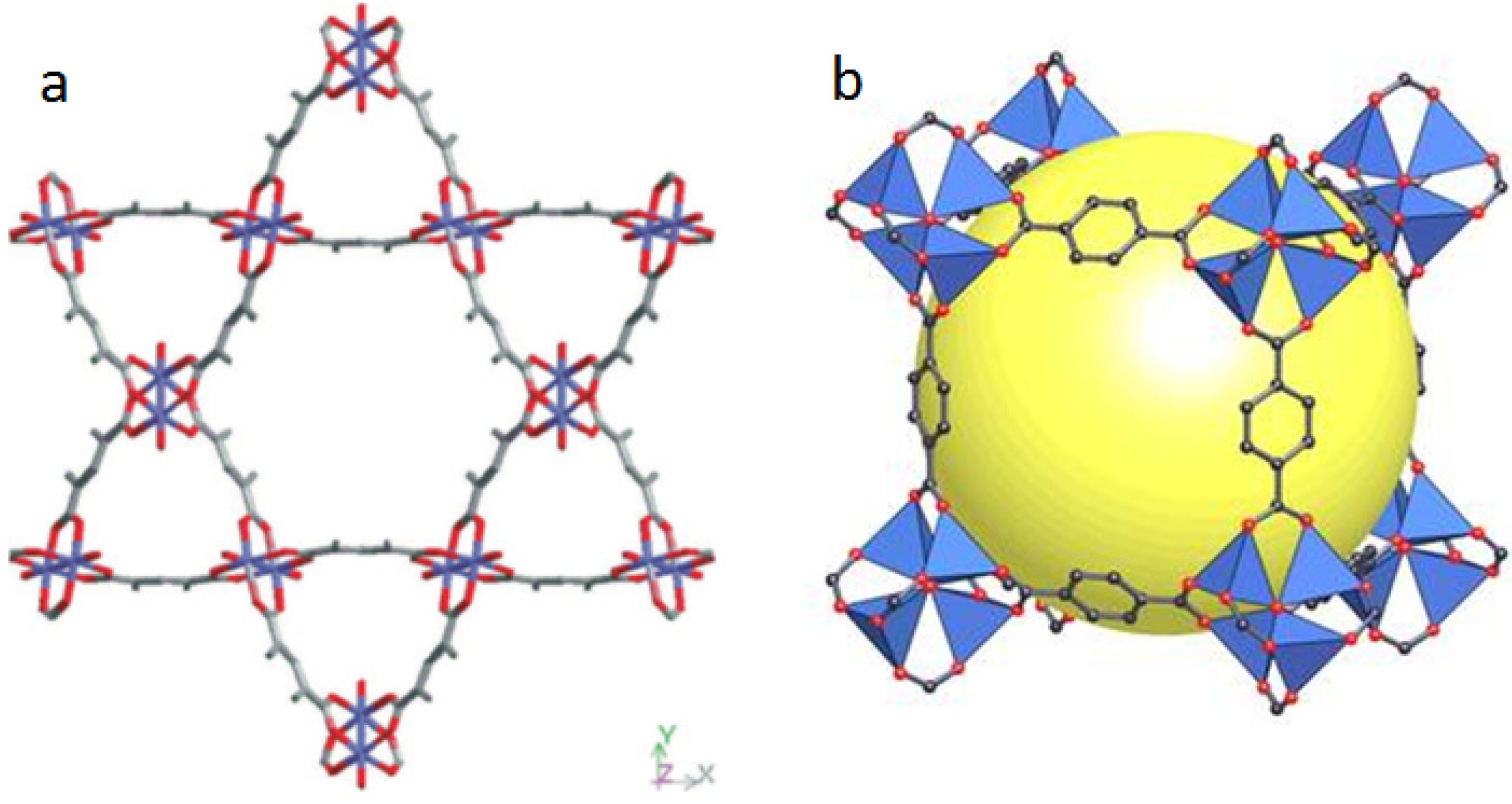

Figure 3. Remarkable MOFs: (a) HKUST-1, a dicopper(I) paddlewheel cluster structured by organic linkers, viewed along the cell body diagonal (111) (From [71]; reprinted with permission of AAAS) and (b) MOF-5, containing terephthalate anions structured by Zn4O clusters (reprinted from [72] with permission of Macmillan Publishers Ltd: Copyright 1999).
Figure 3. Remarkable MOFs: (a) HKUST-1, a dicopper(I) paddlewheel cluster structured by organic linkers, viewed along the cell body diagonal (111) (From [71]; reprinted with permission of AAAS) and (b) MOF-5, containing terephthalate anions structured by Zn4O clusters (reprinted from [72] with permission of Macmillan Publishers Ltd: Copyright 1999).
Molecules 18 07279 g003

2.1. Strategies to Synthesize MOFs

The last decade saw advances in the field of MOFs. New synthetic approaches other than conventional heating systems were developed [73,74], such as microwave-assisted heating [75] and electro- [76], mechano- [77,78], and sonochemical [79] methods, using either conventional or high-throughput techniques [73]. More recently, Tanabe and Cohen [80] reviewed the progress in the post-synthetic modifications of MOFs, including the functionalization of building blocks in synthesized MOFs, a new strategy in solid-organic synthesis.
Currently, the synthesis of MOFs focuses not only on their building blocks, but also on their reticular structure [81]. To facilitate the identification of some kinds of nets within the metal-organic framework and to develop a standardized nomenclature for these materials, pioneer Yaghi and his group created the Reticular Chemistry Structure Resource (RCSR) [82,83], an open database for crystal nets containing names, symbols, examples, and keywords for crystal nets, polyhedra, and layered structures. This database can help systematize MOFs studies and classification. In 2009, three years after the publication of the RCSR database, Yaghi et al. defined Reticular Chemistry as “the chemistry of stitching molecular building units by strong bonds into extended structures” [83]. A new field now exists in chemistry that aims to understand the properties of MOFs.
Apart from RCSR, ligands, and nets, special attention has been paid to the clusters that constitute the MOF scaffold. These Secondary Building Units (SBU) consist of more than one metal cation interconnected by μ-oxo and carboxylate bridges, for example [84]. They can bind to the ligand groups from three to sixty-six points of extension, depending on: (i) the number of metal ions in the cluster, (ii) unsaturated coordination points, and (iii) metal atoms saturated by the ligands forming the cluster only [84].
Efficient purification methods to obtain MOFs are crucial when one thinks about applying these systems in catalysis [85]. Because MOFs are solid materials, they can be purified by density separation processes, where the MOF is suspended in an adequate solvent and solid compounds of different densities begin to separate in the dispersion. One way to open the internal channels of MOFs is to activate the structure under supercritical conditions. This process expels large solvent molecules and leaves the channels free for chemical reactions [85]. These two purification strategies are essential when using MOFs in catalysis, because the catalyst must be pure and accessible to substrates in the heterogeneous phase.
Not only does MOF purification deserve special care; indeed, a rational approach must be developed to control catenation, interpenetration, and other structuring processes that could render the material inappropriate for some applications [85]. The choice of linkers, concentration, and temperature can prevent catenation, providing MOFs for different purposes [85].
High surface areas are also desirable when using MOFs, especially in catalysis. In 2012, Hupp et al. [86] prepared two MOFs with ultra-high surface areas; their materials overcame the range of 7,000 m2g−1, with Brunauer-Emmett-Teller (BET) surface areas of 7,010 and 7,140 m2g−1 and pore volumes of 3.75 and 4.40 cm3g−1 for NU-109E and NU-110E, respectively. In this same work, the authors conducted a theoretical study using a hypothetic MOF built from a 1,3,5-trisubstitued benzene with linear chains consisting of alternating single and triple bonds and ending with a 3,5-dicarboxybenzene (Figure 4) and one paddlewheel cluster for the carboxylate unit. The authors expected that this hypothetical material with long rigid carbon chains would present a BET surface area of up to 14,600 m2g−1.
Figure 4. A 1,3,5-trisubstitued benzene with linear chains made of alternating single and triple bonds ending with a 3,5-dicarboxybenzene, a building block for MOF with ultra-high surface-areas [86].
Figure 4. A 1,3,5-trisubstitued benzene with linear chains made of alternating single and triple bonds ending with a 3,5-dicarboxybenzene, a building block for MOF with ultra-high surface-areas [86].
Molecules 18 07279 g004

3. MOFs with Porphyrins as Building Blocks

MOFs offer the features that are desirable in a catalyst, so catalysis is noteworthy among the numerous applications of MOFs in the fields of gas storage [87,88,89], separation processes [90], ion exchange [91], pre-concentrators [92,93], chemical sensors [94], drug delivery [95,96,97], and light harvesting [98]. In fact, the organic composition of the pores and walls of MOFs can be advantageous to catalysis. The hydrophobicity of the solid can be controlled by functionalization with linkers, which tailors the polarity of the MOF channels and pores and facilitates the approach of certain molecules to the catalyst. In a catalytic reaction, the MOF inorganic clusters can attract a polar reactant, while a nonpolar substrate can interact with the hydrophobic walls of the MOF and remain confined in the pores. This culminates in a local pre-concentration of the reactants and can help the reaction to occur.
Coordinative saturation of the metal ions is one of the challenges faced when someone tries to apply MOFs in heterogeneous catalysis. When all the metal centers have their coordination sites occupied by ligands (to form clusters or to support the structure), no sites are available to react with the substrate. Therefore, it is necessary to incorporate coordinatively unsaturated metal centers in the walls of the MOF. Using peripherally functionalized inorganic complexes as a building block for MOFs might be an alternative to circumvent the problem of coordinative saturation since they do not have a closed structure, involving the metal center and the metal may not be saturated by ligands. Schiff bases [99,100], bipyridines [101], ferrocenes [102,103], and MPs [64] are among the molecules that can act as metalloligands in MOFs.
With recognized catalytic activity in both homogeneous and heterogeneous phases, MPs can be the metalloligand of choice for MOFs exhibiting free redox sites on their walls. The rigid and planar 1-nm2 porphyrinic ring can be peripherally functionalized at the β-pyrrole or meso positions, as cited in Section 1.1 of this review. This functionalization can be achieved by using diverse Lewis-base groups, which are able to coordinate with other metal centers.
Robson et al. [104] described the first porphyrin-based MOF–[tetra(4-pyridyl)porphyrinate] Pd(II) connected by cadmium(II) ions, and not by SBUs (Figure 5). In this first porphyrinic MOF, the four pyridyl substituents of each porphyrin attach to a cadmium(II) ion. There are two kinds of connection in this material: one is the formation of linear porphyrinic chains, where each cadmium(II) ion is connected to two porphyrins in a trans fashion; the other connection involves the binding of the two cadmium ions of each porphyrin to another ring in cis mode. Two water molecules and nitrate ions complete the coordination sphere of the octahedral cadmium(II) ion. This arrangement confers a three-dimensional structure to the solid.
The “infinite polymeric network” depicted in Figure 5 was not only the first porphyrinic MOF, but also one of the reasons for the revival of the studies on inorganic-organic polymers in the 1990s.
When clusters, SBUs, are not present in the structure of the MOF, the framework becomes fragile after gas and solvent removal. The PIZA family of porphyrinic MOFs represents the end of this problem: they contain clusters between the MP, affording more robust MOFs and making them applicable as catalysts [105]. Suslick et al. [105] were the first to report on the use of a porphyrinic MOF, PIZA-3 in catalysis. This material consists of a three-dimensional net of [tetra(4-carboxyphenyl)porphyrinate] Mn(III) connected by trinuclear manganese clusters. We will provide more details about the catalytic behavior of this MOF in Section 4.1.
Figure 5. First porphyrinic MOF consisting of [tetra(4-pyridyl)porphyrinate] Pd(II) interconnected by cadmium(II) ions in a three-dimensional infinite net, as reported by Robson et al. [104]. Nitrato and aqua ligands have been omitted for clarity.
Figure 5. First porphyrinic MOF consisting of [tetra(4-pyridyl)porphyrinate] Pd(II) interconnected by cadmium(II) ions in a three-dimensional infinite net, as reported by Robson et al. [104]. Nitrato and aqua ligands have been omitted for clarity.
Molecules 18 07279 g005
Synthesis of porphyrin-based MOFs has increased in the last decade. At least four important families of these compounds exist: the pioneering Porphyrin Illinois Zeolite Analogue (PIZA) [105], Porphyrin Pillared Frameworks (PPF) [106,107], Robust Porphyrin Materials (RPM) [108,109], and the most recent Metal-Metalloporphyrin Frameworks (MMPF) [110,111,112,113,114,115]. These families are usually comprised of MOFs built from pyridyl and carboxyphenyl porphyrins and SBUs instead of single ions. These imino- and carboxy-substituted phenylporphyrins have Lewis basic sites that favor peripheral coordination with metal centers. The presence of SBUs in the structure furnishes a robust material that does not collapse after gas or solvent removal or even during the catalytic reaction [106].

4. Activity of Metalloporphyrin-Based MOFs in Heterogeneous Catalysis

The use of porphyrinic MOFs in heterogeneous catalysis is still in its early stages, but the scientific literature already brings some good examples that help minimize the problems inherent to homogeneous catalysis involving MP. Two kinds of catalyzed chemical reactions will be the scope of this mini-review: Lewis acid catalysis and oxidation reactions. These processes are widely employed worldwide and are usually conducted either in homogeneous phase or in heterogeneous media (with the chromophores immobilized onto a matrix).

4.1. Oxidation Reaction

PIZA-3, a microporous solid based on [tetra(4-carboxyphenyl)porphyrinate] Mn(III) connected by trinuclear manganese clusters, was the first porphyrinic MOF to be applied as catalyst [105]. In this MOF, each manganese porphyrin binds to four clusters, and each cluster attaches to eight porphyrins, giving rise to a three-dimensional material. The MP-based PIZA family of MOFs was the first class of porphyrinic MOFs to receive a special name, like Materials of Institute Lavoisier (MIL), Hong Kong University of Science and Technology (HKUST), and Pohang University of Science and Technology (POST), among others [116].
PIZA materials are built from [tetra(4-carboxyphenyl)porphyrins] and different metals: PIZA-1 contains cobalt porphyrins linked by trinuclear linear clusters of Co(II); PIZA-2 has the same cobalt porphyrin as building block, but the MP are connected through trinuclear bent cobalt clusters; PIZA-3 is isostructural to PIZA-2, but its metal center is manganese; finally, PIZA-4 consists of zinc porphyrins coordinated by Zn4O clusters [105].
The catalytic activity of PIZA-3 in the oxidation of hydrocarbons has been investigated (Figure 6), because manganese porphyrins are known to be efficient catalysts for oxidation reactions in both homogeneous [117,118,119] and heterogeneous phases [5,48]. Cobalt porphyrins also display catalytic activity toward oxidation reactions, but they are less reactive than the parent manganese complexes [120,121].

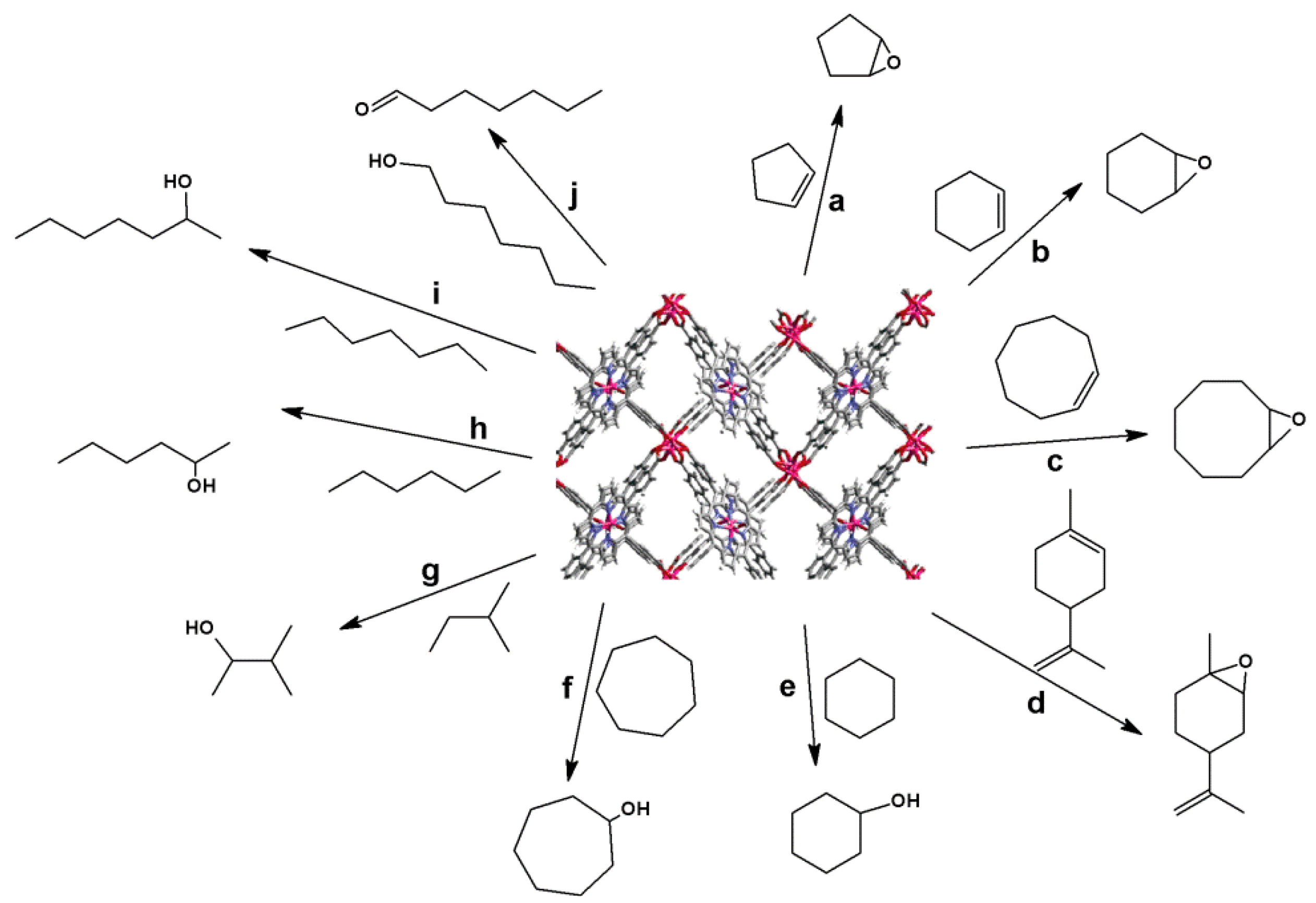

Figure 6. Oxidation reactions catalyzed by PIZA-3 (only desired products are shown). a–d: epoxidation of olefins; e–f: hydroxylation of cyclic alkanes; g–i: hydroxylation of aliphatic alkanes; j: oxidation of terminal alcohol to aldehyde. Reprinted (adapted) with permission from [105]. Copyright (2005) American Chemical Society.
Figure 6. Oxidation reactions catalyzed by PIZA-3 (only desired products are shown). a–d: epoxidation of olefins; e–f: hydroxylation of cyclic alkanes; g–i: hydroxylation of aliphatic alkanes; j: oxidation of terminal alcohol to aldehyde. Reprinted (adapted) with permission from [105]. Copyright (2005) American Chemical Society.
Molecules 18 07279 g006
Reactions catalyzed by PIZA-3 have been accomplished using iodosylbenzene as the oxygen source and imidazole as cocatalyst, at a catalyst/oxidant/substrate/cocatalyst molar ratio of 1:10:1,000:1, in acetonitrile, at room temperature, for 2 h. This catalyst is robust: UV-vis spectroscopy detected no manganese porphyrin in the supernatant of the reaction, proving that the reaction is truly heterogeneous. The results achieved with PIZA-3 are similar to those obtained in homogeneous catalysis using manganese porphyrin and in heterogeneous reactions employing manganese porphyrins immobilized onto supports [105].
PIZA-3 selectively epoxidizes cyclopentene (23% epoxide), cyclohexene (23% epoxide), cyclooctene (74% epoxide), and limonene (20% epoxide) [Figure 6(a–d), respectively], with no allylic product being detected after the reaction. This is expected for all the substrates, except for cyclooctene [122]. The limonene branching is not epoxidized, which shows that the system selectively oxidizes the ring but not the terminal alkene of the substrate. The PIZA-3-catalyzed oxidation of alkanes is selective for the alcohol in the case of linear substrates with an alcohol/ketone ratio of approximately 8–8.9, achieved for the cyclic substrates cyclohexane (43% alcohol) and cycloheptane (47% alcohol) [Figure 6(e–f), respectively].
The hydroxylation of the linear alkanes hexane (17% total alcohols) and heptane (23% total alcohols) catalyzed by PIZA-3 gives similar yields for alcohols at positions 2 and 3 [Figure 6(h–i)]; i.e., the catalytic reaction is not shape-selective. In this case, therefore, catalysis occurs on the external surface of the MOF, since the internal cavities would have selectively adsorbed small and hydrophilic molecules only. Secondary oxidation of 2-methylbutane was performed instead of oxidation of tertiary carbon, the labile position due to thermodynamic factors [123]. Hence, the solid PIZA-3 is active in all the reactions catalyzed by other manganese porphyrins, with the advantage that it is a heterogeneous catalyst that can be recovered at the end of the reaction and reused.
The RPM family of porphyrinic materials also displays catalytic activity in oxidation reactions. The material ZnMn-RPM was used to investigate the catalytic activity of RPMs. The structure of this solid is similar to that of ZnPO-MOF [124], except that a [tetra(4-carboxyphenyl)porphyrinate] Zn(II) and not a tetracarboxylic acid is used as spacer. The redox metalloligand is [(5,15-dipyridyl-10,20-bis(pentafluorophenyl))porphyrinate] Mn(III), the same porphyrin as the one in ZnPO-MOF [124], structured by paddlewheel dinuclear zinc(II) clusters [108]. This material acquires permanent microporosity after cycles of CO2 sorption; its surface area is approximately 1,000 m2g−1, a desired feature for heterogeneous catalysis. In the general nomenclature of the RPM family, the first metal of the acronym (M1) is related to the carboxyphenyl porphyrin, whereas the second metal (M2) corresponds to the central metal of dipyridyl porphyrin (M1M2-RPM).
Epoxidation of styrene catalyzed by ZnMn-RPM was carried out by using an oxidant analogous to iodosylbenzene – 2-(tert-butylsulfonyl)iodosylbenzene (TBS-PhIO, Figure 7). ZnMn-RPM performs well as a catalyst; it is more stable than [Mn(TPFPP)]Cl, [tetra(pentafluorophenyl)porphyrinate] Mn(III) chloride, a second-generation catalyst [8]. Whilst [Mn(TPFPP)]Cl affords a turnover number (TON) of 780 in homogeneous catalysis, due to total catalyst deactivation, ZnMn-RPM affords a TON of 2,150 after 800 min of reaction, after complete oxidant consumption [108]. An induction time is necessary for ZnMn-RPM though (about 250 min), because the reactants have to penetrate through the pores and channels of the MOF. This induction period can be reduced by using smaller, mechanically crushed particles. Catalysis is indeed heterogeneous: after removal of the MOF, the reaction solution does not display any catalytic activity; moreover, no manganese porphyrin leaches during the reaction.
Oxidation of cyclohexane catalyzed by ZnMn-RPM was also performed, using the same oxidant mentioned above. In this case, ZnMn-RPM furnished a total yield of 20%, with 83% and 17% selectivity for cyclohexanol and cyclohexanone, respectively. This result is lower than the one obtained in homogeneous catalysis using [Mn(TPFPP)]Cl and iodosylbenzene at a catalyst/oxidant/cyclohexane molar ratio of 1:10:1,000 (total product yield = 38%) [125], because it is difficult for the reactants to permeate the solid catalyst, as demonstrated by the induction time.
In both cases (styrene epoxidation and cyclohexane oxidation), the MOF ZnMn-RPM exhibits excellent catalytic performance and offers advantages over homogeneous catalysis; for example, catalyst deactivation by bimolecular interaction (e.g., dimer formation) or self-destruction is prevented. Besides, MOFs enable catalyst reuse after their recovery from the reaction solution and rinsing. However, ZnMn-RPM maintains only two-thirds of its catalytic activity in a new reaction, because polymeric products from styrene block pores and channels in the solid catalyst [108].

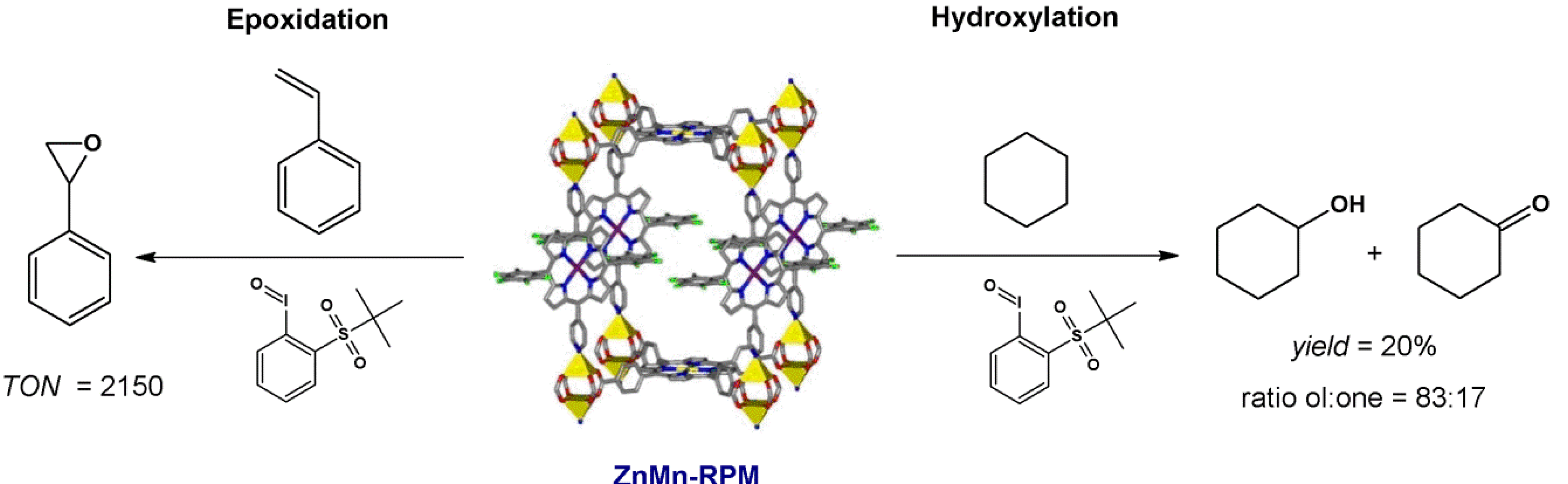

Figure 7. Epoxidation of styrene (left) and hydroxylation of cyclohexane (right) by an iodosylbenzene derivative, catalyzed by ZnMn-RPM. Reprinted (adapted) with permission from [108]. Copyright (2011) American Chemical Society.
Figure 7. Epoxidation of styrene (left) and hydroxylation of cyclohexane (right) by an iodosylbenzene derivative, catalyzed by ZnMn-RPM. Reprinted (adapted) with permission from [108]. Copyright (2011) American Chemical Society.
Molecules 18 07279 g007
The recently described MMPF family of porphyrinic MOFs synthesized by Ma’s group since 2011 [110,111,112,113,114,115] consists of carboxyphenyl-substituted MP linked through SBUs with different metals (Cu, Co, Zn, Cd, Zr, Fe) and does not contain any additional linkers or spacers. Four members of the MMPF family, bearing redox metalloligands, have been shown to display activity in catalytic oxidation reactions: MMPF-2, MMPF-3, and MMPF-5(Co) efficiently catalyze the epoxidation of stilbene, whilst MMPF-6 presents peroxidase activity (Figure 8).
Figure 8. Building blocks of the catalytically active MMPF series. (a) MMPF-2 and MMPF-5: [(tetra(3,5-dicarboxyphenyl)porphyrinate) Co(III)]; (b) MMPF-3: [5,15-bis(3,5-dicarboxyphenyl)-10,20-bis(2,6-dibromophenyl)porphyrinate) Co(III)]; (c) MMPF-6: [tetra(4-carboxyphenyl)porphyrinate] Fe(III)].
Figure 8. Building blocks of the catalytically active MMPF series. (a) MMPF-2 and MMPF-5: [(tetra(3,5-dicarboxyphenyl)porphyrinate) Co(III)]; (b) MMPF-3: [5,15-bis(3,5-dicarboxyphenyl)-10,20-bis(2,6-dibromophenyl)porphyrinate) Co(III)]; (c) MMPF-6: [tetra(4-carboxyphenyl)porphyrinate] Fe(III)].
Molecules 18 07279 g008
The first MMPF reported to be active in catalysis was MMPF-3, a three-dimensional material built from a solvothermal reaction between [5,15-bis(3,5-dicarboxyphenyl)-10,20-bis(2,6-dibromophenyl)-porphyrin] (DCPDBPP) [Figure 8(b)] and copper nitrate [113]. This porphyrin has four coordination points, two in each extremity of the porphyrin, forming an I(roman)-shaped linker; like the redox building blocks of the RPM family [108], the two other phenyl rings bear EWG, which enhance the catalytic activity of the MP in oxidation reactions [8]. The building blocks of MMPF-3, cobalt porphyrins, are structured by SBUs of dicobalt paddlewheel clusters; this furnishes a solid with fcu (face-centered cubic) topology, three kinds of polyhedral cages (cubohemioctahedron, truncated tetrahedron, and truncated octahedron), and a surface area up to 750 m2g−1 [Figure 8(b)] [113].
Meng et al. [113] applied MMPF-3 as catalyst in the epoxidation of trans-stilbene with tert-butyl hydroperoxide (tbhp) as oxidant (Figure 9), at a catalyst/oxidant/substrate molar ratio of 1:1,500:1,000 in acetonitrile, for 24 h. In these conditions, MMPF-3 affords conversion and epoxide yield of 95.7% and 87.1%, respectively. These results are better than those obtained from the following control reactions: (i) homogeneous catalysis using only the cobalt porphyrin [Co(DCPDBPP)], the building block of MMPF-3, as catalyst–conversion of 60.4% and selectivity of 67.0%; (ii) reaction employing another MOF with the same fcu topology as MMPF-3, namely fcu-MOF-1, which contains the tetracarboxylic acid H4bipa-tc as building block–conversion of 47.1% (nearly half that obtained for MMPF-3) and yield of 76.7%; and (iii) a blank reaction with no catalyst–conversion of 9.0% [113]. Together, these results show that cobalt porphyrins account for the major catalytic activity of MMPF-3; there is also some contribution from cobalt paddlewheel clusters, because fcu-MOF-1 is active, as seen from control 2.

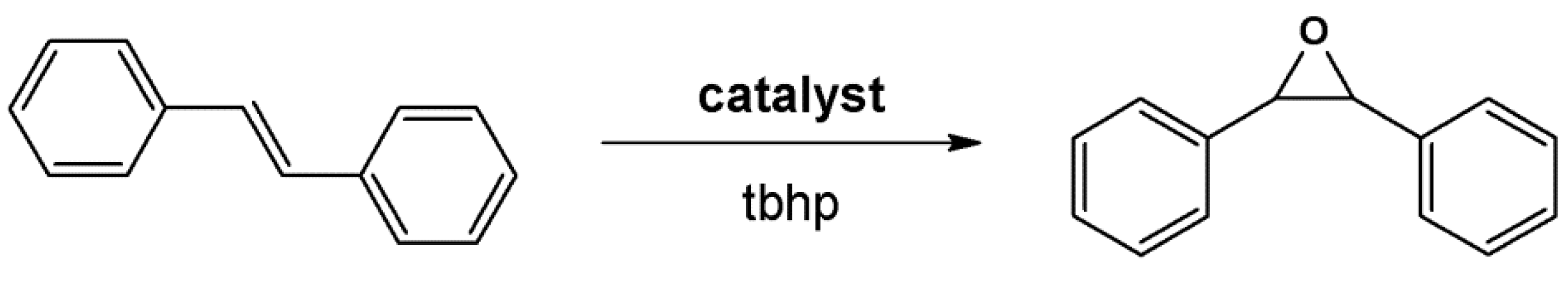

Figure 9. Epoxidation of trans-stilbene by a series of MOF and a cobalt porphyrin in homogeneous medium [113].
Figure 9. Epoxidation of trans-stilbene by a series of MOF and a cobalt porphyrin in homogeneous medium [113].
Molecules 18 07279 g009
In reference [113], the authors also compare MMPF-3 with two other previously synthesized metalloporphyrinic MOFs–MMPF-2 and PPF-1Co. Solid MMPF-2, obtained by Ma's group, bears [tetra(3,5-dicarboxyphenyl)porphyrinate] Co(II), an octatopic ligand, and trinuclear cobalt SBUs [Figure 8(a)] [111]. Choe et al. [126] reported on PPF-1Co, a MOF based upon [tetra(4-carboxyphenyl)porphyrinate] Co(II), a cruciform ligand, and SBUs consisting of dinuclear cobalt paddlewheel clusters, which provide a two-dimensional framework. Even though MMPF-2 has larger surface area, and despite the exposed cobalt sites in PPF-1Co, both solids yield lower conversion of trans-stilbene to the epoxide as compared with MMPF-3 (67.2% and 23.7% for MMPF-2 and PPF-1Co, respectively). Authors attribute these lower catalytic activities to the non-alignment of cobalt porphyrin sites with the center of channels or to their parallel orientation to channels, which reduces the number of sites available for catalysis.
Wang et al. [115] described another MMPF material that catalyzes the epoxidation of trans-stilbene: MMPF-5(Co), a MOF prepared via a post-synthetic method of linker exchange from MMPF-5, which in turn is a cadmium(II)-based MOF with [tetra(3,5-dicarboxyphenyl) porphyrinate] Cd(II) connected by cadmium(II) clusters. In this method, all the cadmium porphyrins are exchanged for cobalt porphyrins [Figure 8(a)], but structural cadmium(II) remains intact, so MMPF-5(Co) retains the same crystalline nature as MMPF-5. MMPF-5(Co) catalyzes the oxidation of the alkene to the epoxide with 87.0% conversion versus 28.1% obtained using homogeneous catalysis with a similar cobalt porphyrin, [tetra(3,5-dicarboxymethylesterphenyl) porphyrinate] Co(II). These results attest that MOF is resistant to catalyst deactivation. Control tests with MMPF-5 and without any catalyst provide a conversion of only 9%, proving that cadmium units do not have activity in this catalytic reaction [115].
Zhou et al. [127] were the first to report the synthesis of PCN-222(Fe) (PCN = Porous Coordination Network), a material based on [tetra(4-carboxyphenyl)porphyrinate] Fe(III) as building block [Figure 8(c)] and structured by hexanuclear zirconium clusters. PCN-222(Fe) consists of a three-dimensional porous material (pore diameter equal to 1.56 cm3g−1) with high surface area (2,200 m2g−1). The authors applied this MOF to catalyze the oxidation of three different diagnostic substrates for heme-like mimetic activity: 1,2,3-trihydroxybenzene [THB, Figure 10(a)], o-phenylenediamine [OPD, Figure 10(b)], and 3,3,5,5-tetramethylbenzidine [TMB, Figure 10(c)]; they used hydrogen peroxide at a constant concentration as oxidant and varied the concentration of the substrate, to evaluate kinetic parameters.

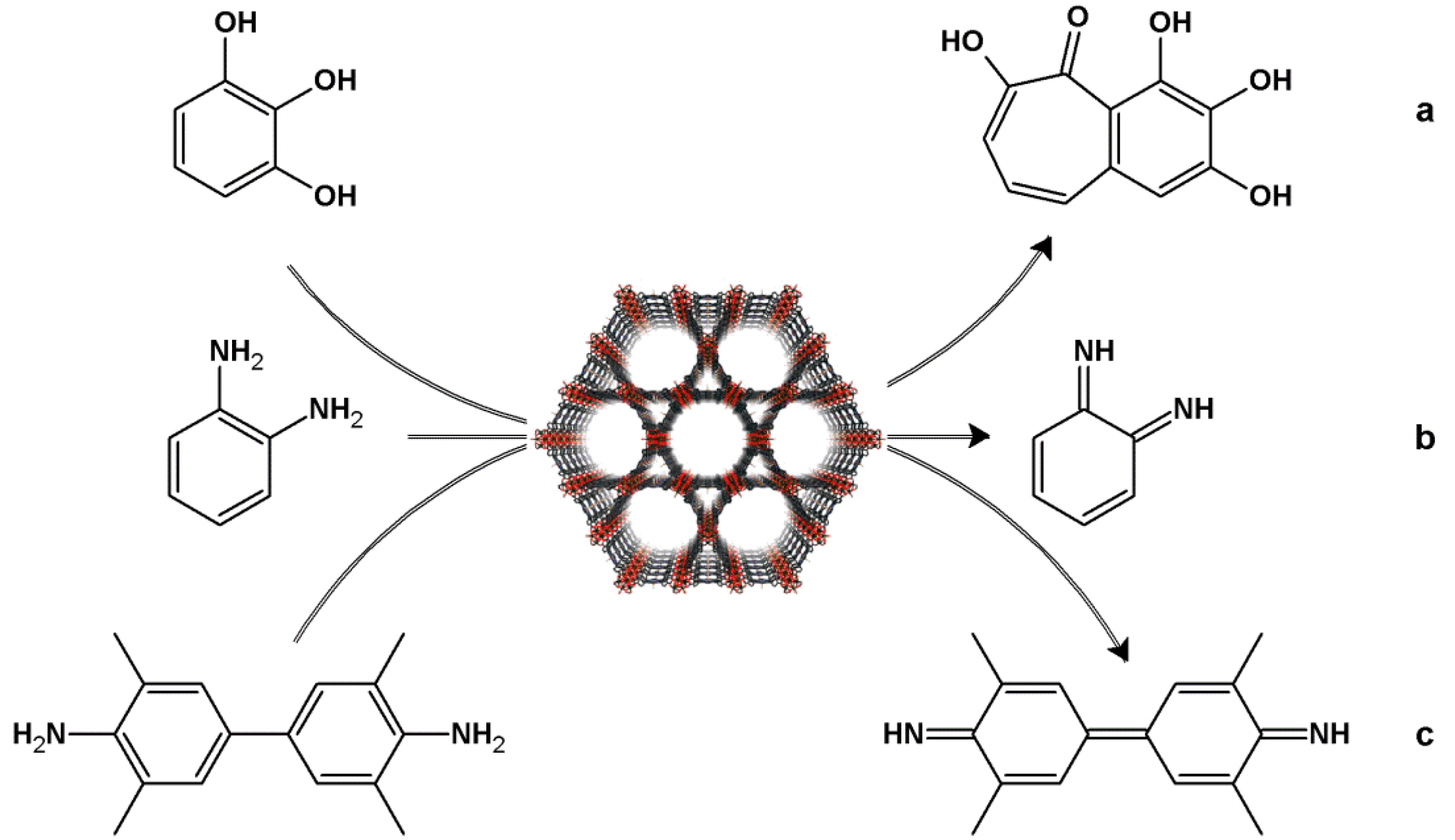

Figure 10. PCN-222(Fe)-catalyzed oxidations of (a) THB to purpurogallin; (b) OPD to o-quinonediimine; and (c) TMB to the respective diimine (adapted from [127] with permission. Copyright © 2012 WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim).
Figure 10. PCN-222(Fe)-catalyzed oxidations of (a) THB to purpurogallin; (b) OPD to o-quinonediimine; and (c) TMB to the respective diimine (adapted from [127] with permission. Copyright © 2012 WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim).
Molecules 18 07279 g010
The catalytic activity of PCN-222(Fe) was compared with the activity of two biological systems, protoporphyrin IX (hemin) and horseradish peroxidase (HRP). HRP displays the best catalytic activity (higher values of kcat) and has the most affinity for substrates (higher values for Km), as expected for a natural enzyme; hemin furnishes the worst results regarding the oxidation of the substrates THB, OPD, and TMB. In turn, the MOF PCN-222(Fe) exhibits excellent catalytic activity, with kcat/Km ratios only two orders of magnitude lower than the same ratios obtained with HRP. This MOF performs better in THB oxidation and requires only a small concentration of the substrate; HRP is better for OPD oxidation. PCN-222(Fe) is selective for smaller substrates, because it has smaller channels. This is an advantage of PCN-222(Fe) over HRP: the former has a density of active sites that is about 34 times greater than the density verified for HRP [127].
The last MMPF solid described to possess catalytic activity is MMPF-6, which is isostructural with PCN-222(Fe) [127], since they both bear the same building blocks and SBUs [114]. The three-dimensional MMPF, with an iron porphyrin loading of 6.18 × 10−4 g mol−1, also displays activity comparable to heme in two different reactions: oxygen and electron transfer in HEPES buffer, a biological-like environment.
Oxygen transfer from hydrogen peroxide to THB, which gives purpurogallin (Figure 11, left), has an initial rate equal to one-third of the rate observed for free myoglobin (Mb) in the same buffer. Electron transfer involving ABTS, to generate π-cation ABTS (Figure 11, right), is about one-fourth as fast as the rate achieved with free Mb in solution. MMPF-6 is also active in ethanol, a solvent where enzymes generally do not have catalytic activity. In this case, oxygen and electron transfer are enhanced 107 and ~215 times as compared with the blank reaction (no catalyst), respectively. Zirconium oxide clusters are not involved in the catalytic cycles, as demonstrated by the use of free-base porphyrin as the building block instead of the iron(III) complex [114].

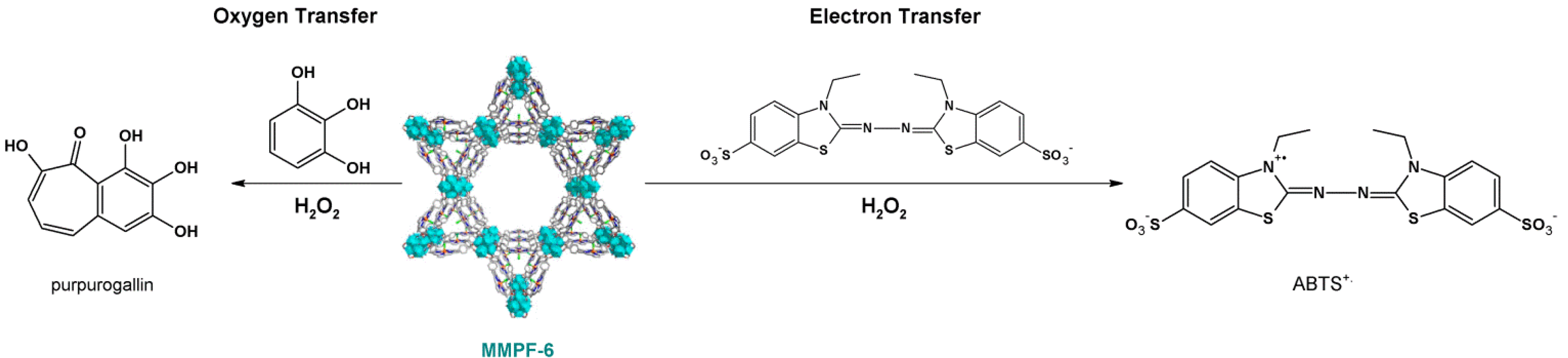

Figure 11. Oxidations catalyzed by MMPF-6 (middle): oxygen transfer to 1,2,3-trihydroxybenzene, to form purpurogallin (left), and electron transfer to ABTS, to give the pi-cation ABTS (right). Reprinted (adapted) with permission from [114]. Copyright (2012) American Chemical Society.
Figure 11. Oxidations catalyzed by MMPF-6 (middle): oxygen transfer to 1,2,3-trihydroxybenzene, to form purpurogallin (left), and electron transfer to ABTS, to give the pi-cation ABTS (right). Reprinted (adapted) with permission from [114]. Copyright (2012) American Chemical Society.
Molecules 18 07279 g011
Yang et al. [128] have employed three isostructural porphyrinic MOFs from the ZJU family (ZJU = Zheijang University), based on [tetra(3,5-dicarboxyphenyl)porphyrin] and di- and trinuclear metal clusters, as catalysts for the oxidation of alkylbenzenes. Each carboxyl substituent from the phenyl ring of these MOFs is linked to a di- and a trinuclear manganese cluster, in a symmetric design, to afford a net with tbo (twisted boracite) topology, the same topology that was found for HKUST-1 [71]. ZJU-18 is built from manganese porphyrin and manganese clusters, ZJU-19 has nickel(II) porphyrin as building block and manganese SUBs, and ZJU-20 consists of manganese porphyrins connected by cadmium clusters [128]. In the oxidation of ethylbenzene to acetophenone by TBHP, homometallic ZJU-18, the nickel porphyrin-based material ZJU-19, and the cadmium-SBU-based ZJU-20 yields up to 99, 9%, and 69% conversion to ketone, respectively. Homogeneous catalysis with manganese(III) and nickel(II) porphyrins affords conversions to ketone of 16% and only traces, respectively. Together, these results show that the building block manganese porphyrin is the catalytically active species in the ZJU family, and that the Mn-SBU clusters contribute to oxidative reactions. ZJU-18 is better than the catalyst in homogeneous phase, because the MOF structure avoids self-oxidation and dimerization of the MP.
The good performance of ZJU-18 prompted researchers to test its activity in the oxidation of longer-chain alkylbenzenes. The larger the alkyl chain, the worse the catalytic performance of this metalloporphyrinic MOF, suggesting that catalysis depends on the channels of the material. Oxidation of diphenylmethane, for which ZJU-18 gives lower conversion as compared with homogeneous medium (18% and 26% conversion, respectively), confirms this assumption. This pattern is also true for the catalytic oxidation of 4-phenyl-ethylbenzene by ZJU-18 (conversion of 16% and 28% in heterogeneous phase and homogeneous medium, respectively), but not for smaller substrates. All these observations corroborate the idea that catalysis occurs only on the external surface of the MOF for larger substrates, whilst it takes place inside the pores in the case of smaller hydrocarbons. Therefore, ZJU-18 is size- and shape-selective [128].
Lee et al. [129] have employed another manganese porphyrin-based MOF in oxidation reactions: the building block is a porphyrin bearing two carboxylic terminations on opposite sides of the ring, forming a linear linker; the other two mesophenyl rings contain diethoxy groups at the ortho positions, but no strong EWG exists in the structure. Indium(III) is the structural metal, because its strong binding to carboxyl groups furnishes a more stable material. Uniform hexagonal rods with a small surface area of 77.7 m2g−1 originate after reaction between the manganese porphyrin and In(NO3)3, due to collapse of the framework. This MOF catalyzes the epoxidation of styrene by TBS-PhIO at a catalyst/oxidant/substrate molar ratio of 1:1,000:2,000, in chloroform. Comparing the MOF with its building block molecule, [5,15-bis(4-carboxyethylphenyl)-10,20-bis(2,6-diethoxyphenyl)-porphyrinate]Mn(III), the lifetime of the catalyst triples on going from homogenous to heterogeneous catalysis. The MOF affords a TON in the range of 900, and it can be reused for at least five times while elevated TONs are maintained. Catalysis is indeed heterogeneous, because no MP leaches from the MOF during the reaction [129].
Xie et al. [130] have also performed the oxidation of styrene using a MOF based on [tetra(carboxyphenyl)porphyrinate]Pd(II), [Pd(TCPP)]. In this material, each [Pd(TCPP)] metalloligand binds to eight dinuclear cadmium centers, to form a three-dimensional framework displaying distorted channels. The solid is still robust and resistant after solvent removal, and retains its crystalline structure. In the presence of acids, palladium catalysts are selective toward acetophenone instead of epoxide, as seen in the examples cited for other metals in this same section. In the absence of acids, the oxidation of styrene by H2O2 in the presence of this MOF does not occur. Addition of perchloric acid to the reaction medium leads to 100% conversion, with 91% and 9% selectivity for acetophenone and benzaldehyde, respectively. This MOF furnishes better results than those obtained with [Pd(TCPP)] in homogeneous medium (90% conversion and 78% selectivity for acetophenone). In addition, strong oxyacids (i.e., HClO4, H2SO4, HNO3) promote higher conversion than a hydracid (HCl) or an organic acid (HOAc). The system is heterogeneous in nature and the catalyst can be recovered and reused in other cycles [130].
More recently, Wu et al. [131] have synthesized and tested four different metalloporphyrinic frameworks as catalysts for oxidation and aldol reactions [131]. These MOFs are based on [M(III)(TCPP)] (M = Mn and Fe) bearing paddlewheel clusters of cadmium(II) or zinc(II) as SBUs. The manganese materials are isostrucutural three-dimensional frameworks built from two-dimensional nets of manganese porphyrins connected by cadmium(II) or zinc(II) paddlewheel clusters; these clusters are pillared by formate bridges established between the SBUs and the manganese centers of the MP. The manganese(III) ion is five-coordinate and contains a formate unit as axial ligand, in an AB fashion [106,107,131]. The MOF having iron porphyrin as building block and zinc(II) paddlewheel clusters as SBUs also involves pillaring of two-dimensional nets of MP; the difference is that the SBUs connect via carboxylate bridges, in an AA model, and there is no axial ligand in the iron site [106,107,131]. When cadmium(II) is used as a structural metal with the iron porphyrin, the latter acts as a pentatopic ligand–it links to five cadmium(II) ions via three carboxylate units established with the other protonated carboxylates. The three-dimensional structure originates from dimerization of the iron centers in a low-symmetry network of superposed lamellae [131]. The catalytic activity of these MOFs has been tested in the epoxidation of a series of olefins by iodosylbenzene; more specifically, styrene, cyclopentene, cyclohexene, cyclooctene, terminal linear alkenes (1-hexene, 1-octene, and 1-dodecene), stilbene, and some modified stilbene and styrene substrates. The iron porphyrin-based MOF does not catalyze any of the epoxidation reactions: it undergoes self-destruction, as evidenced by bleaching of the reaction dispersion [131]. The manganese-based solid furnishes 100% product yield during styrene epoxidation, even though one of the axial positions of the MP is blocked by a bridge established with the SBU. The solid consisting of manganese porphyrin and zinc(II) paddlewheel clusters is also active for the epoxidation of other olefins, with yields close to 100% in some cases. Catalysis is really heterogeneous and happens on the external surface of MOF; the pores present in the solid do not allow the approach of the reactants to the manganese sites inside the network.
Because the iron porphyrin-based MOF is unstable in oxidation reactions, it has been applied as catalyst in the aldol reaction between nitrobenzaldehydes and methyl ethyl ketone (MEK). This MOF leads to good results in these coupling reactions, attributed to the high density of Lewis acids in the material.

4.2. Lewis Acid Catalysis

Hupp et al. [124] have synthesized the only reported example of a porphyrinic MOF that is able to catalyze acyl transfer reaction–ZnPO-MOF, obtained by solvothermal reaction between zinc(II) nitrate, [5,15-dipyridyl-10,20-bis(pentafluorophenyl))porphyrin], and [1,2,4,5-tetrakis(4-carboxy-phenyl)benzene] (H4TCPB), an octatopic oxygenated ligand, in DMF at 100 °C for five days. This MOF consists of four zinc porphyrins bearing the pyridyl groups in the vertical position, attached to dinuclear paddlewheel zinc clusters, which in turn bind to an octatopic linker that acts as spacer. The use of organic molecules as spacers combined with metalloligands can provide larger channels and pores than those obtained using metalloligands only [106].
Octatopic spacers have been applied to obtain the RPM family of porphyrinic MOFs [108,109]. These isostrucutral materials have been developed by employing the same porphyrin or [tetra(carboxyphenyl)porphyrin], the spacer, and the metals Al, Zn, Fe, and Mn. ZnPO-MOF can be considered a member of the RPM family, although it was synthesized before this family was defined. As established by PXRD and TG, ZnPO-MOF is robust; it is also porous, with a surface area of approximately 500 m2g−1, as determined by the BET method (supercritical CO2 adsorption). All the zinc porphyrin sites in ZnPO-MOF are accessible to substrates [124].
Acetylation of 3-pyridylcarbinol (3-PC) using N-acetylimidazole (NAI) in acetonitrile, at 60 °C, in the presence of ZnPO-MOF was carried out by Hupp et al. [124]; the products were 3-acetoxy-methylpyridyne (3-AMP, the acetylated product) and imidazole (Im) (Figure 12). Zinc-containing supramolecular systems usually catalyze this reaction [132], which depends on the cavity that the co-facial zinc sites form. Acyl transfer reaction in the presence of ZnPO-MOF is 2,420-fold greater as compared with the uncatalyzed reaction. The reaction rate is higher than that obtained in the presence of another MOF containing only organic linkers in the structure–Zn2(p-terephthalate)2(4,4’-bipy). This result shows that the catalytic activity depends on the metalloligand and not on the paddlewheel zinc clusters. To investigate the importance of the self-assembled MP in the catalysis, the authors carried out the reaction in the presence of a solution of monomeric [tetra(phenyl)porphyrinate] Zn(II), [Zn(TPP)], in homogeneous medium. This system produced 3-AMP at lower yields than the systems based on the MOFs, attesting to the importance of having a catalyst involving the zinc porphyrin in a solid structure [124]. The absence of EWG at the phenyl rings also explains the lower yield achieved with homogeneous [Zn(TPP)]. In ZnPO-MOF, fluorine atoms are EWG and withdraw the electron density from zinc(II), making the metal center more electrophilic and favoring the coordination of cyclic imines.
Figure 12. Acyl transfer from N-acetylimidazol (NAI) to 3-pyridylcarbinol catalyzed by ZnPO-MOF. In the MOF structure, zinc atoms are represented in yellow, oxygen in red, nitrogen in blue, fluorine in green, and carbon in grey. Reprinted (adapted) with permission from [124]. Copyright (2009) American Chemical Society.
Figure 12. Acyl transfer from N-acetylimidazol (NAI) to 3-pyridylcarbinol catalyzed by ZnPO-MOF. In the MOF structure, zinc atoms are represented in yellow, oxygen in red, nitrogen in blue, fluorine in green, and carbon in grey. Reprinted (adapted) with permission from [124]. Copyright (2009) American Chemical Society.
Molecules 18 07279 g012
Hupp et al. [124] have envisioned three hypotheses to explain this mechanism:
(i)
Lewis acid activation: preliminary coordination of NAI to a zinc-porphyrin site withdraws the electron density from the carbonyl group, generating the negative charge (Figure 12, center).
(ii)
Concentration of the substrates: ZnPO-MOF cavities can concentrate the substrates and increase the reaction rate without changing the activation energy.
(iii)
Preferred orientation of reactants: ZnPO-MOF cavity size (Zn-Zn distance = 11.6 Å) allows a pair of 3-PC and NAI to align, providing the ideal orientation for the reaction to take place.
To determine which mechanism acts during acetylation, Hupp et al. [124] conducted a study using isomers of 3-PC, namely 2-PC and 4-PC, to evaluate the dependence of the system on orientation [mechanism (iii)]. While 2-PC cannot coordinate to a zinc site due to the steric hindrance posed by the alcoholic group vicinal to nitrogen atom, reaction with 4-PC occurs with no significant change in the reaction rate as compared with 3-PC. This indicates that the catalytic system does not depend on a certain alignment of reactants, dismissing mechanism (iii). As already discussed, using [Zn(TPP)] as catalyst gives much lower product yields as compared with ZnPO-MOF. Therefore, Lewis acid activation does not contribute to the catalytic in a majority stake. Adding 10% imidazole to the reaction mixture considerably reduces the reaction rate, showing that the product acts as inhibitor. All these findings considered, the authors proposed that the reaction takes place through a combination of mechanisms (i) and (ii), including a local pre-concentration of the reactants as well as a low Lewis acid activation factor [124].
Three years later, Roy et al. [133] published a paper on the computational calculations of some parameters of the reaction discussed above. In an elegant way, in this paper they re-propose the mechanisms of acyl transfer reactions. To begin with, these authors focus on the pre-concentration of reactants to develop a tool that calculates the rate constants of the most important steps involved in the mechanism. First, they determine the binding characteristics of reactants, products, and solvent molecules to zinc catalytic sites by DFT. Next, on the basis of these data, they calculate the equilibrium constants of molecules binding to and dissociating from ZnPO-MOF that depend on temperature. Finally, they come up with a kinetic model for heterogeneous catalysis, to determine which pre-concentrated components enhance the reaction rate. This methodology can be applied not only to the ZnPO-MOF system, but also to all the heterogeneous systems involving a pre-concentration step as the determinant of a catalyzed chemical reaction.
Roy et al. [133] also proposed equilibrium constants by considering that all the zinc porphyrin sites in ZnPO-MOF bind to solvent molecules (acetonitrile) before the reactants are added. In this way, the major steps involved in the reaction are the dissociation of the bond between catalyst and solvent (MOF-S), followed by binding of the reactant to the catalyst (MOF-R) [Equation (1)]. After the reaction, the second process consists of dissociation of the products from the catalyst (MOF-P) and rebinding of solvent molecules (MOF-S), which ends the reaction cycle [Equation (2)]:
MOF-S + R → MOF-R + S
MOF-P + S → MOF-S + P
The authors thus built the kinetic model on the basis of these two reactions and took into account the stoichiometric reaction for both homogeneous and heterogeneous catalysis. Because the zinc(II) cations of the paddlewheel clusters are pentacoordinated, they do not act as active sites for catalytic reactions; therefore, only porphyrinic zinc functions as catalyst.
The paper published by Oliveri et al. [132] confirmed many of the hypotheses put forward by Hupp et al. [124]. Both reactants–the substituted imidazole and pyridine–coordinate to the zinc sites via the nitrogen atom, because the energy of the Zn-N bond is greater than the energy of the Zn-O bond, facilitating the reaction.
Thermodynamic parameters can also explain why 2-PC does not react with NAI but 3-PC and 4-PC do. The binding energy between 2-PC and ZnPO-MOF is 8.6 kcal mol−1, whereas this same energy is 14.1 kcal mol−1 between 3-PC or 4-PC and ZnPO-MOF. The alcoholic substituent next to the nitrogen in 2-PC probably hinders the coordination between 2-PC and ZnPO-MOF, so the reaction fails. All the binding energies between reactants and catalyst are greater for ZnPO-MOF as compared with [Zn(TPP)] and help to explain why a better catalytic activity is achieved in the heterogeneous phase. Hence, at high concentration of products, this strong binding can inactivate the zinc sites. This situation can be reverted by modifying the temperature. Indeed, the dissociation constant between the products and MOF rises with increasing temperature. In this way, pre-concentration governs the acyl transfer reaction due to a high local concentration of substrates inside the cavities of ZnPO-MOF.
Roy et al. still offer some directions to improve the reaction yield: reducing the temperature in the beginning of the reaction favors the pre-concentration of reactants; gradually increasing it eliminates product molecules coordinated to ZnPO-MOF [133].
The RPM MOF ZnAl-RPM catalyzes the ring opening of epoxides [109]. Hupp et al. [109] prepared this material from ZnZn-MOF, the only homometallic MOF of this family, using a post-synthetic method. Replacing [(dipyridyl)porphyrinate]Zn(II) with aluminum(III) dipyridyl porphyrin yields ZnAl-RPM, which is isostructural to the starting material and to all the other RPM materials, such as the ZnMn-RPM described in Section 4.1.
Hupp et al. [109] investigated the ring opening of styrene oxide by trimethylsilylazide (TMSN3) catalyzed by ZnAl-RPM and other MOFs of this family (M2 = Zn(II), 2H+, Sn(IV), and Co(III)). The conversion of styrene to the azide is 60%, with selectivity for the less hindered product (Figure 13). Other RPMs bearing free base, zinc, cobalt, or tin dipyridyl porphyrin do not catalyze epoxide ring opening (conversion between zero and 6%); only aluminum can accomplish adequate opening, because this reaction depends on strong acid catalysis. The presence of axial ligands in the tin porphyrin can inactivate sites that catalyze the reaction, accounting for the low conversion [109]. Results with free base and zinc porphyrin dismisses the hypothesis that Zn2 paddlewheel clusters are catalytically active during the reaction; indeed, the core of active sites lies on [(dipyridylbispentafluorophenyl)porphyrin] only.
Figure 13. Ring opening of styrene oxide catalyzed by ZnAl-RPM.
Figure 13. Ring opening of styrene oxide catalyzed by ZnAl-RPM.
Molecules 18 07279 g013

5. Conclusions

Metalloporphyrins are versatile molecules with different functions in biological systems. Moreover, they act as efficient and selective catalysts in various chemical reactions, which has inspired various research groups in the area of catalysis to evaluate the activity of these complexes in a number of catalytic systems.
Researchers started by investigating the use of metalloporphyrins as catalysts in oxidation reactions conducted in homogeneous media. Significant results led them to synthesize more robust structures that resisted the oxidizing conditions of the catalytic reactions. Attention was also devoted to the proper choice of metal and oxygen donor.
Immobilization of these complexes onto rigid, inert, and robust support solids paved the way for heterogeneous processes with technological applications—it was possible to recycle and reuse the developed catalytic solids, allowing for their application in larger scale.
A newer strategy was adopted with a view to using this valuable and versatile molecule in economically viable heterogeneous catalytic processes in the future: preparing new materials based on the catalytically active molecule only, such as coordination polymers (CP) and metal-organic frameworks (MOFs). These solids are good candidates as catalysts of heterogeneous processes as opposed to the materials based on dilution and immobilization of the catalyst.
In this mini-review, we have provided a brief bibliography of the efforts recently dedicated to the development of MOFs bearing metalloporphyrins as building blocks. We have reviewed some synthetic approaches and the application of MOFs in catalysis.
In the light of the manuscripts reviewed here, it is clear that the last two decades have seen many efforts toward the preparation and characterization (hard phase) of solids of this interesting family of compounds as well as the use of MOFs in productive, efficient, and recyclable catalytic processes.
This field still has many challenges to overcome, such as reusability through the maintenance of the MOF structure after a number of catalytic cycles; to keep the robustness of the material, under different reaction conditions; to access new selectivities just changing the metal source, peripheral porphyrin substituents and/or the topology of the material and to be active under soft conditions with good catalytic performance, arising the principles of green chemistry. So many kinds of chemical reactions catalyzed by metalloporphyrins in homogenous phase were not still investigated in heterogeneous medium with MOFs based on these chromophores (i.e., carbene insertion, cyclopropanation, reduction and DNA cleavage) and are the new challenges of this field. As Champness wrote [81], “MOFs are here to stay”, and its chemistry is still growing, so these porphyrinic materials still have long different ways to run with numerous new possibilities.

Acknowledgments

The authors wish to thank the Brazilian funding agencies CNPq and CAPES for financial support and for providing scholarships to our graduate students.

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. Mansuy, D. A brief history of the contribution of metalloporphyrin models to cytochrome P450 chemistry and oxidation catalysis. C. R. Chim. 2007, 10, 392–413. [Google Scholar] [CrossRef]
  2. Katagiri, M.; Ganguli, B.N.; Gunsalus, I.C. A Soluble Cytochrome P-450 Functional in Methylene Hydroxylation. J. Biol. Chem. 1968, 243, 3543–3546. [Google Scholar]
  3. Meunier, B.; de Visser, S.P.; Shaik, S. Mechanism of Oxidation Reactions Catalyzed by Cytochrome P450 Enzymes. Chem. Rev. 2004, 104, 3947–3980. [Google Scholar] [CrossRef]
  4. Mansuy, D. The great diversity of reactions catalyzed by cytochromes P450. Comp. Biochem. Physiol. C: Toxicol. Pharmacol. 1998, 121, 5–14. [Google Scholar]
  5. Lindsay Smith, J.R.; Iamamoto, Y.; Vinhado, F.S. Oxidation of alkanes by iodosylbenzene (PhIO) catalysed by supported Mn(III) porphyrins: Activity and mechanism. J. Mol. Catal. A: Chem. 2006, 252, 23–30. [Google Scholar] [CrossRef]
  6. Meunier, B. Metalloporphyrins as versatile catalysts for oxidation reactions and oxidative DNA cleavage. Chem. Rev. 1992, 92, 1411–1456. [Google Scholar] [CrossRef]
  7. DiNello, R.K.; Chang, C.K. 7—Isolation and Modification of Natural Porphyrins. In The Porphyrins; David, D., Ed.; Academic Press: New York, NY, USA, 1978; pp. 289–339. [Google Scholar]
  8. Dolphin, D.; Traylor, T.G.; Xie, L.Y. Polyhaloporphyrins: Unusual Ligands for Metals and Metal-Catalyzed Oxidations. Acc. Chem. Res. 1997, 30, 251–259. [Google Scholar] [CrossRef]
  9. Senge, M.O.; Richter, J. Synthetic transformations of porphyrins—Advances 2002–2004. J. Porph. Phthal. 2004, 8, 934–953. [Google Scholar] [CrossRef]
  10. Horn, S.; Dahms, K.; Senge, M.O. Synthetic transformations of porphyrins—Advances 2004–2007. J. Porph. Phthal. 2008, 12, 1053–1077. [Google Scholar] [CrossRef]
  11. Adler, A.D.; Longo, F.R.; Kampas, F.; Kim, J. On preparation of metalloporphyrins. J. Inorg. Nucl. Chem. 1970, 32, 2443. [Google Scholar] [CrossRef]
  12. Lindsey, J.S.; Schreiman, I.C.; Hsu, H.C.; Kearney, P.C.; Marguerettaz, A.M. Rothemund and Adler-Longo reactions revisited: Synthesis of tetraphenylporphyrins under equilibrium conditions. J. Org. Chem. 1987, 52, 827–836. [Google Scholar]
  13. Kadish, K.; Smith, K.M.; Guilard, R. The Porphyrin Handbook; Academic Press: New York, NY, USA, 1999. [Google Scholar]
  14. Wickramasinghe, A.; Jaquinod, L.; Nurco, D.J.; Smith, K.M. Investigations on the directive effects of a single meso-substituent via nitration of 5,12,13,17,18-pentasubstituted porphyrins: Syntheses of conjugated β-nitroporphyrins. Tetrahedron 2001, 57, 4261–4269. [Google Scholar] [CrossRef]
  15. Ali, H.; van Lier, J.E. Phenylselenyl halides: Efficient reagents for the selective halogenation and nitration of porphyrins. Tetrahedron Lett. 1991, 32, 5015–5018. [Google Scholar]
  16. Turk, H.; Ford, W.T. Epoxidation of styrene with aqueous hypochlorite catalyzed by a manganese(III) porphyrin bound to colloidal anion-exchange particles. J. Org. Chem. 1991, 56, 1253–1260. [Google Scholar] [CrossRef]
  17. Brantley, S.E.; Gerlach, B.; Olmstead, M.M.; Smith, K.M. Vinyl group protection in porphyrins and chlorins: Organoselenium derivatives. Tetrahedron Lett. 1997, 38, 937–940. [Google Scholar] [CrossRef]
  18. Kvíčala, J.; Beneš, M.; Paleta, O.; Král, V. Regiospecific nucleophilic substitution in 2,3,4,5,6-pentafluorobiphenyl as model compound for supramolecular systems. Theoretical study of transition states and energy profiles, evidence for tetrahedral SN2 mechanism. J. Fluor. Chem. 2010, 131, 1327–1337. [Google Scholar] [CrossRef]
  19. Knör, G. Spontaneous nucleophilic addition of hydroxide ions to the meso-position of high-valent antimony-oxo porphyrin complexes. J. Inorg. Biochem. 2001, 84, 297–299. [Google Scholar] [CrossRef]
  20. Kadish, K.M.; Han, B.C.; Franzen, M.M.; Araullo-McAdams, C. Syntheses and spectroscopic characterization of (T(p-Me2N)F4PP)H2 and (T(p-Me2N)F4PP)M where T(p-Me2N)F4PP = the dianion of meso-tetrakis(o,o,m,m-tetrafluoro-p-(dimethylamino)phenyl)porphyrin and M = cobalt(II), copper(II), or nickel(II). Structures of (T(p-Me2N)F4PP)Co and meso-tetrakis(pentafluorophenyl)porphinatocobalt(II), (TF5PP)Co. J. Am. Chem. Soc. 1990, 112, 8364–8368. [Google Scholar] [CrossRef]
  21. Jiménez-Osés, G.; García, J.I.; Silva, A.M.G.; Santos, A.R.N.; Tomé, A.C.; Neves, M.G.P.M.S.; Cavaleiro, J.A.S. Mechanistic insights on the site selectivity in successive 1,3-dipolar cycloadditions to meso-tetraarylporphyrins. Tetrahedron 2008, 64, 7937–7943. [Google Scholar] [CrossRef]
  22. Groves, J.T.; Nemo, T.E.; Myers, R.S. Hydroxylation and epoxidation catalyzed by iron-porphine complexes. Oxygen transfer from iodosylbenzene. J. Am. Chem. Soc. 1979, 101, 1032–1033. [Google Scholar] [CrossRef]
  23. Rocha Gonsalves, A.M.D.A.; Johnstone, R.A.W.; Pereira, M.M.; Shaw, J.; Sobral, A.J.F.D.N. Metal-assisted reactions. Part 22. Synthesis of perhalogenated prophyrins and their use as oxidation catalysts. Tetrahedron Lett. 1991, 32, 1355–1358. [Google Scholar]
  24. Hoffmann, P.; Labat, G.; Robert, A.; Meunier, B. Highly Selective Bromination of Tetramesitylporphyrin: An easy access to robust metalloporphyrins, M-Br8TMP and M-Br8TMP. Examples of application in catalytic oxygenation and oxidation reactions. Tetrahedron Lett. 1990, 31, 1991–1994. [Google Scholar] [CrossRef]
  25. Gross, Z.; Simkhovich, L. Hydroxylation of simple alkanes by iodosylbenzene is catalyzed more efficiently by second than by third generation iron(III) porphyrins. Tetrahedron Lett. 1998, 39, 8171–8174. [Google Scholar] [CrossRef]
  26. Doro, F.G.; Smith, J.R.L.; Ferreira, A.G.; Assis, M.D. Oxidation of alkanes and alkenes by iodosylbenzene and hydrogen peroxide catalysed by halogenated manganese porphyrins in homogeneous solution and covalently bound to silica. J. Mol. Catal. A: Chem. 2000, 164, 97–108. [Google Scholar] [CrossRef]
  27. CarvalhoDa-Silva, D.; Mac Leod, T.C.O.; de Faria, A.L.; dos Santos, J.S.; de Carvalho, M.E.M.D.; Rebouças, J.S.; Idemori, Y.M.; Assis, M.D.D. Carbamazepine oxidation catalyzed by manganese porphyrins: Effects of the β-bromination of the macrocycle and the choice of oxidant. Appl. Catal. A. 2011, 408, 25–30. [Google Scholar] [CrossRef]
  28. Guedes, A.A.; Smith, J.R.L.; Nascimento, O.R.; Guedes, D.F.C.; Assis, M.D. Catalytic activity of halogenated Iron Porphyrins in Alkene and Alkane oxidations by iodosylbenzene and hydrogen peroxide. J. Braz. Chem. Soc. 2005, 16, 835–843. [Google Scholar] [CrossRef]
  29. Bartoli, J.F.; Brigaud, O.; Battioni, P.; Mansuy, D. Hydroxylation of linear alkanes catalysed by iron porphyrins: particular efficacy and regioselectivity of perhalogenated porphyrins. J. Chem. Soc., Chem. Commun. 1991, 440–442. [Google Scholar]
  30. Silva, D.C.D.; DeFreitas-Silva, G.; Nascimento, E.D.; Rebouças, J.S.; Barbeira, P.J.S.; Carvalho, M.E.M.D.D.; Idemori, Y.M. Spectral, Electrochemical, And catalytic properties of a homologous series of manganese porphyrins as cytochrome P450 model: The effect of the degree of β-bromination. J. Inorg. Biochem. 2008, 102, 1932–1941. [Google Scholar] [CrossRef]
  31. de Freitas Silva, G.; da Silva, D.C.; Guimarães, A.S.; do Nascimento, E.; Rebouças, J.S.; de Araujo, M.P.; de Carvalho, M.E.M.D.; Idemori, Y.M. Cyclohexane hydroxylation by iodosylbenzene and iodobenzene diacetate catalyzed by a new β-octahalogenated Mn–porphyrin complex: The effect of meso-3-pyridyl substituents. J. Mol. Catal. A: Chem. 2007, 266, 274–283. [Google Scholar] [CrossRef]
  32. Thomas, J.M.; Raja, R.; Sankar, G.; Bell, R.G. Molecular Sieve Catalysts for the Regioselective and Shape-Selective Oxyfunctionalization of Alkanes in Air. Acc. Chem. Res. 2001, 34, 191–200. [Google Scholar] [CrossRef]
  33. Cook, B.R.; Reinert, T.J.; Suslick, K.S. Shape-selective alkane hydroxylation by metalloporphyrin catalysts. J. Am. Chem. Soc. 1986, 108, 7281–7286. [Google Scholar] [CrossRef]
  34. Nakagaki, S.; Machado, G.S.; Halma, M.; dos Santos Marangon, A.A.; de Freitas Castro, K.A.D.; Mattoso, N.; Wypych, F. Immobilization of iron porphyrins in tubular kaolinite obtained by an intercalation/delamination procedure. J. Catal. 2006, 242, 110–117. [Google Scholar]
  35. Papacídero, A.T.; Rocha, L.A.; Caetano, B.L.; Molina, E.; Sacco, H.C.; Nassar, E.J.; Martinelli, Y.; Mello, C.; Nakagaki, S.; Ciuffi, K.J. Preparation and characterization of spherical silica-porphyrin catalysts obtained by the sol–gel methodology. Colloids Surf. A 2006, 275, 27–35. [Google Scholar] [CrossRef]
  36. Machado, G.S.; Arízaga, G.G.C.; Wypych, F.; Nakagaki, S. Immobilization of anionic metalloporphyrins on zinc hydroxide nitrate and study of an unusual catalytic activity. J. Catal. 2010, 274, 130–141. [Google Scholar] [CrossRef]
  37. Halma, M.; Aparecida Dias de Freitas Castro, K.; Taviot-Gueho, C.; Prévot, V.; Forano, C.; Wypych, F.; Nakagaki, S. Synthesis, characterization, and catalytic activity of anionic iron(III) porphyrins intercalated into layered double hydroxides. J. Catal. 2008, 257, 233–243. [Google Scholar]
  38. Lichtenberger, F.; Nastainczyk, W.; Ullrich, V. Cytochrome P450 as an oxene transferase. Biochem. Biophys. Res. Commun. 1976, 70, 939–946. [Google Scholar] [CrossRef]
  39. De Paula, R.; Simões, M.M.Q.; Neves, M.G.P.M.S.; Cavaleiro, J.A.S. Oxidation of styrene and of some derivatives with H2O2 catalyzed by novel imidazolium-containing manganese porphyrins: A mechanistic and thermodynamic interpretation. J. Mol. Catal. A: Chem. 2011, 345, 1–11. [Google Scholar] [CrossRef]
  40. Rebelo, S.L.H.; Gonçalves, A.R.; Pereira, M.M.; Simões, M.M.Q.; Neves, M.G.P.M.S.; Cavaleiro, J.A.S. Epoxidation reactions with hydrogen peroxide activated by a novel heterogeneous metalloporphyrin catalyst. J. Mol. Catal. A: Chem. 2006, 256, 321–323. [Google Scholar] [CrossRef]
  41. Benedito, F.L.; Nakagaki, S.; Saczk, A.A.; Peralta-Zamora, P.G.; Costa, C.M.M. Study of metalloporphyrin covalently bound to silica as catalyst in the ortho-dianisidine oxidation. Appl. Catal., A. 2003, 250, 1–11. [Google Scholar] [CrossRef]
  42. Barros, V.P.; Faria, A.L.; MacLeod, T.C.O.; Moraes, L.A.B.; Assis, M.D. Ironporphyrin immobilized onto montmorillonite as a biomimetical model for azo dye oxidation. Int. Biodeter. Biodegr. Int. Biodeter. Biodegr. 2008, 61, 337–344. [Google Scholar]
  43. Emmert Iii, F.L.; Thomas, J.; Hon, B.; Gengenbach, A.J. Metalloporphyrin catalyzed oxidation of methyl yellow and related azo compounds. Inorg. Chim. Acta 2008, 361, 2243–2251. [Google Scholar] [CrossRef]
  44. Serra, A.C.; Docal, C.; Rocha Gonsalves, A.M.D.A. Efficient azo dye degradation by hydrogen peroxide oxidation with metalloporphyrins as catalysts. J. Mol. Catal. A: Chem. 2005, 238, 192–198. [Google Scholar] [CrossRef]
  45. Banfi, S.; Cassani, E.; Caruso, E.; Cazzaro, M. Oxidative cleavage of plasmid bluescript by water-Soluble Mn-Porphyrins and artificial oxidants or molecular oxygen. Bioorg. Med. Chem. 2003, 11, 3595–3605. [Google Scholar] [CrossRef]
  46. Leal, O.; Anderson, D.L.; Bowman, R.G.; Basolo, F.; Burwell, R.L., Jr. Reversible adsorption of oxygen on silica gel modified by imidazole-attached iron tetraphenylporphyrin. J. Am. Chem. Soc. 1975, 97, 5125–5129. [Google Scholar]
  47. Gao, B.; Chen, Y.; Lei, Q. Hydroxylation of cyclohexane with molecular oxygen catalyzed by highly efficient heterogeneous Mn(III) porphyrin catalysts prepared by special synthesis and immobilization method. J. Inclusion Phenom. Macrocyclic Chem. 2012, 74, 455–465. [Google Scholar] [CrossRef]
  48. Ucoski, G.M.; Castro, K.A.D. d. F.; Ciuffi, K.J.; Ricci, G.P.; Marques, J.A.; Nunes, F.S.; Nakagaki, S. Use of iron and manganese porphyrins in solution and immobilized on silica obtained by the sol–gel process as catalyst in the oxidation of organic substrates. Appl. Catal., A. 2011, 404, 120–128. [Google Scholar] [CrossRef]
  49. Castro, K.A.D.F.; Halma, M.; Machado, G.S.; Ricci, G.P.; Ucoski, G.M.; Ciuffi, K.J.; Nakagaki, S. Preparation of Catalysts based on Iron(III) Porphyrins Heterogenized on Silica obtained by the Sol-Gel Process for Hydroxylation and Epoxidation Reactions. J. Braz. Chem. Soc. 2010, 21, 1329–1340. [Google Scholar]
  50. Nakagaki, S.; Halma, M.; Bail, A.; Arízaga, G.G.C.; Wypych, F. First insight into catalytic activity of anionic iron porphyrins immobilized on exfoliated layered double hydroxides. J. Colloid Interf. Sci. 2005, 281, 417–423. [Google Scholar] [CrossRef]
  51. van der Made, A.W.; Smeets, J.W.H.; Nolte, R.J.M.; Drenth, W. Olefin epoxidation by a mono-oxygenase model. Effect of site isolation. J. Chem. Soc., Chem. Commun. 1983, 1204–1206. [Google Scholar]
  52. Gandini, M.E.F.; Neri, C.R.; Vinhado, F.S.; Minorin, T.S.; Nascimento, O.R.; Serra, O.A.; Iamamoto, Y. Modified Silicas Covalently Bounded to 5,10,15,20-Tetrakis(2-hydroxy-5-nitrophenyl) Porphyrinato Iron(III). Synthesis, Spectroscopic and EPR characterization. Catalytic studies. J. Braz. Chem. Soc. 2008, 19, 344–351. [Google Scholar] [CrossRef]
  53. Sacco, H.C.; Ciuffi, K.J.; Biazzotto, J.C.; Zuccki, M.R.; Leite, C.A.P.; Nascimento, O.R.; Serra, O.A.; Iamamoto, Y. Synthesis of manganese porphyrinosilica imprinted with templates using the sol-gel process. J. Non-Cryst. Solids. 2000, 273, 150–158. [Google Scholar] [CrossRef]
  54. Battioni, P.; Cardin, E.; Louloudi, M.; Schöllhorn, B.; Spyroulias, G.A.; Mansuy, D.; Traylor, T.G. Metalloporphyrinosilicas: A new class of hybrid organic-inorganic materials acting as selective biomimetic oxidation catalysts. Chem. Commun. 1996, 2037–2038. [Google Scholar]
  55. Pires, S.M.G.; Paula, R.D.; Simões, M.M.Q.; Neves, M.G.P.M.S.; Santos, I.C.M.S.; Tomé, A.C.; Cavaleiro, J.A.S. A new silica-supported manganese chlorin as a biomimetic oxidation catalyst. Catal. Commun. 2009, 11, 24–28. [Google Scholar]
  56. Takagi, S.; Eguchi, M.; Tryk, D.A.; Inoue, H. Porphyrin photochemistry in inorganic/organic hybrid materials: Clays, layered semiconductors, nanotubes, and mesoporous materials. J. Photochem. Photobiol., C 2006, 7, 104–126. [Google Scholar] [CrossRef]
  57. Smith, J.V. Definition of a zeolite. Zeolites 1984, 4, 309–310. [Google Scholar] [CrossRef]
  58. Nakagaki, S.; Xavier, C.R.; Wosniak, A.J.; Mangrich, A.S.; Wypych, F.; Cantão, M.P.; Denicoló, I.; Kubota, L.T. Synthesis and characterization of zeolite-encapsulated metalloporphyrins. Colloids Surf., A 2000, 168, 261–276. [Google Scholar] [CrossRef]
  59. Santos, J.S.D.; Faria, A.L.; Amorin, P.M.D.S.; Luna, F.M.L.; Caiado, K.L.; Silva, D.O.C.E.; Sartoratto, P.P.C.; Assis, M.D. Iron(III) porphyrin covalently supported onto magnetic amino-functionalized nanospheres as catalyst for hydrocarbon and herbicide oxidations. J. Braz. Chem. Soc. 2012, 23, 1411–1420. [Google Scholar] [CrossRef] [Green Version]
  60. Aparecida Vidoto, E.; Silvia Monsalves Moreira, M.; da Silva Vinhado, F.; Jorge Ciuffi, K.; Rangel Nascimento, O.; Iamamoto, Y. Immobilization of β halogenated ironporphyrin in the silica matrix by the sol–gel process. J. Non-Cryst. Solids. 2002, 304, 151–159. [Google Scholar] [CrossRef]
  61. Cady, S.S.; Pinnavaia, T.J. Porphyrin intercalation in mica-type silicates. Inorg. Chem. 1978, 17, 1501–1507. [Google Scholar]
  62. van Damme, H.; Crespin, M.; Obrecht, F.; Cruz, M.I.; Fripiat, J.J. Acid-base and complexation behavior of porphyrins on the intracrystal surface of swelling clays: Meso-tetraphenylporphyrin and meso-tetra(4-pyridyl)porphyrin on montmorillonites. J. Colloid Interf. Sci. 1978, 66, 43–54. [Google Scholar] [CrossRef]
  63. de Lima, O.J.; de Aguirre, D.P.; de Oliveira, D.C.; da Silva, M.A.; Mello, C.; Leite, C.A.P.; Sacco, H.C.; Ciuffi, K.J. Porphyrins entrapped in an alumina matrix. J. Mater. Chem. 2001, 11, 2476–2481. [Google Scholar] [CrossRef]
  64. Corma, A.; García, H.; Llabrés i Xamena, F.X. Engineering metal organic frameworks for heterogeneous catalysis. Chem. Rev. 2010, 110, 4606–4655. [Google Scholar] [CrossRef]
  65. Rowsell, J.L.C.; Yaghi, O.M. Metal-organic frameworks: A new class of porous materials. Microporous Mesoporous Mater. 2004, 73, 3–14. [Google Scholar] [CrossRef]
  66. Kinoshita, Y.; Matsubara, I.; Higuciu, T.; Saito, Y. The Crystal Structure of Bis(adiponitrilo)copper(I) Nitrate. Bull Chem. Soc. Jpn 1959, 32, 1221–1226. [Google Scholar]
  67. Hoskins, B.F.; Robson, R. Design and construction of a new class of scaffolding-like materials comprising infinite polymeric frameworks of 3D-linked molecular rods. A reappraisal of the zinc cyanide and cadmium cyanide structures and the synthesis and structure of the diamond-related frameworks [N(CH3)4][CuIZnII(CN)4] and CuI[4,4',4'',4'''-tetracyanotetraphenylmethane]BF4.xC6H5NO2. J. Am. Chem. Soc. 1990, 112, 1546–1554. [Google Scholar] [CrossRef]
  68. Robson, R.; Abrahams Brendan, F.; Batten Stuart, R.; Gable Robert, W.; Hoskins Bernard, F.; Liu, J. Crystal Engineering of Novel Materials Composed of Infinite Two- and Three-Dimensional Frameworks. In Supramolecular Architecture; American Chemical Society: Washington, DC, USA, 1992; Volume 499, pp. 256–273. [Google Scholar]
  69. Batten, S.R.; Hoskins, B.F.; Robson, R. Two Interpenetrating 3D Networks Which Generate Spacious Sealed-Off Compartments Enclosing of the Order of 20 Solvent Molecules in the Structures of Zn(CN)(NO3)(tpt)2/3.solv (tpt = 2,4,6-tri(4-pyridyl)-1,3,5-triazine, solv = ~3/4C2H2Cl4.3/4CH3OH or .apprx.3/2CHCl3. 1/3CH3OH). J. Am. Chem. Soc. 1995, 117, 5385–5386. [Google Scholar] [CrossRef]
  70. Yaghi, O.M.; Li, H. Hydrothermal Synthesis of a Metal-Organic Framework Containing Large Rectangular Channels. J. Am. Chem. Soc. 1995, 117, 10401–10402. [Google Scholar] [CrossRef]
  71. Chui, S.S.-Y.; Lo, S.M.-F.; Charmant, J.P.H.; Orpen, A.G.; Williams, I.D. A Chemically Functionalizable Nanoporous Material [Cu3(TMA)2(H2O)3]n. Science 1999, 283, 1148–1150. [Google Scholar] [CrossRef]
  72. Li, H.; Eddaoudi, M.; O'Keeffe, M.; Yaghi, O.M. Design and synthesis of an exceptionally stable and highly porous metal-organic framework. Nature 1999, 402, 276–279. [Google Scholar] [CrossRef]
  73. Stock, N.; Biswas, S. Synthesis of metal-organic frameworks (MOFs): Routes to various MOF topologies, Morphologies, and Composites. Chem. Rev. 2011, 112, 933–969. [Google Scholar] [CrossRef]
  74. Jung, D.-W.; Yang, D.-A.; Kim, J.; Kim, J.; Ahn, W.-S. Facile synthesis of MOF-177 by a sonochemical method using 1-methyl-2-pyrrolidinone as a solvent. Dalton Trans. 2010, 39, 2883–2887. [Google Scholar]
  75. Klinowski, J.; Almeida Paz, F.A.; Silva, P.; Rocha, J. Microwave-Assisted Synthesis of Metal-Organic Frameworks. Dalton Trans. 2011, 40, 321–330. [Google Scholar] [CrossRef]
  76. Mueller, U.; Puetter, H.; Hesse, M.; Wessel, H.W. Method for electrochemical production of A crystalline porous metal organic skeleton material. WO/2005/049892, 6 February 2005. [Google Scholar]
  77. Friscic, T. New opportunities for materials synthesis using mechanochemistry. J. Mater. Chem. 2010, 20, 7599–7605. [Google Scholar] [CrossRef]
  78. Pichon, A.; Lazuen-Garay, A.; James, S.L. Solvent-free synthesis of a microporous metal-organic framework. CrystEngComm 2006, 8, 211–214. [Google Scholar] [CrossRef]
  79. Qiu, L.-G.; Li, Z.-Q.; Wu, Y.; Wang, W.; Xu, T.; Jiang, X. Facile synthesis of nanocrystals of a microporous metal-organic framework by an ultrasonic method and selective sensing of organoamines. Chem. Commun. 2008, 3642–3644. [Google Scholar]
  80. Tanabe, K.K.; Cohen, S.M. Postsynthetic modification of metal-organic frameworks—a progress report. Chem. Soc. Rev. 2011, 40, 498–519. [Google Scholar]
  81. Champness, N.R. The future of metal-organic frameworks. Dalton Trans. 2011, 40, 10311–10315. [Google Scholar] [CrossRef]
  82. Reticular Chemistry Structure Resource. Available online: http://rcsr.anu.edu.au/ (accessed on 28 March 2013).
  83. O’Keeffe, M.; Peskov, M.A.; Ramsden, S.J.; Yaghi, O.M. The Reticular chemistry structure resource (RCSR) database of, and symbols for, Crystal nets. Acc. Chem. Res. 2008, 41, 1782–1789. [Google Scholar] [CrossRef]
  84. Tranchemontagne, D.J.; Mendoza-Cortes, J.L.; O'Keeffe, M.; Yaghi, O.M. Secondary building units, Nets and bonding in the chemistry of metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1257–1283. [Google Scholar]
  85. Farha, O.K.; Hupp, J.T. Rational design, Synthesis, Purification, and activation of metal−organic Framework materials. Acc. Chem. Res. 2010, 43, 1166–1175. [Google Scholar] [CrossRef]
  86. Farha, O.K.; Eryazici, I.; Jeong, N.C.; Hauser, B.G.; Wilmer, C.E.; Sarjeant, A.A.; Snurr, R.Q.; Nguyen, S.T.; Yazaydın, A.Ö.; Hupp, J.T. Metal–Organic framework materials with ultrahigh surface areas: Is the sky the limit? J. Am. Chem. Soc. 2012, 134, 15016–15021. [Google Scholar] [CrossRef]
  87. Murray, L.J.; Dinca, M.; Long, J.R. Hydrogen storage in metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1294–1314. [Google Scholar]
  88. Hu, Y.H.; Zhang, L. Hydrogen storage in Metal–Organic frameworks. Adv. Mater. 2010, 22, E117–E130. [Google Scholar] [CrossRef]
  89. Li, J.-R.; Kuppler, R.J.; Zhou, H.-C. Selective gas adsorption and separation in metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1477–1504. [Google Scholar]
  90. Li, J.-R.; Sculley, J.; Zhou, H.-C. Metal–Organic frameworks for separations. Chem. Rev. 2011, 112, 869–932. [Google Scholar]
  91. Min, K.S.; Suh, M.P. Silver(I)−Polynitrile network solids for anion exchange: Anion-Induced transformation of supramolecular structure in the crystalline state. J. Am. Chem. Soc. 2000, 122, 6834–6840. [Google Scholar] [CrossRef]
  92. Ni, Z.; Jerrell, J.P.; Cadwallader, K.R.; Masel, R.I. Metal−Organic frameworks as adsorbents for trapping and preconcentration of organic phosphonates. Anal. Chem. 2007, 79, 1290–1293. [Google Scholar] [CrossRef]
  93. Xiong, R.; Fern, J.T.; Keffer, D.J.; Fuentes-Cabrera, M.; Nicholson, D.M. Molecular simulations of adsorption and diffusion of RDX in IRMOF-1. Mol. Simul. 2009, 35, 910–919. [Google Scholar] [CrossRef]
  94. Kreno, L.E.; Leong, K.; Farha, O.K.; Allendorf, M.; Van Duyne, R.P.; Hupp, J.T. Metal−Organic framework materials as chemical sensors. Chem. Rev. 2011, 112, 1105–1125. [Google Scholar]
  95. An, J.; Geib, S.J.; Rosi, N.L. Cation-Triggered Drug Release from a Porous Zinc−adeninate Metal−organic framework. J. Am. Chem. Soc. 2009, 131, 8376–8377. [Google Scholar] [CrossRef]
  96. Horcajada, P.; Serre, C.; Vallet-Regí, M.; Sebban, M.; Taulelle, F.; Férey, G. Metal−Organic frameworks as efficient materials for drug delivery. Angew. Chem., Int. Ed. 2006, 45, 5974–5978. [Google Scholar]
  97. Taylor-Pashow, K.M.L.; Rocca, J.D.; Xie, Z.; Tran, S.; Lin, W. Postsynthetic modifications of Iron-Carboxylate nanoscale Metal−Organic frameworks for imaging and drug delivery. J. Am. Chem. Soc. 2009, 131, 14261–14263. [Google Scholar] [CrossRef]
  98. Lee, C.Y.; Farha, O.K.; Hong, B.J.; Sarjeant, A.A.; Nguyen, S.T.; Hupp, J.T. Light-Harvesting Metal–Organic frameworks (MOFs): Efficient strut-to-strut energy transfer in bodipy and Porphyrin-based MOFs. J. Am. Chem. Soc. 2011, 133, 15858–15861. [Google Scholar]
  99. Cho, S.-H.; Ma, B.; Nguyen, S.T.; Hupp, J.T.; Albrecht-Schmitt, T.E. A metal-organic framework material that functions as an enantioselective catalyst for olefin epoxidation. Chem. Commun. 2006, 2563–2565. [Google Scholar]
  100. Kitaura, R.; Onoyama, G.; Sakamoto, H.; Matsuda, R.; Noro, S.-I.; Kitagawa, S. Immobilization of a Metallo Schiff Base into a Microporous Coordination Polymer. Angew. Chem., Int. Ed. 2004, 43, 2684–2687. [Google Scholar]
  101. Szeto, K.C.; Kongshaug, K.O.; Jakobsen, S.; Tilset, M.; Lillerud, K.P. Design, Synthesis and characterization of a Pt-Gd metal-organic framework containing potentially catalytically active sites. Dalton Trans. 2008, 2054–2060. [Google Scholar]
  102. Dong, G.; Bing-guang, Z.; Chun-ying, D.; Xin, C.; Qing-jin, M. A novel ferrocene-barium sandwich sheet-shaped coordination polymer and its solid-state electrochemistry. Dalton Trans. 2003, 282–284. [Google Scholar]
  103. Horikoshi, R.; Mochida, T.; Moriyama, H. Synthesis and characterization of Redox-Active coordination polymers generated from ferrocene-containing bridging ligands. Inorg. Chem. 2002, 41, 3017–3024. [Google Scholar] [CrossRef]
  104. Abrahams, B.F.; Hoskins, B.F.; Robson, R. A new type of infinite 3D polymeric network containing 4-connected, peripherally-linked metalloporphyrin building blocks. J. Am. Chem. Soc. 1991, 113, 3606–3607. [Google Scholar] [CrossRef]
  105. Suslick, K.S.; Bhyrappa, P.; Chou, J.H.; Kosal, M.E.; Nakagaki, S.; Smithenry, D.W.; Wilson, S.R. Microporous Porphyrin Solids. Acc. Chem. Res. 2005, 38, 283–291. [Google Scholar] [CrossRef]
  106. Burnett, B.J.; Barron, P.M.; Choe, W. Recent advances in porphyrinic metal-organic frameworks: Materials design, Synthetic strategies, and emerging applications. CrystEngComm 2012, 14, 3839–3846. [Google Scholar] [CrossRef]
  107. Choi, E.-Y.; Barron, P.M.; Novotny, R.W.; Son, H.-T.; Hu, C.; Choe, W. Pillared porphyrin homologous series: Intergrowth in metal-organic frameworks. Inorg. Chem. 2008, 48, 426–428. [Google Scholar]
  108. Farha, O.K.; Shultz, A.M.; Sarjeant, A.A.; Nguyen, S.T.; Hupp, J.T. Active-site-accessible, Porphyrinic metal−organic framework materials. J. Am. Chem. Soc. 2011, 133, 5652–5655. [Google Scholar]
  109. Takaishi, S.; DeMarco, E.J.; Pellin, M.J.; Farha, O.K.; Hupp, J.T. Solvent-assisted linker exchange (SALE) and post-assembly metallation in porphyrinic metal-organic framework materials. Chem. Sci. 2013, 4, 1509–1513. [Google Scholar]
  110. Wang, X.-S.; Meng, L.; Cheng, Q.; Kim, C.; Wojtas, L.; Chrzanowski, M.; Chen, Y.-S.; Zhang, X.P.; Ma, S. Three-dimensional porous metal–metalloporphyrin framework consisting of nanoscopic polyhedral cages. J. Am. Chem. Soc. 2011, 133, 16322–16325. [Google Scholar] [CrossRef]
  111. Wang, X.-S.; Chrzanowski, M.; Kim, C.; Gao, W.-Y.; Wojtas, L.; Chen, Y.-S.; Peter Zhang, X.; Ma, S. Quest for highly porous metal-metalloporphyrin framework based upon a custom-designed octatopic porphyrin ligand. Chem. Commun. 2012, 48, 7173–7175. [Google Scholar]
  112. Wang, X.-S.; Chrzanowski, M.; Gao, W.-Y.; Wojtas, L.; Chen, Y.-S.; Zaworotko, M.J.; Ma, S. Vertex-directed self-assembly of a high symmetry supermolecular building block using a custom-designed porphyrin. Chem. Sci. 2012, 3, 2823–2827. [Google Scholar] [CrossRef]
  113. Meng, L.; Cheng, Q.; Kim, C.; Gao, W.-Y.; Wojtas, L.; Chen, Y.-S.; Zaworotko, M.J.; Zhang, X.P.; Ma, S. Crystal engineering of a microporous, Catalytically active fcu topology MOF using a custom-designed metalloporphyrin Linker. Angew. Chem., Int. Ed. 2012, 51, 10082–10085. [Google Scholar] [CrossRef]
  114. Chen, Y.; Hoang, T.; Ma, S. Biomimetic catalysis of a porous iron-based metal-metalloporphyrin framework. Inorg. Chem. 2012, 51, 12600–12602. [Google Scholar] [CrossRef]
  115. Wang, X.-S.; Chrzanowski, M.; Wojtas, L.; Chen, Y.-S.; Ma, S. Formation of a metalloporphyrin-based nanoreactor by postsynthetic metal–ion exchange of a polyhedral-cage containing a metal–metalloporphyrin framework. Chem. Eur. J. 2013, 19, 3297–3301. [Google Scholar] [CrossRef]
  116. Lee, J.; Farha, O.K.; Roberts, J.; Scheidt, K.A.; Nguyen, S.T.; Hupp, J.T. Metal-organic framework materials as catalysts. Chem. Soc. Rev. 2009, 38, 1450–1459. [Google Scholar]
  117. Lane, B.S.; Burgess, K. Metal-Catalyzed epoxidations of alkenes with hydrogen peroxide. Chem. Rev. 2003, 103, 2457–2474. [Google Scholar] [CrossRef]
  118. Nam, W.; Kim, I.; Lim, M.H.; Choi, H.J.; Lee, J.S.; Jang, H.G. Isolation of an Oxomanganese(V) porphyrin intermediate in the reaction of a manganese(III) porphyrin complex and H2O2 in aqueous solution. Chem. Eur. J. 2002, 8, 2067–2071. [Google Scholar]
  119. Groves, J.T.; Kruper, W.J.; Haushalter, R.C. Hydrocarbon oxidations with oxometalloporphinates. Isolation and reactions of a (porphinato)manganese(V) complex. J. Am. Chem. Soc. 1980, 102, 6375–6377. [Google Scholar] [CrossRef]
  120. Kameyama, H.; Narumi, F.; Hattori, T.; Kameyama, H. Oxidation of cyclohexene with molecular oxygen catalyzed by cobalt porphyrin complexes immobilized on montmorillonite. J. Mol. Catal. A: Chem. 2006, 258, 172–177. [Google Scholar]
  121. Goifman, A.; Gun, J.; Gitis, V.; Kamyshny, A., Jr.; Lev, O.; Donner, J.; Börnick, H.; Worch, E. Pyrolysed carbon supported cobalt porphyrin: A potent catalyst for oxidation of hydrogen sulfide. Appl. Catal., B 2004, 54, 225–235. [Google Scholar]
  122. Appleton, A.J.; Evans, S.; Smith, J.R.L. Allylic oxidation and epoxidation of cycloalkenes by iodosylbenzene catalysed by iron(III) and manganese(III) tetra(dichlorophenyl)porphyrin: the marked influence of ring size on the rate of allylic oxidation. J. Chem. Soc., Perkin Trans. 2 1996, 281–285. [Google Scholar] [CrossRef]
  123. Thomas, J.M.; Hernandez-Garrido, J.C.; Raja, R.; Bell, R.G. Nanoporous oxidic solids: The confluence of heterogeneous and homogeneous catalysis. Phys. Chem. Chem. Phys. 2009, 11, 2799–2825. [Google Scholar] [CrossRef]
  124. Shultz, A.M.; Farha, O.K.; Hupp, J.T.; Nguyen, S.T. A Catalytically active, permanently microporous MOF with metalloporphyrin struts. J. Am. Chem. Soc. 2009, 131, 4204–4205. [Google Scholar]
  125. Friedermann, G.R.; Halma, M.; de Freitas Castro, K.A.D.; Benedito, F.L.; Doro, F.G.; Drechsel, S.M.; Mangrich, A.S.; Assis, M.D.D.; Nakagaki, S. Intermediate species generated from halogenated manganese porphyrins electrochemically and in homogeneous catalysis of alkane oxidation. Appl. Catal., A. 2006, 308, 172–181. [Google Scholar] [CrossRef]
  126. Choi, E.-Y.; Wray, C.A.; Hu, C.; Choe, W. Highly tunable metal-organic frameworks with open metal centers. CrystEngComm 2009, 11, 553–555. [Google Scholar] [CrossRef]
  127. Feng, D.; Gu, Z.-Y.; Li, J.-R.; Jiang, H.-L.; Wei, Z.; Zhou, H.-C. Zirconium-metalloporphyrin PCN-222: Mesoporous metal–organic frameworks with ultrahigh stability as biomimetic catalysts. Angew. Chem., Int. Ed. 2012, 51, 10307–10310. [Google Scholar]
  128. Yang, X.-L.; Xie, M.-H.; Zou, C.; He, Y.; Chen, B.; O’Keeffe, M.; Wu, C.-D. Porous metalloporphyrinic frameworks constructed from metal 5,10,15,20-Tetrakis(3,5-biscarboxylphenyl)porphyrin for highly efficient and selective catalytic oxidation of alkylbenzenes. J. Am. Chem. Soc. 2012, 134, 10638–10645. [Google Scholar]
  129. Lee, D.H.; Kim, S.; Hyun, M.Y.; Hong, J.-Y.; Huh, S.; Kim, C.; Lee, S.J. Controlled growth of narrowly dispersed nanosize hexagonal MOF rods from Mn(III)-porphyrin and In(NO3)3 and their application in olefin oxidation. Chem. Commun. 2012, 48, 5512–5514. [Google Scholar]
  130. Xie, M.-H.; Yang, X.-L.; Wu, C.-D. A metalloporphyrin functionalized metal-organic framework for selective oxidization of styrene. Chem. Commun. 2011, 47, 5521–5523. [Google Scholar] [CrossRef]
  131. Zou, C.; Zhang, T.; Xie, M.-H.; Yan, L.; Kong, G.-Q.; Yang, X.-L.; Ma, A.; Wu, C.-D. Four metalloporphyrinic frameworks as heterogeneous catalysts for selective oxidation and aldol reaction. Inorg. Chem. 2013, 52, 3620–3626. [Google Scholar] [CrossRef]
  132. Oliveri, C.G.; Gianneschi, N.C.; Nguyen, S.T.; Mirkin, C.A.; Stern, C.L.; Wawrzak, Z.; Pink, M. supramolecular allosteric cofacial porphyrin complexes. J. Am. Chem. Soc. 2006, 128, 16286–16296. [Google Scholar]
  133. Roy, S.; George, C.B.; Ratner, M.A. Catalysis by a Zinc-porphyrin-based metal-organic framework: From theory to computational design. J. Chem. Phys. C 2012, 116, 23494–23502. [Google Scholar]

Share and Cite

MDPI and ACS Style

Nakagaki, S.; Ferreira, G.K.B.; Ucoski, G.M.; Dias de Freitas Castro, K.A. Chemical Reactions Catalyzed by Metalloporphyrin-Based Metal-Organic Frameworks. Molecules 2013, 18, 7279-7308. https://doi.org/10.3390/molecules18067279

AMA Style

Nakagaki S, Ferreira GKB, Ucoski GM, Dias de Freitas Castro KA. Chemical Reactions Catalyzed by Metalloporphyrin-Based Metal-Organic Frameworks. Molecules. 2013; 18(6):7279-7308. https://doi.org/10.3390/molecules18067279

Chicago/Turabian Style

Nakagaki, Shirley, Gabriel Kaetan Baio Ferreira, Geani Maria Ucoski, and Kelly Aparecida Dias de Freitas Castro. 2013. "Chemical Reactions Catalyzed by Metalloporphyrin-Based Metal-Organic Frameworks" Molecules 18, no. 6: 7279-7308. https://doi.org/10.3390/molecules18067279

Article Metrics

Back to TopTop
