Platinum-Catalyzed Hydrative Cyclization of 1,6-Diynes for the Synthesis of 3,5-Substituted Conjugated Cyclohexenones

1
School of Pharmaceutical Sciences, Zhejiang University, Hangzhou 310058, China
2
College of Pharmaceutical Science, Zhejiang University of Technology, Hangzhou 310014, China
3
College of Chemistry and Bioengineering, Guilin University of Technology, Guangxi, Guilin, China
*
Author to whom correspondence should be addressed.
Molecules 2010, 15(7), 5045-5052; https://doi.org/10.3390/molecules15075045
Submission received: 4 June 2010 / Revised: 24 June 2010 / Accepted: 5 July 2010 / Published: 23 July 2010
(This article belongs to the Special Issue Ring-Closing Metathesis)

Abstract

:
We have developed a Pt(COD)Cl2-catalyzed hydrative cyclization of 1,6-diynes leading to the formation of functionalized cyclohexenones in good yields.

1. Introduction

Cyclohexenone derivatives are not only key intermediates in organic synthesis, but they also exhibit important pharmacological activities [1,2,3,4]. Extensive synthetic efforts for conjugate cyclohexenones have been reported, in which an annulation approach from acyclic precursors constitutes a useful entry [5,6,7,8,9,10,11,12,13]. Despite this advance, there is still a great need to develop more convenient catalytic systems that can accommodate such attractive features as easily accessible starting materials, mild reaction conditions, and absence of co-products. The newly developed metal-catalyzed hydrative cyclization reaction is not only an especially attractive “green” procedure, but also an ideal synthetic method for preparing cyclic enone compounds [14,15,16,17,18,19,20]. The reported examples include hydrative cyclization of 1,n-diynes [14,15,16,17], 1-yne-5-enones [18], 1-en-5-ynes [19] and diynnols [20]. Recently, Liu and co-workers reported a PtCl2-catalyzed hydrative cyclization of internal triynes to yield bicyclic spiroketones [21,22,23]. As part of our ongoing studies on metal-catalyzed atom-economical reactions, we succeeded in synthesizing conjugate cyclohexenone ring systems using the hydrative cyclization of 1,6-diynes with (PPh3)AuMe as a catalyst [24,25]. Herein, we report our studies on the use of Pt(COD)Cl2 as a catalyst in this cyclization.

2. Results and Discussion

Initial hydrative cyclization experiments of 1,6-diyne 1a (0.5 mmol) with H2O (0.5 mmol) at 70 °C for 4 h in a sealed-tube were performed to screen catalysts. Pt(COD)Cl2 (COD = cyclooctadiene) combined with methanesulfonic acid (CH3SO3H) showed good catalytic activity in this reaction, furnishing cyclohexenone 2a in 75% yield without the formation of the corresponding hydration or methanol adducts (Table 1, entry 1), while the reaction conducted in the absence of CH3SO3H did not yield the cyclic product (Table 1, entry 2). Trifluromethanesulfonic acid (CF3SO3H) can also serve as an excellent co-catalyst. PtCl2 in combination with PPh3 gave 2a in lower yield (Table 1, entry 4). There was no reaction with other homogeneous metal complex systems, such as Pd(PiPr3)2Cl2 and Ru(COD)Cl2 (Table 1, entries 5 and 6). During further optimization of the reaction conditions, we found that a lower catalyst loading (2 mol%) afforded the product with decreased yield (Table 1, entry 3).
Table 1. Pt(II)-Catalyzed synthesis of cyclohexenone from 1,6-diyne a.
Table 1. Pt(II)-Catalyzed synthesis of cyclohexenone from 1,6-diyne a.
Molecules 15 05045 i001
EntryCatalyst (mol%)CH3SO3H (mol%)Time (h)Yield b (%)
1Pt(COD)Cl2 (5)50375
2Pt(COD)Cl2 (5)-3Trace
3Pt(COD)Cl2 (2)50321
4Pt(PPh3)Cl2 (2)50412
5Pd(PiPr3)Cl2 (2)504NR
6Pt(COD)Cl2 (2)504Nr
a The reactions were performed with 1a (0.5 mmol), H2O (0.5 mmol), CH3SO3H (1-50 mol%), and catalyst (2-5 mol%) in MeOH (2 mL) at 70 °C. b Isolated yields.
In order to demonstrate the efficiency and scope of the present method, we applied the optimum conditions of entry 1 in Table 1 to the hydrative cyclization of several 1,6-diyne substrates bearing a variety of functionalities at their 4-positions. The results are summarized in Table 2. Terminal malonate derivatives 1a and 1b were found to be good substrates (Table 2, entries 1 and 2). This is quite similar to the results of Au (I)–catalyzed reactions [24,25]. To our delight, the presence of two hydroxyl groups as in compound 1c was tolerated, thus providing cyclohexenone 2c bearing hydroxyl groups with no intramolecular alcohol addition products (Table 2, entry 3) [26,27]. Protecting groups such as the single methyl ether in 1d or the double methyl ether in 1e were also compatible with the present method (Table 2, entries 4 and 5). Cyclic products with different substituent group pairs, such as the diphenylphosphoryl and ethoxycarbonyl in 2f, or the phenyl and methoxycarbonyl in 2h, were also obtained in good yields (Table 2, entries 6 and 8). The acetylacetone derivative 1i and its reduced derivative 1j were transformed into cyclic products 2i and 2j (Table 2, entries 9 and 10). In our hands the spirocyclic compound 2k bearing a fluorene moiety was successfully obtained from diyne 1k in 48% yield (Table 2, entry 11).
Table 2. Pt (II) catalyze hydrative cyclyzation reaction of 1, 6-heptadiynes a.
Table 2. Pt (II) catalyze hydrative cyclyzation reaction of 1, 6-heptadiynes a.
Molecules 15 05045 i002
a All reactions were performed with 0.5 mmol of substrate, 0.5 mmol of H2O, 0.25 mmol of CH3SO3H, and 5 mol% of Pt(COD)Cl2 in 2.0 mL of MeOH at 70 °C; b Isolated yields; c 1 mL of MeOH and 1 mL of CH2Cl2 were used as solvent.
Presumably, the mechanism in this reaction could be similar to that of the PtCl2-catalyzed hydrative cyclization of trialkyne functionalities [7]. We thus propose a mechanism (Scheme 1) involving an initial coordination of the diyne to Pt(II) to afford the intermediate A. The addition of H2O takes place to form the α-carbonyl platinum species C. After a second hydration at the remaining alkyne of species C, the resulting diketone species D undergoes a subsequent aldol condensation to form a product 2. Alternatively, cyclohexenone 2 could result from an alkyne insertion into intermediate E, followed by hydrodemetalation of intermediate F. The reason behind the catalytic activity of acid as an additive is unclear, although acid is proposed to exert a tuning effect on the activity of Pt catalysts.

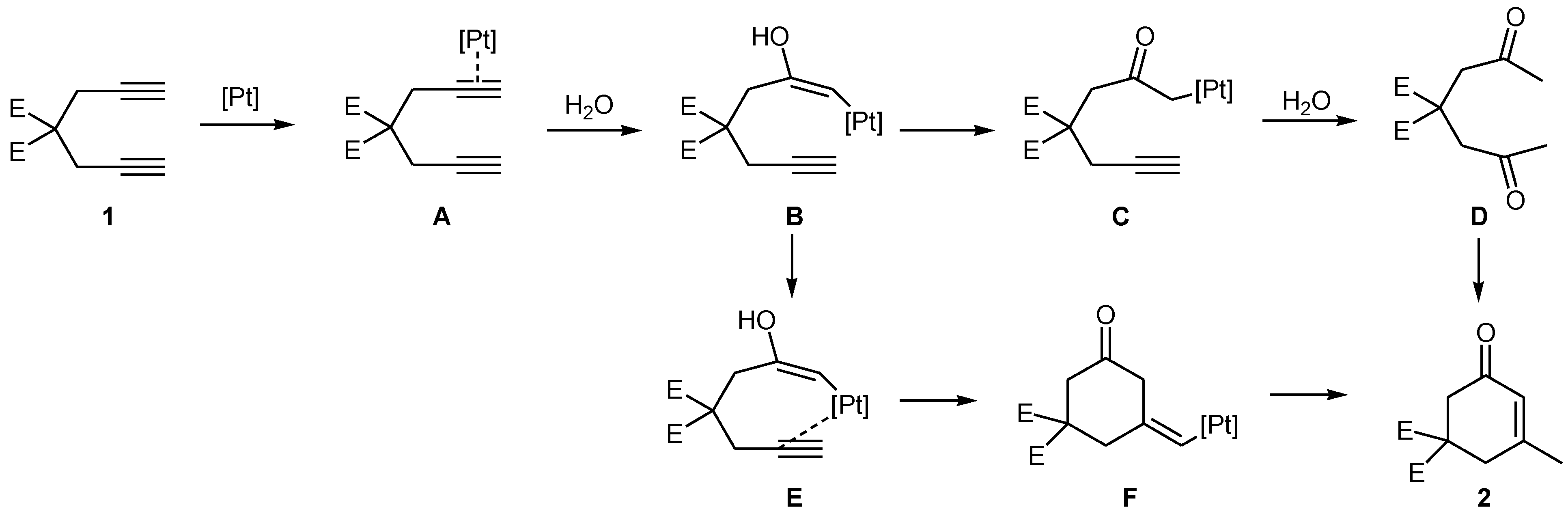

Scheme 1. Proposed mechanism for The Pt-catalyzed hydrative cyclization of 1, 6-diynes.
Scheme 1. Proposed mechanism for The Pt-catalyzed hydrative cyclization of 1, 6-diynes.
Molecules 15 05045 g001

3. Experimental

3.1. General

Under otherwise noted, materials were obtained from commercial suppliers and used without further purification. Diynes were prepared by the procedures in the literature [29,30]. Thin layer chromatography (TLC) was performed using silica gel 60 F254 and visualized using UV light. Column chromatography was performed with silica gel (mesh 300-400). 1H-NMR and 13C-NMR spectra were recorded on a Bruker Avance 400 MHz or 500 MHz spectrometer in CDCl3 with Me4Si as an internal standard. Data are reported as follows: chemical shifts in ppm (δ), multiplicity (s = singlet, d = doublet, t = triplet, q = quartet, br = broad and m = multiplet, coupling constant (Hz) and integration. Infrared spectra (IR) were obtained on a 370 FT-IR spectrometer; absorptions are reported in cm-1. Mass spectra (MS) and high resolution mass spectra (HRMS) were obtained at the Zhejiang University of Technology Mass Spectrometry Facility.

3.2. General procedure for the hydrative cyclization of diynes

To a reactor containing diyne (0.5 mmol), methanol (2 mL), and H2O (10 μL) under nitrogen Pt(COD)Cl2 (9.0 mg, 0.025 mmol, 5 mol%) and CH3SO3H (20 μL) were added. The resulting yellow solution was then sealed and stirred at 70 °C for 3-13 hours until the starting diyne was consumed, as judged by TLC. The mixture was quenched with a saturated solution of NaHCO3 and then extracted with ethyl acetate (20 mL × 3). The organic layer was washed with brine, dried over Na2SO4 and concentrated in vacuo. The residue was purified by column chromatography (silica gel) (Eluent: hexane/ethyl acetate) to yield the corresponding cyclized product in an analytically pure form.
Dimethyl 3-methyl-5-oxocyclohex-3-ene-1,1-dicarboxylate (2a) [24]. A pale yellow oil; 1H-NMR (400 MHz, CDCl3) δ 5.88 (s, 1H), 3.75 (s, 6H), 2.90 (s, 2H), 2.87 (s, 2H), 2.01 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 194.5, 170.2, 158.7, 126.2, 55.5, 53.3, 41.7, 36.3, 24.3.
Diethyl 3-methyl-5-oxocyclohex-3-ene-1,1-dicarboxylate (2b) [24]. A colorless oil; 1H-NMR (400 MHz, CDCl3) δ 5.88 (q, J = 1.2 Hz, 1H), 4.20 (q, J = 7.0 Hz, 4H), 2.89 (s, 2H), 2.86 (s, 2H), 2.01 (d, J = 1.2 Hz, 3H), 1.24 (t, J = 7.0 Hz, 6 H); 13C-NMR (100 MHz, CDCl3) δ 194.8, 169.8, 158.7, 126.2, 62.2, 55.5, 41.7, 36.2, 24.3, 13.9.
5,5-Bis(hydroxymethyl)-3-methylcyclohex-2-enone (2c) [25]. White solid, m.p.: 64–65 °C. 1H-NMR (500 MHz, CDCl3) δ 5.88 (s, 1H), 3.91 (br, 2H), 3.55 (s, 4H), 2.30 (s, 4H), 1.98 (s, 3H); 13C-NMR (125 MHz, CDCl3) δ 199.8, 161.4, 125.6, 66.5, 42.4, 40.8, 35.0, 24.6.
5-(Hydroxymethyl)-5-(methoxymethyl)-3-methylcyclohex-2-enone (2d). A pale yellow oil; 1H-NMR (400 MHz, CDCl3) δ 5.84-5.83 (m, 1H), 3.53-3.45 (m, 2H), 3.35-3.26 (m, 5H), 2.88 (br, 1H), 2.36 (s, 2H), 2.24 (s, 2H) , 1.92 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 198.6, 160.2, 125.6, 77.5, 67.2, 59.4, 41.8, 41.2, 34.9, 24.2; IR (KBr) υmax 3445, 2927, 1651, 1382, 1104 cm-1; HRMS (EI) for C10H16O3: calcd. 184.1099. Found 184.1097.
5,5-Bis(methoxymethyl)-3-methylcyclohex-2-enone (2e) [24]. A pale yellow oil; 1H-NMR (400 MHz, CDCl3) δ 5.86 (s, 1H), 3.31 (s, 6H), 3.23 (s, 4H), 2.34 (s, 2H), 2.32 (s, 2H), 1.94 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 198.9, 159.8, 125.4, 75.4, 59.2, 41.6, 41.3, 34.8, 24.3.
Ethyl 1-(diphenylphosphoryl)-3-methyl-5-oxocyclohex-3-enecarboxylate (2f) [24]. White solid, m.p. 122.3–125.5 °C. 1H NMR (400 MHz, CDCl3) δ 8.06-8.02 (m, 2H), 7.90-7.85 (m, 2H), 7.69-7.47 (m, 6H), 5.84 (s, 1H), 3.93-3.79 (m, 2H), 3.03-2.83 (m, 4H), 1.92 (s, 3H), 0.91-0.86 (m, 3H); 13C-NMR (100 MHz, CDCl3) δ 194.4 (d, J c-p = 11.3 Hz), 170.8 (d, J c-p = 20.2 Hz), 159.2 (d, J c-p = 12.4 Hz), 132.2 (q, J c-p = 2.8 Hz), 131.9 (d, J c-p = 8.9 Hz), 131.6 (d, J c-p = 8.9 Hz), 129.0 (d, J c-p = 10.6 Hz), 128.3 (d, J c-p = 2 Hz), 128.2 (d, J c-p = 2 Hz), 128.0 (d, J c-p = 11 Hz), 125.6, 61.7, 53.0 (d, J c-p = 57 Hz), 39.1, 33.9, 24.1, 20.6 (d, J c-p = 4.1 Hz), 13.1.
Methyl 3-methyl-5-oxocyclohex-3-enecarboxylate (2g) [24]. A pale yellow oil; 1H-NMR (400 MHz, CDCl3) δ 5.91 (s, 1H), 3.72 (s, 3H), 3.10-3.04 (m, 1H), 2.67-2.51 (m, 4H), 2.00 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 196.8, 173.5, 160.2, 126.5, 52.1, 39.6, 38.6, 33.0, 24.2.
Methyl 3-methyl-5-oxo-1-phenylcyclohex-3-enecarboxylate (2h) [24]. Colorless crystals; m.p. 83.0-84.0. 1H-NMR (400 MHz, CDCl3) δ 7.37-7.28 (m, 5H), 5.94-5.93 (m, 1H), 3.64 (s, 3H), 3.29-3.21 (m, 2H), 2.81-2.73 (m, 2H), 2.05 (s, 3H); 13C-NMR (100 MHz, CDCl3) δ 196.6, 174.0, 160.4, 140.0, 128.9, 127.7, 126.5, 125.5, 52.8, 51.8, 45.1, 40.1, 24.6.
Methyl 1-acetyl-3-methyl-5-oxocyclohex-3-enecarboxylate (2i) [25]. A pale yellow oil; 1H NMR (400 MHz, CDCl3) δ 5.87 (s, 1H), 3.76 (s, 3H), 2.93 (d, J = 16.4 Hz, 1H), 2.84 (d, J = 0.8 Hz, 2H), 2.72 (d, J = 16.4 Hz, 1H), 2.20 (s, 3H), 2.01 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 202.0, 194. 8, 170.9, 158.8, 126.1, 61.6, 53.2, 41.2, 35.4, 25.8, 24.3.
Methyl 1-(1-hydroxyethyl)-3-methyl-5-oxocyclohex-3-enecarboxylate (2j) [25]. A pale yellow oil; 1H NMR (400 MHz, CDCl3) δ 5.85 (s, 1H), 3.87-2.84 (m, 1H), 3.69 (s, 3H), 2.88-2.79 (m, 2H), 2.70-2.66 (br, 1H), 2.62-2.36 (m, 2H), 2.16-1.84 (m, 3H), 1.25-1.17 (m, 3H); 13C-NMR (100 MHz, CDCl3) δ 197.5, 174.7, 160.4, 126.0, 71.5, 54.0, 52.4, 41.6, 35.5, 24.5, 18.7.
5-Fluorene-3-methylcyclohex-2-enone (2k) [25]. A white solid; m.p. 167-168 °C; 1H-NMR (500 MHz, CDCl3) δ 7.74 (d, J = 7.5 Hz, 2H), 7.48 (d, J = 7.5 Hz, 2H), 7.40-7.37 (m, 2H), 7.29-7.26 (m, 2H), 6.27 (d, J = 1 Hz, 1H), 2.68 (s, 4H) , 2.02 (s, 3H); 13C-NMR (125 MHz, CDCl3) δ 198.1, 160.4, 149.9, 139.3, 127.9, 127.6, 127.1, 123.0, 120.1, 51.0, 45.7, 41.2, 24.5.

4. Conclusions

In summary, various 3,5-substituted conjugated cyclohexenones were synthesized by Pt(II)–catalyzed hydrative cyclization of 1,6-diynes. Advantages of the present method are the easily accessible starting materials, mild conditions, lack of coproducts and the fact that several types of functional groups were tolerated. Further studies are underway to expand the scope of the present method and are directed toward further method development on these cyclohexenone scaffolds as well as applications in natural product and the bioactive molecule synthesis.

Acknowledgements

This work was partially supported by the Natural Science Foundations of China (Nos. 20672099, 20572094).
  • Sample Availability: Samples of the compounds are available from the authors.

References and Notes

  1. Braca, A.; Tommasi, N.D.; Bari, L.-D.; Pizza, C.; Politi, M.; Morelli, I. Antioxidant principles from Bauhinia tarapotensis. J. Nat. Prod. 2001, 64, 892–895. [Google Scholar] [CrossRef]
  2. Girlanda-Junges, C.; Keyling-Bilger, F.; Schmitt, G.; Luu, B. Effect of cyclohexenonic long chain fatty alcohols on neurite outgrowth. Study on structure-activity relationship. Tetrahedron 1998, 54, 7735–7748. [Google Scholar] [CrossRef]
  3. Ho, T.-L. Symmetry: A Basis for Synthesis Design; Wiley: New York, NY, USA, 1995; pp. 290–348. [Google Scholar]
  4. Corey, E.J.; Cheng, X.-M. The Logic of Chemical Synthesis; Wiley: New York, NY, USA, 1989. [Google Scholar]
  5. Zhang, F.Y.; Corey, E.J. Highly Enantioselective Michael Reactions Catalyzed by a Chiral Quaternary Ammonium Salt. Illustration by Asymmetric Syntheses of (S)-Ornithine and Chiral 2-Cyclohexenones. Org. Lett. 2000, 2, 1097–1100. [Google Scholar] [CrossRef]
  6. Hareau, G.P.-J.; Koiwa, M.; Hikichi, S.; Sato, F. Synthesis of Optically Active 5-(tert-Butyldimethylsiloxy)-2-cyclohexenone and Its 6-Substituted Derivatives as Useful Chiral Building Blocks for the Synthesis of Cyclohexane Rings. Syntheses of Carvone, Penienone, and Penihydrone. J. Am. Chem. Soc. 1999, 121, 3640–3650. [Google Scholar] [CrossRef]
  7. Chong, B.-D.; Ji, Y.-I.; Oh, S.-S.; Yang, J.-D.; Baik, W.; Koo, S. Highly Efficient Synthesis of Methyl-Substituted Conjugate Cyclohexenones. J. Org. Chem. 1997, 62, 9323–9325. [Google Scholar] [CrossRef]
  8. Kuehne, M.E.; Parsons, W.H. Thiyl radical- and mercuric ion-induced cyclizations of dimethyl dipropargylmalonate and dimethyl propargyl-3-thiylallylmalonates. J. Org. Chem. 1977, 42, 3408–3410. [Google Scholar] [CrossRef]
  9. Phillips, D.D.; Johnson, A.W. Notes - A Novel Synthesis of Cyclohexenones by Intramolecular Acylation. J. Org. Chem. 1956, 21, 587–589. [Google Scholar] [CrossRef]
  10. Dauben, W.G.; Michno, D.M. Direct oxidation of tertiary allylic alcohols. A simple and effective method for alkylative carbonyl transposition. J. Org. Chem. 1977, 42, 682–685. [Google Scholar] [CrossRef]
  11. Stork, G.; Danheiser, R.L.; Ganem, B. Reaction of deuterium chloride with cis- and trans-.beta.-trimethylsilylstyrene. J. Am. Chem. Soc. 1973, 95, 3414–3415. [Google Scholar] [CrossRef]
  12. Stotter, P.L.; Hill, K.A. alpha.-Halocarbonyl compounds. II. Position-specific preparation of .alpha.-bromoketones by bromination of lithium enolates. Position-specific introduction of .alpha.,.beta.-unsaturation into unsymmetrical ketones. J. Org. Chem. 1973, 38, 2576–2578. [Google Scholar] [CrossRef]
  13. Rubinstein, H. Intermediates in the Synthesis of Xanthophyll and Zeaxanthin. J. Org. Chem. 1962, 27, 3886–3887. [Google Scholar] [CrossRef]
  14. Trost, B.M.; Rudd, M.T. Ruthenium-Catalyzed Cycloisomerizations of Diynols. J. Am. Chem. Soc. 2005, 127, 4763–4776. [Google Scholar] [CrossRef]
  15. Odedra, A.; Wu, C.-J.; Pratap, T.B.; Huang, C.-W.; Ran, Y.F.; Liu, R.-S. Ruthenium-Catalyzed Aromatization of Enediynes via Highly Regioselective Nucleophilic Additions on a π-Alkyne Functionality. A Useful Method for the Synthesis of Functionalized Benzene Derivatives. J. Am. Chem. Soc. 2005, 127, 3406–3412. [Google Scholar]
  16. Trost, B.M.; Huang, X.-J. Ruthenium-Catalyzed Diyne Hydrative Cyclization: Synthesis of Substituted 1,3-Diene Synthons. Org. Lett. 2005, 7, 2097–2099. [Google Scholar] [CrossRef]
  17. Trost, B.M.; Rudd, M.T. A Mechanistic Dichotomy in Ruthenium-Catalyzed Propargyl Alcohol Reactivity: A Novel Hydrative Diyne Cyclization. J. Am. Chem. Soc. 2003, 125, 11516–11517. [Google Scholar] [CrossRef]
  18. Trost, B.M.; Brown, R.E.; Toste, F.D. A Ruthenium-Catalyzed Hydrative Cyclization and [4 + 2] Cycloaddition of Yne-enones. J. Am. Chem. Soc. 2000, 122, 5877–5878. [Google Scholar] [CrossRef]
  19. Chen, Y.; Ho, D.M.; Lee, C. Ruthenium-Catalyzed Hydrative Cyclization of 1,5-Enynes. J. Am. Chem. Soc. 2005, 127, 12184–12185. [Google Scholar]
  20. Trost, B.M.; Rudd, M.T. Ruthenium-Catalyzed Cycloisomerizations of Diynols. J. Am. Chem. Soc. 2005, 127, 4763–4776. [Google Scholar] [CrossRef]
  21. Chang, H.-K.; Datta, S.; Das, A.; Odedra, A.; Liu, R.-S. PtCl2-Catalyzed Hydrative Cyclization of Trialkyne Functionalities to Form Bicyclic Spiro Ketones. Angew. Chem. Int. Ed. 2007, 46, 4744–4747. [Google Scholar] [CrossRef]
  22. Chang, H.-K.; Liao, Y.-C.; Liu, R.-S. Diversity in Platinum-Catalyzed Hydrative Cyclization of Trialkyne Substrates To Form Tetracyclic Ketones. J. Org. Chem. 2007, 72, 8139–8141. [Google Scholar] [CrossRef]
  23. Baidossi, W.; Lahav, M.; Blum, J. Hydration of Alkynes by a PtCl4−CO Catalyst. J. Org. Chem. 1997, 62, 669–672. [Google Scholar] [CrossRef]
  24. Zhang, C.; Cui, D.-M.; Yao, L.-Y.; Wang, B.-S.; Hu, Y.-Z.; Hayashi, T. Synthesis of 2-Cyclohexenone Derivatives via Gold(I)-Catalyzed Hydrative Cyclization of 1,6-Diynes. J. Org. Chem. 2008, 73, 7811–7813. [Google Scholar] [CrossRef]
  25. Cui, D.-M.; Ke, Y.-N.; Zhuang, D.-W.; Wang, Q.; Zhang, C. Gold-catalyzed hydrative cyclization of 1,6-diynes in ionic liquid media. Tetrahedron Lett. 2010, 51, 980–982. [Google Scholar]
  26. Oh, C.H.; Yi, H.J.; Lee, J.H. Silver-catalyzed intramolecular oxycyclization of alkynes to bridged bicyclic ketalsElectronic supplementary information (ESI) available: Characterization of new compounds 2a–d, 2f–i, 3a, 4b and 5b. New J. Chem. 2007, 31, 835–837. [Google Scholar] [CrossRef]
  27. Antoniotti, S.; Genin, E.; Michelet, V.; Genêt, J.-P. Highly Efficient Access to Strained Bicyclic Ketals via Gold-Catalyzed Cycloisomerization of Bis-homopropargylic Diols. J. Am. Chem. Soc. 2005, 127, 9976–9977. [Google Scholar]
  28. Kinney, W.A.; Crouse, G.D.; Paquette, L.A. Regiocontrolled synthesis of mono-, di-, and trisubstituted cyclohexenones by cycloaddition of vinyl sulfones to 1-methoxy-3-[(trimethylsilyl)oxy]-1,3-butadiene. Conversion of alkenes into effective dienophilic reagent. J. Org. Chem. 1983, 48, 4986. [Google Scholar] [CrossRef]
  29. Fox, H.; Wolf, M.O.; O’Dell, R.; Lin, B.L.; Schrock, R.R.; Wrighton, M.S. Living Cyclopolymerization of 1,6-Heptadiyne Derivatives Using Well-Defined Alkylidene Complexes: Polymerization Mechanism, Polymer Structure, and Polymer Properties. J. Am. Chem. Soc. 1994, 116, 2827. [Google Scholar]
  30. Madine, J.W.; Wang, X.; Widenhoefer, R.A. Cyclization/Hydrosilylation of Functionalized Diynes Catalyzed by a Cationic Platinum Phenanthroline Complex. Org. Lett. 2001, 3, 385. [Google Scholar] [CrossRef]
