J. Low Power Electron. Appl. 2014, 4(2), 65-76; doi:10.3390/jlpea4020065

Review
Ultralow-Power SOTB CMOS Technology Operating Down to 0.4 V
Nobuyuki Sugii 1,*, Yoshiki Yamamoto 1, Hideki Makiyama 1, Tomohiro Yamashita 1, Hidekazu Oda 1, Shiro Kamohara 1, Yasuo Yamaguchi 1, Koichiro Ishibashi 2, Tomoko Mizutani 3 and Toshiro Hiramoto 3
1
Low-Power Electronics Association & Project, Tsukuba, Ibaraki 305-8569, Japan; E-Mails: yoshiki.yamamoto.pc@renesas.com (Yo.Ya.); hideki.makiyama.wx@renesas.com (H.M.); tomohiro.yamashita.ue@renesas.com (T.Y.); hidekazu.oda.yf@renesas.com (H.O.); shiro.kamohara.uh@renesas.com (S.K.); yasuo.yamaguchi.uf@renesas.com (Ya.Ya.)
2
Department of Engineering Science, Graduate School of Informatics and Engineering Departments, The University of Electro-Communications, Chofu, Tokyo 182-8585, Japan; E-Mail: ishibashi@ee.uec.ac.jp
3
Institute of Industrial Science, The University of Tokyo, Meguro, Tokyo 153-8505, Japan; E-Mails: mizutani@nano.iis.u-tokyo.ac.jp (T.M.); hiramoto@nano.iis.u-tokyo.ac.jp (T.H.)
This article is based on “Vmin = 0.4 V LSIs are the real with Silicon-on-Thin-Buried-Oxide (SOTB)—How is the application with ‘Perpetuum-Mobile’ micro-controller with SOTB?”, which appeared in Proceedings of the IEEE 2013 SOI-3D-Subthreshold Microelectronics Technology Unified Conference (S3S) ©2013 IEEE.
*
Author to whom correspondence should be addressed; E-Mail: n-sugii@ieee.org; Tel.: +81-29-879-8265; Fax: +81-29-856-2622.
Received: 27 February 2014; in revised form: 7 April 2014 / Accepted: 10 April 2014 /
Published: 24 April 2014

Abstract

: Ultralow-voltage (ULV) CMOS will be a core building block of highly energy efficient electronics. Although the operation at the minimum energy point (MEP) is effective for ULP CMOS circuits, its slow operation speed often means that it is not used in many applications. The silicon-on-thin-buried-oxide (SOTB) CMOS is a strong candidate for the ultralow-power (ULP) electronics because of its small variability and back-bias control. Proper power and performance optimization with adaptive Vth control taking advantage of SOTB’s features can achieve the ULP operation with acceptably high speed and low leakage. This paper describes our results on the ULV operation of logic circuits (CPU, SRAM, ring oscillator and other logic circuits) and shows that the operation speed is now sufficiently high for many ULP applications. The “Perpetuum-Mobile” micro-controllers operating down to 0.4 V or lower are expected to be implemented in a huge number of electronic devices in the internet-of-things (IoT) era.
Keywords:
ultralow power; ultralow voltage; CMOS; minimum energy point; variability; back bias; FDSOI; silicon-on-thin-buried-oxide (SOTB); thin BOX

1. Introduction: Issues for ULV Operation Possibly Staying on MEP Point

A huge number of small electronic devices composing big data are expected to be used across the globe as the “internet of things” (IoT). The CMOS integrated circuit is a core part of these devices. The energy efficiency of the CMOS circuits should therefore be greatly improved. It is well known that the operating voltage (Vdd) is a primarily important parameter for reducing the energy per operation cycle in the CMOS circuits. As shown in Figure 1, the energy is a sum of active (Eac) and leakage (Eleak) energy as shown in Equation (1) in the simplified form.

E = Eac + Eleak = CloadVdd 2 + IleakVdd / af
where Cload, Ileak, a, and f denote load capacitance, leakage current, activity, and frequency, respectively. With decreasing Vdd, Eac decreases since it is proportional to CloadVdd2. However, Eleak relatively increases as f decreases with decreasing Vdd. These two terms determine the minimum energy point (MEP). The energy efficiency of CMOS circuits has been greatly improved by the miniaturization of CMOS transistors. This improvement is mainly accomplished by Eac reduction due to Cload reduction with the transistor scaling. However, most of the circuits do not operate at MEP and the improvement in terms of the efficiency has not been perfect so far. In recent generations, the scaling has increased the Vdd at MEP, as shown in Figure 2 [1,2]. This is because Eleak tends to increase with the miniaturization that has been seen in recent generations, especially for the performance-oriented applications. In the energy-efficiency conscious design like [1], the Emin has already an increasing trend (minimum point of Emin at 90-nm node), as shown in Figure 2.

The near- or sub-Vth operation is attractive to improve the energy efficiency. The operating speed of these circuits, however, is not high. The maximum frequency rapidly drops with decreasing Vdd in the conventional CMOS [3]. In the device design for ULP circuits, it is important to optimize both Vdd and Vth. With decreasing Vdd, Vth should increase to minimize the energy [4]. This drastically decreases the frequency and in many cases the MEP operation is a sub-Vth operation and its frequency is less than MHz. The variable Vth approach with adaptive back-bias control can mitigate the situation: optimizing frequency and decreasing energy as low as possible down to the MEP value. Both Vdd and Vth are controlled to minimize the energy, while satisfying the required workload: required frequency. In the dynamic voltage and frequency scaling (DVFS), only Vdd is controlled. In order to achieve higher energy efficiency, the control of Vth should be accompanied.

Jlpea 04 00065 g001

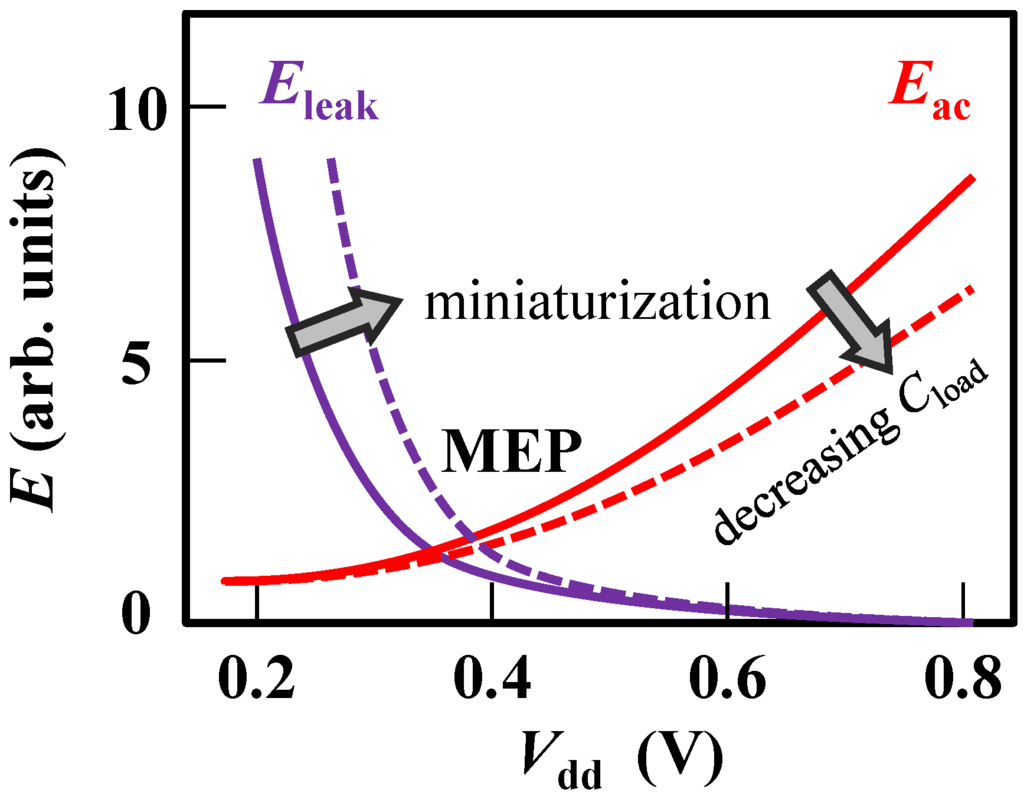

Figure 1. Schematic relationship between energy per operation E versus operating voltage Vdd.

Click here to enlarge figure

Figure 1. Schematic relationship between energy per operation E versus operating voltage Vdd.
Jlpea 04 00065 g001
Jlpea 04 00065 g002
Figure 2. Minimum energy Emin and Vdd at MEP as a function of technology node number after [1,2].

Click here to enlarge figure

Figure 2. Minimum energy Emin and Vdd at MEP as a function of technology node number after [1,2].
Jlpea 04 00065 g002

It is well known that the characteristic variability of transistors is recognized as a major obstacle for the performance/power tradeoff, especially at low Vdd. The increasing variability also increases Vdd at MEP [5] simply because of the increase in leakage current in a circuit that is a sum of transistor leakages [6]. Moreover, increasing the transistor variation causes delay variation, especially at low Vdd and causes a significant performance drop [7]. Design to cope with the increasing variability at low Vdd becomes more complex. The variability tolerant design prefers to increase the transistor width W; however, this directly increases the power [8,9]. Another variability tolerant logic design prefers a smaller number of pipeline stages and longer logic depth. However, these design strategies decrease the frequency [10,11] and increase Emin.

We hypothesize the main issues for the highly energy efficient CMOS circuits are adaptive Vth control and small variability, as described in this section. In order to solve these issues, we are developing the silicon on thin buried oxide (SOTB) [12,13,14,15,16]. In this article, we show SOTB’s low voltage capability, including small variability and back-bias control through device and circuit results.

2. SOTB Device Technology

Schematic cross section of the SOTB is shown in Figure 3. There are four major factors: (i) small local variability due to low-impurity fully depleted SOI channel; (ii) high back-bias coefficient due to thin BOX layer and doped ground plane (n GP and p GP) just below the BOX layer; (iii) flexible Vth tuning by impurity density control of the ground plane and (iv) high design compatibility with the conventional CMOS due to mostly identical planar layout to the bulk and a hybrid bulk integration for I/O. Details of the SOTB fabrication process are reported elsewhere [15,16].

Jlpea 04 00065 g003

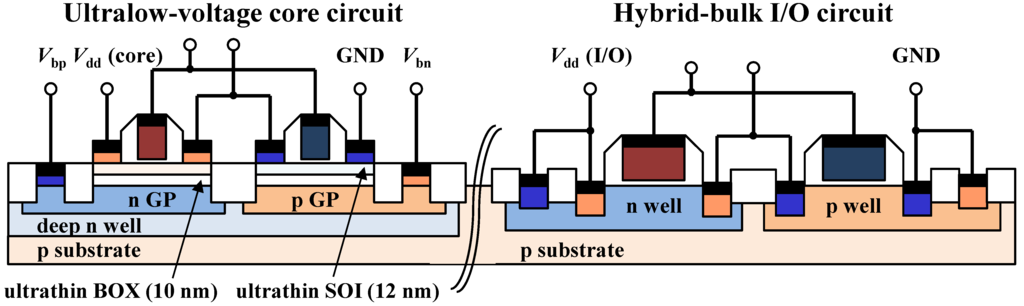

Figure 3. Schematic cross section of silicon on thin buried oxide (SOTB) and hybrid bulk transistors. Vbp and Vbn denote back-bias terminal for p- and n-type SOTB, respectively.

Click here to enlarge figure

Figure 3. Schematic cross section of silicon on thin buried oxide (SOTB) and hybrid bulk transistors. Vbp and Vbn denote back-bias terminal for p- and n-type SOTB, respectively.
Jlpea 04 00065 g003

Vth control optimized for the ULV operation has been an important process issue. In this optimization, we controlled the Vth values at around 0.2 V, which is by about 0.2 V lower than that for the low-standby-power (LSTP) application, with the multiple Vth option utilizing a poly-silicon and high-k gate-stack technology and a proper doping profile control of the ground plane [15]. As shown in Figure 4, we utilize a small amount of high-k (Hf and Al) oxide mixed with the conventional SiON gate dielectric and control proper effective work function (EWF) both for NMOS and PMOS. Typical Id-Vg characteristics of triple Vth option are shown in Figure 5. LVT, SVT, and HVT denote low, standard, and high Vth option, respectively. Two-orders-of-magnitude off-leakage-current variation can be done only by changing the doping density below the BOX layer with the same gate stack.

Jlpea 04 00065 g004
Figure 4. Effective work function (EWF) control with high-k/SiON gate stack [15]. Circles and diamonds represent EMF of P-type and N-type gate stacks for PMOS and NMOS, respectively.

Click here to enlarge figure

Figure 4. Effective work function (EWF) control with high-k/SiON gate stack [15]. Circles and diamonds represent EMF of P-type and N-type gate stacks for PMOS and NMOS, respectively.
Jlpea 04 00065 g004
Jlpea 04 00065 g005

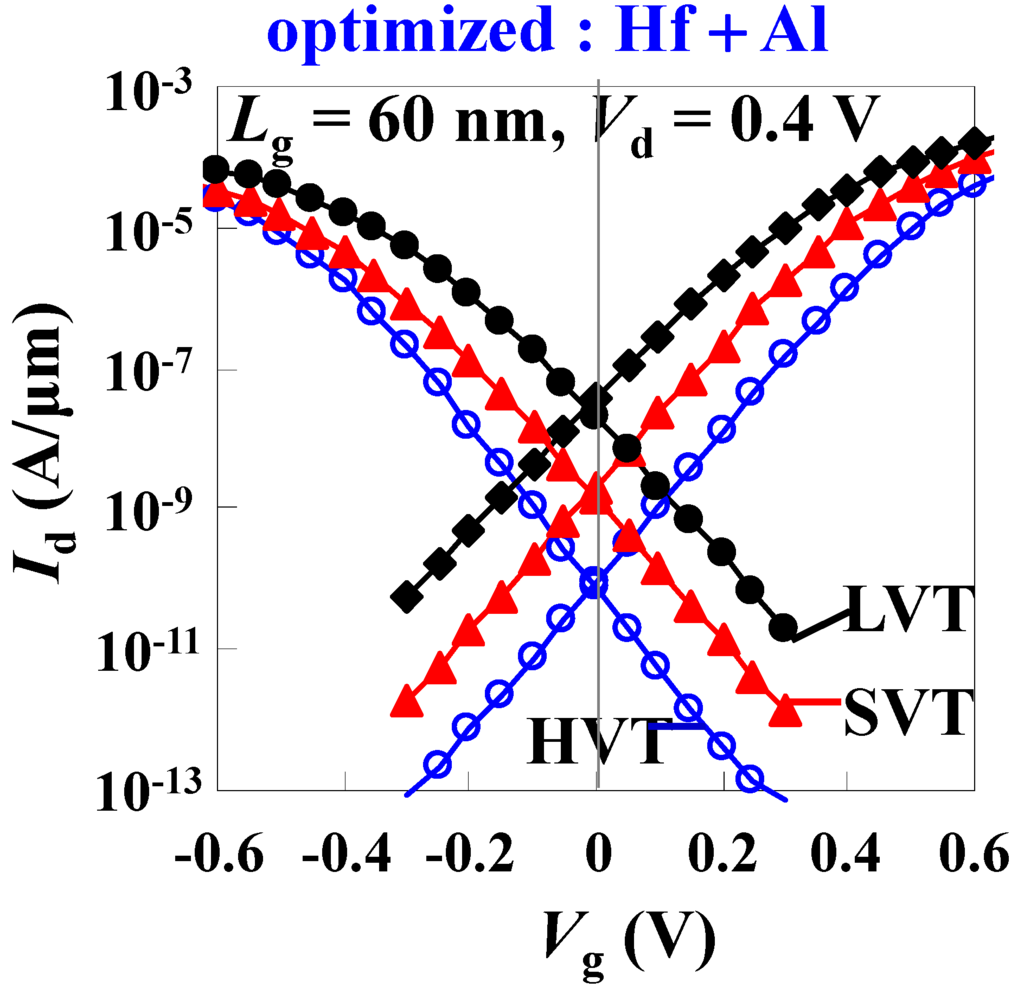

Figure 5. Id-Vg characteristics of triple Vth option controlled by ground plane doping [15].

Click here to enlarge figure

Figure 5. Id-Vg characteristics of triple Vth option controlled by ground plane doping [15].
Jlpea 04 00065 g005

We have demonstrated significant reduction of the Vth variability. The Pelgrom coefficient (AVT) of the SOTB was about 1.2–1.3 mVμm [16], which is less than half of the bulk. Moreover, we measured the Vth variation of one-million transistors (gate length and width: 0.06 and 0.14 μm, respectively) [16] as shown in Figure 6 and confirmed regular distribution without dropout transistors. Variation of on-state current Ion is important and must be decreased since this directly affects the delay variation of circuits. The Ion variation was demonstrated to be less than half of bulk [17] and we confirmed a significant reduction of the Ion variability for one-million transistors as shown in Figure 7 [16]. The lowest Vth values of SOTB and bulk are the same as shown in Figure 6. This means the highest leakage current among one-million transistors is the same. Besides, the highest Vth transistor determines the delay. As shown in Figure 7, the smallest Ion value for SOTB is about twice as high as the bulk’s worst value. This is a strong advantage of SOTB’s small variability in terms of the circuit performance.

Jlpea 04 00065 g006
Figure 6. Vth distribution of 1 M transistors. [16] Vertical-axis value shows deviation from Vth median value. Positive or negative σvalues indicate that the corresponding Vth value is upper or below median, respectively.

Click here to enlarge figure

Figure 6. Vth distribution of 1 M transistors. [16] Vertical-axis value shows deviation from Vth median value. Positive or negative σvalues indicate that the corresponding Vth value is upper or below median, respectively.
Jlpea 04 00065 g006
Jlpea 04 00065 g007

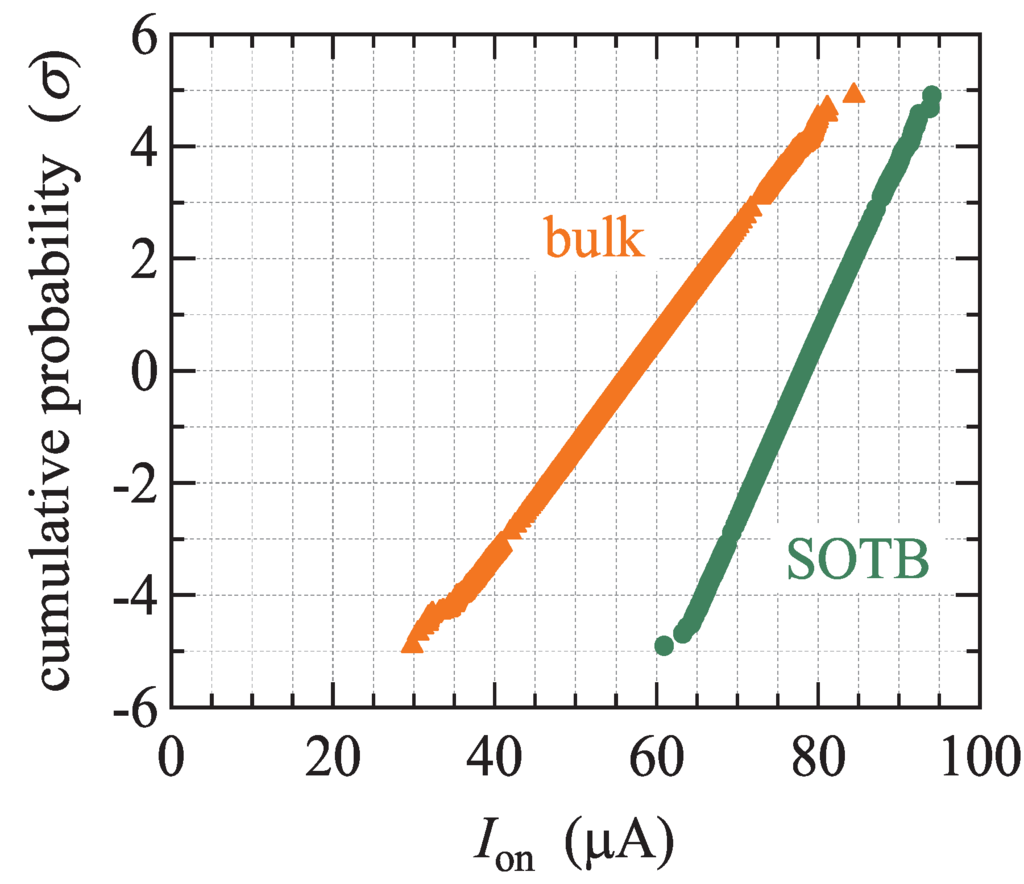

Figure 7. Ion distribution of 1 M transistors [16].

Click here to enlarge figure

Figure 7. Ion distribution of 1 M transistors [16].
Jlpea 04 00065 g007

3. ULV Operation of SOTB Circuits

3.1. Vmin Reduction of 6T-SRAM and Leakage Control by Back-Bias

Thanks to the significant reduction of the variability, as shown in Figure 6 and Figure 7, we successfully demonstrated 2-Mbit SRAM operation at Vmin = 0.37 V [16] of the standard six-transistor (6T) layout and without assist circuits as shown in Figure 8. Due to the Vth optimization mentioned in the previous section, very small access time (5.5 ps at Vdd = 0.4 V) was demonstrated. This enables a circuit operation with SRAM at several tens of MHz. The standby leakage decreased more than two orders of magnitude by a reverse back biasing and achieved 1.2 pA/cell without destroying the data. Moreover, the above Vmin value can be kept at lower at elevated temperatures with a proper back-bias control. In Figure 9, the Vmin value at room temperature was the same as the value shown in Figure 8. At 80 °C, the Vmin value increased to 0.46 V. This is because the Vth values of NMOS and PMOS transistors differently shifted from the room-temperature values. Although these Vth values were smaller than the room-temperature values (this increased the leakage current about two orders of magnitude higher than that at room temperature), balance of Vths (current drivabilities) between the NMOS and PMOS transistors untuned. This deteriorated the SRAM cell stability and increased the Vmin. By applying proper back-bias voltages for both transistors, the Vmin value again reduced to less than 0.4 V as shown in Figure 9. Leakage current also can be minimized by the back-bias control regardless of temperature, which is roughly the same as the room-temperature value.

3.2. Ring Oscillator Circuit Results

We have developed a standard logic cell library of the SOTB technology with a hybrid bulk I/O library. The delay characteristics of the cells were evaluated through the RO measurements [18]. Figure 10 shows propagation delay tpd of a 101-stage inverter RO for SOTB and bulk. The delay of SOTB was by 42% smaller than bulk at Vdd = 0.4 V. Note that Vths of SOTB and bulk were the same at Vdd = 0.4 V. The speed gain of SOTB was higher at lower Vdd because of better Ieff/Ioff and smaller DIBL. The delay variability was then investigated. The standard deviation of tpd for SOTB exhibited a very weak Jlpea 04 00065 i001 dependence. The result means that the local delay variability of SOTB is very small. We also succeeded in the significant reduction of die-to-die delay variability by a proper back-biasing [19]. The logic circuits contain various types of logic cells such as inverter, NAND, NOR, etc. We found that back-biasing considering a drivability balance of NMOS and PMOS transistors is essential for an effective suppression of die-to-die delay variability for various types of the cells.

Jlpea 04 00065 g008

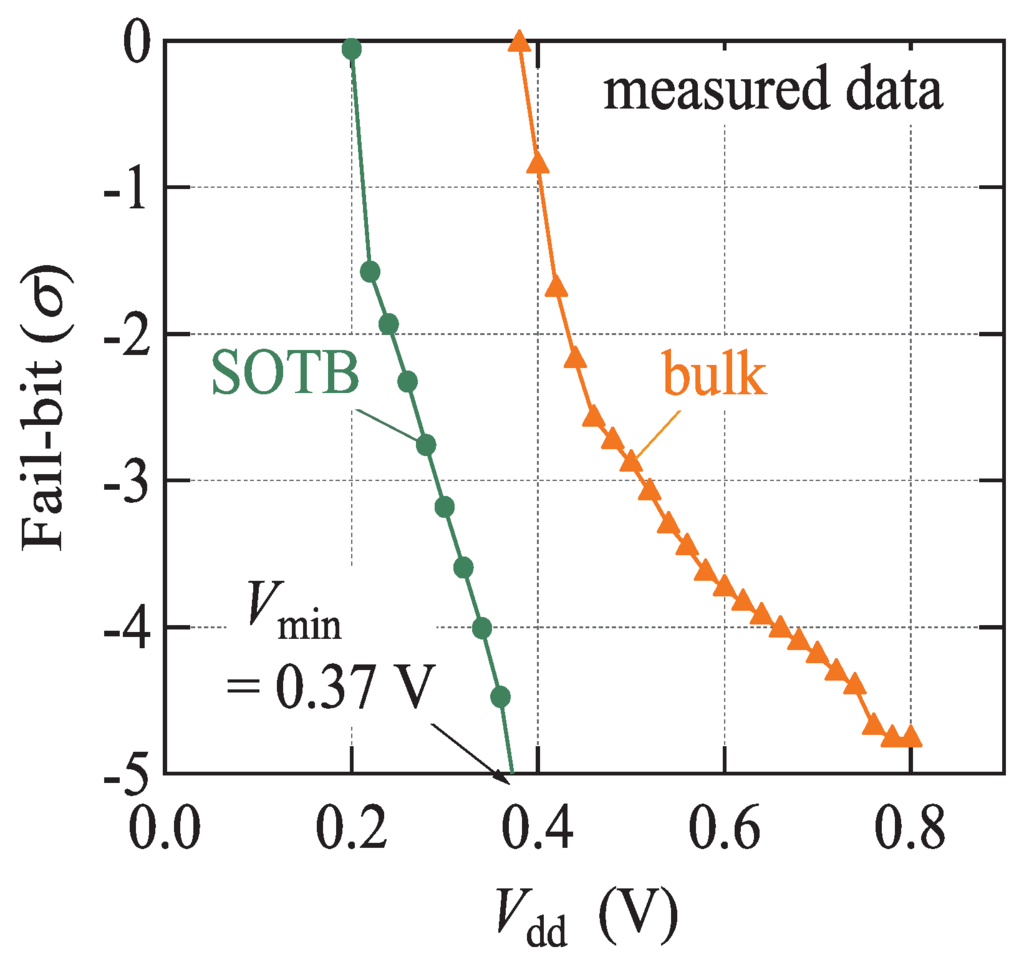

Figure 8. Fail-bit count of 2-M bit SRAM array as a function of Vdd [16].

Click here to enlarge figure

Figure 8. Fail-bit count of 2-M bit SRAM array as a function of Vdd [16].
Jlpea 04 00065 g008
Jlpea 04 00065 g009

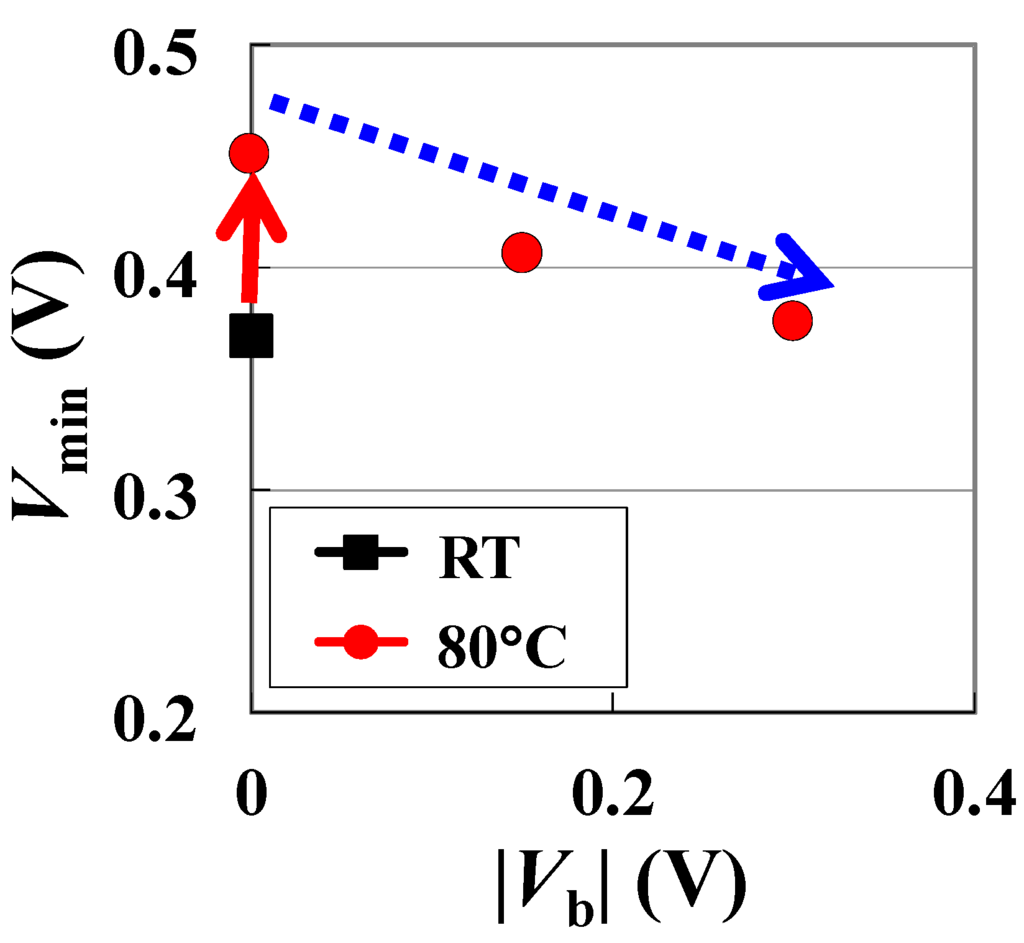

Figure 9. Vmin of 2-M bit SRAM array as a function of back-bias voltage |Vb|: absolute values of back-bias voltage for NMOS and PMOS, |Vb| = |Vbn| = |Vbp|.

Click here to enlarge figure

Figure 9. Vmin of 2-M bit SRAM array as a function of back-bias voltage |Vb|: absolute values of back-bias voltage for NMOS and PMOS, |Vb| = |Vbn| = |Vbp|.
Jlpea 04 00065 g009

The minimum energy consumption of SOTB logic circuits of 50 kgates was estimated based on the RO results by optimizing the back-bias voltage [20]. At the same energy per operation, SOTB operates about ×10 higher than bulk. The power consumption of 44 μW at 10 MHz (4.4 pJ/cycle) is expected at Vdd = 0.33 V whereas bulk operates at 1 MHz with the same energy per cycle as SOTB.

Jlpea 04 00065 g010

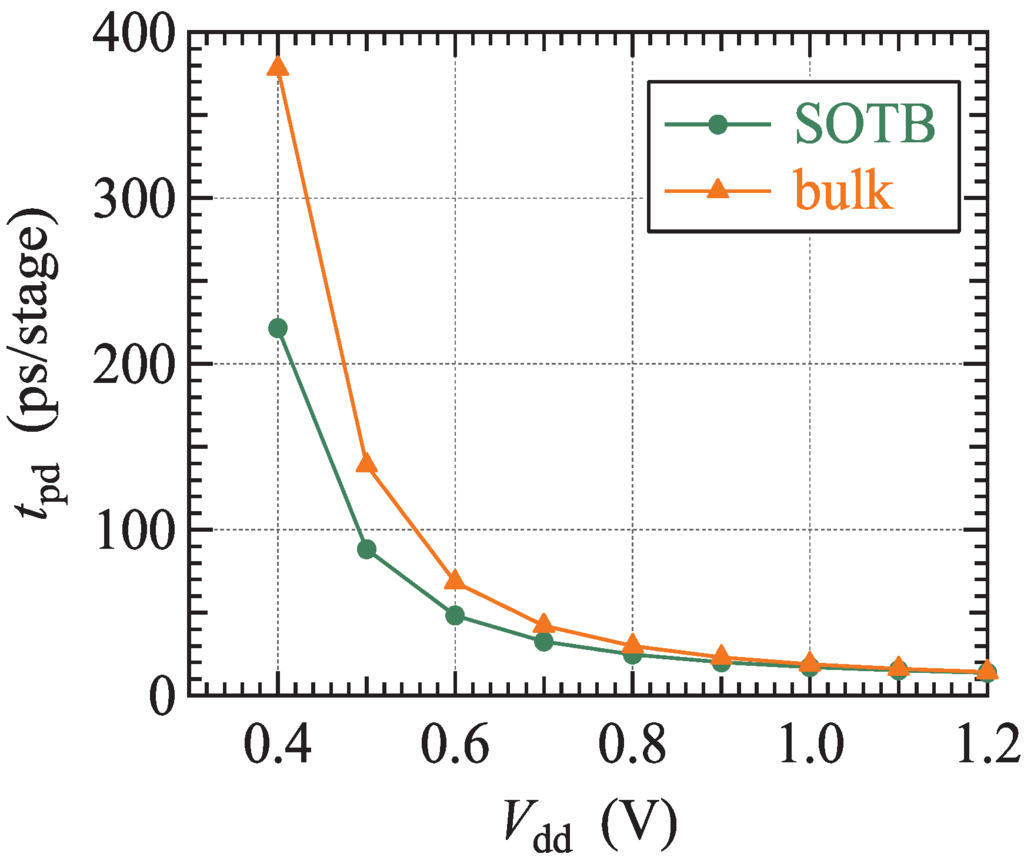

Figure 10. Inverter delay tpd as a function of Vdd [18].

Click here to enlarge figure

Figure 10. Inverter delay tpd as a function of Vdd [18].
Jlpea 04 00065 g010

3.3. Demonstration of ULV and ULP Operation of Logic Circuits

The design flow for the SOTB integrated circuits is basically the same as the conventional one. Using our newly developed design flow with the SOTB/bulk hybrid library, several ULV circuits were designed. Significant power reduction was demonstrated by the post-layout timing and power analysis. The reconfigurable accelerator named cool mega array (CMA) was designed and silicon results were obtained [21]. The bulk CMA operates at 0.8–1.2 V (with dynamic voltage scaling) and 210 MHz, and the SOTB version operates at 0.4 V (with back-biasing) and 65 MHz. The energy efficiency executing the Alpha blender test program was 38 and 65 MOPS/mW for bulk and SOTB, respectively.

The back-bias control offers a strong advantage for the FPGA circuits. The flex-power FPGA of the SOTB version was firstly implemented and silicon results were obtained [22]. After the FPGA configuration, the back-bias control enables that the only critical-path logic elements are set to low Vth. This significantly reduces the leakage power with no operation speed penalty.

High-efficiency generator of back-bias voltage is important for the SOTB technology since standby leakage current is kept low by applying reverse back-bias voltage. A superior point of the SOTB technology is that current load of the back-bias generator is very small because back-gate region of the SOTB transistor is electrically isolated by the BOX layer. This leads to a significant reduction of current consumption of the back-bias generator itself. We designed the generator circuit using the standard Dickson’s charge pump for the SOTB and bulk hybrid platform and silicon results were obtained [23]. The generator operates at Vdd = 0.1 V and higher, and generates sufficient back-bias voltages for NMOS and PMOS of 0.85 and −1.5 V, respectively, at Vdd = 0.4 V with a current consumption of only 13 μA. By applying these back-bias voltages, leakage current of a 500 kgate logic circuit reduced to 2 μA corresponding to 4 pA/gate. There are still several points of the optimization and the generator current consumption is still higher than our target specification. The optimization is now under way.

We have confirmed a successful operation [24] of the proto-type ULV micro-controller chip as shown in Figure 11. This chip is composed of 32-bit RISC CPU with five-stage pipeline, 144 kByte SRAM, and interfaces (ROM, UART, SPI, and GP) and can be connected with sensors and rf modules for the sensor-network node. The micro-controller chip operates at Vdd = 0.35 V and consumes only E = 13.4 pJ (f = 14 MHz) as shown in Figure 12. Note that the E values for SOTB and bulk at Vdd ≥ 0.8 V are identical because it is determined by Eac (same Cload of the same 65-nm technology) in this region. Sleep current is only 0.14 μA. By taking advantage of the ULP capability of our SOTB micro-controller chip, named “Perpetuum-Mobile”, the sensor node is expected to operate with a sufficient frequency (>10 MHz) for a long period with a single battery or further longer operation with an energy harvester.

Jlpea 04 00065 g011

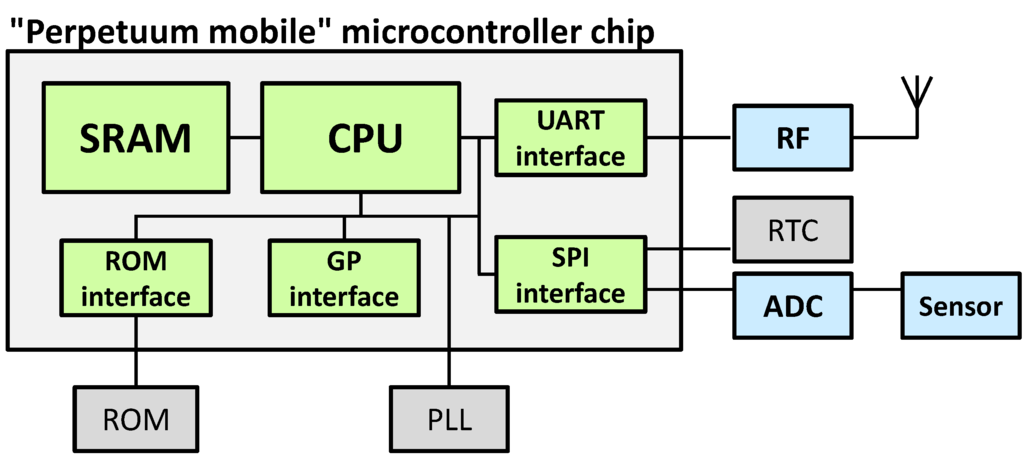

Figure 11. Block diagram of “Perpetuum-Mobile” micro-controller chip for a sensor-node application. (PLL: phase locked loop; ADC: analog to digital converter; SPI: serial peripheral interface; UART: universal asynchronous receiver transmitter; GP: general purpose).

Click here to enlarge figure

Figure 11. Block diagram of “Perpetuum-Mobile” micro-controller chip for a sensor-node application. (PLL: phase locked loop; ADC: analog to digital converter; SPI: serial peripheral interface; UART: universal asynchronous receiver transmitter; GP: general purpose).
Jlpea 04 00065 g011
Jlpea 04 00065 g012
Figure 12. Energy per cycle E as a function of operating voltage Vdd for the “Perpetuum-Mobile” micro-controller chip [24].

Click here to enlarge figure

Figure 12. Energy per cycle E as a function of operating voltage Vdd for the “Perpetuum-Mobile” micro-controller chip [24].
Jlpea 04 00065 g012

4. Conclusions

Silicon on thin buried oxide (SOTB) is suitable for the ULV operation thanks to its small variability and back-gate bias controllability. We have demonstrated significant variability reduction, 0.4-V operation of SRAM, and reducing power consumption of logic circuits including a micro-controller chip with a significant speed gain even at ULV. Many ULP applications are expected with SOTB chips. The “Perpetuum-Mobile” micro-controller chips will work as a core electronics parts in various types of electronic apparatuses of the “internet of things”.
