Next Article in Journal
Ink-Jet Printing of Gluconobacter oxydans: Micropatterned Coatings As High Surface-to-Volume Ratio Bio-Reactive Coatings
Next Article in Special Issue
Nano and Microscale Topographies for the Prevention of Bacterial Surface Fouling
Previous Article in Journal / Special Issue
Development and in Vitro Characterization of Photochemically Crosslinked Polyvinylpyrrolidone Coatings for Drug-Coated Balloons
Coatings 2013, 3(4), 268-300; doi:10.3390/coatings3040268
Article

Gas Permeation, Mechanical Behavior and Cytocompatibility of Ultrathin Pure and Doped Diamond-Like Carbon and Silicon Oxide Films

1
, 3
, 2
, 2
, 4
, 6
, 7
, 8
, 8
, 1
, 5
 and 3,*
Received: 17 September 2013; in revised form: 20 November 2013 / Accepted: 6 December 2013 / Published: 16 December 2013
(This article belongs to the Special Issue Advances in Medical Device Coatings)
View Full-Text   |   Download PDF [2096 KB, uploaded 16 December 2013]   |   Browse Figures

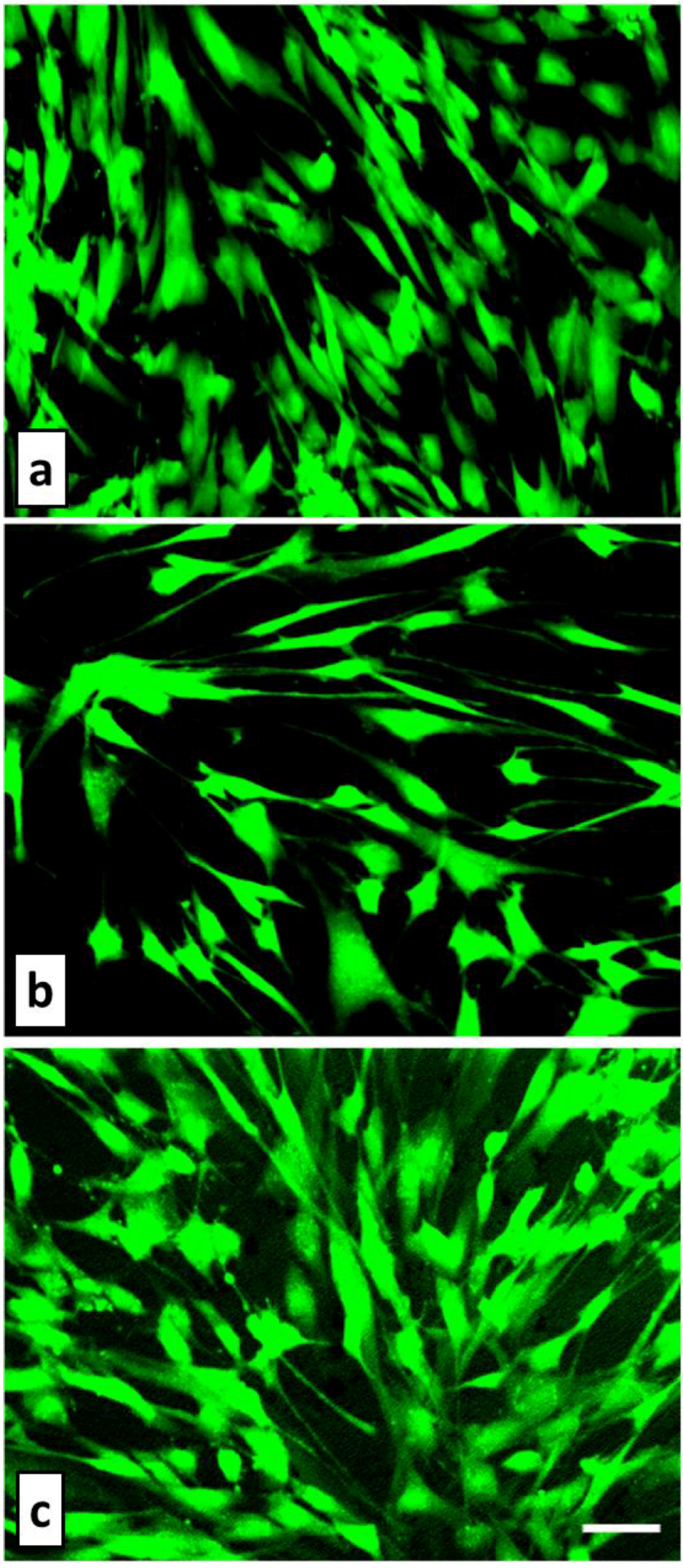

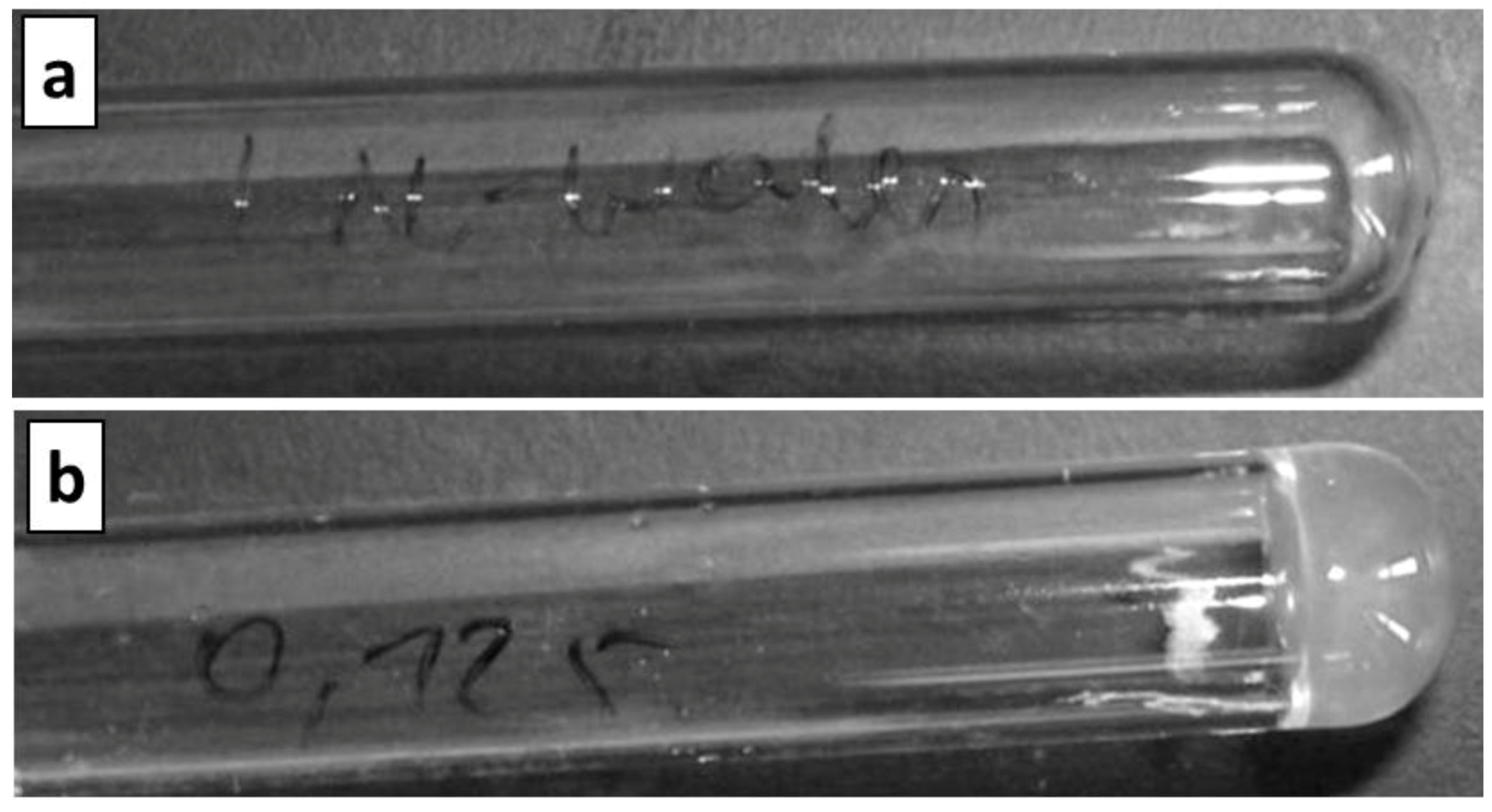

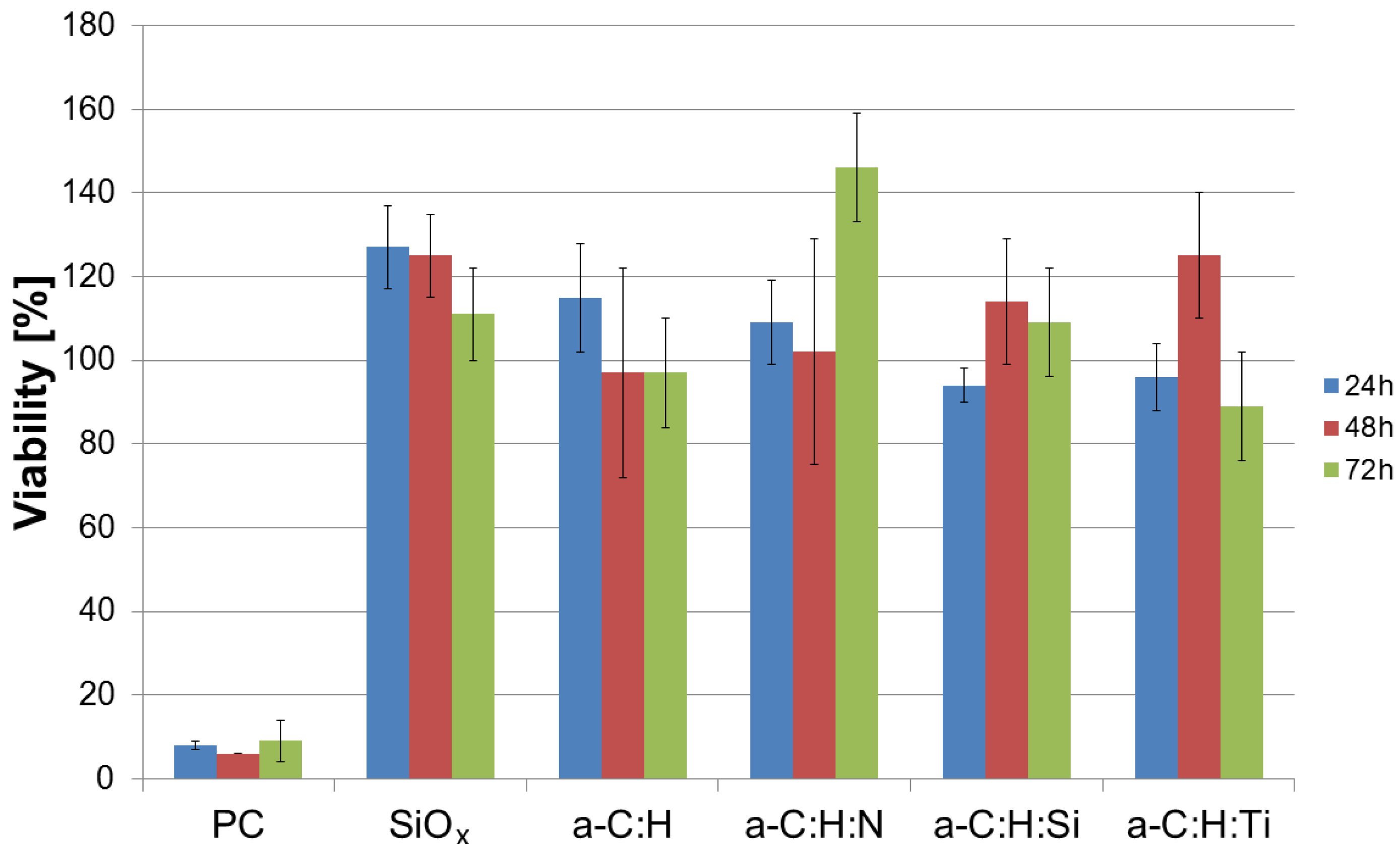

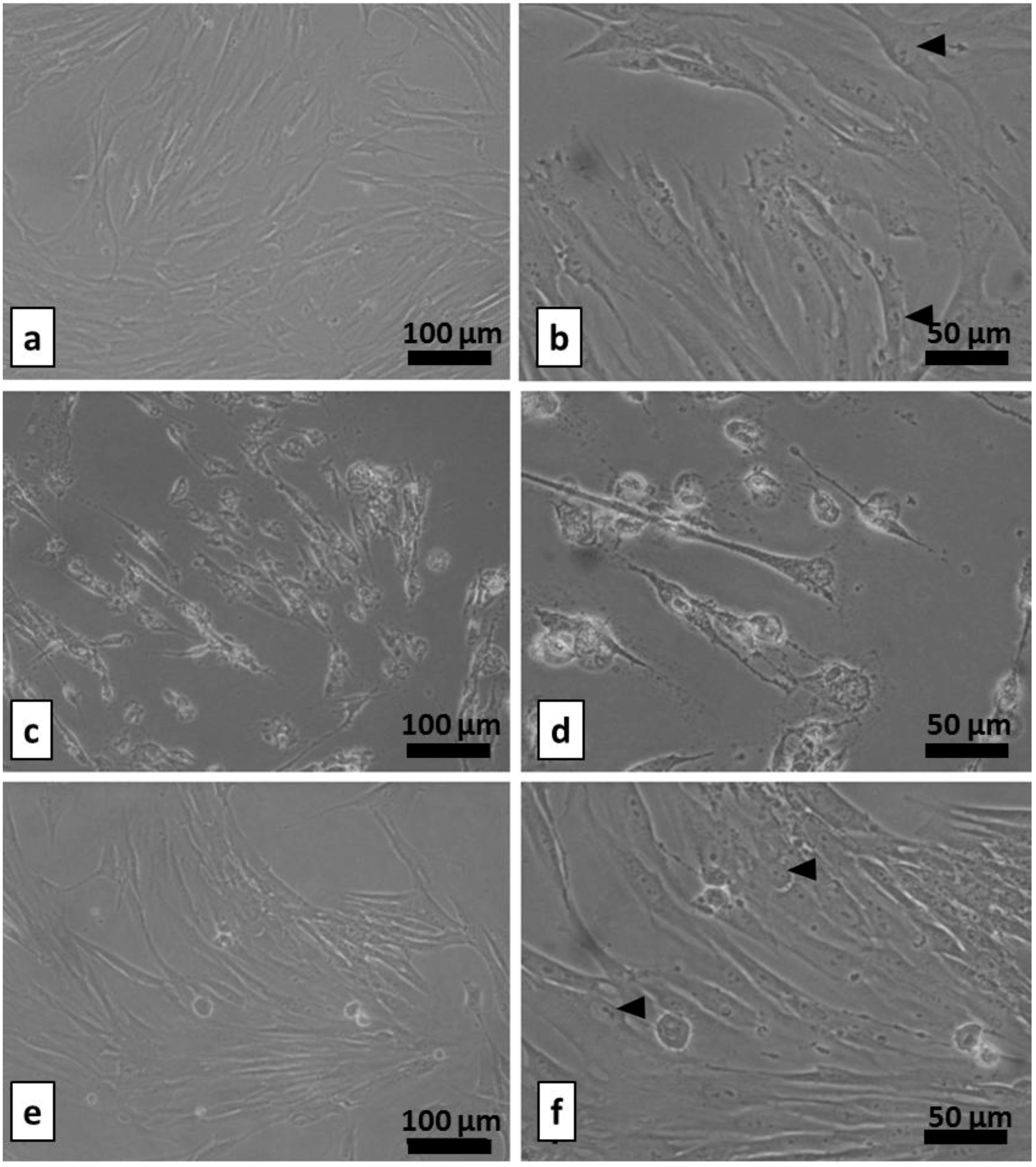

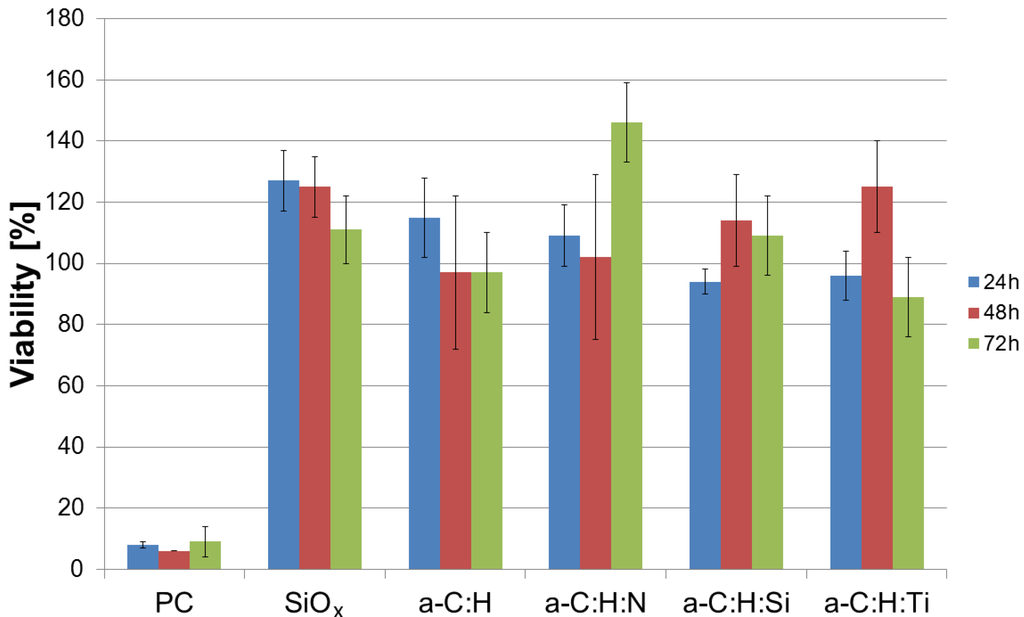

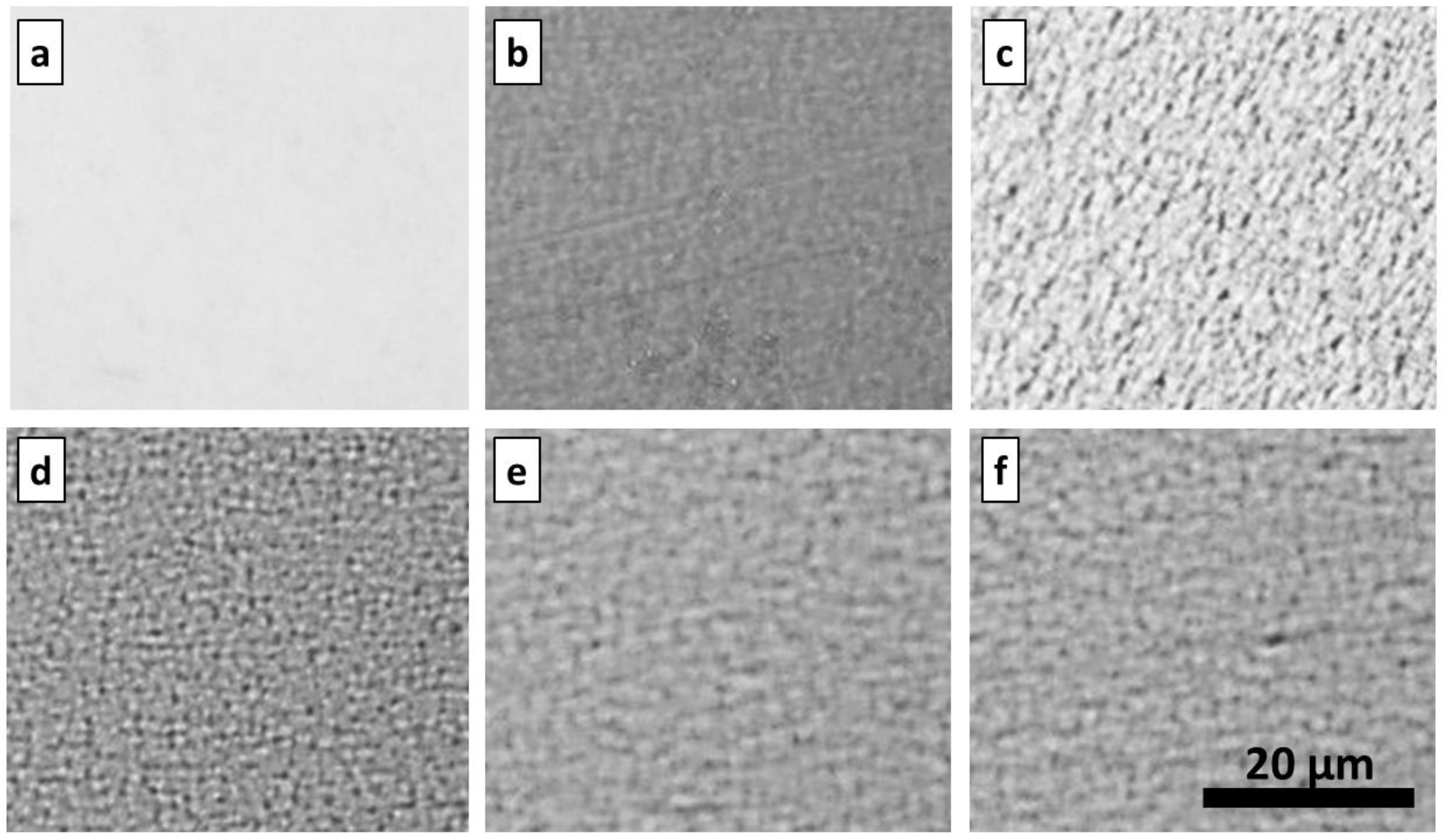

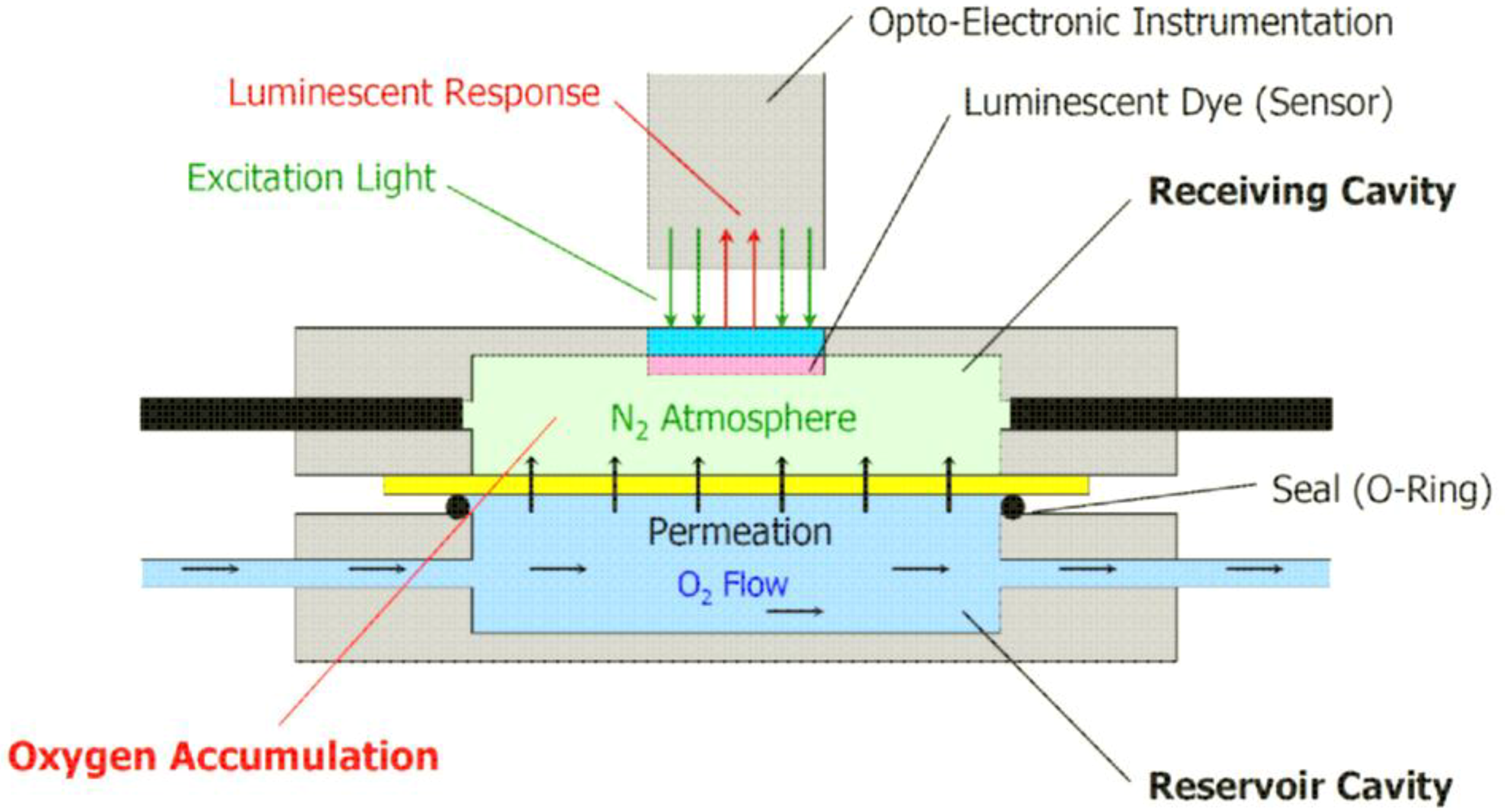

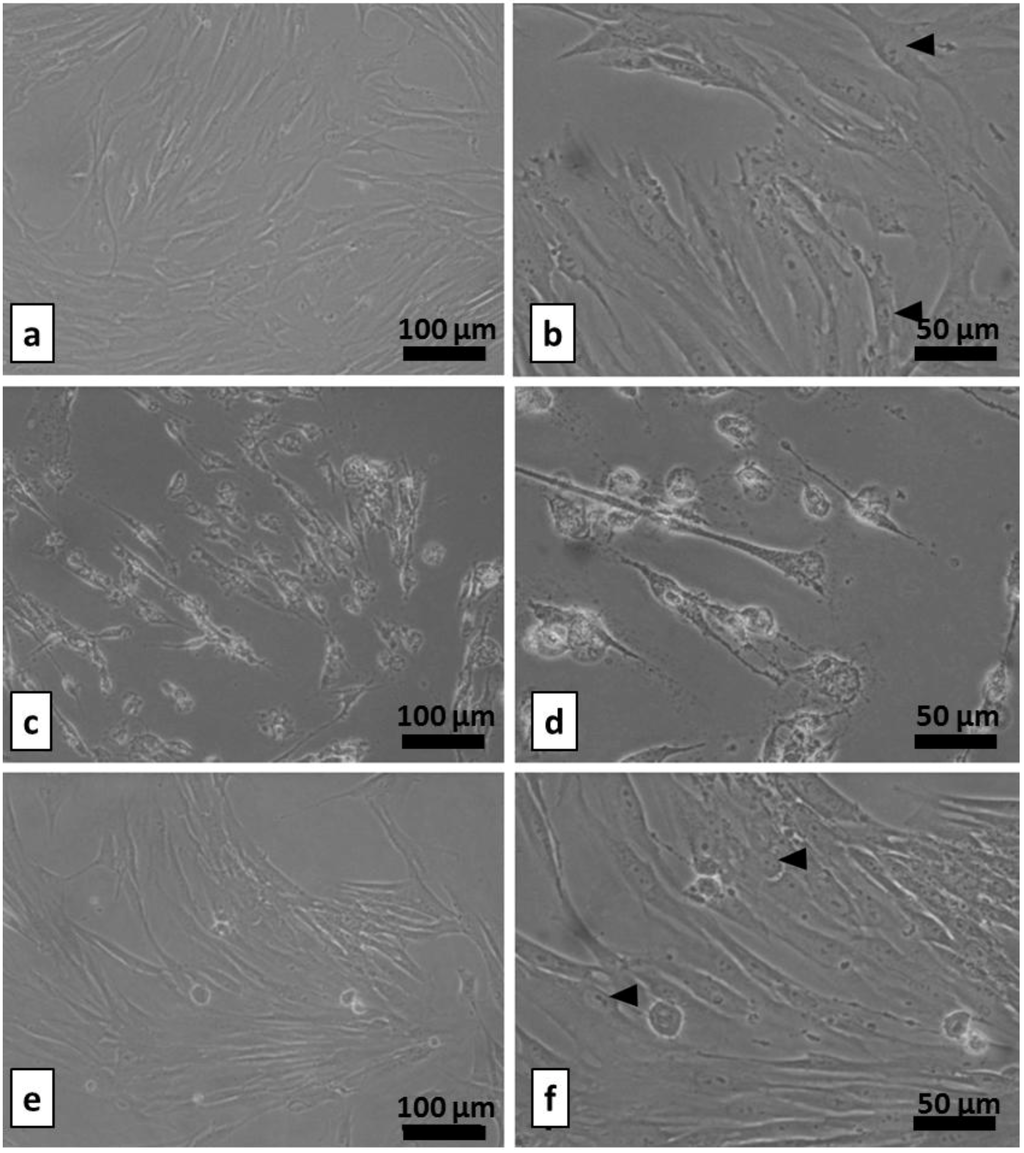

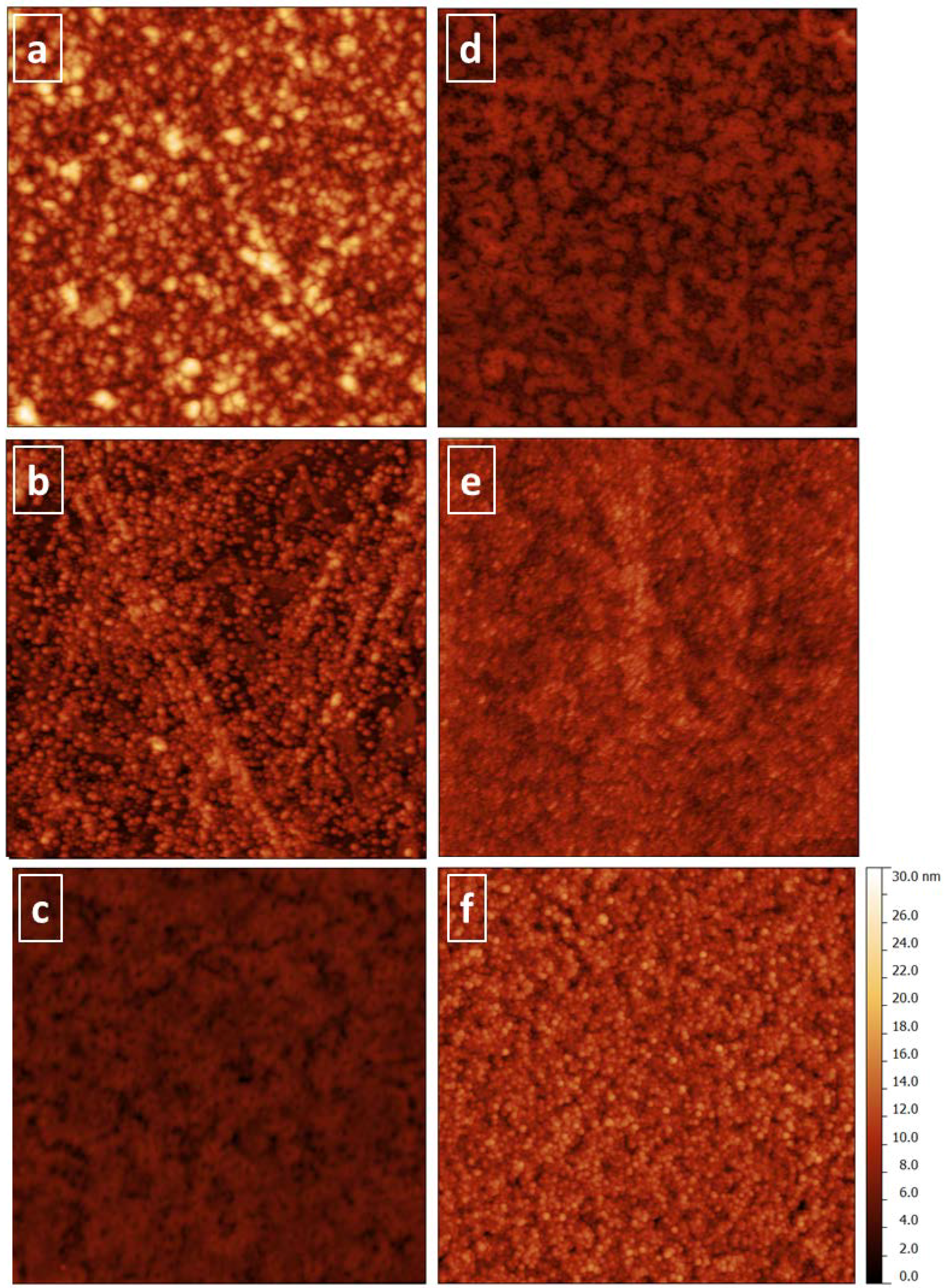

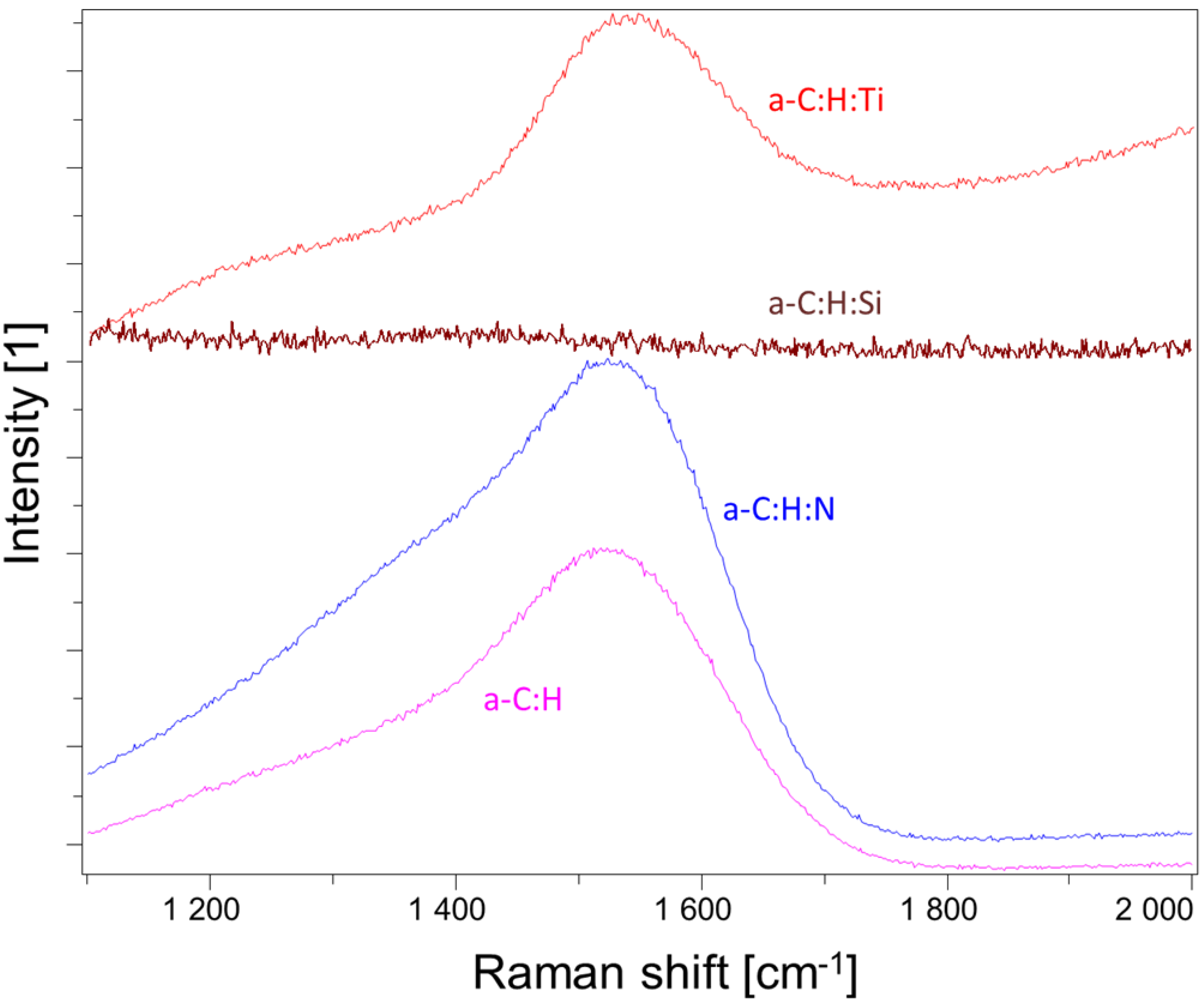

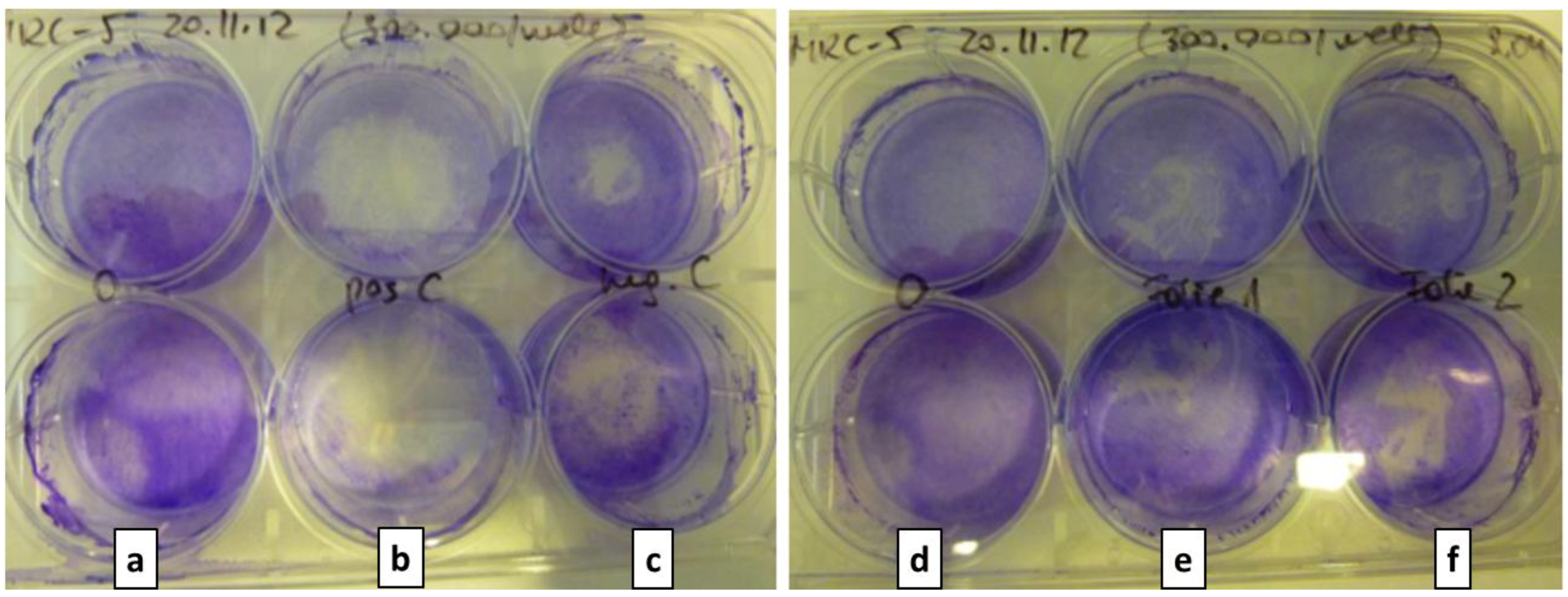

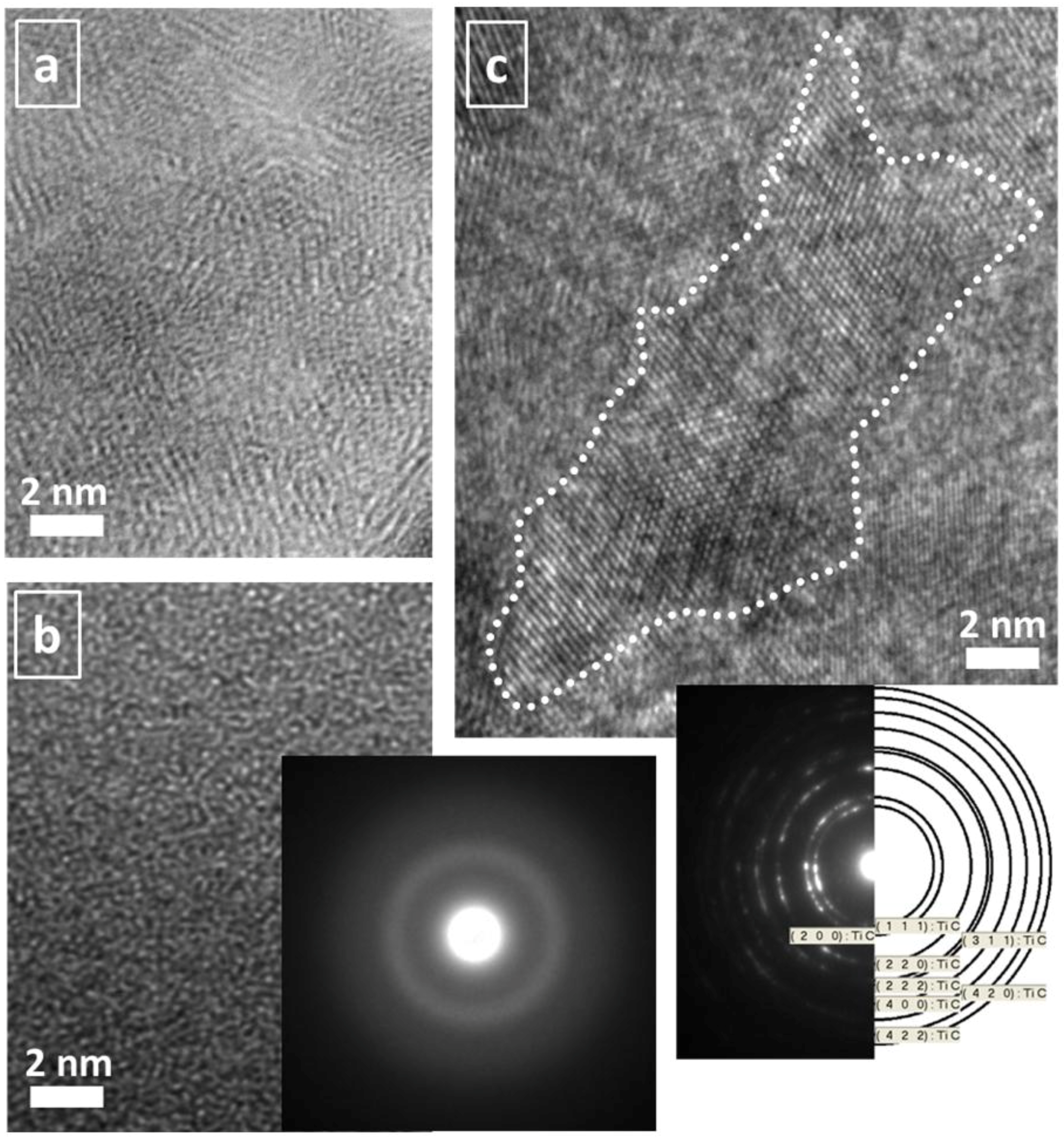

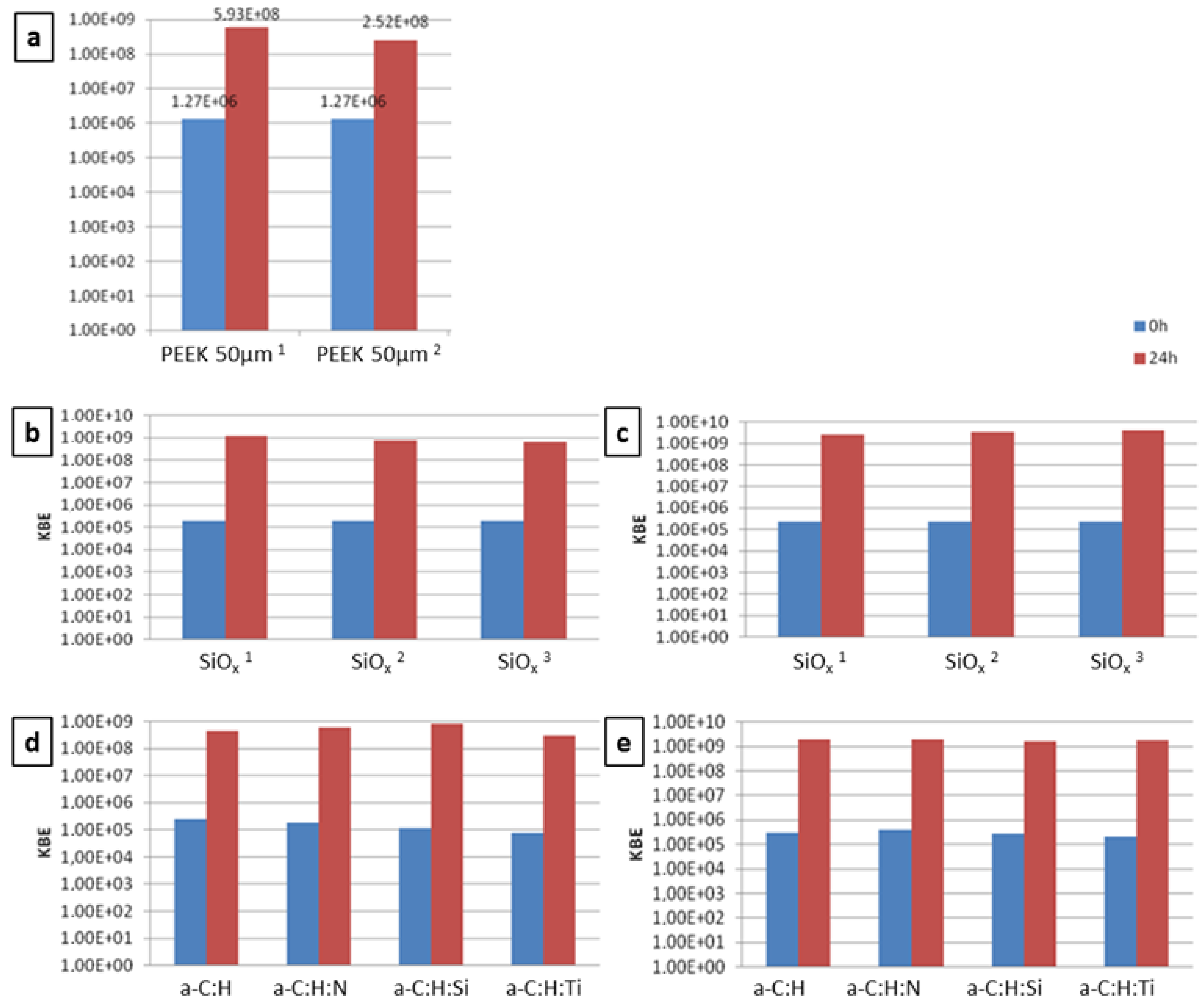

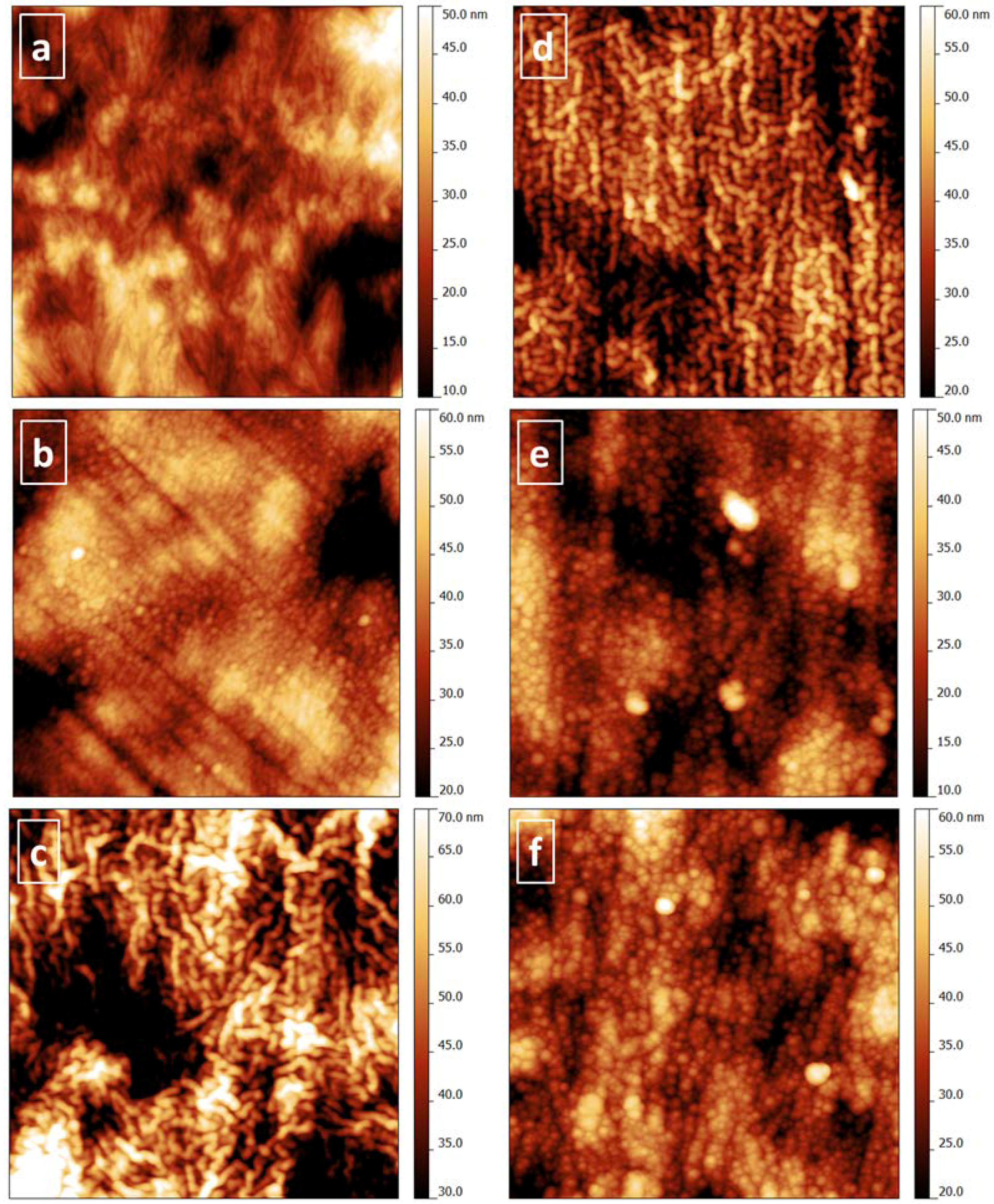

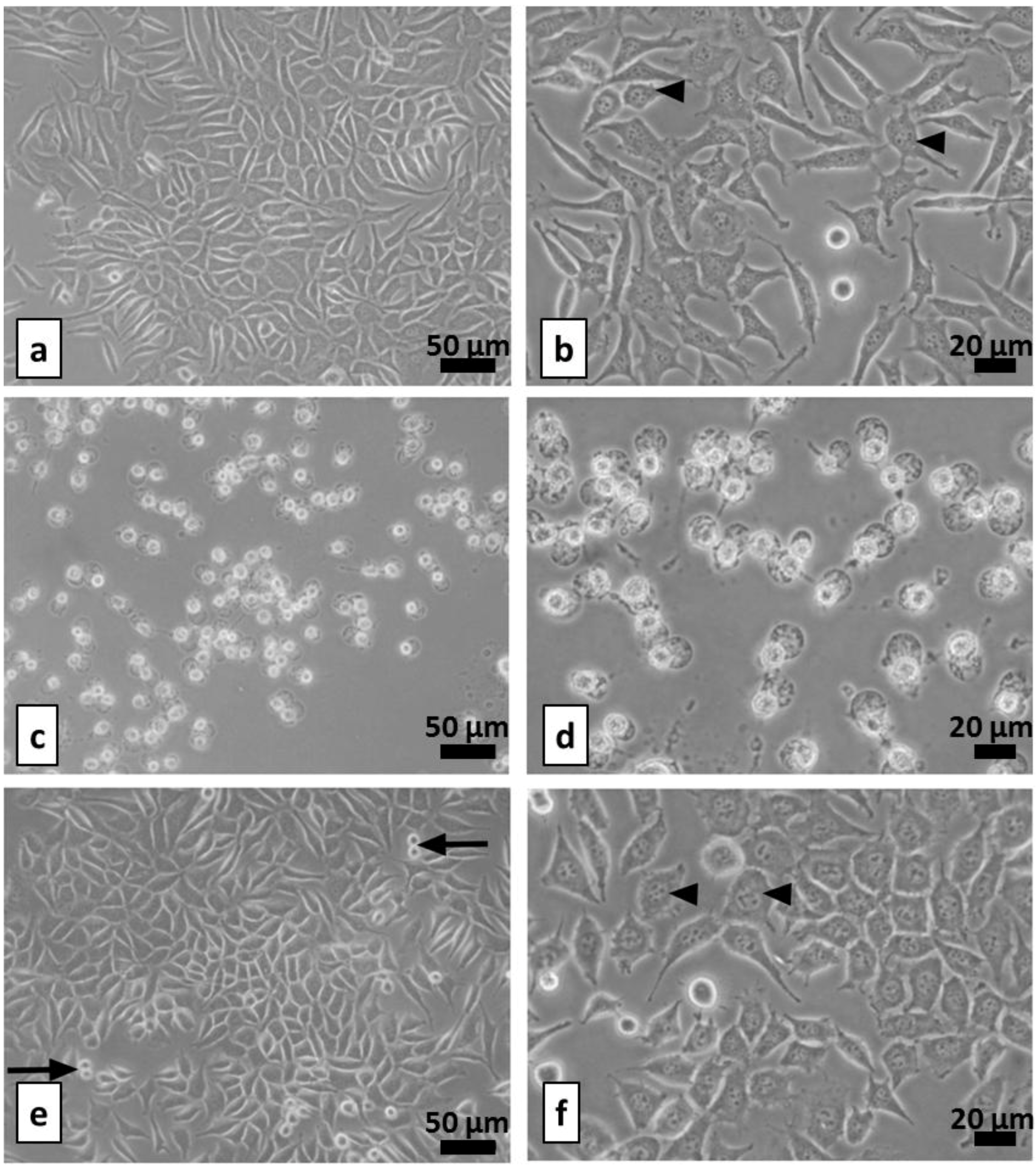

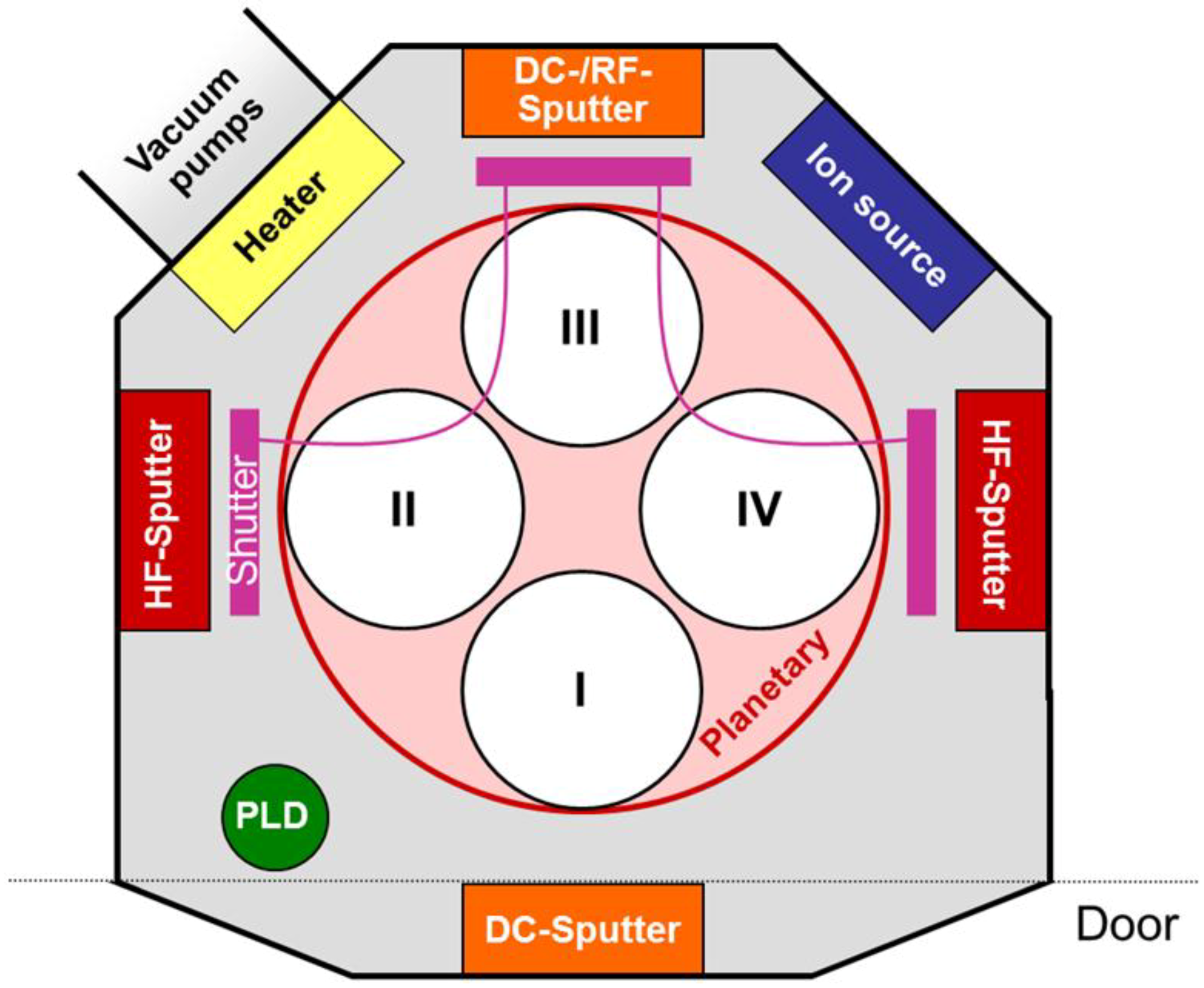

Abstract: Protective ultra-thin barrier films gather increasing economic interest for controlling permeation and diffusion from the biological surrounding in implanted sensor and electronic devices in future medicine. Thus, the aim of this work was a benchmarking of the mechanical oxygen permeation barrier, cytocompatibility, and microbiological properties of inorganic ~25 nm thin films, deposited by vacuum deposition techniques on 50 µm thin polyetheretherketone (PEEK) foils. Plasma-activated chemical vapor deposition (direct deposition from an ion source) was applied to deposit pure and nitrogen doped diamond-like carbon films, while physical vapor deposition (magnetron sputtering in pulsed DC mode) was used for the formation of silicon as well as titanium doped diamond-like carbon films. Silicon oxide films were deposited by radio frequency magnetron sputtering. The results indicate a strong influence of nanoporosity on the oxygen transmission rate for all coating types, while the low content of microporosity (particulates, etc.) is shown to be of lesser importance. Due to the low thickness of the foil substrates, being easily bent, the toughness as a measure of tendency to film fracture together with the elasticity index of the thin films influence the oxygen barrier. All investigated coatings are non-pyrogenic, cause no cytotoxic effects and do not influence bacterial growth.
Keywords: thin films; diamond-like carbon; permeability; cytocompatibility thin films; diamond-like carbon; permeability; cytocompatibility
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Lackner, J.M.; Meindl, C.; Wolf, C.; Fian, A.; Kittinger, C.; Kot, M.; Major, L.; Czibula, C.; Teichert, C.; Waldhauser, W.; Weinberg, A.-M.; Fröhlich, E. Gas Permeation, Mechanical Behavior and Cytocompatibility of Ultrathin Pure and Doped Diamond-Like Carbon and Silicon Oxide Films. Coatings 2013, 3, 268-300.

AMA Style

Lackner JM, Meindl C, Wolf C, Fian A, Kittinger C, Kot M, Major L, Czibula C, Teichert C, Waldhauser W, Weinberg A-M, Fröhlich E. Gas Permeation, Mechanical Behavior and Cytocompatibility of Ultrathin Pure and Doped Diamond-Like Carbon and Silicon Oxide Films. Coatings. 2013; 3(4):268-300.

Chicago/Turabian Style

Lackner, Juergen M.; Meindl, Claudia; Wolf, Christian; Fian, Alexander; Kittinger, Clemens; Kot, Marcin; Major, Lukasz; Czibula, Caterina; Teichert, Christian; Waldhauser, Wolfgang; Weinberg, Annelie-Martina; Fröhlich, Eleonore. 2013. "Gas Permeation, Mechanical Behavior and Cytocompatibility of Ultrathin Pure and Doped Diamond-Like Carbon and Silicon Oxide Films." Coatings 3, no. 4: 268-300.


Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
