Open AccessArticle
Nanomaterials 2015, 5(2), 1087-1101;

Hybrid Mesoporous Silicas and Microporous POSS-Based Frameworks Incorporating Evaporation-Induced Self-Assembly

Department of Materials and Optoelectronic Science, Center for Nanoscience and Nanotechnology, National Sun Yat-Sen University, Kaohsiung 804, Taiwan
These authors contributed equally to this work.
Author to whom correspondence should be addressed.
Academic Editors: Jordi Sort and Eva Pellicer
Received: 8 May 2015 / Accepted: 11 June 2015 / Published: 16 June 2015
(This article belongs to the Special Issue Frontiers in Mesoporous Nanomaterials)
View Full-Text   |   Download PDF [6567 KB, uploaded 16 June 2015]   |

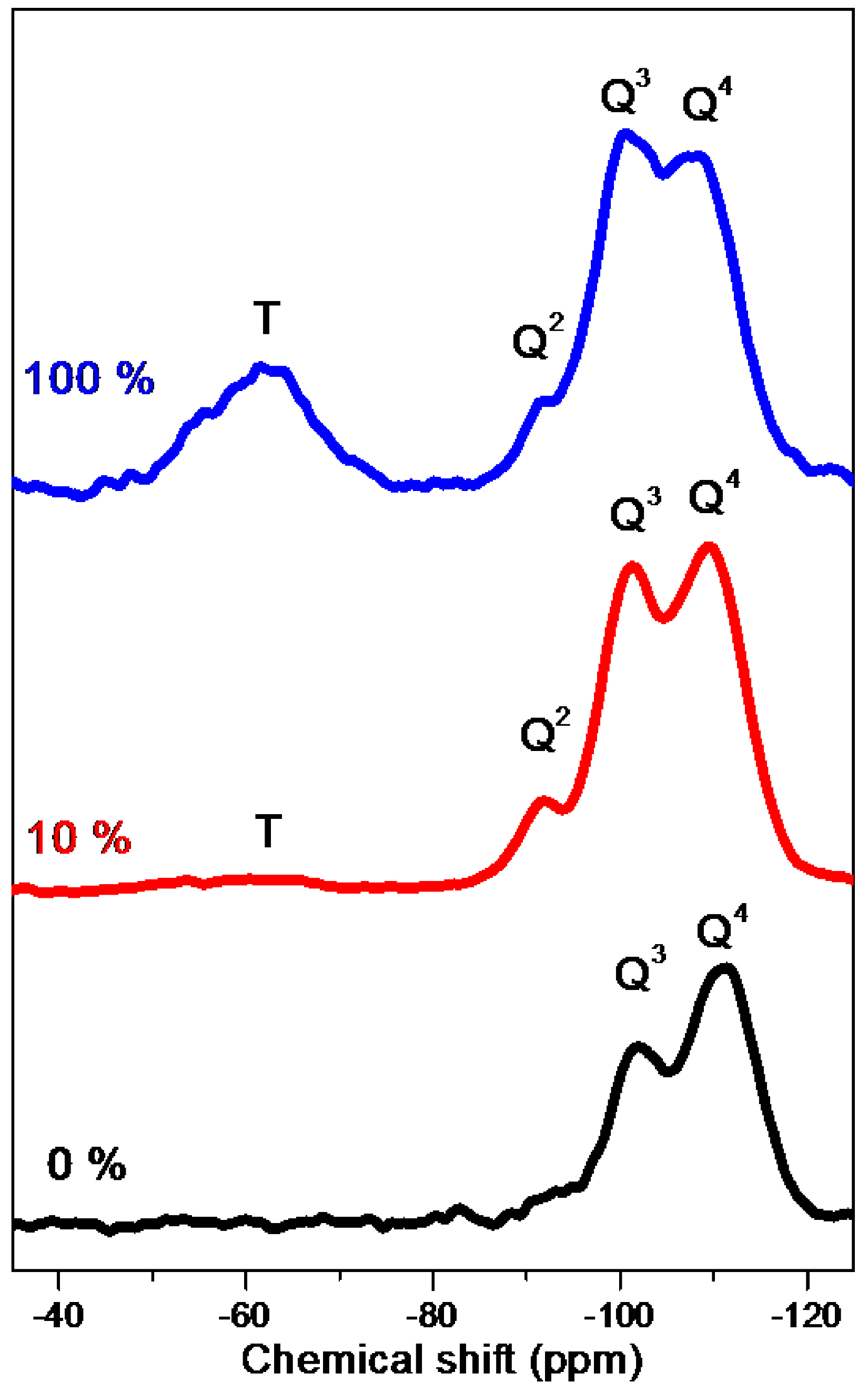

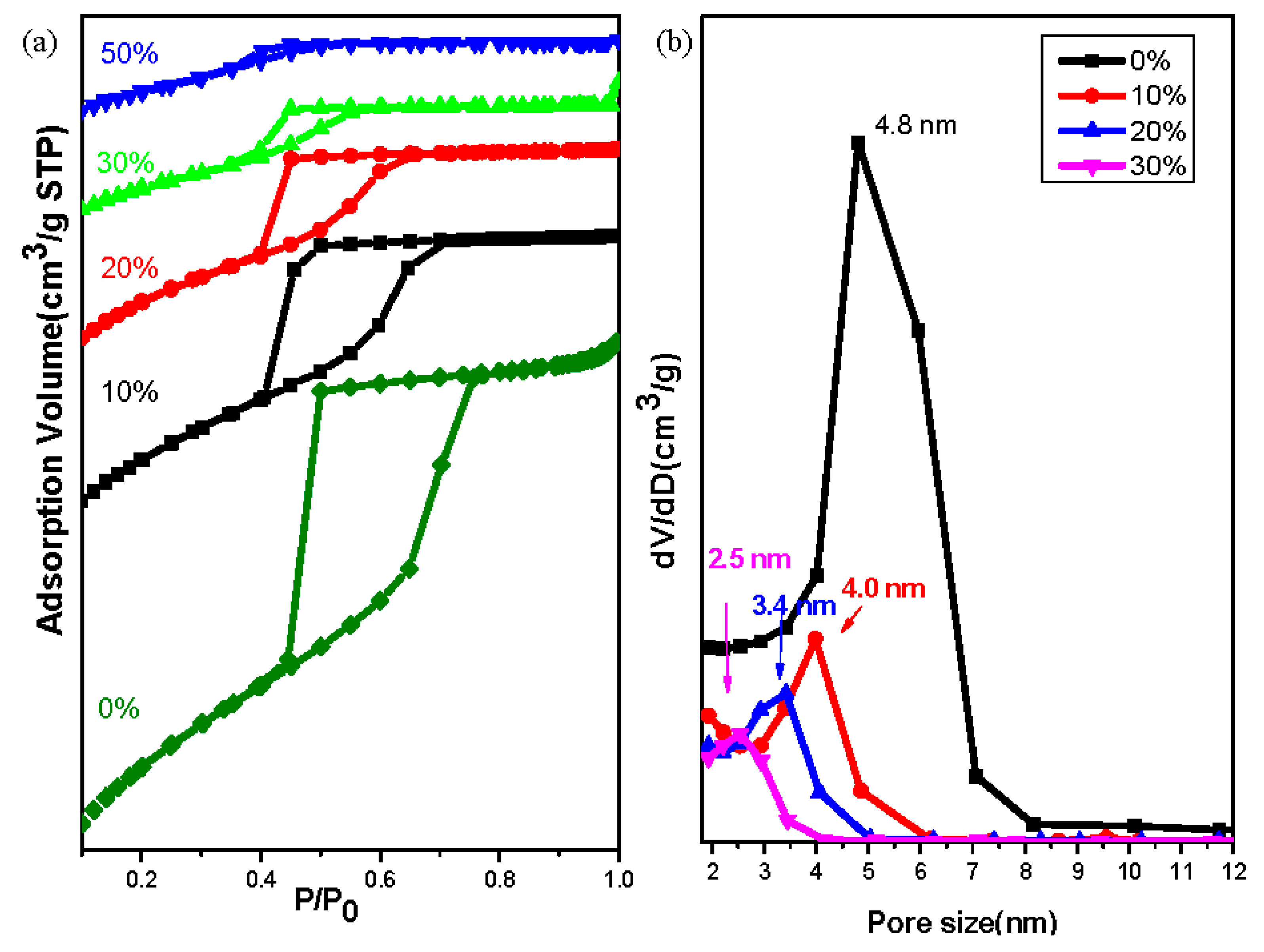

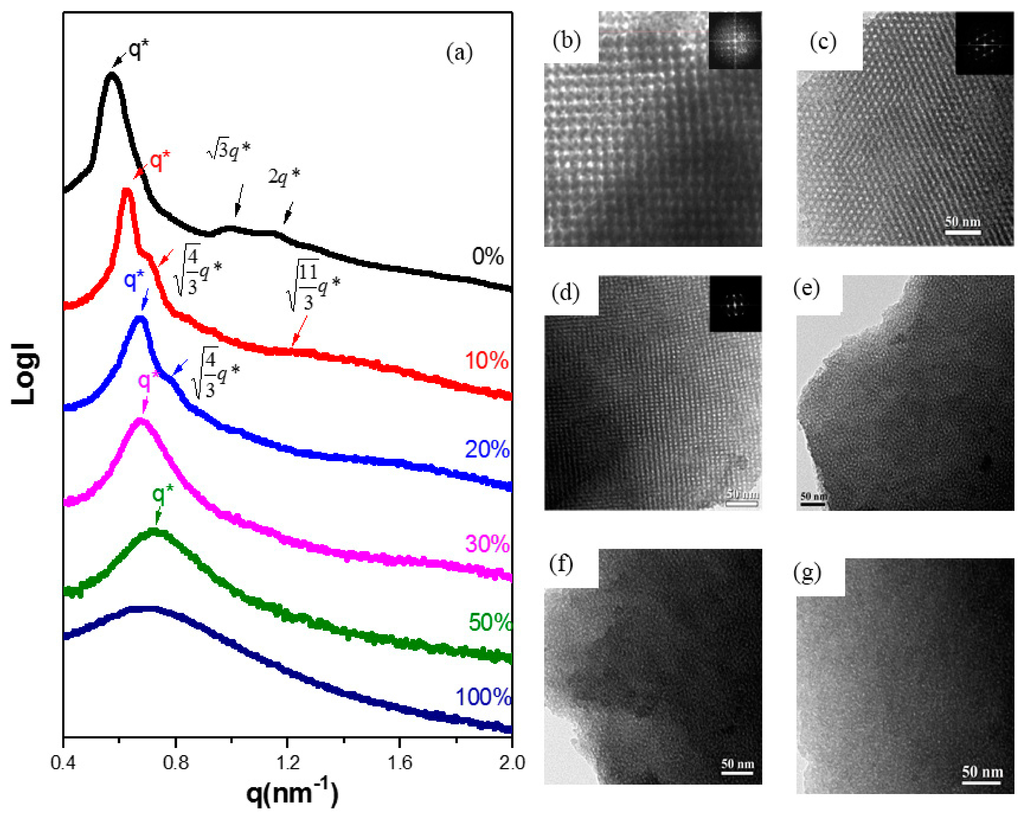

We fabricated a series of mesoporous silicas and mesoporous organosilicates with hierarchical porosity through evaporation-induced self-assembly using Pluronic F127 as a template in this study. We could tailor the mesophase of each mesoporous silica sample by varying the weight ratio of its two silica sources: tetraethyl orthosilicate (TEOS) and triethoxysilane hydrosilylated octavinyl polyhedral oligomeric silsesquioxane (OV-POSS-SILY). The mesophases ranged from an ordered body-centered cubic (bcc) structure (TEOS alone) to ordered face-centered cubic (fcc) structure (10 and 20 wt.% of OV-POSS-SILY) and finally to disordered spherical pores (≥30 wt.% of OV-POSS-SILY). We used small-angle X-ray scattering (SAXS) and transmission electron microscopy (TEM) to study the transformations of these mesophases, while N2 isotherm sorption curves revealed the porosities of these mesoporous silicate samples. Moreover, 29Si CP/MAS solid state nuclear magnetic resonance spectroscopy allowed us to analyze the compositions of the POSS-containing silicate frameworks. Such functional mesoporous silica samples incorporating microporous POSS building units have potential applications in various systems, including optical and electronic devices. View Full-Text
Keywords: mesoporous; polyhedral oligomeric silsesquioxane (POSS); evaporation-induced self-assembly mesoporous; polyhedral oligomeric silsesquioxane (POSS); evaporation-induced self-assembly

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Li, J.-G.; Chu, W.-C.; Kuo, S.-W. Hybrid Mesoporous Silicas and Microporous POSS-Based Frameworks Incorporating Evaporation-Induced Self-Assembly. Nanomaterials 2015, 5, 1087-1101.
