Open AccessArticle
Micromachines 2017, 8(7), 213; doi:10.3390/mi8070213

Influences of Excitation on Dynamic Characteristics of Piezoelectric Micro-Jets

1
State Key Laboratory of Robotics and System, Harbin Institute of Technology, Harbin 150001, China
2
Aero Engine Corporation of China, Harbin Dongan Engine Corporation LTD, Harbin 150001, China
*
Author to whom correspondence should be addressed.
Received: 8 May 2017 / Revised: 14 June 2017 / Accepted: 30 June 2017 / Published: 5 July 2017
(This article belongs to the Special Issue Piezoelectric MEMS)
View Full-Text   |   Download PDF [4090 KB, uploaded 5 July 2017]   |

Abstract

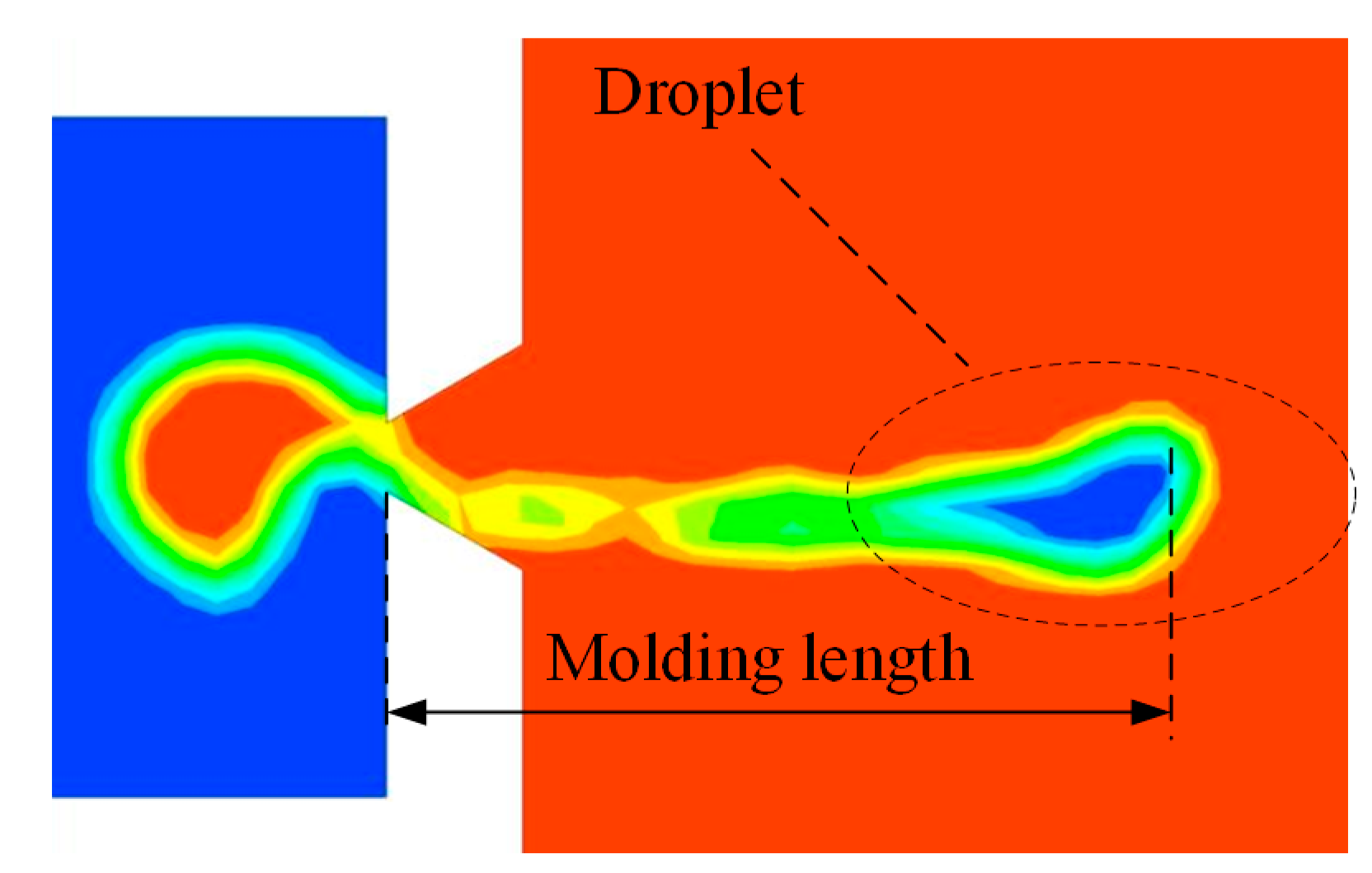

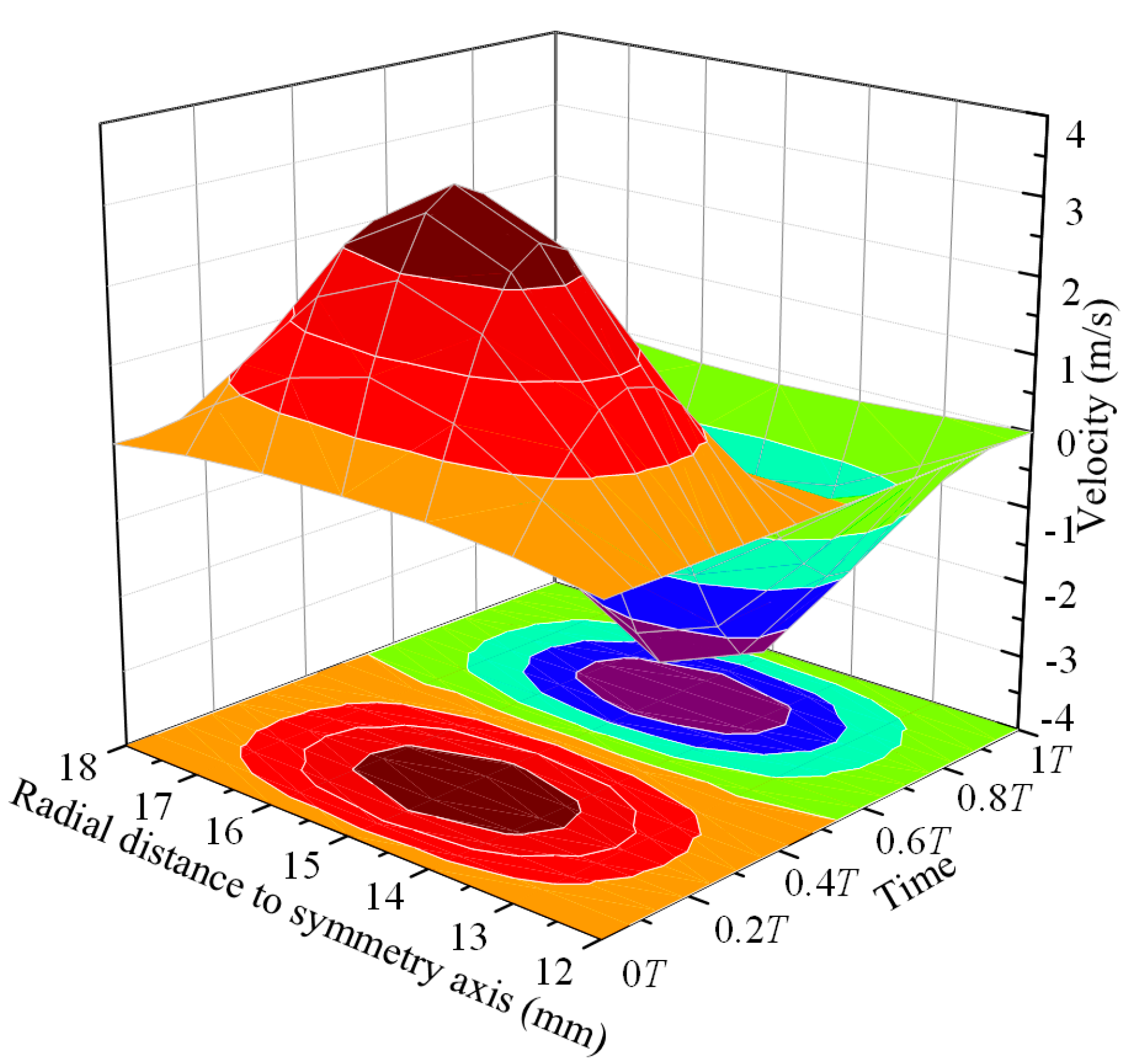

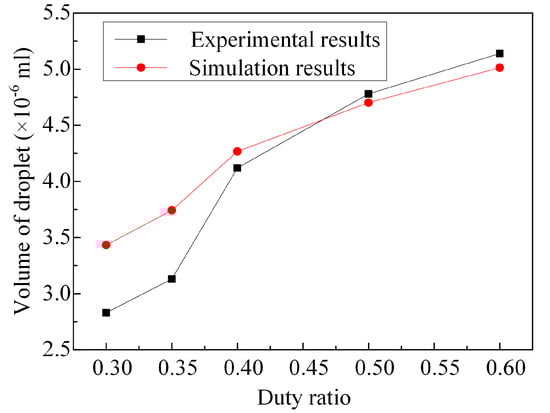

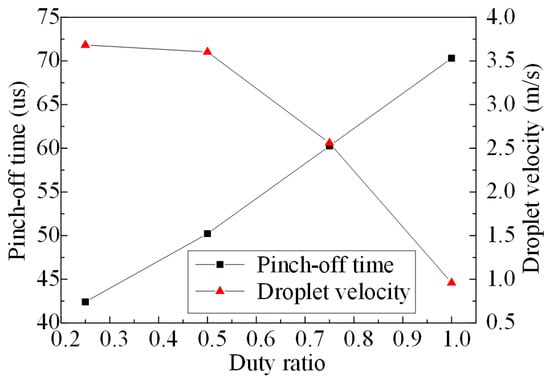

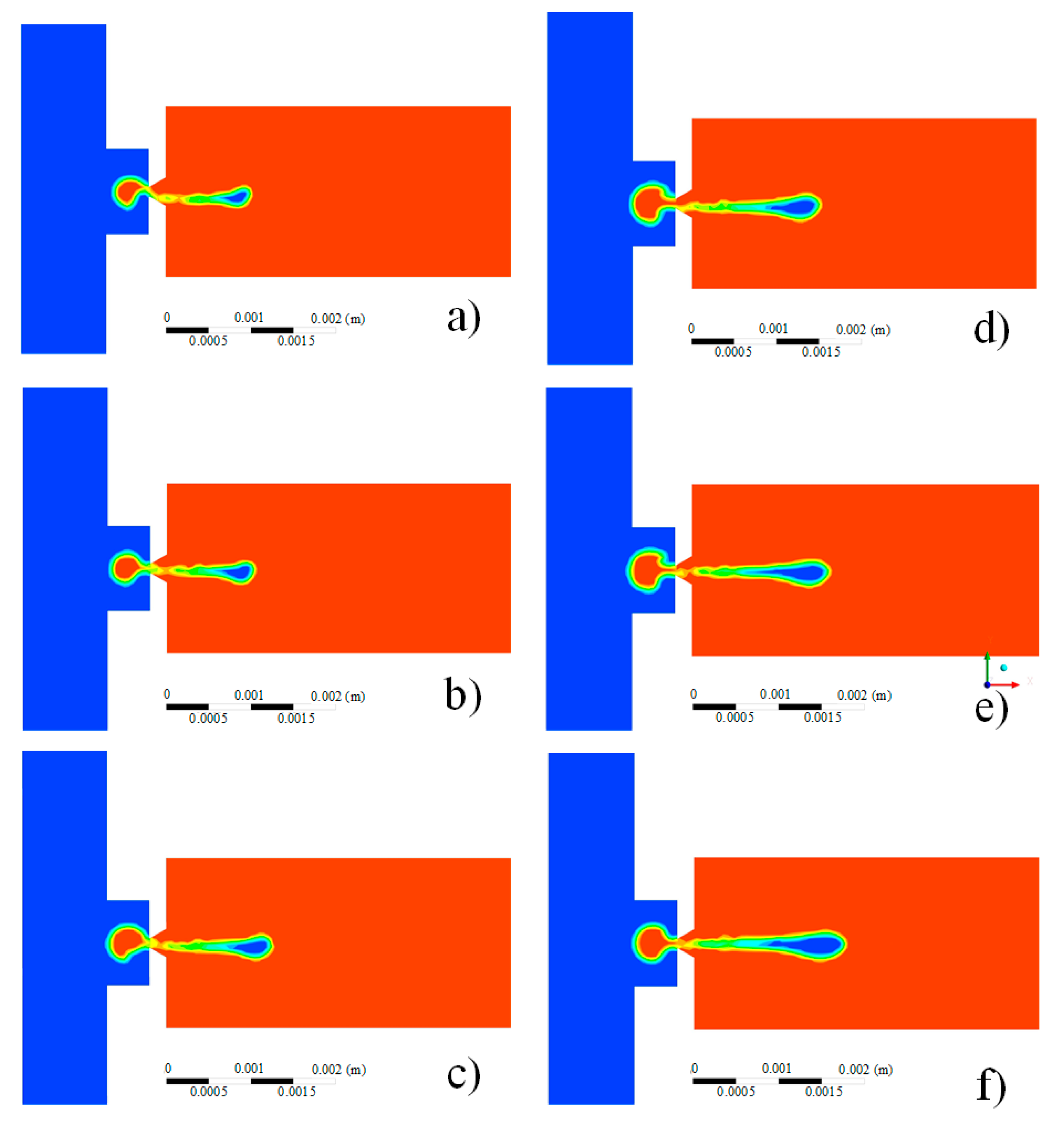

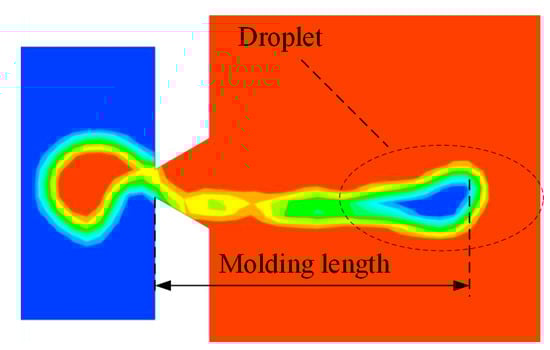

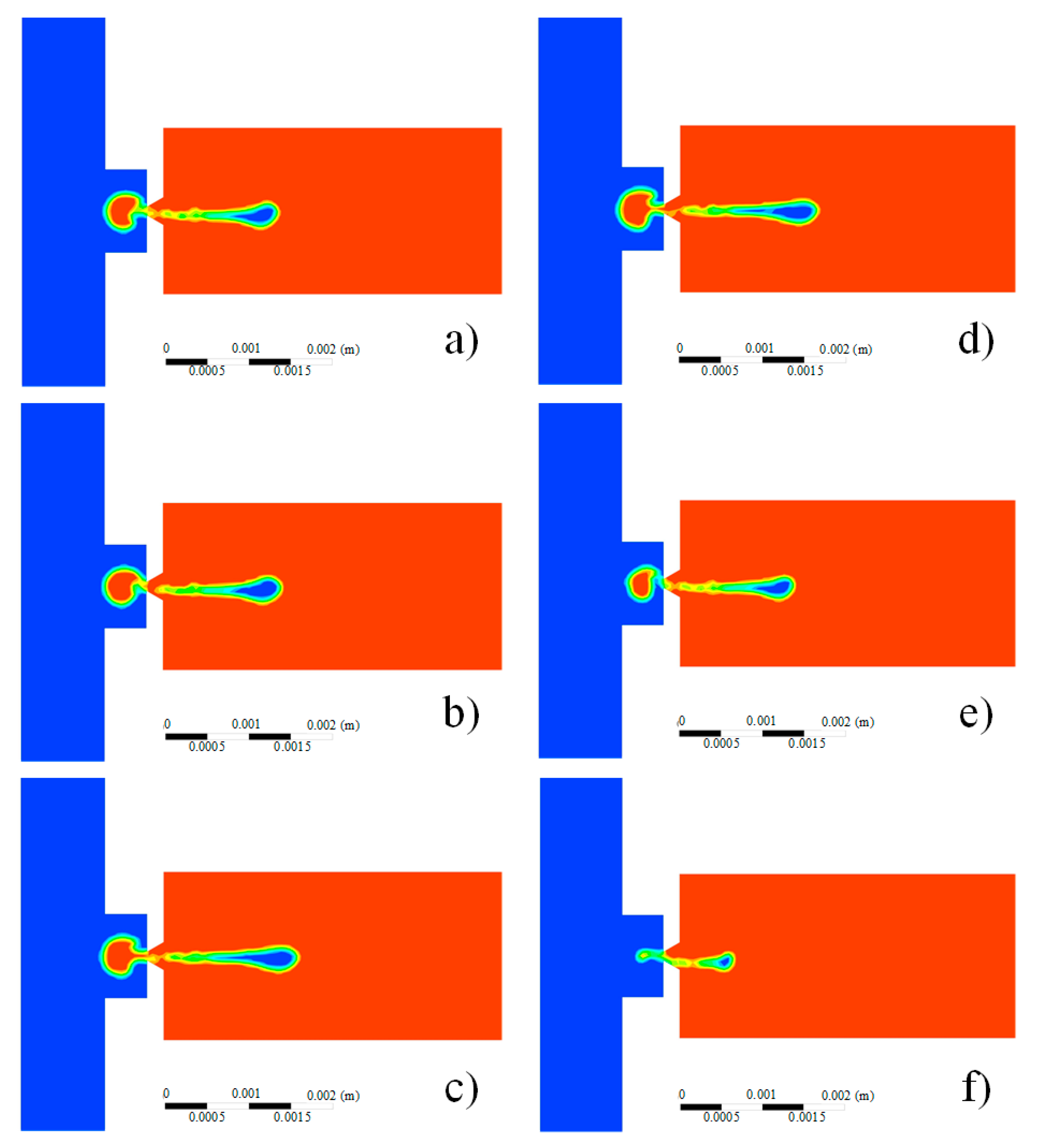

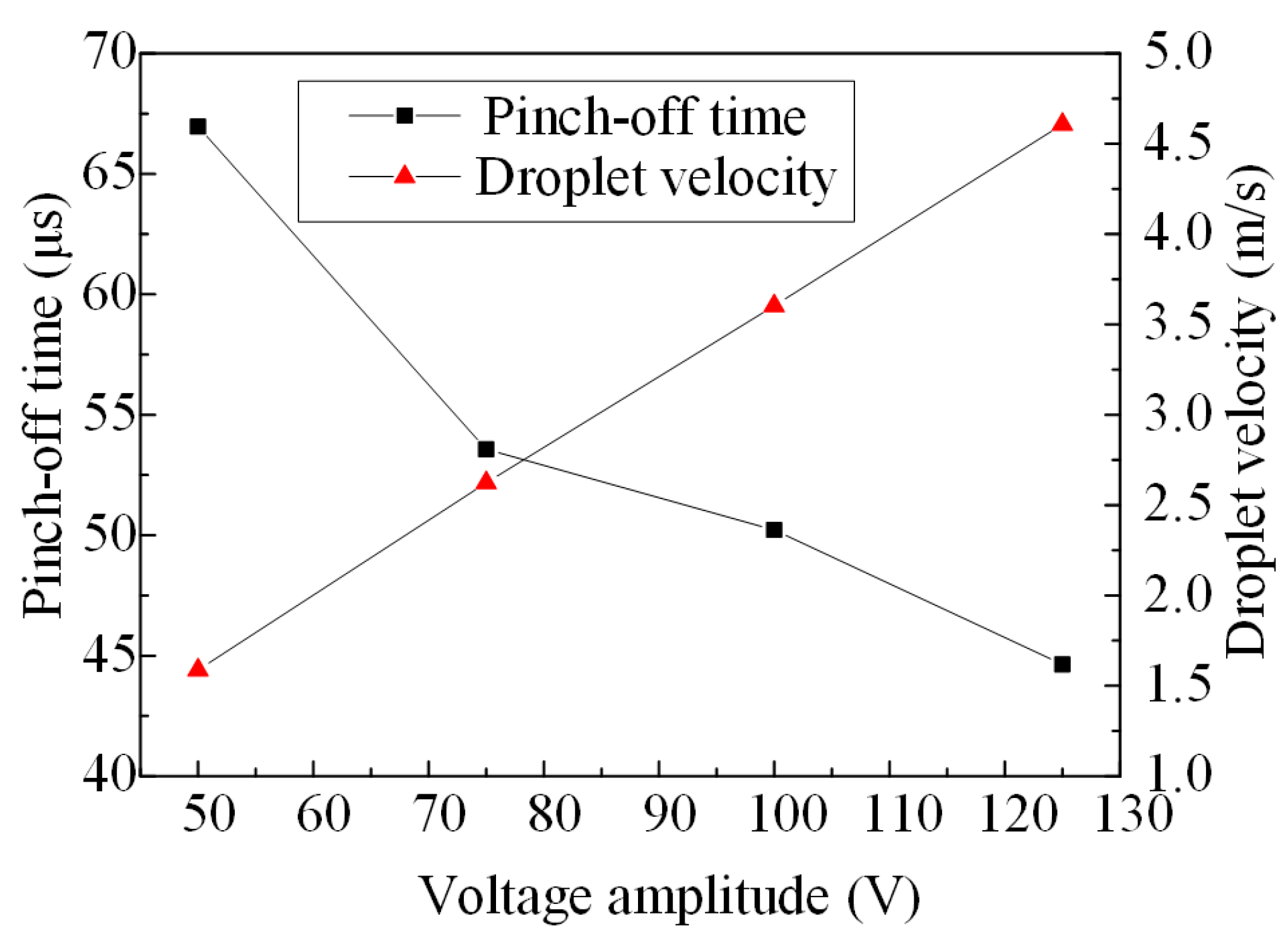

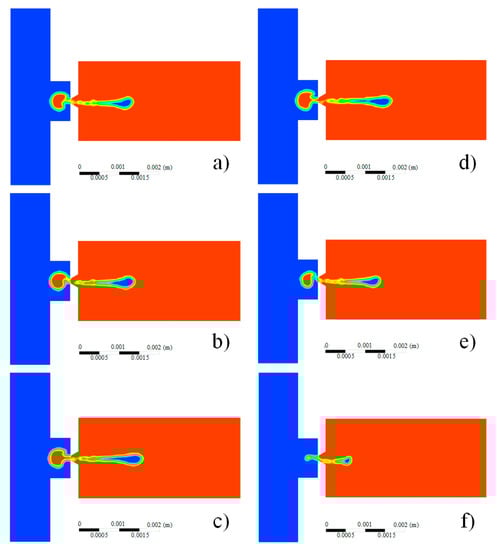

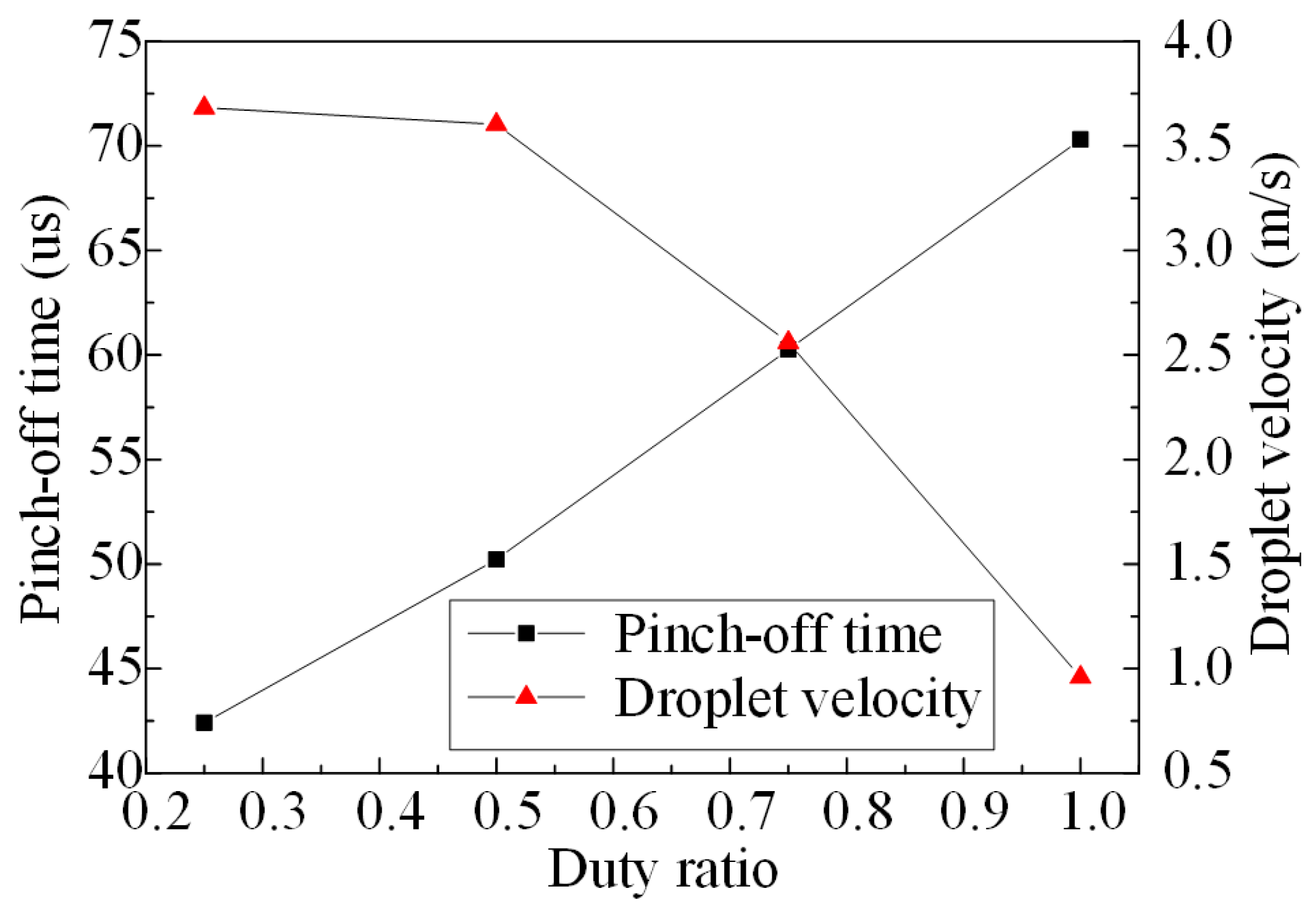

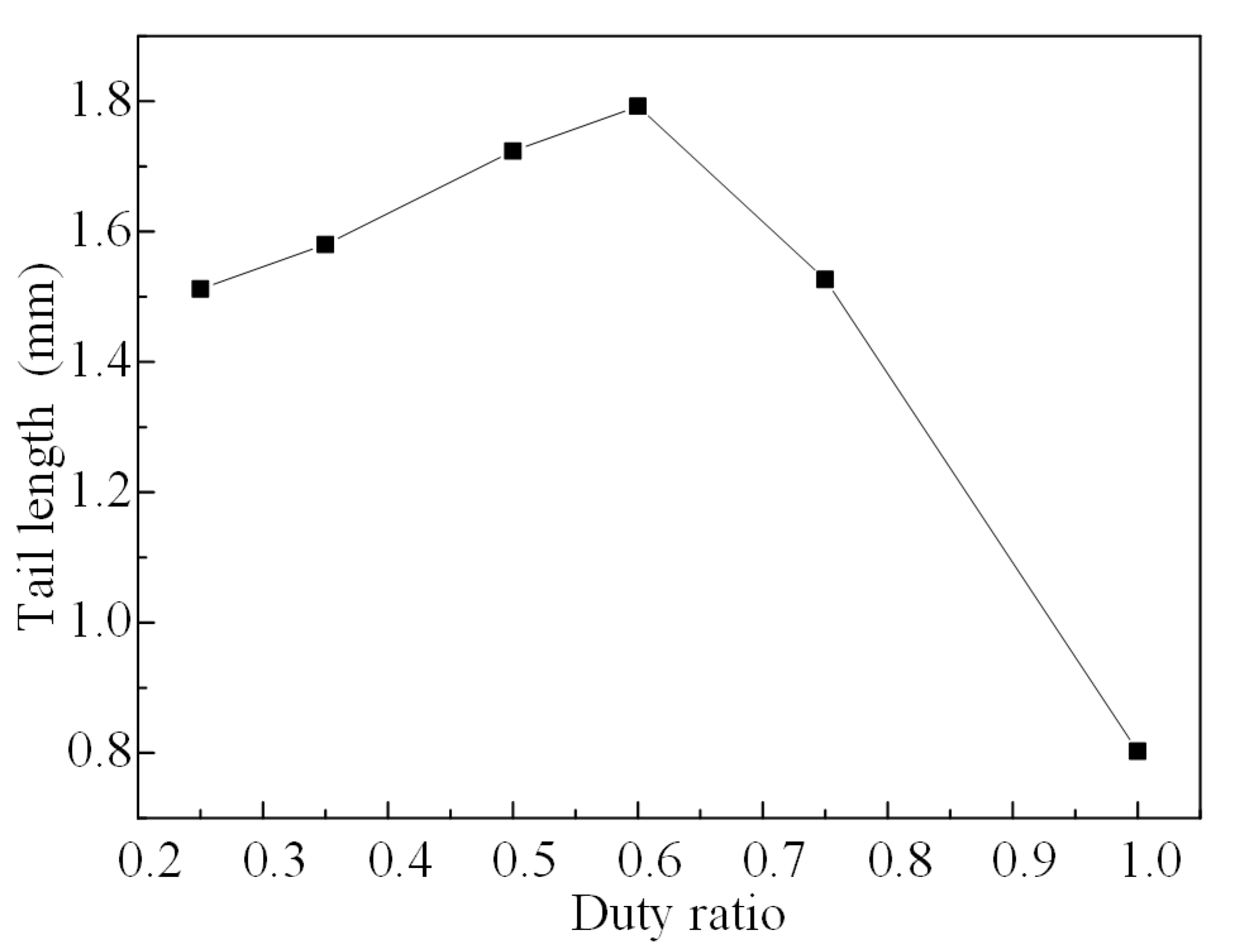

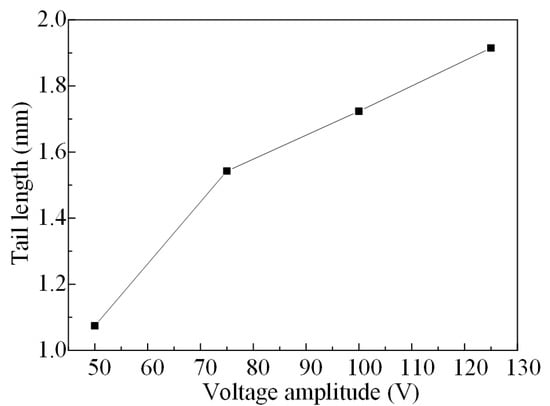

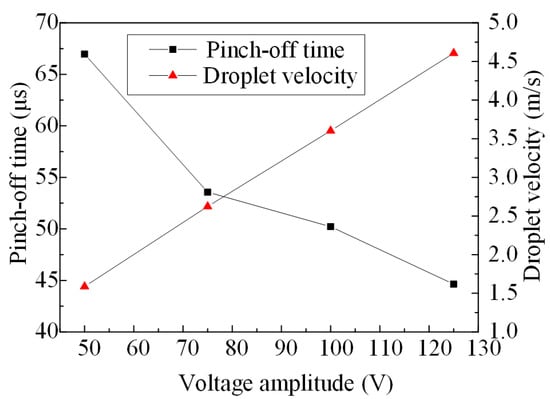

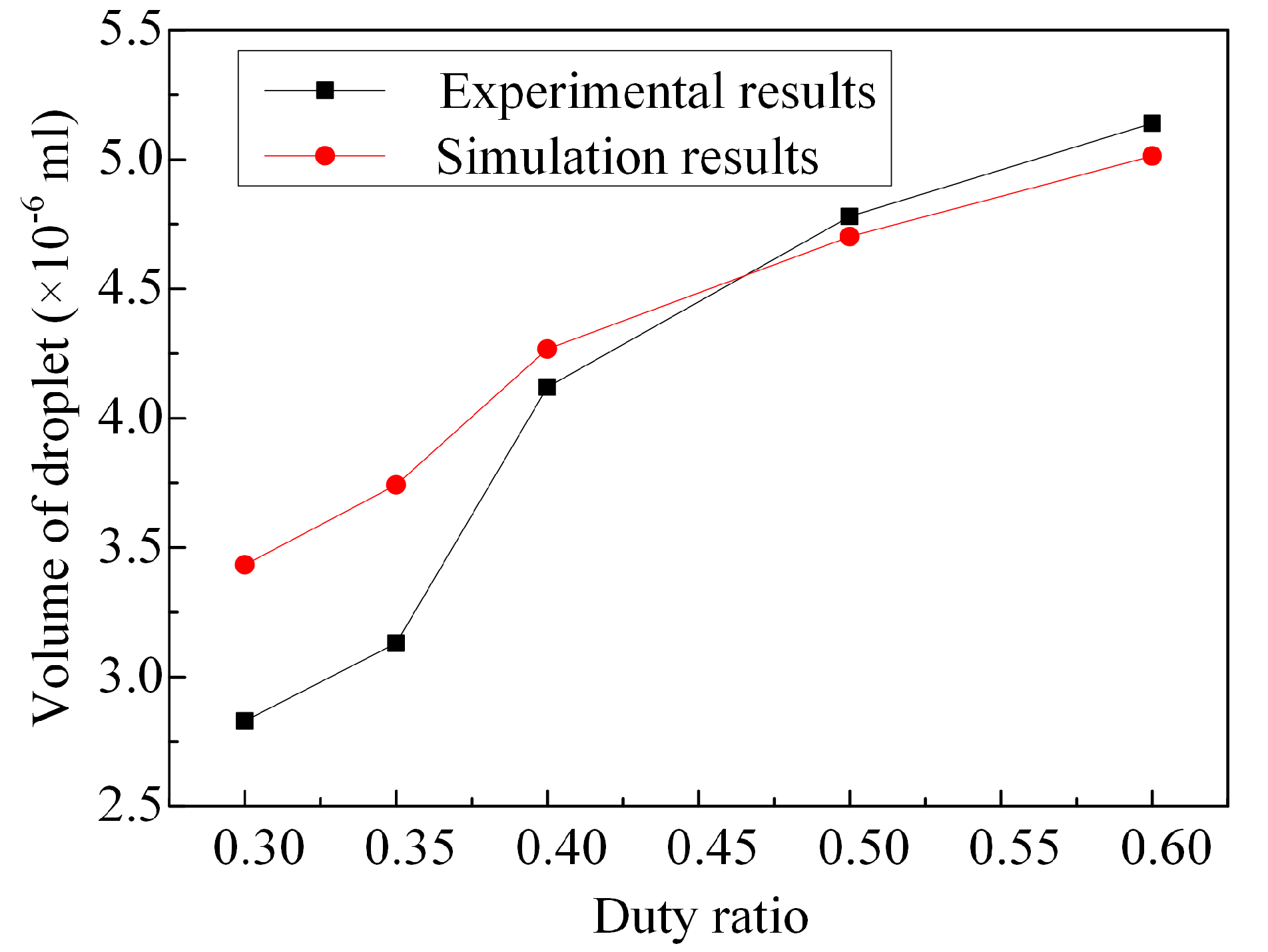

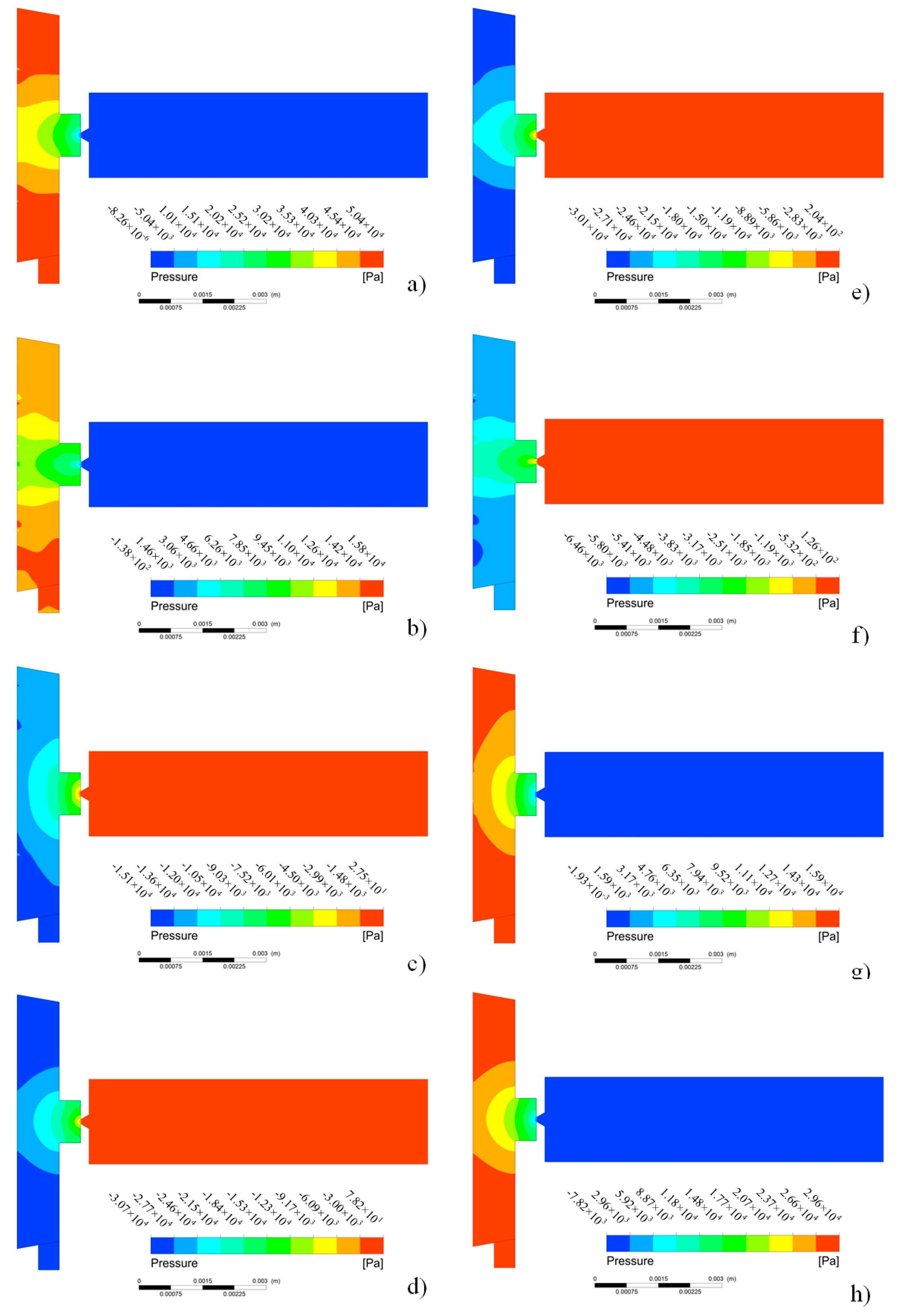

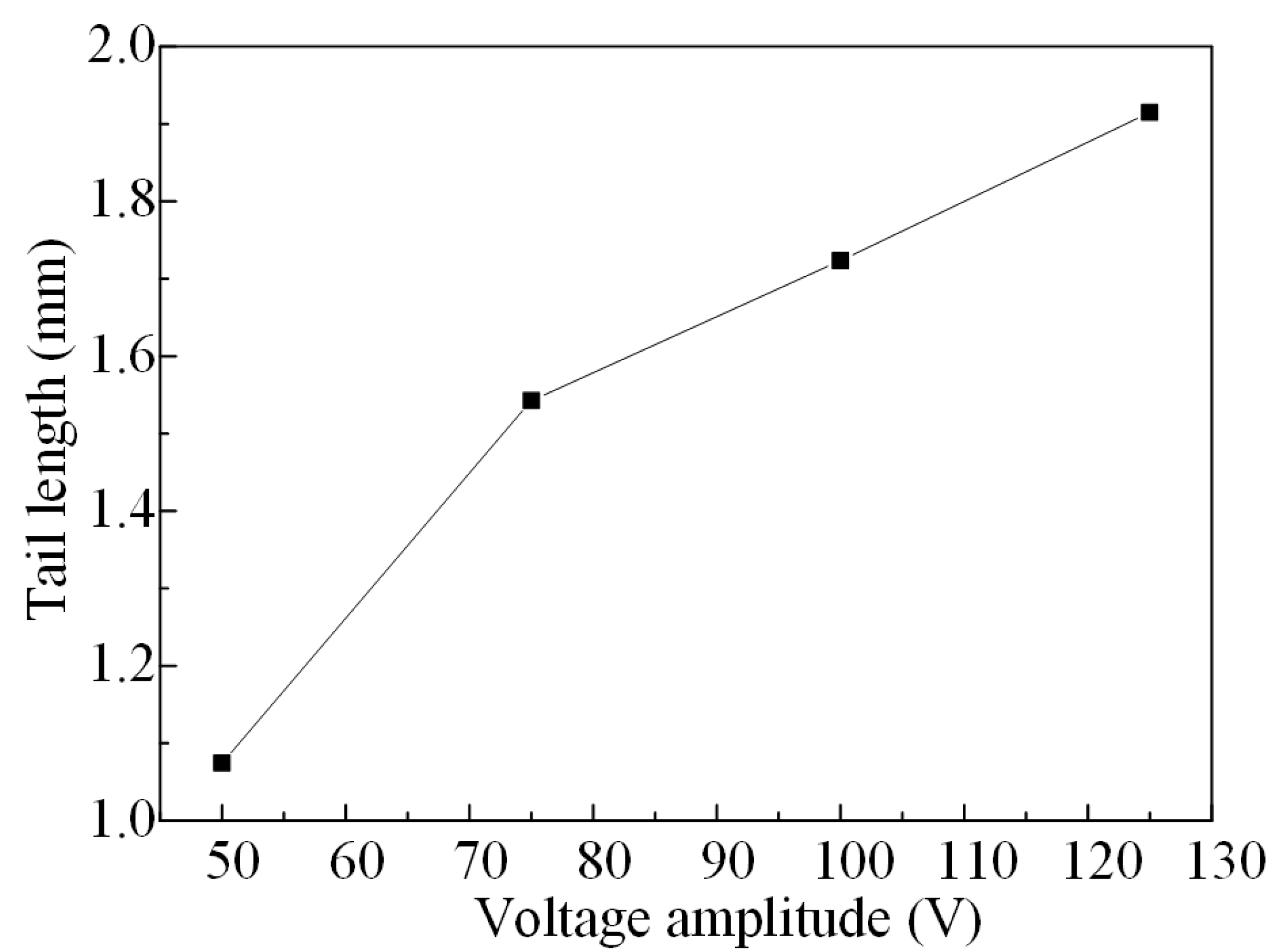

Piezoelectric micro-jets are based on piezoelectric ink-jet technology and can achieve the drop-on demand requirements. A piezoelectric micro-jet which is designed for bearing lubrication is presented in this paper. In order to analyze the fluid dynamic characteristics of the piezoelectric micro-jet so as to obtain good injection performance, a direct coupling simulation method is proposed in this paper. The effects of inlet and viscous losses in the cavity are taken into account, which are close to the actual conditions in the direct coupling method. The effects of the pulse excitation parameters on the pinch-off time, tail length, velocity, and volume of the droplet are analyzed by the proposed direct coupling method. The pressure distribution inside the cavity of the micro-jet and the status of the droplet formation at different times are also given. In addition, the method is proved to be effective in predicting and analyzing the fluid dynamic characteristics of piezoelectric micro-jets by comparing the simulation results with the experimental results. View Full-Text
Keywords: coupling analysis; fluid dynamic; piezoelectric micro-jet coupling analysis; fluid dynamic; piezoelectric micro-jet
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Li, K.; Liu, J.-K.; Chen, W.-S.; Zhang, L. Influences of Excitation on Dynamic Characteristics of Piezoelectric Micro-Jets. Micromachines 2017, 8, 213.
