Micromachines 2016, 7(9), 154; doi:10.3390/mi7090154

Fabrication and Microassembly of a mm-Sized Floating Probe for a Distributed Wireless Neural Interface

1
GT-Bionics lab, School of Electrical and Computer Engineering, Georgia Institute of Technology, Atlanta, GA 30308, USA
2
Premitec. Inc., Raleigh, NC 27606, USA
*
Author to whom correspondence should be addressed.
Academic Editor: Kenichi Takahata
Received: 2 July 2016 / Revised: 15 August 2016 / Accepted: 22 August 2016 / Published: 1 September 2016
(This article belongs to the Special Issue Implantable Microsystems)
View Full-Text   |   Download PDF [4618 KB, uploaded 1 September 2016]   |

Abstract

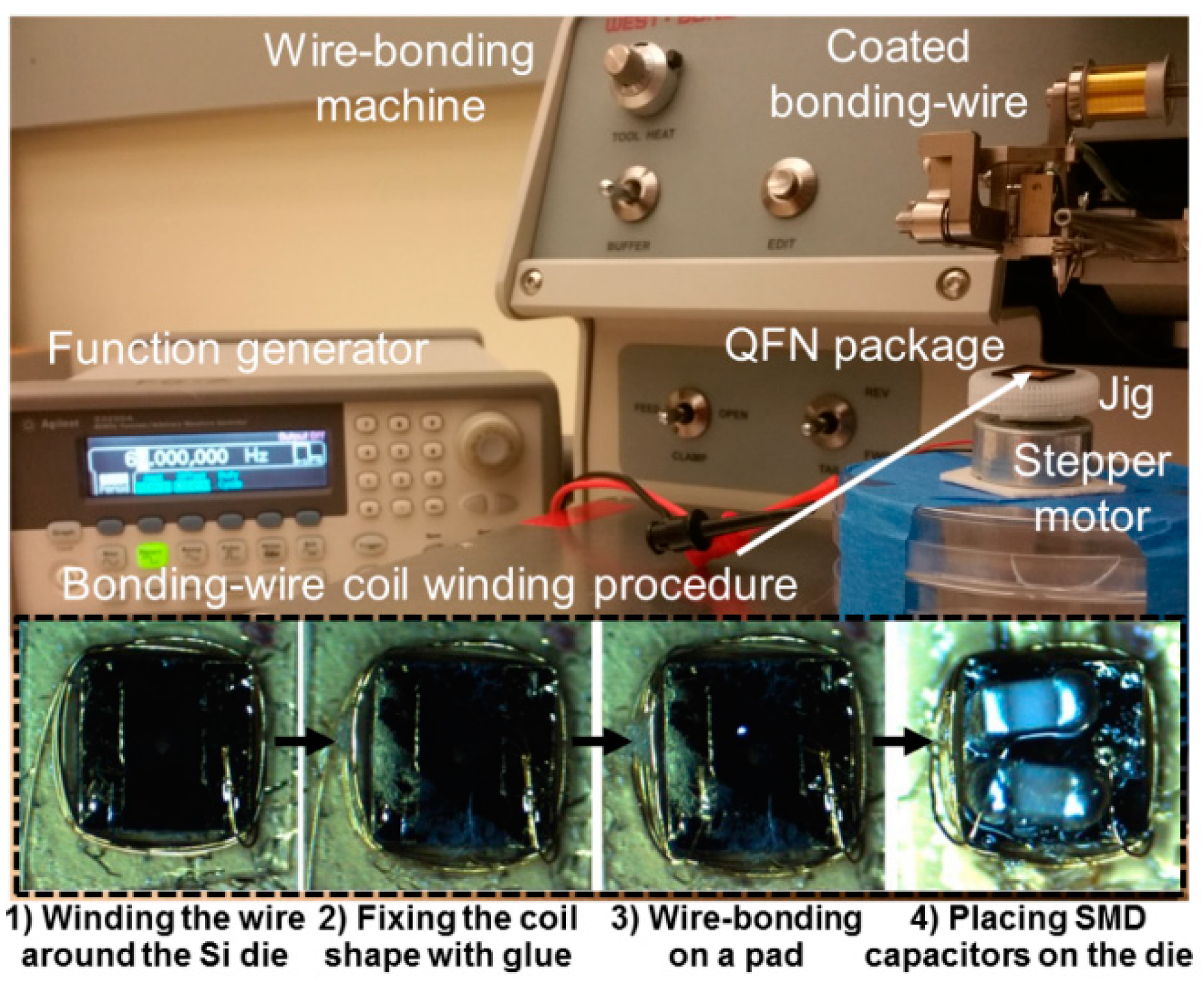

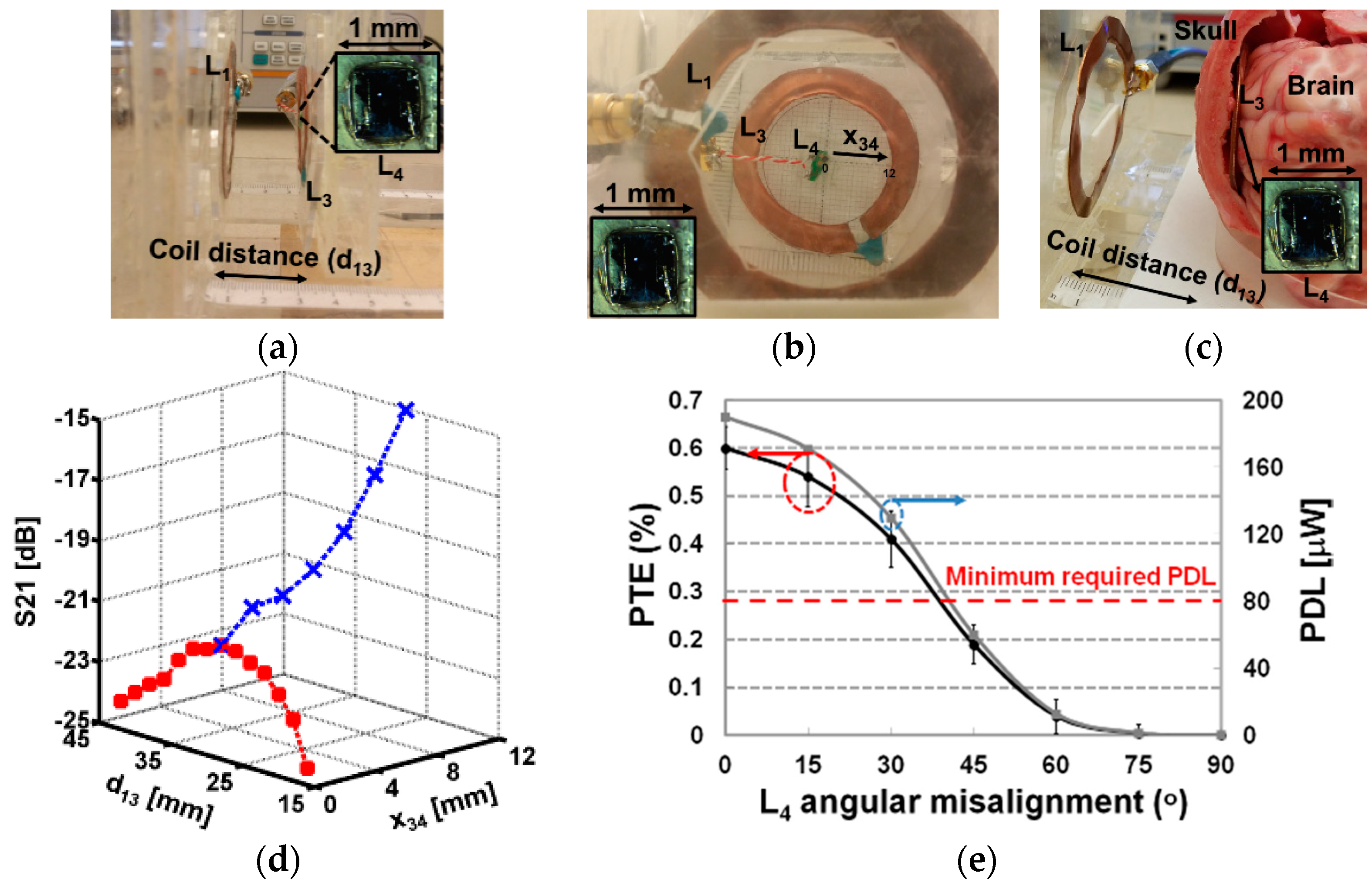

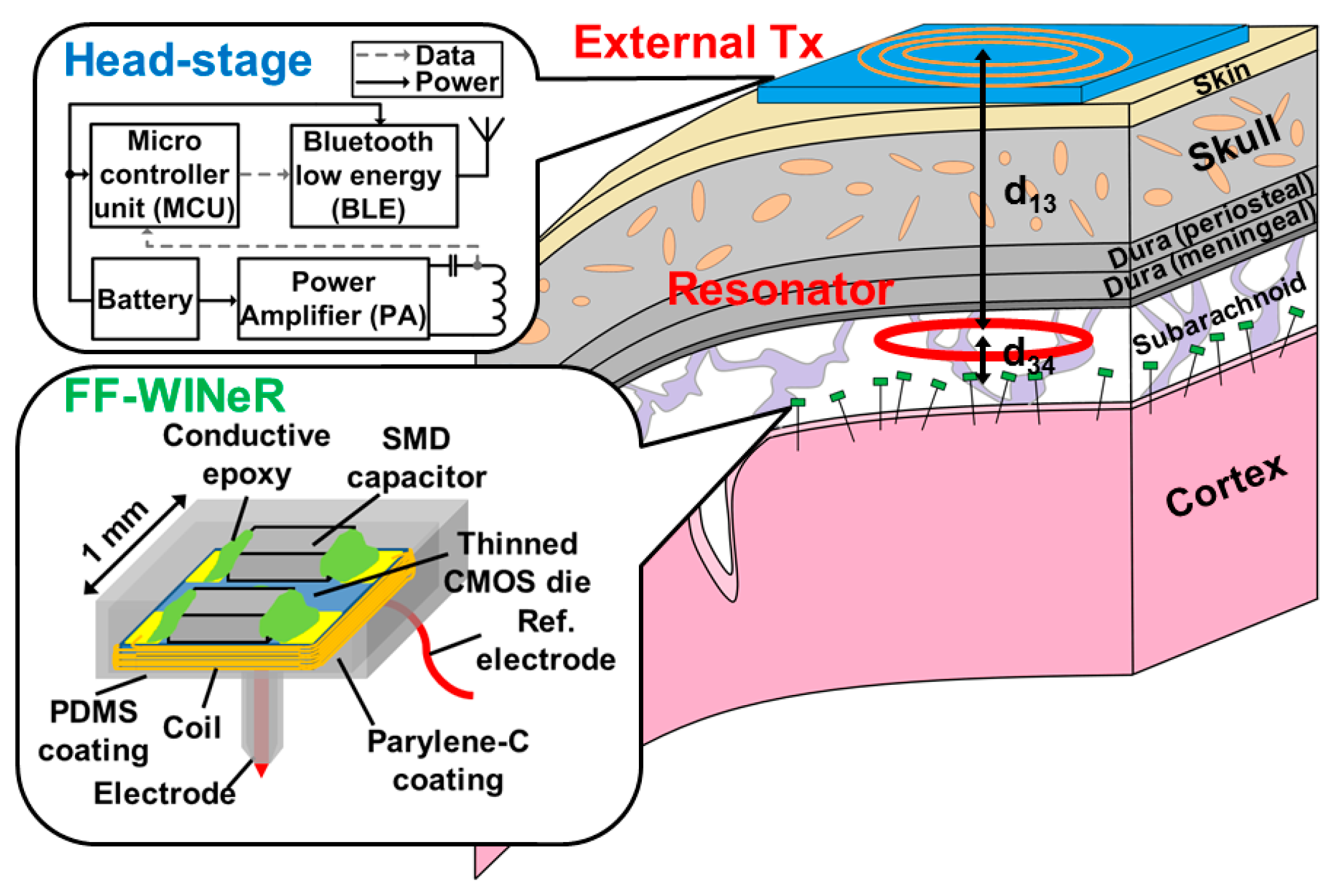

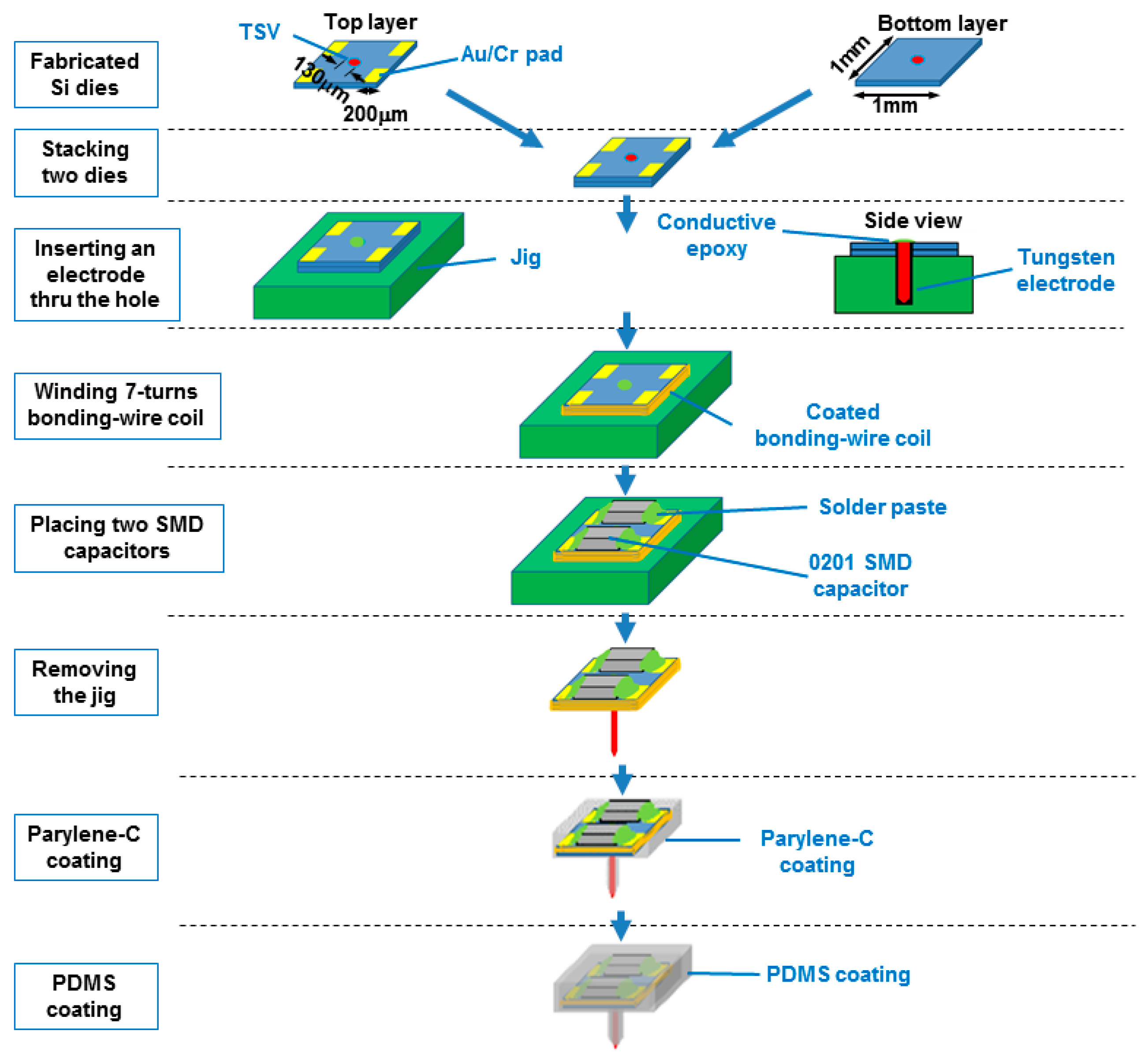

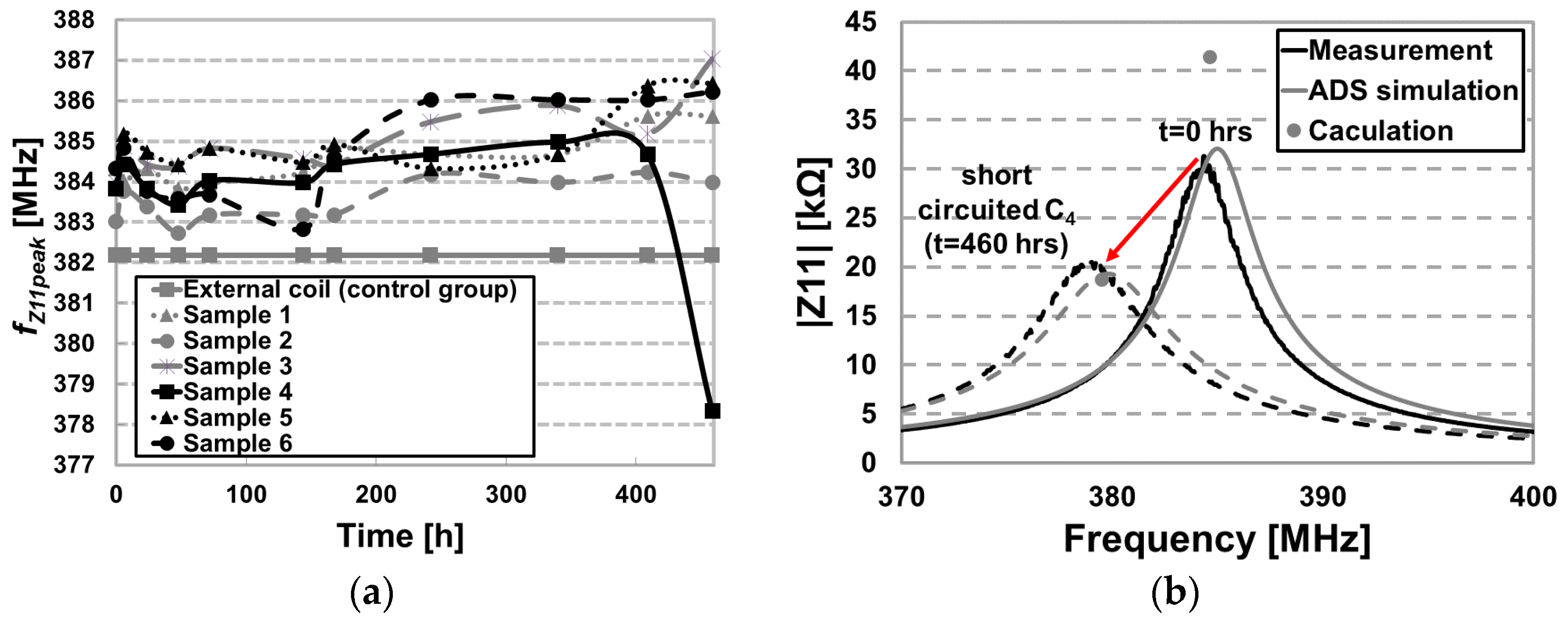

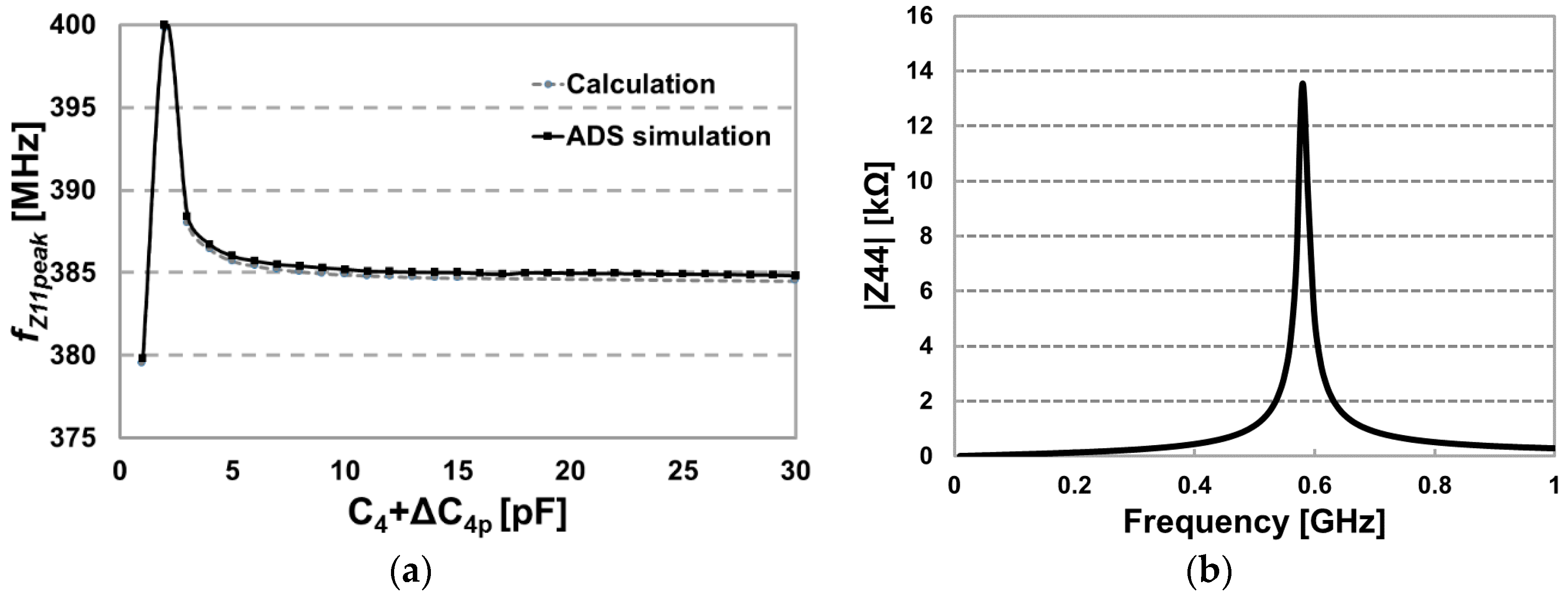

A new class of wireless neural interfaces is under development in the form of tens to hundreds of mm-sized untethered implants, distributed across the target brain region(s). Unlike traditional interfaces that are tethered to a centralized control unit and suffer from micromotions that may damage the surrounding neural tissue, the new free-floating wireless implantable neural recording (FF-WINeR) probes will be stand-alone, directly communicating with an external interrogator. Towards development of the FF-WINeR, in this paper we describe the micromachining, microassembly, and hermetic packaging of 1-mm3 passive probes, each of which consists of a thinned micromachined silicon die with a centered Ø(diameter) 130 μm through-hole, an Ø81 μm sharpened tungsten electrode, a 7-turn gold wire-wound coil wrapped around the die, two 0201 surface mount capacitors on the die, and parylene-C/Polydimethylsiloxane (PDMS) coating. The fabricated passive probe is tested under a 3-coil inductive link to evaluate power transfer efficiency (PTE) and power delivered to a load (PDL) for feasibility assessment. The minimum PTE/PDL at 137 MHz were 0.76%/240 μW and 0.6%/191 μW in the air and lamb head medium, respectively, with coil separation of 2.8 cm and 9 kΩ receiver (Rx) loading. Six hermetically sealed probes went through wireless hermeticity testing, using a 2-coil inductive link under accelerated lifetime testing condition of 85 °C, 1 atm, and 100%RH. The mean-time-to-failure (MTTF) of the probes at 37 °C is extrapolated to be 28.7 years, which is over their lifetime. View Full-Text
Keywords: free-floating wireless implantable neural recording (FF-WINeR); neural recording; wireless power transmission; mechanical biocompatibility; distributed probes; brain mapping free-floating wireless implantable neural recording (FF-WINeR); neural recording; wireless power transmission; mechanical biocompatibility; distributed probes; brain mapping
