Open AccessArticle
Micromachines 2014, 5(4), 859-867; doi:10.3390/mi5040859

Simulation Study on Polarization-Independent Microlens Arrays Utilizing Blue Phase Liquid Crystals with Spatially-Distributed Kerr Constants

Department of Photonics, National Chiao Tung University, Hsinchu 30010, Taiwan
*
Author to whom correspondence should be addressed.
Received: 23 June 2014 / Revised: 3 September 2014 / Accepted: 28 September 2014 / Published: 3 October 2014
(This article belongs to the Special Issue Microlenses)
View Full-Text   |   Download PDF [1326 KB, uploaded 13 October 2014]   |

Abstract

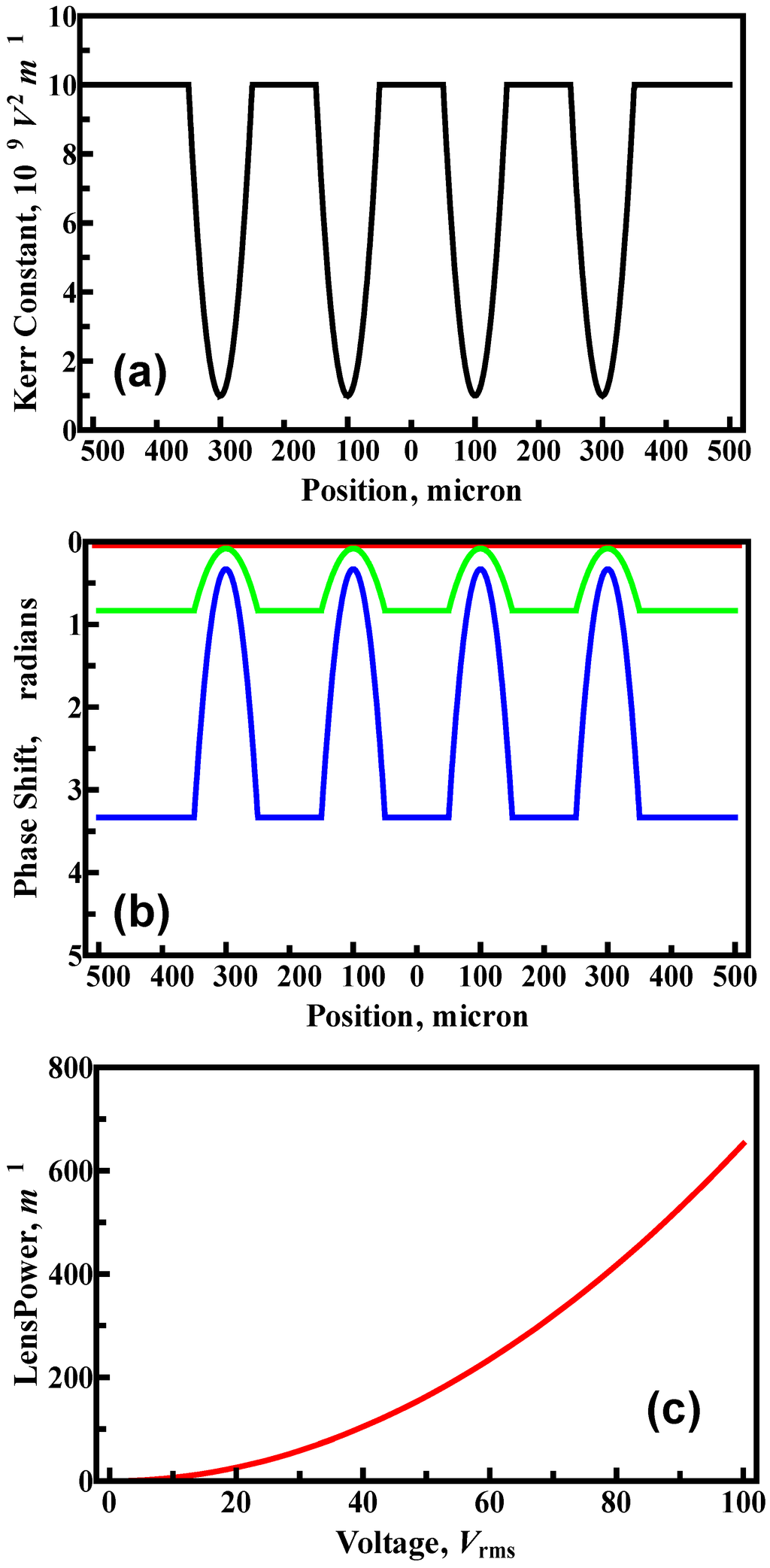

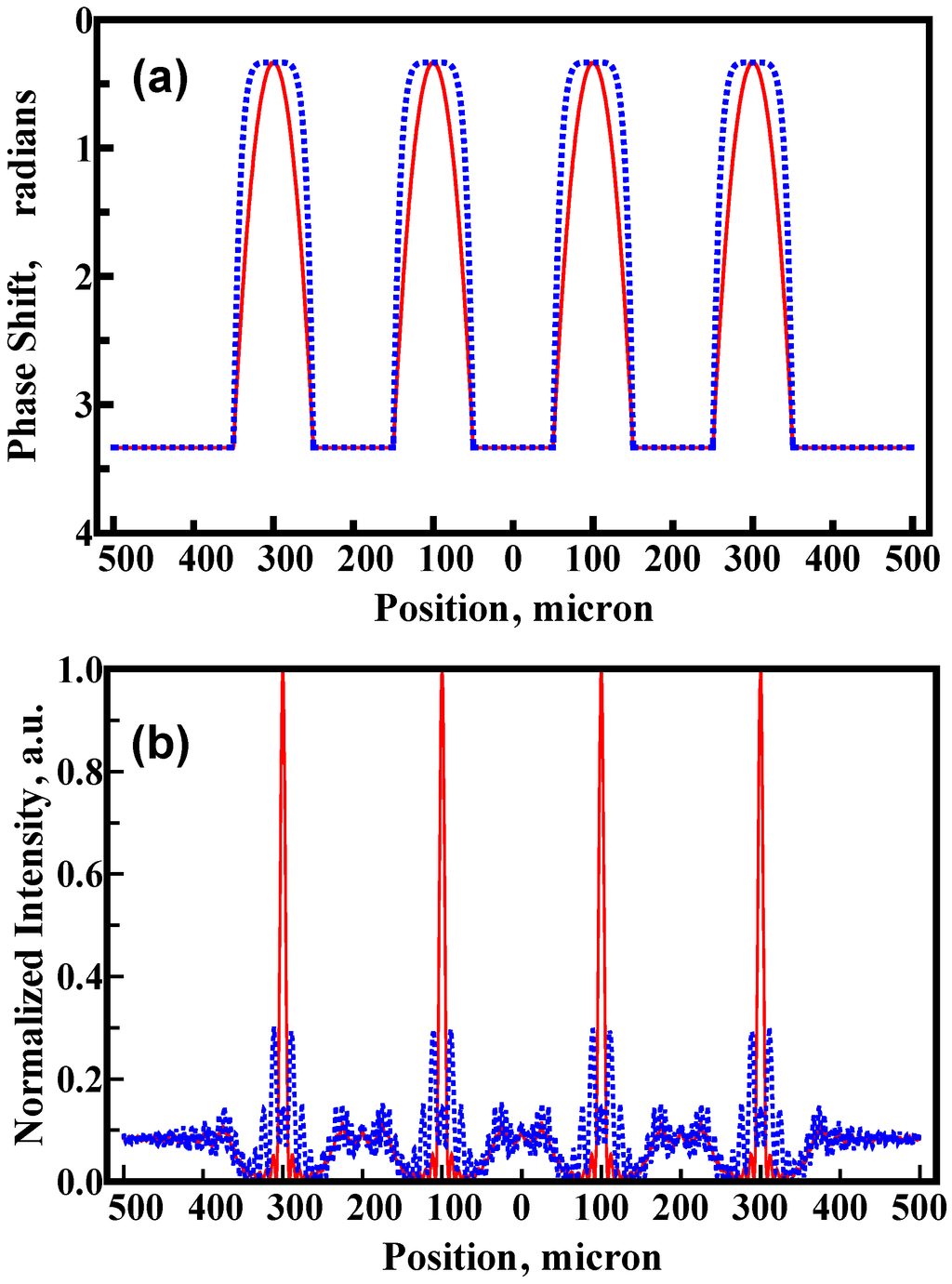

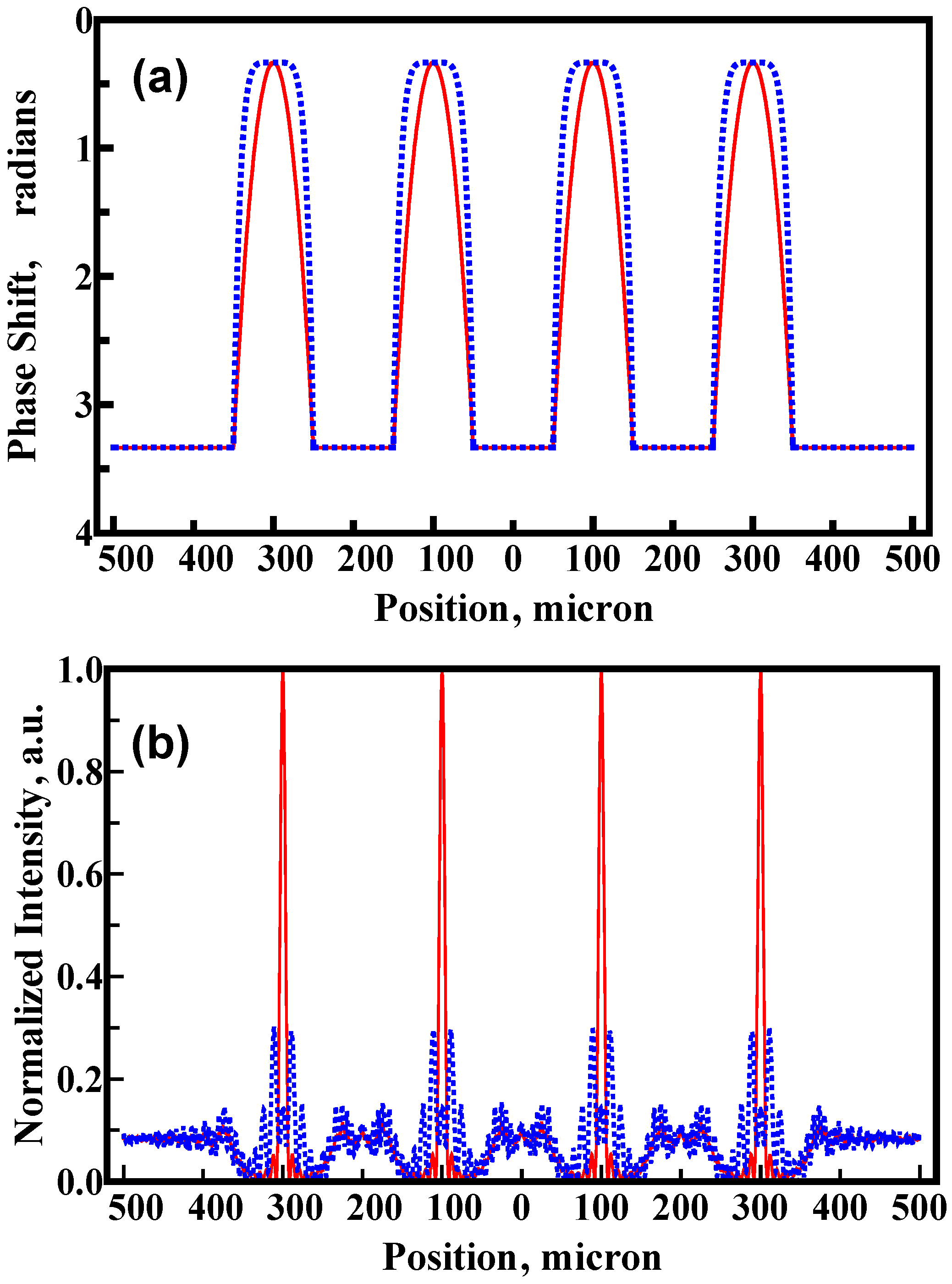

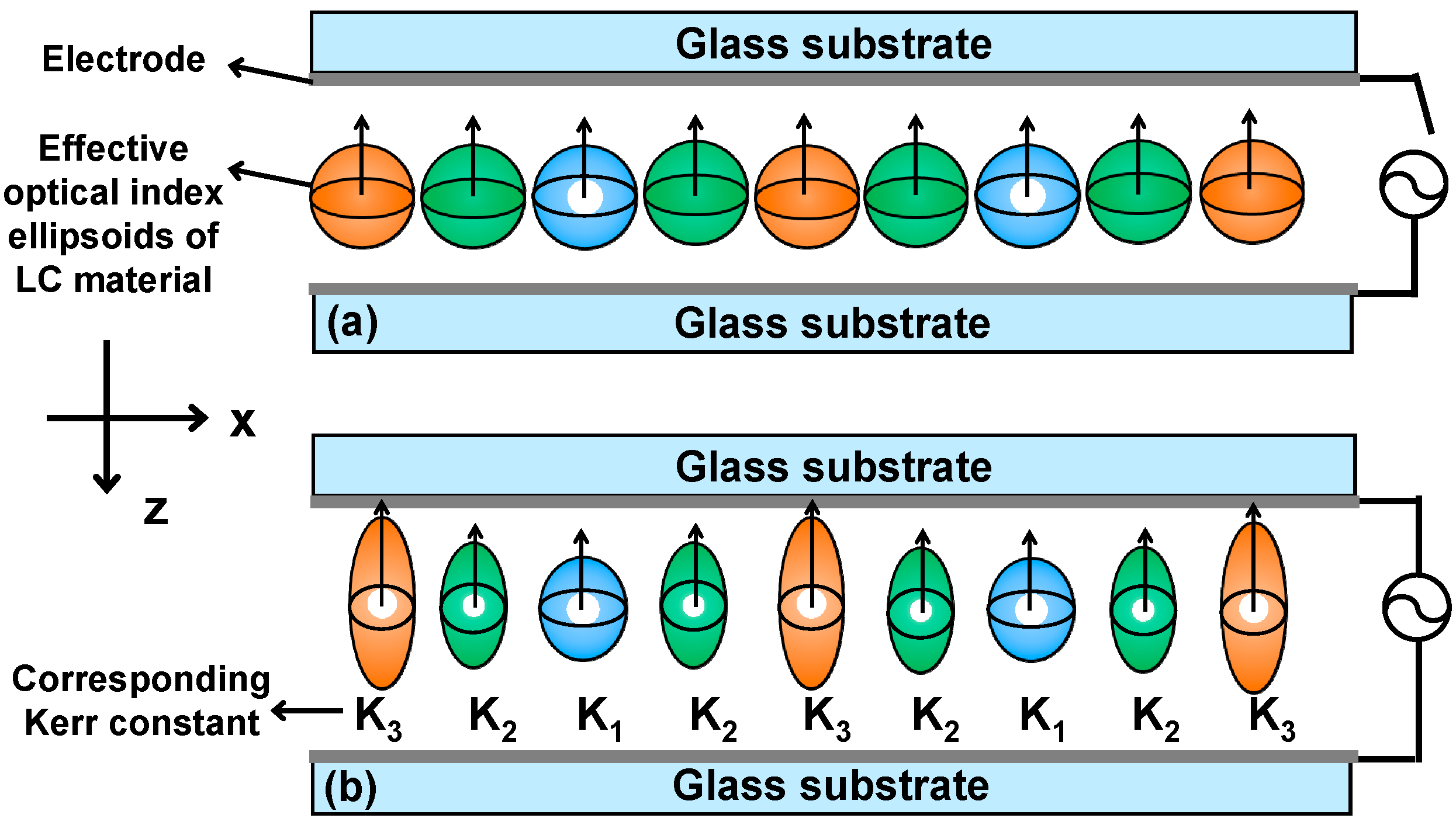

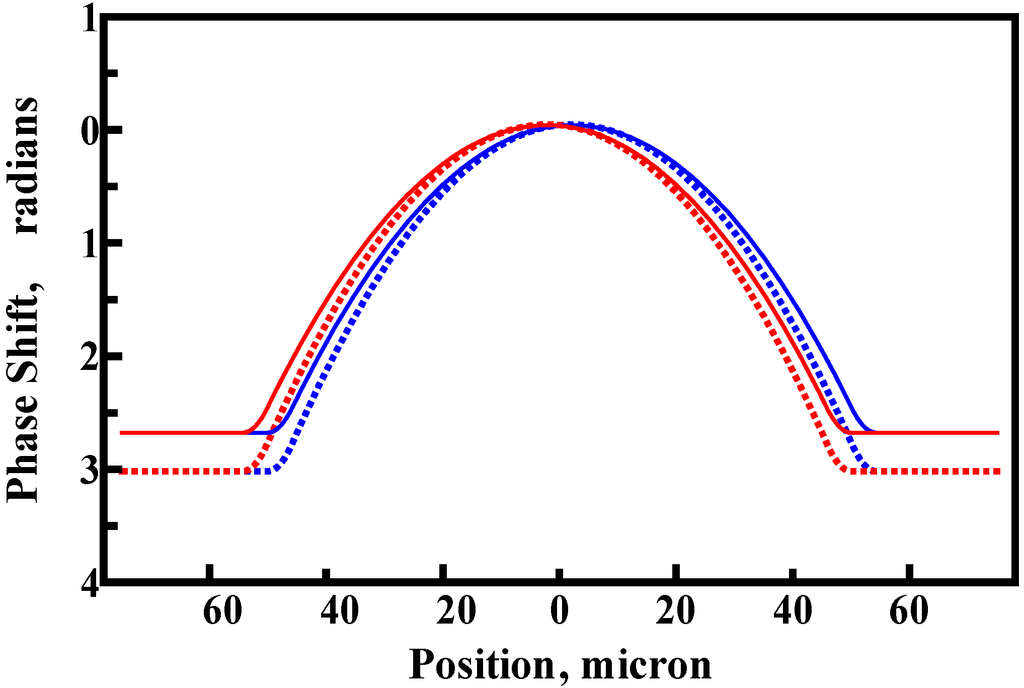

Polarization independent liquid crystal (LC) microlens arrays based on controlling the spatial distribution of the Kerr constants of blue phase LC are simulated. Each sub-lens with a parabolic distribution of Kerr constants results in a parabolic phase profile when a homogeneous electric field is applied. We evaluate the phase distribution under different applied voltages, and the focusing properties of the microlens arrays are simulated. We also calculate polarization dependency of the microlenses arrays at oblique incidence of light. The impact of this study is to provide polarizer-free, electrically tunable focusing microlens arrays with simple electrode design based on the Kerr effect. View Full-Text
Keywords: Kerr effect; microlenses; polarization independent; liquid crystal; blue phase Kerr effect; microlenses; polarization independent; liquid crystal; blue phase
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Chen, H.-S.; Chen, M.; Chang, C.-M.; Wang, Y.-J.; Lin, Y.-H. Simulation Study on Polarization-Independent Microlens Arrays Utilizing Blue Phase Liquid Crystals with Spatially-Distributed Kerr Constants. Micromachines 2014, 5, 859-867.
