Micromachines 2014, 5(3), 783-796; doi:10.3390/mi5030783

Stress-Free Bonding Technology with Pyrex for Highly Integrated 3D Fluidic Microsystems

Design of Microsystems, Department of Microsystems Engineering (IMTEK), University of Freiburg, Georges-Koehler-Allee 103, 79110 Freiburg, Germany
*
Author to whom correspondence should be addressed.
Received: 4 August 2014 / Revised: 5 September 2014 / Accepted: 11 September 2014 / Published: 23 September 2014
(This article belongs to the Special Issue Micropumps: Design, Fabrication and Applications)
View Full-Text   |   Download PDF [9615 KB, uploaded 23 September 2014]   |

Abstract

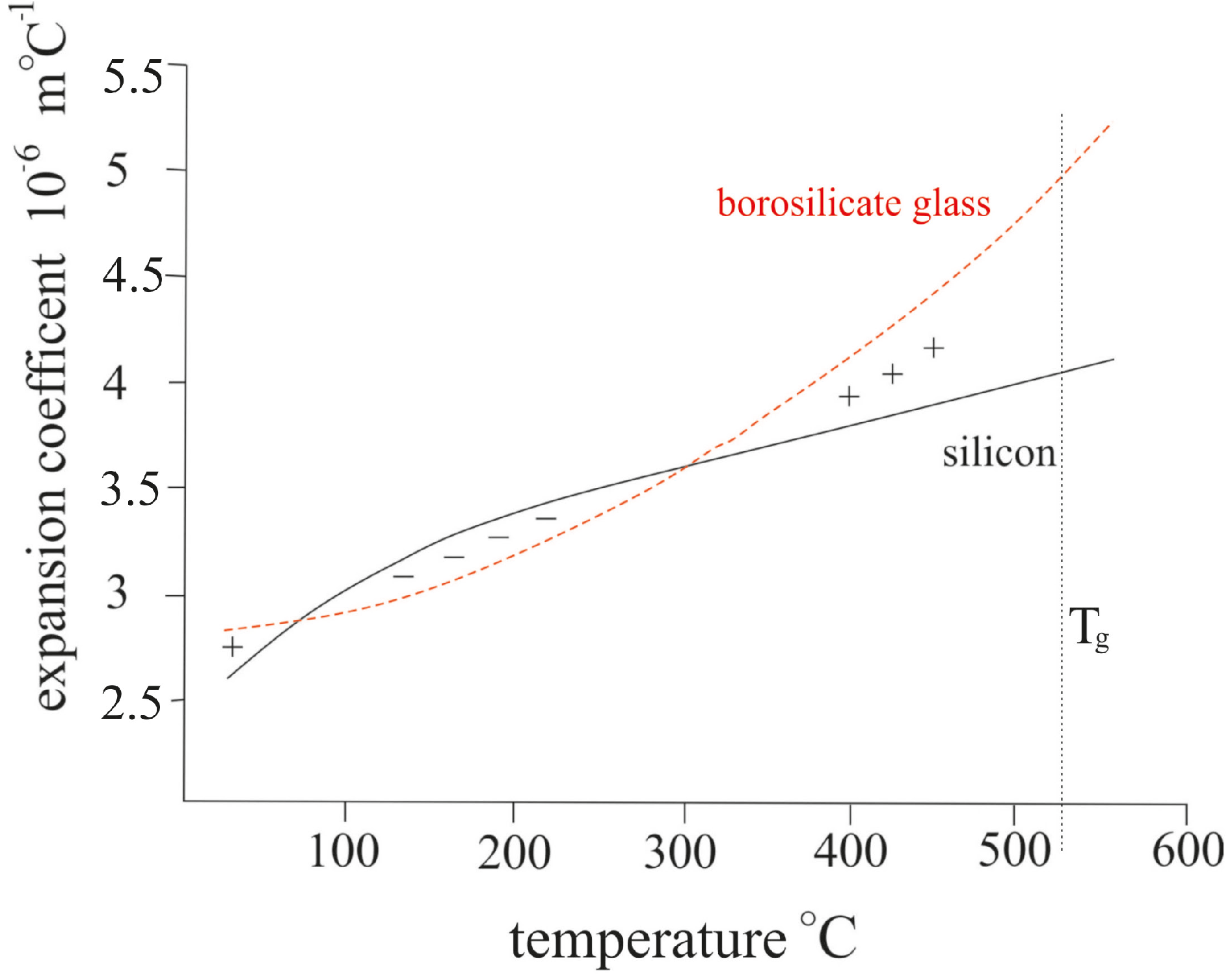

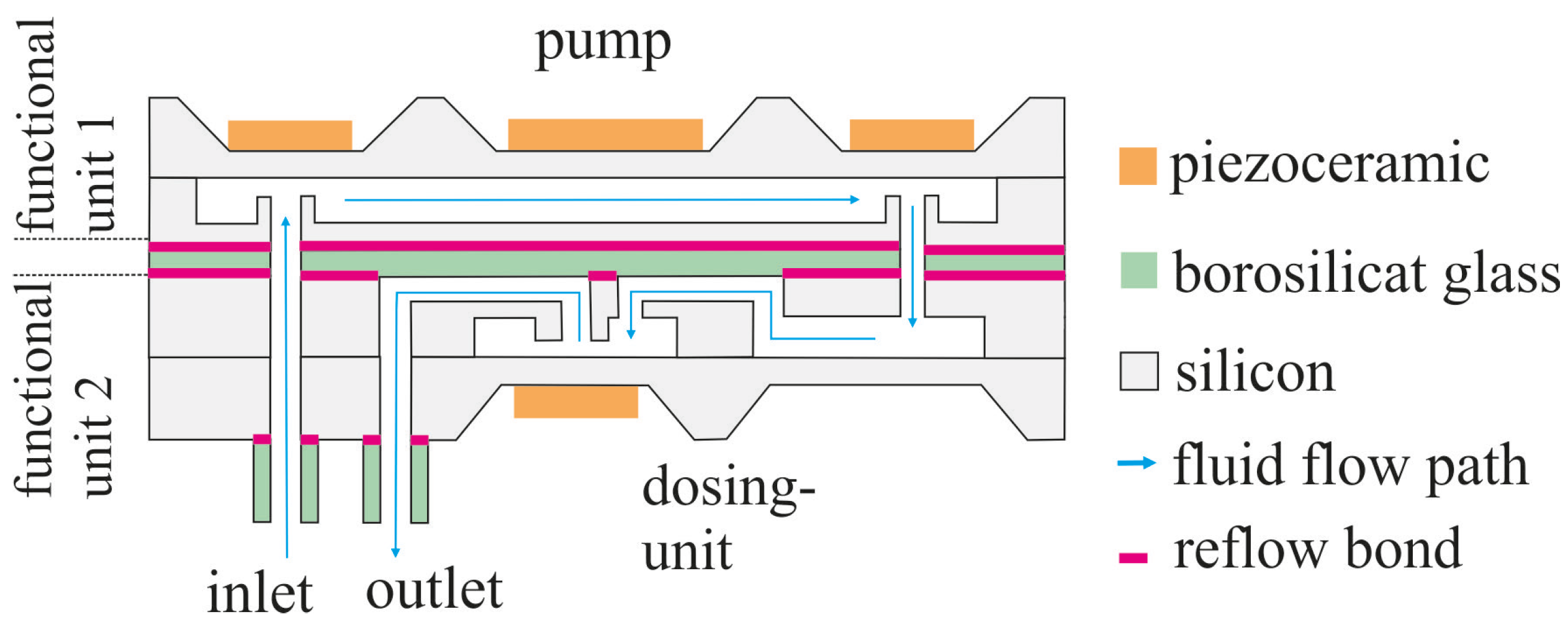

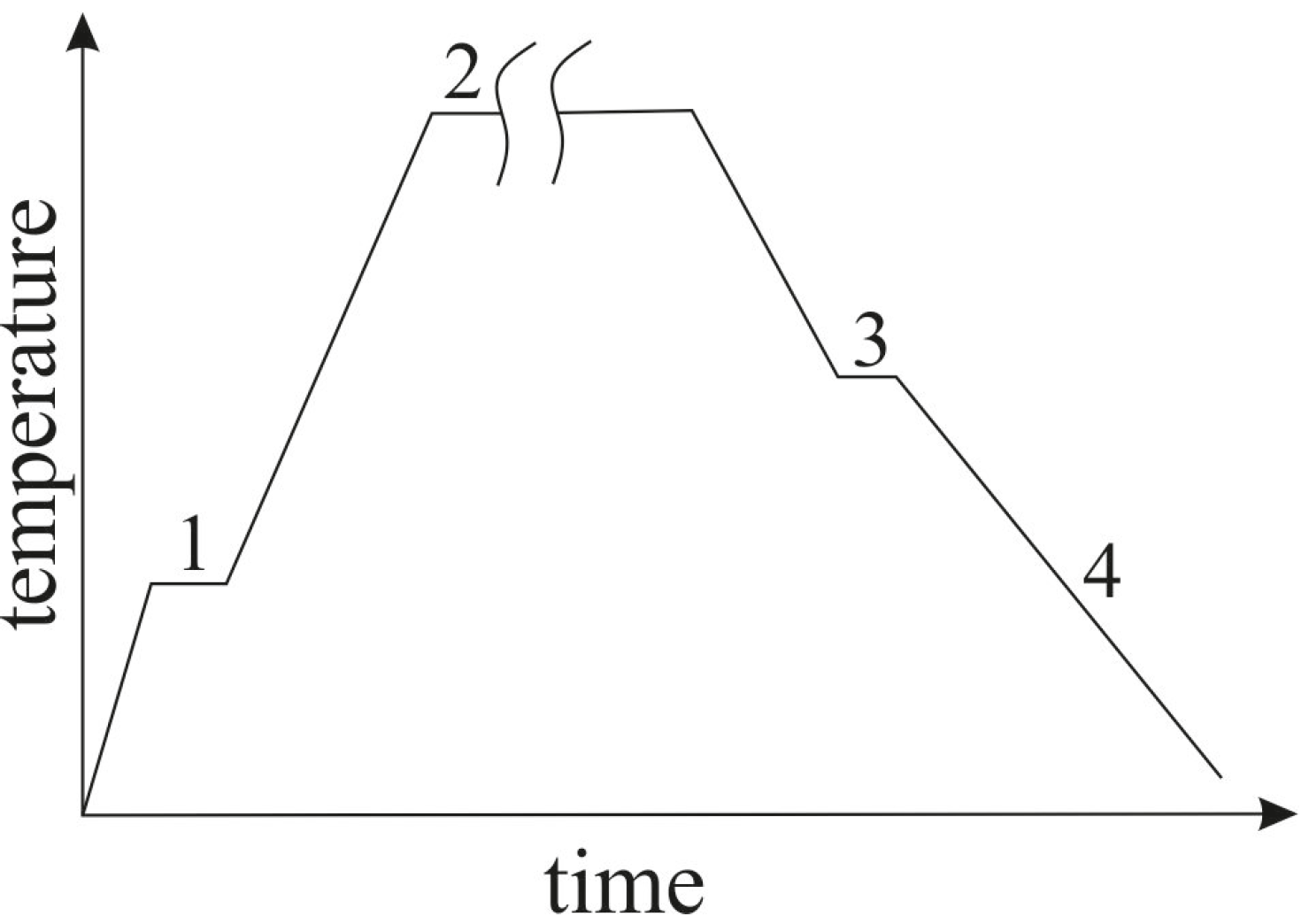

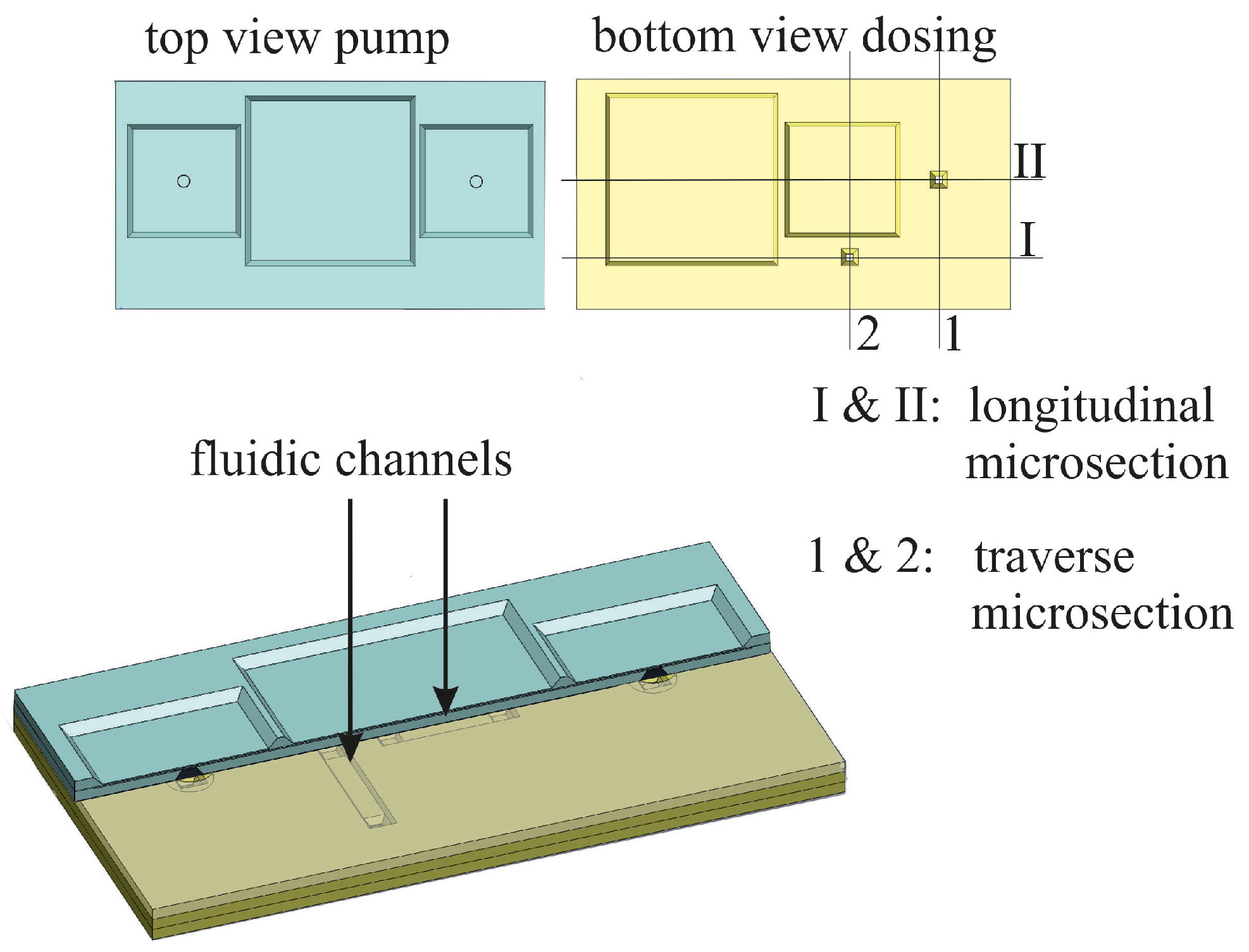

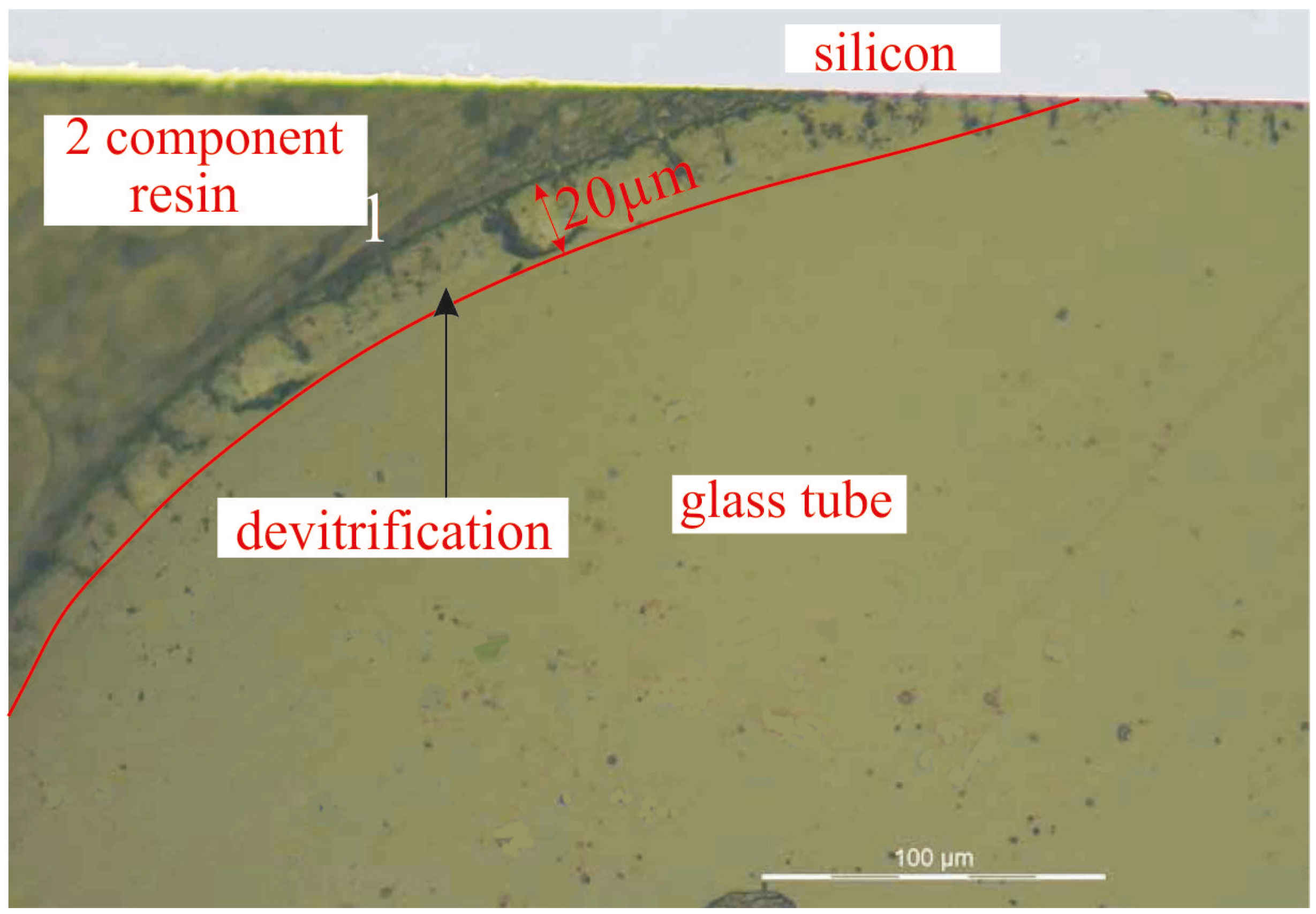

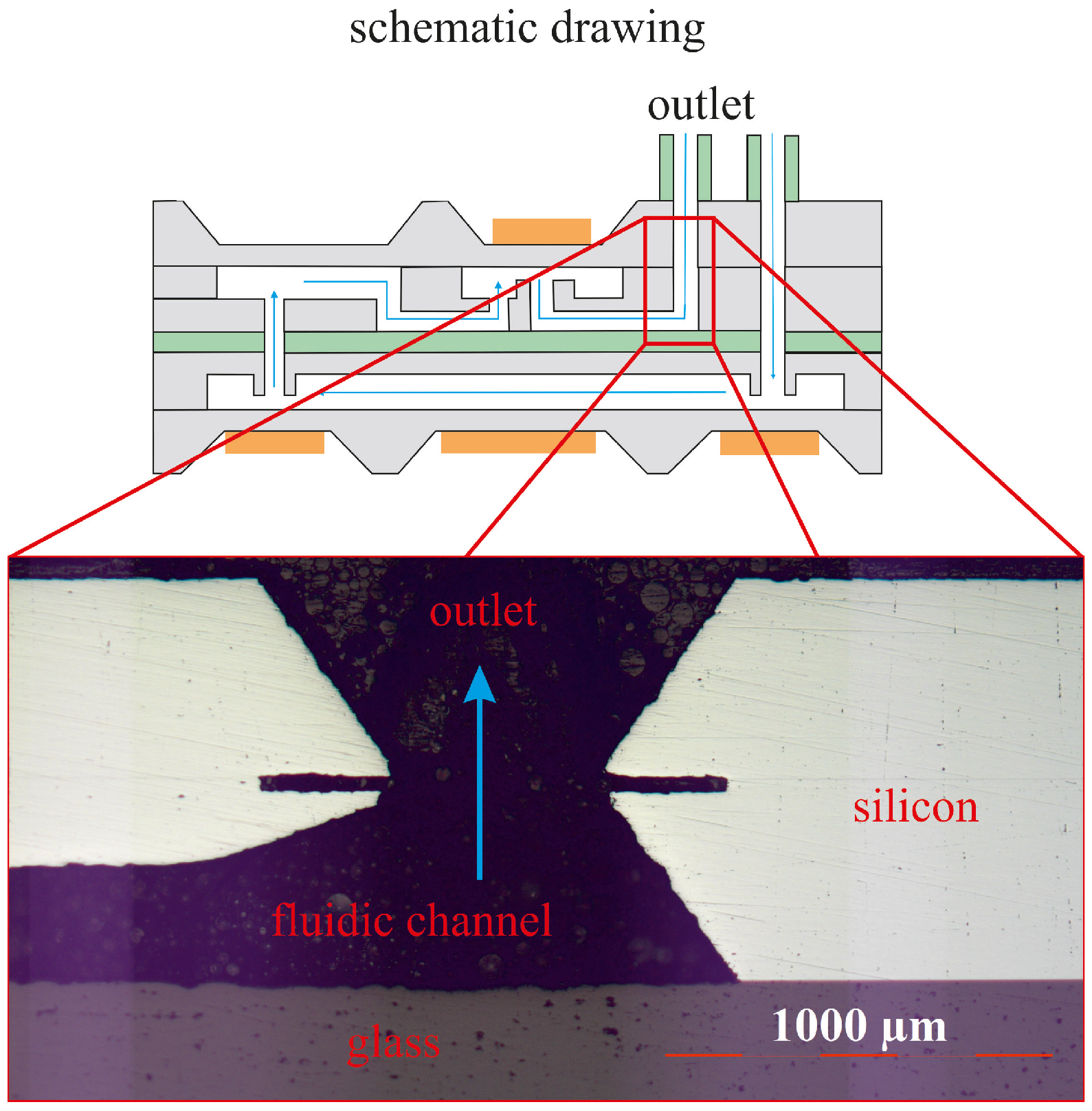

In this article, a novel Pyrex reflow bonding technology is introduced which bonds two functional units made of silicon via a Pyrex reflow bonding process. The practical application demonstrated here is a precision dosing system that uses a mechanically actuated membrane micropump which includes passive membranes for fluid metering. To enable proper functioning after full integration, a technique for device assembly must be established which does not introduce additional stress into the system, but fulfills all other requirements, like pressure tolerance and chemical stability. This is achieved with a stress-free thermal bonding principle to bond Pyrex to silicon in a five-layer stack: after alignment, the silicon-Pyrex-silicon stack is heated to 730 °C. Above the glass transition temperature of 525 °C Pyrex exhibits viscoelastic behavior. This allows the glass layer to come into close mechanical contact with the upper and lower silicon layers. The high temperature and the close contact promotes the formation of a stable and reliable Si-O-Si bond, without introducing mechanical stress into the system, and without deformation upon cooling due to thermal mismatch. View Full-Text
Keywords: reflow bonding; Pyrex; fluidic; packaging reflow bonding; Pyrex; fluidic; packaging
Figures

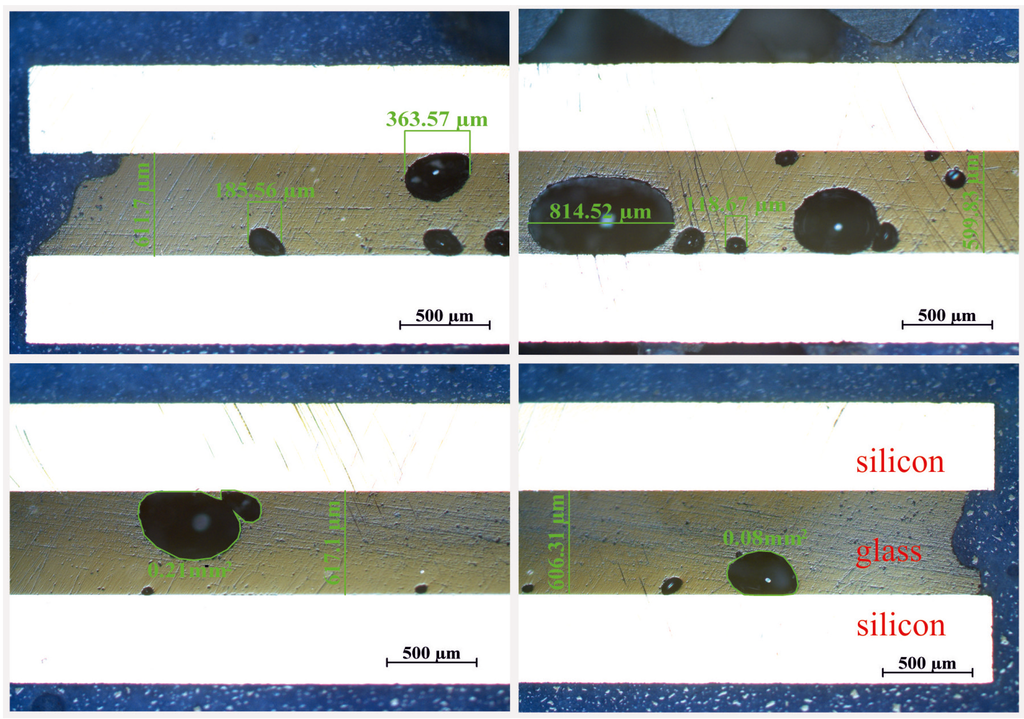

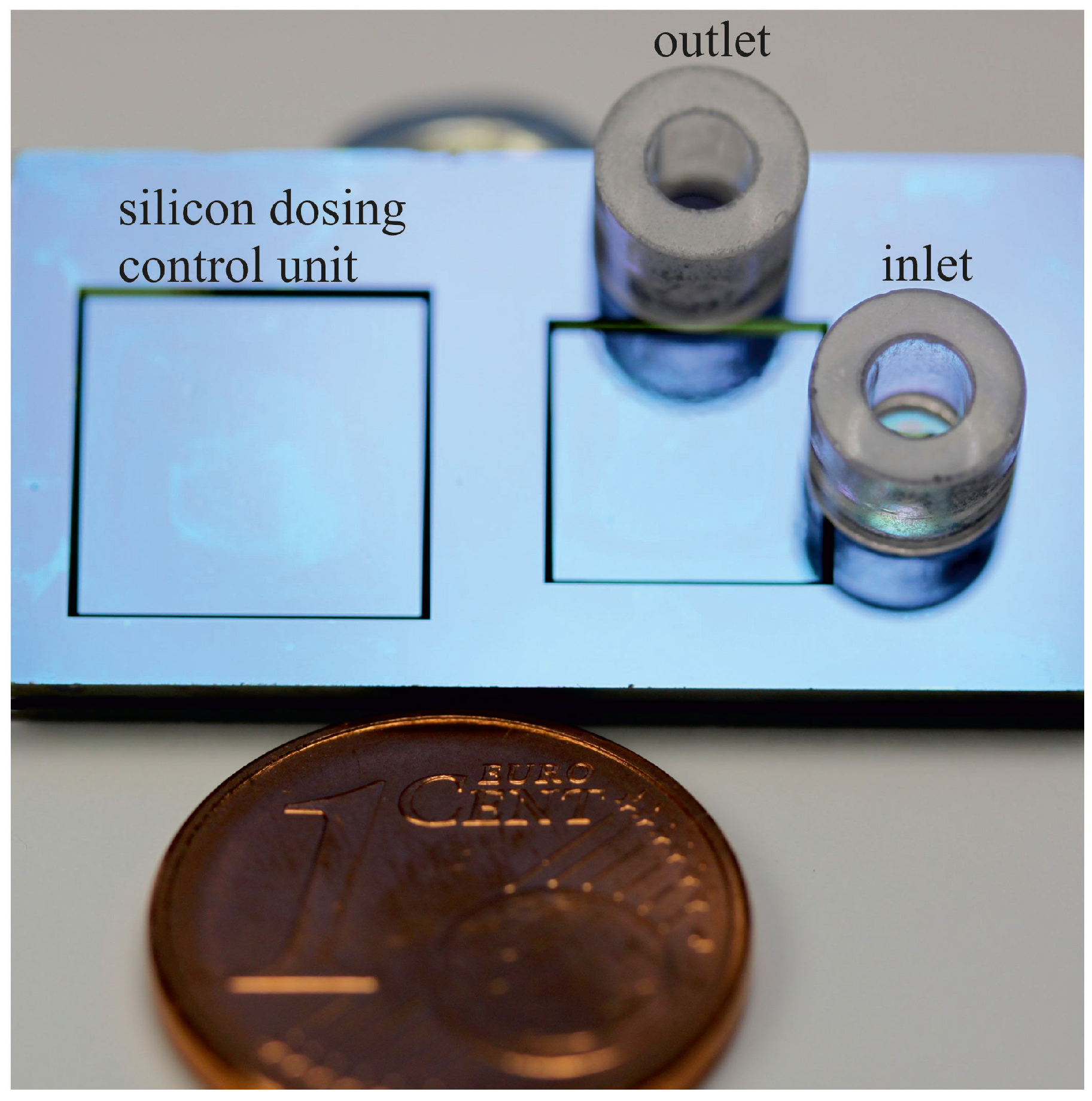

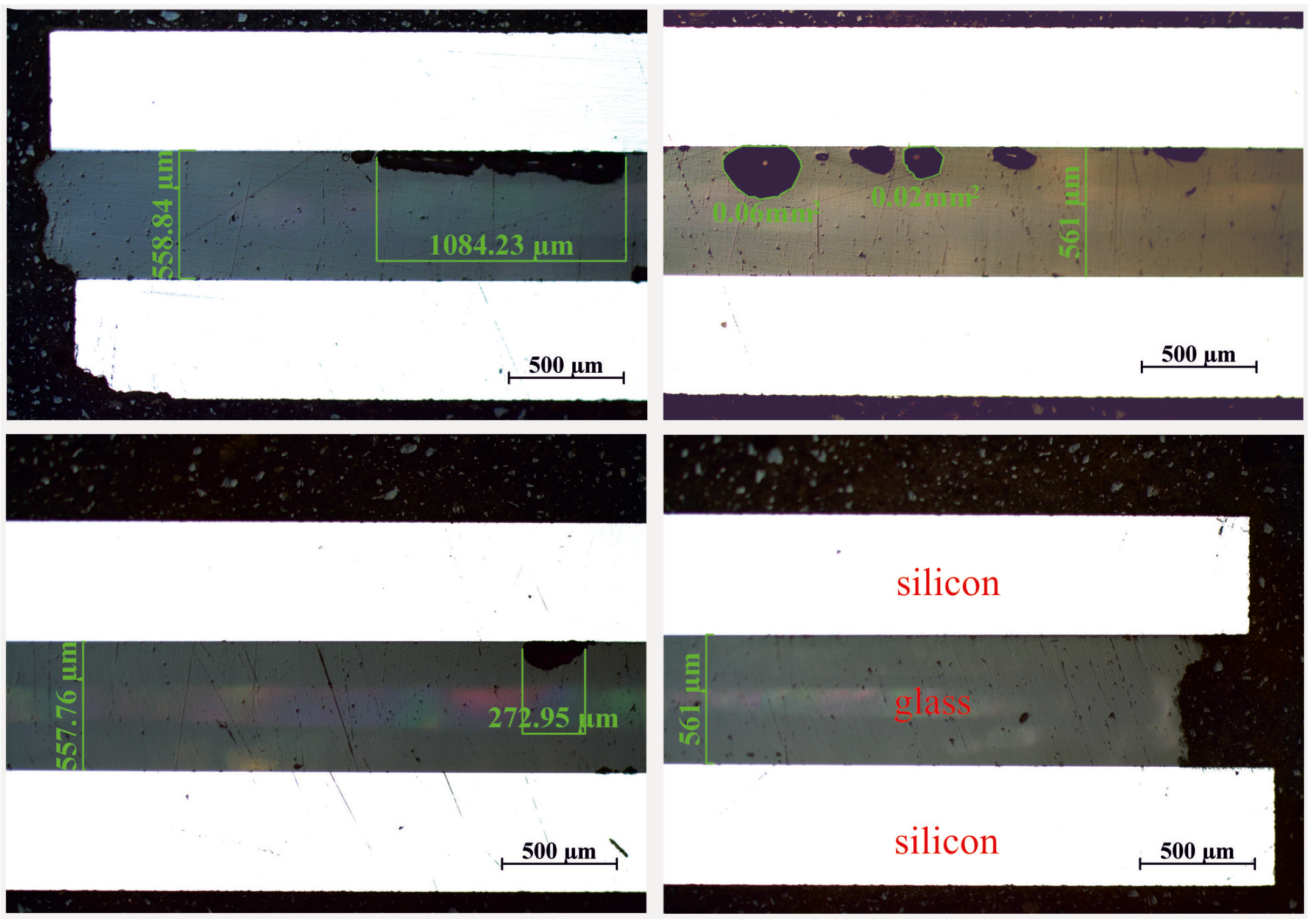

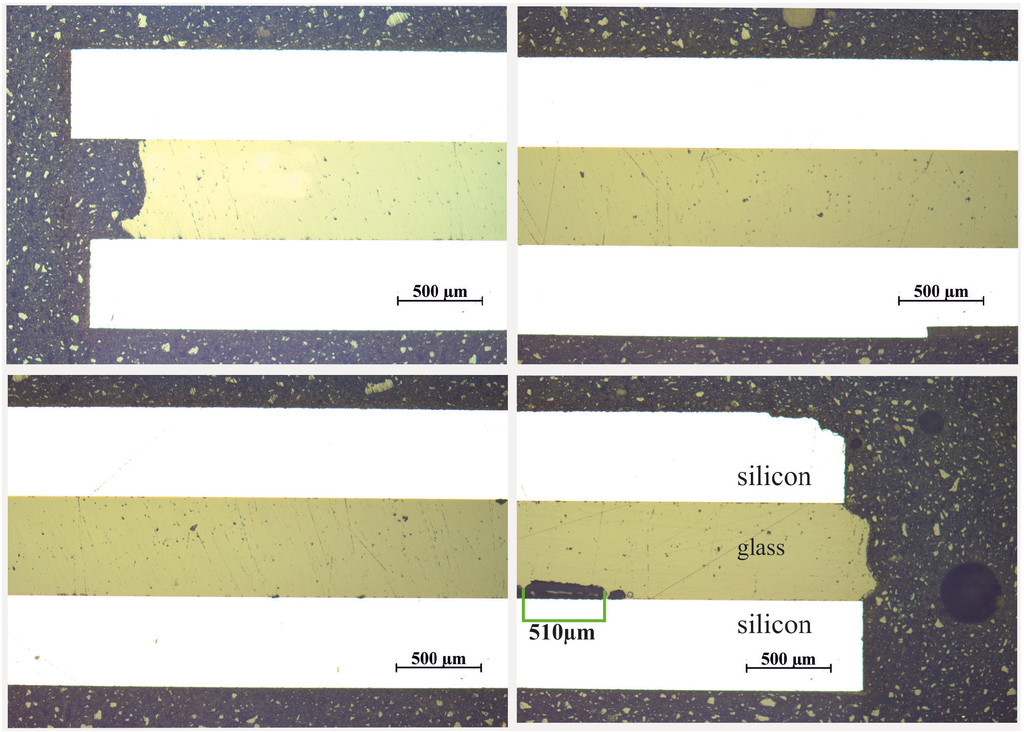

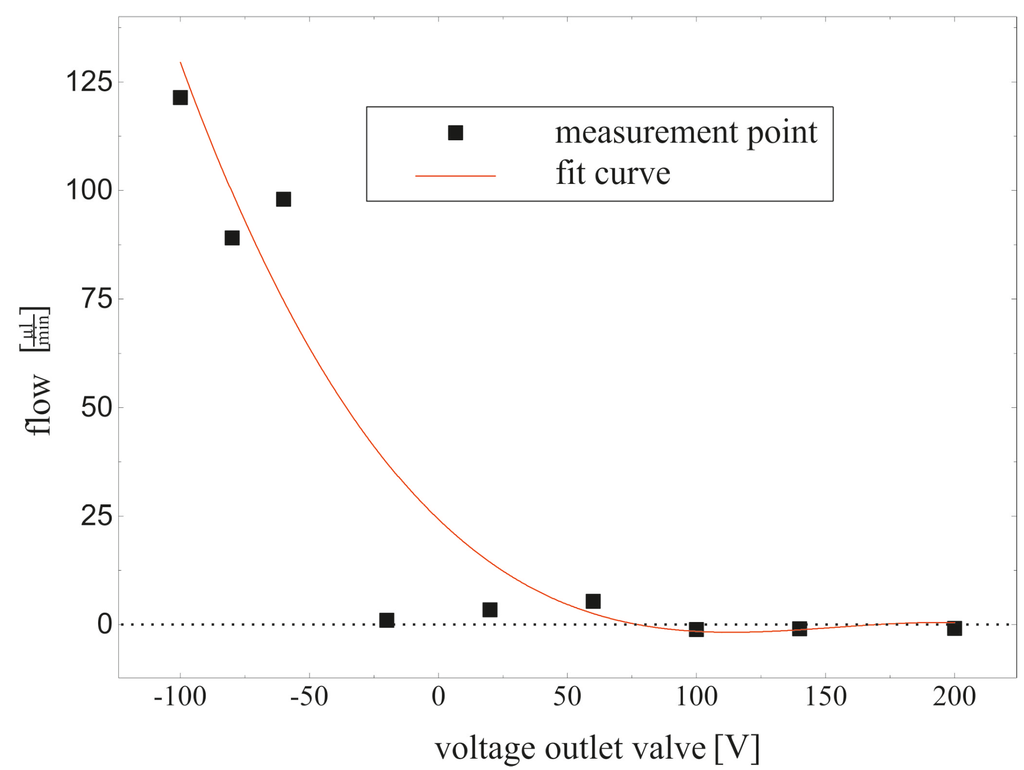

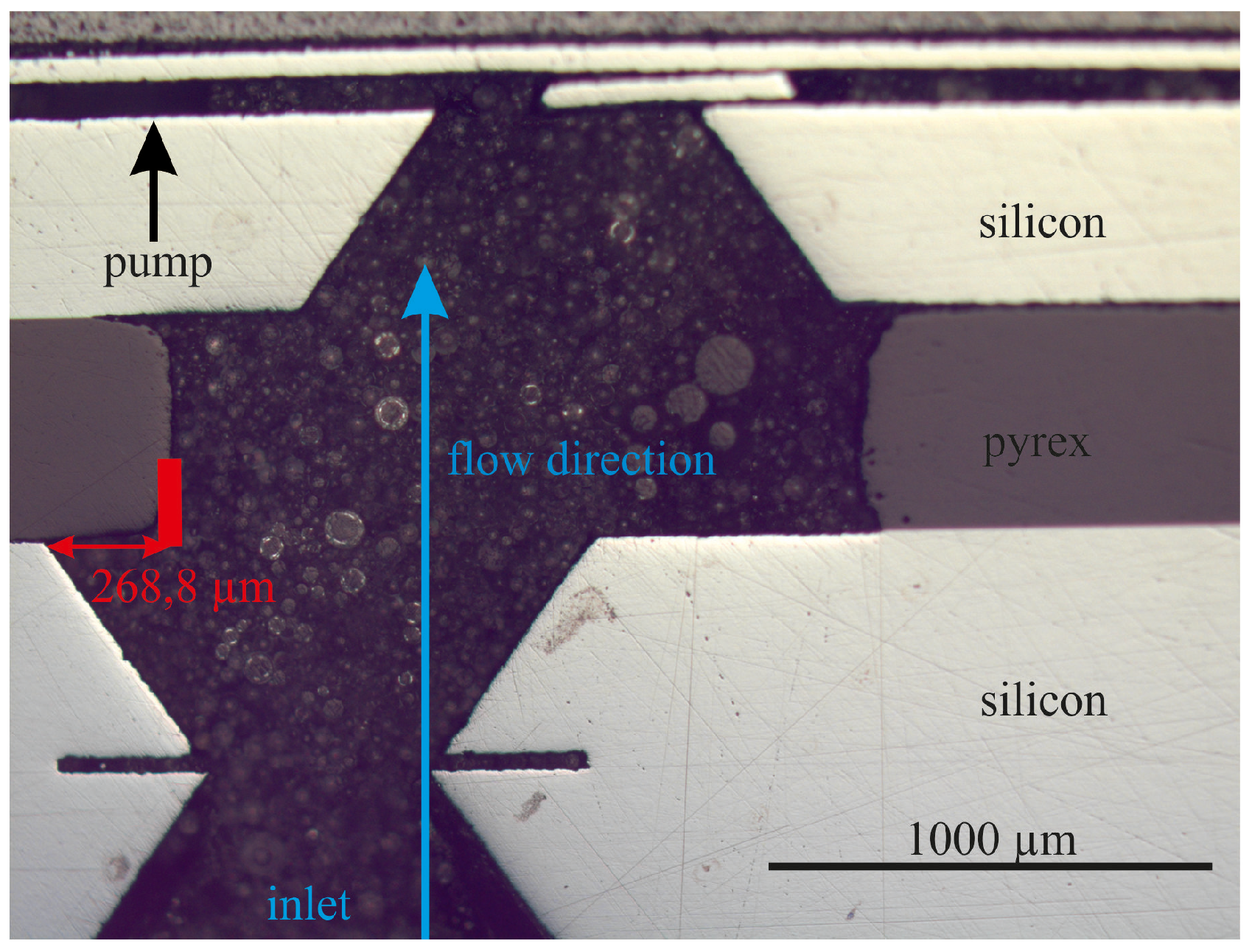

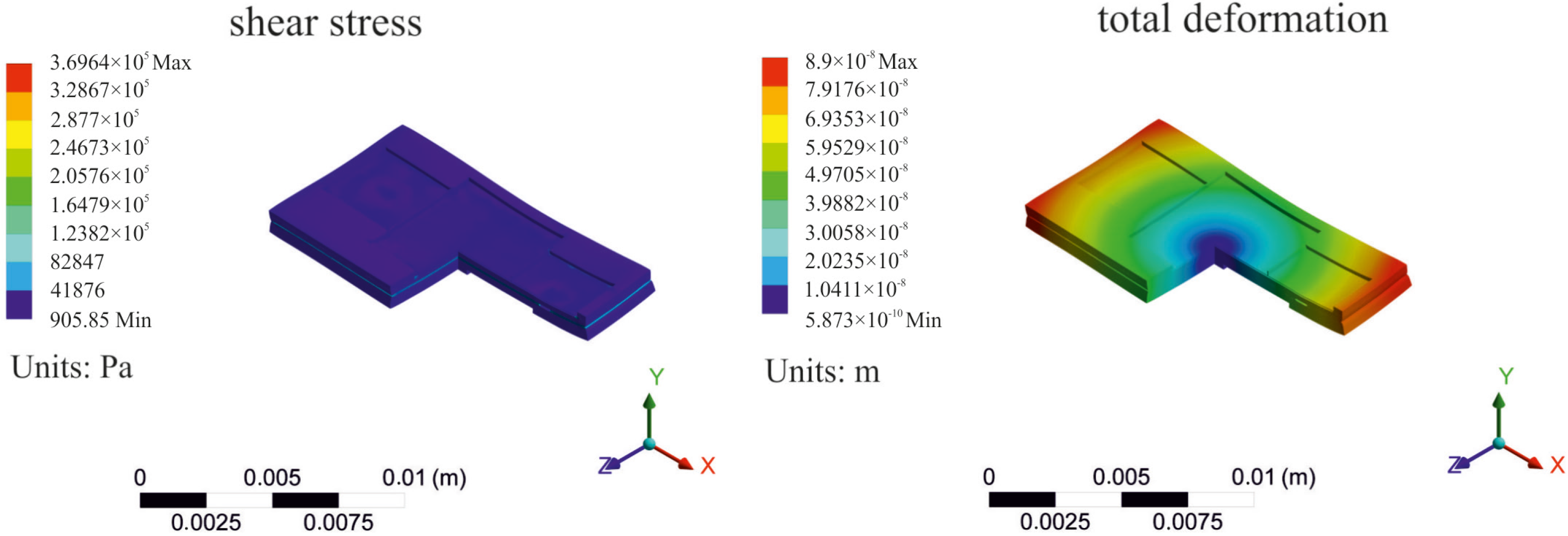

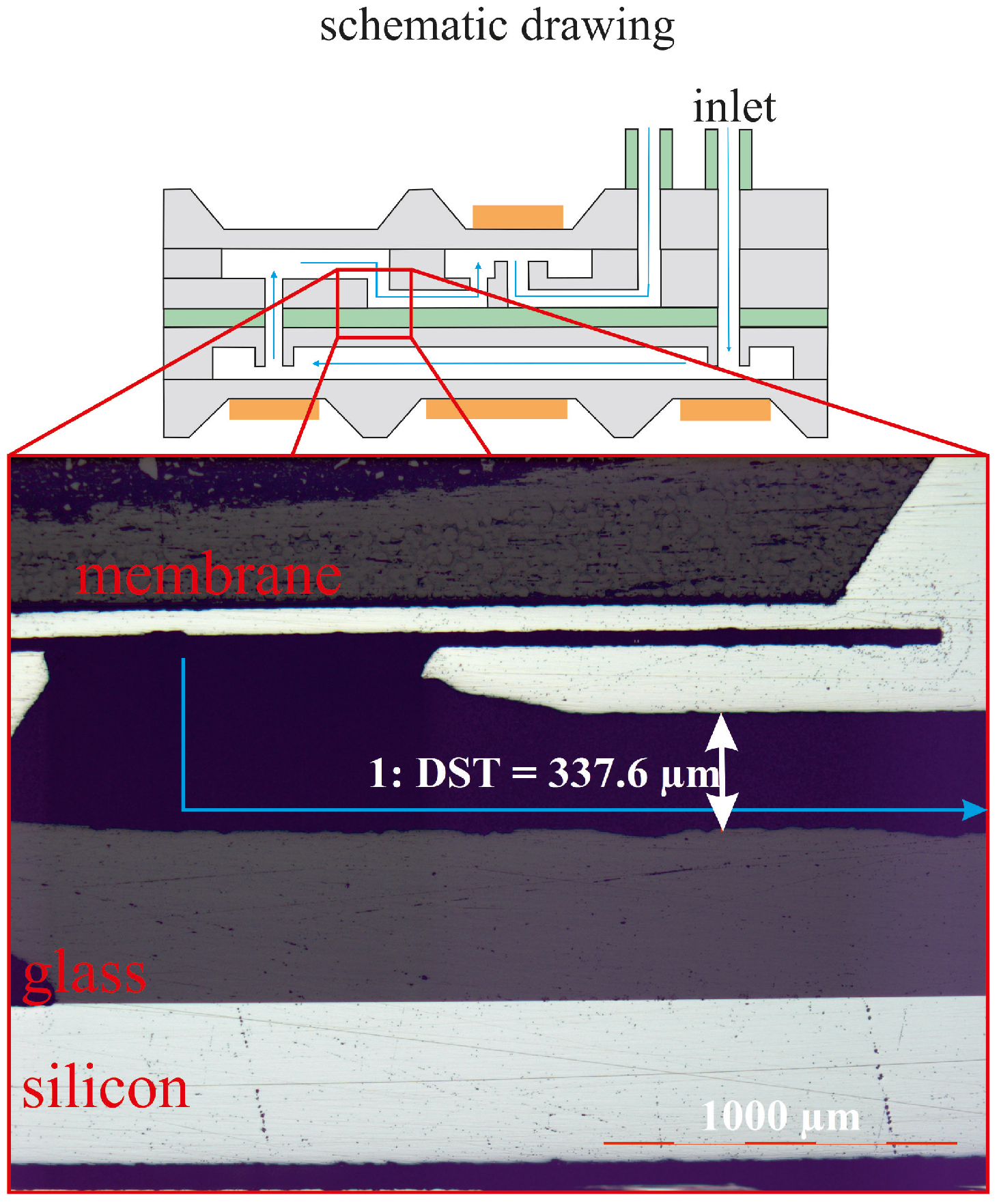

Figure 1

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
