Micromachines 2013, 4(2), 149-156; doi:10.3390/mi4020149
Article

Freeform Fabrication of Magnetophotonic Crystals with Diamond Lattices of Oxide and Metallic Glasses for Terahertz Wave Control by Micro Patterning Stereolithography and Low Temperature Sintering

*  and
Received: 25 January 2013; in revised form: 26 March 2013 / Accepted: 26 March 2013 / Published: 2 April 2013
(This article belongs to the Special Issue Glass Micromachining and Applications of Glass)
View Full-Text   |   Download PDF [1395 KB, uploaded 2 April 2013]   |   Browse Figures

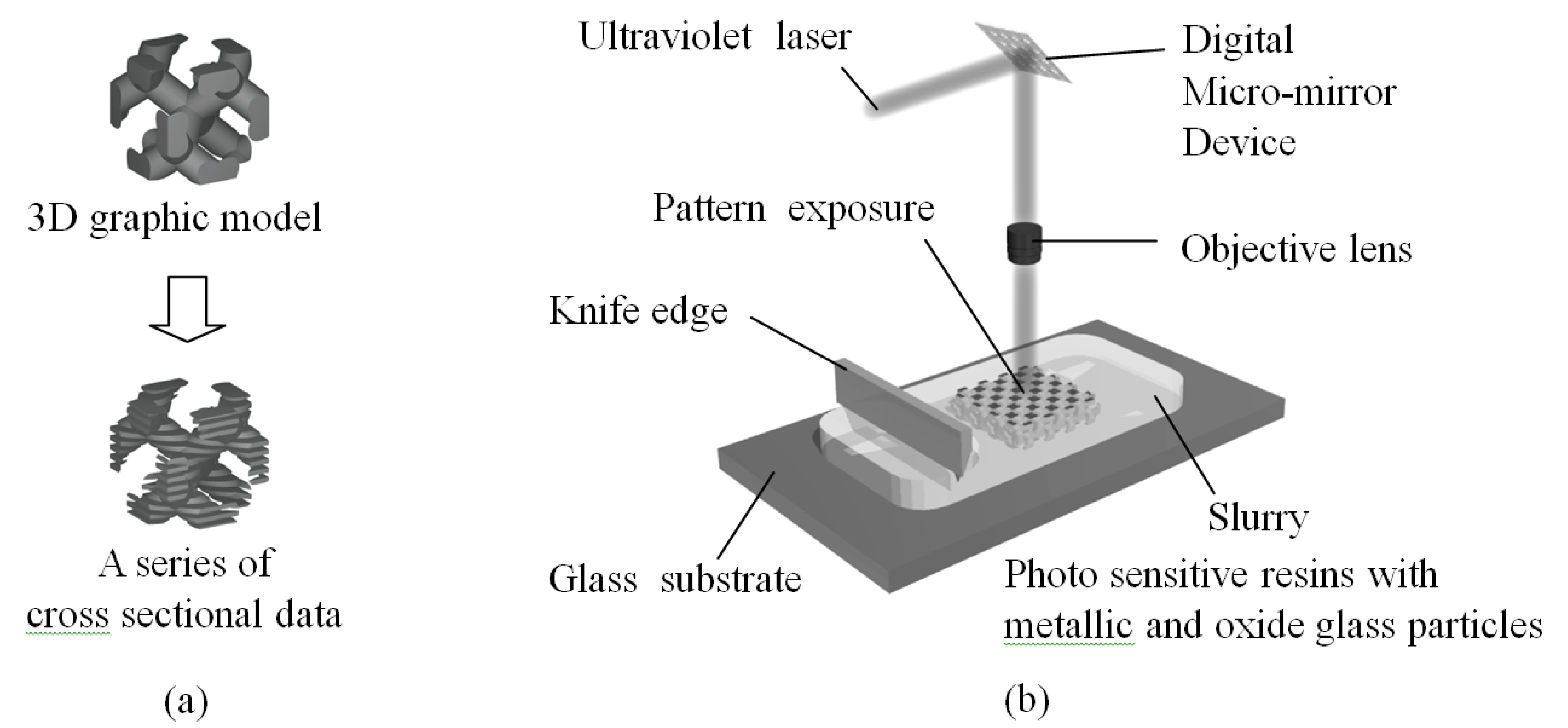

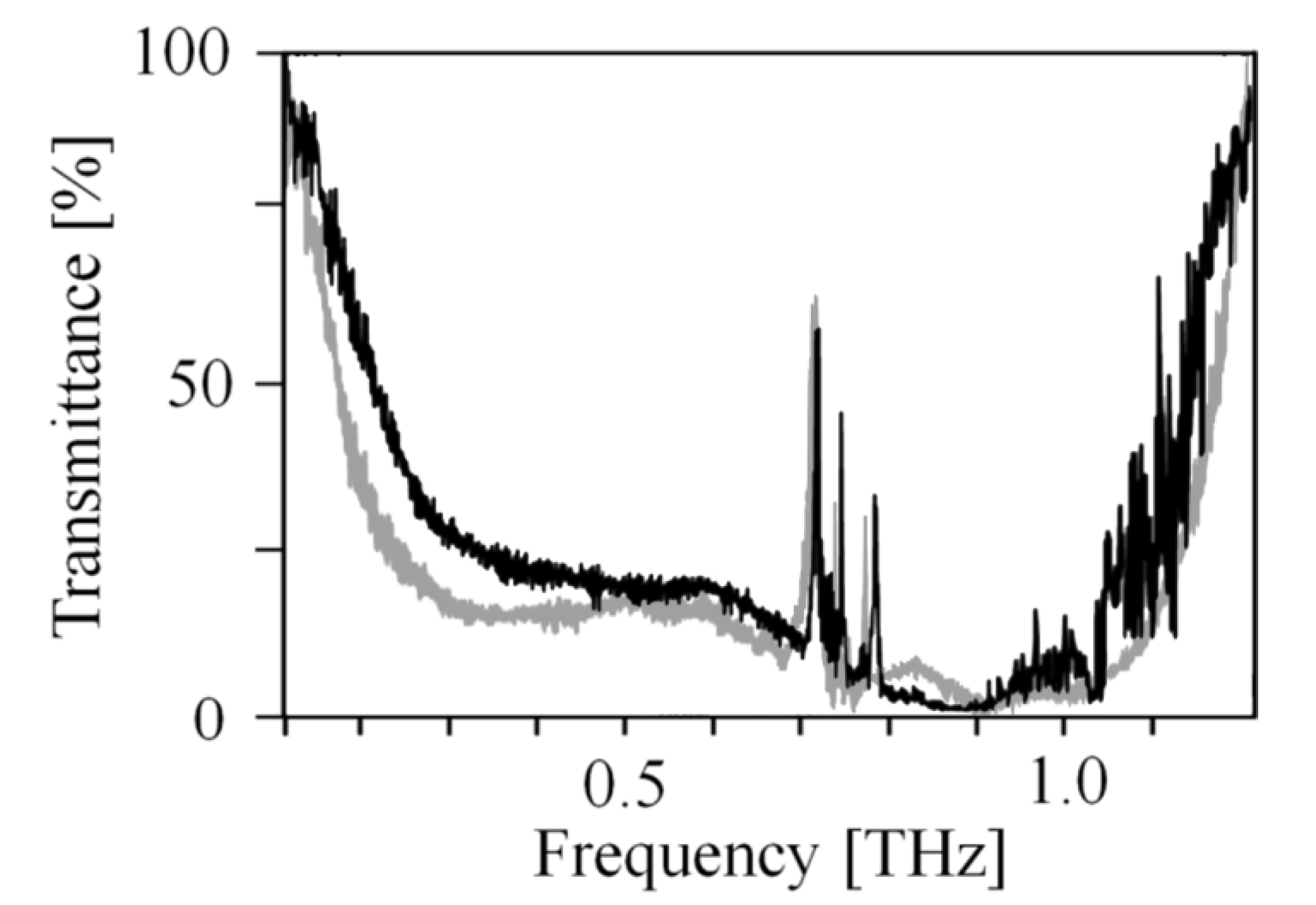

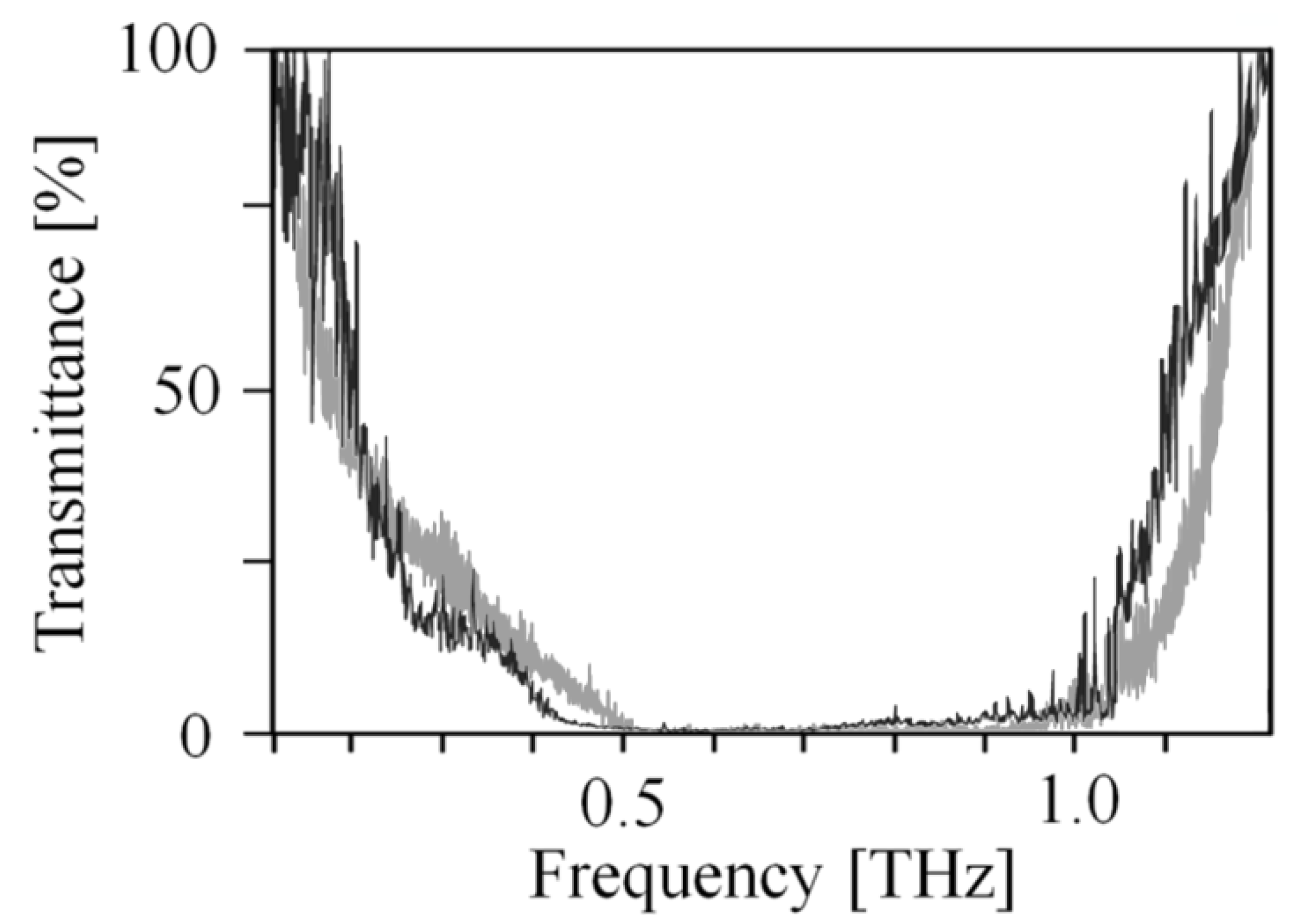

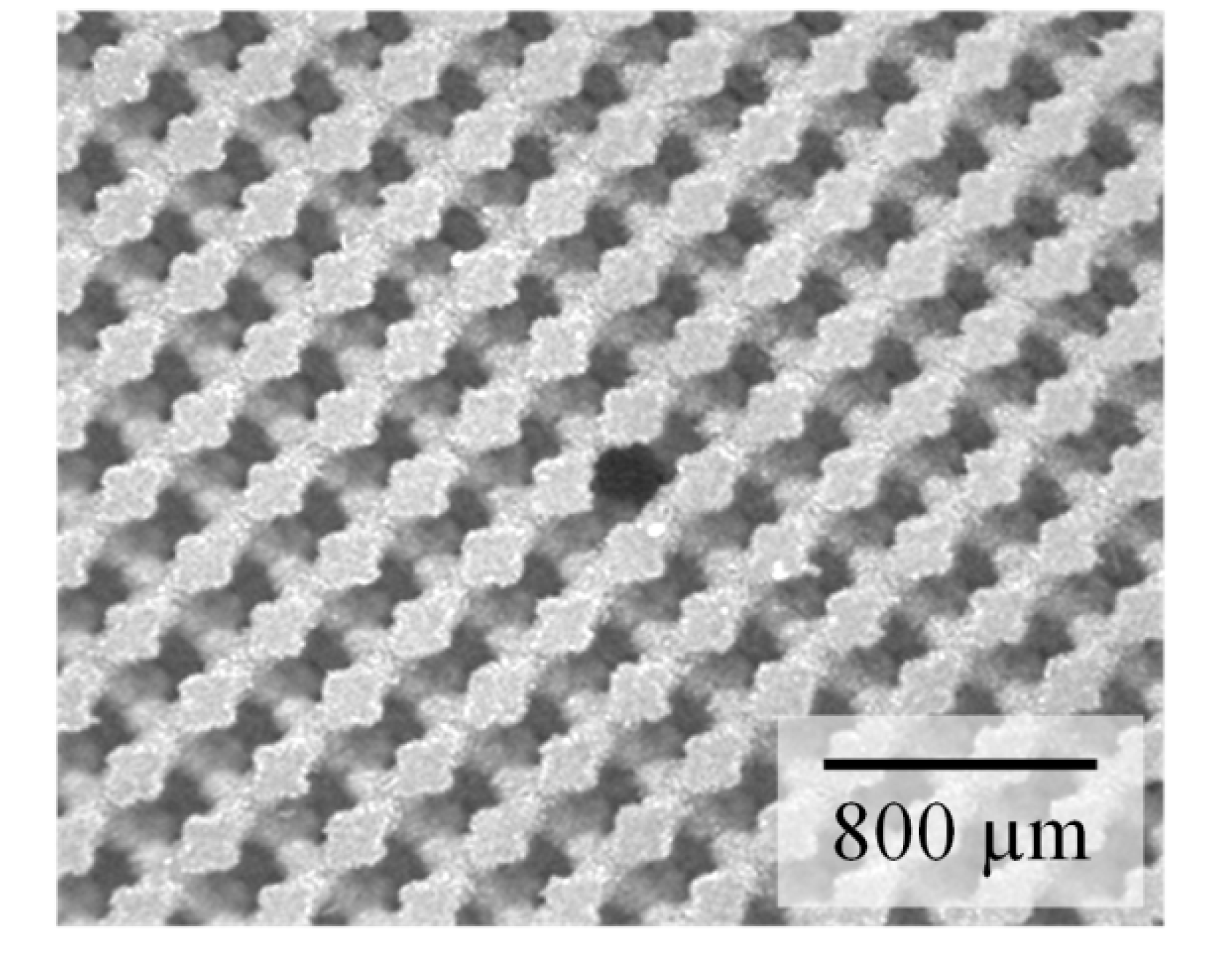

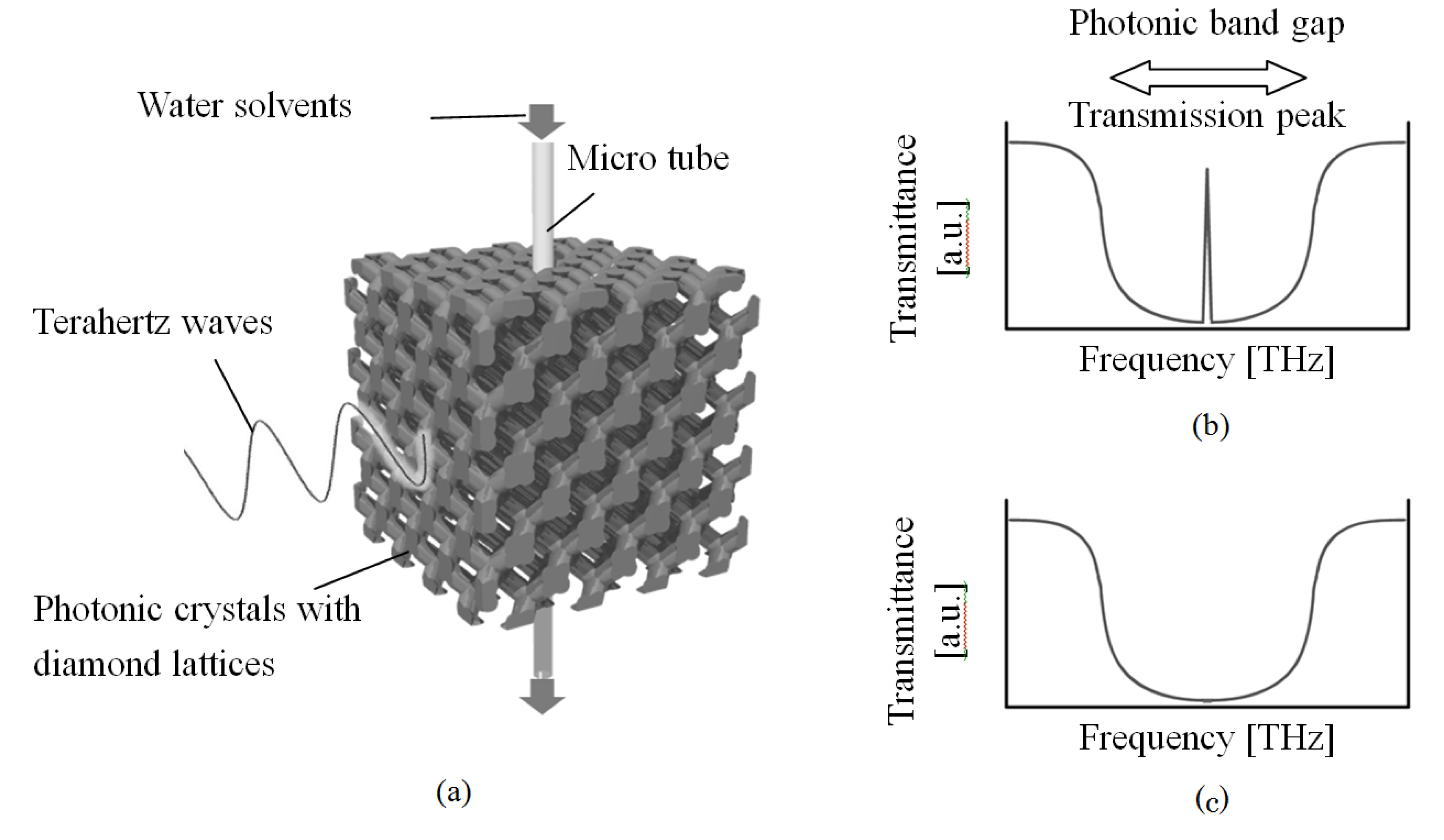

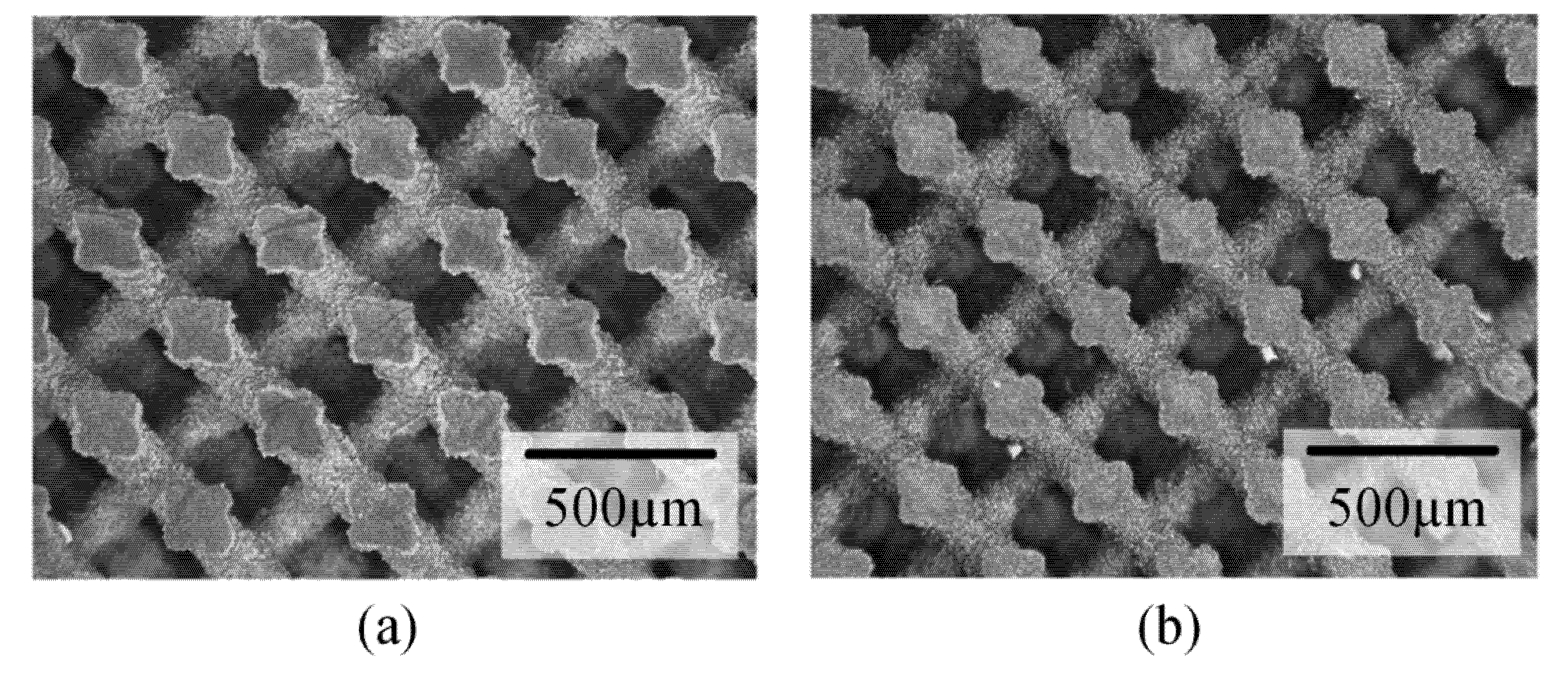

Abstract: Micrometer order magnetophotonic crystals with periodic arranged metallic glass and oxide glass composite materials were fabricated by stereolithographic method to reflect electromagnetic waves in terahertz frequency ranges through Bragg diffraction. In the fabrication process, the photo sensitive acrylic resin paste mixed with micrometer sized metallic glass of Fe72B14.4Si9.6Nb4 and oxide glass of B2O3·Bi2O3 particles was spread on a metal substrate, and cross sectional images of ultra violet ray were exposed. Through the layer by layer stacking, micro lattice structures with a diamond type periodic arrangement were successfully formed. The composite structures could be obtained through the dewaxing and sintering process with the lower temperature under the transition point of metallic glass. Transmission spectra of the terahertz waves through the magnetophotonic crystals were measured by using a terahertz time domain spectroscopy.
Keywords: metallic and oxide glass composite; magnetophotonic crystals; terahertz wave; micro stereolithography metallic and oxide glass composite; magnetophotonic crystals; terahertz wave; micro stereolithography
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
