Mar. Drugs 2014, 12(5), 2953-2969; doi:10.3390/md12052953

Alterporriol-Type Dimers from the Mangrove Endophytic Fungus, Alternaria sp. (SK11), and Their MptpB Inhibitions
Guoping Xia 1, Jia Li 1,2, Hanxiang Li 1, Yuhua Long 3, Shao’e Lin 1, Yongjun Lu 4, Lei He 4, Yongcheng Lin 1, Lan Liu 1,* and Zhigang She 1,*
School of Chemistry and Chemical Engineering, Sun Yat-Sen University, Guangzhou 510275, China; E-Mails: (G.X.); (J.L.); (H.L.); (S.L.); (Y.L.)
Department of Pharmacy, Huaihua Medical College, Huaihua 418000, China
School of Chemistry and Environment, South China Normal University, Guangzhou 510006, China; E-Mail:
School of Life Sciences, Sun Yat-Sen University, Guangzhou 510275, China; E-Mails: (Y.L.); (L.H.)
Authors to whom correspondence should be addressed; E-Mails: (L.L.); (Z.S.); Tel.: +86-20-8733-2748 (L.L.); Fax: +86-20-8733-0209 (L.L.); Tel./Fax:+86-20-8411-3356 (Z.S.).
Received: 20 March 2014; in revised form: 22 April 2014 / Accepted: 25 April 2014 /
Published: 16 May 2014


: A new alterporriol-type anthranoid dimer, alterporriol S (1), along with seven known anthraquinone derivatives, (+)-aS-alterporriol C (2), hydroxybostrycin (3), halorosellinia A (4), tetrahydrobostrycin (5), 9α-hydroxydihydrodesoxybostrycin (6), austrocortinin (7) and 6-methylquinizarin (8), were isolated from the culture broth of the mangrove fungus, Alternaria sp. (SK11), from the South China Sea. Their structures and the relative configurations were elucidated using comprehensive spectroscopic methods, including 1D and 2D NMR spectra. The absolute configurations of 1 and the axial configuration of 2 were defined by experimental and theoretical ECD spectroscopy. 1 was identified as the first member of alterporriols consisting of a unique C-10−C-2′ linkage. Atropisomer 2 exhibited strong inhibitory activity against Mycobacterium tuberculosis protein tyrosine phosphatase B (MptpB) with an IC50 value 8.70 μM.
endophytic fungus; Alternaria sp.; alterporriol; theoretical calculations; ECD; TDDFT; MptpB

1. Introduction

Tuberculosis (TB) is one of the greatest killers, responsible for 8.6 million infections and 1.3 million deaths in 2012, according to the WHO [1]. Mycobacterium tuberculosis is the causative agent of TB and the deserved target of antituberculosis drugs. In recent years, extensively drug-resistant TB, multidrug-resistant TB and HIV-associated TB have made clinical treatment even more difficult and complex. Novel anti-infective agents are in urgent need, especially those applying to new targets and based on different mechanisms. Mycobacterium tuberculosis protein tyrosine phosphatase B (MptpB) is proven to be an essential virulence factor when M. tuberculosis hosts macrophages [2,3]. Increased research reveals that it exhibits unique and multiple activities against immune responses [4,5,6,7]. Therefore, developing selective MptpB inhibitors could be a promising strategy against M. tuberculosis infection and conducive to treating severe TB.

Marinedrugs 12 02953 g007 200

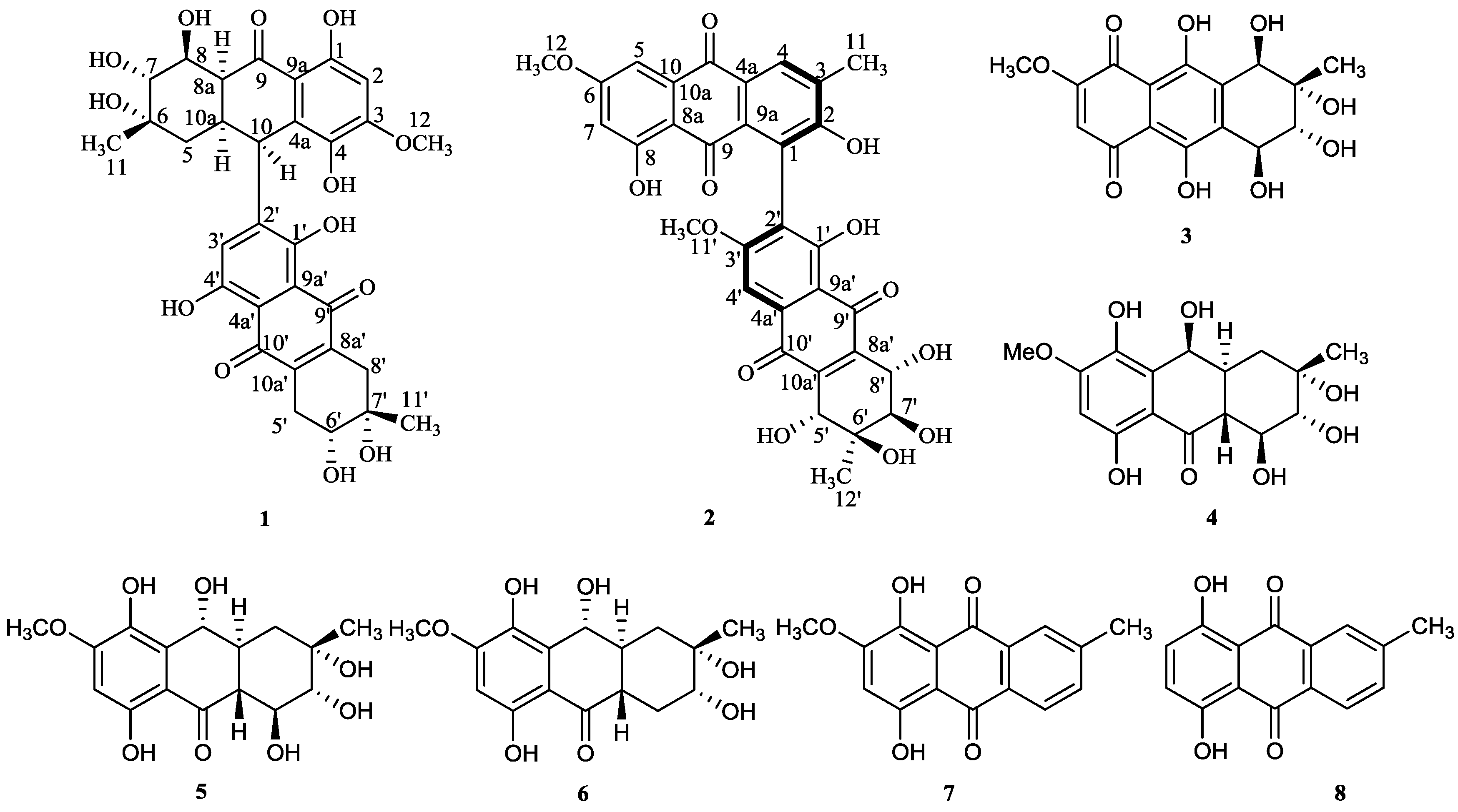

Scheme 1. Structures of 18 isolated from Alternaria sp. (SK11).

Click here to enlarge figure

Scheme 1. Structures of 18 isolated from Alternaria sp. (SK11).
Marinedrugs 12 02953 g007 1024

As part of our ongoing investigation on natural antituberculosis products from marine fungi in the South China Sea [8,9,10], a mangrove endophytic fungus, Alternaria sp. (SK11), attracted our attention for 4-deoxybostrycin, a natural anthraquinone compound isolated from this strain, showing good inhibition against some clinical multidrug-resistant M. tuberculosis strains [8]. Further chemical investigation of this fungus led to the isolation of eight metabolites (Scheme 1), including one novel alterporriol-type anthranoid dimer, alterporriol S (1), and seven known compounds, (+)-aS-alterporriol C (2), hydroxybostrycin (3), halorosellinia A (4), tetrahydrobostrycin (5), 9α-hydroxydihydrodesoxybostrycin (6), austrocortinin (7) and 6-methylquinizarin (8). In this report, we describe the isolation, structural elucidation and biological activity of the metabolites.

2. Results and Discussion

The marine-derived fungus SK11 was identified as Alternaria sp. on the basis of molecular characteristics combined with morphological traits. All compounds were isolated using chromatographic techniques, and their structures were elucidated by spectroscopic data (IR, UV, NMR) and HRMS. Their relative configurations were assigned according to 1D NMR and NOESY experiments. The absolute charities were established by the electronic circular dichroism (ECD) method supported by the time-dependent density functional theory (TDDFT) calculations of ECD spectra.

Compound 1, with the molecular formula C31H32O13 from HRESIMS data (m/z 611.1793 [M − H]), was obtained as a red, amorphous powder. The presence of UV absorption bands at 362.2, 288.8, 248.6 and 220.4 nm indicated the existence of a conjugated carbonyl chromophore [11]. Furthermore, a hydroxy absorption band was found at 3432 cm−1, while carbonyl ones were found at 1653 cm−1, in the IR spectrum. The presence of three chelated hydroxy proton signals (δH 13.17, 12.46, 12.42), five changeable hydroxy proton signals (δH 4.82, 4.62, 4.49, 4.33, 4.06), two methyls (δH 1.18, 1.08), two aromatic protons (δH 6.73, 6.34) in 1H NMR and three carbonyl carbon signals (δC 206.4, 181.9, 180.9) in 13C NMR (Table 1) suggested that this compound could be a tetrahydroanthraquinone heterodimer. In the 1H NMR spectrum, signals corresponding to the northern moiety contained two doublets at δH 4.62 and δH 4.33 and a singlet at δH 4.06, assigned to 7-OH, 8-OH and 6-OH, respectively, as well as a singlet that corresponded to the methyl group, 6-Me, resonating at δH 1.08. In addition, an isolated proton (2-H) and a methoxy group (3-OMe) were detected at δH 6.73 and δH 3.89, respectively. The 1H−1H COSY spectrum of 1 revealed that two oxygenated methine groups at δH 3.20 (7-H) and 3.45 (8-H), three methine groups at δH 2.99 (8a-H), 2.64 (10a-H) and 4.60 (10-H) and one methylene group at δH 1.65 (5-Heq) and 1.37 (5-Hax) allowed an aliphatic spin system, 7CHO−8CHO−8aCH−10aCH(−10CH)−5CH2 (Figure 1a). Furthermore, in the HMBC spectrum, the correlations attributed to 5-H (5-Heq and 5-Hax) with C-10, C-10a, 7-H with C-8, 8a-H with C-5, C-7, C-8, C-9 and C-10 and 10-H with C-4, C-4a, C-5, C-8a, C-9a and C-10a, as well as those of the isolated aromatic proton (2-H/C-1, C-3, C-4 and C-9a) fully supported the assignment of the planar structure of the northern moiety of the molecule. The observed HMBC correlations from 10-H to the aromatic carbons of the southern moiety, C-2′, C-3′ and C-4′, were vital to assign the position of the linkage. Moreover, in analogy to known Compounds 4 or 5, the oxygenated methine group (δC 61.8 or δC 72.2) [12,13] was now replaced by a methine group at C-10 (δC 37.1) in 1. The moderate upfield-shift of the 10-H signal (δH 4.73 in 4 or δH 4.91 in 5→δH 4.60 in 1) may be ascribed to the deshielding effect of the neighboring tetrahydroanthraquinone system [14,15], thus supporting the northern moiety attached to the aromatic ring of the other moiety via C-10. 2D NMR correlations were used to identify the structure of the southern moiety in 1, as well. In the COSY spectrum, the low-field doublet (6′-OH) correlated with the high-field aliphatic proton 6′-H, which further correlated with 5′-H. Together with the observed HMBC correlations of 5′-H/C-6′, C-10′ and C-10a′, 6′-H/C-11′, and 8′-H/C-7′, C-8a′ and C-11′, the aliphatic ring was allowed to be established as shown (Figure 1a). Moreover, the aromatic proton observed at δH 6.34 was assigned to 3′-H by interpretation of the HMBC spectrum, which revealed correlations of the chelated hydroxy signal at δH 13.17 and δH 12.42 with carbonyl carbon C-9′ and C-10′, respectively. These data suggested that the southern moiety of 1 was demethoxyl 4-deoxybostrycin [12,16], and the link site in this half of the molecule was located at C-2′. Thus, 1 was deduced to be a new alterporriol-type dimer with a unique C-10−C-2′ linkage and given the name alterporriol S.

Table Table 1. NMR spectroscopic data (400 MHz, DMSO-d6) for 1 a.

Click here to display table

Table 1. NMR spectroscopic data (400 MHz, DMSO-d6) for 1 a.
PositionδCδHHMBC b
1156.9, C
299.5, CH6.73, s1, 3, 4, 9a
3157.0, CH
4136.5, C
5ax 5eq42.0, CH21.37, dd (12.8, 13.5); 1.65, dd (12.8, 3.8)10, 10a
671.7, C
775.6, CH3.20, dd (10.0, 4.9)8
873.1, CH3.45, ddd (10.0, 4.9, 4.6)7
8a46.0, CH2.99, ddd (4.6, 4.1, 1.2)5, 7, 8, 9, 10
9206.4, C
9a110.2, C
1037.1, C4.60, brs4, 4a, 5, 8a, 9a, 10a, 2′, 3′, 4′
10a35.1, C2.64, m11
1126.7, CH31.08, s5, 6, 7
1256.7, CH33.89, s3
1-OH 12.46, s1, 2, 9a
4-OH 8.57, s3, 4, 4a
6-OH 4.06, s
7-OH 4.62, d (4.9)
8-OH 4.33, d (4.9)
1′161.8, C
2′146.3, C
3′127.6, CH6.34, s10, 1′, 4a′
4′162.5, C
4a′110.5, C
5′ax 5′eq30.2, CH22.65, m 2.80, dd (14.4, 5.0)6′, 10′ c, 10a′
6′70.6, CH3.61, dt (11.8, 5.0)11′ c
7′69.4, C
8′35.9, CH22.74, d (14.1) 2.58, m7′, 8a′, 11′
8a′142.3, C
9′180.9, C
9a′111.5, C
10′181.9, C
11′25.7, CH31.18, s6′, 8′
1′-OH 13.17, s1′, 2′, 9′
4′-OH 12.42, s3′, 4′, 4a′,10′
6′-OH 4.82, d (5.0)
7′-OH 4.49, s

a δ in ppm, J in Hz, TMS as the internal standard; b HMBC correlations, optimized for 6 Hz, were started from the proton to the indicated carbon; c signal partially obscured.

Marinedrugs 12 02953 g001 200

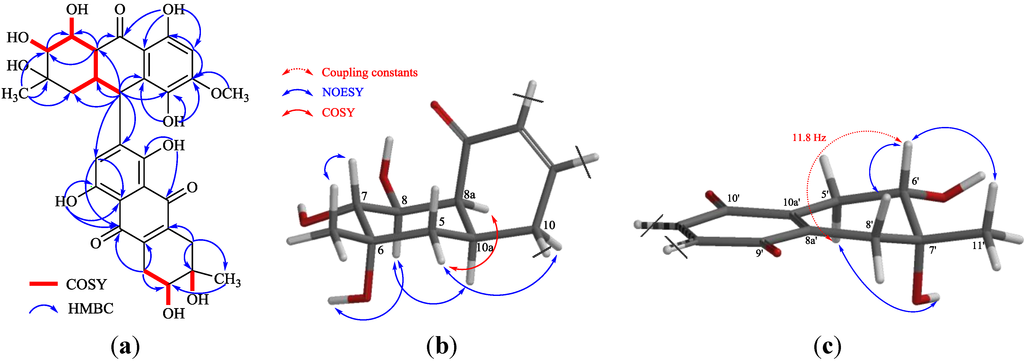

Figure 1. 1H–1H COSY, key HMBC (a) and meaningful NOESY; (b,c) correlations of 1.

Click here to enlarge figure

Figure 1. 1H–1H COSY, key HMBC (a) and meaningful NOESY; (b,c) correlations of 1.
Marinedrugs 12 02953 g001 1024

The coupling constants observed in the 1H NMR spectrum, as well as the correlations detected in the NOESY spectrum were used to determine the relative configurations of Compound 1. 5-Hax and 10a-H were revealed to have a trans-diaxial relationship for the big coupling constant (J = 13.5 Hz) between the two protons. 7-H and 8-H were also placed in trans-axial positions for the large 3J7-H–8-H value (10.0 Hz). 8a-H was placed on the same side of the aliphatic ring with 10a-H for the small coupling constant (J = 4.1 Hz) between the two protons, i.e., equatorial position, which explained the long-range correlation between 8a-H and 5-Heq observed in the COSY spectrum (J = 1.2 Hz). The 10-H signal appeared as a broadened singlet without significant splitting in spite of the obvious COSY correlation between 10-H and 10a-H, which suggested that the coupling constant between them was considerably small; thus, 10-H was placed in a cis position with 10a-H. In the NOESY experiment, the correlation of 6-OH/8-H and 6-Me/7-H was observed, which allowed the equatorial position of 6-Me to be established (Figure 1b). Consequently, the relative configurations of the northern moiety in 1 were 6S*, 7R*, 8S*, 8aS*, 10R*, 10aR*. In the southern moiety, 6′-H was in an axial position according to the big coupling constant (J = 11.8 Hz) between 6′-H and 5′-Hax. 7′-OH was placed in an axial position for the correlations of 5′-Hax/7′-OH and 6′-H/7′-Me observed in the NOESY spectrum (Figure 1c). Thus, the relative configurations of the southern moiety in 1 were established as 6′R*, 7′S*.

Marinedrugs 12 02953 g002 200

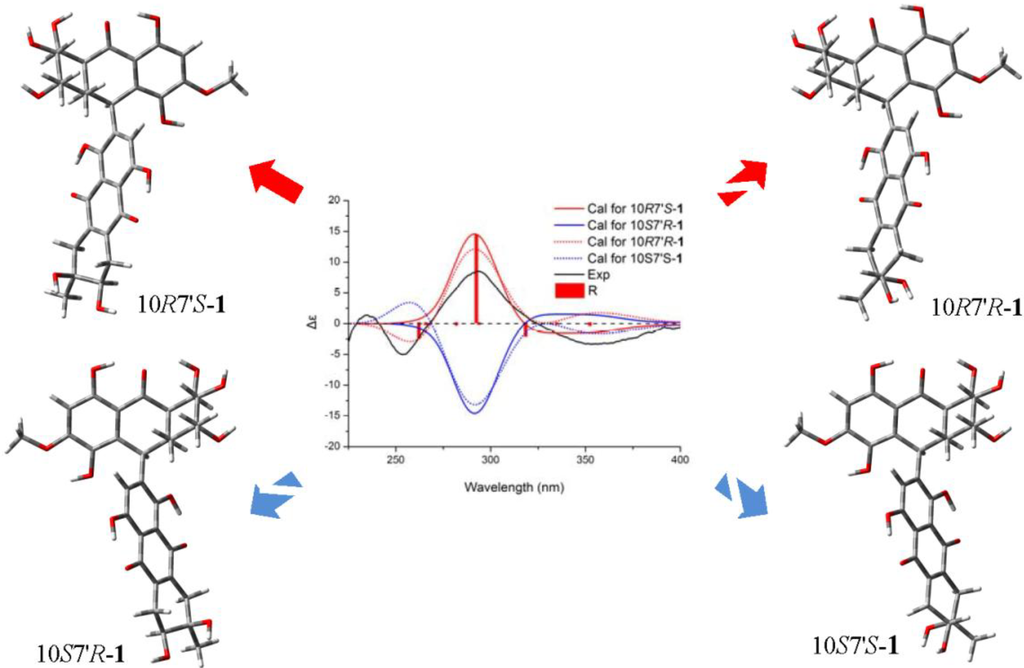

Figure 2. Experimental and calculated ECD spectra of 1 *.

Click here to enlarge figure

Figure 2. Experimental and calculated ECD spectra of 1 *.
Marinedrugs 12 02953 g002 1024

To assign the absolute configurations of 1, the ECD spectrum was measured in methanol solution and compared with that calculated by quantum-mechanics. The resulting CD was substantially affected by eight chiral centers in the molecular as a consequence of the central C-10-C–2′ axis being able to rotate rather freely in solution, due to low rotational barriers [15]. As shown in Figure 2, several bands between 200 and 400 nm, due to the various π–π* and n–π* transitions of the substituted naphthoquinone chromophore, were observed in the experimental ECD spectrum. In particular, two couplet-like features appeared in the two regions between 225–265 and 275–400 nm. The conformational analyses of 1 were carried out with molecular mechanics (using the Merck molecular force field, MMFF) based on a Monte Carlo algorithm. The initial structures were built with the four possible diastereomers, which were obtained by using a standard procedure for flexible molecules [17]. For each configuration of 1, four low-energy conformers were obtained and re-optimized with DFT at the B3LYP/6-31G(d) level. The various minima differed in the orientation of the aliphatic rings, methyl and hydroxy groups and aryl–aryl torsions, with energies that differed by less than 1 kcal/mol and amounted to >95% overall Boltzmann population at 300 K. The energies, oscillator strengths and rotational strengths of the first 10 electronic excitations were calculated using the TDDFT methodology at the B3LYP/6-31++G(2d,p) level [18], including the IEF-PCM solvent model for methanol. The simulated spectra of the three lowest energy conformations were averaged according to the Boltzmann distribution theory to get the final spectra [19]. Simulations of the 10R and 10S diastereomers provided significant resolution at ca. 290 nm, which allowed the assignment of the absolute configuration of the northern moiety in 1 as 6S, 7R, 8S, 8aS, 10R, 10aR. The difference in averaged CD spectra between ca. 315 and 400 nm was crucial to distinguish 7′R and 7′S diastereomers. By careful comparison of the stimulated CD spectra of every low-energy conformers (see Supplementary Charts S1 and S2), it is proven that all the stimulated CD spectra of low-energy conformers of 7′S-1 showed negative CE (Cotton effect) in the region 315–400 nm. On the contrary, all those of the low-energy conformers of 7R′-1 showed positive CE. Consequently, 7′R and 7′S diastereomers were distinguishable by comparing their CE in this region (Figure 2), and the absolute configurations of the southern moiety in 1 were 6′R, 7′S.

The results were fully verified by recalculating with TDDFT at the CAM–B3LYP/6-31++G(2d,p) level. As shown in Figure 3, 7′R and 7′S diastereomers generated oppositely signed CE in the region of 315–400 nm, which were previously proven by the TDDFT B3LYP/6-31++G(2d,p) methodology. Moreover, the CAM–B3LYP functional gave better fitting with the experiment curve in 225–250 nm. Thus, it was safer to conclude that the absolute configurations of the southern moiety in 1 were 6′R, 7′S.

Marinedrugs 12 02953 g003 200

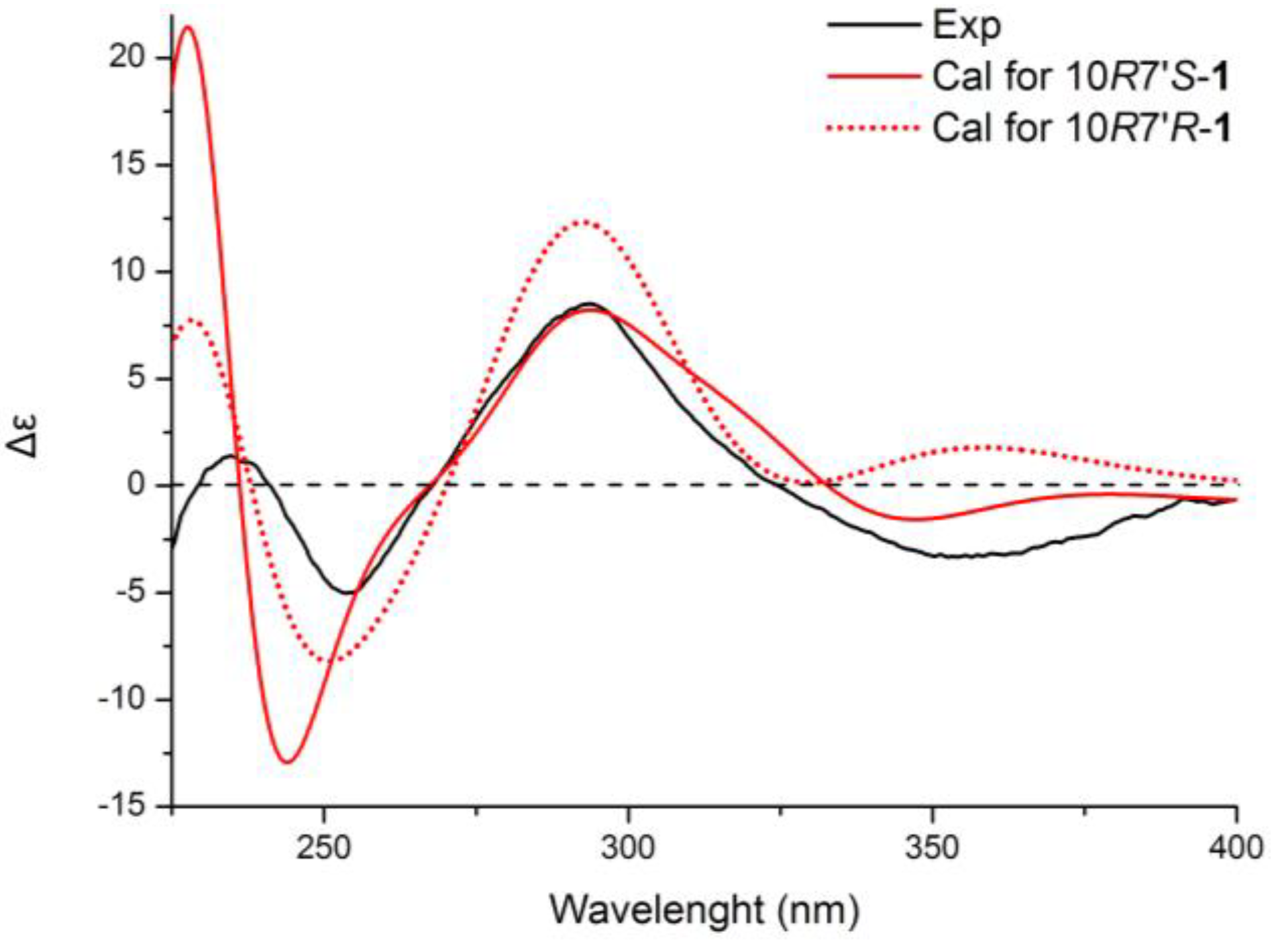

Figure 3. Calculated ECD spectra of 10R7′S and 10R7′S diastereomers.

Click here to enlarge figure

Figure 3. Calculated ECD spectra of 10R7′S and 10R7′S diastereomers.
Marinedrugs 12 02953 g003 1024

Moreover, all the DFT optimized conformers of 1 were simplified by reducing the chiral aliphatic ring in the southern moiety. The energies, oscillator strengths and rotational strengths of the first 20 electronic excitations were then calculated using TDDFT methodology at the CAM-B3LYP/6-311++G(2d,p) level. The stimulated ECD spectrum of the hypothetical compound (1′) (Figure 4) showed a similar absorption curve with the experimental one with an exception in 315–400 nm, which fully supported that the first CE was generated by an asymmetric environment in the southern moiety of the molecular, and significant CE at ca. 290 nm was dominated by the chirality of the northern moiety. Thus, the absolute configurations of 1 were 6S, 7R, 8S, 8aS, 10R, 10aR, 6′R and 7′S.

Marinedrugs 12 02953 g004 200

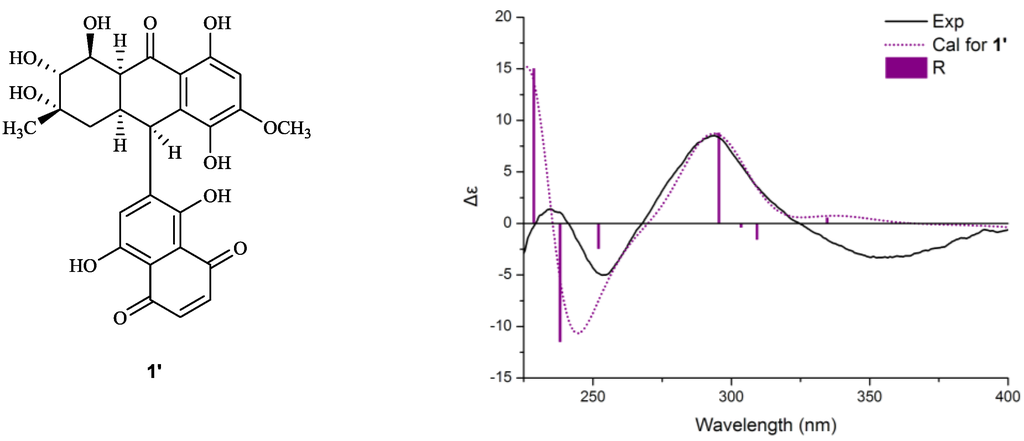

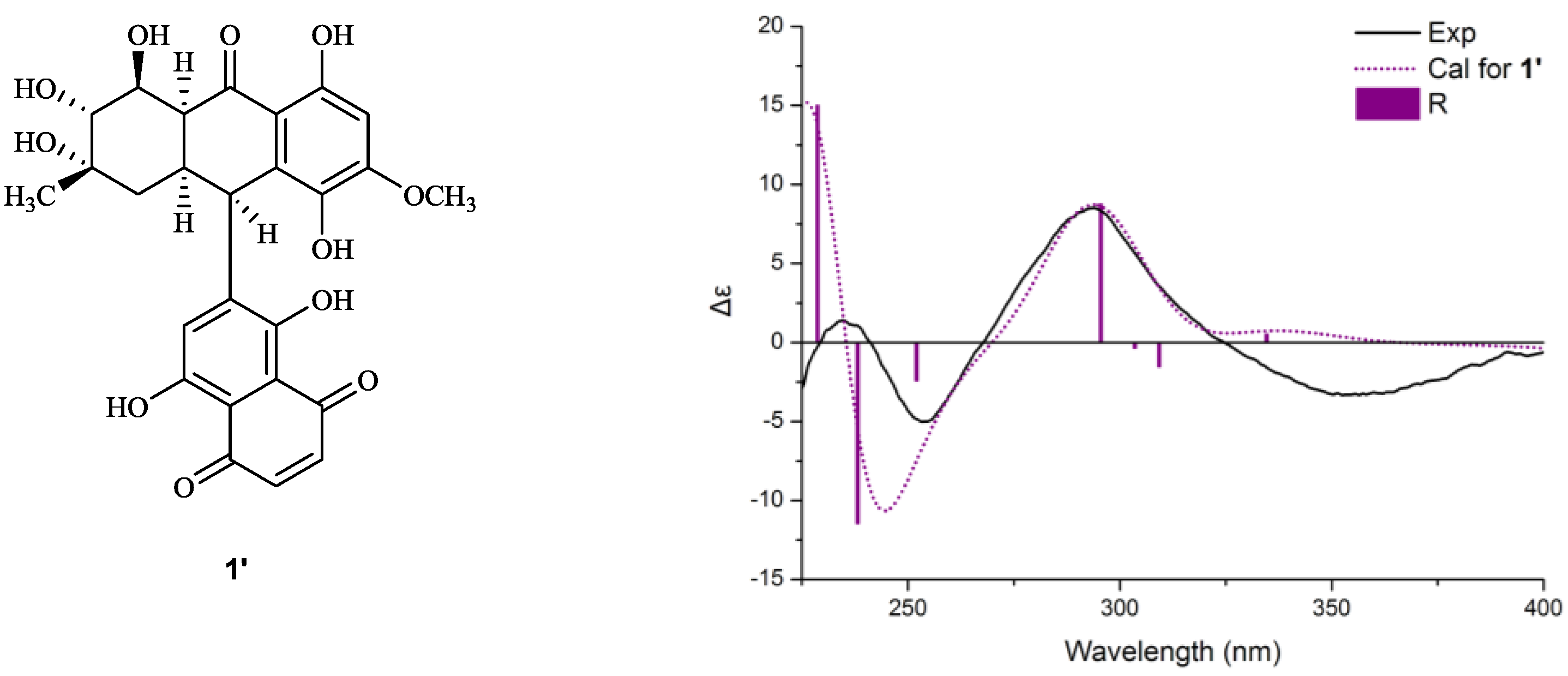

Figure 4. Calculated ECD spectra of 1′.

Click here to enlarge figure

Figure 4. Calculated ECD spectra of 1′.
Marinedrugs 12 02953 g004 1024

Compound 2 was obtained as an orange, amorphous powder. By interpretation of HRESIMS, UV, IR and NMR spectra, the planar structure of 2 was fully assigned (Figure 5a), which was identical to alterporriol C, previously isolated from A. porri [20]. We report herein the NMR data recorded in DMSO-d6 (Table 2).

Table Table 2. NMR spectroscopic data (400 MHz, DMSO-d6) for 2 a.

Click here to display table

Table 2. NMR spectroscopic data (400 MHz, DMSO-d6) for 2 a.
PositionδCδHHMBC b
1125.5, C
2159.1, C
3131.0, C
4129.7, CH8.05, s2, 3, 10 c, 11
4a131.6, C
5106.6, CH7.16, d (2.3)6, 8a, 9, 10, 10a
6165.6, C
7106.9, C6.76, d (2.2)5, 6, 8a, 9
8164.5, C
8a110.3, C
9187.6, C
9a106.1, C
10180.8, C
10a134.5, C
1117.3, CH32.31, s2, 3, 9
1256.8, CH33.89, s6
2-OH 9.50, brs
8-OH 12.48, s7, 8, 8a, 9
1′163.9, C
2′126.0, C
3′164.2, C
4′104.1, CH6.96, s3′, 4a′, 9a′
4a′123.0, C
5′68.4, CH4.05, s6′, 8a′, 10′,10a′, 12′
6′73.0, C
7′68.2, CH3.57, dd (5.6, 6.6)8′
8′73.8, CH4.48, m7′, 8a′, 10a′
8a′142.3, C
9′189.1, C
9a′109.7, C
10′184.4, C
10a′143.6, C
11′56.3, CH33.71, s3′
12′22.3, CH31.12, s5′, 6′
1′-OH 13.09, s1′, 4′, 9a′
5′-OH 5.75, brs
6′-OH 4.38, s5′, 6′, 7′
7′-OH 4.86, d (5.6)
8′-OH 5.05, brs6′, 7′, 8a′

a δ in ppm, J in Hz, TMS as the internal standard; b HMBC correlations, optimized for 6 Hz, were started from the proton to the indicated carbon; c signal partially obscured.

The relative configurations of the chiral centers of C-5′ to C-8′ in 2 were deduced from the coupling constants observed in the 1H NMR spectrum, as well as from the correlations detected in the NOESY spectrum (Figure 5b). The apparent coupling constant for 7′-H and 8′-H (J = 6.6 Hz) suggested a trans-axial-pesudoaxial relation of these protons [21]. Without commonly detected 5′-H/7′-H correlation in those of 5′-epimers [22], 7′-H further correlated with 5′-OH in the NOESY experiment, which suggested a trans relation between 5′-H and 7′-H. The methyl group at C-6′ was placed in an equatorial position by detected correlations of 6′-Me/7′-H and 6′-OH/8′-H. Hence, the relative configurations of 2 were 5′R*, 6′S*, 7′R*, 8′S*. The specific rotation value ( Marinedrugs 12 02953 i001 +75° (c 0.02, EtOH), Marinedrugs 12 02953 i002 +208° (c 0.02, EtOH)) suggested that 2 was an atropisomer of alterporriol C [23]. Herein, we report the configuration of the chiral axis in the molecule by theoretical calculation.

Marinedrugs 12 02953 g005 200

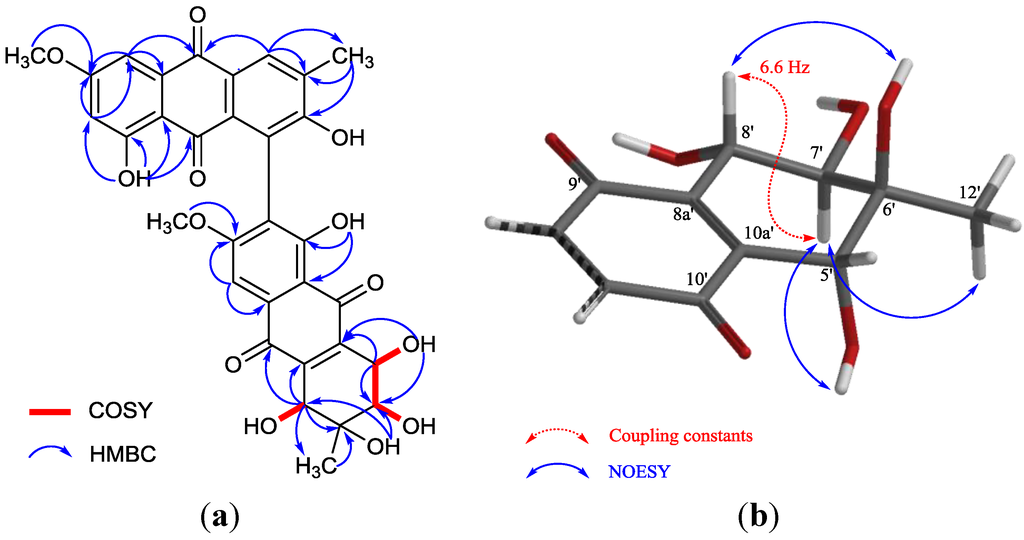

Figure 5. 1H–1H COSY, key HMBC (a) and meaningful NOESY; (b) correlations of 2.

Click here to enlarge figure

Figure 5. 1H–1H COSY, key HMBC (a) and meaningful NOESY; (b) correlations of 2.
Marinedrugs 12 02953 g005 1024

The orientation of the biaryl axis has a drastic influence on the ECD spectrum, while central chirality has a marginal effect [17]. The application of the exciton chirality method to biphenanthryl derivatives had proven not to be straightforward, owing to the complex electronic structure of the chromophore [24]. Thus, ECD spectra were calculated for both aR (also defined as P helicity) and aS (also defined as M helicity) stereostructures and compared with the experimental spectrum measured in methanol for the assignment of the axial configuration of 2. The complicated profile of the 1Bb transition region was observed; together with a couplet-like feature appearing as a strong negative couplet with a crossover at 275 nm. The conformational analysis and TDDFT methodology for ECD calculation of 2 were carried out as mentioned before for 1. As a result, two low-energy conformers with energies that differed by less than 1 kcal/mol were obtained, each with a Boltzmann population above 30% at 300 K, which amounted to 90% overall population for both aS and aR configurations of 2. The various minima, which differed in the orientation of the methoxy and hydroxy groups, had similar aryl-aryl torsions. For low-energy conformers of aS-atropisomer, the C2–C1–C2′–C1′ dihedral angle was −71.2° and −70.8°, respectively. For low-energy conformers of aR-atropisomer, the C2–C1–C2′–C1′ dihedral angles were 71.6° and 71.3°. The theoretical ECD spectrum for aS-2 reproduced the experimental spectrum well in the decisive region of 225–325 nm [22] with negative CD absorption around 280 nm and positive CD absorption around 250 nm (Figure 6). Thus, the axial configuration of Compound 2 was identified as aS. It is worth mentioning that the shoulder peak around 230 nm was not reproduced well by B3LYP (this experiment), CAM-B3LYP/SVP and ZINDO/S-CI [22]; a more accurate method (e.g., “gold standard” CCSD(T)) could be expected to give a more sufficient result.

Marinedrugs 12 02953 g006 200

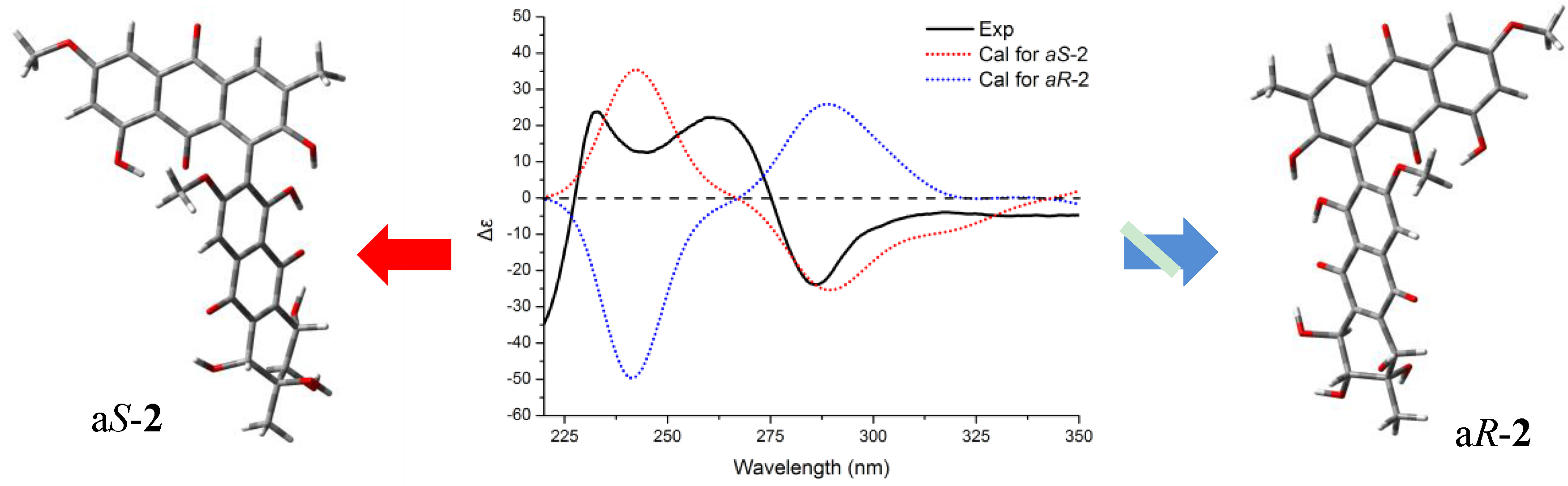

Figure 6. Experimental and calculated ECD spectra of 2 *.

Click here to enlarge figure

Figure 6. Experimental and calculated ECD spectra of 2 *.
Marinedrugs 12 02953 g006 1024

The structures of known compounds hydroxybostrycin (3), halorosellinia A (4), tetrahydrobostrycin (5), 9α-hydroxydihydrodesoxybostrycin (6), austrocortinin (7) and 6-methylquinizarin (8) were identified by comparison of their spectroscopic data with those in the literature [11,12,23,25,26].

All compounds were investigated for their inhibitory activities against MptpB with sodium orthovanadate as the positive control (Table 3). The results showed that 2 was a potential inhibitor of MptpB with an IC50 value of 8.70 μM, which revealed that (+)-aS-alterporriol C (2) could be a potential antituberculosis drug and/or lead compound for constructing an antituberculosis compound library.

Table Table 3. Mycobacterium tuberculosis protein tyrosine phosphatase B (MptpB) assay for isolated Compounds 18.

Click here to display table

Table 3. Mycobacterium tuberculosis protein tyrosine phosphatase B (MptpB) assay for isolated Compounds 18.
CompoundIC50 (μM)

3. Experimental Section

3.1. General

Optical rotations were determined with a RUDOLPH Autopol III polarimeter (Rudolph Research Analytical, Hackettstown, NJ, USA) at 27 °C. UV data were measured on a PERSEE TU-1900 spectrophotometer (Purkinje General Instrument Co., Ltd., Beijing, China). ECD data were recorded with a JASCO J–810 spectropolarimeter (JASCO, Inc., Easton, MD, USA). IR spectra were measured on a Nicolet Nexus 670 spectrophotometer (Thermo Fisher Scientific, Inc., Hudson, NH, USA), in KBr discs. 1H and 13C NMR data were recorded on a Bruker AVANCE 400 spectrometer (Bruker BioSpin Corporation, Billerica, MA, USA), respectively (TMS as the internal standard). ESIMS spectra were obtained from a Micro mass Q-TOF spectrometer (Waters Corporation, Milford, MA, USA). HRESIMS spectra were measured on a Thermo Scientific LTQ Orbitrap Elite high-resolution mass spectrometer (Thermo Fisher Scientific, Inc., Hudson, NH, USA). Silica gel (Qing Dao Hai Yang Chemical Group Co., Qingdao, China; 200–300 mesh), octadecylsilyl silica gel (Unicorn, Palarivattom, Kerala, India; 45 μm) and Sephadex LH-20 (GE Healthcare, Buckinghamshire, UK) were used for column chromatography. Precoated silica gel plates (Qing Dao Huang Hai Chemical Group Co., Qingdao, China; G60, F-254) were used for thin layer chromatography.

3.2. Strain Isolation, Taxonomic Classification and Endophyte Fermentation

The fungal strain SK11 was isolated from the root of Excoecaria agallocha from Shankou, Guangxi Province, China. It was identified as Alternaria sp. according to a molecular biological protocol by DNA amplification and sequencing of the ITS region (deposited in GenBank, accession No. EU807936). Voucher specimens are stored in the School of Chemistry and Chemical Engineering, Sun Yat-Sen University, Guangzhou, China, with the access code, SK11. The fungal strain was cultivated in potato glucose liquid medium (15 g glucose and 3 g sea salt in 1 L potato infusion) in 1 L Erlenmeyer flasks, each containing 300 mL of culture broth, at 26 °C without shaking for 4 weeks.

3.3. Extraction and Separation of Metabolites

The culture (100 L) was filtered to separate the culture broth from the mycelia. The culture broth was extracted three times with an equal volume of EtOAc. The combined EtOAc layers were evaporated to dryness under reduced pressure to give an EtOAc extract (20.5 g), which was subjected to silica gel column chromatography (CC) (petroleum ether, EtOAc v/v, gradient) to generate six fractions (Fr. 1–6). Fr. 5 was isolated by CC on silica gel eluted with methylene chloride-MeOH, then subjected to Sephadex LH-20 CC eluting with MeOH and further purified by using an ODS semi-preparative column eluted with 45%–65% MeOH–H2O to obtain Compounds 1 (2.1 mg) and 2 (4.5 mg).

Compound 1: Red powder (MeOH); Marinedrugs 12 02953 i001 +40° (c 0.02, EtOH); UV (MeOH) λmax 362.2, 288.8, 248.6, 220.4 nm; CD (MeOH) Δε355 (−3.3), Δε293 (+8.8), Δε254 (−5.1), Δε235 (+1.6), Δε210 (−18.6) cm2 mol−1; IR (KBr) νmax 3432, 2916, 2857, 1653, 1437, 1383, 1077, 480 cm1; For 1H, 13C and 2D NMR spectroscopic data, see Table 1; HRESIMS m/z = 611.1793 (calcd. for C31H31O13, 611.1759).

Compound 2: Orange powder (MeOH); Marinedrugs 12 02953 i001 +75° (c 0.02, EtOH), Marinedrugs 12 02953 i002 +208° (c 0.02, EtOH); UV (MeOH) λmax 314.6, 280.4, 256.8, 226.4 nm; CD (MeOH) Δε285 (−23.9), Δε259 (+22.2), Δε245 (+12.2), Δε233 (+25.1), Δε218 (−39.5) cm2 mol−1; IR (KBr) νmax 3406, 2919, 2519, 1604, 1429, 1384, 1284, 1161, 1070, 878, 711, 613, 546, 483 cm−1; for 1H, 13C and 2D NMR spectroscopic data, see Table 2; HRESIMS m/z = 617.1335 (calcd. for C32H25O13, 617.1290).

3.4. Calculation of ECD Spectra

Molecular mechanics calculations were run with Spartan ′10 (Wavefunction, Inc., Irvine, CA, USA) with standard parameters and convergence criteria. DFT and TDDFT calculations were run with Gaussian 03 (Gaussian, Wallingford, CT, USA) with default grids and convergence criteria. TDDFT calculations were carried out by using the b3lyp/6-311++g(2d,p) or b3lyp/6-31++g(2d,p) method and included 10 single excited states in each case. The IEF-PCM solvent model for methanol was included in all cases. ECD spectra were generated using the programs, SpecDis 1.6 (University of Würzburg, Würzburg, Germany) and OriginPro 8.5 (OriginLab, Ltd., Northampton, MA, USA), by applying Gaussian band shapes with 0.16 eV exponential half-width from dipole-length rotational strengths. All calculations were performed with the High-Performance Grid Computing Platform of Sun Yat-Sen University.

3.5. Materials and Methods for mPTPB Assay

3.5.1. Cloning, Expression and Purification of MptpB

The full-length PTPB gene was amplified from genomic DNA of the Mtb H37Rv strain (School of Life Sciences, Sun Yat-Sen University: Guangzhou, China). PCR products were cloned in frame with an N-terminal His6 tag into the pET28a (+) vector (Novagen, Merck KGaA, Darmstadt, Germany). For protein expression, plasmids were transformed into Escherichia coli BL21(DH3) cells (Invitrogen, Thermo Fisher Scientific, Inc., Hudson, NH, USA) and grown in LB medium containing 50 μg/mL kanamycin at 37 °C till the OD600 of the solution was about 0.6. After the addition of 0.1 mM IPTG, the culture was grown for another 16 h at 20 °C. The cells were harvested by centrifugation at 5000 rpm for 5 min at 4 °C. The bacterial cell pellets were resuspended in the buffer containing 20 mM Tris, pH 7.9, 500 mM NaCl and 5 mM imidazole and were lysed by sonication on ice. Cellular debris was removed by centrifugation at 10,000 rpm for 30 min at 4 °C. The protein was purified from the supernatant using glutathione-Sepharose 4B (GE Healthcare, Buckinghamshire, UK), according to the manufacturer’s instructions. Protein concentration was determined using the Bradford dye binding assay (Bio-Rad Laboratories, Inc, Hercules, CA, USA), according to the manufacturer’s recommendations, with bovine serum albumin as the standard. The purified MptpB was stored in 30% glycerol at −20 °C.

3.5.2. MptpB Inhibition Assay

The inhibition assays were performed using the RediPlate 96 EnzChek Tyrosine Phosphatase Assay kit (Invitrogen, Thermo Fisher Scientific, Inc., Hudson, NH, USA) by monitoring the hydrolysis of the fluorogenic phosphatase substrate, 6,8-difluoro-methylumbelliferyl phosphate (DiFMUP), according to the manufacturer’s instruction. The IC50 value was determined at five different substrate concentrations by non-linear regression fitting of the inhibitor concentration vs. inhibition rate. All measurements were done in triplicate from two independent experiments. The reported IC50 was the average value of two independent experiments.

4. Conclusions

Alternaria sp. (SK11), an endophytic fungus from the South China Sea, was proven as a prolific producer of bioactive metabolites. Eight compounds were isolated from this fungal strain, including two alterporriol-type dimers, the relative and absolute configurations of which were established by using spectral and theoretical methods. The novel compound, alterporriol S (1), was the first member of alterporriols with a unique C-10−C-2′ linkage [20,22,23,26,27,28,29,30,31,32,33]. Anthranoid dimers consisting of such a coupling type could only be found in a small population of terrestrial plants [14,15,34,35,36,37,38,39,40,41,42,43] and marine animal [44]; this was the first report of a fungus origin. In the bioassay, (+)-aS-alterporriol C (2) showed strong inhibitory activity against MptpB, which indicated that it could represent a new type of lead compounds for the development of new anti-tuberculosis drugs. The in vitro inhibition, crystallization, in vivo racemization rates and ADMET (absorption, distribution, metabolism, excretion and toxicity) properties of atropisomers are frequently attributed to their axial configuration [45]. We determined the configuration of chiral axis in 2 as aS for the first time, and the ultimate assignment of the chiral centers may require the use of an alternative technique, like vibrational circular dichroism [46].

Supplementary Files

  • Supplementary File 1:

    PDF-Document (PDF, 1589 KB)

  • Abbreviation

    CAM–B3LYPCoulomb Attenuating Method based on B3LYP
    CCSD(T)Coupled-Cluster Singles and Doubles (Triple)
    IEF-PCMIntegral-Equation-Formalism Polarizable Continuum Model
    ITSInternal Transcribed Spacer
    SVPSplit Valence plus Polarization
    ZINDO/S-CIZerner’s Intermediate Neglect of Differential Overlap-Spectroscopic-Configuration Interaction


    We thank the National Natural Science Foundation of China (41276146, 41376149), the 863 Foundation of China (2011AA09070201), the Science and Technology Plan Project of Guangdong Province of China (2010B030600004, 2011A080403006), the Special Financial Fund of Innovative Development of Marine Economic Demonstration Project (GD2012-D01-001) and China’s Marine Commonweal Research Project (201305017) for generous support. We also thank the High-Performance Grid Computing Platform of Sun Yat-Sen University for the support of our computational chemistry research.

    Author Contributions

    Conceived and designed the experiments: Zhigang She, Lan Liu, Yongjun Lu, Yongcheng Lin, Guoping Xia, Jia Li. Performed the experiments: Guoping Xia, Jia Li, Shao’e Lin, Lei He. Analyzed the data: Guoping Xia, Jia Li, Shao’e Lin, Hanxiang Li, Yuhua Long. Wrote the paper: Guoping Xia, Hanxiang Li. Read and approved the final manuscript: Zhigang She, Lan Liu, Yongjun Lu, Yongcheng Lin.

    Conflicts of Interest

    The authors declare no conflict of interest.
