Open AccessArticle
Sensors 2016, 16(2), 221; doi:10.3390/s16020221

Comparison of Thermal Detector Arrays for Off-Axis THz Holography and Real-Time THz Imaging

1
Reliability Science and Technology Laboratory, Empa, Überlandstrasse 129, CH-8600 Dübendorf, Switzerland
2
Institute of Applied Physics, University of Bern, Sidlerstrasse 5, CH-3012 Bern, Switzerland
3
SwissFEL Laser Group, Paul Scherrer Institute, CH-5232 Villigen PSI, Switzerland
*
Author to whom correspondence should be addressed.
Received: 23 December 2015 / Accepted: 2 February 2016 / Published: 6 February 2016
(This article belongs to the Special Issue Infrared and THz Sensing and Imaging)
View Full-Text   |   Download PDF [4731 KB, uploaded 19 February 2016]   |

Abstract

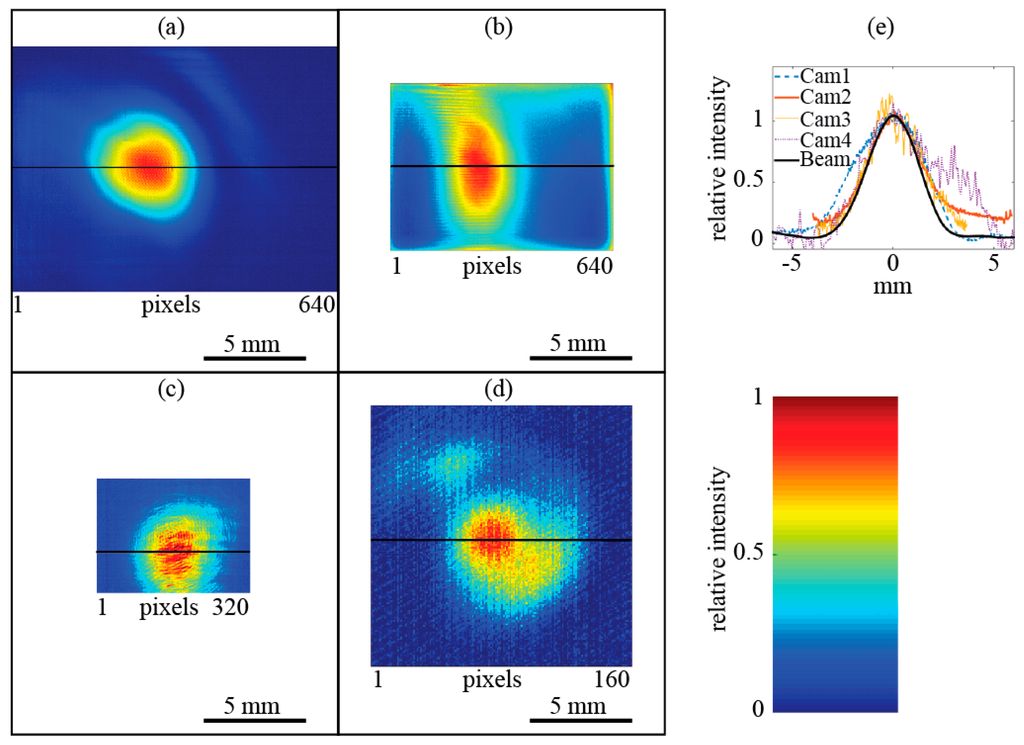

In terahertz (THz) materials science, imaging by scanning prevails when low power THz sources are used. However, the application of array detectors operating with high power THz sources is increasingly reported. We compare the imaging properties of four different array detectors that are able to record THz radiation directly. Two micro-bolometer arrays are designed for infrared imaging in the 8–14 μm wavelength range, but are based on different absorber materials (i) vanadium oxide; (ii) amorphous silicon; (iii) a micro-bolometer array optimized for recording THz radiation based on silicon nitride; and (iv) a pyroelectric array detector for THz beam profile measurements. THz wavelengths of 96.5 μm, 118.8 μm, and 393.6 μm from a powerful far infrared laser were used to assess the technical performance in terms of signal to noise ratio, detector response and detectivity. The usefulness of the detectors for beam profiling and digital holography is assessed. Finally, the potential and limitation for real-time digital holography are discussed. View Full-Text
Keywords: terahertz; digital holography; array detector; micro-bolometer; pyroelectric detector; real time imaging terahertz; digital holography; array detector; micro-bolometer; pyroelectric detector; real time imaging
Figures
