Int. J. Mol. Sci. 2009, 10(7), 2986-2998; doi:10.3390/ijms10072986

Article
Organic Analysis of Peridotite Rocks from the Ashadze and Logatchev Hydrothermal Sites
Marie-Paule Bassez 1,*, Yoshinori Takano 2 and Naohiko Ohkouchi 2
1
Département Chimie, IUT, Université de Strasbourg, 72 route du Rhin, 67400 Illkirch, France
2
Institute of Biogeosciences, Japan Agency for Marine-Earth Science and Technology (JAMSTEC), 2–15 Natsushima, Yokosuka 237-0061, Japan
*
Author to whom correspondence should be addressed
Received: 11 April 2009; in revised form: 27 June 2009 / Accepted: 1 July 2009 / Published: 3 July 2009

Abstract

:
This article presents an experimental analysis of the organic content of two serpentinized peridotite rocks of the terrestrial upper mantle. The samples have been dredged on the floor of the Ashadze and Logatchev hydrothermal sites on the Mid-Atlantic Ridge. In this preliminary analysis, amino acids and long chain n-alkanes are identified. They are most probably of biological/microbial origin. Some peaks remain unidentified.
Keywords:
origin of life; prebiotic synthesis; organic geochemistry; physical-chemistry; exobiology

1. Introduction

The origin of terrestrial life is not yet understood. An accepted hypothesis is that a transition occurred between a molecular prebiotic evolution and a biological evolution and that prebiotic organic matter could have been delivered to Earth within carbonaceous chondrite meteorites, such as the CM2 Murchison meteorite.
At the bottom of the terrestrial oceans, where tectonic forces separate the lithospheric plates along mid-ocean ridges, the ultramafic rocks of the upper-mantle, the peridotites, are exposed to circulating seawater [1]. They encounter various physico-chemical conditions and the hydrolysis of their silicate constituents, the olivine and pyroxenes minerals, into serpentine, occur at different degrees of serpentinization depending on the characteristics of the medium: temperature, pressure, oxygen fugacity, nature and composition of the fluid phase, fluid flux, pH, rock composition, water:rock ratio [2]. The Mid-Atlantic-Ridge, MAR, is covered with several hydrothermal sites and presents black smoker activity. The active Logatchev site, 14° 45′N–43′N, at a water depth of 2,970 m and the active Ashadze site (12° 58′N, 4,080 m) are located on an ultramafic geological environment of serpentinized peridotite rocks, while the Krasnov site (16° 38′N), discovered with the Ashadze site during the 2007 French-Russian Serpentine cruise [3] is inactive and located on a basaltic environment. Ultramafic environments seem enriched in Cu and Zn content compared to the basaltic ones [3].
The Logatchev hydrothermal vent fluids originate from the interaction between the underlying peridotite rocks and seawater. They have been previously analyzed [4]. The H2 concentration is 12 mmol/wkg (data from 1996) and 19 mmol/wkg (data from 2005) and the analyses made in 1996, 2004 and 2005 show a stable composition of the fluids. The analyses of the Ashadze vent fluids [5] also show a great amount of H2. Both these vent fluids, as those of the Rainbow site (36° 14′N on the MAR, 2,300 m) also contain significant amounts of CO2, CH4, N2, CO. Their pH is acidic ~3–4, the temperature of their fluids is ~310-370 °C and the detected saturated hydrocarbons, carboxylic acids and methyl esters in the fluids have been proposed of either abiogenic origin or not [5,6].
An accepted hypothesis to explain the occurence of the carbon-based organic compounds in the fluids is the synthesis of these molecules in the context of catalytic Fischer-Tropsch Type (FTT) reactions involving hydrothermal CO2. The dihydrogen, formed during the hydrolysis of the peridotite terrestrial rocks, which contain ferrous iron-rich minerals, olivine and pyroxenes, could react with hydrothermal CO2, to form methane and saturated hydrocarbons. Hydrocarbons have been synthesized during experimental serpentinization of olivine at 300 °C and 500 bar [7] and methane, ethane and propane were synthesized at 390 °C and 400 bar in an experiment catalyzed with Cr2O3 in combination with FeO [8]. A more recent experiment, at 200 °C and 500 bar, simulating subseafloor serpentinization produced significant amounts of dissolved H2 when artificial seawater reacted with a peridotite rock composed of 62% olivine, 26% orthopyroxene and 10% clinopyroxene. Even during the early stages of the reaction, ~25 mmol/kg of water are produced after 2,000 h of experiment and 77 mmol/wkg after 8,000 h [9]. Experiments conducted at 250 °C and 325 bar on an aqueous solution of formic acid (HCOOH) in the presence of Fe produced a series of n-alkanes with typical FTT distribution. Volatile hydrocarbons (C1–C6), magnetite (Fe3O4) and siderite FeCO3 were also detected [10]. FTT mechanism can be invoked since hydrothermal Fe reacts with water to form magnetite and H2 and formic acid decomposes into CO2 and H2.
The exact factors that control the hydrolysis of peridotite remain unknown. Calculations considering the thermodynamics of fluid mixing between hydrothermal fluids containing dissolved CO2 and H2 at 350 °C, and seawater containing bicarbonate at 2 °C, led to the organic synthesis of carboxylic acids, alcohols, ketones [11]. These calculations depend on the fugacity of O2. They show that the oxidation state of ultramafic rocks, driven by the equilibrium of the FMQ, fayalite-magnetite-quartz mineral assemblage, lead to a lower oxygen fugacity and a greater potential for organic synthesis than for the PPM, pyrrhotite-pyrite-magnetite assemblage. Numerical models, considering a rock composed of 80 wt% olivine, 15 wt% orthopyroxene and 5 wt% clinopyroxene predict that, at 35 MPa, a peak production of H2 (a few hundred mmol/kg) occurs approximately at temperatures of 200–315 °C. These models also predict a decrease in pH from ~11 to ~6, when the temperature increases from 50 °C to 400 °C, with pH values of ~9 around 150 °C and ~8 around 200 °C [12].
Analyses of hydrothermally altered peridotites drilled between 14°N and 16°N on the Mid-Atlantic Ridge (MAR) between 1,800 and 4,000 m depth have been reported [13]. They suggest that extensive serpentinization processes occur at all sites and that the transformation of the mineral olivine into serpentine, magnetite and brucite with release of H2 is favored at temperatures below 250 °C, while pyroxene is replaced by talc and tremolite above 350–400 °C [2,13], where olivine is stable. The latitude of these drillings corresponds to the area of the hydrothermal sites Logatchev, Ashadze and Krasnov.
Several experiments have demonstrated the production of hydrothermal organic matter including nitrogen atoms at various temperatures, 100–400 °C, and pressures and with various starting compounds [1420 and Ref. therein]. A gas mixture of methane and dinitrogen above simulated seawater under ~8 MPa at room temperature was heated to 325 °C. Amino acids were extracted after acid hydrolysis of the products [15]. In experiments conducted at 150 °C and 1 MPa with HCN, CH2O, NH3 in the presence of the PPM redox buffer, amino acids were also detected [16]. Their yields were higher than in previous gaseous spark discharge experiments [14]. Di- and triglycine were synthesized in a flow reactor under 24.0 MPa at 200 °C–250 °C with consecutive quenching at 0 °C. The presence of copper ions seemed to help synthesize tetraglycine [17]. Using a supercritical water flow reactor with temperature control inside the fluids, it is suggested that condensates of glycine, which yielded amino acids after hydrolysis, formed even in supercritical water at 400 °C, under 25 MPa pressure [18]. When an aqueous mixture of ten amino acids was heated at 200–400 °C, the acid hydrolysis of the products led to a higher content in glutamic acid and α-amino acids, such as α-aminobutyric acid, 5-aminovaleric acid and 6-aminohexanoic acid than in α-amino acids even over supercritical conditions of water suggesting that α-amino acids could be chemical markers of abiotic hydrothermal systems [18]. Reviews report the various conditions of amino acid syntheses [1921 and Ref. therein].
Recent calculations using measured data of the Rainbow hydrothermal site, show that an abiotic synthesis of the five nucleobases and of the two sugars from formaldehyde and hydrogen cyanide is thermodynamically favored between 0 °C and 150–250 °C [22 and Ref. therein].
Some similarities with the Murchison meteorite can be noticed. The Murchison mineral structure is dominated with a phyllosilicate (serpentine) matrix which contains minerals such as olivine, pyroxenes, calcium carbonates, iron oxides (magnetite), iron-nickel sulfides and sulfates [2325]. It has been altered by water, by heat, by pressure shock waves, by short-lived radionuclides [26,27]. The transformation of olivine and pyroxene chondrules seems to grow with the extent of mineral hydrolysis and the formation of water-soluble organic compounds is described at temperatures below ~125 °C [28,29]. Aside from any terrestrial contamination, all the classes of organic molecules considered of biological relevance are identified [3032 and Ref. therein] and also non-terrestrial amino acids and enantiomeric excesses [3335].
Several hypotheses are proposed for the production of meteoritic organic matter, either solar-nebula processes or secondary processes which occurred after the accretion, on asteroidal parent bodies [3539, 23, 4046 and Ref. therein]. Among these are FTT reactions; ion-molecule and radical-radical reactions; γ-, proton- and UV-irradiation; Strecker’s type reactions involving aqueous processing of simple molecules such as H2O, HCN, H2CO and NH3; internal heating of the parent body produced by the radioactive decay of short-lived nuclides. Although quite significant amounts of glycine are detected in the Murchison meteorite, no ascertained interstellar glycine has yet been identified since its first observational report in 1979 [47] suggesting that molecules formed in the interstellar medium, ISM, underwent further processing. It has been suggested that the primary products from proton irradiation of a mixture of CO, N2/NH3, H2O are amino acid precursors, molecules that provide amino acids after acid hydrolysis [36,38]. Amino acids recovered after acid hydrolysis of products obtained in vacuum UV-photolysis of H2O, CO, CO2, CH3OH, CH4, NH3, simulating the ISM, do not match the Murchison meteorite distribution, suggesting that the organic molecules found in the meteorite parent bodies experienced contact with water [46]. Indeed, it has been demonstrated that bound amino acids in aqueous solution exposed to γ- and UV- rays are much more photostable than the corresponding free amino acids [39].
Thus, it seems consequently plausible to imagine that the H2, released during the serpentinization processes of the peridotite terrestrial rocks, could react with the CO2 embedded inside the rock, to form methane and saturated hydrocarbons, in the context of catalytic reactions involving hydrothermal CO2. The simple molecules H2O, H2, CO2, CH4, would be present as a consequence of mineral reactions of the terrestrial peridotites with seawater and, with the N2 of the environment and with an activation source such as gamma rays, they could form the simple organic molecules of biological relevance [4850,22,51 and Ref. therein].
These reactions could occur at temperatures ~150–200 °C, where olivine transforms into serpentine, magnetite and brucite with the release of H2. At these temperatures, combined with the pressures encountered at the hydrothermal sites, many compounds are in their supercritical state and peculiar chemistry can occur. In this IJMS issue on the Origin of Life, syntheses of amino acids in a mixture of supercritical CO2-liquid water (10:1) starting with hydroxylamine hydrochloride and pyruvic or glyoxylic acid are reported [52]. A hypothesis for the origin of the living systems could consequently be found at the bottom of the oceans, in ultramafic hosted hydrothermal systems, where tectonic plates separate to leave the upper mantle rock reacts with seawater to form hydrothermally altered peridotites and lead to the necessary molecules for life to emerge.
In this hypothesis, serpentinized peridotite rocks located on hydrothermal sites could contain organic molecules. Here we report organic analyses made on two peridotite rocks of Ashadze (12° 58′N, 4,080 m) and Logatchev (14° 43′N, 2,970 m) hydrothermal sites in the Mid-Atlantic Ridge. The samples have been dredged on the seafloor in march 2007, during the French-Russian Ifremer Serpentine cruise [53]. These organic analyses provide the first observations of organic compounds in the serpentinized peridotite rocks of Ashadze and Logatchev hydrothermal sites. They are reported here for the first time.

2. Experimental Methods

The analyses have been carried out in the Institute of Biogeosciences of the Japan Agency for Marine-Earth Science and Technology, in Yokosuka. The rock sample was pre-washed by ultra-pure methanol to eliminate possible exogenous compounds from the external surfaces. An aliquot of dried and grounded sample powder (ca 0.5 g) was dispensed into 16 x 100 mm reaction vials with PTFE-lined caps and acid hydrolyzed with 6 M HCl at 110 °C for 12 h. Non-polar fraction was extracted by liquid/liquid separation in HCl solution and 2.0 mL of a hexane/dichloromethane (6:5, v/v) mixture in two portions. The hexane/dichloromethane fraction was recovered and dried under a gentle nitrogen flow, and then 200 μL of dichloromethane was added to the final non-polar fraction.
Another procedure was used for the polar fraction, especially for amino acids. After drying the hydrolysis residue under N2 flow, the samples were adjusted to pH 1 with 0.1 M HCl, and the amino acid fraction was isolated with cation-exchange column chromatography. The purification of amino acid fractions via application to an AG-50W-X8 (200–400 mesh; Bio-Rad Laboratories) cation exchange resin column was performed by the procedure described earlier [46]. Briefly, a slurry of resin in deionized water was poured into a disposable glass pipette column plugged with quartz wool. Before the injection of the sample to the column, the resin was cleaned by passing three bed volumes (resin/carrier, 1:3, v/v) of 1 M HCl, H2O, 1 M NaOH, and H2O through the column in succession (i.e., 2 mL of AG50 resin requires 6 mL of 1 M HCl for the first prewash). Immediately before the injection of the sample, the resin was reactivated to the H+ form with three bed volumes of 1 M HCl and then rinsed with three bed volumes of H2O. The sample solution was loaded and then eluted with three bed volumes of H2O to retain only the amino acid fraction. Finally, the amino acid fraction was eluted with three bed volumes of 10% NH3 aqueous solution, and then dried by nitrogen flow for the next derivatization procedure.
The esterification reaction was performed with 500 μL of a thionyl chloride/(S)-(+)-2-butanol mixture (1:4, v/v) at 110 °C for 2 h. After the solution had been cooled to ambient temperature, it was evaporated to dryness under a gentle nitrogen flow at ~80 °C. The acylation reaction was then performed with 500 μL of a pivaloyl chloride/dichloromethane mixture (1:1, v/v) at 110 °C for 2 h. After cooling, the solution was again evaporated to dryness with a gentle nitrogen flow at ~80 °C. The N-pivaloyl-(S)-2-butyl esters (NP/S2Bu) of the amino acid diastereomers [46] were extracted by liquid/liquid separation in 0.5 mL of distilled water and 1.0 mL of a hexane/dichloromethane (6:5, v/v) mixture for two times. The hexane/dichloromethane mixture fraction containing the NP/S2Bu esters was recovered and dried under a gentle nitrogen flow. Then, 200 μL of dichloromethane was added to the final fraction. The NP/S2Bu esters of the amino acid diastereomers (Figure 1) were identified by a gas chromatograph/mass spectrometry (GC/MS; Agilent Technologies 6890N/5973MSD). The capillary column used for GC was an HP-5 (30 m × 0.32 mm i.d., 0.52 μm film thickness; Agilent Technologies). The GC oven temperature was programmed as follows: initial temperature 40 °C for 4 min, ramped up at 10 °C min–1 to 90 °C, and ramped up at 5 °C min–1 to 220 °C, where it was maintained for 10 min. The MS was scanned over m/z of 50–550 with the electron-impact mode set at 70 eV. Optically active (S)-(+)-2-butanol (purity 99%; boiling point 99–100 °C) was obtained from Sigma-Aldrich Co. All glassware was heated at 450 °C for 4 h before use to eliminate any possible contaminants.

3. Results and Discussion

As seen in Figure 2, we identify a wide variety of amino acids including protein and non-protein amino acids. Among these, glycine and glutamic acid are more predominant than the others. Although non-proteinous amino acids such as sarcosine, beta-alanine (BALA) and gamma-aminobutyric acid (GABA) have been found as products in laboratory experiments simulating hydrothermal systems [15], in our experiment sarcosine is under detection limit and BALA and GABA are present as minor constituents. The peak at 17.9 min could not be identified. Figure 1 illustrates the mass spectrum of the N-pivaloyl-(S)-2-butyl esters obtained for the identification of the d- and l-alanine of the gas chromatogram (Figure 2). It corresponds to the retention times of the alanine peaks in the chromatogram.
For amino acids formed abiotically [15], the d/l ratio of amino acids converges to around 1. On the other hand, large enantiomeric excess of l-form amino acids may indicate that the amino acids are derived from sub-seafloor biogenic processes [54] or abiogenic racemization reaction during the pathway of stereochemical conversion via alpha-hydrogen elimination. The racemization of amino acid standards during 22 hours hydrolysis treatment ranged 0.5–1.3% for d-alanine generated from l-alanine [55]. Here, as seen in Figure 3a for the Ashadze peridotite rock, the molar fraction (%d- and %l-) of d-alanine: l-alanine in the serpentine sample is 15:85, hence D/L ratio is 0.18 and other amino acids are also l-form predominant. On Figure 3b the D/L ratios of the sedimentary amino acids, Ala, Asx (asparagine and aspartate) and Glx (glutamine and glutamate) shows the racemization process during early diagenesis as a function of depth over 10,000 years [56]. The similarities in the values on D/L ratios provide a plausible conclusion of a biological origin for the amino acids identified in the Ashadze peridotite sample and also for the Logatchev sample. Although the prokaryotic community in hydrothermal sediments of the Alvin zone location, ~3,500 m, near the TAG mound, ~26°N on the MAR, seems present with a low total cell count [57], we conclude in a biological origin for the identified amino acid peaks.
We also detect a long-chain n-alkane compound (< n-C28H58) in the non-polar fraction (Figure 4) under GC conditions up to 220 °C. Although we do not identify lipid compounds in this non-polar fraction, long-chain n-alkanes may have two origins. One can be fossilized past biota and/or present microbes which migrated within hydrothermal fluids and the other can be hydrothermally synthesized and/or altered organic molecules.
The GC/MS of the n-alkanes shows a decrease in intensity with increasing carbon number, which seems to be a characteristic of abiotic synthesis [10]. Recently, an abiogenic hydrocarbon production by FTT at Lost City hydrothermal field has been proposed wherever warm ultramafic rocks are in contact with water [58]. However, as discussed for the Suiyo Seamount, Izu-Bonin Arc, Pacific Ocean [54] and for the Lost City, Mid-Atlantic Ridge [59] hydrothermal systems, it is difficult to differentiate biotic/abiotic sources. An experimental analysis of the isotopic fractionation of the stable carbon-13 and carbon-12 elements in the organic compounds detected in the Ashadze and Logatchev samples would, as it is widely thought, indicate if these organic compounds derive from microbial decomposition or from an abiotic synthesis. However, it has been demonstrated in laboratory experiments conducted at 250 °C and 350 bar, that organic products, synthesized abiotically in FTT reactions, are depleted in 13C to a degree typically ascribed to biological processes [10]. These experiments indicate that the analysis of the carbon isotopic fractionation is an ineffective diagnostic to distinguish between abiotic and biotic origin of organic compounds. Consequently, we will not proceed to the carbon isotopic analysis of the rocks and we do not conclude yet in a biotic or abiotic origin for the identified n-alkanes.

4. Conclusions

This preliminary analysis of the organic composition of two peridotite rock samples dredged on the ocean floor of the Logatchev and Ashadze hydrothermal sites on the Mid-Atlantic Ridge allows the identification of amino acids and long-chain n-alkanes. Many peaks of the amino acid gas chromatograms remain unidentified. Further analyses need to be made with non terrestrial amino acids as references. Signals of abiotically formed organic compounds may be present with negligible intensity compared to the intensities of the identified biotical signals. Consequently, we conclude in a biotic origin for the identified amino acids but we do not exclude an abiotic origin for some amino acids which correspond to the not yet identified peaks. Especially because it is difficult to conclude anything about a biotic/abiotic origin for the n-alkanes, since carbon isotopic fractionation is inefficient in distinguishing these sources. It would be more appropriate to analyze samples which are drilled far beneath the ocean floor and which would be less exposed to biological contamination. That could be one goal of a next IODP (Integrated Ocean Drilling Program) cruise.

Acknowledgments

The authors thank Kensei Kobayashi (Yokohama National University) for discussions. They are sincerly grateful to Adélie Delacour and Mathilde Cannat from the Institut de Physique du Globe de Paris and to the Ifremer Serpentine 2007 cruise for giving them the two Logatchev and Ashadze peridotite rock samples. This research was partly supported by the Japan Society for the Promotion of Science (Y.T), and a Grant-in-Aid for Creative Scientific Research (19GS0211). Marie-Paule Bassez deeply acknowldges André Brack for his interest in the project and the french Exobiologie group for some financial support.

References

  1. Altérations hydrothermales de la lithosphère océanique. In Comptes Rendus Geosciences; Honnorez, J (Ed.) Elsevier: Paris, France, 2003; Volume 335, pp. 777–864.
  2. Mével, C. Serpentinization of abyssal peridotites at mid-ocean ridges. C. R. Geoscience 2003, 335, 825–852. [Google Scholar]
  3. Fouquet, Y; Cherkashov, G; Charlou, J; Ondreas, H; Cannat, M; Bortnikov, N; Silantiev, S; Etoubleau, J. Diversity of ultramafic hosted hydrothermal deposits on the Mid Atlantic Ridge: First submersible studies on Ashadze, Logatchev 2 and Krasnov vent Fields during the Serpentine cruise. AGU Fall Meeting, San Francisco, CA, USA, 10–14 December 2007. Abstract T51F–03.
  4. Schmidt, K; Koschinsky, A; Garbe-Schönberg, D; de Carvalho, LM; Seifert, R. Geochemistry of hydrothermal fluids from the ultramafic-hosted Logatchev hydrothermal field, 15°N on the Mid-Atlantic Ridge: Temporal and spatial investigation. Chem. Geolog 2007, 242, 1–21. [Google Scholar]
  5. Charlou, J; Donval, J; Konn, C; Birot, D; Sudaikov, S; Jean-Baptiste, P; Fouquet, Y. High hydrogen and abiotic hydrocarbons from new ultramafic hydrothermal sites between 12°N and 15°N on the Mid Atlantic Ridge-results of the Serpentine cruise (march 2007). AGU-Fall Meeting, San Francisco, CA, USA, 10–14 December 2007. Abstract T51F–04.
  6. Konn, C; Charlou, JL; Donval, JP; Holm, NG; Dehairs, F; Bouillon, S. Hydrocarbons and oxydized organic compounds in hydrothermal fluids from Rainbow and Lost City ultramafic-hosted vents. Chem. Geolog 2009, 258, 299–314. [Google Scholar]
  7. Berndt, ME; Allen, DE; Seyfried, WE, Jr. Reduction of CO2 during serpentinization of olivine at 300 °C and 500 bar. Geology 1996, 24, 351–354. [Google Scholar]
  8. Foustoukos, DI; Seyfried, WE, Jr. Hydrocarbons in hydrothermal vent fluids: the role of chromium-bearing catalysts. Science 2004, 304, 1002–1005. [Google Scholar]
  9. Seyfried, WE, Jr; Foustoukos, DI; Fu, Q. Redox evolution and mass transfer during serpentinization: An experimental and theoretical study at 200 °C, 500 bar with implications for ultramafic-hosted hydrothermal systems at Mid-Ocean Ridges. Geochim. Cosmochim. Acta 2007, 71, 3872–3886. [Google Scholar]
  10. McCollom, TM; Seewald, JS. Carbon isotope composition of organic compounds produced by abiotic synthesis under hydrothermal conditions. Earth Planet. Sci. Lett 2006, 243, 74–84. [Google Scholar]
  11. Shock, LE; Schulte, MD. Organic synthesis during fluid mixing in hydrothermal systems. J. Geophys. Res 1998, 103, 28513–28527. [Google Scholar]
  12. McCollom, T; Bach, W. Thermodynamic constraints of hydrogen generation during serpentinization of ultramafic rocks. Geochim. Cosmochim. Acta 2009, 73, 856–875. [Google Scholar]
  13. Bach, W; Garrido, CJ; Paulick, H; Harvey, J; Rosner, M. Seawater-peridotite interactions: First insights from ODP Leg 209, MAR 15°N. Geochem. Geoph. Geosyst 2004, 5, 1–22. [Google Scholar]
  14. Miller, SL; Orgel, LE. The Origin of Life on the Earth; Prentice-Hall: Englewoods Cliffs, NJ, USA, 1974. [Google Scholar]
  15. Yanagawa, H; Kobayashi, K. An experimental approach to chemical evolution in submarine hydrothermal systems. Orig. Life Evol. Biosphere 1992, 22, 147–159. [Google Scholar]
  16. Holm, NG; Andersson, EM. Abiotic synthesis of organic compounds under the conditions of submarine hydrothermal systems: a perspective. Planet. Space Sci 1995, 43, 153–159. [Google Scholar]
  17. Imai, E; Honda, H; Hatori, K; Brack, A; Matsuno, K. Elongation of oligoeptides in a simulated submarine hydrothermal system. Science 1999, 283, 831–833. [Google Scholar]
  18. Islam, MN; Kaneko, T; Kobayashi, K. Reaction of amino acids in a supercritical water-flow reactor simulating submarine hydrothermal systems. Bull Chem Soc Jpn 2003, 76, 1171–1178. [Google Scholar]
  19. Simoneit, BRT. Prebiotic organic synthesis under hydrothermal conditions: an overview. Adv. Space Res 2004, 33, 88–94. [Google Scholar]
  20. Pascal, R; Boiteau, L; Commeyras, A. From the prebiotic synthesis of α-amino acids towards a primitive translation apparatus for the synthesis of peptides. Top. Curr. Chem 2005, 259, 69–122. [Google Scholar]
  21. Zaia, DAM; Zaia, TBV; De Santana, H. Which amino acids should be used in prebiotic chemistry studies? Orig. Life Evol. Biosphere 2008, 38, 469–488. [Google Scholar]
  22. LaRowe, DE; Regnier, P. Thermodynamic potential for the abiotic synthesis of adenine, cytosine, guanine, thymine, uracil, ribose and desoxyribose in hydrothermal systems. Orig. Life Evol. Biosphere 2008, 38, 383–397. [Google Scholar]
  23. Brearley, AJ. Nebular versus parent-body processing. In Meteorites, Comets and Planets Treatise on Geochemistry; Davis, AM, Ed.; Elsevier: Oxford, U.K, 2005; Volume 1. [Google Scholar]
  24. Zolensky, M; Barrett, R; Browning, L. Mineralogy and composition of matrix and chondrule rims in carbonaceous chondrites. Geochim. Cosmochim. Acta 1993, 57, 3123–3148. [Google Scholar]
  25. El Amri, C; Maurel, MC; Sagon, G; Baron, MH. The micro-distribution of carbonaceous matter in the Murchison meteorite as investigated by Raman imaging. Spectrochim. Acta A 2005, 61, 2049–2056. [Google Scholar]
  26. Zinner, E; Amari, S; Anders, E; Lewis, R. Large amounts of extinct 26Al in interstellar grains from the Murchison meteorite. Nature 1991, 349, 51–54. [Google Scholar]
  27. Carlson, RW; Boyet, M. Short-lived radionuclides as monitors of early crust-mantle differentiation on the terrestrial planets. Earth Planet Sci. Lett 2009, 279, 147–156. [Google Scholar]
  28. Bunch, TE; Chang, S. Carbonaceous chondrites: II. Carbonaceous chondrite phyllosilicates and light element geochemistry as indicators of parent body processes and surface conditions. Geochim. Cosmochim. Acta 1980, 44, 1543–1577. [Google Scholar]
  29. Schulte, M; Shock, E. Coupled organic synthesis and mineral alteration on meteorite parent bodies. Meteorit. Planet. Sci 2004, 39, 1577–1590. [Google Scholar]
  30. Botta, O; Bada, JL. Extraterrestrial organic compounds in meteorites. Surv. Geophys 2002, 23, 411–467. [Google Scholar]
  31. Gilmour, I. Structural and isotopic analysis of organic matter in carbonaceaous chondrites. In Meteorites, Comets and Planets Treatise on Geochemistry; Davis, AM, Ed.; Elsevier: Oxford, U.K., 2005; Volume 1, pp. 269–290. [Google Scholar]
  32. Martins, Z; Botta, O; Fogel, ML; Sephton, MA; Glavin, DP; Watson, JS; Dworkin, JP; Schwartz, AW; Ehrenfreund, P. Extraterrestrial nucleobases in the Murchison meteorite. Earth Planet. Sci. Lett 2008, 270, 130–136. [Google Scholar]
  33. Cronin, JR; Pizzarello, S. Enantiomeric excesses in meteoritic amino acids. Science 1997, 275, 951–955. [Google Scholar]
  34. Engel, MH; Macko, SA. The stereochemistry of amino acids in the Murchison meteorite. Precambrian Res 2001, 106, 35–45. [Google Scholar]
  35. Glavin, DP; Dworkin, JP. Enrichment of the amino acid L-isovaline by aqueous alteration on CI and CM meteorite parent bodies. Proc. Natl. Acad. Sci. USA 2009, 106, 5487–5492. [Google Scholar]
  36. Kobayashi, K; Kaneko, T; Saito, T; Ohima, T. Amino acids formation in gas mixtures by high energy particle irradiation. Orig. Life Evol. Biosph 1998, 28, 155–165. [Google Scholar]
  37. Kerridge, JF. Formation and processing of organics in the early solar system. Space Science Rev 1999, 90, 275–288. [Google Scholar]
  38. Takano, Y; Ohashi, A; Kaneko, T; Kobayashi, K. Abiotic synthesis of high-molecular-weight organics from an inorganic gas mixture of carbon monoxide, ammonia and water by 3 MeV proton irradiation. Appl. Phys. Lett 2004, 84, 1410–1412. [Google Scholar]
  39. Takano, Y; Kaneko, T; Kobayashi, K; Hiroishi, D; Ikeda, H; Marumo, K. Experimental verification of photostability for free- and bound amino acids exposed to γ-rays and UV irradiation. Earth Planets Space 2004, 56, 669–674. [Google Scholar]
  40. Bernstein, M. Prebiotic material from on and off the early Earth. Phil. Trans. R. Soc. B 2006, 361, 1689–1702. [Google Scholar]
  41. Ehrenfreund, P; Sephton, MA. Carbon molecules in space: from astrochemistry to astrobiology. Faraday Discuss 2006, 133, 277–288. [Google Scholar]
  42. Elsila, JE; Dworkin, JP; Bernstein, MP; Martin, MP; Sandford, SA. Mechanisms of amino acid formation in interstellar ice analogs. Astrophys. J 2007, 660, 911–918. [Google Scholar]
  43. Takano, Y; Takahashi, J; Kaneko, T; Marumo, K; Kobayashi, K. Asymmetric synthesis of amino acid precursors in interstellar complex organics by circularly polarized light. Earth Planet Sci Lett 2007, 254, 106–114. [Google Scholar]
  44. Exploring Organic Environments in the Solar System; The National Academies Press: Washington, D.C., USA, 2007.
  45. Cleaves, HJ. The prebiotic geochemistry of formaldehyde. Precambrian Res 2008, 164, 111–118. [Google Scholar]
  46. Nuevo, M; Auger, G; Blanot, D; d’Hendecourt, L. A detailed analysis of the amino acids produced after the vacuum UV irradiation of ice analogs. Orig. Life Evol. Biosph 2008, 38, 37–56. [Google Scholar]
  47. Brown, RD; Godfrey, PD; Storey, JW; Bassez, M-P; Robinson, BJ; Batchelor, RA; Mc. Culloch, MG; Rydbeck, OE; Hjalmarson, AJ. A search for interstellar glycine. Mon. Not. R astr. Soc 1979, 186, 5–8. [Google Scholar]
  48. Bassez, MP. La structure de l’eau supercritique et l’origine de la vie. In Science et Technologie: Regards Croisés; L’Harmattan: Paris, 1999; pp. 583–591. [Google Scholar]
  49. Takai, K; Nakamura, K; Suzuki, K; Inagaki, F; Nealson, KH; Kumagai, H. Ultramafics-Hydrothermalism-Hydrogenesis-HyperSLIME (UltraH3 microbial ecosystem in the Archean deep-sea hydrothermal systems. Paleontolog. Res 2006, 10, 269–282. [Google Scholar]
  50. Bassez, MP. Synthèse prébiotique dans les conditions hydrothermales. Comptes Rendus Chimie 2009, 12, 801–807. [Google Scholar]
  51. Aubrey, AD; Cleaves, HJ; Bada, JL. The role of submarine hydrothermal systems in the synthesis of amino acids. Orig. Life Evol. Biosph 2009, 39, 91–108. [Google Scholar]
  52. Fujioka, K; Futamura, Y; Shiohara, T; Hoshino, A; Kanaya, F; Manome, Y; Yamamoto, K. Amino acid synthesis in a supercritical carbon dioxide-water mixture. Int. J. Mol. Sci 2009, 10, 2722–2732. [Google Scholar]
  53. Delacour, A. Institut de Physique du Globe de Paris; Mineral composition of the Logatchev and Ashadze serpentine samples. Private communication 2008.
  54. Takano, Y; Kobayashi, K; Yamanaka, T; Marumo, K; Urabe, T. Amino acids in the 308 °C deep-sea hydrothermal system of the Suiyo Seamount, Izu-Bonin Arc, Pacific Ocean. Earth Planet Sci. Lett 2004, 219, 147–153. [Google Scholar]
  55. Amelung, W; Zhang, X. Determination of amino acid enantiomers in soils. Soil Biol. Biochem 2001, 33, 553–562. [Google Scholar]
  56. Takano, Y; Kobayashi, K; Ishikawa, Y; Marumo, K. Emergence of the inflection point on racemization rate constants for d- and l-amino acids in the early stages of terrestrial diagenesis. Org. Geochem 37, 334–341.
  57. Glynn, S; Mills, RA; Palmer, MR; Pancost, RD; Severmann, S; Boyce, AJ. The role of prokaryotes in supergene alteration of submarine hydrothermal sulfides. Earth Planet. Sci. Lett 2006, 244, 170–185. [Google Scholar]
  58. Proskurowski, G; Lilley, MD; Seewald, JS; Früh-Green, GL; Olson, EJ; Lupton, JE; Sylva, SP; Kelley, DS. Abiogenis hydrocarbon production at Lost City hydrothermal field. Science 2008, 319, 604–607. [Google Scholar]
  59. Delacour, A; Früh-Green, GL; Bernasconi, SM; Schaeffer, P; Kelley, DS. Carbon geochemistry of serpentinites in the Lost City hydrothermal system (30°N, MAR). Geochim. Cosmochim. Acta 2008, 72, 3681–3702. [Google Scholar]

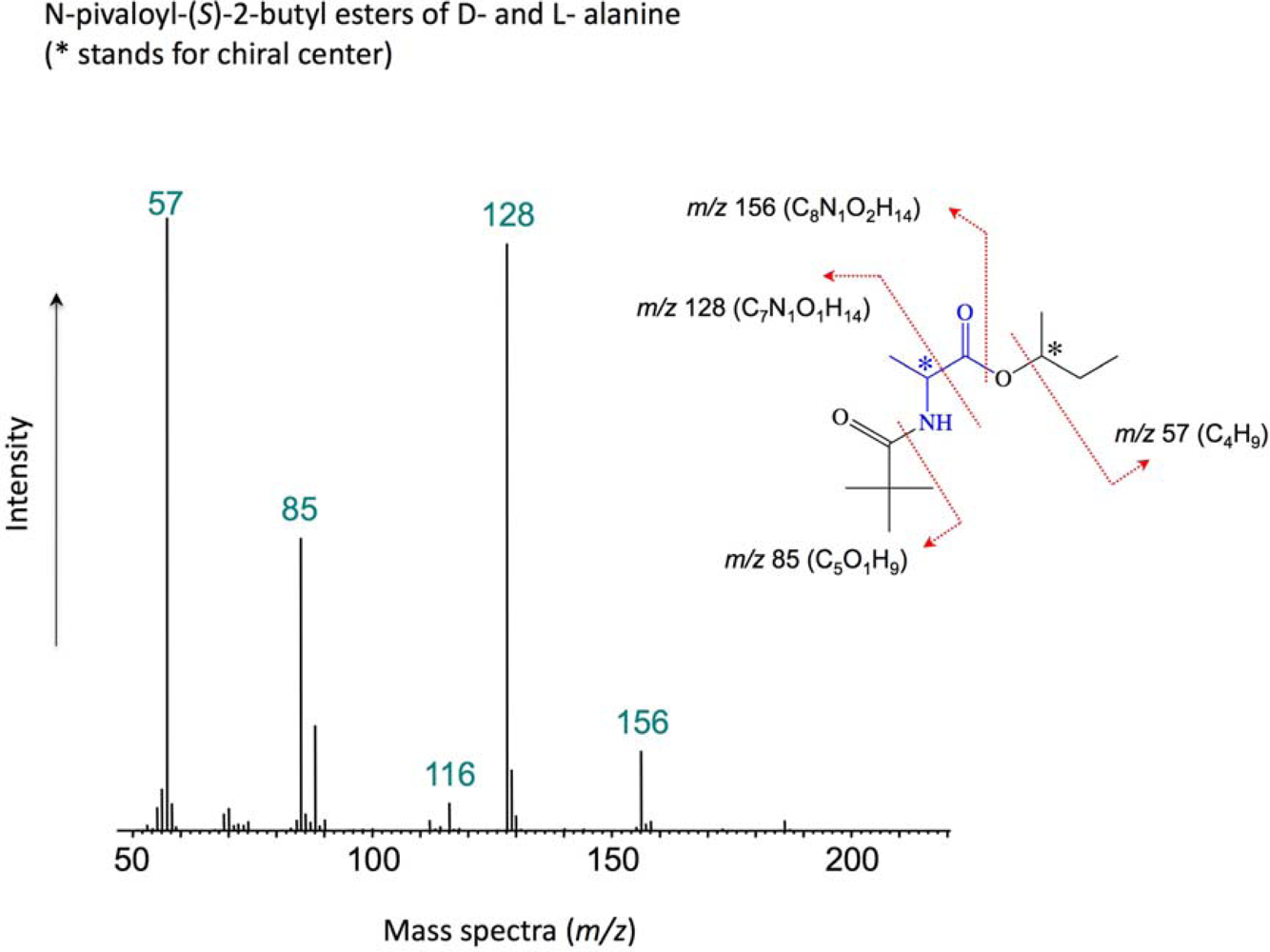

Figure 1. Mass fragment pattern of the N-pivaloyl-(S)-2-butyl esters of the d- and l-alanine diastereoisomers.
Figure 1. Mass fragment pattern of the N-pivaloyl-(S)-2-butyl esters of the d- and l-alanine diastereoisomers.
Ijms 10 02986f1

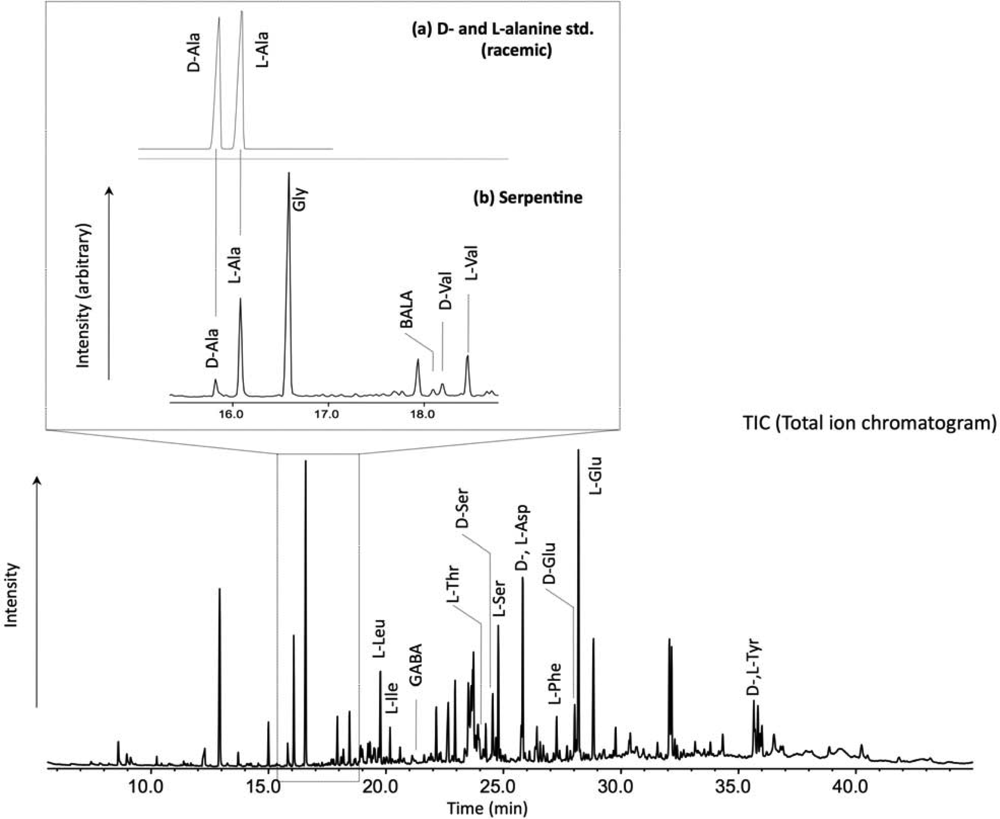

Figure 2. Representative chromatogram of chiral separation for d- and l-amino acids in polar fraction extracted from the Ashadze serpentinized peridotite rock sample by GC/MS analysis. Abbreviations: d-Ala, d-Alanine; l-Ala, l-Alanine; Gly, Glycine; BALA, beta-Alanine; d-Val, d-Valine; l-Val, l-Valine; l-Leu, l-Leucine; l-Ile, l-Isoleucine; GABA, gamma-aminobutyric acid; l-Thr, l-Threonine; d-Thr, d-Threonine; d-Ser, d-Serine; l-Ser, l-Serine; d-, l-Asp, d-, l-Aspartic acid; l-Phe, l-Phenylalanine; d-Glu, d-Glutamic acid; l-Glu, l-Glutamic acid; d-,l-Tyr, d-,l-Tyrosine.
Figure 2. Representative chromatogram of chiral separation for d- and l-amino acids in polar fraction extracted from the Ashadze serpentinized peridotite rock sample by GC/MS analysis. Abbreviations: d-Ala, d-Alanine; l-Ala, l-Alanine; Gly, Glycine; BALA, beta-Alanine; d-Val, d-Valine; l-Val, l-Valine; l-Leu, l-Leucine; l-Ile, l-Isoleucine; GABA, gamma-aminobutyric acid; l-Thr, l-Threonine; d-Thr, d-Threonine; d-Ser, d-Serine; l-Ser, l-Serine; d-, l-Asp, d-, l-Aspartic acid; l-Phe, l-Phenylalanine; d-Glu, d-Glutamic acid; l-Glu, l-Glutamic acid; d-,l-Tyr, d-,l-Tyrosine.
Ijms 10 02986f2

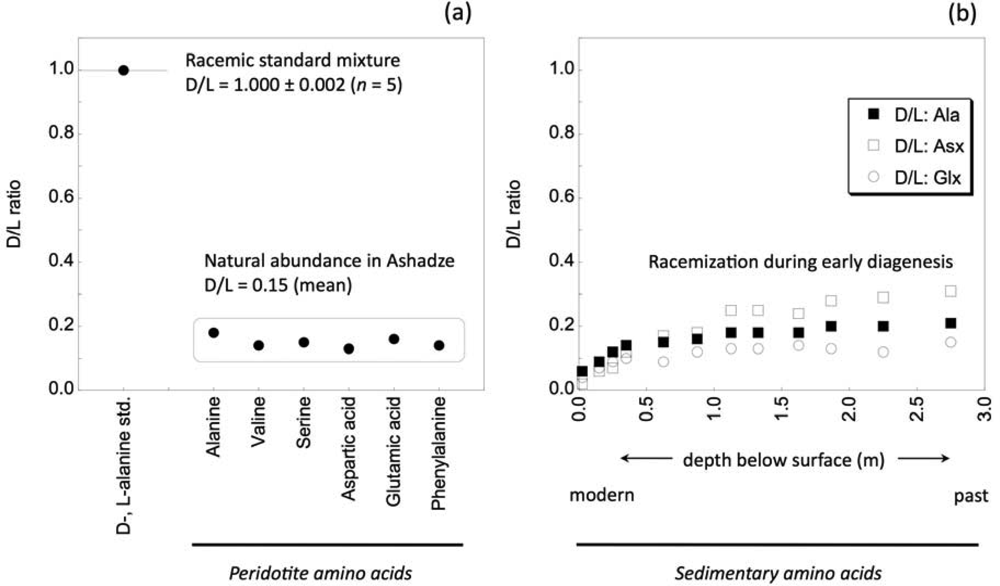

Figure 3. d/l amino acid ratios in the analysed Ashadze peridotite rock and in sedimentary rocks.: Ala (alanine), Asx (asparagine and aspartate) and Glx (glutamine and glutamate).
Figure 3. d/l amino acid ratios in the analysed Ashadze peridotite rock and in sedimentary rocks.: Ala (alanine), Asx (asparagine and aspartate) and Glx (glutamine and glutamate).
Ijms 10 02986f3

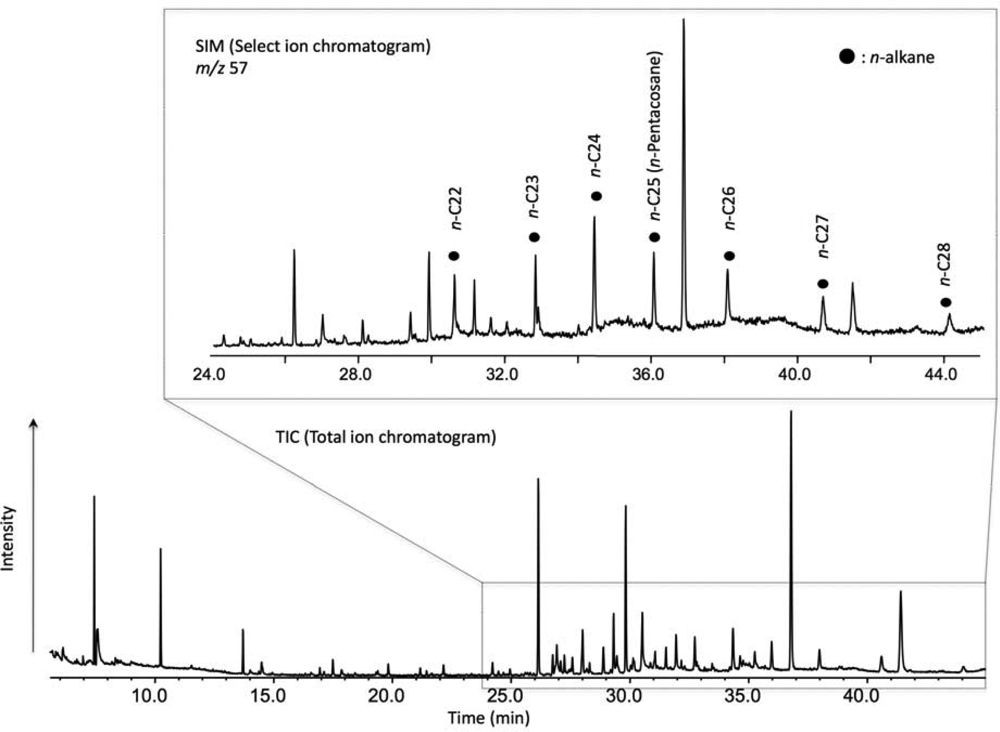

Figure 4. Representative chromatogram of hydrocarbons including n-alkanes in non-polar fraction of the Logatchev rock sample. Select ion monitoring (SIM) was also performed to identify n-alkane chain analogs.
Figure 4. Representative chromatogram of hydrocarbons including n-alkanes in non-polar fraction of the Logatchev rock sample. Select ion monitoring (SIM) was also performed to identify n-alkane chain analogs.
Ijms 10 02986f4
