Article

Growth of Fullerene Fragments Using the Diels-Alder Cycloaddition Reaction: First Step towards a C60 Synthesis by Dimerization

1
Departamento de Química, División de Ciencias Básicas e Ingeniería, Universidad Autónoma Metropolitana, Unidad Iztapalapa, A.P. 55-534, México, D.F., 09340, Mexico
2
Departamento de Física Teórica, Atómica y Óptica, Facultad de Ciencias, Universidad de Valladolid, E-47011Valladolid, Spain
*
Author to whom correspondence should be addressed.
Molecules 2013, 18(2), 2243-2254; https://doi.org/10.3390/molecules18022243
Submission received: 25 December 2012 / Revised: 20 January 2013 / Accepted: 5 February 2013 / Published: 13 February 2013
(This article belongs to the Special Issue Diels-Alder Reaction)

Abstract

:
Density Functional Theory has been used to model the Diels-Alder reactions of the fullerene fragments triindenetriphenilene and pentacyclopentacorannulene with ethylene and 1,3-butadiene. The purpose is to prove the feasibility of using Diels-Alder cycloaddition reactions to grow fullerene fragments step by step, and to dimerize fullerene fragments, as a way to obtain C60. The dienophile character of the fullerene fragments is dominant, and the reaction of butadiene with pentacyclopentacorannulene is favored.

Graphical Abstract

1. Introduction

After the discovery of C60 by Kroto et al. in 1985 [1], its chemical synthesis has been an intensely pursued target. Krätschmer et al. [2] developed in 1990 a technique to produce C60 based on the vaporization of graphite on a helium atmosphere, and later Scott and coworkers [3] synthesized C60 by the pyrolysis of the polycyclic aromatic hydrocarbon precursor C60H27Cl3. However, the chemical synthesis of C60 cannot be considered a solved problem [4] due to the inherent disadvantages of both techniques. In the first case, the low yield and the problems of separating and purifying the products make the fullerene synthesis inefficient and expensive [5]. In the second, the low yield problem can be solved by using a Pt catalyst [6], however, the pyrolytic treatment employed makes necessary the creation of new methodologies to synthesize fullerenes.
One particularly seductive and promising strategy is the polymerization of C60 fragments, especially the dimerization of two identical hemispherical hydrocarbons, C30Hx [7,8,9,10,11]. In this case the curvature is already present in the fragments, and the main challenge is to find a way to “stitch” the fragments together to give the closed fullerene. Obviously, the choice of those fragments is a key condition for the success of this methodology. Using “La Coupe du Roi” method [12], Geneste and coworkers [9] found nine isometric C30 fragments derived from C60, and they determined that the triindenetriphenilene and the pentacyclopentacorannulene fragments (labeled 1 and 2 in Figure 1, respectively) were the most stable fragments.
Recently, Scott and coworkers [13] have used the Diels-Alder (DA) cycloaddition reaction to synthesize carbon nanotubes in solution, with single chiralities and uniform diameters. Addition of an acetylene dienophile molecule to the bay regions on the rim of a buckybowl (a fragment of a buckyball acting as the end-cap of a nanotube), or an aromatic belt, leads to the nanotube growth by the formation of new six-membered rings [14]. They also calculated the activation energies for the addition of acetylene to different aromatic hydrocarbons and observed that the activation energy barrier decreases as the size of the hydrocarbon molecule increases. Moreover, they proposed the DA reaction of 7,14-dimesitylbisanthene and acetylene to experimentally probe the methodology, and concluded that the reaction was relatively easy under mild conditions. Latter they used a benzyne molecule as masked acetylene to achieve the addition of two rings at once [15]. This evidence suggested us the idea of using the DA cycloaddition reaction in the synthesis of C60. In this paper we describe the calculations that we have performed to study the DA cycloaddition reactions between fragments 1 and 2 with ethylene (e) and butadiene (b) molecules, because of the opportunity of forming new six-membered carbon rings in the rims of the two fragments. The study supports the feasibility of a systematic method to obtain fullerenes by DA cycloadditions to a starting fragment, and also suggests the possibility of assembling fullerenes by dimerization of fragments.

2. Results and Discussion

The structures of fragments 1 and 2 were analyzed and the regions that behave as a diene or a dienophile have been identified (see Figure 2). In fragment 1, these alternating regions are separated by one or two bonds, while in fragment 2 the regions are adjacent and share carbon atoms; this is clearly appreciated in the resonance structures 2a and 2b.
Based on the structure of fragments 1 and 2, we have studied two main reactions. In the first case the DA reaction is carried out with 1,3-butadiene as the diene and the fragments 1 or 2 as the dienophile (Figure 3, panels 1 and 2a). In the second case, the DA reaction is between ethylene as the dienophile and fragments 1 or 2 as the diene (Figure 3, panels 1 and 2b). We have also analyzed the preference for the addition on the concave (endo) or convex (exo) surfaces of the fragments.

2.1. Frontier Molecular Orbital Analysis

On the basis of Frontier Molecular Orbitals (FMO) theory [16,17], the Diels-Alder reaction proceeds through the interaction of the Highest Occupied Molecular Orbital (HOMO) of one of the molecules and the Lowest Unoccupied Molecular Orbital (LUMO) of the other molecule. When the interaction is between the HOMO of the diene and the LUMO of the dienophile, the reaction is called Normal Electron Demand Diels-Alder (NEDDA) reaction, and when the interaction is between the HOMO of the dienophile and the LUMO of the diene the reaction is called Inverse Electron Demand Diels-Alder (IEDDA) reaction [18]. As the energy difference between the two involved orbitals (HOMO-LUMO gap) decreases, the reaction should be easier.
Table 1 reports the energies of the HOMO and LUMO of the e and b molecules and the fragments 1 and 2, obtained from the canonical orbitals calculated at the HF/6-31G(d,p)// B3LYP/6-31G(d,p) level of theory. That is, the geometries were optimized at the B3LYP/6-31G(d,p) level and then a calculation at the HF/6-31G(d,p) level was performed to obtain the orbital energies of the canonical orbitals. These orbital energies are in good agreement with the HOMO and LUMO energies calculated by Park et al. [19] with the MP2 method [20]. Table 2 shows the HOMO-LUMO gaps for the NEDDA and IEDDA reactions, that is, ΔENEDDA = ELUMOdienophile − EHOMOdiene, and ΔEIEDDA = ELUMOdiene − EHOMOdienopile, and also the difference δΔE = ΔEIEDDA − ΔENEDDA. Values of δΔE < 0 indicate that an IEDDA reaction is preferred, and values of δΔE > 0 indicate the preference for a NEDDA reaction. The largest IEDDA and NEDDA HOMO-LUMO gaps occur for the reference reaction between e and b. The gaps for the reactions between fragments 1 and 2 with e and b are smaller, and consequently these reactions should be easier. In addition, the reactions of e or b with fragment 2 are preferred over the corresponding reactions with fragment 1. Moreover, the reactions of fragments 1 and 2 with b are favored over the corresponding reactions of fragments 1 and 2 with e.
We have also calculated the HOMO-LUMO gaps for the dimerization reaction between two fragments of type 1, and between two fragments of type 2 (see Figure 4). The values obtained, 8.66 eV and 7.85 eV, respectively, are lower than the values for the reactions shown in Table 2. This suggests that the dimerization reactions 1 + 1 and 2 + 2 should be possible, the dimerization of fragment 2 being preferred over the dimerization of fragment 1. Moreover, these values indicate that both dimerization reactions should be easier than the reaction between e and b. However, chemical reactions do not only depend on electronic effects [21], and an analysis of kinetic and thermodynamic factors is required for the complete understanding of the proposed reactions.

2.2. Kinetic and Thermodynamic Analysis

The transition state structures of the proposed reactions are shown in Figure 5, and the transition distances r1 and r2 are given in Table 3. Small values of Δr = r1 − r2 suggest synchronous reactions while large values of Δr suggest asynchronous reactions. The reactions of e onto the convex surface of fragments 1 and 2 will be the most asynchronous ones, followed by the reactions of b onto the concave and convex surfaces of fragment 1. The reaction of b onto the convex surface of fragment 2 will be fully synchronous (Δr = 0), as well as the reaction of e and b; moreover, the transition distances in both reactions are equal (2.27Å). This value is in good agreement with the values reported by Houk et al. [22] for the reaction between e and b.
Table 4 summarizes the calculated activation energies Ea, the standard activation Gibbs energies ΔGa, standard activation enthalpies ΔHa, and standard activation entropies ΔSa for the eight transition states of Figure 5, and for the reaction between e and b. The interactions with ethylene are favored on the concave surface of the fragments, while the reactions with butadiene are preferred on the convex surface. Butadiene, being a larger molecule, gives rise to steric effects that make the reaction over the concave surface difficult, leading thus to a lower activation barrier for the approach onto the convex surface. The calculated activation energy of reaction e+b is 24.82 kcal mol−1. Therefore, reactions with equal or lower activation energies should proceed easily. The reaction of b onto the convex surface of fragment 2 shows the lowest activation energy, 22.61 kcal mol−1, which means that this reaction would be possible under mild conditions. The activation energy for the same reaction on the concave surface is 8 kcal per mol higher, because of the steric repulsion between b and the electron cloud at the concave surface of the fragment. This makes the interaction difficult. All the other reactions have higher activation energies. Therefore, those reactions would require a larger amount of energy to proceed, and this could be translated into higher temperatures and pressures, which make the experimental conditions similar to those employed in the traditional synthesis methods. Considering the reactions of e and b with fragments 1 and 2, in general the reactivity trend predicted by FMO is similar to that derived from Ea, except for the relative ordering of the reactions of e with fragments 1 and 2. The reactions in which the fragment 2 acts as diene have higher Ea values compared to reactions in which the fragment 1 acts as diene. Following Scott’s ideas, we have also calculated the transition state for the reaction of fragment 2 with acetylene as the dienophile. The activation energy of this reaction, Ea = 40.07 kcal mol−1, is close to that of the reaction of fragment 2 with ethylene, and this suggests that the use of acetylene as a dienophile is not adequate for the growth of the fragment.
The Intrinsic Reaction Coordinate (IRC) determines the energy as well as the geometry of the reacting system [25,26]. The energy change along the IRC gives the potential barrier shape [27]. Figure 6 summarizes the IRCs of the proposed reactions. The analysis of the reaction mechanisms shows that the transition state structures (IRC = 0) leads to the DA cycloadducts in the forward direction and the reagents in the reverse direction without any evidence of intermediates or complex structures along the reaction paths (Figure 6). The IRC summarizes the trend predicted by FMO (except for the relative ordering of the reactions of e with fragments 1 and 2) and those derived from Ea.
The thermodynamic parameters for the reactions studied are collected in Table 5. All those reactions are entropically disfavored. The reactions of fragments 1 and 2 with b are exothermic (negative ΔHr), while the reactions with e are endothermic (positive ΔHr). Only the reference reaction e+b and the reactions between fragment 2 and b are spontaneous, having negative values of ΔGr. These reactions indicate the dienophilic character of fragment 2. This result reinforces the possibility of synthesizing larger fullerene fragments starting with fragment 2, and it also suggests the dimerization of fragment 2, that is, the reaction 2+2, as a promising method to produce C60.
Following the scheme proposed by Scott, we have studied the dehydrogenation reactions of the adducts formed by the Diels-Alder reactions. Dehydrogenation leads to the aromatization of the adducts. The dehydrogenation reactions are shown in Figure 7, and the standard Gibbs energies ΔGr, enthalpies ΔHr, and entropies TΔSr of reaction are given in Table 6. We observe that the reactions with fragment 2 are endothermic (positive ΔHr), except for the reaction with e onto the convex surface. On the other hand the reactions with fragment 1 are exothermic, with the exception of the reaction with e onto the concave surface. However, all the reactions are spontaneous (negative ΔGr) because of the strongly favorable entropy contribution (TΔSr ≈ 17 kcal mol−1). The values of ΔGr for the aromatization of the adducts formed in the reactions between e and fragments 1 and 2 over the convex surface are more negative because of the lower stability of those adducts.

3. Experimental

The calculations described in this work have been carried out with the Gaussian 03 (G03) program package [29]. The geometries were fully optimized at the B3LYP/6-31G(d,p) level of theory. This method and basis set have been widely used in the study of fullerene reactivity [30,31], leading to good agreement with geometrical parameters of fullerene fragments obtained by X-ray diffraction [32]. The methodology has proven to describe satisfactorily the DA cycloaddition reactions over fullerenes and fullerene fragments [33,34]. Therefore, the kinetic and thermodynamic parameters were calculated at the B3LYP/6-31G(d,p) level of theory as well. The transition states (TS) were located with the QST2 G03 optimization option of the code; for all of them, vibrational frequency analyses were carried out. A single imaginary frequency was located for each transition state. All frequencies are real for the minima. The electronic energies of minima and transition states were corrected by the inclusion of zero-point energies. The Intrinsic Reaction Coordinates (IRCs) were determined from the corresponding TS using the IRC G03 keyword. In each case the FORWARD and REVERSE sections were calculated independently.

4. Conclusions

The calculations performed show the feasibility of the Diels-Alder reaction as a method to increase the size of fullerene fragments step by step. We have studied the Diels-Alder reactions of ethylene and butadiene with two fragments, triindenetriphenilene (Fragment 1) and pentacyclopentacorannulene (Fragment 2). The Frontier Molecular Orbitals analysis indicates that the reactions in which the fullerene fragments behave as a dienophile are preferred, and this was confirmed by the kinetic and thermodynamic analysis. The transition states indicate that the interactions with ethylene are favored on the concave surface of the fragments, while the reactions with butadiene, a larger molecule, are preferred on the convex surface.
Even if fragment 1 is more stable than fragment 2 owing to its lower pyramidalization of the bonds, the most favorable addition reactions are those of butadiene with fragment 2. In this particular case, the activation barriers are lower than for other reactions, and in addition, the free energies of reaction are negative, in contrast with the positive values for other reactions. The negative values of the free energy for the dehydrogenation reactions of the adducts favor the growth of the fragments. Motivated by these results and others [35,36], experimental studies of the reactivity of the current systems are underway.

Acknowledgments

Work supported by MEC of Spain and the European Regional Development Fund (project MAT2011-22781), Junta de Castilla y León (project VA158A11-2) and CONACyT-México (project grants 180523 and 163234). M.M. acknowledges CONACyT-México for scholarship 228923. We are especially grateful to Hugo Jimenez for many discussions. We acknowledge LSCVP-UAMI-México for supercomputer time.

References

  1. Kroto, H.W.; Heath, J.R.; O’Brien, S.C.; Curl, R.F.; Smalley, R.E. C60: Bukminsterfullerene. Nature 1985, 318, 162–163. [Google Scholar] [CrossRef]
  2. Krätschmer, W.; Fostiropoulos, K.; Huffman, D.R. The infrared and ultraviolet absorption spectra of laboratory-produced carbon dust: Evidence of the presence of the C60 molecule. Chem. Phys. Lett. 1990, 170, 167–170. [Google Scholar] [CrossRef]
  3. Scott, L.T.; Boorum, M.M.; McMahon, B.J.; Hagen, S.; Mack, J.; Blank, J.; Wegner, H.; de Meijere, A. A rational synthesis of C60. Science 2002, 295, 1500–1503. [Google Scholar] [CrossRef] [PubMed]
  4. Scott, L.T.; Petrukhina, M.A. Preface. In Fragments of Fullerenes and Carbon Nanotubes: Designed Synthesis, Unusual Reactions and Coordination Chemistry; Scott, L.T., Petrukhina, M.A., Eds.; John Wiley & Sons: Hoboken, NJ, USA, 2012; pp. vii–x. [Google Scholar]
  5. Krätschmer, W.; Lamb, L.D.; Fostiropoulos, K.; Huffman, D.R. Solid C60: A new form of carbon. Nature 1990, 347, 354–358. [Google Scholar] [CrossRef]
  6. Otero, G.; Biddau, G.; Sánchez-Sánchez, C.; Caillard, R.; López, M.F.; Rogero, C.; Palomares, F.J.; Cabello, N.; Basanta, M.A.; Ortega, J.; et al. Fullerenes from aromatic precursors by surface-catalysed cyclodehydrogenation. Nature 2008, 454, 865–868. [Google Scholar] [CrossRef] [PubMed]
  7. Scott, L.T. Methods for the chemical synthesis of fullerenes. Angew. Chem. Int. Ed. 2004, 43, 4994–5007. [Google Scholar] [CrossRef] [PubMed]
  8. Tsefrikas, V.M.; Scott, L.T. Geodesic polyarenes by flash vacuum pyrolysis. Chem. Rev. 2006, 106, 4868–4884. [Google Scholar] [CrossRef] [PubMed]
  9. Geneste, F.; Moradpour, A.; Dive, G.; Peeters, D.; Malthête, J.; Sadoc, J.-F. Retrosynthetic analysis of fullerene C60: Structure, stereochemistry, and calculated stability of C30 fragments. J. Org. Chem. 2002, 67, 605–607. [Google Scholar] [CrossRef] [PubMed]
  10. Abdourazak, A.H.; Marcinow, Z.; Sygula, A.; Sygula, R.; Rabideau, P.W. Buckybowls 2. Toward the total synthesis of Bukminsterfullerene (C60): Benz[5,6]-as-indaceno-[3,2,1,8,7-mnopqr]indeno[4,3,2,1-cdef]chrysene. J. Am. Chem. Soc. 1995, 117, 6410–6411. [Google Scholar] [CrossRef]
  11. Hagen, S.; Bratcher, M.S.; Erickson, M.S.; Zimmermann, G.; Scott, L.T. Novel syntheses of three C30H12 bowl-shaped polycyclic aromatic hydrocarbons. Angew. Chem. Int. Ed. 1997, 36, 406–408. [Google Scholar] [CrossRef]
  12. Anet, F.A.L.; Muira, S.S.; Siegel, J.; Mislow, K. La Coupe du Roi and its relevance to stereochemistry. Combination of two homochiral molecules to give an achiral product. J. Am. Chem. Soc. 1983, 105, 1419–1926. [Google Scholar] [CrossRef]
  13. Scott, L.T. Polycyclic aromatic hydrocarbon bowls, baskets, balls and tubes: Challenging targets for chemical synthesis. Polycyclic Aromat. Compd. 2010, 30, 247–259. [Google Scholar] [CrossRef]
  14. Fort, E.H.; Donovan, P.M.; Scott, L.T. Diels-Alder reactivity of polycyclic aromatic hydrocarbon bay regions: Implications for metal-free growth of single-chirality carbon nanotubes. J. Am. Chem. Soc. 2009, 131, 16006–16007. [Google Scholar] [CrossRef] [PubMed]
  15. Fort, E.H.; Scott, L.T. Gas-phase Diels-Alder cycloaddition of benzyne to an aromatic hydrocarbon bay region: Groundwork for the selective solvent-free growth of armchair carbon nanotubes. Tetrahedron Lett. 2011, 52, 2051–2053. [Google Scholar] [CrossRef]
  16. Fukui, K.; Yonezawa, T.; Shingu, H. A molecular-orbital theory of reactivity in aromatic hydrocarbons. J. Chem. Phys. 1952, 20, 722–725. [Google Scholar] [CrossRef]
  17. Fukui, K.; Yonezawa, T.; Nagata, C.; Shingu, H. Molecular-orbital theory of orientation in aromatic, heteroaromatic, and other conjugated molecules. J. Chem. Phys. 1954, 22, 1433–1442. [Google Scholar] [CrossRef]
  18. Flemig, I. Molecular Orbitals and Organic Chemical Reactions; John Wiley & Sons Ltd: London, UK, 2009; pp. 224–242. [Google Scholar]
  19. Park, Y.S.; Lee, B.-S.; Lee, I. Density functional theory studies of hetero-Diels-Alder reactions. New J. Chem. 1999, 27, 707–715. [Google Scholar] [CrossRef]
  20. Hehre, W.J.; Radom, L.; Schleyer, P.v.R.; Pople, J.A. Ab Initio Molecular Orbital Theory; Wiley: New York, NY, USA, 1986; Chapter 4. [Google Scholar]
  21. Mendoza, J.A.; García-Pérez, E.; Jiménez-Vázquez, H.A.; Tamariz, J. Effect of aryl substituents on the reactivity of the captodative olefins 1-acetylvinyl arenecarboxylates. J. Mex. Chem. Soc. 2006, 50, 47–56. [Google Scholar]
  22. Houk, K.N.; Lin, Y.-T.; Brown, F.K. Evidence for the concerted mechanism of the Diels-Alder reaction of butadiene with ethylene. J. Am. Chem. Soc. 1986, 108, 554–556. [Google Scholar] [CrossRef] [PubMed]
  23. Houk, K.N.; Loncharich, R.J.; Blake, J.F.; Jorgensen, W.L. Substituent effects and transition structures for Diels-Alder reactions of butadiene and cyclopentadiene with cyanoalkenes. J. Am. Chem. Soc. 1989, 111, 9172–9176. [Google Scholar] [CrossRef]
  24. Guner, V.; Khuong, K.S.; Leach, A.G.; Lee, P.S.; Bartberger, M.D.; Houk, K.N. A standard set of pericyclic reactions of hydrocarbons for the benchmarking of computational methods: The performance of ab initio, Density functional, CASSCF, CASPT2, and CBS-QB3 methods for the prediction of activation barriers, Reaction energetics, and transition state geometries. J. Phys. Chem. A 2003, 107, 11445–11459. [Google Scholar]
  25. Ishida, K.; Morokuma, K.; Komornic, A. The intrinsic reaction coordinate. An ab inito calculation for HNC→HCN and H-+CH4→CH4+H-. J. Chem. Phys. 1977, 66, 2153–2156. [Google Scholar] [CrossRef]
  26. Fukui, K. The paths of chemical reaction—The IRC approach. Acc. Chem. Res. 1981, 14, 363–368. [Google Scholar] [CrossRef]
  27. Gonzalez, C.; Schlegel, H.B. An improved algorithm for reaction path following. J. Chem. Phys. 1989, 90, 2154–2161. [Google Scholar] [CrossRef]
  28. Kistiakowsky, G.B.; Ruhoff, J.R.; Smith, H.A.; Vaughan, W.E. Heats of organic reactions. IV. Hydrogenation of some dienes and of benzene. J. Am. Chem. Soc. 1936, 58, 146–153. [Google Scholar] [CrossRef]
  29. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Zakrzewski, V.G.; Montgomery, J.A., Jr.; Stratmann, R.E.; Burant, J.C.; et al. GAUSSIAN 03 (Revision A.9); Gaussian, Inc.: Pittsburgh, PA, USA, 2003. [Google Scholar]
  30. Lee, K.H.; Lee, C.; Kang, J.; Park, S.S.; Lee, J.; Lee, S.K.; Bohme, D.K. Preferential site of attack on fullerene cations: Frontier orbitals and rate coefficients. J. Phys. Chem. A 2006, 110, 11730–11733. [Google Scholar] [CrossRef] [PubMed]
  31. Martinez, J.I.; Moncada, J.L.; Larenas, J.M. The dual descriptor to measure local reactivity on Buckminster fullerenes: An analysis within the framework of conceptual DFT. J. Mol. Model. 2010, 16, 1825–1832. [Google Scholar] [CrossRef] [PubMed]
  32. Petrukhina, M.A.; Andreini, K.W.; Mack, J.; Scott, L.T. X-ray quality geometries of geodesic polyarenes from theoretical calculations: What levels of theory are reliable? J. Org. Chem. 2005, 70, 5713–5716. [Google Scholar] [CrossRef] [PubMed]
  33. Osuna, S.; Morera, J.; Cases, M.; Morokuma, K.; Solà, M. Diels-Alder reaction between ciclopentadiene and C60: An analysis of the performance of the ONIOM method for the study of chemical reactivity in fullerenes and nanotubes. J. Phys. Chem. A 2009, 113, 9721–9726. [Google Scholar] [CrossRef] [PubMed]
  34. Ikuma, N.; Susami, Y.; Oshima, T. Kinetics and regioselectivity in the Diels-Alder reaction of fulleroids vs. methanofullerene and C60. Org. Biomol. Chem. 2010, 8, 1394–1398. [Google Scholar] [CrossRef] [PubMed]
  35. Suárez-Moreno, G.V.; González-Zamora, E.; Méndez, F. Oxazole as an electron-deficient diene in the Diels-Alder reaction. Org. Lett. 2011, 13, 6358–6361. [Google Scholar] [CrossRef] [PubMed]
  36. Damoun, S.; Van de Woude, G.; Méndez, F.; Geerlings, P. Local softness as a regioselectivity indicator in [4+2] cycloaddition reactions. J. Phys. Chem. A 1997, 101, 886–893. [Google Scholar] [CrossRef]
Sample Availability: Not available.

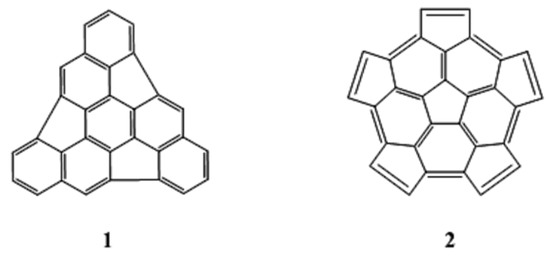

Figure 1. Triindenetriphenilene (1) and pentacyclopentacorannulene (2).
Figure 1. Triindenetriphenilene (1) and pentacyclopentacorannulene (2).
Molecules 18 02243 g001

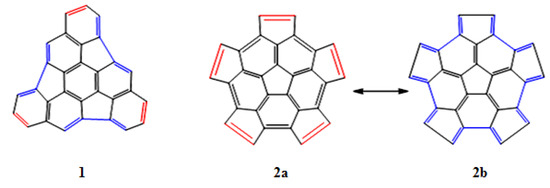

Figure 2. Regions in which the fragments 1 and 2 behave as a diene (blue color), or as a dienophile (red color).
Figure 2. Regions in which the fragments 1 and 2 behave as a diene (blue color), or as a dienophile (red color).
Molecules 18 02243 g002

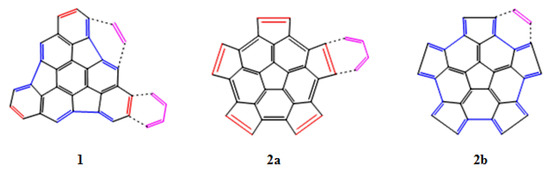

Figure 3. DA reaction of the fragments 1 and 2 with a diene (1,3-butadiene) and a dienophile (ethylene).
Figure 3. DA reaction of the fragments 1 and 2 with a diene (1,3-butadiene) and a dienophile (ethylene).
Molecules 18 02243 g003

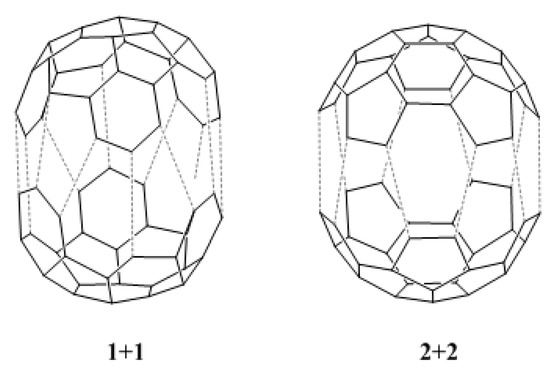

Figure 4. Dimerization reaction between two fragments of type 1 (1 + 1), and between two fragments of type 2 (2 + 2).
Figure 4. Dimerization reaction between two fragments of type 1 (1 + 1), and between two fragments of type 2 (2 + 2).
Molecules 18 02243 g004
Figure 5. Transition state structures for the reactions of (a) e onto the concave surface of 1; (b) e onto the concave surface of 2; (c) e onto the convex surface of 1; (d) e onto the convex surface of 2; (e) b onto the concave surface of 1; (f) b onto the concave surface of 2; (g) b onto the convex surface of 1; and (h) b onto the convex surface of 2.
Figure 5. Transition state structures for the reactions of (a) e onto the concave surface of 1; (b) e onto the concave surface of 2; (c) e onto the convex surface of 1; (d) e onto the convex surface of 2; (e) b onto the concave surface of 1; (f) b onto the concave surface of 2; (g) b onto the convex surface of 1; and (h) b onto the convex surface of 2.
Molecules 18 02243 g005

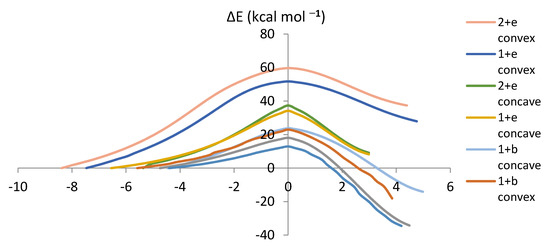

Figure 6. Plots of energy (kcal mol−1) versus the IRC (in bohr/amu1/2) for the proposed reactions.
Figure 6. Plots of energy (kcal mol−1) versus the IRC (in bohr/amu1/2) for the proposed reactions.
Molecules 18 02243 g006

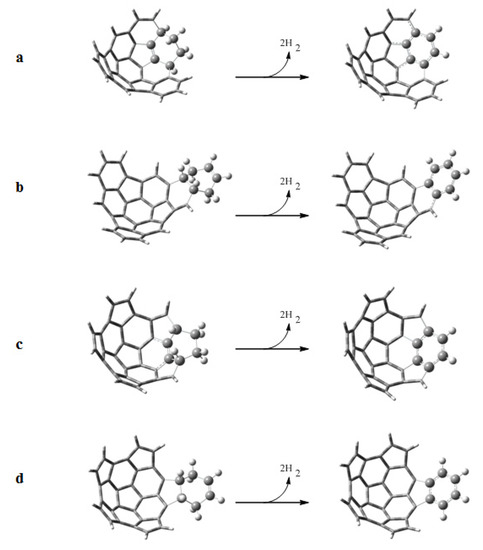

Figure 7. Dehydrogenation reactions to aromatize the adducts obtained from the Diels-Alder reactions of a) 1 + e, b) 1 + b, c) 2 + e and d) 2 + b.
Figure 7. Dehydrogenation reactions to aromatize the adducts obtained from the Diels-Alder reactions of a) 1 + e, b) 1 + b, c) 2 + e and d) 2 + b.
Molecules 18 02243 g007
Table 1. HOMO and LUMO energies (in eV) of ethylene, 1,3-butadiene and the fragments 1 and 2.
Table 1. HOMO and LUMO energies (in eV) of ethylene, 1,3-butadiene and the fragments 1 and 2.
MoleculeEHOMOELUMO
Ethylene−10.11 (−10.07) a4.88 (4.87) a
Butadiene−8.77 (−8.82) a3.45 (3.59) a
1−7.281.38
2−7.180.67
a from ref. [19].
Table 2. HOMO-LUMO gaps, in eV, for the NEDDA and IEDDA reactions of fragments 1 and 2 with ethylene and 1,3-butadiene. ΔENEDDA = ELUMOdienophile − EHOMOdiene and ΔEIEDDA = ELUMOdiene − EHOMOdienopile. Also, δΔE = ΔEIEDDA − ΔENEDDA. Results for reaction e + b are also included.
Table 2. HOMO-LUMO gaps, in eV, for the NEDDA and IEDDA reactions of fragments 1 and 2 with ethylene and 1,3-butadiene. ΔENEDDA = ELUMOdienophile − EHOMOdiene and ΔEIEDDA = ELUMOdiene − EHOMOdienopile. Also, δΔE = ΔEIEDDA − ΔENEDDA. Results for reaction e + b are also included.
ReactionΔENEDDAΔEIEDDAδΔE
e + b13.66 (13.69) a13.56 (13.66) a−0.09
1 + e12.1711.49−0.67
2 + e12.0610.78−1.27
1 + b10.1510.730.58
2 + b9.4510.631.18
a from ref. [19].
Table 3. Distances r1 and r2, in Å, for the transition states shown in Figure 5. Also Δr = r1 − r2.
Table 3. Distances r1 and r2, in Å, for the transition states shown in Figure 5. Also Δr = r1 − r2.
TSr1r2Δr
e + b2.27 (2.21) a2.27 (2.21) a0
1 + e concave2.092.070.02
2 + e concave2.072.060.01
1 + e convex2.411.680.73
2 + e convex2.311.630.67
1 + b concave2.491.920.58
2 + b concave2.282.250.03
1 + b convex2.362.020.34
2 + b convex2.272.270
a from reference [22].
Table 4. Activation energy Ea, standard activation Gibbs energy ΔGa, standard activation enthalpy ΔHa, and standard activation entropy TΔSa for Diels-Alder reactions of e and b with fragments 1 and 2. Data for the Diels-Alder reaction between e and b is given as reference.
Table 4. Activation energy Ea, standard activation Gibbs energy ΔGa, standard activation enthalpy ΔHa, and standard activation entropy TΔSa for Diels-Alder reactions of e and b with fragments 1 and 2. Data for the Diels-Alder reaction between e and b is given as reference.
ReactionEa
(kcal mol−1)
ΔGa
(kcal mol−1)
ΔHa
(kcal mol−1)
TΔSa
(kcal mol−1)
e + b24.8 (27.5) a
(24.2–26.7)b
(25.9) c
36.3523.45 (24.2)d
(24.9)e
−12.91 (−13.32)f
(−12.76)g
1 + e concave40.7152.8839.62−13.25
2 + e concave45.6357.2144.70−12.51
1 + e convex67.8980.2266.75−13.47
2 + e convex73.5485.8472.35−13.49
1 + b concave39.0151.8638.36−13.49
2 + b concave31.0543.5330.43−13.10
1 + b convex33.1146.0332.47−13.56
2 + b convex22.6135.5222.02−13.51
a Experimental Ea from ref. [23]; b Experimental values from Ea of cyclohexene cycloreversion and the experimental heat of reaction [23]; c Calculated Ea from ref. [23]; d Experimental ΔHa from ref. [24]; e Calculated ΔHa from ref. [24]; f Experimental value of TΔSa from ref. [24], g Calculated value of TΔSa from ref. [24].
Table 5. Standard Gibbs energies ΔGr, standard enthalpies ΔHr, and standard entropies TΔSr of reaction.
Table 5. Standard Gibbs energies ΔGr, standard enthalpies ΔHr, and standard entropies TΔSr of reaction.
ReactionΔGr (kcal mol−1)ΔHr (kcal mol−1)TΔSr (kcal mol−1)
e + b−23.76−37.82 (−37.9) a (−36.6) b−14.06 (−14.1)c
1 + e concave16.031.73−14.29
2 + e concave21.907.86−14.04
1 + e convex49.5335.36−14.17
2 + e convex60.8446.82−14.02
1 + b concave6.62−8.49−15.11
2 + b concave−10.41−25.50−15.09
1 + b convex10.34−4.28−14.62
2 + b convex−13.05−27.88−14.82
a Experimental ΔHr from reference [24]; b Calculated ΔHr from reference [24]; c Calculated value of TΔSr from reference [24].
Table 6. Standard Gibbs energy ΔGr, standard enthalpy ΔHr, and standard entropy TΔSr of the dehydrogenation reaction.
Table 6. Standard Gibbs energy ΔGr, standard enthalpy ΔHr, and standard entropy TΔSr of the dehydrogenation reaction.
SystemΔGr(kcal mol−1)ΔHr (kcal mol−1)TΔSr (kcal mol−1)
e + b0.0917.20 (21.13) a17.12
1 + e concave−11.345.9317.27
2 + e concave−12.234.9617.19
1 + e convex−44.85−27.7017.15
2 + e convex−51.16−33.9917.17
1 + b concave−22.84−5.5817.26
2 + b concave−13.124.1417.25
1 + b convex−26.56−9.8016.77
2 + b convex−10.486.5116.99
a Experimental value of ΔHr value obtained from the hydrogenation reaction [28].
