Pd-catalyzed Synthesis of β-Biarylacryl Ferrocenes via Suzuki Cross-coupling

Q. Song; R. Lin; Z. Yang; C. Qi

doi:10.3390/10060634

,

and

¹

College of Chemical Engineering and Materials Science, Zhejiang University of Technology, P. R. China

²

The Institute of Applied Chemistry, Shaoxing College of Arts and Sciences, P. R. China

^*

Author to whom correspondence should be addressed.

Molecules2005, 10(6), 634-639;https://doi.org/10.3390/10060634

This article belongs to the Special Issue Synthesis and Chemistry of Chiral Metallocenes

Version Notes

Order Reprints

Abstract

Some novel β-biarylacryl ferrocene derivatives were synthesized via Pd-catalytic Suzuki cross-coupling reactions of β-(2-bromophenyl)acrylferrocene and arylboronic acids. The structures were determined with elemental analyses, IR spectra, and ¹H-NMR spectra.

Keywords:

Pd-Catalyst; Biarenes; Ferrocenyl; Suzuki Cross- coupling Reaction.

Introduction

Over the last two decades, molecular-based second-order nonlinear optical (NLO) chromophores have attracted much interest because of their potential applications in emerging opto-electronic technologies [1,2,3,4,5]. These efforts have mainly focused on organic systems. More recently, organometallic molecules have been investigated as well [3,4,5]. In comparison to common organic molecules, they offer a large variety of novel structures. The possibility of high environmental stability and diversity of tunable electronic behaviors by virtue of the coordinated metal center might bring about NLO materials with unique characteristics such as magnetic and electro-chemical properties.

In the present communication, we continue our previous research work [6] and wish to report the synthesis by Suzuki cross-coupling reaction [7] of some novel β-biarylacryl ferrocene organometallic structures having potential electro-active material properties.

Results and Discussion

Synthesis of the biaryl organometallic structures having an extended conjugation system was satisfactorily carried out starting from acetylferrocene, prepared from ferrocene using a literature method [8]. β-(2-Bromophenyl)acrylferrocene (3) was prepared by a base catalyzed Claisen condensation reaction of acetylferrocene with 2-bromobenzaldehyde at ambient temperature, the product obtained in practically quantitative yield [9] was mainly in the E-isomer form (the Z-isomer being separated off by recrystallization in ethyl alcohol). The catalytic cross-coupling reaction of β-(2-bromophenyl)acrylferrocene (3) with arylboronic acids to prepare the biaryl analogues permits the extension of molecular conjugation. Thus, compound 3 was transformed into β-biarylacrylferrocenes 4 by Suzuki cross-coupling reaction with arylboronic acids in the presence of Pd(0) in a sodium carbonate solution. The new compounds were separated in good yield by column chromatography with 4:1 to 30:1 petroleum ether-diethyl ether as eluants. The reactions are shown in Scheme 1.

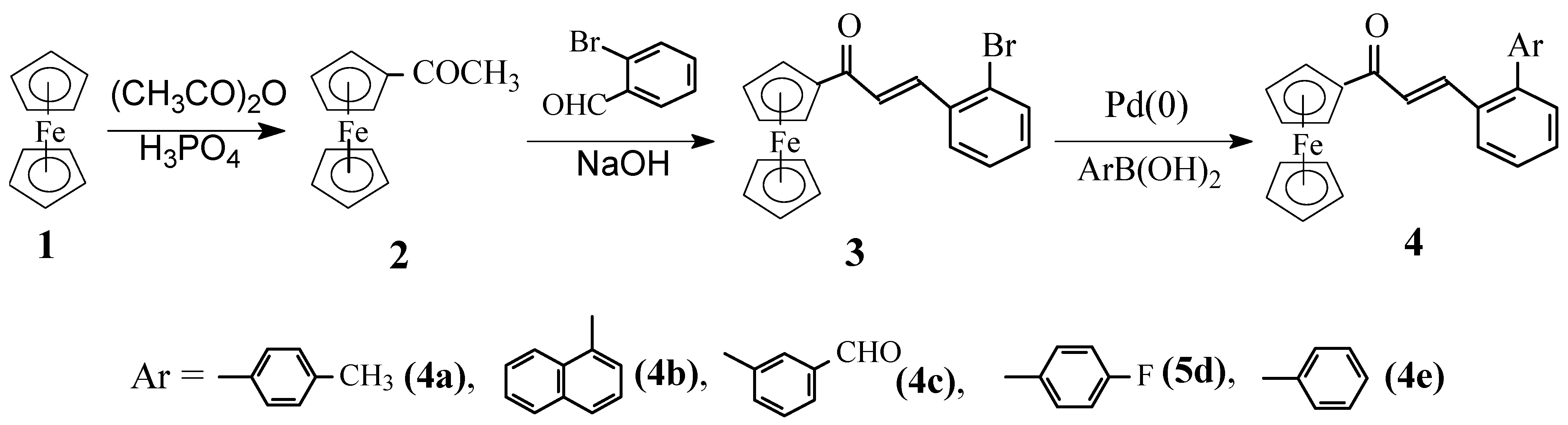

Scheme 1.

Conclusions

A novel organometallic compound structure, β-biarylacryl ferrocenes, are synthesized by [tetrakis(triphenylphosphine)palladium] catalyzed Suzuki cross-coupling reactions of β-(2-bromo- phenyl)acrylferrocene and arylboronic acids. Further studies will be needed to better understand the scope that the different factors affecting this reaction, and how the coupling reaction yields can be improved.

Experimental

General

Melting points were determined with a Thomas Hoover capillary melting point apparatus and are uncorrected. IR spectra were recorded on a FT-170 SX spectrometer as KBr pellets. ¹H-NMR spectra were measured on a Bruker AM-400 FT-NMR spectrometer in CDCl₃. Chemical shifts are referred to TMS on the δ scale. Elemental analyses were performed on a Carlo Erba 1106 instrument. Phenylboronic acid [10], naphylthylboronic acid [10], 4-methylphenylboronic acid [10], 3-formylphenylboronic acid [11], 4-fluorophenylboronic acid [12], and the Pd-catalyst [13] were prepared by literature procedures.

β-(2-Bromophenyl)acrylferrocene (3).

Acetylferrocene (2, 5.7 g, 0.025 mole) was dissolved in 95% ethyl alcohol (20 mL) and a solution of o-bromobenezaldehyde (4.83 g, 0.026 mole) in 95% ethyl alcohol (6 mL) was added to the above mixture with stirring. After that, stirring was continued for half an hour until the solid was dissolved. A solution of 95% ethyl alcohol (20 mL), water (20 mL), and sodium hydroxide (2.0 g, 0.05 mole) was added dropwise to above mixture under stirring at room temperature. A reddish precipitate appeared after a few minutes, and became difficult to stir. After two hours TLC indicated the reaction was complete (Rf = 0.66, ethyl acetate/petroleum ether 1:4 v:v). The mixture was poured into water (200 ml) and neutralized to pH=7 with 2M HCl, cooled and filtered, the solid washed with water (3×20 mL) and dried under vacuum. The crude product was recrystallized from chloroform to afford 7.6 g (90%) of 3 as dark claret colored crystals. Anal. For C₁₉H₁₅BrFeO: Found (%): C 57.58, H 3.92, Calcd. (%) C57.76, H 4.05; M.p.: 122-124^oC; ¹H-NMR: 7.82 (d, 1H, J=15.70 Hz, H-3), 7.78 (d, 1H, J=8.35 Hz, H-3′), 7.46-7.37 (m, 3H, H-4′,5′,6′), 6.98 (d, 1H, J=15.65 Hz, H-2), 4.83 (s, 2H, H-2′″,5′″), 4.56 (s, 2H, H-3′″,4′″), 4.18 (s, 5H, H-6′″); IR (cm^-1): 3087, 1650, 1587, 1455, 1376, 1080, 1000, 767, 502, 478.

General procedure for preparation of the title compounds 4a-e.

A 50 mL three-necked round-bottomed flask was charged a under N₂ atmosphere with β-(2-bromophenyl)acrylferrocene (3, 4.2 mmol, 1.66 g), Pd(0) [tetrakis (triphenylphosphine)palladium] (139 mg, 0.12 mmol, 3 mole% of the substrate), benzene (20 mL), and 2M aqueous sodium carbonate solution (5 mL). The mixture was stirred vigorously, then the appropriate arylboronic acid (4.2 mmol) was added. The reaction mixture was heated to reflux with stirring under N₂ atmosphere for an appropriate time, monitored with TLC. After completion, the mixture was cooled to room temperature and was diluted with dichloromethane (60 mL) and water (40 mL). The organic layer was separated, washed with water and brine, dried, and the solvents were removed under reduced pressure. The crude product was purified by column chromatography with petroleum ether-diethyl ether=4:1 to 30:1 (v:v) as eluants. The first red band of starting materials was retrieved, then the second red-band was collected, and the solvents were removed under vacuum to afford pure products 4 with the structures shown in Scheme 2.

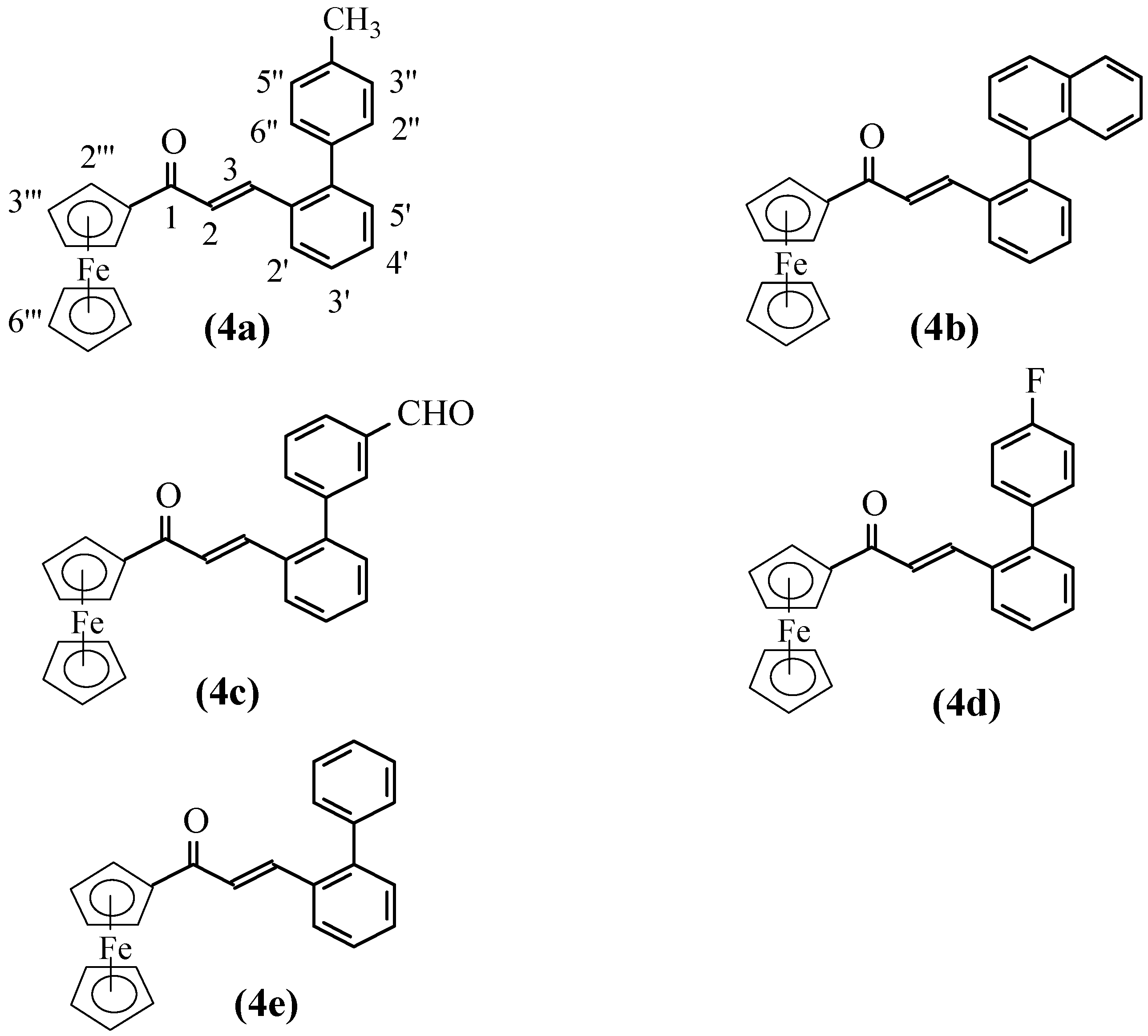

Scheme 2.

β-[2′-(4″-Methylphenyl)phenyl]acrylferrocene (4a). Yield: 82.9%; Deep red color; M.p.: 138-140 ^oC; Rf= 0.36 (ethyl acetate-petroleum ether=1:20);Anal. For C₂₆H₂₂FeO: Found (%) C 76.66, H 5.28, Calcd (%): C 76.85, H 5.46; ¹H-NMR: 8.08 (d, 1H, J=15.88 Hz, H-3), 7.79 (d, 2H, J=7.44 Hz, H-2″,6″), 7.75(d, 2H, J=7.28 Hz, H-3″,5″), 7.80,7.45-7.38 (m, 4H, H-3′,4′,5′,6′), 7.02(d, 1H, J= 15.65 Hz, H-2), 4.90(s, 2H, H-2′″,5′″), 4.61(s, 2H, H-3′″,4′″), 4.24(s, 5H, H-6′″), 2.41(s, 3H, CH₃); IR (cm^-1): 3087, 1650, 1587, 1455, 1376, 1080, 1000, 821, 767, 502, 478.

β-[2′-(Naphthalen-1″-yl)phenyl]acrylferrocene (4b). Yield: 69.2%; Red color; M.p.: 130-132 ^oC ; Rf=0.29 (ethyl acetate/petroleum ether=1:4); Anal. For C₂₉H₂₂FeO: Found (%) C 78.70, H 4.98; Calcd. (%): C 78.74, H 5.01; ¹H-NMR: 7.97-7.37 (m, 11H, Ar-H), 7.43 (d, 1H, J=17.10 Hz, H-3), 6.68 (d, 1H, J=15.75 Hz, H-2), 4.49 (br, 2H, J=5.56 Hz, H-2′″,5′″), 4.42 (s, 2H, H-3′″,4′″), 3.96 (s, 5H, H-6′″); IR (cm^-1): 3092, 1650, 1586, 1454, 1078, 1001, 827, 802, 779, 768, 503, 477.

β-[2′-(3″-Formylphenyl)phenyl]acrylferrocene (4c). Yield: 67.6%; Deep red color; M.p.: 142-144 ^oC; Rf = 0.31 (ethyl acetate-petroleum ether=1:4); Anal. For C₂₆H₂₀FeO₂: Found (%) C 74.22, H 4.81; Calcd. (%): C 74.29, H 4.80; ¹H-NMR: 10.08 (s, 1H, CHO), 7.93 (br, 1H, H-6′), 7.90 (s, 1H, H-2″), 7.85 (br, 1H, H-3′), 7.78 (d, 1H, J=15.60 Hz, H-3), 7.63 (m, 2H, H-4″,6″), 7.49 (m, 2H, H-4′,5′), 7.41 (br, 1H, H-5″), 7.02 (d, 1H, J=15.26 Hz, H-2), 4.84 (s, 2H, H-2′″,5′″), 4.58 (s, 2H, H-3′″,4′″), 4.19 (s, 5H, H-6′″); IR (cm^-1): 3087, 1686, 1643, 1582, 1452, 1081, 990, 900, 817, 764, 700, 502, 479.

β-[2′-(4″-Fluorophenyl)phenyl]acrylferrocene (4d). Yield: 65.8%; Deep red color; M.p.: 152-154 ^oC; Rf = 0.22 (ethyl acetate-petroleum ether=1:10); Anal. For C₂₅H₁₉FFeO: Found (%) C 73.10, H 4.67, Calcd. (%): C 73,19, H 4.67; ¹H-NMR: 7.77 (d, 1H, J=17.25 Hz, H-3), 7.79,7.40-7.30 (br, 4H, H-3′,4′,5′,6′), 7.45 (br, 2-H, H3″,5″), 7.15 (br, 2H, H-2″,6″), 7.02 (d, br, 1H, J=13.20 Hz, H-2), 4.85 (s, br, 2H, H-2′″,5′″), 4.58 (s, br, 2H, H-3′″,4′″), 4.20 (s, br, 5H, H-6′″); IR (cm^-1): 3081, 1647, 1583, 1455, 1214, 1158, 1080, 1000, 836, 764, 501, 473.

β-(Biphenyl-2′-yl)acrylferrocene (4e). Yield: 63.0%; Deep red color; M.p.: 139-141 ^oC; Rf =0.48 (ethyl acetate-petroleum ether=1:16); Anal. for C₂₅H₂₀FeO: Found (%) C 76.42, H 5.10, Calcd. (%): C 76.54, H 5.14; ¹H-NMR: 7.80 (d,1H, J=16.75 Hz, H-3), 7.79,7.48-7.35 (m, br, 9H, H-3′,4′,5,′6′, H-2″,3″,4″,5″,6′″), 6.97 (d, 1H, J=15.20 Hz, H-2), 4.82 (s, br, 2H, H-2′″,5′″), 4.55 (s, br, 2H, H-3′″,4′″), 4.17 (s, 5H, H-6′″); IR (cm^-1): 3089, 1650, 1585, 1456, 1081, 998, 767, 751, 702, 502, 474.
