Inorganics 2014, 2(1), 115-131; doi:10.3390/inorganics2010115

Review
Diarylplatinum(II) Compounds as Versatile Metallating Agents in the Synthesis of Cyclometallated Platinum Compounds with N-Donor Ligands
Margarita Crespo
Departament de Química Inorgànica, Facultat de Química, Universitat de Barcelona, Diagonal 645, 08028 Barcelona, Spain; E-Mail: margarita.crespo@qi.ub.es; Tel.: +34-93-4039132; Fax: +34-93-4907725
Received: 14 February 2014; in revised form: 13 March 2014 / Accepted: 13 March 2014 /
Published: 21 March 2014

Abstract

: This review deals with the reactions of diarylplatinum(II) complexes with N-donor ligands to produce a variety of cycloplatinated compounds including endo-five-, endo-seven-, endo-six- or exo-five-membered platinacycles. The observed reactions result from a series of oxidative addition/reductive elimination processes taking place at platinum(II)/platinum(IV) species and involving C–X (X = H, Cl, Br) bond activation, arene elimination, and, in some cases, Caryl–Caryl bond formation.
Keywords:
platinum; cyclometallation; N-donor ligands; diarylplatinum(II) precursors; synthesis

1. Introduction

In recent years, research involving platinum complexes has focused on the study of their photophysical properties and their biological activities. Cyclometallated platinum compounds containing N-donor ligands have attracted a great deal of attention because of their potential interest in both areas [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17]. For this reason, the development of new methods for the preparation of cycloplatinated compounds containing N-donor ligands is a pursued goal. In contrast to cyclopalladation reactions for which Pd(OAc)2 is a very useful precursor leading to formation of a wide variety of palladacycles [18,19], an analogous “universal” starting material is unknown for cycloplatination reactions. Recent reports on cycloplatination reactions proved that cis-[PtCl2(dmso)2] is a reasonable metallating agent leading to higher yields and cleaner reactions than the more classical K2[PtCl4] starting material [20,21,22,23,24,25,26,27,28,29,30]. In these systems, the labile sulfoxide ligands are easily replaced for nitrogen atoms, thus affording the required initial coordination of the nitrogen-donor ligand, which is followed by ortho-metallation. On the other hand, the lower electrophilicity of platinum(II) compared to palladium(II) facilitates oxidative addition as an alternative pathway. Thus, for electron-rich platinum precursors such as [PtMe2(dmso)2] [31,32,33,34,35,36] or dimer [Pt2Me4(μ-SMe2)2] [37,38,39,40,41,42,43], the initial coordination of the ligand is followed by a cyclometallation step which, in this case, consists on oxidative addition followed by reductive elimination of methane. As shown in Scheme 1, in addition to formation of cyclometallated platinum(II) compounds, dimethylplatinum precursors allow formation of stable cyclometallated platinum(IV) compounds arising from intramolecular activation of C–X bonds (X = Cl, Br) [41,42,43] of adequately designed ligands. In recent years, several diarylplatinum(II) compounds containing labile ligands such as dimethylsulfoxide or dialkylsulfide have also been tested as metallating agents for N-donor ligands. The obtained results indicate that they may produce a variety of cycloplatinated compounds and these processes will be reviewed in the present article.

Inorganics 02 00115 g001 1024

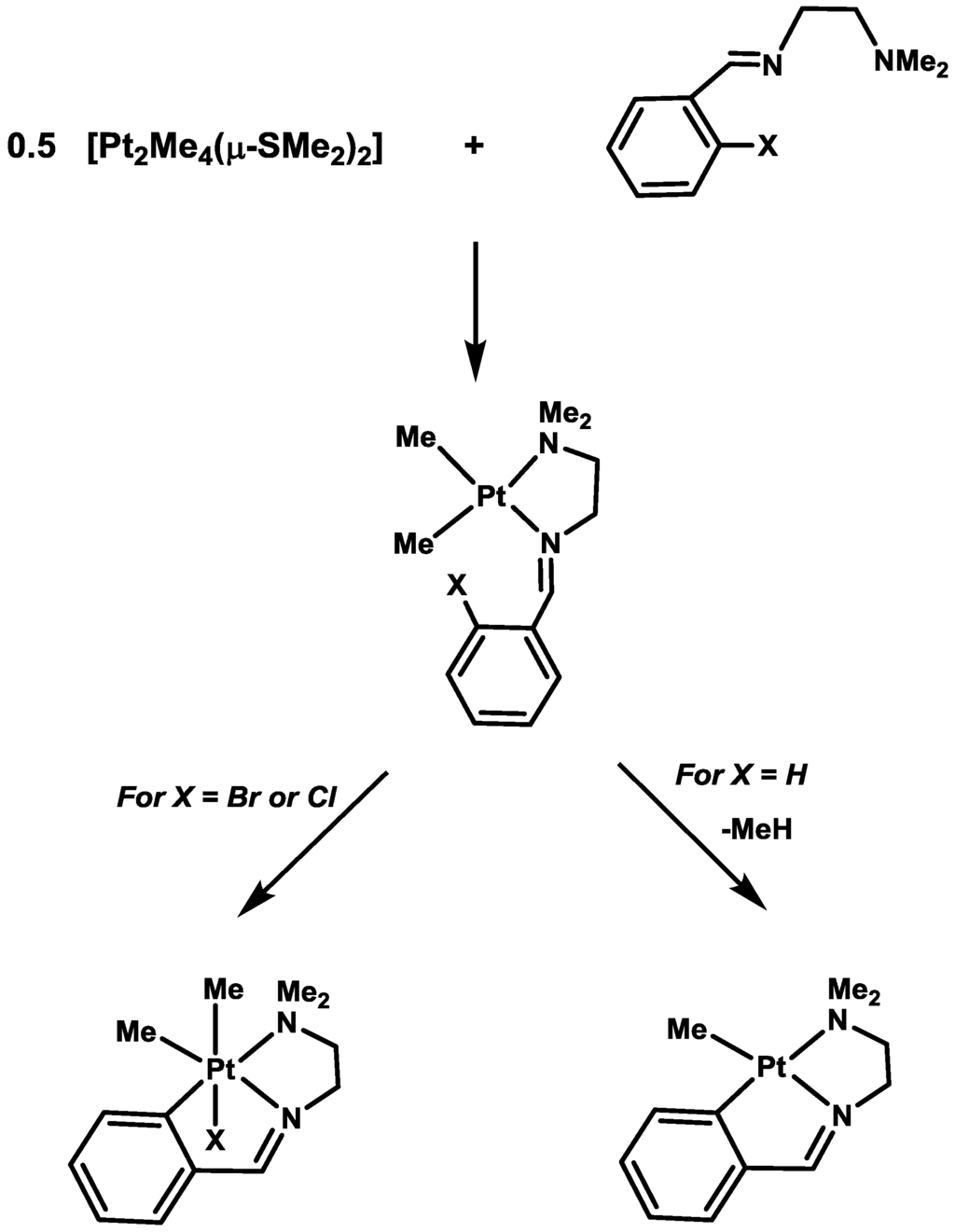

Scheme 1. Synthesis of cyclometallated platinum(II) and platinum(IV) compounds from a dimethylplatinum(II) precursor [41].

Click here to enlarge figure

Scheme 1. Synthesis of cyclometallated platinum(II) and platinum(IV) compounds from a dimethylplatinum(II) precursor [41].
Inorganics 02 00115 g001 1024

2. Activation of C–H Bonds at Diarylplatinum(II) Precursors

Diphenylplatinum(II) compounds such as [PtPh2(dmso)2] [31,32,33,44,45] or [PtPh2(SMe2)2] [46,47,48,49] have been often used as metallation precursors analogous to those containing dimethylplatinum(II) moieties. In these reactions, the labile dimethylsulfoxide or dimethylsulfide ligands can be readily replaced by N-donor ligands, and the intramolecular C–H bond activation proceeds with elimination of benzene. Although, diphenylplatinum(II) derivatives are reported to be less prone to cyclometallation than the corresponding dimethyl derivatives, metallation of 2-phenylpyridines, benzo[h]quinoline or imines containing biphenyl, pyridyl or pyrimidine fragments has been achieved [44,45,46,47,48]. In addition, “rollover” cyclometallation of substituted bipyridines, including multiple C–H bond activation, and functionalized N-(2'-pyridyl)-7-azaindolyl ligands has been achieved using diarylplatinum precursors (see Scheme 2) [31,32,33,49,50].

Inorganics 02 00115 g002 1024

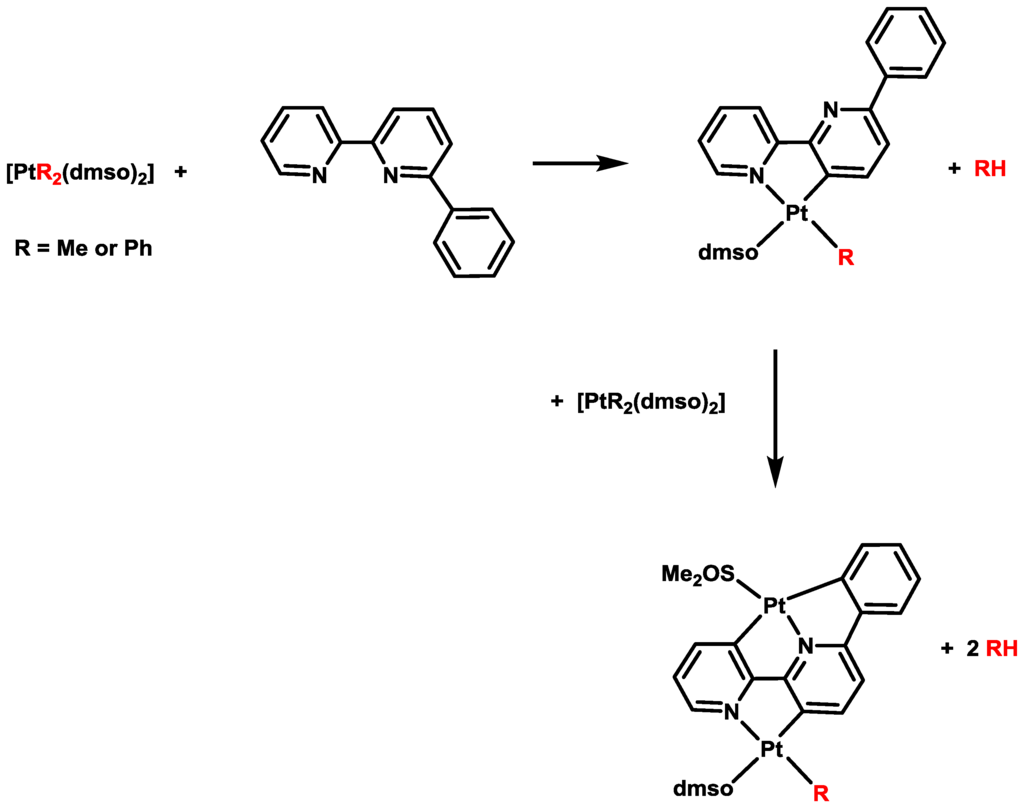

Scheme 2. Examples of “rollover” and multiple C–H bond activation of substituted bipyridines [31].

Click here to enlarge figure

Scheme 2. Examples of “rollover” and multiple C–H bond activation of substituted bipyridines [31].
Inorganics 02 00115 g002 1024

Other diarylplatinum(II) compounds such as [PtAr2(SMe2)2] (Ar = 4-MeC6H4; 4-MeOC6H4) have been shown to be efficient metallation agents in front of 2-phenylpyridine or benzo[h]quinoline ligands, and the assembly of the resulting cyclometallated organoplatinum complexes through bridging diphosphine ligands has been reported (see Scheme 3) [51,52].

In these systems, the cyclometallation process involves oxidative addition of the C–H bond to the platinum(II) center to produce a platinum(IV) hydride complex, and subsequent reductive elimination of arene. Complexes having more electron-donating substituents at the aryl group undergo faster cyclometallation, however, as shown in Scheme 4, compounds [Pt(Ar)(PhPy)(dmso)] containing a cyclometallated phenylpyridine could be obtained from compounds [PtAr2(dmso)] even when the aryl groups contain electronwithdrawing substituents such as Ar = 3,5-(CF3)2C6H3 [45].

Inorganics 02 00115 g003 1024

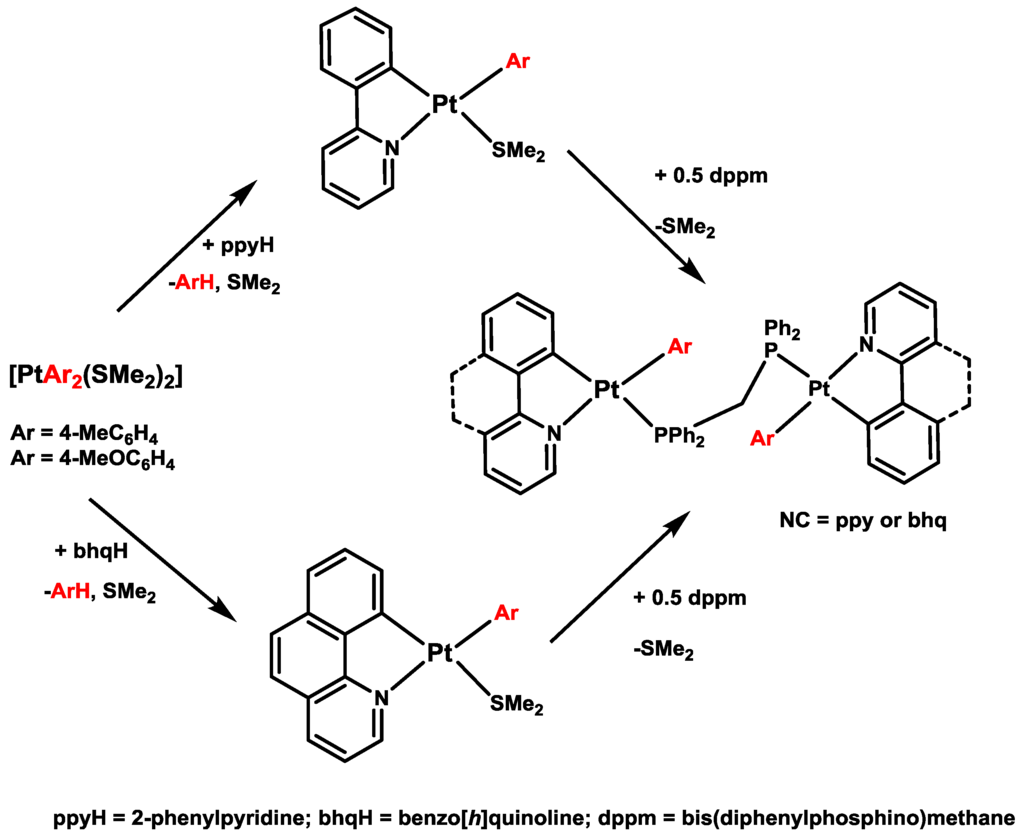

Scheme 3. Synthesis and assembly of cyclometallated platinum compounds containing aryl ligands [51,52].

Click here to enlarge figure

Scheme 3. Synthesis and assembly of cyclometallated platinum compounds containing aryl ligands [51,52].
Inorganics 02 00115 g003 1024
Inorganics 02 00115 g004 1024

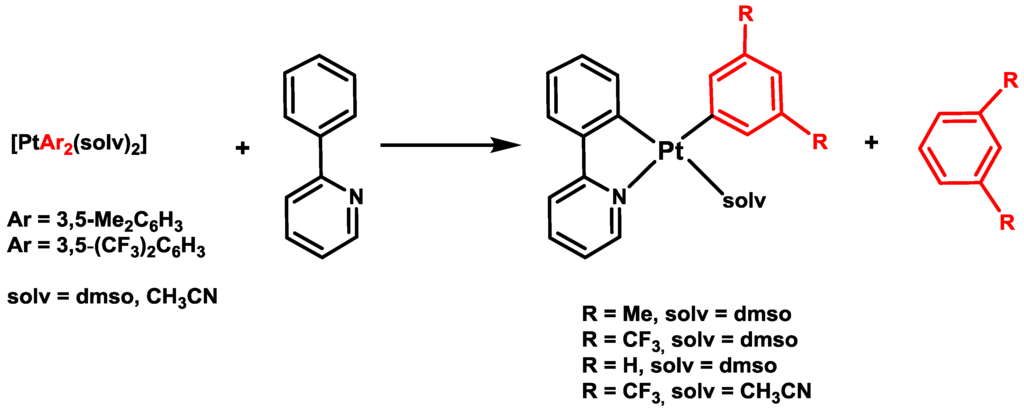

Scheme 4. Further examples of cyclometallation at diarylplatinum(II) compounds [45].

Click here to enlarge figure

Scheme 4. Further examples of cyclometallation at diarylplatinum(II) compounds [45].
Inorganics 02 00115 g004 1024

Moreover, the perfluorinated compound cis-[Pt(C6F5)2(thf)2] (thf = tetrahydrofurane) has also been used as a metallation precursor in the reactions with N-donor ligands leading to cyclometallated platinum compounds containing a tridentate [C,N,(η2-phenyl)] [53] or a bidentate [C,N] [54] ligand as shown in Scheme 5.

Evidence from the fact that cis configuration of the platinum precursor is not required comes from the fact that double cyclometallation of 3,6-bis(2-thienyl)-1,2,4,5-tetrazine has been achieved from the precursor trans-[Pt(2,4,6-Me3C6H2)2(dmso)2] in a reaction leading to a dinuclear platinum(II) compound [55].

Inorganics 02 00115 g005 1024
Scheme 5. Reactivity of compound cis-[Pt(C6F5)2(thf)2] (thf = tetrahydrofurane) with N-donor ligands [53,54].

Click here to enlarge figure

Scheme 5. Reactivity of compound cis-[Pt(C6F5)2(thf)2] (thf = tetrahydrofurane) with N-donor ligands [53,54].
Inorganics 02 00115 g005 1024

3. Activation of C–X Bonds (X = Br, Cl or H) at Diarylplatinum(II) Precursors: Seven- versus Five-Membered Platinacycles

As shown in Scheme 6, the reactions involving intramolecular C–Br bond activation and subsequent reductive elimination of 4,4'-bitolyl have been reported as a convenient method for the synthesis of pincer-[N,C,N] cyclometallated platinum(II) compounds when [Pt(4-MeC6H4)2(μ-SEt2)]2 was used as platinum precursor [56,57,58,59].

Inorganics 02 00115 g006 1024

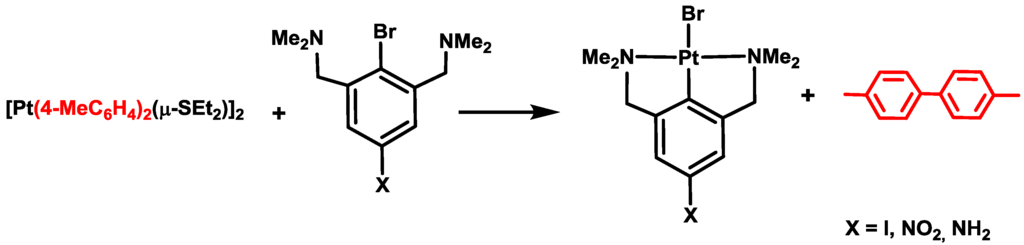

Scheme 6. Synthesis of [N,C,N] cyclometallated compounds via C–Br bond activation followed by reductive elimination [56].

Click here to enlarge figure

Scheme 6. Synthesis of [N,C,N] cyclometallated compounds via C–Br bond activation followed by reductive elimination [56].
Inorganics 02 00115 g006 1024

The reactions of potentially tridentate [C,N,N'] ligands RCH=NCH2CH2NMe2 (R = C6H5, 2-BrC6H4, 2,6-Cl2C6H3 and 2-ClC6H4) with [PtPh2(SMe2)2] have been studied [60] in order to compare the results with those obtained when [Pt2Me4(μ-SMe2)2] was used as precursor. These reactions gave, in addition to cyclometallated platinum(II) and platinum(IV) compounds analogous to those described for the dimethylplatinum precursor, a new type of platinum(II) compound with a seven-membered metallacycle when X = Cl (Scheme 7). In agreement with previous results for the chemistry of dimethylplatinum analogues [41,42,43], a concerted mechanism is suggested for intramolecular C–X bond activation [61]; for X = Br a platinum(IV) compound is obtained at room temperature, while for X = H a platinum(II) compound is formed along with reductive elimination of benzene after refluxing in toluene the corresponding coordination compounds. Unexpectedly, under the conditions required for intramolecular activation of the C–Cl bond, a seven-membered metallacycle including a biaryl linkage is formed.

Inorganics 02 00115 g007 1024

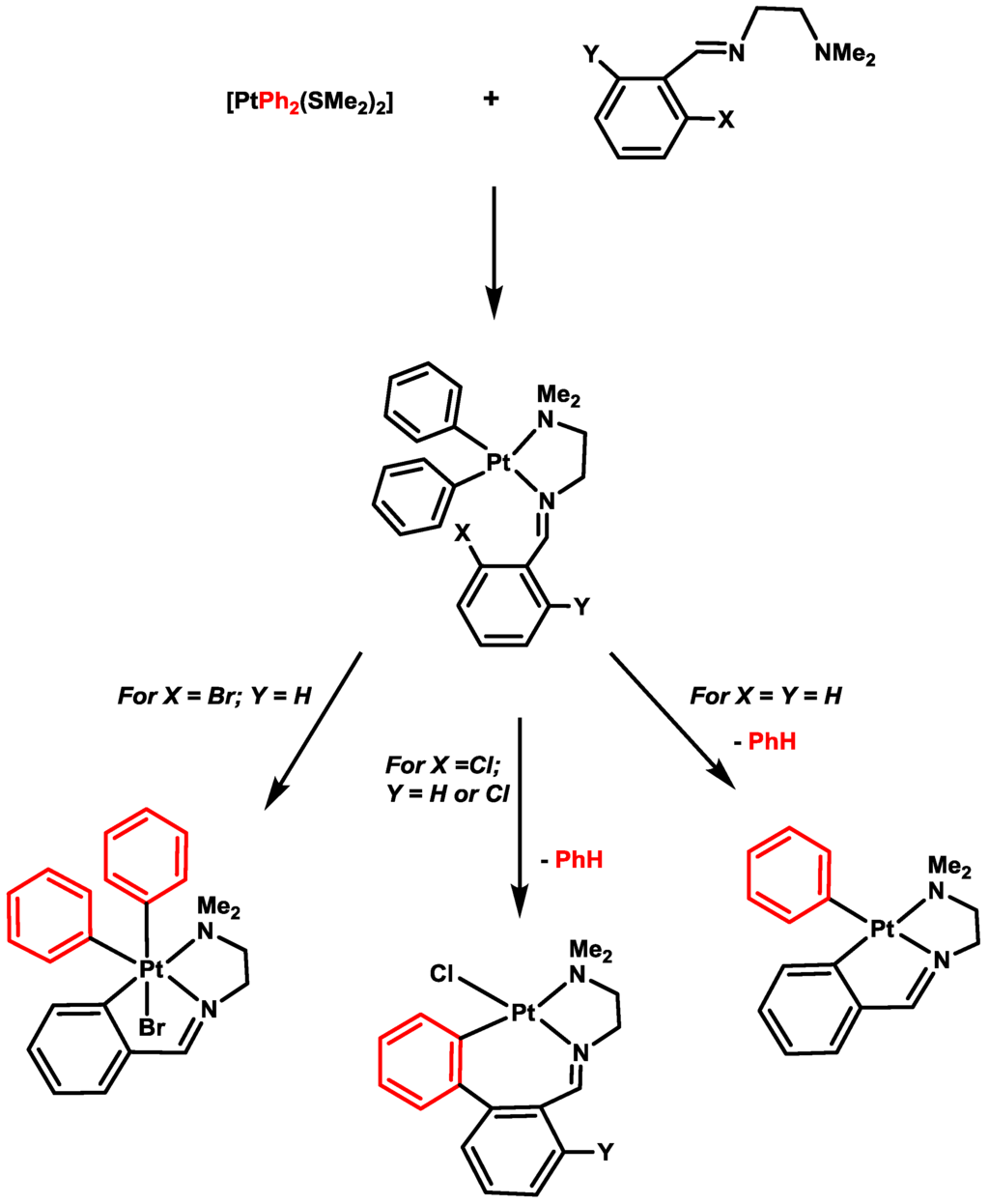

Scheme 7. Synthesis of cyclometallated platinum(II) and platinum(IV) compounds from a diphenylplatinum(II) precursor [60].

Click here to enlarge figure

Scheme 7. Synthesis of cyclometallated platinum(II) and platinum(IV) compounds from a diphenylplatinum(II) precursor [60].
Inorganics 02 00115 g007 1024

It is interesting to point out that despite the involvement of triarylplatinum(IV) species in these processes and the known susceptibility of such compounds to undergo reductive elimination of two aryl ligands to release a free biaryl [56], no evidence of such reductive elimination of biphenyl was observed.

In order to gain insight into the different processes that might take place when diarylplatinum compounds are used as metallating substrates, the study of the reactions of cis-[Pt(4-MeC6H4)2(μ-SEt2)]2 with imines of general formula RCH=NCH2CH2NMe2 in which the aryl group R may contain either Br, Cl, H or F in the ortho positions was undertaken [62]. Dinuclear compound cis-[Pt(4-MeC6H4)2(μ-SEt2)]2, previously used as metallating agent as stated above, was selected for this study since the presence of an electron-donor methyl substituent in the aryl ring could facilitate the activation of the ortho C–X bonds. In addition, the position of the methyl substituent in the final products is relevant in order to confirm the mechanism of the process. As shown in Scheme 8, the reactions proceed as expected, yielding as final products a cyclometallated platinum(IV) compound 3a (for X = Br), a cyclometallated platinum(II) compound 4c (for X = H) and a seven-membered platinum(II) compound 6b for X = Cl. In the latter case, it was possible to detect a platinum(IV) compound (3b) as a precursor of the seven membered platinacycle. In addition, the presence of the methyl substituent, initially para to platinum, in a meta position in compound 6b suggests that the Caryl–Caryl bond is formed in a reductive elimination reaction from the platinum(IV) compound. A subsequent cyclometallation process takes place through Caryl–H bond activation at the biaryl fragment and elimination of one molecule of toluene.

Inorganics 02 00115 g008 1024

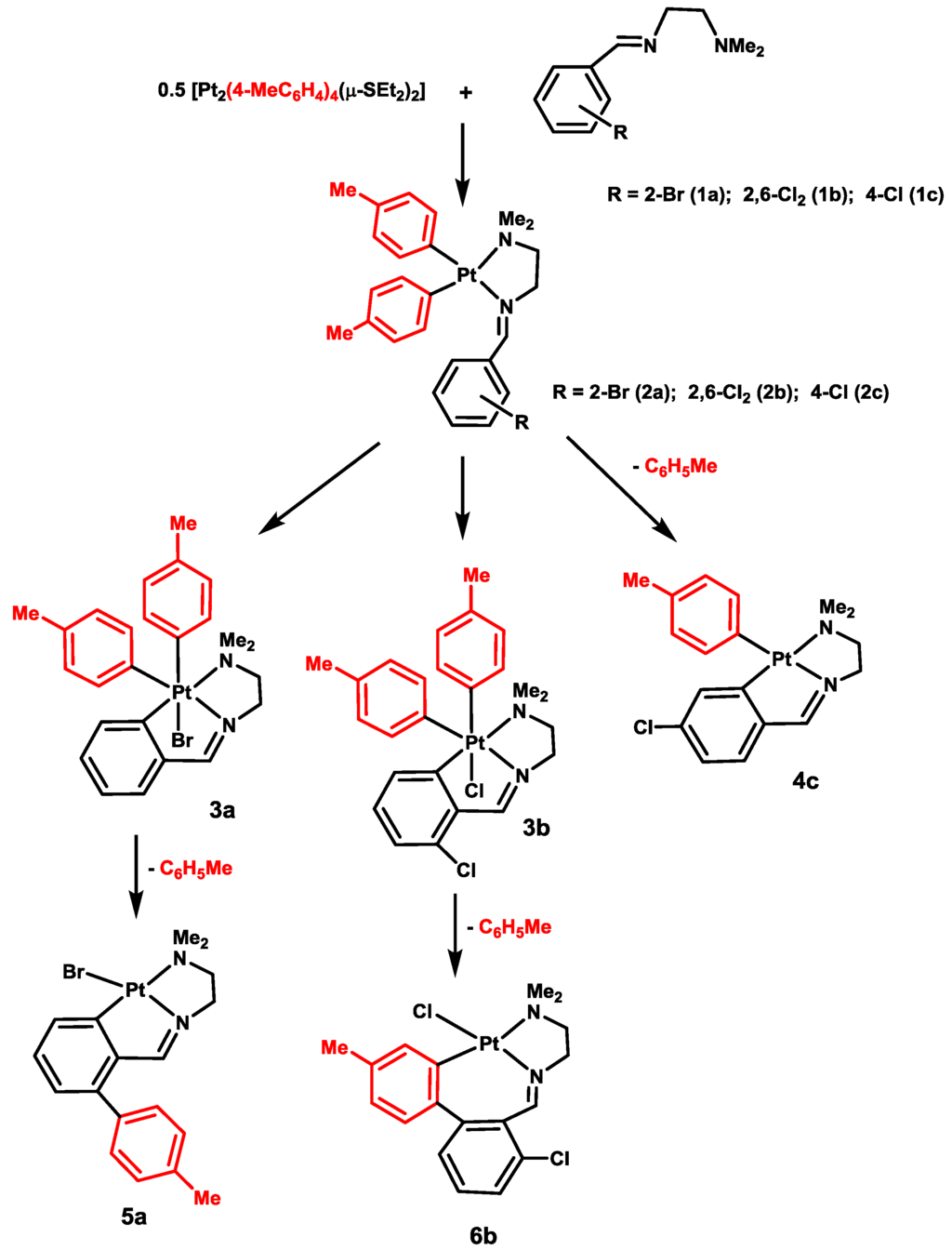

Scheme 8. Synthesis of cyclometallated platinum(II) and platinum(IV) compounds from cis-[Pt(4-MeC6H4)2(μ-SEt2)]2 [62,63].

Click here to enlarge figure

Scheme 8. Synthesis of cyclometallated platinum(II) and platinum(IV) compounds from cis-[Pt(4-MeC6H4)2(μ-SEt2)]2 [62,63].
Inorganics 02 00115 g008 1024

An initial attempt to produce a seven-membered platinacycle from the more inert bromide platinum(IV) compound [PtBr(4-MeC6H4)2(C6H4CH=NCH2CH2NMe2)] was carried out in refluxing toluene and lead to a complex mixture of compounds in which the major component was surprisingly a five-membered platinacycle with an “exo Caryl–Caryl” bond (5a). To analyze the factors governing the selective formation of either five or seven-membered platinacycles from the corresponding cyclometallated platinum(IV) compounds, a kinetico-mechanistic study of these processes was carried out [63]. Based on these studies, the mechanism depicted in Scheme 9 is proposed. In all cases, a common reductive elimination reaction occurs to form a non-cyclometallated intermediate containing a dangling biaryl moiety, which leads to the selective formation of five or seven-membered platinacycles through a trans (X, NMe2)-cis (X, NMe2) isomers equilibrium. The trans form leads exclusively to the five-membered compound, as observed for X = Br. A fast trans to cis isomerization process takes place for X = Cl, and in the obtained cis isomer the steric hindrance forces a Z conformation of the imine, for which only formation of the seven-membered platinacycle is plausible. Along this work, using the reaction conditions extracted from the kinetic studies, both E-cis and E-trans intermediates could be detected and crystallographically characterized.

The reactions of diarylplatinum(II) substrates have been also tested with imine ligands containing a single nitrogen atom. Initial work was based on the reaction of [PtPh2(SMe2)2] with imine 2-BrC6H4CH=NCH2C6H5 [64,65] and further work was carried out using cis-[Pt(4-MeC6H4)2(μ-SEt2)]2 and imines 2-BrC6H4CH=NCH2(4-ClC6H4) and 2,6-Cl2C6H3CH=NCH2(4-ClC6H4) [62]. In these reactions, both intramolecular activation of C–Br or C–Cl bonds lead eventually to formation of seven-membered platinacycles.

Inorganics 02 00115 g009 1024

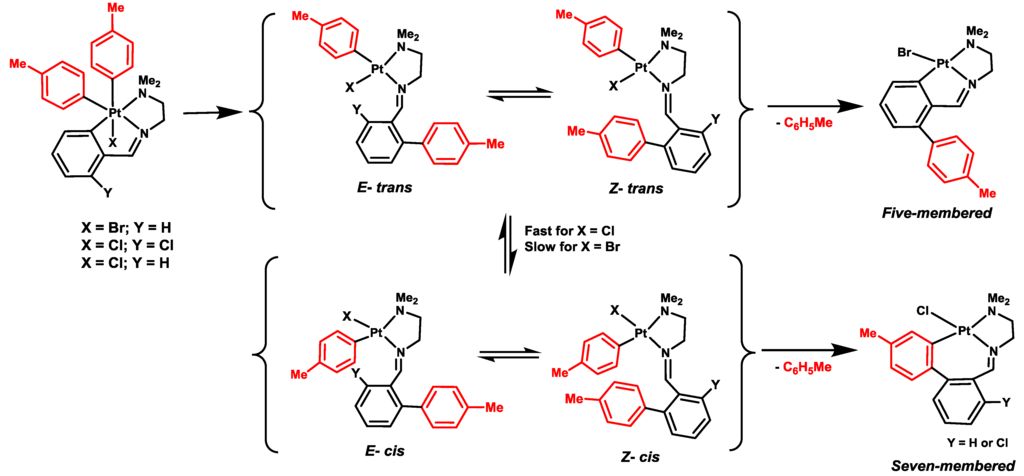

Scheme 9. Proposed mechanism for the formation of five and seven-membered platinacycles [63].

Click here to enlarge figure

Scheme 9. Proposed mechanism for the formation of five and seven-membered platinacycles [63].
Inorganics 02 00115 g009 1024

Although for these reactions the corresponding non-cyclometallated intermediates containing a dangling biaryl moiety were not detected, an analogous mechanism to that proposed for ligands containing two nitrogen donor atoms should operate. Accordingly, the cyclometallated platinum(IV) compound initially formed undergoes a process involving reductive elimination to form a biaryl that remains coordinated through the nitrogen atom to platinum(II), and this step is followed by Caryl–H bond activation and reductive elimination of arene (benzene or toluene) to yield a seven-membered platinum(II) metallacycle. Taking into account the results described above for ligands containing two nitrogen atoms, isomerization to the adequate isomer should be more facile for ligands containing one single nitrogen, thus allowing formation of seven-membered platinacycles even for the less prone bromo derivatives.

On the other hand, although intramolecular C–F bond activation has been achieved upon reaction of [Pt2Me4(μ-SMe2)2] with ligand C6F5CH=NCH2CH2NMe2 [41,42,43] such process has not been observed for precursors cis-[PtPh2(SMe2)2] or cis-[Pt(4-MeC6H4)2(μ-SEt2)]2. This result can be related with the strength of the C–F bond and the lower reactivity of the later substrates toward intramolecular activation of σ bonds. In order to achieve Caryl–Caryl coupling leading to a fluorinated biphenyl moiety, a new preparative strategy based on the reaction of cis-[Pt(C6F5)2(SEt2)2] with imine 2-BrC6H4CH=NCH2(4-ClC6H4) was tested. In this process, a five-membered metallacycle, in which the formed Caryl–Caryl is not included, was obtained. In this case, formation of a seven-membered platinacycle, which requires C–F bond activation, is not favored and indeed is not observed. The kinetico-mechanistic studies carried out for this system [66] indicate initial formation of platinum(IV) compound arising from the activation of the C–Br bond of the imine. This process is followed by a Caryl–Caryl reductive elimination and a final Caryl–H bond activation leading to a five-membered cyclometallated platinum(II) compound with elimination of pentafluorobenzene as shown in Scheme 10. In this case, 19F NMR monitoring of the process allows the detection of all proposed intermediates.

Inorganics 02 00115 g010 1024

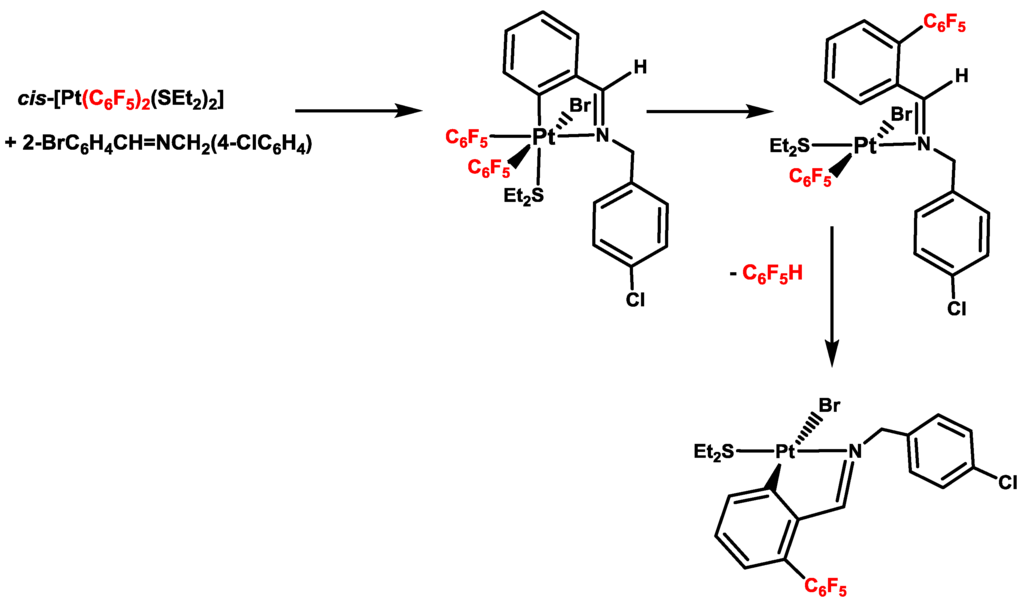

Scheme 10. An example of Caryl–Caryl reductive coupling leading to a fluorinated biphenyl moiety [66].

Click here to enlarge figure

Scheme 10. An example of Caryl–Caryl reductive coupling leading to a fluorinated biphenyl moiety [66].
Inorganics 02 00115 g010 1024

4. Six- versus Five-Membered and endo- versus exo-Platinacycles

In all cases reported above, the Caryl–Caryl coupling processes leading to either seven- or five-membered platinacycles involve formation of stable endo-metallacycles. In order to analyze whether formation of a biaryl linkage is also possible for N-benzylidenebenzylamines for which formation of less stable exo-metallacycles is preferred, the reactions of cis-[Pt(4-MeC6H4)2(μ-SEt2)]2 with imines containing a C–Br bond at an ortho position of the more flexible benzyl ring have been studied and are summarized in Scheme 11 [67,68]. According to the obtained results, these reactions proceed through activation of the C–Br bond to produce a platinum(IV) compound with a five-membered exo-metallacycle, followed by Caryl–Caryl bond formation between the benzyl group of the imine ligand and one of the para-tolyl ligands leading to a biaryl linkage. The subsequent Caryl–H bond activation does not necessarily take place at the biaryl system; instead, a Caryl–H bond of the benzylidene group is activated to produce a five-membered endo-metallacycle with elimination of a toluene molecule (ligands 1d and 1e). For ligand 1f, the mesityl group was chosen in order to block the ortho positions of the benzylidene group and drive the reaction towards the benzyl group of the ligand. Instead, an aliphatic C–H bond of the mesityl group is activated to produce a six-membered endo-metallacycle. This result, analogous to those reported for cyclopalladation reactions [69,70] can be related to the higher stability of the endo versus exo-metallacycles (the so-called endo effect), which allows to overcome the low tendency to form six-membered rings and to activate a sp3 C–H bond [18]. For imine 2,6-F2C6H3CH=NCH2(2-BrC6H4), the fluoro substituents block cyclometallation at the benzylidene ring, and drive the reaction towards formation of a five-membered exo-metallacycle (2g). As a whole, the obtained results indicate that intramolecular C–X bond activation at the saturated arm of N-benzylidene-benzylamines may promote formation of a biaryl linkage between one of the tolyl ligands and the benzyl group of the imine ligand. However, the biaryl linkage is not necessarily involved in the subsequent metallation process which leads to either endo-five, endo-six or exo-five-membered platinacycles as shown in Scheme 11.

Inorganics 02 00115 g011 1024

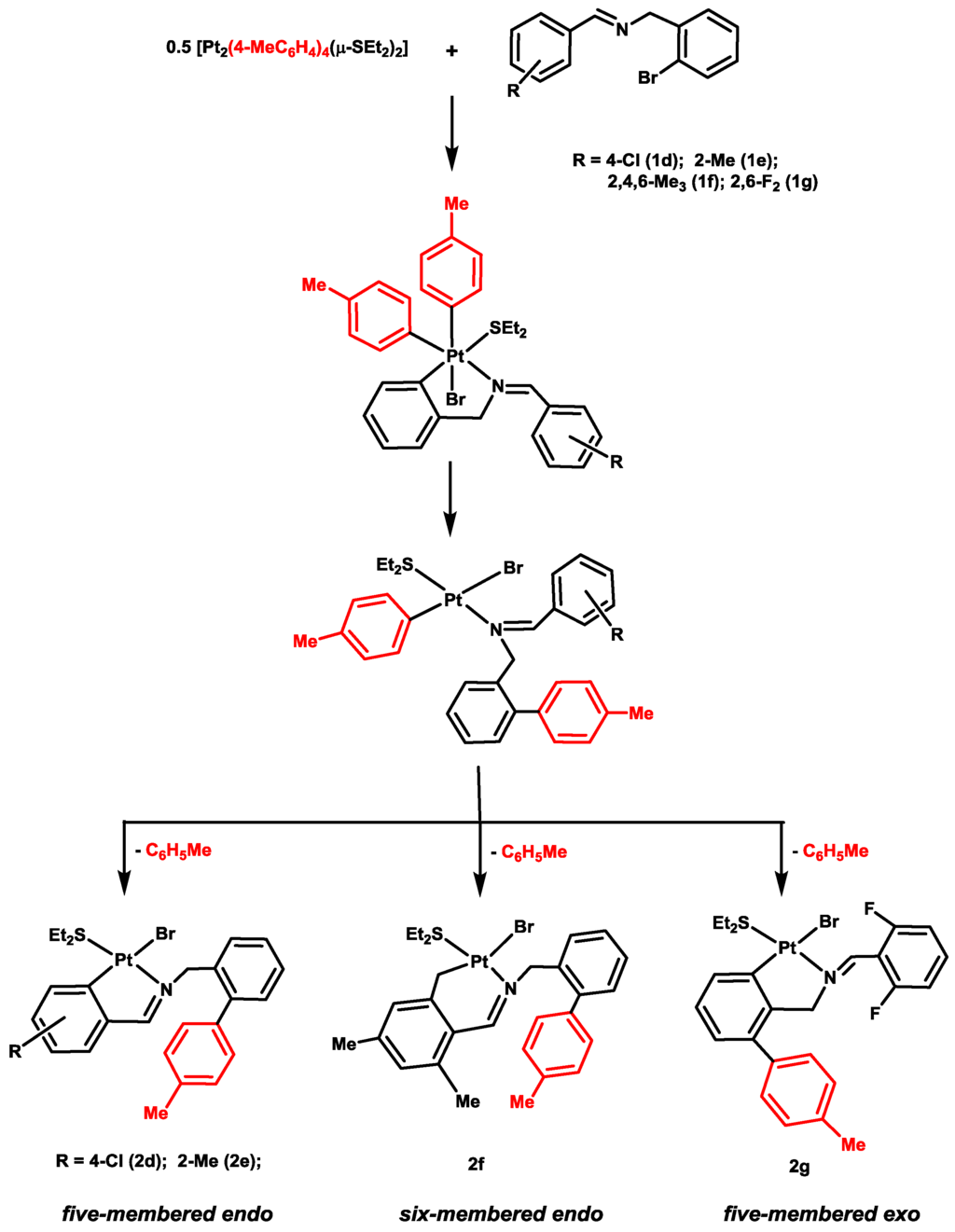

Scheme 11. Synthesis of cyclometallated platinum(II) compounds from N-benzylidenebenzylamines and cis-[Pt(4-MeC6H4)2(μ-SEt2)]2 [67,68].

Click here to enlarge figure

Scheme 11. Synthesis of cyclometallated platinum(II) compounds from N-benzylidenebenzylamines and cis-[Pt(4-MeC6H4)2(μ-SEt2)]2 [67,68].
Inorganics 02 00115 g011 1024

Finally, it is interesting to point out that analogous processes from cyclometallated platinum(IV) complexes obtained from dimethylplatinum(II) precursors such as [PtMe2X{C6H4CH=NCH2R'}L] (X = Cl, Br; R' = aryl; L = SMe2, PPh3) have been recently reported [71,72]. In this case, Csp2–Csp3 reductive elimination involving the metallated ring and one methyl ligand takes place and is followed by formation of five or six-membered platinacycles.

5. Conclusions

As a whole, several diarylplatinum(II) compounds displaying monomeric or dimeric structures in which the square-planar coordination of the platinum is completed with labile ligands such as dimethylsulfoxide or dialkylsulfides have been shown to be useful in the synthesis of several classes of platinacycles containing N-donor ligands. The observed reactions result from a series of oxidative addition/reductive elimination processes involving platinum(II)/platinum(IV) species. The initial coordination of the ligand takes place easily by substitution of the labile ligands and/or cleavage of the dinuclear structure and is followed by intramolecular C–X (X = Br, Cl, H) bond activation leading to cyclometallated platinum(IV) compounds. When C–H bond activation is involved, straightforward reductive elimination of a molecule of arene leads to formation of a cyclometallated platinum(II) compound. However, cyclometallated platinum(IV) compounds are formed for X = Br or Cl and subsequent reductive elimination from these species leads to Caryl–Caryl bond formation. When the formed biaryl moiety remains coordinated to the platinum through one or two nitrogen atoms, as for ligands RCH=NCH2R' or RCH=NCH2CH2NMe2, a further step involving C–H bond activation at either the formed biaryl fragment, or at other available aromatic or aliphatic positions produces a cyclometallated platinum(II) compound with reductive elimination of one molecule of arene. In this process, in addition to the more prevalent endo-five-membered platinacycles, other metallacycles such as endo-seven, endo-six or exo-five-membered can be obtained. In summary, a careful choice of the aryl groups in both the platinum precursor and the employed ligands allows the synthesis of a great variety of cycloplatinated compounds.

Acknowledgments

This work was supported by the Spanish Ministery of Science and Technology (project CTQ2009-11501).

Conflicts of Interest

The authors declare no conflict of interest.
