Plants 2013, 2(2), 230-247; doi:10.3390/plants2020230

Article
Combinations of Mutations Sufficient to Alter Arabidopsis Leaf Dissection
Thomas Blein 1,2, Véronique Pautot 1,2 and Patrick Laufs 1,2,*
1
INRA, UMR1318, Institut Jean-Pierre Bourgin, RD10, F-78000 Versailles, France; E-Mails: Thomas.Blein@versailles.inra.fr (T.B.); Veronique.Pautot@versailles.inra.fr (V.P.)
2
AgroParisTech, Institut Jean-Pierre Bourgin, RD10, F-78000 Versailles, France
*
Author to whom correspondence should be addressed; E-Mail: Patrick.Laufs@versailles.inra.fr; Tel.: +33-1-3083-3014; Fax: +33-1-3083-3096.
Received: 6 February 2013; in revised form: 27 March 2013 / Accepted: 1 April 2013 /
Published: 8 April 2013

Abstract

: Leaves show a wide range of shapes that results from the combinatory variations of two main parameters: the relative duration of the morphogenetic phase and the pattern of dissection of the leaf margin. To further understand the mechanisms controlling leaf shape, we have studied the interactions between several loci leading to increased dissection of the Arabidopsis leaf margins. Thus, we have used (i) mutants in which miR164 regulation of the CUC2 gene is impaired, (ii) plants overexpressing miR319/miRJAW that down-regulates multiple TCP genes and (iii) plants overexpressing the STIMPY/WOX9 gene. Through the analysis of their effects on leaf shape and KNOX I gene expression, we show that these loci act in different pathways. We show, in particular, that they have synergetic effects and that plants combining two or three of these loci show dramatic modifications of their leaf shapes. Finally, we present a working model for the role of these loci during leaf development.
Keywords:
leaf; morphogenesis; differentiation; growth; patterning

1. Introduction

Leaves are the main plant photosynthetic organs. They show a large variety in their sizes and shapes. Regardless of their final shape, leaves are initiated as small, finger-like primordia from groups of undifferentiated cells, the meristem [1,2]. These primordia will either grow out and rapidly differentiate to generate simple leaves, in which the blade forms a unique unit, or go through additional morphogenetic events that allow the formation of lateral structures, thus generating the leaflets of compound leaves. Different leaf shapes can also be seen as the result of different patterns or levels of dissection: large dissection of the blade generate leaflets, less prominent dissections of the leaf or leaflet margins cause lobes or teeth [3].

Recent molecular genetics have revealed a surprising conservation of the regulatory mechanisms acting at different steps of leaf development, from their initiation at the meristem to the formation of leaflets in the case of compound leaves or to the dissection of the leaf or leaflet margins. Class I KNOX (KNOX I, KNOTTED 1-LIKE HOMEOBOX) genes maintain meristematic cells in an undifferentiated state [4] but also prevent precocious differentiation of primordia in most compound leaves to allow the formation of leaflets [5,6,7]. KNOX I proteins act, in part, through the modulation of hormonal pathways. KNOX I proteins promote cytokinin biosynthesis [8,9] to prolong the morphogenetic phase of compound tomato leaves, enabling leaflet formation [10]. Conversely, KNOX I proteins repress gibberellin biosynthesis [8,11] to prevent differentiation. An increased gibberellin signalling reduces leaflet formation in tomato and smoothens the serrated margin of tomato leaflets or the lobed margins of Arabidopsis leaves overexpressing KNOX I genes [12,13]. Whereas KNOX I genes maintain cells in an undifferentiated state, class II TCP genes (TEOSINTE BRANCHED1/CYCLOIDEA/PROLIFERATING CELL FACTOR) promote cell differentiation [14,15]. Five Arabidopsis TCP genes and the tomato TCP LANCEOLATE gene are targeted by a miRNA, miR319 or miRJAW [16,17]. Expression of miR319-resitant TCP genes leads to smaller leaves in Arabidopsis and a simplification of the compound tomato leaf. Conversely, inactivation of TCP genes, via for instance the overexpression of miR319, leads to prolonged growth leading to larger and serrated leaves in Arabidopsis and to super-compound tomato leaves [14,15,16,17,18,19].

Altogether, the opposite effects of the KNOX I and TCP genes, and the balance between the cytokinin and gibberellin pathways contribute to determine the window during which the leaf primordium remains undifferentiated and hence is able to respond to morphogenetic clues determining leaflet or teeth formation. Similar to local peaks of auxin response triggering primordium formation at the meristem [20,21], an increase in auxin response is also required for the patterning of leaf primordium to form serrations or leaflets [22,23,24,25,26]. Such an increase in auxin response contributes to the repression of KNOX I genes in the meristem during leaf primordium formation and in primordia of compound leaves during leaflet formation [22,25]. Proper individualisation of these auxin-mediated new growth axes (leaf primordia, leaflet primordia and developing teeth) require the activity of the CUC (CUP-SHAPED COTYLEDON) boundary genes [27,28,29,30,31,32]. Some CUC genes, like CUC2 in Arabidopsis or SlNAM/Goblet in tomato are targeted by a microRNA, miR164. Expression of a miR164-resistant CUC2 gene leads to deeply serrated leaf margins [32,33]. All these different regulators are not acting independently each of the other and numerous connections have been reported, generating an intricate regulatory network. For instance, CUC genes and auxin interact [23,31,34] and there is a cross talk between KNOX I and CUC genes [29,30,35].

Here, to investigate the genetic basis of leaf development we analyse the morphogenetic and genetic effects of combining different mutations that lead to an increased leaf dissection. We used CUC2g-m4 plants, which expresses a miR164-resistant CUC2 gene, the mir164a-4 mutant in which the MIR164A gene controlling CUC2 expression during leaf development is inactivated [32], the jaw-D mutant, in which the overexpression of miRJAW/miR319 down-regulates five TCP genes [17] and stip-D, which overexpresses STIMPY/WOX9 that maintains cell division and prevents premature differentiation [36]. We showed previously that leaf dissection in these mutants relies for a large part on a functional CUC2 gene and that the regulation of CUC2 by miR164 is still effective [30]. Here, we further investigate the relationship between these pathways and how they control leaf development.

2. Results

2.1. Leaf Phenotype of Jaw-D, Stip-D, Mir164a-4/CUC2g-m4 Double and Triple Mutants

2.1.1. Jaw-D Stip-D Double Mutant Leaf Phenotype

In the jaw-D single mutant, the dissection of the leaf margin can be divided in several orders of incision (Figure 1A,B). The first order consists of the main teeth of the leaf (we will call hereafter “teeth” any clear outgrowth at the leaf margin, whatever its size). A second order appears with incisions of the main teeth. Additional orders of incision can occur and reach an order of five, the highest order being observed in the proximal teeth of old leaves. The stip-D mutant develops narrow and wavy leaves presenting a single order of dissection (Figure 1C). The jaw-D stip-D double mutant has the same order of incision as the jaw-D single mutant but the dissections are deeper and can almost reach the midrib in the proximal part of the leaf. In addition, the teeth of this double mutant have a particular form, being narrower in the part close to the midrib and larger towards the outside of the leaf (Figure 1J).

Plants 02 00230 g001 1024
Figure 1. Genetic interactions between jaw-D, stip-D, mir164a-4 and CUC2g-m4. Rosette and sixth leaf at bolting of the corresponding genotypes. Rosette from (A) to (K) are bird’s eye views whereas (L) is a lateral view of the rosette. (Q) is a detail of (L). (M) and (N) show the formation of a tooth of order 2 (arrow) on a jaw-D mira164a-4 double mutant. (O) Sometimes ectopic leaves can be observed in the sinus of jaw-D CUC2g-m4 double mutants. These ectopic leaves also show the fractal phenotype observed in the main leaves. (P) Reiterative growth of the leaf margin: example of the jaw-D CUC2g-m4 double mutant. The first lobe formed initiates two secondary lobes (label “2”, only one labelled here). This process is reiterated to form the lobes of order 3 to 5 visible in this part of leaf (labels “3” to “5”). Bars = 1 cm in all panels except (M) and (N) (bars = 100 µm) and (Q) (bar = 0.5 cm).

Click here to enlarge figure

Figure 1. Genetic interactions between jaw-D, stip-D, mir164a-4 and CUC2g-m4. Rosette and sixth leaf at bolting of the corresponding genotypes. Rosette from (A) to (K) are bird’s eye views whereas (L) is a lateral view of the rosette. (Q) is a detail of (L). (M) and (N) show the formation of a tooth of order 2 (arrow) on a jaw-D mira164a-4 double mutant. (O) Sometimes ectopic leaves can be observed in the sinus of jaw-D CUC2g-m4 double mutants. These ectopic leaves also show the fractal phenotype observed in the main leaves. (P) Reiterative growth of the leaf margin: example of the jaw-D CUC2g-m4 double mutant. The first lobe formed initiates two secondary lobes (label “2”, only one labelled here). This process is reiterated to form the lobes of order 3 to 5 visible in this part of leaf (labels “3” to “5”). Bars = 1 cm in all panels except (M) and (N) (bars = 100 µm) and (Q) (bar = 0.5 cm).
Plants 02 00230 g001 1024

2.1.2. Jaw-D Mir164a-4 and Jaw-D CUC2g-m4 Double Mutant Leaf Phenotype

The mir164a-4 and CUC2g-m4 mutants have serrated margins with an order of dissection of 1 or 2 (Figure 1D,G). jaw-D mir164a-4 [30] and jaw-D CUC2g-m4 double mutants have curly leaves, with more pronounced dissections (Figure 1E,H). Compared to the single mutants, the dissections of the double mutants are wider and deeper, although they never reach the midrib. The order of dissection is also strongly increased: at bolting it can reach 9 for jaw-D CUC2g-m4, and in plants grown for six months in short-day conditions, the order of incision reaches 12 and 15 for the jaw-D mir164a-4 and jaw-D CUC2g-m4 double mutants, respectively. The pattern of the different order of teeth is however simple, and can be compared to fractals: on a tooth of a given order, two new teeth appear at the base of the tooth to create a new order (Figure 1M,N). This process is reiterated to give the final leaf shape (Figure 1P). In some cases, ectopic leaves are observed in the sinus (Figure 1O), hinting to the formation of ectopic meristems.

2.1.3. Stip-D Mir164a-4 and Stip-D CUC2g-m4 Double Mutant Leaf Phenotype

The stip-D mir164a-4 [30] and stip-D CUC2g-m4 double mutants share a similar type of leaf phenotype characterised by an extreme dissection of the teeth (Figure 1F,I). In stip-D mir164a-4 the sinus nearly reach the midrib, whereas the dissection is even stronger in the stip-D CUC2g-m4 double mutant in which the proximal teeth are completely separated one from the other. The constriction at the base of the teeth is also accentuated compared to stip-D and jaw-D stip-D mutants and in the strongest case the base of the teeth is limited to the central vein of the teeth resembling a petiolule (the petiole-like structure supporting the leaflet). Despite these strong phenotypes, the leaf of these double mutants is still rather flat and not as curled as other double mutants described above.

2.1.4. jaw-D stip-D mir164a-4 and jaw-D stip-D CUC2g-m4 Triple Mutant Leaf Phenotype

As the above-described genetic analysis indicates that stip-D, jaw-D and mir164a-4/CUC2g-m4 control leaf development through different pathways, we constructed the jaw-D stip-D mir164a-4 and jaw-D stip-D CUC2g-m4 triple mutants (Figure 1K,L). The jaw-D stip-D mir164a-4 triple mutant has a leaf phenotype resembling the jaw-D stip-D double mutant with a higher order of dissection (Figure 1K). A clear constriction is observed at the base of the teeth of the jaw-D stip-D mir164a-4 triple mutant. The jaw-D stip-D CUC2g-m4 triple mutant displays an even stronger leaf phenotype (Figure 1L,Q). The incision of the first proximal teeth of the leaf are so deep that they reach the midrib and that the structure is looking more like leaflets than teeth. In some cases, secondary leaflets with a clear petiolule structure can be observed on the primary petiolule-like structures (Figure 1Q). The lamina is also widely affected, with a higher order of incisions, which gives rise to strong flatness defects. As a result, the leaves look like parsley and the rosette, instead of being flat like in the wild type, adopts a hemispheric shape (Figure 1L).

2.1.5. Stip-D Promotes the Formation of Petiole

The progressive formation of petiole-like structures in stip-D and multiple mutants containing stip-D suggest that stip-D may promote the formation of a petiole. To further test this hypothesis, we examined the shape of the epidermal cells by scanning electronic microscopy (SEM). In the wild type, the petiole is covered by elongated and rectangular cells. Similar elongated cells are present in the lamina above the midrib. Other parts of the lamina are covered by jigsaw-shaped pavement cells and a progressive increase in the complexity of the epidermal shapes is observed from the midrib to lateral domains (Figure 2A–D). In the stip-D single mutant, the base of the teeth contains some elongated cells (Figure 2E,H). The region that contained such cells is enlarged in the stip-D mir164a-4 double mutant and in the jaw-D stip-D mir164a-4 triple mutant (Figure 2F,G,I,J) suggesting that the base of the teeth have acquired petiole characteristics.

2.2. Floral Phenotype of jaw-D, stip-D, mir164a-4/CUC2g-m4 Double and Triple Mutants

Floral organs are modified leaves. To investigate if the incision defects observed in leaves are conserved in floral organs, the sepals and petals shapes of the different mutants combinations involving stip-D, jaw-D and mir164a-4 were analysed. The numbers of floral organs in the different combinations of mutants varied slightly but these variations are not statistically significant except an increased number of sepals in the stip-D mir164a-4 double mutant (Figure 3K).

Plants 02 00230 g002 1024
Figure 2. The stip-D mutation promotes the formation of petiolule-like structures at the base of the teeth. (AD) Epidermal cell structure of the wild-type leaf: The epidermal cells of the petiole are long and narrow, oriented along the proximo-distal axis (B). At the junction between the petiole and the lamina some cells are jigsaw-shaped (C). On the lamina, three types of cells are observed: jigsaw-shaped cells, stomata cells and long cells along the margin (D). (EJ) The stip-D mutation allows the formation of a petiole-like structure at the base of the tooth: In the stip-D single mutant (H and E) and stip-D mir164a-4 double mutant (I and F), the base of the first teeth is almost entirely covered by long narrow epidermal cells, but rapidly jigsaw-shaped cells cover the tooth region that forms a lamina-like structure. In the jaw-D stip-D mir164a-4 triple mutant (J and G) the region of the tooth with long and narrow cells is longer and forms in this case a real petiole without any lamina. Bars: 500 µm (B, C, HI) 250 µm (DG).

Click here to enlarge figure

Figure 2. The stip-D mutation promotes the formation of petiolule-like structures at the base of the teeth. (AD) Epidermal cell structure of the wild-type leaf: The epidermal cells of the petiole are long and narrow, oriented along the proximo-distal axis (B). At the junction between the petiole and the lamina some cells are jigsaw-shaped (C). On the lamina, three types of cells are observed: jigsaw-shaped cells, stomata cells and long cells along the margin (D). (EJ) The stip-D mutation allows the formation of a petiole-like structure at the base of the tooth: In the stip-D single mutant (H and E) and stip-D mir164a-4 double mutant (I and F), the base of the first teeth is almost entirely covered by long narrow epidermal cells, but rapidly jigsaw-shaped cells cover the tooth region that forms a lamina-like structure. In the jaw-D stip-D mir164a-4 triple mutant (J and G) the region of the tooth with long and narrow cells is longer and forms in this case a real petiole without any lamina. Bars: 500 µm (B, C, HI) 250 µm (DG).
Plants 02 00230 g002 1024

Whereas wild-type sepals have a smooth tip, sepals of the different mutants show serrations at their tips (Figure 3A–E,L). The frequency and level of serration is particularly high in the jaw-D single mutant and the jaw-D mir164a-4 double mutant (Figure 3B,C,L). Additionally, two types of margin serration could be observed in the petals of the different mutants (Figure 3F) compared to the smooth margin of the wild type. First, fine serrations are observed at the base of the petal in all mutant combinations (Figure 3G–J). Second, serrations also form on the distal part of the petal. A first order of incision is present in all mutant combinations involving jaw-D or stip-D, but not in the single mir164a-4 mutant. In addition to this first order, a second order of incision can form in mutants carrying the jaw-D allele. Almost half of the petals of the jaw-D mutant show a second order of incision, whereas almost all petals of double and triple mutants carrying the jaw-D mutation show this phenotype (Figure 3L).

Plants 02 00230 g003 1024

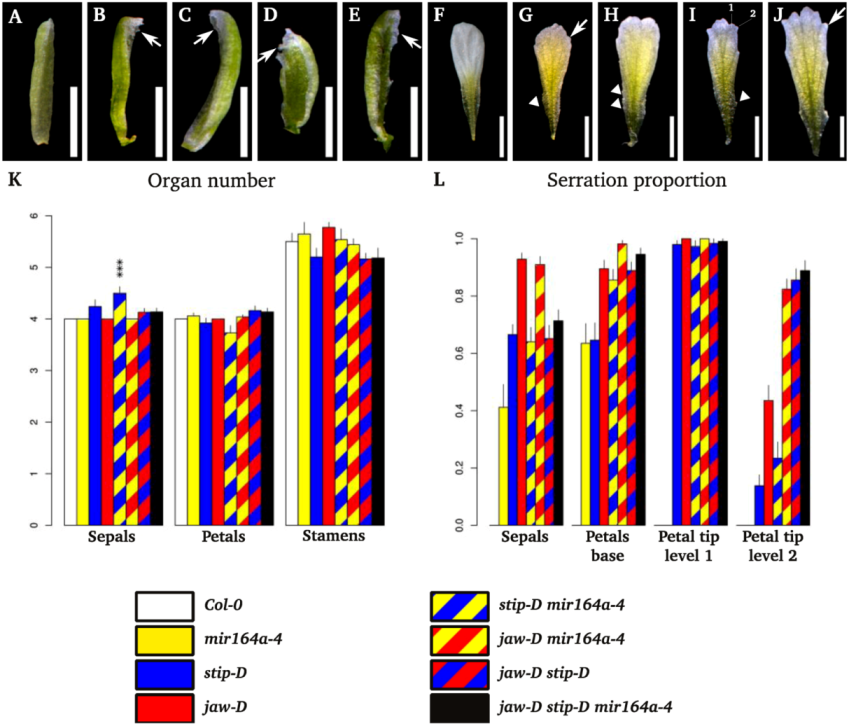

Figure 3. Floral phenotypes. (AE) Sepal phenotypes: The wild-type sepal does not exhibit any serration of its margin (A). The different mutant combinations show serration of the sepals (arrows) like in jaw-D (B), jaw-D mir164a-4 (C), jaw-D stip-D (D), jaw-D stip-D mir164a-4 (E). (FJ) Petal phenotypes: The wild-type petal does not exhibit any serration of its margin (F). The different mutant combinations show serrations of the petals like in jaw-D (G), jaw-D mir164a-4 (H), jaw-D stip-D (I), jaw-D stip-D mir164a-4 (J). The serration can occur at the base of the petal (arrow tips) or on the distal end of the petal (arrows). At the distal end, two orders (1 and 2 in I) can be distinguished as in leaves. (K) Organ number: The number of organs are indicated. 20 flowers from rank 20 to 30 were counted for each genotype. Bars = SE. (L) Proportion of serration of the sepals and petals: 20 flowers from rank 20 to 30 were counted for each genotype. Bars = SE.

Click here to enlarge figure

Figure 3. Floral phenotypes. (AE) Sepal phenotypes: The wild-type sepal does not exhibit any serration of its margin (A). The different mutant combinations show serration of the sepals (arrows) like in jaw-D (B), jaw-D mir164a-4 (C), jaw-D stip-D (D), jaw-D stip-D mir164a-4 (E). (FJ) Petal phenotypes: The wild-type petal does not exhibit any serration of its margin (F). The different mutant combinations show serrations of the petals like in jaw-D (G), jaw-D mir164a-4 (H), jaw-D stip-D (I), jaw-D stip-D mir164a-4 (J). The serration can occur at the base of the petal (arrow tips) or on the distal end of the petal (arrows). At the distal end, two orders (1 and 2 in I) can be distinguished as in leaves. (K) Organ number: The number of organs are indicated. 20 flowers from rank 20 to 30 were counted for each genotype. Bars = SE. (L) Proportion of serration of the sepals and petals: 20 flowers from rank 20 to 30 were counted for each genotype. Bars = SE.
Plants 02 00230 g003 1024

2.3. Leaf Phenotype of TCP2 and TCP4 Insertion Lines

The miR319 miRNA targets five TCP genes: TCP2, TCP3, TCP4, TCP10 and TCP24 [17]. To get some insight into the contribution of individual TCP genes to the phenotype of the jaw-D mutant, we analysed the leaf phenotype of two insertion lines in TCP2 and TCP10 (Figure 4A). At bolting, tcp2-101 and tcp10-1 single mutants exhibit a weak increase of leaf serration, compared to wild type (Figure 4B–D), in agreement with previous observations [19]. This phenotype is more pronounced two weeks after bolting, while the wild-type leaf is not modified during these two weeks (Figure 4E–G). These observations suggest that the down-regulation of any of these two TCP genes leads to a prolonged growth period during which the serration of the mutants becomes more pronounced. The tcp2-101 tcp10-1 double mutant shows a stronger leaf phenotype than the two parental single mutants, with an increased leaf serration already clearly visible at bolting (Figure 4H). Like for the single mutants, this phenotype becomes more pronounced two weeks later (Figure 4L). Furthermore, the distal margins of the teeth are curled downwards.

We next combined either tcp2-101 or tcp10-1 with CUC2g-m4. The two resulting double mutants show a similar increased leaf serration compared to CUC2g-m4 single mutant (Figure 4I–K). The serrations are deeper and more teeth present secondary incisions than in the CUC2g-m4 mutant. Like for the tcp2-101 and tcp10-1 single mutants, the phenotype of the double mutants is more pronounced two weeks after bolting whereas the leaf phenotype of the CUC2g-m4 mutant does not become more pronounced after bolting (Figure 4M–O). In some leaves of the double mutants, the proximal teeth are almost separated from the rest of the lamina.

Plants 02 00230 g004 1024
Figure 4. Leaf phenotype of TCP2 and TCP10 insertion lines. (A) Position of the T-DNA insertion in the tcp2-101 and tcp10-1 mutants according to the FST: Rectangles represent the exons. (BG) tcp2-101 and tcp10-1 single mutants increased their serration when the wild type stopped growing: At bolting, the 6th to 8th leaves of tcp2-101 (C) and tcp10-1 (D) show a slight increase in serration depth compared to wild type (B). This difference is accentuated two weeks later (EG). H and L The effects of the tcp2 and tcp10 mutations are additive: 6th to 8th leaves of tcp2-101 tcp10-1 double mutants at bolting (H) and two weeks later (L). I–K, M-O tcp2-101 and tcp10-1 increase the serration of the CUC2g-m4 transgenic mutants: At bolting the 6th to 8th leaves of tcp2-101 CUC2g-m4 (J) and tcp10-1 CUC2g-m4 (K) show an increased serration depth compared to CUC2g-m4 (I). This difference is accentuated two weeks later (MO).

Click here to enlarge figure

Figure 4. Leaf phenotype of TCP2 and TCP10 insertion lines. (A) Position of the T-DNA insertion in the tcp2-101 and tcp10-1 mutants according to the FST: Rectangles represent the exons. (BG) tcp2-101 and tcp10-1 single mutants increased their serration when the wild type stopped growing: At bolting, the 6th to 8th leaves of tcp2-101 (C) and tcp10-1 (D) show a slight increase in serration depth compared to wild type (B). This difference is accentuated two weeks later (EG). H and L The effects of the tcp2 and tcp10 mutations are additive: 6th to 8th leaves of tcp2-101 tcp10-1 double mutants at bolting (H) and two weeks later (L). I–K, M-O tcp2-101 and tcp10-1 increase the serration of the CUC2g-m4 transgenic mutants: At bolting the 6th to 8th leaves of tcp2-101 CUC2g-m4 (J) and tcp10-1 CUC2g-m4 (K) show an increased serration depth compared to CUC2g-m4 (I). This difference is accentuated two weeks later (MO).
Plants 02 00230 g004 1024

The CUC2g-m4 mutant harbours leaves that can not be properly flattened out: in some cases, teeth of the leaf overlap, while the wild-type leaves do not present such phenotype and can easily be flattened out. The tcp2-101 CUC2g-m4 and tcp10-1 CUC2g-m4 double mutants also have leaves that could not be properly flattened out, and more overlapping teeth are present compared to the CUC2g-m4 mutant. A similar phenotype could also be observed in the jaw-D mir164a-4 and jaw-D CUC2g-m4 double mutants, though the phenotype was stronger in the combinations with jaw-D compared to tcp2 or tcp4 mutants (Figure 1E,H). This suggests that the leaf phenotype of these mutants was not only due to an increased incision of the leaf margin but also to an extra growth of the margin compared to wild type.

2.4. Expression of KNOX I Reporters

Proper regulation of the KNOX I genes is central for leaf development [3,37,38]. Because ectopic expression of KNOX I genes in leaves is associated with the formation of increased leaf dissection, we analysed the expression pattern of KNOX I genes in different combinations of mutants using GUS reporter constructs for the four Arabidopsis KNOX I genes [KNOTTED-LIKE FROM ARABIDOPSIS THALIANA 1 (BREVIPEDICELLUS/KNAT1), KNAT2, KNAT6 and SHOOT MERISTEM LESS (STM)].

The pKNAT1:GUS reporter has been shown to be often ectopically expressed in lobed leaves of mutants [6,39,40]. No ectopic KNAT1 expression is observed in the jaw-D, stip-D or CUC2g-m4 single mutants (Table 1 and Figure 5A–D). In contrast, KNAT1 expression could be observed in the tips of the serrations of jaw-D stip-D, stip-D CUC2g-m4 and jaw-D CUC2g-m4 double mutants (Figure 5E–G,L,N). In addition, in jaw-D CUC2g-m4 and stip-D CUC2g-m4 double mutants, KNAT1 expression is also observed in the sinus of some teeth (Figure 5M,N).

Table Table 1. Summary of KNOX gene expression patterns in leaves.

Click here to display table

Table 1. Summary of KNOX gene expression patterns in leaves.
STM:GUSKNAT1:GUSKNAT2:GUSKNAT6:GUS
tips
WTN.D. N.D. N.D.
trichomes
tips
CUC2g-m4N.D. N.D. N.D. sinus
trichomes
tips
stip-DN.D. N.D. N.D. sinus
trichomes
tips
jaw-DN.D.N.D.N.D.sinus
trichomes
tips tips
jaw-D stip-DN.D. N.D. sinus
trichomes
tips tips
stip-D CUC2g-m4N.D. sinusN.D. sinus
trichomes
tips tips
jaw-D CUC2g-m4sinussinusN.D. sinus
petiolevasculaturetrichomes
N.D.: Not Detected
Plants 02 00230 g005 1024
Figure 5. KNOX I expression in the leaf of jaw-D, stip-D, CUC2g-m4 and different double mutants combinations. (AG), (LN) KNAT1:GUS is expressed in double mutant leaves but not in single mutant leaves: Expression of the KNAT1:GUS reporter is absent from leaves of wild type (A), jaw-D (B), stip-D (C) and CUC2g-m4 (D). In contrast, KNAT1:GUS expression can be detected in the the hydathodes (arrowheads) of jaw-D stip-D (Eand L), stip-D CUC2g-m4 (F and M) and jaw-D CUC2g-m4 (G). In addition, KNAT1:GUS is expressed in the distal sinus (arrows) of stip-D CUC2g-m4 (M) and jaw-D CUC2g-m4 (N). (HK) KNAT2 and STM genes are not expressed in the leaves of CUC2g-m4: No KNAT2:GUS expression can be detected in wild type (H) and CUC2g-m4 (I) leaves. No STM:GUS expression can be detected in wild type (J) and CUC2g-m4 (K) leaves. (OT) KNAT6 expression in jaw-D, stip-D and CUC2g-m4 mutants: KNAT6:GUS expression is detected in the hydathodes (arrowheads) of all genotypes tested. In jaw-D, expression of KNAT6:GUS could be detected in the hydathodes of new growing teeth close to the sinus (P, arrowheads), but not in the sinus. In stip-D (Q), CUC2g-m4 (R) jaw-D stip-D (S) and stip-D CUC2g-m4 (T), KNAT6:GUS expression can be detected in the sinus of the teeth (arrows).

Click here to enlarge figure

Figure 5. KNOX I expression in the leaf of jaw-D, stip-D, CUC2g-m4 and different double mutants combinations. (AG), (LN) KNAT1:GUS is expressed in double mutant leaves but not in single mutant leaves: Expression of the KNAT1:GUS reporter is absent from leaves of wild type (A), jaw-D (B), stip-D (C) and CUC2g-m4 (D). In contrast, KNAT1:GUS expression can be detected in the the hydathodes (arrowheads) of jaw-D stip-D (Eand L), stip-D CUC2g-m4 (F and M) and jaw-D CUC2g-m4 (G). In addition, KNAT1:GUS is expressed in the distal sinus (arrows) of stip-D CUC2g-m4 (M) and jaw-D CUC2g-m4 (N). (HK) KNAT2 and STM genes are not expressed in the leaves of CUC2g-m4: No KNAT2:GUS expression can be detected in wild type (H) and CUC2g-m4 (I) leaves. No STM:GUS expression can be detected in wild type (J) and CUC2g-m4 (K) leaves. (OT) KNAT6 expression in jaw-D, stip-D and CUC2g-m4 mutants: KNAT6:GUS expression is detected in the hydathodes (arrowheads) of all genotypes tested. In jaw-D, expression of KNAT6:GUS could be detected in the hydathodes of new growing teeth close to the sinus (P, arrowheads), but not in the sinus. In stip-D (Q), CUC2g-m4 (R) jaw-D stip-D (S) and stip-D CUC2g-m4 (T), KNAT6:GUS expression can be detected in the sinus of the teeth (arrows).
Plants 02 00230 g005 1024

Expression of the pSTM:GUS reporter is observed only in the jaw-D CUC2g-m4 double mutant and in neither of the other single or double mutants (Table 1 and Figure 5J,K).

In the wild type, activity of the pKNAT6:GUS reporter is observed in the tips of the serrations and at the base of the trichomes (Figure 5O). pKNAT6:GUS is similarly expressed in the tips of the serrations and trichomes of the three single mutants. An additional activity of the reporter is detected in the sinus of all mutants (Figure 5P–T). In the double jaw-D stip-D and stip-D CUC2g-m4 the expression in the sinus is very strong (Figure 5S–T).

No ectopic expression of the pKNAT2:GUS reporter is observed in any of the mutants analysed (Table 1 and Figure 5H–I).

Altogether, this shows that CUC2g-m4 is sufficient to induce ectopic expression of KNAT6 in the sinus. To obtain a similar KNAT1 ectopic expression, the presence of jaw-D combined with either stip-D or CUC2g-m4 is required (Table 1). This revealed a specific effect of CUC2g-m4 on some members of the Arabidopsis KNOX I family and a cooperative effect between the three different mutations analysed here.

3. Discussion

Here, we investigated the relationship between different genes regulating leaf dissection and analysed their combined effects on leaf shape and expression of the KNOX I genes. First, we show that the abnormal leaf phenotype of jaw-D, stip-D and CUC2g-m4 mutants can be further increased when any of these mutations are combined. Second, jaw-D, stip-D and CUC2g-m4 have different, and sometimes synergistic effects on KNOX I expression on leaves. Altogether, this confirms and extends the previous conclusion [30] that jaw-D, stip-D and CUC2g-m4 control leaf development via independent pathways.

The most striking phenotype of the mutants analysed here is the reiterative dissection process leading to several orders of dissection that dramatically modify leaf shape. On the basis of the leaf shape of the different mutants and combination of mutants, we propose a working model for the effect of the CUC2g-m4, jaw-D and stip-D transgenes on leaf development (Figure 6) that underlines the role of several factors controlling the formation of leaves with complex shapes.

Plants 02 00230 g006 1024
Figure 6. Working model for the effects of CUC2g-m4, stip-D and jaw-D on CUC2 activity and margin development. The CUC2 activity (black) and leaf shape at three stages of development are shown for the four genotypes. The expression of CUC2 in the future distal sinus of the leaf is represented only at a young stage (A). Once the primary lobes have formed, the competence to initiate additional lobes ceases. In the CUC2g-m4 mutant, the expression of CUC2 is extended in width leading to an enlargement of the sinus. At the same time, CUC2 expression is reinitiated more rapidly in the primary lobe, leading to a second order of incision and to a secondary lobe (B). The competence to form lobes ceases rapidly however limiting the lobe order to two. In the stip-D mutant, the CUC2 expression pattern is the same as in wild type except that CUC2 expression is prolonged leading to an increased serration depth (C). In the jaw-D mutant, the duration of the window of competence to form lobes is increased, allowing the reiterative expression of CUC2 and the formation of several orders of lobes (D).

Click here to enlarge figure

Figure 6. Working model for the effects of CUC2g-m4, stip-D and jaw-D on CUC2 activity and margin development. The CUC2 activity (black) and leaf shape at three stages of development are shown for the four genotypes. The expression of CUC2 in the future distal sinus of the leaf is represented only at a young stage (A). Once the primary lobes have formed, the competence to initiate additional lobes ceases. In the CUC2g-m4 mutant, the expression of CUC2 is extended in width leading to an enlargement of the sinus. At the same time, CUC2 expression is reinitiated more rapidly in the primary lobe, leading to a second order of incision and to a secondary lobe (B). The competence to form lobes ceases rapidly however limiting the lobe order to two. In the stip-D mutant, the CUC2 expression pattern is the same as in wild type except that CUC2 expression is prolonged leading to an increased serration depth (C). In the jaw-D mutant, the duration of the window of competence to form lobes is increased, allowing the reiterative expression of CUC2 and the formation of several orders of lobes (D).
Plants 02 00230 g006 1024

The first factor is the competence to form teeth that seems to be controlled by the TCP genes. We have down-regulated the TCP genes through two different strategies: first by knocking-out individually or in combination the TCP2 and TCP10 genes, and second, via the over-expression of miR319 in jaw-D. In both cases an increased leaf serration was observed, though at different levels. Conversely, expression of TCP genes resistant to miR319 leads to completely smooth leaves [17,18]. Therefore, a window of competence for teeth growth is setup by the action of the TCP genes and may be linked to their role in promoting differentiation [14]. This definition of a competence window by the TCP proteins is similar to the one proposed for tomato (Solanum lycopersicum). In tomato, the down-regulation of TCP genes through the over-expression of miR319 leads to leaflets of higher order. Conversely, a miR319-resistant form of the LANCEOLATE (LA) TCP gene leads to simple tomato leaves [16]. Therefore, the TCP genes may control in both Arabidopsis and tomato a window of competence to form leaf sub-units (either teeth or leaflets, Figure 6A,D).

The second factor is the patterning action of the CUC2 gene to instruct the formation of serrations. Formation of the serrations may involve local growth inhibition where CUC2 is expressed, in agreement with the role of CUC genes during organ primordium formation [41], but CUC2 may also have a promoting effect on teeth growth similar to the role of the NAM/CUC genes during leaflet growth [29]. Indeed, based on the comparison of wild-type and cuc2 mutant leaf outlines, Kawamura et al., suggested that CUC2 promotes teeth outgrowth [31]. In CUC2g-m4, expression of CUC2 is enlarged leading to wider and deeper sinus. Teeth of CUC2g-m4 leaves overlap, whereas wild-type leaves could be mostly flattened out without any overlapping teeth. This also supports the role of CUC2 in the promotion of teeth outgrowth.

Large teeth of CUC2g-m4 also tend to harbour a second order of small teeth at the base of the first order teeth, which is not observed in the wild type. One possible explanation for this would be that formation of higher order of dissections would be controlled by a spacing mechanism such as lateral inhibition. Tips of the first order of serration would locally inhibit the formation of secondary serrations. As it has been shown that auxin distribution underlines first order teeth patterning [23], it is possible that tips of developing serrations deplete auxin from their surroundings, thus inhibiting the initiation of teeth of higher order. The base of the larger teeth of CUC2g-m4 would be outside the zone from which auxin is depleted and able to reinitiate the process of teeth formation. In this view, the increase in the order of dissection in the CUC2g-m4 mutant would be an indirect consequence of the deeper serration. However, in the stip-D mutant an increase of the serration is also observed but there is no increase in the order of incision. This is also the case for the jaw-D stip-D double mutant, which has the same order of incision as the jaw-D mutant despite a much stronger leaf dissection. Therefore, the teeth of higher order in CUC2g-m4 may reflect a shortening of the range of lateral inhibition, due for instance to modified production, distribution or sensitivity to auxin (Figure 6B). A first step to test these hypotheses will be to perform a precise morphometric analysis of leaf development of these mutants to determine the geometry of the leaf margin at the time when the different orders of serrations are initiated.

When the CUC2g-m4 construct is combined with jaw-D, or with the tcp2-101 or tcp10-1 mutants not only is the growth of the serration increased, but also their dissection, as the teeth are more individualised than in any of the parental mutants. This is difficult to reconcile with jaw-D only controlling teeth growth, and suggests a synergistic effect between both constructs. Koyama et al., showed that TCP proteins activate the expression of MIR164A, a negative regulator of CUC2 [42]. This can, however, not account for the synergistic effect between jaw-D and CUC2g-m4, as CUC2g-m4 is insensitive to miR164. The same group showed previously that the expression of a chimeric repressor form of TCP3 (TCP3SRDX), leads to the ectopic expression of CUC3 that is not a target of miR164. TCP proteins may therefore have an additional effect on CUC gene expression independent of miR164 [18]. Finally, because a snapdragon CUC orthologue CUPULIFORMIS (CUP) interacts with a TCP protein in a two-hybrid test [43], interactions between CUC2 and TCP proteins may also contribute to the regulation of their activities.

In the stip-D mutant, and all mutant combinations including stip-D, a strong increase of the depth of the dissection between the teeth is observed. This phenotype is increased when the regulation of CUC2 by miR164 is disabled, suggesting another synergistic effect between CUC2 and stip-D. As stip-D increases the depth of the dissection between teeth, it could indicate that stip-D prolongs the expression of CUC2 (Figure 6C). This hypothesis is consistent with the recent finding that two genes related to STIMPY are positive regulators of CUC2 during embryo development [44].

4. Experimental Section

4.1. Plant Material

All material is in Columbia background. The jaw-D [17], stip-D [36], mir164a-4, CUC2g-m4 [32], pSTM:GUS [45], pKNAT1:GUS [46], pKNAT2:GUS [46], pKNAT6:GUS [47]. The tcp2-101 mutant is the Salk_144731 line [48] and the tcp10-1 mutant is the Salk_137205 previously described [42]. Plants were grown in long days in greenhouses or in short days in a controlled environment. The controlled long-day growth conditions consisted of 16 h of light at 23 °C and 8 h of darkness at 15 °C. The short-day growth conditions consisted of 8 h light at 23 °C and 16 h darkness at 18 °C. The following primers were used to genotype TCP2 (TCP2-Fwd and TCP2-Rev), tcp2 (TCP2-Fwd and LBA1), TCP10 (TCP10-Fwd and TCP10-Rev) and tcp10 (TCP10-Rev and LBA1): TCP2-Fwd ACG AAG CTG TAT CTA CTG AC, TCP2-Rev AAA GAT TTC CAA AGA CCC TC, LBA1 TGG TTC ACG TAG TGG GCC ATC G, TCP10-Fwd AAC TTC TGC TAT CCT TTC CA, TCP10-Rev ATC CCA TGA GAA CCA TAC TG.

4.2. GUS Assay

The GUS staining of shoots harvested from plants grown in long day conditions in greenhouses was carried out as described [49], in the presence of 0.5 mM potassium ferri/ferrocyanide. After an over-night staining, the reaction is stopped by a 70% ethanol solution.

4.3. Scanning Electron Microscopy

Scanning electron microscopy was carried out as previously described [50]. The different images obtained where then assembled using Hugin software [51].

5. Conclusions

Our work reveals the strong flexibility of leaf development, as it is sufficient to modify the expression of only a few genes to generate extremely diverse leaf shapes. We have proposed a working model of the effects of the three transgenes analysed here that may help to understand how leaf shape can be modulated. Validation of this model awaits however tracking-down at their origin the changes in leaf shape that we describe here essentially for mature leaves and linking the dynamic changes in leaf geometry with changes in gene activity.

Acknowledgments

We thank D. Weigel for the jaw-D and stip-D mutants, S. Domenichini for SEM assistance and M. Cortizo and N. Arnaud for comments on the manuscript.

References

  1. Hasson, A.; Blein, T.; Laufs, P. Leaving the meristem behind: The genetic and molecular control of leaf patterning and morphogenesis. C. R. Biol. 2010, 333, 350–360. [Google Scholar] [CrossRef]
  2. Moon, J.; Hake, S. How a leaf gets its shape. Curr. Opin. Plant Biol. 2011, 14, 24–30. [Google Scholar] [CrossRef]
  3. Blein, T.; Hasson, A.; Laufs, P. Leaf development: What it needs to be complex. Curr. Opin. Plant Biol. 2010, 13, 75–82. [Google Scholar]
  4. Long, J.A.; Moan, E.I.; Medford, J.I.; Barton, M.K. A member of the KNOTTED class of homeodomain proteins encoded by the STM gene of Arabidopsis. Nature 1996, 379, 66–69. [Google Scholar]
  5. Bharathan, G.; Goliber, T.E.; Moore, C.; Kessler, S.; Pham, T.; Sinha, N.R. Homologies in leaf form inferred from KNOXI gene expression during development. Science 2002, 296, 1858–1860. [Google Scholar] [CrossRef]
  6. Hay, A.; Tsiantis, M. The genetic basis for differences in leaf form between Arabidopsis thaliana and its wild relative Cardamine hirsuta. Nat. Genet. 2006, 38, 942–947. [Google Scholar] [CrossRef]
  7. Shani, E.; Burko, Y.; Ben-Yaakov, L.; Berger, Y.; Amsellem, Z.; Goldshmidt, A.; Sharon, E.; Ori, N. Stage-specific regulation of Solanum lycopersicum leaf maturation by class 1 KNOTTED1-LIKE HOMEOBOX proteins. Plant Cell 2009, 21, 3078–3092. [Google Scholar] [CrossRef]
  8. Jasinski, S.; Piazza, P.; Craft, J.; Hay, A.; Woolley, L.; Rieu, I.; Phillips, A.; Hedden, P.; Tsiantis, M. KNOX action in Arabidopsis is mediated by coordinate regulation of cytokinin and gibberellin activities. Curr. Biol. 2005, 15, 1560–1565. [Google Scholar]
  9. Yanai, O.; Shani, E.; Dolezal, K.; Tarkowski, P.; Sablowski, R.; Sandberg, G.; Samach, A.; Ori, N. Arabidopsis KNOXI proteins activate cytokinin biosynthesis. Curr. Biol. 2005, 15, 1566–1571. [Google Scholar] [CrossRef]
  10. Shani, E.; Ben-Gera, H.; Shleizer-Burko, S.; Burko, Y.; Weiss, D.; Ori, N. Cytokinin regulates compound leaf development in tomato. Plant Cell 2010, 22, 3206–3217. [Google Scholar] [CrossRef]
  11. Sakamoto, T.; Kamiya, N.; Ueguchi-Tanaka, M.; Iwahori, S.; Matsuoka, M. KNOX homeodomain protein directly suppresses the expression of a gibberellin biosynthetic gene in the tobacco shoot apical meristem. Genes Dev. 2001, 15, 581–590. [Google Scholar] [CrossRef]
  12. Hay, A.; Kaur, H.; Phillips, A.; Hedden, P.; Hake, S.; Tsiantis, M. The gibberellin pathway mediates KNOTTED1-type homeobox function in plants with different body plans. Curr. Biol. 2002, 12, 1557–1565. [Google Scholar]
  13. Jasinski, S.; Tattersall, A.; Piazza, P.; Hay, A.; Martinez-Garcia, J.F.; Schmitz, G.; Theres, K.; McCormick, S.; Tsiantis, M. PROCERA encodes a DELLA protein that mediates control of dissected leaf form in tomato. Plant J. 2008, 56, 603–612. [Google Scholar] [CrossRef]
  14. Efroni, I.; Blum, E.; Goldshmidt, A.; Eshed, Y. A Protracted and Dynamic Maturation Schedule Underlies Arabidopsis Leaf Development. Plant Cell 2008, 22, 1019–1032. [Google Scholar]
  15. Shleizer-Burko, S.; Burko, Y.; Ben-Herzel, O.; Ori, N. Dynamic growth program regulated by LANCEOLATE enables flexible leaf patterning. Development 2011, 138, 695–704. [Google Scholar]
  16. Ori, N.; Cohen, A.R.; Etzioni, A.; Brand, A.; Yanai, O.; Shleizer, S.; Menda, N.; Amsellem, Z.; Efroni, I.; Pekker, I.; et al. Regulation of LANCEOLATE by miR319 is required for compound-leaf development in tomato. Nat. Genet. 2007, 39, 787–791. [Google Scholar] [CrossRef]
  17. Palatnik, J.F.; Allen, E.; Wu, X.; Schommer, C.; Schwab, R.; Carrington, J.C.; Weigel, D. Control of leaf morphogenesis by microRNAs. Nature 2003, 425, 257–263. [Google Scholar]
  18. Koyama, T.; Furutani, M.; Tasaka, M.; Ohme-Takagi, M. TCP transcription factors control the morphology of shoot lateral organs via negative regulation of the expression of boundary-specific genes in Arabidopsis. Plant Cell 2007, 19, 473–484. [Google Scholar]
  19. Schommer, C.; Palatnik, J.F.; Aggarwal, P.; Chetelat, A.; Cubas, P.; Farmer, E.E.; Nath, U.; Weigel, D. Control of jasmonate biosynthesis and senescence by miR319 targets. PLoS Biol. 2008, 6, e230. [Google Scholar]
  20. Reinhardt, D.; Pesce, E.R.; Stieger, P.; Mandel, T.; Baltensperger, K.; Bennett, M.; Traas, J.; Friml, J.; Kuhlemeier, C. Regulation of phyllotaxis by polar auxin transport. Nature 2003, 426, 255–260. [Google Scholar]
  21. Guenot, B.; Bayer, E.; Kierzkowski, D.; Smith, R.S.; Mandel, T.; Zadnikova, P.; Benkova, E.; Kuhlemeier, C. Pin1-independent leaf initiation in Arabidopsis. Plant physiol. 2012, 159, 1501–1510. [Google Scholar]
  22. Barkoulas, M.; Hay, A.; Kougioumoutzi, E.; Tsiantis, M. A developmental framework for dissected leaf formation in the Arabidopsis relative Cardamine hirsuta. Nat. Genet. 2008, 40, 1136–1141. [Google Scholar] [CrossRef]
  23. Bilsborough, G.D.; Runions, A.; Barkoulas, M.; Jenkins, H.W.; Hasson, A.; Galinha, C.; Laufs, P.; Hay, A.; Prusinkiewicz, P.; Tsiantis, M. Model for the regulation of Arabidopsis thaliana leaf margin development. Proc. Natl. Acad. Sci. USA 2011, 108, 3424–3429. [Google Scholar] [CrossRef]
  24. DeMason, D.A.; Polowick, P.L. Patterns of DR5: Gus expression in organs of pea (Pisum sativum). Int. J. Plant Sci. 2009, 170, 1–11. [Google Scholar] [CrossRef]
  25. Hay, A.; Barkoulas, M.; Tsiantis, M. ASYMMETRIC LEAVES1 and auxin activities converge to repress BREVIPEDICELLUS expression and promote leaf development in Arabidopsis. Development 2006, 133, 3955–3961. [Google Scholar]
  26. Koenig, D.; Bayer, E.; Kang, J.; Kuhlemeier, C.; Sinha, N. Auxin patterns Solanum lycopersicum leaf morphogenesis. Development 2009, 136, 2997–3006. [Google Scholar] [CrossRef]
  27. Aida, M.; Ishida, T.; Fukaki, H.; Fujisawa, H.; Tasaka, M. Genes involved in organ separation in Arabidopsis: An analysis of the cup-shaped cotyledon mutant. Plant Cell 1997, 9, 841–857. [Google Scholar]
  28. Berger, Y.; Harpaz-Saad, S.; Brand, A.; Melnik, H.; Sirding, N.; Alvarez, J.P.; Zinder, M.; Samach, A.; Eshed, Y.; Ori, N. The NAC-domain transcription factor GOBLET specifies leaflet boundaries in compound tomato leaves. Development 2009, 136, 823–832. [Google Scholar] [CrossRef]
  29. Blein, T.; Pulido, A.; Vialette-Guiraud, A.; Nikovics, K.; Morin, H.; Hay, A.; Johansen, I.E.; Tsiantis, M.; Laufs, P. A conserved molecular framework for compound leaf development. Science 2008, 322, 1835–1839. [Google Scholar]
  30. Hasson, A.; Plessis, A.; Blein, T.; Adroher, B.; Grigg, S.; Tsiantis, M.; Boudaoud, A.; Damerval, C.; Laufs, P. Evolution and Diverse Roles of the CUP-SHAPED COTYLEDON Genes in Arabidopsis Leaf Development. Plant Cell 2011, 23, 54–68. [Google Scholar]
  31. Kawamura, E.; Horiguchi, G.; Tsukaya, H. Mechanisms of leaf tooth formation in Arabidopsis. Plant J. 2010, 62, 429–441. [Google Scholar]
  32. Nikovics, K.; Blein, T.; Peaucelle, A.; Ishida, T.; Morin, H.; Aida, M.; Laufs, P. The balance between the MIR164A and CUC2 genes controls leaf margin serration in Arabidopsis. Plant Cell 2006, 18, 2929–2945. [Google Scholar] [CrossRef]
  33. Larue, C.T.; Wen, J.; Walker, J.C. A microRNA-transcription factor module regulates lateral organ size and patterning in Arabidopsis. Plant J. 2009, 58, 450–463. [Google Scholar]
  34. Ben-Gera, H.; Shwartz, I.; Shao, M.R.; Shani, E.; Estelle, M.; Ori, N. ENTIRE and GOBLET promote leaflet development in tomato by modulating auxin response. Plant J. 2012, 70, 903–915. [Google Scholar] [CrossRef]
  35. Spinelli, S.V.; Martin, A.P.; Viola, I.L.; Gonzalez, D.H.; Palatnik, J.F. A mechanistic link between STM and CUC1 during Arabidopsis development. Plant Physiol. 2011, 156, 1894–1904. [Google Scholar] [CrossRef]
  36. Wu, X.; Dabi, T.; Weigel, D. Requirement of homeobox gene STIMPY/WOX9 for Arabidopsis meristem growth and maintenance. Curr. Biol. 2005, 15, 436–440. [Google Scholar] [CrossRef]
  37. Hamant, O.; Pautot, V. Plant development: A TALE story. C. R. Biol. 2010, 333, 371–381. [Google Scholar] [CrossRef]
  38. Hay, A.; Tsiantis, M. KNOX genes: Versatile regulators of plant development and diversity. Development 2010, 137, 3153–3165. [Google Scholar] [CrossRef]
  39. Byrne, M.E.; Barley, R.; Curtis, M.; Arroyo, J.M.; Dunham, M.; Hudson, A.; Martienssen, R.A. Asymmetric leaves1 mediates leaf patterning and stem cell function in Arabidopsis. Nature 2000, 408, 967–971. [Google Scholar]
  40. Semiarti, E.; Ueno, Y.; Tsukaya, H.; Iwakawa, H.; Machida, C.; Machida, Y. The ASYMMETRIC LEAVES2 gene of Arabidopsis thaliana regulates formation of a symmetric lamina, establishment of venation and repression of meristem-related homeobox genes in leaves. Development 2001, 128, 1771–1783. [Google Scholar]
  41. Aida, M.; Tasaka, M. Morphogenesis and patterning at the organ boundaries in the higher plant shoot apex. Plant Mol. Biol. 2006, 60, 915–928. [Google Scholar] [CrossRef]
  42. Koyama, T.; Mitsuda, N.; Seki, M.; Shinozaki, K.; Ohme-Takagi, M. TCP Transcription Factors Regulate the Activities of ASYMMETRIC LEAVES1 and miR164, as Well as the Auxin Response, during Differentiation of Leaves in Arabidopsis. Plant Cell 2010, 22, 3574–3588. [Google Scholar] [CrossRef]
  43. Weir, I.; Lu, J.; Cook, H.; Causier, B.; Schwarz-Sommer, Z.; Davies, B. CUPULIFORMIS establishes lateral organ boundaries in Antirrhinum. Development 2004, 131, 915–922. [Google Scholar] [CrossRef]
  44. Lie, C.; Kelsom, C.; Wu, X. WOX2 and STIMPY-LIKE/WOX8 promote cotyledon boundary formation in Arabidopsis. Plant J. 2012, 72, 674–682. [Google Scholar] [CrossRef]
  45. Laufs, P.; Peaucelle, A.; Morin, H.; Traas, J. MicroRNA regulation of the CUC genes is required for boundary size control in Arabidopsis meristems. Development 2004, 131, 4311–4322. [Google Scholar]
  46. Pautot, V.; Dockx, J.; Hamant, O.; Kronenberger, J.; Grandjean, O.; Jublot, D.; Traas, J. KNAT2: Evidence for a link between knotted-like genes and carpel development. Plant Cell 2001, 13, 1719–1734. [Google Scholar]
  47. Belles-Boix, E.; Hamant, O.; Witiak, S.M.; Morin, H.; Traas, J.; Pautot, V. KNAT6: An Arabidopsis homeobox gene involved in meristem activity and organ separation. Plant Cell 2006, 18, 1900–1907. [Google Scholar] [CrossRef]
  48. Alonso, J.M.; Stepanova, A.N.; Leisse, T.J.; Kim, C.J.; Chen, H.; Shinn, P.; Stevenson, D.K.; Zimmerman, J.; Barajas, P.; Cheuk, R.; et al. Genome-wide insertional mutagenesis of Arabidopsis thaliana. Science 2003, 301, 653–657. [Google Scholar] [CrossRef]
  49. Sessions, A.; Weigel, D.; Yanofsky, M.F. The Arabidopsis thaliana MERISTEM LAYER 1 promoter specifies epidermal expression in meristems and young primordia. Plant J. 1999, 20, 259–263. [Google Scholar]
  50. Bertrand, C.; Bergounioux, C.; Domenichini, S.; Delarue, M.; Zhou, D.X. Arabidopsis histone acetyltransferase AtGCN5 regulates the floral meristem activity through the WUSCHEL/AGAMOUS pathway. J. Biol. Chem. 2003, 278, 28246–28251. [Google Scholar]
  51. Hugin software. Available online: http://hugin. sourceforge.net/ (accessed on 27 March 2013).
