Open AccessReview
Electronics 2014, 3(2), 351-380; doi:10.3390/electronics3020351

Bandgap Science for Organic Solar Cells

1
Institute for Molecular Science, 5-1 Higashiyama, Myodaiji, Okazaki, Aichi 444-8787, Japan
2
JST, CREST, 5, Sanbancho, Chiyoda-ku, Tokyo 102-0075, Japan
3
Graduate School of Engineering, Osaka University, Yamadaoka, Suita, Osaka 565-0871, Japan
4
Osaka Municipal Technical Research Institute, 1-6-50 Morinomiya, Joto-ku, Osaka 536-8553, Japan
5
Department of Production System Engineering, Toyohashi University of Technology, Tempaku-cho, Toyohashi, Aichi 441-8580, Japan
*
Author to whom correspondence should be addressed.
Received: 18 February 2014 / Revised: 28 April 2014 / Accepted: 26 May 2014 / Published: 11 June 2014
(This article belongs to the Special Issue Organic Semiconductors)

Abstract

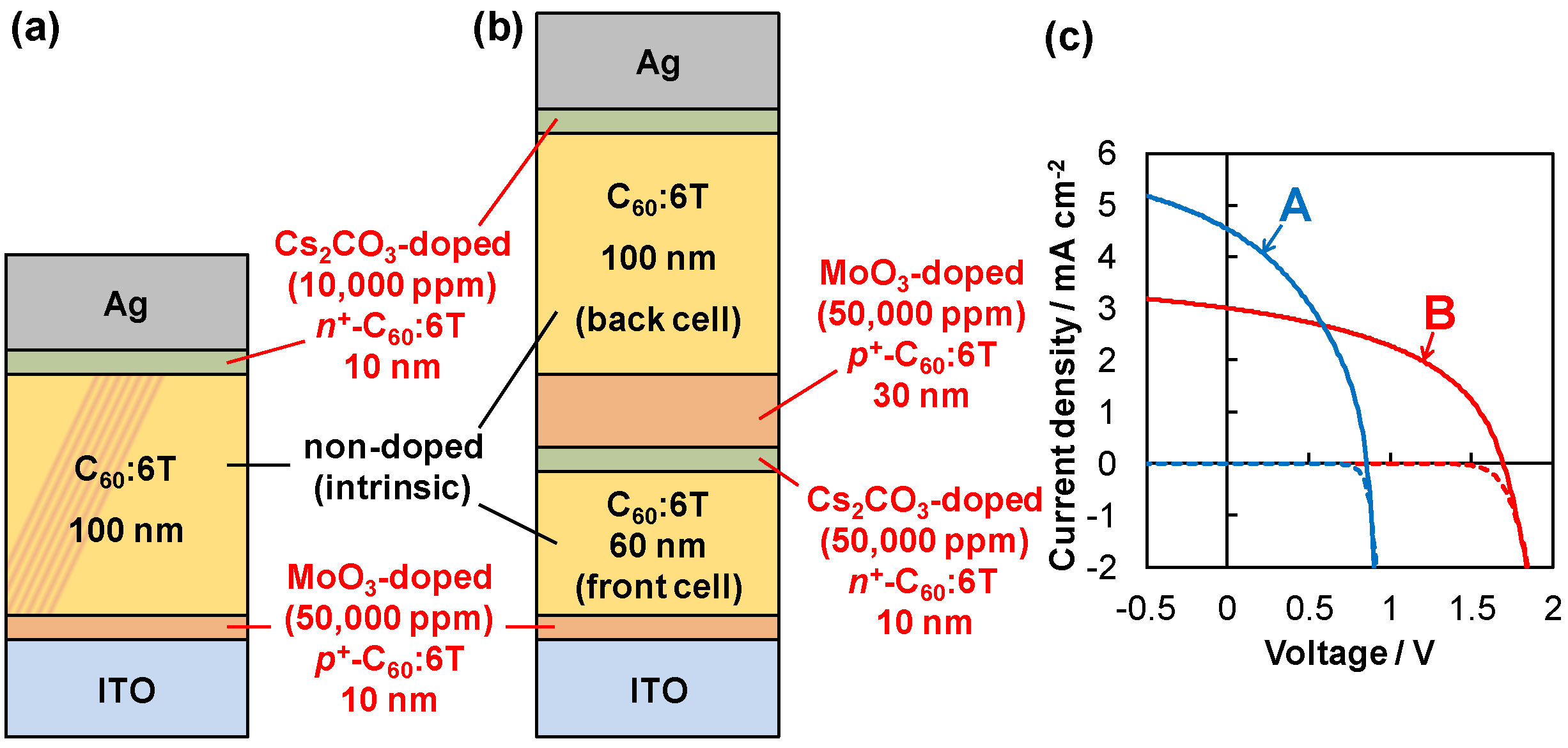

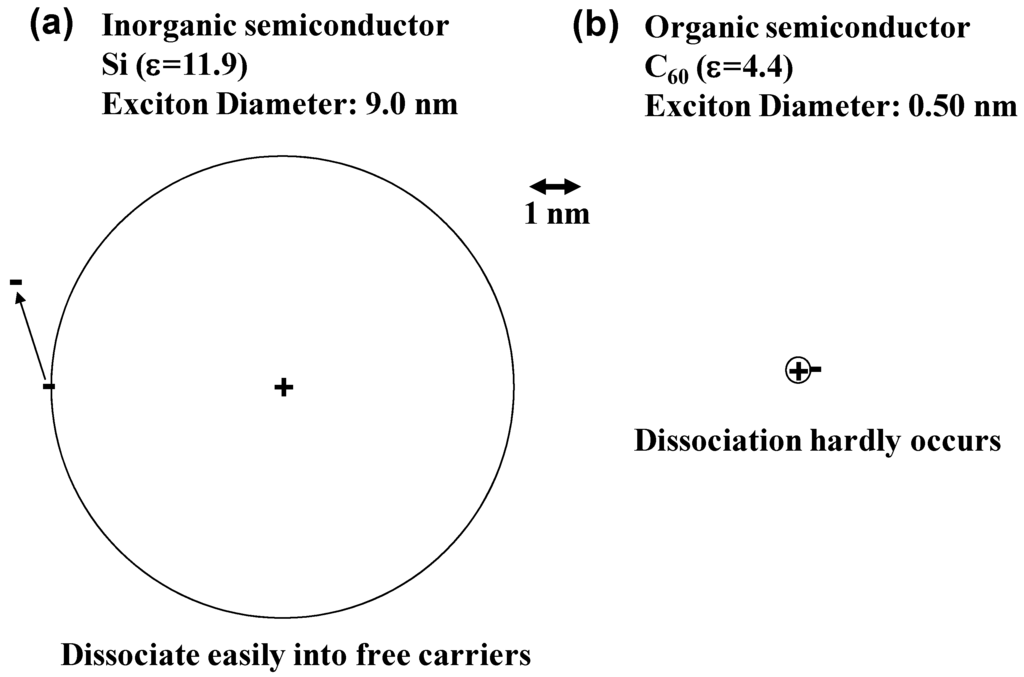

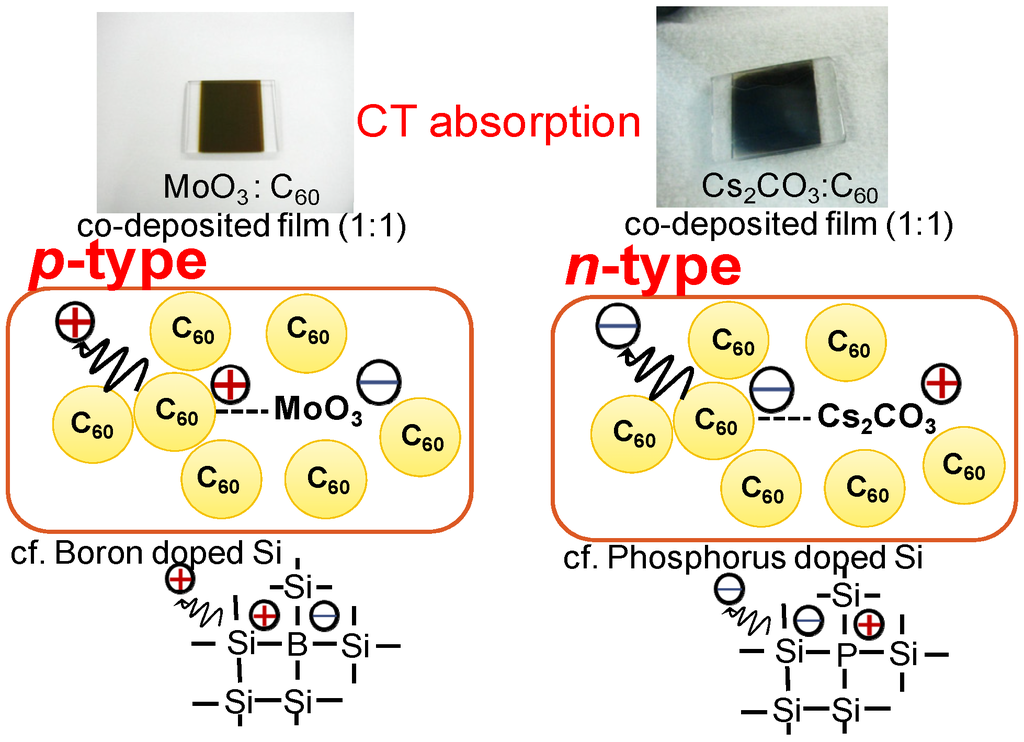

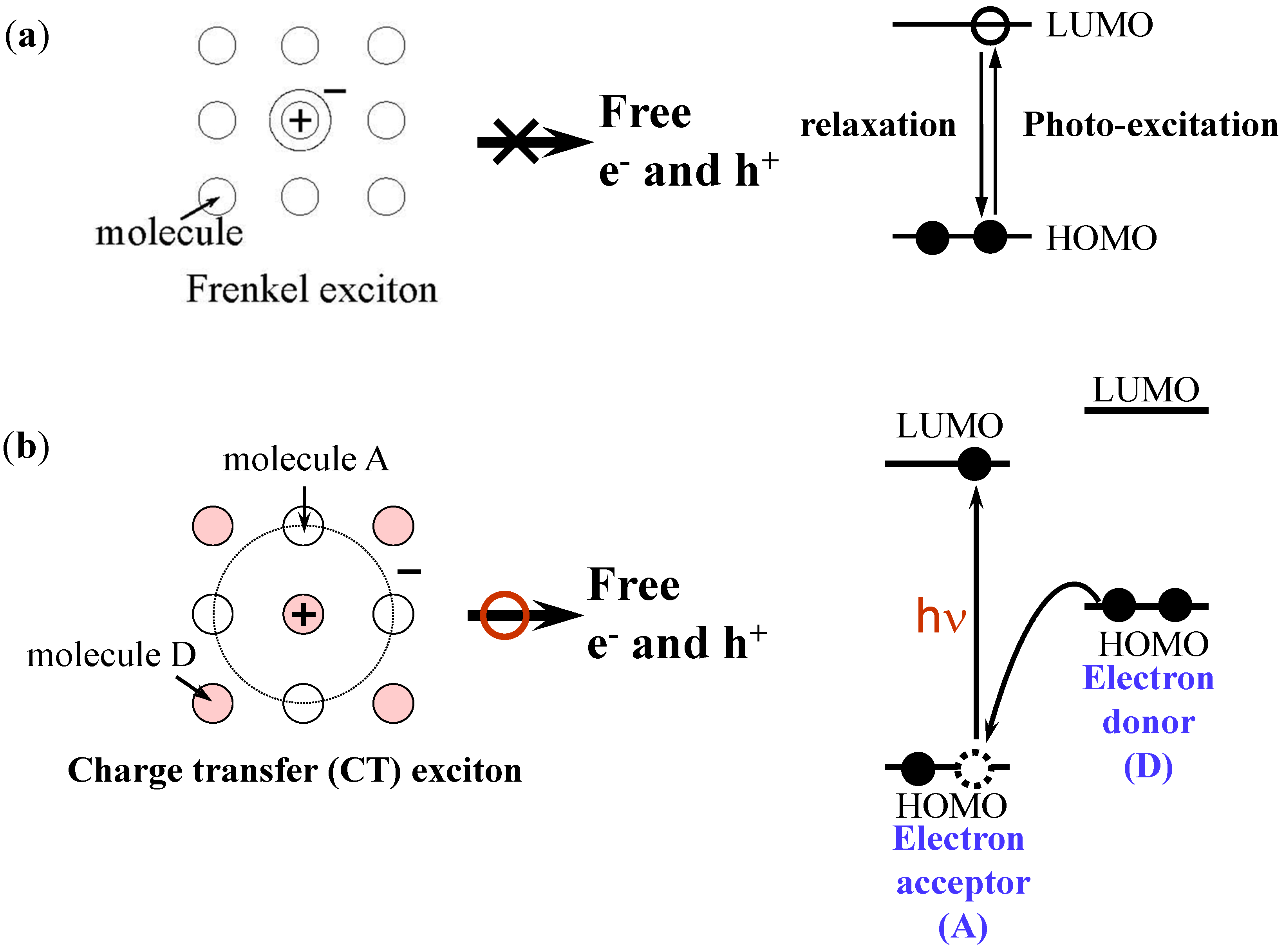

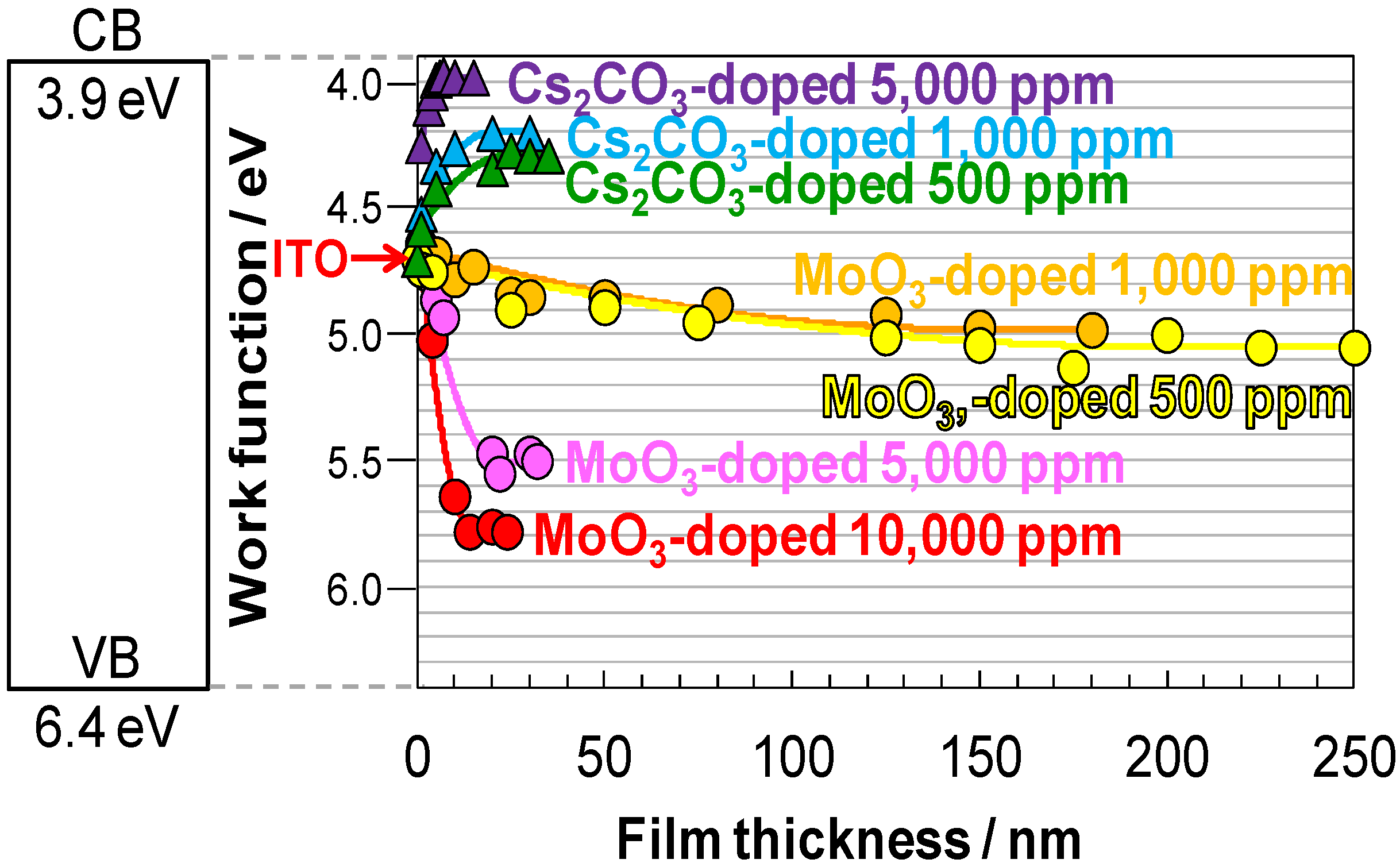

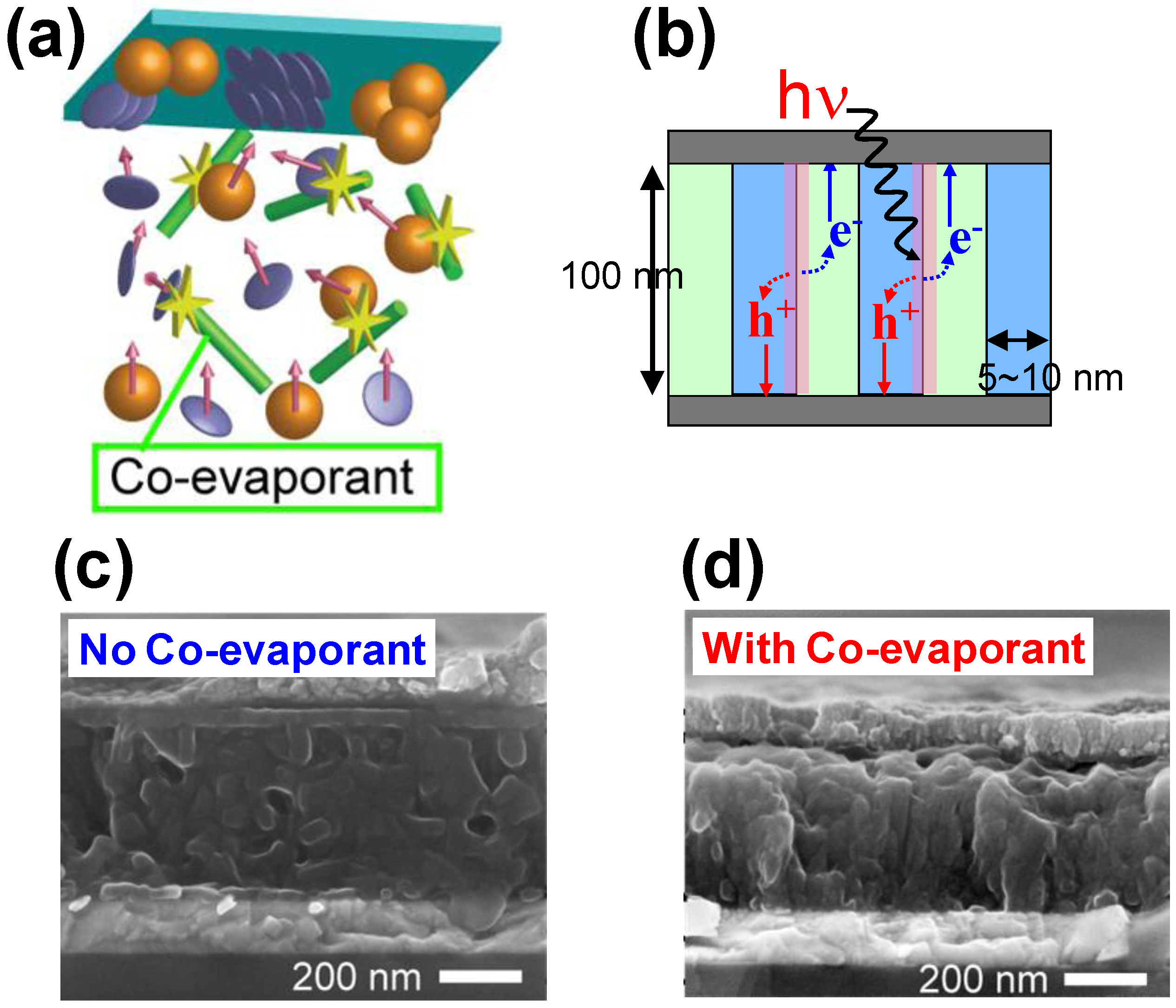

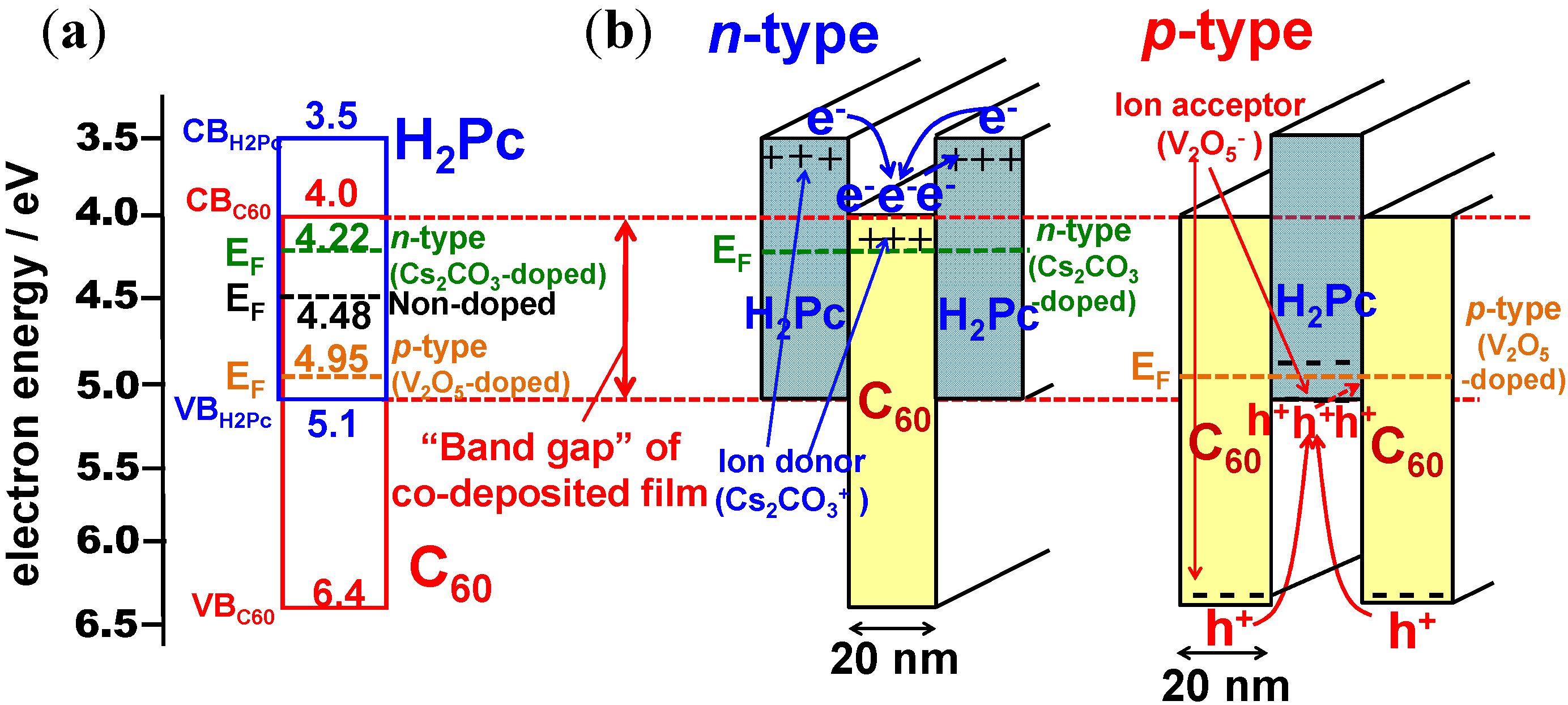

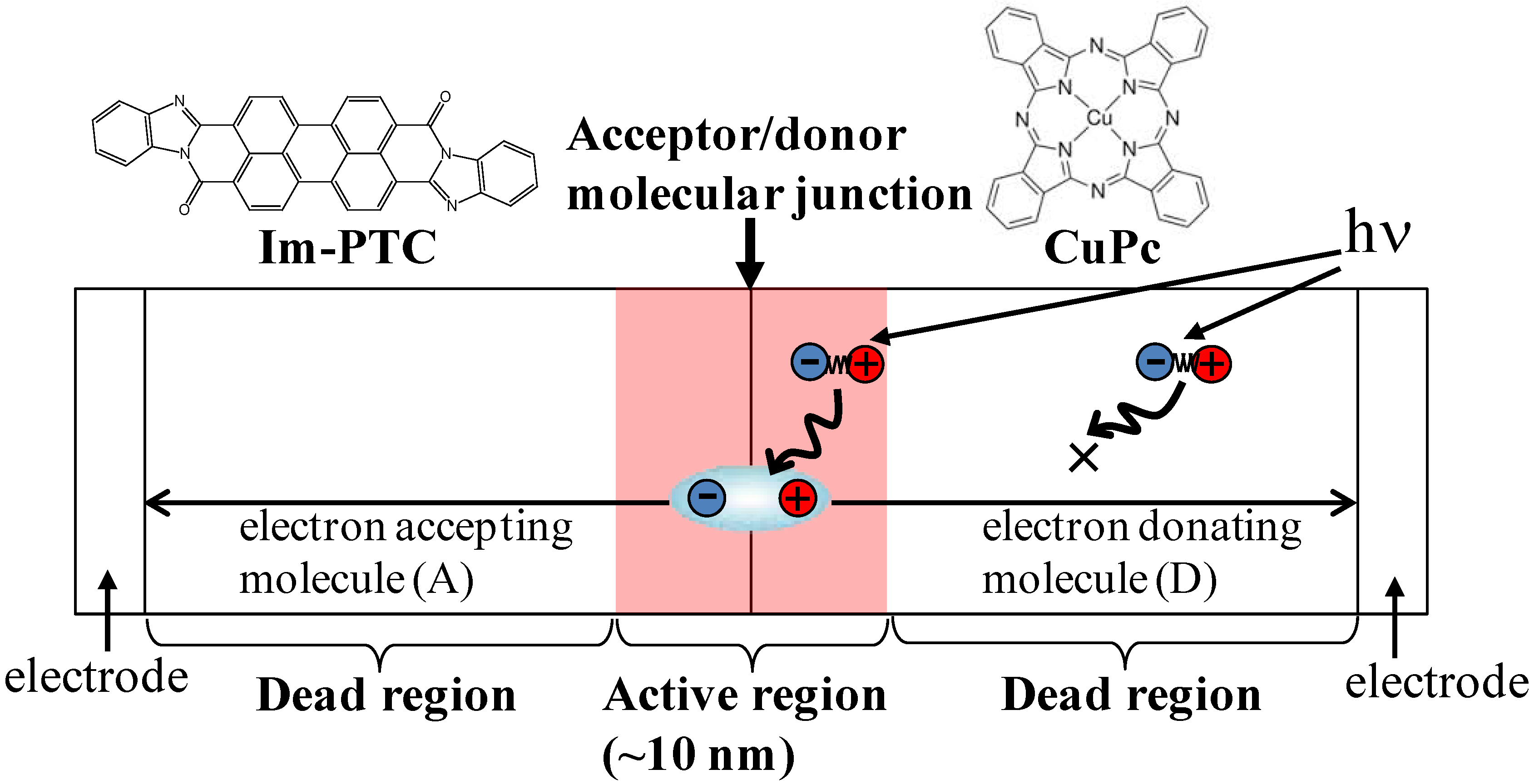

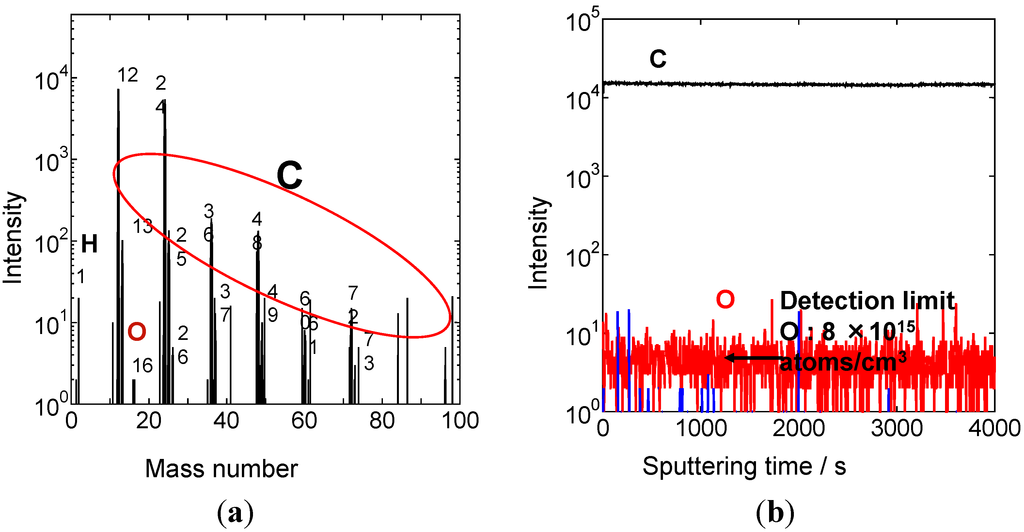

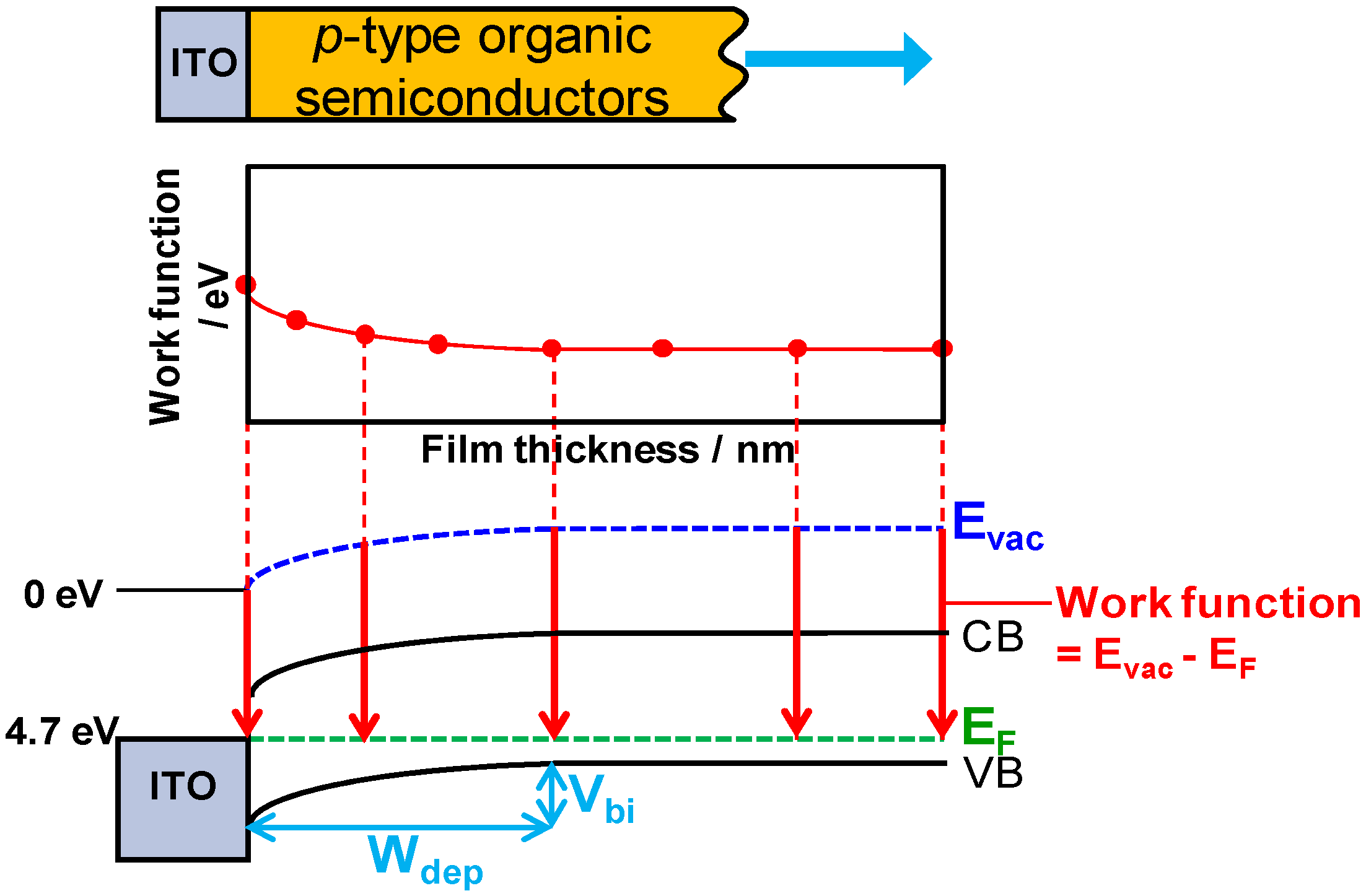

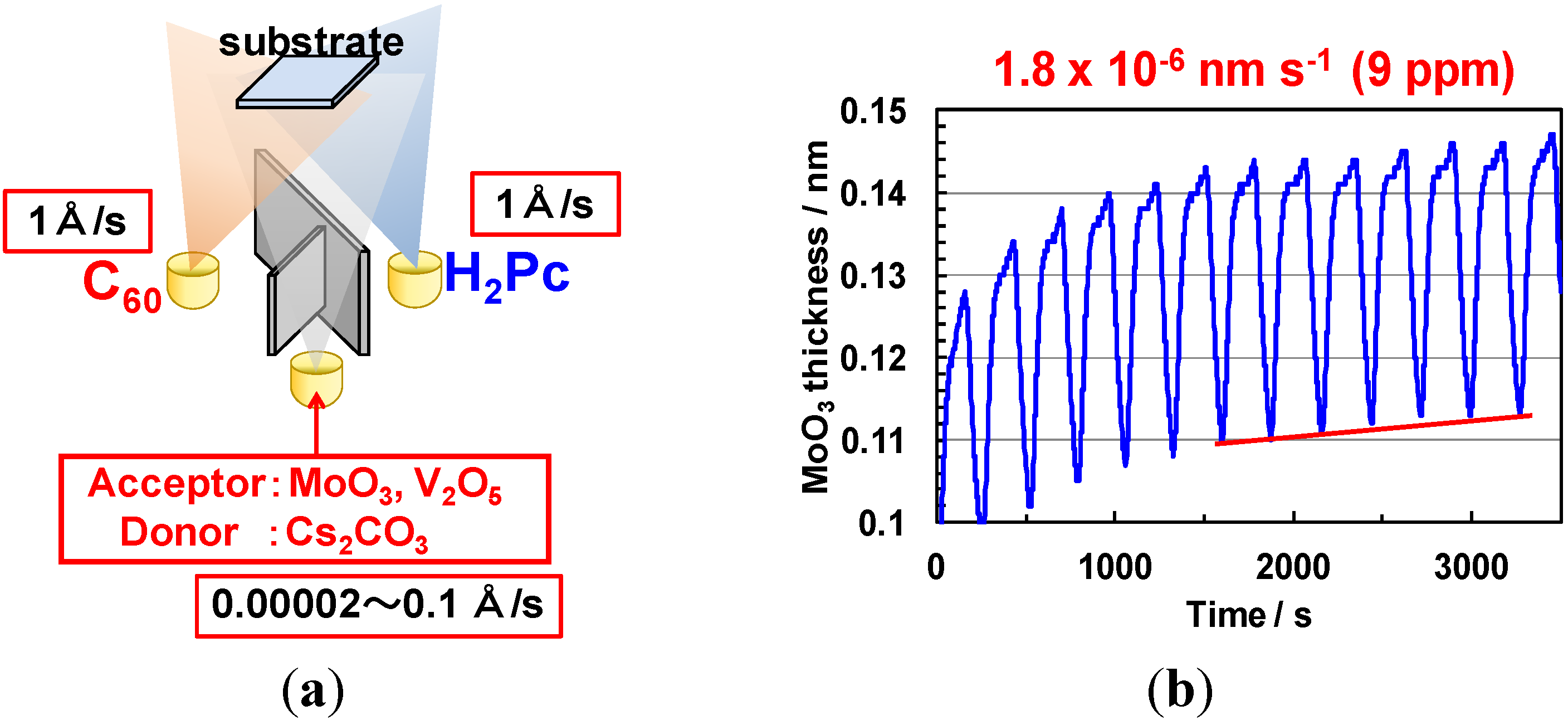

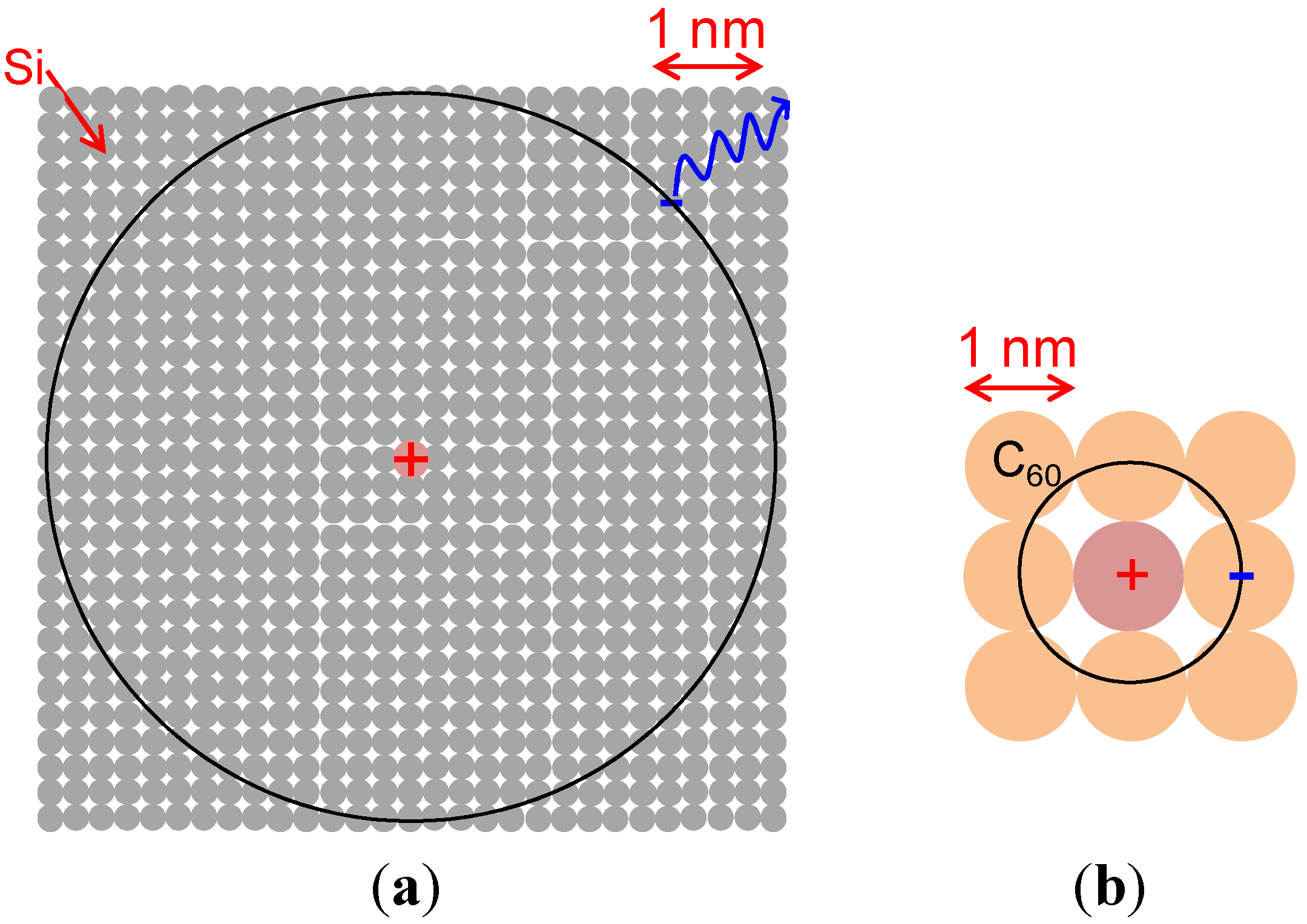

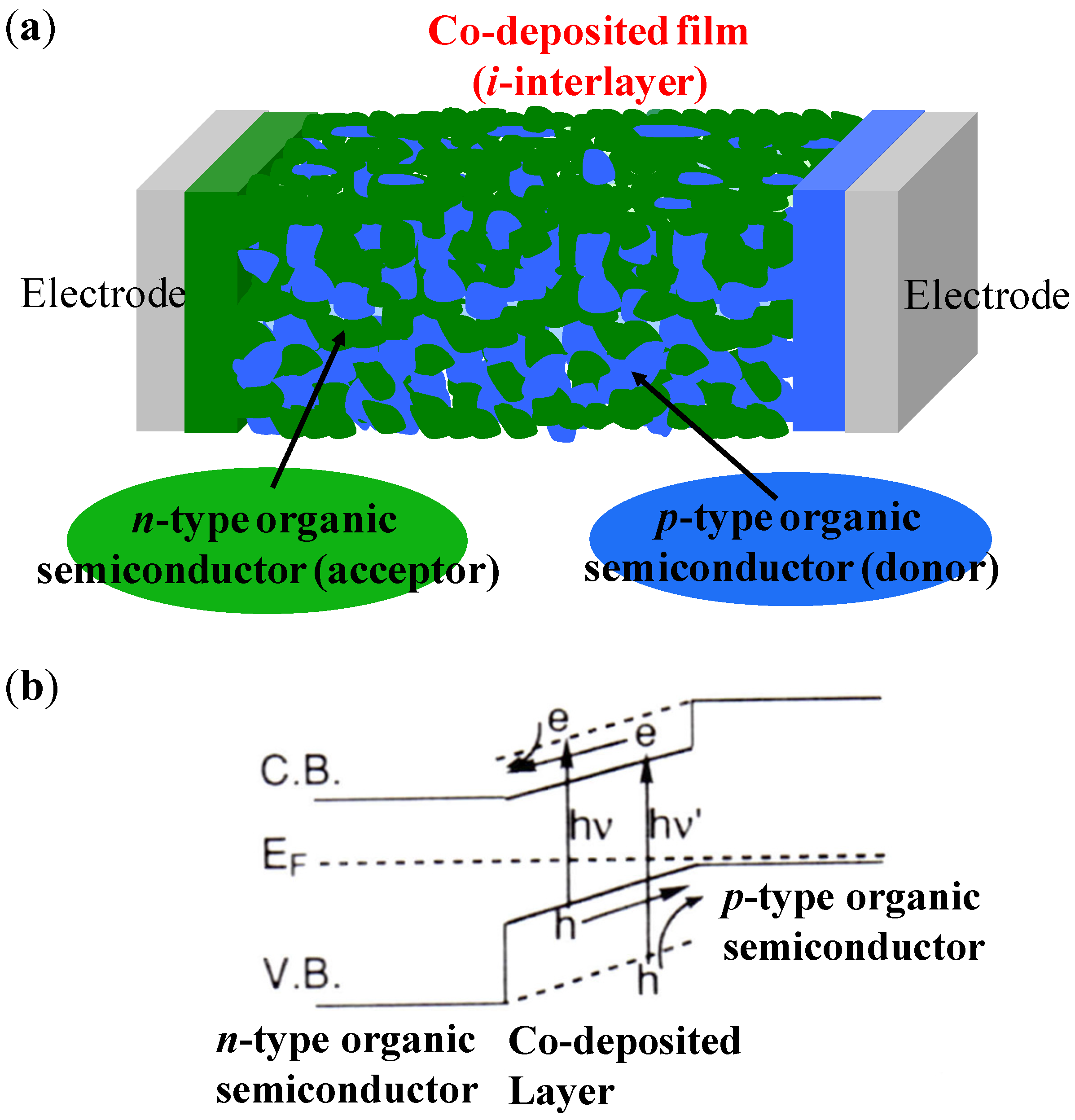

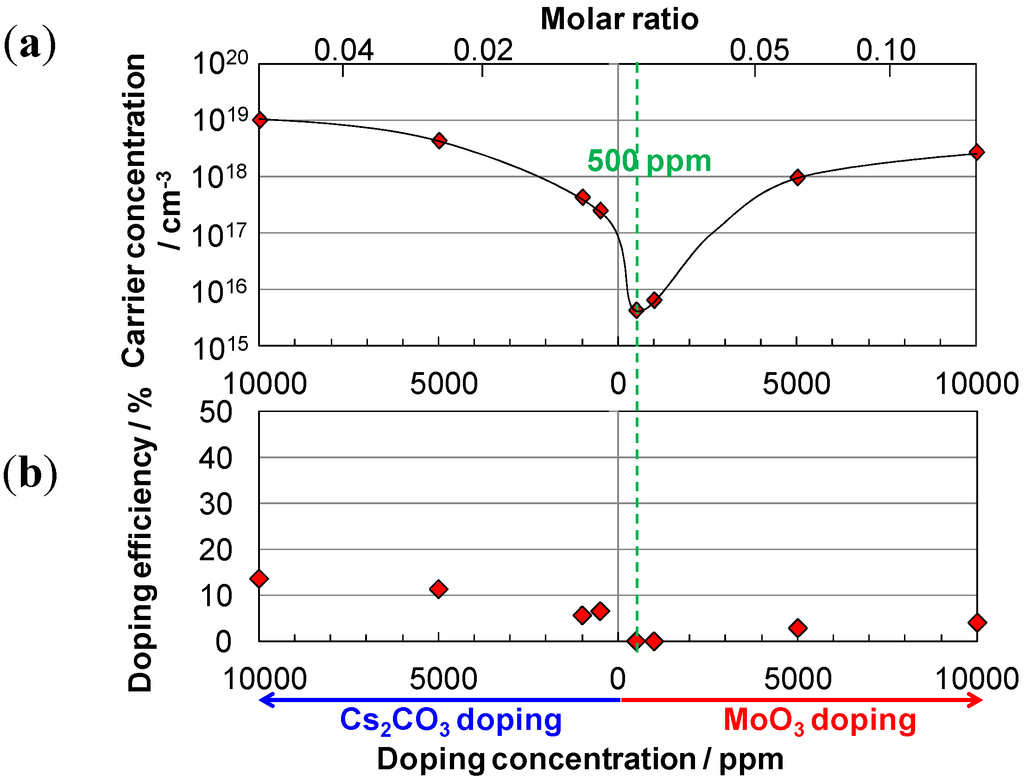

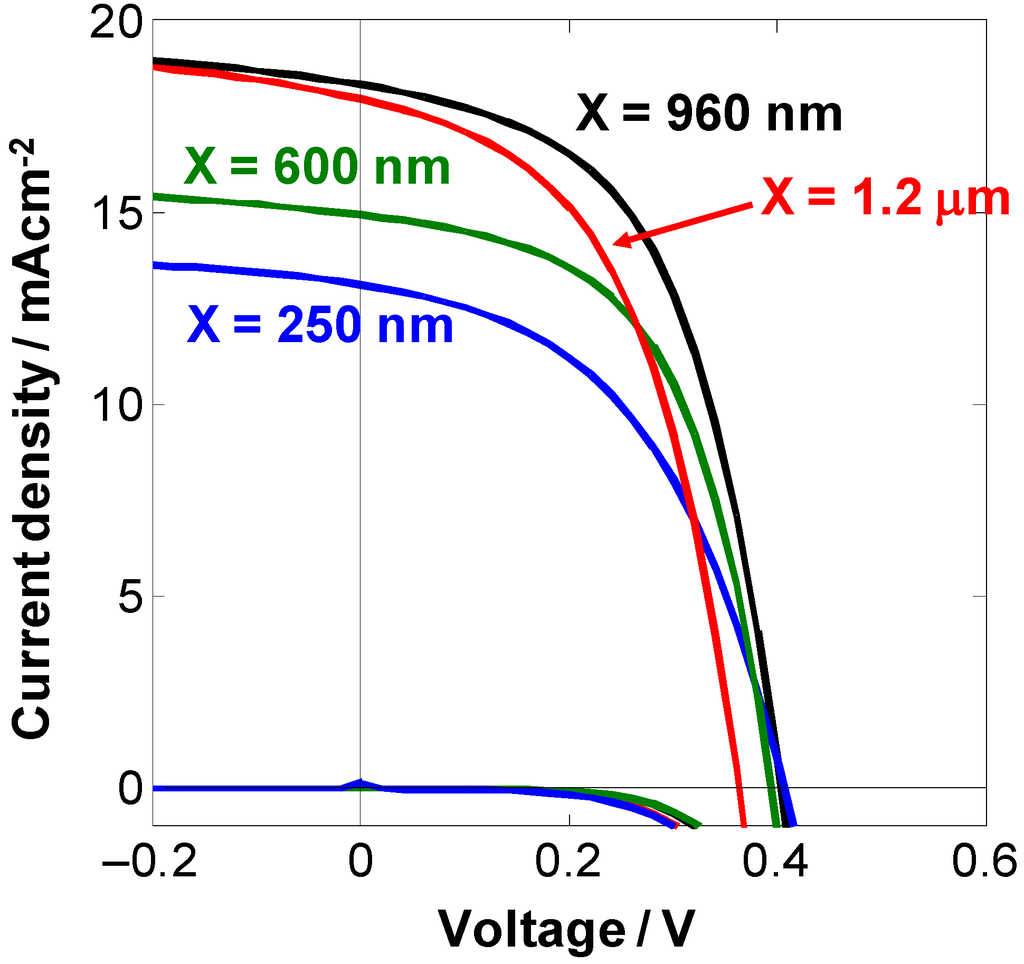

The concept of bandgap science of organic semiconductor films for use in photovoltaic cells, namely, high-purification, pn-control by doping, and design of the built-in potential based on precisely-evaluated doping parameters, is summarized. The principle characteristics of organic solar cells, namely, the exciton, donor (D)/acceptor (A) sensitization, and p-i-n cells containing co-deposited and D/A molecular blended i-interlayers, are explained. ‘Seven-nines’ (7N) purification, together with phase-separation/cystallization induced by co-evaporant 3rd molecules allowed us to fabricate 5.3% efficient cells based on 1 µm-thick fullerene:phthalocyanine (C60:H2Pc) co-deposited films. pn-control techniques enabled by impurity doping for both single and co-deposited films were established. The carrier concentrations created by doping were determined by the Kelvin band mapping technique. The relatively high ionization efficiency of 10% for doped organic semiconductors can be explained by the formation of charge transfer (CT)-complexes between the dopants and the organic semiconductor molecules. A series of fundamental junctions, such as Schottky junctions, pn-homojunctions, p+, n+-organic/metal ohmic junctions, and n+-organic/ p+-organic ohmic homojunctions, were fabricated in both single and co-deposited organic semiconductor films by impurity doping alone. A tandem cell showing 2.4% efficiency was fabricated in which the built-in electric field was designed by manipulating the doping.
Keywords: organic solar cell; doping; bandgap science; seven-nines purification; phase-separation; pn-control; co-deposited film; Kelvin band mapping; carrier concentration; ionization efficiency; built-in potential design; pn-homojunction; metal/organic ohmic junction; organic/organic ohmic homojunction; tandem cell organic solar cell; doping; bandgap science; seven-nines purification; phase-separation; pn-control; co-deposited film; Kelvin band mapping; carrier concentration; ionization efficiency; built-in potential design; pn-homojunction; metal/organic ohmic junction; organic/organic ohmic homojunction; tandem cell
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
