Modified EAS Tag Used as a Resistive Sensor Platform
Henrik Andersson 1,*, Krister Hammarling 1, Johan Sidén 1, Anatoliy Manuilskiy 1, Thomas Öhlund 2 and Hans-Erik Nilsson 1
1
Electronics Design Division, Department of Information Technology and Media, Mid-Sweden University, SE-851 70, Sundsvall, Sweden; Email: Krister.Hammarling@miun.se (K.H.); Johan.Siden@miun.se (J.S.); Anatoliy.Manuilskiy@miun.se (A.M.); Hans-Erik.Nilsson@miun.se (H.-E.N.)
2
Digital Printing Center, Department of Applied Science and Design, SE-891 18, Örnsköldsvik, Sweden; Email: Thomas.Ohlund@miun.se
*
Author to whom correspondence should be addressed; Email: Henrik.Andersson@miun.se; Tel.: +46-70-3622245; Fax: +46-60-148456.
Received: 6 September 2012; in revised form: 30 October 2012 / Accepted: 30 October 2012 /
Published: 9 November 2012

Abstract

: In this article, a modified design of an RF Radio Frequency Electronic Article Surveillance (EAS) tag, used as a sensor platform, is manufactured and characterized. EAS tags are passive devices consisting of a capacitor and coil, tuned to a resonance frequency readable by the detector equipment, in this case 8.2 MHz. They were originally used to detect whether merchandise was being moved through the detection gates at shop exits, in which case an alarm was triggered. If the capacitance is divided in two and a resistive sensor device inserted in between, the resonant Inductor-Capacitor (LC) circuit becomes an Inductor-Capacitor-Capacitor-Resistor LCCR circuit and can be used as a sensor tag. A high sensor resistance means that one capacitor is decoupled, leading to one resonance frequency, while a low resistance will couple both capacitances into the circuit, resulting in a lower resonance frequency. Different types of resistive sensors exist that are able to detect properties such as pressure, moisture, light and temperature. The tag is manufactured in Aluminum foil on a polyetylentereftalat (PET) substrate, resulting in a cost effective RF-platform for various resistive sensors. Two types of tags are designed and manufactured, one with parallel plate capacitors and the other with interdigital capacitors. To test the tags, a resistive tilt sensor is mounted and the tags are characterized using a network analyzer. It is shown that for high resistance, the tags have a resonance frequency of morethan 10 MHz while for low values the frequency approaches 8.2 MHz.
Keywords:
resonance circuit; RF-tag; EAS; surveillance

1. Introduction

Currently, the possibility to manufacture completely printed Radio Frequency Identification (RFID) tags is limited, mostly because of problems associated with printing high frequency transistors, usually in the MHz range. To date, many papers presenting the development of printed technology for RFID applications, including printed antennas and transistors, have been presented [1,2,3,4,5,6,7,8,9,10,11,12,13,14]. Research has previously been done on sensing applications using RFID technology [15,16]. A specific example is an article that shows how to produce an RFID tag that senses temperature by using a Shaped Memory Alloy (SMA). It is a part of an antenna that will change the impedance matching of an RFID chip so that it will be matched or mismatched depending on the temperature and thereby be readable or not. The tag also contains a second RFID chip that is unaffected by temperature changes so that the tag can always be detected as present [17].

However, it is still the case that the cost for implementing sensor applications using RFID tags can be too high in cost sensitive areas.

As an alternative, adding new functionality to a device consisting only of printed passive components opens up potential application areas in cost sensitive markets. Such a device is the Radio Frequency (RF) Electronic Article Surveillance (EAS) tag, traditionally used to detect whether merchandise has moved through detection gates at shop exits, in which case an alarm is triggered. They are based on a simple LC resonance circuit consisting of a capacitor and coil tuned to the detection frequency of the readout equipment. The reader generates an alternating magnetic field that induces energy in the EAS tag if it is located in the vicinity. If the frequency of the magnetic field and resonance frequency of the EAS tag match then this leads to a small but detectable voltage drop in the generating coil. In addition, an extra optional sensor coil can be used which senses a voltage drop when the tag is within the magnetic field. The damping resistance of the tag should be as low as possible, preferable with a quality factor (Q-factor) of >60 [18].

EAS tags are limited in their information capacity, just being able to be detected in the interrogation zone or not, hence also called 1-bit transponders, as compared to RFID chips that are commonly capable of communicating data in the order of kbits. The EAS tags are in the “on” state when manufactured and are deactivated in the shop by applying a strong magnetic field that induces a sufficiently high voltage to short circuit the plate capacitor. This is assisted by having pre-fabricated weakened points, so-called “dimples” [18].

This article discusses the manufacturing and characterization of a modified type of RF EAS tag meant to be used as a sensor platform for resistive sensors and that is detectable at two distinctly different frequencies depending on the sensor state.

It can be used in, for example, shipping, in combination with different sensors, where each container or box may have its own sensor. It then becomes possible to pick out the specific container/boxes, for which a “trigger event” has occurred. This technology can be used as a complement to perform standard quality checks in several areas such as transport, food and packaging [19,20,21,22,23].

It has previously been proven how the detection of certain events can be applied to silicon based UHF RFID solutions by letting sensor switching mechanisms decide whether an RFID tag should respond with its ID number or not, i.e., if the tag is able to operate or not. Switching an RFID tag on or off by connecting different parts of an RFID tag’s antenna structure is for example shown in [16] wherein a mercury-based accelerometer switch tells about an items movement status, and in the work presented in [17] wherein shape-memory alloys are used for detection of thermal thresholds.

The design of the EAS tag in this work is based on the standard Inductor-Capacitor (LC) resonance circuit but is modified to include a second capacitor connected, in parallel, through a resistive sensor resulting in an Inductor-Capacitor-Capacitor-Resistor LCCR circuit. The electrical schematic layout of the modified EAS tag is shown in Figure 1, where the sensor is represented by a resistor element, denoted R1, the inductance by L1, and the capacitors by C1 and C2 respectively.

This means that the sensor placed between the capacitances, R1, will act as a resistive divider that couples capacitor C2 into the resonance circuit, consisting of L1 and C1, in proportion to its resistance.

When the resistance of the sensor is high, the extra capacitor C2 is basically disconnected from the circuit, giving a resonance frequency that corresponds only to L1 and C1.

When the sensor resistance is, instead, low, the extra capacitor C2 is connected in parallel with the first, resulting in a lowering of the resonance frequency.

In this manner it is possible to measure at one frequency range to determine whether the tags are present and working, and have another “alarm” or “trigger" frequency range to check that the sensor has been activated.

By adjusting the values of C1 and C2 to reach the two desired resonance frequencies it is also possible to design a tag, which uses a sensor that goes to high resistance and decouples C2 when an event happens.

The readout equipment can be based on the standard EAS tag alarm with the addition of detection at two frequency ranges. The possibility could also be considered to use a handheld reading unit for localizing one specific activated EAS sensor tag amongst many nearby tags.

Electronics 01 00032 g001 1024
Figure 1. Electrical schematic of the Inductor-Capacitor-Capacitor-Resistor LCCR tag.

Click here to enlarge figure

Figure 1. Electrical schematic of the Inductor-Capacitor-Capacitor-Resistor LCCR tag.
Electronics 01 00032 g001 1024

Different types of resistive sensors exist that are able to detect properties such as pressure, moisture, light, temperature and more. The requirement is that the resistance will be sufficiently low to activate the tag when the desired threshold of the measured quantity is reached.

For example, a tilt sensor could be mounted to check that packages are aligned correctly during transport. Some products are inherently sensitive to position during freight and should be transported in an upright, vertical direction in order to greatly enhance shock resistance. Reading this information electronically from the EAS tag provides the possibility of triggering an alarm if the packages are placed incorrectly and provides a better safety check as opposed to conducting only a visual inspection.

A latching acceleration switch (the switch sticks to its triggered state once the trigger event has occurred) could be mounted to check whether a package or container has been subject to shock during its previous transport. Products with an activated tag could be removed for further inspection avoiding the possibility of damaged products reaching a customer. Such impact-monitoring sensor can be built in a small size and will have no power requirements, as described in [24].

2. Design and Simulation of LCCR EAS Tag

The tags were manufactured in 50 µm thick aluminum on a polyetylentereftalat (PET) substrate which is a manufacturing procedure that could provide a sufficiently low resistance in order to obtain an acceptable Q-factor. Tests show that a Q-factor of ~30, which corresponds to a series resistance of 6 Ω, is sufficient to trigger the EAS reader. However, this is the limit and includes the complete series resistance, with coil, capacitors and sensor.

Tests using ink-jet and screen printing techniques to apply conductive silver ink resulted in a resistance which was too high. Considering the relatively thin layer thickness obtained by ink-jet printing, usually in the range of 1 µm, it is deemed very difficult to produce sufficiently thick layers in order to obtain a low enough Q-value of a coil if the width of the lines is to be reasonable. Similar results are reported in [25] where coils are repeatedly screen printed up to 40 times so as to achieve a thickness of 350 µm—but still only reach a Q-factor of 45, and that with the extra cost of achieving non flexible prints.

The problem is apparent if considering the possible limit of the conductance for silver nano-particle ink, namely the same as bulk silver, that has a resistivity of 1.55 × 10−8 Ωm. Considering the geometry of the manufactured coil, which is 110 cm long and 1 mm wide, a 1 µm layer of bulk silver would still result in a series resistance of 17.5 Ω, which gives a Q-factor of ~11, even when all the other serial resistance components are neglected [26].

This value is not reached for printed nano-silver ink structures even if using effective sintering methods such as electrical sintering and at best, possibly 50% of bulk silver conductance may be achievable [26,27,28,29,30,31,32]. The conclusion regarding ink-jet as a manufacturing method is that, at present, it is not feasible to manufacture coils with a line width in the range of 1 mm because of the limited layer thickness it can produce.

To predict the behavior of the LCCR tag, simulations were performed in order to estimate the frequency shift that different sensor resistance values will provide. In Figure 2, the schematic circuit layout used for the simulation is shown.

Electronics 01 00032 g002 1024
Figure 2. Electrical layout used for the simulation of the Electronic Article Surveillance (EAS) tag reader and EAS tag.

Click here to enlarge figure

Figure 2. Electrical layout used for the simulation of the Electronic Article Surveillance (EAS) tag reader and EAS tag.
Electronics 01 00032 g002 1024

The simulation is setup so as to resemble the send/read gate and the tag in an EAS system. The sender coil (TX1) transfers energy to the LCCR circuit. The LCCR circuit then transmits its response to the readout coil (RX1). On the readout coil the voltage induced by the LCCR-circuit at different frequencies is probed. In the LCCR circuit part, resistor R1 acts as the sensor element, with low to high resistance values (on to off, respectively). The coupling efficiency of the transformers used has been set to 0.01, i.e., only 1% of the energy is transferred from one part to the next in the system.

When the resistance becomes low, the equivalent capacitance moves towards 100 pF and when the resistance is high the equivalent capacitance moves towards 60 pF. Figure 3 shows the simulated resonance frequency and the relative amplitude for resistance values between 1 Ω and 100 kΩ. It can be seen that the resonance frequency is 8.2 MHz for 1 to 10 Ω and about 10 MHz for 10 kΩ and 100 kΩ and intermediate resistance values result in lower amplitudes and frequencies which fall in between.

This means that a sensor resistance of 100 Ω or less provides the correct frequency to trigger the EAS detector used and values around some kΩ or more offers a resonance peak around 10 MHz. It can also be observed that the damping in the circuit will be quite high for intermediate resistance values, therefore it is not necessarily true that the readout will trigger, even if the resonance frequency is correct, because the damping is too large. It is important to use sensors that have as low a resistance as possible when the tag is meant to trigger the EAS detector.

For the readout equipment targeted to be used in this work, manufactured by Gunnebo Nordic, the tag’s resonance frequency should be 8.2 MHz, which is why the values chosen for the tag circuit shown in Figure 1 are: L = 3.7 mH, C1 = 60 pF and C2 = 40 pF resulting in a frequency shift from about 10.5 MHz with high resistance and 8.2 MHz with low resistance. Smaller frequency shifts is possible by changing the values of the capacitors.

Electronics 01 00032 g003 1024

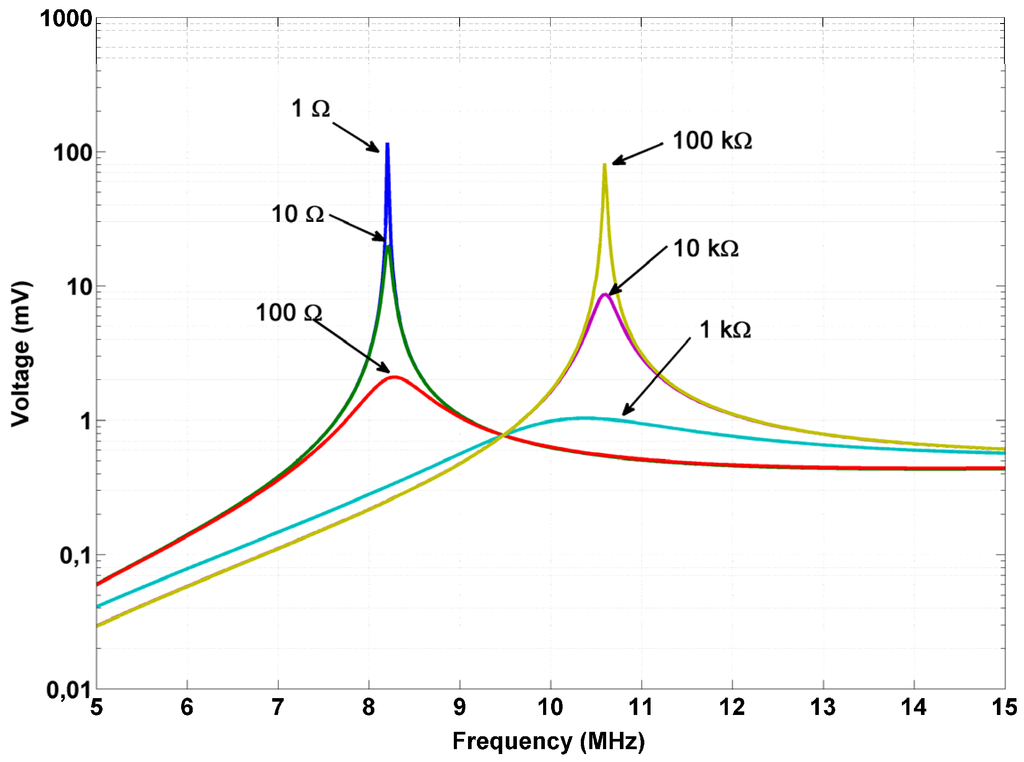

Figure 3. Simulation results showing resonance frequency shift for different resistance values of the sensor.

Click here to enlarge figure

Figure 3. Simulation results showing resonance frequency shift for different resistance values of the sensor.
Electronics 01 00032 g003 1024

3. Experimental Section

The LCCR EAS tags have been manufactured in two different versions, one using parallel plate capacitors, and one which uses interdigital capacitors. Both tag types are constructed from 50 µm thick aluminum foil on a 50 µm PET substrate and the design was manufactured by the company Mekoprint (Denmark). In Figure 4, the aluminum foil layouts, the dimensions and sensor placement, and the positions of the probe of the network analyzer are shown. In the case of the parallel plate EAS tag, the coil was cut in the place indicated in Figure 4; in the case of the interdigital tag, the measurement was performed between the inner part of the coil and the capacitor before they were joined.

Electronics 01 00032 g004 1024

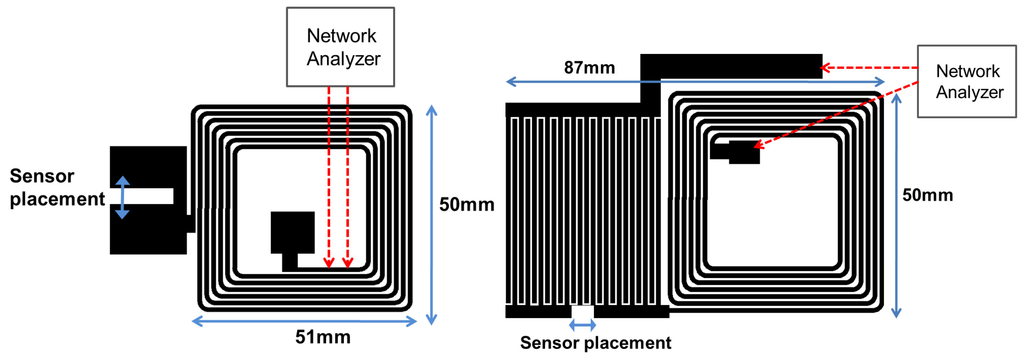

Figure 4. Top layer layout of the parallel plate capacitor LCCR EAS tag (left) and interdigital version (right) showing dimensions and the placement of the sensor.

Click here to enlarge figure

Figure 4. Top layer layout of the parallel plate capacitor LCCR EAS tag (left) and interdigital version (right) showing dimensions and the placement of the sensor.
Electronics 01 00032 g004 1024

The parallel plate capacitor model utilizes the PET foil as a dielectric and a silver screen paste on the reverse side is used for the connection of the coil in addition to one plate of the capacitors, this can be seen in Figure 5 and Figure 6. The connection between the inner part of the coil and the capacitors is achieved by removing the PET foil over the center contact by means of a Versa laser infrared laser cutting machine, thereby providing a via for the paste on the reverse side to connect to the aluminum on the front side. This can be seen in the right photo in Figure 5 as a square area in the middle of the coil.

Electronics 01 00032 g005 1024

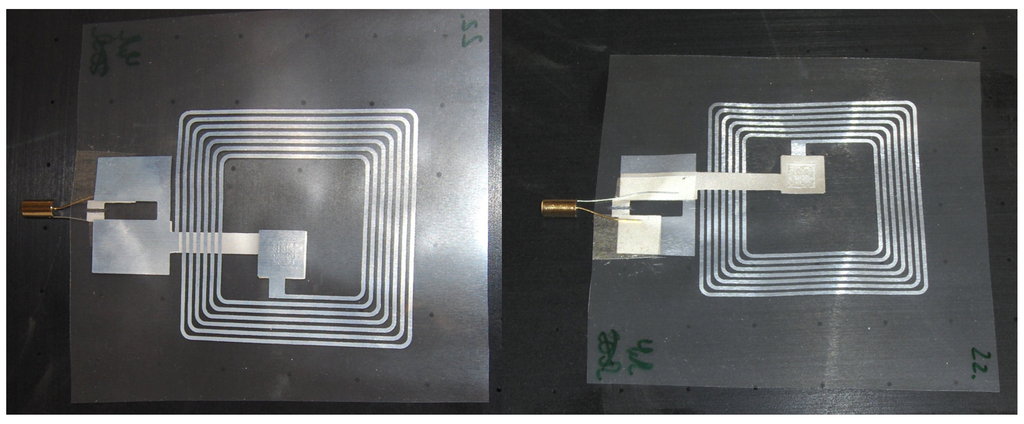

Figure 5. Photos of plate LCCR EAS tags manufactured in aluminum on PET with tilt sensor, frontside, left and reverse side with printed screen paste, right.

Click here to enlarge figure

Figure 5. Photos of plate LCCR EAS tags manufactured in aluminum on PET with tilt sensor, frontside, left and reverse side with printed screen paste, right.
Electronics 01 00032 g005 1024
Electronics 01 00032 g006 1024

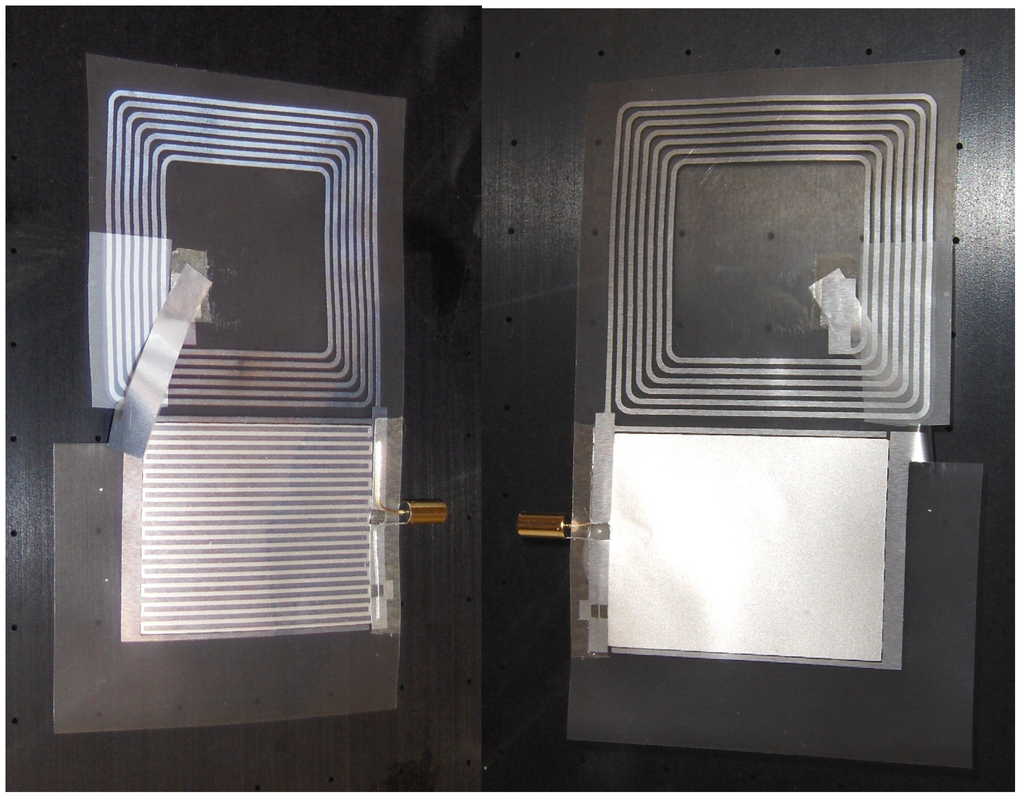

Figure 6. Photos of interdigital LCCR EAS tags manufactured in aluminum on PET with tilt sensor, frontside, left and reverse side with printed screen paste, right.

Click here to enlarge figure

Figure 6. Photos of interdigital LCCR EAS tags manufactured in aluminum on PET with tilt sensor, frontside, left and reverse side with printed screen paste, right.
Electronics 01 00032 g006 1024

For the parallel plate EAS tag, the size of the capacitances is easily tuned by changing the area covered by the silver paste on the reverse side. The screen print of the silver paste on the reverse side was performed by the company Sweprod (Sweden) and can be seen in the photos in Figure 5.

For the interdigital model, the connection from the inner part of the coil to the capacitances is achieved by folding a piece of the foil and gluing it to the middle contact with anisotropic conductive tape, model 9705 manufactured by 3M (USA). This connection could also be achieved by, for example, silver epoxy or by other conductive glues or tapes. The capacitances are, in this case, also tuned by printing the silver screen paste on the reverse side of the interdigital structure, which will increase the capacitance in proportion to the area that is covered. Photographs showing the front and reverse sides of the plate capacitor model are shown in Figure 5 and the interdigital model is shown in Figure 6.

To demonstrate the function of the tags, a tilt sensor was mounted on both types, which can be seen in Figure 5 and Figure 6. This was performed by first cutting a gap with scissors in the Al/PET foil and then attaching the sensors with anisotropic conductive tape (3M) at the positions indicated in Figure 4. An adjustment of the sensor position, as indicated in Figure 4, on the interdigital EAS tag will change the ratio of the capacitance that are coupled by the sensor thereby changing the resonance frequency in the un-triggered state.

The tilt sensor is a momentary rolling ball switch tilt sensor, model AT411-2 manufactured by the Light Country (China). The sensor works by having two metal balls inside the canister that close the circuit when it is upright, but, when tilted more than 30°, the balls will not connect with the contacts thereby creating an open circuit. The advantage of such a sensor type is that it is able to go from a very low resistance, <1 Ω, to infinity, which suits the EAS sensor tag concept very well.

4. Results and Discussion

Measurements conducted using an Agilent E5070B network analyzer show that the resonance frequencies of the tags are very close to the simulated values.

Figure 7 and Figure 8 show the measured impedance locus for the two EAS tag types. The markers show the change in resonance frequency when the mounted tilt sensor is in its high resistance “off” state compared to the low resistance “on” state. The resulting shift in resonance frequency is from 10 MHz to 8.2 MHz in the “on” state.

Electronics 01 00032 g007 1024

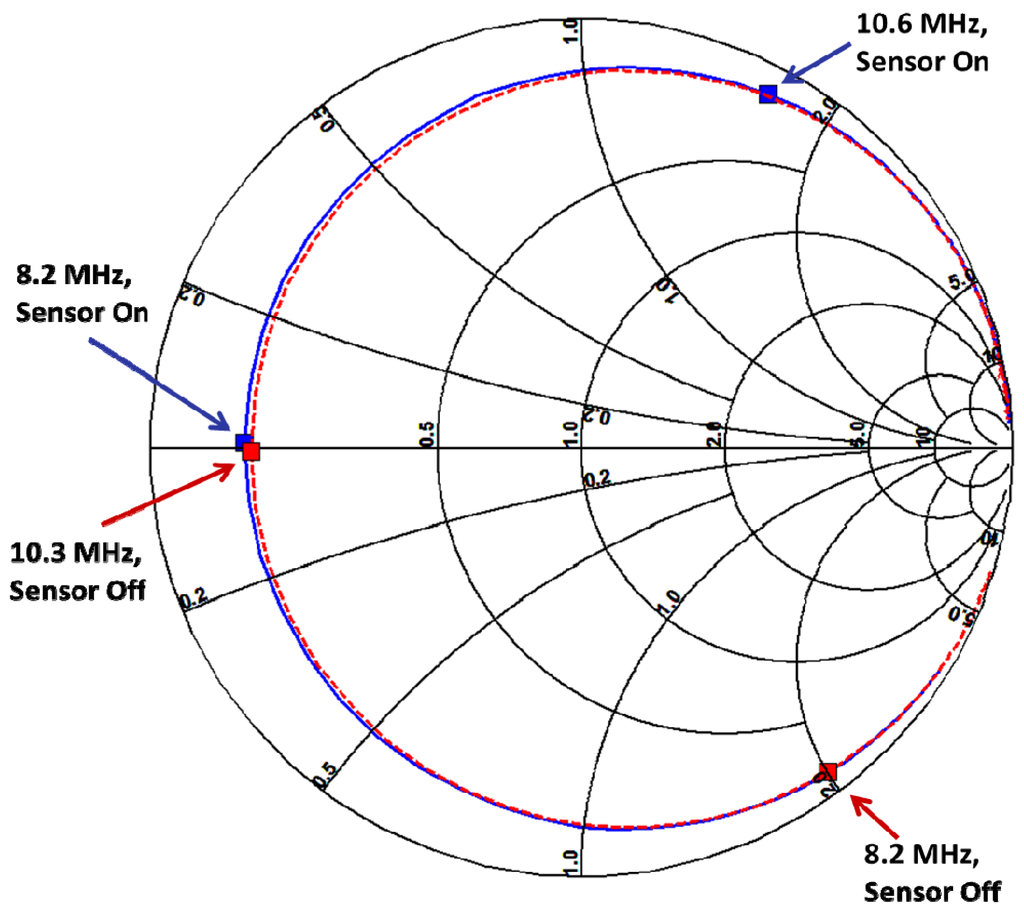

Figure 7. Smith chart showing measured resonance frequency for the interdigital EAS tag equipped with a tilt sensor that is in “on” state, blue (solid) graph, and “off” state, red (dashed) graph.

Click here to enlarge figure

Figure 7. Smith chart showing measured resonance frequency for the interdigital EAS tag equipped with a tilt sensor that is in “on” state, blue (solid) graph, and “off” state, red (dashed) graph.
Electronics 01 00032 g007 1024
Electronics 01 00032 g008 1024

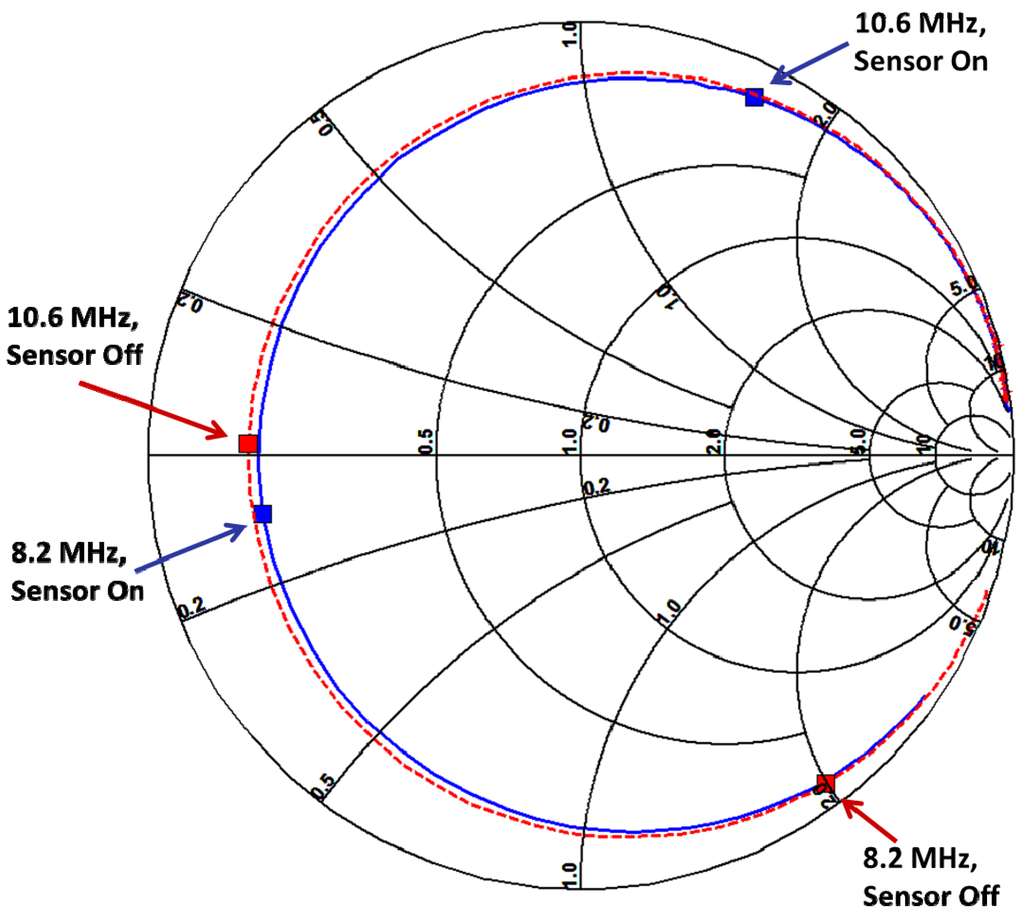

Figure 8. Smith chart showing measured resonance frequency for the parallel plate type EAS tag equipped with a tilt sensor that is in “on” state, blue (solid) graph, and “off” state, red (dashed) graph.

Click here to enlarge figure

Figure 8. Smith chart showing measured resonance frequency for the parallel plate type EAS tag equipped with a tilt sensor that is in “on” state, blue (solid) graph, and “off” state, red (dashed) graph.
Electronics 01 00032 g008 1024

Impedance measurements are performed with a probe formed from a short stub of rigid coaxial cable with a metal outer jacket that has been extended with a 0.8 mm wire to create a two-point probe. That is, the coaxial assembly’s center and outer conductor are used directly as measurement contact points. The rigid coaxial cable is connected with an SMA connector to a semi-rigid coaxial cable leading to the network analyzer. The procedure for impedance measurements with a balanced cable assembly and unbalanced device under test does provide room for improvements if further accuracy is demanded. One solution to decouple the tag from the transmission line, thereby suppressing current flow on the outer jacket of the cable assembly is to integrate a balun. Common approaches with using quarter wavelength baluns along the conductor is however problematic with 10 MHz having a free space quarter wavelength of approximately 7.5 m. Wavelength dependent devices are by definition also frequency dependent and thus not suitable for wideband measurements [33]. Another approach with potential for use in these kinds of measurements is to use a differential probe setup. For example where two stubs of the rigid coaxial cable have their outer metal shields soldered together and where the two ports of an antenna or chip are contacted by each center conductor. Transform equations for mixed-mode S-parameters as described in [34] and [35] can then be used to retrieve the desired differential mode S-parameters. Examples of using such measurement setup are found in [36] and [37]. For these relatively low frequencies a balun based on transformers and ferrite coils might also be used [33]. The results from measuring resonance peaks with a single-ended probe in this work however agree well with simulations and for triggering the EAS gates at 8.2 MHz.

Figure 9 shows both simulated and measured transmission coefficients for the parallel plate tag (left) and the interdigital tag (right), where the values are normalized for each case. The measurements were performed on one tag of each type. It can be seen that the frequency shift for the “on” and “off” states are close to the simulated values. The difference between the simulated and measured values is attributed mostly to the manufacturing tolerance of the capacitances of the tags. Small variations in area and positioning of the screen printed silver paste that makes up the capacitors on the reverse side of the aluminum pattern, as seen in the right-hand portions of Figure 5 and Figure 6, causes a small spread in the resonance frequency. Manufacturing tolerances are exemplified in Figure 10 and explains why the measured and simulated transmission coefficients in Figure 9 differ for the interdigital tag. To a smaller extent, the difference is also attributed to the added resistance caused by contacting the coils with silver paste, in the form of bridges for the parallel plate tag and as discrete contact points for the interdigital tag. The losses in the experimental data appears to be larger than for the simulated values as the graphs are wider for the experimental data and are attributed to the overall resistance of the tags as well as contact resistance of the probe when performing the measurements.

Electronics 01 00032 g009 1024

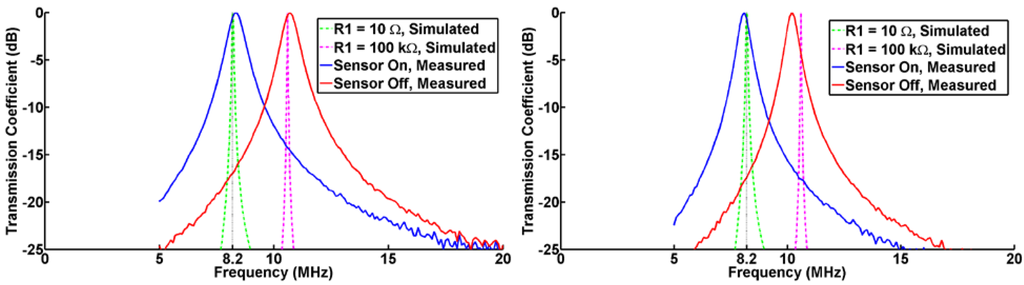

Figure 9. Simulated and measured transmission coefficients for parallel plate tag (left) and interdigital tag (right).

Click here to enlarge figure

Figure 9. Simulated and measured transmission coefficients for parallel plate tag (left) and interdigital tag (right).
Electronics 01 00032 g009 1024
Electronics 01 00032 g010 1024

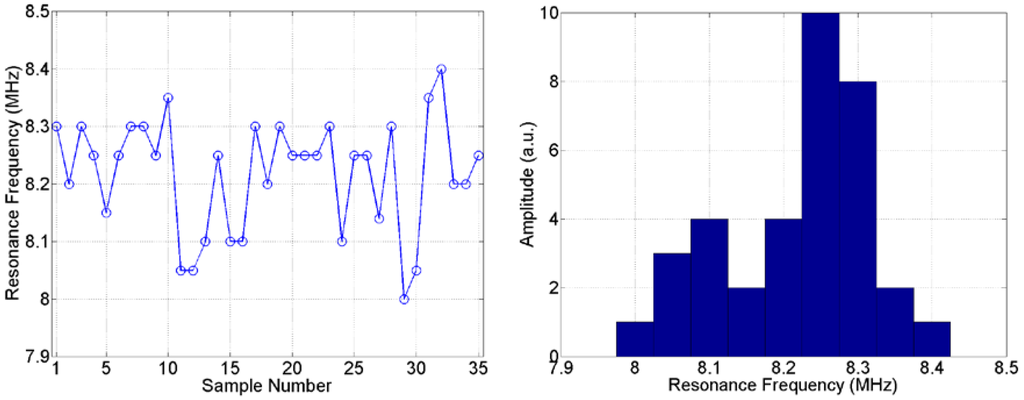

Figure 10. Plot (left) and histogram (right) showing the resonance frequency of 35 manufactured interdigital EAS tags as measured after the application of the screen print silver paste on the opposite side of the interdigital capacitor, without any adjustment of the capacitance.

Click here to enlarge figure

Figure 10. Plot (left) and histogram (right) showing the resonance frequency of 35 manufactured interdigital EAS tags as measured after the application of the screen print silver paste on the opposite side of the interdigital capacitor, without any adjustment of the capacitance.
Electronics 01 00032 g010 1024

These frequencies are close to the predicted values obtained from the circuit simulations in the previous section.

The manufacturing of the tags appears to be robust, and from a series of 35 manufactured interdigital tags with screen printed silver paste and without adjusting them in any way, the average resonance frequency was measured to be 8.21 MHz and the largest deviations were ±0.2 MHz. A plot of the tags’ resonance frequencies as well as a histogram of the same measurement is shown in Figure 10, where standard deviation is 0.097.

The parallel plate type was not measured in this manner because the coil has to be cut to measure the resonant frequency, thereby destroying the tags from further use. However, of the tags measured, no larger deviation from the resonant frequency was observed than was the case for the interdigital tags.

The possibility to adjust the capacitance by the application of screen printed silver paste after manufacturing is also a possibility.

When considering using sensor equipped EAS tags in applications, it is of interest to discuss the possible reading methods and read ranges. Standard EAS tag readers used in shops are positioned as gates at the entrance, detecting tags that pass through. Since the tags are 1-bit devices there is no option of distinguishing between different tags. The distance between the gates is usually a few meters. One possible scenario when using the modified sensor EAS tags is to let goods pass through standard EAS reader gates that are for example positioned so that they enclose a conveyor belt. It is also a possibility that the tags are read when positioned in front of a reader system rather than passing through gates, for example with a handheld reader.

Tests were performed by positioning reader gates (manufactured by Gunnebo Gateway, Sweden) side by side and reading commercial standard EAS tags in front of those. See Figure 11 forthe setup used.

Electronics 01 00032 g011 1024

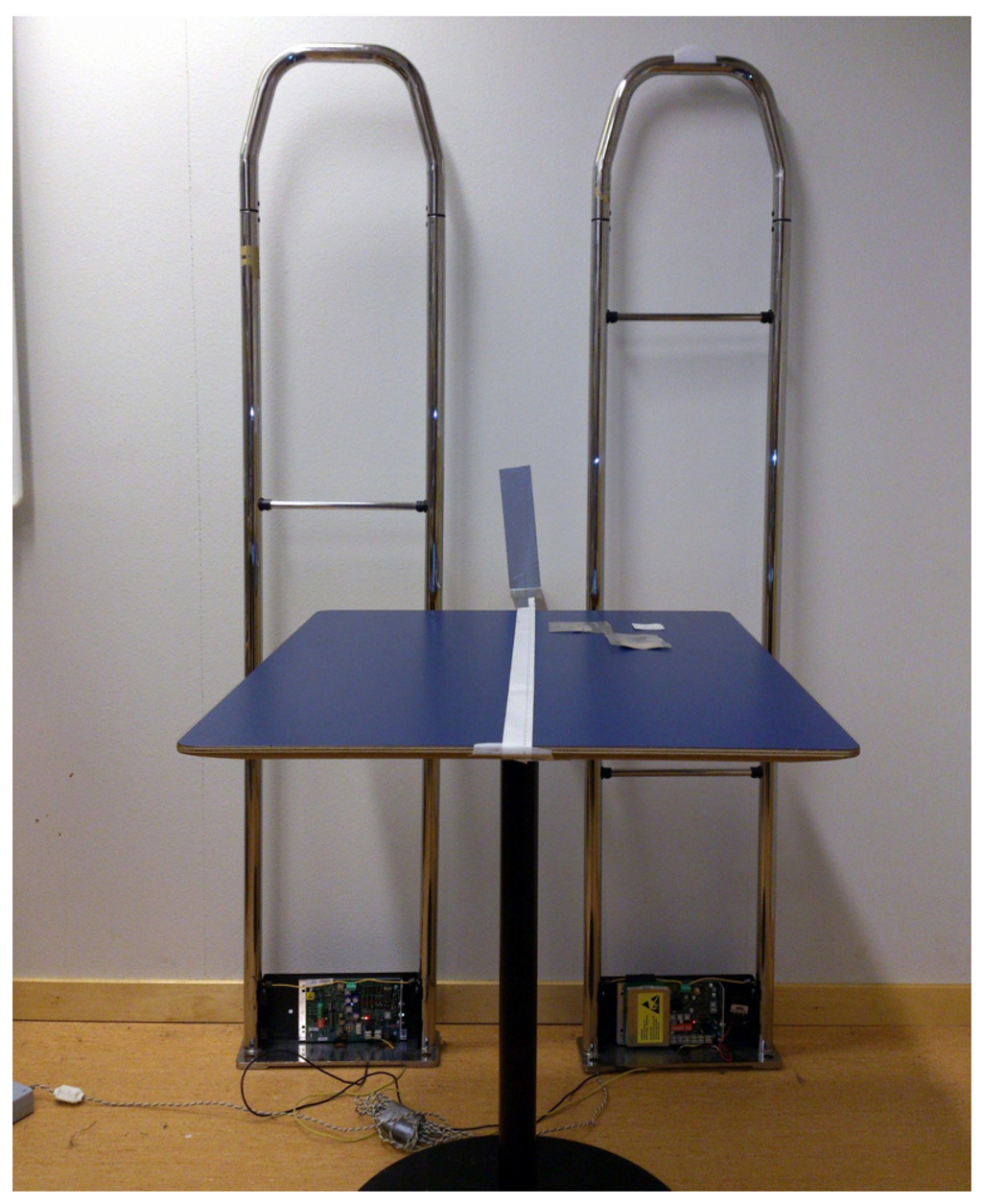

Figure 11. EAS detection gate setup where the gates have been turned side by side to test the reading range of EAS tags positioned in front of the gates.

Click here to enlarge figure

Figure 11. EAS detection gate setup where the gates have been turned side by side to test the reading range of EAS tags positioned in front of the gates.
Electronics 01 00032 g011 1024

In this case the tags can be read at a distance of about 30 cm. This can be viewed as a best case scenario: any additional resistance added will make the maximum read distance less. In this article is shown a concept of using sensors together with a modified EAS tag and the total resistance of the demonstrated experimental tags will be larger than if such tags were manufactured commercially. This is because of added contact resistance when mounting the sensors and the screen printed part of the tags, as can be seen in Figure 5. The modified sensor tags are only readable at about 5 cm in its current form, but will approach the commercial tags if its serial resistance is decreased.

In the conventional use of EAS tags it is important to avoid false alarms or tags passing close to but not through the gates, and therefore there is really no interest in having a too long read range or to sensitive reading.

To be able to detect the modified EAS tags at the two different resonance frequencies a modification to the existing equipment is required. As the system is designed now it sweeps a few 100 KHz below and above 8.2 MHz. Detection at several frequencies will lead to added complexity and some extra cost of the readers, but from a technical perspective to read in the range 8–10 MHz should be straightforward. Other issues include radiation regulatory issues with more wideband EAS gates, although in the ETSI EN 300 330-1 standard, the 5 kHz–30 MHz range is permitted for use in short range inductive devices [38].

A handheld reader would also be operated at a short distance where the tags are positioned within 0–1m to avoid crosstalk between several nearby tags.

If longer read range or more functionality is needed it is probably a better option to move to an RFID solution that, at a larger cost, could provide more functionality and longer read range. Such a solution could be of different types, such as a battery operated commercial solution as well as some of the options presented in research [15,16,17]. The difference in cost can however be too large for some cost sensitive areas that can be satisfied with the performance offered by the more limited read range and non-identifiable tags of the EAS system. The cost of manufacturing standard EAS tags is very low and the technology can be said to be both mature and having a very high production volume because it is used in almost all shops, attached to even the cheapest goods. Therefore, it is possible to argue that this is the cheapest tag with regards to material and production cost of any conceivable RF or RFID tag in use today. If considering modification of a standard EAS tag to consist of an LCC circuit, which should be easily done by splitting the capacitor into two capacitors during production. It is reasonable to say that the added cost will be the sensor and its attachment and not the modification. A reasonable assumption is thus that the cost of the sensor and its attachment is equivalent if the sensor is used with a modified EAS tag or an RFID tag. The cost difference will then be the cost for the RFID tag compared to the EAS tag.

When considering the manufacturing cost of EAS tags and RFID tags, commercial or research, the cost for the RFID chip and its chip attachment procedure will always be added to the cost of the actual antenna and this will be higher than the EAS tag, which does not have any chip.

4. Conclusions

The manufactured modified LCCR type EAS tags have been shown to work as a sensor platform for resistive sensors. The demonstrated case, with a tilt sensor, is merely an example of a possible sensor application. The types of sensors that are possible for use in this case are limited to resistive sensors, which have low resistance when the EAS tag triggers the readout, preferably only a few ohms. Tags of such a type can be used with standard EAS tag readout systems thus making it possible to build a system of commercially available standard components. It is also shown that the deviation in resonance frequency of the manufactured tags is low, as shown in Figure 10, but still visible as a small difference between the simulated and measured transmission coefficients in Figure 9. Disadvantages with EAS technologies as compared to chip-based RFID solutions include the absence of anti-collision methods. It is thus very difficult to separate the signal from two or more EAS tags in the same reading zone, putting constraints of the maximum density of EAS tags. The span of available sensors might also be partly narrower for EAS systems, since it is known that a lower sensor resistance is needed to operate an EAS tag than for integrating sensors to UHF RFID tags. Until fully printed RFID tags are realized, the cost in manufacturing EAS sensor tags does not have to consider the cost of silicon chips. The applications can vary, but the main target is generally those applications where a large number of tags with sensors are necessary and the price sensitivity is so high that more advanced RFID tags prove to be too expensive.
