Antibiotics 2013, 2(1), 115-162; doi:10.3390/antibiotics2010115

Article
An Environmental Risk Assessment for Human-Use Trimethoprim in European Surface Waters
Jürg Oliver Straub
F. Hoffmann-La Roche Ltd., Group SHE, CH-4070 Basle, Switzerland; E-Mail: juerg.straub@roche.com; Tel.: +41-616-885-781; Fax: +41-616-881-920
Received: 23 November 2012; in revised form: 10 January 2013 / Accepted: 14 January 2013 /
Published: 18 March 2013

Abstract

: An environmental risk assessment (ERA) for the aquatic compartment in Europe from human use was developed for the old antibiotic Trimethoprim (TMP), comparing exposure and effects. The exposure assessment is based on European risk assessment default values on one hand and is refined with documented human use figures in Western Europe from IMS Health and measured removal in wastewater treatment on the other. The resulting predicted environmental concentrations (PECs) are compared with measured environmental concentrations (MECs) from Europe, based on a large dataset incorporating more than 1800 single MECs. On the effects side, available chronic ecotoxicity data from the literature were complemented by additional, new chronic results for fish and other organisms. Based on these data, chronic-based deterministic predicted no effect concentrations (PNECs) were derived as well as two different probabilistic PNEC ranges. The ERA compares surface water PECs and MECs with aquatic PNECs for TMP. Based on all the risk characterization ratios (PEC÷PNEC as well as MEC÷PNEC) and risk graphs, there is no significant risk to surface waters.
Keywords:
trimethoprim; environmental exposure; environmental effects; environmental risk assessment; surface waters; Europe

1. Introduction

The topic of pharmaceuticals in the environment (PIE) has gained a lot of attention in environmental discussions. Active pharmaceutical ingredients (APIs) are suspected of causing unintended adverse effects in environmental compartments, based on their intended property of high biological activity. For human APIs, which are excreted into wastewater, this primarily means concern for the sewage treatment plants (STPs) or surface waters. Such concerns have been fuelled by ubiquitous detections of APIs in STP effluents and surface waters since the 1970s, in concentrations in the ng/L to µg/L range. It is mostly older APIs that are regularly monitored and detected. While for the registration of new APIs an environmental risk assessment (ERA) has been requested in the European Union since the early 1990s [1], this was not the case beforehand, meaning that exactly for these older APIs there often is a lack of environmental fate and toxicity data.

The old antibiotic trimethoprim (TMP) was first put on the market by F. Hoffmann-La Roche Ltd (Roche) in the 1960s in combination with sulfamethoxazole (SMX) under the brand name of Bactrim®. TMP has been regularly detected in the environment. Like all antibiotics, TMP has come under suspicion for the potential of selecting for, maintaining or increasing antibiotic resistance in environmental bacteria. The first in-depth aquatic ERA for TMP is presented here. It is based on both predicted and measured environmental concentrations (PECs and MECs, respectively) and on published and new chronic ecotoxicity data. Some of the latter were specifically commissioned in order to produce a solid effects assessment for TMP. Acute ecotoxicity data are integrated as well. In view of sufficient data available, this ERA was supplemented with a probabilistic comparison of percent-ranked MECs and chronic effects species sensitivity distributions in addition to the standard deterministic procedures.

2. Results and Discussion

2.1. Trimethoprim Pharmacological Data

2.1.1. TMP Mode of Action

The diaminopyrimidine TMP (2,4-diamino-5-(3,4,5-trimethoxybenzyl)pyrimidine; CAS Number 738-70-5) [2] is a bacteriostatic API that interferes with the bacterial dihydrofolate reductase enzyme, inhibiting the synthesis of tetrahydrofolic acid [2]. Bacteria are unable to take up folic acid from the environment, including their infection host in case of pathogenic species, and are dependent on their own de novo synthesis. Inhibition of dihydrofolate reductase starves the bacteria of nucleotides necessary for DNA replication. TMP is generally used in combination with sulfonamide antibiotics (mainly SMX), which interfere with another step of bacterial folate synthesis pathway; in combination, TMP and SMX act synergistically.

2.1.2. TMP Adsorption, Metabolism and Excretion

TMP is rapidly absorbed after oral administration and widely distributed around the body to tissues and fluids. Serum therapeutic concentrations range from 1.5–2.5 mg/L up to 9 mg/L [3]. Metabolic reactions include oxidation of the methylene group to a hydroxymethyl group, N-oxidation, O-de-methylation and hydroxylation in phase-1 metabolism as well as conjugation with glucuronic acid or sulfate in phase 2. Around 10%–20% of a dose is metabolized. The metabolites are excreted in the urine as conjugates, but the greater part of the dose is excreted as unchanged drug. Urinary excretion is pH-dependent and is increased in acidic urine. About 40%–75% of a dose is excreted in 24 h, up to 60% being in the form of unchanged drug, with about 4% each as the 3'-hydroxymethyl and 4'-hydroxymethyl metabolites and 2% as the N1-oxide. Less than 4% is eliminated in the faeces. The plasma half-life ranges from 8 to 17 h with an average of 11 h [2,3]. The World Health Organization defined daily dose of TMP is 400 mg [4]. This value will later be used for the first PEC derivation.

2.1.3. TMP Toxicity

TMP is not particularly toxic to humans and mammals by oral administration in the short or longer term, however, it can be irritant and sensitizing [2]. It was mutagenic in a bacterial test system and at high doses it can be teratogenic and embryotoxic through its mode of action, folate antagonism [2], as folic acid is required for normal development. However, due to these mutagenic and reprotoxic properties, TMP is classified by default as T for toxic for a persistence, bioaccumulation and toxicity (PBT) assessment.

2.2. TMP Environmental Fate and Concentrations

The basic data for the environmental fate and effects of TMP are listed in tables in the Appendix of this publication, starting on Page 136, for better readability of the text. A discussion of the most important, selected values from these tables is presented in the following sections.

2.2.1. Physico-Chemical Data for TMP

Physico-chemical data for TMP are listed in the Appendix in Table A1, Page 136 ff [2,3,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27]. TMP is an organic base with a reasonably high water solubility of ~300 mg/L and a first base dissociation constant pKa around the neutral pH point [2]. There are no hydrolysable bonds. The melting point is around 200 °C [2], vapor pressure is low at ~1.32 × 10–6 Pa [5], hence the Henry’s Law Constant is low as well and the substance will not volatilize from water. In addition, with a first base pKa around 7 [2,3,9], TMP is at least partly dissociated in most environmental waters, i.e., it will be more hydrophilic and will volatilize even less. With an n-octanol/water partition coefficient logKow between 0.64 and 1.115 [2,12] TMP is not particularly lipophilic. Therefore, neither strong adsorption to organic substrates nor bioaccumulation would be expected. In confirmation, moderate to low adsorption constants to organic carbon (OC), activated sludge (AS) and soil have been published [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27], although Lin & Gan [16] noted strong adsorption in one soil beside moderate adsorption in others. Specifically, sorption to AS in sewage treatment plants (STPs) has been independently described as ‘negligible’ [25,26,27]. However, sorption should still be kept in mind as Trapp et al. [28] have shown using physicochemical activity-based environmental fate modeling that as a weak base, TMP is non-dissociated and thus more prone to sorption or bioaccumulation at a higher environmental pH of 9 than at pH 6 where TMP is mostly dissociated. In general, based on this low to moderate sorption, most TMP is expected to remain predominantly in the aqueous phase, meaning that little is removed to sludge in STPs, the exposure of soil by landspreading of digested surplus sludge is low, mobility in soils is high and little will partition from surface waters to sediment.

2.2.2. Biodegradation, Environmental Fate and Bioaccumulation Data for TMP

The available literature data for TMP for biodegradation, removal in STPs, environmental fate and derived half-lives as well as bioaccumulation are collated in Table A2, Table A3, Table A4, Table A5 at the end (Page 138 ff).

2.2.2.1. Biodegradability of TMP (Table A2) [18,19,21,25,26,29,30,31,32,33,34,35]

TMP is recalcitrant to biodegradation in standard ready and inherent tests [18,21,29,31] and also in a standard STP model test at low concentration [32]. This first impression may be misleading, however, as on one hand, significant cometabolic degradation was observed in a closed bottle test with sodium acetate in the toxicity control [29]. Moreover, good removal (>50%) was seen in those tests performed with aerobic AS with a long sludge retention time (SRT), i.e., a high sludge age [21,25,33,34,35]. Indeed, as consistently shown by Göbel et al. [19,26], Perez et al. [34] and Schröder et al. [35], who compared the removal in different steps of STPs, low removal was found in inocula with a short SRT, e.g., from primary sludge or young AS, but high removal was noted for inocula with a high SRT, i.e., nitrifying AS and sand filters. Similarly, rapid primary degradation of TMP was also shown by Löffler & Ternes [36] for natural sediments and by Schmidt et al. [37] during river bank filtration. In addition, Bundschuh et al. [30] determined that TMP is even rapidly degraded in a ready-type system, exposing fallen leaves in natural water to low concentrations of TMP, where they determined ~80% degradation in 7 days. A similar difference may also exist for anaerobic degradation as Gartiser et al. [21] recorded no significant methane production in a standard ISO 11734 anaerobic degradation test, while other investigations with surplus sludge from an anaerobic digestor [19], with manure and anaerobic bacteria [38] or in pig slurry [39] found high and rapid removal. In soil [13,40] and seawater [41], however, biodegradation seems to be slow with correspondingly long half-lives of around or more than 100 days.

2.2.2.2. Removal of TMP during Sewage Treatment (Table A3) [19,23,25,36,37,38,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74]

The above differences, mainly relating to SRT respectively nitrifying conditions, are probably responsible for the inordinately high range of removal noted for many different STPs in Europe, North America and the Far East. These include negative removal, which may signify cleavage of glucuronide or sulfate conjugates [75], and range up to nearly 100% [19,23,48,52,53,54,55,56,57,58,59,60,61,62,63]. Some of the negative removal rates, like the extreme value of −550% described by Lindberg et al. [45] for one STP in Sweden, are highly improbable, seeing as 60%–80% of ingested TMP is excreted as the parent and only 20%–40% as metabolites and conjugates [2,3]. Therefore, conjugate cleavage of 550% is quite impossible, but either sampling, synchronization or analytical problems are suspected. In conclusion, for TMP in STPs there is but minor removal during inadequate primary and secondary treatment [19,34], but nitrifying sludge is able to biodegrade TMP [25,34], suggesting an important role for both aerobic conditions [76] and in particular for long SRTs in secondary treatment [55,62]. Similarly, anaerobic degradation may range from low [21] to rather high [19,38,39].

For later PEC refinement, the recorded removal rates for full-scale working STPs were collated from 26 references [19,23,25,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64] listed in Table A3 (with the exception of the above extreme value from [45]). The 107 remaining recorded removal rates, representing at least 63 STPs, ranged from −128% [48] up to >99% [63]. The average removal is 25.0% and the median removal 30.0% (Figure 1). These removal values are in agreement with the data by Fick et al. [60] who determined TMP to fall into an average removal range between 10% and 49% in their Swedish investigation in the year 2010.

It is to be noted that all these empirically determined degradation rates depend on several circumstances, from time-corrected sampling of influents and effluents, to types and functional quality of the sewage works to the analytics themselves. While for the latter in most publications the analytical methods and recovery rates and ranges are described in detail, exact measured values are presented all the same, mostly without explicitly pointing out the uncertainty contained. This was recently shown by a group from Cleveland, Ohio sewage treatment works [77] who used two different contract labs to evaluate both intralaboratory and interlaboratory variability. They found discrepancies in TMP quantification of 40% in the same influent and of 168%–180% for the same effluents. This finding calls for caution in regarding all the measured concentrations of TMP (and other substances) as representing a true value; they could in fact be lower or higher.

Antibiotics 02 00115 g001 1024
Figure 1. Distribution of 107 published degradation/removal rates of Trimethoprim (TMP) in 63 sewage treatment plants (STPs) worldwide.

Click here to enlarge figure

Figure 1. Distribution of 107 published degradation/removal rates of Trimethoprim (TMP) in 63 sewage treatment plants (STPs) worldwide.
Antibiotics 02 00115 g001 1024

2.2.2.3. Environmental Fate of TMP (Table A4) [13,15,16,19,21,36,37,38,39,40,41,72,73,78]

Hydrolysis [65,66] and aquatic photodegradation in fresh and seawater [68,71] are not significant for TMP, except where both hydrogen peroxide and scavengers are present at the same time as UV irradiation [66,70,71,72]. Michael et al. [66] and Wu et al. [72] have recently confirmed that TMP degrades only slowly under natural solar illumination, approximately 10% in 500 min in demineralized water [66], respectively up to ~2% in 72 h in natural water [72]. However, it degrades much faster by hydrolysis in the aluminum-foil-wrapped dark control (up to ~15% in 72 h at pH 4 and 7), due to the temperature increase in the dark control [72]. While dissolved organic matter, which can act as a scavenger, is common in natural waters, peroxides may be less so; moreover, in most instances the superficial temperature will not rise massively, due to water movement. Hence, only slow photodegradation is predicted for TMP in temperate zones and it is not expected to play a major role in the environmental fate of TMP.

Total environmental half-lives (t½) of TMP have been derived for some compartments. In an experimental microcosm, Lam et al. [65] analytically determined a t½ of 5.7 ± 0.1 days; this short time may reflect the earlier findings of Bundschuh et al. [30] in their miniature fallen-leaf/natural-water system. Extrapolated, i.e., estimated environmental half-lives for TMP are available for freshwater with >42 days [67] and 20–100 days [73]. Boxall et al. [67] also estimated a freshwater sediment t½ of >60–100 days, while Hektoen et al. [74] predicted a marine sediment t½ of 75–100 days. Once more there seems to be a wide range of half-lives for TMP, from the measured 5.7 ± 0.1 days [65] up to an estimated 100 days. This may again reflect nitrifying vs. non-nitrifying conditions, but mainly it does attest to a high uncertainty.

However, the half-lives are important as the EU Technical Guidance Document for Risk Assessment (TGD) [79] classifies substances for persistence in function of their environmental half-life. Thereby, compounds are classified persistent (P) in freshwater if the aquatic half-life is >40 days and very persistent (vP) if it is >60 days; both P and vP in seawater if the marine half-life is >60 days; P if the freshwater sediment half-life is >120 days and vP if it is >180 days; P and vP if the freshwater or marine sediment half-life is >180 days [79]. Based on one experimental half-life of 5.7 days in a microcosm [65], TMP is not P, but it may well be P or even vP in freshwater if the extra­polated half-lives of >42 days [67] respectively 20–100 days [73] are correct.

2.2.2.4. Bioaccumulation Data for TMP (Table A5) [9,28,47,67,80,81,82,83,84]

Data on bioaccumulation for TMP are scarce or indirect. The lipophilicity data for TMP range from a logKow of 0.64 to 1.15 [2,6,11,12], which argues against bioaccumulation. In an early experimental study, Bergsjø & Søgnen [9] exposed trout to a high TMP concentration of 75 mg/L in fresh and saltwater, but only for a short time of 84 h, which might not suffice for rigorous bioaccumulation assessment. They found a maximum bioconcentration factor (BCF; concentration in fish ÷ concentration in medium) of ~0.32 in marine fish liver and ~0.16 in freshwater fish liver, but from some of the graphs given the internal concentration seems to be still on the rise. However, Bergsjø et al. had dosed rainbow trout orally with radio-labeled TMP earlier [83] at a dose of roughly 0.02 mg TMP/g fish at 7 or 15 °C. Following the radio-label by autoradiography they noted a slow (maximum disintegrations per minute, DPM, around 48 h at 7 °C) to more rapid (max. DPM around 12–24 h at 15 °C) uptake, followed by a decrease that was rapid in muscle at 15 °C but slower in liver at 7 °C. Still, the maximum body concentration from a single dose reached at 48 h and declining thereafter does not speak for significant bioaccumulation. More recently, Fang et al. [81] dosed Japanese bass (Lateolabrax japonicus) once daily with 125 mg sulfamethazine and 25 mg TMP over five days. They derived the minimum holding period, unstated in the abstract but presumably until the analytes were below the limit of detection, from analysis in muscle, blood, liver and kidney as 26 days at 22 °C water temperature and 30 days at 16 °C. While no further information is given in the available abstract, a minimum 90% depuration time of 30 days at 16 °C does not seem inordinately long, suggesting reasonably rapid depuration and thereby relatively low bioaccumulation. Using multi-compartment, physico-chemical-activity-based modeling, Trapp et al. [28] showed that, contrary to expectation, TMP accumulates less in biota at pH 9 than at pH 6, due to increased relative partitioning to the sediment at pH 9 where TMP is mostly non-ionized. Conversely, according to Trapp and colleagues, at pH 6 TMP partitions more to biota than to sediment, but based on their data the worst-case water-biota BCF would still be <100 (approximate value from Figure 1 in Trapp et al.) [28]. This is indirectly supported by the reports of Ramirez et al. [82], who sampled common local fish from five wastewater-influenced streams in the eastern and southern USA as well as in one pristine control river, and Fick et al. [60], who did a comparable sampling in Swedish rivers and associated fish. Both groups never detected TMP in any of their fish samples. Fick and colleagues analyzed both surface water and biota samples at the same places; based on their range of surface water TMP concentrations, from 6.8 to 210 ng/L with no non-detects, and the fish concentration consistently below their LOQ of 0.1 µg/kg [60], the TMP BCF would be predicted to be <16 in the worst case. The regulatory limit for aquatic bioaccumulation is a BCF of 2000 for bioaccumulative (B) or of 5000 for very bioaccumulative (vB) according to the EU TGD [79]. Based on this mainly circumstantial evidence, TMP does not qualify as B.

For uptake and bioaccumulation from spiked soil to plants over full growth duration for lettuce (103 days) and carrots (152 days), Boxall et al. [40] determined soil-based uptake factors of 0.06 for lettuce and 0.08 for carrots and soil-porewater-based uptake factors of 0.68 respectively 0.86 over the whole duration. Last, in a hydroponic exposure of two different sorts of cabbage plants, with 232.5 µg TMP/L in the nutrient solution over 51 days, Herklotz et al. [83] found a maximum wet-weight BCF of 0.3074. Even though for soil uptake in plants lower limits may apply for a B classification than for animals in water [85], with a BCF clearly <1 on chronic exposure there is no suspicion of bioaccumulation. Recently, Sabourin et al. [84] compared concentrations of pharmaceuticals and other substances in vegetables (sweet maize, carrot, tomato, potato) grown on soil fertilized with dried municipal sewage sludge or on non-amended control soil. Results for TMP are equivocal, as TMP was detected at comparable levels in tomatoes from one (0.432 ng TMP/g dry weight) of three amended soils and also from control soil (0.387 ng TMP/g dry weight), but was not detected in any other vegetable. The authors state that, by their own criterion that detections must be made in all three amended soils per vegetable, the results for all analytes including TMP are not significant. Hence, overall, there is no evidence for bioaccumulation of TMP.

2.3. TMP Environmental Concentrations

2.3.1. PECs and Use Data for Europe

The EMA 2006 Guideline for ERA of human pharmaceuticals [86] derives the initial, crude surface water PEC for APIs with a simple formula, multiplying the maximum daily dose with a default penetration factor in the population of 0.01 and dividing by a default 200 L sewage per person and day and a default surface water dilution factor of 10, without factoring in any human metabolism or STP removal. For TMP, with a daily dose of 400 mg [4], this results in a crude surface water PEC of 2 µg/L. However, this initial PEC may be refined through incorporating actual use, either through published epidemiological data resulting in a lower penetration factor or through actual use figures.

IMS Health is a company that collates sales figures for APIs, hence total TMP sales (i.e., pharmacies plus hospitals wherever available) were retrieved from the IMS Health database [87] for the years 1995–2003 for the following European countries: Austria, Belgium, France, Germany, Greece, Italy, The Netherlands, Portugal, Spain, Sweden, Switzerland and the United Kingdom, making up in 2003 a total of 370 million inhabitants [88]. Two results appear from this collation, first, the overall use declined from 55,578 kg in 1995 to 43,079 kg in 2003; such a decline was also noted by ter Laak et al. in a 2010 RIWA report on temporal and spatial trends of pharmaceuticals in the River Rhine [89] based on MECs in Dutch waters. Second, the average daily use per inhabitant for all these countries was 0.3955 mg TMP, with a range of 0.1937 mg for Greece to 0.5005 mg for the UK. For the last year in the series, the UK still has the highest per capita use per day of 0.5056 mg TMP.

Inserting the highest of the above daily use figures for the UK in 2003 into the PEC equation results in a first refined surface water PEC for the UK of 0.253 µg TMP/L. For the European 1995–2003 average use figure the first refined surface water PEC is 0.198 µg/L.

This PEC may be further refined by excretion rate of the parent API including glucuronide or sulfate conjugates, which will be hydrolyzed back to the API in STPs [75]. Based on a maximum 20% of ingested TMP being Phase-1-metabolized [3], 80% excretion as the parent or its conjugates will be assumed as a worst case; 60% excretion will be assumed as a best case. This results in second refined surface water PECs of 0.202 µg/L for the UK in 2003, respectively of 0.119 µg/L for all European countries for 1995–2003.

A third PEC refinement may be made by incorporating STP removal of TMP. As derived above, based on a minimum of 107 measured removal rates, the average removal of TMP is 25.0% and the median (best case) removal is 30.0% (Figure 1). Using the lower, average removal for PEC refinement results in third refined surface water PEC of 0.152 µg/L for the UK in 2003, respectively of 0.089 µg/L for all European countries for 1995–2003. The serial PEC refinements are shown in Table 1.

Table Table 1. Surface Water predicted environmental concentrations (PECs) and their Refinement for TMP in Europe.

Click here to display table

Table 1. Surface Water predicted environmental concentrations (PECs) and their Refinement for TMP in Europe.
PEC stageSurface water PEC, µg/LInformation used
worst casebest case
Initial crude2.0max daily dose, 400 mg [4], EMA ERA guideline [86]
First refinement0.2530.198actual daily use per inhabitant, 0.5056 mg (maximum, UK) respectively 0.3955 mg (avg., Europe) (based on [87])
Second refinement0.2020.119excretion rate, 80% respectively 60%
Third refinement0.1520.089STP removal, 25.0% (avg.) respectively 30.0% (median)

Based on the available use, metabolism and STP removal data, a refined surface water PEC range of 0.089–0.152 µg/L seems realistic for Western Europe. This range can be compared with actual surface water MEC data.

2.3.2. TMP MECs for Europe

TMP has been measured in European surface waters at least since the mid-1990s and today very many MECs can be located. In total, data representing at least 1899 single MECs have been collated for this ERA; ‘at least’, because often the number of single analyses is not given and in such cases just one value was assumed. Most of the publicly available MECs (at least 754) are from Germany [90,91,92,93,94,95,96,97,98,99,100,101,102,103]. Other MECs are from France [47,104], The Netherlands [105,106], Spain [5,48,107,108,109,110], Sweden [44,60,111], Switzerland [112,113,114,115,116], Croatia [49] and the United Kingdom [50,117,118,119,120]. Special thanks to F Bonvin, T Kohn, M Lehmann and M Schärer (see Acknowledgements) for supplying single MEC data that have only been published as overviews.

The values were collated into one single distribution as described by Straub [121,122] and Metcalfe et al. [123], detailed in the Experimental Section further below. Figure 2 is based on at least 1899 back-distributed single measurements that were percent-ranked. Datapoints (blue crosses) were inserted at those concentrations where at least one MEC is either explicitly reported or can be allocated with certainty. In view of many MECs being reported as below the limit of detection or quantitation, there are already a cumulative 8 percentiles of all MECs at 0.001 µg/L, corresponding to an estimated 150 MECs. The 50th and 95th percentiles (MEC50 respectively MEC95) are indicated in Figure 2 by drop lines; the MEC50 is ~0.012 µg/L, the MEC95 ~0.129 µg/L. For comparison, the highest single surface water MEC located in the literature, from the USA [124], is 0.710 µg/L (pink cross in Figure 2), very close to the highest European MEC of 0.690 µg/L [109].

Antibiotics 02 00115 g002 1024
Figure 2. Compiled European surface water measured environmental concentrations (MECs) for TMP.

Click here to enlarge figure

Figure 2. Compiled European surface water measured environmental concentrations (MECs) for TMP.
Antibiotics 02 00115 g002 1024

It is recognized that this procedure does not deliver exact results but, on the other hand, it is the only possibility of compiling different MEC data into one single distribution and getting a consolidated overview comprising all data, instead of many smaller distributions presented in different formats. Moreover, the more data there are in this distribution, the better will it reflect the actual environmental distribution, in particular at the 95th percentile level, where indeed most references and their respective MEC values are fully integrated already.

2.3.3 Comparison of TMP PECs and MECs for Europe

The MEC95 and MEC50 values lend themselves for comparison with the refined PEC (and alter also the PNEC) values. Recalling the refined PEC range of 0.089–0.152 µg/L, it would seem that the higher PEC is close to the MEC95 but that the best-case PEC is a factor of ~7.5 higher than the MEC50. Both PECs, however, could actually be too high, possibly for the following reasons.

  • The PECs assume that the whole amount sold is also used and excreted. Patient noncompliance seems to be relatively common, however [125,126,127]. Particularly with antibiotics, some patients stop taking the medicines when they start to feel better, without finishing the whole treatment course. As long as these discarded APIs are not drained into the wastewater, this will reduce the surface water PEC.

  • The PECs assume that the average and median removal rates in STPs derived here are representative for the whole of Europe. Possibly more STPs have well nitrifying AS that results in higher removal and thereby in a lower surface water PEC.

  • The PECs assume a TGD [79] default surface water dilution factor of 10. If the average dilution factor in Europe is higher this would result in a lower PEC.

  • The PECs do not factor in environmental degradation beyond the STPs. However, TMP can be degraded by both aerobic and anaerobic biological mechanisms [30,65] and to some degree by physico-chemical transformation, also in surface waters [70,72]. Both would reduce the PEC.

2.4. TMP Environmental Effects and Predicted No Effect Concentrations

2.4.1. Micro-organism/STP Inhibition

For STPs to perform their intended function, the AS micro-organisms must not be affected by the micropollutants in the influent. Hence an appraisal of bacterial toxicity of TMP is necessary, the basic data are collated in Table A6 [15,18,21,29,30,64,128,129,130,131,132,133,134,135].

TMP is not highly toxic to AS bacteria in standard aerobic and anaerobic tests [18,21,128], with EC50 values ranging from 17.8 to >100 mg/L. Also, in Lumistox tests with the light-emitting marine bacterium Vibrio fischeri TMP is not highly toxic, however, toxicity increases with prolonged exposure [129,130,131]. On even longer exposure of 14 days, TMP completely inhibited human nanobacteria at 3.9 mg/L [132]; this would be expected as the human therapeutical serum concentration is in the range of 1.5–9 mg/L [3]. In a closed bottle ready biodegradation test, no inhibition was noted in the standard toxicity control at 3.25 mg/L TMP-naphthoate, while a significant reduction of colony-forming was noted at 4.6 µg/L TMP-naphthoate [29]. This possible discrepancy is not discussed in the paper, however, the toxicity control measures overall inhibition while the colony-forming units relate to cultivable bacterial species. Hence the observations by Alexy et al. [29] may signify that TMP exerts adverse effects only on certain bacterial species, which may be masked or compensated by the remaining, non-affected species in AS. This interpretation may be supported by the findings of a statistical EC10 in AS of 0.435 mg/L (in contrast to the NOEC observed at 100 mg/L in the same GLP test) [129], by NOECs to soil bacteria of 0.02 mg/L [133] and to nitrifying bacteria at 0.05 mg/L in one test [57], while another nitrification inhibition test under GLP showed no effect at 96 mg/L [134]. Moreover, when tested in combination with four other antibiotics (sulfamethoxazole, erythromycin, roxithromycin, clarithromycin; all at the same concentration), TMP reduced the growth of fungi on fallen alder leaves in natural water at 40 µg/L, while at 0.4 µg/L no inhibition was noted [30].

Altogether, the above findings are rather difficult to interpret. It seems that TMP can inhibit certain microbial species at concentrations of 4.6 µg/L (LOEC) [29] while other bacteria are not adversely affected at concentrations over 100 mg/L [21]. In an STP, the latter may take over some of the ecological functions of the affected species, as suggested by the AS respiration inhibition and nitrification inhibitions tests (both relying on overall functional endpoints), and thereby compensate functionally for the inhibited micro-organisms. This is supported by the observation that biodegradation (not only of TMP itself but in general) and nitrification in working STPs is not significantly inhibited by the influent concentrations of TMP and many other substances, as shown by overall functional parameters. Therefore, TMP may cause inhibition of specific bacteria and potentially shifts in species compositions at concentrations between 4.6 and 0.4 µg/L, but at current uses there is no evidence of adverse effects on the functions of STPs. This may also be related to a certain tolerance (or resistance) of STP bacterial communities toward many different micropollutants including TMP.

Similarly, Liu et al. [135] found in an experiment with spiked natural soil that TMP decreases the total soil respiration in comparison with a blank control during the first 4 days of exposure from 20 mg TMP/kg soil (dry weight), whereas from day 5 to the end of the assay at day 21 no inhibition was noted, but either no change or increased respiration at all concentrations up to the highest of 300 mg TMP/kg soil (dry weight). This was interpreted as an initial overall inhibition followed by an adaptation of the collective of aerobic micro-organisms. In this work, Liu et al. [135] note a soil dissipation half-time (DT50) of 2–5 days for TMP and in a later publication the same group [15] gives a DT50 in aerobic soil of 4 days, which suggests that after about half of the spiked TMP is removed (by biodegradation or bound residue formation) the bacterial community adapts to the substance. In view of the very general endpoint of total respiration a persistent inhibition of certain species is still conceivable, but the ongoing dissipation of TMP in the soil through mainly biodegradation [15] suggests that in such a case at least the biodegradation functionality can be compensated by the remaining bacteria.

2.4.2. Surface Water Ecotoxicity

For the appraisal of surface water ecotoxicity there are two extensive datasets for TMP, one acute (Table A7) and one chronic (Table A8). The acute dataset fully rests on published and some older Roche-internal tests (which are already used for the Roche safety data sheets) while for the chronic dataset some new tests performed specifically for this ERA are reported for the first time.

2.4.2.1. Acute Ecotoxicity of TMP (Table A7) [9,18,124,129,130,136,137,138,139,140,141,142,143,144,145,146,147,148,149,150]

Acute data exist for cyanobacteria, algae, hydrozoans, rotifers, crustaceans, molluscs, flowering plants and fish. The acute EC50 or LC50 data range from 5.1 mg/L for a marine alga (where TMP would be mostly non-dissociated in view of the basic pH of seawater) [137] to 296 mg/L for daphnids [149] for those tests where a concise value is given (i.e., not a ‘>highest tested concentration’). For fish in particular, all highest tested concentrations did not result in an LC50, which would be expected in view of the fact that fish are not intended to be target organisms for antibiotics. The one apparent exception to this is an LC50 value of 3 mg/L cited by Kolpin et al. [124], which proves to be a miscitation: The original paper by Bergsjø et al. [80], which is actually referred to by Kolpin et al. [124], gives a single oral dose of approximately 0.02 mg radio-labelled TMP per gram of fish, but not a concentration. Moreover, none of the fish used is reported by Bergsjø et al. [80] to have died of TMP. Hence, this erroneous citation is not used for toxicity assessment.

Antibiotics are used to inhibit bacterial infections, which is why Holten Lützhøft et al. [138] noted that ‘to perform a proper environmental risk assessment of antibacterial agents, it would be necessary to include a cyanobacteria as test organism in the test battery’; this request has been adopted in the EMA guideline for ERA of human APIs [86]. But at least in the case of TMP the cyanobacterian species tested are neither the most sensitive nor is the range of cyanobacterian EC50s limited to low concentrations; on the contrary, the EC50s range from 11 to >200 mg/L [136,138]. This may suggest that for some reason TMP is not as highly toxic to cyanobacteria than to human nanobacteria [132]; possibly, photosynthetic cyanobacteria are not as dependent on their own de novo folate biosynthesis as human pathogenic bacteria. By extension, the comparatively high threshold for ecotoxicological effects over the broad array of groups and species tested confirms the statement by Blaise et al. [129] that TMP is relatively nontoxic.

2.4.2.2. Chronic Ecotoxicity of TMP (Table A8) [136,137,139,140,141,142,143,144,145,146,151,152,153,154]

The new chronic tests under GLP quality assurance commissioned with the aquatic flowering plant Lemna minor [143] and the zebrafish Danio rerio [153] bring the total number of systematic groups tested chronically to 8 (including the three standard groups algae, daphnids and fish) and the number of species to 17. Once more, the marine alga that was already the most sensitive on an acute scale has the lowest EC50 [137], which (again as expected) suggests that TMP would be more toxic while mostly non-dissociated in view of the basic pH of seawater. Also on a chronic level the cyanobacterians have a wide range of NOECs, from 3.1 to ≥200 mg/L [136].

A FETAX larval test with the toad Xenopus laevis is included among the chronic data despite the short duration, as this test takes place during a very sensitive phase of development and has therefore been accepted as chronic by the recent EU Technical Guidance Document for Deriving Environmental Quality Standards (EQS) in the scope of the EU Water Framework Directive [155]. Together with the new zebrafish early life stage NOEC at the highest tested concentration of 100 mg/L [153], the fish and amphibian data once more suggest that vertebrates are not particularly sensitive to TMP and that generally speaking, also on a chronic level TMP is relatively nontoxic [129] as well.

2.5. TMP Predicted No Effect Concentrations

2.5.1. Deterministic TMP PNEC Derivation

This copious compilation of acute and chronic ecotoxicity data allows for both a solid deterministic and a well-founded probabilistic PNEC or HC5 (hazardous concentration for 5% of species tested) according to the requirements of the TGD [79]. Where more than one result was available for the same species, the geometrical average was calculated and this will be used for PNEC derivation, in line with the EU EQS derivation guidance [155]. According to the TGD [79], when at least three endpoints are available for a minimum dataset of algae, daphnids and fish, the acute deterministic PNEC is the lowest EC50 or LC50 divided by an assessment factor (AF) of 1000; the chronic deterministic PNEC is the lowest NOEC or EC10 divided by an AF of 10.

The lowest chronic value retrieved, a NOEC of ≥1 mg/L (the highest tested concentration) for the duckweed Lemna gibba [142] will not be used for deterministic or probabilistic PNEC derivation, however, because (a) basing a PNEC on a lower bound of a NOEC generates a high uncertainty in general, in particular (b) because from a ‘≥’ value no unambiguous deterministic or probabilistic PNEC can be derived, but again only a ‘≥’ value, and (c) because the closely related Lemna minor showed a clear NOEC of 53.5 mg/L in a GLP test [143] with measured exposure concentrations, about 50 times higher than the disputed value.

In addition, other, very low, highest tested concentrations published without any biological effects noted whatsoever, like the above value in Brain et al. 2004 [142], were not used. This concerns the daphnid NOEC of 10 µg/L (highest tested concentration) published by Flaherty & Dodson 2005 [152], which included the endpoints survival, adult and neonate morphology, ephippium production, fecundity and offspring sex ratio. However, it was based on a duration of only 6 days, whereas the OECD guideline stipulates 21 days, and was therefore not used for derivation of PNECs. Also, in a recent test with the marine rotifer Brachionus koreanus, Rhee et al. [145] tested nominal concentrations of 10 and 100 µg/L TMP for 10 days and noted ‘gradual’ or ‘slight growth retardation’ [145] (pp. 109 and 116, respectively) at 100 µg/L. However, while a slight retardation in growth may be seen from their graph on p 115, Rhee and colleagues do not comment on the fact that TMP-exposed Brachionus seem to fully compensate their delayed reproduction by the end of the test on day 10, when the error bars of controls and the two tested concentrations overlap. As the test runs over ten days, as there is no significant adverse effect at the end of the test and as the authors did not test sufficiently high concentrations to unambiguously demonstrate such an effect, this endpoint will not be used here.

Last, the biomarker data for the zebra mussel Dreissena polymorpha published by Binelli et al. [156] are not used for PNEC derivation, either, as the acute-based NOEC is based on ambiguous inhibition or mortality endpoints. The same holds for the biomarker endpoints in the rotifer paper by Rhee and colleagues [145]. For the time being there is no regulatory guidance on extrapolation from biomarker responses to organism- or population-relevant endpoints that may be used within the scope of an ERA. Rejecting them for the PNEC derivation is in line with the EU EQS guidance document [155] which states that ‘data from studies describing endpoints that do not include direct measurements of survival, development or reproduction but, rather, describe e.g., behavioral effects, anatomical differences between control and treatment groups, effects at the tissue or sub-cellular level, such as changes in enzyme induction or gene expression … generally … are unsuitable as the basis for EQS derivation’.

Based on these provisions the deterministic acute-based aquatic PNEC for TMP is 5.1 µg/L, derived from the marine algal EC50 of 5.1 mg/L (Phaeodactylum tricornutum) [137], applying an AF of 1000. Also the deterministic chronic aquatic PNEC of 240 µg/L relies on the same algal species with a NOEC of 2.4 mg/L [137] and an AF of 10. The chronic-based PNEC is considered more relevant in view of reflecting long-term, continuous exposure. However, the fact that the most sensitive organism for both the acute and chronic endpoints is a marine alga, suggests that the high pH of seawater renders TMP more toxic due to a higher non-dissociated fraction, beside the algae-typical phenomenon of ion trapping [157].

2.5.2 Probabilistic PNEC Derivations

2.5.2.1. TGD Probabilistic PNEC

The first probabilistic PNEC was derived as described in the EU TGD [79] by calculating the HC5 or 5th percentile of the chronic NOECs distribution and dividing this figure by an additional AF between 1 and 5. While there is some information given on the choice of this additional AF, no unequivocal, hard criteria exist. Hence for this ERA, a range for the chronic probabilistic PNEC will be given, from HC5/5 to HC5. The HC5 calculated by Excel is 2.93 mg/L, therefore the probabilistic PNEC range is 586–2,930 µg/L, with an average of 1,758 µg/L. The derivation of the PNECs is shown graphically in Figure 3.

Antibiotics 02 00115 g003 1024

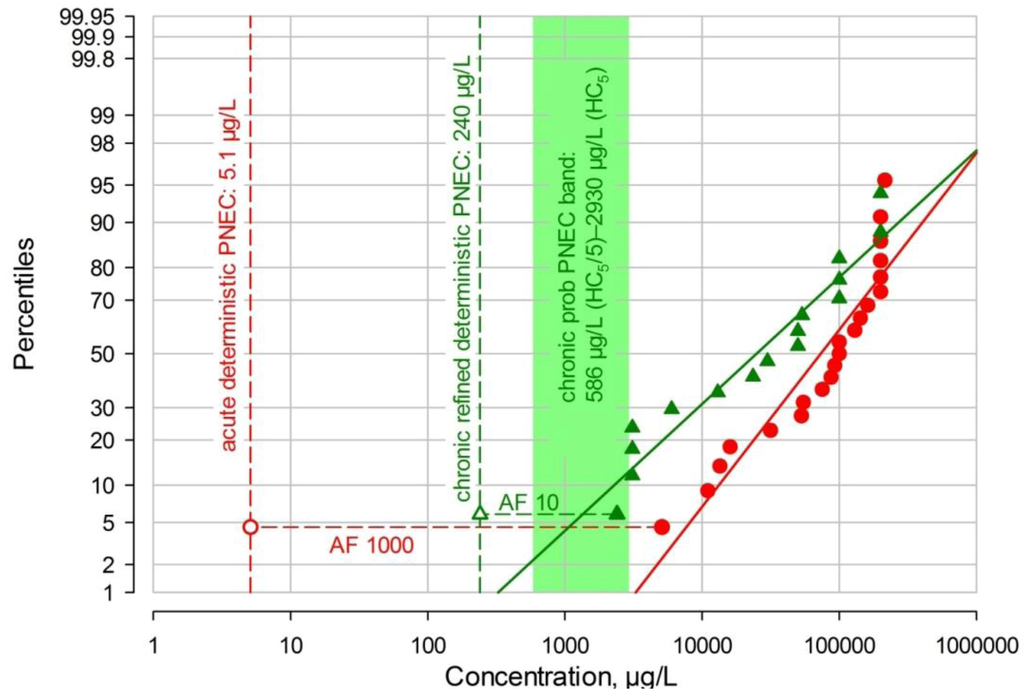

Figure 3. Acute and chronic ecotoxicity data, deterministic and probabilistic predicted no effect concentrations (PNECs) for TMP.

Click here to enlarge figure

Figure 3. Acute and chronic ecotoxicity data, deterministic and probabilistic predicted no effect concentrations (PNECs) for TMP.
Antibiotics 02 00115 g003 1024

In Figure 3, the acute aquatic EC50/LC50 values (red dots) and chronic aquatic NOEC values (filled dark green triangles) for TMP are shown, both percent-ranked and plotted on a log-probabilistic scale, with deterministic PNECs (open symbols; AF 1000 for acute data, AF 10 for chronic NOECs) and the light green TGD-calculated probabilistic PNEC band ranging from HC5÷5 (586 µg/L) to the HC5 (2,930 µg/L).

2.5.2.2. Webfram Probabilistic HC5

In addition to the TGD probabilistic PNEC, the chronic NOECs were entered into the Webfram application (http://www.webfram.com) [158], which calculates a probabilistic HC5 based on a Bayesian algorithm [159]. Moreover, Webfram also computes goodness-of-fit values according to Kolmogorov-Smirnov, Cramer-Von Mises and Anderson-Darling algorithms; for all three tests the goodness-of-fit of the chronic TMP NOECs is accepted at a p value of 0.01. The probabilistic HC5 as determined by Webfram is 1,778 µg/L, with a 95% confidence interval between 334 and 4,832 µg/L (Figure 4). This HC5 compares nicely with the average of the EU probabilistic PNEC range, 1,758 µg/L.

Antibiotics 02 00115 g004 1024

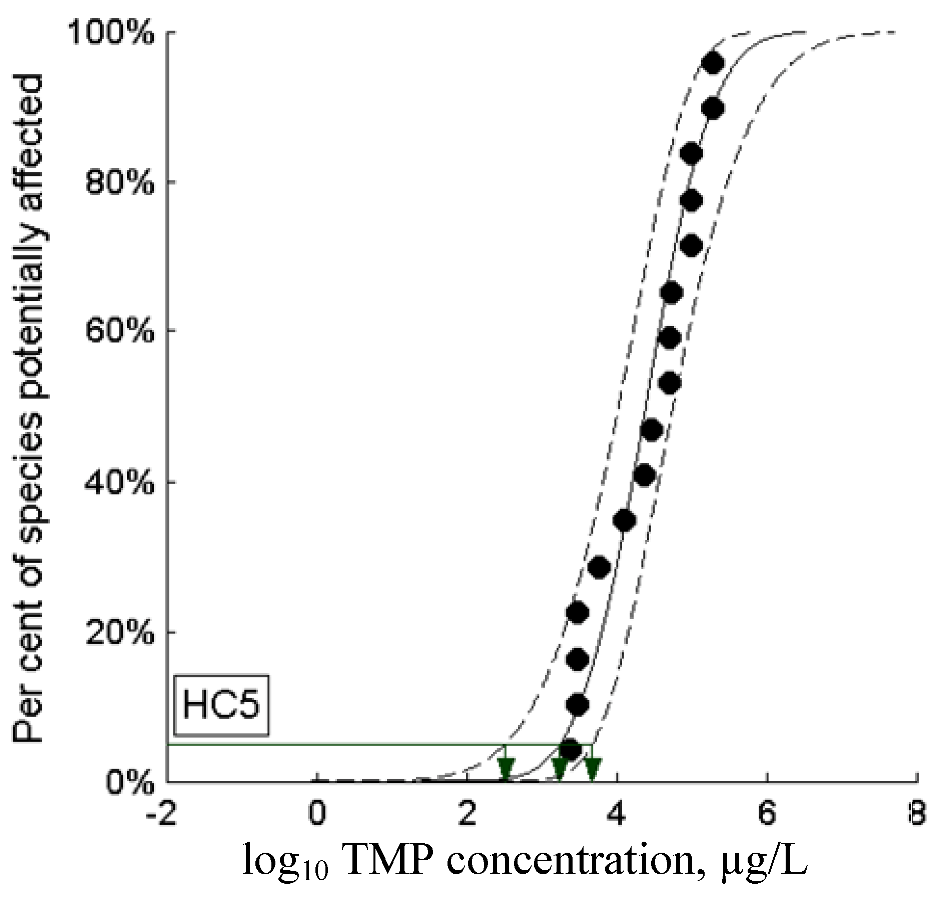

Figure 4. Webfram: chronic aquatic NOEC values and HC5. Chronic aquatic NOEC values (black dots) for TMP, percent-ranked and plotted by Webfram on a log-probabilistic scale; the 95% confidence interval is given as dashed lines. The Webfram-calculated probabilistic HC5 is 1,778 µg/L (middle green arrow) and the 95% confidence interval for the HC5 lies between 334 and 4,832 µg/L (left and right green arrows).

Click here to enlarge figure

Figure 4. Webfram: chronic aquatic NOEC values and HC5. Chronic aquatic NOEC values (black dots) for TMP, percent-ranked and plotted by Webfram on a log-probabilistic scale; the 95% confidence interval is given as dashed lines. The Webfram-calculated probabilistic HC5 is 1,778 µg/L (middle green arrow) and the 95% confidence interval for the HC5 lies between 334 and 4,832 µg/L (left and right green arrows).
Antibiotics 02 00115 g004 1024

2.6. Aquatic Environmental Risk Assessment for Human-Use TMP in Europe

2.6.1. TMP Risk Characterization Ratios

With sufficient exposure and effects information, both transformed into PECs or MECs and PNECs, the formal ERA for the surface waters in Europe can now be addressed. The various PECs and compiled MECs are compared with the PNECs in Table 2.

All risk characterization ratios without exception are <1, which means no significant risk overall. In particular, all risk characterization ratios that use any chronic-based, deterministic or probabilistic PNEC, which is taken to better reflect the permanent exposure to APIs, range from <0.01 to <0.00001. This firmly corroborates the first conclusion of no significant risk from TMP in surface waters in Europe and beyond.

Table Table 2. TMP risk assessment for European surface waters: PECs, MECs, PNECs and PEC/PNEC and MEC/PNEC risk characterization ratios respectively margins of safety.

Click here to display table

Table 2. TMP risk assessment for European surface waters: PECs, MECs, PNECs and PEC/PNEC and MEC/PNEC risk characterization ratios respectively margins of safety.
Environmental concentrations (PECs and MECs)Predicted no-effect concentrations (PNECs)Risk ratio (PEC/PNEC or MEC/PNEC)Margin of safety (inverse of risk ratio)
Derivationvalue, µg/LDerivationvalue, µg/L
EMA crude PEC2.0acute-det5.10.3922.55
2.0chronic-det2400.00833120
2.0chronic-pr586–29300.00341–0.000683293–1465
2.0Webfram pr HC517780.00112889
Third refined PEC (incl. actual use, excretion rate, STP removal) [this work]0.152–0.089acute-det5.10.0299–0.017533.6–57.3
0.152–0.089chronic-det2400.000633–0.0003711579–2697
0.152–0.089chronic-pr586–29300.000259–0.00003043855–32921
0.152–0.089Webfram pr HC517780.0000855–0.000050011697–19978
European MEC95 [this work, Figure 2]0.129acute-det5.10.025339.5
0.129chronic-det2400.0005381860
0.129chronic-pr586–29300.000220–0.00004404543–22713
0.129Webfram pr HC517780.000072613783
European MEC50 [this work, Figure 2]0.012acute-det5.10.00235425
0.012chronic-det2400.0000520000
0.012chronic-pr586–29300.0000205–0.000004148833–244167
0.012Webfram pr HC517780.00000675148167
Maximum European MEC [109]0.690acute-det5.10.1357.39
0.690chronic-det2400.00286348
0.690chronic-pr586–29300.00118–0.000235849–4246
0.690Webfram HC517780.0003882577
Maximum MEC located worldwide, USA [124]0.710acute-det5.10.1397.18
0.710chronic-det2400.00296338
0.710chronic-pr586–29300.00121–0.000242825–4127
0.710Webfram pr HC517780.0003992504

2.6.2. TMP Risk Graph

The whole information for this ERA including the margins of safety determined here can also be illustrated in one single risk graph for TMP (Figure 5).

In the risk graph (Figure 5) the whole exposure and effects information for TMP is brought together. Acute aquatic EC50/LC50 data are shown as red dots, with the derivation of the deterministic PNEC of 5.1 µg/L (hollow red circle) by application of an assessment factor (AF) of 1000. Chronic aquatic NOEC values are shown as filled dark green triangles, with the derivation of the deterministic chronic PNEC of 240 µg/L (hollow green triangle) by application of an AF of 10. Further, the bright green probabilistic TGD chronic PNEC band ranging from 586 to 2,930 µg/L is depicted as well as the Webfram-calculated HC5 of 1,778 µg/L (green star in the band). European MECs are shown by dark blue crosses, with the European MEC95 at 0.129 µg/L; in addition, the highest MEC from the USA of 0.710 µg/L is shown as a pink cross. For illustration, selected margins of safety (MOS) are shown by horizontal arrows from the MEC95 to the corresponding PNECs.

Antibiotics 02 00115 g005 1024

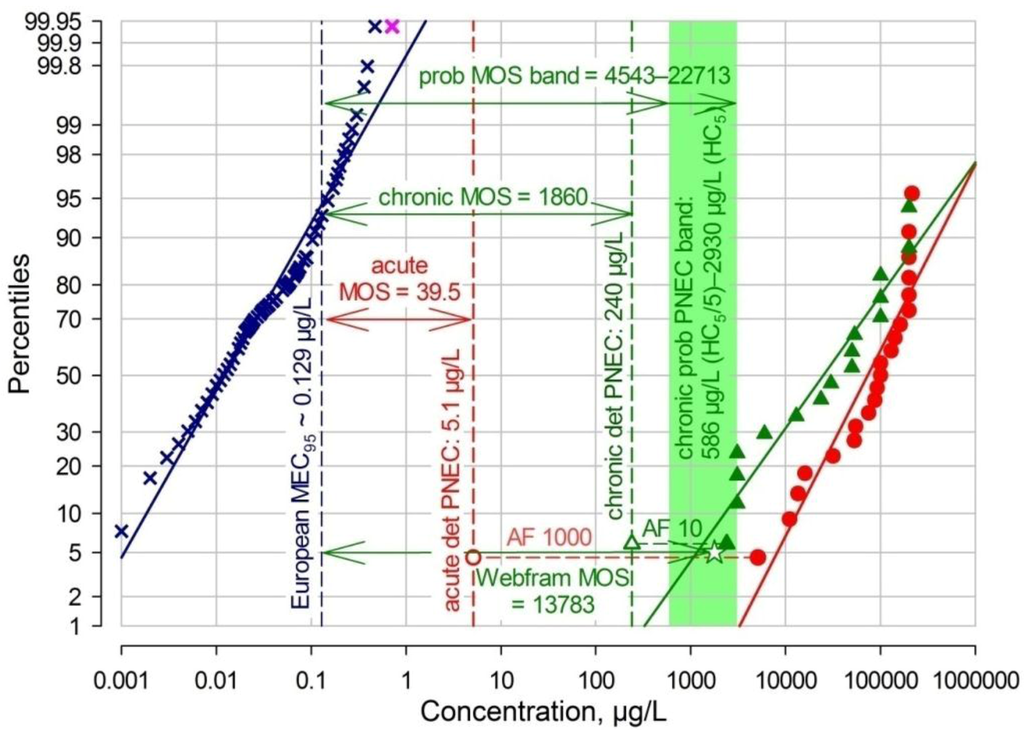

Figure 5. TMP risk graph for European surface waters.

Click here to enlarge figure

Figure 5. TMP risk graph for European surface waters.
Antibiotics 02 00115 g005 1024

Beyond the MOSs between the MEC95 for Europe and selected PNECs, the risk graph also shows very clearly that, at least within the confines of the 1st and 99.95th percentiles, the MEC regression lines and the chronic NOECs regression line do not overlap. This illustrates graphically that there is no perceivable risk. In view of the fact that TMP use has been declining in Europe over the past 10–15 years, this conclusion is further strengthened.

2.6.3. Limitations of the Present TMP ERA

2.6.3.1. Mixture Assessment

Synergistic or cocktail effects arising from the exposure to many micropollutants, comprising not only APIs but quite a diverse group of substances, are not included in this ERA. However, the data collated and presented here can serve for developing the TMP ERA further to include at least some other APIs, mainly sulfamethoxazole or other sulfonamides, with which TMP is often combined. But while some aspects of mixtures ERA are reasonably well understood [160], it is not easy to do a combined ERA for a few substances and it becomes practically impossible to do it for a large number. Hence, the present TMP ERA does not address mixture toxicity.

2.6.3.2. Human Plus Veterinary Use of TMP

The PECs on which this ERA relies only refer to human use of TMP. But TMP is also used on a large scale for veterinary purposes, again mostly in combination with sulfonamides. While total European quantitative data are not readily available, there are both veterinary and human use data published for Denmark over the past 15 years (DANMAP) [161]. Denmark is a European country with intense agricultural production, both of farm animals like pigs, cows or poultry as well as of fish in freshwater and marine aquaculture. Hence, extrapolating from the Danish data to the European level is judged to add a worst-case exposure from animal use of TMP. DANMAP 2012 data show that the total veterinary usage of TMP plus sulfonamides has been rising in the decade from 2001 to 2010, with a maximum of 14,950 kg in 2009 and the 2010 figure at 13,900 kg. Assuming also a 5:1 ratio of veterinary sulfonamides to TMP (as with human sulfamethoxazole and TMP in Bactrim) would translate to an annual veterinay use of 2,333 kg TMP for Denmark. Specifically for aquaculture, 3,060 kg antimicrobials were used in 2010, of which 66% or 2,020 kg sulfonamides plus TMP, which again corresponds to 337 kg TMP for direct aquatic usage and 1,996 kg TMP (2,333 minus 337) for mammals and poultry. On the human-use side, in 2010, 417 kg TMP and derivatives were used beside 252 kg of sulfonamides plus TMP, which latter amount translates to 42 kg TMP, hence a total of 459 kg TMP from human use. Assuming that the farm animal use will not get directly into surface waters and therefore adding only the aquaculture TMP, which is used directly in water, to the total human use, results in a supplement of 337 kg to the 459 kg, or 73% more. Hence, as a very crude worst-case extrapolation, 173% of the human-use PECs will be used as an overall surface water PEC from human plus veterinary use for ERA. Multiplying the various PECs in Table 2 (above) with a factor of 1.73 will increase the PEC/PNEC ratios, but even for the rather unrealistic EMA crude PEC of 2.0 µg/L, now increased to 3.46 µg/L, the acute-based risk characterization ratio is still <1; it is still lower by dimensions for the MECs (which at least for Denmark include that part of veterinary TMP that ends up in surface waters) as well as for chronic PNECs. Hence, even including a reasonable worst-case contribution from veterinary use to aquatic TMP PECs will not lead to a significant surface water risk.

2.6.3.3. Antibiotic Resistance

Another topic that is far beyond the scope of this ERA is antibiotic resistance development or maintenance due to the presence of antibiotics like TMP in STPs, surface waters or other environmental compartments [162,163]. While multi-antibiotic resistance has been shown for certain environmental compartments, notably sewage treatment, surface waters and soils [164,165], it is difficult to causally relate solely the presence of antibiotics (as opposed to the input of resistant bacteria from human patients or livestock) to the development or maintenance of such resistance. Indeed, some researchers found no maintenance, but on the contrary loss, of resistance in a laboratory sewage treatment plant despite the continued presence of antibiotics [166]. Moreover, so far there is no accepted regulatory methodology to assess this question. Hence, the question of potential resistance must remain for other investigations.

2.6.3.4. Further Environmental Compartments

According to the TGD ERA methodology [79], substances may be transferred from wastewater to the soil by way of land-spreading of surplus sewage sludge and from surface water to sediment by partitioning or to groundwater by infiltration. For all of these pathways there are insufficient data for a serious assessment of TMP, both on the environmental fate, distribution, partitioning or MEC side and in particular on the effects side in the receiving compartments. In view of this situation, no attempt will be made to characterize risk for these compartments by discussing the meager data or by read-across.

3. Experimental

3.1. Literature Search

Environmentally relevant peer-reviewed and non-reviewed (‘grey’) literature for TMP was searched for using dedicated search engines on the internet (ACS SciFinder, Google Scholar, chemical data collections like OECD Chemicals Portal http://www.echemportal.org/ or the European Union Chemical Substances Information System http://esis.jrc.ec.europa.eu/ as well as safety data sheet search engines such as https://www.eusdb.de), beside company-internal substance documentation and archives. The information was sighted, ordered and collated. Reference lists in the retrieved documents often allowed to supplement the literature dataset with further, mostly older publications and also online sources for MECs.

3.2. Collation of STP Removal Rates and Surface Water MECs

All retrieved published STP removal rates, viz. effluent concentration as a percentage of influent concentration, worldwide were entered into a spreadsheet with removal rates ranging from −550% (the highest negative removal reported, which eventually was not used in the analysis, see argument on page 118) to 100% removal, with a value of 1 per documented removal rate into one column per each reference. All rates were horizontally added to a total per removal rate in per cent. Then, these values were multiplied by 100 and divided by the known total number of removal rates plus 1, in a percent-ranking procedure. Then, a plot was drawn using SigmaPlot 12 software (Scistat, Inc., San Jose, CA, USA) with the percentiles on a probabilistic ordinate and the removal rates on a linear abscissa. The average and median removal rates were determined by excel spreadsheet functions.

All reported, discrete, single European surface water MECs were entered into one column per reference into a spreadsheet with a 1-ng/L-gradation ranging from ≤1 ng/L up to 1,000 ng/L. Then, the remaining (non-specified) MEC data were back-distributed per publication into the same column, based on total number of analyses, number below LOQ, between LOQ and median, between median and 90th percentile and between 90th percentile and the maximum value, to an average expected fraction or number of detections per ng/L-gradation for these ranges. For instance, if the LOQ in a particular publication was 5 ng/L and there were 7 MECs <LOQ, 7 was divided by 5 and the resulting fraction of 1.4 was entered into all 5 gradations from ≤1 to ≤5. Similarly, the number of MECs given between LOQ and the median, or between the median and the 75th or 90th percentile if indicated, were back-distributed. Then, both the precisely known numbers and the expected, back-distributed fractions of detections were horizontally added per ng/L-gradation, multiplied by 100 and divided by the known total number of analyses plus 1, in a percent-ranking procedure. This procedure resulted in a theoretical 690 values computed, 0.690 µg/L being the highest published surface water MEC in Europe, from a series that sampled only 100 m downstream of sewage works effluents in Madrid Region [109]. Out of these 690 values, however, only those values were kept for plotting and graphical regression where at least one actual analytical detection was certain. The plot was drawn using SigmaPlot software with a probabilistic ordinate and a logarithmic abscissa. The associated regression line then allows the graphical estimation of the overall 50th and 95th percentile MEC values (MEC50 respectively MEC95) based on at least 1899 single European MECs (Figure 2).

3.3. Identification of Ecotoxicity Data Gaps and Additional Ecotoxicity Studies

Based on the chronic aquatic ecotoxicity dataset retrieved and critically analyzed, it was found that chronic fish studies were totally lacking and that a chronic study with the angiosperm Lemna gibba [142] was not adequate for risk assessment as the NOEC found was the highest tested concentration. To fill these data gaps, two additional chronic ecotoxicity studies with the duckweed Lemna minor following OECD test guideline 221 [143] and the zebrafish Danio rerio following OECD TG 210 were commissioned at reliable contract labs. Moreover, an activated sludge respiration inhibition test according to OECD TG 209 [128] and a dedicated activated sludge nitrification inhibition test following ISO TG 9509 [134] were also made. All newly commissioned tests were performed under GLP quality assurance, in the cases of the duckweed growth inhibition and the fish early life stage tests also with full analytical determination of the exposure concentrations by HPLC and statistical determinations of EC10 and EC50s as applicable, beside the NOECs. All additional tests were financed by Roche.

3.4. Risk Assessment Methodology

Deterministic and probabilistic ERA methods were applied, following the EU TGD [79] for both acute- and chronic-based deterministic PNEC derivation as well as for TGD probabilistic PNEC band calculation. Additionally, the Webfram online tool (http://www.webfram.com) [158] was used for deriving a second probabilistic PNEC or HC5 based on a Bayesian algorithm.

4. Conclusions

An extended ERA was developed for the aquatic compartment in Europe for the old antibiotic TMP from human use. This ERA relies on both crude and refined surface water PECs for TMP, the latter integrating actual use figures, human metabolism and documented STP removal rates; these PECs range from the crude EMA PEC of 2 µg/L to the third refined PEC of 0.089 µg/L. The PECs are complemented by a veritable host of at least 1899 single MECs from European countries that were compiled into one distribution, allowing the approximation of median (0.012 µg/L) and 95th percentile (0.129 µg/L) values for surface water concentrations, with the European maximum at 0.690 µg/L.

On the environmental effects side, existing and newly developed ecotoxicity data were used to derive deterministic acute and chronic PNECs of 5.1 respectively 240 µg/L. The 16 chronic data from 8 different systematic groups were also used to derive a probabilistic PNEC range of 586–2,930 µg/L (EU TGD) or a probabilistic HC5 (PNEC) value of 1,778 µg/L (95% CI: 334–4,832 µg/L; Webfram). All acute (EC50/LC50) and chronic (NOEC/EC10) ecotoxicity data for cyanobacteria, green algae, marine algae, angiosperms, hydrozoans, rotifers, crustaceans, fish and amphibians are above 1 mg/L, supporting low ecotoxicity for TMP.

All PEC/PNEC or MEC/PNEC risk characterization ratios are <1, all of the chronic-based risk ratios are <0.01 to <<0.01, showing no indication of risk due to the presence of TMP in surface waters.

Moreover, while the available data suggest that TMP is persistent in surface waters, there is no evidence that TMP bioaccumulates and there are no experimental ecotoxicity data that suggest inordinately high toxicity; hence TMP is not a PBT substance, either.

Based on this extended ERA, no significant risk is seen for TMP from human use in the aquatic compartment in Europe.

Insufficient environmental fate and effects data were available for a reasonably well founded ERA for the compartments sediment and soil, but evidence is given that these two compartments in all probability are not central for TMP from human use. Also, there is a plausibility presentation that the additional veterinary use of TMP does not lead to significantly increased surface water levels and thus not to significant increased risk. The issues of mixture toxicity and antibiotic resistance could not be addressed based on available data and risk assessment procedures.

Acknowledgments

My sincere appreciation to Florence Bonvin and Tamar Kohn, both of EPFL Lausanne (CH), for making available their original MEC data for Vidy Bay in Lake Geneva, to Markus Lehmann, Landesanstalt für Umwelt, Messungen und Naturschutz Baden-Württemberg (LUBW), Karlsruhe (DE), for German MECs from Baden-Württemberg and to Michael Schärer, BAFU, Berne (CH) for the Swiss BAFU-Oberflächengewässer-Messdaten. These values placed the compiled MECs distribution on a much more solid footing and thereby strongly improved the MEC50 and MEC95 for Europe. Best thanks to Daniela Oggier of BMG Engineering, Schlieren (CH) and to Daniel Gilberg of ECT Oekotoxikologie, Flörsheim (DE) as well as their collaborators for excellent chronic ecotoxicity tests. Many thanks to Mathieu Guillaume (F.Hoffmann-La Roche, Basle, CH) for help with the IMS Health data and to Stefan Trapp (Technical University of Denmark, Kongens Lyngby, DK) for help with veterinary use data of TMP. F. Hoffmann-La Roche Group SHE (Basle, CH) is acknowledged for financing the new chronic ecotoxicity tests. Thanks to two anonymous peer reviewers for suggestions to improve this article.

IMS Health is acknowledged for the use of API sales data; however, analysis of IMS Health data was arrived at independently by the author of the present paper on the basis of the data and other information and IMS Health is not responsible for any reliance by recipients of the data or any analysis thereof.

Conflict of Interest

The author is a full-time employee of the pharmaceuticals and diagnostics company F. Hoffmann-La Roche Ltd in Basle, Switzerland, where he works as the Environmental Risk Assessor for Roche. Roche first put on the market the antibiotic combination of trimethoprim and sulfamethoxazole under the trade name of Bactrim® in the late 1960s.

Appendix

Table Table A1. Physico-Chemical Data for TMP.

Click here to display table

Table A1. Physico-Chemical Data for TMP.
PropertyMethodValueUnitReference
CAS number 738-70-5 SDS Roche [2]
Molecular mass 290.32g/molSDS Roche [2]
Melting pointexperimental199–203°CSDS Roche [2]
Vapour pressureexperimental9.88 × 10–9 = 1.32 × 10–6mm Hg PaGros et al. 2006 [5]
Water solubilityexperimental400mg/L, 25 °CPhysProp online [6]
experimental400mg/LChen et al. 2002 [7]
experimental401mg/LRan et al. 2002 [8]
experimental300mg/LSDS Roche [2]
experimental, freshwater & marine~75 (both)mg/LBergsjø & Søgnen 1980 [9]
Dissociation constantexperimental7.6base pKaBergsjø & Søgnen 1980 [9]
experimental7.2; 6.6base pKaClarke’s online [3]
experimental6.6base pKaRoche SDS [2]
experimental6.76 ± 0.12; 3.23 ± 0.30base pKa1 base pKa2Qiang & Adams 2004 [10]
Octanol/water partition coefficientexperimental0.64logKowRoche SDS [2]
experimental0.74, pH 7.4logDZhu et al. 2002 [11]
experimental0.91logKowPhysProp online [6]
experimental1.115logKowZhao et al. 2002 [12]
Adsorption to organic carbon, Kocexperimental1680–3990L/kgBoxall et al. 2005 [13]
Koc, digested sludgeexperimental724 (logKoc = 2.86)L/kgBarron et al. 2009 [14]
Koc, soilexperimental224 (logKoc = 2.35)L/kgBarron et al. 2009 [14]
Koc, soilexperimental, soil pH 4.9719L/kgLiu et al. 2010 [15]
Koc, soilexperimental4600L/kgLin & Gan 2011 [16]
KocQSAR estimate2692L/kgFranco & Trapp 2010 [17]
Sorption (Kd) to activated sludge (AS)experimental76L/kgHalling-Sørensen et al. 2000 [18]
Kd, ASexperimental208 ± 49L/kgGöbel et al. 2005 [19]
Kd, ASexperimental~200–300L/kgMcArdell et al. 2005 [20]
Kd, ASexperimental inherent bodegradability test~1500 (3 h), ~966 (28 d)L/kgGartiser et al. 2007 [21]
Kd, ASexperimental330 ± 25L/kgAbegglen et al. 2009 [22]
Kd, digested sludgeexperimental68L/kgBarron et al. 2009 [14]
Kd, primary sludgeexperimental427 ± 238L/kgRadjenovic et al. 2009 [23]
Kd, ASexperimental253 ± 37L/kgRadjenovic et al. 2009 [23]
Kd, membrane bioreactorexperimental 2 MBRs225 ± 87; 320 ± 117L/kgRadjenovic et al. 2009 [23]
Kd, ASexperimental68L/kgPower et al. 2009 [24]
Sorption to ASexperimental‘negligible’ Batt et al. 2006 [25]
Sorption WWTPexperimental‘negligible’ Göbel et al. 2007 [26]
Kd, ASexperimental7.4; but strong adsorption in one soilL/kgLin & Gan 2011 [16]
Kd, soilexperimental26L/kgPower et al. 2009 [24]
Kd, soilexperimental, soil pH 4.99.7L/kgLiu et al. 2010 [15]
Sorption to sludgesexperimentalND in primary, secondary and digested sludge as well as in compost Martín et al. 2012 [27]
Table Table A2. Biodegradability and elimination of TMP.

Click here to display table

Table A2. Biodegradability and elimination of TMP.
Test TypeInoculumEndpointTMP Conc, mg/LDurationDegradationReference
Ready biodegradability OECD301F BOD/ThOD19.4 0%Halling-Sørensen et al. 2000 [18]
Ready biodegradability OECD 301D BOD/ThOD3.25 (TMP-naphtoate)28 day4%Alexy et al. 2004 [29]
Ready biodegradability OECD 301D, toxicity control/ cometabolic degradation BOD/ThOD3.25 (TMP-naphtoate) plus sodium acetate28 day27%Alexy et al. 2004 [29]
Degradation in a water/leaf systemfallen leaves, natural watersubstance loss0.04168 h~80%Bundschuh et al. 2009 [30]
Inherent respirometric test (Roche-internal)mixed industrial-municipal ASBOD/ThOD2005 day0%Gröner 1981 [31]
Inherent biodegradability t½ primary degradation0.522–41 day Halling-Sørensen et al. 2000 [18]
Inherent biodegradability (combined Zahn-Wellens/ CO2 evolution test) DOC, BCO2100 mg TOC/l28 daynegative (toxic to sludge)Gartiser et al. 2007 [21]
Inherent biodegradabilitynitrifying AS with long SRT (49 d)substance loss0.2596 h~70%Batt et al. 2006 [25]
Inherent biodegradabilitynitrifying AS with long SRT (49 d)degradation half-life0.25~67 h Batt et al. 2006 [25]
Inherent biodegradability OECD 303AASsubstance loss0.03 radio-labelled21 day<1%Junker et al. 2006 [32]
Inherent biodegradabilityAS with 220 d SRTsubstance loss0.001 74%Yu et al. 2009 [33]
Inherent bio-degradability, small membrane bioreactorASprimary degradation constant kbiol 0.22 ± 0.022 l × gss–1d–1Abegglen et al. 2009 [22]
(Inherent) Biodegradabilityprimary sewageprimary degradation0.0254 day~40%, slowPérez et al. 2005 [34]
(Inherent) BiodegradabilityASprimary degradation0.0254 dayNS/slight increasePérez et al. 2005 [34]
(Inherent) Biodegradabilitynitrifying sludgeprimary degradation0.023 day100%, rapidPérez et al. 2005 [34]
Eliminationprimary wastewater treatment –13% to 31%Göbel et al. 2007 [26]
Eliminationconventional AS with 10–25 d SRT –40 ± 20% to 20 ± 11%Göbel et al. 2007 [26]
EliminationAS with 60–80 d SRT 87%–90%Göbel et al. 2007 [26]
Eliminationfixed-bed reactor 12 ± 11% to 17 ± 11%Göbel et al. 2007 [26]
Eliminationpilot membrane bioreactors in a WWTPsubstance loss50 µg/LSRT 15 day & HRT 9 h; SRT 30 day & HRT 13 h86% SRT 15; 94% SRT 30Schröder et al. [35]
Eliminationsand filter 15%–74%Göbel et al. 2007 [26]
Eliminationsand filter 60%Göbel et al. 2005 [19]
Table Table A3. Removal of TMP during sewage treatment.

Click here to display table

Table A3. Removal of TMP during sewage treatment.
Sewage treatment plants (STP)TypeMeasurement RemovalReference
STPs GermanyASsubstance loss, two analytical methods 18 ± 14%, 29 ± 17%Ternes et al. 1999 [42]
STPs Europe (n = 7)ASsubstance loss 0%, 4×<10%, 30%, 40%Paxéus 2004 [43]
STPs Switzerland (n = 2)ASsubstance loss 74%Göbel et al. 2005 [19]
STP SwedenASsubstance loss 49%Bendz et al. 2005 [44]
STP Sweden (n = 2)ASsubstance loss –550% (!) to 68%Lindberg et al. 2005 [45]
STP SwedenASsubstance loss −45%, −1%, 40%Lindberg et al. 2006 [46]
STP FranceASsubstance loss 51%Paffoni et al. 2006 [47]
STP SpainASsubstance loss −128% to 71%Gros et al. 2007 [48]
STPs Croatia (n = 2)ASsubstance loss −15%, 49%Senta et al. 2008 [49]
STPs Wales (n = 2)ASsubstance loss 47%, 70%Kasprzyk-Hordern et al. 2009 [50]
STP Spain (n = 2)ASsubstance loss 40.4 ± 25.4%Radjenovic et al. 2009 [23]
STPs Spain (n = 2)membrane bioreactorsubstance loss 66.7 ± 20.6% 47.5 ± 22.5%Radjenovic et al. 2009 [23]
STPs Canada (n = 2)ASsubstance loss 14 ± 2%, NS 38 ± 4%Segura et al. 2006 [51]
STP USAASsubstance loss ~50%Batt et al. 2006 [25]
STP USAASsubstance loss 69%Brown et al. 2006 [52]
STP USA (n = 4)varioussubstance loss 50%, 61%, 66%, 67%, 69%, 83%Karthikeyan & Meyer 2006 [53]
STP USAnitrifying ASsubstance lossinfluent >0.01 µg/L (LOD), effluent <LODnot quantifiedLevine et al. 2006 [54]
STPs USA (n = 4)ASsubstance loss 70%, 76%, 82%, 97%Batt et al. 2007 [55]
STP AustraliaASsubstance loss 85%Watkinson et al. 2007 [56]
STPs Japan (n = 4)different secondary treatmentssubstance loss −88%, −82%, −46%, 35%, 63%, 73%, 74%Ghosh et al. 2009 [57]
STP China (n = 4)different primary and secondary treatmentssubstance loss −42%, −17%, −11%, 42%Gulkowska et al. 2008 [58]
STP Norway (n = 1)ASsubstance loss –60% to 28%, values only from graphPlósz et al. 2010 [59]
STP Sweden (n = 4)ASsubstance loss 4%, 13%, 63%, 76%; average 39%Fick et al. 2011 [60]
STPs Ireland (n = 3)ASsubstance loss 0–94.6%Lacey et al. 2012 [61]
STPs Hong Kong/China (n = 7)different secondary treatmentssubstance loss 43% overall removalLeung et al. 2012 [62]
STP Taiwan (n = 1)primary, seconday & tertiarysubstance loss >99%Lin et al. 2012 [63]
STPs Spain (n = 2)ASsubstance loss 8%, 29%Verlicchi et al. 2012 [64]
Table Table A4. Environmental Fate of TMP.

Click here to display table

Table A4. Environmental Fate of TMP.
EndpointMediumMeasurementConditionsDurationResultReference
Hydrolysis stableLam et al. 2004 [65]
Hydrolysis stableMichael et al. 2012 [66]
Aquatic photodegradation not readily photodegradableBoxall et al. 2002 [67]
Aquatic photodegradation 42 dayno photodegradationBoxall et al. 2004 [68]
Aquatic photodegradationseawater, natural sunlight 21 daystableLunestad et al. 1995 [69]
Aquatic photodegradationHg-Nd lamp, H2O2, tap water 10 min; 20 min>90%; >99%Türk 2007 [70]
Aquatic photodegradation <10% UV only; up to 92% with UV, H2O2 and scavengersRosario-Ortiz et al. 2010 [71]
Aquatic photodegradationnatural sunlightsubstance loss2 mg/L, pH 4,7&972 hslight degradation during daytime only, up to ~2% at 72 hWu et al. 2011 [72]
Aquatic photodegradationnatural sunlightsubstance loss2 mg/L, aluminium-wrapped dark control, pH 4,7&972 hincreased degradation up to ~15% (pH 4 & 7) correlating with temperatureWu et al 2011 [72]
Aquatic photodegradationnatural sunlightsubstance loss10 mg/L demineralised water500 minincreased with Fenton reagent, decreased in simulated and natural wastewaterMichael et al. 2012 [66]
Ozonation rapid destructionTürk 2007 [70]
Environmental half-lifefreshwater microcosmt½ measured 5.7 ± 0.1 day Lam et al. 2004 [65]
Environmental half-lifefreshwatert½ estimate >42 day Boxall et al. 2002 [67]
Environmental half-lifefreshwatert½ estimate 20–100 day Zuccato et al. 2001 [73]
Environmentalhalf-lifemarine sedimentt½ estimate <60–100 day Boxall et al. 2002 [67]
Environmental half-lifemarine sedimentt½ estimate 75–100 ayd Hektoen et al. 1995 [74]
Eliminationfreshwater sedimentprimary degradation 14 h15%Löffler & Ternes 2003 [36]
Riverbank filtration substance loss >75% removalSchmidt et al. 2006 [37]
Anaerobic biodegradability ISO11734 methane production NSGartiser et al. 2007 [21]
Anaerobic degradabilitysurplus sludge digestionprimary degradation >99%Göbel et al. 2005 [19]
Anaerobic biodegradability VDI 4630manure & anaerobic bacteriaprimary degradation (LC/MS)2.8 mg/kg; 14 mg/kg34 day98.9% day 8; 99.9% day 9Mohring et al. 2009 [38]
Anaerobic degradationpig slurry rapid degradationGrote et al. 2004 [39]
Sewater degradationseawaterDT500.001>100 day Benotti & Brownawell 2009 [41]
Soil degradationsoilDT50 110 day Boxall et al. 2005 [13]
Soil dissipationsoilDT50, DT90 <103 day, >152 day Boxall et al. 2006 [40]
Soil dissipationaerobic, non-sterileDT5010 mg/kg4 day Liu et al. 2010 [15]
Soil dissipationaerobic, sterileDT5010 mg/kg64 day Liu et al. 2010 [15]
Soil dissipationanaerobic, non-sterileDT5010 mg/kg11 day Liu et al. 2010 [15]
Soil dissipationanaerobic, sterileDT5010 mg/kg79 day Liu et al. 2010 [15]
Soil degradationaerobic soilpercentage of loss attributed to biodegradation10 mg/kg49 day~28%Liu et al. 2010 [15]
Soil degradationanaerobic soilpercentage of loss attributed to biodegradation10 mg/kg49 day~56%Liu et al. 2010 [15]
Soil degradationaerobic soil 40 µg/kg dry weightt½ = 26.1 daynote: no significant anaerobic degradation, no degradation in sterilised soil, nor in another soilLin & Gan 2011 [16]
Removal during soil passageaerobic turfgrass soil, sampled at ~90 cm depthsubstance loss during leaching 91%–98%Bondarenko et al. 2012 [78]
Table Table A5. Bioaccumulation data for TMP.

Click here to display table

Table A5. Bioaccumulation data for TMP.
BioaccumulationOrganismOrganDosageDurationResultReference
Bioconcentration freshwaterfish, troutautoradiographssingle oral doseup to 144 hmaximum concentrations given as DPMs only reached at 12–24 h (15 °C) respectively 48 h (7 °C), then rapid decline in both casesBergsjø et al. 1979 [80]
Bioconcentration freshwaterfish, troutliver, muscle, plasma 84 h~0.16; ~0.04; ~0.01Bergsjø & Søgnen 1980 [9]
Bioconcentration marinefish, troutliver, muscle, plasma, 84 h~0.2–0.32; ~0.08–0.12; ~0.03–0.07Bergsjø & Søgnen 1980 [9]
Bioconcentration aquaticphysico-chemical activity-modelled higher predicted TMP concentration in biota at pH 6 than at pH 9 due to increase in sediment concentration at pH 9Trapp et al. 2010 [28]
Depuration marinefish, Japanese seabassmuscle, blood,liver, kidney5 oral doses, one per day, of 125 mg sulfamethazine and 25 mg TMPminimum holding period after last dose 26 days at 22 °C, 30 days at 16 °C Fang et al. 2003 [81]
Biomonitoring freshwater USA: 5 wastewater-influenced rivers, 1 pristine controlfish (various local species)muscle, livernot measuredpermanent (wild fish)ND (<2.2); ND (<8.0) LODs in ng/gRamirez et al. 2009 [82]
Biomonitoring freshwater Sweden: 4 wastewater-influenced rivers, 2 pristine controlsfish, perchmuscle permanent (wild fish)ND (<0.1 ng/g LOQ)Fick et al. 2011 [60]
Bioaccumulation plantslettuce and carrots (Daucus carota)lettuce leaf, carrot root1 mg/kg soil dry weight103 days lettuce, 152 days carrotssoil-based uptake factor lettuce 0.06, carrot 0.08; porewater-based uptake factor lettuce 0.68, carrot 0.86Boxall et al. 2006 [40]
Bioaccumulation plants2 cabbage cultivarsleaf/stem root232.5 µg/L hydroponic nutrient solution51 daysbioaccumulation factor 0.0383–0.3074 (wet weight), 0.0451–7.037 (dry weight)Herklotz et al. 2010 [83]
Bioaccumulation plantssweet maize, carrot, tomato, potato field fertilised with dehydrated sewage sludge (biosolids) equivocal/ NSSabourin et al. 2012 [84]

HRT = Hydraulic retention time; LOD = limit of detection; ND = not detected; NS = not significant; SRT = sludge retention time.

Table Table A6. Micro-organism and activated-sludge toxicity data.

Click here to display table

Table A6. Micro-organism and activated-sludge toxicity data.
Organism/SludgeSystematic GroupEndpointDurationValue, mg/LReference
AS, OECD209 EC50 17.8Halling-Sørensen et al. 2000 [18]
AS, OECD209 EC50; EC203 h>200; 19Oggier/BMG 2011, GLP [128]
Anaerobic sludge inhibition ISO13641 EC507 days>100Gartiser et al. 2007 [21]
Vibrio fischeribacteria, marineIC5015 min183.3Blaise et al. 2006 [129]
Vibrio fischeri ISO 11348–3bacteria, marineIC5015 min176.7Kim et al. 2007 [130]
Vibrio fischeribacteria, marineIC5030 min23.3Isidori et al. 2005 [131]
Human nanobacteriabacteriaMIC14 days3.9Ciftcioglu et al. 2002 [132]
AS, OECD209bacteriaNOEC; EC103 h100; 0.435Oggier/BMG 2011, GLP [128]
AS in Closed Bottle ready biodegradation test OECD301DbacteriaNOEC toxicity control 3.25 mg/L TMP-naphthoateAlexy et al. 2004 [29]
AS in Closed Bottle ready biodegradation test OECD301DbacteriaLOEC colony-forming units 4.6 µg/L TMP-naphthoateAlexy et al. 2004 [29]
Pantoea agglomeranssoil bacteriumNOEC 0.02Tappe et al. 2006 [133]
Nitrification inhibition testnitrifying bacteriaNOEC 0.05Ghosh et al. 2009 [57]
Nitrification inhibition testnitrifying bacteriaNOEC; EC10 96; >96Oggier/BMG 2011, GLP [134]
Fungal growth on fallen leavesfungiLOEC; NOECTMP together with 4 other antibiotics, all at same conc40 µg/L; 0.4 µg/LBundschuh et al. 2009 [30]
Natural soil respirationall aerobic soil microorganismsEC10 (0–4 days) 20 mg/kg soil (dry weight)Liu et al. 2009 [135]
Natural soil respirationall aerobic soil microorganismsafter 4 days consistent increase in respiration vs. controls in all concentrations up to the highest of 300 mg/kg soil 300 mg/kg soil (dry weight)Liu et al. 2009 [135]
Natural soilbacteria (colony-forming units)NOEC/LOEC 10 mg/kgLiu et al. 2010 [15]
Table Table A7. Acute ecotoxicity data for TMP.

Click here to display table

Table A7. Acute ecotoxicity data for TMP.
OrganismSystematic GroupEndpointDurationValue, mg/LReference
Anabaena cylindricaCyanobacteriaEC506 days>200Ando et al. 2007 [136]
Anabaena flos-aquaeCyanobacteriaEC506 days>200Ando et al. 2007 [136]
Anabaena variabilisCyanobacteriaEC506 days11Ando et al. 2007 [136]
Microcystis aeruginosaCyanobacteriaEC507 days112Holten Lützhøft et al. 1999 [138]
M. aeruginosaCyanobacteriaEC506 days150Ando et al. 2007 [136]
M. aeruginosaCyanobacteriaEC50 129.6geometrical average
Microcystis wesenbergiiCyanobacteriaEC506 days>200Ando et al. 2007 [136]
Nostoc sp. PCC7120CyanobacteriaEC506 days53Ando et al. 2007 [136]
Synechococcus leopoldensisCyanobacteriaEC506 days>200Ando et al. 2007 [136]
Synechococcus sp. PCC7002CyanobacteriaEC506 days>200Ando et al. 2007 [136]
Rhodomonas salina ISO 8692Algae, marineEC5072 h16Holten Lützhøft et al. 1999 [138]
Phaeodactylum tricornutumAlgae, marineEC5072 h5.1Claessens et al. 2009 [137]
Pseudokirchneriella subcapitata (=Selenastrum capricornutum)AlgaeEC5072 h40Yang et al. 2008 [139]
P. subcapitataAlgaeEC5072 h80.3Eguchi et al. 2004 [140]
P. subcapitataAlgaeEC5072 h96.7Blaise et al. 2006 [129]
P. subcapitata OECD 201AlgaeErC5072 h98Bogers 1996a GLP [141]
P. subcapitata ISO 8692AlgaeEC5072 h110Halling-Sørensen et al. 2000 [18]
P. subcapitataAlgaeEC5072 h130Holten Lützhøft et al. 1999 [138]
P. subcapitataAlgaeEC5072 h87.1geometrical average
Lemna gibbaAngiospermaeEC507 days>1 HTCBrain et al. 2004 [142]
Lemna minor OECD 221AngiospermaeErC507 days215this work, GLP, Oggier 2011 [143]
Hydra attenuataCnidariaEC5096 h>85.3Blaise et al. 2006 [129]
H. attenuataCnidariaEC5096 h>100Quinn et al. 2008a [144]
H. attenuataCnidariaEC5096 h>92.4geometrical average
Brachionus koreanusRotatoria (brackish)EC5024 h198.5Rhee et al. 2012 [145]
Daphnia magnaCrustaceaEC5048 h92Park & Choi 2008 [146]
D. magna OECD 202CrustaceaEC5048 h>100 HTCBogers 1996b GLP [147]
D. magna US EPA 600/4_90/027CrustaceaEC5048 h123Halling-Sørensen et al. 2000 [18]
D. magnaCrustaceaEC5048 h149De Liguoro et al. 2009 [148]
D. magnaCrustaceaEC5048 h167.4Kim et al. 2007 [130]
D. magnaCrustaceaEC5096 h296Iannacone & Alvariño 2009 [149]
D. magnaCrustaceaEC5048 h142.4geometrical average
Moina macrocopaCrustaceaEC5048 h54.8Choi et al. 2008 [150]
Thamnocephalus platyurusCrustaceaEC5024 h161.2Blaise et al. 2006 [129]
Crassostrea gigasMollusca, marineEC50 embryolarval24 h~31.6√(10×100)Claessens et al. 2009 [137]
Danio rerio OECD 203FishNOEC72 h100Halling-Sørensen et al. 2000 [18]
D. rerioFishNOEC96 h100Blaise et al. 2006 [129]
D. rerioFishLC5096 h>100geometrical average
Oryzias latipesFishLC5096 h>100Kim et al. 2007 [130]
Oncorhynchus mykissFishLC5084 h>75 HTCBergsjø & Søgnen 1980 [9]
O. mykissFishLC5096 h(3) note: miscitation, not a concentration but a dosemiscited in Kolpin et al. [124]

Note: In case of several values for the same species, the geometrical average was calculated [155]. Values in bold italics are the values used for PNEC derivation while the single value in brackets was not used for the PNEC, see text. HTC = Highest tested concentration.

Table Table A8. Chronic Ecotoxicity Data for TMP.

Click here to display table

Table A8. Chronic Ecotoxicity Data for TMP.
OrganismSystematic GroupEndpointDurationValue, mg/LReference
Anabaena cylindricaCyanobacteriaNOEC6 days≥200Ando et al. 2007 [136]
Anabaena flos-aquaeCyanobacteriaNOEC6 days≥200Ando et al. 2007 [136]
Anabaena variabilisCyanobacteriaNOEC6 days3.1Ando et al. 2007 [136]
Microcystis aeruginosaCyanobacteriaNOEC6 days100Ando et al. 2007 [136]
Microcystis wesenbergiiCyanobacteriaNOEC6 days3.1Ando et al. 2007 [136]
Nostoc sp. PCC7120CyanobacteriaNOEC6 days3.1Ando et al. 2007 [136]
Synechococcus leopoldensisCyanobacteriaNOEC6 days13Ando et al. 2007 [136]
Synechococcus sp. PCC7002CyanobacteriaNOEC6 days50Ando et al. 2007 [136]
Phaeodactylum tricornutumDiatom Algae, marineNOEC72 h2.4Claessens et al. 2009 [137]
Pseudokirchneriella subcapitata (=Selenastrum capricornutum)Green AlgaeNOEC72 h16Yang et al. 2008 [139]
P. subcapitataGreen AlgaeNOEC72 h25.5Eguchi et al. 2004 [140]
P. subcapitataGreen AlgaeNOEC72 h32Bogers/NOTOX 1996a GLP [141]
P. subcapitataGreen AlgaeNOEC72 h23.5geometrical average
Lemna gibbaAngiospermaeNOEC7 days(>1 HTC) not used*Brain et al. 2004 [142]
Lemna minorAngiospermaeNOEC7 days53.5this work, GLP Oggier 2001 [143]
Hydra attenuataCnidariaNOEC96 h>100Quinn et al. 2008a [144]
H. attenuataCnidariaNOEC96 h25Quinn et al. 2008b [151]
H. attenuataCnidariaNOEC96 h>50geometrical average
Brachionus koreanusRotatoria (brackish)NOEC/LOEC10 days(0.01/0.1) not used*Rhee et al. 2012 [145]
Daphnia magnaCrustaceaNOEC21 days6Park & Choi 2008 [146]
Daphnia magnaCrustaceaNOEC6 days(0.01) not used*Flaherty & Dodson 2005 [152]
Moina macrocopaCrustaceaNOEC21 days≥30 HTCPark & Choi 2008 [146]
Danio rerioFishNOEC35 days100HTCthis work, GLP, Gilberg & Hamberger 2011 [153]
Xenopus laevisAmphibiaEC1096 h≥100Richards & Cole 2006 [154]

Note: In case of several values for the same species, the geometrical average was calculated. Values in bold italics are the values used for PNEC derivation. HTC = Highest tested concentration. Endpoints/ values in brackets were not used. * = See text.

References and Notes

  1. Straub, J.O.; Hutchinson, T.H. Environmental Risk Assessment for Human Pharmaceuticals: The Current State of International Regulations. In Human Pharmaceuticals in the Environment: Current and Future Perspectives. Emerging Topics in Ecotoxicology 4; Brooks, B.W., Huggett, D.B., Eds.; Springer: New York, NY, USA, 2012; pp. 17–48. [Google Scholar]
  2. Roche Safety Data Sheet Trimethoprim, version 02.11.2011; F. Hoffmann-La Roche Ltd: Basle, Switzerland, 2011. Available online: http://www.roche.com/responsibility/environment/ safety_data_sheets/ safety_data_sheets-row.htm (accessed on 25 February 2013).
  3. Clarke’s Analysis of Drugs and Poisons. Subscription online version. Available online: https://www. medicinescomplete.com/mc/login.htm (accessed on 12 March 2013).
  4. WHO Collaborating Centre for Drug Statistics Methodology. ATC/DDD Codes. Norwegian Institute of Public Health: Oslo, Norway. Available online: http://www.whocc.no/atc_ddd_index/ (accessed on 12 March 2013).
  5. Gros, M.; Petrović, M.; Barceló, D. Development of a multi-residue analytical methodology based on liquid chromatography-tandem mass spectrometry (LC-MS/MS) for screening and trace level determination of pharmaceuticals in surface and wastewaters. Talanta 2006, 70, 678–690. [Google Scholar] [CrossRef]
  6. PhysProp open access online database. Available online: http://www.syrres.com/what-we-do/databaseforms.aspx?id=386 (accessed on 12 March 2013).
  7. Chen, X.-Q.; Cho, S.J.; Li, Y.; Venkatesh, S. Prediction of aqueous solubility of organic compounds using a QSPR. J. Pharm. Sci. 2002, 91, 1838–1852. [Google Scholar] [CrossRef]
  8. Ran, Y.; He, Y.; Yang, G.; Johnson, J.L.H.; Yalkowsy, S.H. Estimation of aqueous solubility of organic compounds by using the general solubility equation. Chemosphere 2002, 48, 487–509. [Google Scholar] [CrossRef]
  9. Bergsjø, T.; Søgnen, E. Plasma and tissue levels of trimethoprim in the rainbow trout, Salmo gairdneri, after absorption from fresh and salt water. Acta Vet. Scand. 1980, 21, 18–25. [Google Scholar]
  10. Qiang, Z.; Adams, C. Potentiometric determination of acid dissociation constants (pKa) for human and veterinary antibiotics. Water Res. 2004, 38, 2874–2890. [Google Scholar] [CrossRef]
  11. Zhu, C.; Jiang, L.; Chen, T.-M.; Hwang, K.-K. A comparative study of artificial membrane permeability assay for high throughput profiling of drug absorption potential. Eur. J. Med. Chem. 2002, 37, 399–407. [Google Scholar] [CrossRef]
  12. Zhao, Y.; Jona, J.; Chow, D.T.; Rong, H.; Semin, D.; Xia, X.; Zanon, R.; Spancake, C.; Maliski, E. High-throughput logP measurement using parallel liquid chromatography/ultraviolet/mass spectrometry and sample pooling. Rapid Commun. Mass Spectrom. 2002, 16, 1548–1555. [Google Scholar] [CrossRef]
  13. Boxall, A.B.A.; Fogg, L.A.; Baird, D.J.; Lewis, C.; Telfer, T.C.; Kolpin, D.; Gravell, A.; Pemberton, E.; Boucard, T. Targeted Monitoring Study for Veterinary Medicines in the Environment; Science Report: SC030183/SR; UK Environment Agency: Bristol, UK, 2005. Available online: http://www.environment-agency.gov.uk (accessed on 12 March 2013).
  14. Barron, L.; Havel, J.; Purcell, M.; Szpak, M.; Kelleher, B.; Paull, B. Predicting sorption of pharmaceuticals and personal care products onto soil and digested sludge using artificial networks. Analyst 2009, 134, 663–670. [Google Scholar] [CrossRef]
  15. Liu, F.; Ying, G.-G.; Yang, J.-F.; Zhou, L.-J.; Tao, R.; Wang, L.; Zhang, L.-J.; Peng, P.-A. Dissipation of sulfamethoxazole, trimethoprim and tylosin in a soil under aerobic and anoxic conditions. Environ. Chem. 2010, 7, 370–376. [Google Scholar] [CrossRef]
  16. Lin, K.; Gan, J. Sorption and degradation of wastewater-associated non-steroidal anti-inflammatory drugs and antibiotics in soil. Chemosphere 2011, 83, 240–246. [Google Scholar] [CrossRef]
  17. Franco, A.; Trapp, S. A multimedia activity model for ionisable compounds: Validation study with2,4-dichlorophenoxyacetic acid, aniline and trimethoprim. Environ. Sci. Technol. 2010, 29, 789–799. [Google Scholar]
  18. Halling-Sørensen, B. ERA of antibiotics: Comparison of mecillinam, trimethoprim and ciprofloxacin. J. Antimicrob. Chemother. 2000, 46, 53–58. [Google Scholar] [CrossRef]
  19. Göbel, A.; Thomsen, A.; McArdell, C.S.; Joss, A.; Giger, W. Occurrence and sorption behavior of sulfonamides, macrolides and trimethoprim in activated sludge treatment. Environ. Sci. Technol. 2005, 39, 3981–3989. [Google Scholar] [CrossRef]
  20. McArdell, C.S.; Joss, A.; Alder, A.C.; Felis, E.; Giger, W.; Göbel, A.; Löffler, D.; Siegrist, H.; Zabczynski, S.; Ternes, T.A. Sorption of pharmaceuticals and personal care products to activated sludge. In Poster of the SETAC Europe 15th Annual Meeting, Lille, France, May 2005.
  21. Gartiser, S.; Urich, E.; Alexy, R.; Kümmerer, K. Anaerobic inhibition and degradation of antibiotics in ISO test schemes. Chemosphere 2007, 66, 1839–1848. [Google Scholar] [CrossRef]
  22. Abegglen, C.; Joss, A.; McArdell, C.S.; Fink, G.; Schlüsener, M.P.; Ternes, T.A.; Siegrist, H. The fate of selected micropollutants in a single-house MBR. Water Res. 2009, 43, 2036–2046. [Google Scholar] [CrossRef]
  23. Radjenovic, J.; Petrovic, M.; Barceló, D. Fate and distribution of pharmaceuticals in wastewater and sewage sludge of the conventional activated sludge (CAS) and advances membrane bioreactor (MBR) treatment. Water Res. 2009, 43, 831–841. [Google Scholar] [CrossRef]
  24. Power, E.; Quinn, B.; Brett, P.; Barron, L. Transport of pharmaceutical residues to the soil environment following biosolid enrichment. In Poster of the SETAC Europe 19th Annual Meeting, Göteborg, Sweden, 31 May to 4 June 2009.
  25. Batt, A.L.; Kim, S.; Aga, D.S. Enhanced biodegradation of iopromide and trimethoprim in nitrifying activated sludge. Environ. Sci. Technol. 2006, 40, 7367–7373. [Google Scholar] [CrossRef]
  26. Göbel, A.; McArdell, C.S.; Joss, A.; Siegrist, H.; Giger, W. Fate of sulfonamides, macrolides, and trimethoprim in different wastewater treatment technologies. Sci. Total Environ. 2007, 372, 361–371. [Google Scholar] [CrossRef]
  27. Martín, J.; Camacho-Muñoz, M.D.; Santos, J.L.; Aparicio, I.; Alonso, E. Distribution and temporal evolution of pharmaceutically active compounds alongside sewage sludge treatment. Risk assessment of sludge application onto soils. J. Environ. Manag. 2012, 102, 18–25. [Google Scholar] [CrossRef]
  28. Trapp, S.; Franco, A.; Mackay, D. Activity-based concept for transport and partitioning of ionising organcis. Environ. Sci. Technol. 2010, 44, 6123–6129. [Google Scholar] [CrossRef]
  29. Alexy, R.; Kümpel, T.; Kümmerer, K. Assessment of degradation of 18 antibiotics in the Closed Bottle test. Chemosphere 2004, 57, 505–512. [Google Scholar] [CrossRef]
  30. Bundschuh, M.; Hahn, T.; Gessner, M.O.; Schulz, R. Antibiotics as a chemical stressor affecting an aquatic decomposer-detritivore system. Environ. Sci. Technol. 2009, 28, 197–203. [Google Scholar]
  31. Gröner, J. Biochemische Abbaubarkeit verschiedener Substanzen. Interner Bericht TSU/BWL. F.Hoffmann-La Roche AG, Basel, Switzerland, 16 November 1981. [Google Scholar]
  32. Junker, T.; Alexy, R.; Knacker, T.; Kümmerer, K. Biodegradability of 14C-labeled antibiotics in a modified laboratory scale sewage treatment plant at environmentally relevant concentrations. Environ. Sci. Technol. 2006, 40, 318–324. [Google Scholar] [CrossRef]
  33. Yu, T.-H.; Lin, A. Y.-C.; Lateef, S.K.; Lin, C.-F.; Yang, P.-Y. Removal of antibiotics and non-steroidal anti-inflammatory drugs by extended sludge age biological process. Chemosphere 2009, 77, 175–181. [Google Scholar] [CrossRef]
  34. Pérez, S.; Eichhorn, P.; Aga, D.S. Evaluating the biodegradability of sulfamethazine, sulfamethoxazole, sulfathiazole and trimethoprim at different stages of sewage treatment. Environ. Sci. Technol. 2005, 24, 1361–1367. [Google Scholar]
  35. Schröder, H.F.; Tambosi, J.L.; Sena, R.F.; Moreira, R.F.P.M.; José, H.J.; Pinnekamp, J. The removal and degradation of pharmaceutical compounds during membrane bioreactor treatment. Water Sci. Technol. 2012, 65, 833–839. [Google Scholar] [CrossRef]
  36. Löffler, D.; Ternes, T.A. Determination of acidic pharmaceuticals, antibiotics and ivermectin in river sediment using liquid chromatography-tandem mass spectrometry. J. Chromatogr. A 2003, 1021, 133–144. [Google Scholar] [CrossRef]
  37. Schmidt, C.K.; Brauch, H.-J.; Jekel, M. Die Entfernbarkeit polarer Spurenstoffe in der Trinkwasseraufbereitung. In Proceedings of WASSER Berlin, Berlin, Germany, 3–7 April, 2006; Wasserchemische Gesellschaft: Berlin, Germany, 2006. [Google Scholar]
  38. Mohring, S.A.I.; Strzysch, I.; Reis Fernandes, M.; Kiffmeyer, T.; Tuerk, J.; Hamscher, G. Degradation and elimination of various sulfonamides during anaerobic fermentation: A promising step on the way to sustainable pharmacy? Environ. Sci. Technol. 2009, 43, 2569–2574. [Google Scholar] [CrossRef]
  39. Grote, A.; Vockel, A.; Schwarze, D.; Mehlich, A.; Freitag, M. Fate of antibiotics in food chain and environment originating from pig fattening (part 1). Fresenius Environ. Bull. 2004, 13, 1216–1224. [Google Scholar]
  40. Boxall, A.B.A.; Johnson, P.; Smith, E.J.; Sinclair, C.J.; Stutt, E.; Levy, L.S. Uptake of veterinary medicines from soils into plants. J. Agric. Food Chem. 2006, 54, 2288–2297. [Google Scholar]
  41. Benotti, M.J.; Brownawell, B.J. Microbial degradation of pharmaceuticals in estuarine and coastal seawater. Environ. Pollut. 2009, 157, 994–1002. [Google Scholar] [CrossRef]
  42. Ternes, T.A.; Hirsch, R.W.; Stumpf, M.; Eggert, T.; Schuppert, B.F.; Haberer, K. Nachweis und Screening von Arzneimittelrückständen,Diagnostika und Antiseptika in der aquatischen Umwelt; ESWE-Institut für Wasserforschung und Wassertechnologie GmbH: Wiesbaden, Germany, 1999. [Google Scholar]
  43. Paxéus, N.A. Removal of selected non-steroidal anti-inflammatory drugs (NSAIDs), gemfobrozil, carbamazepine, beta-blockers, trimethoprim and triclosan in conventional wastewater treatment plants in five EU countries and their discharge to the aquatic environment. Water Sci. Technol. 2004, 50, 253–260. [Google Scholar]
  44. Bendz, D.; Paxéus, N.A.; Ginn, T.R.; Loge, F.J. Occurrence and fate of pharmaceutically active compounds in the environment, a case study: Höje River in Sweden. J. Hazard. Mater. 2005, 122, 195–204. [Google Scholar] [CrossRef]
  45. Lindberg, R.H.; Wennberg, P.; Johansson, M.I.; Tysklind, M.; Andersson, B.A.V. Screening of human antibiotic substances and determination of weekly mass flows in five sewage treatment plants in Sweden. Environ. Sci. Technol. 2005, 39, 3421–3429. [Google Scholar] [CrossRef]
  46. Lindberg, R.H.; Olofsson, U.; Rendahl, P.; Johansson, M.I.; Tysklind, M.; Andersson, B.A.V. Behavior of fluoroquinolones and trimethoprim during mechanical, chemical and active sludge treatment of sewage water and digestion of sludge. Environ. Sci. Technol. 2006, 40, 1042–1048. [Google Scholar] [CrossRef]
  47. Paffoni, C.; Welte, B.; Gousailles, M.; Montiel, A. Nouvelles molécules mises en cause par les directives européennes: de la station d'épuration à l'usine de traitement d'eau potable. Eur. J. Water Qual. 2006, 37, 21–38. [Google Scholar]
  48. Gros, M.; Petrović, M.; Barceló, D. Wastewater treatment plants as a pathway for aquatic contamination by pharmaceuticals in the Ebro River basin (Northeast Spain). Environ. Sci. Technol. 2007, 26, 1553–1562. [Google Scholar]
  49. Senta, I.; Terzić, S.; Ahel, M. Simultaneous determination of sulfonamides, fluoroquinolones, macrolides and trimpethoprim in wastewater and river water by LC-tandem-MS. Chromatographia 2008, 68, 747–758. [Google Scholar] [CrossRef]
  50. Kasprzyk-Hordern, B.; Dinsdale, R.M.; Guwy, A.L. The removal of pharmaceuticals, personal care products, endocrine disruptors and illicit drugs during wastewater treatment and its impact on the quality of receiving waters. Water Res. 2009, 43, 363–380. [Google Scholar] [CrossRef]
  51. Segura, P.A.; Lajeunesse, A.; Gagnon, C.; Sauvé, S. Anti-infectives in urban wastewater effluents in the province of Québec (Canada). In Poster of the 16th SETAC Europe Annual Conference, Hague, The Netherlands, 7–11 May 2005.
  52. Brown, K.D.; Kulis, J.; Thomson, B.; Chapman, T.H.; Mawhinney, D.B. Occurrence of antibiotics in hospital, residential and dairy effluent, municipal wastewater and the Rio Grande in New Mexikco. Sci. Total Environ. 2006, 366, 772–783. [Google Scholar] [CrossRef]
  53. Karthikeyan, K.G.; Meyer, M.T. Occurrence of antibiotics in wastewater treatment facilities in Wisconsin, USA. Sci. Total Environ. 2006, 361, 196–207. [Google Scholar] [CrossRef]
  54. Levine, A.D.; Meyer, M.T.; Kish, G. Evaluation of the persistence of micropollutants through pure-oxygen activated sludge nitrification and denitrification. Water Environ. Res. 2006, 78, 2276–2285. [Google Scholar] [CrossRef]
  55. Batt, A.L.; Kim, S.; Aga, D.S. Comparison of the occurrence of antibiotics in four full-scale wastewater treamtent plants with varying designs and operations. Chemosphere 2007, 68, 428–435. [Google Scholar] [CrossRef]
  56. Watkinson, A.J.; Murby, E.J.; Costanzo, S.D. Removal of antibiotics in conventional and advanced wastewater treatment: Implications for environmental discharge and wastewater recycling. Water Res. 2007, 41, 4164–4176. [Google Scholar] [CrossRef]
  57. Ghosh, G.C.; Okuda, T.; Yamashita, N.; Tanaka, H. Occurrence and elimination of antibiotics at four sewage treatment plants in Japan and their effects on bacterial ammonia oxidation. Water Sci. Technol. 2009, 59, 779–786. [Google Scholar] [CrossRef]
  58. Gulkowska, A.; Leung, H.W.; So, M.K.; Taniyasu, S.; Yamashita, N.; Yeung, L.W.Y.; Richardson, B.J.; Lei, A.P.; Giesy, J.P.; Lam, P.K.S. Removal of antibiotics from wastewater by sewage treatment facilities in Hong Kong and Shenzhen, China. Water Res. 2008, 42, 395–403. [Google Scholar] [CrossRef]
  59. Plósz, B.G.; Leknes, H.; Liltved, H.; Thomas, K.V. Diurnal variations in the occurrence and the fate of hormones and antibiotics in activated sludge wastewater treatment in Oslo, Norway. Sci. Total Environ. 2010, 408, 1915–1924. [Google Scholar] [CrossRef]
  60. Fick, J.; Lindberg, R.H.; Kaj, L.; Brorström-Lundén, E. Results from the Swedish National Screening Programme 2010, Subreport 3, Pharmaceuticals, B2014. Swedish Environmental Research Institute (IVL): Stockholm, Sweden, 2011. Available online: http://www.ivl.se (accessed on 12 March 2013). [Google Scholar]
  61. Lacey, C.; Basha, S.; Morrissey, A.; Tobin, J.M. Occurrence of pharmaceutical compounds in wastewater process streams in Dublin, Ireland. Environ. Monit. Assess. 2012, 184, 1049–1062. [Google Scholar] [CrossRef]
  62. Leung, H.W.; Minh, T.B.; Murphy, M.B.; Lam, J.C.W.; So, M.K.; Martin, M.; Lam, P.K.S.; Richardson, B.J. Distribution, fate and risk assessment of antibiotics in sewage treatment plants in Hong Kong, South China. Environ. Int. 2012, 24, 1–9. [Google Scholar]
  63. Lin, A.Y.-C.; Tsai, Y.-T.; Yu, T.-H.; Wang, X.-H.; Lin, C.-F. Occurrence and fate of pharmaceuticals and personal care products in Taiwan’s aquatic environment. Desalin. Water Treat. 2012, 32, 57–64. [Google Scholar]
  64. Verlicchi, P.; Al Aukidy, M.; Galletti, A.; Petrovič, M.; Barceló, D. Hospital effluent: Investigation of the concentrations and distribution of pharmaceuticals and environmental risk assessment. Sci. Total Environ. 2012, 430, 109–118. [Google Scholar]
  65. Lam, M.W.; Young, C.J.; Brain, R.A.; Johnson, D.J.; Hanson, M.A.; Wilson, C.J.; Richards, S.M.; Solomon, K.R.; Mabury, S.A. Aquatic persistence of eight pharmaceuticals in a microcosm study. Environ. Sci. Technol. 2004, 23, 1431–1440. [Google Scholar]
  66. Michael, I.; Hapeshi, E.; Osorio, V.; Perez, S.; Petrovič, M.; Zapata, A.; Malato, S.; Barceló, D.; Fatta-Kassinos, D. Solar photocatalytic treatment of trimethoprim in four environmental matrices at a pilot scale: Transformation products and ecotoxicity evaluation. Sci. Total Environ. 2012, 430, 167–173. [Google Scholar] [CrossRef]
  67. Boxall, A.B.A.; Fogg, L.; Blackwell, P.A.; Kay, P.; Pemberton, E.J. Review of Veterinary Medicines in the Environment. R&D Technical Report P6–012/8/TR. Environment Agency: Bristol, UK, 2002; p. 187. Available online: http://a0768b4a8a31e106d8b0-50dc802554eb38a 24458b98ff72d550b.r19.cf3.rackcdn.com/sp6-012-8-tr-e-e.pdf (accessed on 12 March 2013). [Google Scholar]
  68. Boxall, A.B.A.; Fogg, L.A.; Blackwell, P.A.; Kay, P.; Pemberton, E.J.; Croxford, A. Veterinary medicines in the environment. Rev. Environ. Contam. Toxicol. 2004, 180, 1–91. [Google Scholar] [CrossRef]
  69. Lunestad, B.T.; Samuelsen, O.B.; Fjelde, S.; Ervik, A. Photostability of 8 antibacterial agents in seawater. Aquaculture 1995, 134, 217–225. [Google Scholar] [CrossRef]
  70. Türk, J. Entwicklung und Anwendung von LC-MS/MS Multimethoden zur Bestimmung von Antibiotika und Zytostatika bei Arbeitsschutz- und Umweltuntersuchungen. Ph.D. Thesis; Universität Duisburg-Essen: Germany, 2007. Available online: http://duepublico.uni-duisburg-essen.de/servlets/DerivateServlet/Derivate-17529/Tuerk_Dissertation_070831.pdf (accessed on 12 March 2013). [Google Scholar]
  71. Rosario-Ortiz, F.; Wert, E.C.; Snyder, S.A. Evaluation of UV/H2O2 treatment for the oxidation of pharmaceuticals in wastewater. Water Res. 2010, 44, 1440–1448. [Google Scholar] [CrossRef]
  72. Wu, Y.; Chen, D.-H.; Kookana, R. Aqueous photodegradation of selected antibiotics under different conditions. Energy Procedia 2011, 11, 2098–2103. [Google Scholar] [CrossRef]
  73. Zuccato, E.; Bagnati, R.; Fioretti, F.; Natangelo, M.; Calamari, D.; Fanelli, R. Environmental loads and detection of pharmaceuticals in Italy. In Pharmaceuticals in the Environment; Kümmerer, K., Ed.; Springer: Berlin, Germany, 2001; pp. 19–27. [Google Scholar]
  74. Hektoen, H.; Berge, J.A.; Hormabazal, V.; Ydnestad, M. Persistence of antiobacterial agents in marine sediments. Aquaculture 1995, 133, 175–184. [Google Scholar] [CrossRef]
  75. Möhle, E.; Metzger, J.W. Drugs in Municipal Sewage Effluents: Screening and Biodegradation Studies. In Pharmaceuticals and Personal Care Products in the Environment; Scientific and Regulatory Issues, ACS Symposium Series 791; Daughton, C.G., Jones-Lepp, T.L., Eds.; American Chemical Society: Washington, DC, USA, 2001; pp. 192–205. [Google Scholar]
  76. Le-Minh, N.; Khan, S.J.; Drewes, J.E.; Stuetz, R.M. Fate of antibiotics during municipal water recycling treatment processes. Water Res. 2010, 44, 4295–4323. [Google Scholar] [CrossRef]
  77. Toot-Levy, E.; Foley, F.; Chapman Smith, J.; Granlund, K. Nothing to fear. Screening assessment heps Ohio utility put the risks of pharmaceuticals and personal care products in perspective. Water Environ. Technol. 2011, 23, 40–45. [Google Scholar]
  78. Bondarenko, S.; Gan, J.; Ernst, F.; Green, R.; Baird, J.; McCullough, M. Leaching of pharmaceuticals and personal care products in trufgrass soils during recycled water irrigation. J. Environ. Quality 2012, 41, 1268–1274. [Google Scholar] [CrossRef]
  79. European Commission. Technical Guidance Document on Risk Assessment in Support of Commission Directive 93/67/EEC on Risk Assessment for New Notified Substances, Commission Regulation (EC) No 1488/94 on Risk Assessment for Existing Substances, Directive 98/8/EC of the European Parliament and of the Council concerning the Placing of Biocidal Products on the Market. European Union: Brussels, Belgium, 2003. Available online: http://ihcp.jrc.ec.europa.eu/our_activities/health-env/risk_assessment_of_Biocides/doc/tgd/ (accessed on 12 March 2013).
  80. Bergsjø, T.; Nafstad, I.; Ingebrigtsen, K. The distribution of 35S-sulfadiazine and 14C-trimethoprim in rainbow trout, Salmo gairdneri. Acta Vet. Scand. 1979, 20, 25–37. [Google Scholar]
  81. Fang, X.-X.; Li, J.; Wang, Q.; Liu, X.-H. Residual characteristics of sulfamethoxazole and trimethoprim in Lateolabrax japonicus at different water temperature. (in Chinese with English abstract). Marine Sci. 2003, 27, 16–20. [Google Scholar]
  82. Ramirez, A.J.; Brain, R.A.; Usenko, S.; Mottaleb, M.A.; O'Donnell, J.G.; Stahl, L.L.; Wathen, J.B.; Snyder, B.D.; Pitt, J.L.; Perez-Hurtado, P.; et al. Occurrence of pharmaceuticals and personal care products in fish: Results of a national pilot study in the United States. Environ. Sci. Technol. 2009, 28, 2587–2597. [Google Scholar]
  83. Herklotz, P.A.; Gurung, P.; Vanden Heuvel, B.; Kinney, C.A. Uptake of human pharmaceuticals by plants grown under hydroponic conditions. Chemosphere 2010, 78, 1416–1421. [Google Scholar] [CrossRef]
  84. Sabourin, L.; Duenk, P.; Bonte-Gelok, S.; Payne, M.; Lapen, D.R.; Topp, E. Uptake of pharmaceuticals, hormones and parabens into vegetables grown in soil fertilised with municipal biosolids. Sci. Total Environ. 2012, 431, 233–236. [Google Scholar] [CrossRef]
  85. Ternes, T. Personal Communication. German Federal Institute for Water Research (BAfG): Koblenz, Germany, 2011. [Google Scholar]
  86. Note for Guidance on Environmental Risk Assessment of Medicinal Products for Human Use. CPMP/SWP/4447/00 corr 1. European Medicines Agency: London, UK, 2006. Available online: http://www.ema.europa.eu/docs/en_GB/document_library/Scientific_guideline/2009/10/WC500003978.pdf (accessed on 12 March 2013).
  87. Subscription online database for API use. Copyright IMS Health. TMP data downloaded on 18 January 2012.
  88. Eurostat. Population in Europe 2000–2011. European Statistics Office: Brussels, Belgium, 2012. Available online: http://epp.eurostat.ec.europa.eu/tgm/download.do?tab=table&plugin=1&language =en&pcode=tps0000 (accessed on 17 January 2012).
  89. ter Laak, T.; van der Aa, M.; Houtman, C.; Stoks, P.; van Wezel, A. RIWA. Temporal and spatial trends of pharmaceuticals in the Rhine. Rhine Water Works: Nieuwegein, The Netherlands, 2010. Available online: http://www.riwa.org (accessed on 12 March 2013). [Google Scholar]
  90. Hirsch, R.; Ternes, T.; Haberer, K.; Kratz, K.-L. Occurrence of antibiotics in the aquatic environment. Sci. Total Environ. 1999, 225, 109–118. [Google Scholar] [CrossRef]
  91. Sacher, F.; Gabriel, S.; Metzinger, M.; Stretz, A.; Wenz, M.; Lange, F.; Brauch, H.-J.; Blankenhorn, I. Arzneimittelwirkstoffe im Grundwasser – Ergebnisse eines Monitoring-Programms in Baden-Württemberg. Vom Wasser 2002, 99, 183–196. [Google Scholar]
  92. AGRE (Arbeitsgemeinschaft für die Reinhaltung der Elbe). Arzneistoffe in Elbe und Saale; Ministerium für Landwirtschaft, Umweltschutz und Raumordnung des Landes Brandenburg: Potsdam, Germany, 2002.
  93. BLAC (Bund/Länderausschuss für Chemikaliensicherheit). Arzneimittel in der Umwelt. Auswertung der Untersuchungsergebnisse. Bericht an die 61. Umweltministerkonferenz (UMK) am 19./20. November 2003 in Hamburg; Freie und Hansestadt Hamburg, Behörde für Umwelt und Gesundheit, Institut für Hygiene und Umwelt: Hamburg, Germany, 2003.
  94. Christian, T.; Schneider, R.J.; Färber, H.A.; Skutlarek, D.; Meyer, M.T.; Goldbach, H.E. Determination of antibiotic residues in manure, soil and surface waters. Acta Hydrochim. Hydrobiol. 2003, 31, 36–44. [Google Scholar] [CrossRef]
  95. Christian, T. Antibiotika in Oberflächengewässern Nordrhein-Westfalens – Herkunft, Eintrag, Verbleib und Relevanz. Ph.D. Thesis; Rheinische Friedrich-Wilhelms-Universität: Bonn, Germany, 2004. Available online: http://hss.ulb.uni-bonn.de/2004/0476/0476.htm (accessed on 12 March 2013). [Google Scholar]
  96. Wiegel, S.; Aulinger, A.; Brockmeyer, R.; Harms, H.; Löffler, J.; Reincke, H.; Schmidt, R.; Stachel, B.; von Trümpling, W.; Wanke, A. Pharmaceuticals in the river Elbe and its tributaries. Chemosphere 2004, 57, 107–126. [Google Scholar] [CrossRef]
  97. LANUV (Landesamt für Natur, Umwelt und Verbraucherschutz Nordrhein-Westfalen). Eintrag von Arzneimitteln und deren Verhalten und Verbleib in der Umwelt – Literaturstudie. LANUV-Fachbericht 2; Landesamt für Natur, Umwelt und Verbraucherschutz Nordrhein-Westfalen: Recklinghausen, Germany, 2007. Available online: http://www.lanuv.nrw.de/veroeffentlichungen/ lanuv/vls.htm (accessed on 12 March 2013).
  98. Skutlarek, D. Analysenmethoden für Antibiotika und perfluorierte Tenside in wässrigen Matrizes mittels LC-MS/MS nach SPE-Anreicherung – Methodenentwicklung, Methodenvalidierung, Datenerhebung. Ph.D. Thesis; Ruprecht-Karls-Universität: Heidelberg, Germany, 2008. Available online: archiv.ub.uni-heidelberg.de/volltextserver/volltexte/2008/8922/pdf/Dissertation_Skutlarek_ Dirk_2008.pdf (accessed on 12 March 2013). [Google Scholar]
  99. HLUG (Hessisches Landesamt für Umwelt und Gesundheit). Arzneimittel in nordhessischen Fließgewässern 2007/2008/2009 und 2010; HLUG: Frankfurt, Germany, 2010. Available online: http://www.hlug.de/start/wasser/fliessgewaesser-chemie/spurenstoffe/arzneimittel.html (accessed on 12 March 2013).
  100. HLUG (Hessisches Landesamt für Umwelt und Gesundheit). Arzneimittel in südhessischen Fließgewässern 2007/2008/2009 und 2010; HLUG: Frankfurt, Germany, 2010. Available online: http://www.hlug.de/start/wasser/fliessgewaesser-chemie/spurenstoffe/arzneimittel.html (accessed on 12 March 2013).
  101. Lehmann, M. Messprogramme zu Arzneimitteln in Fließgewässern Baden-Württembergs. Presented at UBA-Workshop Monitoring Arzneimittel, Umweltbundesamt Dessau, Germany, 14–15 September 2011; Available online: http://www.umweltbundesamt.de/chemikalien/ arzneimittel/workshop_monitoring_arzneimittel.htm (accessed 12 March 2013).
  102. Skark, C. Monitoring von Arzneimitteln und organischen Spurenstoffen in der Ruhr. Presented at UBA-Workshop Monitoring Arzneimittel, Umweltbundesamt Dessau, Germany, 14–15 September 2011; Available online: http://www.umweltbundesamt.de/chemikalien/arzneimittel/ workshop_monitoring_arzneimittel.htm (accessed 12 March 2013).
  103. Triebskorn, R.; Hetzenauer, H. Mikroverunreinigungen in den drei Bodenseezuflüssen Argen, Schussen und Seefelder Aach – eine Literaturstudie. Environ. Sci. Eur. 2012, 24. Available online: http://www.enveurope.com/content/24/1/8 (accessed on 12 March 2013). [Google Scholar] [CrossRef]
  104. Tamtam, F.; Mercier, F.; Le Bot, B.; Eurin, J.; Dinh, Q.C.; Clément, M.; Chevreuil, M. Occurrence and fate of antibiotics in the Seine River in various hydrological conditions. Sci. Total Environ. 2008, 393, 84–95. [Google Scholar] [CrossRef]
  105. RIWA Rhein. Jahresbericht Rhein 2004–2010; RIWA-Rhein, Verband der Flusswasserwerke: Nieuwegein, The Netherlands, 2004–2010. Available online: http://www.riwa.org (accessed on 12 March 2013).
  106. van Mill, G.M.J.; Verhoeven, B.M.; Rijs, G.B.J./RIZA. Monitoring geneesmiddelen en oestrogenen 2005; Waterschap Aa en Maas & Rijksinstituut voor Integraal Zoetwaterbeheer en Afvalwaterbehandeling (RIZA): Amsterdam, The Netherlands, 2006. [Google Scholar]
  107. Muñoz, I.; López-Doval, J.C.; Ricart, M.; Villagrasa, M.; Brix, R.; Geiszinger, A.; Ginebreda, A.; Guasch, H.; López de Alda, M.; Romain, A.M.; et al. Bridging levels of pharmaceuticals in river water with biological community structure in the Llobregat river basin (northeast Spain). Environ. Chem. Toxicol. 2009, 28, 2706–2714. [Google Scholar] [CrossRef]
  108. Fernández, C.; González-Doncel, M.; Pro, J.; Carbonell, G.; Tarazona, J.V. Occurrence of pharmaceutically active compounds in surface waters of the Henare-Jarama-Tajo river system (Madrid, Spain) and a potential risk characterisation. Sci. Total Environ. 2009, 408, 543–551. [Google Scholar]
  109. Valcárcel, Y.; González Alonso, S.; Rodríguez-Gil, J.L.; Gil, A.; Catalá, M. Detection of pharmaceutically active compounds in the rivers and tap water of the Madrid Region (Spain) and potential ecotoxicological risk. Chemosphere 2011, 84, 1336–1348. [Google Scholar] [CrossRef]
  110. López-Serna, R.; Postigo, C.; Blanco, J.; Pérez, S.; Ginebreda, A.; López de Alda, M.; Petrović, M.; Munné, A.; Barceló, D. Assessing the effects of tertiary treated wastewater reuse on the presence emerging contaminants in a Mediterranean river (Llobregat, NE Spain), Supporting Information. Environ. Sci. Pollut. Res. 2012, 19, 1000–1012. [Google Scholar] [CrossRef]
  111. Khalaf, H.; Salste, L.; Karlsson, P.; Ivarsson, P.; Jass, J.; Olsson, P.-E. In vitro analysis of inflammatory responses following environmental exposure to pharmaceuticals and inland waters. Sci. Total Environ. 2009, 407, 1452–1460. [Google Scholar] [CrossRef]
  112. Alder, A.C.; McArdell, C.S.; Giger, W.; Golet, E.M.; Molnar, E.; Nipales, N.S. Determination of Antibiotics in Swiss Wastewater and in Surface Water. In Presented at the CIWEM East Anglian Region Conference on Antibiotics in the Environment, Cambridge, UK, 2 February 2000; Environment Agency: Bristol, UK, 2000. [Google Scholar]
  113. Blüm, W.; McArdell, C.S.; Hoehn, E.; Schaubhut, R.; Labhart, W.; Bertschi, S. Organische Spurenstoffe im Grundwasser des Limmattales – Ergebnisse der Untersuchungskampagne 2004. In Zusammenarbeit mit EAWAG; Baudirektion Kanton Zürich, AWEL Amt für Abfall, Wasser, Energie und Luft: Zürich, Switzerland, 2005. [Google Scholar]
  114. SG/AR/TG/GL, Fliessgewässerüberwachung 2005: Bestimmung von Hormonen und Arzneimittelwirkstoffen in Fliessgewässern der Kantone SG, AR, TG und GL im Auftrag der Kantone. DVGW-Technologiezentrum Wasser (TZW), Karlsruhe, Germany, 2005.
  115. Keller, A.; Balsiger, C. Risikobeurteilung von Arzneimitteln und endokrin wirksamen Substanzen in Oberflächengewässern des Kantons Zürich. Praktikumsbericht. Baudirektion Kanton Zürich, AWEL Amt für Abfall, Wasser, Energie und Luft: Zürich, Switzerland, 2007. [Google Scholar]
  116. Bonvin, F.; Rutler, R.; Chèvre, N.; Halder, J.; Kohn, T. Spatial and temporal presence of a wastewater-derived micropollutant plume in Lake Geneva. Environ. Sci. Technol. 2011, 45, 4702–4709. [Google Scholar]
  117. Ashton, D.; Hilton, M.; Thomas, K.V. Investigating the environmental transport of human pharmaceuticals to streams in the United Kingdom. Sci. Total Environ. 2004, 333, 167–184. [Google Scholar] [CrossRef]
  118. Roberts, P.H.; Thomas, K.V. The occurrence of selected pharmaceuticals in wastewater effluent and surface waters of the lower Tyne catchment. Sci. Total Environ. 2005, 356, 143–153. [Google Scholar] [CrossRef]
  119. Kasprzyk-Hordern, B.; Dinsdale, R.M.; Guwy, A.J. Multi-residue method for the determination of basic/neutral pharmaceuticals and illicit drugs in surface water by solid-phase extraction and ultra performance liquid chromatography-positive electrospray ionisation tandem mass spectrometry. J. Chromatogr. A 2007, 1161, 132–145. [Google Scholar] [CrossRef]
  120. Boxall, A.B.A.; Monteiro, S.C.; Fussell, R.; Williams, R.J.; Bruemer, J.; Greenwood, R.; Bersuder, P. Targeted Monitoring for Human Pharmaceuticals in Vulnerable Source and Final Waters. Drinking Water Inspectorate Project No. WD0805 (Ref DWI 70/2/231), December 2011. UK Department for Environment, Food and Rural Affairs: London, UK, 2012. Available online: http://dwi.defra.gov.uk/research/completed-research/reports/DWI70_2_231.pdf (accessed on 12 March 2013). [Google Scholar]
  121. Straub, J.O. Matters of Fact and of Fiction: European PECs and MECs of Ibuprofen. In Poster of the SETAC Europe 16th Annual Meeting, Hague, The Netherlands, 2006.
  122. Straub, J.O. Deterministic and Probabilistic Environmental Risk Assessment for Diazepam. In Pharmaceuticals in the Environment: Sources, Fate, Effects and Risks, 3rd; Kümmerer, K., Ed.; Springer: Heidelberg, Germany, 2008; pp. 343–383. [Google Scholar]
  123. Metcalfe, C.D.; Alder, A.C.; Halling-Sørensen, B.; Krogh, K.; Fenner, K.; Larsbo, M.; Straub, J.O.; Ternes, T.A.; Topp, E.; Lapen, D.R.; et al. Exposure Assessment Methods for Veterinary and Human Use Medicines in the Environment: PEC vs. MEC comparisons. In Pharmaceuticals in the Environment: Sources, Fate, Effects and Risks, 3rd; Kümmerer, K., Ed.; Springer: Heidelberg, Germany, 2008; pp. 147–171. [Google Scholar]
  124. Kolpin, D.W.; Furlong, E.T.; Meyer, M.T.; Thurman, E.M.; Zaugg, S.D.; Barber, L.B.; Buxton, H.T. Pharmaceuticals, hormones and other organic wastewater contaminants in US streams, 1999–2000: A national reconnaissance. Environ. Sci. Technol. 2002, 36, 1202–1211. [Google Scholar] [CrossRef]
  125. Bound, J.P.; Voulvoulis, N. Household disposal of pharmaceuticals as a pathway for aquatic contamination in the United Kingdom. Environ. Health Persp. 2005, 113, 1705–1711. [Google Scholar] [CrossRef]
  126. Pharmaceuticals for Human Use: Options of Action for Reducing the Contamination of Water Bodies. A Practical Guide. START Project, ISOE: Frankfurt, Germany, 2008. Available online: http://www.start-project.de/downloads/start_Practical_Guide.pdf (accessed on 12 March 2013).
  127. Musson, S.E.; Townsend, T.G. Pharmaceutical compound content of municipal solid waste. J. Hazard. Mater. 2009, 162, 730–735. [Google Scholar] [CrossRef]
  128. Oggier, D. Trimethoprim, Test for Inhibition of Oxygen Consumption by Activated Sludge: Respiration Inhibition Test. BMG A11-00371. BMG Engineering on behalf of F. Hoffmann-La Roche Ltd, Schlieren, Switzerland, 2011. unpublished. [Google Scholar]
  129. Blaise, C.; Gagné, F.; Eullafroy, P.; Férard, J.-F. Ecotoxicity of selected pharmaceuticals of urban origin discharged to the Saint-Lawrence river (Québec, Canada): A review. Braz. J. Aquat. Sci. Technol. 2006, 10, 29–51. [Google Scholar]
  130. Kim, Y.; Choi, K.; Jung, J.; Park, S.; Kim, P.-G.; Park, J. Aquatic toxicity of acetaminophen, carbamazepine, cimetidine, diltiazem and six major sulfonamides, and their potential ecological risks in Korea. Environ. Int. 2007, 33, 370–375. [Google Scholar] [CrossRef]
  131. Isidori, M.; Lavorgna, M.; Nardelli, A.; Pascarella, L.; Parrella, A. Toxic and genotoxic evaluation of six antibiotics on non-target organisms. Sci. Total Environ. 2005, 346, 87–98. [Google Scholar] [CrossRef]
  132. Ciftcioglu, N.; Miller-Hjelle, M.A.; Hjelle, J.T.; Kajander, E.O. Inhibition of nanobacteria by antimicrobial drugs as measured by a modified microdilution method. Antimicrob. Agents Chemother. 2002, 46, 2077–2086. [Google Scholar] [CrossRef]
  133. Tappe, W.; Kummer, S.; Zielezny, Y.; Vereecken, H.; Groeneweg, J. Combined Effects of Sulfadiazine and Trimethoprim on Soil Bacteria. In Poster of the 16th SETAC Europe Annual Meeting, Hague, The Netherlands, 7-11 May 2006.
  134. Oggier, D. TMP Nitrification inhibition test ISO9509. BMG A11–00764; BMG Engineering on behalf of F. Hoffmann-La Roche Ltd: Schlieren, Switzerland, 2011. unpublished. [Google Scholar]
  135. Liu, F.; Ying, G.-G.; Tao, R.; Zhao, J.-L.; Yang, J.-F.; Zhao, L.-F. Effects of six selected antibiotics on plant growth and soil microbial and enzymatic activities. Environ. Pollut. 2009, 157, 1636–1642. [Google Scholar] [CrossRef]
  136. Ando, T.; Nagase, H.; Eguchi, K.; Hirooka, T.; Nakamura, T.; Miyamoto, K.; Hirata, K. A novel method using cyanobacteria for ecotoxicity test of veterinary antimicrobial agents. Environ. Toxicol. Chem. 2007, 26, 601–606. [Google Scholar] [CrossRef]
  137. Claessens, M.; Wille, K.; Vanhaecke, L.; Noppe, H.; De Brabander, H.; Janssen, C. Occurrence and Effects of Pharmaceuticals in the Belgian Coastal Zone. In Poster of the SETAC Europe 19th Annual Meeting, Göteborg, Sweden, 31 May to 4 June 2009.
  138. Holten Lützhøft, H.-C.; Halling-Sørensen, B.; Jorgensen, S.E. Algal toxicity of antibacterial agents applied in Danish fish farming. Arch. Environ. Contam. Toxicol. 1999, 36, 1–6. [Google Scholar] [CrossRef]
  139. Yang, L.-H.; Ying, G.-G.; Su, H.-C.; Strauber, J.L.; Adams, M.S.; Binet, M.T. Growth-inhibiting effects of 12 antibacterial agents and their mixtures on the freshwater microalga Pseudokirchneriella subcapitata. Environ. Sci. Technol. 2008, 27, 1201–1208. [Google Scholar]
  140. Eguchi, K.; Nagase, H.; Ozawa, M.; Enoh, Y.S.; Goto, K.; Hirata, K.; Miyamoto, K.; Yoshimura, H. Evaluation of antimicrobial agents for veterinary use in the ecotoxicity test using microalgae. Chemosphere 2004, 57, 1733–1738. [Google Scholar] [CrossRef]
  141. Bogers, R. Algal growth inhibition test with Trimethoprim, OECD 201. NOTOX b.v., on behalf of F. Hoffmann-La Roche Ltd: ‘s-Hertogenbosch, The Netherlands, 1996. unpublished. [Google Scholar]
  142. Brain, R.A.; Johnson, D.A.; Richards, S.M.; Sanderson, H.; Sibley, P.K.; Solomon, K.R. Effects of 25 pharmaceutical compounds to Lemna gibba using a seven-day static-renewal test. Environ. Sci. Technol. 2004, 23, 371–382. [Google Scholar]
  143. Oggier, D. Trimethoprim, Growth inhibition test with Lemna minor. BMG A11-00372. BMG Engineering, on behalf of F. Hoffmann-La Roche Ltd: Schlieren, Switzerland, 2011. unpublished. [Google Scholar]
  144. Quinn, B.; Gagné, F.; Blaise, C. The effects of pharmaceuticals on regeneration of the cnidarian, Hydra attenuata. Sci. Total Environ. 2008, 402, 62–69. [Google Scholar] [CrossRef]
  145. Rhee, J.-S.; Jeong, C.-B.; Kim, B.-M.; Lee, J.-S. P-glycoprotein (P-gp) in the monogonont rotifer, Brachionus koreanus: Molecular characterization and expression in response to pharmaceuticals. Aquat. Toxicol. 2012, 114–115, 104–118. [Google Scholar] [CrossRef]
  146. Park, S.; Choi, K. Hazard assessment of commonly used agricultural antibiotics on aquatic ecosystems. Ecotoxicology 2008, 17, 526–538. [Google Scholar] [CrossRef]
  147. Bogers, R. Daphnid immobilisation test with Trimethoprim, OECD 202. NOTOX b.v., on behalf of F.Hoffmann-La Roche Ltd: ‘s-Hertogenbosch, The Netherlands, 1996. unpublished. [Google Scholar]
  148. De Liguoro, M.; Fioretto, B.; Poltronieri, C.; Gallina, G. The toxicity of sulfamethazine to Daphnia magna and its additivity to other veterinary sulfanomides and trimethoprim. Chemosphere 2009, 75, 1519–1524. [Google Scholar] [CrossRef]
  149. Iannacone, J.; Alvariño, L. Evaluación del riesgo acuático de siete productos farmacéuticos sobre Daphnia magna. Ecología aplicada 2009, 8, 71–80. [Google Scholar]
  150. Choi, K.; Kim, Y.; Jung, J.; Kim, M.-H.; Kim, C.-S.; Kim, N.-H.; Park, J. Occurrences and ecological risk of roxithromycin, trimethoprim and chloramphenicol in the Han river, Korea. Environ. Sci. Technol. 2008, 27, 711–719. [Google Scholar]
  151. Quinn, B.; Gagné, F.; Blaise, C. An investigation into the acute and chronic toxicity of eleven pharmaceuticals (and their solvents) found in wastewater effluent on the cnidarian, Hydra attenuata. Sci. Total Environ. 2008, 389, 306–314. [Google Scholar] [CrossRef]
  152. Flaherty, C.; Dodson, S.I. Effects of pharmaceuticals on Daphnia survival, growth and reproduction. Chemosphere 2005, 61, 200–207. [Google Scholar] [CrossRef]
  153. Gilberg, D.; Hamberger, R. Trimethoprim: a study on the toxicity to early-life stages of zebrafish according to OECD Guideline No. 210 “Fish, Early-life stage Toxicity Test”. ECT Oekotoxikologie GmbH, Flörsheim/Main, Germany and CIP Chemisches Institut Pforzheim GmbH, on behalf of F. Hoffmann-La Roche Ltd: Pforzheim, Germany, 2011. unpublished. [Google Scholar]
  154. Richards, S.M.; Cole, S.E. A toxicity and hazard assessment of fourteen pharmaceuticals to Xenopus laevis larvae. Ecotoxicology 2006, 15, 647–656. [Google Scholar] [CrossRef]
  155. Technical Guidance for Deriving Environmental Quality Standards. Common Implementation Strategy for the Water Framework Directive (2000/60/EC), Guidance Document No. 27. European Communities: Brussels, Belgium, 2011. Available online: http://ec.europa.eu (accessed on 12 March 2013).
  156. Binelli, A.; Parolini, M.; Cogni, D.; Pedriali, A.; Provini, A. A multi-biomarker assessment of the impact of the antibacterial trimethoprim on the non-target organism zebra mussel (Dreissena polymorpha). Comp. Biochem. Physiol. C 2009, 150, 329–336. [Google Scholar]
  157. Escher, B.I.; Hermens, J.L.M. Internal exposure: Linking bioavailability to effects. Environ. Sci. Technol. 2004, 38, 455A–462A. [Google Scholar] [CrossRef]
  158. DEFRA/Hart, A.; Roelofs, W. Webfram pesticide risk assessment tool. Framework for Addressing Uncertainty and Variability in Pesticide Risk Assessment, Developed on behalf of DEFRA: London, UK. Available online: http://www.webfram.com (accessed on 12 March 2013).
  159. Roelofs, W. Personal Communication, DEFRA: London, UK, 2008.
  160. Kortenkamp, A.; Backhaus, T.; Faust, M. State of the Art Report on Mixture Toxicity. Final Report. Study Contract Number 070307/2007/485103/ETU/D.1. The School of Pharmacy, University of London: London UK, 2009. Available online: http://ec.europa.eu/environment/ chemicals/pdf/report_Mixture%20toxicity.pdf (accessed on 12 March 2013). [Google Scholar]
  161. DANMAP. Use of antimicrobial agents and occurrence of antimicrobial resistance in bacteria from food animals, food and humans in Denmark. Statens Serum Institute: Copenhagen, Denmark, 2010/2011. Available online: http://www.danmap.org/Downloads/~/media/Projekt%20sites/ Danmap/DANMAP%20reports/ Danmap_2010.ashx (accessed on 23 July 2012).
  162. Martínez, J.L. Environmental pollution by antibiotics and by antibiotic resistance determinants. Environ. Pollut. 2009, 157, 2893–2902. [Google Scholar] [CrossRef]
  163. La Para, T.M.; Burch, T.R.; McNamara, P.J.; Tan, D.T.; Yan, M.; Eichmiller, J.J. Tertiary-treated municipal wastewater is a significant point source of antibiotic resistance genes into Duluth-Superior Harbor. Environ. Sci. Technol. 2011, 45, 9453–9459. [Google Scholar]
  164. Czekalski, N.; Berthold, T.; Caucci, S.; Bürgmann, H. Increased levels of multiresistant bacteria and resistance genes after wastewater treatment and their dissemination into Lake Geneva, Switzerland. Frontiers Microbiol. 2012, 3. [Google Scholar] [CrossRef]
  165. Forsberg, K.J.; Reyes, A.; Wang, B.; Selleck, E.M.; Sommer, M.O.A.; Dantas, G. The shared antibiotic resistome of soil bacteria and human pathogens. Science 2012, 337, 1107–1111. [Google Scholar] [CrossRef]
  166. Al-Ahmad, A.; Haiss, A.; Unger, J.; Brunswick-Tietze, A.; Wiethan, J.; Kümmerer, K. Effects of a realistic mixture of antibiotics on resistant and nonresistant sewage sludge bacteria in laboratory-scale treatment plants. Arch. Environ. Contam. Toxicol. 2009, 57, 264–273. [Google Scholar]
Antibiotics EISSN 2079-6382 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
