Nanomaterials 2014, 4(1), 46-54; doi:10.3390/nano4010046

Article
Effect of Low-Frequency AC Magnetic Susceptibility and Magnetic Properties of CoFeB/MgO/CoFeB Magnetic Tunnel Junctions
Yuan-Tsung Chen *, Sung-Hao Lin and Tzer-Shin Sheu
Department of Materials Science and Engineering, I-Shou University, Kaohsiung 840, Taiwan; E-Mails: isu10107009m@cloud.isu.edu.tw (S.H.L.); sheu415@isu.edu.tw (T.S.S.)
*
Author to whom correspondence should be addressed; E-Mail: ytchen@isu.edu.tw; Tel: +886-765-777-11 (ext. 3119); Fax: +886-765-784-44.
Received: 14 November 2013; in revised form: 19 December 2013 / Accepted: 24 December 2013 /
Published: 2 January 2014

Abstract

: In this investigation, the low-frequency alternate-current (AC) magnetic susceptibility (χac) and hysteresis loop of various MgO thickness in CoFeB/MgO/CoFeB magnetic tunneling junction (MTJ) determined coercivity (Hc) and magnetization (Ms) and correlated that with χac maxima. The multilayer films were sputtered onto glass substrates and the thickness of intermediate barrier MgO layer was varied from 6 to 15 Å. An experiment was also performed to examine the variation of the highest χac and maximum phase angle (θmax) at the optimal resonance frequency (fres), at which the spin sensitivity is maximal. The results reveal that χac falls as the frequency increases due to the relationship between magnetization and thickness of the barrier layer. The maximum χac is at 10 Hz that is related to the maximal spin sensitivity and that this corresponds to a MgO layer of 11 Å. This result also suggests that the spin sensitivity is related to both highest χac and maximum phase angle. The corresponding maximum of χac is related to high exchange coupling. High coercivity and saturation magnetization contribute to high exchange-coupling χac strength.
Keywords:
magnetic tunnel junctions (MTJs); exchange coupling; low-frequency alternate-current (AC) magnetic susceptibility (χac); resonance frequency (fres)

1. Introduction

Since 1995, the tunneling magnetoresistance (TMR) effect has been extensively discussed, and it has been exploited in much of our modern technology [1,2]. In the past, increasing attention has been paid to ferromagnetic exchange coupling in magnetic fields [3,4], and the discovery of spintronics has led to a rapid increase in the number of exchange coupling issues. A magnetic tunneling junction (MTJ) has a trilayer structure that comprises a top free ferromagnetic (FM1) layer, an insulating tunneling barrier layer (spacer), and a bottom pinned ferromagnetic (FM2) layer. It has a great potential for use in magnetoresistance random access memory (MRAM). It provides many advantages, such as low loss energy, lack of volatility and semi-permanence features, and can be used in high-density magnetic read heads [5,6,7]. The first demonstrated MgO based tunnel junctions are Parkin et al. [8] and Yuasa et al. [9]. The mechanism of TMR in MgO based junctions is explained by Butler et al. [10]. In the past, TMR based on CoFeB/MgO/CoFeB MTJ has attracted considerable attention. For example, a previous study found that the magnetron sputtering of CoFeB/MgO/CoFeB at room temperature (RT) yielded a high TMR ratio [11,12]. Lee et al. [13] also achieved a TMR ratio of 500% at RT. Furthermore, the fabrication of high-quality junctions requires a superior ferromagnetic layer with a high spin polarization, a crystalline ordering, and a sufficient indirect spin exchange-coupling between the FM1 and FM2 layers [14,15,16,17]. The defects in the tunnel barrier material can lead to electron trapping and resistance fluctuations and induce field-dependent 1/f noise [18]. The origin of 1/f power spectrum is attributed to charge traps occurring in the barrier layer or near the interfaces between barrier and magnetic layers at low frequencies [18,19,20,21,22,23]. The alternate-current (AC) susceptibility is related to magnetic noise and exchange-coupling interaction. The high AC susceptibility can enhance a strong dipole-dipole interaction effect [24]. Moreover, a proper exchange-coupling interaction can induce a large signal-to-noise ratio [25]. However, the external stress acting on magnetic element can induce magnetic susceptibility variation of ferromagnetic layers and disturb spectral power noise of read head device. At low frequencies, the spectral power noise is dependent on free and fixed ferromagnetic layers of hysteresis loop owing to thermal magnetization fluctuations. The origin of magnetic fluctuations is excited hopping of magnetic domain walls. However, most of MTJ research has focused on the TMR, whereas the relative low-frequency alternate-current (AC) magnetic susceptibility (χac) has rarely been examined. The low field AC measurement at low frequencies is related to the spin sensitivity of MTJ devices [18]. The low-frequency AC magnetic susceptibility (χac) and hysteresis loop of CoFeB/MgO/CoFeB are worthwhile to study. This investigation focuses on the maximum χac, the optimal resonance frequency (fres) and maximum phase angle (θmax) for various MgO barrier thicknesses (6, 8, 11, 13, and 15 Å). The maximum χac is 0.7 at the optimal resonant frequency of 10 Hz and the maximum phase angle is 228° at an MgO thickness of 11 Å. These values are larger than compared for Fe40Pd40B20(X Å)/ZnO(500 Å) and suitable for low-frequency magnetic media applications [26]. The magnetic material under the external AC magnetic field shows a magnetic property called multiple-frequency AC magnetic susceptibility χac [27]. The origin of χac is due to the association between magnetic spin interactions [27]. The frequency of the applied AC magnetic field equals the frequency of oscillation of the magnetic dipole. The maximum χac value is corresponding to optimal resonance frequency, increasing spin sensitivity at optimal fres. It means that the optimal fres is associated with maximal spin sensitivity.

2. Results and Discussion

Figure 1 presents the χac amplitude of the CoFeB/MgO/CoFeB MTJ for different thicknesses of the MgO layer at frequencies in the range 10 to 25,000 Hz. The lowest measured frequency is 10 Hz and the smallest step frequency is 20 Hz at low frequencies for used χac measurement. The maxima χac at the optimal resonance frequency has the following physical meaning. At low frequencies, the resultant alternate-current (AC) magnetic dipole moment is contributed from the oscillation of volume magnetic dipole moment inside each domain. The applied AC magnetic field acts a driving force. The magnetic interactions among domains act restored. There exists a resonant frequency as a driving force acting to the system. Thus, the frequency of the peak of the low-frequency magnetic susceptibility corresponds to the resonant frequency of the oscillation of the magnetic dipole moment inside domains. The χac peak indicates the spin exchange-coupling interaction and dipole moment of domain under frequency [27]. It is reasonably concluded that the physical meaning peaks of the low frequency susceptibility indicate the magnetic exchange coupling between two CoFeB layers. The results suggest that an excitation frequency of 10 to 30 Hz maximizes the χac of the magnetic exchange-coupled signal, and as the frequency increases above 30 Hz, the χac obtained from the signal declines, suggesting that the CoFeB/MgO/CoFeB MTJ is suited to use at low frequencies. The optimal maximum susceptibility, at frequencies in the range of 10 to 30 Hz, can be utilized in inductors and transformers [28,29].

Nanomaterials 04 00046 g001 1024

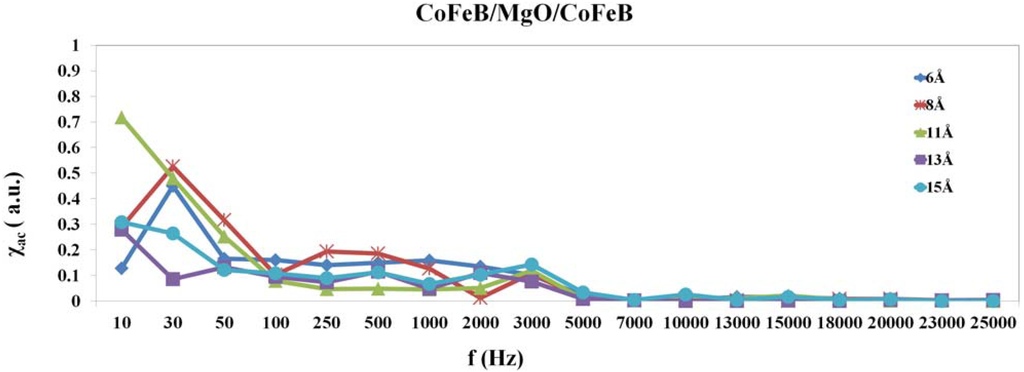

Figure 1. Measured low-frequency alternate-current magnetic susceptibility (χac) of CoFeB/MgO/CoFeB as a function of thickness of MgO barrier layer.

Click here to enlarge figure

Figure 1. Measured low-frequency alternate-current magnetic susceptibility (χac) of CoFeB/MgO/CoFeB as a function of thickness of MgO barrier layer.
Nanomaterials 04 00046 g001 1024

Briefly, the maximum χac at the optimal resonant frequency (fres), fres corresponds to the maximum spin sensitivity. Therefore, Figure 2 plots the highest χac as a function of MgO thickness. The resonance peak of origin 10 Hz represents to initial spin exchange coupling status. The maximum χac value at 6 Å is 0.44, at 8 Å is 0.52, at 11 Å is 0.71, at 13 Å is 0.27, and at 15 Å is 0.3. These findings are known to follow from indirect interactions of magnetic moment. The indirect interactions of magnetic moment mean the spin exchange interaction between free CoFeB and pinned CoFeB layers, which indicate a strong moment interactions can induce a high magnetic susceptibility [24]. The susceptibility peaks relate to the exchange interaction between the two layers closely. The high χac peaks are corresponding to high exchange coupling.

Nanomaterials 04 00046 g002 1024

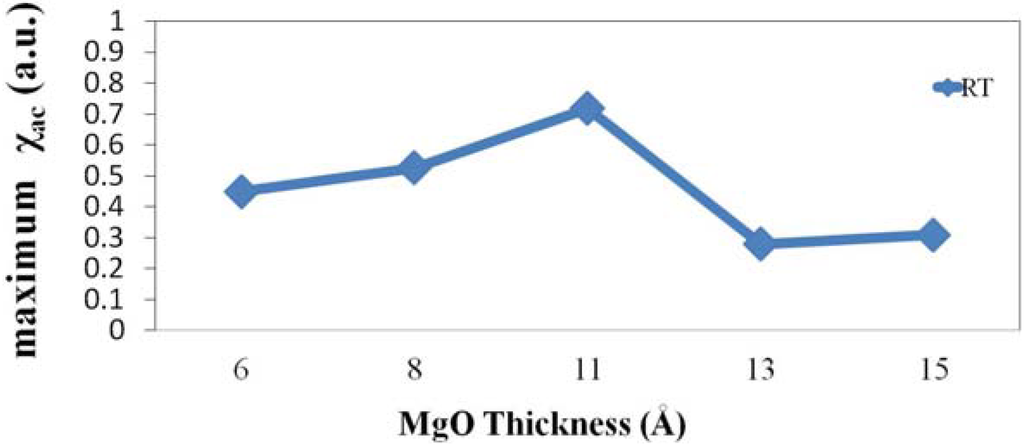

Figure 2. Maximum χac as a function of thickness of MgO barrier layer.

Click here to enlarge figure

Figure 2. Maximum χac as a function of thickness of MgO barrier layer.
Nanomaterials 04 00046 g002 1024

The phase angle (θ) has the following physical meaning. When a magnetic material is in an external magnetic field, the magnetic dipole moment tends to lie in the direction of the interaction of the magnetic moment with the external field. When an external AC magnetic field is applied, and the AC frequency is not too high compared to microwave frequencies, the magnetic dipole moment oscillates. The frequency of the applied AC magnetic field equals the frequency of oscillation of magnetic dipole. However, the direction of instantaneous magnetic dipole is not the same as the direction of the applied magnetic field. The phase angle denotes the difference [29]. Figure 3 plots the corresponding maximum phase angle (θmax) between magnetic field and magnetization as a function of MgO thickness for maximal χac. The high χac ensures high spin sensitivity to an increase in the phase angle. Restated, by increasing the phase angle improved the sensitivity to detect the behavior of an electron spin. In summary, the results concerning the phase angle are consistent with trend of χac.

Nanomaterials 04 00046 g003 1024

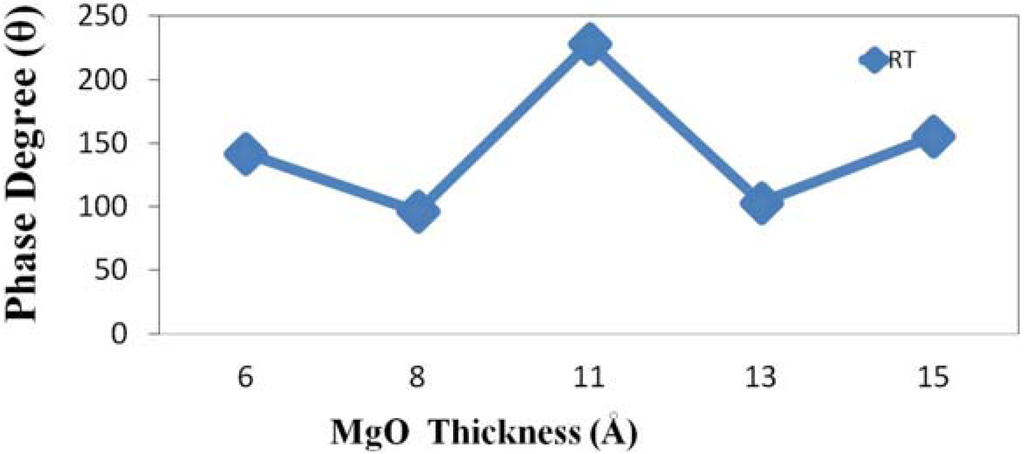

Figure 3. Variation of maximum χac with maximum phase angle (θ).

Click here to enlarge figure

Figure 3. Variation of maximum χac with maximum phase angle (θ).
Nanomaterials 04 00046 g003 1024

Table 1 presents the important parameters of CoFeB/MgO/CoFeB MTJ. From this Table, an MgO thickness of 11 Å is the best of various MgO thicknesses from 6 to 15 Å. The maximum χac of indirect exchange-coupling susceptibility of FM1 and FM2 is 0.7, corresponding to a resonant frequency of 10 Hz and a maximum phase angle of 228.5°. According to previous study, it indicates that susceptibility is associated with 1/f noise due to electron trap in the tunnel barrier [18]. It is related to electron traps and defects in the tunnel barrier but not related to the magnetization fluctuations, which suggests that the quality of the tunneling barrier is an important parameter in reducing low-frequency noise in magnetic tunnel junctions. According to the result, this CoFeB/MgO/CoFeB MTJ is suitable for components and low-frequency magnetic device applications [30].

Table Table 1. Maximum χac value, maximum phase angle, and corresponding optimal resonance frequency for various MgO barrier thicknesses.

Click here to display table

Table 1. Maximum χac value, maximum phase angle, and corresponding optimal resonance frequency for various MgO barrier thicknesses.
MgO (Å)Maximum χac (a.u.)Maximun phase angle θmax (degree)Highest χac corresponding optimal resonance frequency fres (Hz)
6 Å0.44142.2430 Hz
8 Å0.5296.4430 Hz
11 Å0.71228.5910 Hz
13 Å0.27103.4710 Hz
15 Å0.30155.4410 Hz

Figure 4a shows the hysteresis loop of CoFeB(75 Å)/MgO(11 Å)/CoFeB(75 Å) MTJ. From this figure, the two-step characteristic of hysteresis loop is indicated that the spin rotated situation between two CoFeB layers at saturated magnetic magnetization by external field (H). Moreover, the H1, H2, H3, and H4 of Figure 4a indicate the coercive fields of the two CoFeB layers, respectively. The Hc value of free CoFeB layer denotes (H2 + H4)/2. The Hc value of pinned CoFeB layer is (H1 + H3)/2. The Hc value between two CoFeB layers initially increased at MgO thicknesses from 6 to 11 Å and decreased at MgO thicknesses from 11 to 15 Å. It can be reasonably concluded that high Hc value means high exchange-coupling χac strength. High Hc strength requires a large external field to changing the spin arrangement. From Figure 4b, it suggests that the Hc of MTJ is varied by various MgO thicknesses. The result of Figure 4b is consistent with Figure 2. According to the results of Figure 2 and Figure 4b, they indicate that maximum χac means a high magnetic exchange coupling between two CoFeB layers and induces a corresponding high Hc. The saturation magnetization (Ms) between two CoFeB layers is also shown the same trend to concave-down feature, which is shown in Figure 4c. From the result of Figure 4, it indicates that high Ms presents to high exchange-coupling χac strength and high Hc value.

Nanomaterials 04 00046 g004 1024

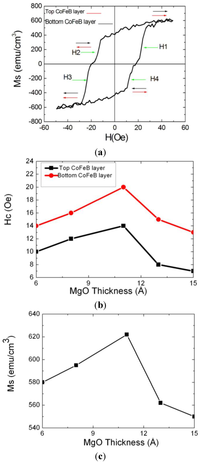

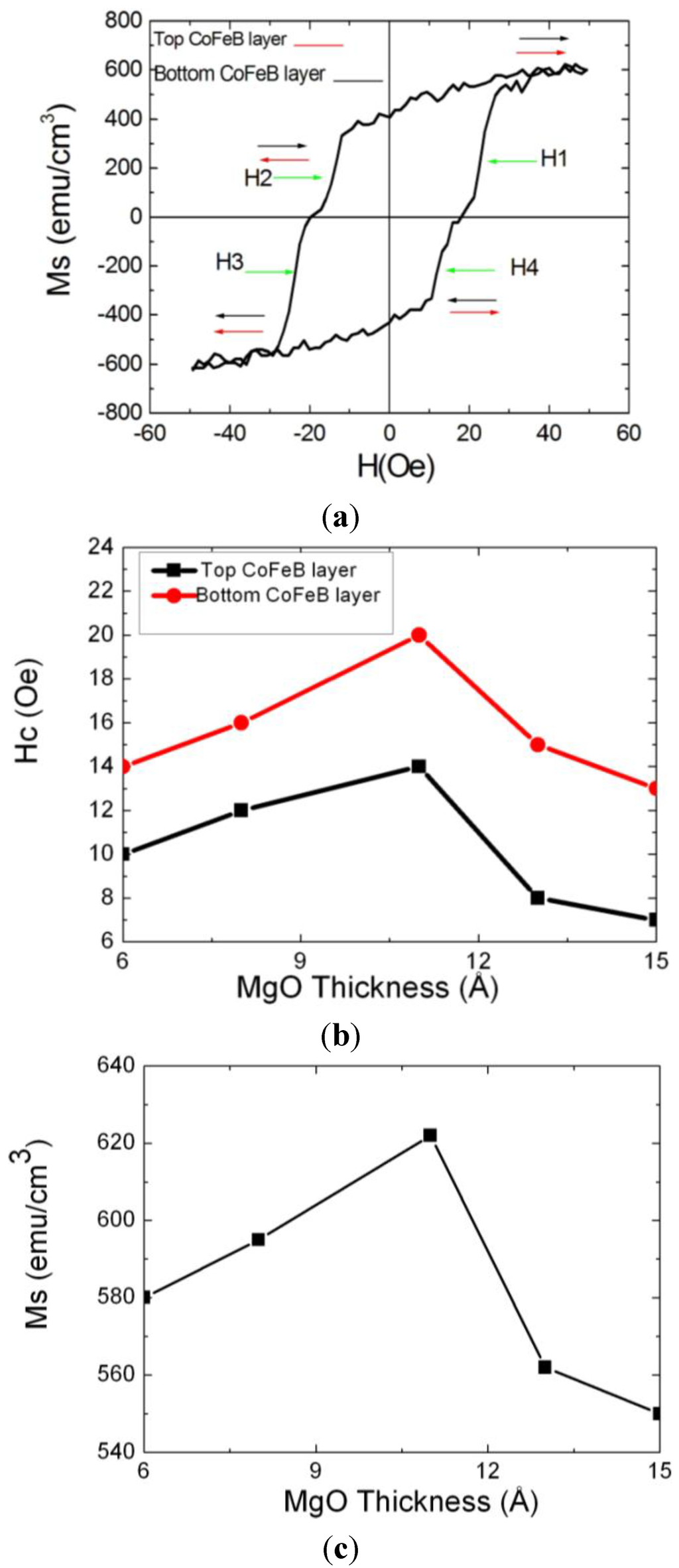

Figure 4. The essential magnetic properties of magnetic tunneling junction are (a) hysteresis loop of MTJ, (b) coercivity value, and (c) saturation magnetization.

Click here to enlarge figure

Figure 4. The essential magnetic properties of magnetic tunneling junction are (a) hysteresis loop of MTJ, (b) coercivity value, and (c) saturation magnetization.
Nanomaterials 04 00046 g004 1024

3. Experimental Section

A multilayer MTJ was sputtered on a glass substrate by a DC and RF magnetron sputtering system. The chamber pressure was typically under 1 × 10−7 Torr and the Ar-working chamber pressure was 5 × 10−3 Torr. The MTJ structure was glass/CoFeB(75 Å)/MgO(d)/CoFeB(75 Å) with d = 6, 8, 11, 13 and 15 Å. The atomic composition of the CoFeB alloy target was 40 atom % Co, 40 atom % Fe, and 20 atom % B. In the fabrication of MgO barrier, the initial metal magnesium (Mg) target was deposited on the bottom of ferromagnetic electrode, and then deposited a magnesium oxide (MgO) layer was formed by RF sputtering reaction in an oxidizing atmosphere using an Ar/O2 with a mixing ratio of 9:16. The in-plane low-frequency alternate-current magnetic susceptibility (χac) of MTJ was studied using an χac analyzer (XacQuan, MagQu, Taiwan). First, the referenced standard sample is calibrated by an χac analyzer with an external field. Then, the measured sample is inserted to χac analyzer. The driving frequency ranged from 10 to 25,000 Hz. The minimum frequency step is 20 Hz and that the frequency minimum is 10 Hz. The χac is determined through the magnetization measurement. All measured samples had the same shape and size to eliminate the demagnetization factor. The χac valve is arbitrary unit (a.u.), because the χac result is corresponding to referenced standard sample. It is a comparative valve. Moreover, the in-plane coercivity (Hc) and saturation magnetization (Ms) of the two CoFeB layers were obtained using a superconducting quantum interference device (SQUID, Quantum Design MPMS5, San Diego, CA, USA).

4. Conclusions

The MgO barrier layer thickness in CoFeB/MgO/CoFeB MTJs was varied to measure low-frequency alternate-current magnetic susceptibility and magnetic properties. The highest χac was obtained at a thickness of 11 Å, corresponding to an optimal resonance frequency of 10 Hz and a maximum phase angle of 228.5°. The best resonance frequencies are from 10 to 30 Hz, and this range of frequencies is useful for transformers, sensors, and magnetic read heads. Additionally, the important low-frequency alternate-current susceptibility and magnetic results demonstrate that the indirect spin exchange coupling of top CoFeB and bottom CoFeB layers in CoFeB/MgO/CoFeB oscillates.

Acknowledgements

This work was supported by the National Science Council, under Grant No. NSC100-2112-M-214-001-MY3 and No. NSC 102-2815-C-214-009-M.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Miyazaki, T.; Tezuka, N. Giant magnetic tunneling effect in Fe/Al2O3/Fe junction. J. Magn. Magn. Mater. 1995, 139, L231–L234. [Google Scholar]
  2. Moodera, J.S.; Kinder, L.R.; Wong, T.M.; Meservey, R. Large magnetoresistance at room temperature in ferromagnetic thin film tunnel junctions. Phys. Rev. Lett. 1995, 74, 3273–3276. [Google Scholar] [CrossRef]
  3. Katayama, T.; Yuasa, S.; Velev, J.; Zhuravlev, M.Y.; Jaswal, S.S.; Tsymbal, E.Y. Interlayer exchange coupling in Fe/MgO/Fe magnetic tunnel junctions. Appl. Phys. Lett. 2006, 89, 112503:1–112503:3. [Google Scholar]
  4. Zhuravlev, M.Y.; Tsymbal, E.Y.; Vedyayev, A.V. Impurity-assisted interlayer exchange coupling across a tunnel barrier. Phys. Rev. Lett. 2005, 94, 026806:1–026806:4. [Google Scholar]
  5. Matsumoto, R.; Hamada, Y.; Mizuguchi, M.; Shiraishi, M.; Maehara, H.; Tsunekawa, K.; Djayaprawira, D.D.; Watanabe, N.; Kurosaki, Y.; Nagahama, T.; et al. Tunneling spectra of sputter-deposited CoFeB/MgO/CoFeB magnetic tunnel junctions showing giant tunneling magnetoresistance effect. Solid State Commun. 2005, 136, 611–615. [Google Scholar] [CrossRef]
  6. Aoki, T.; Ando, Y.; Watanabe, D.; Oogane, M.; Miyazaki, T. Spin transfer switching in the nanosecond regime for CoFeB/MgO/CoFeB ferromagnetic tunnel junctions. J. Appl. Phys. 2008, 103, 103911:1–103911:4. [Google Scholar]
  7. You, C.Y.; Goripati, H.S.; Furubayashi, T.; Takahashi, Y.K.; Hono, K. Exchange bias of spin valve structure with a top-pinned Co40Fe40B20/IrMn. Appl. Phys. Lett. 2008, 93, 012501:1–012501:3. [Google Scholar]
  8. Parkin, S.S.P.; Kaiser, C.; Panchula, A.; Rice, P.M.; Hughes, B.; Samant, M.; Yang, S.H. Giant tunneling magnetoresistance at room temperature with MgO (100) tunnel barriers. Nat. Mater. 2004, 3, 862–867. [Google Scholar] [CrossRef]
  9. Yuasa, S.; Nagahama, T.; Fukushima, A.; Suzuki, Y.; Ando, K. Giant room-temperature magnetoresistance in single-crystal Fe/MgO/Fe magnetic tunnel junctions. Nat. Mater. 2004, 3, 868–871. [Google Scholar] [CrossRef]
  10. Butler, W.H.; Zhang, X.G.; Schulthess, T.C.; MacLaren, J.M. Spin-dependent tunneling conductance of Fe/MgO/Fe sandwiches. Phys. Rev. B 2001, 63, 054416:1–054416:12. [Google Scholar]
  11. Djayaprawira, D.D.; Tsunekawa, K.; Nagai, M.; Maehara, H.; Yamagata, S.; Watanabe, N.; Yuasa, S.; Suzuki, Y.; Ando, K. 230% room-temperature magnetoresistance in CoFeB/MgO/CoFeB magnetic tunnel junctions. Appl. Phys. Lett. 2005, 86, 092502:1–092502:3. [Google Scholar]
  12. Lee, Y.M.; Hayakawa, J.; Ikeda, S.; Matsukura, F.; Ohno, H. Giant tunnel magnetoresistance and high annealing stability in CoFeB/MgO/CoFeB magnetic tunnel junctions with synthetic pinned layer. Appl. Phys. Lett. 2006, 89, 042506:1–042506:3. [Google Scholar]
  13. Lee, Y.M.; Hayakawa, J.; Ikeda, S.; Matsukura, F.; Ohno, H. Effect of electrode composition on the tunnel magnetoresistance of pseudo-spin-valve magnetic tunnel junction with a MgO tunnel barrier. Appl. Phys. Lett. 2007, 90, 212507:1–212507:3. [Google Scholar]
  14. Isogami, S.; Tsunoda, M.; Komagaki, K.; Sunaga, K.; Uehara, Y.; Sato, M.; Miyajima, T.; Takahashi, M. In situ heat treatment of ultrathin MgO layer for giant magnetoresistance ratio with low resistance area product in CoFeB/MgO/CoFeB magnetic tunnel junctions. Appl. Phys. Lett. 2008, 93, 192109:1–192109:3. [Google Scholar]
  15. Lee, D.H.; Lim, S.H. Increase of temperature due to Joule heating during current-induced magnetization switching of an MgO-based magnetic tunnel junction. Appl. Phys. Lett. 2008, 92, 233502:1–233502:3. [Google Scholar]
  16. You, C.Y.; Ohkubo, T.; Takahashi, Y.K.; Hono, K. Boron segregation in crystallized MgO/amorphous-Co40Fe40B20 thin films. J. Appl. Phys. 2008, 104, 033517:1–033517:6. [Google Scholar]
  17. Chen, Y.T.; Wu, J.W. Effect of tunneling barrier as spacer on exchange coupling of CoFeB/AlOx/Co trilayer structures. J. Alloys Compd. 2011, 509, 9246–9248. [Google Scholar] [CrossRef]
  18. Jiang, L.; Nowak, E.R.; Scott, P.E.; Johnson, J.; Slaughter, J.M.; Sun, J.J.; Dave, R.W. Low-frequency magnetic and resistance noise in magnetic tunnel junctions. Phys. Rev. B 2004, 69, 054407:1–054407:9. [Google Scholar]
  19. Ingvarsson, S.; Xiao, G.; Parkin, S.S.P.; Gallagher, W.J.; Grinstein, G.; Koch, R.H. Low-frequency magnetic noise in micron-scale magnetic tunnel junctions. Phys. Rev. Lett. 2000, 85, 3289–3292. [Google Scholar] [CrossRef]
  20. Nowak, E.R.; Merithew, R.D.; Weissman, M.B.; Bloom, I.; Parkin, S.S.P. Noise properties of ferromagnetic tunnel junctions. J. Appl. Phys. 1998, 84, 6195–6201. [Google Scholar] [CrossRef]
  21. Nowak, E.R.; Weissman, M.B.; Parkin, S.S.P. Electrical noise in hysteretic ferromagnet-insulator-ferromagnet tunnel junctions. Appl. Phys. Lett. 1999, 74, 600–602. [Google Scholar] [CrossRef]
  22. Nowak, E.R.; Spradling, P.; Weissman, M.B.; Parkin, S.S.P. Electron tunneling and noise studies in ferromagnetic junctions. Thin Solid Films 2000, 377, 699–704. [Google Scholar]
  23. Ingvarsson, S.; Xiao, G.; Wanner, R.A.; Trouilloud, P.; Lu, Y.; Gallagher, W.J.; Marley, A.C.; Roche, K.P.; Parkin, S.S.P. Electronic noise in magnetic tunnel junctions. J. Appl. Phys. 1999, 85, 5270–5272. [Google Scholar] [CrossRef]
  24. Jonsson, T.; Nordblad, P.; Svedlindh, P. Dynamic study of dipole-dipole interaction effects in a magnetic nanoparticle system. Phys. Rev. B 1998, 57, 497–504. [Google Scholar] [CrossRef]
  25. Demir, S.; Zadrozny, J.M.; Nippe, M.; Long, J.R. Exchange coupling and magnetic blocking in bipyrimidyl radical-bridged dilanthanide complexes. J. Am. Chem. Soc. 2012, 134, 18546–18549. [Google Scholar]
  26. Chen, Y.T.; Xie, S.M.; Jheng, H.Y. The low-frequency alternative-current magnetic susceptibility and electrical properties of Si(100)/Fe40Pd40B20(X Å)/ZnO(500 Å) and Si(100)/ZnO(500 Å)/Fe40Pd40B20(Y Å) systems. J. Appl. Phys. 2013, 113, 17B303:1–17B303:3. [Google Scholar]
  27. Yang, S.Y.; Chien, J.J.; Wang, W.C.; Yu, C.Y.; Hing, N.S.; Hong, H.E.; Hong, C.Y.; Yang, H.C.; Chang, C.F.; Lin, H.Y. Magnetic nanoparticles for high-sensitivity detection on nucleic acids via superconducting-quantum-interference-device-based immunomagnetic reduction assay. J. Magn. Magn. Mater. 2011, 323, 681–685. [Google Scholar] [CrossRef]
  28. Chen, Y.T.; Lin, S.H.; Lin, Y.C. Effect of low-frequency alternative-currentmagnetic susceptibility in Ni80Fe20 thin films. J. Nanomater. 2012, 2012, 186138:1–186138:6. [Google Scholar]
  29. Chen, Y.T.; Chang, Z.G. Low-frequency alternative-current magnetic susceptibility of amorphous and nanocrystalline Co60Fe20B20 films. J. Magn. Magn. Mater. 2012, 324, 2224–2226. [Google Scholar] [CrossRef]
  30. Feng, G.; Feng, J.F.; Coey, J.M.D. The effect of magnetic annealing on barrier asymmetry in Co40Fe40B20/MgO magnetic tunnel junctions. J. Magn. Magn. Mater. 2010, 322, 1456–1459. [Google Scholar] [CrossRef]
