Next Article in Journal
Simultaneous Patterning of Independent Metal/Metal Oxide Multi-Layer Films Using Two-Tone Photo-Acid Generating Compound Systems
Next Article in Special Issue
Kinetic and Surface Study of Single-Walled Aluminosilicate Nanotubes and Their Precursors
Previous Article in Journal
Influence of High Shear Dispersion on the Production of Cellulose Nanofibers by Ultrasound-Assisted TEMPO-Oxidation of Kraft Pulp
Previous Article in Special Issue
Effects of Varied Cleaning Methods on Ni-5% W Substrate for Dip-Coating of Water-based Buffer Layers: An X-ray Photoelectron Spectroscopy Study
Nanomaterials 2012, 2(3), 298-311; doi:10.3390/nano2030298
Article

Aqueous Chemical Solution Deposition of Novel, Thick and Dense Lattice-Matched Single Buffer Layers Suitable for YBCO Coated Conductors: Preparation and Characterization

* ,
,
 and
Received: 6 July 2012; in revised form: 14 August 2012 / Accepted: 28 August 2012 / Published: 10 September 2012
(This article belongs to the Special Issue New Developments in Nanomaterial Analysis)
View Full-Text   |   Download PDF [2371 KB, uploaded 10 September 2012]   |   Browse Figures

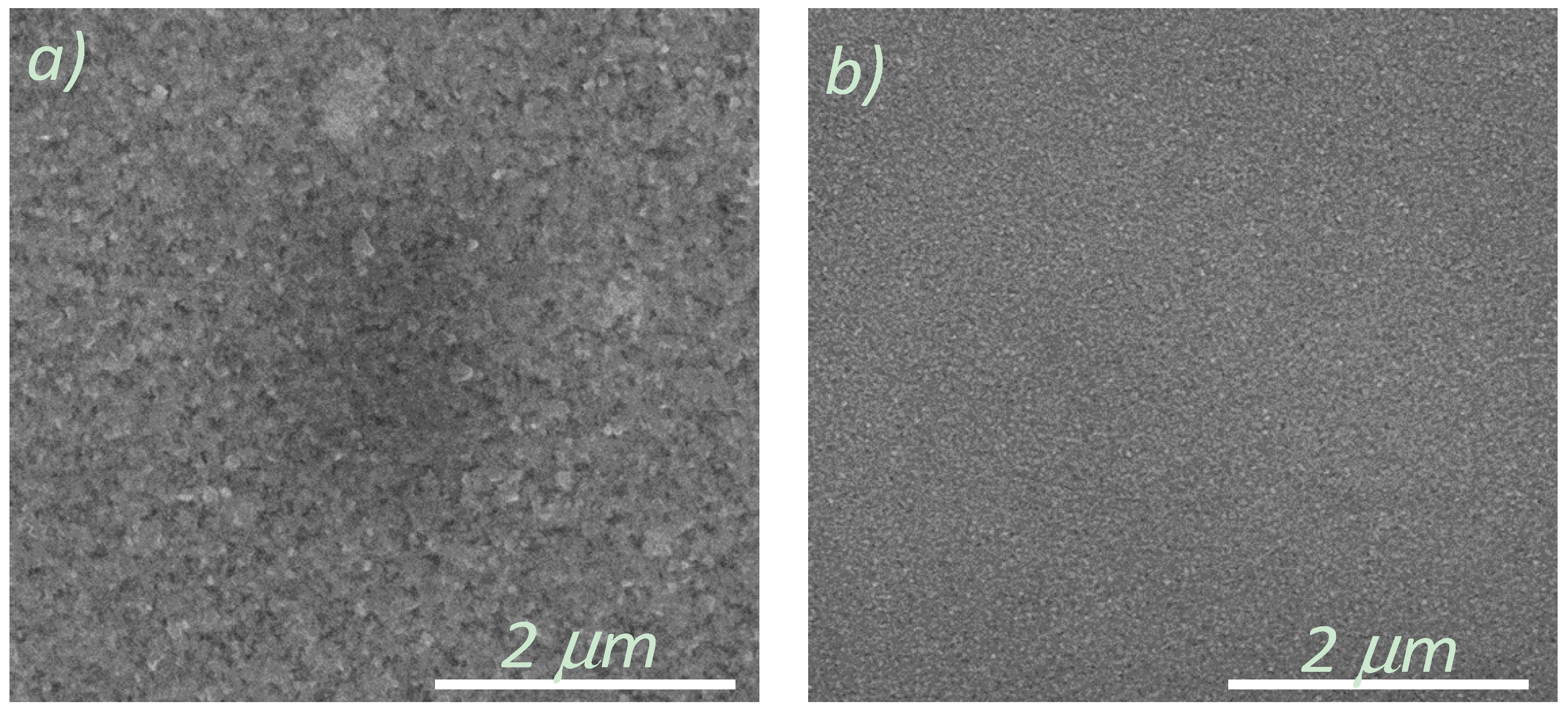

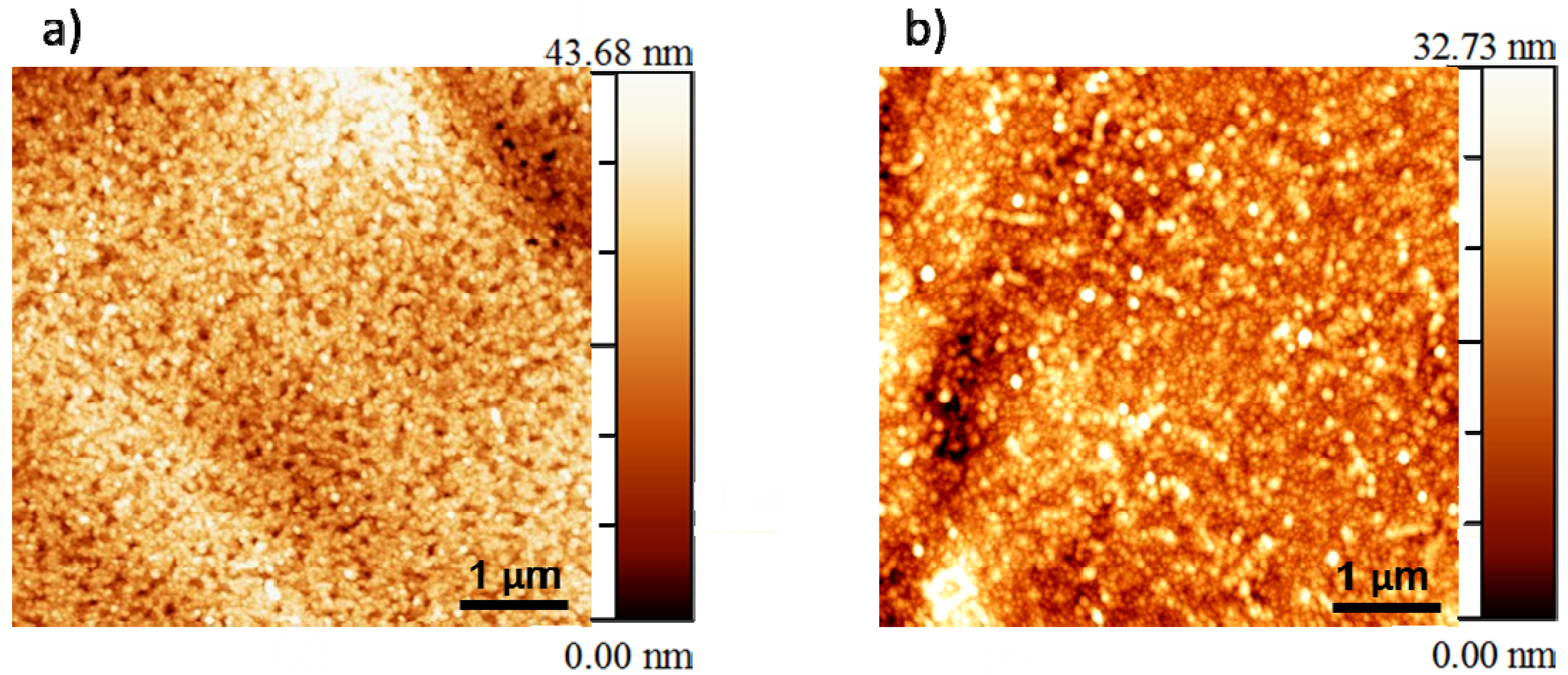

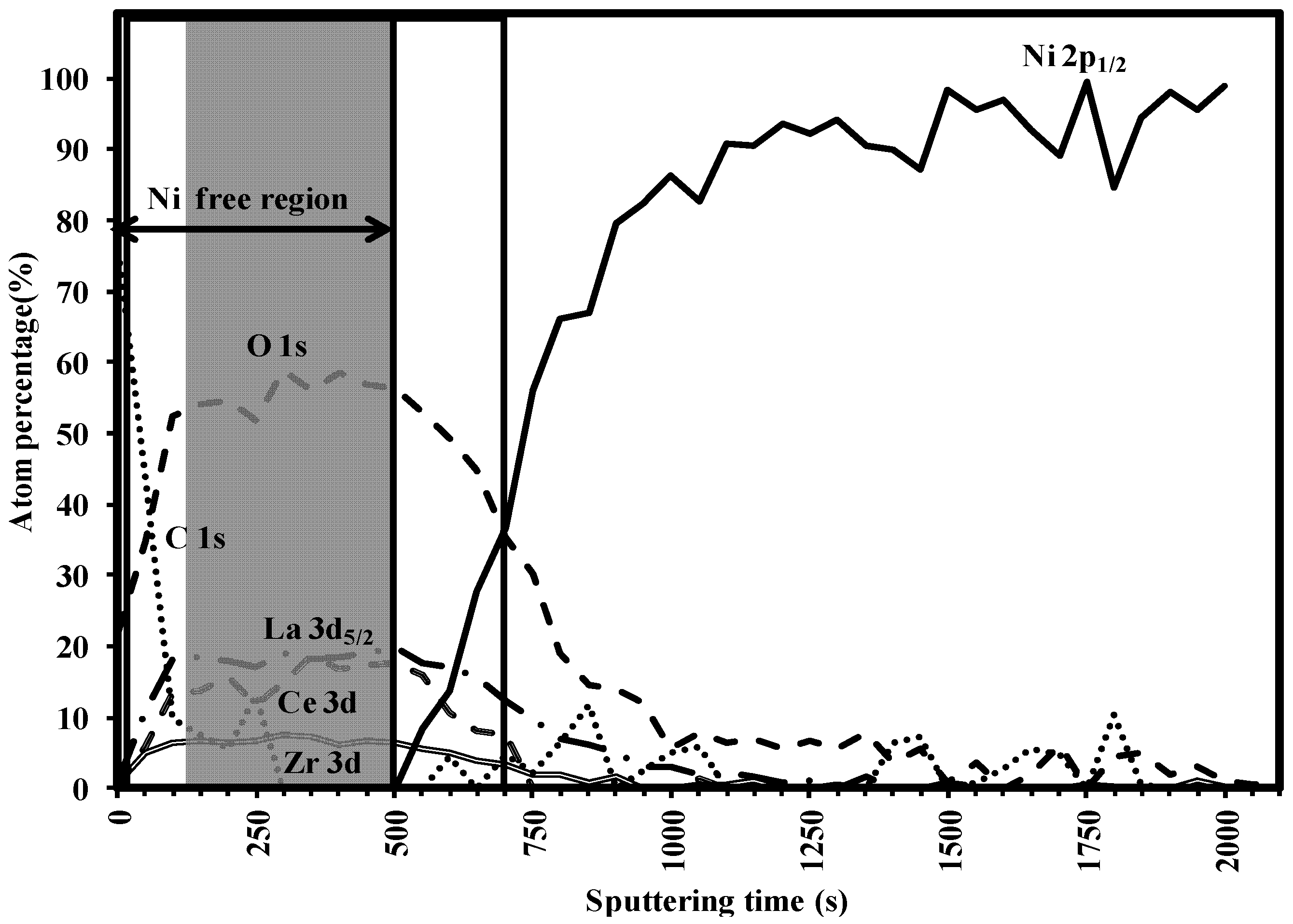

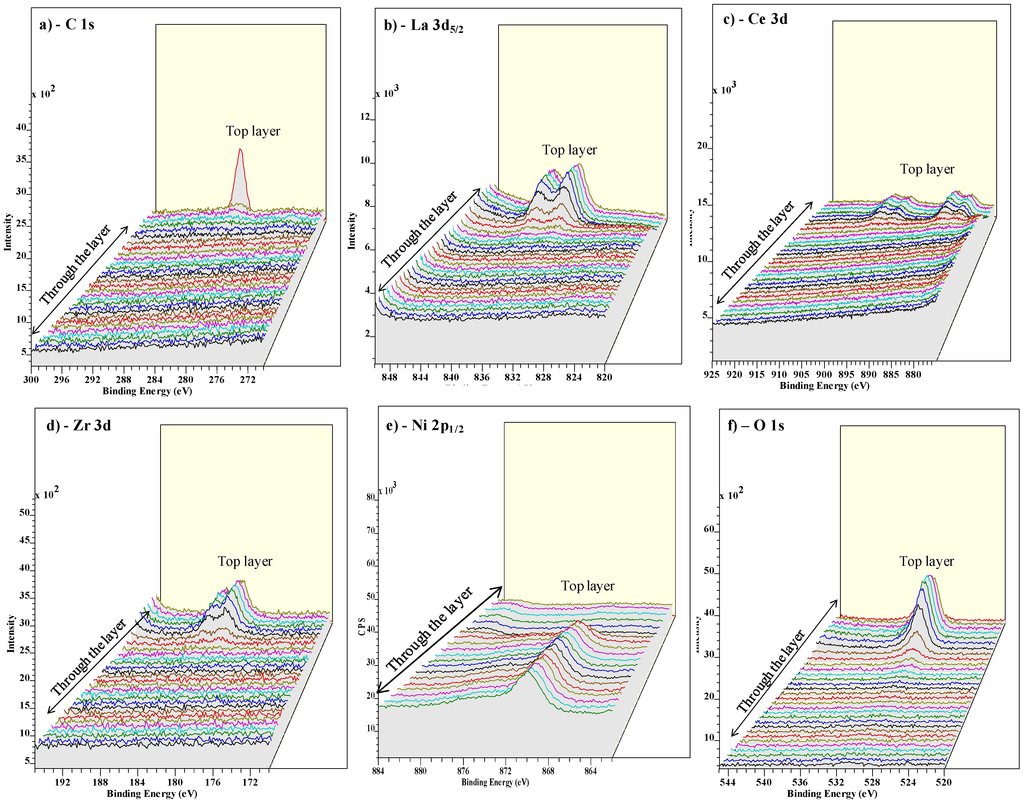

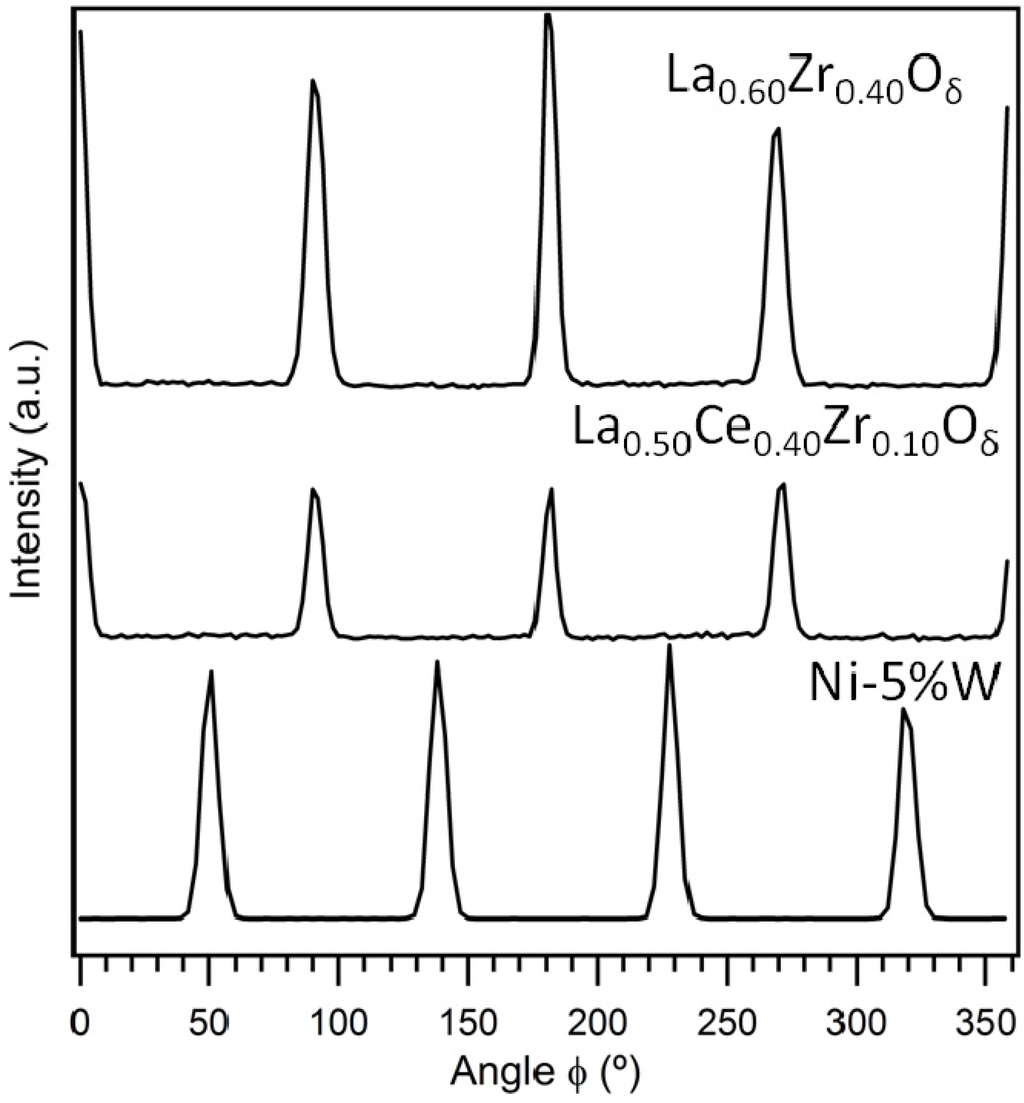

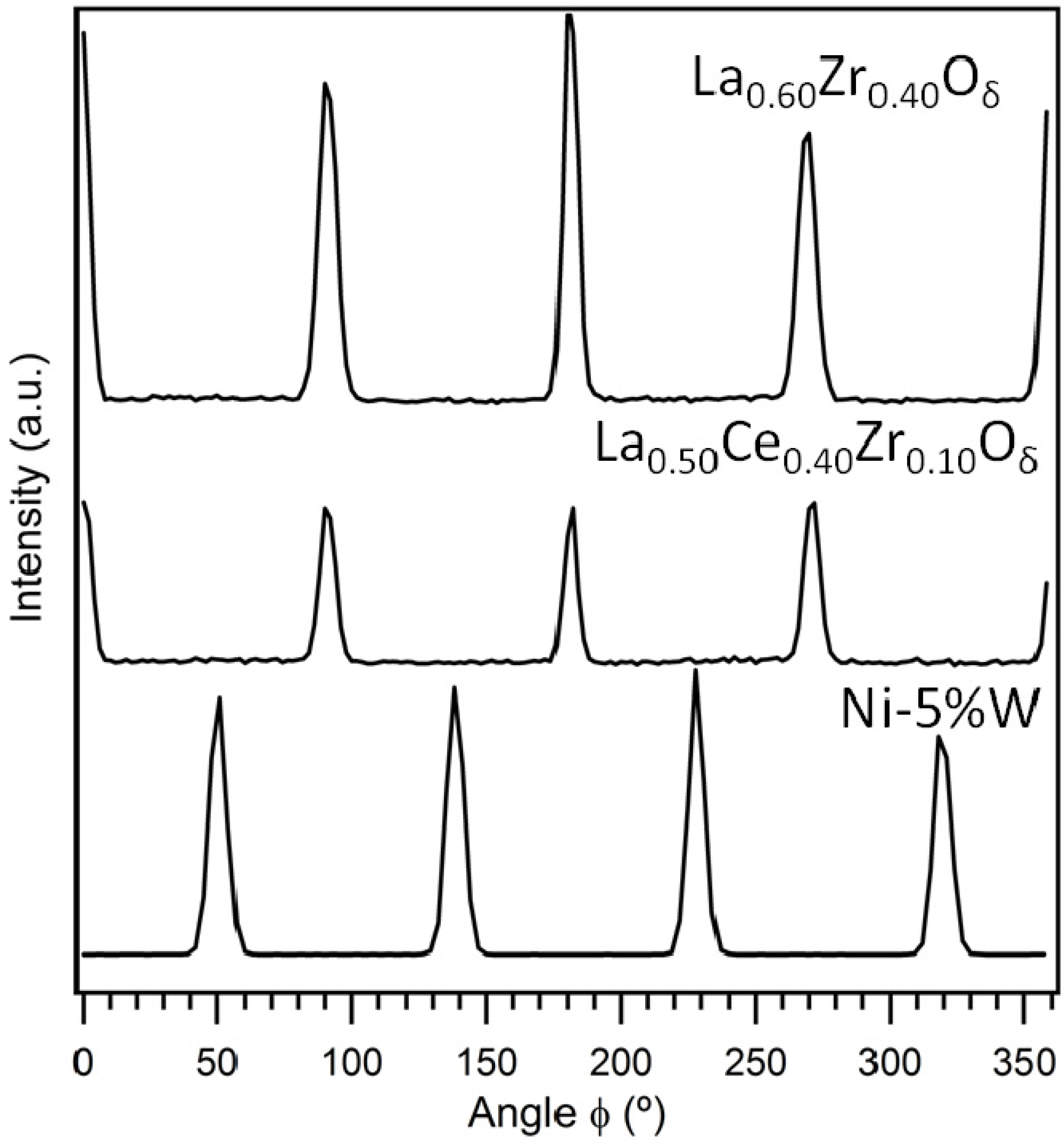

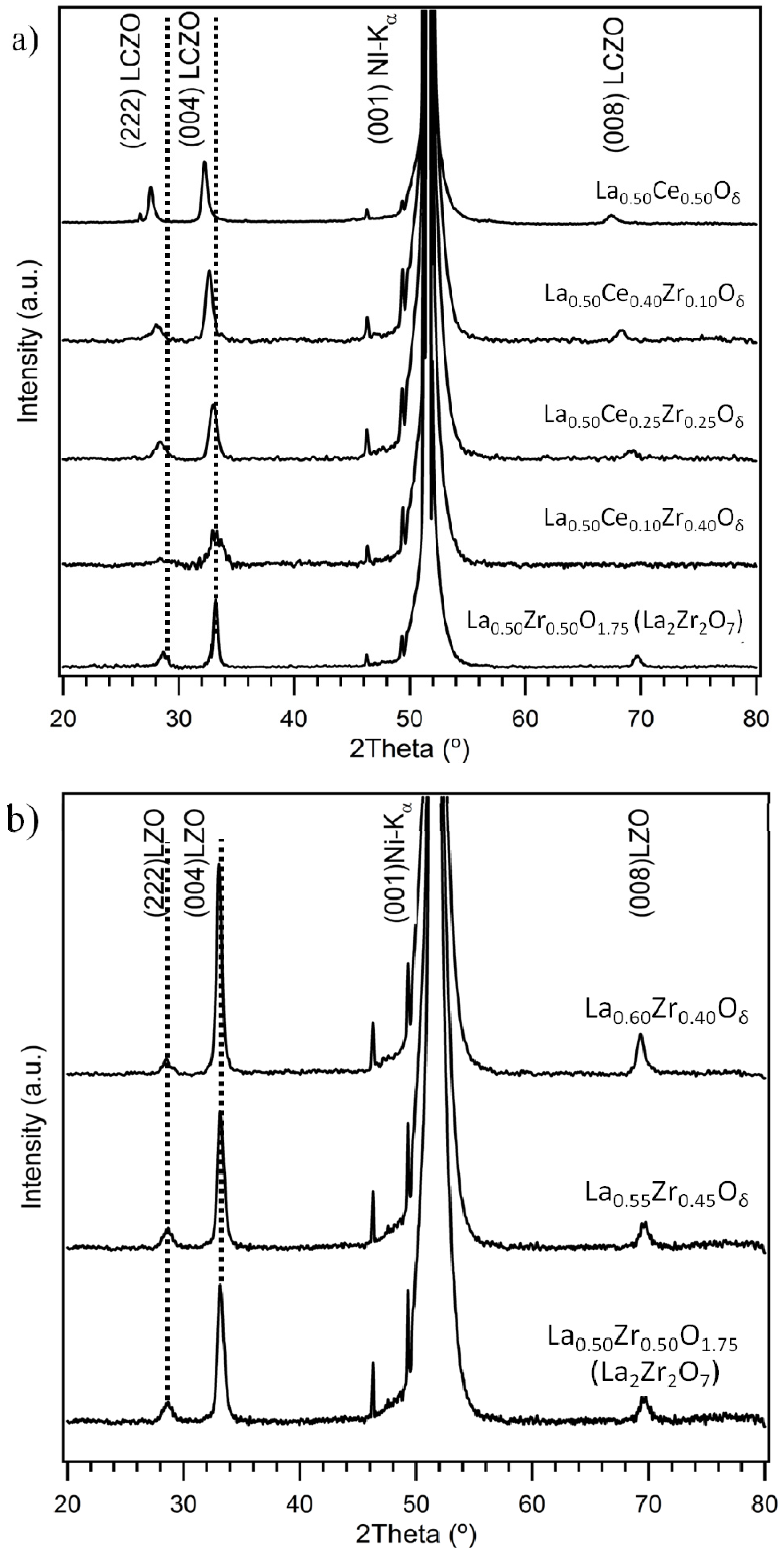

Abstract: In this work we present the preparation and characterization of cerium doped lanthanum zirconate (LCZO) films and non-stoichiometric lanthanum zirconate (LZO) buffer layers on metallic Ni-5% W substrates using chemical solution deposition (CSD), starting from aqueous precursor solutions. La2Zr2O7 films doped with varying percentages of Ce at constant La concentration (La0.5CexZr1−xOy) were prepared as well as non-stoichiometric La0.5+xZr0.5−xOy buffer layers with different percentages of La and Zr ratios. The variation in the composition of these thin films enables the creation of novel buffer layers with tailored lattice parameters. This leads to different lattice mismatches with the YBa2Cu3O7−x (YBCO) superconducting layer on top and with the buffer layers or substrate underneath. This possibility of minimized lattice mismatch should allow the use of one single buffer layer instead of the current complicated buffer architectures such as Ni-(5% W)/LZO/LZO/CeO2. Here, single, crack-free LCZO and non-stoichiometric LZO layers with thicknesses of up to 140 nm could be obtained in one single CSD step. The crystallinity and microstructure of these layers were studied by XRD, and SEM and the effective buffer layer action was studied using XPS depth profiling.
Keywords: buffer layers; water-based precursors; chemical solution deposition; thin films; lattice-mismatch buffer layers; water-based precursors; chemical solution deposition; thin films; lattice-mismatch
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

Narayanan, V.; van Steenberge, S.; Lommens, P.; van Driessche, I. Aqueous Chemical Solution Deposition of Novel, Thick and Dense Lattice-Matched Single Buffer Layers Suitable for YBCO Coated Conductors: Preparation and Characterization. Nanomaterials 2012, 2, 298-311.

AMA Style

Narayanan V, van Steenberge S, Lommens P, van Driessche I. Aqueous Chemical Solution Deposition of Novel, Thick and Dense Lattice-Matched Single Buffer Layers Suitable for YBCO Coated Conductors: Preparation and Characterization. Nanomaterials. 2012; 2(3):298-311.

Chicago/Turabian Style

Narayanan, Vyshnavi; van Steenberge, Sigelinde; Lommens, Petra; van Driessche, Isabel. 2012. "Aqueous Chemical Solution Deposition of Novel, Thick and Dense Lattice-Matched Single Buffer Layers Suitable for YBCO Coated Conductors: Preparation and Characterization." Nanomaterials 2, no. 3: 298-311.


Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
