Next Article in Journal
Synthesis and Evaluation of a Molecularly Imprinted Polymer for Selective Solid-Phase Extraction of Irinotecan from Human Serum Samples
Previous Article in Journal
Prediction of True Circulatory Decompensation in Chronic Heart Failure for Optimal Timing of Mechanical Circulatory Support: Non-Invasive Arterial-Ventricular Coupling
J. Funct. Biomater. 2012, 3(1), 114-130; doi:10.3390/jfb3010114

Preparation and Functional Assessment of Composite Chitosan-Nano-Hydroxyapatite Scaffolds for Bone Regeneration

* ,
Biomedical Engineering Department, University of Memphis, Memphis, TN 38152, USA
* Author to whom correspondence should be addressed.
Received: 22 November 2011 / Revised: 19 January 2012 / Accepted: 31 January 2012 / Published: 13 February 2012
View Full-Text   |   Download PDF [1302 KB, uploaded 13 February 2012]   |   Browse Figures

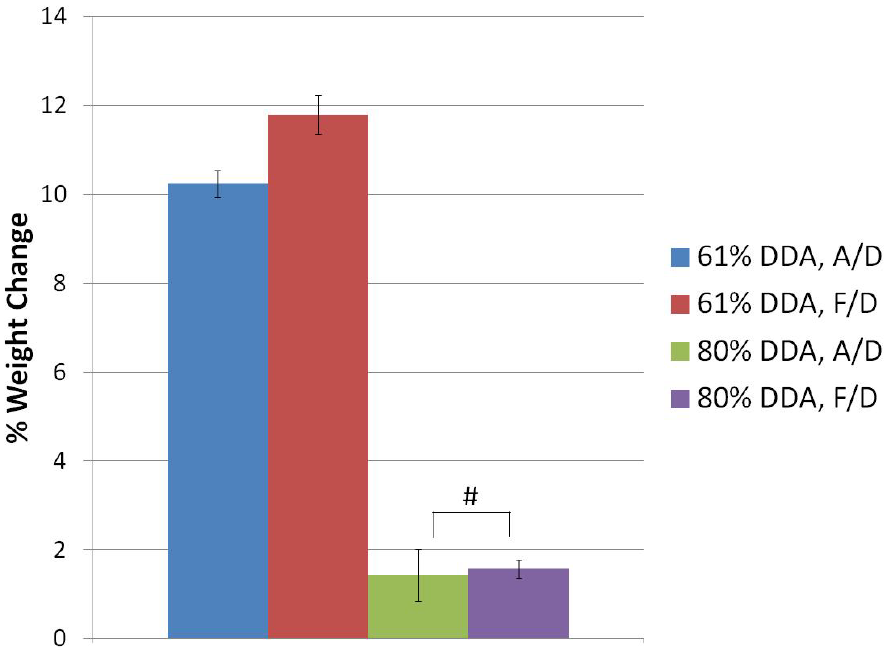

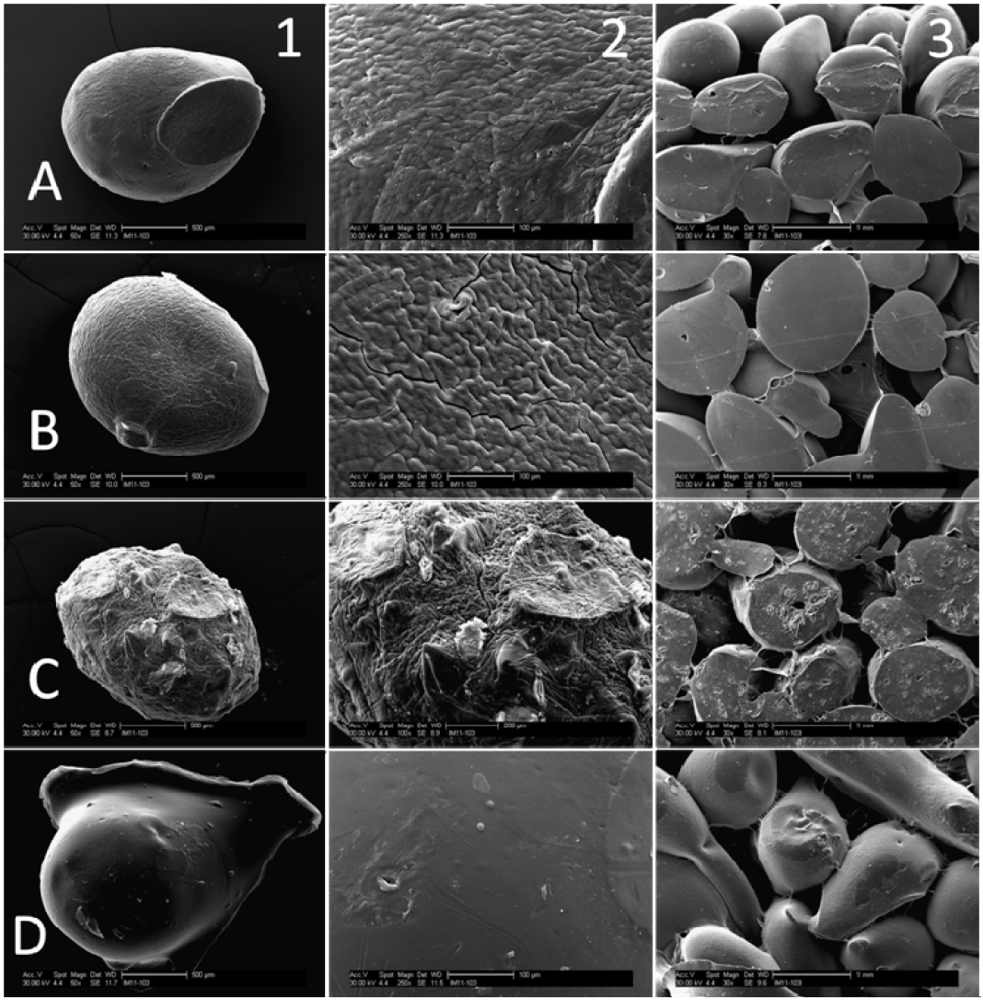

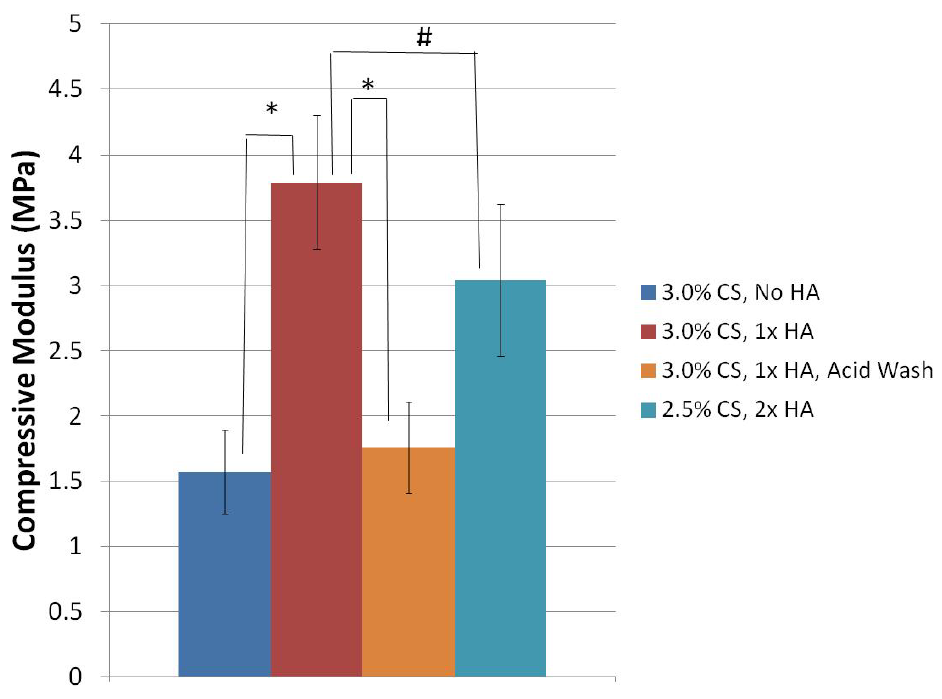

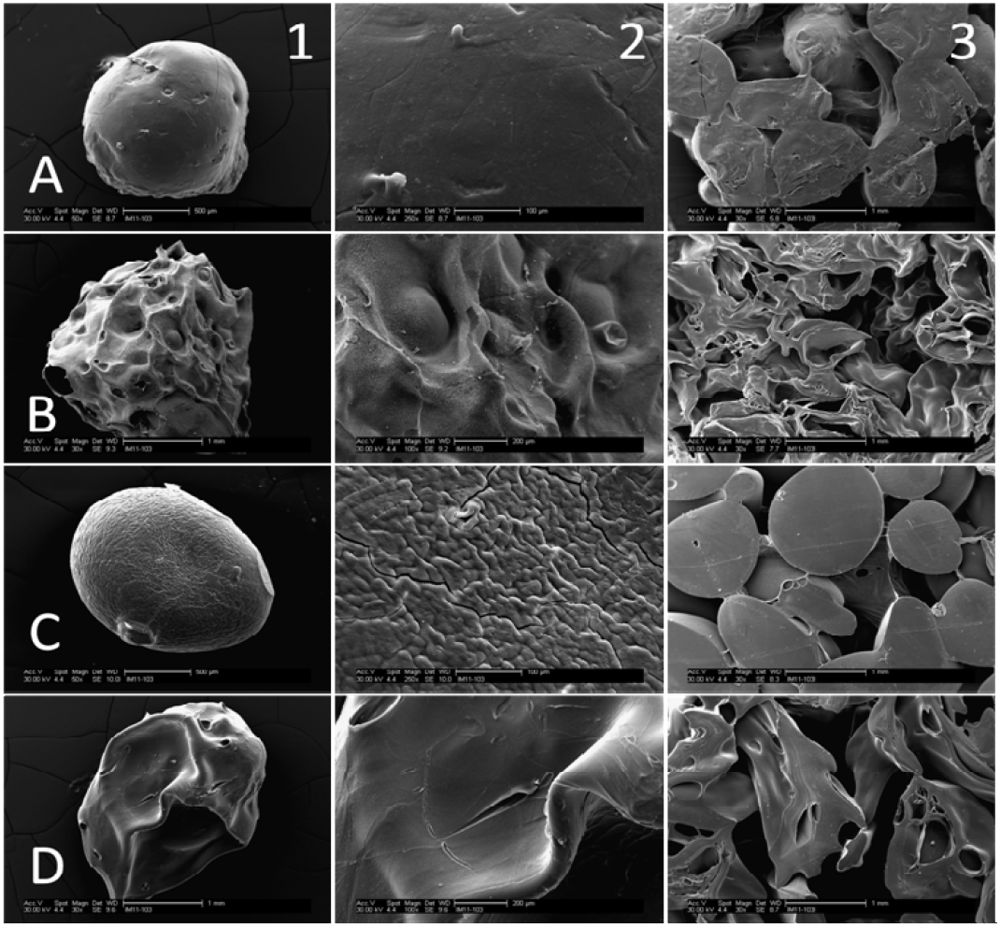

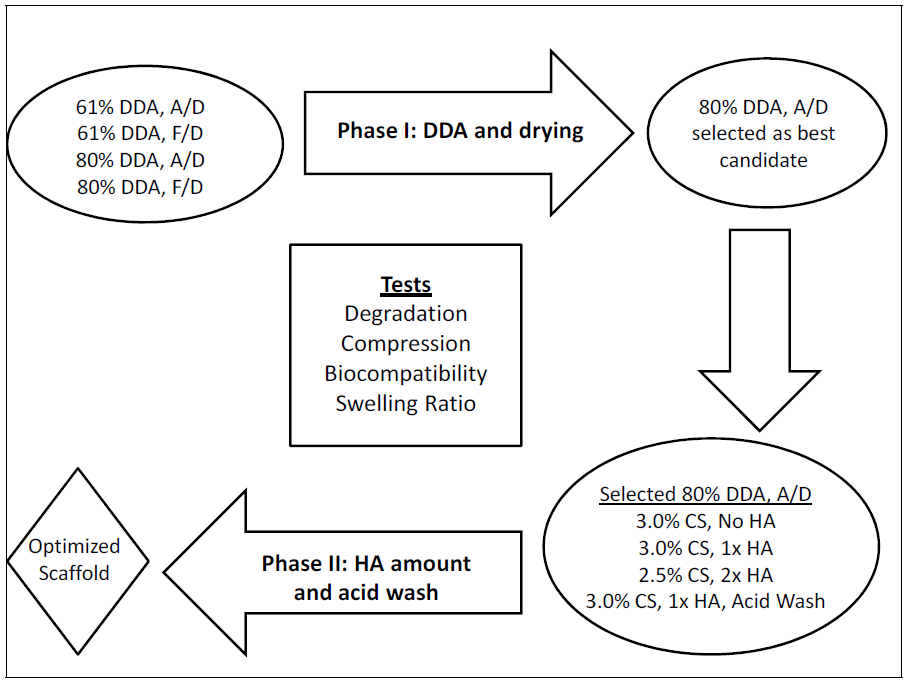

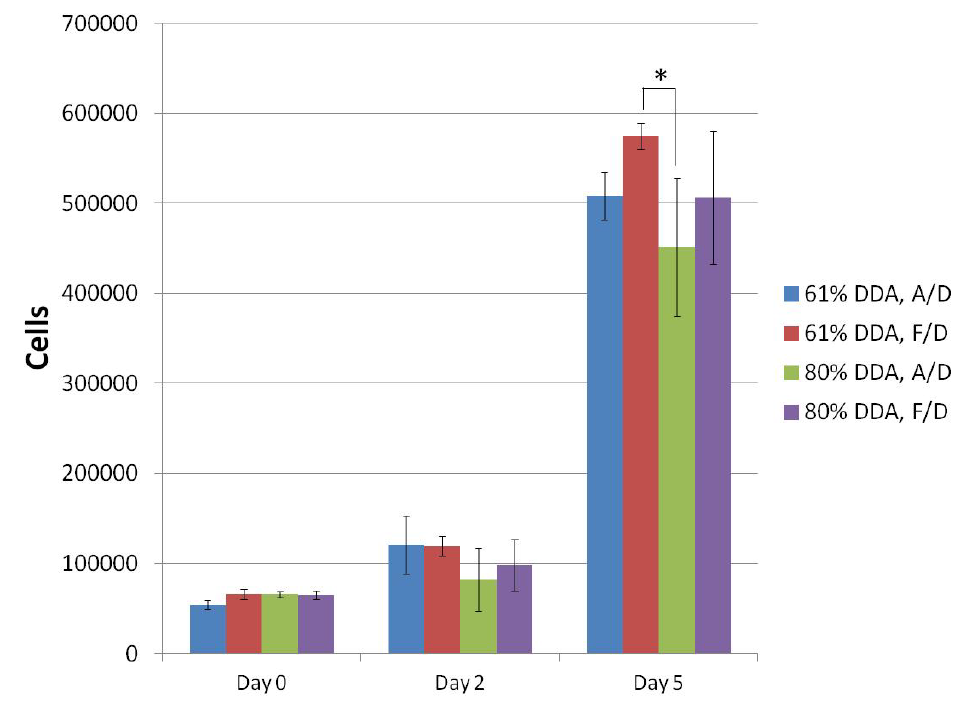

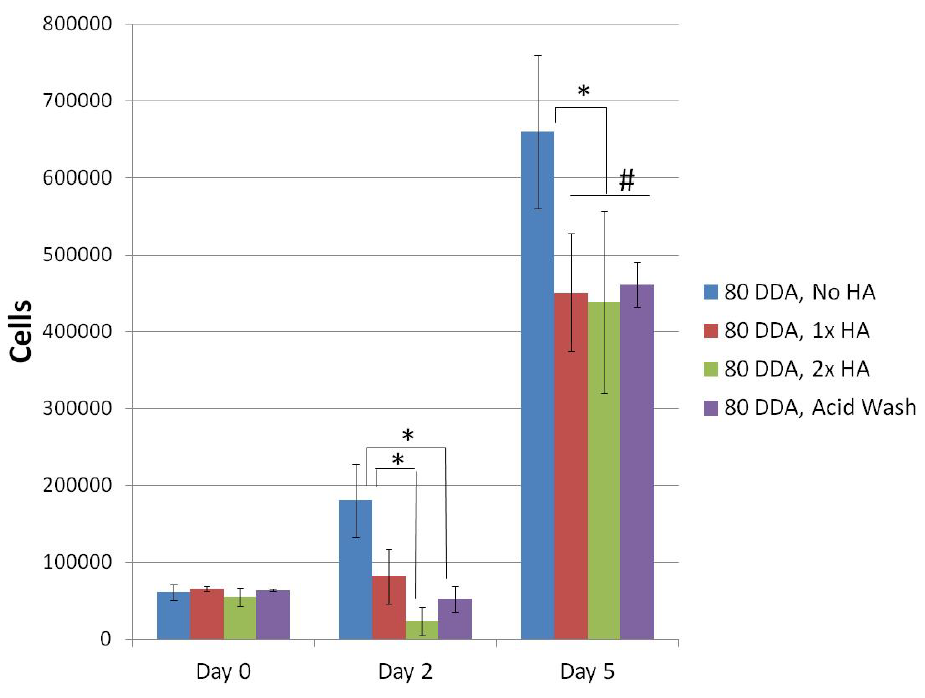

Composite chitosan-nano-hydroxyapatite microspheres and scaffolds prepared using a co-precipitation method have shown potential for use in bone regeneration. The goal of this research was to improve the functional properties of the composite scaffolds by modifying the fabrication parameters. The effects of degree of deacetylation (DDA), drying method, hydroxyapatite content and an acid wash on scaffold properties were investigated. Freeze-dried 61% DDA scaffolds degraded faster (3.5 ± 0.5% mass loss) than air-dried 61% DDA scaffolds and 80% DDA scaffolds, but had a lower compressive modulus of 0.12 ± 0.01 MPa. Air-dried 80% DDA scaffolds displayed the highest compressive modulus (3.79 ± 0.51 MPa) and these scaffolds were chosen as the best candidate for use in bone regeneration. Increasing the amount of hydroxyapatite in the air-dried 80% DDA scaffolds did not further increase the compressive modulus of the scaffolds. An acid wash procedure at pH 6.1 was found to increase the degradation of air-dried 80% DDA scaffolds from 1.3 ± 0.1% to 4.4 ± 0.4%. All of the formulations tested supported the proliferation of SAOS-2 cells.
Keywords: bone regeneration; chitosan; hydroxyapatite; tissue engineering bone regeneration; chitosan; hydroxyapatite; tissue engineering
This is an open access article distributed under the Creative Commons Attribution License (CC BY) which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Share & Cite This Article

Further Mendeley | CiteULike
Export to BibTeX |
EndNote |
MDPI and ACS Style

Reves, B.T.; Jennings, J.A.; Bumgardner, J.D.; Haggard, W.O. Preparation and Functional Assessment of Composite Chitosan-Nano-Hydroxyapatite Scaffolds for Bone Regeneration. J. Funct. Biomater. 2012, 3, 114-130.

View more citation formats

Related Articles

Article Metrics


[Return to top]
J. Funct. Biomater. EISSN 2079-4983 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
