J. Mar. Sci. Eng. 2014, 2(1), 140-158; doi:10.3390/jmse2010140

Article
A Numerical Implementation of a Nonlinear Mild Slope Model for Shoaling Directional Waves
Justin R. Davis *, Alex Sheremet , Miao Tian and Saurabh Saxena
Department of Civil and Coastal Engineering, Engineering School of Sustainable Infrastructure & Environment, University of Florida, Gainesville, FL 32611, USA; E-Mails: alex.sheremet@essie.ufl.edu (A.S.); mtian04.18@ufl.edu (M.T.); saurabh3006@ufl.edu (S.S.)
*
Author to whom correspondence should be addressed; E-Mail: justin.r.davis@essie.ufl.edu; Tel.: +1-352-392-1436 (ext. 1528).
Received: 3 December 2013; in revised form: 25 January 2014 / Accepted: 8 February 2014 /
Published: 25 February 2014

Abstract

: We describe the numerical implementation of a phase-resolving, nonlinear spectral model for shoaling directional waves over a mild sloping beach with straight parallel isobaths. The model accounts for non-linear, quadratic (triad) wave interactions as well as shoaling and refraction. The model integrates the coupled, nonlinear hyperbolic evolution equations that describe the transformation of the complex Fourier amplitudes of the deep-water directional wave field. Because typical directional wave spectra (observed or produced by deep-water forecasting models such as WAVEWATCH III™) do not contain phase information, individual realizations are generated by associating a random phase to each Fourier mode. The approach provides a natural extension to the deep-water spectral wave models, and has the advantage of fully describing the shoaling wave stochastic process, i.e., the evolution of both the variance and higher order statistics (phase correlations), the latter related to the evolution of the wave shape. The numerical implementation (a Fortran 95/2003 code) includes unidirectional (shore-perpendicular) propagation as a special case. Interoperability, both with post-processing programs (e.g., MATLAB/Tecplot 360) and future model coupling (e.g., offshore wave conditions from WAVEWATCH III™), is promoted by using NetCDF-4/HD5 formatted output files. The capabilities of the model are demonstrated using a JONSWAP spectrum with a cos2s directional distribution, for shore-perpendicular and oblique propagation. The simulated wave transformation under combined shoaling, refraction and nonlinear interactions shows the expected generation of directional harmonics of the spectral peak and of infragravity (frequency <0.05 Hz) waves. Current development efforts focus on analytic testing, development of additional physics modules essential for applications and validation with laboratory and field observations.
Keywords:
triad; nonlinear; mild slope; shoaling; directional; wave model; energy flux

1. Introduction

As waves propagate into shallow water, they change from almost sinusoidal in deep water to a sawtooth like shape in the surf zone. Troughs become wide and shallow; crests peak and lean forward, eventually overturning and breaking. In the spectral domain, this evolution is expressed in energy transfers from the spectral peak to peak harmonics and low frequency (between 0.001 Hz and 0.02 Hz) waves, as well as the development of phase correlations across the spectrum. Wave-shape evolution and the generation of zero-frequency motions (mean flow, wave setup) have significant effects on nearshore sediment transport and inundation.

Modeling nonlinear shoaling is challenging. Off-the-shelf finite-depth spectral models (e.g., SWAN [1]) are typically based on variance balance equations originally developed for deep-water waves [2], and therefore cannot account for phase correlation effects. Describing directional nonlinear wave interactions is problematic in intermediate depth. Shallow water spectra are typically wide (containing harmonics and low frequency waves) precluding the use of simpler weak dispersion approximations (cubic Schrodinger equation e.g., [3,4,5,6] or Boussinesq approximations, e.g., [7,8,9,10]).

The fundamental challenge of modeling nonlinear shoaling in the spectral domain resides in the character of wave interactions. The basis of the spectral representation is the decomposition of the wave field into statistically independent (in the leading order) Fourier modes. For a flat bottom (water depth h = constant), this representation is formally

Jmse 02 00140 i001
where η is the free surface displacement, a is the complex modal amplitude, ω is the radian frequency, and “c.c.” stands for “complex conjugate”. The sum (used here to denote symbolically any type of superposition, either discrete or continuous) is carried out over frequencies (indexed by n). Different directions of propagation are represented here by the wave number vector Kn,m which depends on both the frequency index and an additional index m, specifying, say, the propagation angle. For a given ωn and a given depth h, Equation (1) constrains the modulus of the wave number vector of modulus Kn. The efficiency of wave nonlinearities [3,11] depends on the system of equations describing the resonance state of N interacting modes.

Jmse 02 00140 i002
Jmse 02 00140 i003

Note that Equation (3) is a system of two equations for the components of the horizontal wave number vector. With the additional constraint (Equation (2)), only two of the three scalar equations (Equations (2) and (3)) can be independent. A set of N modes that satisfy Equations (2) and (3) is said to interact resonantly; those that do not are called non-resonant. In the wave evolution equation, the efficiency of resonant N-wave interactions scales like O(εN−1), where ε is the characteristic wave slope. Non-resonant effects are weaker and dynamically less relevant (produce higher order bound waves). Due to the form of the dispersion relation (Equation (1)), the smallest number of modes that can be resonant is N = 4 (quadruplet, or four-wave interaction); triad interactions (N = 3) are non-resonant in any water depth [12]; however, they approach resonance in shallow water.

The statistics of wave evolution can be described in terms of competing effects of dispersion and nonlinearity [13,14]: nonlinearity builds phase correlations and skews the statistical distribution of the wave-field; dispersion breaks them and restores the symmetry of the distribution.

In deep water, the dispersive terms of the evolution equation are of order ε, while the competing leading-order nonlinearity (resonant four-wave interactions) is of order ε3. Consequently, the wave field is Gaussian in the leading order, with its statistics completely determined by second order moments (variance, power spectrum; [2,15]), hence the suitability of models based on energy-balance equations.

As water becomes shallow, dispersion weakens to order ε2 while nonlinearity strengthens. Near-resonant triad interaction (order ε2) becomes the leading order nonlinear mechanism (e.g., [16,17,18,19,20] and many others). The evolution is characterized by the broadening of the spectrum, and the generation of significant phase correlations across the spectrum (wave crests peak, wave fronts steepen). The waves are no longer Gaussian: wave statistics are no longer completely determined by second order moments (power spectrum) alone, and higher order moments and spectra (e.g., bispectra) become important. Evolution depends on both local sea state and wave history (history of phase correlations).

The dynamics of triad interaction in shallow water are poorly (or not at all) implemented in existing numerical models. For example, SWAN [1] arguably the most advanced coastal spectral model, is essentially built on a WAM [15] energy balance structure [2]. It implements a crude and unrealistic triad interaction parameterization [21], limited to approximating collinear second harmonic generation exclusively, with depth dependent interaction coefficients alone (i.e., accounting only for local effects, and not for wave history). Important processes such as infragravity (IG) wave generation, recurrence effects, and spectrum widening are also ignored.

A deterministic, unidirectional but complete triad interaction formulation was first introduced by [16] based on the Boussinesq approximation. Agnon et al. [20] proposed a generalization for arbitrary depth based on the Nonlinear Mild Slope Equation (NMSE, [22,23]). Limited directionality can be introduced using the parabolic approximation (e.g., [24,25,26]). Hyperbolic forms for nearly planar beaches were developed by [20,27,28].

This paper describes the modeling techniques used to implement the hyperbolic form of the NMSE developed by [20,29] for directional three-wave interaction. Development of the model is presented first followed by a demonstration of the model’s capabilities for shore-perpendicular and oblique wave propagation. Finally, a summary of the work is presented along with a discussion of future enhancements to the model.

2. Model Development

2.1. Nearshore Directional Waves

In Equation (1), the directionality of mode n is expressed by the direction of the wave number K. The wave number vector is an invariant of propagation in deep water, and can be used to label directional modes. The wave number is considered an independent variable, with ω given by Equation (1), and modes are identified by the wave number components or, in polar coordinates, by the pair (K,θ), where θ is the angle of propagation. Thus, directional modes are represented by a two-dimensional parameter space (e.g., indices n and m in Equation (1)).

In the nearshore, K is no longer invariant, but the wave frequency typically is. If the beach has straight and parallel isobaths, the alongshore wave number provides a second invariant that can be used to complete the two degrees of freedom necessary for describing directional waves. Therefore, in the nearshore, the Fourier representation of Equation (1) can be replaced by

Jmse 02 00140 i004
Jmse 02 00140 i005
where x and y are the cross- and alongshore coordinates. The independent parameters are, in the approach, the frequency fn (or ωn = 2πfn), and the alongshore wave number κm. The wave number modulus K depends on the frequency through Equation (1), and the cross-shore wave number k is a function of both f and κ through Equation (5). A mode is therefore defined as the pair (fnm)—indexing modes rather than the independent parameters—and mode J is defined as the pair
J = (fjκj)

From Equation (6), for a given frequency f, and at a given cross-shore location x, progressive modes satisfy the condition

κ2K2(f,x)
where K(f,κ) is the local wavenumber modulus, given by the linear dispersion relation, Equation (1). Modes that do not satisfy this relation in some nearshore domain are called trapped modes. The location x0 at which k = K(f,x0) is called the “turning point”. For simple (e.g., monotonic) beach profiles, shoreward of the turning point, trapped modes can acquire oscillatory behavior since K→∞ as h→0.

2.2. A Hyperbolic Nonlinear Mild Slope Equation (NMSE)

The numerical model described here implements the formulation proposed by [27] (see also [20]) for the nonlinear evolution of directional waves over a mildly sloping beach. The stationary nonlinear mild-slope equation can be written as

Jmse 02 00140 i006
Jmse 02 00140 i007
where J, P, and Q are directional Fourier modes in the sense of Equation (6), and cj is the cross-shore component of the model group velocity C. The parameter dj represents dissipation and/or growth processes, such as breaking, wind input, bottom friction, and others. In Equation (8), δ is the Kronecker symbol, for example,
Jmse 02 00140 i008
where the equality J = P has the regular meaning for ordered pairs, i.e., fJ = fP and κJ = κP. Only modes that satisfy the selection criteria given by Equation (10) are allowed to contribute to the nonlinear terms. Triads satisfying J = P + Q (“sum” interaction) are responsible for transferring energy toward high frequencies; difference interactions J = − P + Q transfer energy toward low frequencies. An example of a sum-interaction triad is shown in Figure 1. With the notation, Jmse 02 00140 i017, the interaction coefficient is
Jmse 02 00140 i009

Jmse 02 00140 g001 200

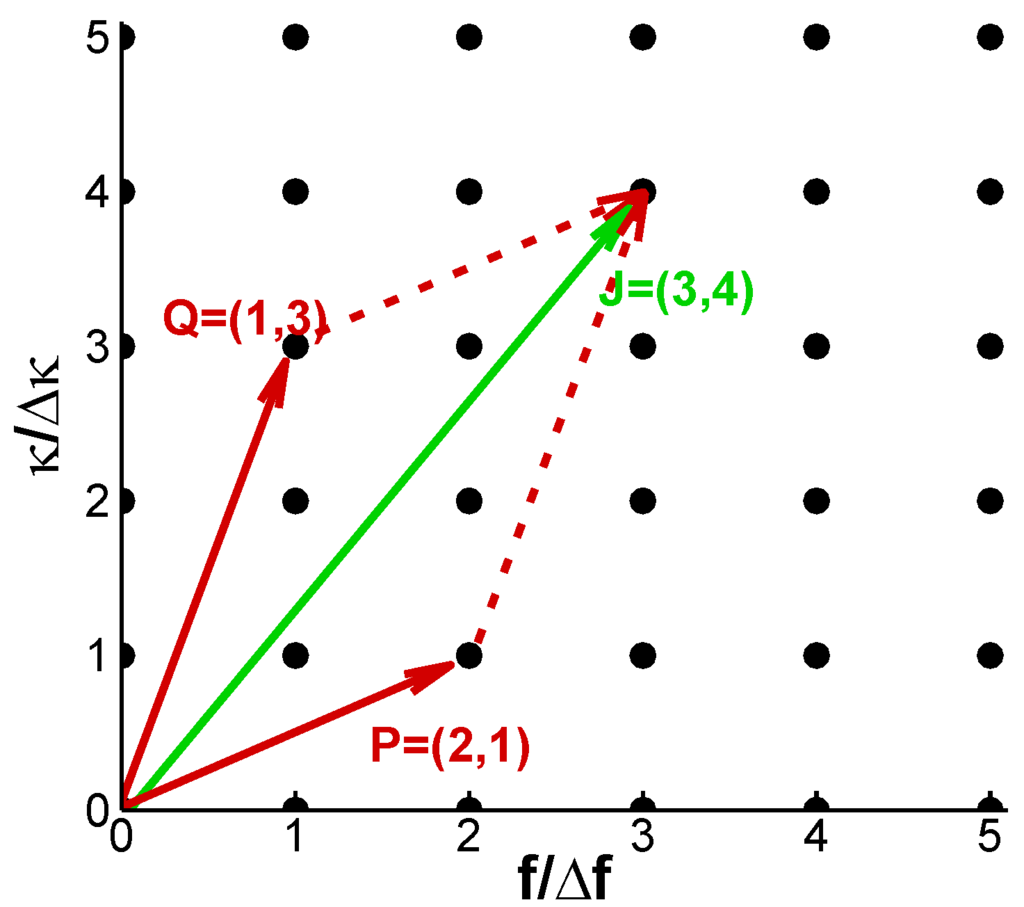

Figure 1. An example of a sum-interaction triad J(j,s) = Q(q,v) + P(p,u), j = q + p and s = v + u with j = 3, q = 1, p = 2 and s = 4, v = 3, u = 1.

Click here to enlarge figure

Figure 1. An example of a sum-interaction triad J(j,s) = Q(q,v) + P(p,u), j = q + p and s = v + u with j = 3, q = 1, p = 2 and s = 4, v = 3, u = 1.
Jmse 02 00140 g001 1024

Equation (8) represents the Nonlinear Mild Slope Equation (NMSE) model. The NMSE is hyperbolic and describes wave shoaling, refraction, and three-wave nonlinear interactions. The unknown function BJ is related to the energy flux in the cross-shore direction, |BJ|2 = |aJ|2cJ. The linear part of the equation describes the conservation of the cross-shore component of the modal energy flux (the alongshore component is conserved trivially). The quadratic term represents the contribution of three-wave interaction to mode evolution and redistributes energy flux between modes.

The numerical implementation of Equation (8) is restricted only to triads that are close enough to resonance, as measured by the “detuning” parameter

Jmse 02 00140 i010
The parameter μ compares the wavelength of the nonlinear term with the wavelength of mode J (on the left-hand side of the equation). If μ >> 1, the oscillations of the nonlinear term are fast and result in a small (second-order) “bound wave” correction to mode J that can be calculated approximately as
Jmse 02 00140 i011

This approximation becomes singular as μ→0. This occurs as h→0, i.e., triads approach resonance as the water becomes shallow. In this case, the oscillation of the nonlinear term is slow and the equation has to be integrated numerically. In principle, the numerical solver should be able to handle triads with arbitrary values of μ. In practice, however, numerical calculations for μ = O(1) are slow because the model has to resolve fast oscillations that yield small contributions to the derivative. Controlling the errors becomes increasingly difficult for larger values of μ and the benefit of the effort becomes negligible. Because of that, an efficient numerical implementation of Equation (8) would limit the integration to triads characterized by μ < μc, for some critical value of μc, with bound waves computed using Equation (13). The numerical simulations shown here use μc = 0.5, while the bound waves are ignored (will be included in future modifications of the code).

Equation (8) is valid strictly for progressive waves. Trapped modes are not allowed to interact in the spatial domain where their cross-shore structure is exponential, but are allowed in the domain where they have oscillatory behavior. The NMSE model is phase resolving, in that it requires initial values for both modal amplitudes and modal phases.

Equation (8) reduces to the unidirectional equation for a mild sloping beach [16,20,25] if all the modes propagate perpendicular to the shoreline, i.e., for all κJ = 0. Numerical simulations using the unidirectional hyperbolic NMSE [27,29] have been extensively verified against both single-triad analytic solutions as well as laboratory and field observations.

In the current implementation of the model, the only dissipation mechanism used is depth-limited wave breaking, based on the frequency dependent parameterization developed by [29,30], with dissipation uniformly distributed over all directions.

2.3. Model Discretization and Computational Grid

In Fourier series representation, the frequency-alongshore wave number is discretized as

Jmse 02 00140 i012
and a directional mode index J is a pair of indices J = (j,s). For a triad of interacting modes J, P, and Q, the selection criterion given in Equation (10) can be written as indicial equations
Jmse 02 00140 i013
where
Jmse 02 00140 i014
for a given f, the effective κ-range of the allowable modes is limited by Equation (7), and can vary with depth. As the maximum extents of f and κ are known, a list of all possible triads can be created before shoreward marching of the solver begins. The matrix of triads involving a given mode J (in the left-hand side of Equation (8)) and all the allowable modes P and Q (right-hand side of Equation (8)) is
Jmse 02 00140 i015
Because the selection criteria (Equation (10)) are invariants of propagation, the interacting triads can be pre-computed for a given (f,κ) matrix.

2.4. Solution Algorithm

The NMSE represents a coupled system of N × (2M + 1) complex ODEs, a hyperbolic initial value problem. These equations are solved using the Vode ODE Solver [31] using a non-stiff Adams method. Although the NMSE is written in complex form, for purposes of solving, the equation is split into real and imaginary components (doubling the number of equations to solve simultaneously) thus enabling the double precision (8 byte) real version of Vode to be used. An overview of the solution algorithm is shown in Figure 2.

Jmse 02 00140 g002 200

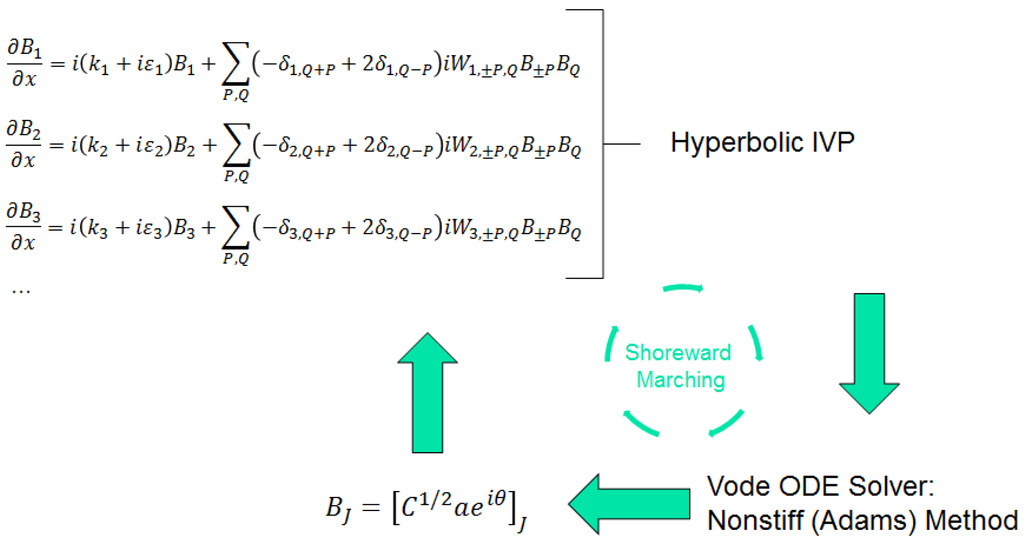

Figure 2. Solution algorithm.

Click here to enlarge figure

Figure 2. Solution algorithm.
Jmse 02 00140 g002 1024

As waves propagate into shallower water, trapped modes (modes for which k = K at some depth) become active and participate in the interaction. A trapped mode is considered inactive (i.e., not allowed to interact with other modes) in the domain where k > K, but becomes active if k < K (i.e., shoreward of the turning point for monotonic beach profiles). Triads containing inactive modes are disabled; therefore, the maximum effective alongshore wave number (κmax = M ∆κ) depends on the local (cross-shore position) depth and frequency. The conditions that determine M are

Jmse 02 00140 i016
where K is determined by the dispersion relation (Equation (1)) and Jmse 02 00140 i018 refers to the integer value.

The maximum effective wave number increases with frequency and decreasing depth. The variation of M with depth and frequency can be handled using two different strategies: (1) Using the minimum depth and highest frequency, the maximum M for the entire domain can be determined; (2) Increase M as the solution marches toward the shore. The current implementation of the model uses Approach 1. This approach will result in sparse matrices (wasting some computer memory) but the triad interaction patterns can be defined once for all runs and there is no need to dynamically modify M as the solution marches toward the shore. For each evaluation of the derivatives, it is only necessary to determine whether all modes of the triad are active. Approach 2 is expected to result in dense matrices but also to significantly complicate coding as array sizes would vary as a function of cross-shore position. As with Approach 1, it is still necessary to determine whether all modes of the triad are active. A pseudocode representation of how the model calculates the right hand side of the NMSE (Equation (8)) is shown in the Appendix.

2.5. Model Input/Output

An overview of how data is imported into and exported out of the model is shown in Figure 3. The code solves the NMSE as a Monte-Carlo simulation. Typically, available offshore wave information consists of directional spectral density of free-surface variance. Offshore modal amplitudes are provided in a simple text file which either contains the complex amplitudes (includes a phase for each mode) for each “realization” to be simulated, or a spectrum can be provided and the model will use a Random Phase Approximation (RPA) to generate phases for a user-defined number of realizations. Model output is provided in a NetCDF-4/HDF5 output format using NetCDF [32]. Metadata provided in the output file is compliant to CF-1.6 [33]. The variable defining the number of realizations being simulated has the NetCDF length “UNLIMITED”. Thus, for a given set of simulation parameters and offshore wave conditions, realizations can be performed independently and their output files easily combined, e.g., with “ncrcat” [34]. It is also noted that while the input file is currently a simple text file, the model could easily be setup to read a NetCDF file using the same metadata convention as the output file.

The NMSE describes the shoaling transformation of a stationary directional wave field from deep into shallow water. The details of the discretization of the frequency and alongshore wave number spaces are user defined. In the current implementation, the model resolves the shortest wave with 10 points (spectral cutoff frequency is 1/5 the Nyquist frequency) and the alongshore wave field at a resolution of 5 m. The solver (Vode) used to integrate Equation (8) uses an adaptive algorithm that implicitly discretizes internally the cross-shore domain according to the accuracy requested for the solution. The user only controls the locations for the solution output. In the simulations presented, for the purpose of describing the details of each realizations (see Section 3), values of the solution are generated every 5 m in the cross-shore.

Jmse 02 00140 g003 200
Figure 3. Model input and output.

Click here to enlarge figure

Figure 3. Model input and output.
Jmse 02 00140 g003 1024
Table 1. Synthetic scenario parameters.

Click here to display table

Table 1. Synthetic scenario parameters.
Shore PerpendicularOblique
DomainOffshore Depth (m)/Position (m)15/0
Onshore Depth (m)/Position (m)3/400
Slope0.03
JONSWAP
Spectrum
Hs (m) (sig. wave height)2
Tp (s) (peak period)15
2s (spreading parameter)50
θp (deg) (peak angle)9060
Number of realizations simulated100
Discretization
Frequency (f)
Δf (hz)0.002
fmax (hz)0.2
N100
Tmin/Tmax (s) (period)5/500
Alongshore (κ)Δκ (1/m)0.001
κmax (1/m)0.03
M/Total(2M + 1)30/61
Lmin/Lmax (m) (wave length)33/1000
Cross-shore (x)Δx (m)3.33
Δh (m)0.1
Number of marching steps121
Temporal (t)Δt (s)0.1
Number of points per Tmin50

3. Nonlinear Shoaling of Two JONSWAP Spectra: Shore-Perpendicular and Oblique Propagation

We demonstrate the capabilities of the model with two shoaling tests over a plane beach of 0.03 slope. The offshore spectra are standard directional JONSWAP spectra propagating shore-perpendicular in the first test, and obliquely in the second. The parameters used here (Table 1) are typical for long Eastern Pacific swells; however, the directional spread is probably exaggerated in the simulations. The JONSWAP spectral shape (maybe not entirely realistic for representing the incoming waves at the deep end of the simulation domain) is used here solely to illustrate the capabilities of the current model and the use of the RPA for simulating the shoaling transformation of a deep-water variance density distribution. Because the JONSWAP spectrum does not contain any variance in the infragravity band, the second-order bound spectrum associated with the deep water swell was computed using Equation (13). A summary of the simulation parameters for both scenarios is shown in Table 1.

Jmse 02 00140 g004 200

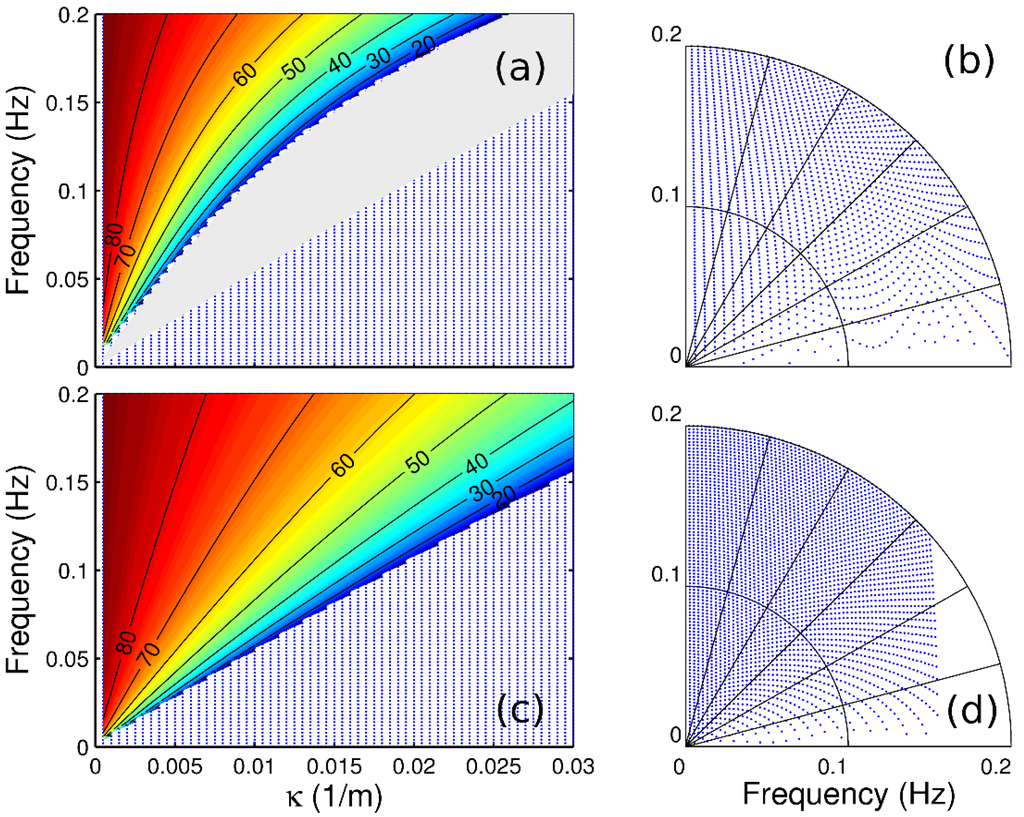

Figure 4. Directional characteristics of the frequency-alongshore wave number (f,κ) representation in comparison with the standard (deep-water) frequency-angle (f,θ) representation, in 15 m water depth (upper panels) and in 3 m water depth (lower panels). (a,c) The (f,κ) representation; contours show the corresponding angles of propagation with respect to shore-parallel. The shaded area in (a) marks trapped-wave modes (i.e., modes that have the turning point between 15 m and 3 m water depth). The nodes of the (f,κ) grid are marked by blue points.

Click here to enlarge figure

Figure 4. Directional characteristics of the frequency-alongshore wave number (f,κ) representation in comparison with the standard (deep-water) frequency-angle (f,θ) representation, in 15 m water depth (upper panels) and in 3 m water depth (lower panels). (a,c) The (f,κ) representation; contours show the corresponding angles of propagation with respect to shore-parallel. The shaded area in (a) marks trapped-wave modes (i.e., modes that have the turning point between 15 m and 3 m water depth). The nodes of the (f,κ) grid are marked by blue points.
Jmse 02 00140 g004 1024

For input-output purposes, the numerical model requires mapping the directional wave information between the model (f,κ) grid and the standard frequency-angle representation (f,θ) (e.g., as used in WAVEWATCH III™ [35]). The existence of turning points makes the implementation of the mapping procedure sensitive to the bathymetric profile. For a given frequency, turning points (Section 2.1) are cross-shore locations where additional modes are introduced into the system (become active). Their effect on the geometry of the computational grid is illustrated in Figure 4. The active computational grid is limited to the band defined by |κ| < K(f,h), where K(f,h) is given by Equation (1). In deep water, this is a narrow band (widening toward higher frequencies, Figure 4a). As the water depth decreases, the band widens (additional modes become active), and becomes triangular in shape (Figure 4c) and extends into higher alongshore wave numbers as the shallow water boundary approaches |κ| < Kshallow = ω(gh)−1/2. As the limiting alongshore wave number increases, the frequency-angle representation degrades slightly (in Figure 4d, the mapped grid does not cover the entire available (f,θ) domain).

Designing the computational grid for applications poses thus the additional challenge of balancing the conflicting needs for resolving wide propagation angles (large limiting κ) at high resolution (small κ increments), and for keeping the number of triads described reasonably small for numerical integrations. The need for wide angles is non-trivial: for example, it is straightforward to check that directional difference triads containing two nearly collinear, shore-normal swell modes can excite a low-frequency wave that propagates nearly parallel to the shoreline. Note also that a significant fraction of the computational grid is never used.

Mapping the directional spectral distribution between (f,κ) and (f,θ) spaces, shown in Figure 5, consists of two steps in each direction: a direct mapping of the modal amplitudes from the uniform grid (or angle, Figure 5a or alongshore wave number, Figure 5c) onto a non-uniform one in the complementary space (Figure 5b or Figure 5d), and a re-sampling (interpolation) of the non-uniformly spaced values into the uniform grid. All transformations are designed to preserve the frequency spectrum (i.e., the directional spectrum integrated over either angles or wave number).

Jmse 02 00140 g005 200
Figure 5. Illustration of the mapping of the directional JONSWAP spectrum from the (f,θ) space onto the (f,κ) space, and back for the shore-perpendicular spectrum. Upper panels: directional spectra in different representations; lower panels: corresponding frequency spectrum. The transformation preserves the frequency spectrum. (a) Standard (f,θ) representation of the JONSWAP directional spectrum at 15 m isobaths; (b) Direct map from (f,θ) to (f,κ). The resulting grid in κ is not uniform; (c) Spectrum re-sampled in the uniform κ grid used for computation; (d) Spectrum directly mapped back to (f,θ) space. The angle grid is not uniform. Units of the variance density contour plots are arbitrary.

Click here to enlarge figure

Figure 5. Illustration of the mapping of the directional JONSWAP spectrum from the (f,θ) space onto the (f,κ) space, and back for the shore-perpendicular spectrum. Upper panels: directional spectra in different representations; lower panels: corresponding frequency spectrum. The transformation preserves the frequency spectrum. (a) Standard (f,θ) representation of the JONSWAP directional spectrum at 15 m isobaths; (b) Direct map from (f,θ) to (f,κ). The resulting grid in κ is not uniform; (c) Spectrum re-sampled in the uniform κ grid used for computation; (d) Spectrum directly mapped back to (f,θ) space. The angle grid is not uniform. Units of the variance density contour plots are arbitrary.
Jmse 02 00140 g005 1024

The evolution of a total of N × (2M + 1) = 100 × 61 = 6100 possible (however, some high-frequency trapped modes never become active) directional modes are simulated (Figure 4). For each scenario, simulations are performed with both the full, and the linearized version of Equation (8). Note that the present implementation of the model only includes the linear and triad nonlinear evolution “engine” and wave breaking, with no additional physics (e.g., wave setup), that would be essential for realistic modeling of wave propagation in the nearshore.

The simulations shown here test the representation capability of the (f,κ) grid as well as illustrate the directional effects of nonlinear shoaling. The initial spectra at the deep-water end of the domain (15 m water depth) are shown in Figure 6a and Figure 7a. Linear runs (Figure 6b and Figure 7b) show the expected refraction effect of decreasing directional spread, with modes slowly turning around toward shore-perpendicular propagation. The main nonlinear effects (clearly visible in Figure 6c and Figure 7c) are energy transfers from the peak to (a) peak harmonics, and (b) low-frequency infragravity modes. For oblique propagation, artifacts of the resolution of the k-grid are visible in the deep-water spectrum (Figure 7a), but become less severe as the waves refract and the grid coverage in the frequency-angle space increases with decreasing water depth. Note that infragravity waves (frequency < 0.05 Hz) are significantly more directionally spread (approximately 60 degrees) than the rest of the spectrum (approximately 30 degrees for swell and 15 degrees for the shortest waves represented).

Jmse 02 00140 g006 200

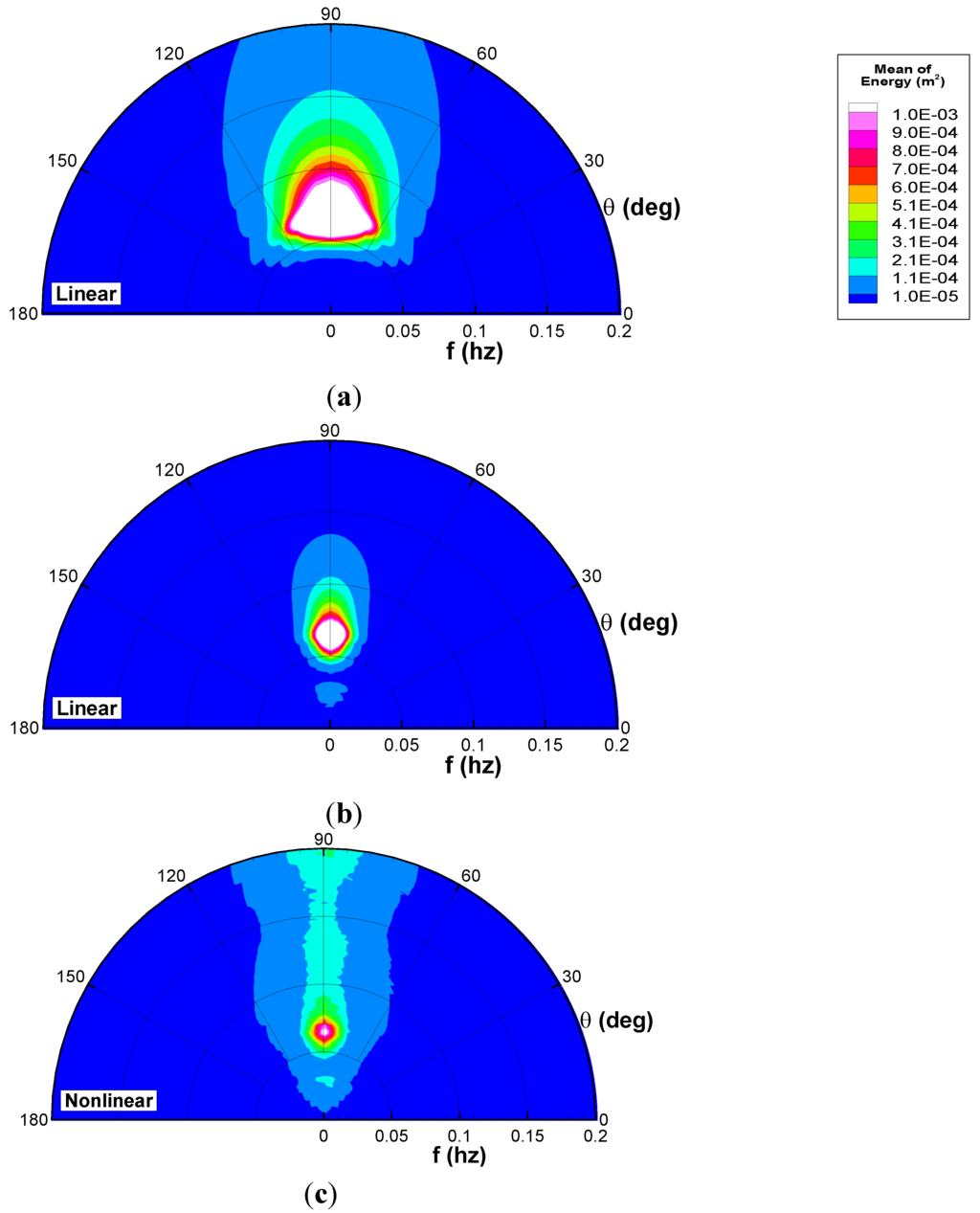

Figure 6. Evolution of the directional shore-perpendicular JONSWAP spectrum (see Table 1). (a) Initial spectrum in 15 m water depth; (b) Linear evolution (3 m water depth); (c) Nonlinear evolution (3 m water depth). Simulations are averages over N = 100 random phase realizations.

Click here to enlarge figure

Figure 6. Evolution of the directional shore-perpendicular JONSWAP spectrum (see Table 1). (a) Initial spectrum in 15 m water depth; (b) Linear evolution (3 m water depth); (c) Nonlinear evolution (3 m water depth). Simulations are averages over N = 100 random phase realizations.
Jmse 02 00140 g006 1024
Jmse 02 00140 g007 200

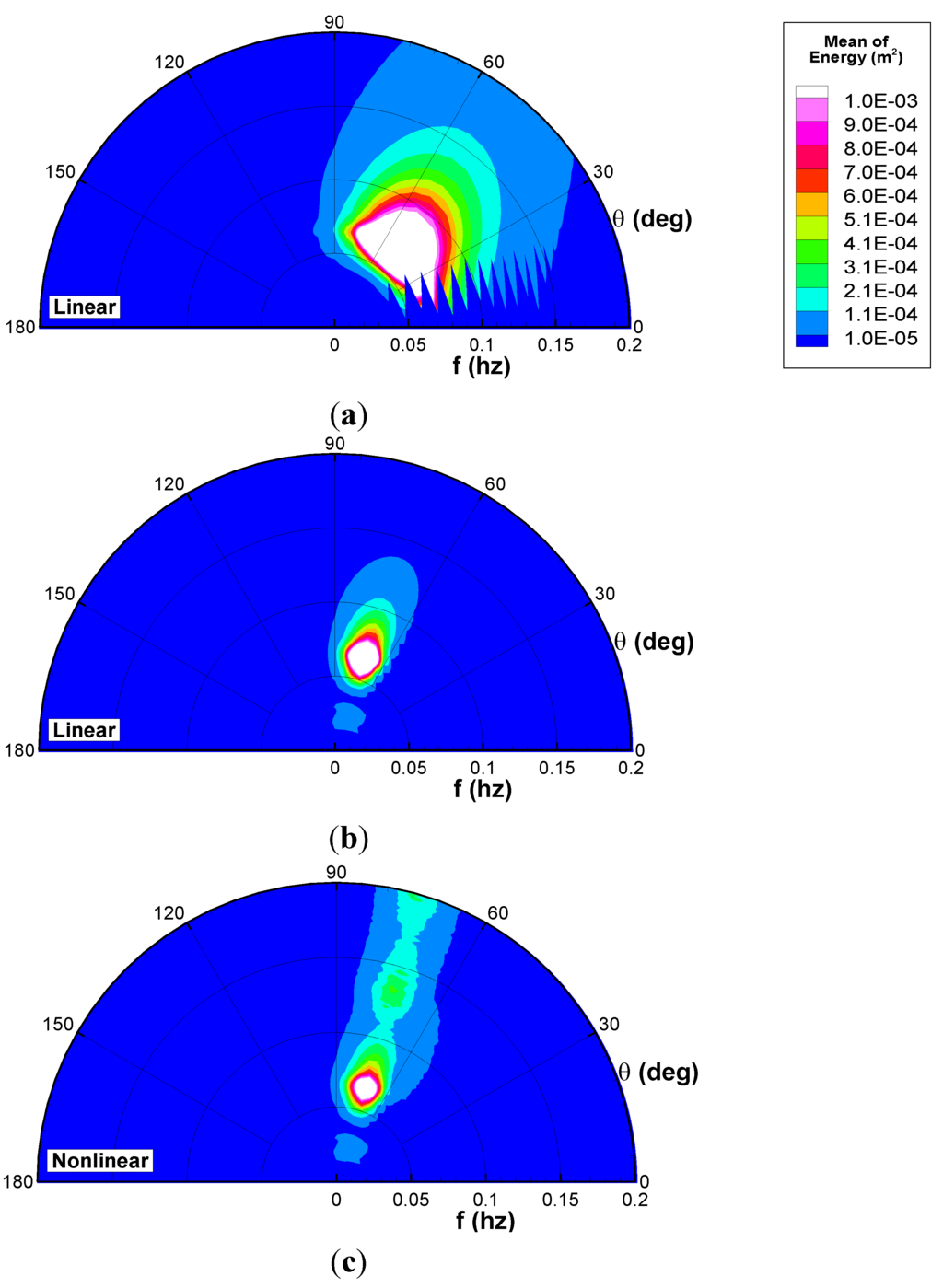

Figure 7. Evolution of the directional oblique JONSWAP spectrum (see Table 1). (a) Initial spectrum in 15 m water depth; (b) Linear evolution (3 m water depth); (c) Nonlinear evolution (3 m water depth). Simulations are averages over N = 100 random phase realizations.

Click here to enlarge figure

Figure 7. Evolution of the directional oblique JONSWAP spectrum (see Table 1). (a) Initial spectrum in 15 m water depth; (b) Linear evolution (3 m water depth); (c) Nonlinear evolution (3 m water depth). Simulations are averages over N = 100 random phase realizations.
Jmse 02 00140 g007 1024

Figure 8 and Figure 9 show the free surface elevation corresponding to one of the realizations used to estimate the spectra in Figure 6 and Figure 7. The figures illustrate the change in the wave shape caused by the excitation of the phase-correlated harmonics of the spectral peak. A comparison of the linear (Figure 8a) and nonlinear (Figure 8b) oblique wave field clearly shows the steepening of the wave front. Both the shore-perpendicular and the oblique propagation realizations generate a significant infragravity field, with heights between 0.2 and 0.4 m. This effect is mainly a nonlinear shoaling effect (the linear shoaling of the initial bound infragravity band accounts for about 5 cm of the heights).

Jmse 02 00140 g008 200

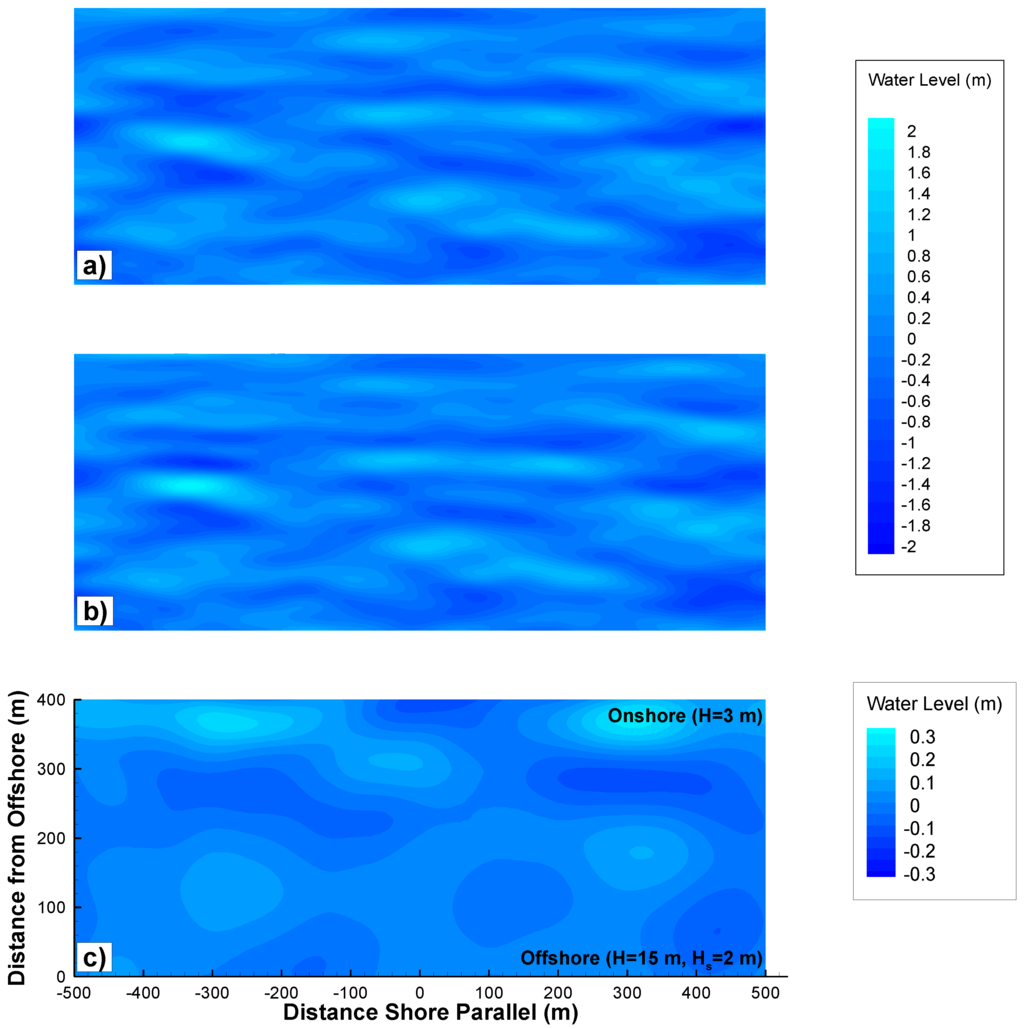

Figure 8. Contours of the simulated free surface elevation field for shore-perpendicular propagation, corresponding to the spectrum shown in Figure 6 at a fixed (arbitrary) time. The parameters of the offshore spectrum are given in Table 1. (a) Linear model; (b) Nonlinear model; (c) Infragravity waves (f < 0.05 Hz) generated during nonlinear shoaling.

Click here to enlarge figure

Figure 8. Contours of the simulated free surface elevation field for shore-perpendicular propagation, corresponding to the spectrum shown in Figure 6 at a fixed (arbitrary) time. The parameters of the offshore spectrum are given in Table 1. (a) Linear model; (b) Nonlinear model; (c) Infragravity waves (f < 0.05 Hz) generated during nonlinear shoaling.
Jmse 02 00140 g008 1024
Jmse 02 00140 g009 200
Figure 9. Contours of the simulated free surface elevation field for oblique propagation, corresponding to the spectrum shown in Figure 7 at a fixed (arbitrary) time. The parameters of the offshore spectrum are given in Table 1. (a) Linear model; (b) Nonlinear model; (c) Infragravity waves (f < 0.05 Hz) generated during nonlinear shoaling.

Click here to enlarge figure

Figure 9. Contours of the simulated free surface elevation field for oblique propagation, corresponding to the spectrum shown in Figure 7 at a fixed (arbitrary) time. The parameters of the offshore spectrum are given in Table 1. (a) Linear model; (b) Nonlinear model; (c) Infragravity waves (f < 0.05 Hz) generated during nonlinear shoaling.
Jmse 02 00140 g009 1024

4. Summary and Conclusions

Based on the equations derived in [27], a Fortran 95/2003 code was written to solve the NMSE. The model (as of Version 1-38) contains approximately 32,000 lines of code, 60% of which is the Vode ODE solver and 8% are testing routines. The model has been compiled using several different Fortran compilers (GNU 4.8 and Intel 2013) and executed under several different LINUX platforms (Ubuntu and RHEL). This implementation of the NMSE is a phase-resolving, spectral (f,k) model that describes wave evolution over a beach with straight and parallel isobaths. The model solves set of hyperbolic equations for a two-dimensional surface gravity wave field approaching a beach accounting for non-linear, quadratic triad interactions, shoaling and refraction. The capabilities of the model are illustrated for shore-perpendicular and oblique propagation of a directional JONSWAP spectrum. The results show wide-angle infragravity (IG) generation as well as significant energy transfers toward high-frequencies modes. The runs demonstrate the essential role directionality plays in nonlinear shoaling, especially in the generation of directionally spread infragravity waves.

With the “engine” of a wave model developed, future research goals include: (1) Reformulating the governing equation from its current mathematically relevant form to one which is more numerically adept. By solving an equation better suited to floating point arithmetic (e.g., a form which minimizes rounding error), we should be able to improve the model’s stability, accuracy and energy flux conservation; (2) Adding modules for relevant physics such as setup (feedback to the total depth) and wind effects; (3) Performing additional numerical tests. Comparing the model to known analytic solutions (e.g., individual triad interactions) as well as observational directional wave data will provide for better model verification and validation. Additional IG scenarios will let us better understand how they are generated. Finally, future applications of the model will include making it publicly available to the community as well as incorporating it into phase-averaged deep-water models such as WAVEWATCH III™ using the RPA mechanism described here.

Acknowledgments

This research is supported by U. S. Office of Naval Research Grants N00014-10-1-0805, N00014-10-1-0389, N00014-12-1-0220, and N00014-13-1-0620, the U. S. Strategic Environmental Research and Development Program (SERDP) Grant N00173-13-1-G012, and the University of Florida. The authors also wish to acknowledge the University of Florida Research Computing for providing computational resources and support that have contributed to the research results reported in this publication. URL: http://researchcomputing.ufl.edu.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Booij, N.; Ris, R.C.; Holthuijsen, L.H. A third-generation wave model for coastal regions: 1. Model description and validation. J. Geophys. Res. 1999, 104, 7649–7666, doi:10.1029/98JC02622.
  2. Hasselmann, K.; Munk, W.; MacDonald, G. Bispectra of Ocean Waves. In Time Series Analysis; Rosenblatt, M., Ed.; John Wiley & Sons, Inc.: New York, NY, USA, 1963; pp. 125–139.
  3. Zakharov, V.E. Stability of periodic waves of finite amplitude on the surface of a deep fluid. J. Appl. Mech. Tech. Phys. 1972, 9, 190–194, doi:10.1007/BF00913182.
  4. Hasimoto, H.; Ono, H. Nonlinear modulation of gravity waves. J. Phys. Soc. Jpn. 1972, 33, 805–811, doi:10.1143/JPSJ.33.805.
  5. Yuen, H.C.; Lake, B.M. Nonlinear deep water waves: Theory and experiment. Phys. Fluids 1975, 18, 956–960, doi:10.1063/1.861268.
  6. Dysthe, K.B. Note on a modification to the nonlinear schrodinger equation for application to deep water waves. Proc. R. Soc. Math. Phys. Eng. Sci. 1979, 369, 105–114, doi:10.1098/rspa.1979.0154.
  7. Boussinesq, J. Theory of waves and swell propagated in a long horizontal rectangular canal, and imparting to the liquid contained in this canal approximately equal velocities from the surface to the bottom. J. Math. Pures Appl. 1872, 17, 55–108.
  8. Madsen, P.A.; Murray, R.; Sørensen, O.R. A new form of the Boussinesq equations with improved linear dispersion characteristics. Coast. Eng. 1991, 15, 371–388, doi:10.1016/0378-3839(91)90017-B.
  9. Schäffer, H.A.; Madsen, P.A. Further enhancements of Boussinesq-type equations. Coast. Eng. 1995, 26, 1–14, doi:10.1016/0378-3839(95)00017-2.
  10. Wei, G.; Kirby, J.T.; Grilli, S.T.; Subramanya, R. A fully nonlinear Boussinesq model for surface waves. Part 1. Highly nonlinear unsteady waves. J. Fluid Mech. 1995, 294, 71–92, doi:10.1017/S0022112095002813.
  11. Zakharov, V.E.; L’vov, V.S.; Falkovich, G. Kolmogorov Spectra of Turbulence; Springer-Verlag: Berlin, Germany; New York, NY, USA, 1992.
  12. Phillips, O.M. On the dynamics of unsteady gravity waves of finite amplitude Part 1. The elementary interactions. J. Fluid Mech. 1960, 9, 193–217, doi:10.1017/S0022112060001043.
  13. Benney, D.J.; Saffman, P.G. Nonlinear interactions of random waves in a dispersive medium. Proc. R. Soc. Math. Phys. Eng. Sci. 1966, 289, 301–320, doi:10.1098/rspa.1966.0013.
  14. Newell, A.C.; Aucoin, P.J. Semidispersive wave systems. J. Fluid Mech. 1971, 49, 593–609, doi:10.1017/S0022112071002271.
  15. Komen, G.J.; Cavaleri, L.; Donelan, M.; Hasselmann, K.; Hasselmann, S.; Janssen, P.A.E.M. Dynamics and Modelling of Ocean Waves; Cambridge University Press: Cambridge, UK, 1994.
  16. Freilich, M.H.; Guza, R.T. Nonlinear Effects on Shoaling Surface Gravity Waves. Philos. Trans. R. Soc. Math. Phys. Eng. Sci. 1984, 311, 1–41, doi:10.1098/rsta.1984.0019.
  17. Elgar, S.; Guza, R.T. Observations of bispectra of shoaling surface gravity waves. J. Fluid Mech. 1985, 161, 425–448, doi:10.1017/S0022112085003007.
  18. Elgar, S.; Sebert, G. Statistics of bicoherence and biphase. J. Geophys. Res. 1989, 94, 10993–10998, doi:10.1029/JC094iC08p10993.
  19. Elgar, S.; Freilich, M.H.; Guza, R.T. Model-data comparisons of moments of nonbreaking shoaling surface gravity waves. J. Geophys. Res. 1990, 95, 16055–16063, doi:10.1029/JC095iC09p16055.
  20. Agnon, Y.; Sheremet, A.; Gonsalves, J.; Stiassnie, M. Nonlinear evolution of a unidirectional shoaling wave field. Coast. Eng. 1993, 20, 29–58, doi:10.1016/0378-3839(93)90054-C.
  21. Eldeberky, Y.; Battjes, J.A. Parameterisation of Triad Interactions in Wave Energy Models. In Proceedings of the Coastal Dynamics ’95, Gdańsk, Poland, 4–8 September 1995; American Society of Civil Engineers: New York, NY, USA, 1995; pp. 140–148.
  22. Berkhoff, J.C.W. Computation of Combined Refraction—Diffraction. In Proceedings of the Thirteenth Conference on Coastal Engineering, Vancouver, British Columbia, Canada, 10–14 July 1972; American Society of Civil Engineers: New York, NY, USA, 1972; pp. 471–490.
  23. Chamberlain, P.G.; Porter, D. The modified mild-slope equation. J. Fluid Mech. 1995, 291, 393–407.
  24. Kadomtsev, B.B.; Petviashvili, V.I. On the stability of solitary waves in weakly dispersing media. Sov. Phys. Dokl. 1970, 15, 539–541.
  25. Kaihatu, J.M.; Kirby, J.T. Nonlinear transformation of waves in finite water depth. Phys. Fluids 1995, 7, 1903–1914, doi:10.1063/1.868504.
  26. Toledo, Y. The oblique parabolic equation model for linear and nonlinear wave shoaling. J. Fluid Mech. 2013, 715, 103–133, doi:10.1017/jfm.2012.502.
  27. Agnon, Y.; Sheremet, A. Stochastic nonlinear shoaling of directional spectra. J. Fluid Mech. 1997, 345, 79–99, doi:10.1017/S0022112097006137.
  28. Janssen, T.T.; Herbers, T.H.C.; Battjes, J.A. Evolution of ocean wave statistics in shallow water: Refraction and diffraction over seafloor topography. J. Geophys. Res. 2008, 113, doi:10.1029/2007JC004410.
  29. Sheremet, A.; Kaihatu, J.M.; Su, S.-F.; Smith, E.R.; Smith, J.M. Modeling of nonlinear wave propagation over fringing reefs. Coast. Eng. 2011, 58, 1125–1137, doi:10.1016/j.coastaleng.2011.06.007.
  30. Janssen, T.T.; Battjes, J.A. A note on wave energy dissipation over steep beaches. Coast. Eng. 2007, 54, 711–716, doi:10.1016/j.coastaleng.2007.05.006.
  31. Brown, P.N.; Byrne, G.D.; Hindmarsh, A.C. VODE: A variable-coefficient ODE solver. SIAM J. Sci. Stat. Comput. 1989, 10, 1038–1051, doi:10.1137/0910062.
  32. Network Common Data Form (NetCDF). Available online: http://www.unidata.ucar.edu/software/netcdf/ (accessed on 20 November 2013).
  33. Eaton, B.; Gregory, J.; Drach, B.; Taylor, K.; Hankin, S.; Caron, J.; Signell, R.; Bentley, P.; Rappa, G.; Höck, H.; et al. NetCDF Climate and Forecast (CF) Metadata Conventions; Lawrence Livermore National Laboratory: Livermore, CA, USA, 2011; p. 124.
  34. NetCDF Operators (NCO)Open Source. 2013. Available online: http://nco.sourceforge.net/ (accessed on 13 November 2013).
  35. Tolman, H. User Manual and System Documentation of WAVEWATCH III; National Oceanic and Atmospheric Administration, U.S. Department of Commerce: Camp Springs, MD, USA, 2009.

Appendix: Pseudocode for Nonlinear Derivatives

#########################################################################
# Performed once
# Determine the list of all possible triads
loop: |s| <= M
 loop: |u| <= M
  loop: |v| <= M
   if (s = u + v) then
    Set max to the maximum value of s, u, and v.
    Add s, u, and v to list of triads for Mmax
   end
  end
 end
end
#########################################################################
# Performed once for each evaluation of the right hand side of the NMSE
# Determine if mode J(fj κs) exists where fj = jΔf and κs = s Δ κ,
loop: 1 <= j <= N
 Calculate Mlocal
 loop: |s| <= Mlocal
  Determine if mode J(j,s) exists
 end
end
# Add linear component
loop: 1 <= j <= N
 Calculate Mlocal
 loop: |s| <= Mlocal
  if (mode J(j,s) exists) then
   Add linear contribution (including wave dissipation)
  end
 end
end
# Add nonlinear component (triad interactions)
loop: 1 <= j <= N
 Calculate Mlocal
 # Triad: j=q+p
 loop: 1 <= p <= j-1
  q=j-p
  loop: 0 <= List of triads <= |Mlocal|
   if (modes J(j,s), P(p,u), and Q(q,v) exist) then
    Compute μ
    if (μ < μc) then
     Add nonlinear contribution of triad: J, P, Q
    end
   end
  end
 end
 # Triad: j=q-p
 loop: 1 <= p <= j-1
  q=j+p
  0 <= List of triads <= |Mlocal|
   if (modes J(j,s), P(p,u), and Q(q,v) exist) then
    Compute μ
    if (μ < μc) then
     Add nonlinear contribution of triad: J, P, Q
    end
   end
  end
 end
end
