Appl. Sci. 2018, 8(5), 730; https://doi.org/10.3390/app8050730

Evaluation of Fe-Based Shape Memory Alloy (Fe-SMA) as Strengthening Material for Reinforced Concrete Structures

Department of Civil Engineering, Chungbuk National University, 1 Chungdae-ro, Seowon-Gu, Cheongju, Chungbuk 28644, Korea
*
Author to whom correspondence should be addressed.
Received: 6 April 2018 / Revised: 30 April 2018 / Accepted: 3 May 2018 / Published: 5 May 2018
(This article belongs to the Special Issue Emerging Construction Materials and Sustainable Infrastructure)
View Full-Text   |   Download PDF [5816 KB, uploaded 5 May 2018]   |

Abstract

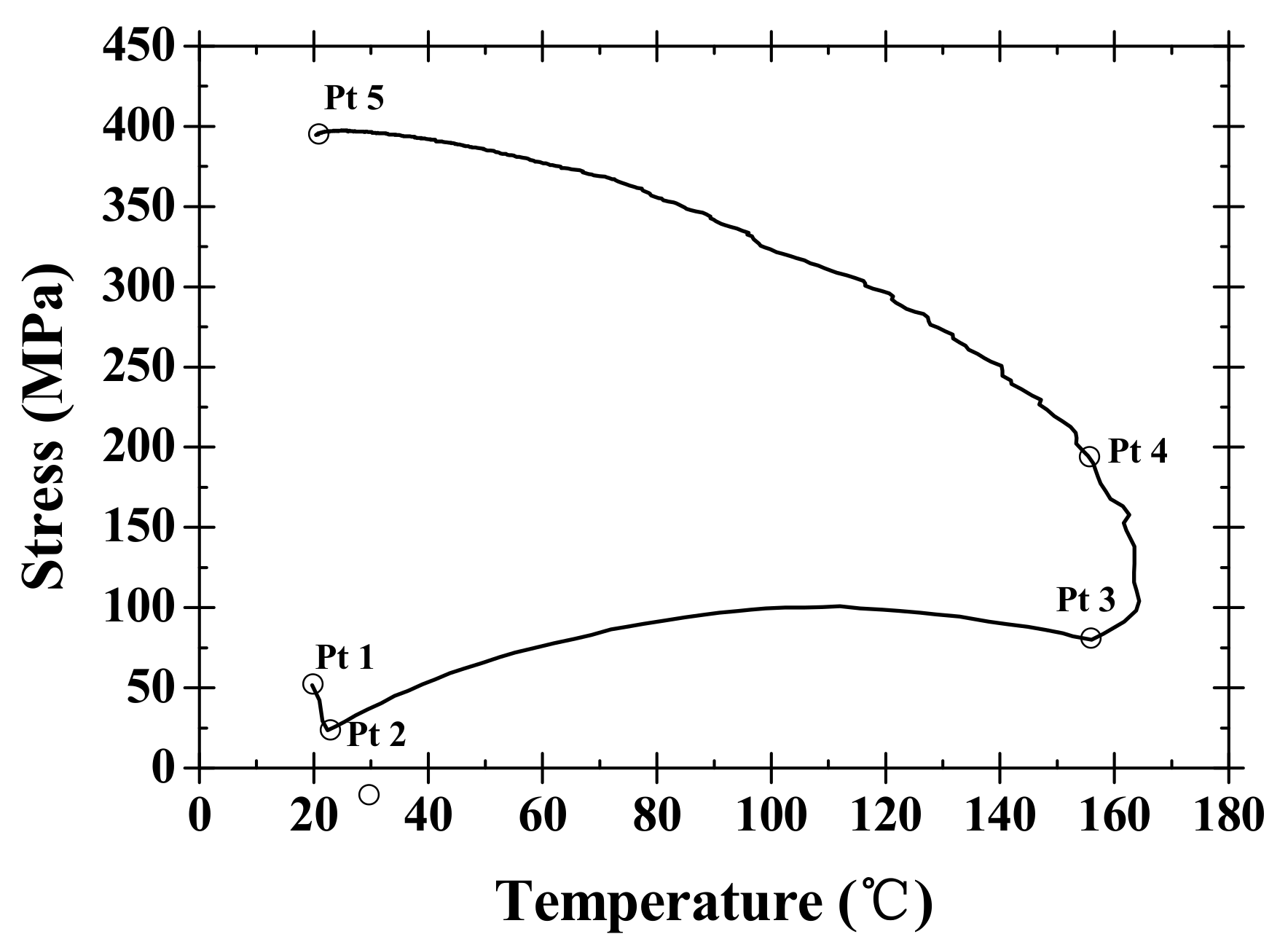

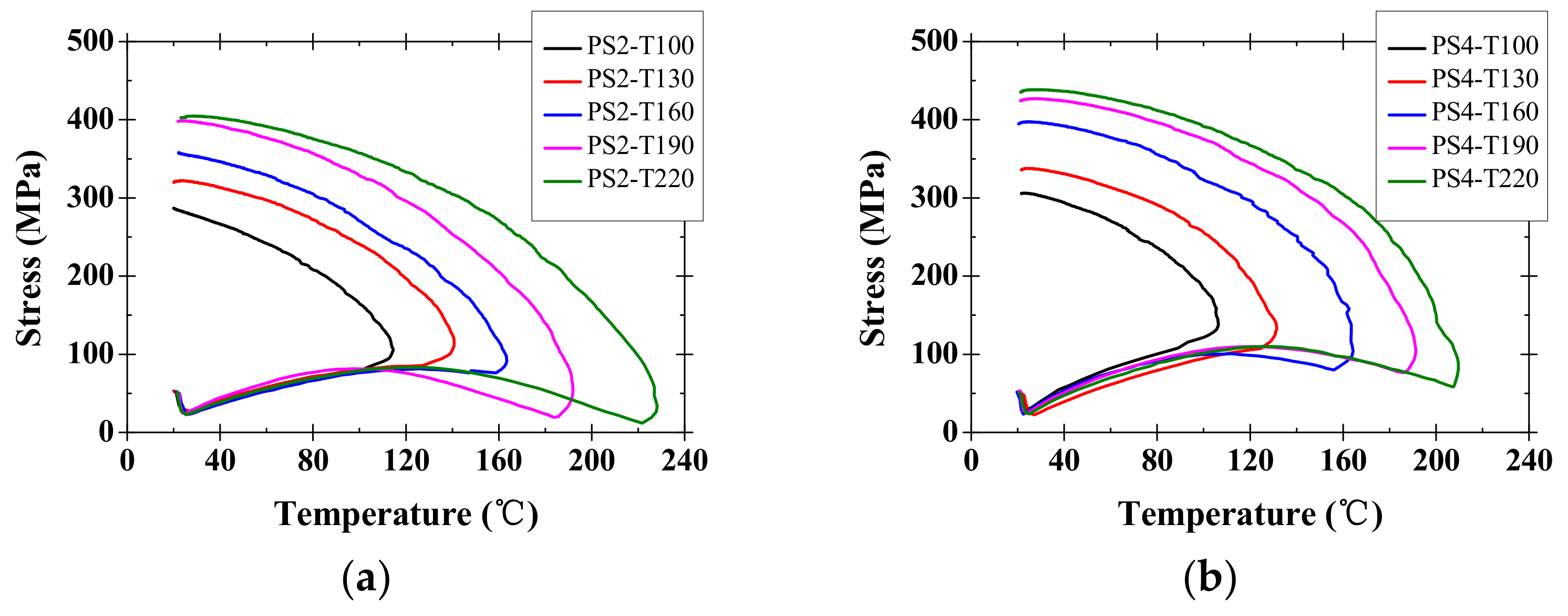

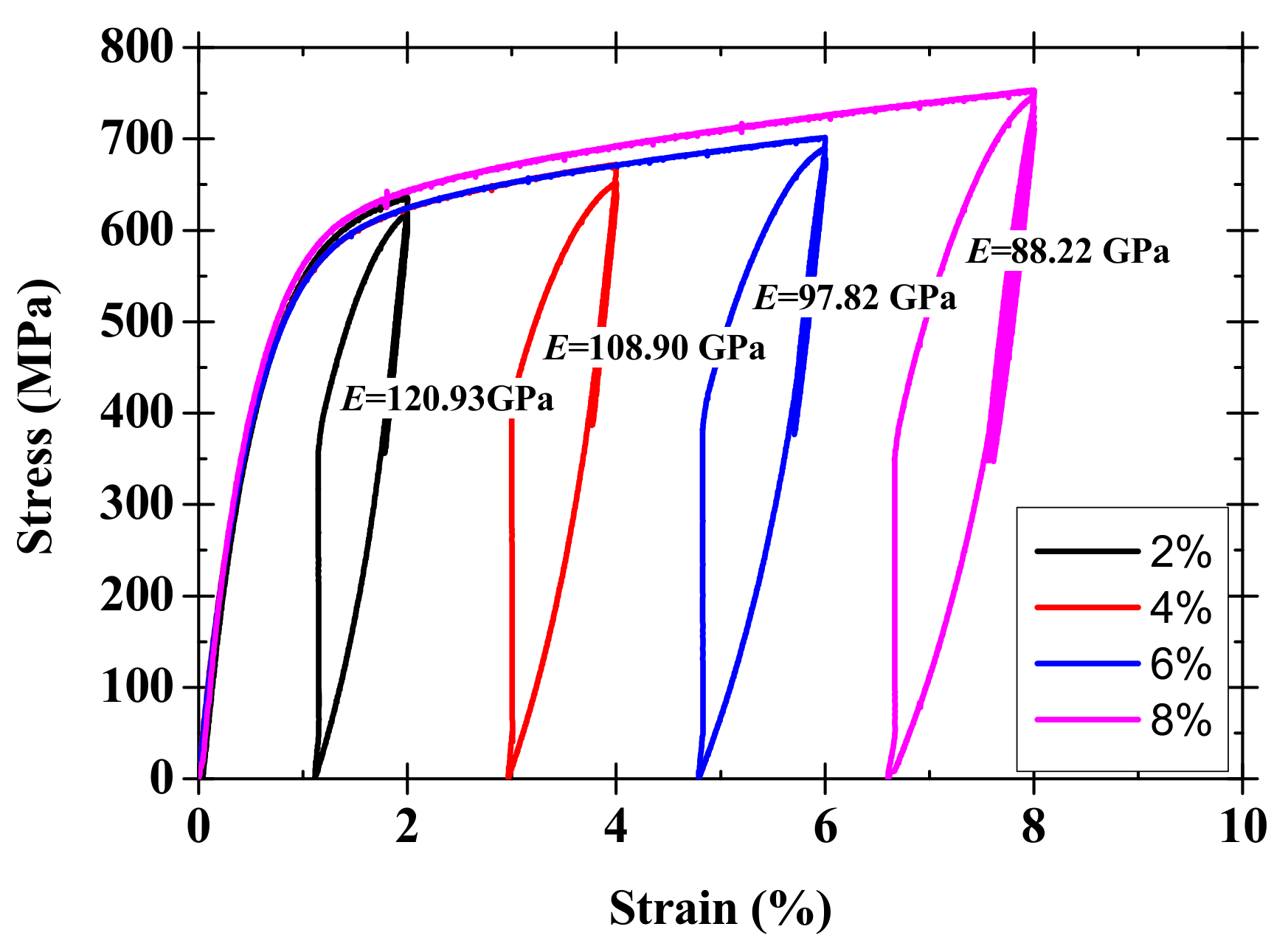

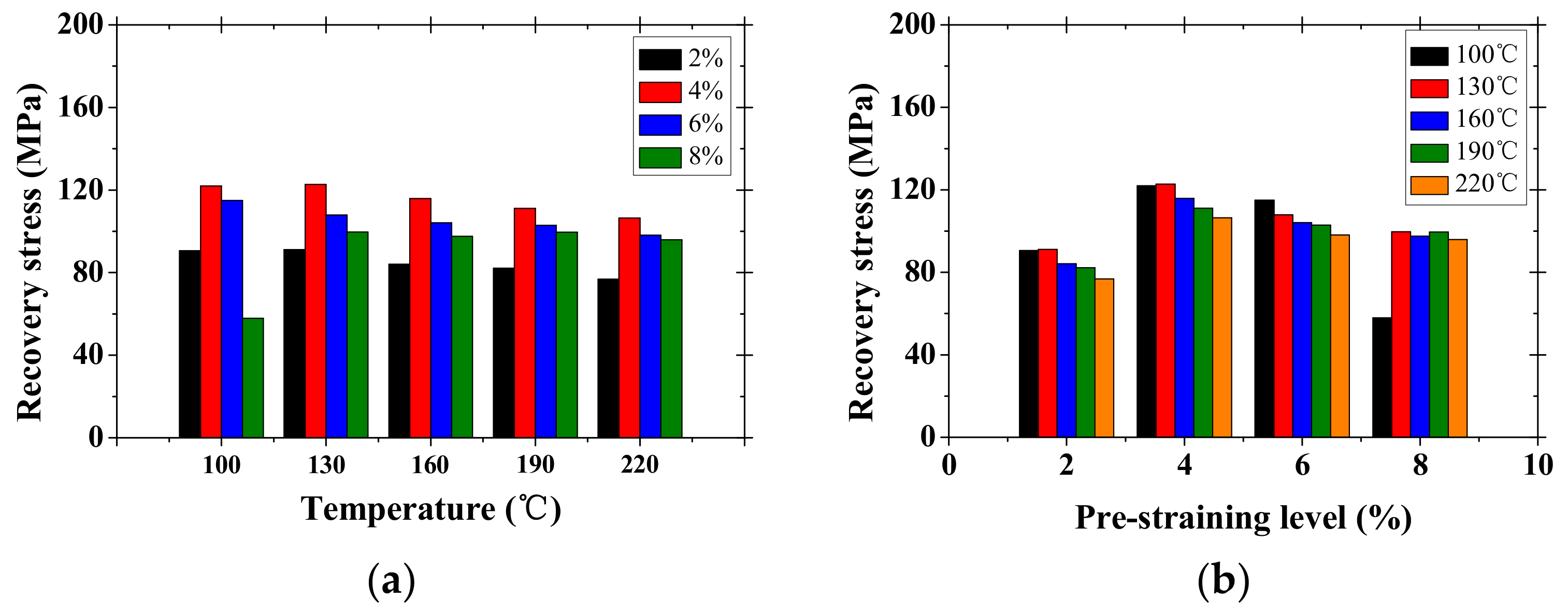

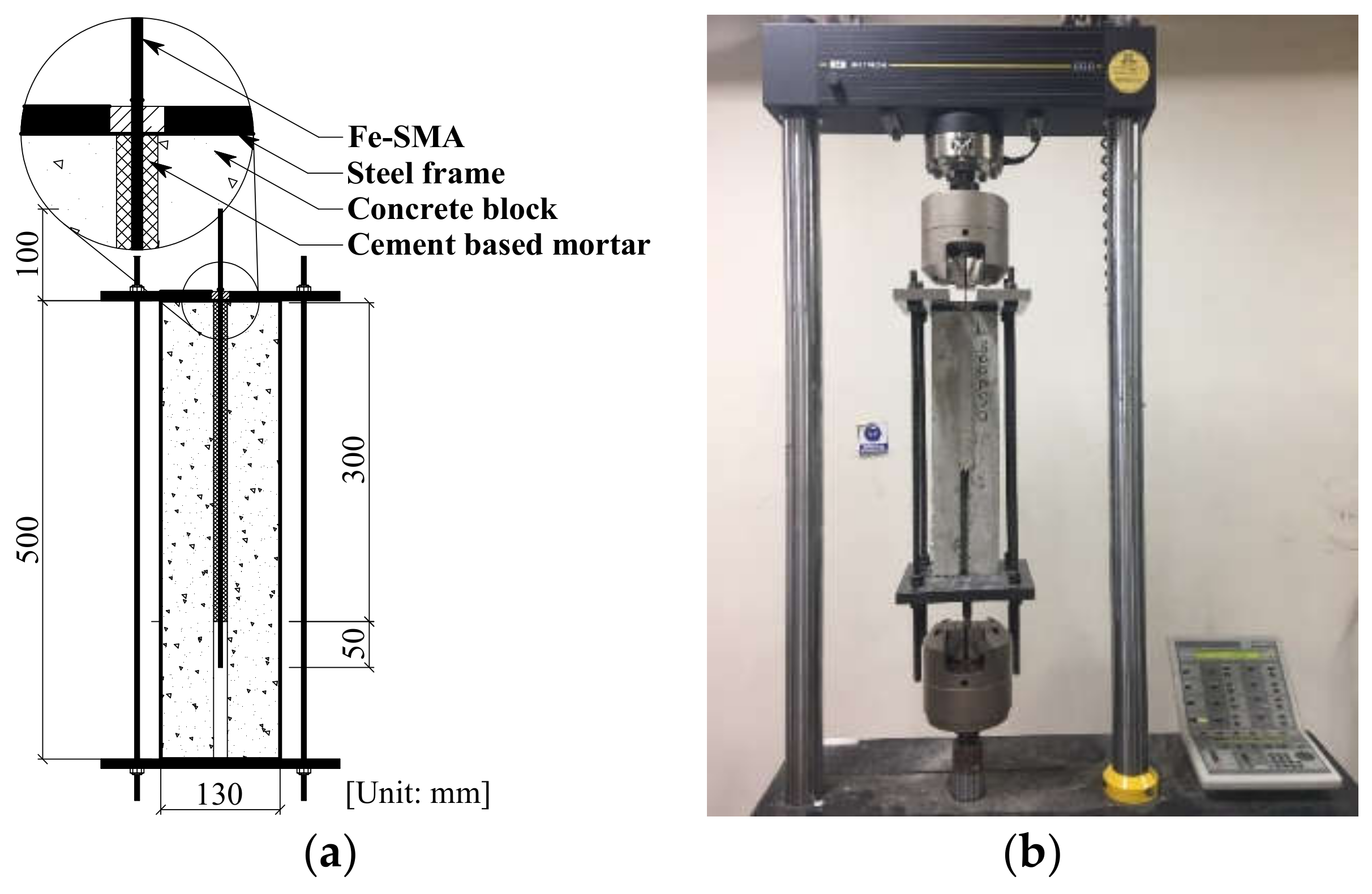

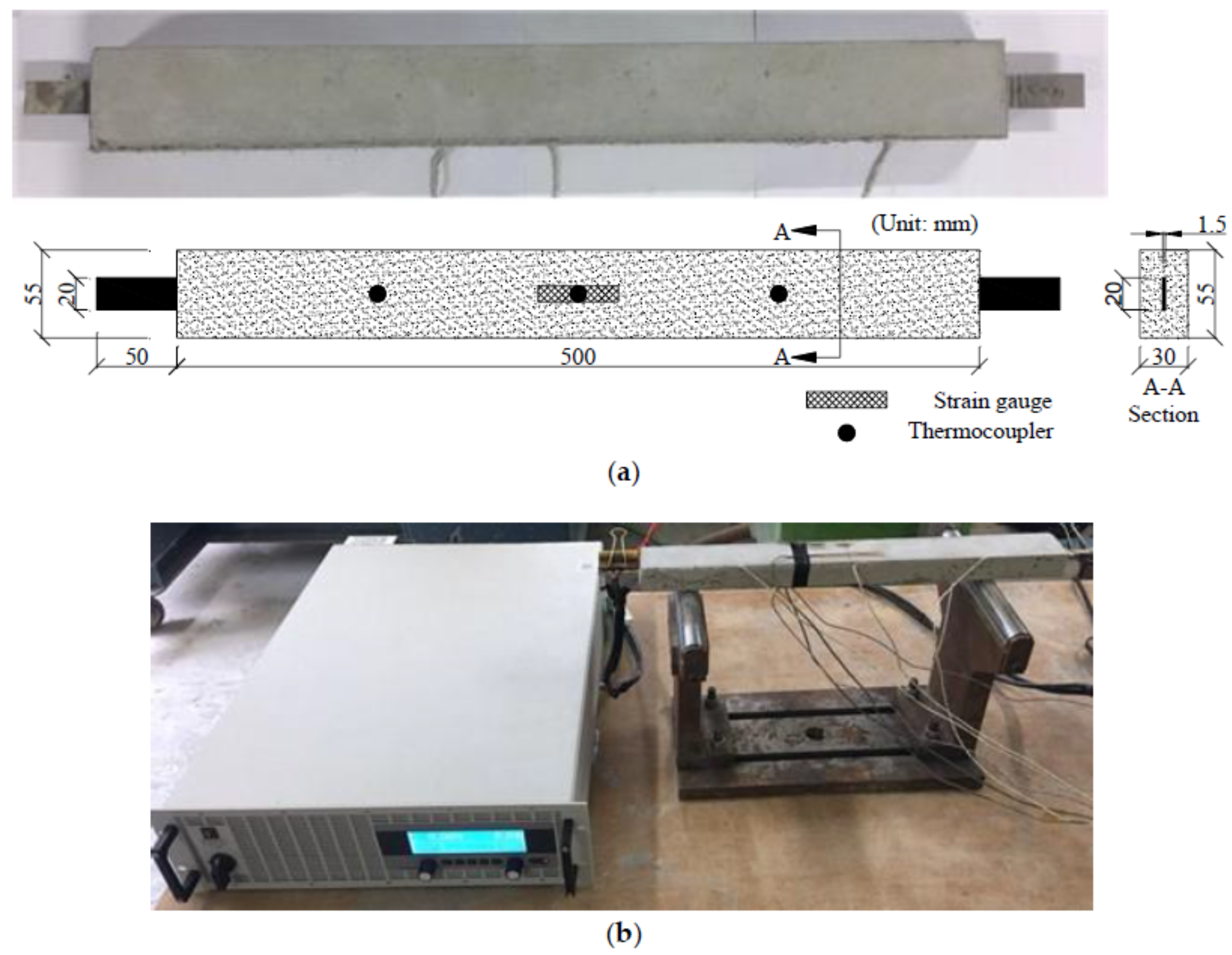

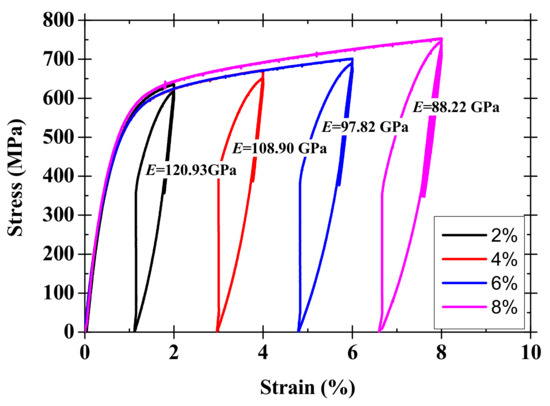

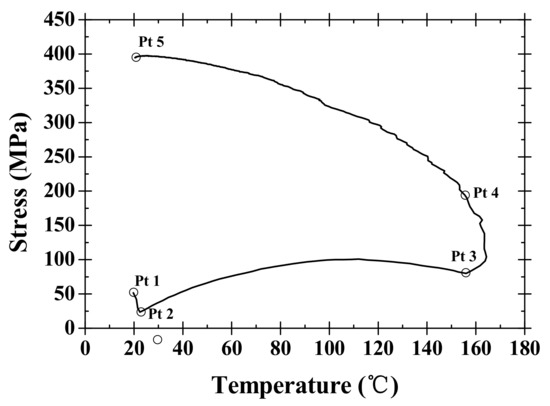

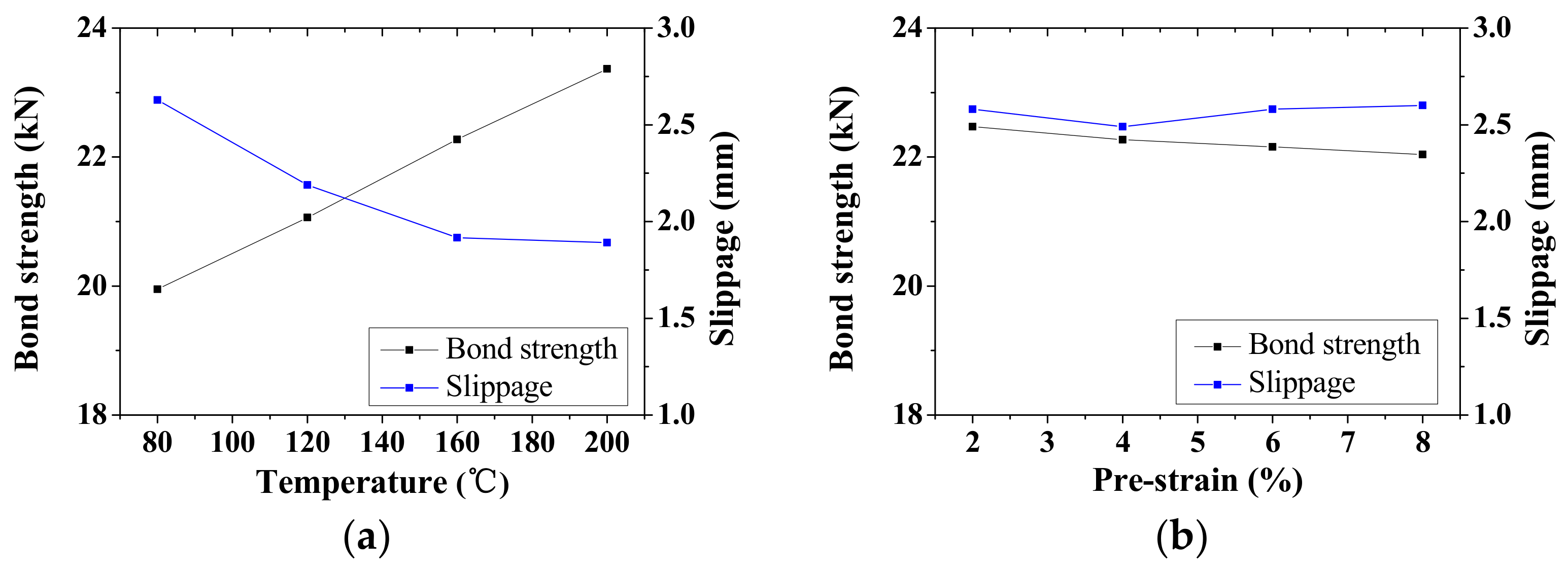

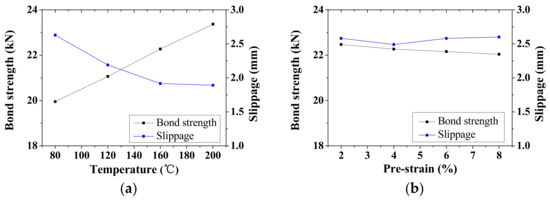

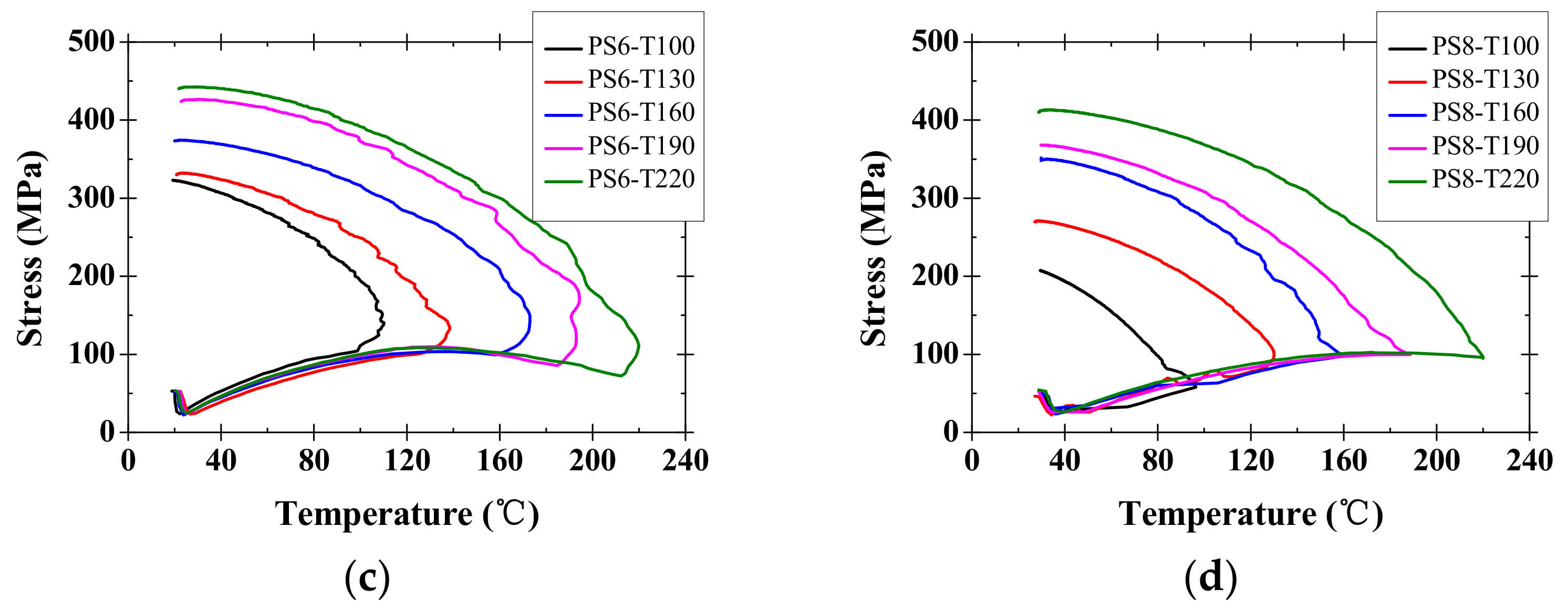

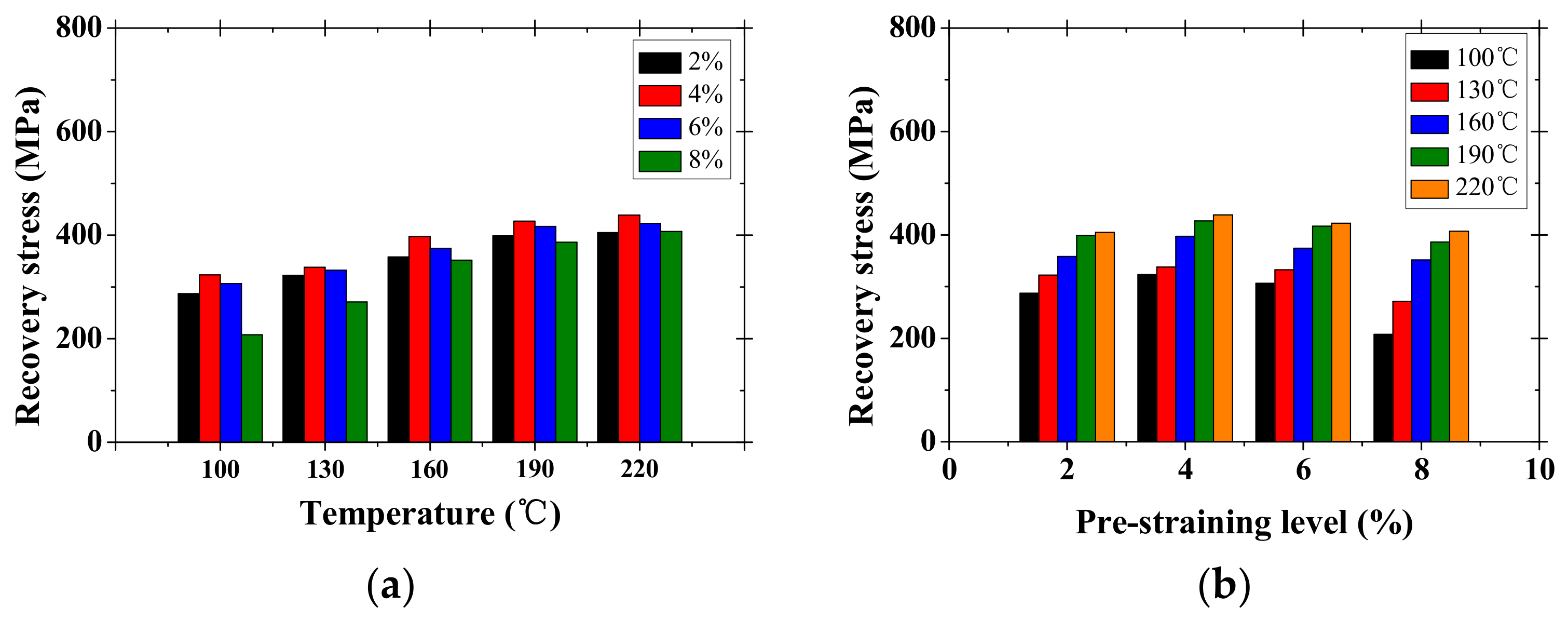

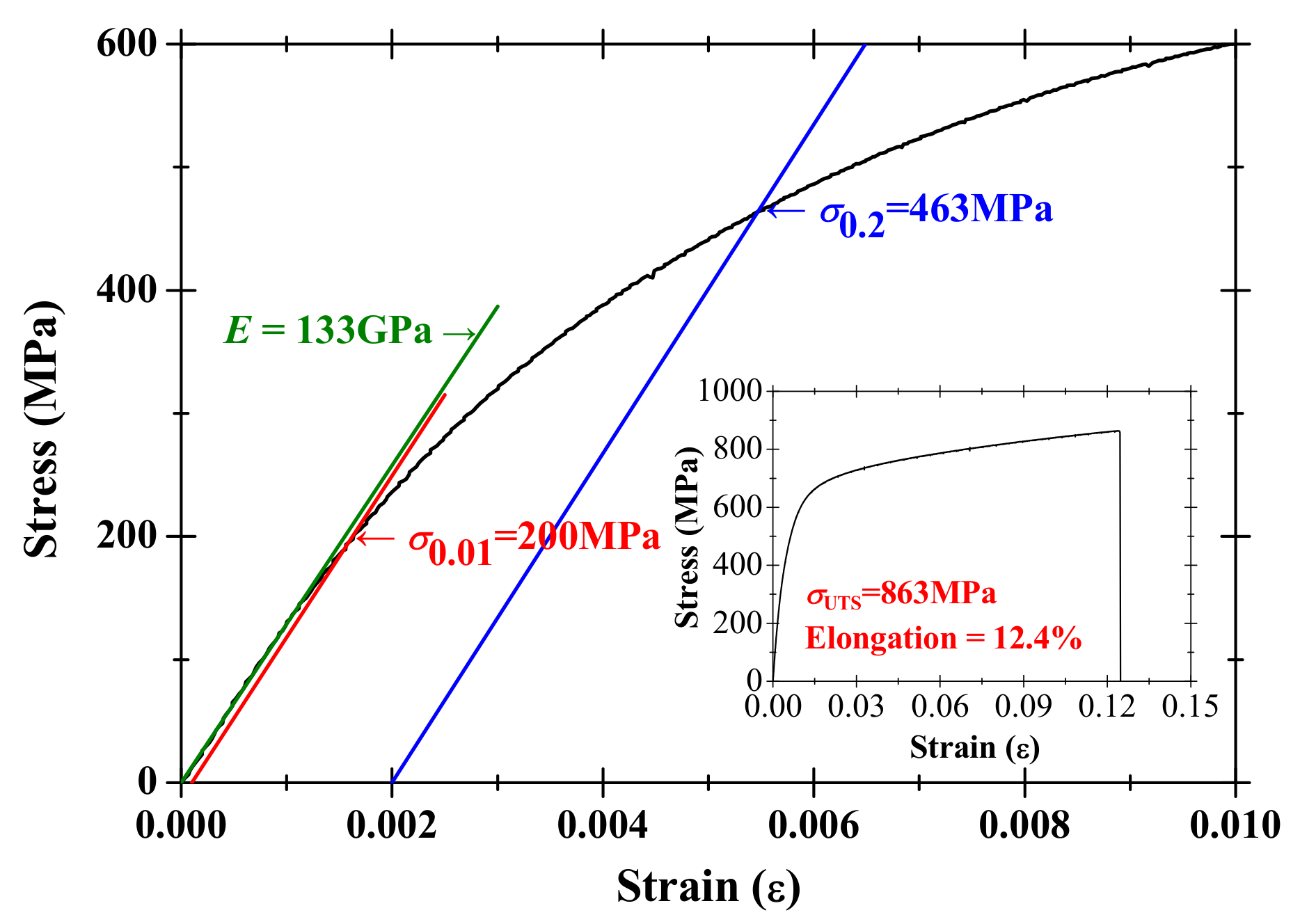

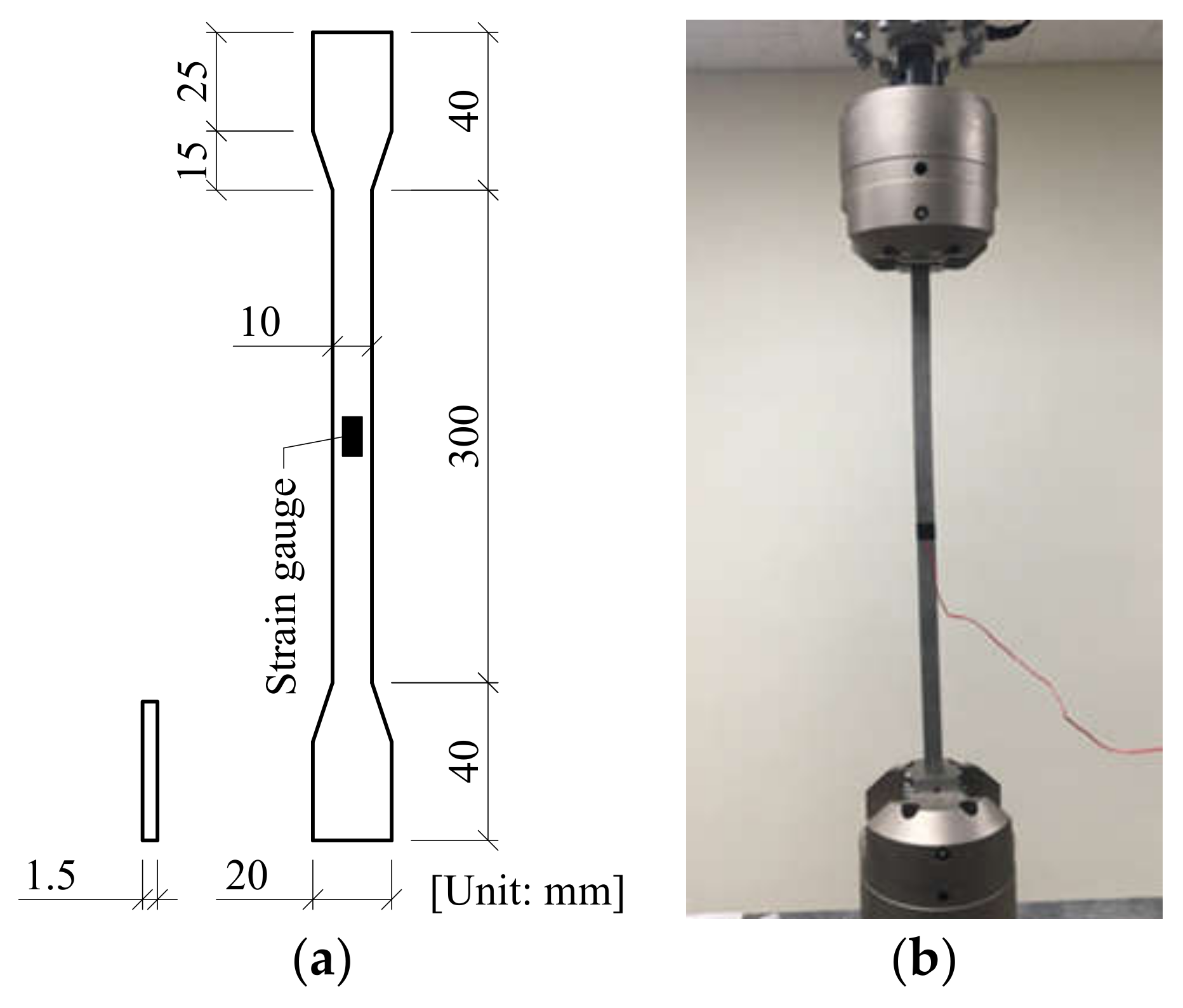

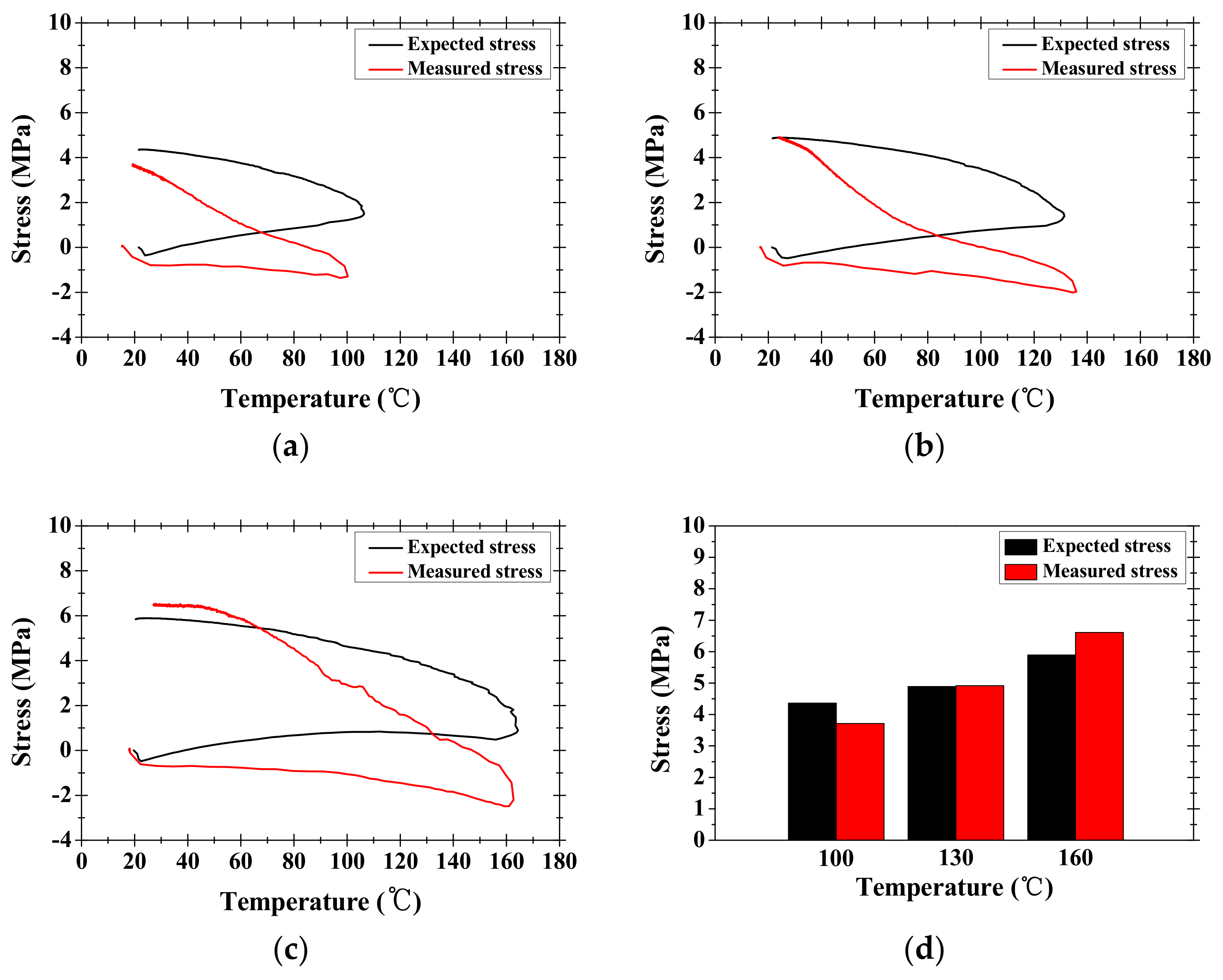

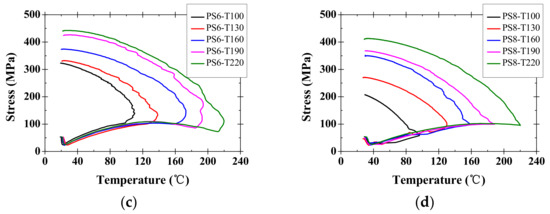

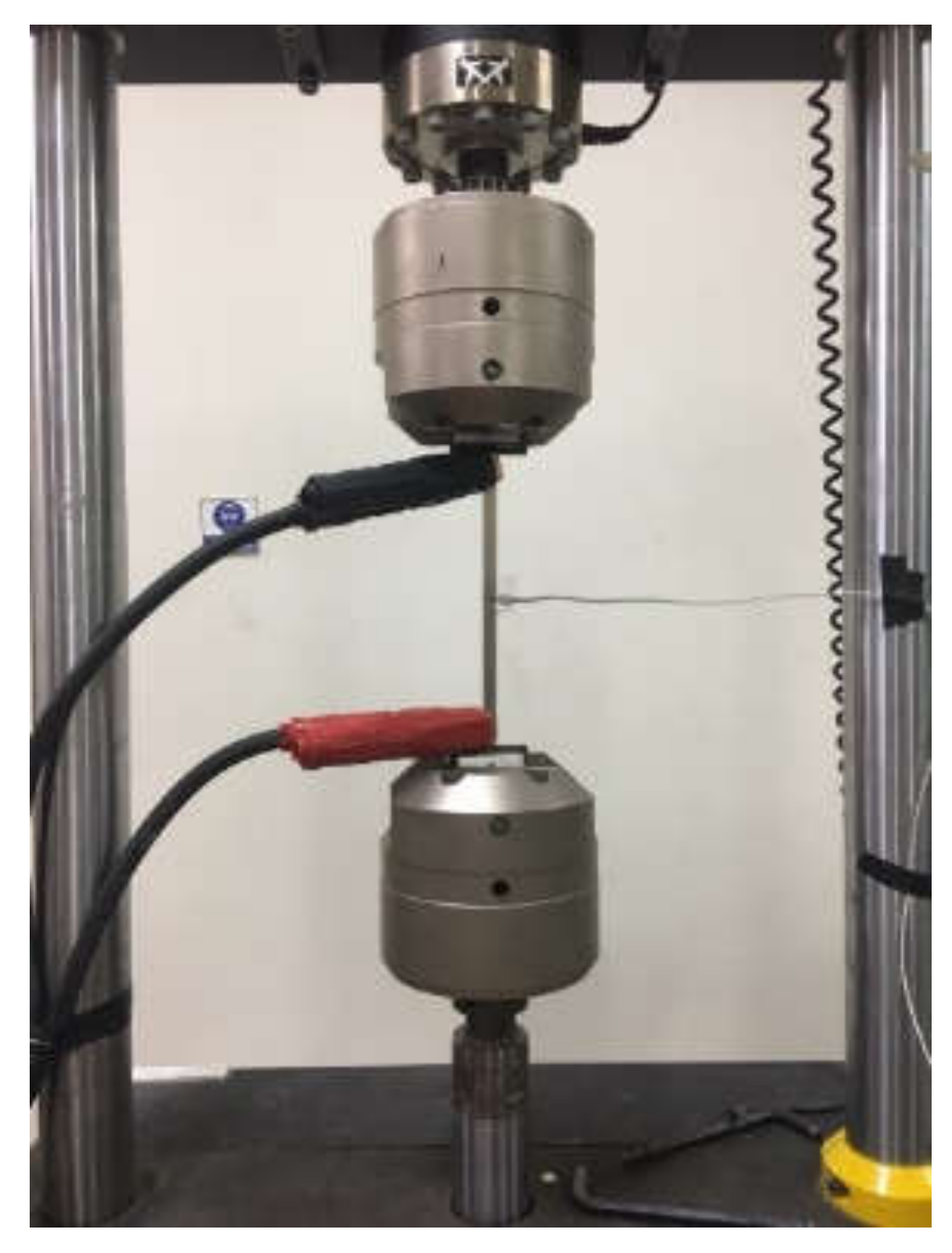

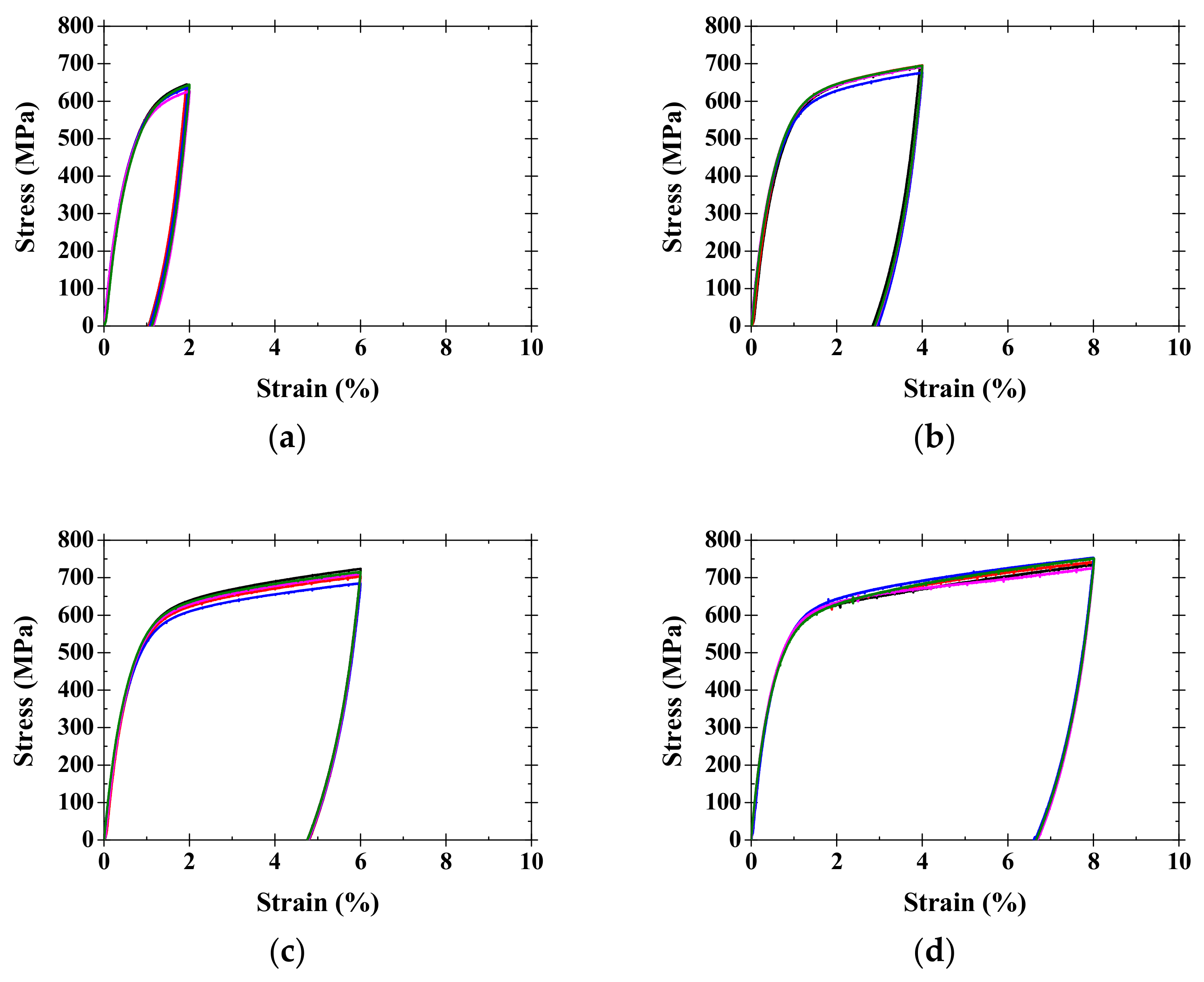

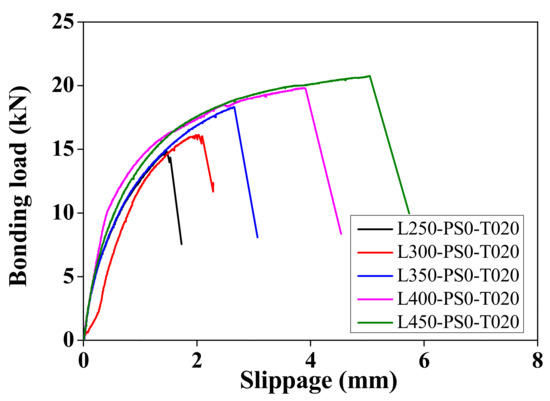

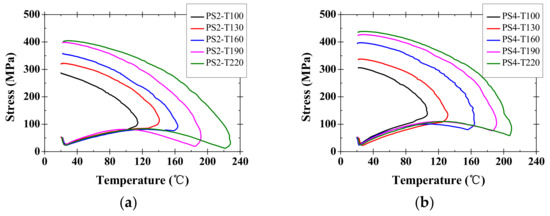

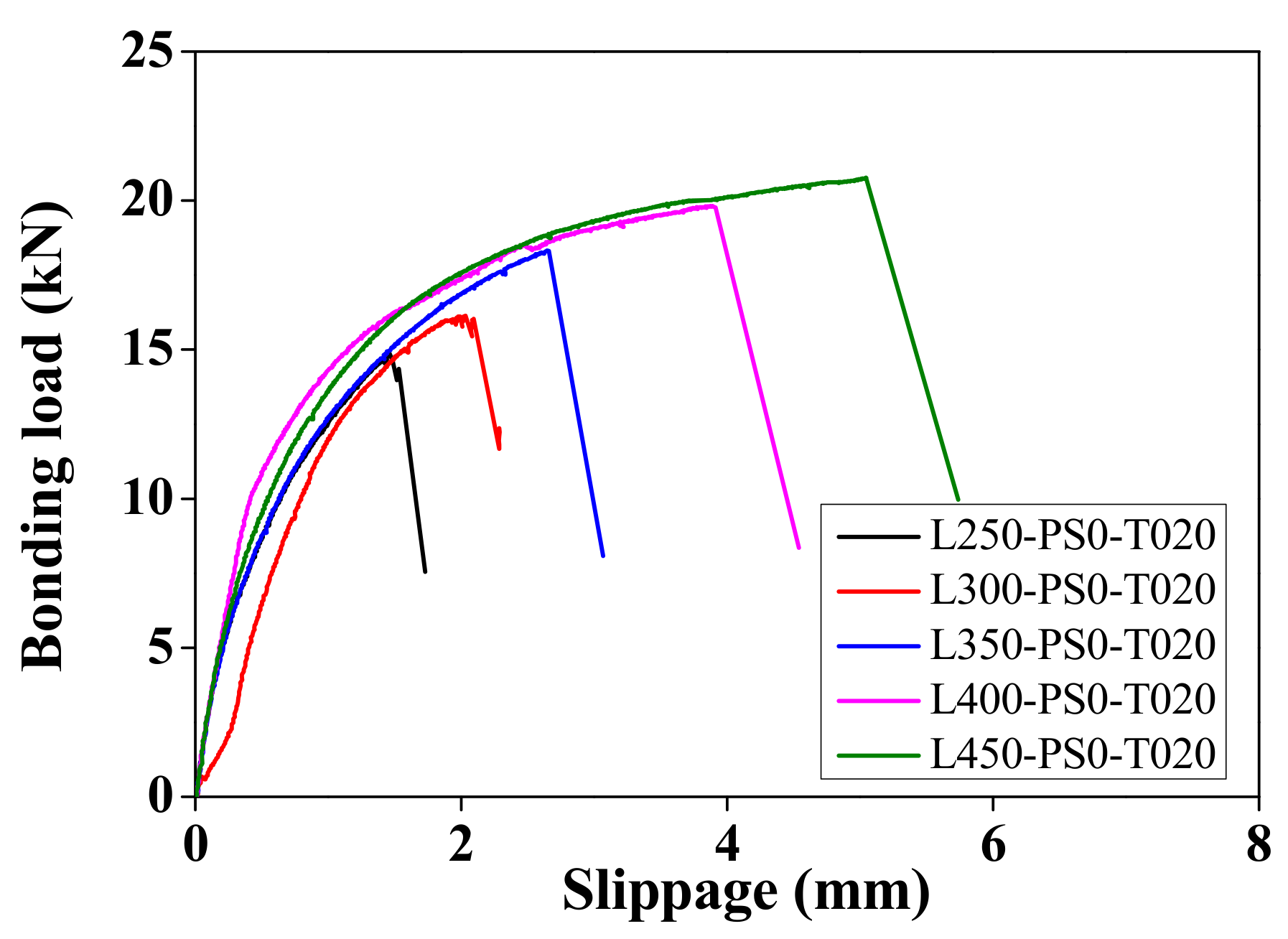

This paper aims to evaluate potential of an Fe-based shape memory alloy (Fe-SMA) for strengthening civil structures. Mechanical properties of the Fe-SMA were investigated with a direct tensile test, which showed the stress-induced transformation, stress at fracture of the Fe-SMA, and modulus of elasticity. Heating temperature ranging from 110 to 220 and pre-straining level ranging from 2% to 8% of the Fe-SMA were considered as variables to provoke a shape memory effect (SME), which generates a recovery stress. The recovery stresses ranged from 207.59 MPa to 438.61 MPa, which plays a role in introducing a pre-stressing force to concrete members. Bonding behavior of the Fe-SMA embedded into a groove with a cement-based mortar filler was investigated to determine the required bonding length to fully develop the pre-stressing force of the Fe-SMA with a near-surface mounted (NSM) strengthening technique. All the tested specimens showed slippage failure and suggested a minimum bonding length of 600 mm. The pre-stressing force applied on the concrete can be calculated with the recovery stress of the Fe-SMA. Based on those test results, the Fe-SMA shows sufficient potential to be used as strengthening material for civil structures. View Full-Text
Keywords: Fe-based shape memory alloy (Fe-SMA); strengthening material; recovery stress; recovery temperature; bonding behavior; cement-based mortar filler Fe-based shape memory alloy (Fe-SMA); strengthening material; recovery stress; recovery temperature; bonding behavior; cement-based mortar filler
Figures

Figure 1
