Appl. Sci. 2017, 7(1), 6; doi:10.3390/app7010006

Modeling of Temperature Field during Multi-Pass GMAW Surfacing or Rebuilding of Steel Elements Taking into Account the Heat of the Deposit Metal

Czestochowa University of Technology, Faculty of Mechanical Engineering and Computer Science, Welding Department, Al. Armii Krajowej 19c, Czestochowa 42-201, Poland
Academic Editors: Hai-Lung Tsai and Junling Hu
Received: 3 November 2016 / Revised: 8 December 2016 / Accepted: 15 December 2016 / Published: 22 December 2016
(This article belongs to the Special Issue Gas Metal Arc Welding)
View Full-Text   |   Download PDF [8685 KB, uploaded 22 December 2016]   |

Abstract

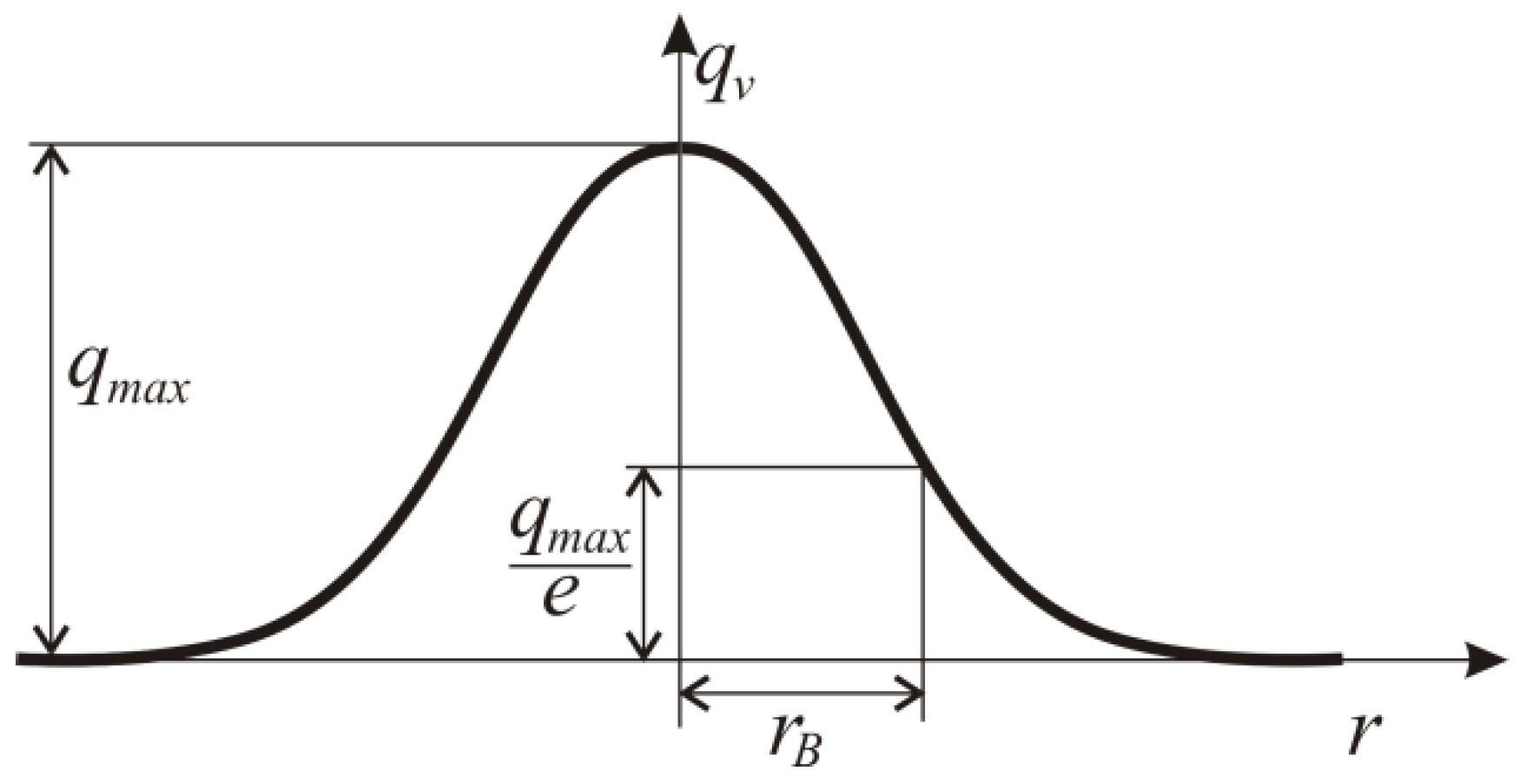

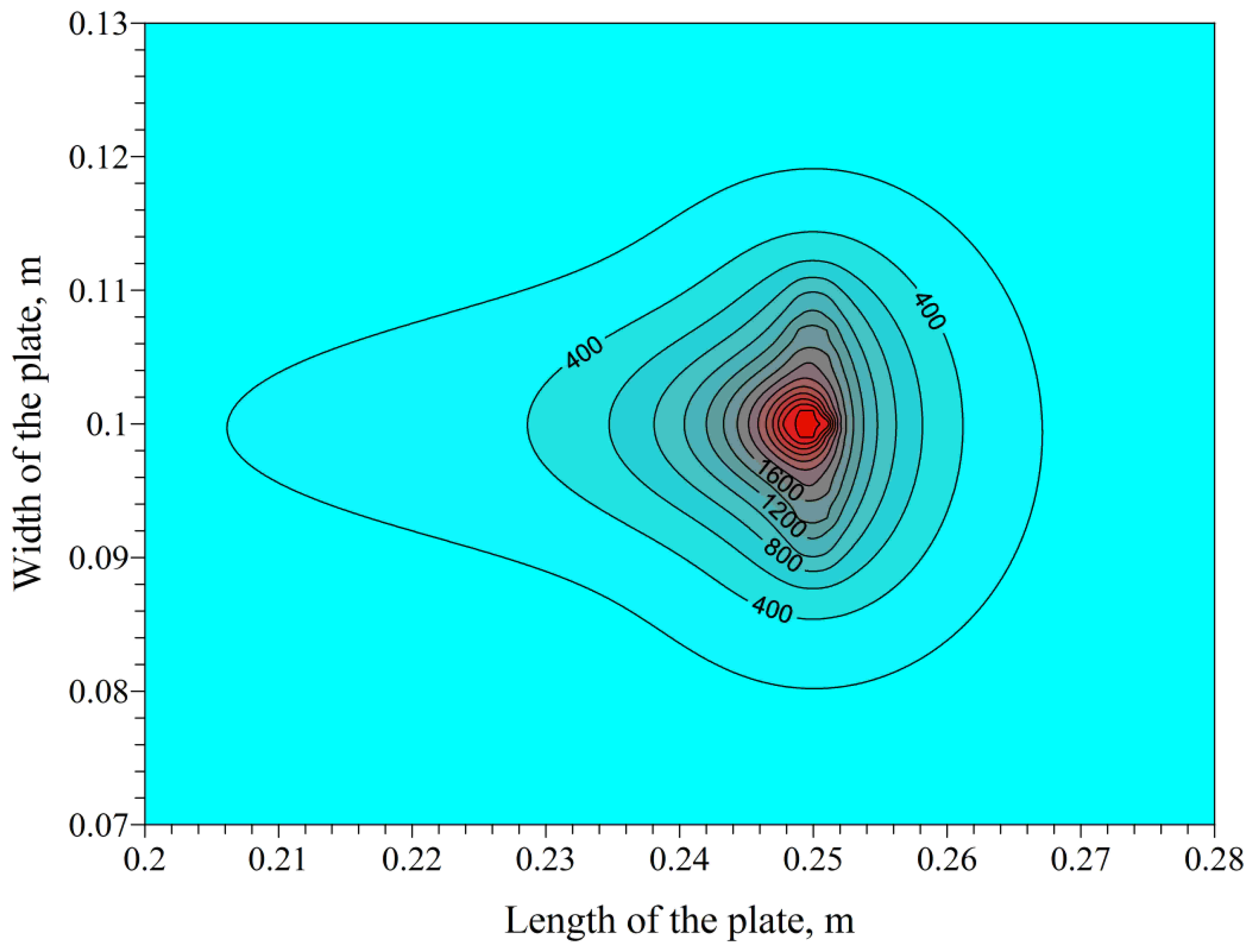

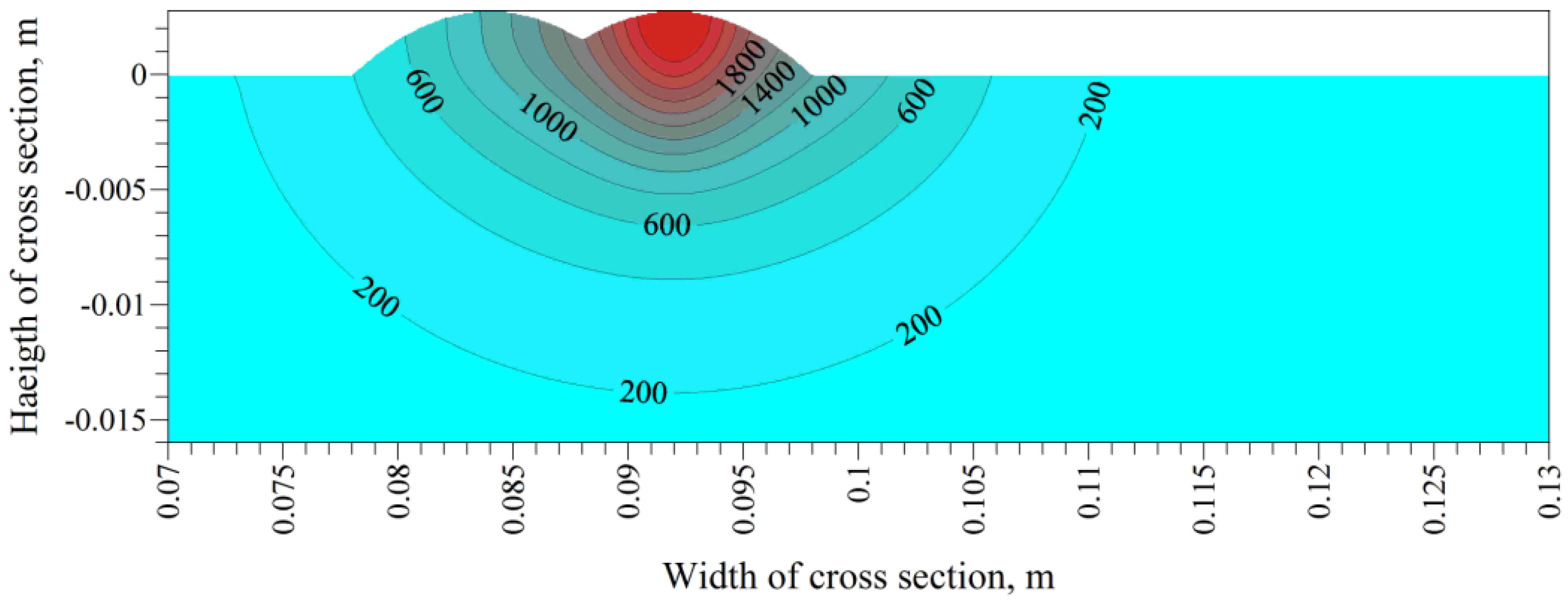

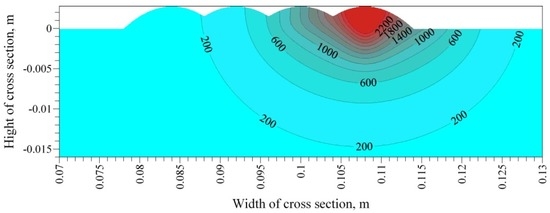

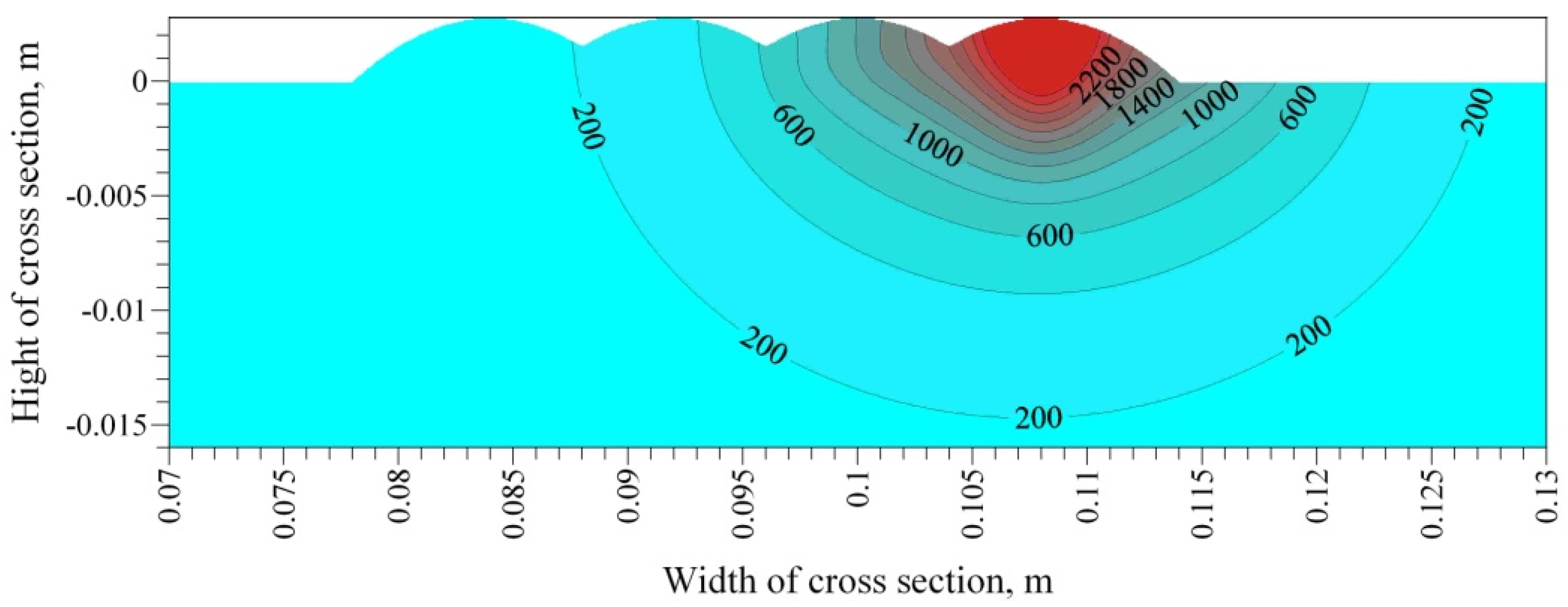

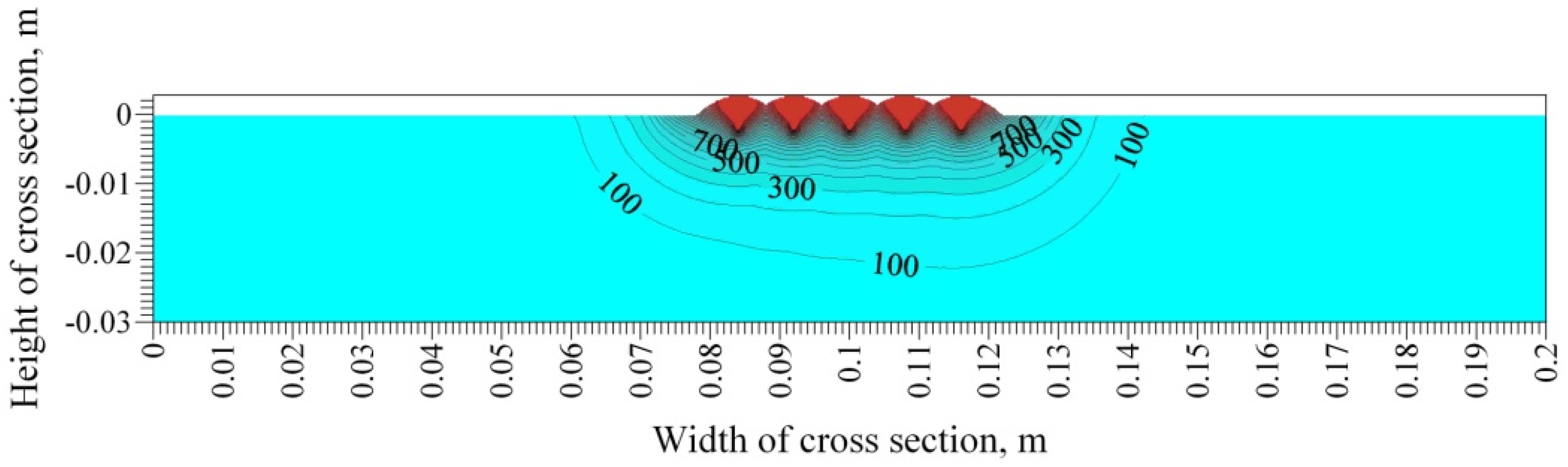

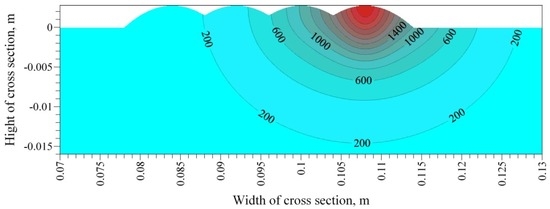

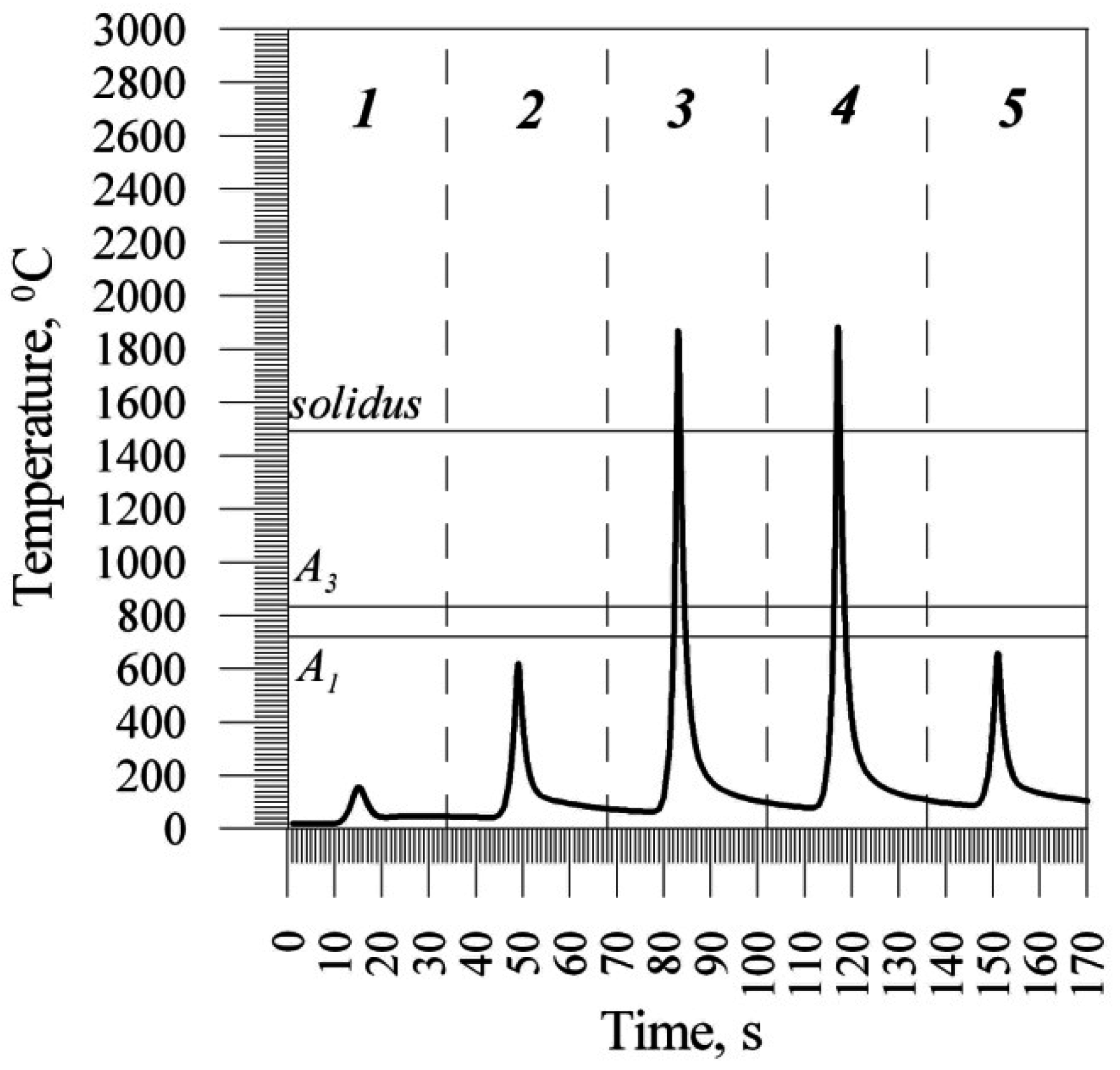

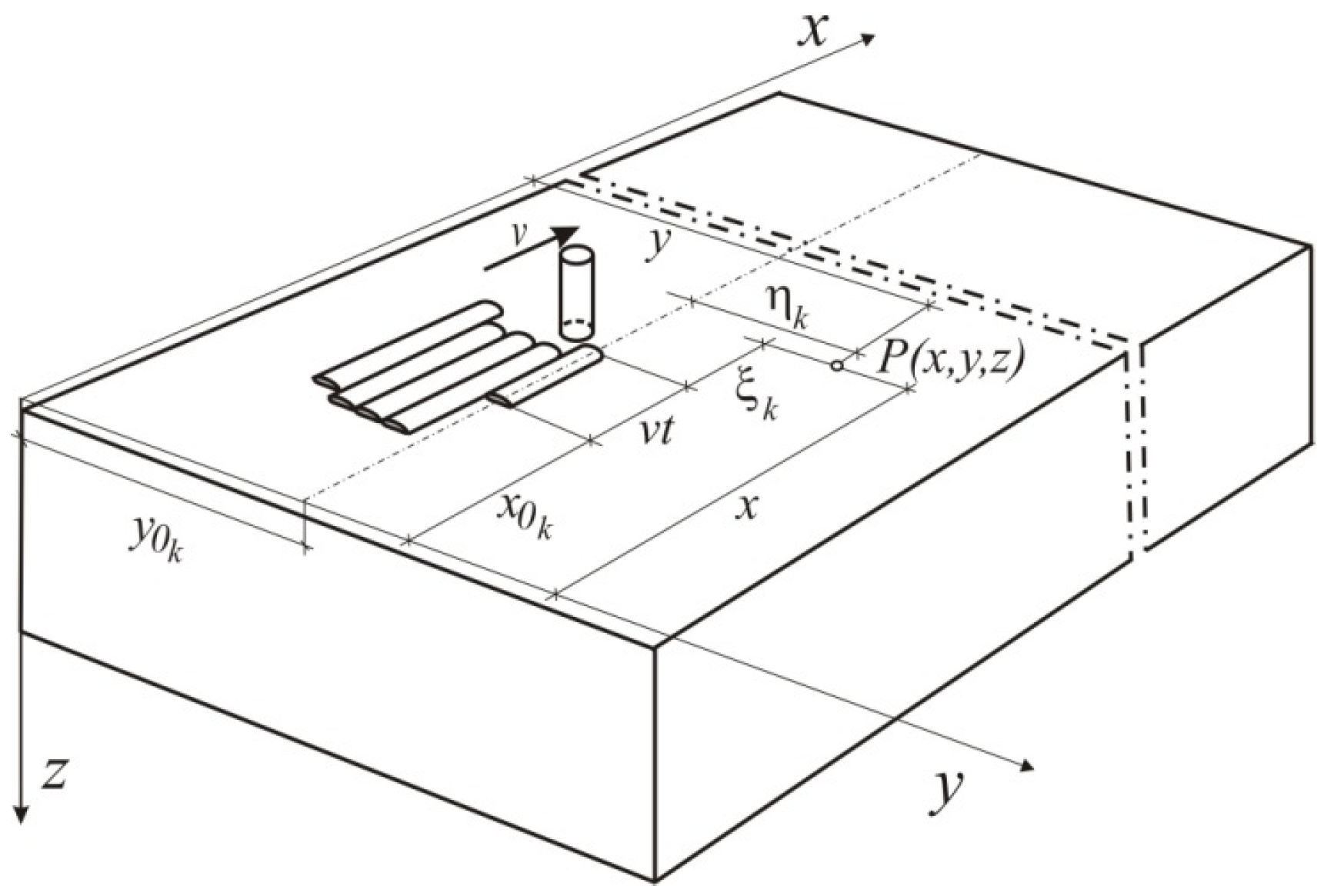

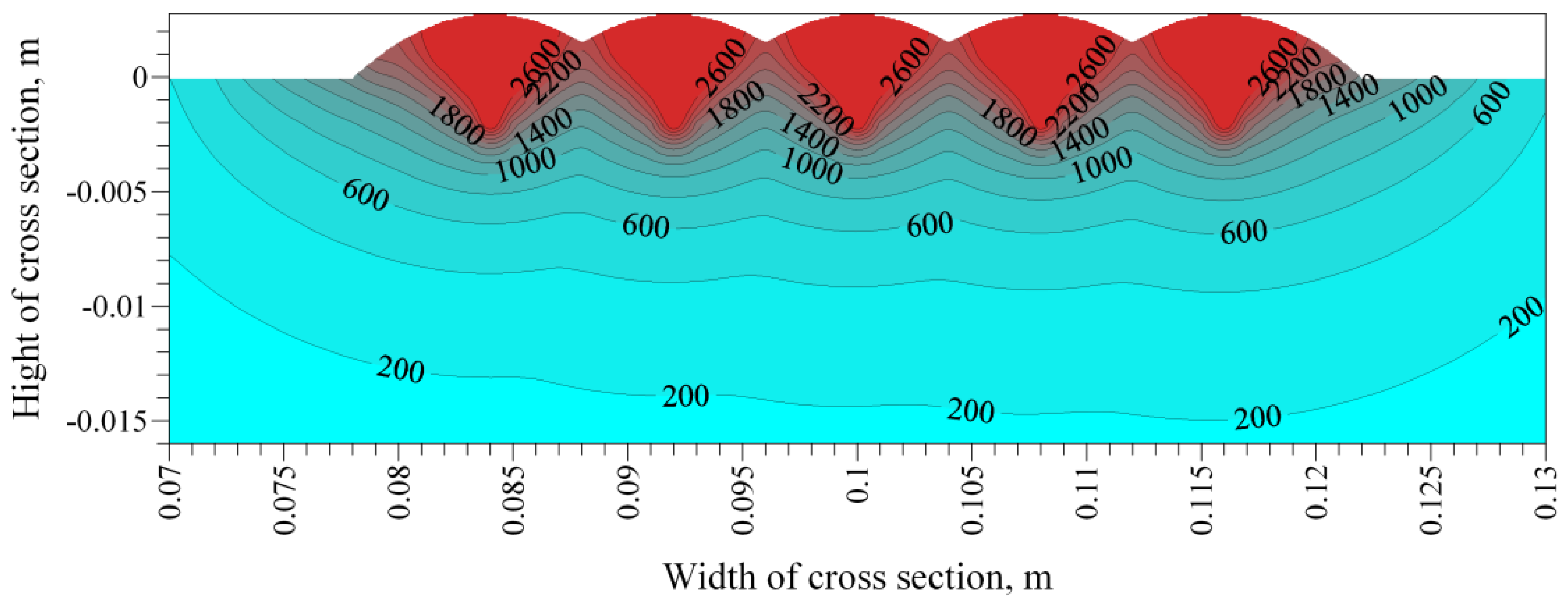

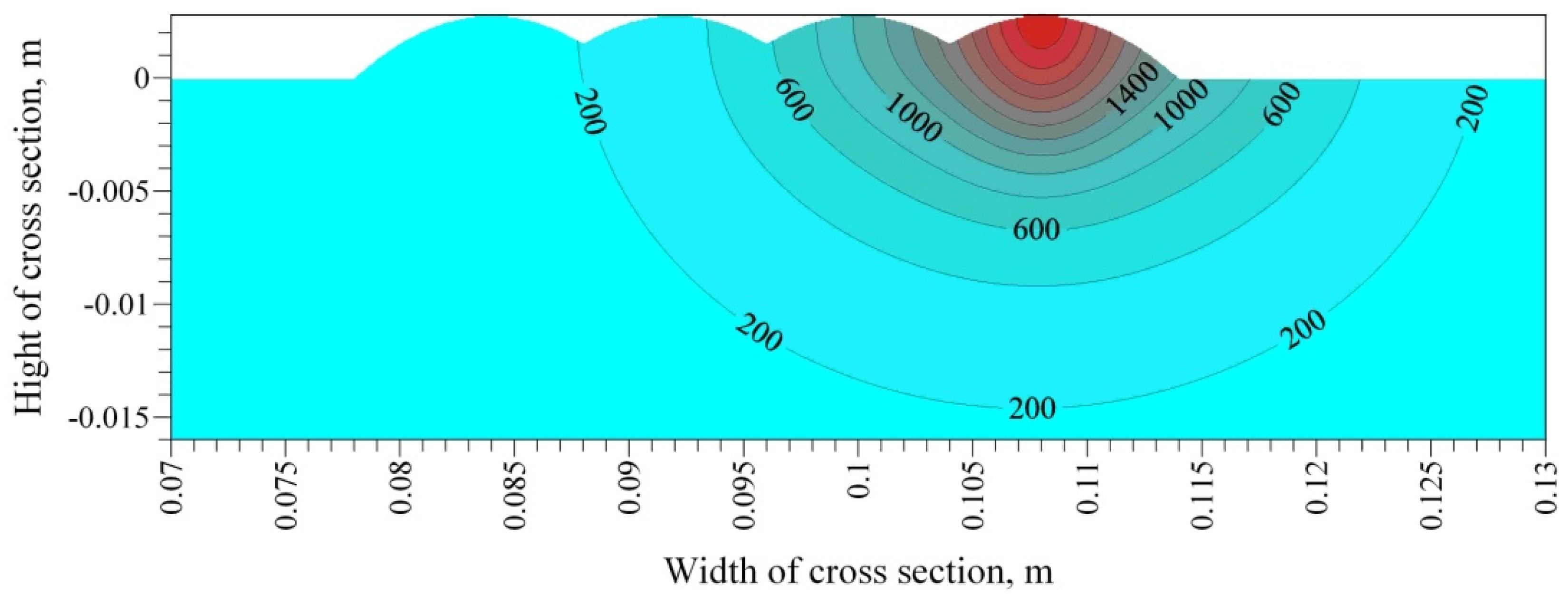

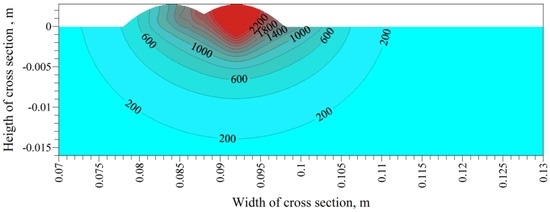

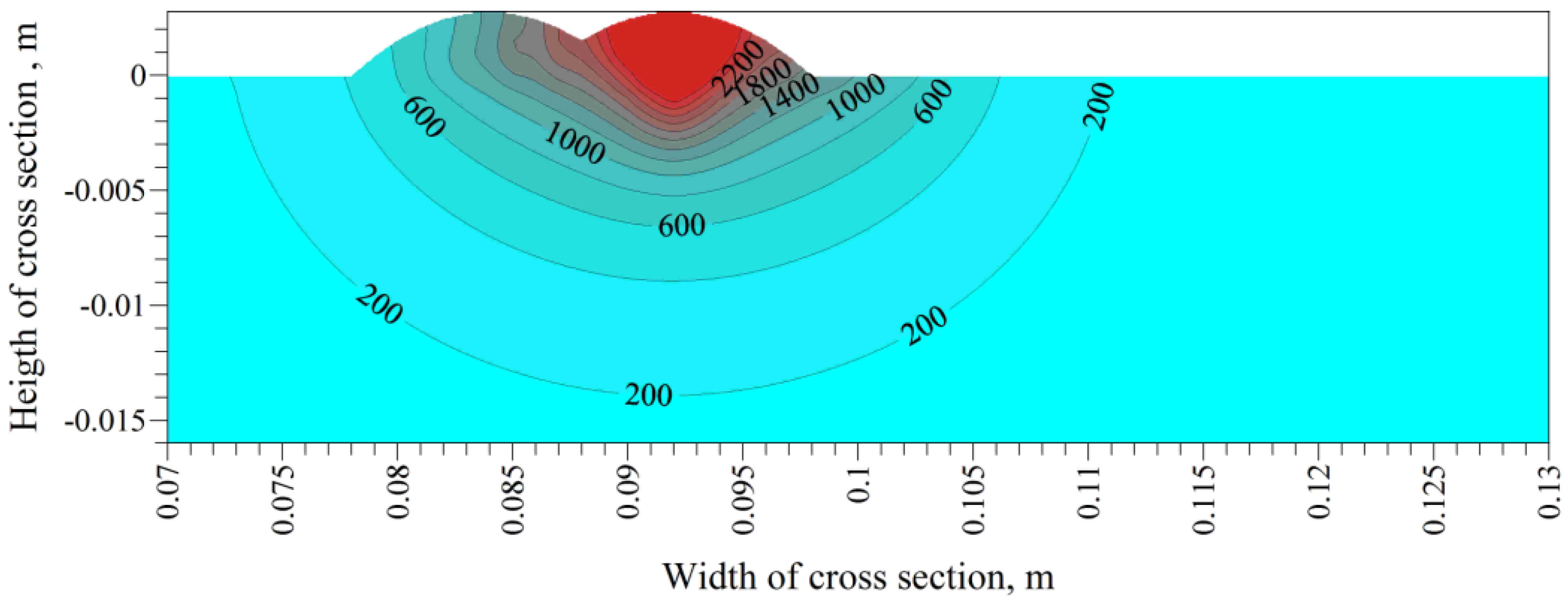

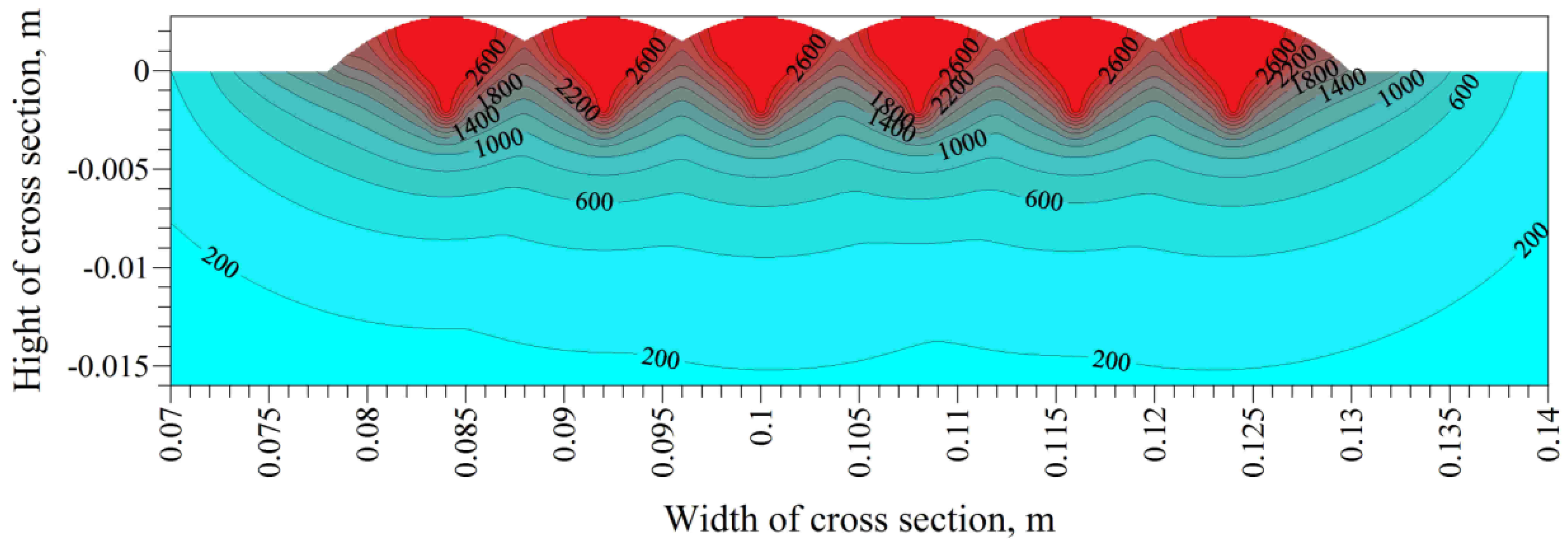

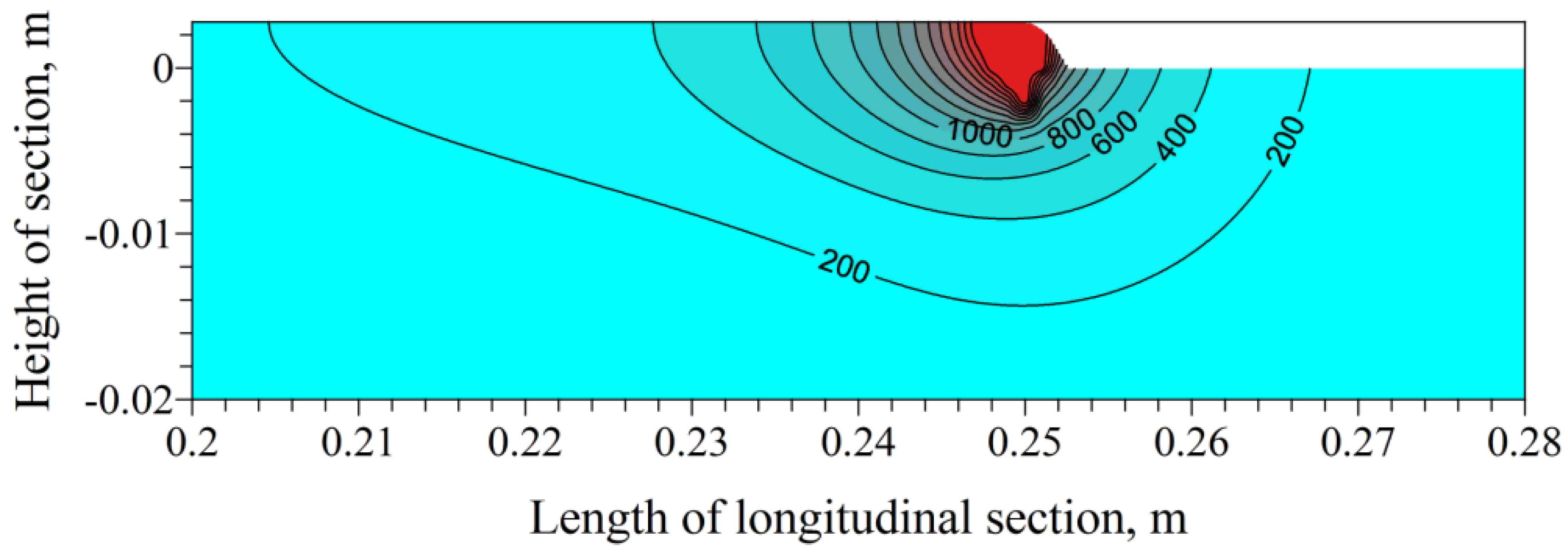

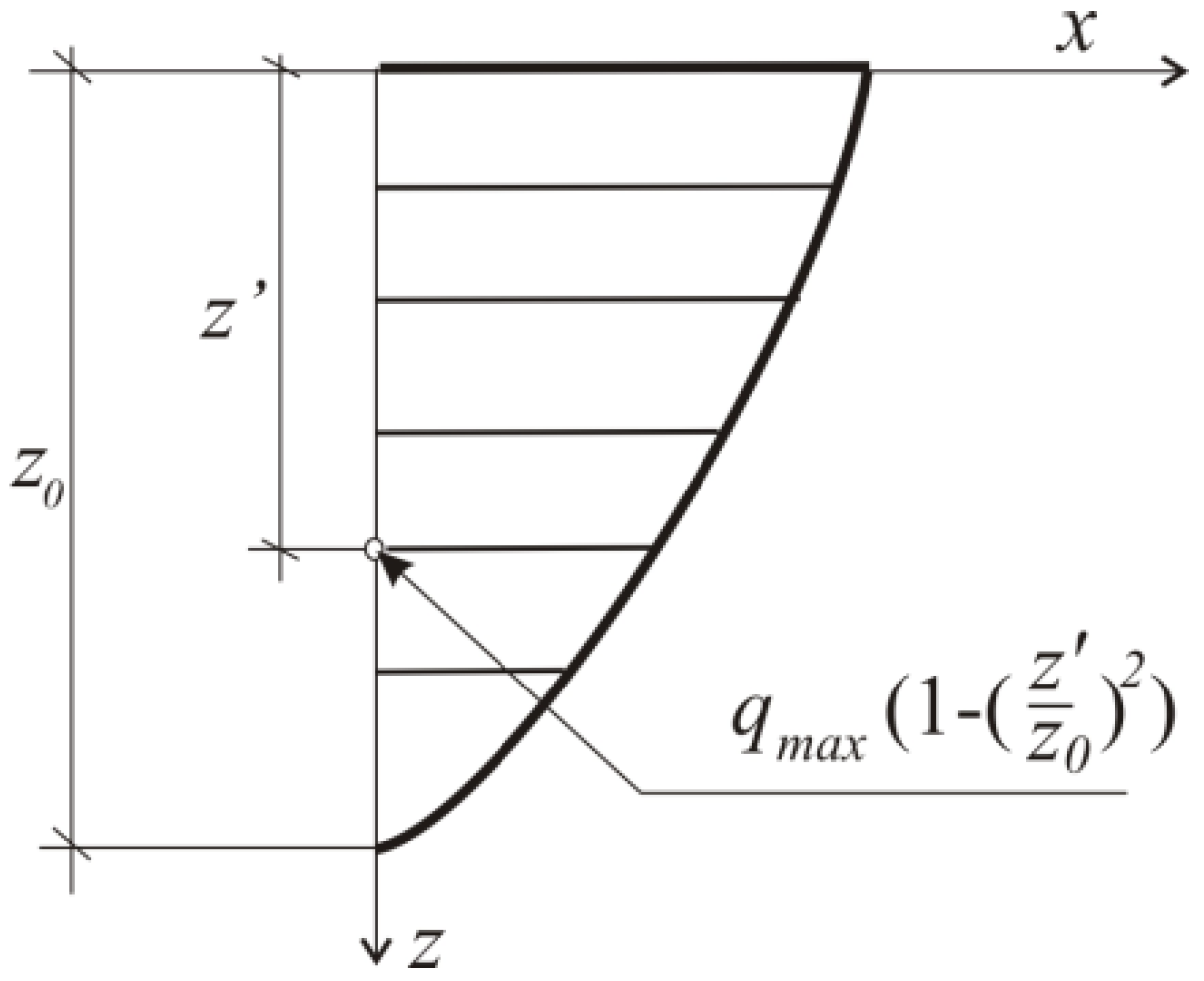

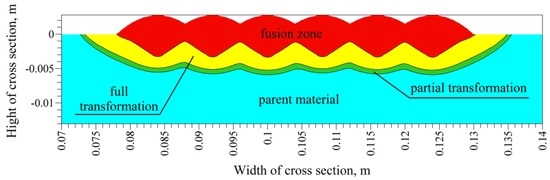

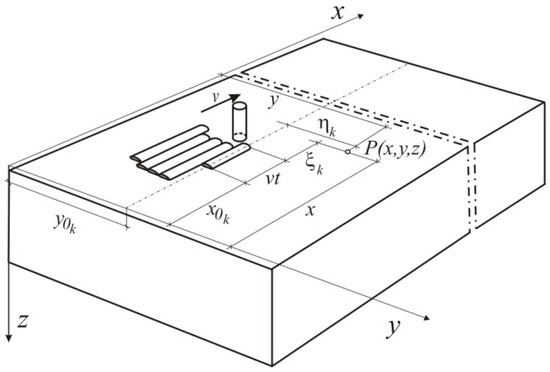

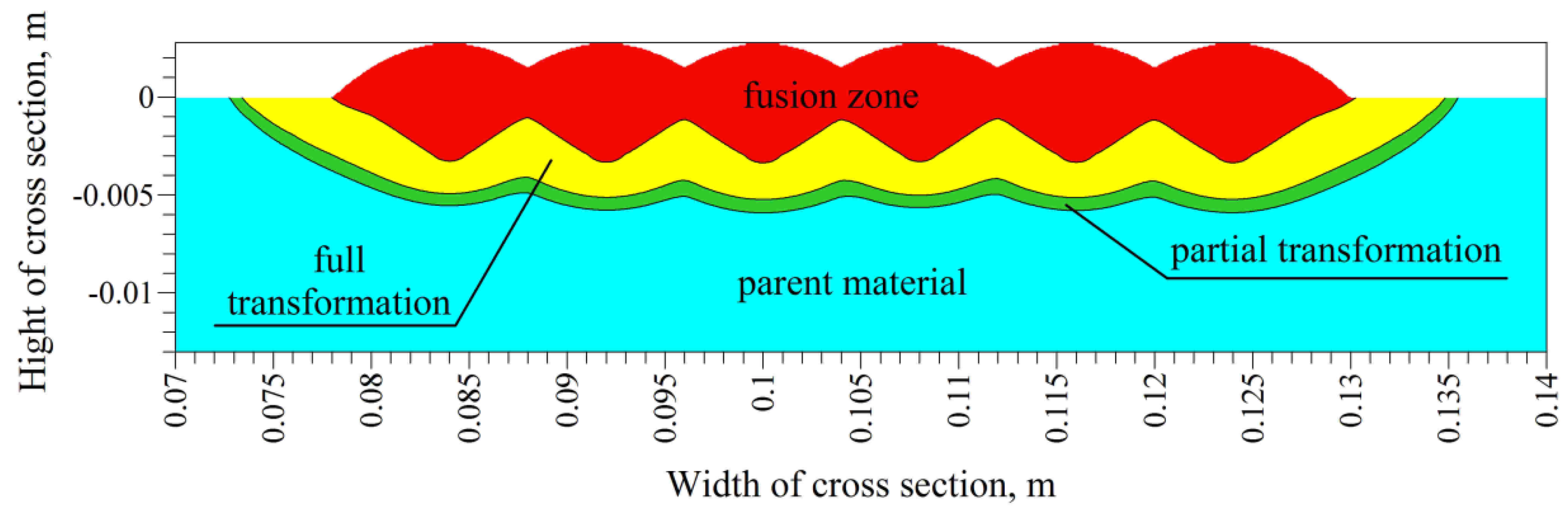

This paper proposed an analytical model for describing the temperature field of multi-pass arc weld surfacing. The temperature field is described analytically assuming a bimodal volumetric model of the heat source and a semi-infinite body model of the (rebuilt) workpiece. The suggested analytical solution takes into account the temperature changes caused not only by the direct heat of an electric arc, but also by the heat of the applied weld (melted metal of electrode). The solution considers temperature increments caused by overlaying consecutive welding sequences and by self-cooling of areas previously heated. Computations of the temperature field are carried out during the multi-pass gas metal arc welding (GMAW) surfacing of a steel plate. The results are presented in the form of transient and maximum (achieved in whole welding process) temperature distributions in the element’s cross-section, as well as thermal cycles at the selected point. View Full-Text
Keywords: temperature field; multi-pass arc weld surfacing; rebuilding; modeling temperature field; multi-pass arc weld surfacing; rebuilding; modeling
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
