Appl. Sci. 2016, 6(4), 105; doi:10.3390/app6040105

Relationship between ISO 230-2/-6 Test Results and Positioning Accuracy of Machine Tools Using LaserTRACER

Center for Measurement Standards, Industrial Technology Research Institute, Hsinchu 30011, Taiwan
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed.
Academic Editor: Chien-Hung Liu
Received: 30 December 2015 / Revised: 27 March 2016 / Accepted: 29 March 2016 / Published: 12 April 2016
(This article belongs to the Special Issue Selected Papers from the 2015 International Conference on Inventions)
View Full-Text   |   Download PDF [5124 KB, uploaded 12 April 2016]   |

Abstract

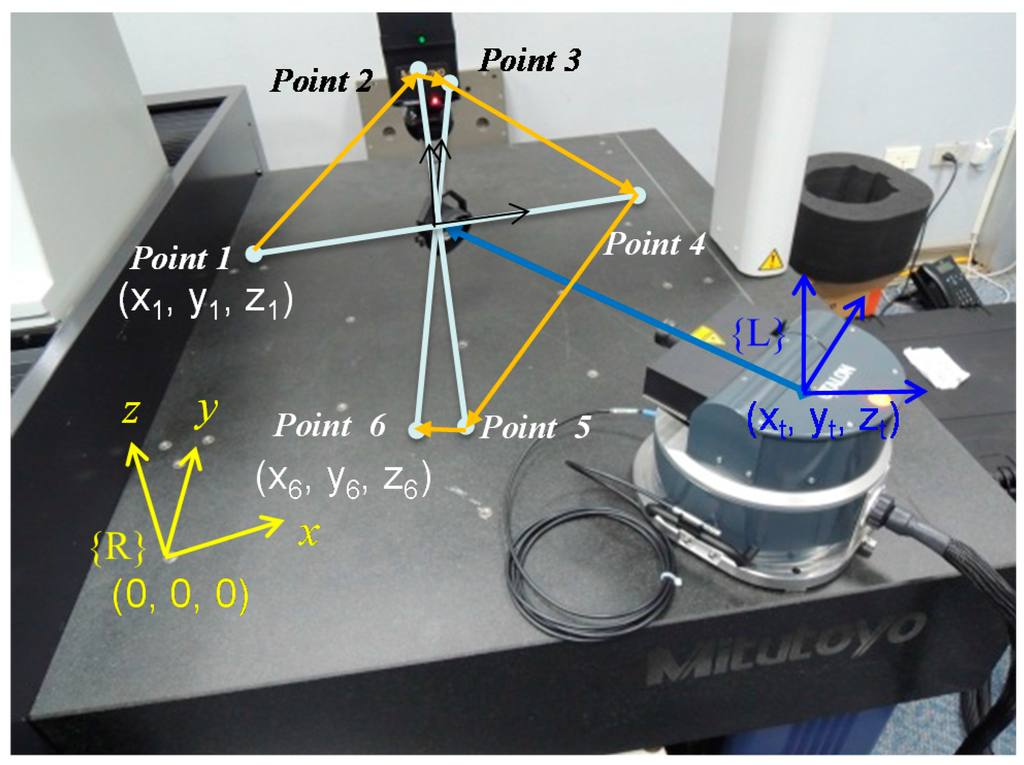

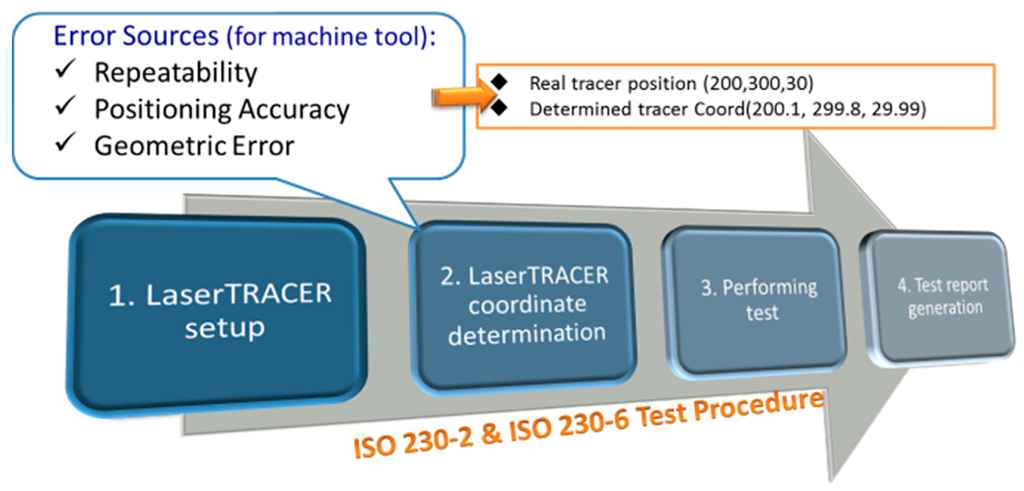

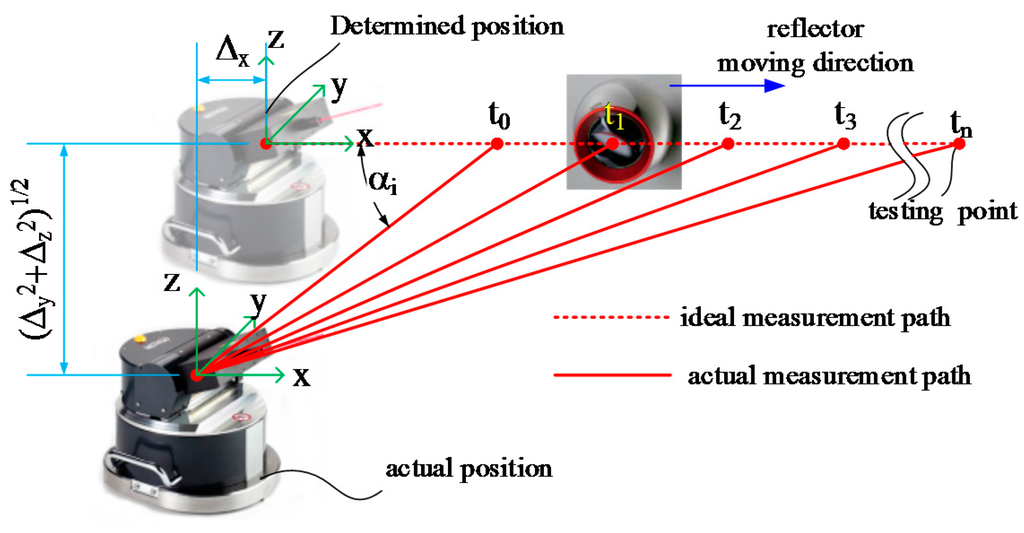

To test the positioning accuracy and repeatability of the linear axes of machine tools, ISO (International Standards Organization) 230-2 and ISO 230-6 are usually adopted. Auto-tracking laser interferometers (ATLI) can perform the testing for the positioning accuracy and the repeatability including x-, y- and z-axes according to ISO 230-2 as well as xy, xz, yz, and xyz diagonal lines following ISO 230-6. LaserTRACER is a kind of ATLI. One of the steps of the ISO 230-2 and -6 tests using LaserTRACER is to determine the coordinate of the LaserTRACER with respect to the home point of the machine tool. Positioning accuracy of the machine tool causes the coordinate determined error, which might influence the test result. To check on this error, this study performs three experiments. The experiment results show that the positioning error appears on the testing results. View Full-Text
Keywords: machine tool; LaserTRACER; ISO 230; positioning accuracy; repeatability machine tool; LaserTRACER; ISO 230; positioning accuracy; repeatability
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Lee, H.-W.; Chen, J.-R.; Pan, S.-P.; Liou, H.-C.; Hsu, P.-E. Relationship between ISO 230-2/-6 Test Results and Positioning Accuracy of Machine Tools Using LaserTRACER. Appl. Sci. 2016, 6, 105.
