Article

Magnetically Separable Base Catalysts: Heterogeneous Catalysis vs. Quasi-Homogeneous Catalysis

1
Institute of Chemistry, Casali Institute of Applied Chemistry, Center for Nanoscience and Nanotechnology, The Hebrew University of Jerusalem, Jerusalem 91904, Israel
2
Centre for Catalysis Research and Innovation, University of Ottawa, 10 Marie Curie, Ottawa, Ontario, K1N 6N5, Canada
*
Author to whom correspondence should be addressed.
Appl. Sci. 2012, 2(2), 260-276; https://doi.org/10.3390/app2020260
Submission received: 21 February 2012 / Revised: 12 March 2012 / Accepted: 15 March 2012 / Published: 26 March 2012
(This article belongs to the Special Issue Magnetic Nanoparticles: Synthesis, Properties and Applications)

Abstract

:
The synthesis of magnetically separable quasi-homogeneous base catalyst and heterogeneous base catalyst is described. The quasi-homogeneous catalyst is achieved by supporting silane monomers functionalized with different amine groups directly on the surface of magnetite nanoparticles. The heterogeneous catalyst is prepared via a sol-gel process in which silane monomers containing different amine groups are copolymerized with tetraethoxysilane in the presence of magnetite nanoparticles functionalized with ionic liquid moieties. The reactivity of the quasi-homogeneous and the heterogeneous base catalysts is compared in the nitroaldol condensation.

1. Introduction

Intensive investigations for heterogenizing homogeneous catalysts have been carried out during the last three decades that aim to combine the advantages of both homogeneous and heterogeneous catalysis [1]. Indeed, several methods of heterogenizing catalysts have been developed and applied successfully to the heterogenization of different types of catalysts. These methods, which include the binding of catalysts to organic polymer solids or inorganic solids, could facilitate the separation and the recycling of the heterogenized catalysts. However, the reactivity and the selectivity of these catalysts were significantly lower than with their homogeneous analogues. A Sol-gel process, which is based on the hydrolysis and polycondensation of metal alkoxides, has been also utilized extensively for the preparation of heterogenized catalysts [2,3,4,5,6]. According to this method, the heterogenization process can be achieved via physical encapsulation of homogeneous catalyst or by covalent binding of catalysts functionalized with trialkoxysilane groups.
Recently, quasi-homogeneous catalysis has emerged as a new stream in catalysis that is considered as a promising way for bridging homogeneous and heterogeneous catalysis [7,8]. This method is based on immobilization of homogeneous catalysts on supports of nanometric dimensions such as gold nanoparticles. Because these nano-supports have a large surface area, they can preserve the reactivity and selectivity of the immobilized catalysts. In spite of that, the separation and the recycling of such catalytic systems usually require a cumbersome procedure.
Magnetic nanoparticles (MNP) have been investigated due to their potential biomedical applications in various fields such as drug delivery [9,10], magnetic resonance imaging [11], biomolecular sensors [12,13], bioseparations [14,15], and magneto-thermal therapy [16,17]. In addition, recent studies show that magnetic nanoparticles are excellent supports for various catalysts [18,19,20,21]. The supported catalysts proved to be effective and easily separated from the reaction media by applying an external magnetic field. Moreover, the ability of magnetic nanoparticles to serve efficiently as nano-support for organocatalytic systems has been recently reported [22,23,24,25,26,27,28,29,30,31,32]. We have described the highly selective hydroformylation reaction using rhodium catalysts supported on dendronized magnetic nanoparticles [33]. We have also developed a catalytic system for the chemoselective hydrogenation of α, β-unsaturated aldehydes and alkynes, based on platinum nanoparticles supported on nano-magnetite, Fe3O4, modified with ionic liquid groups [34]. Furthermore, in our recent work we showed a method based on magnetic nanoparticles and sol-gel process that facilitates the separation of two solid catalysts after catalyzing one-pot reactions in a single vessel and enables their reuse in other catalytic reactions [35].
The condensations of activated methylene groups with aldehydes, in particular Knoevenagel [36] and nitroaldol [37] condensations, are efficient carbon-carbon bond forming reactions. These reactions are utilized widely in the synthesis of valuable organic compounds that are of importance to different biological and pharmaceutical applications. Usually, these condensations are catalyzed under homogeneous conditions by bases such as primary, secondary and tertiary amines. During the last decades, different solid base catalysts have been utilized to perform the Knoevenagel and nitroaldol condensations [38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54]. In addition, recent investigations show that magnetic nanoparticles functionalized with amine groups are effective catalysts in Knoevenagel condensation [55,56,57]. In kinetic studies, Jones et al. found that CoFe2O4 nanoparticles functionalized with a diamine group are even more efficient in Knoevenagel reactions than amino-functionalized porous silica catalysts [55]. Moreover, mesoporous Mg-Fe bi-metal oxides [58] and CoFe2O4 [59] were recently reported as magnetically separable catalysts for Knoevenagel reactions.
Here we report the synthesis of two types of magnetically separable base catalysts. The first catalyst is quasi-homogeneous and was synthesized by functionalizing the surface of magnetite nanoparticles with different amine groups. The second catalyst is heterogeneous and was prepared using a sol-gel process in which silane monomers functionalized with different amine groups were polycondensed with tetraethoxysilane (TEOS) in the presence of magnetite nanoparticles. The quasi-homogeneous and heterogeneous base catalysts were applied in the nitroaldol condensation and their activity in this reaction was compared.

2. Experimental Section

2.1. Synthesis of 1-(2-(Dimethylamino)ethyl)-3-(3-(rimethoxysilyl)propyl)urea

N,N-dimethylethylenediamine (12.6 mL, 115.3 mmol) was added to 3-isocyanatopropyl-(trimethoxy)silane (23.7 g, 115.3 mmol) and triethylamine (24 mL, 172 mmol) dissolved in 200 mL dry dichloromethane. The resulted mixture was stirred at room temperature for 24 h, and then it was concentrated by evaporation. 32.6 g of bright yellow liquid was obtained (yield 96.6%). 1H NMR (300 MHz, CDCl3): δ 0.66 (t, 7.8 Hz, 2H), 1.61 (q, 8.7 Hz, 2H), 2.25 (s, 6H), 2.426 (t, 5.7 Hz, 2H), 3.16 (q, 6 Hz, 2H), 3.25 (q, 6.9 Hz, 2H), 3.57 (s, 9H), 5.0 (s, 1H), 5.1 (s, 1H). 13C NMR (300 MHz, CDCl3): δ 6.8, 23.8, 38.4, 43.3, 45.6, 50.9, 59.4, 159.1. IR (cm−1): 3312, 2939, 2840, 2772, 1637, 1554, 1462, 1081. Elemental Analysis: calculated for C11H27N3O4Si, C: 45.02, H: 9.27, N: 14.32; found C: 44.47, H: 9.41, N: 14.01.

2.2. Synthesis of 1-Butyl-3-(3-trimethoxysilylpropyl)-1H-imidazol-3-ium chloride [34]

Thirty-five milliliters (192 mmol) of (3-chloropropyl)trimethoxysilane and 25.2 mL (192 mmol) of 1-butylimidazole were heated under N2 at 120 °C. The progress of the reaction was monitored by 1H NMR, and the reaction was completed after 8 h. The mixture was cooled to room temperature and 60.4 g of honey-like, orange viscous liquid was obtained (97% yield). 1H NMR (300 MHz, CDCl3):δ 0.616–0.672 (m, 2H), 0.967 (t, J = 7.5 Hz, 3H), 1.352 (dt, J = 8.1 Hz, 2H), 1.872–2.075 (m, 4H), 3.571 (s, 9H), 4.334 (dt, J = 4.2 Hz, 4H), 7.45 (t, J = 1.2 Hz, 1H), 7.568 (t, J = 1.8 Hz, 1H), 10.796 (s, 1H). 13C NMR (300 MHz, CDCl3): δ 5.94, 13.48, 19.51, 24.21, 32.21, 49.79, 50.75, 51.7, 121.91, 122.07, 137.84. IR (cm−1): 3128, 3044, 2943, 2843, 1560. Elemental Analysis: calculated for C13H27ClN2O3Si, C: 48.35, H: 8.43, N: 8.68; found C: 48.78, H: 8.78, N: 9.05.

2.3. Procedure for Supporting 1-Butyl-3-(3-trimethoxysilylpropyl)-1H-imidazol-3-ium Chloride on Magnetite Nanoparticles [34]

Eleven point six grams of FeCl3·6H2O and 4.3 g of FeCl2·4H2O were mixed in 400 mL of degassed water. The mixture was heated at 85 °C, and then 15 mL of concentrated ammonia (28%) were added quickly. The heating was continued for another 30 min. After cooling to room temperature, the solution was decanted and the black precipitate was washed five times with 200 mL water. The black magnetite nanoparticles were suspended in 500 mL of ethanol (95%) and sonicated for 60 min. The resulted suspension was mechanically stirred and a solution of 100 mL ethanol (95%) containing 30 mmol of 1-butyl-3-(3-trimethoxysilylpropyl)-1H-imidazol-3-ium chloride and 2 mL of concentrated ammonia (28%) were added. Stirring under N2 was continued for 36 h. The modified magnetite nanoparticles were magnetically separated and washed three times with 100 mL of ethanol (95%) and then dissolved in 400 mL of methanol and stirred mechanically for 30 min. One hundred milliliters of ether were added and the modified nanoparticles were magnetically separated, washed with 100 mL of ether and dried under a vacuum of 0.2 mmHg for 24 h. Typically, 6–6.5 g of brownish-black powder could be obtained.

2.4. General Procedure for Functionalization of Magnetite Nanoparticles with Amine Groups

The magnetite nanoparticles were prepared following the procedure described in Section 2.3 and the same amounts of reagents were used. The prepared magnetite was dispersed in 500 mL ethanol (95%) and sonicated for 60 min. After sonication, the suspension was mechanically stirred and 46.2 mmol of 1-(2-(dimethylamino)ethyl)-3-(3-(trimethoxysilyl)propyl)urea or N-[3-(trimethoxysilyl)propyl]--ethylenediamine dissolved in 100 mL ethanol (95%) were added. The mixture was stirred under N2 for 36 h. The magnetite nanoparticles were separated from the mixture by application of an external magnetic field, and they were washed twice with ethanol (95%) followed by washing three times with methanol. The washed magnetite nanoparticles were dispersed again in 100 mL methanol and the resulted suspension was sonicated for 30 min. The concentration of the magnetite nanoparticles functionalized with amine groups was 50–54 mg/mL. Before any use, the suspension was sonicated for 10 min.

2.5. General Procedure for Preparing Magnetically Separable Silica Sol-Gel Matrices Functionalized with Amine Groups

Two hundred milligrams of magnetic nanoparticles modified with 1-butyl-3-(3-trimethoxysilylpropyl)-1H-imidazol-3-ium chloride were dispersed in 5 mL methanol. This suspension was added to tetraethoxysilane (6 mL, 27.1 mmol) and distilled water (3.2 mL, 177.8 mmol). Then, 0.05 mL of HCl (0.1 N) were added and the mixture was stirred at room temperature for 2 h. After that, 4.6 mmol of 1-(2-(dimethylamino)ethyl)-3-(3-(trimethoxysilyl)propyl)urea or N-[3-(trimethoxysilyl)propyl]-ethylenediamine dissolved in 2 mL methanol were added to the mixture. A gellation of the mixture occurred after stirring for 4 h and the wet gel was aged at room temperature for 16 h. The resulting gel was dried under a vacuum of 0.2 mmHg at 60 °C for 24 h. Typically, 2.4–2.7 g of black xerogel were obtained as a final product.

2.6. General Procedure for the Nitroaldol Reaction Catalyzed by Magnetite Nanoparticles Modified with Amine Groups

Magnetite nanoparticles containing 0.19 mmol of the desired amine group were separated magnetically from the methanol and re-dispersed directly in 5 mL of a proper solvent. Then, 1.64 mmol of the desired aldehyde and nitroethane (0.17 mL, 2.39 mmol) were added. The resulting mixture was heated at 80 °C for 16 h. After cooling the mixture to room temperature, the catalyst was separated by applying an external magnetic field, and then the solution was decanted and dried over MgSO4. The solvent was evaporated and the resulting products were analyzed by spectral methods. When Dimethyl sulfoxide (DMSO) was used as a solvent for the catalytic reaction, it was mixed with 10 mL of water after separation of the catalyst and the products were extracted three times with 20 mL of ether. The combined solutions of ether were washed three times with 15 mL water and then dried over MgSO4. The ether was evaporated and the products were analyzed by spectral methods.

2.7. General Procedure for the Nitroaldol Reaction Catalyzed by Magnetically Separable Silica Xerogel Modified with Amine Groups

One hundred milligrams of silica xerogels containing 0.19 mmol of the desired amine groups were dispersed in 5 mL of a proper solvent. 1.64 mmol of the desired aldehyde and mitroethane (0.17 mL, 2.39 mmol) were added to the mixture. The resulting mixture was heated at 80 °C for 16 h and then cooled to room temperature. After magnetic separation of the catalyst, the solution was decanted and dried over MgSO4. The solution was concentrated and the resulting products were analyzed by spectral methods. When DMSO was used as a solvent, the products were isolated from the solvent in the same manner as it is described in Section 2.5.

3. Results and Discussion

3.1. Preparation of Magnetically Separable Quasi-Homogeneous Base Catalysts

As shown in Scheme 1, two base catalysts functionalized with a trimethoxysilane group were anchored to the magnetite nanoparticles by a condensation reaction under basic conditions between the trimethoxysilane group and the hydroxyl groups existing on the surface of the magnetite nanoparticles. The first base catalyst, 1-(2-(dimethylamino)ethyl)-3-(3-(trimethoxysilyl)propyl)urea, contains tertiary amine groups and was prepared by the reaction of 3-isocyanatopropyl(trimethoxy)silane and N,N-dimethylethylenediamine. The second base catalyst, N-[3-(trimethoxysilyl)propyl]ethylenediamine, contains primary and secondary amine groups.

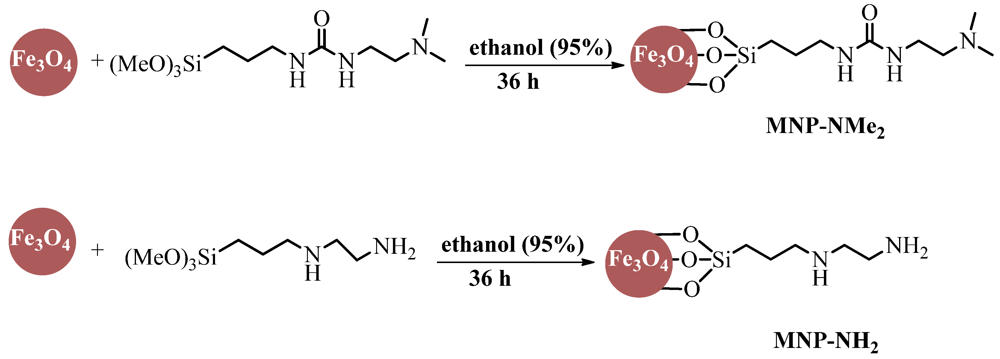

Scheme 1. Supporting different base catalysts on the surface of magnetite nanoparticles
Scheme 1. Supporting different base catalysts on the surface of magnetite nanoparticles
Applsci 02 00260 g008
After supporting the base catalysts on the magnetite nanoparticles the resulting materials MNP-NMe2 and MNP-NH2 were characterized by Transmission Electron Microscopy (TEM), X-ray Diffraction (XRD), thermogravimetric analysis-differential thermal analysis (TGA-DTA) and infrared (IR) methods. The results of the TEM analysis (Figure 1) show that the average size of MNP-NMe2 and MNP-NH2 lies in the range of 1015 nm. The shape of the magnetite nanoparticles modified with amine groups is spherical in both cases. In addition, TEM analysis confirms that a silica shell is not constructed on the surface of the magnetite nanoparticles even though the silane monomers were added in large excess. This result is also confirmed by XRD analysis (Figure 2) that shows just characteristic peaks of magnetite nanoparticles at 2θ = 30.1°, 35.5°, 43.3°, 53.6°, 57° and 62.6°. These peaks are attributed respectively to (2 2 0), (3 1 1), (4 0 0), (4 2 2), (5 1 1) and (4 4 0) phases of a cubic unit cell.
Figure 1. Transmission Electron Microscopy (TEM) micrographs of base catalysts supported on magnetite nanoparticles: (a) MNP-NH2, scale bar 100 nm; (b) MNP-NMe2, scale bar 100 nm.
Figure 1. Transmission Electron Microscopy (TEM) micrographs of base catalysts supported on magnetite nanoparticles: (a) MNP-NH2, scale bar 100 nm; (b) MNP-NMe2, scale bar 100 nm.
Applsci 02 00260 g001
Figure 2. Powder X-ray Diffraction (XRD) patterns of base catalysts supported on magnetite nanoparticles.
Figure 2. Powder X-ray Diffraction (XRD) patterns of base catalysts supported on magnetite nanoparticles.
Applsci 02 00260 g002
The loading of the amine groups in the magnetically separable base catalysts was determined by TGA analysis that was performed under air atmosphere. This analysis shows that MNP-NH2 contains about 0.46 mmol/g amine groups while MNP-NMe2 contains about 0.63 mmol/g amine groups. Figure 3(a) shows TGA-DTA curves of the catalysts MNP-NH2. The DTA curve contains four distinct derivative peaks, which correspond to four mass losses in the TGA curve. Between 80 °C and 118 °C there is an endothermic peak which belongs to desorption of volatile organic solvents and the percentage of the mass loss is 1.3%. At temperatures of 186 °C and 294 °C there are two exothermic peaks accompanied with mass loss of 4.5%, the first peak most likely corresponds to the decomposition of the amine groups and the second peak corresponds to the decomposition of the entire organic groups. The exothermic peak at 737 °C most probably corresponds to a phase transition in which magnetite is converted to FeO. This phase transition is accompanied by a mass loss of 1.1%. The TGA-DTA curves of MNP-NMe2 (Figure 3(b)) show four steps of mass loss. The first mass loss of 2.7% at 80 °C takes place because of desorption of volatile organic solvents. The decomposition of the organic groups supported on the magnetite nanoparticles occurs at temperatures of 305 °C and 401 °C. In this case, the mass losses for the degradation of the organic groups are about 10.9%. According to the DTA curve for catalyst MNP-NMe2, the phase transition of magnetite to FeO happens at a temperature of 775 °C.

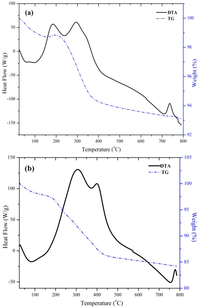

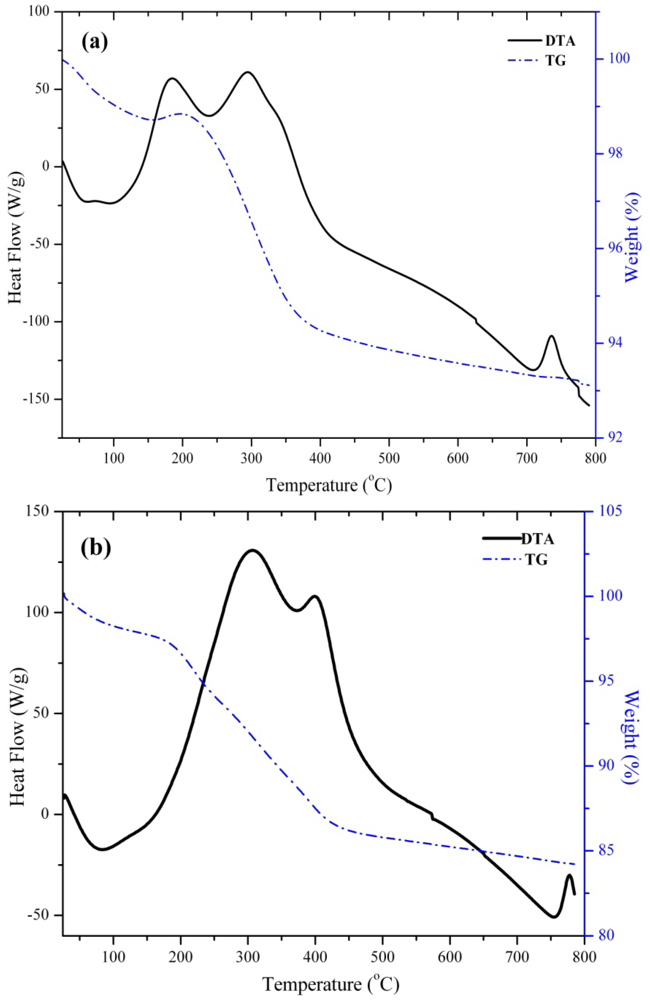

Figure 3. Thermogravimetric analysis-differential thermal analysis (TGA-DTA) curves of (a) MNP-NH2 catalyst and (b) MNP-NMe2 catalyst.
Figure 3. Thermogravimetric analysis-differential thermal analysis (TGA-DTA) curves of (a) MNP-NH2 catalyst and (b) MNP-NMe2 catalyst.
Applsci 02 00260 g003
The IR spectrum of catalyst MNP-NH2 (Figure 4 (b)) shows a broad absorption band at 3430 cm−1 that is attributed to N-H stretching. The peaks that appear at 1631 cm−1 and 1560 cm−1 belong to primary N-H bending vibration while the band at 1462 cm−1 corresponds to secondary N-H bending vibration. Figure 4 (a) shows the IR spectrum of the catalyst MNP-NMe2. In this spectrum, it can be seen that there is a broad peak at 3277 cm−1, which is attributed to N-H stretching vibration of the urea group. The absorption band at 1625 cm−1 belongs to C=O stretching vibration while the peak at 1555 cm−1 is due to N-H bending vibration. The peak that appears at 1254 cm−1 is ascribed to C-N stretching vibration.

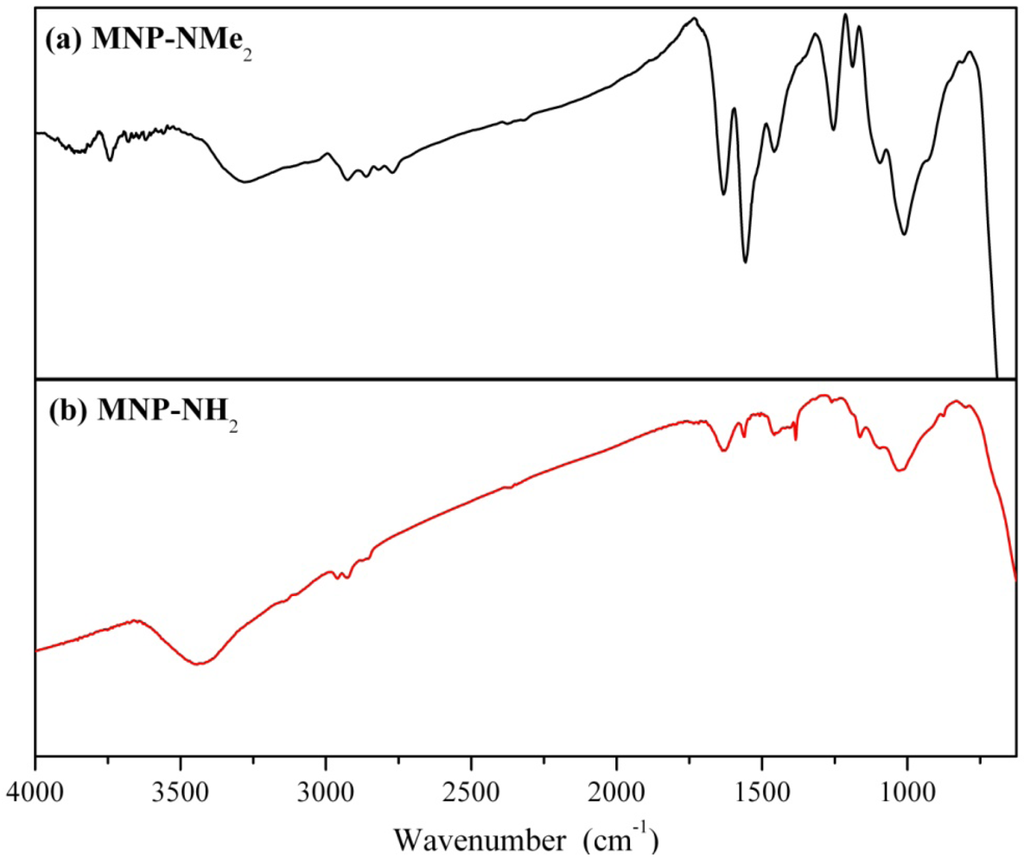

Figure 4. Infrared (FT-IR) spectrums of the catalysts (a) MNP-NMe2 and (b) MNP-NH2.
Figure 4. Infrared (FT-IR) spectrums of the catalysts (a) MNP-NMe2 and (b) MNP-NH2.
Applsci 02 00260 g004

3.2. Preparation of Magnetically Separable Heterogeneous Base Catalysts

The magnetically separable heterogeneous base catalysts were prepared using a sol-gel process. Thus, the process of preparation (Scheme 2) was based on copolymerization of either 1-(2-(dimethylamino)ethyl)-3-(3-(trimethoxysilyl)propyl)urea or N-[3-(trimethoxysilyl)propyl]-ethylenediamine with tetraethoxysilane (TEOS) in the presence of magnetite nanoparticles supported with ionic liquid groups (MNP-IL-C4) that were prepared by reacting Fe3O4 nanoparticles with 1-butyl-3-(3-trimethoxysilylpropyl)-1H-imidazol-3-ium chloride in ethanol. MNP-IL-C4 was utilized in this process as it is highly dispersible in methanol, which was used as a medium for preparing the silica sol-gel matrices. TEOS was first hydrolyzed using acid catalyst, and then the silane monomers functionalized with amine groups were added. Since the hydrolysis of the silane monomers containing amine groups is much faster than with TEOS, we decided to first hydrolyze TEOS under acidic conditions in order to bring on the end of the process to homogeneous distribution of the amine groups on the formed silica sol-gel backbone. After the copolymerization process was completed, black wet gels were obtained that were then dried to give black xerogels that could be strongly attracted to an external magnetic field. By this way of preparation, two types of magnetically separable heterogeneous base catalysts were synthesized: the first catalyst contains secondary and primary amine groups (SG-MNP-NH2) while the second catalyst contains tertiary amine groups (SG-MNP-NMe2).

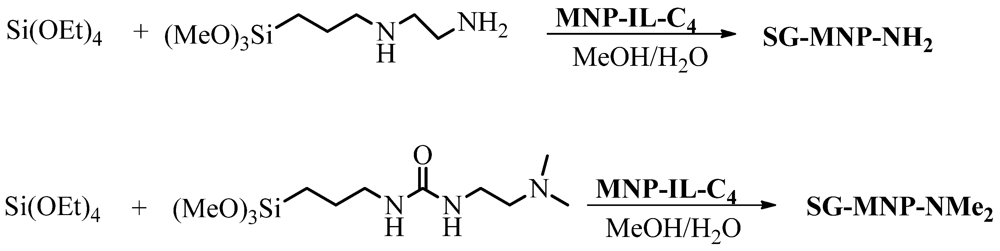

Scheme 2. Preparation of magnetically separable heterogeneous base catalysts.
Scheme 2. Preparation of magnetically separable heterogeneous base catalysts.
Applsci 02 00260 g009
The two heterogeneous base catalysts, SG-MNP-NH2 and SG-MNP-NMe2, were characterized by TEM, TGA-DTA and XRD methods. According to TEM analysis (Figure 5), it can be seen for both heterogeneous catalysts that the magnetic nanoparticles supported with ionic liquid groups (MNP-IL-C4) are embedded in the silica sol-gel matrices. It seems that the distribution of the magnetic nanoparticles in the silica sol-gel matrices is homogeneous in the case of SG-MNP-NH2 while it is not uniform in the case of SG-MNP-NMe2. XRD analysis (Figure 6) confirmed the presence of magnetic nanoparticles in the silica sol-gel matrices. Thus, the XPD patterns of SG-MNP-NH2 (Figure 6 (b)) and SG-MNP-NMe2 (Figure 6 (a)) contain the characteristic peaks of the magnetite nanoparticles in addition to the broad peaks between 2θ = 12° and 2θ = 33° that correspond to amorphous silica produced by the sol-gel process.
Figure 5. TEM micrographs of magnetically separable heterogeneous base catalysts: (a) SG-MNP-NH2, scale bar 50 nm; (b) SG-MNP-NMe2, scale bar 50 nm.
Figure 5. TEM micrographs of magnetically separable heterogeneous base catalysts: (a) SG-MNP-NH2, scale bar 50 nm; (b) SG-MNP-NMe2, scale bar 50 nm.
Applsci 02 00260 g005

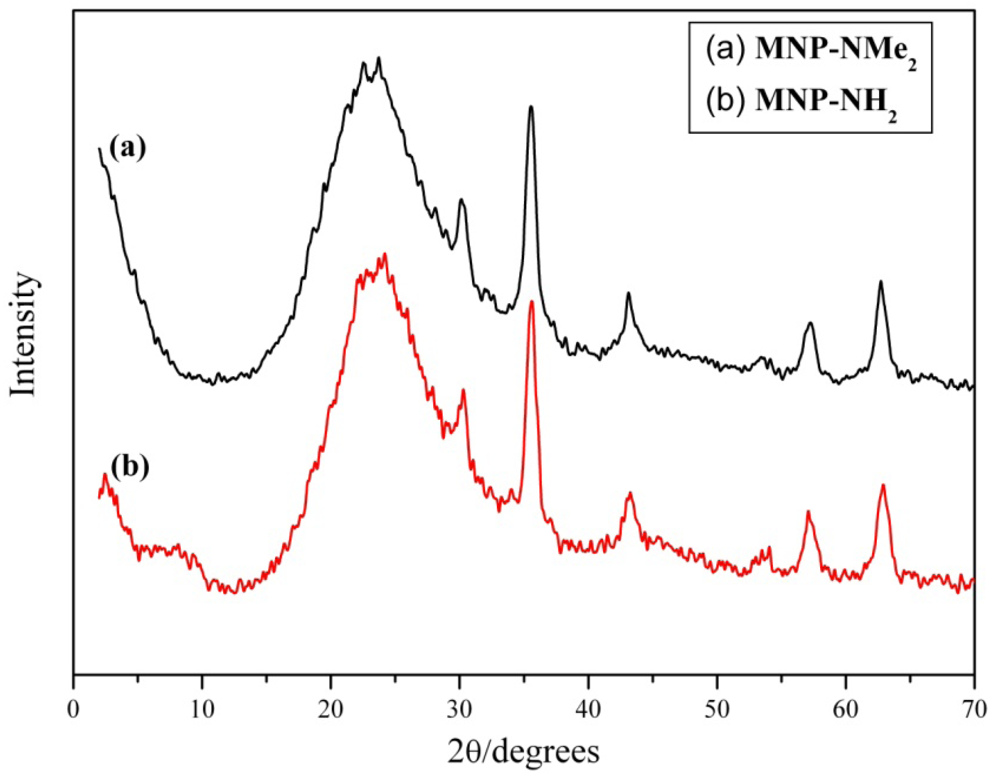

Figure 6. Powder XRD patterns of magnetically separable heterogeneous base catalysts: (a) SG-MNP-NMe2 and (b)SG-MNP-NH2.
Figure 6. Powder XRD patterns of magnetically separable heterogeneous base catalysts: (a) SG-MNP-NMe2 and (b)SG-MNP-NH2.
Applsci 02 00260 g006

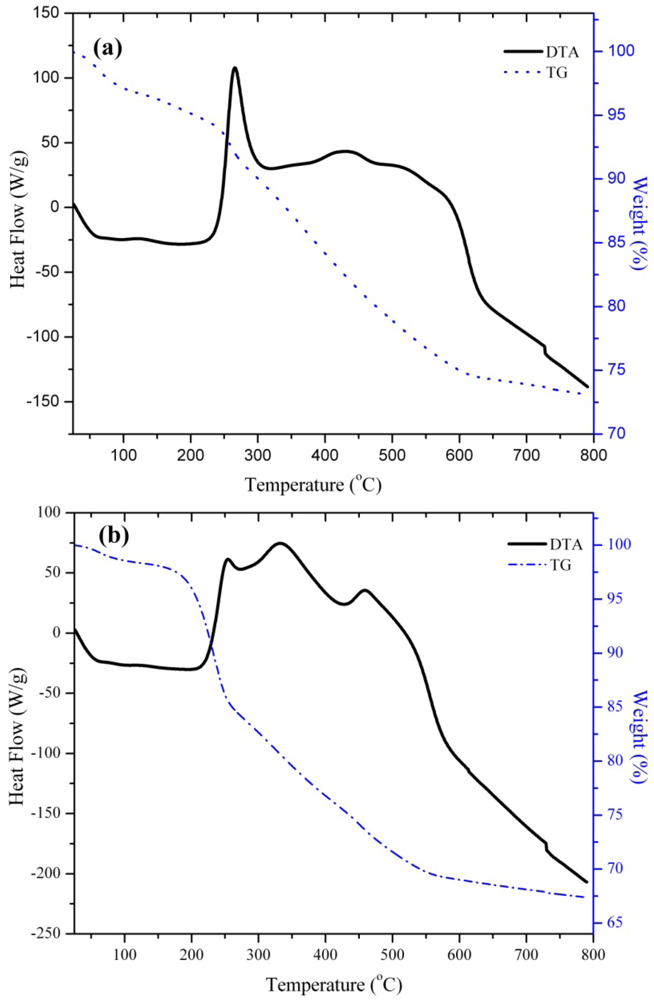

Figure 7. TGA-DTA curves of (a) SG-MNP-NH2 catalyst and (b) SG-MNP-NMe2 catalyst.
Figure 7. TGA-DTA curves of (a) SG-MNP-NH2 catalyst and (b) SG-MNP-NMe2 catalyst.
Applsci 02 00260 g007
In addition, TGA-DTA techniques were utilized to determine the thermal behavior of the catalysts SG-MNP-NH2 and SG-MNP-NMe2. The representative thermograms are shown in Figure 7. The DTA results of the catalyst SG-MNP-NH2 (Figure 7(a)) show a broad endothermic peak centered at 125 °C which can be attributed to the removal of physical adsorbed organic volatiles and water. The mass loss after this desorption process is about 6%. In addition, the strong exothermic peak at 266 °C and the weak exothermic peak at 425 °C are accompanied by a mass loss of 12%. These peaks correspond to the combustion of the organic groups in the silica sol-gel matrix. The broad exothermic peak in a temperature range of 480630 °C is likely to be attributed to the dehydroxylation of the silica sol-gel and the phase transition from gel to glass. These processes are accompanied by a mass loss of 7%. The DTA curve of the catalyst SG-MNP-NMe2 (Figure 7(b)) shows a broad endothermic peak centered at 134 °C, which belongs to the desorption of organic solvents and water. The mass loss of this desorption process is 2.5%. The combustion of the organic groups of the catalyst SG-MNP-NMe2 occurs at temperatures of 255 °C and 332 °C, and this process leads to a mass loss of 21.5%. On the other hand, the exothermic peak at 485 °C accompanied with a mass loss of 7%, can be attributed to the dehydroxylation of the silica sol-gel.

3.3. Catalytic Studies of the Quasi-Homogeneous and Heterogeneous Base Catalysts

Our catalytic studies were initiated by testing the activity of the quasi-homogeneous base catalysts MNP-NH2 and MNP-NMe2 in a Knoevenagel reaction. Thus, malononitrile and benzaldehyde were reacted at 80 °C in the presence of 2 mol of the base catalysts dispersed in different solvents: DMSO, DMF, ethanol and water. We chose to use these polar solvents as a medium for the condensation reaction because the catalysts were more dispersible in them than in non-polar solvents like toluene, cyclohexane and heptane. After 1 h, the two catalysts gave quantitative yields of the condensation product in all of these experiments and no significant influence was observed for the type of the solvent used in these reactions. The activity of the two catalysts in the Knoevenagel condensation was similar to magnetically separable systems reported before [55,56,57,58,59].
In the second stage of our study, we investigated the reactivity of the catalysts MNP-NH2 and MNP-NMe2 in nitroaldol reaction. Thus, nitroethane and p-anisaldehyde were reacted at 80 °C for 16 h and in the presence of one of the two quasi-homogeneous catalysts dispersed in different solvents. In these experiments, the type of the solvent and the type of the catalyst utilized in the nitroaldol reaction could significantly affect the catalytic performance. When the reaction was performed in DMSO using MNP-NH2 as a catalyst, only 25% of the desired product, (E)-1-methoxy-4-(2-nitroprop-1-en-1-yl)benzene, was obtained. The use of the same catalyst dispersed in ethanol led to the formation of the desired product in a yield of 68%. The condensation reaction catalyzed by MNP-NH2 in toluene, cyclohexane and heptane did not yield any product. It is worth mentioning that the catalyst was not dispersible in these solvents and in fact worked as a heterogeneous catalytic system. It seems that the strong aggregation of the catalyst MNP-NH2 in non-polar solvents lead to a limited accessibility to the active sites of the catalyst. When MNP-NMe2 was utilized as a catalyst for the nitroaldol condensation in different solvents, no products were detected.
The nitroaldol reaction of nitroethane with p-anisaldehyde was also investigated using SG-MNP-NH2 and SG-MNP-NMe2 as magnetically separable heterogeneous base catalysts. The heterogeneous condensation reaction was optimized using different organic solvents. The results are summarized in Table 1. The results clearly show that non-polar solvents are preferable as a medium for the condensation reaction to polar solvents. The highest yield of the product (E)-1-methoxy-4-(2-nitroprop-1-en-1-yl)benzene was obtained when cyclohexane was applied as solvent. The heterogeneous catalyst SG-MNP-NMe2 led to the formation of 1-(4-methoxyphenyl)-2-nitropropan-1-ol as main product. In this case, it was also found that non-polars solvent are preferable to polar solvent as the product was produced a higher yield.
Table 1. Nitroaldol condensation of nitroethane with p-anisaldehyde in different organic solvents catalyzed by magnetically separable heterogeneous base catalysts a. Applsci 02 00260 i001
Table 1. Nitroaldol condensation of nitroethane with p-anisaldehyde in different organic solvents catalyzed by magnetically separable heterogeneous base catalysts a. Applsci 02 00260 i001
EntryCatalystSolventYield (%)
1SG-MNP-NH2acetonitrile47
2SG-MNP-NH2dimethylformamide68
3SG-MNP-NH2dioxane53
4SG-MNP-NH2dimethyl sulfoxide34
5SG-MNP-NH2ethanol (95%)48
6SG-MNP-NH2ethanol (dry)80
7SG-MNP-NH2benzene87
8SG-MNP-NH2heptane88
9SG-MNP-NH2cyclohexane90
10SG-MNP-NH2toluene85
11SG-MNP-NMe2toluene72b
12SG-MNP-NMe2ethanol (dry)23b
13SG-MNP-NMe2dimethyl sulfoxide-
a Reaction conditions: 100 mg catalyst, 1.64 mmol p-anisaldehyde, 2.39 mmol nitroethane, 5 ml solvent, 80 °C, 16 h.
b Only 1-(4-methoxyphenyl)-2-nitropropan-1-ol was formed.
The heterogeneous nitroaldol reaction using the catalyst SG-MNP-NH2 was then tested in the condensation of several aromatic aldehydes with nitroethane. The condensation reactions were performed at 80 °C and cyclohexane was applied as a solvent for these reactions. The results of these reactions are presented in Table 2. The results show that the steric effect in this heterogeneous condensation reaction is negligible. Thus, when 2-methoxybenzaldehyde or 2-chlorobenzaldehyde is utilized as a substrate, high yields of the desired products are obtained. Aromatic aldehydes substituted with strong electron withdrawing groups lead to the formation of the condensation products in moderate yield. On the other hand, aromatic aldehydes containing electron-donating groups such as isopropyl give excellent yields of the condensation products. In addition, the catalyst SG-MNP-NH2 can be recycled in the condensation of p-anisaldehyde with nitroethane for four consecutive runs without significant decrease in its activity or selectivity.
Table 2. Nitroaldol condensation of nitroethane with different aromatic aldehydes catalyzed by the catalyst SG-MNP-NH2 a. Applsci 02 00260 i002
Table 2. Nitroaldol condensation of nitroethane with different aromatic aldehydes catalyzed by the catalyst SG-MNP-NH2 a. Applsci 02 00260 i002
EntryAromatic aldehydeYield (%)
1benzaldehyde>99
23-methoxybenzaldehyde95
32-methoxybenzaldehyde97
44-nitrobenzaldehyde78
53-nitrobenzaldehyde69
74-chlorobenzaldehyde99
82-chlorobenzaldehyde98
94-isopropylbenzaldehyde95
101-naphthaldehyde99
a Reaction conditions: 100 mg catalyst, 1.64 mmol aromatic aldehyde, 2.39 mmol nitroethane, 5 ml cyclohexane, 80 °C, 16 h.

4. Conclusions

In conclusion, two types of magnetically separable base catalysts were prepared: quasi-homogeneous and heterogeneous catalysts. The quasi-homogeneous base catalysts were synthesized by supporting silane monomers functionalized with different amine groups directly on the surface of magnetite nanoparticles. Although these catalysts exhibited excellent activity in Knoevenagel reactions, their application in nitroaldol condensation led to obtaining poor to moderate yields of the desired products. Their activity in the nitroaldol reactions was highly dependent on the type of the organic solvents used. Non-polar solvents depressed the activity of the quasi-homogeneous catalysts due to strong aggregations of the catalysts and limitation of the accessibility of the substrates to their active sites. The magnetically separable heterogeneous base catalysts were achieved by copolymerization of tetraethoxysilane with silane monomers containing different amine groups by sol-gel process and in the presence of magnetite supported with ionic liquid groups. These catalysts were active in the nitroaldol reactions and, contrary to the quasi-homogeneous base catalysts, they showed high activity in non-polar solvents.

Conflict of Interest

State any potential conflicts of interest here or “The authors declare no conflict of interest”.

References and Notes

  1. Recoverable and Recyclable Catalysts; Benaglia, M. (Ed.) John Wiley & Sons: Chichester, UK, 2009.
  2. Lu, Z.; Lindner, E.; Mayer, H.A. Applications of sol-gel-processed interphase catalysts. Chem. Rev. 2002, 102, 3543–3578. [Google Scholar] [CrossRef]
  3. Marr, A.C.; Marr, P.C. Entrapping homogeneous catalysts by sol-gel methods: The bottom-up synthesis of catalysts that recycle and cascade. Dalton Trans. 2011, 40, 20–26. [Google Scholar] [CrossRef]
  4. Zamboulis, A.; Moitra, N.; Moreau, J.J.E.; Cattoën, X.; Wong Chi Man, M. Hybrid materials: Versatile matrices for supporting homogeneous catalysts. J. Mater. Chem. 2010, 20, 9322–9338. [Google Scholar] [CrossRef]
  5. Ciriminna, R.; Demma Carà, P.; Sciortino, M.; Pagliaro, M. Catalysis with doped sol-gel silicates. Adv. Synth. Catal. 2011, 353, 677–687. [Google Scholar] [CrossRef]
  6. Ciriminna, R.; Pagliaro, M. Recent uses of sol-gel doped catalysts in the fine chemicals and pharmaceutical industry. Org. Process Res. Dev. 2006, 10, 320–326. [Google Scholar]
  7. Schätz, A.; Reiser, O.; Stark, W.J. Nanoparticles as semi-heterogeneous catalyst supports. Chem. Eur. J. 2010, 16, 8950–8967. [Google Scholar] [CrossRef]
  8. Astruc, D.; Lu, F.; Aranzaes, J.R. Nanoparticles as recyclable catalysts: The frontier between homogeneous and heterogeneous catalysis. Angew. Chem. Int. Ed. 2005, 44, 7852–7872. [Google Scholar] [CrossRef]
  9. Gupta, A.K.; Curtis, A.S.G. Surface modified superparamagnetic nanoparticles for drug delivery: Interaction studies with human fibroblasts in culture. J. Mater. Sci. Mater. Med. 2004, 15, 493–496. [Google Scholar] [CrossRef]
  10. Neuberger, T.; Schoepf, B.; Hofmann, H.; Hofmann, M.; von Rechenberg, B. Superparamagnetic nanoparticles for biomedical applications: possibilities and limitations of a new drug delivery system. J. Magn. Magn. Mater. 2005, 293, 483–496. [Google Scholar] [CrossRef]
  11. Pankhurst, Q.A.; Connolly, J.; Jones, S.K.; Dobson, J. Applications of magnetic nanoparticles in biomedicine. J. Phys. D: Appl. Phys. 2003, 36, R167–R181. [Google Scholar] [CrossRef]
  12. Perez, J.M.; Simeone, F.J.; Saeki, Y.; Josephson, L.; Weissleder, R. Viral-induced self-assembly of magnetic nanoparticles allows the detection of viral particles in biological media. J. Am. Chem. Soc. 2003, 125, 10192–10193. [Google Scholar]
  13. Graham, D.L.; Ferreira, H.A.; Freitas, P.P. Magnetoresistive-based biosensors and biochips. Trends Biotechnol. 2004, 22, 455–462. [Google Scholar] [CrossRef]
  14. Wang, D.; He, J.; Rosenzweig, N.; Rosenzweig, Z. Nano Lett. 2004, 4, 409–413.
  15. Xu, C.; Xu, K.; Gu, H.; Zheng, R.; Liu, H.; Zhang, X.; Guo, Z.; Xu, B. Dopamine as a robust anchor to immobilize functional molecules on the iron oxide shell of magnetic nanoparticles. J. Am. Chem. Soc. 2004, 126, 9938–9939. [Google Scholar]
  16. Hiergeist, R.; Andra, W.; Buske, N.; Hergt, R.; Hilger, I.; Richter, U.; Kaiser, W. Application of magnetite ferrofluids for hyperthermia. J. Magn. Magn. Mater. 1999, 201, 420–422. [Google Scholar] [CrossRef]
  17. Jordan, A.; Scholz, R.; Wust, P.; Fahling, H.; Felix, R. Magnetic fluid hyperthermia (MFH): Cancer treatment with AC magnetic field induced excitation of biocompatible superparamagnetic nanoparticles. J. Magn. Magn. Mater. 1999, 201, 413–419. [Google Scholar] [CrossRef]
  18. Polshettiwar, V.; Luque, R.; Fihri, A.; Zhu, H.; Bouhrara, M.; Basset, J.M. Magnetically recoverable nanocatalysts. Chem. Rev. 2011, 111, 3036–3075. [Google Scholar] [CrossRef]
  19. Shyles, S.; Schünemann, V.; Thiel, W.R. Magnetically separable nanocatalysts: Bridges between homogeneous and heterogeneous catalysis. Angew. Chem. Int. Ed. 2010, 49, 3428–3459. [Google Scholar]
  20. Zhu, Y.; Stubbs, L.P.; Ho, F.; Liu, R.; Ship, C.P.; Maguire, J.A.; Hosmane, N.S. Magnetic nanocomposites: A new perspective in catalysis. ChemCatChem 2010, 2, 365–374. [Google Scholar] [CrossRef]
  21. Polshettiwar, V.; Varma, R.S. Green chemistry by nano-catalysis. Green Chem. 2010, 12, 743–754. [Google Scholar] [CrossRef]
  22. Kawamura, M.; Sato, K. Magnetically separable phase-transfer catalysts. Chem. Commun. 2006, 4718–4719. [Google Scholar] [CrossRef]
  23. Lee, D.; Lee, J.; Lee, H.; Jin, S.; Hyeon, T.; Kim, B.M. Filtration-free recyclable catalytic asymmetric dihydroxylation using a ligand immobilized on magnetic mesocellular mesoporous silica. Adv. Synth. Catal. 2006, 348, 41–46. [Google Scholar] [CrossRef]
  24. Luo, S.; Zheng, X.; Xu, H.; Mi, X.; Zhang, L.; Cheng, J.P. Magnetic nanoparticle-supported Morita-Baylis-Hillman catalysts. Adv. Synth. Catal. 2007, 349, 2431–2434. [Google Scholar] [CrossRef]
  25. Dálaigh, C.Ó.; Corr, S.A.; Gun'ko, Y.; Connon, S.J. A magnetic-nanoparticle-supported 4-N,N-dialkylaminopyridine catalyst: Excellent reactivity combined with facile catalyst recovery and recyclability. Angew. Chem. Int. Ed. 2007, 46, 4329–4332. [Google Scholar]
  26. Luo, S.; Zheng, X.; Cheng, J.-P. Asymmetric bifunctional primary aminocatalysis on magnetic nanoparticles. Chem. Commun. 2008, 5719–5721. [Google Scholar]
  27. Schätz, A.; Grass, R.N.; Stark, W.J.J.; Reiser, O. TEMPO supported on magnetic C/Co-nanoparticles: A highly active and recyclable organocatalyst. Chem. Eur. J. 2008, 14, 8262–8266. [Google Scholar]
  28. Gleeson, O.; Tekoriute, R.; Gun'ko, Y.K.; Connon, S.J. The first magnetic nanoparticle-supported chiral DMAP analogue: Highly enantioselective acylation and excellent recyclability. Chem. Eur. J. 2009, 15, 5669–5673. [Google Scholar] [CrossRef]
  29. Wang, B.G.; Ma, B.C.; Wang, Q.; Wang, W. Superparamagnetic nanoparticle-supported (S)-diphenyl-prolinol trimethylsilyl ether as a recyclable catalyst for asymmetric Michael addition in water. Adv. Synth. Catal. 2010, 352, 2923–2928. [Google Scholar] [CrossRef]
  30. Polshettiwar, V.; Baruwati, B.; Varma, R.S. Magnetic nanoparticle-supported glutathione: A conceptually sustainable organocatalyst. Chem. Commun. 2009, 1837–1839. [Google Scholar]
  31. Polshettiwar, V.; Varma, R.S. Nano-organocatalyst: Magnetically retrievable ferrite-anchored glutathione for microwave-assisted Paal-Knorr reaction, aza-Michael addition, and pyrazole synthesis. Tetrahedron 2010, 66, 1091–1097. [Google Scholar] [CrossRef]
  32. Riente, P.; Mendoza, C.; Pericás, M.A. Functionalization of Fe3O4 magnetic nanoparticles for organocatalytic Michael reactions. J. Mater. Chem. 2011, 21, 7350–7355. [Google Scholar]
  33. Abu-Reziq, R.; Alper, H.; Wang, D.; Post, M.L. Metal supported on dendronized magnetic nanoparticles: Highly selective hydroformylation catalysts. J. Am. Chem. Soc. 2006, 128, 5279–5282. [Google Scholar]
  34. Abu-Reziq, R.; Wang, D.; Post, M.L.; Alper, H. Platinum nanoparticles supported on ionic liquid-modified magnetic nanoparticles: Selective hydrogenation catalysts. Adv. Synth. Catal. 2007, 349, 2145–2150. [Google Scholar] [CrossRef]
  35. Abu-Reziq, R.; Wang, D.; Post, M.L.; Alper, H. Separable catalysts in one-pot syntheses for greener chemistry. Chem. Mater. 2008, 20, 2544–2550. [Google Scholar]
  36. Jones, G. The Knoevenagel condensation. Org. React. 1967, 15, 204–599. [Google Scholar]
  37. Barret, A.G.M.; Graboski, G.G. Conjugated nitroalkenes: Versatile intermediates in organic synthesis. Chem. Rev. 1986, 86, 751–762. [Google Scholar]
  38. Ballini, R.; Bosica, G.; Fiorini, D.; Palmieri, A. One-pot synthesis of 1,3-dinitroalkanes under heterogeneous catalysis. Synthesis 2004, 1938–1940. [Google Scholar]
  39. Kantam, M.L.; Choudary, B.M.; Reddy, C.V.; Rao, K.K.; Figueras, F. Aldol and Knoevenagel condensations catalysed by modified Mg-Al hydrotalcite: A solid base as catalyst useful in synthetic organic chemistry. Chem Commun. 1998, 1033–1034. [Google Scholar]
  40. Bulbule, V.J.; Deshpande, V.H.; Velu, S.; Sudalai, A.; Sivasankar, S.; Sathe, V.T. Heterogeneous Henry reaction of aldehydes: Diastereoselective synthesis of nitroalcohol derivatives over Mg-Al hydrotalcites. Tetrahedron 1999, 55, 9325–9332. [Google Scholar] [CrossRef]
  41. Akutu, K.; Kabashima, H.; Seki, T.; Hattori, H. Nitroaldol reaction over solid base catalysts. Appl. Catal.A 2003, 247, 65–74. [Google Scholar] [CrossRef]
  42. Khan, F.A.; Dash, J.; Satapathy, R.; Upadhyay, S.K. Hydrotalcite catalysis in ionic liquid medium: A recyclable reaction system for heterogeneous Knoevenagel and nitroaldol condensation. Tetraheron Lett. 2004, 45, 3055–3058. [Google Scholar]
  43. Choudary, B.M.; Kantam, M.L.; Reddy, C.V.; Rao, K.K.; Figueras, F. Henry reactions catalysed by modified Mg-Al hydrotalcite: An efficient reusable solid base for selective synthesis of beta-nitroalkanols. Green Chem. 1999, 187–189. [Google Scholar]
  44. Saito, T.; Goto, H.; Honda, K.; Fujii, T.T. Acid-base catalysts derived from weakly acidic ion-exchange resin:Efficiency in the Knoevenagel condensation. Tetrahedron Lett. 1992, 33, 7535–7538. [Google Scholar] [CrossRef]
  45. Hein, R.W.; Astle, M.J.; Shelton, J.R. Ion-exchange Resin Catalysis of the Knoevenagel Condensation of Ketones. J. Org. Chem. 1961, 26, 4874–4878. [Google Scholar] [CrossRef]
  46. Ballini, R.; Bosica, G.; Forconi, P. Nitroaldol (Henry) reaction catalyzed by Amberlyst A-21 as a far superior heterogeneous catalyst. Tetrahedron 1996, 52, 1677–1684. [Google Scholar] [CrossRef]
  47. Angeletti, E.; Canepa, C.; Martinetti, G.; Venturello, P. Amino-groups immobilized on silica-gel—An efficient reusable heterogeneous catalyst for the Knoevenagel condensation. J. Chem. Soc., Perkin Trans. 1989, 1, 105–107. [Google Scholar]
  48. Ballini, R.; Bosica, G.; Livi, D.; Palmieri, A.; Maggi, R.; Sartori, G. Use of heterogeneous catalyst KG-60-NEt2 in Michael and Henry reactions involving nitroalkanes. Tetrahedron Lett. 2003, 44, 2271–2273. [Google Scholar]
  49. Corma, A.; Fornes, V.; Martin-Aranda, R.M.; Garcia, H.; Primo, J. Zeolite as base catalysts— Condensation of aldehydes with derivatives of malonic esters. Appl. Catal. 1990, 59, 237–248. [Google Scholar] [CrossRef]
  50. Kubota, Y.; Nishizaki, Y.; Ikeya, H.; Saeki, M.; Hida, T.; Kawazu, S.; Yoshida, M.; Fujii, H.; Sugi, Y. Organic-silicate hybrid catalysts based on various defined structures for Knoevenagel condensation. Micropor. Mesopor. Mater. 2004, 70, 135–149. [Google Scholar] [CrossRef]
  51. Jaenicke, S.; Chuah, G.K.; Lin, X.H.; Hu, X.C. Organic-inorganic hybrid catalysts for acid- and base-catalyzed reactions. Micropor. Mesopor. Mater. 2000, 35-36, 143–153. [Google Scholar] [CrossRef]
  52. Inaki, Y.; Kajita, Y.; Yoshida, H.; Ito, K.; Hattori, T. New basic mesoporous silica catalyst obtained by ammonia grafting. Chem. Commun. 2001, 2358–2359. [Google Scholar]
  53. Huh, S.; Chen, H.-T.; Wiench, J.W.; Pruski, M.; Lin, V.S.-Y. Controlling the selectivity of competitive nitroaldol condensation by using a bifunctionalized mesoporous silica nanosphere-based catalytic system. J. Am.Chem. Soc. 2004, 126, 1010–1011. [Google Scholar]
  54. Rodriguez, I.; Iborra, S.; Corma, A.; Rey, F.; Jordá, J.L. MCM-41-Quaternary organic tetraalkylammonium hydroxide composites as strong and stable Bronsted base catalysts. Chem. Commun. 1999, 593–594. [Google Scholar]
  55. Phan, N.T.S.; Jones, C.W. Highly accessible catalytic sites on recyclable organosilane-functionalized magnetic nanoparticles: An alternative to functionalized porous silica catalysts. J. Mol. Catal. A: Chem. 2006, 253, 123–131. [Google Scholar] [CrossRef]
  56. Zhang, Y.; Zhao, Y.; Xia, C. Basic ionic liquids supported on hydroxyapatite-encapsulated γ-Fe2O3 nanocrystallites: An efficient magnetic and recyclable heterogeneous catalyst for aqueous Knoevenagel condensation. J. Mol. Catal. A: Chem. 2009, 306, 107–112. [Google Scholar] [CrossRef]
  57. Gill, C.G.; Long, W.; Jones, C.W. Magnetic nanoparticle polymer brush catalysts: Alternative hybrid organic/inorganic structures to obtain high, local catalyst loadings for use in organic transformations. Catal. Lett. 2009, 131, 425–431. [Google Scholar] [CrossRef]
  58. Gao, Z.; Zhou, J.; Cui, F.; Zhu, Y.; Hua, Z.; Shi, J. Superparamagnetic mesoporous Mg-Fe bi-metal oxides as efficient magnetic solid-base catalysts for Knoevenagel condensations. Dalton Trans. 2010, 39, 11132–11135. [Google Scholar]
  59. Senapati, K.K.; Borgohain, C.; Phukan, P. Synthesis of highly stable CoFe2O4 nanoparticles and their use as magnetically separable catalyst for Knoevenagel reaction in aqueous medium. J. Mol. Catal. A: Chem. 2011, 339, 24–31. [Google Scholar] [CrossRef]
