Pathogens 2012, 1(2), 83-101; doi:10.3390/pathogens1020083

Hypomethylation and Over-Expression of the Beta Isoform of BLIMP1 is Induced by Epstein-Barr Virus Infection of B Cells; Potential Implications for the Pathogenesis of EBV-Associated Lymphomas
Katerina Vrzalikova 1,2,,*, Sarah Leonard 1,, Yichao Fan 3, Andrew Bell 1, Martina Vockerodt 1, Patrik Flodr 2, Kenneth L. Wright 4, Martin Rowe 1, Qian Tao 3 and Paul G. Murray 1,2
School of Cancer Sciences, University of Birmingham, B15 2TT, UK
Laboratory of Molecular Pathology, Department of Pathology, and Institute of Molecular and Translation Medicine, Faculty of Medicine and Dentistry, Palacky University, Olomouc, 779 00, Czech Republic
The Cancer Epigenetics Laboratory, Sir YK Pao Center for Cancer, Department of Clinical Oncology, Hong Kong Cancer Institute and Li Ka Shing Institute of Health Sciences, The Chinese University of Hong Kong, 999077, Hong Kong
H. Lee Moffitt Cancer Center, 12902 Magnolia Drive, MRC-4 East, Tampa, FL 33612, USA
These authors contributed equally to this work.
Author to whom correspondence should be addressed; Tel.: +44-121-414-6924; Fax: +44-121-414-4486.
Received: 15 August 2012; in revised form: 19 September 2012 / Accepted: 24 September 2012 / Published: 6 October 2012


: B-lymphocyte-induced maturation protein 1 (BLIMP1) exists as two major isoforms, α and β, which arise from alternate promoters. Inactivation of the full length BLIMP1α isoform is thought to contribute to B cell lymphomagenesis by blocking post-germinal centre (GC) B cell differentiation. In contrast, the shorter β isoform is functionally impaired and over-expressed in several haematological malignancies, including diffuse large B cell lymphomas (DLBCL). We have studied the influence on BLIMP1β expression of the Epstein-Barr virus (EBV), a human herpesvirus that is implicated in the pathogenesis of several GC-derived lymphomas, including a subset of DLBCL and Hodgkin’s lymphoma (HL). We show that BLIMP1β expression is increased following the EBV infection of normal human tonsillar GC B cells. We also show that this change in expression is accompanied by hypomethylation of the BLIMP1β-specific promoter. Furthermore, we confirmed previous reports that the BLIMP1β promoter is hypomethylated in DLBCL cell lines and show for the first time that BLIMP1β is hypomethylated in the Hodgkin/Reed-Sternberg (HRS) cells of HL. Our results provide evidence in support of a role for BLIMP1β in the pathogenesis of EBV-associated B cell lymphomas.
BLIMP1; Epstein-Barr virus; hypomethylation; Hodgkin’s lymphoma

1. Introduction

The PRDM1 gene encodes two major isoforms, designated BLIMP1α and BLIMP1β, which arise from alternate promoters [1]. The full-length BLIMP1α protein orchestrates plasma cell differentiation by repressing genetic programs associated with the germinal centre (GC) stages, while at the same time activating those programs associated with plasma cell functions [2,3]. In contrast, BLIMP1β is transcribed from a promoter and exon located upstream of exon 4 of the PRDM1 gene [1]. The BLIMP1β protein lacks the first 101 amino acids of BLIMP1α and instead contains three amino acids fused to amino acids 102–789 of BLIMP1α. BLIMP1β, which lacks most of the positive regulatory (PR) domain and N-terminal acidic region, has a diminished capacity to repress target genes [1]. Since BLIMP1β contains the DNA-binding domain but bears a disrupted regulatory domain it has been suggested that it behaves as an inhibitor of BLIMP1α [1].

Other members of the PRDM family, including PRDM2 (RIZ), PRDM3 (MDS1-EVI1) and PRDM16 (MEL1) can also express a full-length protein containing the PR domain as well as a truncated protein missing the PR domain [4]. The balance of expression of these different PRDM isoforms is disrupted in many cancers and results from both the over-expression of the truncated proteins as well as the loss of expression of the full-length proteins [5,6,7,8,9,10,11,12]. For example, RIZ1, the full-length product of PRDM2, is a tumour suppressor protein because it demonstrates a loss of function in many types of human cancers with genomic deletions or point mutations and because RIZ1-deficient mice have been shown to develop diffuse large B cell lymphomas (DLBCL) [5,6,7]. In contrast, RIZ2, which lacks the PR domain, is over-expressed in breast cancer and in acute lymphoblastic leukaemias [8,9]. The transcript of the long form of the MDS1-EVI1/PRDM3 gene is expressed at very low levels in leukaemia cells, whereas the short form of the EVI1 gene is over-expressed in murine leukaemia cells with viral integration in the EVI1 locus and in human leukaemias with chromosome 3q abnormalities [10,11,12,13,14,15]. The human MEL1/PRDM16 also has two alternative protein forms, a long form, MEL1, and a short form, MEL1S. The latter is over-expressed in leukaemia cells carrying the t(1;3) translocation [16,17].

Inactivation of the PRDM1 gene leading to loss of BLIMP1α function occurs in a subset of DLBCL of the activated B-cell type and is believed to contribute to lymphomagenesis by blocking post-GC B cell differentiation [18,19]. In contrast, the over-expression of BLIMP1β has been reported in multiple myeloma, DLBCL and in some T cell lymphomas [1,20,21,22]. BLIMP1β over-expression is associated with advanced Ann Arbor stage and a high-risk International Prognostic Index in T cell lymphomas and with shorter patient survival in both DLBCL and T cell lymphoma patients [21,22]. In DLBCL, the increased BLIMP1β mRNA levels are associated with hypomethylation of the BLIMP1β promoter [23]. In both B- and T-cell lymphomas, BLIMP1β expression might also be associated with in vitro resistance to chemotherapeutic agents [21,22].

The Epstein-Barr virus (EBV) is a human herpesvirus that has been shown to be involved in the pathogenesis of several GC-derived lymphomas, including classical Hodgkin’s lymphoma (HL) and more recently a subset of DLBCL [24,25]. A previous study reported that EBV infection of myeloma cells decreased BLIMP1 expression, but this study was not able to differentiate between the different isoforms [26]. Recently we showed that EBV infection of GC B cells resulted in the down-regulation of the BLIMP1α isoform [27]. Here we have investigated the influence of EBV on the expression and methylation status of the BLIMP1β isoform.

2. Results and Discussion

2.1. Induction of BLIMP1β Expression Following EBV Infection of Primary Human B cells

We first explored the impact of EBV infection on BLIMP1β expression in B cells. We studied BLIMP1β expression in three LCLs derived from GC B cells as well as in five LCLs established by the PBMCs of healthy donors. The generation of the GC-derived LCLs has been described previously [28]; these LCLs were examined six weeks following infection, at which time these cells were shown to be polyclonal in nature and to express the typical Latency III pattern of EBV viral genes [28]. We found that when compared to normal un-infected GC B cells, the LCLs showed increased expression of BLIMP1β mRNA (Figure 1A). Because we had previously shown that EBV infection of B cells was accompanied by the decreased expression of the BLIMP1α isoform [27], we next compared the relative levels of each isoform in GC B cells and GC-derived LCLs. Figure 1B shows that EBV infection of GC B cells dramatically reduced the BLIMP1α:BLIMP1β ratio. For example, in the matched pair, GC#1 and SL1-LCL, the BLIMP1α:BLIMP1β ratio fell from 25 (1/0.04) in normal GC B cells to 1.47 (1/0.68) in EBV-transformed GC B cells.

We then used an antibody that recognizes both BLIMP1α and BLIMP1β isoforms to study BLIMP1β protein expression in these samples by immunoblotting. Figure 1C shows that while normal GC B cells expressed only the BLIMP1α isoform, the GC B cell-derived LCLs expressed both BLIMP1α and BLIMP1β protein. The BLIMP1β protein consistently ran at a slightly higher molecular weight than in U266 cells which we used as a positive control. In U266 cells and in one LCL, we also observed a slightly heavier band running above the BLIMP1α isoforms (marked with *); this could represent the recently described sumoylated form of BLIMP1 [29,30]. Shorter exposure of these blots also revealed that whereas the BLIMP1α protein separated as a single sharp band in GC B cells, it appeared as a weaker double band in the GC-derived LCLs (data not shown). A further band migrating at approximately 88 kDa was also seen in the GC-derived LCLs and U266 cells, but not in GC B cells. This is likely to correspond to the recently reported BLIMP1Δ6 isoform, which migrates at this molecular weight [31,32]. We also studied BLIMP1β protein expression in four LCLs established from the PBMCs of healthy donors. Figure 1D shows that BLIMP1β was detectable in all the studied LCLs. Although BLIMP1β protein levels varied between these PBMCs-derived LCLs, they correlated well with the mRNA levels (shown in Figure 1A). The BLIMP1β protein was not detectable in normal B cells isolated from peripheral blood (data not shown).

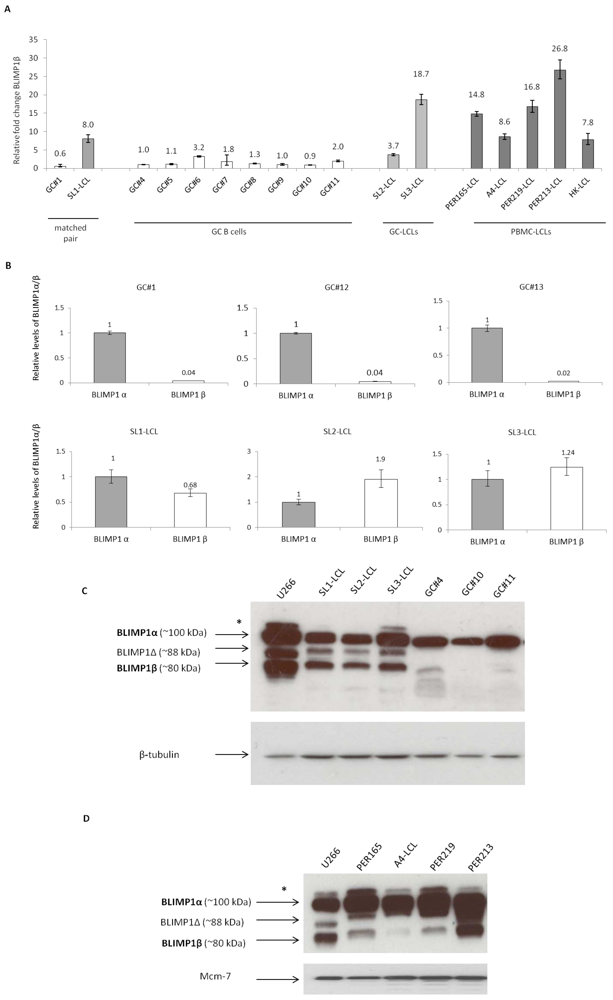

Figure 1. Induction of B-lymphocyte-induced maturation protein 1 (BLIMP1β) expression following Epstein-Barr virus (EBV) infection of primary human B cells.
Figure 1. Induction of B-lymphocyte-induced maturation protein 1 (BLIMP1β) expression following Epstein-Barr virus (EBV) infection of primary human B cells.
Pathogens 01 00083 g001 1024

2.2. The BLIMP1β-specific Promoter is Hypomethylated in EBV-infected Human Germinal Center B cells

Because it has recently been shown that the increased expression of BLIMP1β observed in DLBCL is accompanied by the hypo-methylation of the BLIMP1β-specific promoter [23], we used pyrosequencing to investigate the methylation status of BLIMP1β in EBV-infected GC B cells. Figure 2 shows that relative to normal GC B cells, all 11 CpGs within the BLIMP1β-specific promoter were hypomethylated in the GC-derived LCLs. We conclude that the over-expression of BLIMP1β in EBV-infected primary human GC B cells is accompanied by the hypomethylation of the BLIMP1β-specific promoter.

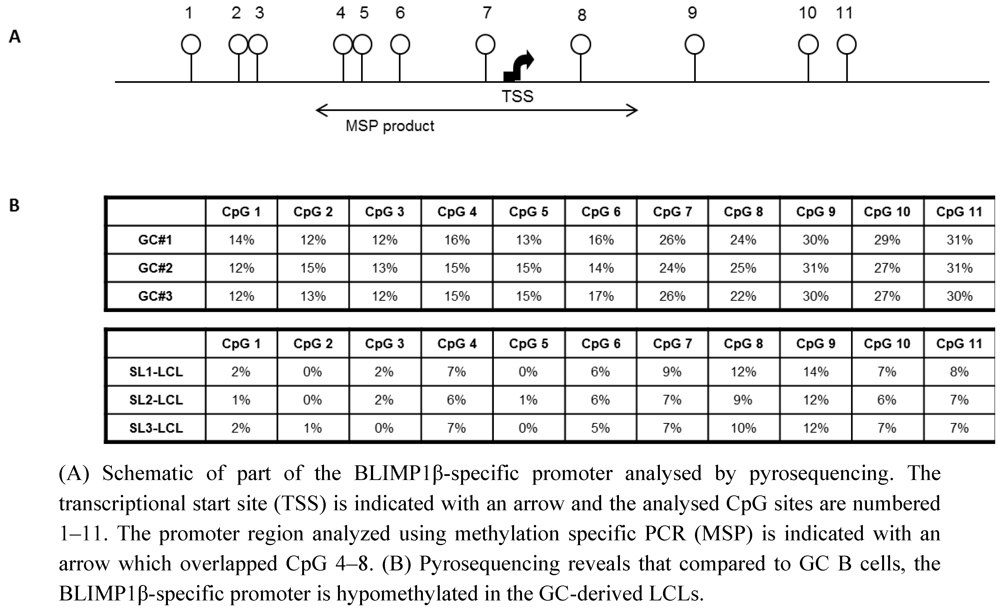

Figure 2. The BLIMP1β-specific promoter is hypomethylated in EBV-infected primary human germinal center B cells.
Figure 2. The BLIMP1β-specific promoter is hypomethylated in EBV-infected primary human germinal center B cells.
Pathogens 01 00083 g002 1024

2.3. Hypomethylation and Increased Expression of BLIMP1β in Hodgkin’s Lymphoma

We next used pyrosequencing to investigate the methylation status of the BLIMP1β-specific promoter in HL-derived cell lines. Figure 3A shows that the BLIMP1β-specific promoter was hypomethylated in the three HL cell lines examined (L591, L428, KMH2). We used MSP to confirm loss of methylation of the BLIMP1β-specific promoter in these three HL cell lines as well as in a further two HL cell lines (L540 and L1236) and in several DLBCL lines and T cell lymphoma-derived lines (Supplementary Figure 1). We observed that in the HL cell lines, the hypomethylation of BLIMP1β was accompanied by an increase in BLIMP1β mRNA and in most cases by an increase in BLIMP1β protein (Figure 3B, 3C). Although we found hypomethylation of BLIMP1β in KMH2 cells, these cells showed only low levels of BLIMP1β mRNA and barely detectable BLIMP1β protein (Figure 3B and 3C), suggesting that the hypomethylation of BLIMP1β is alone insufficient for BLIMP1β protein expression in this cell line. Furthermore although EBV infection of KMH2 cells increased BLIMP1β mRNA levels, there was no discernible increase in BLIMP1β protein. We also found that the Burkitt lymphoma cell lines BL2 and Rael did not express BLIMP1β mRNA (Figure 3B). Consistent with this, we found the BLIMP1β isoform to be methylated in Rael cells (Supplementary Figure 1).

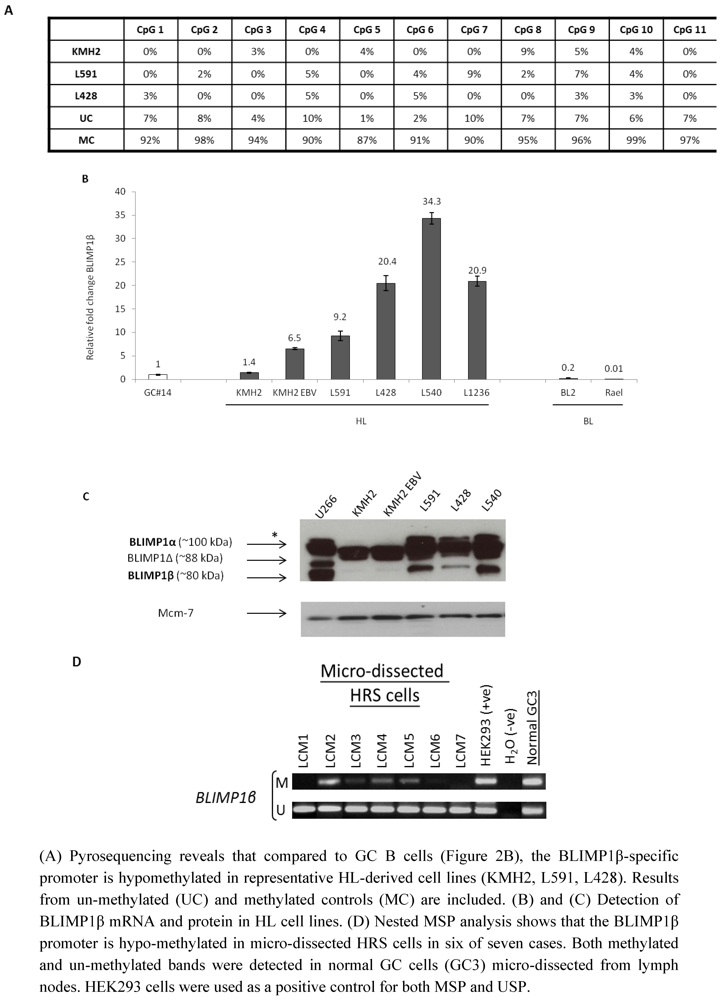

Figure 3. Hypomethylation of BLIMP1β in Hodgkin’s lymphoma.
Figure 3. Hypomethylation of BLIMP1β in Hodgkin’s lymphoma.
Pathogens 01 00083 g003 1024

Finally, we examined the methylation status of the BLIMP1β-specific promoter in primary HRS cells which we micro-dissected from seven cases of HL. We used MSP for this analysis because conventional pyrosequencing is not sufficiently sensitive to detect methylation in small numbers of microdissected cells. Figure 3D shows that the BLIMP1β promoter was hypo-methylated in HRS cells in six of seven cases. Both methylated and un-methylated bands were detected in normal GC B cells micro-dissected from reactive lymph nodes. However, it should be noted that we observed that the BLIMP1β promoter was hypomethylated in HRS cells from both EBV-positive and EBV-negative cases of HL (Supplementary Table 3).

2.4. Discussion of Results

Plasma cell differentiation is regulated by the coordinated expression of a number of transcription factors. Among these is BLIMP1, which can exist as two major isoforms, designated BLIMP1α and BLIMP1β [1]. BLIMP1α is essential for plasma cell differentiation because it extinguishes the gene-expression program of germinal center B cells, while at the same time inducing genes required for terminal differentiation [2,3]. In contrast, the truncated BLIMP1β protein has a functional DNA-binding domain but contains a disrupted regulatory domain [1]. In a previous study we reported that EBV could down-regulate BLIMP1α expression in primary human GC B cells [27]. In the present study, we show that EBV infection of primary human GC B cells is followed by the increased expression of BLIMP1β. Although we previously showed that the EBV-encoded LMP1 was sufficient to down-regulate BLIMP1α in GC B cells, we found that this viral gene does not up-regulate BLIMP1β in these cells (data not shown).

The up-regulation of BLIMP1β in EBV-infected B cells could be of functional importance. Other truncated PRDM family members when over-expressed can act as inhibitors of their respective full-length isoform. For example, the effects of MDS1-EVI1, a PR domain containing form of the MDS1-EVI1 gene, can be reversed by over-expressing EVI1, the PR lacking isoform [11]. Furthermore, EVI1 has been shown to repress TGF-β signaling, through interaction with Smad3, while MDS1-EVI1 augments the response to the growth inhibitory effect of TGF-β [12,13,14,15]. Moreover, the truncated form of the PRDM2 gene (RIZ2), which lacks the PR domain, has been shown to inhibit trans-activation activity of the oestrogen receptor by RIZ1, the full length product of PRDM2 [33].

We observed that the up-regulation of BLIMP1β was accompanied by reduced expression of BLIMP1α resulting in similar levels of expression of these two isoforms in EBV infected GC-derived cells. BLIMP1β has been shown to have only 20% of the transcriptional repressive activity of BLIMP1α and can form hetero-dimers with BLIMP1α [1]. Therefore, we suppose that BLIMP1β may counteract the ability of BLIMP1α to drive plasma cell differentiation and in turn prevent induction of the EBV lytic cycle. This could be important for the subsequent development of EBV-associated lymphomas because viral replication usually leads to cell death, an event which is presumably incompatible with lymphomagenesis.

Apart from the up-regulation of BLIMP1β, additional mechanisms might contribute to the inactivation of BLIMP1α. Our immunoblotting analysis revealed the presence of a slightly heavier protein running above the BLIMP1α isoforms in U266 cells and in several of the LCLs. This is likely to represent the recently described sumoylated form of BLIMP1α, which is rapidly degraded and could be impaired in its ability to induce plasma cell differentiation [29,30]. We also observed an intermediate band running between BLIMP1α and BLIMP1β which most likely corresponds to the BLIMP1Δ isoform created by an alternative splicing of PRDM1 exon 6 in humans or exon 7 in mice [31,32,34]. The resulting BLIMP1Δ protein lacks the first 3 zinc fingers and is therefore predicted to be non-functional [34]. However, despite having impaired DNA binding activity, the BLIMP1Δ form was shown to interfere with the activity of full-length BLIMP1α, presumably by forming non-functional heterodimers [31].

We also observed that the increased expression of BLIMP1β in EBV-transformed GC B cells was accompanied by hypomethylation of the BLIMP1β-specific promoter. These results are consistent with a previous report showing that in DLBCL, increased BLIMP1β mRNA levels are associated with BLIMP1β promoter hypomethylation [23], and also with our previous report that EBV infection of GC B cells is followed by the widespread hypomethylation of cellular genes [28]. In the latter study we showed that EBV infection of GC B cells was followed shortly afterwards by the up-regulation of the DNA methyltransferase, DNMT3A and by the down-regulation of DNMT3B and DNMT1, a pattern of expression which was recapitulated in HL [28]. It remains to be established which, if any, of the DNMTs are involved in regulating the BLIMP1β-specific promoter in EBV-transformed B cells. However, we also found that in HL cell lines, BLIMP1β promoter hypomethylation was not always accompanied by BLIMP1β protein expression suggesting that in some cases promoter hypomethylation alone may not be sufficient for protein expression.

EBV is implicated in the pathogenesis of several GC-derived lymphomas, which include HL and a subset of DLBCL of the elderly and immunosuppressed [24,25]. In the present study, we not only confirmed previous reports that the BLIMP1β promoter is hypomethylated in DLBCL cell lines [23] but we also showed that BLIMP1β is frequently hypomethylated in the HRS cells of HL. Immunohistochemistry has been used previously to show that BLIMP1 protein is expressed in HRS cells in some cases of HL [35,36,37,38]. Although, it would be of interest to know which BLIMP1 isoform is expressed in primary HRS cells, an antibody, which can differentiate between the different BLIMP1 isoforms is not available at the present time.

We observed BLIMP1β promoter hypomethylation in HRS cells from both EBV-positive and EBV-negative cases of HL. These data suggest that the over-expression of BLIMP1β could be involved in the pathogenesis of both EBV-positive and EBV-negative tumours; BLIMP1β might be required for the arrest of terminal differentiation which is generally regarded as an important component in the pathogenesis of most, if not all, GC-derived B cell lymphomas. However, an alternative possibility is that the induction of BLIMP1β expression is a tumor- or cell cycle-related phenomenon and occurs independently of EBV infection in HRS cells. Further studies are required to determine if and how BLIMP1β contributes to B cell lymphomagenesis and also to identify the mechanisms responsible for the regulation of BLIMP1β hypomethylation and expression in Hodgkin’s lymphoma.

3. Experimental Section

3.1. Cells

The GC B cells were obtained from patients undergoing routine tonsillectomy. The peripheral blood mononuclear cells were obtained from healthy volunteers. LCLs were established by infecting tonsillar GC B cells isolated from three separate donors with 2089 wild type EBV [28] and are referred to throughout as SL1-LCL, SL2-LCL, and SL3-LCL. LCLs derived from peripheral blood mononuclear B cells (PBMCs) PER213-LCL, PER219-LCL, PER165-LCL, A4-LCL, HK-LCL were established using the reference EBV strain B95.8 and were a gift of Dr Heather Long and Dr Nikki Smith (University of Birmingham, United Kingdom). KMH2, L428, HDLM2, HD-My-Z, L1236, L540 are EBV-negative HL cell lines [39,40,41,42,43,44]. L591 is EBV-positive HL cell line [45]. KMH2 EBV is derived from EBV-negative KMH2 cells infected with Akata-derived recombinant virus and maintained under geneticin selection [24]. BL2, CA46 and BJAB are EBV-negative BL cell lines [46,47,48]. Rael, Raji, Ag876 and Namalwa are EBV-positive BL cell lines [49,50,51,52]. OCI-Ly1, 3, 7, 8, and-18 are EBV-negative DLBCL lines [53]. OCI-Ly17 and Oci-Ly13.2 are EBV-negative T cell lymphoma lines [53]. U266 are multiple myeloma cells which served as a positive control for BLIMP1 expression [54]. All cell lines were cultured at 37 °C in 5% CO2 in RPMI1640 growth media supplemented with 10% foetal calf serum, 2mM L-glutamine and 1% penicillin-streptomycin solution.

3.2. Reverse-Transcriptase-PCR

RNA was extracted using RNeasy Mini Kit or Micro Kit including removal of genomic DNA with RNase-Free DNase Set (QIAGEN). cDNA was generated in a reaction consisting of 400 ng of RNA, 250 ng of random primers (Promega), 10 mM dNTP Mix (Roche Diagnostics) and SuperScript® III Reverse Transcriptase (Invitrogen) following the protocol supplied by the manufacturer. If required, cDNA was purified using GenEluteTM PCR Clean-Up kit (Sigma-Aldrich).

3.3. Quantitative PCR

All real-time PCR assays were performed using an ABI Prism 7700 sequence detection system (Applied Biosystems). A final reaction volume of 25 µL contained 1 × TaqMan universal PCR mastermix (Applied Biosystems), 2.5–25.0 pmol primers, 5 pmol probe, 1.5 µL of house-keeping assay and 5 µL cDNA (equivalent to required ng input of RNA). Thermal-cycling conditions were: 2 minutes at 50 °C, 12 minutes at 95 °C and 40–50 rounds of 15 seconds at 95 °C and 1 minute at 60 °C. All test samples were run in triplicate and template-negative reactions served as controls. The probe targeting BLIMP1β isoform was published elsewhere [20], but for our study it was re-labelled with minor groove binder (MGB™) reporter dye at the 5’ end and non-fluorescent quencher (NFQ) at the 3’ end and purchased from Applied Biosystems. All other real-time PCRs were performed using commercially available assays (Supplementary Table 1). The 2-Delta-Delta CT method was used to quantify expression relative to the housekeeping control. The normalized values were expressed relative to the reference sample, which was set to a relative quantity value of 1 [55].

3.4. Bisulphite Modification and Pyrosequencing

Genomic DNA (500 ng) was bisulphite converted using the EZ DNA methylation kit (Zymo Research). All pyrosequencing primers were designed using Biotage PSQ primer design software. Biotinylated, non-biotinylated and sequencing primers are listed in Supplementary Table 2. The PCR was performed in a total volume of 50 µL using 25 µL hotstart taq master mix (Thermo Scientific), 5 pmol biotinylated primer, 10 pmol non-biotinylated primer and 10 µL bisulphite modified DNA. The pyrosequencing reactions were performed on a Pyromark ID system (Biotage) and analysed using Pyro Q-CpG software (Biotage). 100ng unmethylated control (UC) and methylated control (MC) DNA (Millipore) was bisulphite modified and run with each pyrosequencing reaction.

3.5. Methylation-Specific PCR (MSP)

Genomic DNA was treated with sodium meta-bisulphite (Sigma) as previously described [56], but without restriction endonuclease digestion. MSP was performed according to our previous method [57]. Methylation-specific primers were: for methylated promoter (221-bp product), PRDM1bm1 (5’-ATTTAGTTTGACGTCGTTAGTC-3’) and PRDM1bm3 (5’-TTATCGTCTTTTCATATTCG-3’); for unmethylated promoter (227-bp product), PRDM1bu1 (5’-GATTTAGTTTGATGTTGTTAGTT-3’) and PRDM1bu3 (5’-CAATTTTATCATCTTTTCATATTCA-3’). The MSP primers amplified a product overlapping CpG 4–8 as indicated on Figure 2. They did not amplify any DNA without bisulphite treatment and therefore were shown to be specific. For each sample, 0.5 µL of bisulphite-treated DNA (~25 ng measured before bisulphite treatment) was PCR amplified using 0.3125 U of AmpliTaq Gold (Perkin Elmer, Norwalk, CT) for cell line DNA (or 0.46875 U of AmpliTaq Gold for normal PBMCs, lymph node, and primary HL DNA), with 2 mmol/L MgCl2, 0.2 mmol/L dNTP and 0.6 umol/L each primer in a 12.5 µL reaction volume. MSP was conducted with hotstart taq master mix at 95 °C for 10 min, then 41 cycles (94 °C, 30s; 58 °C, 30s; 72 °C, 30s) for MSP, or 40 cycles (94 °C, 30s; 58 °C, 30s; 7 °C, 30s) for USP, followed by 72 °C for 5 mins. MSP products were analyzed on 2% agarose gel. A normally methylated gene, ANKRD30A, was also used as a positive control for those samples in which BLIMP1β methylation was undetectable.

3.6. Methylation Analysis of Micro-dissected HRS Cells by Nested-MSP

Two hundred HRS cells were micro-dissected from CD30-stained cryosections of each HL case using the PALM Microbeam (Carl Zeiss MicroImaging GmbH). Only CD30 positive cells with HRS morphology were microdissected. DNA was extracted from these cells using the QIAamp DNA Mini kit. DNA was then bisulphite-treated and amplified. For nested-MSP detecting methylated alleles, first-round PCR was performed using methylation-specific primers PRDM1bm1 and PRDM1bm3 (95 °C for 10 min, 40 cycles (94 °C, 30 s; 58 °C, 30 s; 72 °C, 30 s), followed by 72 °C for 5 mins), using 0.3125 U of AmpliTaq Gold in a 6.25 ml reaction. 3 ml of 10x diluted PCR products were used for a nested-MSP detecting methylated product (113-bp) with PRDM1bm1 and PRDM1bm2 (5’-TACTACAATAAATAACAAATAAACG-3’), 0.625 U of AmpliTaq Gold in a 12.5 µL reaction. PCR was performed at 95 °C for 10 min, 65 cycles (94 °C, 30 s; 53 °C, 30 s; 72 °C, 30 s), followed by 72 °C for 5 mins. For nested-MSP detecting unmethylated alleles, primers PRDM1bu1 and PRDM1bu3 were used for the first-round PCR (40 cycles, with 0.3125 U of AmpliTaq Gold in a 6.25 µL reaction). 3 mL of 10× diluted PCR products was used in nested-MSP (114-bp product) with unmethylation-specific primers PRDM1bu1 and PRDM1bu2 (5’-TACTACAATAAATAACAAA TAAACA-3’) (65 cycles, with 0.625 U of AmpliTaq Gold in a 12.5 µL reaction).

3.7. Immunoblotting

Cells lysates were prepared in RIPA buffer (10 mM Tris-HCL (pH 8.0); 140 mM NaCl; 1 mM EDTA; 1% triton, 0.1% SDS, 0.1% Sodium deoxycholate, protease inhibitors) and briefly sonicated. Protein was quantified using Bio-Rad DC Protein Assay Kit (Bio-Rad). 30 ug of U266 lysate or 75 ug of LCLs and GC B cells lysates were combined with 2× Laemmli sample buffer before SDS-PAGE (8% gel) and transferred to 0.45 m nitrocellulose transfer membrane (Protan BA85 membrane). The membrane was incubated with BLIMP1 antibody (Cell Signalling, 9115, rabbit polyclonal) diluted in 5% non-fat milk powder in TBS-Tween-20 (1:1,000) at 4 °C overnight. After a PBS-Tween-20 (0.1%) wash, blots were incubated for 30 minutes with anti-rabbit HRP-conjugated secondary IgG (Dako, 1:2,000). Anti-beta Tubulin (HRP-conjugated) antibody (Abcam, ab21058, rabbit polyclonal) or anti-Mcm-7 (Sigma-Aldrich, M7931, mouse monoclonal), both diluted in 5% non-fat milk powder in TBS-Tween-20 (1:2,000) were applied at room temperature for 1 hour. After a PBS-Tween-20 (0.1%) wash, detection was performed with enhanced chemiluminescence (GE Healthcare).

4. Conclusions

EBV infection leads not only to the down-regulation of BLIMP1α but also to the up-regulation of BLIMP1β. The up-regulation of BLIMP1β is associated with hypomethylation of the BLIMP1β specific promoter. Figure 1 Table 1 Table 2 Table 3


This work was supported by the Leukaemia and Lymphoma Research Fund and in part by grants MSM 6198959216 from the Czech Ministry of Education and European Union infrastructure support CZ.1.05/2.1.00/01.0030 and CZ.1.07/2.3.00/20.0019. We are grateful to Matthew Smith for help with western blotting.

Conflict of Interest

The authors declare no conflict of interest.


  1. Györy, I.; Fejér, G.; Ghosh, N.; Seto, E.; Wright, K.L. Identification of a functionally impaired positive regulatory domain I binding factor 1 transcription repressor in myeloma cell lines. J. Immunol. 2003, 170, 125–133. [Google Scholar]
  2. Shapiro-Shelef, M.; Lin, K.I.; McHeyzer-Williams, L.J.; Liao, J.; McHeyzer-Williams, M.G.; Calame, K. Blimp-1 is required for the formation of immunoglobulin secreting plasma cells and pre-plasma memory B cells. Immunity 2003, 19, 607–620. [Google Scholar] [CrossRef]
  3. Calame, K.L.; Lin, K.I.; Tunyaplin, C. Regulatory mechanisms that determine the development and function of plasma cells. Annu. Rev. Immunol. 2003, 21, 205–230. [Google Scholar] [CrossRef]
  4. Morishita, K. Leukemogenesis of the EVI1/MEL1 Gene Family. Int. J. Hematol. 2007, 85, 279–286. [Google Scholar] [CrossRef]
  5. Huang, S. The retinoblastoma protein-interacting zinc finger gene RIZ in 1p36-linked cancers. Front Biosci. 1999, 4, 528–532. [Google Scholar] [CrossRef]
  6. Chadwick, R.B.; Jiang, G.L.; Bennington, G.A.; Yuan, B.; Johnson, C.K.; Stevens, M.W.; Niemann, T.H.; Peltomaki, P.; Huang, S.; de la Chapelle, A. Candidate tumor suppressor RIZ is frequently involved in colorectal carcinogenesis. Proc. Natl. Acad. Sci. USA 2000, 97, 2662–2667. [Google Scholar]
  7. Steele-Perkins, G.; Fang, W.; Yang, X.H.; Van Gele, M.; Carling, T.; Gu, J.; Buyse, I.M.; Fletcher, J.A.; Liu, J.; Bronson, R.; Chadwick, R.B.; de la Chapelle, A.; Zhang, X.; Speleman, F.; Huang, S. Tumor formation and inactivation of RIZ1, an Rb-binding member of a nuclear proteinmethyltransferase superfamily. Genes Dev. 2001, 15, 2250–2262. [Google Scholar] [CrossRef]
  8. Sasaki, O.; Meguro, K.; Tohmiya, Y.; Funato, T.; Shibahara, S.; Sasaki, T. Altered expression of retinoblastoma protein-interacting zinc finger gene, RIZ, in human leukaemia. Br. J. Haematol. 2002, 119, 940–948. [Google Scholar] [CrossRef]
  9. He, L.; Yu, J.X.; Liu, L.; Buyse, I.M.; Wang, M.S.; Yang, Q.C.; Nakagawara, A.; Brodeur, G.M.; Shi, Y.E.; Huang, S. RIZ1, but not the alternative RIZ2 product of the same gene, is underexpressed in breast cancer, and forced RIZ1 expression causes G2-M cell cycle arrest and/or apoptosis. Cancer Res. 1998, 58, 4238–4244. [Google Scholar]
  10. Cuenco, G.M.; Nucifora, G.; Ren, R. Human AML1/MDS1/EVI1 fusion protein induces an acute myelogenous leukemia (AML) in mice: A model for human AML. Proc. Natl. Acad. Sci. USA 2000, 97, 1760–1765. [Google Scholar] [CrossRef]
  11. Soderholm, J.; Kobayashi, H.; Mathieu, C.; Rowley, J.D.; Nucifora, G. The leukemia-associated gene MDS1/EVI1 is a new type of GATA-binding transactivator. Leukemia 1997, 11, 352–358. [Google Scholar]
  12. Kurokawa, M.; Mitani, K.; Imai, Y.; Ogawa, S.; Yazaki, Y.; Hirai, H. The t(3;21) fusion product, AML1/Evi-1, interacts with Smad3 and blocks transforming growth factor-beta-mediated growth inhibition of myeloid cells. Blood 1998, 92, 4003–4012. [Google Scholar]
  13. Kurokawa, M.; Mitani, K.; Irie, K.; Matsuyama, T.; Takahashi, T.; Chiba, S.; Yazaki, Y.; Matsumoto, K.; Hirai, H. The oncoprotein Evi-1 represses TGF-beta signalling by inhibiting Smad3. Nature 1998, 394, 92–96. [Google Scholar] [CrossRef]
  14. Nucifora, G. The EVI1 gene in myeloid leukemia. Leukemia 1997, 11, 2022–2031. [Google Scholar]
  15. Sood, R.; Talwar-Trikha, A.; Chakrabarti, S.R.; Nucifora, G. MDS1/EVI1 enhances TGF-beta1 signaling and strengthens its growth-inhibitory effect but the leukemia-associated fusion protein AML1/MDS1/EVI1, product of the t(3;21), abrogates growth inhibition in response to TGF-betal. Leukemia 1999, 13, 348–357. [Google Scholar] [CrossRef]
  16. Barjesteh van Waalwijk van Doorn-Khosrovani, S.; Erpelinck, C.; van Putten, W.L.; Valk, P.J.; van der Poel-van de Luytgaarde, S.; Hack, R.; Slater, R.; Smit, E.M.; Beverloo, H.B.; Verhoef, G.; Verdonck, L.F.; Ossenkoppele, G.J.; Sonneveld, P.; de Greef, G.E.; Löwenberg, B.; Delwel, R. High EVI1 expression predicted poor survival in acute myeloid leukemia: A study of 319 de novo AML patients. Blood 2003, 101, 837–845. [Google Scholar]
  17. Mochizuki, N.; Shimizu, S.; Nagasawa, T.; Tanaka, H.; Taniwaki, M.; Yokota, J.; Morishita, K. A novel gene, MEL1, mapped to 1p36.3 is highly homologous to the MDS1/EVI1 gene and is transcriptionally activated in t(1;3)(p36;q21)-positive leukemia cells. Blood 2000, 96, 3209–3214. [Google Scholar]
  18. Tam, W.; Gomez, M.; Chadburn, A.; Lee, J.W.; Chan, W.C.; Knowles, D.M. Mutational analysis of PRDM1 indicates a tumor-suppressor role in diffuse large B-cell lymphomas. Blood 2006, 107, 4090–4100. [Google Scholar] [CrossRef]
  19. Pasqualucci, L.; Compagno, M.; Houldsworth, J.; Monti, S.; Grunn, A.; Nandula, S.V.; Aster, J.C.; Murty, V.V.; Shipp, M.A.; Dalla-Favera, R. Inactivation of the PRDM1/BLIMP1 gene in diffuse large B cell lymphoma. J. Exp. Med. 2006, 203, 311–317. [Google Scholar] [CrossRef]
  20. Ocana, E.; Gonzalez-Garcia, I.; Gutierrez, N.C.; Mora-Lopez, F.; Brieva, J.A.; Campos-Caro, A. The expression of PRDI-BF1 beta isoform in multiple myeloma plasma cells. Haematologica 2006, 91, 1579–1580. [Google Scholar]
  21. Zhao, W.L.; Liu, Y.Y.; Zhang, Q.L.; Wang, L.; Leboeuf, C.; Zhang, Y.W.; Ma, J.; Garcia, J.F.; Song, Y.P.; Li, J.M.; Shen, Z.X.; Chen, Z.; Janin, A.; Chen, S.J. PRDM1 is involved in chemoresistance of T-cell lymphoma and down-regulated by the proteasome inhibitor. Blood 2008, 111, 3867–3871. [Google Scholar]
  22. Liu, Y.Y.; Leboeuf, C.; Shi, J.Y.; Li, J.M.; Wang, L.; Shen, Y.; Garcia, J.F.; Shen, Z.X.; Chen, Z.; Janin, A.; Chen, S.J.; Zhao, W.L. Rituximab plus CHOP (R-CHOP) overcomes PRDM1-associated resistance to chemotherapy in patients with diffuse large B-cell lymphoma. Blood 2007, 110, 339–344. [Google Scholar] [CrossRef]
  23. Zhang, Y.W.; Xie, H.Q.; Chen, Y.; Jiao, B.; Shen, Z.X.; Chen, S.J.; Zhao, W.L. Loss of promoter methylation contributes to the expression of functionally impaired PRDM1β isoform in diffuse large B-cell lymphoma. Int. J. Hematol. 2010, 92, 439–444. [Google Scholar] [CrossRef]
  24. Baumforth, K.R.N.; Flavell, J.R.; Davies, G.; Reynolds, G.M.; Pettit, T.; Wei, W.; Kishi, Y.; Arai, H.; Morgan, S.; Stankovic, T.; Nowakova, M.; Pratt, G.; Aoki, J.; Wakelam, M.J.O.; Young, L.S.; Murray, P.G. Induction of autotaxin by Epstein-Barr virus promotes the growth and survival of Hodgkin’s lymphoma cells. Blood 2005, 106, 2138–2146. [Google Scholar] [CrossRef]
  25. Oyama, T.; Yamamoto, K.; Asano, N.; Oshiro, A.; Suzuki, R.; Kagami, Y.; Morishima, Y.; Takeuchi, K.; Izumo, T.; Mori, S.; Ohshima, K.; Suzumiya, J.; Nakamura, N.; Abe, M.; Ichimura, K.; Sato, Y.; Yoshino, T.; Naoe, T.; Shimoyama, Y.; Kamiya, Y.; Kinoshita, T. Age-related EBV-associated B-cell lymphoproliferative disorders constitute a distinct clinicopathologic group: A study of 96 patients. Clin. Cancer Res. 2007, 13, 5124–5132. [Google Scholar]
  26. Anastasiadou, E.; Vaeth, S.; Cuomo, L.; Boccellato, F.; Vincenti, S.; Cirone, M.; Presutti, C.; Junker, S.; Winberg, G.; Frati, L.; Wade, P.A.; Faggioni, A.; Trivedi, P. Epstein-Barr virus infection leads to partial phenotypic reversion of terminally differentiated malignant B cells. Cancer Lett. 2009, 284, 165–174. [Google Scholar] [CrossRef]
  27. Vrzalikova, K.; Vockerodt, M.; Leonard, S.; Bell, A.; Wei, W.; Schrader, A.; Wright, K.L.; Kube, D.; Rowe, M.; Woodman, C.B.; Murray, P.G. Down-regulation of BLIMP1α by the EBV oncogene LMP1 disrupts the plasma cell differentiation program and prevents viral replication in B cells: Implications for the pathogenesis of EBV-associated B cell lymphomas. Blood 2011, 117, 5907–5917. [Google Scholar] [CrossRef]
  28. Leonard, S.; Wei, W.; Anderton, J.; Vockerodt, M.; Rowe, M.; Murray, P.G.; Woodman, C.B.J. An investigation of the epigenetic and transcriptional changes which follow Epstein-Barr virus infection of germinal centre B cells and their relevance to the pathogenesis of Hodgkin’s lymphoma. J. Virol. 2011, 85, 9568–9577. [Google Scholar]
  29. Shimshon, L.; Michaeli, A.; Hadar, R.; Nutt, S.L.; David, Y.; Navon, A.; Waisman, A.; Tirosh, B. SUMOylation of Blimp-1 promotes its proteasomal degradation. FEBS Lett. 2011, 585, 2405–2409. [Google Scholar] [CrossRef]
  30. Ying, H.Y.; Su, S.T.; Hsu, P.H.; Chang, C.C.; Lin, I.Y.; Tseng, Y.H.; Tsai, M.D.; Shih, H.M.; Lin, K.I. SUMOylation of Blimp-1 is critical for plasma cell differentiation. EMBO Rep. 2012. (Epub ahead of print). [Google Scholar]
  31. Schmidt, D.; Nayak, A.; Schumann, J.E.; Schimpl, A.; Berberich, I.; Berberich-Siebelt, F. Blimp-1Deltaexon7: A naturally occurring Blimp-1 deletion mutant with auto-regulatory potential. Exp. Cell Res. 2008, 314, 3614–3627. [Google Scholar] [CrossRef]
  32. Smith, M.A.; Maurin, M.; Cho, H.I.; Becknell, B.; Freud, A.G.; Yu, J.; Wei, S.; Djeu, J.; Celis, E.; Caligiuri, M.A.; Wright, K.L. PRDM1/Blimp-1 controls effector cytokine production in human NK cells. J. Immunol. 2010, 185, 6058–6067. [Google Scholar] [CrossRef]
  33. Abbondanza, C.; De Rosa, C.; D'Arcangelo, A.; Pacifico, M.; Spizuoco, C.; Piluso, G.; Di Zazzo, E.; Gazzerro, P.; Medici, N.; Moncharmont, B.; Puca, GA. Identification of a functional estrogen-responsive enhancer element in the promoter 2 of PRDM2 gene in breast cancer cell lines. J. Cell Physiol. 2012, 227, 964–975. [Google Scholar] [CrossRef]
  34. Tunyaplin, C.; Shapiro, M.A.; Calame, K.L. Characterization of the B lymphocyte induced maturation protein-1 (Blimp-1) gene, mRNA isoforms and basal promoter. Nucleic Acids Res. 2000, 28, 4846–4855. [Google Scholar] [CrossRef]
  35. Buettner, M.; Greiner, A.; Avramidou, A.; Jäck, H.M.; Niedobitek, G. Evidence of abortive plasma cell differentiation in Hodgkin and Reed-Sternberg cells of classical Hodgkin lymphoma. Hematol. Oncol. 2005, 23, 127–132. [Google Scholar] [CrossRef]
  36. Cattoretti, G.; Angelin-Duclos, C.; Shaknovich, R.; Zhou, H.; Wang, D.; Alobeid, B. PRDM1/Blimp-1 is expressed in human B-lymphocytes committed to the plasma cell lineage. J. Pathol. 2005, 206, 76–86. [Google Scholar] [CrossRef]
  37. Garcia, J.F.; Roncador, G.; García, J.F.; Sánz, A.I.; Maestre, L.; Lucas, E.; Montes-Moreno, S.; Fernandez Victoria, R.; Martinez-Torrecuadrara, J.L.; Marafioti, T.; Mason, D.Y.; Piris, M.A. PRDM1/BLIMP-1 expression in multiple B and T-cell lymphoma. Haematologica 2006, 91, 467–474. [Google Scholar]
  38. Natkunam, Y.; Hsi, E.D.; Aoun, P.; Zhao, S.; Elson, P.; Pohlman, B.; Naushad, H.; Bast, M.; Levy, R.; Lossos, I.S. Expression of the human germinal center-associated lymphoma (HGAL) protein identifies a subset of classic Hodgkin lymphoma of germinal center derivation and improved survival. Blood 2007, 109, 298–305. [Google Scholar] [CrossRef]
  39. Kamesaki, H.; Fukuhara, S.; Tatsumi, E.; Uchino, H.; Yamabe, H.; Miwa, H.; Shirakawa, S.; Hatanaka, M.; Honjo, T. Cytochemical, immunologic, chromosomal, and molecular genetic analysis of a novel cell line derived from Hodgkin's disease. Blood 1986, 68, 285–292. [Google Scholar]
  40. Schaadt, M.; Diehl, V.; Stein, H.; Fonatsch, C.; Kirchner, H.H. Two neoplastic cell lines with unique features derived from Hodgkin's disease. Int. J. Cancer 1980, 26, 723–731. [Google Scholar] [CrossRef]
  41. Drexler, H.G.; Gignac, S.M.; Hoffbrand, A.V.; Leber, B.F.; Norton, J.; Lok, M.S.; Minowada, J. Characterization of Hodgkin's disease derived cell line HDLM-2. Recent Results Cancer Res. 1989, 117, 75–82. [Google Scholar] [CrossRef]
  42. Bargou, R.C.; Mapara, M.Y.; Zugck, C.; Daniel, P.T.; Pawlita, M.; Döhner, H.; Dörken, B. Characterization of a novel Hodgkin cell line, HD-MyZ, with myelomonocytic features mimicking Hodgkin's disease in severe combined immunodeficient mice. J. Exp. Med. 1993, 177, 1257–1268. [Google Scholar] [CrossRef]
  43. Wolf, J.; Kapp, U.; Bohlen, H.; Kornacker, M.; Schoch, C.; Stahl, B.; Mucke, S.; von Kalle, C.; Fonatsch, C.; Schaefer, H.E.; Hansmann, M.L.; Diehl, V. Peripheral blood mononuclear cells of a patient with advanced Hodgkin's lymphoma give rise to permanently growing Hodgkin-Reed Sternberg cells. Blood 1996, 87, 3418–3428. [Google Scholar]
  44. Drexler, H.G.; Leber, B.F.; Norton, J.; Yaxley, J.; Tatsumi, E.; Hoffbrand, A.V.; Minowada, J. Genotypes and immunophenotypes of Hodgkin's disease-derived cell lines. Leukemia 1988, 2, 371–376. [Google Scholar]
  45. Diehl, V.; Kirchner, H.H.; Burrichter, H.; Stein, H.; Fonatsch, C.; Gerdes, J.; Schaadt, M.; Heit, W.; Uchanska-Ziegler, B.; Ziegler, A.; Heintz, F.; Sueno, K. Characteristics of Hodgkin's disease-derived cell lines. Canc. Treat. Rep. 1982, 66, 615–632. [Google Scholar]
  46. Cohen, J.H.; Revillard, J.P.; Magaud, J.P.; Lenoir, G.; Vuillaume, M.; Manel, A.M.; Vincent, C.; Bryon, P.A. B-cell maturation stages of Burkitt's lymphoma cell lines according to Epstein-Barr virus status and type of chromosome translocation. J. Natl. Cancer Inst. 1987, 78, 235–242. [Google Scholar]
  47. Magrath, I.T.; Freeman, C.B.; Pizzo, P.; Gadek, J.; Jaffe, E.; Santaella, M.; Hammer, C.; Frank, M.; Reaman, G.; Novikovs, L. Characterization of lymphoma-derived cell lines: Comparison of cell lines positive and negative for Epstein-Barr virus nuclear antigen. II. Surface markers. J. Natl.Cancer Inst. 1980, 64, 477–483. [Google Scholar]
  48. Klein, G.; Lindahl, T.; Jondal, M.; Leibold, W.; Menezes, J.; Nilsson, K.; Sundstrom, C. Continuous lymphoid cell lines with characteristics of B cells, lacking the EBV genome and derived from three human lymphomas. Proc. Natl. Acad. Sci. USA 1974, 71, 3283–3286. [Google Scholar] [CrossRef]
  49. Klein, G.; Dombos, L.; Gothosokar, B. Sensitivity of Epstein-Barr virus (EBV) producer and non-producer human lymphoblastoid cell lines to superinfection of with EB-virus. Int. J. Cancer 1972, 10, 44–57. [Google Scholar] [CrossRef]
  50. Epstein, M.A.; Achong, Y.M.; Barr, Y.; Zajac, B.; Henle, G.; Henle, W. Morphological and virological investigations on cultured Burkitt tumor lymphoblasts (strain Raji). J. Natl. Cancer Inst. 1966, 37, 547–559. [Google Scholar]
  51. King, W.; Thomas-Poweil, A.L.; Raab-Traub, N.; Hawke, M.; Kieff, E. Epstein-Barr virus RNA. V. Viral RNA in a restringently infected, growth-transformed cell line. J. Virol. 1980, 36, 506–518. [Google Scholar]
  52. Klein, G.; Dombos, L. Relationship between the sensitivity of EBV-carrying lymphoblastoid lines to superinfection and the inducibility of the resident viral genome. Int. J. Cancer 1973, 11, 327–337. [Google Scholar] [CrossRef]
  53. Tweeddale, M.E.; Lim, B.; Jamal, N.; Robinson, J.; Zalcberg, J.; Lockwood, G.; Minden, M.D.; Messner, H.A. The presence of clonogenic cells in high-grade malignant lymphoma: A prognostic factor. Blood 1987, 69, 1307–1314. [Google Scholar]
  54. Nilsson, K.; Bennich, H.; Johansson, S.G.; Pontén, J. Established immunoglobulin producing myeloma (IgE) and lymphoblastoid (IgG) cell lines from an IgE myeloma patient. Clin. Exp. Immunol. 1970, 7, 477–489. [Google Scholar]
  55. Bell, A.I.; Groves, K.; Kelly, G.L.; Croom-Carter, D.; Hui, E.; Chan, A.T.; Rickinson, A.B. Analysis of Epstein-Barr virus latent gene expression in endemic Burkitt's lymphoma and nasopharyngeal carcinoma tumour cells by using quantitative real-time PCR assays. J. Gen. Virol. 2006, 87, 2885–2890. [Google Scholar] [CrossRef]
  56. Murray, P.G.; Qiu, G.H.; Fu, L.; Waites, E.R.; Srivastava, G.; Heys, D.; Agathanggelou, A.; Latif, F.; Grundy, R.G.; Mann, J.R.; Starczynski, J.; Crocker, J.; Parkes, S.E.; Ambinder, R.F.; Young, L.S.; Tao, Q. Frequent epigenetic inactivation of the RASSF1A tumor suppressor gene in Hodgkin’s lymphoma. Oncogene 2004, 23, 1326–1331. [Google Scholar]
  57. Murray, P.G.; Fan, Y.; Davies, G.; Ying, J.; Geng, H.; Ng, K.M.; Li, H.; Gao, Z.; Kapatai, G.; Bose, S.; Anderton, J.A.; Reynolds, G.M.; Ito, A.; Woodman, C.B.J.; Marafioti, T.; Ambinder, R.F.; Tao, Q. Epigenetic silenncing of a proapoptotic cell adhesion molecule-the immunoglobulin superfamily member IGSF4 by promoter CpG methylation protects Hodgkin’s lymphoma cells from apoptosis. Am. J. Pathol. 2010, 177, 1480–1490. [Google Scholar]

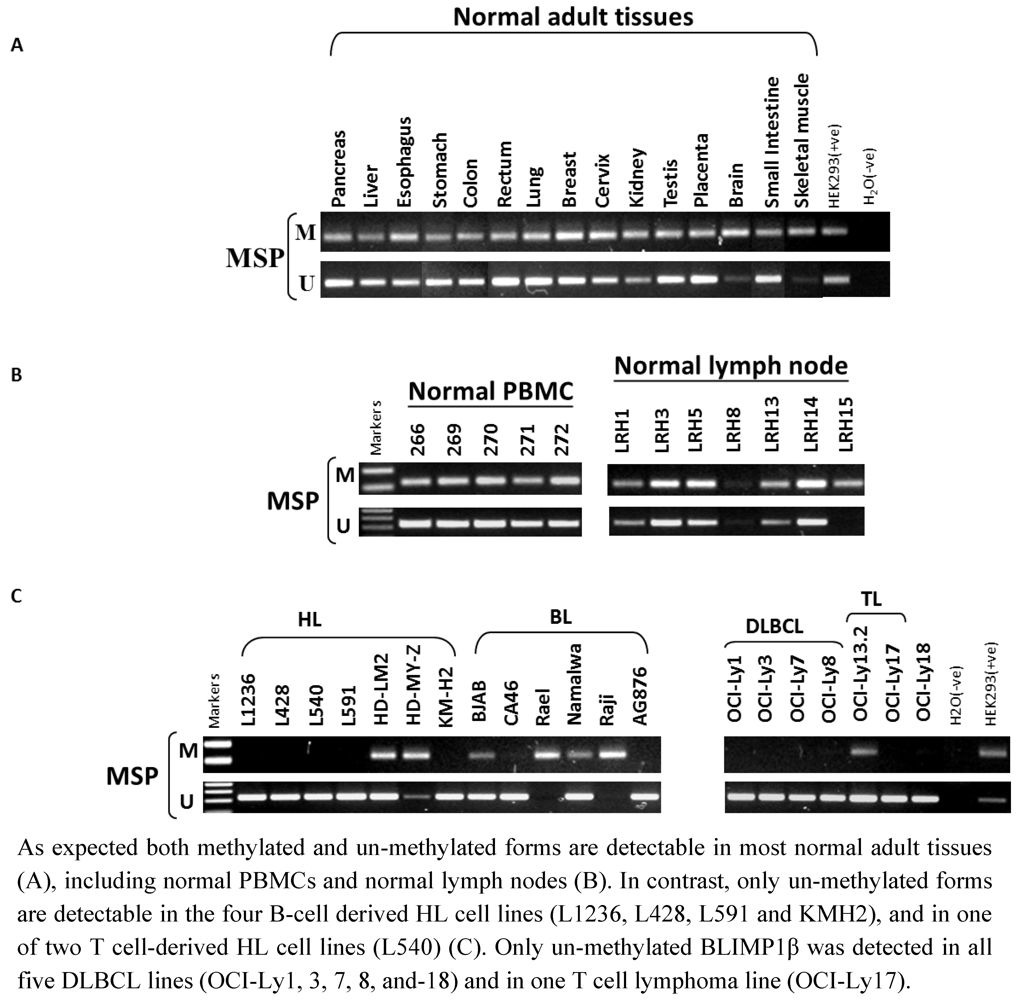

Supplementary Figure 1. Methylation-specific PCR (MSP) analysis of the BLIMP1β-promoter in normal tissues and lymphoma cell lines.
Supplementary Figure 1. Methylation-specific PCR (MSP) analysis of the BLIMP1β-promoter in normal tissues and lymphoma cell lines.
Pathogens 01 00083 g004 1024
Supplementary Table 1. Commercial Real-time-PCR assays.
Supplementary Table 1. Commercial Real-time-PCR assays.
Gene nameApplied Biosystem Gene expression assay
BLIMP1 (PRDM1) α isoformHs01068508_m1
Supplementary Table 2. Primers used in pyrosequencing.
Supplementary Table 2. Primers used in pyrosequencing.
PCR forward biotinylated primer (region 1)TAGGTTTGGTTAGTGA
PCR reverse non biotinylated primer (region 1)CACTTTTATCTTTCCA
Sequencing primer (region 1)TTTTATCAATTTTTCC
PCR forward non biotinylated primer (region 2)GGTGGAGGATAGTTGA
PCR reverse biotinylated primer (region 2)AAATAAACCAAATTCC
Sequencing primer (region 2)TGTATAGTTGTTTGGG
Supplementary Table 3. EBV status of primary HL cases micro-dissected for analysis of BLIMP1β methylation in HRS cells.
Supplementary Table 3. EBV status of primary HL cases micro-dissected for analysis of BLIMP1β methylation in HRS cells.
LCM case No.Original MD HRS case No.EBV statusBLIMP1βmethylation

Key: U = unmethylated; M = methylated; W = weakly methylated.
