Metals 2017, 7(4), 117; doi:10.3390/met7040117

Characterization of In-Situ Cu–TiH2–C and Cu–Ti–C Nanocomposites Produced by Mechanical Milling and Spark Plasma Sintering

1
School of Materials Science and Engineering, Hanoi University of Science and Technology, No. 1 Dai Co Viet, Hanoi 100000, Vietnam
2
School of Materials Science and Engineering, University of Ulsan, San-29, Mugeo-2 Dong, Nam-Gu, Ulsan 680-749, Korea
3
Department of Materials Science and Engineering, Federal University of São Carlos, Via Washington Luiz, km 235, São Carlos, SP 13565-905, Brazil
4
University of Grenoble Alpes, Science et Ingénierie des Matériaux et Procédés (SIMAP), F-38000 Grenoble, France
5
Centre National de la Recherche Scientifique (CNRS), Science et Ingénierie des Matériaux et Procédés (SIMAP), F-38000 Grenoble, France
6
University of Grenoble Alpes, Laboratoire d’Electrochimie et de Physico-chimie des Matériaux et des Interfaces (LEPMI), F-38000 Grenoble, France
7
Centre National de la Recherche Scientifique (CNRS), Laboratoire d’Electrochimie et de Physico-chimie des Matériaux et des Interfaces (LEPMI), F-38000 Grenoble, France
*
Author to whom correspondence should be addressed.
Academic Editor: Manoj Gupta
Received: 5 February 2017 / Revised: 9 March 2017 / Accepted: 27 March 2017 / Published: 29 March 2017
(This article belongs to the Special Issue Metal Matrix Composites)
View Full-Text   |   Download PDF [12838 KB, uploaded 29 March 2017]   |

Abstract

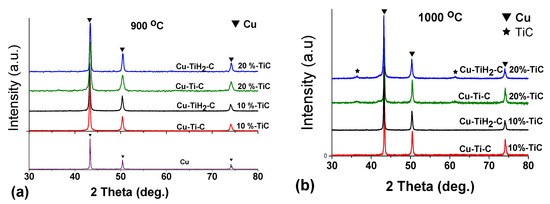

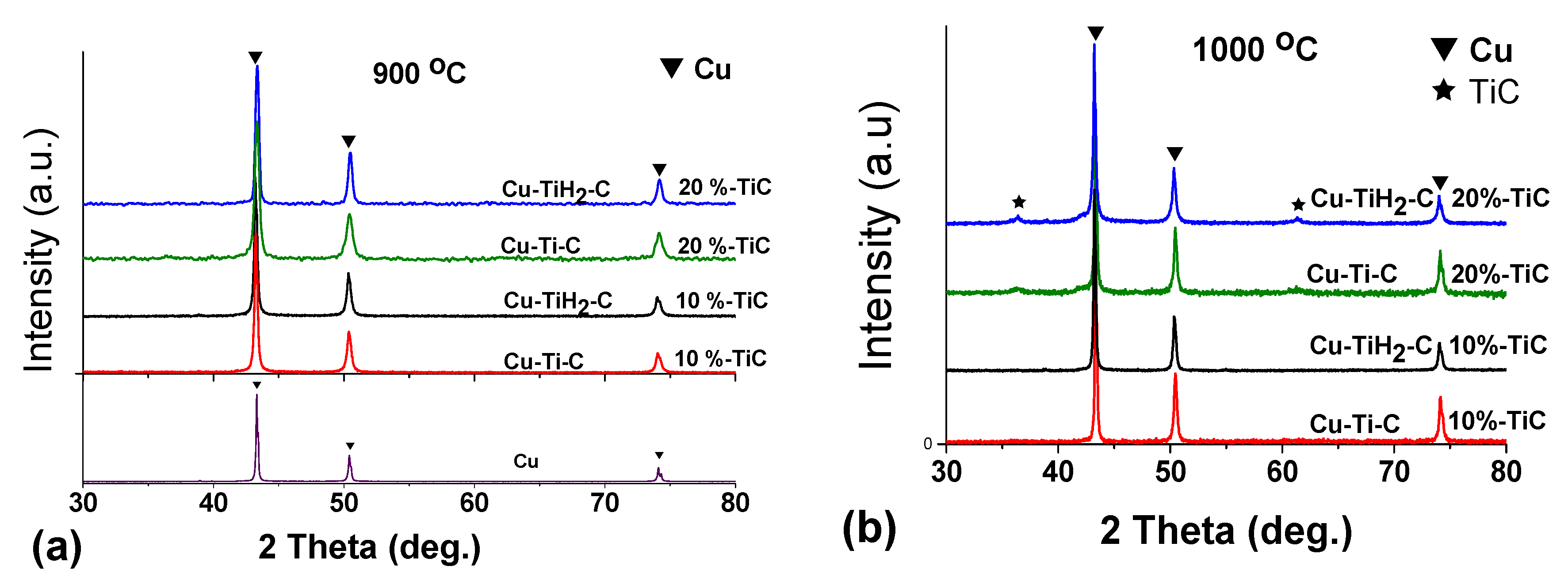

This study focuses on the fabrication and microstructural investigation of Cu–TiH2–C and Cu–Ti–C nanocomposites with different volume fractions (10% and 20%) of TiC. Two mixtures of powders were ball milled for 10 h, consequently consolidated by spark plasma sintering (SPS) at 900 and 1000 °C producing bulk materials with relative densities of 95–97%. The evolution process of TiC formation during sintering process was studied by using X-ray diffraction (XRD), scanning electron microscopy (SEM), and high resolution transmission electron microscopy (HRTEM). XRD patterns of composites present only Cu and TiC phases, no residual Ti phase can be detected. TEM images of composites with (10 vol % TiC) sintered at 900 °C show TiC nanoparticles about 10–30 nm precipitated in copper matrix, most of Ti and C dissolved in the composite matrix. At the higher sintering temperature of 1000 °C, more TiC precipitates from Cu–TiH2–C than those of Cu–Ti–C composite, particle size ranges from 10 to 20 nm. The hardness of both nanocomposites also increased with increasing sintering temperature. The highest hardness values of Cu–TiH2–C and Cu–Ti–C nanocomposites sintered at 1000 °C are 314 and 306 HV, respectively. View Full-Text
Keywords: spark plasma sintering; Cu–TiC; in-situ composites; mechanical milling spark plasma sintering; Cu–TiC; in-situ composites; mechanical milling
Figures

Figure 1a

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
