Open AccessArticle
Metals 2017, 7(5), 170; doi:10.3390/met7050170

Characteristics of Cold and Hot Pressed Iron Aluminum Powder Metallurgical Alloys

1
Department of Production Engineering & Mechanical Design, Faculty of Engineering, Port-Said University, Port Fouad 42523, Egypt
2
Mechanical Engineering Department, Unaizah College of Engineering, Qassim University, Unaizah 51911, Saudi Arabia
3
Mechanical Engineering Department, Faculty of Engineering, Suez Canal University, Ismailia 41522, Egypt
*
Author to whom correspondence should be addressed.
Academic Editor: Manoj Gupta
Received: 4 March 2017 / Revised: 29 April 2017 / Accepted: 3 May 2017 / Published: 12 May 2017
(This article belongs to the Special Issue Metal Matrix Composites)
View Full-Text   |   Download PDF [5100 KB, uploaded 16 May 2017]   |

Abstract

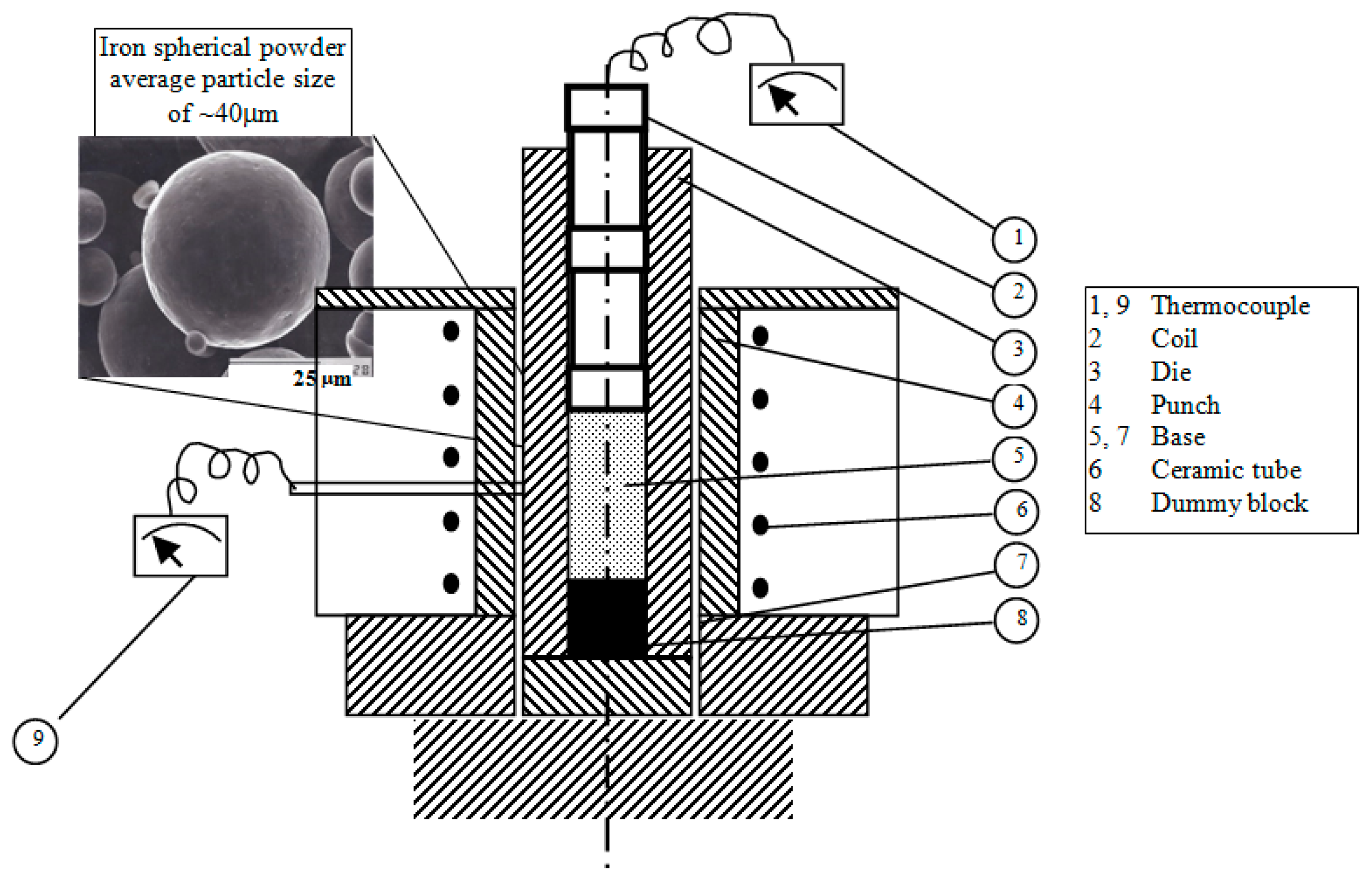

Iron powders having average particle sizes of ~40 µm are mechanically mixed thoroughly with aluminum powders ranging from 1 to 10 in wt. %, with an average particle size of ~10 µm. Two different powder metallurgy (PM) techniques, cold and hot pressing, are used to study the effect of the additive element powder on the mechanical properties, wear properties, and the microstructure of the iron based alloys. The hot pressing technique was performed at a temperature reaching up to 500 °C at 445.6 MPa. The cold pressing technique was performed at 909 MPa at room temperature. By increasing the Al content to 10 wt. % in the base Fe-based matrix, the Brinell hardness number was decreased from 780 to 690 and the radial strength from 380 to 228 MPa with reductions of 11.5% and 40%, respectively. Improvement of the wear resistance with the increase addition of the Al powder to the Fe matrix up to five times was achieved, compared to the alloy without Al addition for different wear parameters: wear time and sliding speed. View Full-Text
Keywords: iron aluminum alloys; cold/hot PM; compressibility factor; wear resistance iron aluminum alloys; cold/hot PM; compressibility factor; wear resistance
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
