Improved Compressive, Damping and Coefficient of Thermal Expansion Response of Mg–3Al–2.5La Alloy Using Y2O3 Nano Reinforcement
Department of Mechanical Engineering, National University of Singapore, 9 Engineering Drive 1, Singapore 117576, Singapore
Department of Mechanical engineering, Visvesvaraya National Institute of Technology, South Ambazari Road, Nagpur 440010, India
Author to whom correspondence should be addressed.
Academic Editor: Daolun Chen
Received: 6 March 2017 / Revised: 9 March 2017 / Accepted: 14 March 2017 / Published: 21 March 2017
In the present study, the effects of the addition of Y2

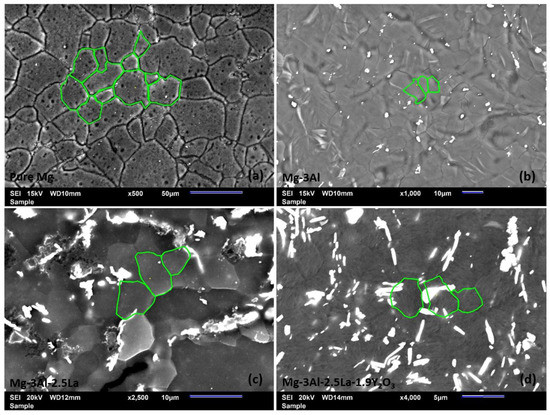

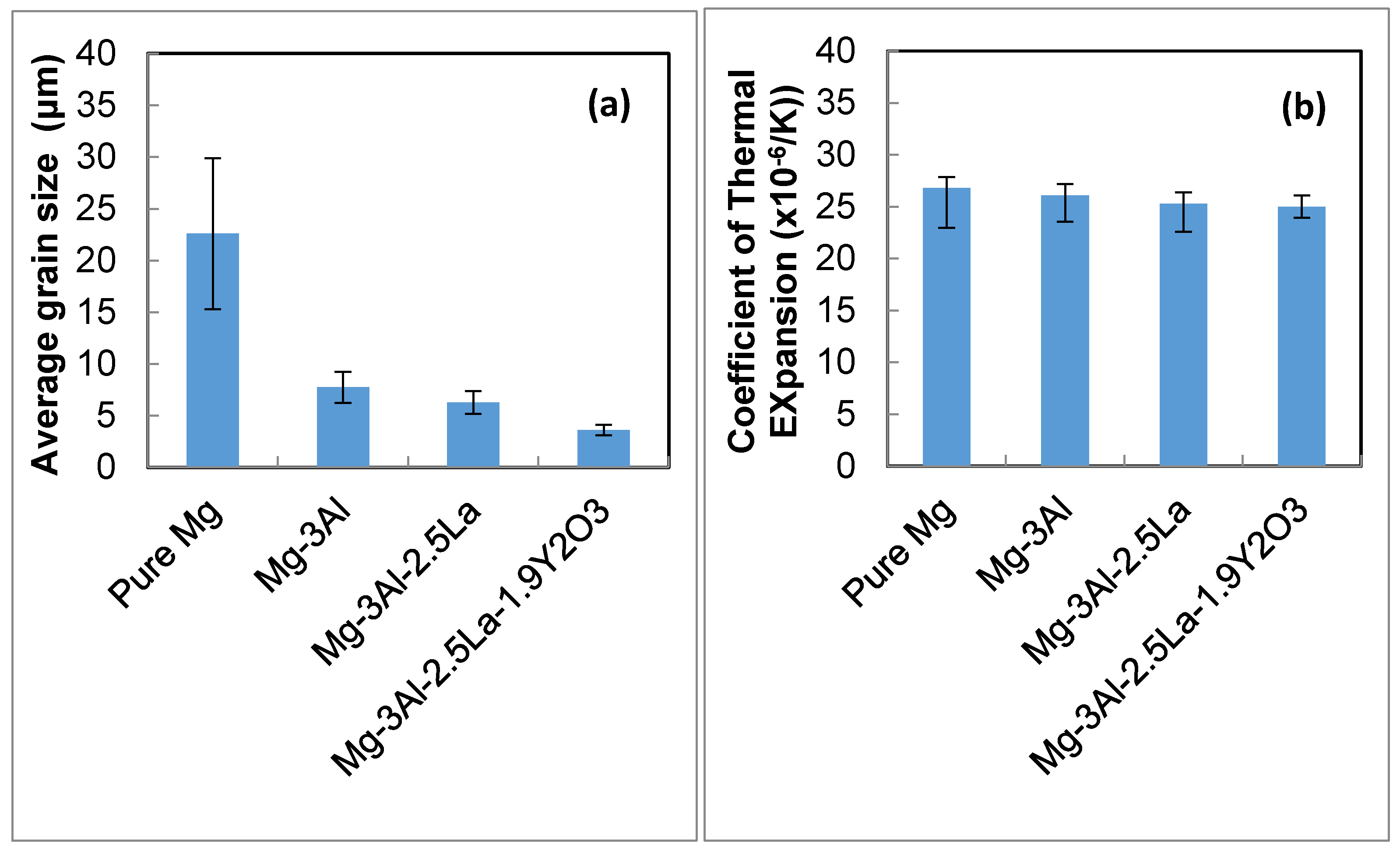

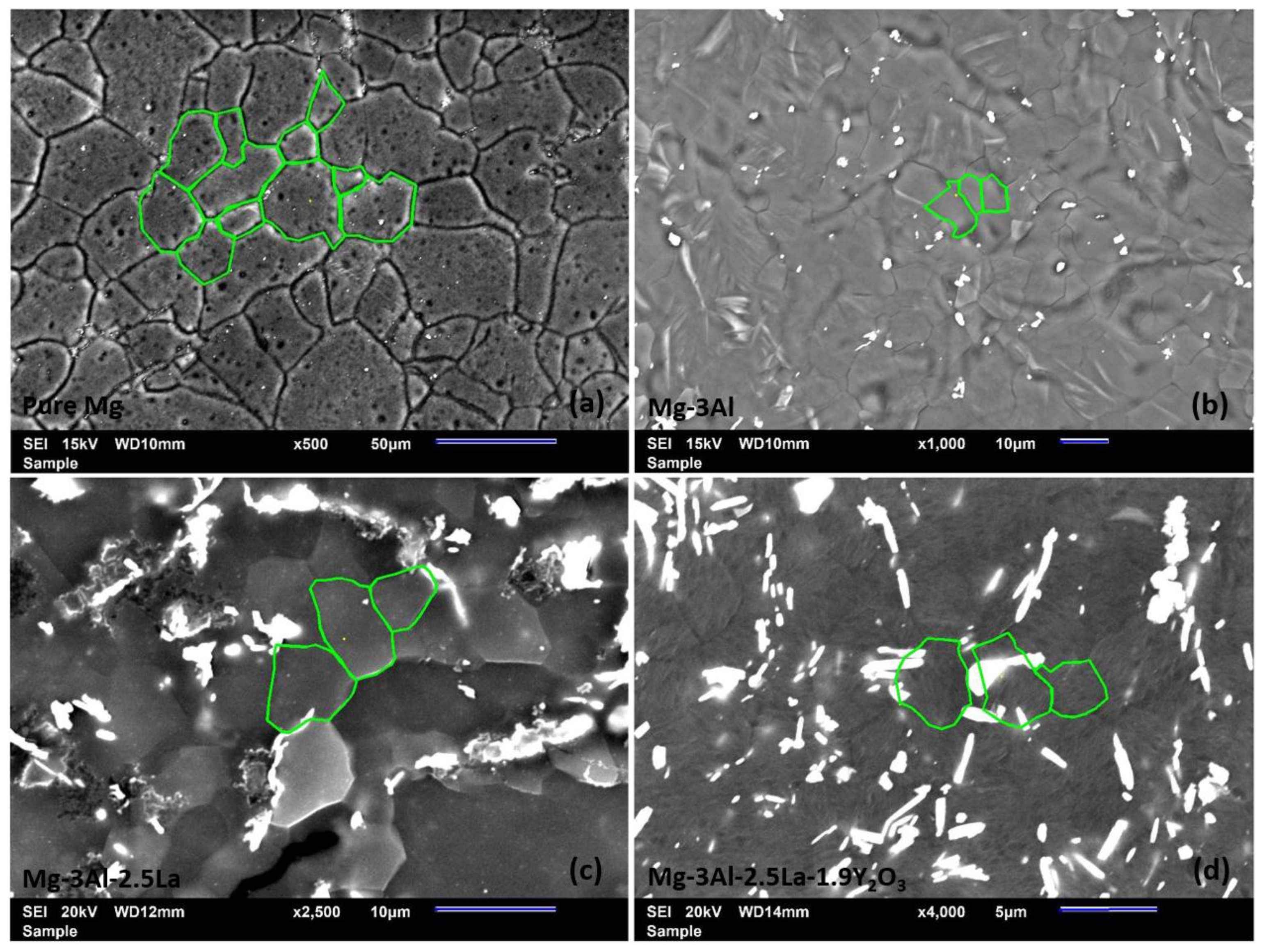

nanoparticles on Mg–3Al–2.5La alloy were investigated. Materials were synthesized using a disintegrated melt deposition technique followed by hot extrusion. The samples were then characterized for microstructure, compression properties, damping properties, CTE (coefficient of thermal expansion) and fracture morphology. The grain size of Mg–3Al–2.5La was significantly reduced by the addition of the Y2

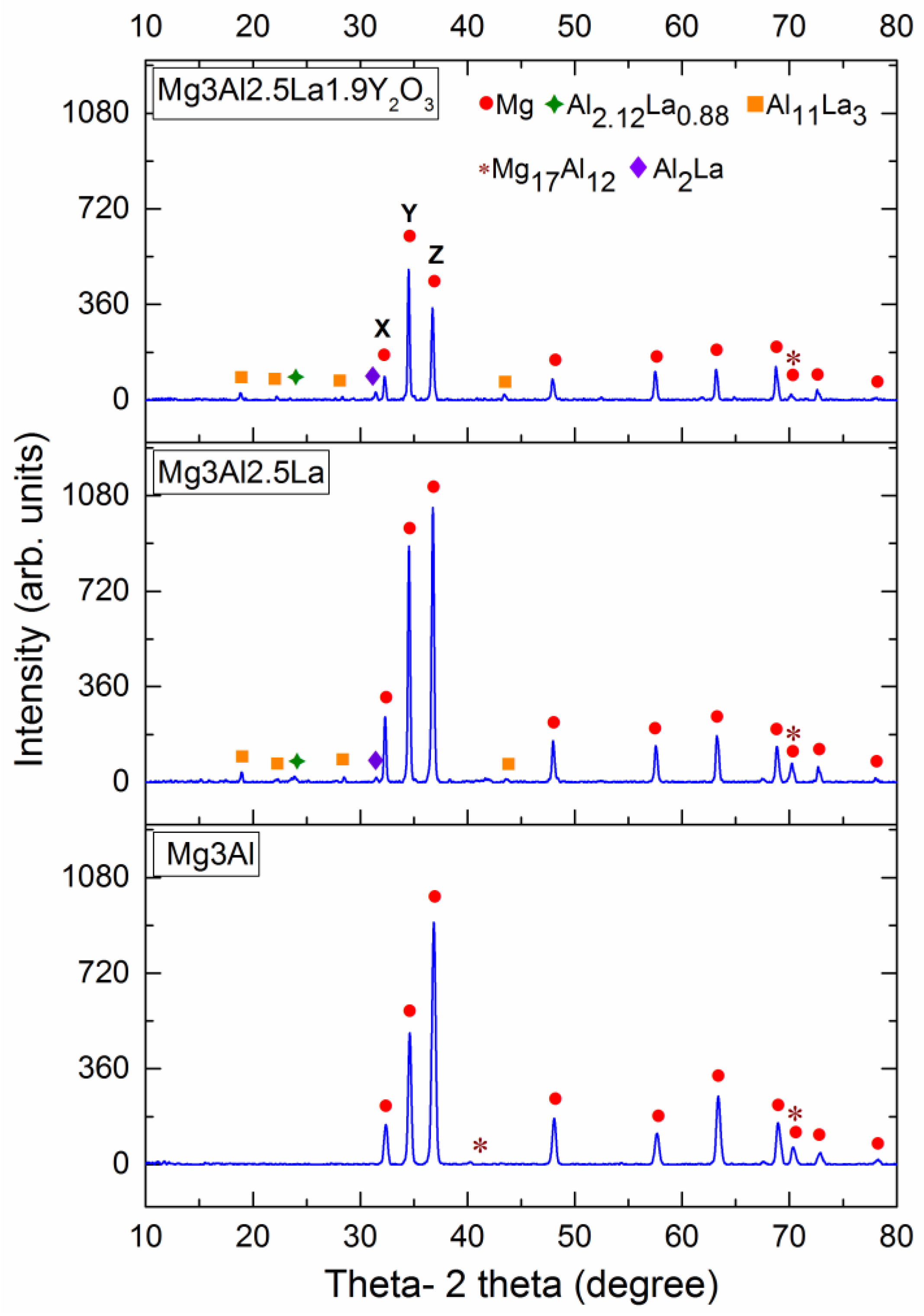

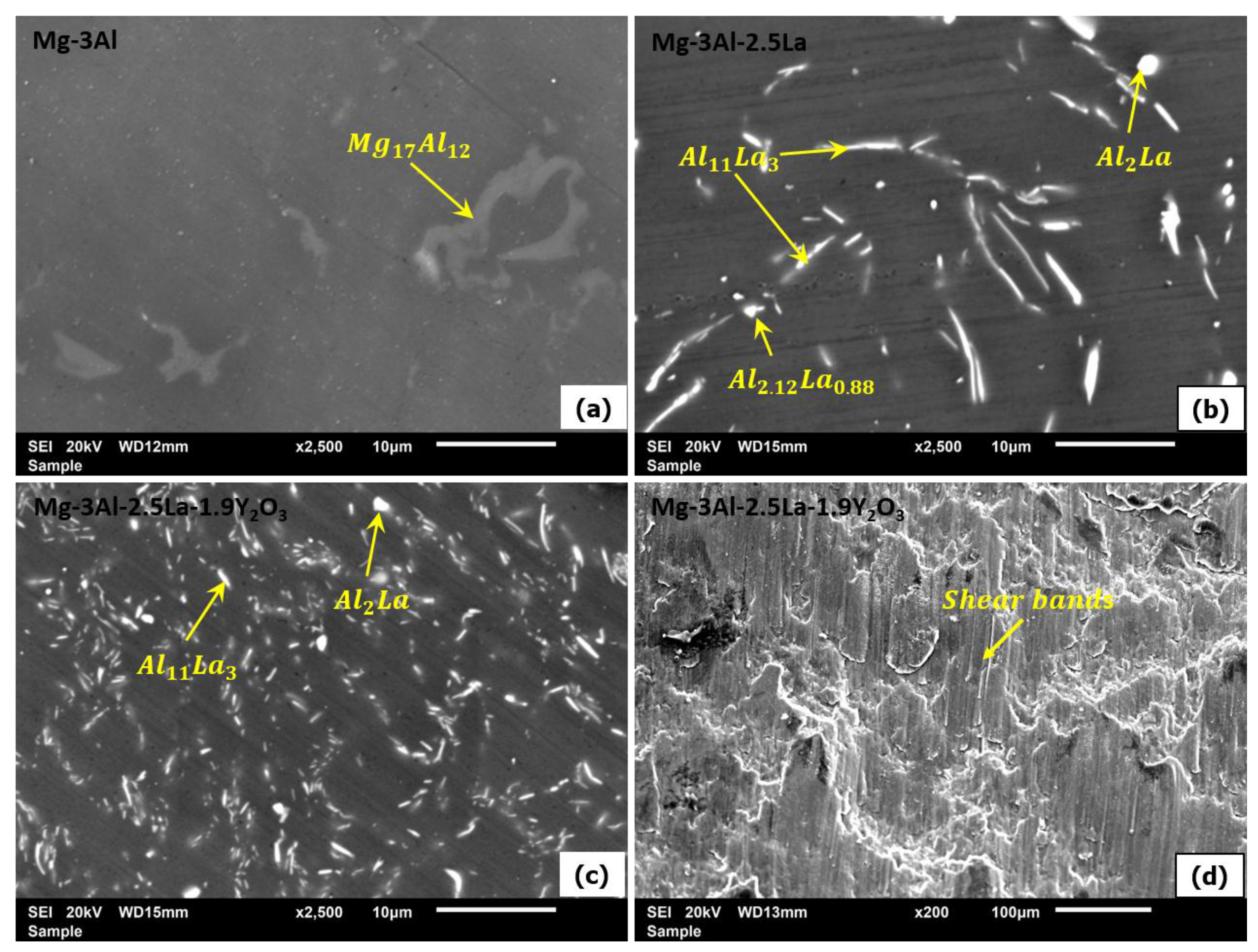

nano-sized reinforcement (~3.6 μm, 43% of Mg–3Al–2.5La grain size). SEM and X-ray studies revealed that the size of uniformly distributed intermetallic phases,
reduced by the addition of Y2
to Mg–3Al–2.5La alloy. The coefficient of thermal expansion (CTE) was slightly improved by the addition of nanoparticles. The results of the damping measurement revealed that the damping capacity of the Mg–3Al–2.5La alloy increased due to the presence of Y2
. The compression results showed that the addition of Y2

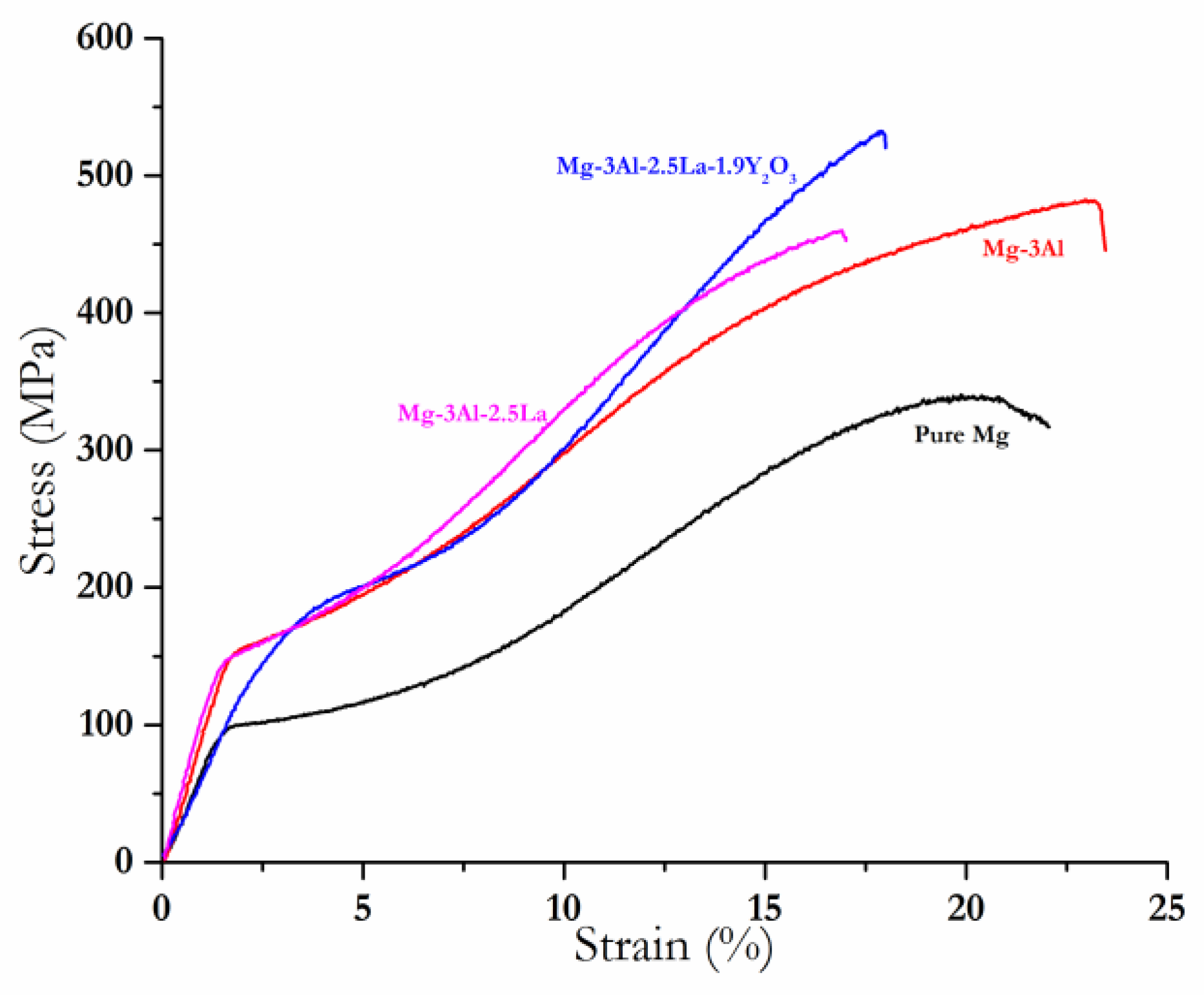

to Mg–3Al–2.5La improved the compressive yield strength (from ~141 MPa to ~156 MPa) and the ultimate compressive strength (from ~456 MPa to ~520 MPa), which are superior than those of the Mg–3Al alloy (Compressive Yield Strength, CYS ~154 MPa and Ultimate Compressive Strength, UCS ~481 MPa). The results further revealed that there is no significant effect on the fracture strain value of Mg–3Al–2.5La due to the addition of Y2
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
Share & Cite This Article
MDPI and ACS Style
Kumar, A.; Tun, K.S.; Kohadkar, A.D.; Gupta, M. Improved Compressive, Damping and Coefficient of Thermal Expansion Response of Mg–3Al–2.5La Alloy Using Y2O3 Nano Reinforcement. Metals 2017, 7, 104.
Kumar A, Tun KS, Kohadkar AD, Gupta M. Improved Compressive, Damping and Coefficient of Thermal Expansion Response of Mg–3Al–2.5La Alloy Using Y2O3 Nano Reinforcement. Metals. 2017; 7(3):104.
Kumar, Amit; Tun, Khin S.; Kohadkar, Amit D.; Gupta, Manoj. 2017. "Improved Compressive, Damping and Coefficient of Thermal Expansion Response of Mg–3Al–2.5La Alloy Using Y2O3 Nano Reinforcement." Metals 7, no. 3: 104.
Show more citation formats
Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
[Return to top]
For more information on the journal statistics, click here
Multiple requests from the same IP address are counted as one view.
