Water 2013, 5(3), 1380-1392; doi:10.3390/w5031380

Experimental Analysis of a Vertical Drop Shaft

* ,
Department of Civil, Architectural and Environmental Engineering, Università di Napoli Federico II, Via Claudio 21, 80125 Naples, Italy
* Author to whom correspondence should be addressed.
Received: 11 July 2013 / Revised: 16 August 2013 / Accepted: 3 September 2013 / Published: 12 September 2013
View Full-Text   |   Download PDF [412 KB, 9 June 2015; original version 9 June 2015]   |   Browse Figures

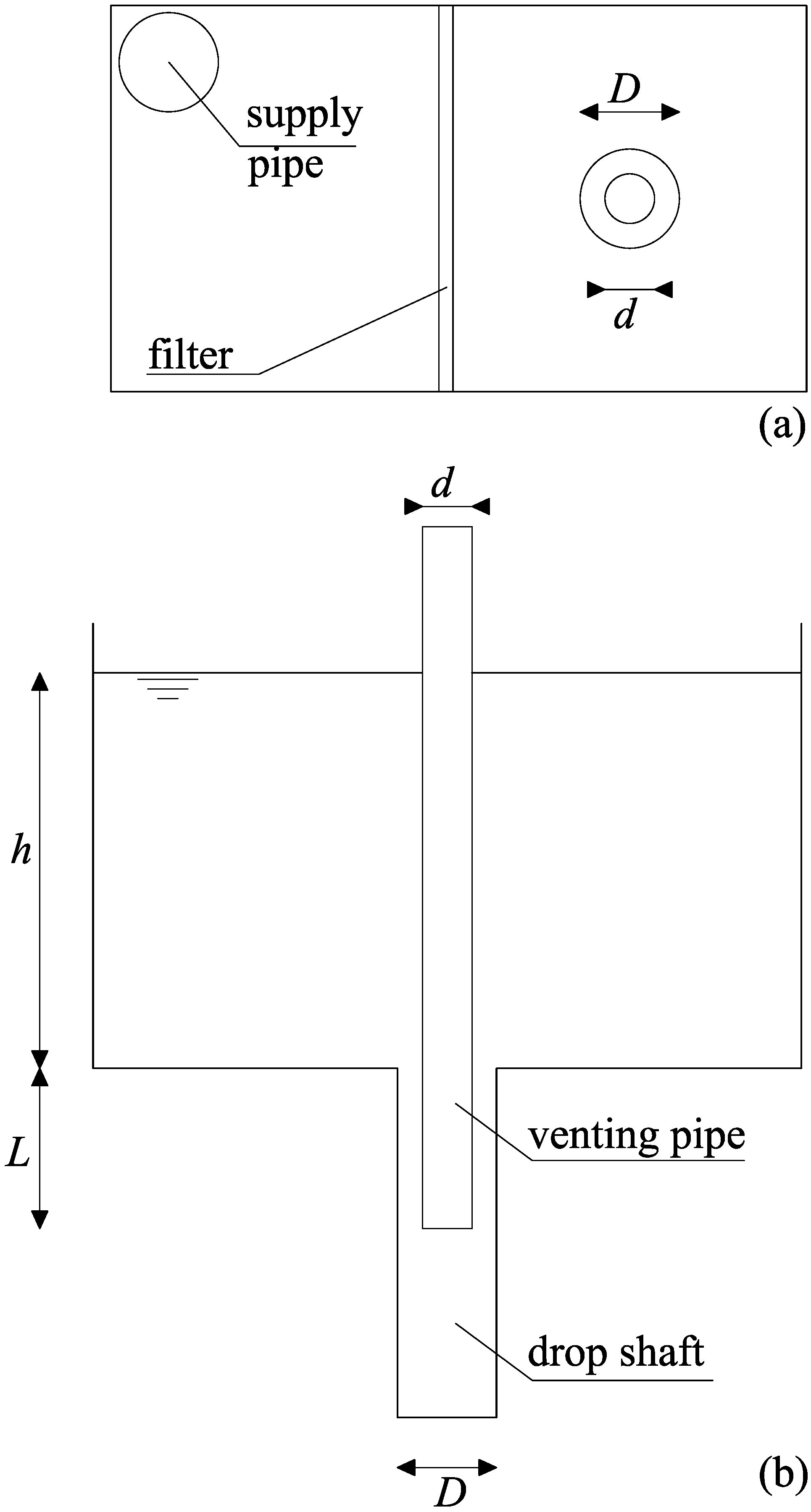

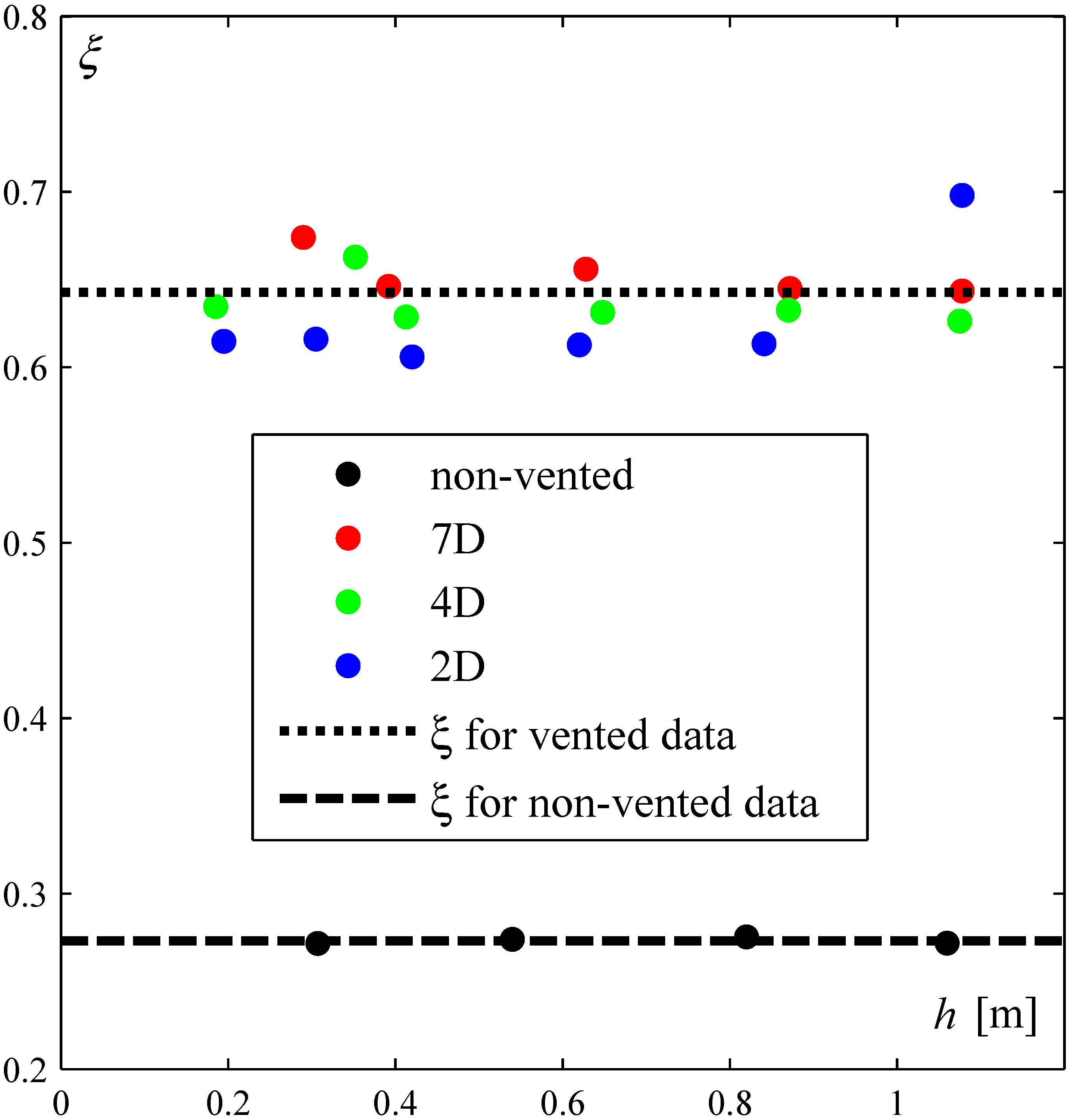

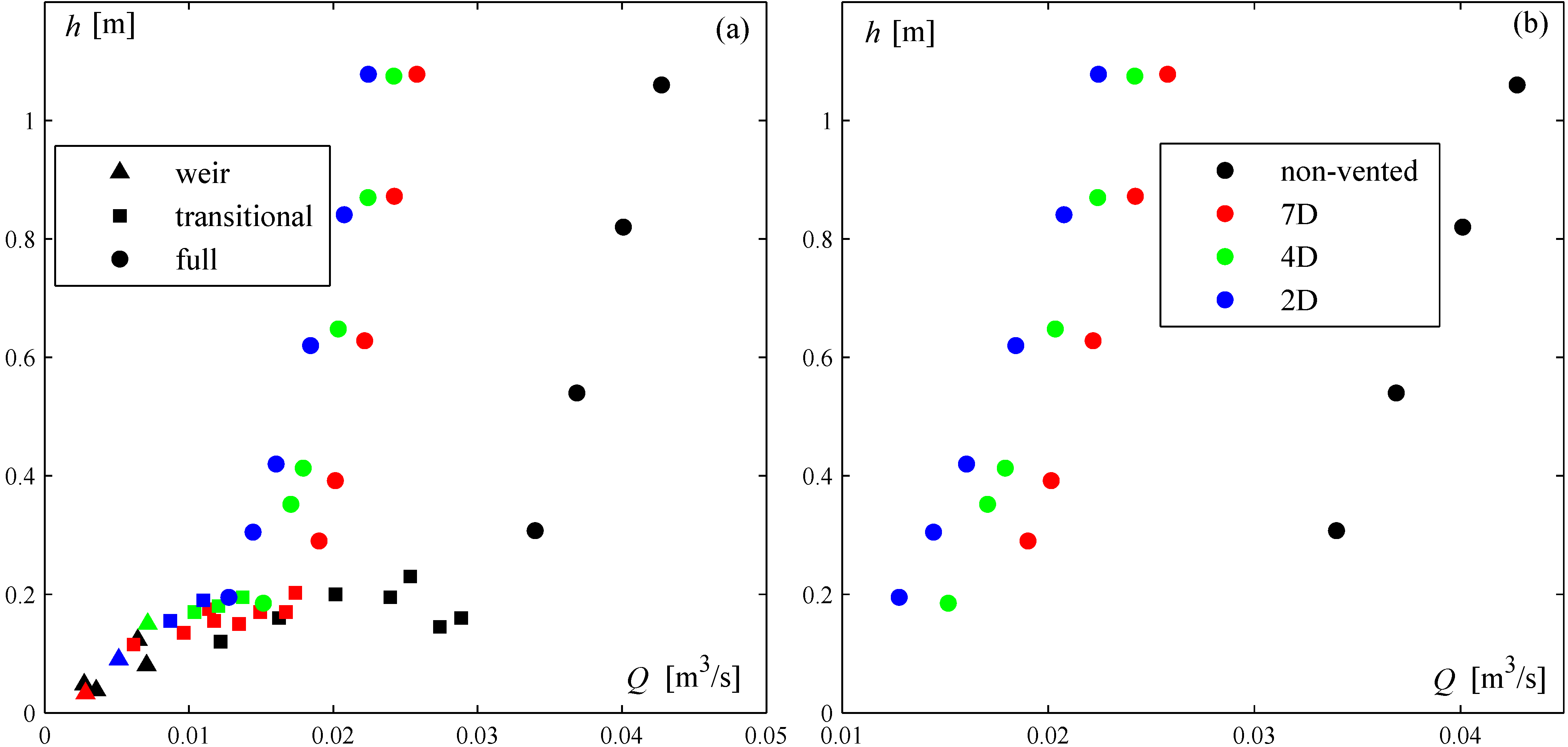

An experimental campaign is undertaken in order to investigate the hydraulic features of a vertical drop shaft, also considering the influence of a venting system consisting of a coaxial vertical pipe, projecting within the drop shaft with different plunging rates. Three different flow regimes are observed: a “weir flow” for very low head values, where the flow profile is subject to the atmospheric pressure; a “full flow” for high head values, where water flows in a pressurized regime along the whole shaft; and a “transitional flow” for intermediate water head values. Weir flow and full flow can be experimentally investigated under steady-state conditions, whereas transitional flow is a pulsating condition, alternately switching from full flow to weir flow. Considering some significant geometric parameters, a head-discharge relation is sought both for the non-vented and for the vented configurations, by means of an energy balance equation, with specific assumptions about intake losses.
Keywords: drop shaft; friction losses; intake losses; pipe Froude number; full flow; weir flow; transitional flow; cavitation drop shaft; friction losses; intake losses; pipe Froude number; full flow; weir flow; transitional flow; cavitation
