Cancers 2013, 5(4), 1221-1241; doi:10.3390/cancers5041221

Article
Gene Regulatory Scenarios of Primary 1,25-Dihydroxyvitamin D3 Target Genes in a Human Myeloid Leukemia Cell Line
Jussi Ryynänen 1, Sabine Seuter 1, Moray J. Campbell 2 and Carsten Carlberg 1,*
1
School of Medicine, Institute of Biomedicine, University of Eastern Finland, POB 1627, Kuopio FI-70211, Finland; E-Mails: jussi.ryynanen@uef.fi (J.R.), sabine.seuter@uef.fi (S.S.)
2
Department of Pharmacology and Therapeutics, Roswell Park Cancer Institute, Elm and Carlton Streets, Buffalo, NY 14263, USA; E-Mail: Moray.Campbell@RoswellPark.org
*
Author to whom correspondence should be addressed; E-Mail: carsten.carlberg@uef.fi; Tel.: +358-40-355-3062.
Received: 28 August 2013; in revised form: 19 September 2013 / Accepted: 26 September 2013 /
Published: 16 October 2013

Abstract

: Genome- and transcriptome-wide data has significantly increased the amount of available information about primary 1,25-dihydroxyvitamin D3 (1,25(OH)2D3) target genes in cancer cell models, such as human THP-1 myelomonocytic leukemia cells. In this study, we investigated the genes G0S2, CDKN1A and MYC as master examples of primary vitamin D receptor (VDR) targets being involved in the control of cellular proliferation. The chromosomal domains of G0S2 and CDKN1A are 140–170 kb in size and contain one and three VDR binding sites, respectively. This is rather compact compared to the MYC locus that is 15 times larger and accommodates four VDR binding sites. All eight VDR binding sites were studied by chromatin immunoprecipitation in THP-1 cells. Interestingly, the site closest to the transcription start site of the down-regulated MYC gene showed 1,25(OH)2D3-dependent reduction of VDR binding and is not associated with open chromatin. Four of the other seven VDR binding regions contain a typical DR3-type VDR binding sequence, three of which are also occupied with VDR in macrophage-like cells. In conclusion, the three examples suggest that each VDR target gene has an individual regulatory scenario. However, some general components of these scenarios may be useful for the development of new therapy regimens.
Keywords:
vitamin D receptor; vitamin D; G0S2; CDKN1A; MYC; genomics; chromatin; gene regulation

1. Introduction

The hormonal form of vitamin D3, 1α,25-dihydroxyvitamin D3 (1,25(OH)2D3), has the interesting property of directly activating one defined transcription factor, the vitamin D receptor (VDR) [1]. In common with other well-understood and important transcription factors, information on the genome-wide binding profile of VDR was consequently highly desired. As a result, the method of chromatin immunoprecipitation (ChIP) coupled with massive parallel sequencing (ChIP-seq) [2]) was applied in several human cellular models. Three years ago, VDR ChIP-seq was first reported for the immortalized B lymphocyte cell lines GM10855 and GM10861 (obtained from Caucasian female individuals of the HapMap project) [3], then for the monocytic cell line THP-1 (derived from a male infant with acute myelomonocytic leukemia) [4], later for the colorectal adenocarcinoma cell line LS180 (obtained from a Caucasian female) [5] and finally for the spontaneously immortalized hepatic stellate cell line LX2 (purified from normal human liver) [6]. In addition, very recently there was the first report of genome-wide VDR binding in primary CD4+ T-lymphocytes (obtained from nine healthy human volunteers) [7]. The number of statistically significant VDR binding sites of the respective datasets varied between a few hundreds and more than 10,000, but only a low percentage of them are identical, when comparing two or more cellular models [8]. These models aim to cover the spectrum of responses to 1,25(OH)2D3 observed in health and disease. The immortalized cell models, lymphoblastoid and LX2 cells, essentially capture normal VDR signaling, while THP-1 leukemia cells display significant phenotypic responses towards 1,25(OH)2D3 exposure in terms of triggering differentiation. In contrast, LS180 cells have a resistant phenotype with loss of sensitivity towards the anti-proliferative actions of 1,25(OH)2D3, i.e., they are less suited as a representative cancer model.

Traditionally within the field of VDR research, single gene studies had supported the concept that the VDR binds preferentially to sequences formed by a direct repeat of two hexameric binding motifs spaced by three nucleotides (DR3) [9,10]; this binding motif echoed the arrangement for other nuclear receptors. However, the agnostic analyses of genome-wide VDR binding reveals that DR3-type sequences with a high similarity score were identified at the summits of only 30% of all VDR ChIP-seq peaks [8]. This suggests that there must be alternative mechanisms by which the VDR contacts its genomic targets than forming heterodimers with the retinoid X receptor on DR3-type sequences. This may involve heterodimerization with other transcription factors on different types of sequence or may even be independent of direct binding of the receptor to DNA [11]. The latter mechanism was first demonstrated for mutated p53, which can bind VDR [12].

In order to obtain access to its genomic binding sites, VDR has first to overcome the intrinsic repressive nature of chromatin [13,14]. At a lower rate, the VDR is able to contact genomic DNA already in the absence of 1,25(OH)2D3 and then preferentially forms complexes with co-repressor proteins [15,16] and chromatin modifying enzymes, such as histone deactylases (HDACs) [17,18]. However, the binding of 1,25(OH)2D3 to VDR’s ligand-binding domain induces a conformational change to the latter, so that VDR changes its interaction partners, a few of which have chromatin modifying activity like histone acetylation [19]. Therefore, the interaction of VDR with chromatin and its modifying enzymes is a central element in 1,25(OH)2D3 signaling [20]. HDAC inhibitors, some of which are already in clinical application [21], have the potential to interfere with the actions of VDR on chromatin. Accordingly, primary 1,25(OH)2D3 target genes had been distinguished into those that are up-regulated, down-regulated or not affected by HDAC inhibitor treatment [22].

When a transcriptional start site (TSS) lies within open chromatin, a basal transcriptional machinery complex is able to assemble there. In cases when ligand-activated VDR binds to the same chromosomal domain, the looping of the receptor towards the core promoter region can initiate or enhance the transcription of the respective gene. The method Formaldehyde-Assisted Isolation of Regulatory Elements (FAIRE) combined with massive parallel sequencing (FAIRE-seq) allows a genome-wide detection of these open chromatin regions [23,24]. Therefore, combined with VDR ChIP-seq data this method allows the characterization of the genomic regions of primary VDR target genes.

For this study, we have selected THP-1 cells as an attractive leukemia model, as it is the only one for which genome-wide VDR data are available. We present analyses of the three primary 1,25(OH)2D3 target genes G0/G1 switch 2 (G0S2), cyclin-dependent kinase inhibitor 1A (CDKN1A) and v-myc avian myelocytomatosis viral oncogene homolog (MYC) in terms of architecture of their TSS and a number of VDR binding sites. Involving genome-wide data in the characterization of 1,25(OH)2D3 target genes participating in the control of cellular growth may help to identify the most important components in cancer-related 1,25(OH)2D3 signaling.

2. Experimental

2.1. Cell Culture

The human monocytic cell line THP-1 [25] was grown in RPMI 1640 medium supplemented with 10% fetal calf serum, 2 mM L-glutamine, 0.1 mg/mL streptomycin and 100 U/mL penicillin and the cells were kept at 37 °C in a humidified 95% air/5% CO2 incubator. Prior to mRNA or chromatin extraction the cells were grown overnight in phenol red-free RPMI 1640 medium supplemented with 5% charcoal-stripped fetal calf serum. After 72 h treatment with 20 nM phorbol 12-myristate 13-acetate (PMA, Sigma-Aldrich, Helsinki, Finland) THP-1 cells become adherent and differentiate into a mature macrophage-like phenotype [26]. In 1,25(OH)2D3 stimulation experiments, cells were treated with 10 nM 1,25(OH)2D3 (Sigma-Aldrich) or solvent (0.001% EtOH). For HDAC inhibition experiments, cells were stimulated with 300 nM trichostatin A (TsA), 2 µM suberoylanilide hydroxamic acid (SAHA), 1 mM valproic acid (VPA, all compounds from Sigma-Aldrich), 100 nM 1,25(OH)2D3 or solvent (0.16% EtOH or 0.02% DMSO).

2.2. RNA Extraction, cDNA Synthesis and qPCR

Total RNA was extracted using the High Pure RNA Isolation Kit (Roche, Espoo, Finland) or the Quick RNA Miniprep Kit (Zymo Research, Espoo, Finland). For cDNA synthesis the Transcriptor First Strand cDNA Synthesis Kit (Roche) was applied, where total RNA and oligo(dT)18 primers were denaturated at 65 °C and reverse transcription was carried out for 30 min at 55 °C. qPCR reactions were performed using 250 nM of reverse and forward primers and the LightCycler 480 SYBRGreen I Master mix (Roche). The hotstart Taq polymerase was activated for 10 min at 95 °C, followed by 43 amplification cycles of 20 s denaturation at 95 °C, 15 s annealing at primer-specific temperatures (Supplementary Table S1) and 15 s elongation at 72 °C and a final elongation for 10 min at 72 °C. PCR product specificity was monitored using post-PCR melt curve analysis. Relative expression levels of the target genes were determined using the formula 2−Ct and were normalized to the internal reference genes B2M, GAPDH and HPRT1 as determined by the geNorm algorithm [27]. Briefly, the arithmetic mean of replicated Ct values for each reference gene was transformed to a relative quantity (Q) with the formula Q = 2ΔCt = 2(calibratorCt − sampleCt) by using the sample with the highest expression as a calibrator. For normalization, the relative expression level was divided by the normalization factor that is the geometric mean of the relative quantities (Q) of the three reference genes.

2.3. ChIP

After treatment of cells, nuclear proteins were cross-linked to DNA by adding formaldehyde directly to the medium to a final concentration of 1% and incubating for 8 min at room temperature on a rocking platform. Cross-linking was stopped by adding glycine to a final concentration of 0.125 M and incubating for 5 min at room temperature on a rocking platform. The cells were collected, washed with ice-cold PBS and resuspended in lysis buffer (1% SDS, 10 mM EDTA, protease inhibitors, 50 mM Tris-HCl, pH 8.1) and the lysates were sonicated with a Bioruptor Plus (Diagenode, Liege, Belgium) to result in DNA fragments of 200 to 400 bp. Cellular debris was removed by centrifugation. For output samples, aliquots of the lysate were diluted in ChIP dilution buffer (0.01% SDS, 1.1% Triton X-100, 1.2 mM EDTA, 167 mM NaCl, protease inhibitors, 250 µg/mL BSA, 16.7 mM Tris-HCl, pH 8.1). For input samples, the lysate was diluted 1:10 in ChIP dilution buffer without protease inhibitors and BSA. Anti-VDR antibody (sc-1008X, Santa Cruz Biotechnology, Heidelberg, Germany) or non-specific IgG (12-370, Millipore, Espoo, Finland) were bound for 3 h to Magna ChIP™ Protein A Magnetic Beads (Millipore). The pre-formed bead-antibody complexes were then washed with ChIP dilution buffer and added to the output chromatin aliquots. The samples were incubated overnight at 4 °C on a rotating platform to form and collect the immuno-complexes. The beads were washed sequentially for 4 min with the following buffers: low salt wash buffer (0.1% SDS, 1% Triton X-100, 2 mM EDTA, 150 mM NaCl, 20 mM Tris-HCl, pH 8.1), high salt wash buffer (0.1% SDS, 1% Triton X-100, 2 mM EDTA, 500 mM NaCl, 20 mM Tris-HCl, pH 8.1) and LiCl wash buffer (0.25 M LiCl, 1% Nonidet P-40, 1% sodium deoxycholate, 1 mM EDTA, 10 mM Tris-HCl, pH 8.1). Finally, the beads were washed twice with TE buffer (1 mM EDTA, 10 mM Tris-HCl, pH 8.0) and the immune complexes were eluted twice using elution buffer (1% SDS, 100 mM NaHCO3) for 20 min at room temperature with rotation. Both output and input samples were reverse cross-linked for 5 h at 65 °C in the presence of proteinase K (Roche). The DNA was isolated with the ChIP DNA Clean & Concentrator Kit (Zymo Research). Selected genomic regions containing VDR peaks were analyzed by qPCR using equal DNA amounts of chromatin fragments, 250 nM of reverse and forward primers and the LightCycler 480 SYBRGreen I master mix. The qPCR reactions were performed using the following profile: 10 min at 95 °C, followed by 43 cycles of 20 s at 95 °C, 15 s annealing at primer-specific temperatures (Supplementary Table S2) and 15 s at 72 °C, and a final amplification step of 10 min at 72 °C. The results were related to input by using the formula E−(ΔCt) *100, where E = amplification efficiency and ΔCt = Ct(output) − Ct(input).

3. Results

3.1. Transcription of G0S2, CDKN1A and MYC in Monocyte- and Macrophage-Like Cells

Our microarray and ChIP-seq datasets from undifferentiated THP-1 cells (monocyte-like cells) [7] list 638 primary 1,25(OH)2D3 target genes and 2,340 genomic VDR binding sites. We screened these lists for well-characterized genes being involved in the control of cellular proliferation and selected G0S2 and CDKN1A, because they were significantly up-regulated by 1,25(OH)2D3 and displayed one and three VDR peaks, respectively, in reasonable vicinity to their TSS region. For the MYC gene we identified even four VDR peaks, although our microarray data did not indicate any significant regulation of the gene. However, we knew from our previous study [28] in RWPE-1 immortalized prostate cells that MYC is a primary down-regulated gene.

In undifferentiated THP-1 cells the basal mRNA expression of the G0S2 gene was 27-times lower than that of the MYC gene and 2.6-times reduced when compared with the CDKN1A gene (Supplementary Figure S1). In contrast, after THP-1 cells were differentiated by a 3-day treatment with PMA to M2-type macrophage-like cells, the expression of the three genes was very similar and differed by no more than 1.5-fold, i.e., the differentiation process equalized the basal expression of the genes. This needs to be taken into account for the analysis of the following time course experiments.

We stimulated both undifferentiated and differentiated THP-1 cells with 1,25(OH)2D3 over a time course of 8 h (Figure 1) and observed that G0S2 is both in monocyte- and macrophage-like cells a primary 1,25(OH)2D3 target gene, which is already significantly up-regulated after 1 h of ligand treatment (Figure 1A). Interestingly, despite a higher basal expression the G0S2 gene is more inducible in PMA-differentiated THP-1 cells (5.3-fold after 8 h ligand treatment) than in undifferentiated THP-1 cells (2.6-fold). In both cell types also the CDKN1A gene was significantly induced by 1,25(OH)2D3, but reached during the 8-h time course only a maximal induction of 1.6-fold in monocyte-like cells and 1.3-fold in macrophage-like cells (Figure 1B). The MYC gene, which in most cellular systems is known to be a negatively regulated 1,25(OH)2D3 target gene [28], showed in monocyte-like cells during the 8-h time course no reasonable change in mRNA expression (Figure 1C). In contrast, in macrophage-like cells MYC turned out to be an early responding up-regulated (1.6-fold) 1,25(OH)2D3 target gene with a reduced basal expression level.

Reasoning that the differences in basal and regulated expression may reflect the epigenetic state of the gene loci, we characterized the transcriptional response of the three genes in the absence and presence of 1,25(OH)2D3 with the HDAC inhibitors TsA, SAHA and VPA after 2.5 and 24 h (Supplementary Figure S2). G0S2 was confirmed to be an early responding, up-regulated 1,25(OH)2D3 target (1.4-fold after 2.5 h and 6.1-fold after 24 h) and was only faintly modulated by HDAC inhibitor treatment (Supplementary Figure S2A). In contrast, while also in this experimental series the response of the CDKN1A gene to 1,25(OH)2D3 stayed marginal, the gene was strongly up-regulated by HDAC inhibitors, in particular by SAHA, which induced the gene 3.7-fold after 2.5 h and 9.9-fold after 24 h (Supplementary Figure S2B). Inversely, the MYC gene was already after 2.5 h treatment strongly down-regulated by all three HDAC inhibitors (up to 8.3-fold), while after 24 h stimulation SAHA showed the most prominent effect (3.8-fold down-regulation). At this 24 h time point, 1,25(OH)2D3 treatment resulted in a statistically significant 1.4-fold down-regulation of the MYC gene (Supplementary Figure S2C).

In summary, the genes G0S2, CDKN1A and MYC respond to 1,25(OH)2D3 but with a differential profile: G0S2 is more prominently up-regulated in macrophage- than in monocyte-like cells, while CDKN1A responds better in monocyte-like cells. Interestingly, MYC is weakly down-regulated in monocyte-like cells but up-regulated in macrophage-like cells. For comparison, in monocyte-like cells G0S2 shows hardly any response to HDAC inhibitors, while CDKN1A is strongly up-regulated after a long-term treatment with the inhibitors and MYC is down-regulated already after a short-term treatment.

Cancers 05 01221 g001 200

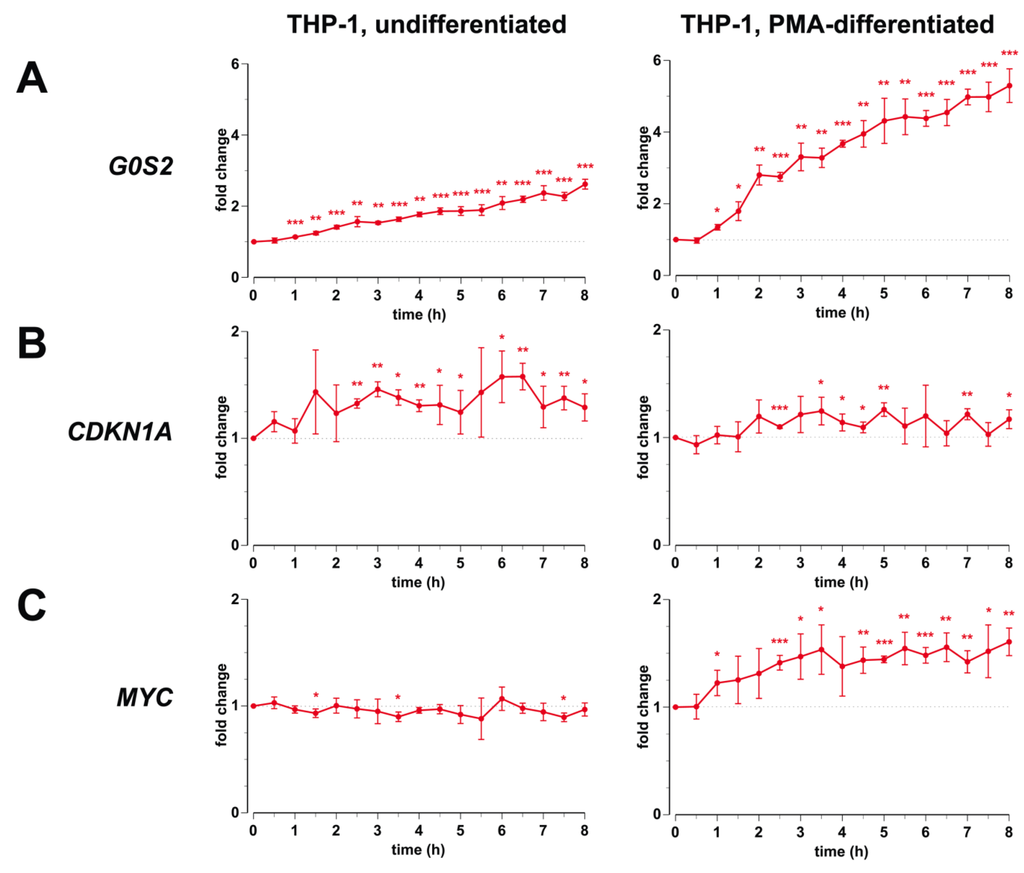

Figure 1. Primary response of G0S2, CDKN1A and MYC to 1,25(OH)2D3 in monocyte- and macrophage-like cells. qPCR was performed to determine the change of expression of G0S2, CDKN1A and MYC in response to incubation with 1,25(OH)2D3 over a time period of 8 h in undifferentiated THP-1 cells (left) and PMA-differentiated THP-1 cells (right). Data points represent the means of at least three independent experiments and the bars indicate standard deviations. Two-tailed Student’s t-tests were performed to determine the significance of the mRNA induction by 1,25(OH)2D3 (* p < 0.05; ** p < 0.01; *** p < 0.001).

Click here to enlarge figure

Figure 1. Primary response of G0S2, CDKN1A and MYC to 1,25(OH)2D3 in monocyte- and macrophage-like cells. qPCR was performed to determine the change of expression of G0S2, CDKN1A and MYC in response to incubation with 1,25(OH)2D3 over a time period of 8 h in undifferentiated THP-1 cells (left) and PMA-differentiated THP-1 cells (right). Data points represent the means of at least three independent experiments and the bars indicate standard deviations. Two-tailed Student’s t-tests were performed to determine the significance of the mRNA induction by 1,25(OH)2D3 (* p < 0.05; ** p < 0.01; *** p < 0.001).
Cancers 05 01221 g001 1024

3.2. Genomic Profile of G0S2, CDKN1A and MYC in Monocyte- and Macrophage-like Cells

The VDR ChIP-seq dataset from undifferentiated THP-1 cells [4] contains several peaks in reasonable vicinity to the TSS regions of the genes G0S2, CDKN1A and MYC. In order to determine, which of these VDR binding site candidates may be involved in the regulation of the genes, we first estimated the size of the chromosomal domains containing the respective TSS regions. Borders of chromosomal domains are defined by DNA looping mediated by the transcription factor CCCTC-binding factor (CTCF) [29]. CTCF binding sites are often highly conserved between tissues and cell lines [30]. The human monocytic leukemia cell line K562 is reasonably similar to THP-1 cells [31]. Importantly, for this cellular model a genome-wide map of the 3-dimensional interactions of CTCF is available, which was determined by chromatin interaction analysis with paired-end tag sequencing (ChIA-PET) assays [32]. We used the UCSC genome browser to display the respective CTCF looping data for each of the three genes (Supplementary Figure S3). For the G0S2 locus on chromosome 1 the largest loop spans over 170 kb and contains one VDR binding site (Supplementary Figure S3A, for more details see Figure 2A and Figure 3). The respective chromosomal domain for the CDKN1A gene on chromosome 6 seems to cover only 140 kb (in maximum 170 kb, see Supplementary Figure S3B) and contains three VDR binding sites (see also Figure 2B and Figure 3). In contrast, the chromosomal domain around the MYC gene on chromosome 8 appears to be as large as 2.3 Mb and contains four VDR binding sites (Supplementary Figure S3C, more details in Figure 2C and Figure 3).

Next, we used the IGV browser and displayed for the chromosomal domains (see Figure S3) open chromatin in undifferentiated THP-1 cells, as determined by FAIRE-seq [33,34], and VDR ChIP-seq data from undifferentiated THP-1 cells [4] and from PMA-differentiated THP-1 cells (Figure 2). The single VDR binding site of the G0S2 gene, which is located 15 kb upstream of the gene’s TSS in a region of open chromatin, was found both in monocyte- and macrophage-like cells and carries a DR3-type sequence within the summit region of the peak (Figure 2A). All three VDR binding sites of the CDKN1A gene, which are located 9 kb upstream and 25 and 77 kb downstream of the gene’s TSS in regions of open chromatin, were observed only in monocyte- and not in macrophage-like cells (Figure 2B). Only site 2 of the CDKN1A gene contains a DR3-type sequence. All four VDR peaks around the MYC gene, which are located 2.7, 514, 1,000 and 1,210 kb downstream of the gene’s TSS, were observed in monocyte-like cells (Figure 2C). Sites 2, 3 and 4 of the MYC gene but not site 1 close to the TSS were associated with open chromatin in monocyte-like cells, while only sites 2 and 4 were bound by VDR in macrophage-like cells. Only the two latter sites carry each a DR3-type sequence.

Taken together, the chromosomal domains of the genes G0S2 and CDKN1A are with 140–170 kb rather compact and contain one or three VDR binding sites, respectively. In contrast, the chromosomal domain of the MYC gene is at least 15 times larger and accommodates four VDR binding sites. All eight VDR binding sites are found in monocyte-like cells, seven of them are also associated in the same cellular model with open chromatin. Four of these seven VDR binding sites carry a DR3-type sequence, three of which are also occupied with VDR in macrophage-like cells.

Cancers 05 01221 g002 200

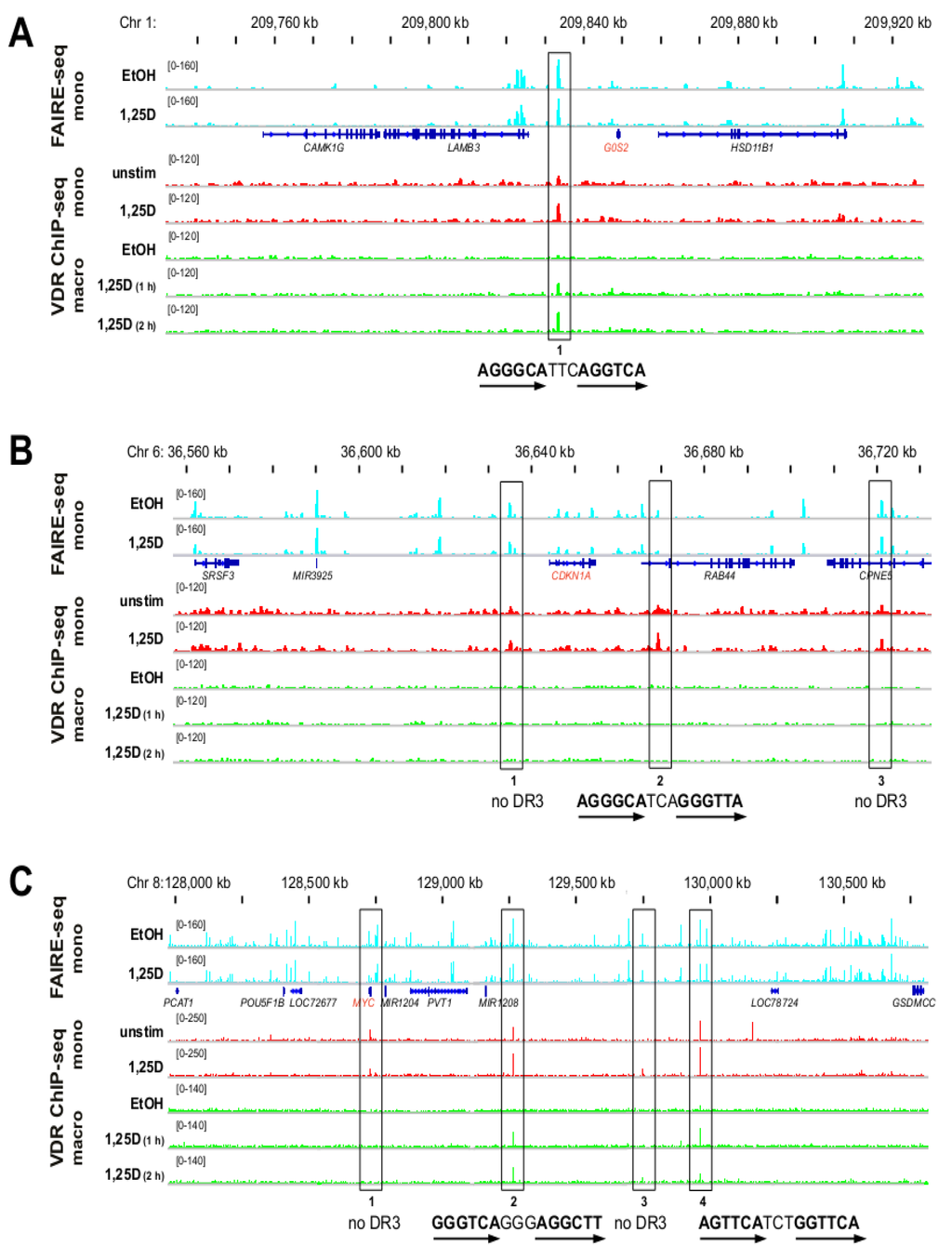

Figure 2. 1,25(OH)2D3-dependent chromatin opening and VDR association in monocyte- and macrophage-like cells. The IGV browser was used to display the VDR peaks of the chromosomal domains (see Supplementary Figure S3) of the genes G0S2. (A) CDKN1A (B) and MYC (C). The peak tracks show FAIRE-seq data obtained from monocyte-like cells (mono, undifferentiated THP-1 cells, treated for 100 min with EtOH or 1,25(OH)2D3 (1,25D), light blue [34]) in comparison to VDR ChIP-seq data from monocyte-like cells (undifferentiated THP-1 cells, without or with 1,25(OH)2D3 treatment for 40 min, red [4]) and from macrophage-like cells (macro, PMA-differentiated THP-1 cells, treated with EtOH or 1,25(OH)2D3 for 1 and 2 h, green). The gene structures are shown in blue. Investigated VDR peak regions are boxed. The sequences of the DR3-type VDR binding sites below the summits of the peaks are indicated (arrows indicate the hexameric nuclear receptor binding sites); some peaks carry no DR3-type sequence.

Click here to enlarge figure

Figure 2. 1,25(OH)2D3-dependent chromatin opening and VDR association in monocyte- and macrophage-like cells. The IGV browser was used to display the VDR peaks of the chromosomal domains (see Supplementary Figure S3) of the genes G0S2. (A) CDKN1A (B) and MYC (C). The peak tracks show FAIRE-seq data obtained from monocyte-like cells (mono, undifferentiated THP-1 cells, treated for 100 min with EtOH or 1,25(OH)2D3 (1,25D), light blue [34]) in comparison to VDR ChIP-seq data from monocyte-like cells (undifferentiated THP-1 cells, without or with 1,25(OH)2D3 treatment for 40 min, red [4]) and from macrophage-like cells (macro, PMA-differentiated THP-1 cells, treated with EtOH or 1,25(OH)2D3 for 1 and 2 h, green). The gene structures are shown in blue. Investigated VDR peak regions are boxed. The sequences of the DR3-type VDR binding sites below the summits of the peaks are indicated (arrows indicate the hexameric nuclear receptor binding sites); some peaks carry no DR3-type sequence.
Cancers 05 01221 g002 1024

3.3. VDR Binding Sites of G0S2, CDKN1A and MYC

For a detailed view on the VDR binding sites of the genes G0S2, CDKN1A and MYC we displayed VDR ChIP-seq data from undifferentiated THP-1 cells [4] in comparison to FAIRE-seq time course data from the same cellular model [34] (Figure 3).

Cancers 05 01221 g003 200

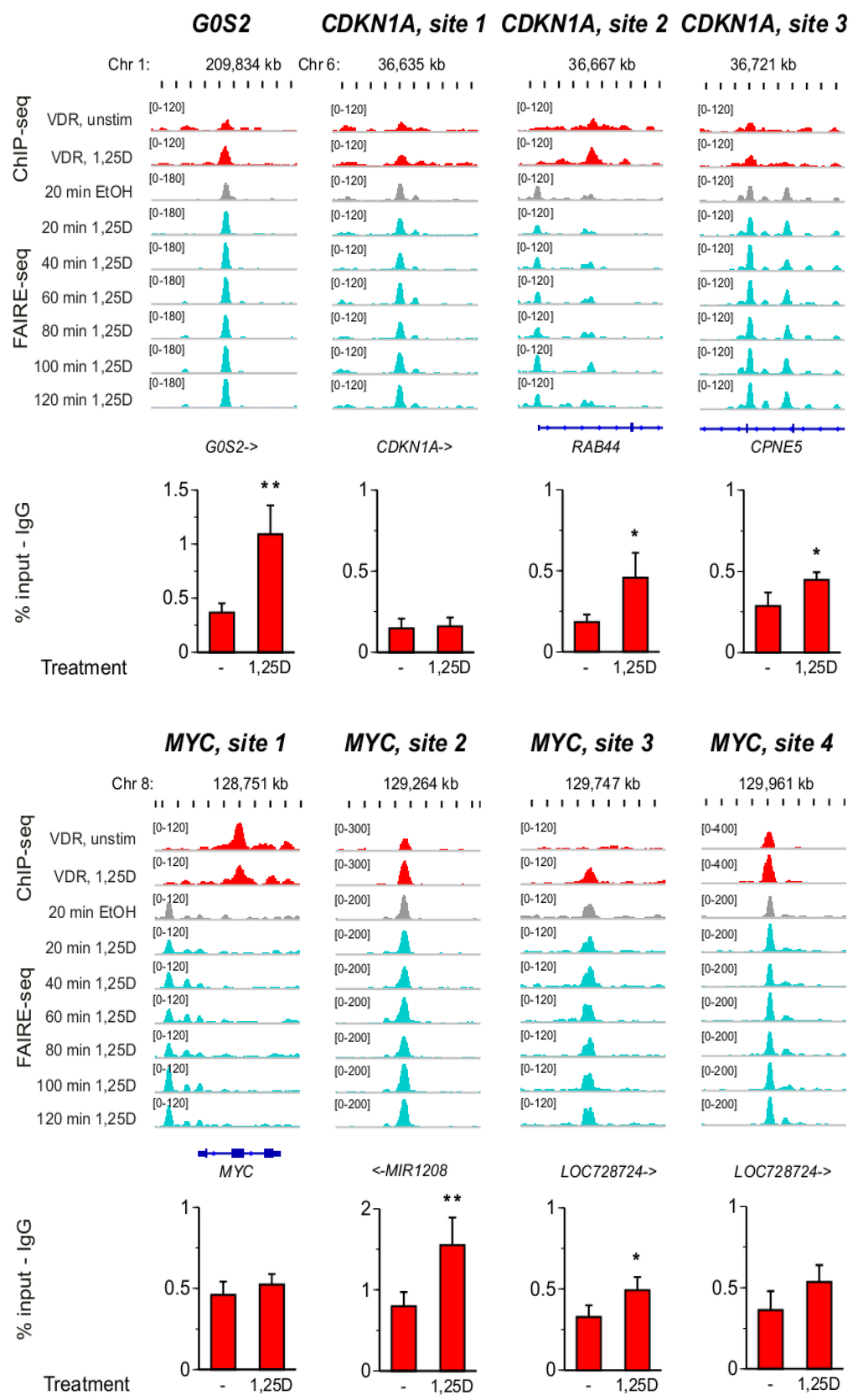

Figure 3. Detailed genomic view on VDR association and open chromatin. The IGV browser was used to visualize the loci of the genomic VDR binding sites (+/− 5 kb of the peak summit or, in case of site 3 of the CDKN1A gene, of the center of the two FAIRE peaks) of the genes G0S2, CDKN1A and MYC. The peak tracks display VDR ChIP-seq data from undifferentiated THP-1 cells (red, either unstimulated cells or treated for 40 min with 1,25(OH)2D3 (1,25D) [4]) and a time course of FAIRE-seq time course data from THP-1 cells (from cells treated with EtOH (grey) or 1,25(OH)2D3 (turquois) for the indicated time periods [34]). The gene structures are shown in blue. ChIP-qPCR was performed with chromatin samples obtained from undifferentiated THP-1 cells that were either unstimulated or treated for 2 h with 1,25(OH)2D3. Results show VDR association subtracted by unspecific IgG binding at all eight genomic regions. Columns represent the means of four independent experiments and the bars indicate standard deviations. Two-tailed Student’s t-tests were performed to determine significant 1,25(OH)2D3-induced VDR association in reference to untreated cells (* p < 0.05; ** p < 0.01).

Click here to enlarge figure

Figure 3. Detailed genomic view on VDR association and open chromatin. The IGV browser was used to visualize the loci of the genomic VDR binding sites (+/− 5 kb of the peak summit or, in case of site 3 of the CDKN1A gene, of the center of the two FAIRE peaks) of the genes G0S2, CDKN1A and MYC. The peak tracks display VDR ChIP-seq data from undifferentiated THP-1 cells (red, either unstimulated cells or treated for 40 min with 1,25(OH)2D3 (1,25D) [4]) and a time course of FAIRE-seq time course data from THP-1 cells (from cells treated with EtOH (grey) or 1,25(OH)2D3 (turquois) for the indicated time periods [34]). The gene structures are shown in blue. ChIP-qPCR was performed with chromatin samples obtained from undifferentiated THP-1 cells that were either unstimulated or treated for 2 h with 1,25(OH)2D3. Results show VDR association subtracted by unspecific IgG binding at all eight genomic regions. Columns represent the means of four independent experiments and the bars indicate standard deviations. Two-tailed Student’s t-tests were performed to determine significant 1,25(OH)2D3-induced VDR association in reference to untreated cells (* p < 0.05; ** p < 0.01).
Cancers 05 01221 g003 1024

Interestingly, site 1 of the MYC gene shows the unique property that VDR binding reduced after stimulation with 1,25(OH)2D3, while in parallel the region is not associated with open chromatin. At the seven other regions ligand-inducible VDR binding and association with open chromatin was found. However, only at the VDR binding site of the G0S2 gene 1,25(OH)2D3-dependent chromatin opening was observed (compare the turquois with the grey tracks in Figure 3). In parallel, we performed ChIP-qPCR with chromatin templates from undifferentiated THP-1 cells, which were either unstimulated or had been treated for 2 h with 1,25(OH)2D3. In reference to a negative control region located 46 kb upstream of the CDKN1A gene (Supplementary Figure S4), seven of the investigated regions showed statistically significant association with VDR, while site 1 of the CDKN1A gene was very weak. Significant ligand-induced increase of VDR binding was found only for the VDR site of the G0S2 gene, for sites 2 and 3 of the CDKN1A gene and for sites 2 and 3 of the MYC gene. However, the ligand-induced reduction in VDR binding at site 1 of the MYC gene as well as the strong, ligand-inducible VDR binding to site 4, which had been observed by ChIP-seq, could not be reproduced by ChIP-qPCR.

In summary, specific VDR association could be observed at all eight investigated regions, independently of whether they contained a DR3-type sequence or not. Also the enrichment of VDR was in certain cases sensitive to the cell status (monocyte- or macrophage-like cells). At site 1 of the MYC gene ChIP-seq and FAIRE-seq data suggest a different profile than at the seven other sites.

4. Discussion

The availability of genome-wide data, obtained by individual research teams or by larger consortia, such as ENCODE [35], provide a new view on the regulation of genes. In this study, we combined insight gained from microarray and ChIP-seq datasets obtained in the leukemia cell line THP-1 [4]. We selected the genes G0S2, CDKN1A and MYC as master examples for demonstrating the complex role of 1,25(OH)2D3 in the control of cellular proliferation in this cancer cell model. In this context, we exhibited the utility of publically available data from ENCODE, in order to limit the size of the genomic regions that needed to be screened for VDR binding sites.

The oncogene MYC was one of the first genes to be reported as an 1,25(OH)2D3 target [36]. The Myc oncoprotein is a critical regulator of cell cycle progression (reviewed in [37]) but also controls the induction of apoptosis [38]. Depending on the cellular model the Myc protein acts either as a pro- or an anti-survival factor [39]. Most studies on the effects of 1,25(OH)2D3 on MYC gene expression report its down-regulation. This suggests that 1,25(OH)2D3, via the down-regulation of MYC gene expression, may lead to the inhibition of cellular growth and induction of apoptosis. This study agrees with most other studies that the effects of 1,25(OH)2D3 on the down-regulation of MYC mRNA expression are rather modest. However, given the importance of this protein, even modest changes in expression could yield significant biological effects. Therefore, the well-documented effects of 1,25(OH)2D3 and its synthetic analogues on the inhibition of cellular proliferation (reviewed in [40]) and the induction of apoptosis [41] probably reflect a combination of modest MYC down-regulation with increased expression of proteins that exert mitotic restraint. The tumor suppressor gene CDKN1A encodes for the well-known cell cycle inhibitor protein p21WAF1 (reviewed in [42]) and has been implicated for at least 20 years as a 1,25(OH)2D3 target gene [43,44]. For CDKN1A most studies agree on an up-regulation of the gene by 1,25(OH)2D3, which should then result in cell cycle arrest and the induction of differentiation [43]. However, similar to the MYC gene, the reported effects of 1,25(OH)2D3 on CDKN1A up-regulation are rather modest and will also not explain most of the cell regulatory properties of VDR ligands.

The pre-genomic approaches of VDR target gene candidates described above provide only a limited understanding of the anti-proliferative actions of VDR ligands. Nevertheless, it is interesting and important that also genomic and transcriptomic studies list MYC and CDKN1A as VDR target genes, even though along with hundreds of other genes. The THP-1 leukemia model revealed at least 408 statistically up-regulated genes and 230 down-regulated genes after 4 h of stimulation with 1,25(OH)2D3 [4]. Most of these genes have no obvious relation to cell cycle regulation but, based on Gene Ontology terms, rather relate to immune or metabolic function [4]. This would suggest that, at least in the THP-1 leukemia model, the primary effects of 1,25(OH)2D3 are rather in the area of immune function and metabolism than in cell cycle control. This may depend on the cell type, though.

Many recent studies have shown that apparent distinct physiological actions, such as immune function, metabolism and cellular growth, are closer interlinked than assumed before. This means that many genes have a dual or even triple function in physiology. G0S2 is such an example of a gene being not exclusively associated with one physiological function. Reflected by its name, the gene was initially associated with the re-entry of cells from the G0 phase to the G1 phase, i.e., with a clear cell cycle regulatory function, but nowadays the G0S2 protein appears to be multifaceted being involved in proliferation, apoptosis and carcinogenesis but also in inflammation and metabolism [45]. Interestingly G0S2 is reported to be a target gene for the nuclear receptors peroxisome proliferator-activated receptors [46] and retinoid acid receptors [47], which supports a concept of combinatorial actions of nuclear receptors.

In this study, mRNA inductions showed that the G0S2 gene was clearly more responsive to 1,25(OH)2D3 treatment than the genes CDKN1A and MYC. Contrary to many observations that indicate a higher responsiveness of a gene when it is relatively low expressed, the 1,25(OH)2D3 inducibility of the G0S2 gene even increased after its basal expression raised during the differentiation of monocytic THP-1 cells into macrophage-like cells. This suggests that in macrophage-like cells the G0S2 gene may be more extensively involved in its non-cell cycle-related functions than in monocyte-like cells. The prominent binding of VDR to the single binding site of the G0S2 gene locus in macrophage-like cells supports this view. The unexpected induction of the MYC gene in macrophage-like cells by 1,25(OH)2D3 may suggest that the Myc protein has a different function in non-proliferating macrophages than in proliferating monocytes. In parallel, in macrophage-like cells VDR appears to bind only to two of its four binding sites within the MYC gene locus. Importantly, site 1, which is close to the MYC’s TSS and is not associated with open chromatin, is not used in macrophage-like cells. This suggests the intriguing possibility that this VDR binding region, being located close to the TSS, plays a major role in the down-regulation of the MYC gene. Finally, the basal expression of the CDKN1A gene increased during the differentiation of monocytes into macrophage-like cells and in parallel the responsiveness of the gene to 1,25(OH)2D3 was reduced. This fits with the observation that the macrophage-like cells are not proliferating anymore and that in them VDR occupies none of its three binding sites within the CDKN1A gene locus.

In the past, the limited amount of sequence information and genome annotation led to the assumptions that (I) a transcription factor should bind to the promoter region upstream of the gene’s TSS to regulate mRNA expression and (II) even enhancer regions are in rather close vicinity to the TSS. At latest the results of the ENCODE project [35] have significantly changed this view. A transcription factor, such as VDR, will equally likely bind upstream and downstream of the TSS and the binding site can be many hundred kb in distance. This raised the question, whether there is any limit in the distance, from which a transcription factor will activate a gene. We suggest that the use of ChIA-PET data derived from CTCF and other insulator-like proteins may allow a good estimation of the size of a gene’s true chromosomal domain, encompassing the transcription factor binding sites and the TSS region. In proof of principal studies we took advantage of the publically available CTCF ChIA-PET dataset from K562 cells, which is one of the main cellular models of the ENCODE project [35]. Although K562 cells are more erythroid-like, they are closest to THP-1 cells amongst the more than 100 cell lines used in the ENCODE project. Moreover, in contrast to most other transcription factors, the binding of CTCF is conserved throughout many tissues and cell types. The sizes of the chromosomal domains of the G0S2 and CDKN1A gene loci are in the same order (140–170 kb), while that of the MYC gene is far larger. The latter may be related to the fact that the gene density of the MYC locus is significantly lower than that of most other genes. This feature gives at this locus a lot of space for a number of long-ranging chromatin loops to be formed between rather distant regions, such as the reported regulation of MYC by a very distant binding site of the transcription factor TCF4 [48].

Due to their more generic function in the 3-dimensional organization of chromatin, CTCF binding sites may represent an extreme in the conservation between tissues and cell types. In contrast, most other transcription factors, such as VDR, show a far more tissue-specific genomic binding pattern. As demonstrated in this study at the example the two rather closely related cellular models, undifferentiated THP-1 cells and PMA-differentiated THP-1 cells, only three or eight VDR binding sites are occupied in each of the two cell types. Therefore, it is no surprise that for the same gene different patterns of VDR binding sites are detected, when shifting from one cellular system to another. For example, ChIP-seq in LS180 colon cancer cells indicated VDR binding sites 139, 146 and 335 kb upstream of the MYC TSS [5], while ChIP-qPCR in RWPE-1 normal human prostate cells suggested VDR binding 1.3 kb upstream of the gene’s TSS and at site 1 (2.7 kb downstream of the TSS). Similarly, in MCF7 human breast cancer cells and in RWPE-1 cells ChIP-qPCR suggested VDR binding to the CDKN1A locus TSS, and to sites 2.2 and 4.7 kb upstream of it [49,50]. An additional divergence between primary 1,25(OH)2D3 target genes is the different number of VDR binding sites used in their regulation. The G0S2 gene is a simple example with only one VDR binding site within its chromosomal domain, which is used in all published VDR ChIP-seq data sets besides that from colon cancer cells. In contrast, the CDKN1A gene uses in THP-1 cells three VDR binding sites, of which no. 1 and 3 are also occupied in lymphoblastoid cells [3], and the MYC gene even four VDR binding sites, none of which are used outside the monocyte/macrophage cellular model. This limited set of examples suggests that—with increased dissection of experimental models representing different tissues and disease states—for VDR binding there is increasingly observed tissue-specific complexity.

5. Conclusions

The increasing number of 1,25(OH)2D3 target genes being involved in the control of cellular growth makes it obvious that no single gene has the potential to play a dominant role in this process, i.e., there will be no chance for a single gene-targeted therapy. The example of three primary VDR target genes, G0S2, CDKN1A and MYC, with important function in cellular growth suggests that each gene has an individual and cell-specific scenario in the regulation by 1,25(OH)2D3 and its receptor VDR. However, there are also unifying principles, such as the dependence or independence from DR3-type VDR binding sites, which may allow a refinement of therapies.

Acknowledgments

This work was supported by the Academy of Finland and the Juselius Foundation. The authors thank Sami Heikkinen and Pauli Tuoresmäki for bioinformatic support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Carlberg, C.; Molnar, F. Current status of vitamin D signaling and its therapeutic applications. Curr. Top. Med. Chem. 2012, 12, 528–547.
  2. Furey, T.S. ChIP-seq and beyond: New and improved methodologies to detect and characterize protein-DNA interactions. Nat. Rev. Genet. 2012, 13, 840–852, doi:10.1038/nrg3306.
  3. Ramagopalan, S.V.; Heger, A.; Berlanga, A.J.; Maugeri, N.J.; Lincoln, M.R.; Burrell, A.; Handunnetthi, L.; Handel, A.E.; Disanto, G.; Orton, S.M.; et al. A ChIP-seq defined genome-wide map of vitamin D receptor binding: associations with disease and evolution. Genome Res. 2010, 20, 1352–1360, doi:10.1101/gr.107920.110.
  4. Heikkinen, S.; Väisänen, S.; Pehkonen, P.; Seuter, S.; Benes, V.; Carlberg, C. Nuclear hormone 1α,25-dihydroxyvitamin D3 elicits a genome-wide shift in the locations of VDR chromatin occupancy. Nucleic Acids Res. 2011, 39, 9181–9193, doi:10.1093/nar/gkr654.
  5. Meyer, M.B.; Goetsch, P.D.; Pike, J.W. VDR/RXR and TCF4/beta-catenin cistromes in colonic cells of colorectal tumor origin: Impact on c-FOS and c-MYC gene expression. Mol. Endocrinol. 2012, 26, 37–51, doi:10.1210/me.2011-1109.
  6. Ding, N.; Yu, R.T.; Subramaniam, N.; Sherman, M.H.; Wilson, C.; Rao, R.; Leblanc, M.; Coulter, S.; He, M.; Scott, C.; et al. A vitamin D receptor/SMAD genomic circuit gates hepatic fibrotic response. Cell 2013, 153, 601–613, doi:10.1016/j.cell.2013.03.028.
  7. Handel, A.E.; Sandve, G.K.; Disanto, G.; Berlanga-Taylor, A.J.; Gallone, G.; Hanwell, H.; Drablos, F.; Giovannoni, G.; Ebers, G.C.; Ramagopalan, S.V. Vitamin D receptor ChIP-seq in primary CD4+ cells: Relationship to serum 25-hydroxyvitamin D levels and autoimmune disease. BMC Med. 2013, doi:10.1186/1741-7015-11-163.
  8. Carlberg, C.; Seuter, S.; Heikkinen, S. The first genome-wide view of vitamin D receptor locations and their mechanistic implications. Anticancer Res. 2012, 32, 271–282.
  9. Umesono, K.; Murakami, K.K.; Thompson, C.C.; Evans, R.M. Direct repeats as selective response elements for the thyroid hormone, retinoic acid, and vitamin D3 receptors. Cell 1991, 65, 1255–1266, doi:10.1016/0092-8674(91)90020-Y.
  10. Carlberg, C.; Bendik, I.; Wyss, A.; Meier, E.; Sturzenbecker, L.J.; Grippo, J.F.; Hunziker, W. Two nuclear signalling pathways for vitamin D. Nature 1993, 361, 657–660, doi:10.1038/361657a0.
  11. Carlberg, C.; Campbell, M.J. Vitamin D receptor signaling mechanisms: Integrated actions of a well-defined transcription factor. Steroids 2013, 78, 127–136, doi:10.1016/j.steroids.2012.10.019.
  12. Stambolsky, P.; Tabach, Y.; Fontemaggi, G.; Weisz, L.; Maor-Aloni, R.; Siegfried, Z.; Shiff, I.; Kogan, I.; Shay, M.; Kalo, E.; et al. Modulation of the vitamin D3 response by cancer-associated mutant p53. Cancer Cell 2010, 17, 273–285, doi:10.1016/j.ccr.2009.11.025.
  13. Razin, A. CpG methylation, chromatin structure and gene silencing-a three-way connection. EMBO J. 1998, 17, 4905–4908, doi:10.1093/emboj/17.17.4905.
  14. Eberharter, A.; Becker, P.B. Histone acetylation: A switch between repressive and permissive chromatin. Second in review series on chromatin dynamics. EMBO Rep. 2002, 3, 224–229, doi:10.1093/embo-reports/kvf053.
  15. Polly, P.; Herdick, M.; Moehren, U.; Baniahmad, A.; Heinzel, T.; Carlberg, C. VDR-Alien: A novel, DNA-selective vitamin D3 receptor-corepressor partnership. FASEB J. 2000, 14, 1455–1463, doi:10.1096/fj.14.10.1455.
  16. Khanim, F.L.; Gommersall, L.M.; Wood, V.H.; Smith, K.L.; Montalvo, L.; O’Neill, L.P.; Xu, Y.; Peehl, D.M.; Stewart, P.M.; Turner, B.M.; et al. Altered SMRT levels disrupt vitamin D3 receptor signalling in prostate cancer cells. Oncogene 2004, 23, 6712–6725, doi:10.1038/sj.onc.1207772.
  17. Malinen, M.; Saramäki, A.; Ropponen, A.; Degenhardt, T.; Väisänen, S.; Carlberg, C. Distinct HDACs regulate the transcriptional response of human cyclin-dependent kinase inhibitor genes to trichostatin A and 1α,25-dihydroxyvitamin D3. Nucleic Acids Res. 2008, 36, 121–132, doi:10.1093/nar/gkn531.
  18. Banwell, C.M.; O’Neill, L.P.; Uskokovic, M.R.; Campbell, M.J. Targeting 1α,25-dihydroxyvitamin D3 antiproliferative insensitivity in breast cancer cells by co-treatment with histone deacetylation inhibitors. J. Steroid Biochem. Mol. Biol. 2004, 89, 245–249.
  19. Gronemeyer, H.; Gustafsson, J.A.; Laudet, V. Principles for modulation of the nuclear receptor superfamily. Nat. Rev. Drug Discov. 2004, 3, 950–964, doi:10.1038/nrd1551.
  20. Carlberg, C.; Seuter, S. Dynamics of nuclear receptor target gene regulation. Chromosoma 2010, 119, 479–484, doi:10.1007/s00412-010-0283-8.
  21. Tan, J.; Cang, S.; Ma, Y.; Petrillo, R.L.; Liu, D. Novel histone deacetylase inhibitors in clinical trials as anti-cancer agents. J. Hematol. Oncol. 2010, doi:10.1186/1756-8722-3-5.
  22. Seuter, S.; Heikkinen, S.; Carlberg, C. Chromatin acetylation at transcription start sites and vitamin D receptor binding regions relates to effects of 1α,25-dihydroxyvitamin D3 and histone deacetylase inhibitors on gene expression. Nucleic Acids Res. 2013, 41, 110–124, doi:10.1093/nar/gks959.
  23. Giresi, P.G.; Kim, J.; McDaniell, R.M.; Iyer, V.R.; Lieb, J.D. FAIRE (Formaldehyde-Assisted Isolation of Regulatory Elements) isolates active regulatory elements from human chromatin. Genome Res. 2007, 17, 877–885, doi:10.1101/gr.5533506.
  24. Song, L.; Zhang, Z.; Grasfeder, L.L.; Boyle, A.P.; Giresi, P.G.; Lee, B.K.; Sheffield, N.C.; Graf, S.; Huss, M.; Keefe, D.; et al. Open chromatin defined by DNaseI and FAIRE identifies regulatory elements that shape cell-type identity. Genome Res. 2011, 21, 1757–1767, doi:10.1101/gr.121541.111.
  25. Tsuchiya, S.; Yamabe, M.; Yamaguchi, Y.; Kobayashi, Y.; Konno, T.; Tada, K. Establishment and characterization of a human acute monocytic leukemia cell line (THP-1). Int. J. Cancer 1980, 26, 171–176, doi:10.1002/ijc.2910260208.
  26. Tsuchiya, S.; Kobayashi, Y.; Goto, Y.; Okumura, S.; Nakae, S.; Konno, T.; Tada, K. Induction of maturation in culture human monocytic leukemia cells by phorbol diester. Cancer Res. 1982, 42, 1530–1536.
  27. Vandesompele, J.; de Preter, K.; Pattyn, F.; Poppe, B.; van Roy, N.; de Paepe, A.; Speleman, F. Accurate normalization of real-time quantitative RT-PCR data by geometric averaging of multiple internal control genes. Genome Biol. 2002, doi:10.1186/gb-2002-3-7-research0034.
  28. Toropainen, S.; Väisänen, S.; Heikkinen, S.; Carlberg, C. The down-regulation of the human MYC gene by the nuclear hormone 1α,25-dihydroxyvitamin D3 is associated with cycling of corepressors and histone deacetylases. J. Mol. Biol. 2010, 400, 284–294, doi:10.1016/j.jmb.2010.05.031.
  29. Phillips, J.E.; Corces, V.G. CTCF: Master weaver of the genome. Cell 2009, 137, 1194–1211, doi:10.1016/j.cell.2009.06.001.
  30. Schmidt, D.; Schwalie, P.C.; Wilson, M.D.; Ballester, B.; Gonçalves, A.; Kutter, C.; Brown, G.D.; Marshall, A.; Flicek, P.; Odom, D.T. Waves of retrotransposon expansion remodel genome organization and CTCF binding in multiple mammalian lineages. Cell 2012, 148, 335–348, doi:10.1016/j.cell.2011.11.058.
  31. Klein, E.; Ben-Bassat, H.; Neumann, H.; Ralph, P.; Zeuthen, J.; Polliack, A.; Vánky, F. Properties of the K562 cell line, derived from a patient with chronic myeloid leukemia. Int. J. Cancer 1976, 18, 421–431, doi:10.1002/ijc.2910180405.
  32. Handoko, L.; Xu, H.; Li, G.; Ngan, C.Y.; Chew, E.; Schnapp, M.; Lee, C.W.; Ye, C.; Ping, J.L.; Mulawadi, F.; et al. CTCF-mediated functional chromatin interactome in pluripotent cells. Nat. Genet. 2011, 43, 630–638, doi:10.1038/ng.857.
  33. Seuter, S.; Pehkonen, P.; Heikkinen, S.; Carlberg, C. The gene for the transcription factor BHLHE40/DEC1/stra13 is a dynamically regulated primary target of the vitamin D receptor. J. Steroid Biochem. Mol. Biol. 2013, 136, 62–67, doi:10.1016/j.jsbmb.2012.11.011.
  34. Seuter, S.; Pehkonen, P.; Heikkinen, S.; Carlberg, C. Dynamics of 1α,25-dihydroxyvitamin D3-dependent chromatin accessibility of early vitamin D receptor target genes. 2013. submitted for publication.
  35. ENCODE-Project-Consortium; Bernstein, B.E.; Birney, E.; Dunham, I.; Green, E.D.; Gunter, C.; Snyder, M. An integrated encyclopedia of DNA elements in the human genome. Nature 2012, 489, 57–74, doi:10.1038/nature11247.
  36. Reitsma, P.H.; Rothberg, P.G.; Astrin, S.M.; Trial, J.; Bar-Shavit, Z.; Hall, A.; Teitelbaum, S.L.; Kahn, A.J. Regulation of myc gene expression in HL-60 leukaemia cells by a vitamin D metabolite. Nature 1983, 306, 492–494, doi:10.1038/306492a0.
  37. Gordan, J.D.; Thompson, C.B.; Simon, M.C. HIF and c-Myc: Sibling rivals for control of cancer cell metabolism and proliferation. Cancer Cell 2007, 12, 108–113, doi:10.1016/j.ccr.2007.07.006.
  38. Evan, G.I.; Wyllie, A.H.; Gilbert, C.S.; Littlewood, T.D.; Land, H.; Brooks, M.E.; Waters, C.M.; Penn, L.Z.; Hancock, D.C. Induction of apoptosis in fibroblasts by c-Myc protein. Cell 1992, 69, 119–128, doi:10.1016/0092-8674(92)90123-T.
  39. Thompson, E.B. The many roles of c-Myc in apoptosis. Annu. Rev. Physiol. 1998, 60, 575–600, doi:10.1146/annurev.physiol.60.1.575.
  40. Hansen, C.M.; Binderup, L.; Hamberg, K.J.; Carlberg, C. Vitamin D and cancer: Effects of 1,25(OH)2D3 and its analogs on growth control and tumorigenesis. Front. Biosci. 2001, 6, D820–D848, doi:10.2741/Hansen.
  41. Danielsson, C.; Mathiasen, I.S.; James, S.Y.; Nayeri, S.; Bretting, C.; Hansen, C.M.; Colston, K.W.; Carlberg, C. Sensitive induction of apoptosis in breast cancer cells by a novel 1,25-dihydroxyvitamin D3 analogue shows relation to promoter selectivity. J. Cell. Biochem. 1997, 66, 552–562, doi:10.1002/(SICI)1097-4644(19970915)66:4<552::AID-JCB14>3.0.CO;2-D.
  42. Warfel, N.A.; El-Deiry, W.S. p21WAF1 and tumourigenesis: 20 years after. Curr. Opin. Oncol. 2013, 25, 52–58, doi:10.1097/CCO.0b013e32835b639e.
  43. Liu, M.; Lee, M.-H.; Cohen, M.; Bommakanti, M.; Freedman, L.P. Transcriptional activation of the Cdk inhibitor p21 by vitamin D3 leads to the induced differentiation of the myelomonocytic cell line U937. Genes Dev. 1996, 10, 142–153, doi:10.1101/gad.10.2.142.
  44. Schwaller, J.; Koeffler, H.P.; Niklaus, G.; Loetscher, P.; Nagel, S.; Fey, M.F.; Tobler, A. Posttranscriptional stabilization underlies p53-independent induction of p21WAF1/CIP1/SDI1 in differentiating human leukemic cells. J. Clin. Invest. 1995, 95, 973–979, doi:10.1172/JCI117806.
  45. Heckmann, B.L.; Zhang, X.; Xie, X.; Liu, J. The G0/G1 switch gene 2 (G0S2): Regulating metabolism and beyond. Biochim. Biophys. Acta 2013, 1831, 276–281.
  46. Zandbergen, F.; Mandard, S.; Escher, P.; Tan, N.S.; Patsouris, D.; Jatkoe, T.; Rojas-Caro, S.; Madore, S.; Wahli, W.; Tafuri, S.; et al. The G0/G1 switch gene 2 is a novel PPAR target gene. Biochem. J. 2005, 392, 313–324, doi:10.1042/BJ20050636.
  47. Kitareewan, S.; Blumen, S.; Sekula, D.; Bissonnette, R.P.; Lamph, W.W.; Cui, Q.; Gallagher, R.; Dmitrovsky, E. G0S2 is an all-trans-retinoic acid target gene. Int. J. Oncol. 2008, 33, 397–404.
  48. Tuupanen, S.; Turunen, M.; Lehtonen, R.; Hallikas, O.; Vanharanta, S.; Kivioja, T.; Bjorklund, M.; Wei, G.; Yan, J.; Niittymäki, I.; et al. The common colorectal cancer predisposition SNP rs6983267 at chromosome 8q24 confers potential to enhanced Wnt signaling. Nat. Genet. 2009, 41, 885–890, doi:10.1038/ng.406.
  49. Saramäki, A.; Banwell, C.M.; Campbell, M.J.; Carlberg, C. Regulation of the human p21waf1/cip1 gene promoter via multiple binding sites for p53 and the vitamin D3 receptor. Nucleic Acids Res. 2006, 34, 543–554, doi:10.1093/nar/gkj460.
  50. Thorne, J.L.; Maguire, O.; Doig, C.L.; Battaglia, S.; Fehr, L.; Sucheston, L.E.; Heinäniemi, M.; O’Neill, L.P.; McCabe, C.J.; Turner, B.M.; et al. Epigenetic control of a VDR-governed feed-forward loop that regulates p21(waf1/cip1) expression and function in non-malignant prostate cells. Nucleic Acids Res. 2011, 39, 2045–2056, doi:10.1093/nar/gkq875.

Supplementary Materials

Table S1. Reverse transcription qPCR primers.

Click here to display table

Table S1. Reverse transcription qPCR primers.
GeneFragment size (bp)Annealing temperature (°C)Primer sequences (5'-3')
B2M 1,224660GGCTATCCAGCGTACTCCAAA
CGGCAGGCATACTCATCTTTTT
CDKN1A 39960GCCACTAAGGTCATTCCCGCCT
CCTTGCGCTTCTGGGCCATCAT
G0S2 410260GCCACTAAGGTCATTCCCGCCT
CCTTGCGCTTCTGGGCCATCAT
GAPDH 1,211360CATGAGAAGTATGACAACAGCCTAGTC
CTTCCACGATACCAAAGT
HPRTI 1,59460TGACACTGGCAAAACAATGCA
GGTCCTTTTCACCAGCAAGCT
MYC 314760CCAGCAGCGACTCTGAGG
GGACCAGTGGGCTGTGAG

1 reference gene; 2 Sequence obtained from PrimerBank (http://pga.mgh.harvard.edu/primerbank); 3 Designed with Oligo 4.0 software (National Biosciences, Plymouth, MN, USA); 4 Designed using Primer-BLAST (www.ncbi.nlm.nih.gov); 5 see.

Table S2. ChIP-qPCR primers.

Click here to display table

Table S2. ChIP-qPCR primers.
Genomic regionFragment size (bp)Annealing temperature (°C)Primer sequences (5'-3')
G0S2 111962GCCTGAGAGTATGCTGTGTACGTTT
CTAAGTGCTCTCTTGGCGTAACAAA
CDKN1A 2, peak 112958TGTGGGGAGGGTGTTTCAG
GAGGGAAGGAAGGAGTGAG
CDKN1A 2, peak 29158CAGAGGAAGTGGGTTGAG
AGCAGGGCAGGAGAGATTATAC
CDKN1A 2, peak 36962GCACTCTTGACCTTGACGGA
CTAACACCCTTGGCTTGGAC
CDKN1A 2, control18062ATCACAGGGGTCAGCACATC
CGCAGCATTTGGGTTCACAC
MYC 2, peak 118162GTCACACCCTTCTCCCTTC
CGCTCCACATACAGTCCTG
MYC 2, peak 29358CCACACTAACCTCTCAGTTC
GTAATGATACTCCCAGCAAAG
MYC 2, peak 313762GGATGTCAGCAGGGTTTCTC
GGAAGTGATTTCGGGAGTAG
MYC 2, peak 49658GCTCTGTTGGTGTGGACTG
GATTAGGGTGCCATAGAATAC

1 Designed using Primer-BLAST (www.ncbi.nlm.nih.gov); 2 Designed with Oligo 4.0 software.

Cancers 05 01221 g004 200

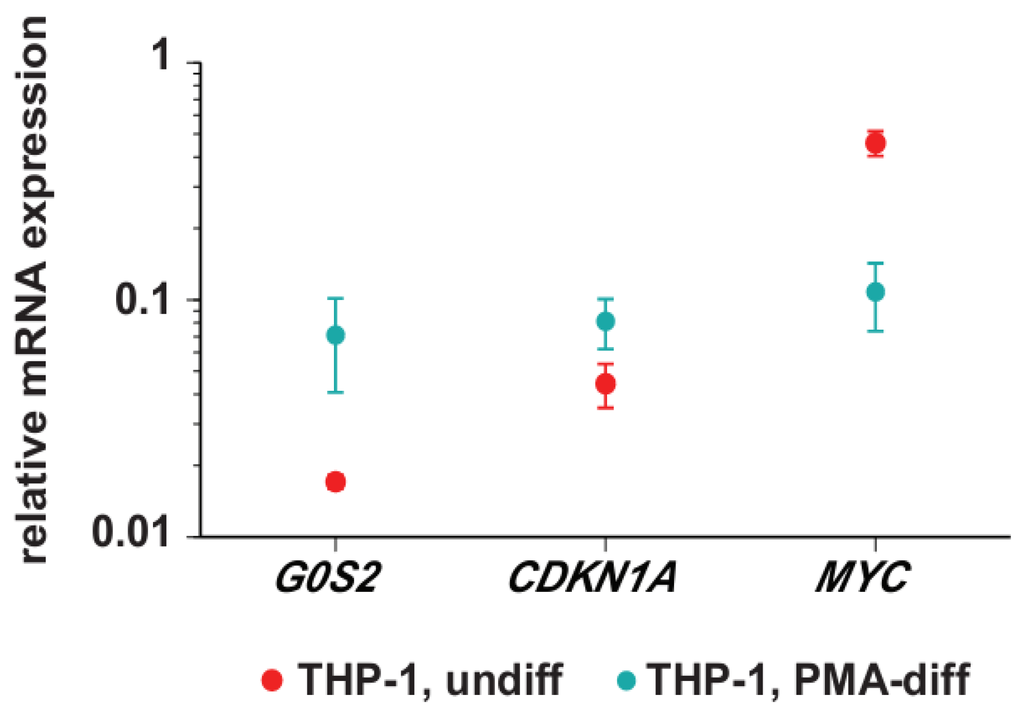

Figure S1. Basal mRNA expression of G0S2, CDKN1A and MYC in monocyte- and macrophage-like cells. qPCR was performed to determine the relative basal expression of the genes G0S2, CDKN1A and MYC (normalized to the reference genes B2M, GAPDH and HPRT1) in undifferentiated and PMA-differentiated THP-1 cells. The data points represent the means of three independent experiments and the bars indicate standard deviations.

Click here to enlarge figure

Figure S1. Basal mRNA expression of G0S2, CDKN1A and MYC in monocyte- and macrophage-like cells. qPCR was performed to determine the relative basal expression of the genes G0S2, CDKN1A and MYC (normalized to the reference genes B2M, GAPDH and HPRT1) in undifferentiated and PMA-differentiated THP-1 cells. The data points represent the means of three independent experiments and the bars indicate standard deviations.
Cancers 05 01221 g004 1024
Cancers 05 01221 g005 200

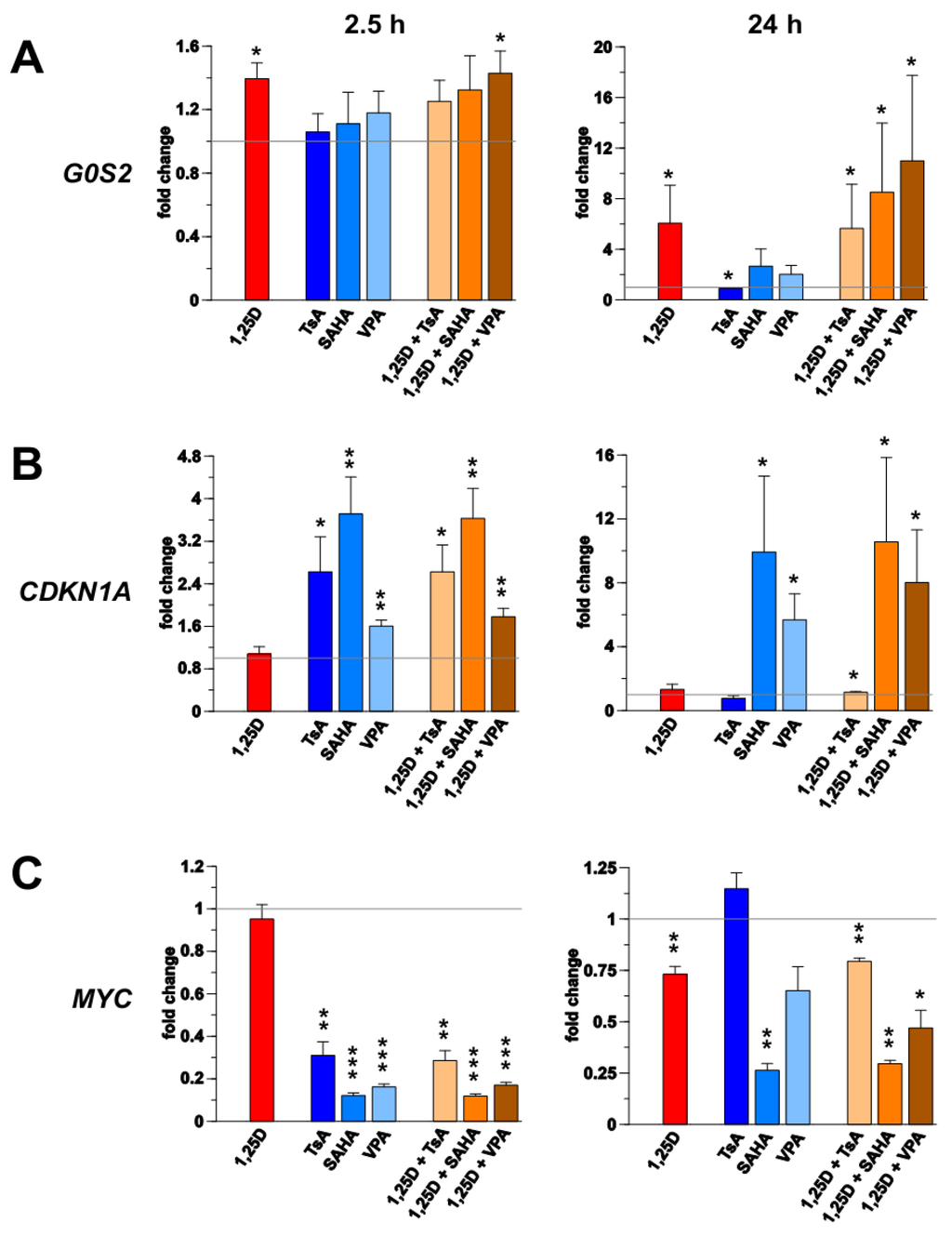

Figure S2. Short- and long-term effects of HDAC inhibition on G0S2, CDKN1A and MYC expression. qPCR was performed to determine the relative changes of mRNA expression of the genes G0S2, CDKN1A and MYC normalized by the three reference genes B2M, GAPDH and HPRT1 in undifferentiated THP-1 cells in response to incubation with 1,25(OH)2D3 (1,25D), TsA, SAHA and VPA, alone or in combination, for 2.5 and 24 h. The columns represent the means of three independent experiments and the bars indicate standard deviations. Two-tailed Student’s t-tests were performed to determine the significance of the mRNA expression changes by the stimuli (* p < 0.05; ** p < 0.01; *** p < 0.001).

Click here to enlarge figure

Figure S2. Short- and long-term effects of HDAC inhibition on G0S2, CDKN1A and MYC expression. qPCR was performed to determine the relative changes of mRNA expression of the genes G0S2, CDKN1A and MYC normalized by the three reference genes B2M, GAPDH and HPRT1 in undifferentiated THP-1 cells in response to incubation with 1,25(OH)2D3 (1,25D), TsA, SAHA and VPA, alone or in combination, for 2.5 and 24 h. The columns represent the means of three independent experiments and the bars indicate standard deviations. Two-tailed Student’s t-tests were performed to determine the significance of the mRNA expression changes by the stimuli (* p < 0.05; ** p < 0.01; *** p < 0.001).
Cancers 05 01221 g005 1024
Cancers 05 01221 g006 200

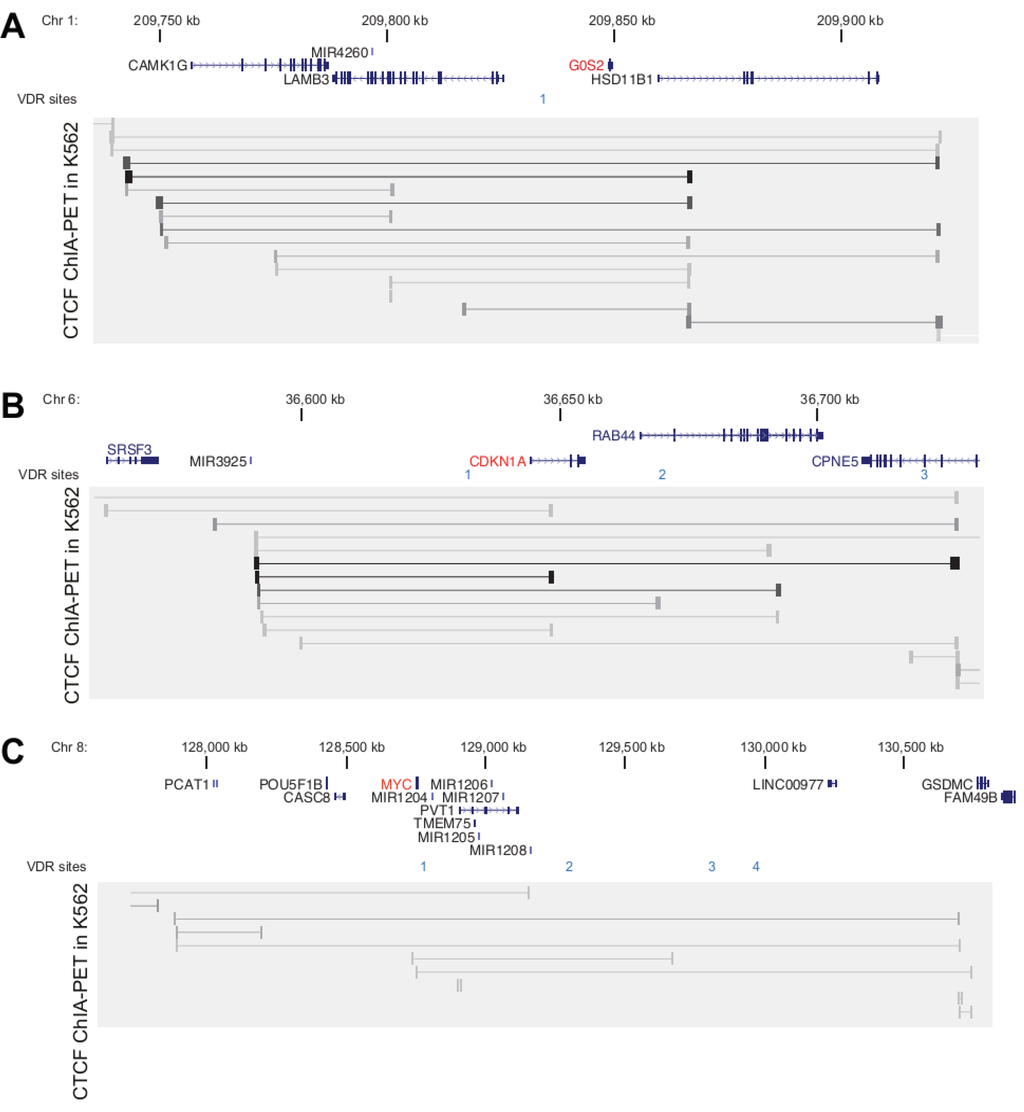

Figure S3. Looping between CTCF sites at the loci of G0S2 (A), CDKN1A (B) and MYC (C). The UCSC genome browser (http://genome.ucsc.edu) was used to display CTCF ChIA-PET data from K562 cells [32] for the same genomic region as shown in Figure 2. Horizontal lines represent chromosomal domains formed by DNA looping between CTCF sites. The positions of the VDR peaks are indicated by numbers and the gene structures are shown in blue.

Click here to enlarge figure

Figure S3. Looping between CTCF sites at the loci of G0S2 (A), CDKN1A (B) and MYC (C). The UCSC genome browser (http://genome.ucsc.edu) was used to display CTCF ChIA-PET data from K562 cells [32] for the same genomic region as shown in Figure 2. Horizontal lines represent chromosomal domains formed by DNA looping between CTCF sites. The positions of the VDR peaks are indicated by numbers and the gene structures are shown in blue.
Cancers 05 01221 g006 1024
Cancers 05 01221 g007 200

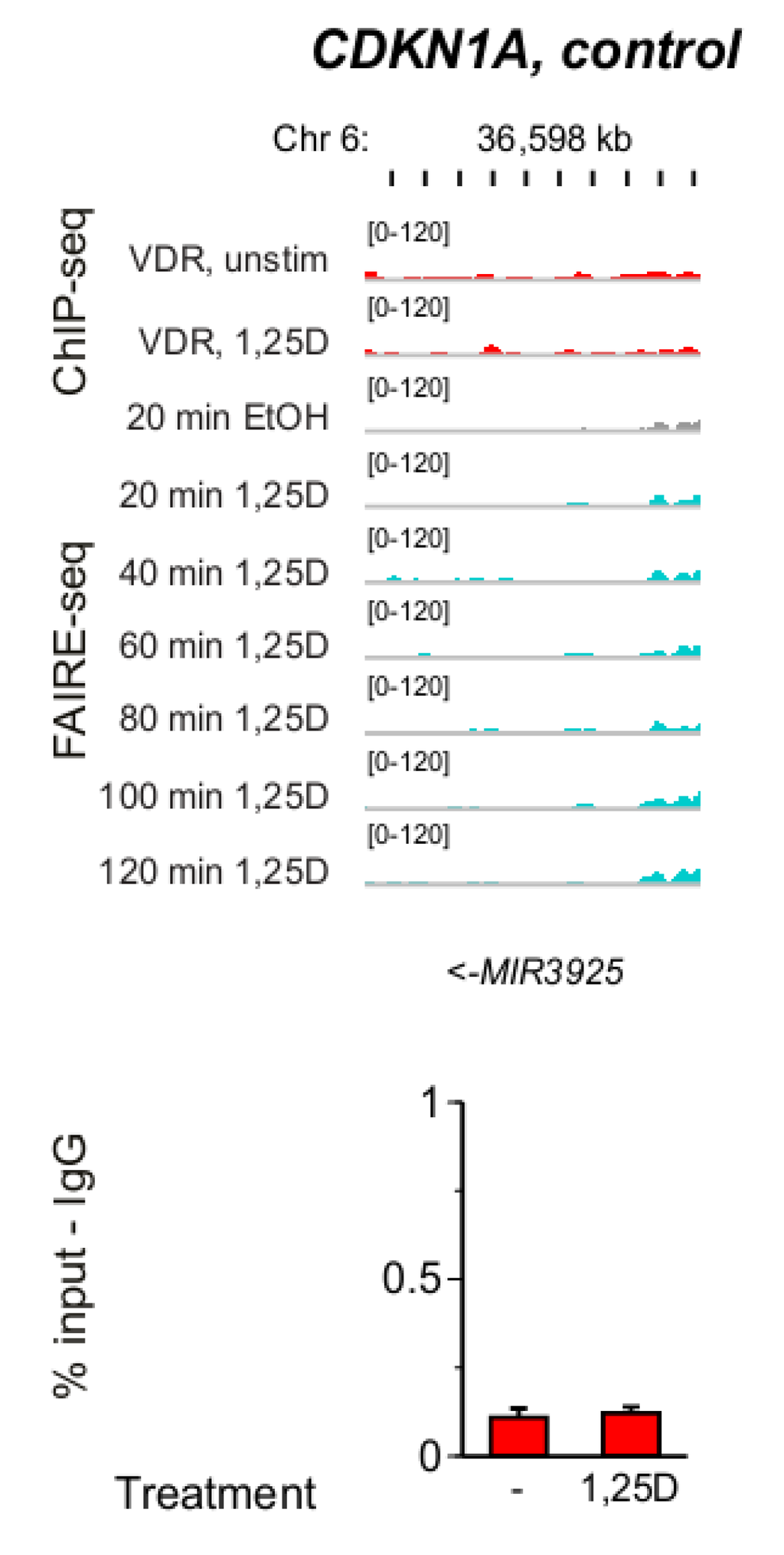

Figure S4. ChIP-qPCR control region. Same setup as in Figure 3 for the control region of the CDKN1A locus was applied.

Click here to enlarge figure

Figure S4. ChIP-qPCR control region. Same setup as in Figure 3 for the control region of the CDKN1A locus was applied.
Cancers 05 01221 g007 1024
