Open AccessArticle
Micromachines 2018, 9(8), 413; https://doi.org/10.3390/mi9080413

Wide Acoustic Bandgap Solid Disk-Shaped Phononic Crystal Anchoring Boundaries for Enhancing Quality Factor in AlN-on-Si MEMS Resonators

1
Department of Electronic Engineering, City University of Hong Kong, Kowloon, Hong Kong, China
2
State Key Laboratory of Millimeter Waves, City University of Hong Kong, Kowloon, Hong Kong, China
*
Author to whom correspondence should be addressed.
Received: 25 May 2018 / Revised: 8 August 2018 / Accepted: 14 August 2018 / Published: 18 August 2018
(This article belongs to the Special Issue Micro-Resonators: The Quest for Superior Performance)
Full-Text   |   PDF [16325 KB, uploaded 19 August 2018]   |

Abstract

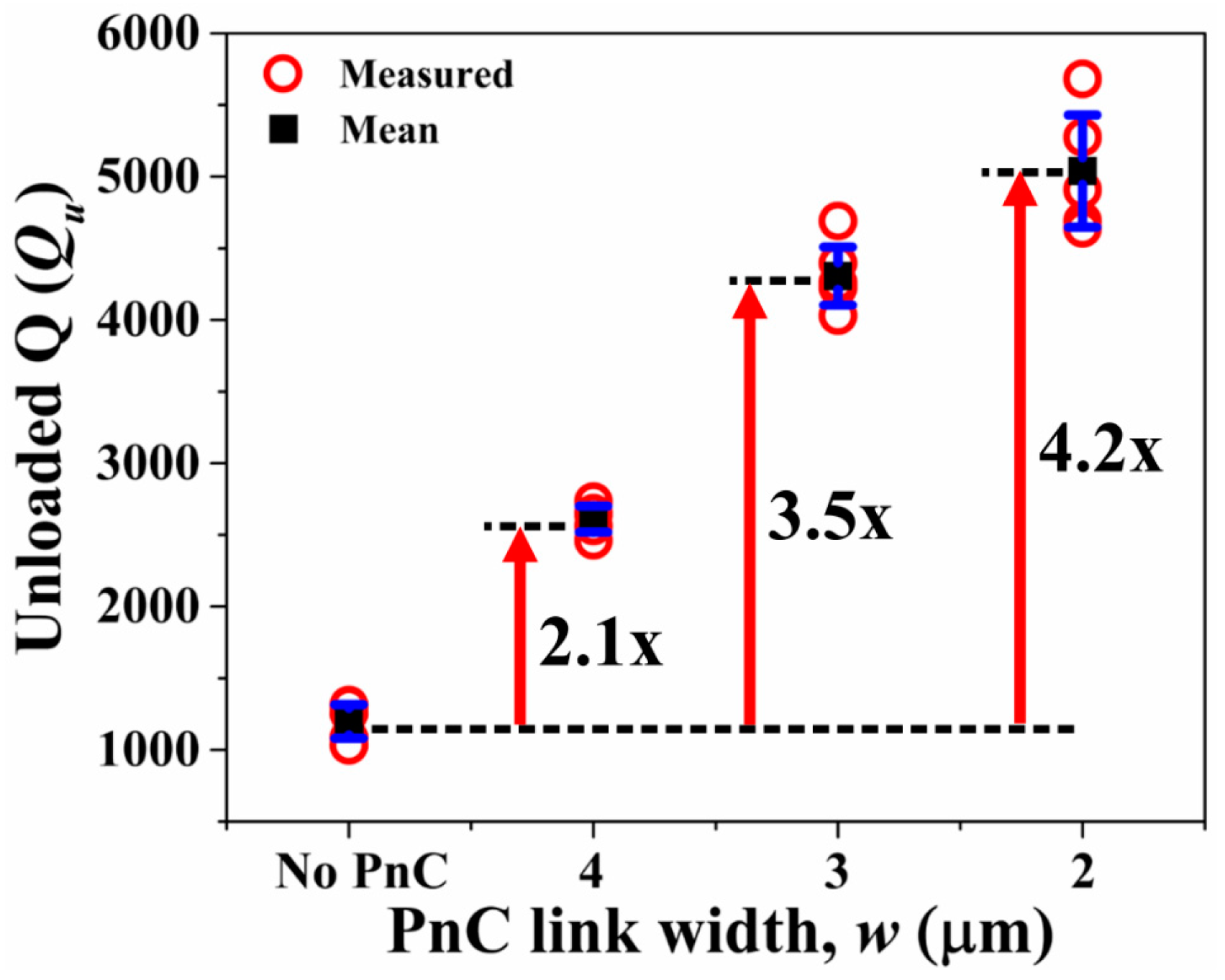

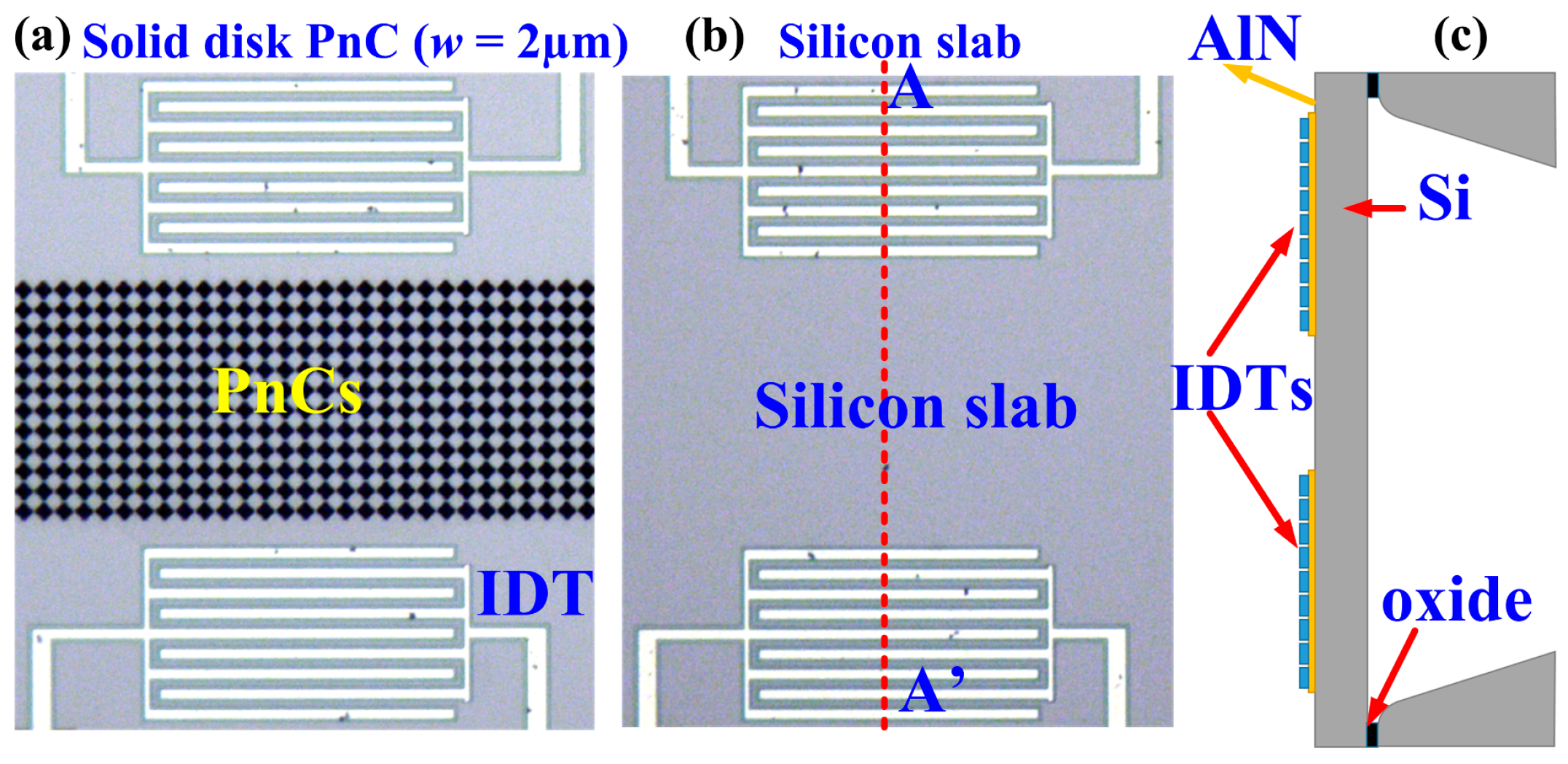

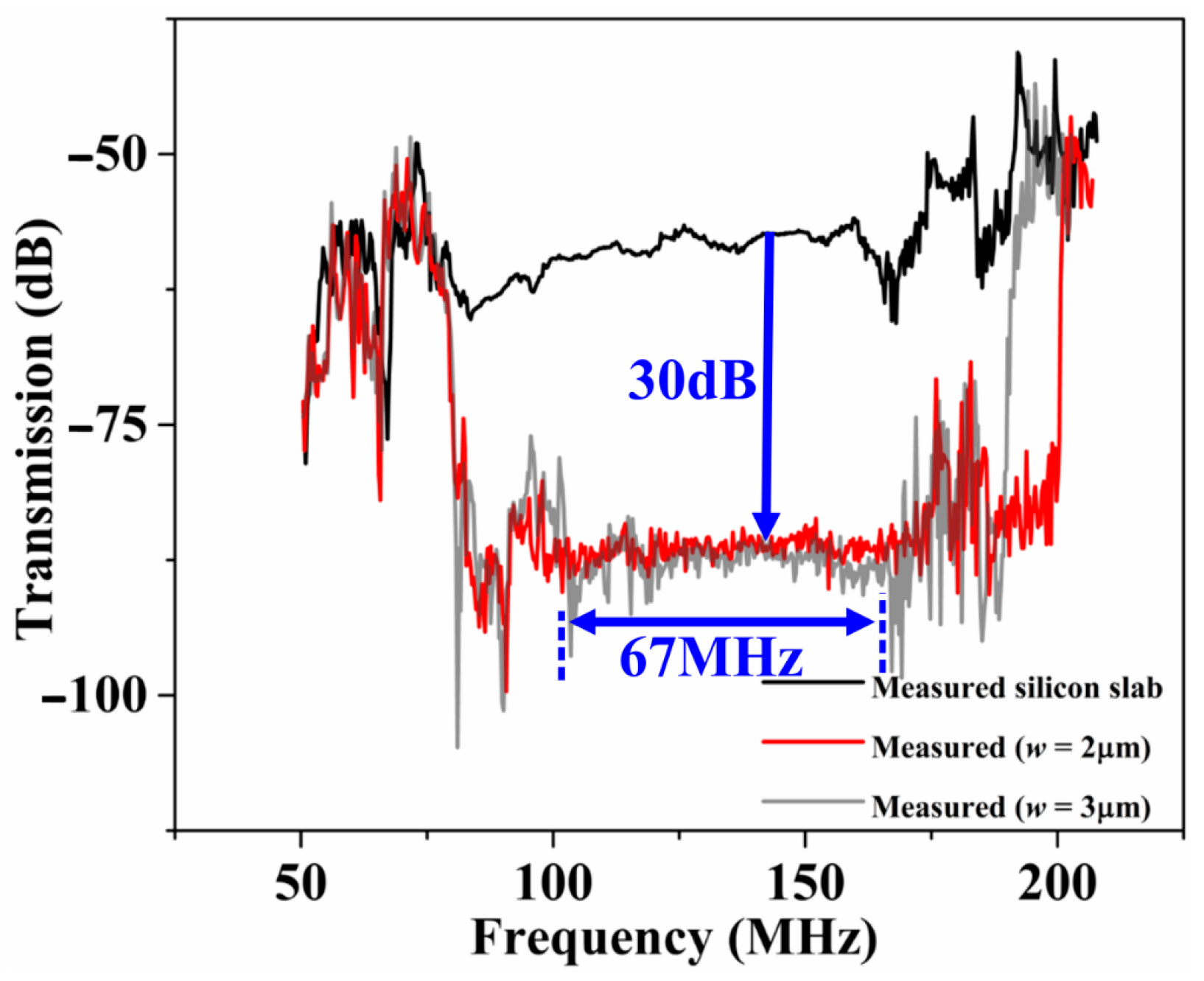

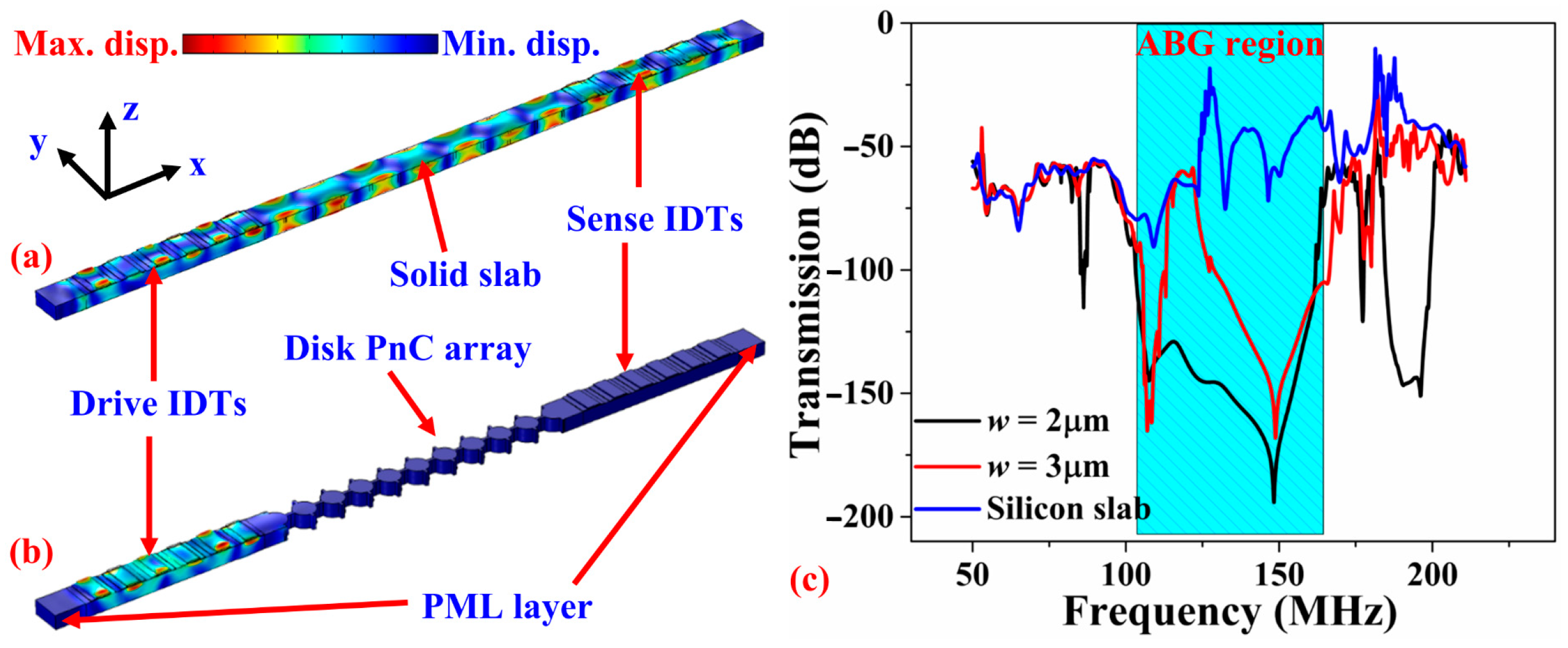

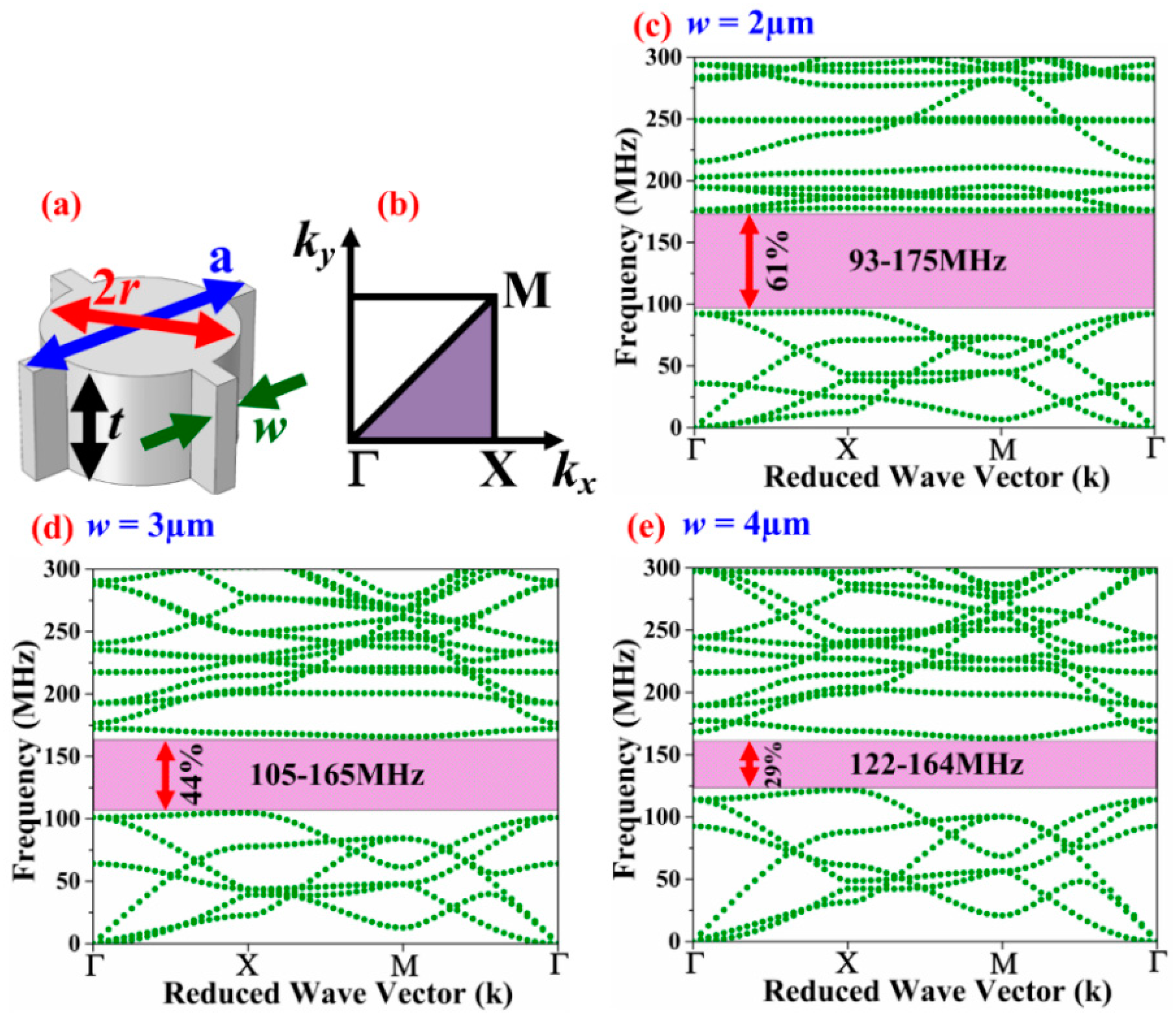

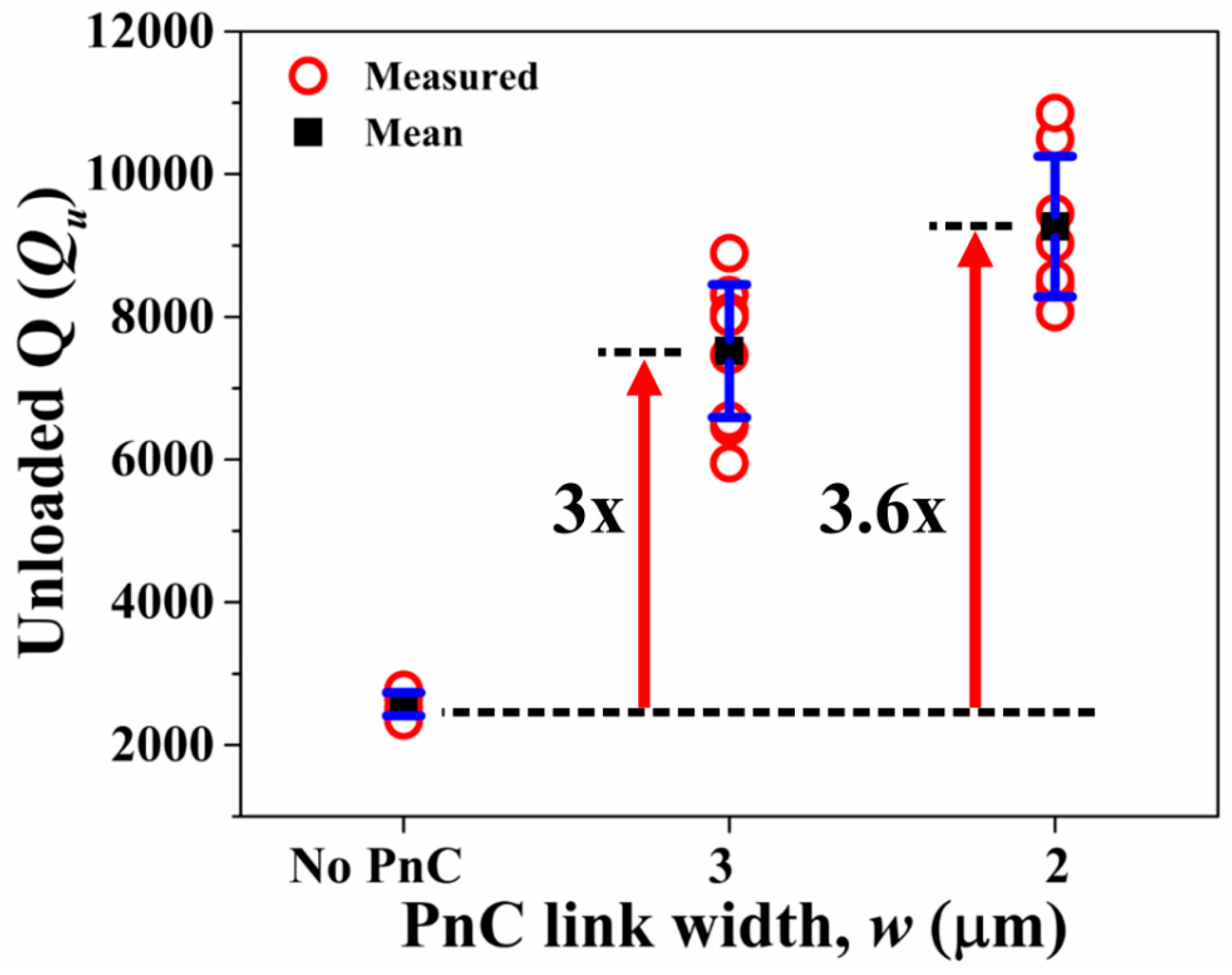

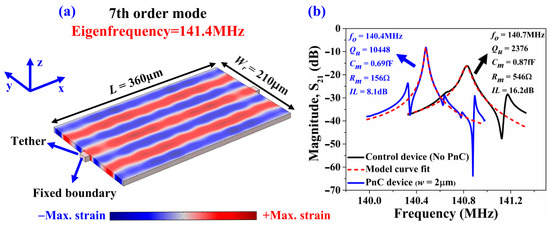

This paper demonstrates the four fold enhancement in quality factor (Q) of a very high frequency (VHF) band piezoelectric Aluminum Nitride (AlN) on Silicon (Si) Lamb mode resonator by applying a unique wide acoustic bandgap (ABG) phononic crystal (PnC) at the anchoring boundaries of the resonator. The PnC unit cell topology, based on a solid disk, is characterized by a wide ABG of 120 MHz around a center frequency of 144.7 MHz from the experiments. The resulting wide ABG described in this work allows for greater enhancement in Q compared to previously reported PnC cell topologies characterized by narrower ABGs. The effect of geometrical variations to the proposed PnC cells on their corresponding ABGs are described through simulations and validated by transmission measurements of fabricated delay lines that incorporate these solid disk PnCs. Experiments demonstrate that widening the ABG associated with the PnC described herein provides for higher Q. View Full-Text
Keywords: microelectromechanical systems (MEMS); AlN-on-Si resonators; phononic crystal; anchor loss; quality factor; acoustic bandgap microelectromechanical systems (MEMS); AlN-on-Si resonators; phononic crystal; anchor loss; quality factor; acoustic bandgap

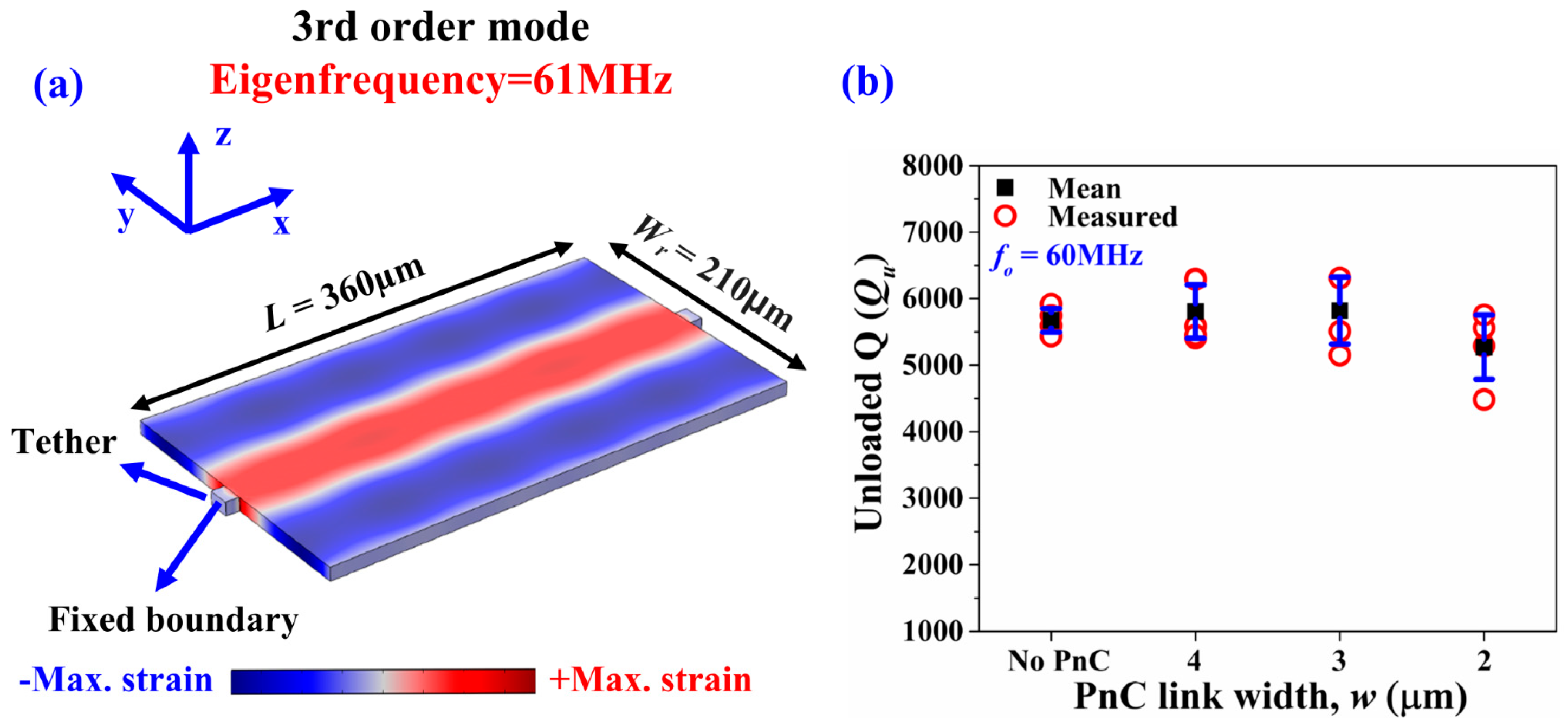

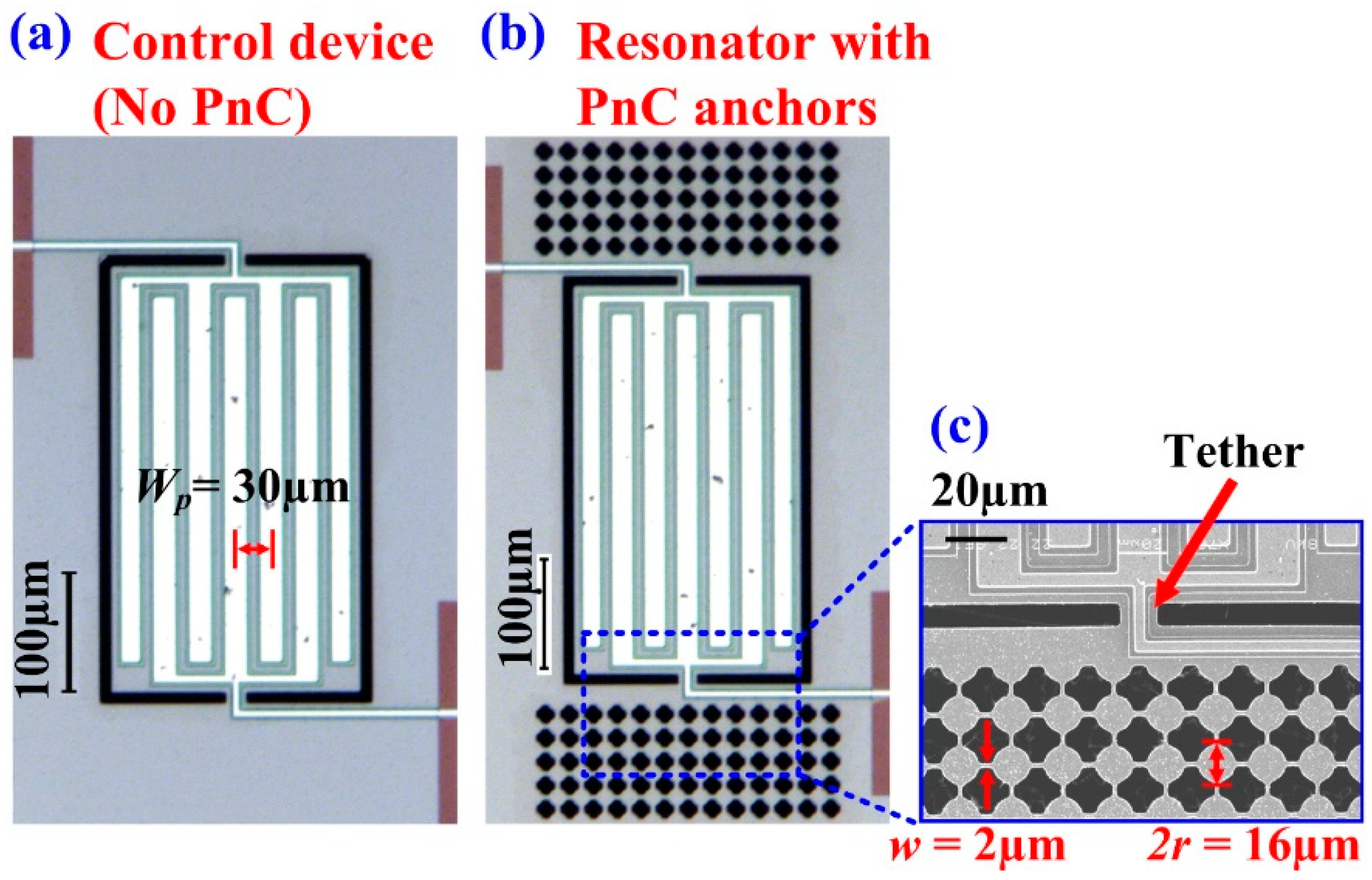

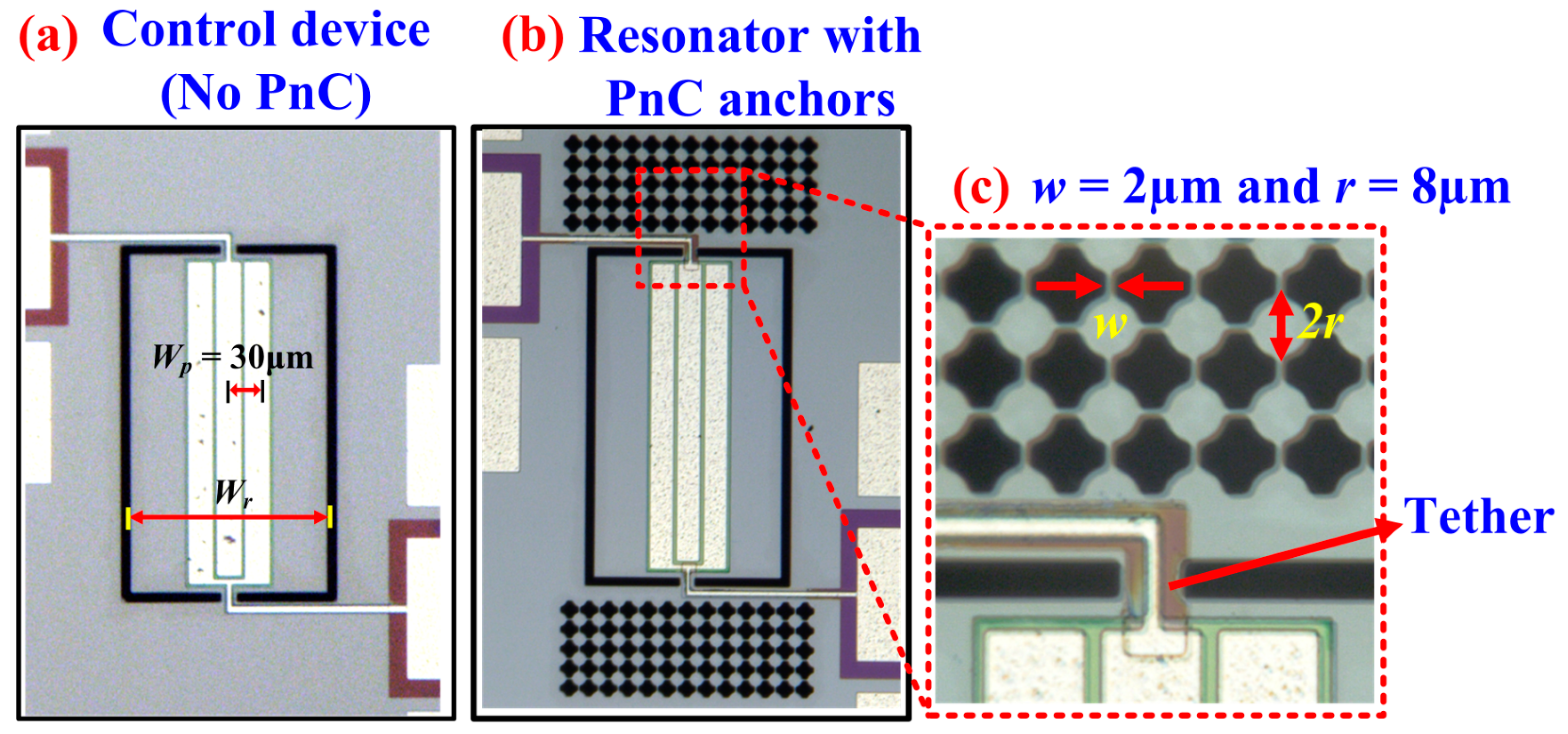

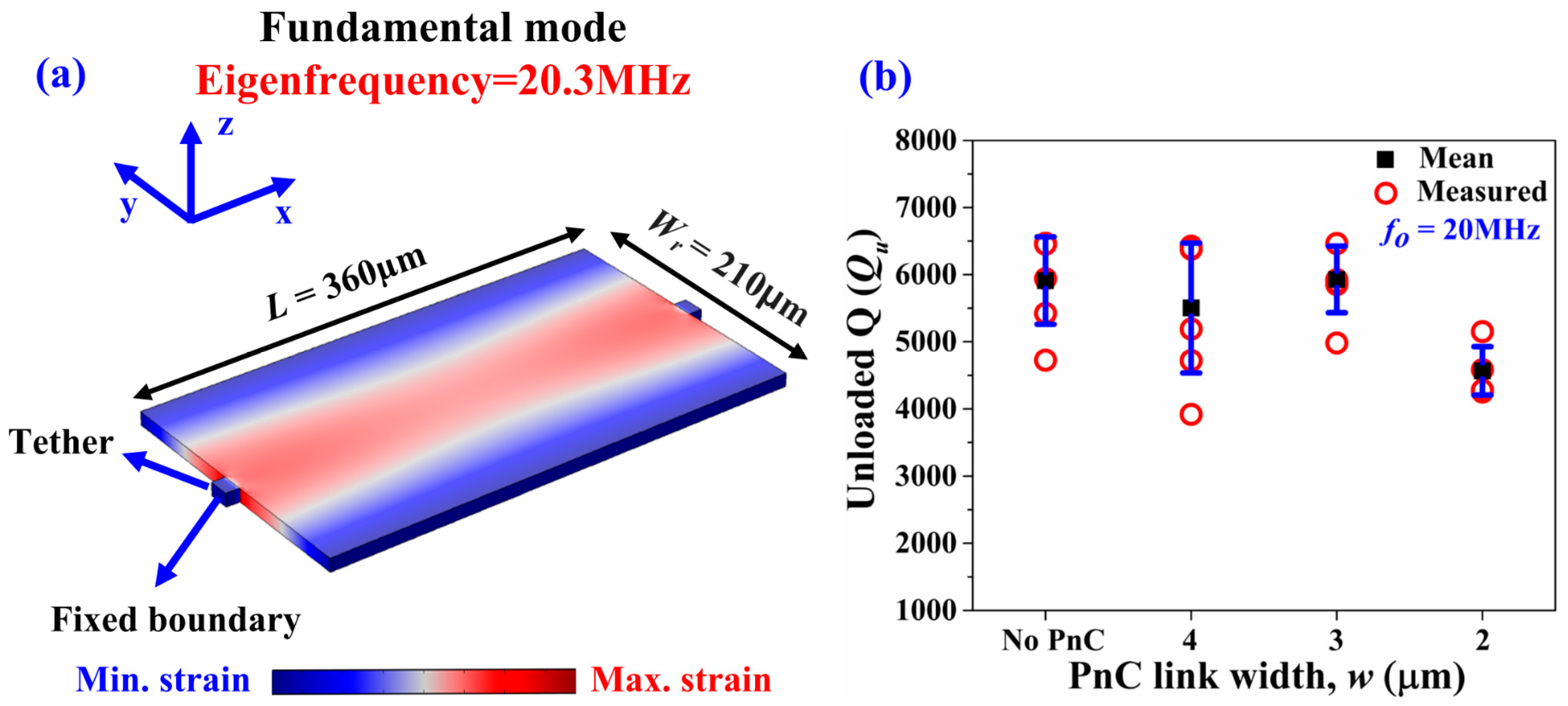

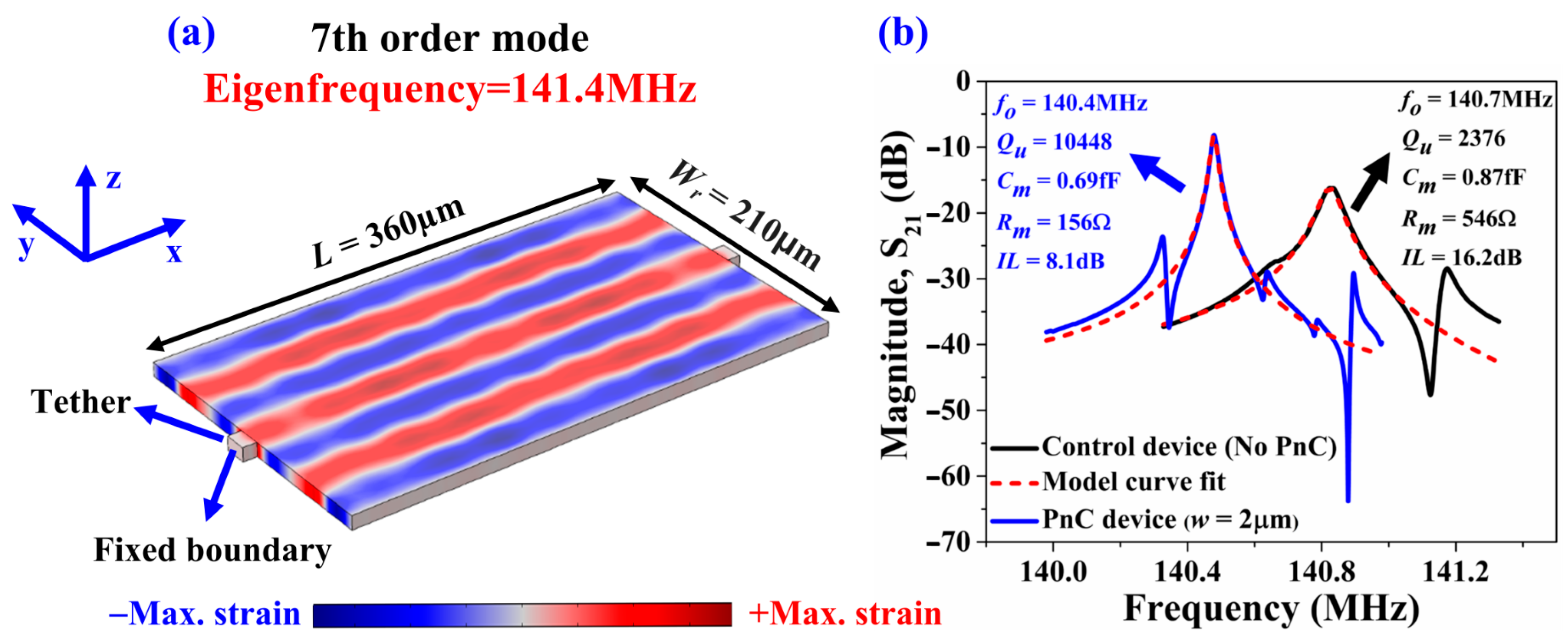

Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Siddiqi, M.W.U.; Lee, J. .-Y. Wide Acoustic Bandgap Solid Disk-Shaped Phononic Crystal Anchoring Boundaries for Enhancing Quality Factor in AlN-on-Si MEMS Resonators. Micromachines 2018, 9, 413.
