Micromachines 2018, 9(1), 29; https://doi.org/10.3390/mi9010029

3D Multi-Microchannel Helical Mixer Fabricated by Femtosecond Laser inside Fused Silica

1,2
,
1,2,* , 2,3
,
2,3
and
1
1
State Key Laboratory for Manufacturing System Engineering and Key Laboratory of Photonics Technology for Information of Shanxi Province, School of Electronics & Information Engineering, Xi’an Jiaotong University, Xi’an 710049, China
2
The International Joint Research Center for Micro/Nano Manufacturing and Measurement Technologies, Xi’an Jiaotong University, Xi’an 710049, China
3
School of Mechanical Engineering, Xi’an Jiaotong University, Xi’an 710049, China
*
Author to whom correspondence should be addressed.
Received: 22 November 2017 / Revised: 8 January 2018 / Accepted: 12 January 2018 / Published: 16 January 2018
(This article belongs to the Special Issue Passive Micromixers)
View Full-Text   |   Download PDF [2063 KB, uploaded 16 January 2018]   |

Abstract

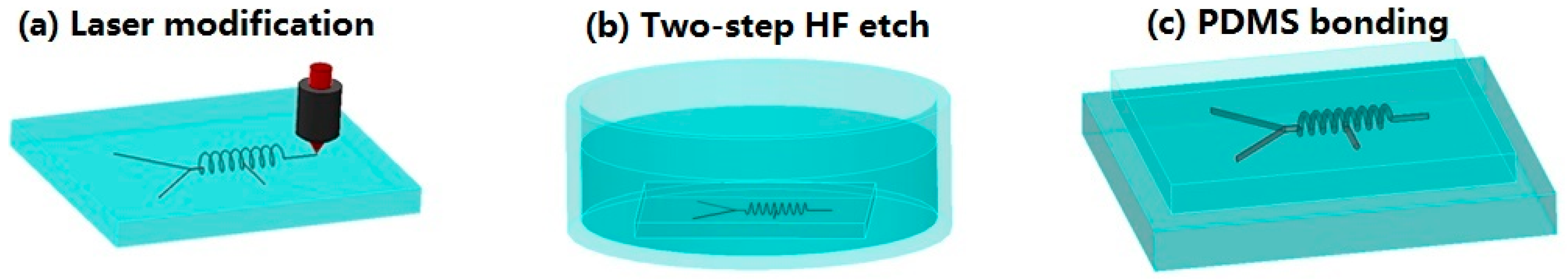

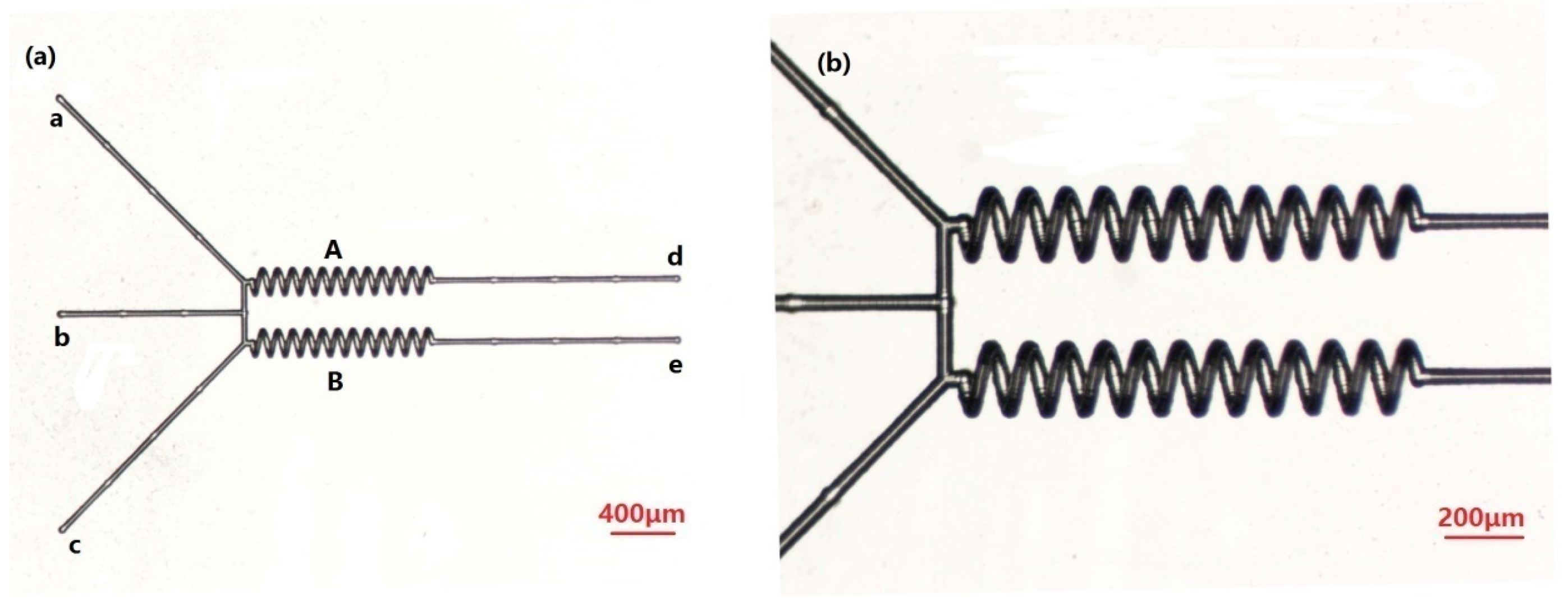

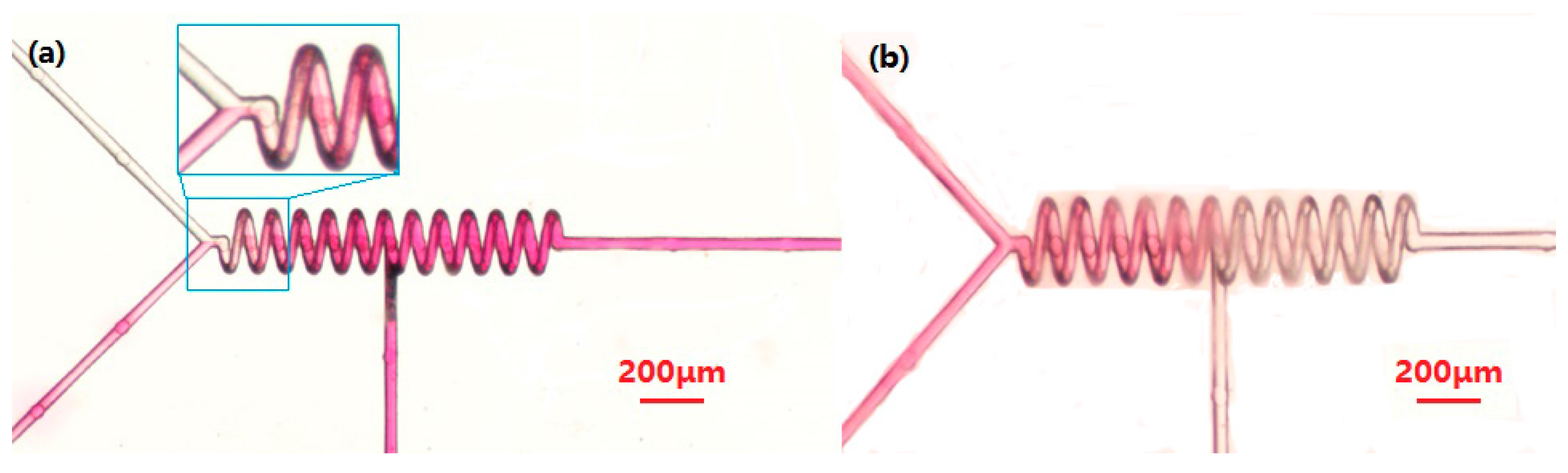

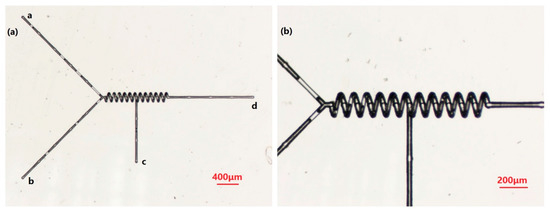

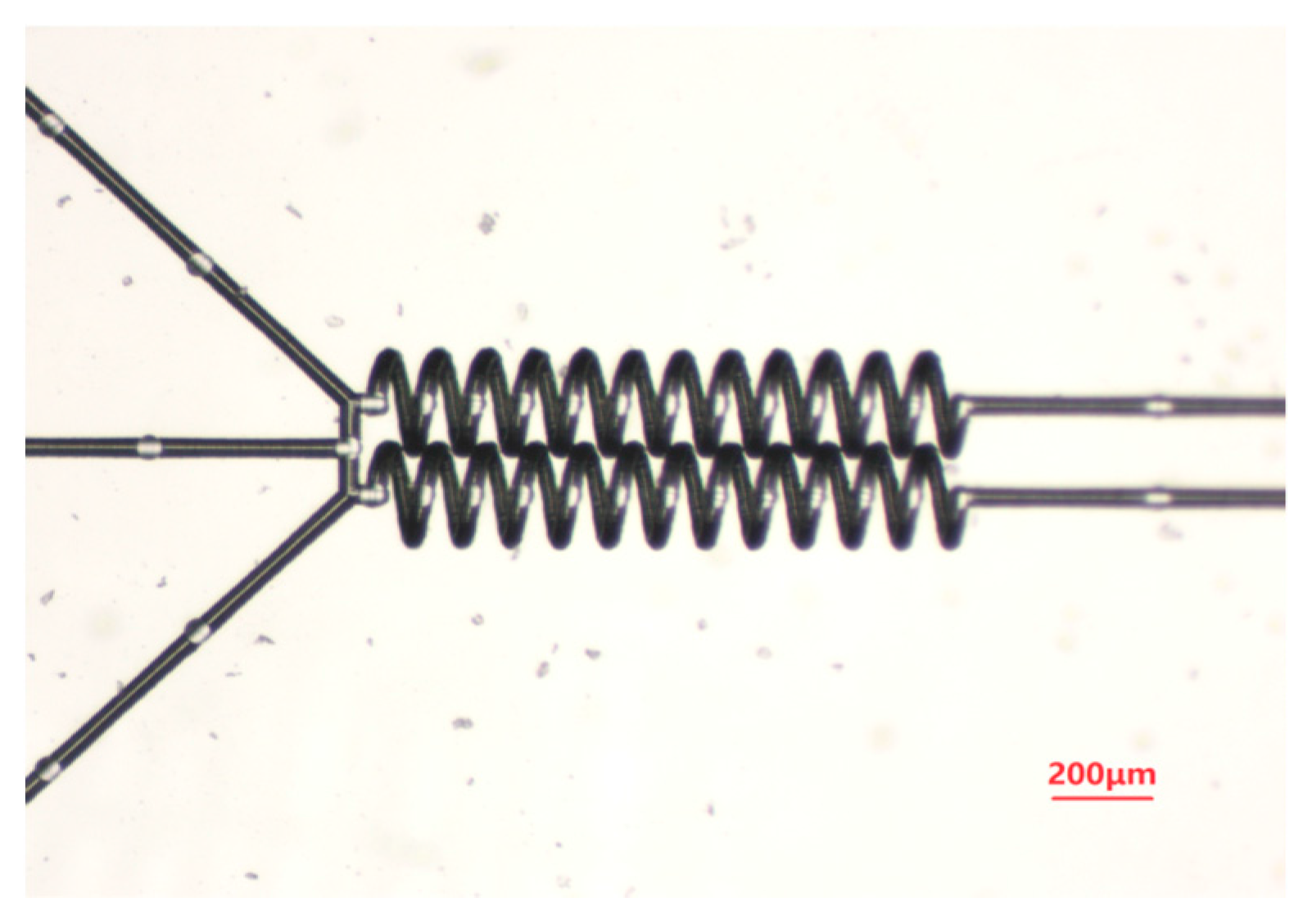

Three-dimensional (3D) multi-microchannel mixers can meet the requirements of different combinations according to actual needs. Rapid and simple creation of 3D multi-microchannel mixers in a “lab-on-a-chip” platform is a significant challenge in micromachining. In order to realize the complex mixing functions of microfluidic chips, we fabricated two kinds of complex structure micromixers for multiple substance mixes simultaneously, separately, and in proper order. The 3D multi-microchannel mixers are fabricated by femtosecond laser wet etch technology inside fused silica. The 3D multi-microchannel helical mixers have desirable uniformity and consistency, which will greatly expand their utility and scope of application. View Full-Text
Keywords: passive micromixer; femtosecond laser; microstructure fabrication passive micromixer; femtosecond laser; microstructure fabrication
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Shan, C.; Chen, F.; Yang, Q.; Jiang, Z.; Hou, X. 3D Multi-Microchannel Helical Mixer Fabricated by Femtosecond Laser inside Fused Silica. Micromachines 2018, 9, 29.
