Open AccessCommunication
Micromachines 2016, 7(3), 41; doi:10.3390/mi7030041

Capillary Self-Alignment of Microchips on Soft Substrates

1
Department of Engineering Sciences, Uppsala University, SE-75121 Uppsala, Sweden
2
Department of Applied Physics, School of Science, Aalto University, FI-00076 Aalto, Finland
3
Department of Electrical Engineering and Automation, Aalto University, FI-00076 Aalto, Finland
4
State Key Laboratory of Digital Manufacturing Equipment and Technology, Huazhong University of Science and Technology, Wuhan 430074, China
*
Author to whom correspondence should be addressed.
Academic Editor: Massimo Mastrangeli
Received: 8 January 2016 / Revised: 8 February 2016 / Accepted: 2 March 2016 / Published: 4 March 2016
(This article belongs to the Special Issue Building by Self-Assembly)
View Full-Text   |   Download PDF [3064 KB, uploaded 4 March 2016]   |

Abstract

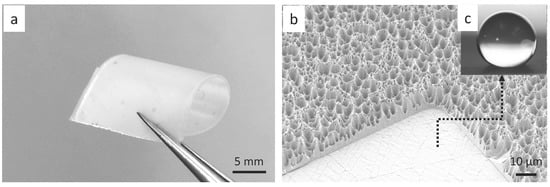

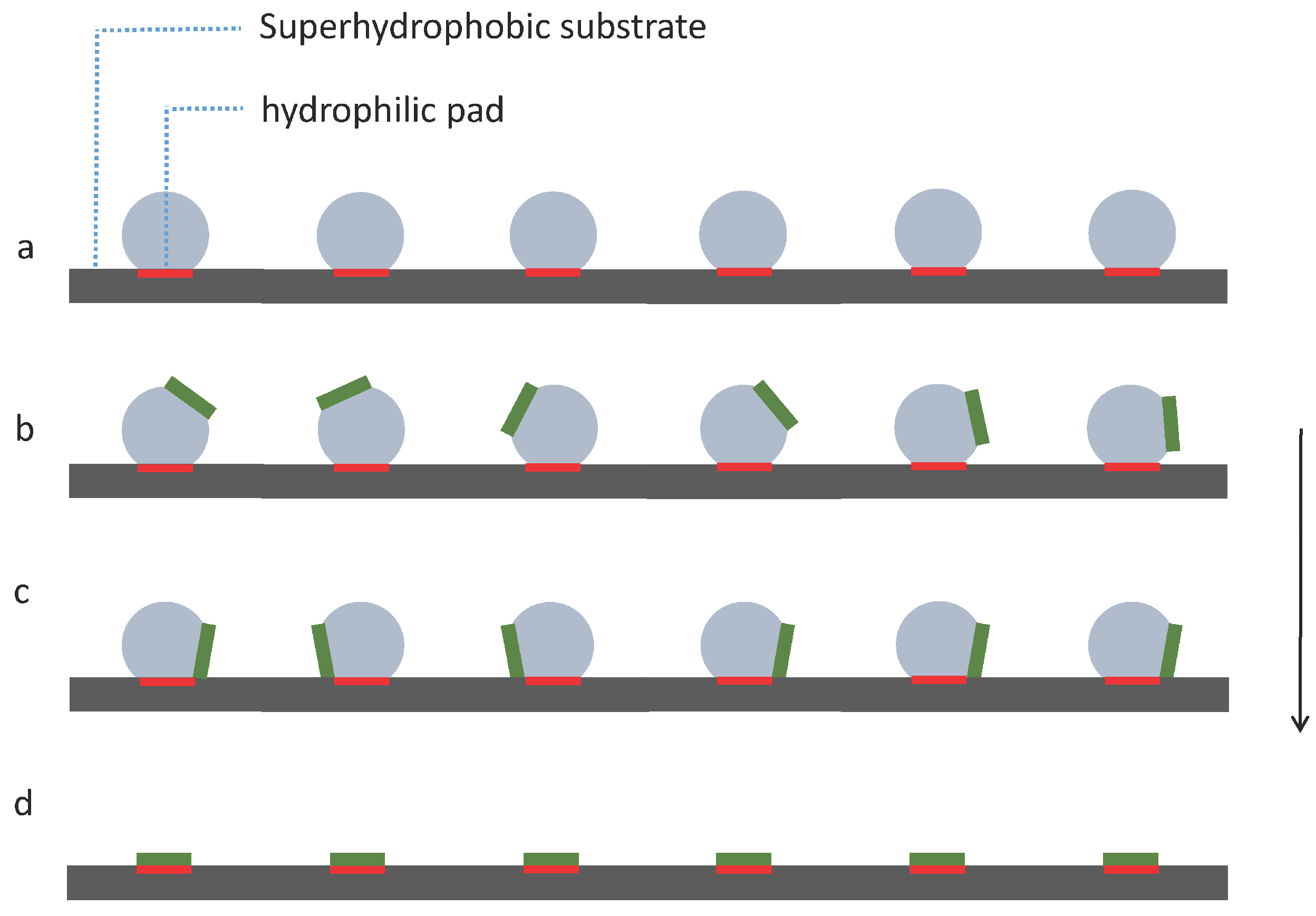

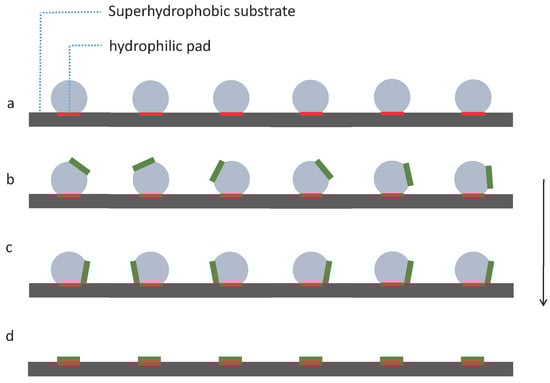

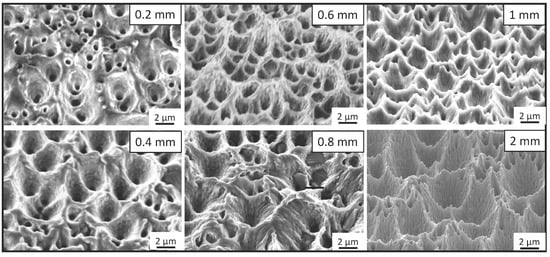

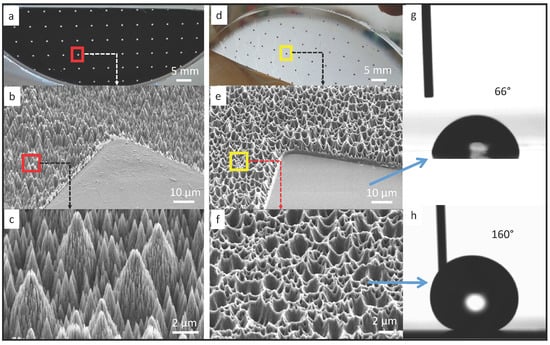

Soft micro devices and stretchable electronics have attracted great interest for their potential applications in sensory skins and wearable bio-integrated devices. One of the most important steps in building printed circuits is the alignment of assembled micro objects. Previously, the capillary self-alignment of microchips driven by surface tension effects has been shown to be able to achieve high-throughput and high-precision in the integration of micro parts on rigid hydrophilic/superhydrophobic patterned surfaces. In this paper, the self-alignment of microchips on a patterned soft and stretchable substrate, which consists of hydrophilic pads surrounded by a superhydrophobic polydimethylsiloxane (PDMS) background, is demonstrated for the first time. A simple process has been developed for making superhydrophobic soft surface by replicating nanostructures of black silicon onto a PDMS surface. Different kinds of PDMS have been investigated, and the parameters for fabricating superhydrophobic PDMS have been optimized. A self-alignment strategy has been proposed that can result in reliable self-alignment on a soft PDMS substrate. Our results show that capillary self-alignment has great potential for building soft printed circuits. View Full-Text
Keywords: capillary self-alignment; soft micro devices; stretchable electronics; superhydrophobic PDMS; hydrophilic/superhydrophobic patterned surfaces capillary self-alignment; soft micro devices; stretchable electronics; superhydrophobic PDMS; hydrophilic/superhydrophobic patterned surfaces
