Micromachines 2016, 7(3), 40; doi:10.3390/mi7030040

Fabrication and Measurement of a Suspended Nanochannel Microbridge Resonator Monolithically Integrated with CMOS Readout Circuitry

Department of Electronic Engineering, Universitat Autònoma de Barcelona (UAB), Cerdanyola del Vallès 08193, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Ching-Liang Dai
Received: 23 December 2015 / Revised: 23 February 2016 / Accepted: 25 February 2016 / Published: 2 March 2016
(This article belongs to the Special Issue CMOS-MEMS Sensors and Devices)
View Full-Text   |   Download PDF [5258 KB, uploaded 2 March 2016]   |

Abstract

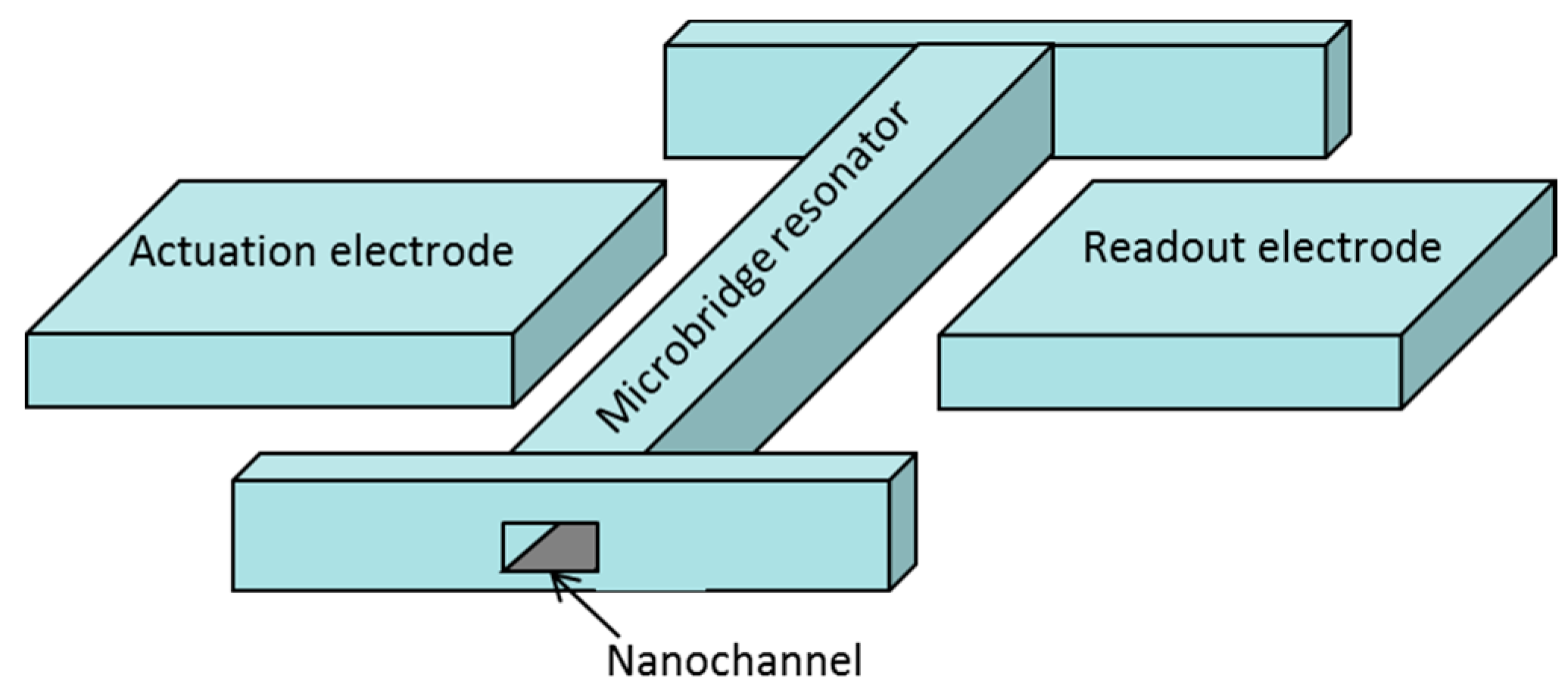

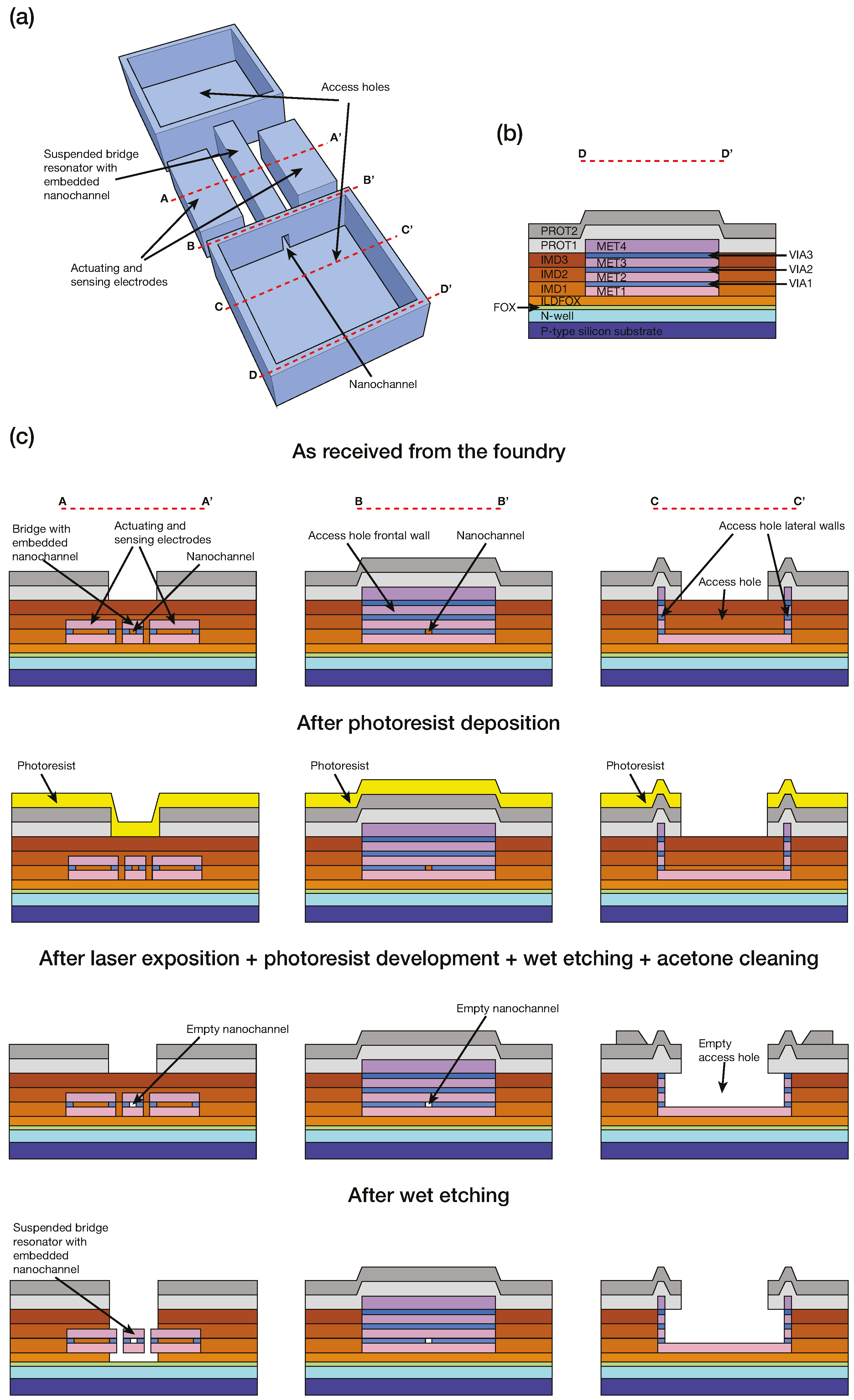

We present the fabrication and characterization of a suspended microbridge resonator with an embedded nanochannel. The suspended microbridge resonator is electrostatically actuated, capacitively sensed, and monolithically integrated with complementary metal-oxide-semiconductor (CMOS) readout circuitry. The device is fabricated using the back end of line (BEOL) layers of the AMS 0.35 μm commercial CMOS technology, interconnecting two metal layers with a contact layer. The fabricated device has a 6 fL capacity and has one of the smallest embedded channels so far. It is able to attain a mass sensitivity of 25 ag/Hz using a fully integrable electrical transduction. View Full-Text
Keywords: nanochannel; suspended channel; resonators; CMOS-NEMS; NEMS nanochannel; suspended channel; resonators; CMOS-NEMS; NEMS
